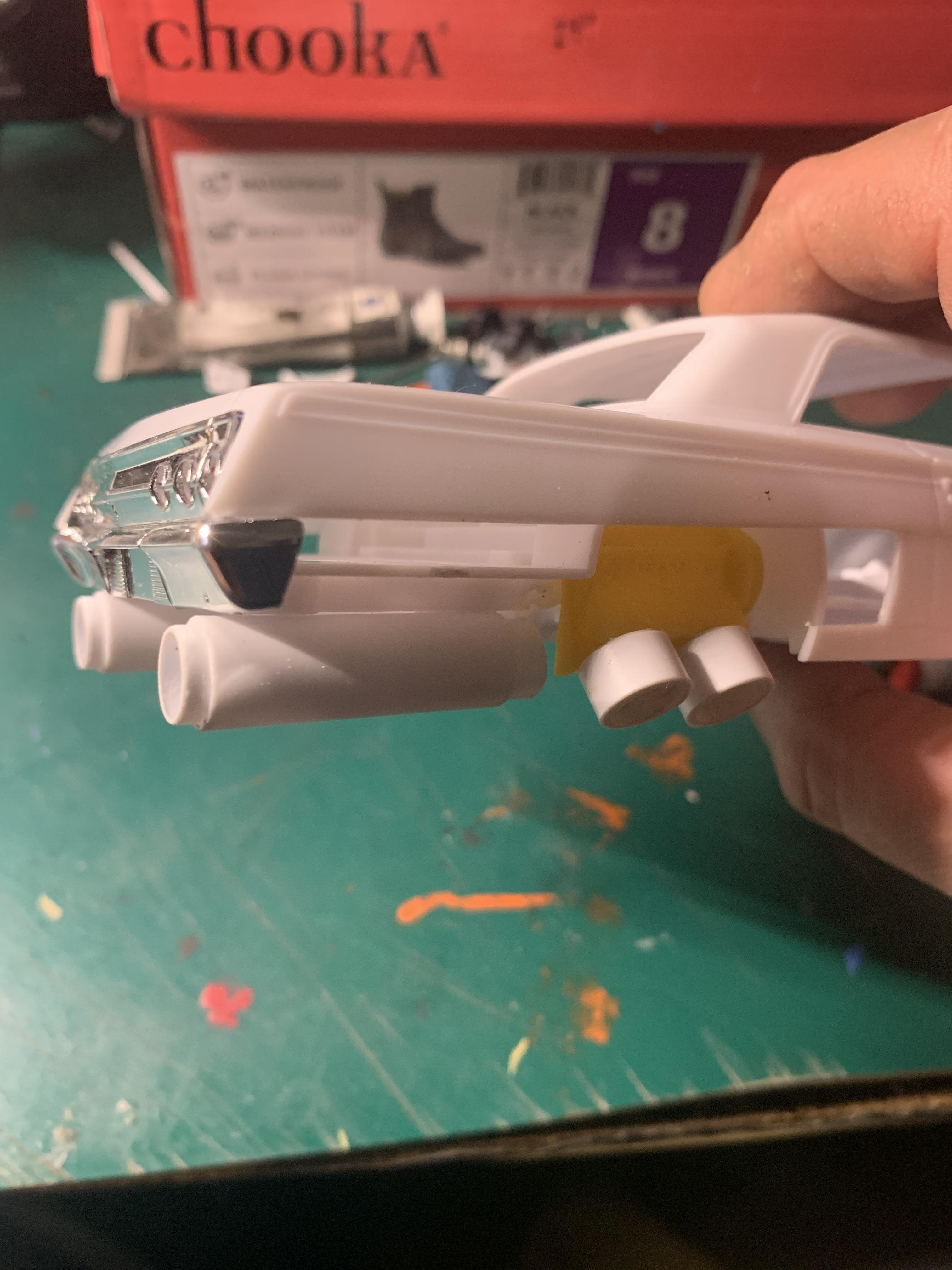

  • Are You Human?
    Yes
  • Scale I Build
    1:25

Profile Information

  • Location
    Kansas City Kansas
  • Full Name
    Dax D Wasser

Recent Profile Visitors

2,812 profile views

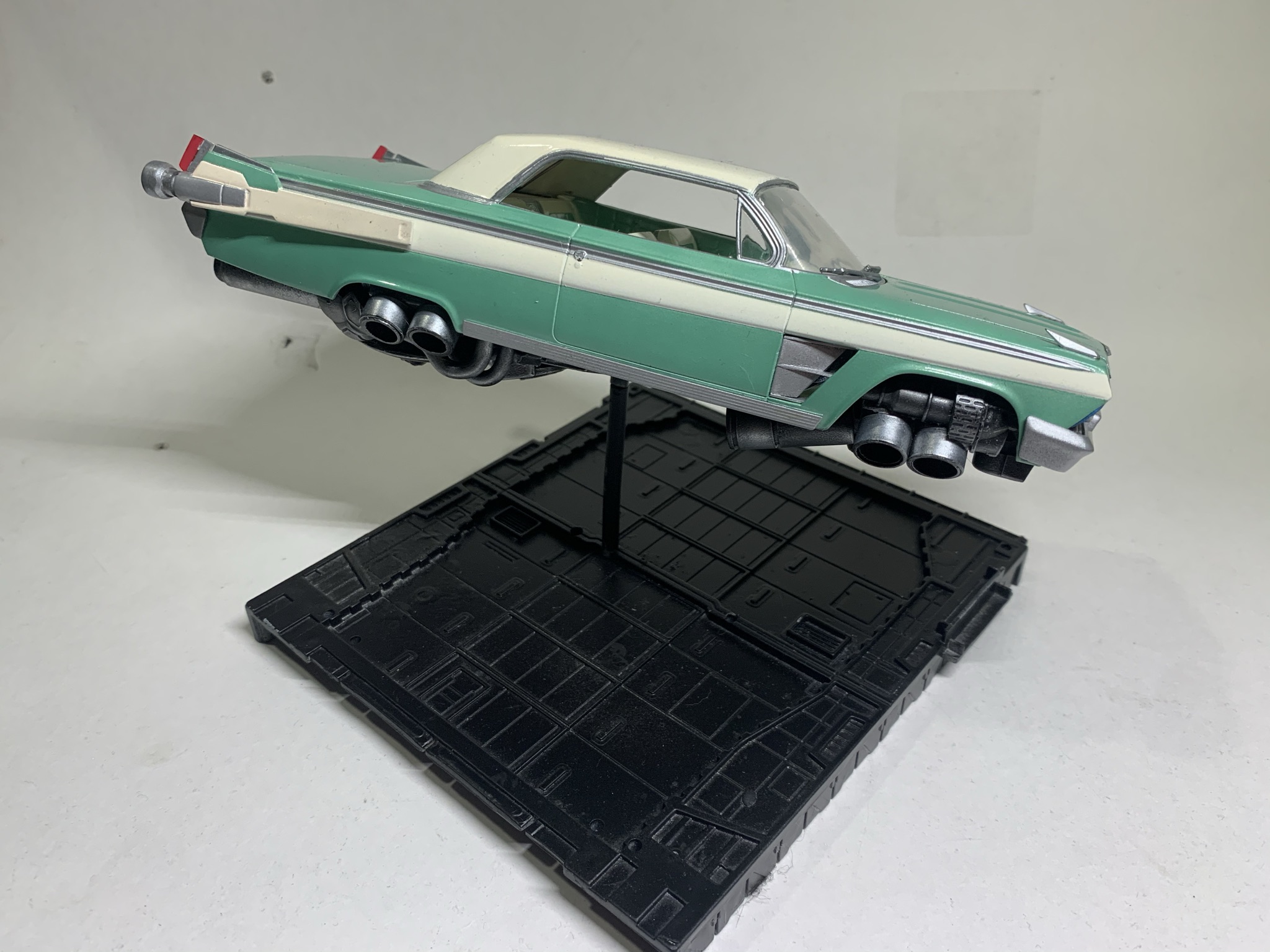

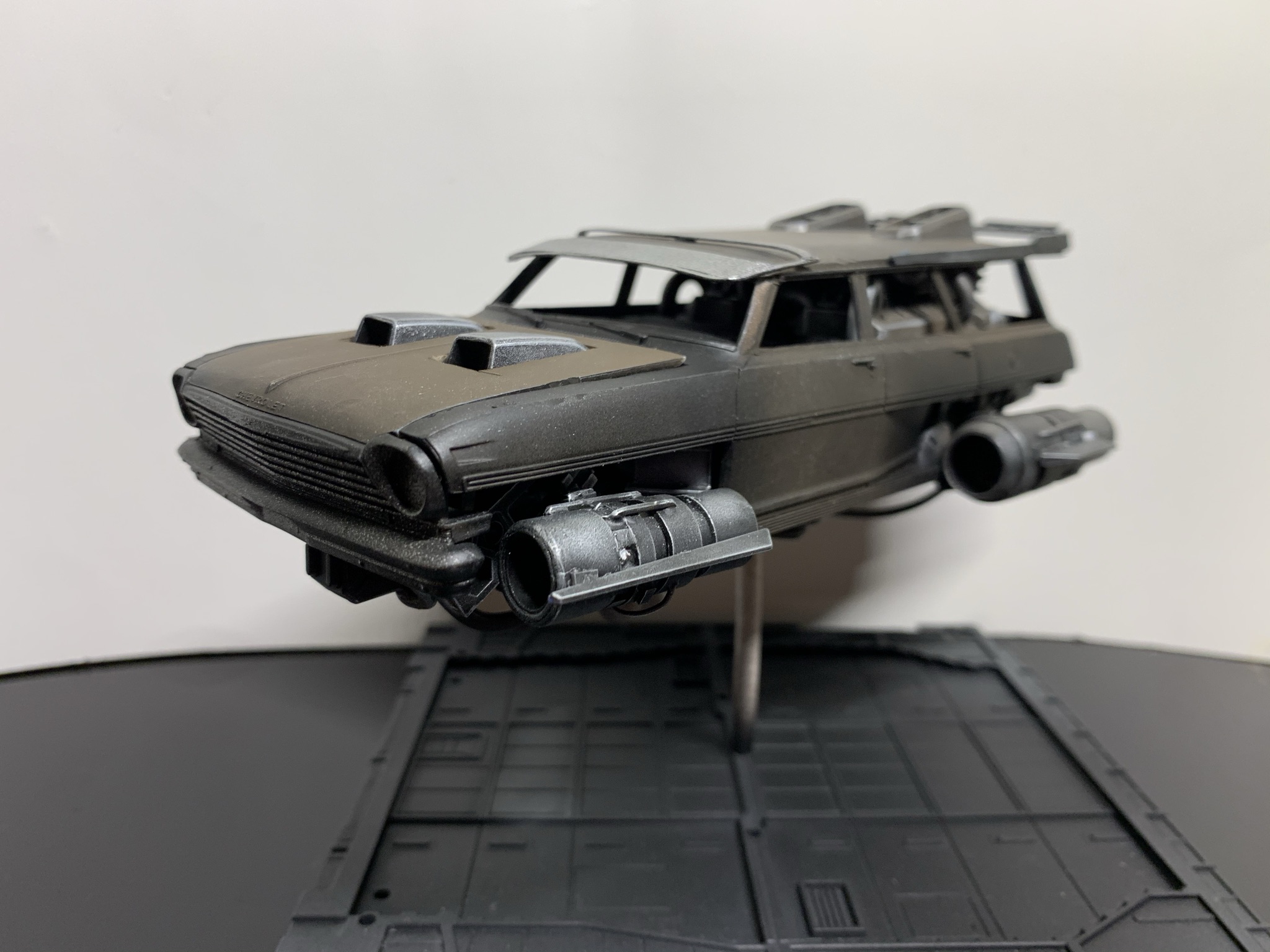

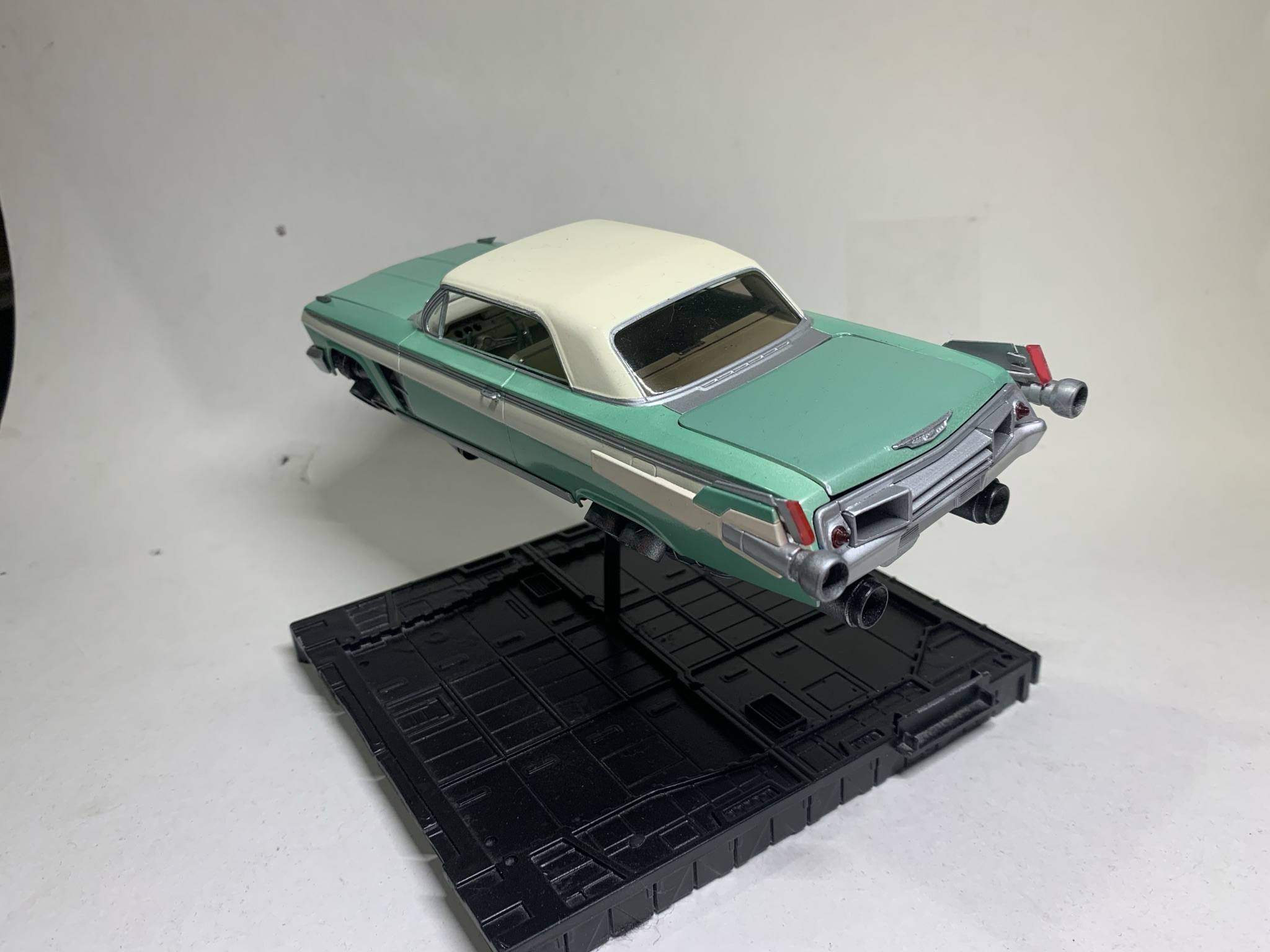

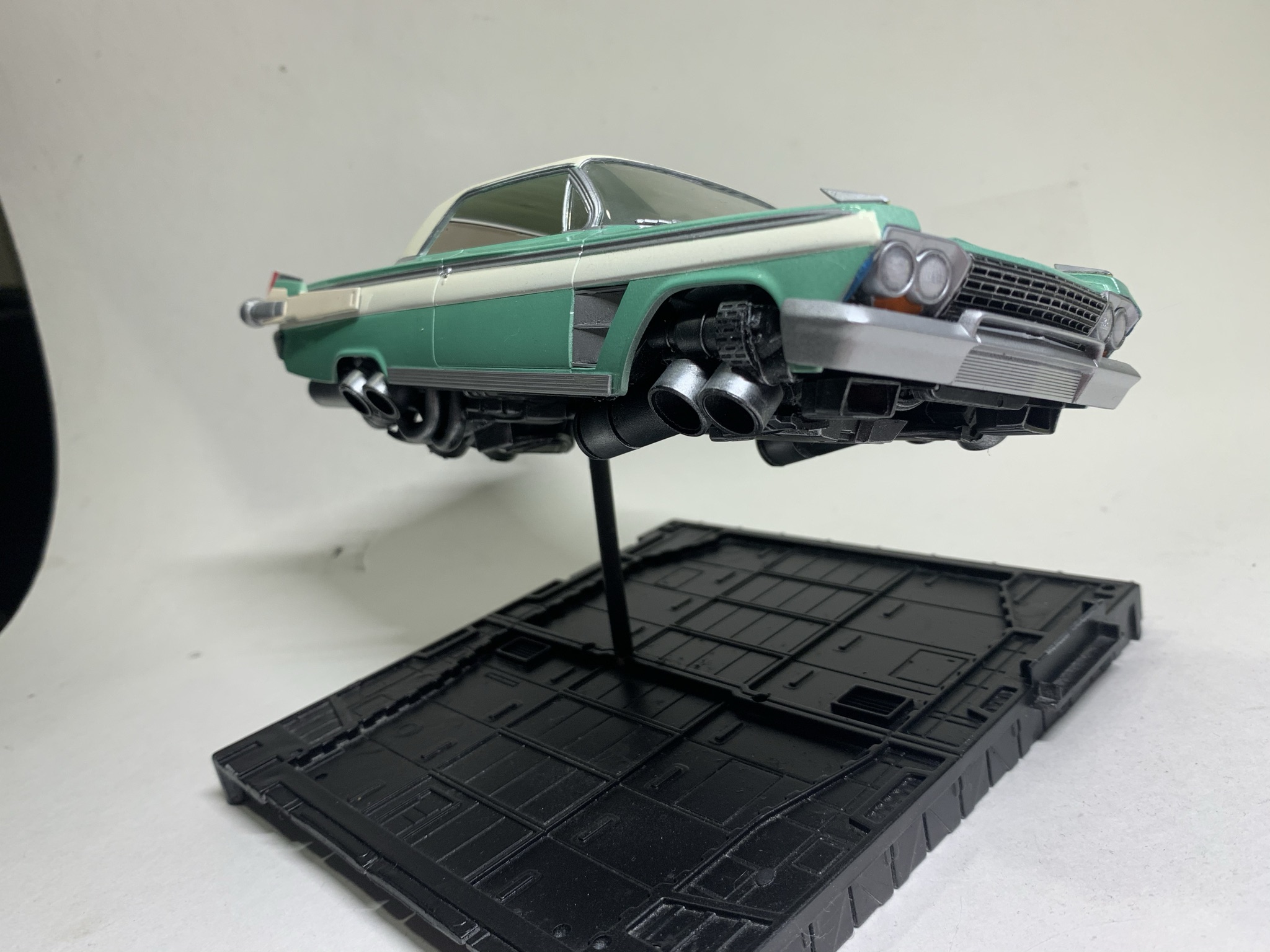

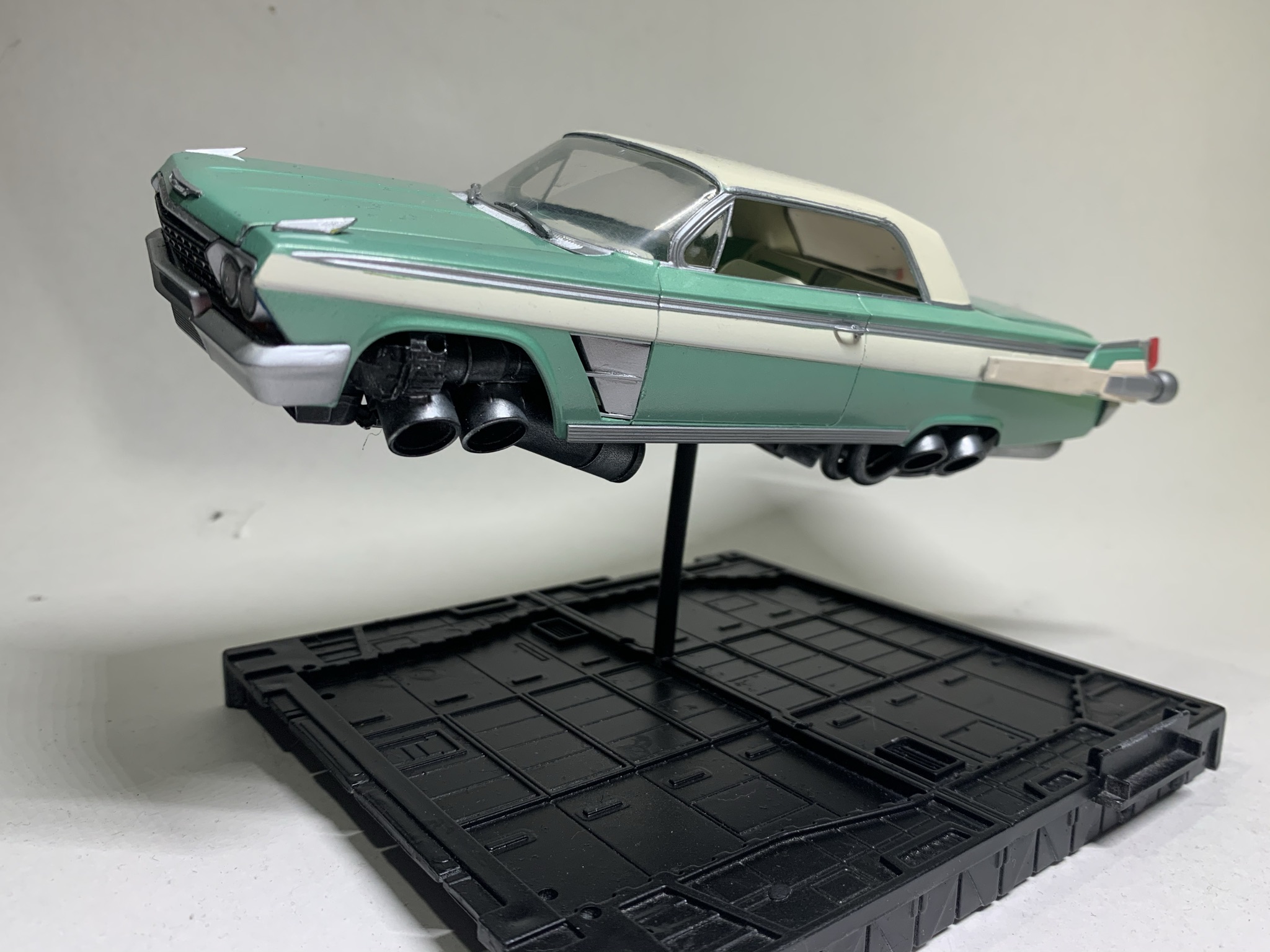

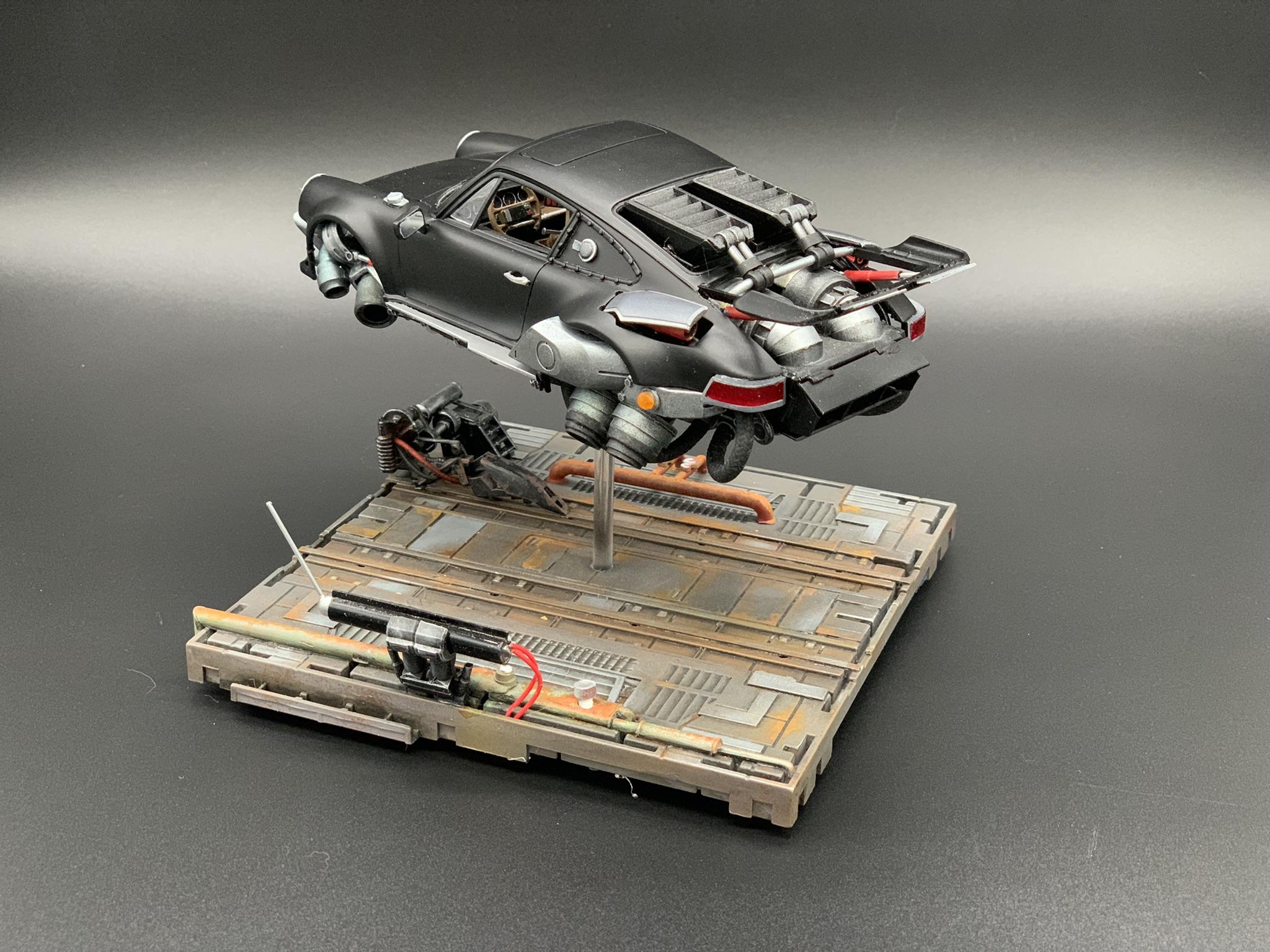

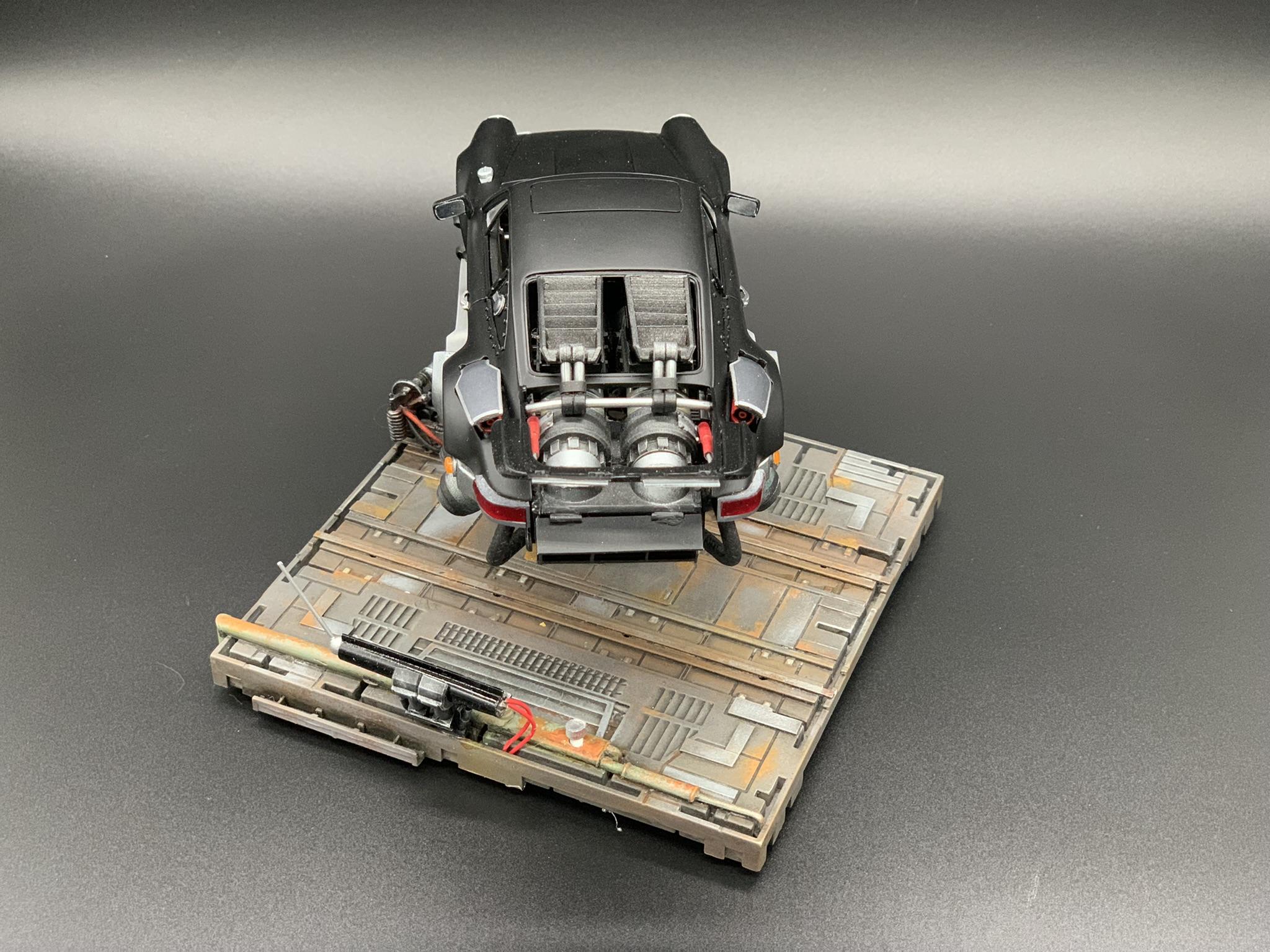

  1. The bases were given to me by my son. They're bases for standing Gundam figures on. If you look up MSG Chain Base, you should be able to find it. When you combine the price plus shipping, they get fairly expensive.

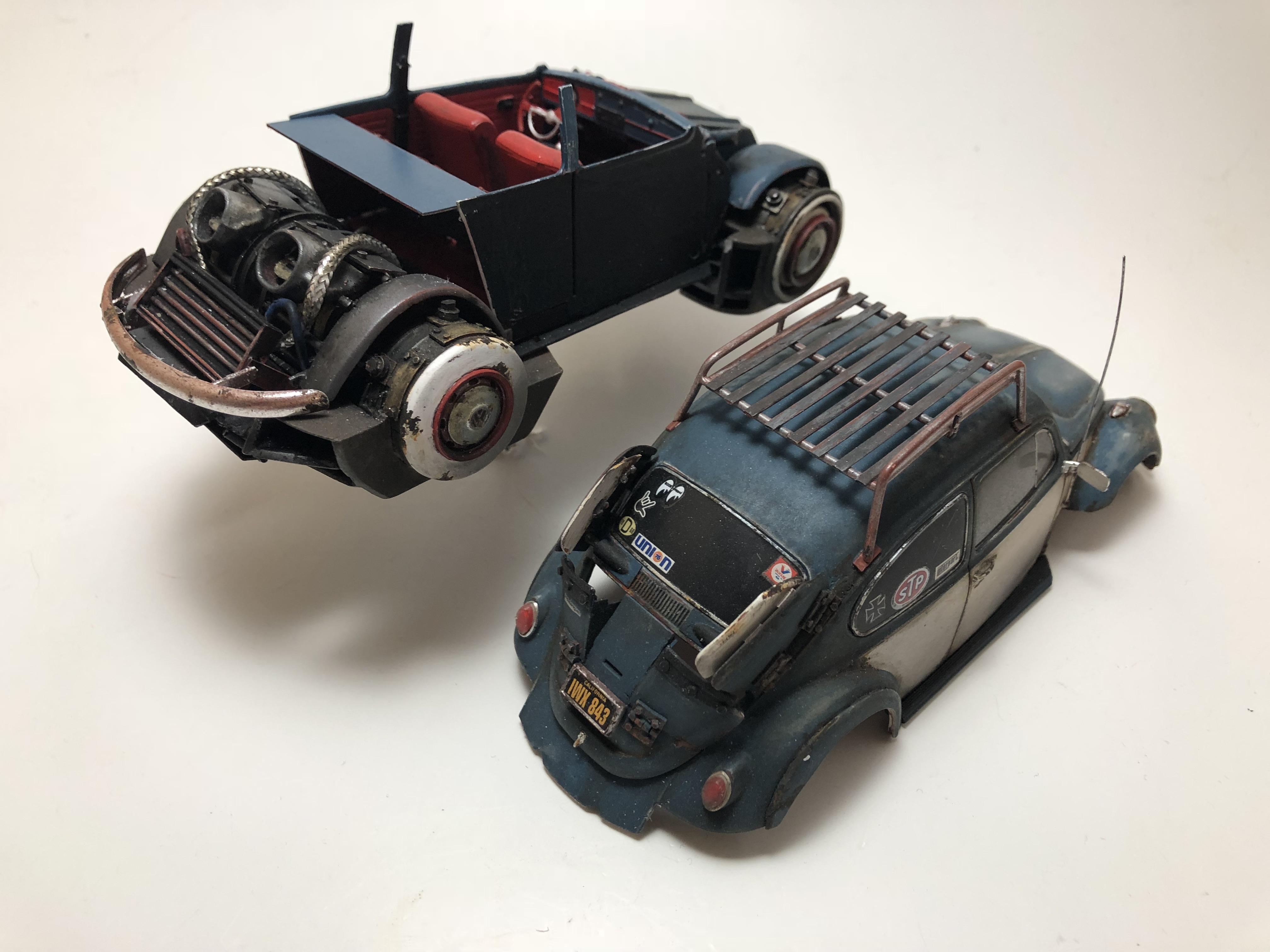

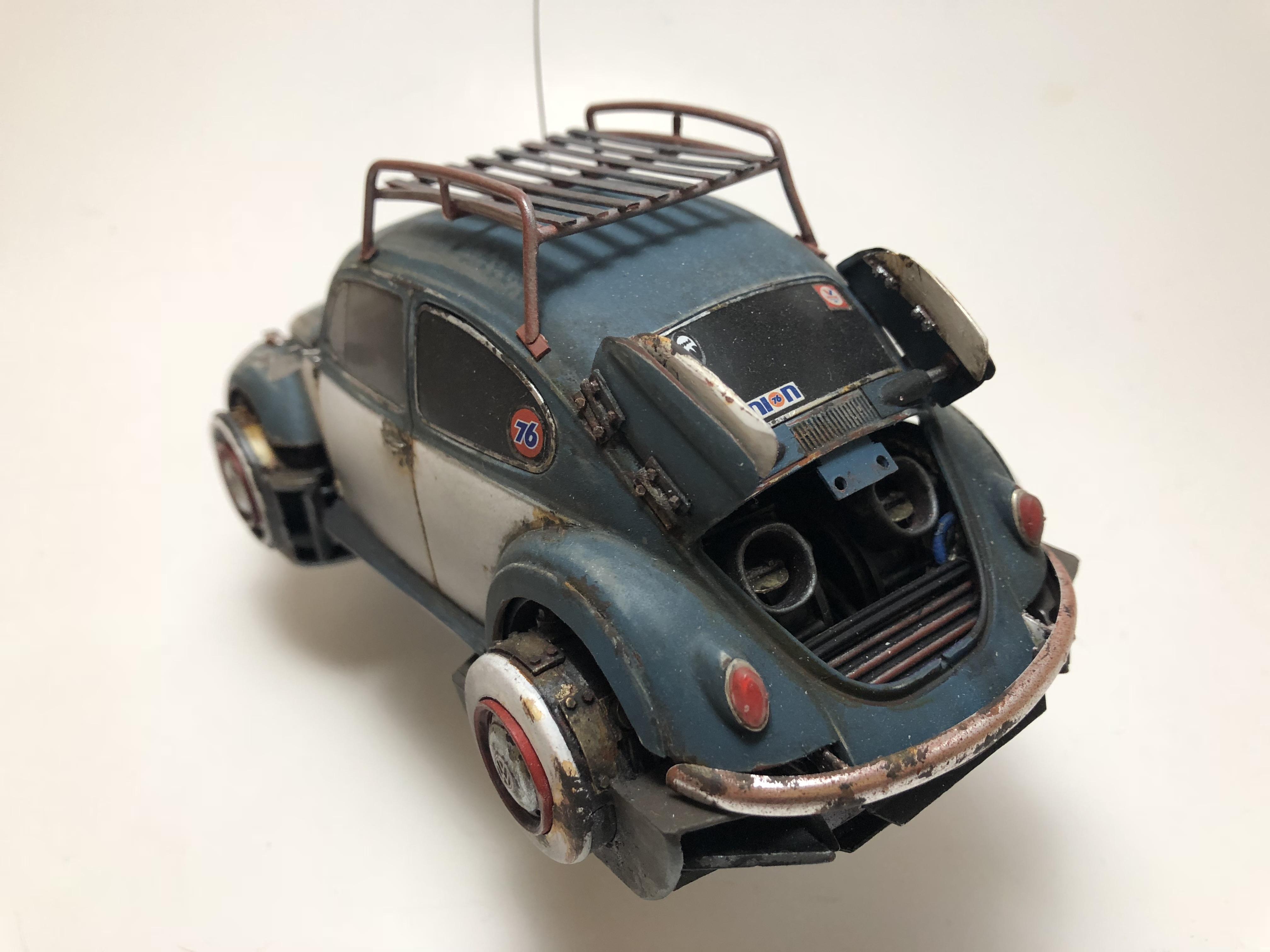

  2. Sorry Chuck! And sorry to anyone who started looking at the side mirrors. I thought they were the tail lights from a 71 Cuda. I was mistaken. I don't actually know what they're from. After I posted that question, I looked up photos and the shape is slightly different. Here's some before and after early photos Before it was narrowed. After. I get asked a lot about the parts that I use. My first answer is Gundam kits. I will usually modify the parts further to fit the car. I also build in sub-assemblies. I like to pin the parts with Styrene tube. Makes for easy mock ups.

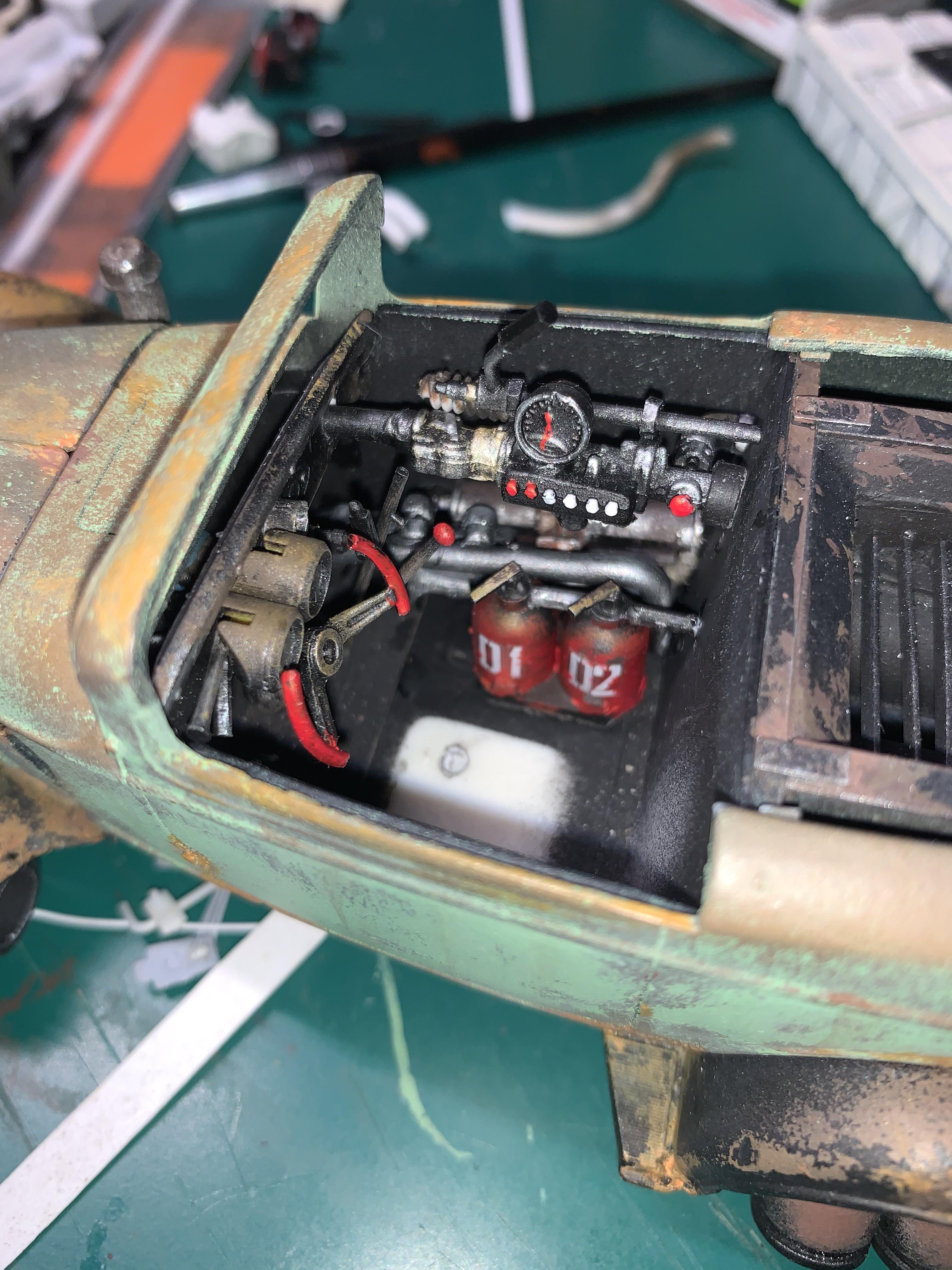

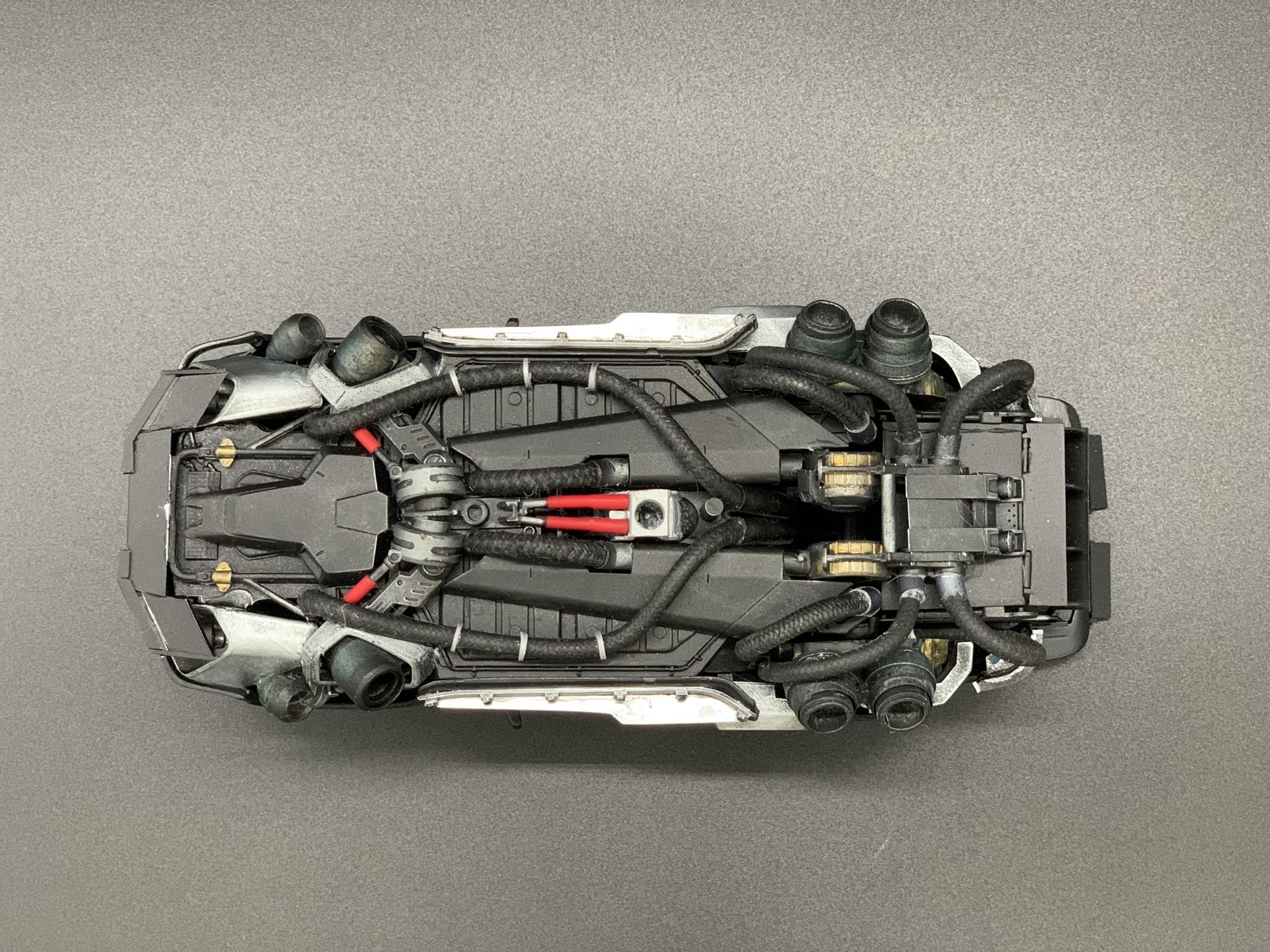

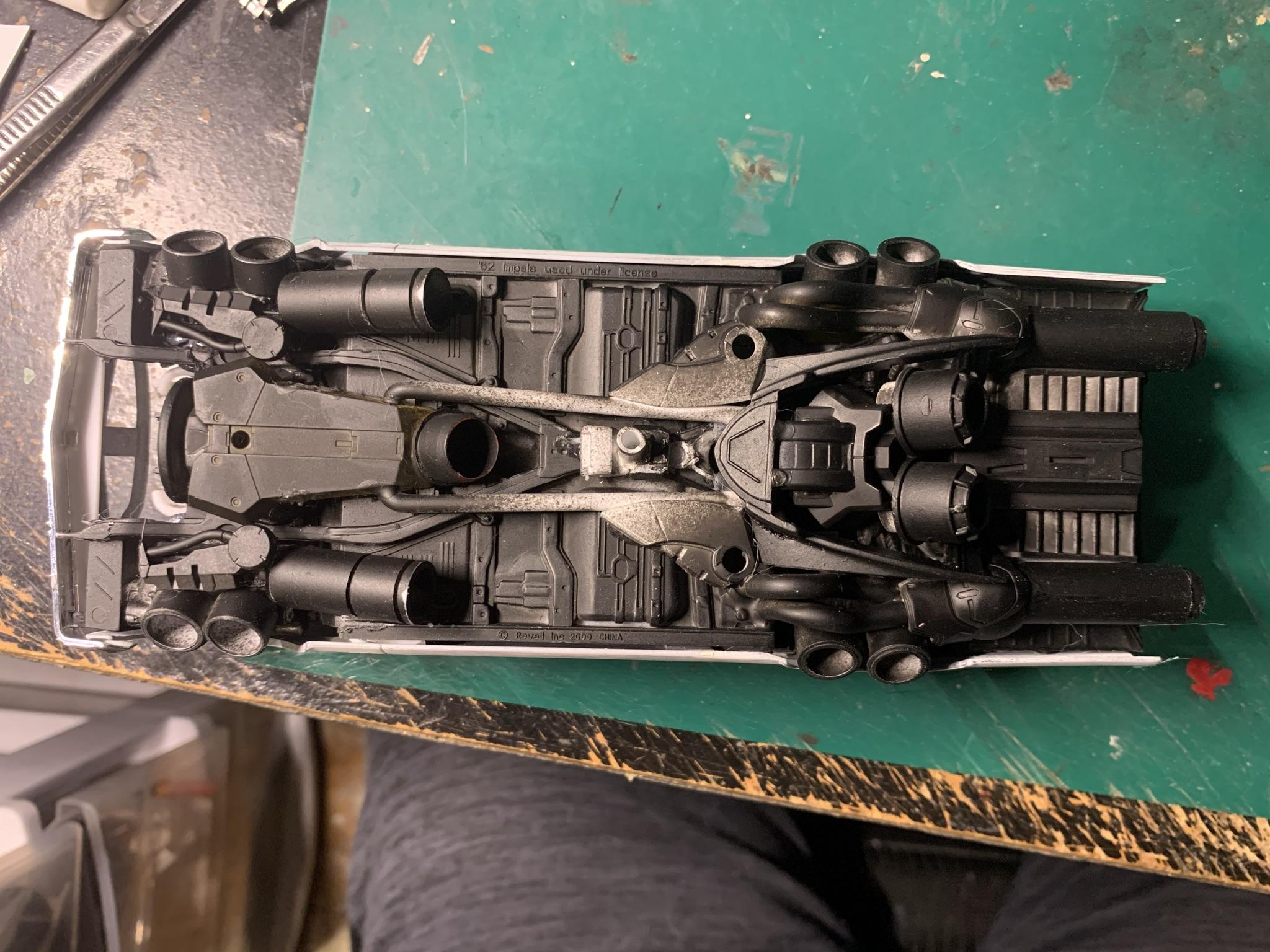

  3. Thank you all!!! Thank you Rob. i start with a base coat of rust colored primer. Then two coats of Dullcoat. Third is a few layers of Acrylic latex in the body color. Lightly sand until it wears thru the latex and the rust primer shows thru. I'll go back with Acrylic rust colors and give it random highlights. I use 4-5 different rust colors for the highlights. Dry brush or with a sponge. Here's some more photos. Close ups of some of the small details. I love putting in tiny details. Most of which isn't seen unless you're really looking. My 1st attempt at the fins on the afterburners. A cool undercarriage view showing the Gundam parts, styrene rod and the kitchen sink. Before paint and weathering. Flight controls. All of them have the steering wheel designed like a flight yolk. Plenty of levers and a few have computer screens. Another undercarriage view. I'm still working on the Jetvette. Procrastinating on the livery decals. It's almost complete at this stage. I just need to do a little weathering. It wont be as weathered as the rest. Just a little grime.
  4. I enjoy the comments. This is what motivates us all to be creative and show off our work.Thank you all so much! 😁 Thanks Tom. The first four builds include more scratch built items. It wasn't until the Fleetmaster that I started relying on Gundam kits as my go to source for parts. The Gundam parts are mainly used as filler for the undercarriage and engine bay. The large turbines that stick out the back of most of my vehicles, those are scratch built. I use large 1/2, 7/16 and 3/8 Styrene tube placed one inside the next. Thank you Paul. I'm procrastinating. I haven't used digital art in ages. I have a free program called Gimp that is very similar to Photoshop. I just need to get the basics down. If anyone knows an alternative program, or a place where I can get 1/25 scale futuristic decals. Please let me know. I always think as I'm building these vehicles "these would never get off the ground". I just gotta make them look as if they could. Here's some close ups of the smaller details.
  5. Daxman

    63 Jetvette

    My son gave me around 6 Gundam kits that were brand new. Plus a few more that had been built. I've used the majority of the usable parts, but still keeping the extras just in case. At my local hobby shop they carry Gundam kits that are under $20. I'm getting to the point where I'm going to have to start buying new kits. I'll be posting more photos soon. I'll try to get a few pictures of the type of parts that I look for when kitbashing. I just posted all my jet cars in one post. In the finished models section. 10 jet cars including this one. I'm trying my first race livery. I need to start making my own futuristic sponsor decals. I'm procrastinating......

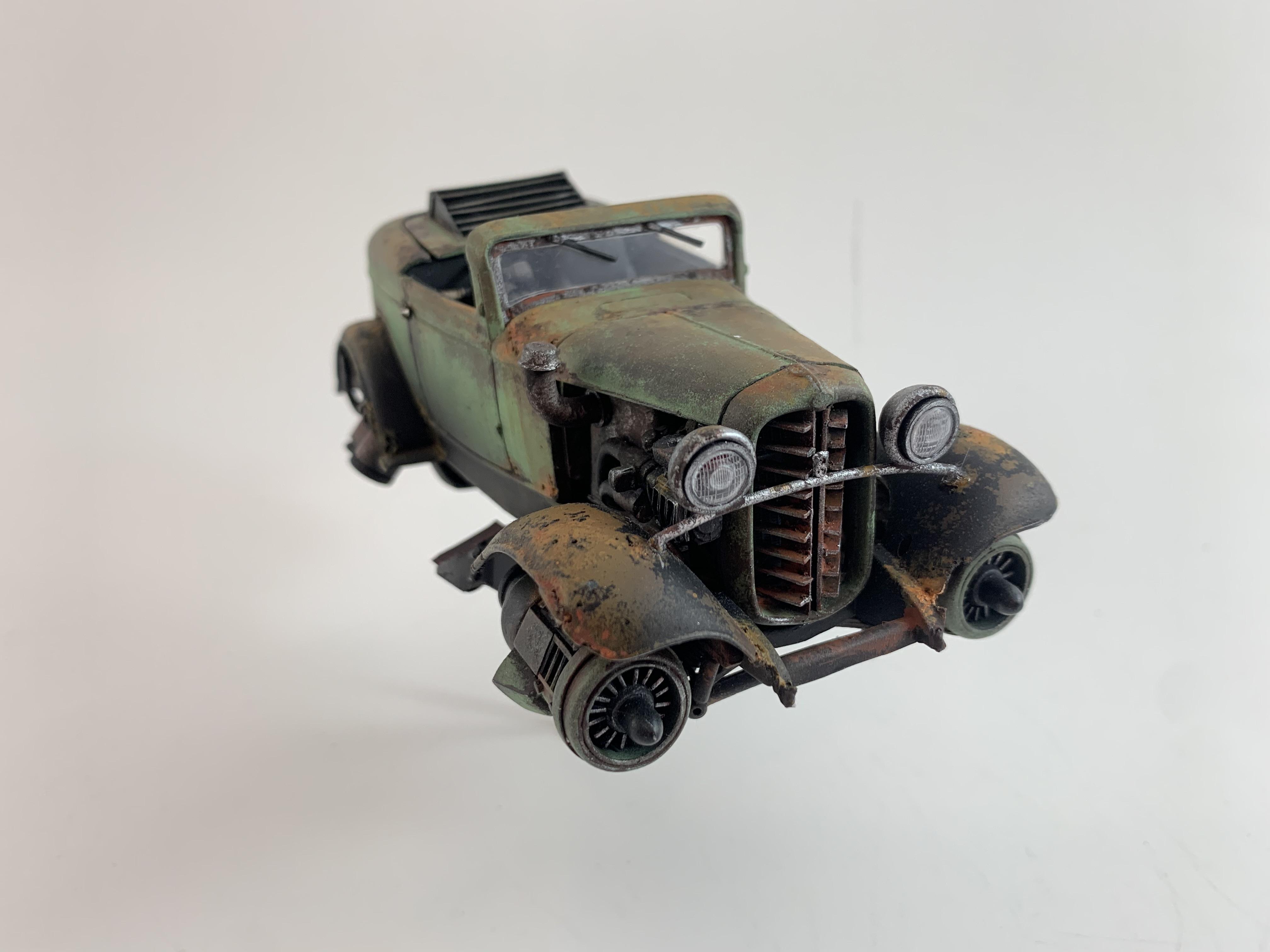

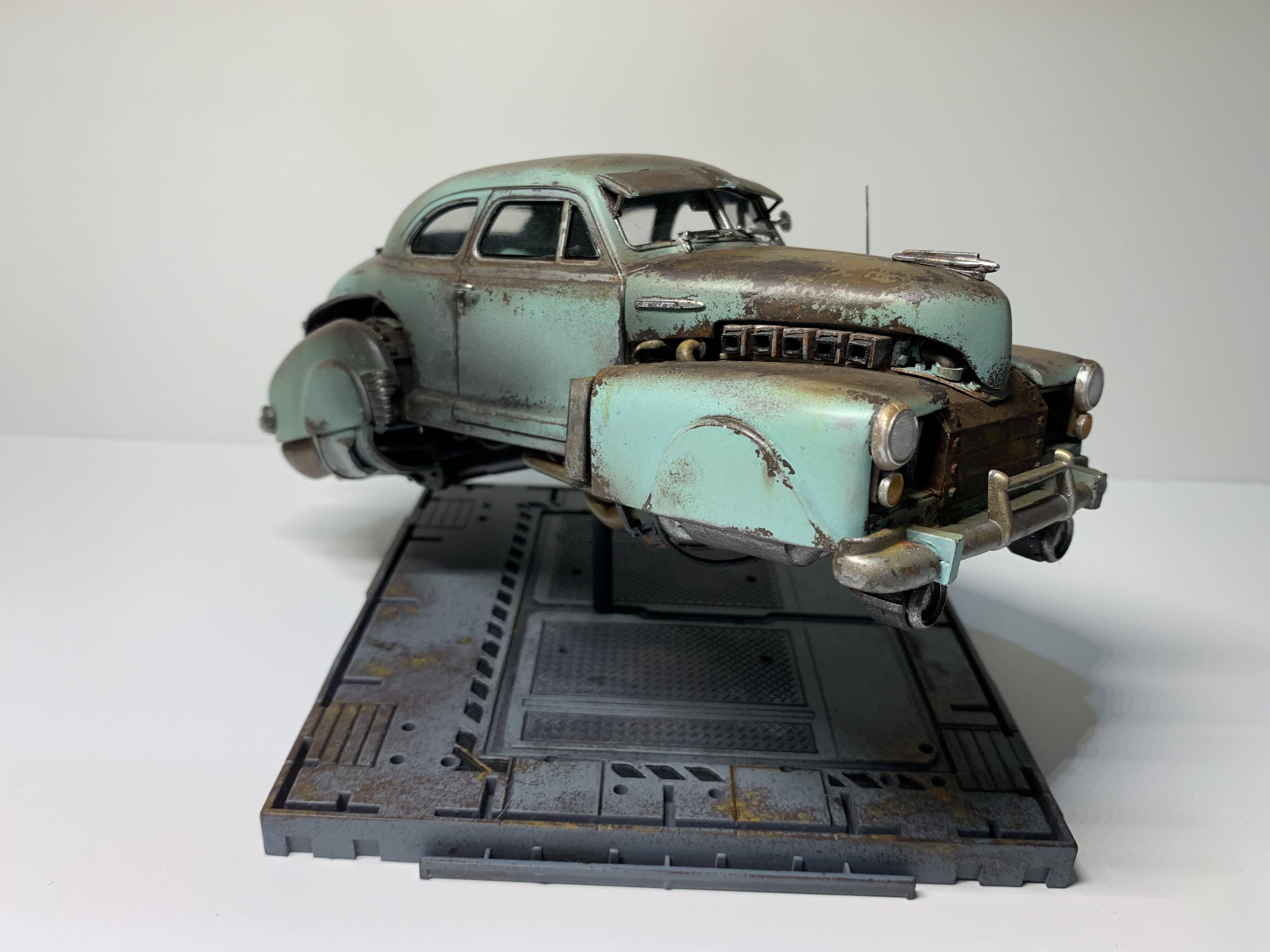

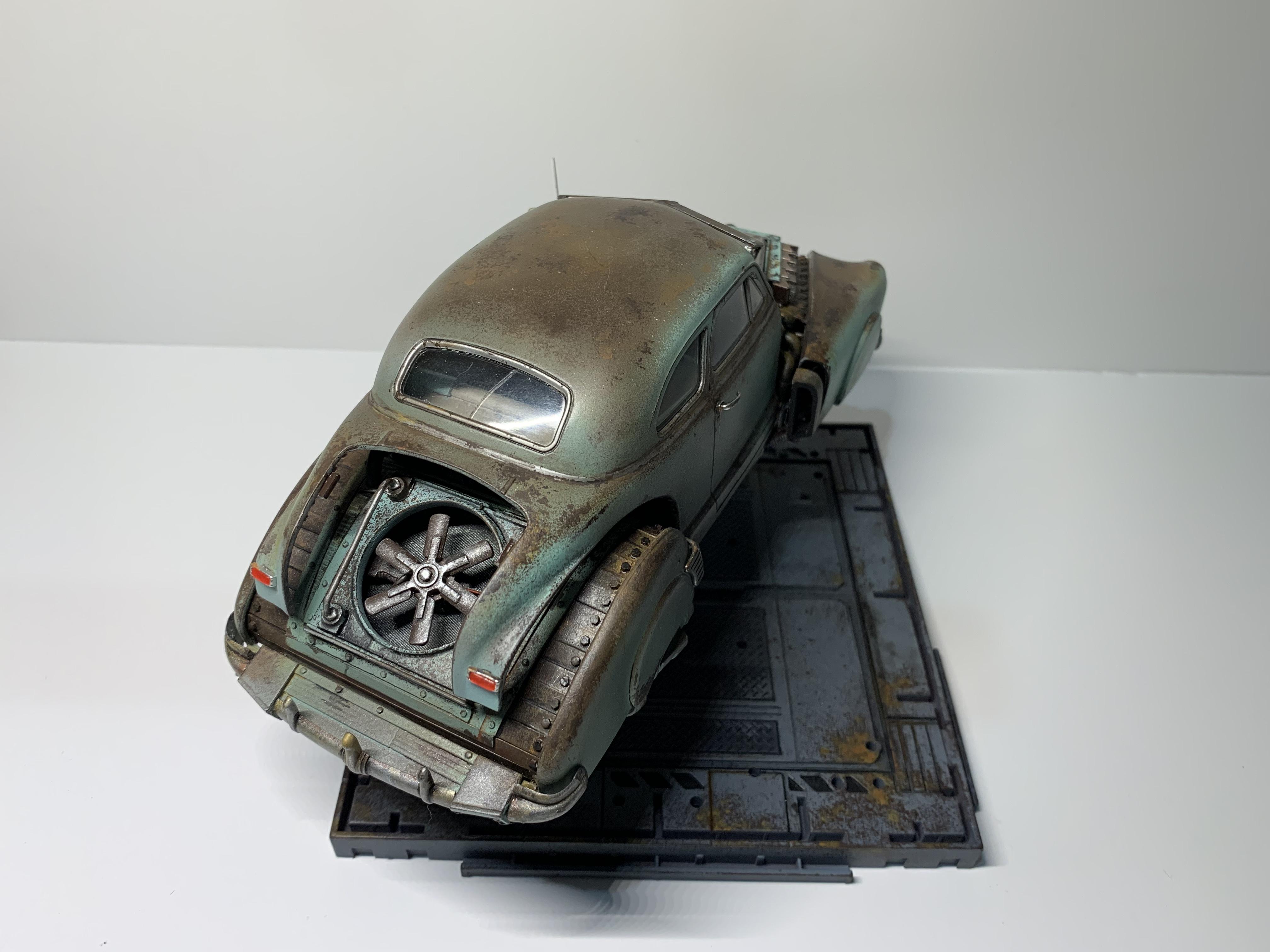

  6. I've been wanting to make a post that contained all of my jet cars. Finally got around to it. I want to thank all of you who have been following me through the years. It's been a fun ride! You always have such wonderful comments. I appreciate them all. I have posted all of these in the Work in Process forums as well as the finished model forums over the past four+ years. 37 Chevy Coupe - JetRod - Build 1 This is where it all started. The front turbines were from a 1/44 scale A-10 Warthog. I cut the front fenders off and attached the turbines directly to the front suspension. I cut the rear fenders off preparing to mount 2 more Warthog turbines, but I didn't like the look upon mock up. I came up with this idea to hinge the back fenders as a unit. I was really surprised that I was able to pull this off. This was also my first serious attempt at weathering. I used the hairspray technique. It's supposed to be two tone green and white, but I took too much of the white off in my opinion. I could have also used more variations of rust colors. I display the model with the orange windows. It looks more sci-fi. Most of the extra parts on this build were either scratch built or spare parts from other 1/25 scale cars. This was before I started using Gundam kits to borrow from. Number of windshield visors spotted: 1 68 Volkswagen Beetle - RocketWagen - Build 2 What inspired me to remove 1/3 the center out of a VW bug? I was thinking about sticking large turbines out of the rear. Where the old engine resided. Taking up most of the back seat area as well. I figured this thing was built for pure speed. A single seat rocket. This was back when I scratch built most of my detailed parts. All the turbines, the grilled radiators under the front fenders, the rear window intakes. It's funny to see your early work compared to the new stuff. This is my only jet car that doesn't have turbines on the front suspension. It has front wings similar to a Star Wars speeder bike. Those blue wings are the original seat backs for the driver and passenger. The white inner wings are the seat backs from the next jet car on my list. Number of visors spotted: 2 68 VW Beetle - Vintage style - Build 3 The plan was to make a Jetboard that would be carried on the roof rack. Scratch built the roof rack for that one purpose only. The Jetboard remains in my scrap pile 90% complete. Someday.......... Was going for the Cali style. I accidentally over-tinted the windows. First time using a spray tint. It actually has a cool red interior that I wish you could see. The air flaps in the back direct the airflow to the large intakes. Gotta have big intakes. Number of visors spotted: 2 32 Ford speedster - Build 4 I was really proud of this one once it was complete. I felt like my weathering had really improved. I really like the color combo as well. This one has a grimy, dirty look. I love it. These front turbines were also from a A-10 Warthog, but a smaller scale than used on the 37 Chevy. This is my only jet car that has landing gear. Two skid plates at the rear and two skis at the front. There are linkages to the front flaps. Two bottles of Nitrous in the passenger well. A large fuel tank and flight computer under the hood. Lots of little details. Visors spotted: 3 47 Fleetmaster - The Flightmaster - Build 5 I used a similar hinged rear as my first build. This car had the perfect @$$ for it. I used a lot of Gundam parts on the undercarriage here. A lot of Styrene rod as well for pipes. I wanted it to have a heavy look. I moved the front and rear fenders outward making the car wider. This gave me spaces to add little mechanical details. Not 100% happy with the front view of this car. I do like the side and rear view. Instead of placing visible turbines at the front fenders, I went with a more concealed look only showing the exhaust port. Visors spotted: 4 41 Chevy Pick Up - Build 6 I had scratch built two large turbines for a 71 Hemi Cuda jet car I was working on. I placed them under this pick up just to see how they looked. I instantly switched over to this jet truck. The propulsion under the wheel wells make this more of a VTOL type craft. The four wheel jet engines are made from halves of V-8 engines with Styrene tube (2) glued where the heads mount. You can see the transmission housings facing each other under the truck. This was one of the most fun jet cars I've built. It came together so easily. I like the side details on the hood. This one has a ton of detail under the truck bed that can be accessed from the middle panel. I'll post more of the detail shots of each car soon. One of the few that has the stock grill intact. I attempted to make my own, but none of them looked better than the original. I love this truck. One of my favorites. Visors spotted: 5 32 Ford Vickie - The Junkyard Dog - Build 7 This started out as a Vickie. I cut the top off because I wanted to make a cool interior that could be seen. I went a little crazy on the flight controls. the front turbines are scratch built. The rear are made similar to the 41 pick up. The mechanical details that stick out from under the hood are asymmetrical. The driver's side is covered, the passenger side is open. Another custom grill. The turbine fins are scratch built. Probably my least favorite jet car Visors spotted: 6 51 Bel Air - Build 8 This would be the villain's car in some post apocalyptic movie. I originally thought about making it a police pursuit car. This car relies heavily on Gundam parts for all the little details, it has the most by far. The tail fins make it look somewhat like a 57 Chevy. I made cut outs on the doors to protect from the heat of the front turbines. The undercarriage on this one is my favorite. As well as the four wheel well turbines. They show so much detail and fit the look that I wanted. Visors spotted: 7 56 Ford FD-100 - Foose Flyer - Build 9 I found the perfect shaped shoulder thrusters from Gundam Virtue. They fit where the front fenders were. I did have to modify the thrusters to get them to fit. I went without the truck bed, to show off all the mechanical bits. I matched the grills from the front of the truck to the side intakes. Then matched the rear intakes to the front. The visor was a good addition. lots of linkages and steel. A little detail under the hood. I really like the A arms that attach to the front turbines. Visors spotted: 8 63 Corvette - Jetvette - Build 10 This is still a work in progress at this time. I have it up in the WIP section. I went a little different direction with the paint here. I want this to be a race livery. I need to get motivated to make my own futuristic sponsor decals and a race number for the door.. After I install the race decals, I plan to do a slight weathering. As if it has been in a few races. Some grease, soot and maybe some wear spots on the heavily used areas. This one has plenty of Gundam parts as well. Probably the 2nd most. It's the only vehicle with identical turbines at all four corners. I like the look from directly above. Visors spotted 8 of 10 cars. It helps with aerodynamics, trust me. Which is your favorite?

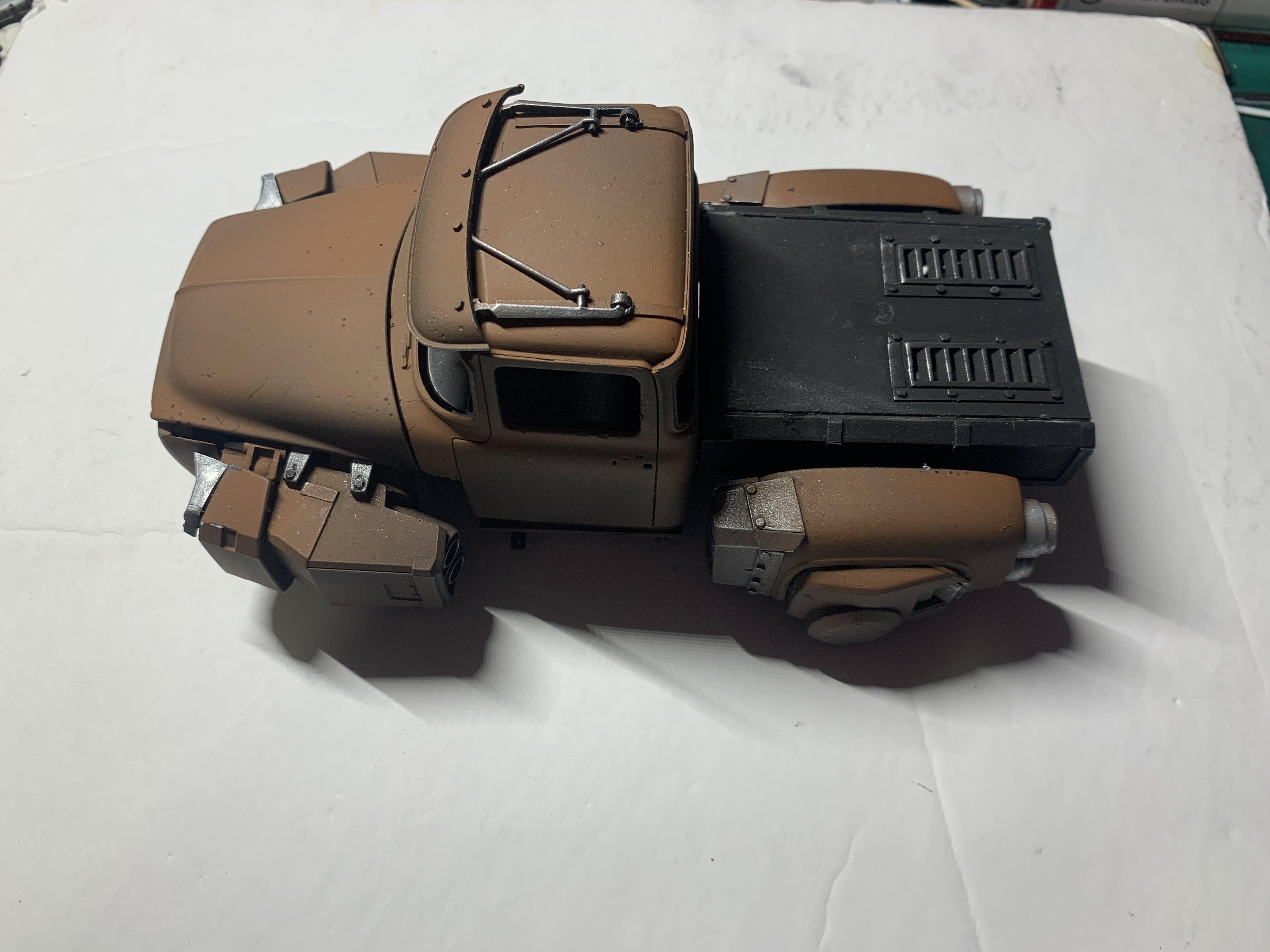

  7. Thank you all. I love the comments. I must apologize! I hope you didn't spend too long looking at those side mirrors. I thought they were from a 71 Cuda....I was wrong. I have no clue where they originally came from. Please forgive me! Here's a few pics with the bed of the truck on. These were earlier photos before the build was complete.
  8. Daxman

    63 Jetvette

    You all really know how to make a guy feel special. Thank you so much for the comments. 😀 Tom I'm glad you asked about my inspiration. If you go to the link below, you'll see my work in progress of my very first hover car. In that post, I mention my inspiration for that build (check that link as well). A very talented builder indeed. His weathering and kitbashing skills are excellent. I've since found him on Instagram and we follow each other on that platform. I did use Pinterest a lot for my early hover car research. I'm now mostly on Instagram. Andre Tkachenko is a Russian artist that I follow. He has a style that I admire. Although not hover cars, but car design. It sounds ridiculous, but I also try to stick to this alternate reality timeline when I build these. In my mind these vehicles are from a post apocalyptic world of some sort. Think Mad Max but a little more civilized. Maybe 15-20 years after the event, the population starts to rebuild. These cars are taken from junkyards and reassembled as jet cars. Maybe they race for competition or for credits. The people have pride in their jet cars, so they do try to make them look cool. Much like we do to our cars today. I try to make the cars reflect that world in my head. The two grey parts above are used on the undercarriage below. Each had to be modified. I do modify most of the Gundam parts that I use. I'd prefer that they weren't recognizable. Lots of parts covering up other parts. The undercarriage is one of my favorite areas to scratchbuild. The four identical turbines under each wheel well are unique to this model. All of my other builds have different turbines from the front to the back. Vents, vents and more vents. It's gotta breathe. Thank you all for looking. I'll update soon.
  9. Same here. This is truly an amazing build. I will be watching. Thanks for posting every little detail.
  10. Slap some turbines on this baby and let it soar! It looks like it was made to fly. Wedge shaped like the cross section of an airplane wing. What are you planning on for the windshield, if not a bubble top? Not to add pressure, but you've got lots of us interested. Don't let this go to the closet.
  11. Daxman

    63 Jetvette

    Thank you both! I couldn't do these without the excessive use of Gundam kits and Styrene. The amount of Gundam parts that I used on the Foose truck was ridiculous. The undercarriage, the front power plant, the front and rear turbines are mostly Gundam. I wish that I could give you the names of each of the kits that I used, but I don't have the original boxes or instructions anymore. Just a bin full of parts. I do know that the front turbines on the Foose truck were from Gundam Virtue. A few parts from Gundam Denial as well. I always try to build in sub-assemblies. The four corner turbines are removable even on the completed model. Using Styrene tube to hold pegs on it's adjacent part. There's some Mustang tail lights in there as well. The fuel tanks are blood test strip containers. I'm a type 1 Diabetic. I have plenty of these. As for the large turbines that are sticking out back of the Jetvette, I've made similar on my last 5 or 6 jet cars. Just use different diameter Styrene tube overlapping each other. I cut the center of a rim out for the front of the intake. Split some Styrene tube lengthwise to fit over the first. I'll use the strip of Styrene as a flat gluing surface to mount it to the vehicle.. Split more Styrene tube and fit over the second. I cut some of the tube into small strips. Glued them with even separation between. The split some more of the tube to hide the seams. Happy to answer any questions. Thanks guys!!!
  12. Thank you guys!!! Glad you all like it. That's a dream job right there! The next Mad Max? Here's some more pictures. A few close ups as well. I use the hexagon Styrene rod to make the bolt heads. I feel it adds weight to the parts. I don't remember where I got the monitor display from. It's been in my spare parts bin forever. It fits the truck, big and bulky. The two A-arms that are mounted to the top of the front turbines is my favorite part. I also really like the way the visor turned out. Can anyone guess what vehicle are the side mirrors from? Hint: They're not side mirrors on the vehicle I took them from. Here's the undercarriage before it was finished and painted. Unfortunately I don't have a pic of it weathered with all the plumbing hooked up..

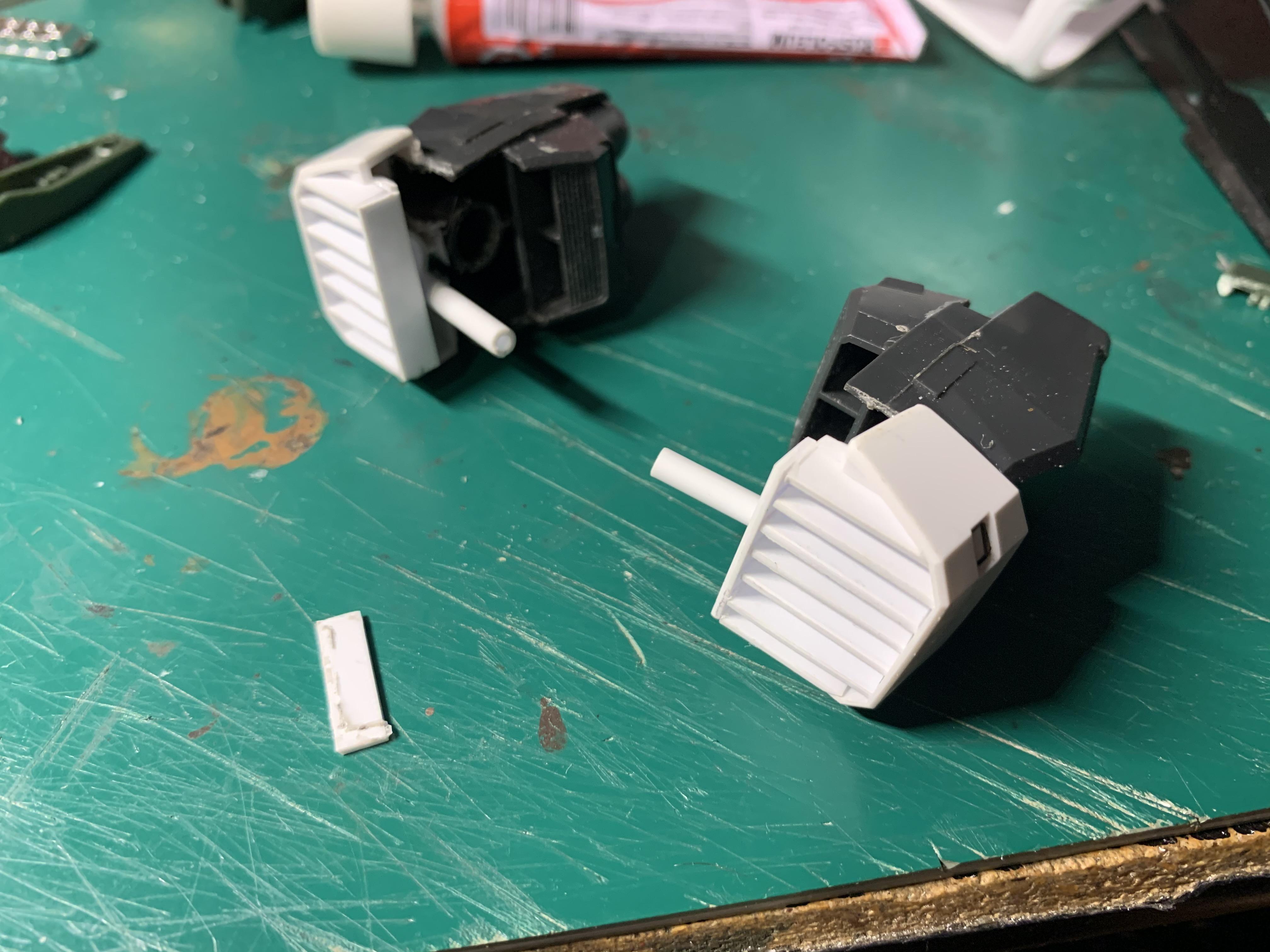

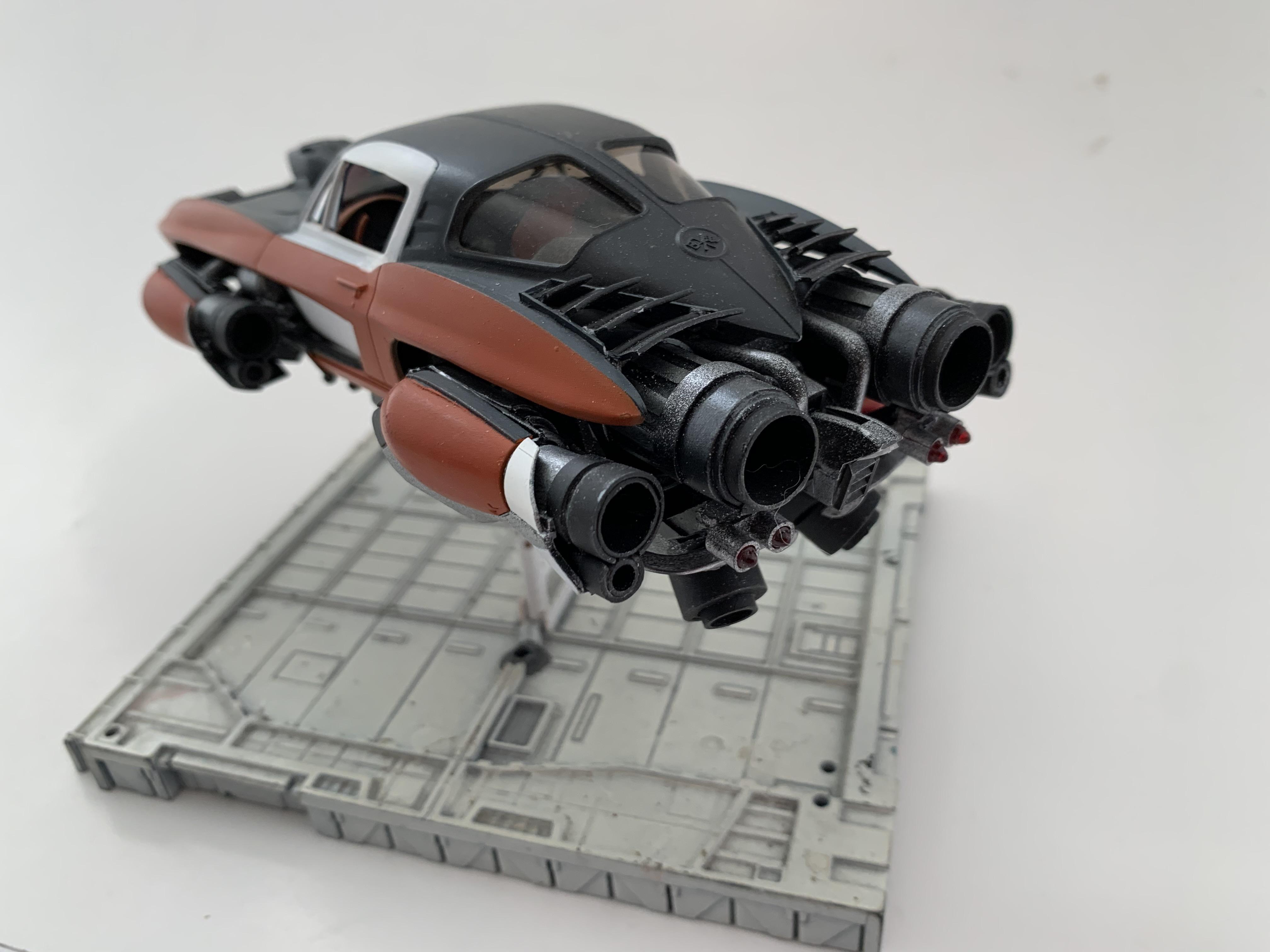

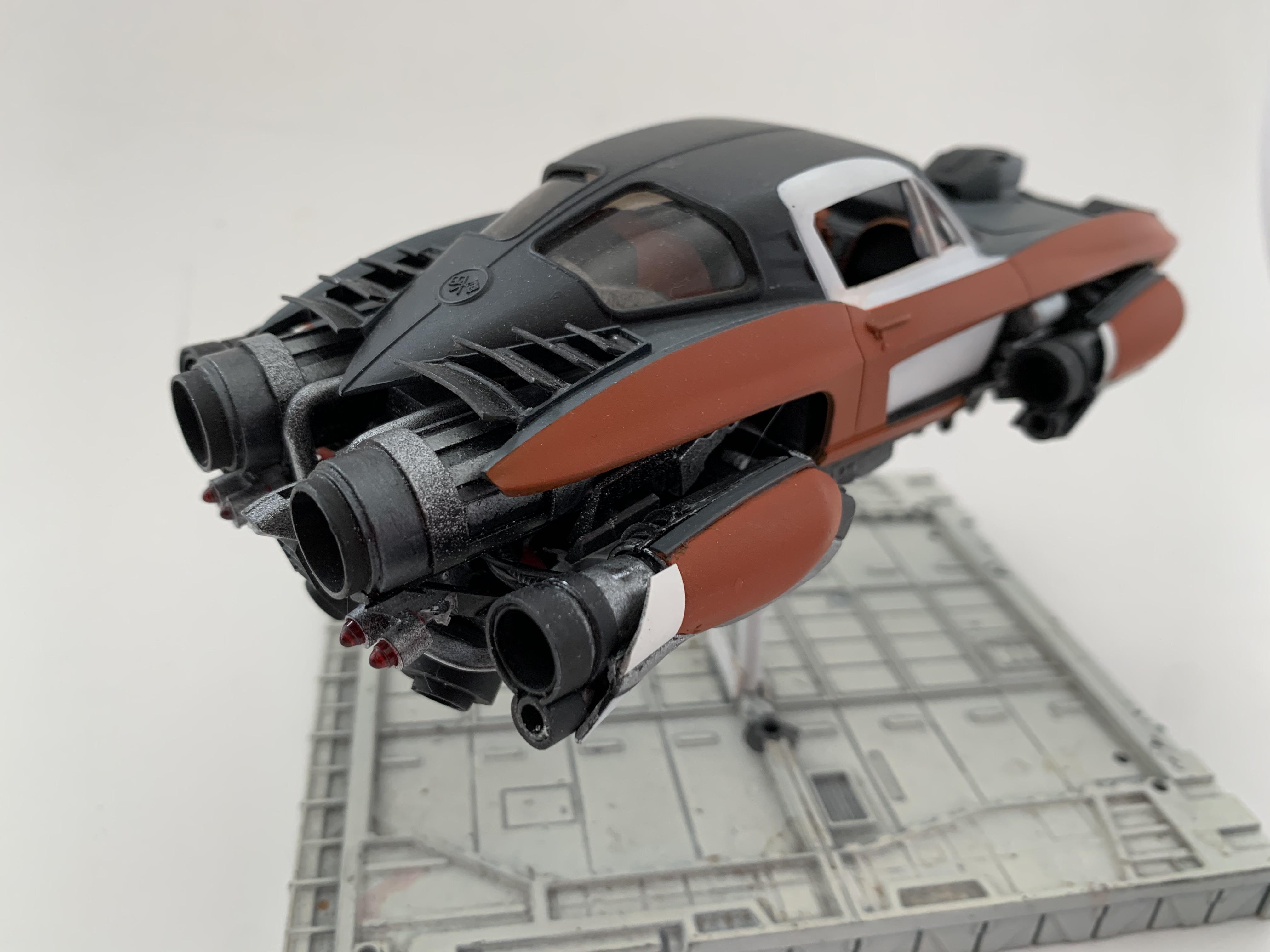

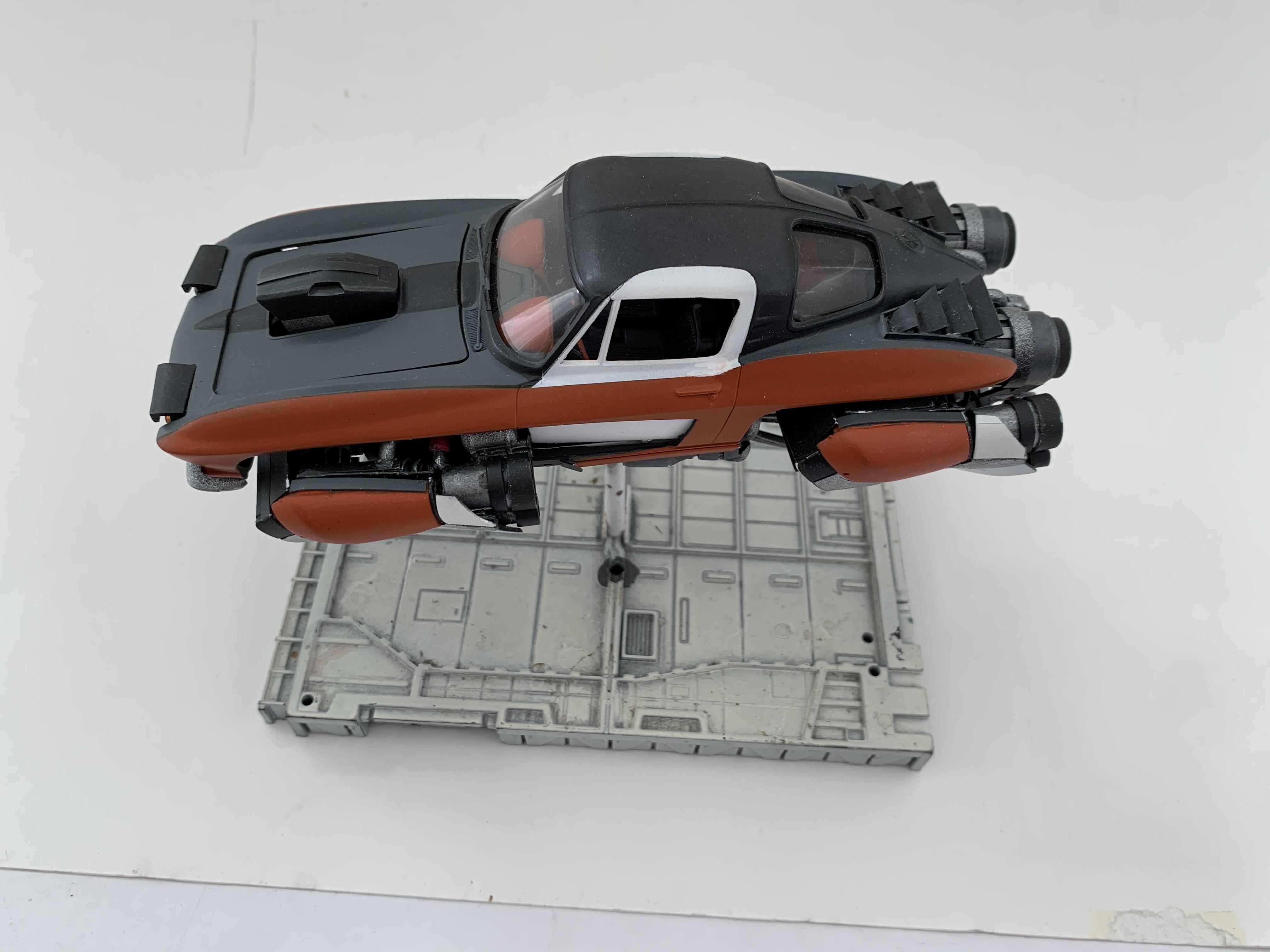

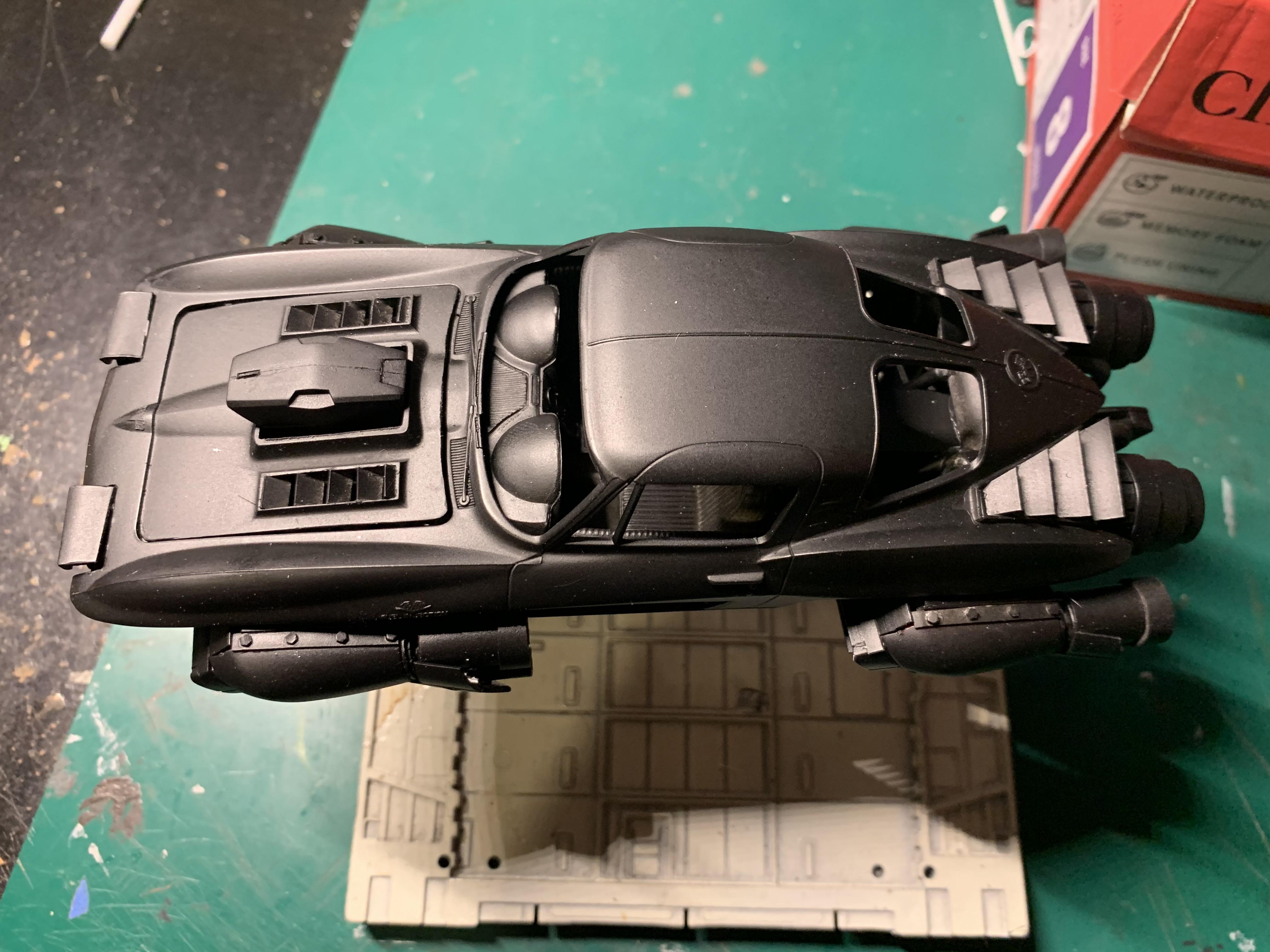

  13. Here is the build of my 63 Jetvette. I hesitated on this one for the longest time. I'm a big fan of weathered and rusted vehicles. Being that the Corvette body is Fiberglass, I had a tough time figuring out what the final product was going to look like. I just started building it. It's often the way these jet cars work out for me. I almost always start by crafting the turbines. These are made from 3/8" and 1/2" Styrene tube. I also cut away the body for some vents that I plan to add. I also cut out of each front fender from the top of the wheel arch to the door. I marked where the door relief will be on the photo above. I used the piece that was removed, along with some Styrene to create the door reliefs. Don't want that Fiberglass to melt! The front turbine exhaust will fit on the channel of the door. I wish that I had taken better photos of the parts that make up the four "wheel" turbines. They come from the leg/calf section of one of the Gundam kits that I've scavenged. I had two of these legs, which split into 4 usable turbines. 2 right and 2 left. I doctored them up with some Styrene tubes for exhaust and a front intake grill. I'll get more pics up soon!

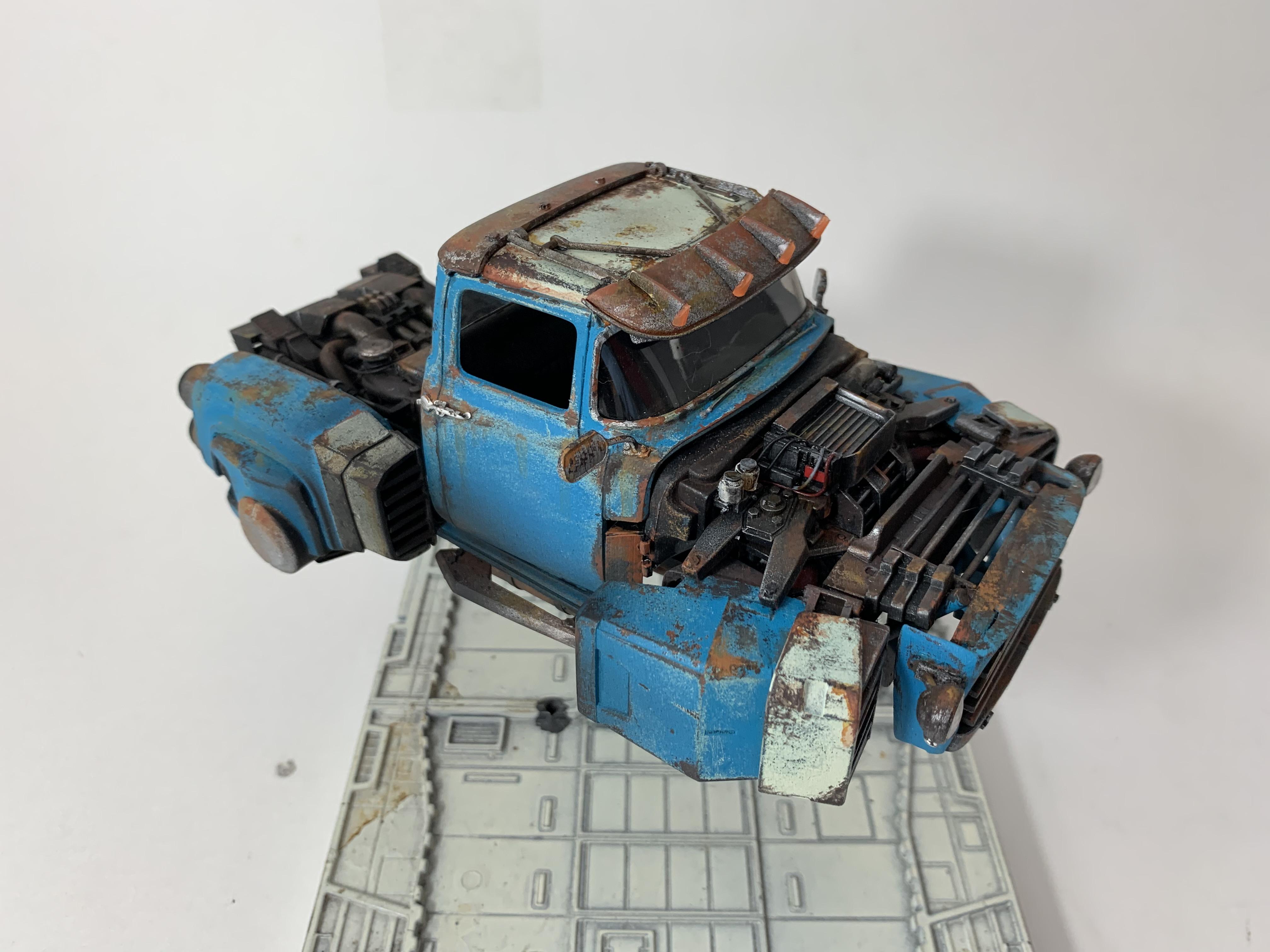

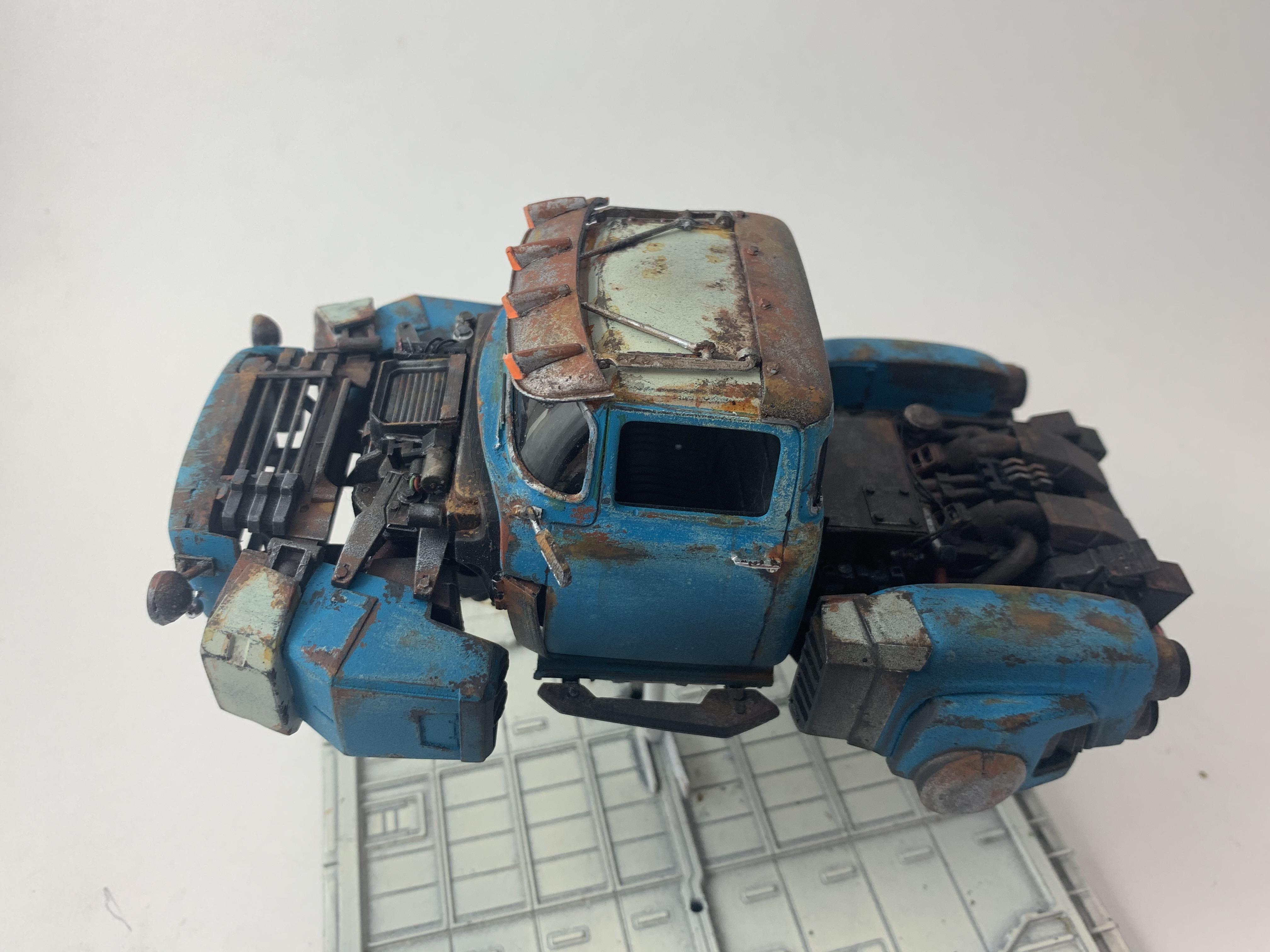

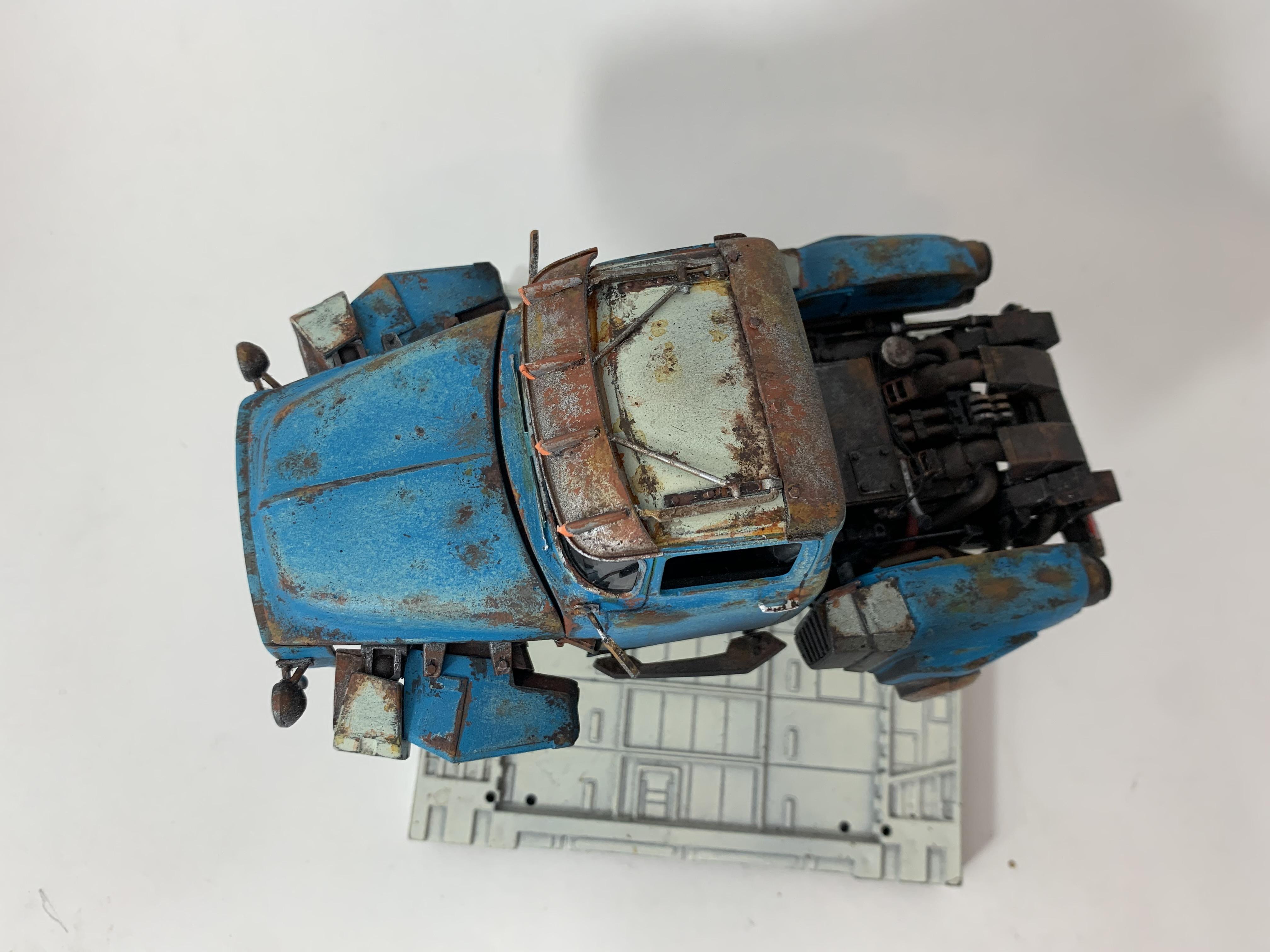

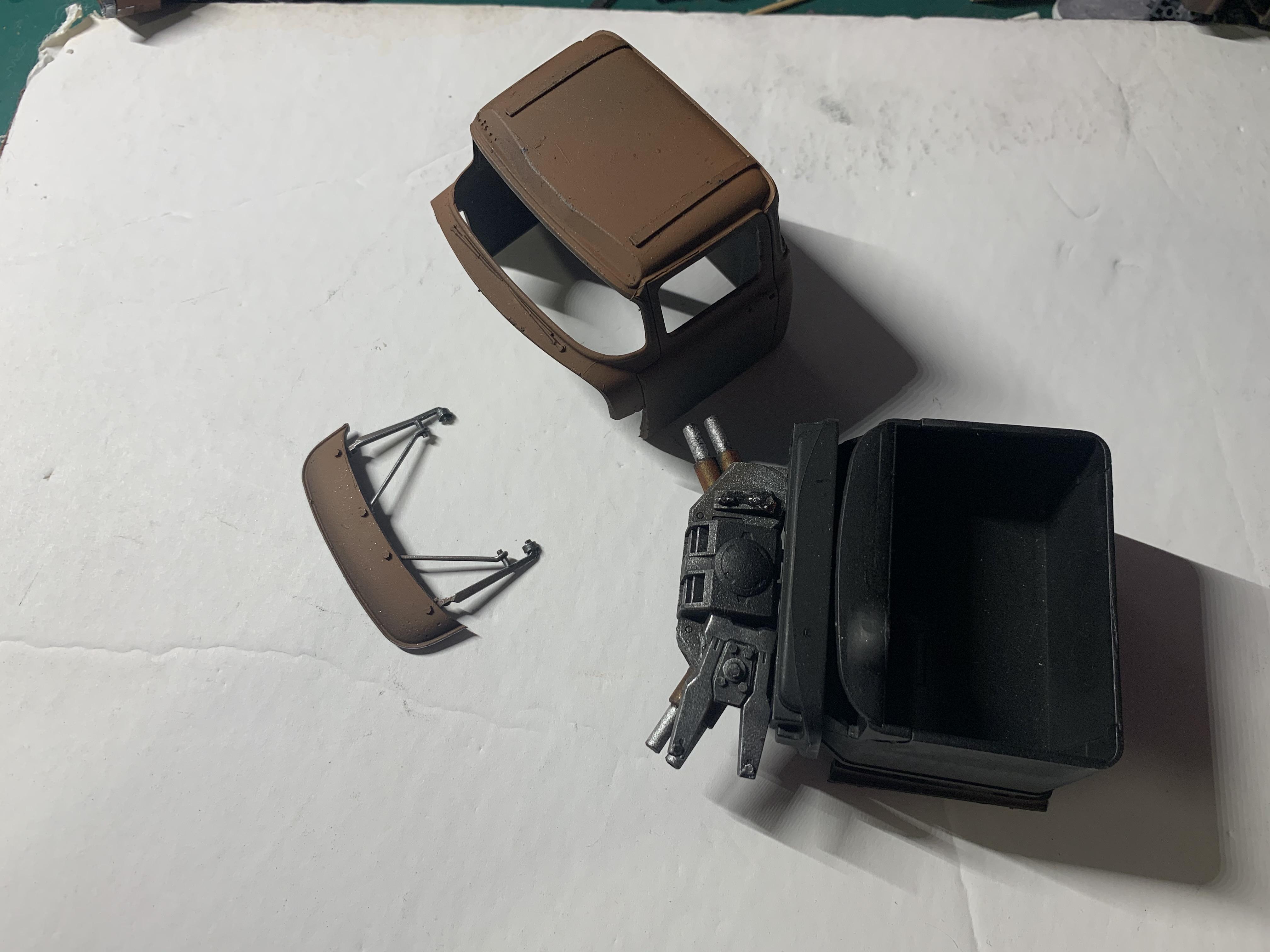

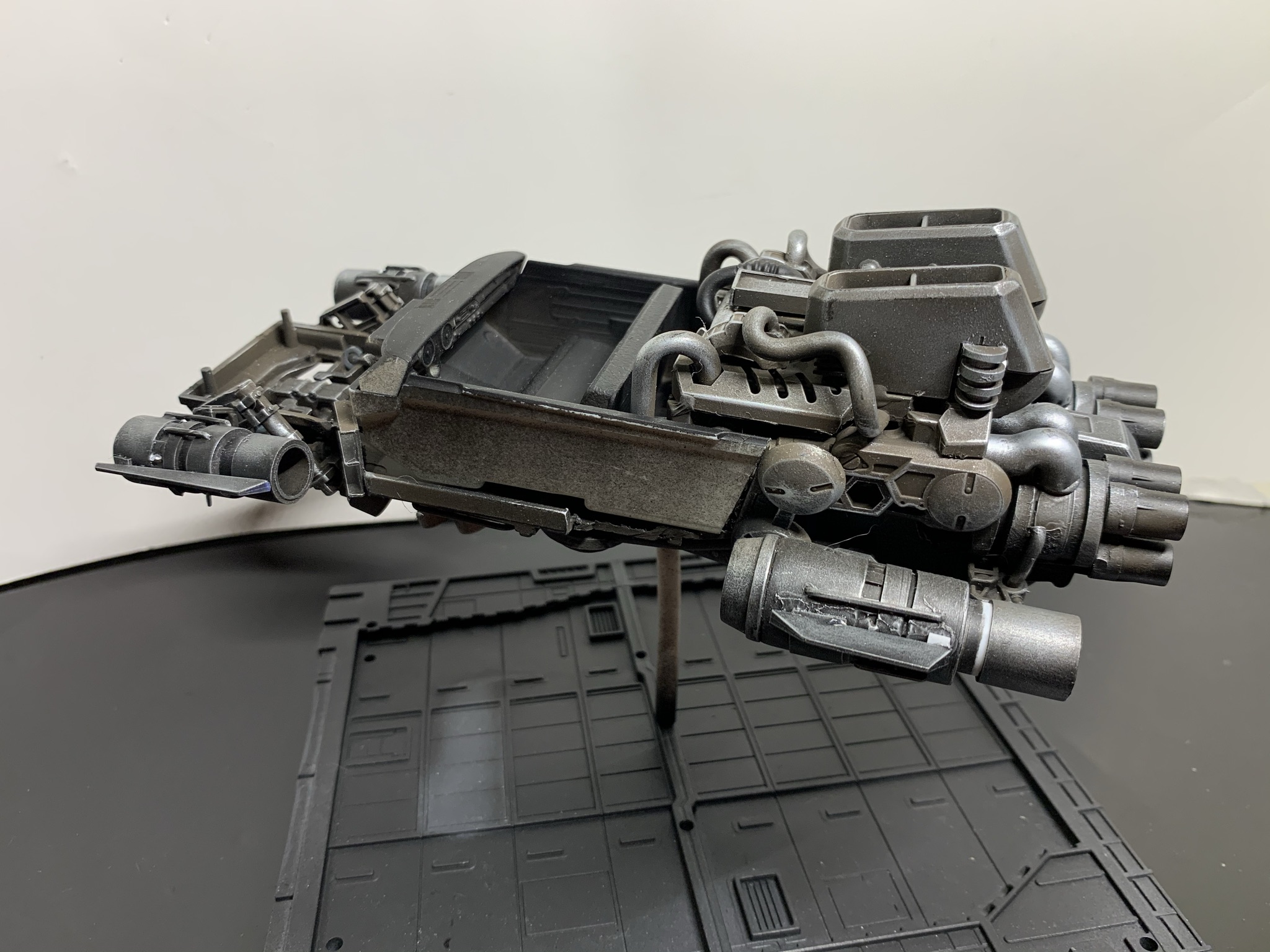

  14. Hello all. Here's my version of the 56 Foose pick up. This was another fun build. Once I built the two front turbines, I was on a roll. Most of the extra flight details are Gundam parts. The two front turbines are from Gundam Virtue's shoulder armor. It's been modified to fit where the front fender was. I like to add large intakes for a dieselpunk vibe. The grill housing has been narrowed down a bit. I debated back and forth about leaving the truck bed on or off. Decided to leave it off to show the rear engines and gadgetry. The two front thrusters have two turbines inside the housing. You can see in these pics. I thought it was important to match the rear turbines as well, one on top of the other. I always try to stick to a sliver of realism. I like the mechanical bits to look like they serve a purpose, not just some random parts glued on haphazardly. I am really happy with the front visor. If you've built this kit, you''l l know that the roof comes separate from the cab roof. I cut the roof in thirds and used the 2 ends to create the visor assembly. Here's under the hood. Lots of miscellaneous stuff put together. I'll try to get some of the smaller details up later. Thanks for looking.
×
×
