I recently started an F-250 4x4 using the Fireball conversion and started to get interested in the "leftovers" from the 4x4 kit. This probably isn't news to most of you, but one of the greatest things about the Moebius pickup kits is the way you can mix and match parts to make virtually any configuration, so I decided to make a short bed F-100 4x4 using the leftover pieces. I started by adding the 4x4 front cross member and transfer case mount to the short frame. There's no locating point for the transfer case mount on the frame, but since it's also the floor pan mount, I used the floor to locate it.

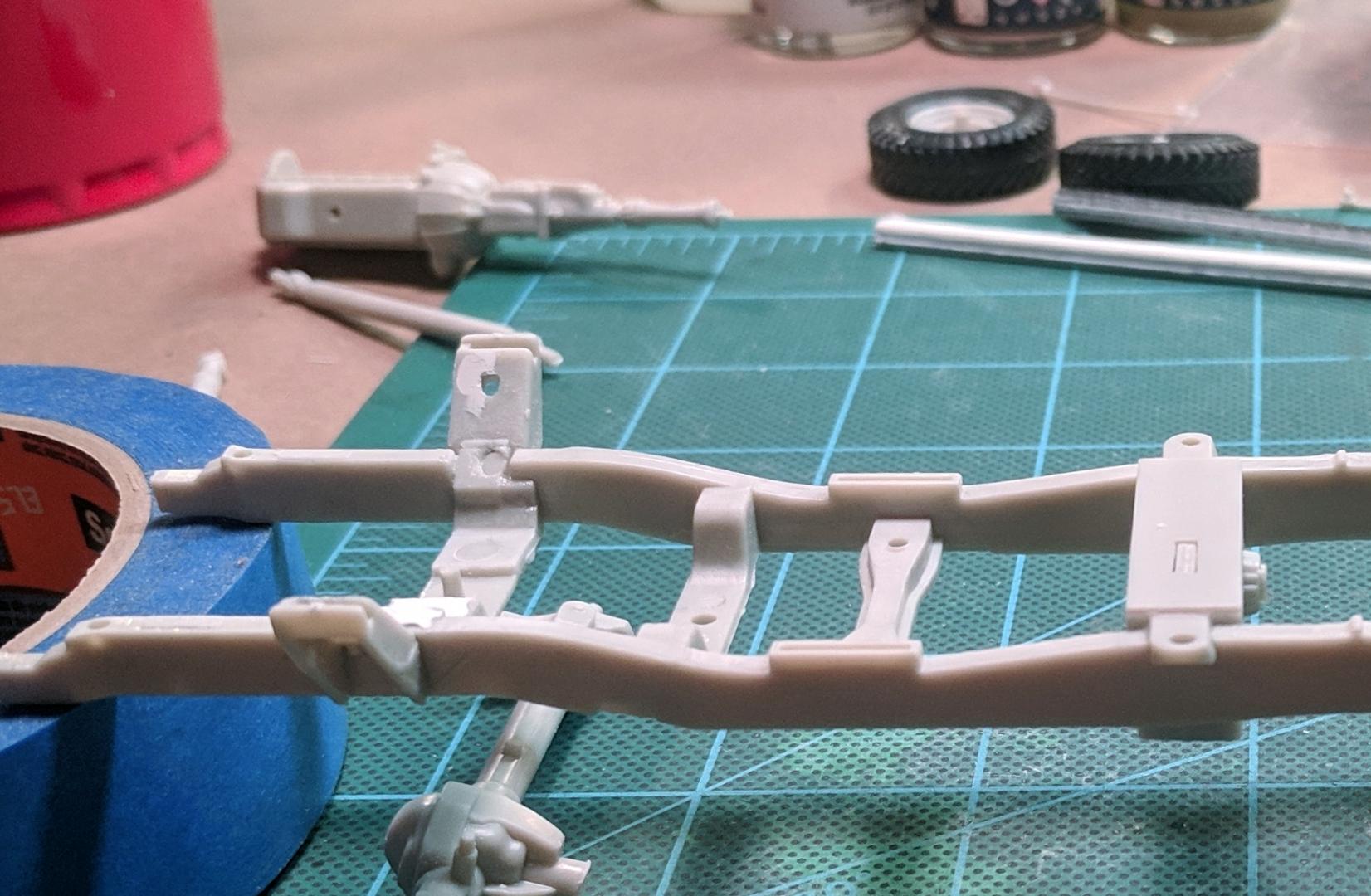

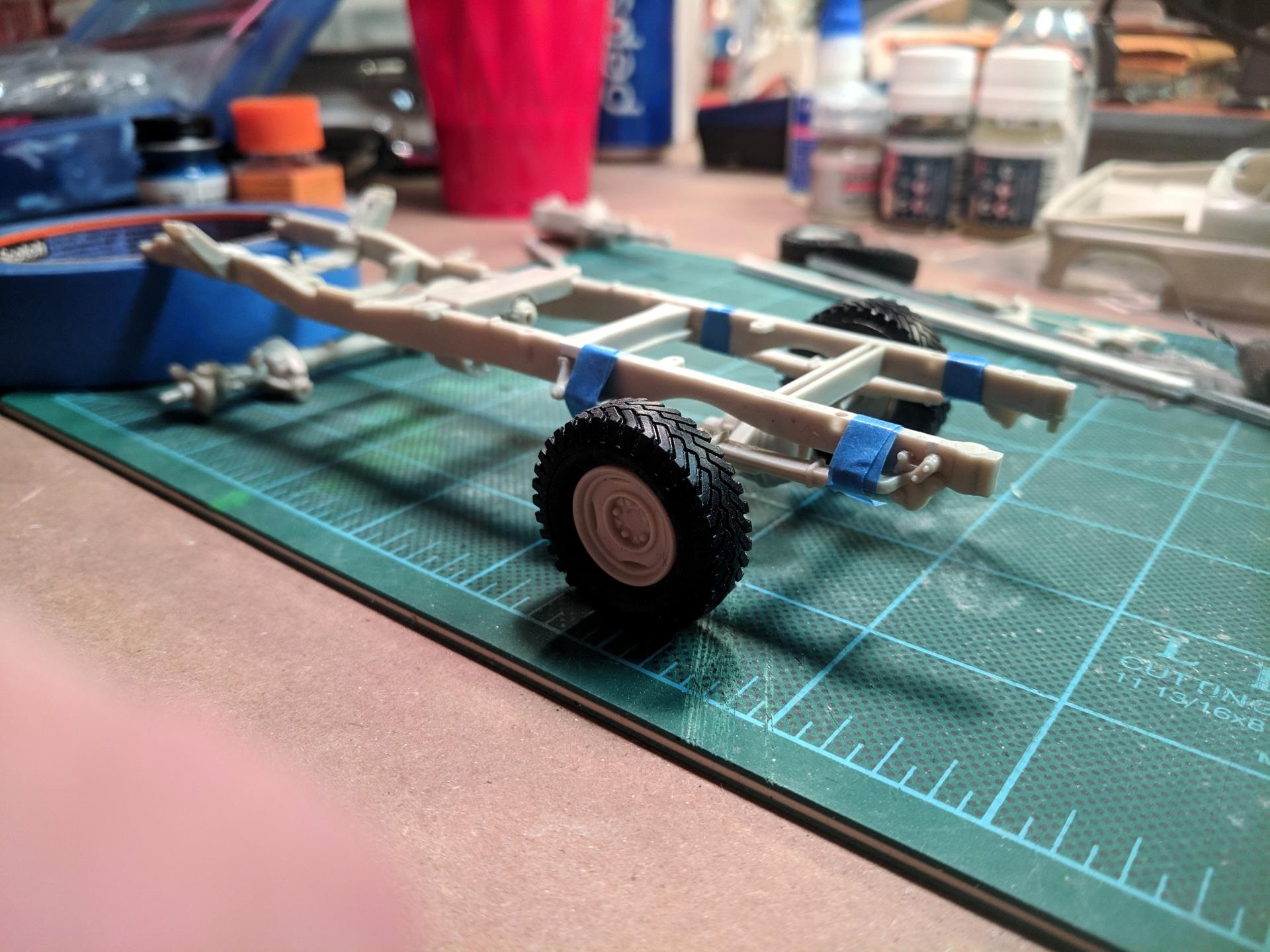

The most difficult part is relocating the rear spring mounts to position the spring mounts even with the bottom edge of the frame rail instead of the upper edge. Hard to explain, but if you look at the two frames side by side it makes sense

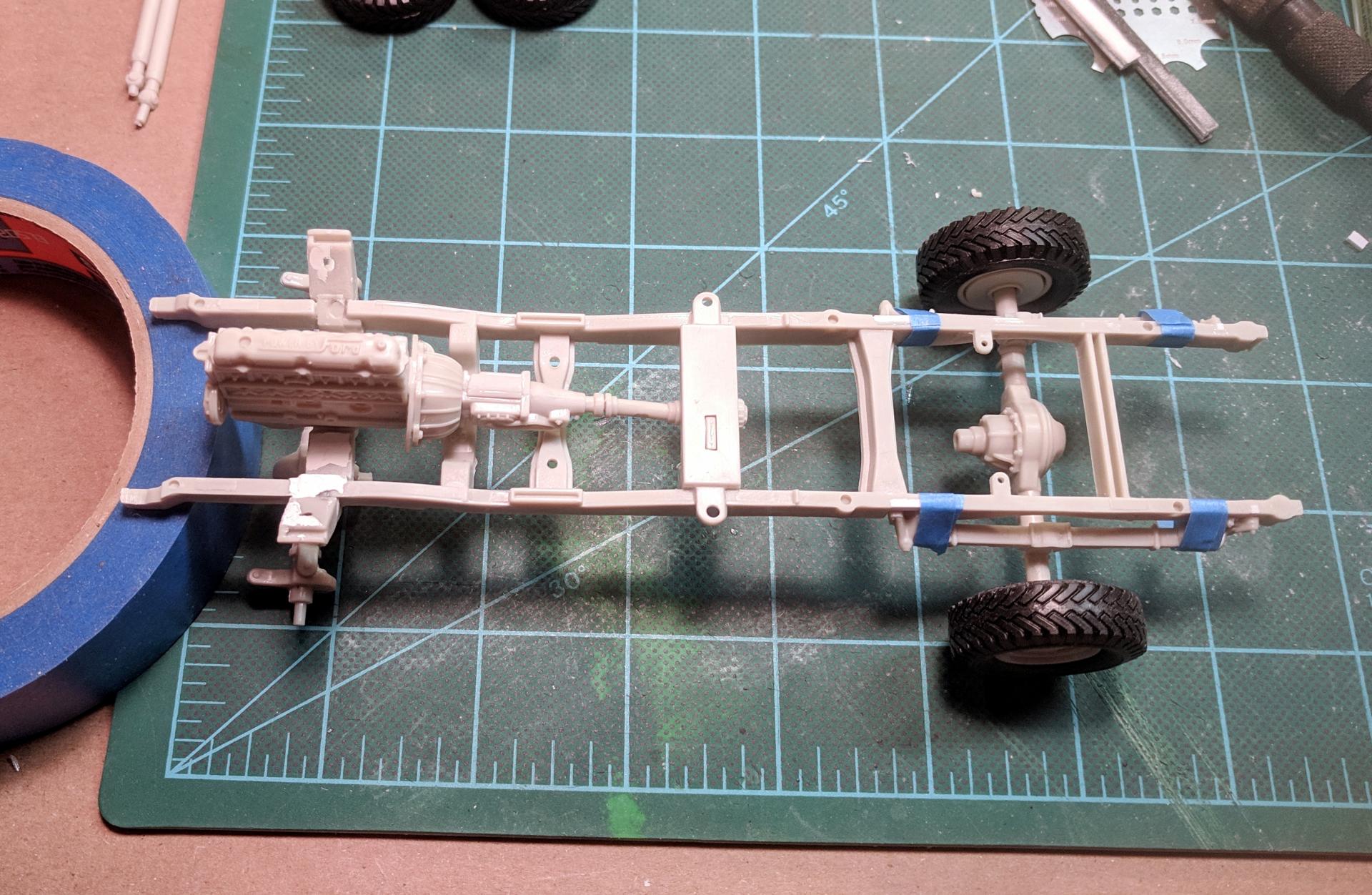

I wanted to use the 6-cylinder from the 70 F-100 Custom I was using. To my surprise everything lined up using the molded in locating pins and holes! Even the short driveshaft from the transmission to the transfer case was the correct length.

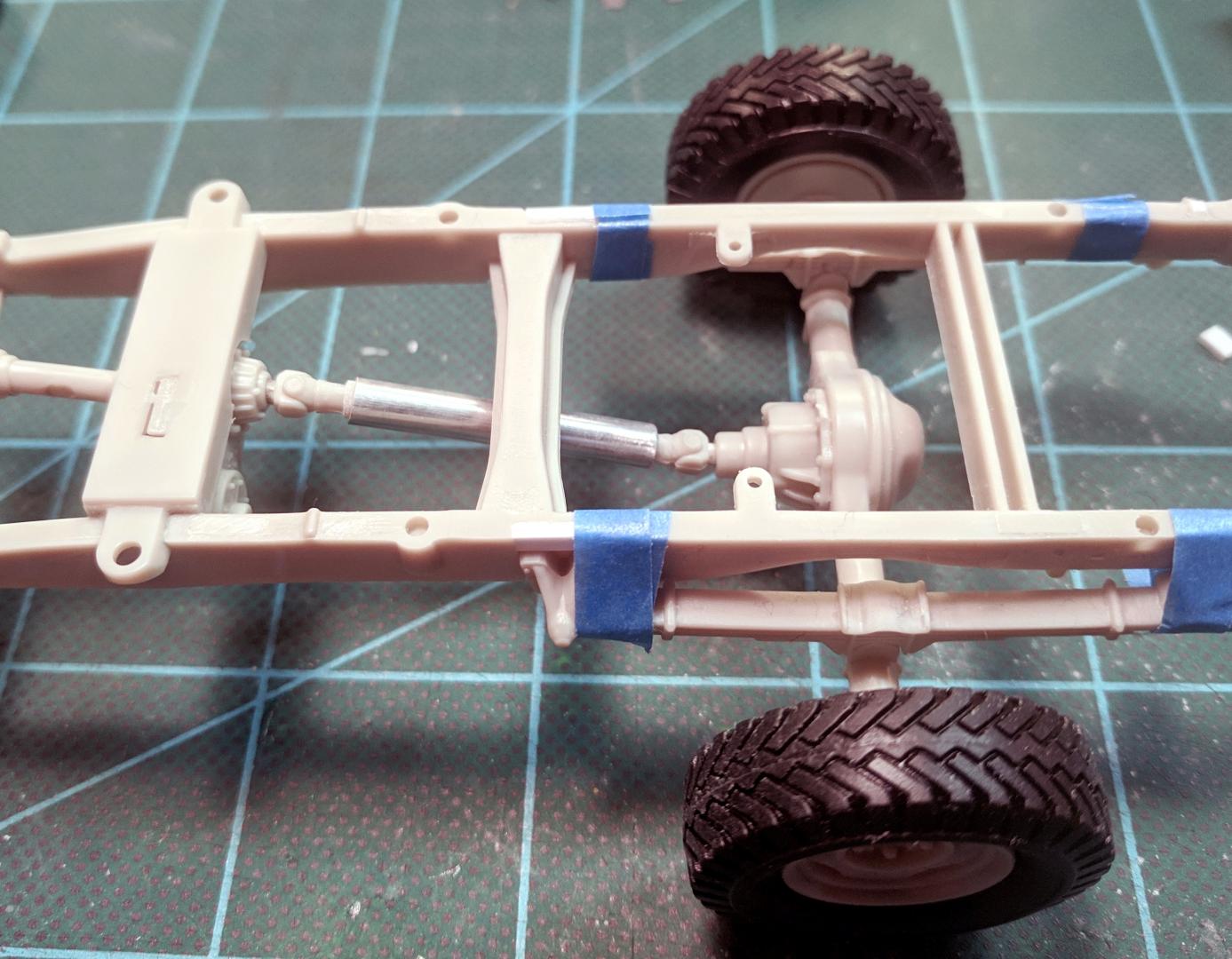

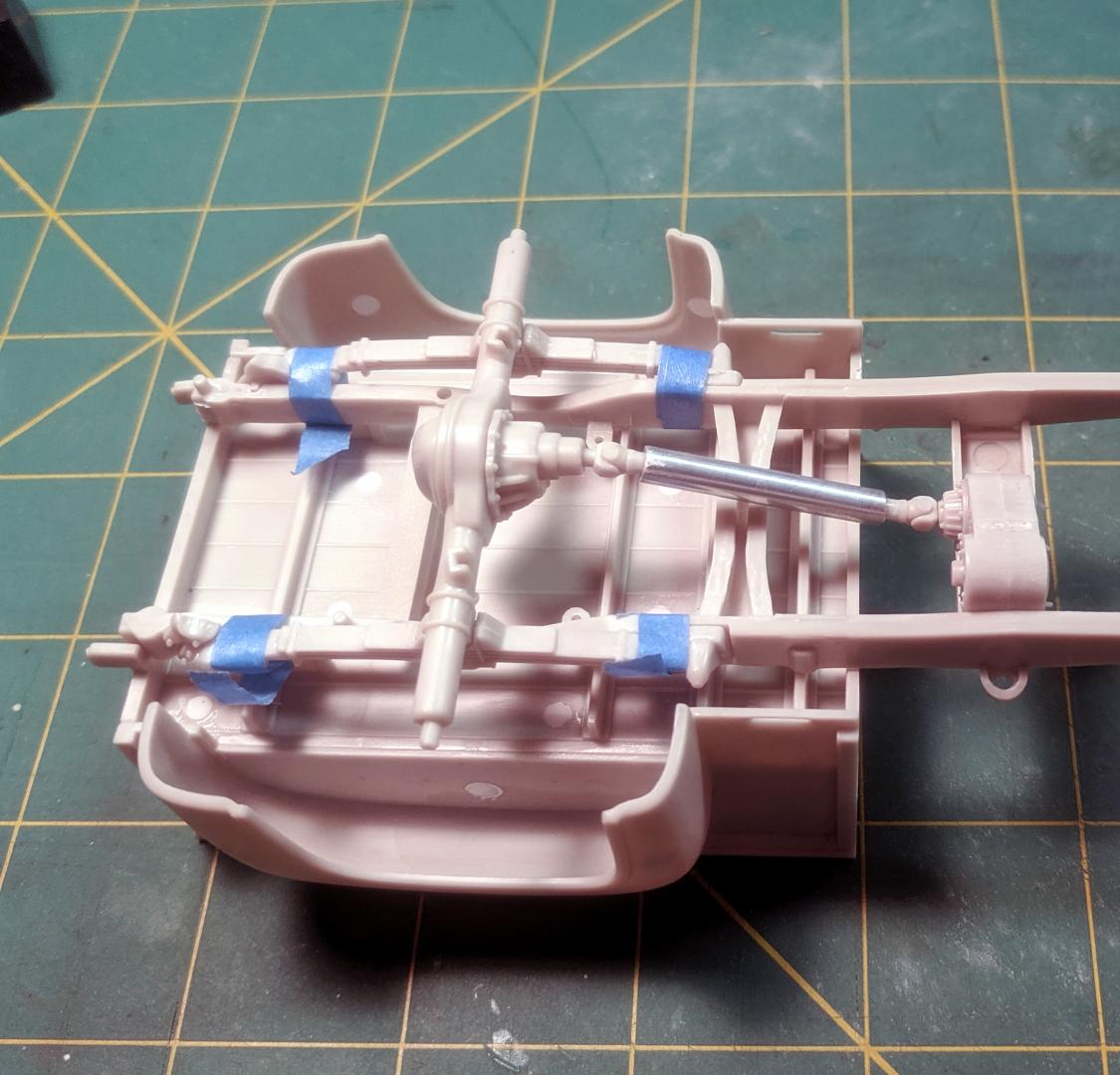

I had to shorten the rear driveshaft and I did it by cutting the ends of the long one in and inserting them into a piece of aluminum tube

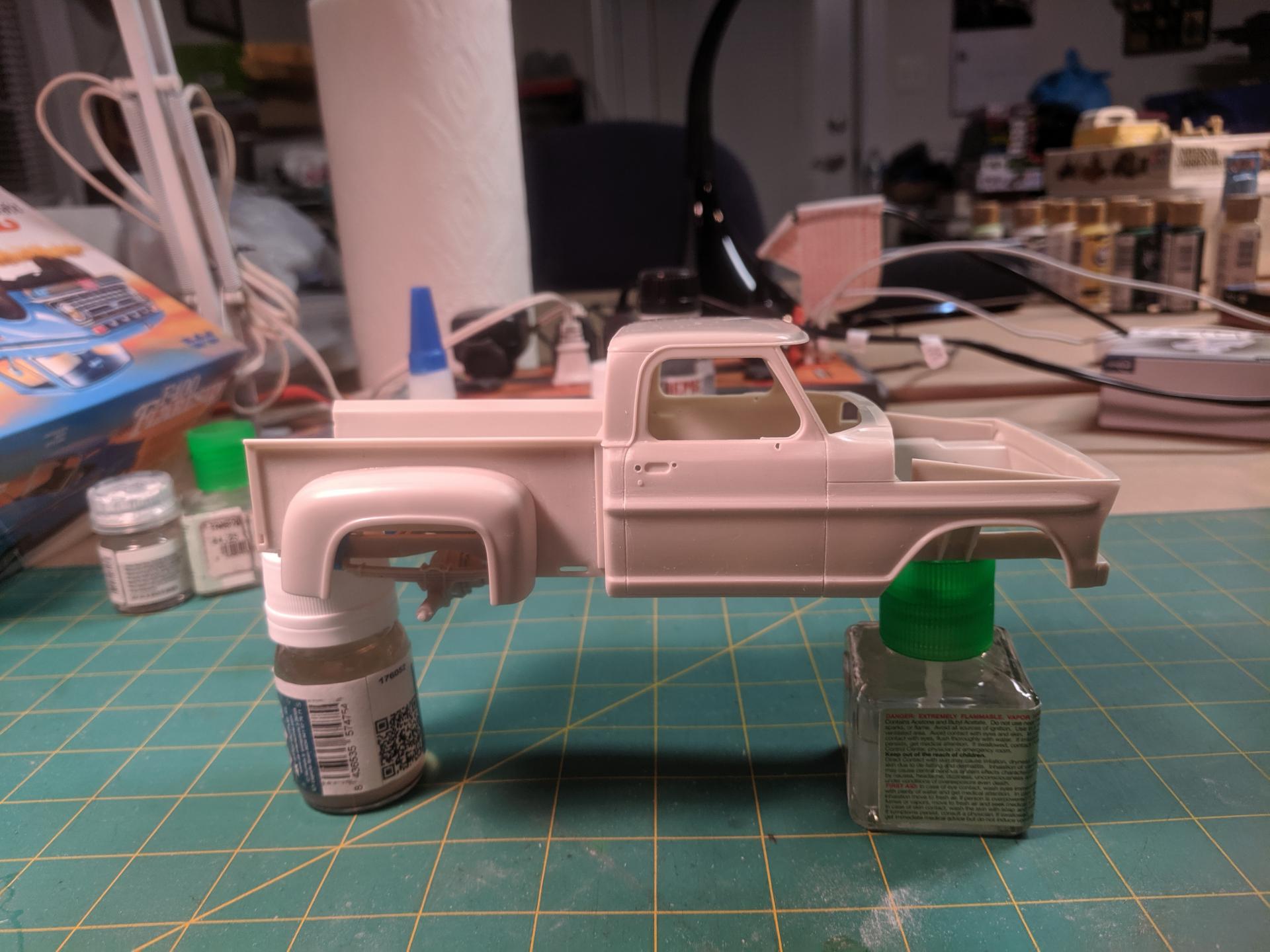

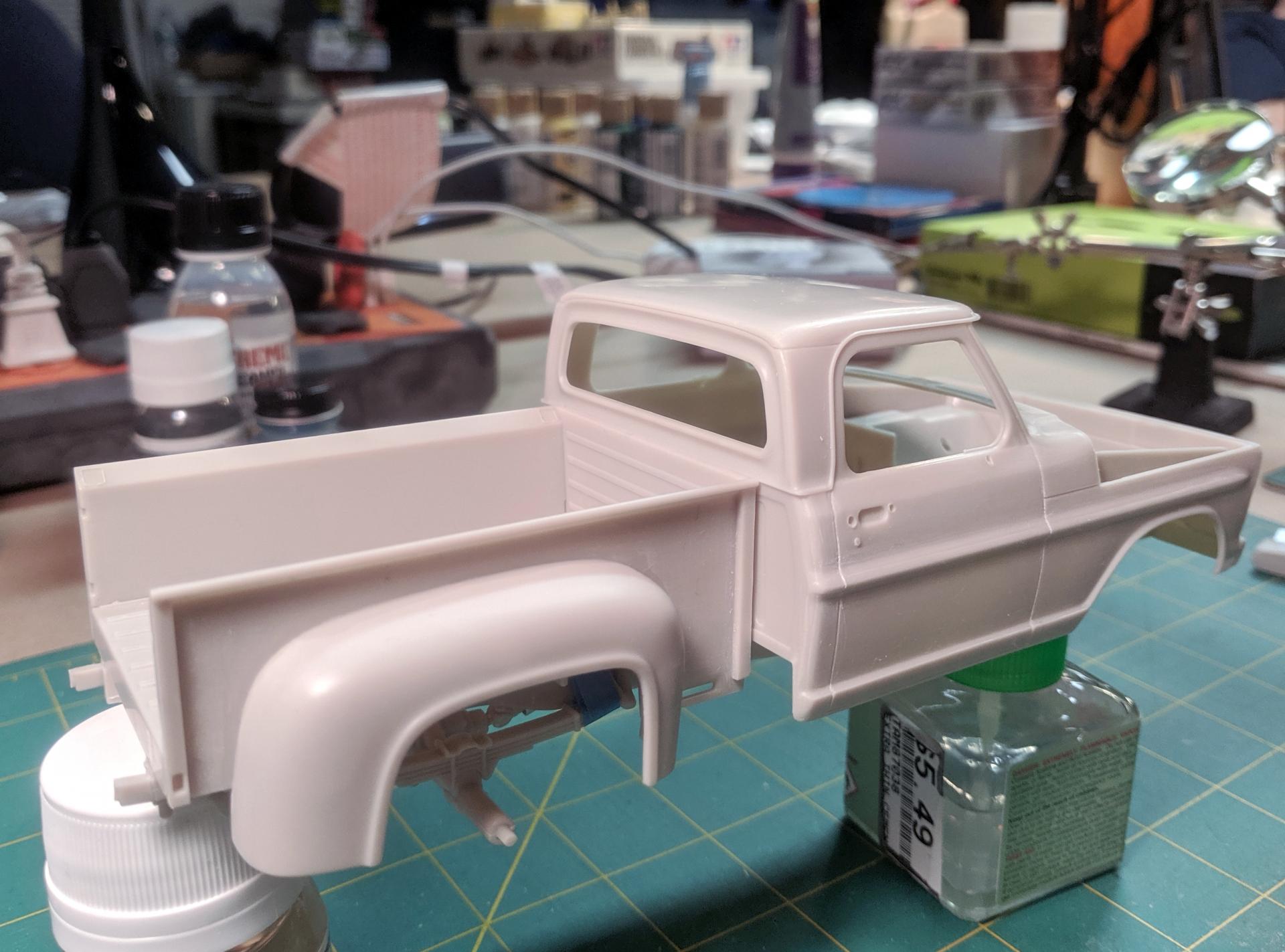

I also wanted to make it a step side so I assembled the bed from the 66 step side and again, to my surprise it fits right on the 70 frame using the existing mounting holes!



I still have some trim left to remove as well as fill in the back wall of the cab so that it meets the rocker panel. There's also a few corrections I need to make to the bed to match photos of a real truck.







Share this post


Link to post
Share on other sites

I'm really liking the direction this is going. :)

Share this post


Link to post
Share on other sites

Nice work so far, thanks for sharing the tips!

Share this post


Link to post
Share on other sites

Cool project and it's looking good! I'm sure Mobius had this in mind when they engineered the series, somewhat like what Revell did with their '32s. Cool!

Share this post


Link to post
Share on other sites

Excellent kitbashing so far!

Share this post


Link to post
Share on other sites

I'm happy to see the kit bashing! Looks like we're gonna get even more bang for our buck with utility bed out now as well. I sure hope Moebius releases that bed on its own, however I have no problem buying another truck for the bed.

Share this post


Link to post
Share on other sites

I had a little more time to work on my pickup, so I decided to attack the missing area on the rear cab wall.

What I have looks like this:




It should look like this:




I could have just filled in the missing area with a piece of sheet plastic, but since I wanted it to be fairly accurate to the 1:1 (and I like making extra work for myself) I decided to rework the entire rear of the cab.

I searched the web and found this photo of the real truck


Moebius didn't capture this area correctly. The rear cab wall should come all the way down to the bottom edge of the rocker panels with a cutout in the center.

It's not really an issue if you're building a styleside truck, but it becomes an issue when building a stepside.

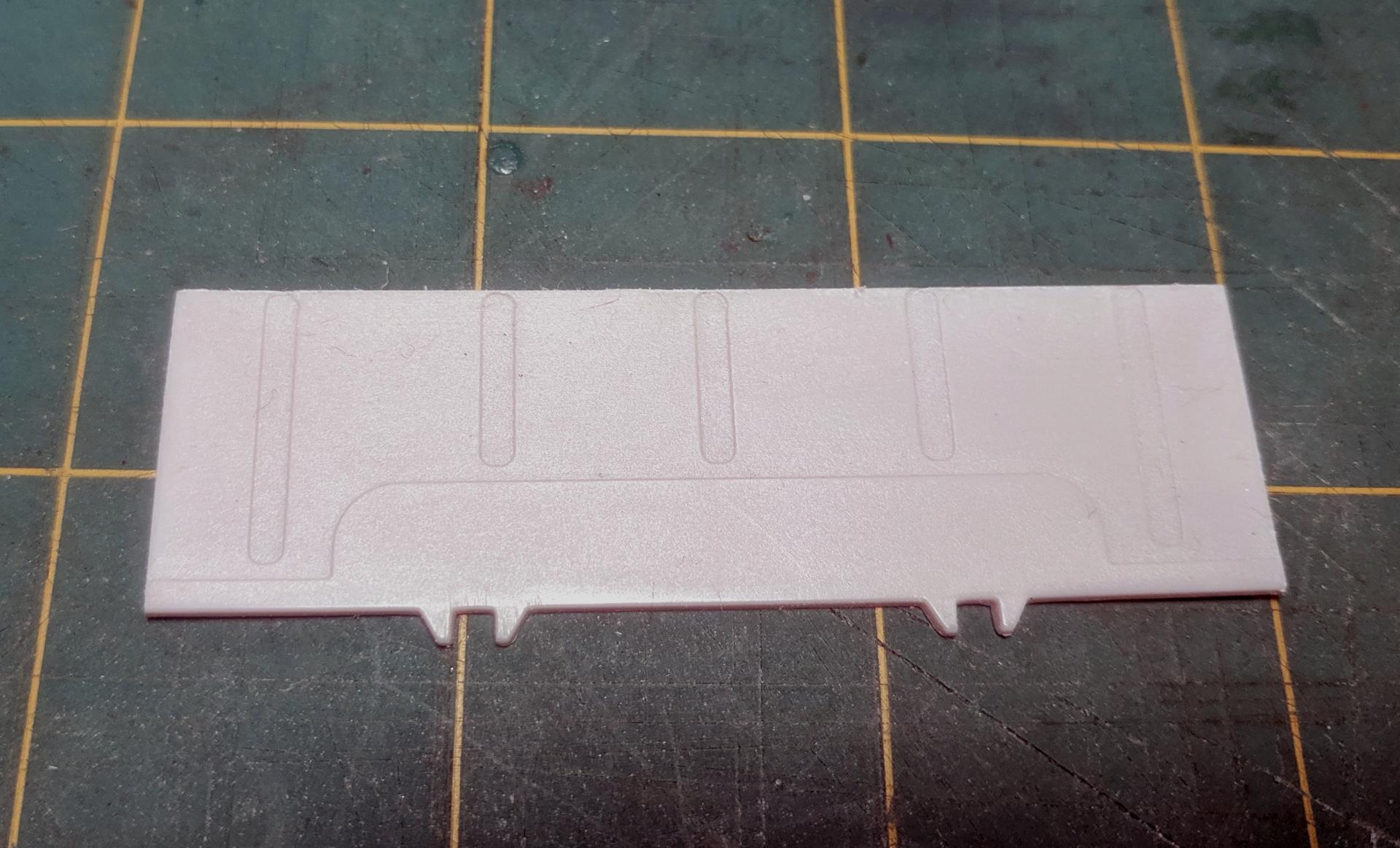

I started to fix it by cutting a section from a donor cab.


I clamped this piece onto the original cab making sure it was even with the bottom edge of the rocker panels. I then marked around it and cut this section out.


After a lot of test fitting and sanding. I glued in the donor section.


After opening up the "notched" area in the center and a little filling and sanding it looks a lot closer to the 1:1. It's not perfect but much better than it was and should look good with the stepside bed.
