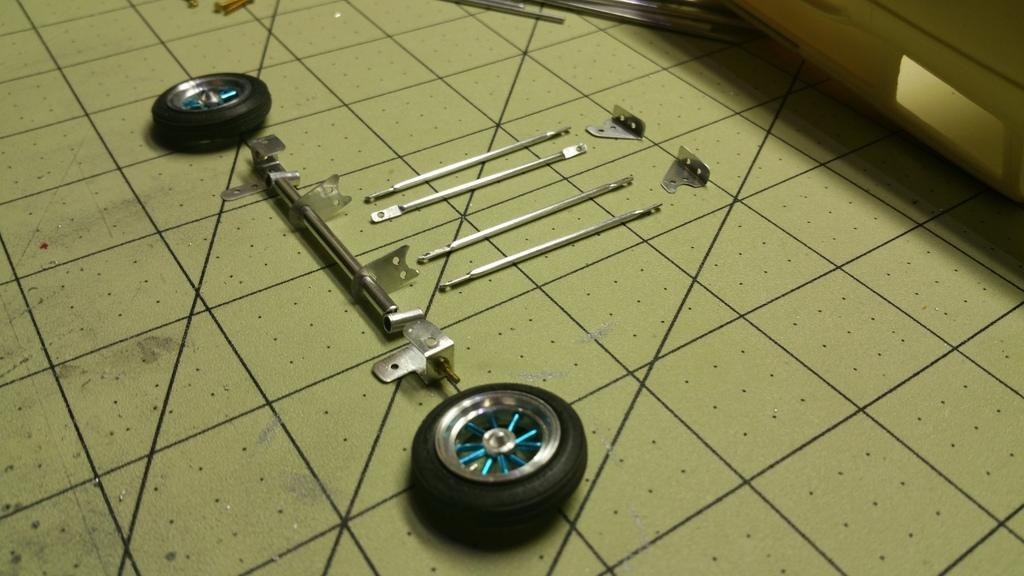

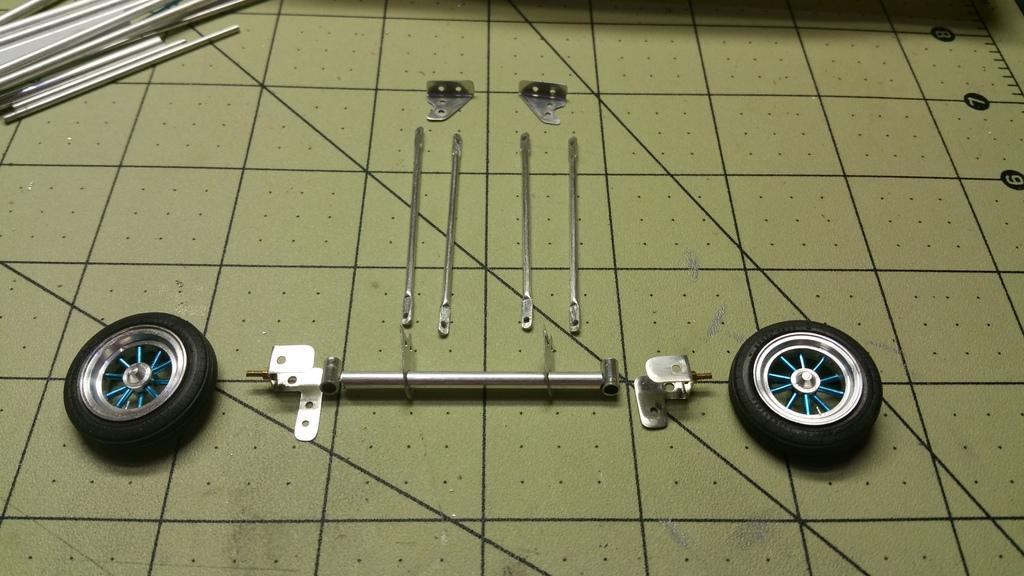

Nytrozilla Posted November 17, 2015 Author Share Posted November 17, 2015 (edited) Well, it's only been too long since my last update. Good thing I've got something to show for it. With the exception of the tie rod and steering link, the front axle is ready for it's initial assembly. Today I made radius rods and the under chassis brackets they will attach to. The rod axle brackets are currently free floating. If they need a whisper of CA after assembly, so be it. Getting the spindle / wheel connection right is what's taken the most time. Not to mention the polishing. Arrrrgh, the polishing! I hope to get a jeweler's drill press soon. If I had it now, I would have gone straight through the wheel center, then use a nut so it could spin freely. But alas, thou art stilleth a rookie-eth, at the ancient ways and techniques and, yes, magix, that are involved in metal manipulation. Enjoyeth the piceths. Edited November 17, 2015 by Nytrozilla Quote Link to comment Share on other sites More sharing options...
gasser59 Posted November 17, 2015 Share Posted November 17, 2015 Oh yeth, this ith gonna be good. This looks great for your firth one. I with you luck on your assembly. Quote Link to comment Share on other sites More sharing options...
bismarck Posted November 17, 2015 Share Posted November 17, 2015 Oh yeth, this ith gonna be good. This looks great for your firth one. I with you luck on your assembly. Quote Link to comment Share on other sites More sharing options...
cobraman Posted November 17, 2015 Share Posted November 17, 2015 This is looking soooooooooo nice already. Can't wait to see it finished. Quote Link to comment Share on other sites More sharing options...
10thumbs Posted November 17, 2015 Share Posted November 17, 2015 Joe, my cup runneth over.I like the crimped ends on the rods, this will work well and look good and clean too. Good job. I like the way you're going with this project. Quote Link to comment Share on other sites More sharing options...
gasser59 Posted November 17, 2015 Share Posted November 17, 2015 After studying the photos, I guess I'm at a loss to understand the correlation to the batwings on the axle as orientated to the axle ends. Seem to be 90 degrees off. Please explain your plan. Quote Link to comment Share on other sites More sharing options...
10thumbs Posted November 17, 2015 Share Posted November 17, 2015 I think Joe has Zap-A-Gap-itis. The things just aren't attached yet. Actually, not a bad idea!I think attaching the radius rods to the front axle is the biggest pita, along with 4 bars on the rear axle that a build can offer. Geez, I need an extra pill to get that job done. Talk about screwing around.... Quote Link to comment Share on other sites More sharing options...

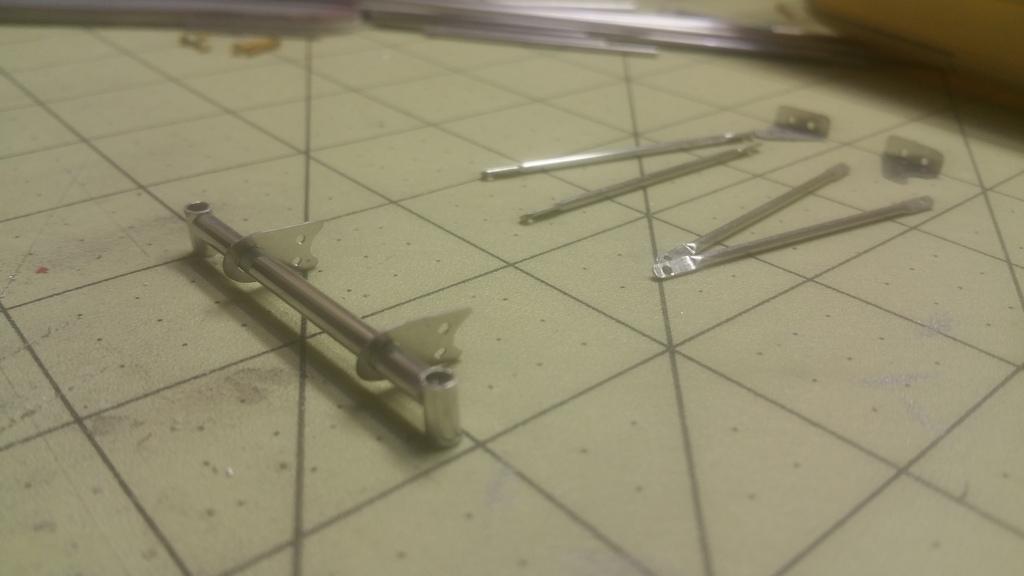

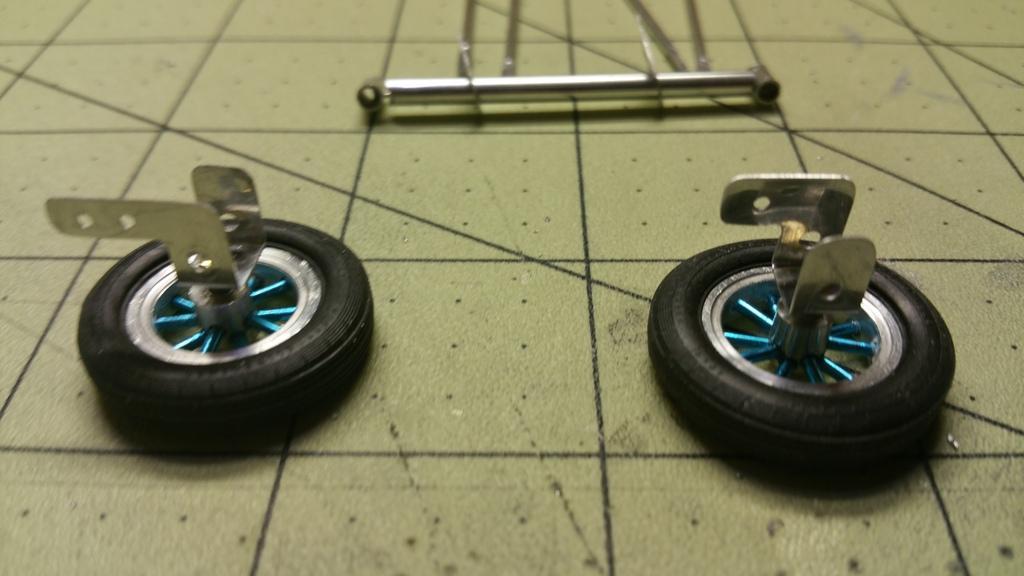

Nytrozilla Posted November 17, 2015 Author Share Posted November 17, 2015 (edited) After studying the photos, I guess I'm at a loss to understand the correlation to the batwings on the axle as orientated to the axle ends. Seem to be 90 degrees off. Please explain your plan. I think I see what you're saying Pal. Everything is loose, I just laid the axle ends down instead of standing them up. Also the rear brackets are laying down. I'm sure that didn't help either. How's this? Hi Michael. I haven't put in an order for rod ends from RB Motion yet. I put tape on both inside surfaces of a flat nose plier. The length of each crimp is the same as the width of the plier to clear the brackets. Edited November 17, 2015 by Nytrozilla Quote Link to comment Share on other sites More sharing options...
gasser59 Posted November 17, 2015 Share Posted November 17, 2015 That makes much more sense Joe. So the vertical axle ends are loose still? Quote Link to comment Share on other sites More sharing options...
Nytrozilla Posted November 17, 2015 Author Share Posted November 17, 2015 Yupper my friend. Vertical, horizontal, diagonal, cylindrical, hexagonal and conceptual. It's all loose. I'm going to try to get to the tie rod tonite and I also have to fabricate 4 U-bolts and a couple of brackets for them too, but that should be pretty straight forward.Better now? Quote Link to comment Share on other sites More sharing options...
gasser59 Posted November 17, 2015 Share Posted November 17, 2015 Whew!! I can stop holding my breathe. Thanks...I was turning blue. Quote Link to comment Share on other sites More sharing options...
Codi Posted November 21, 2015 Share Posted November 21, 2015 Joe, my sincerest apologies for not commenting on your front wheels btw......they turned out stellar. cheers, tim Quote Link to comment Share on other sites More sharing options...

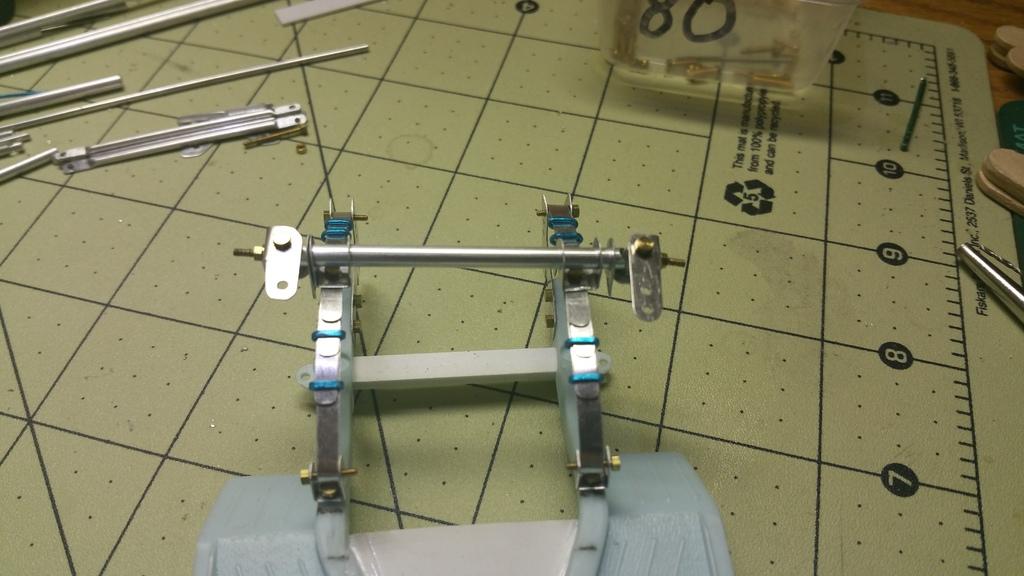

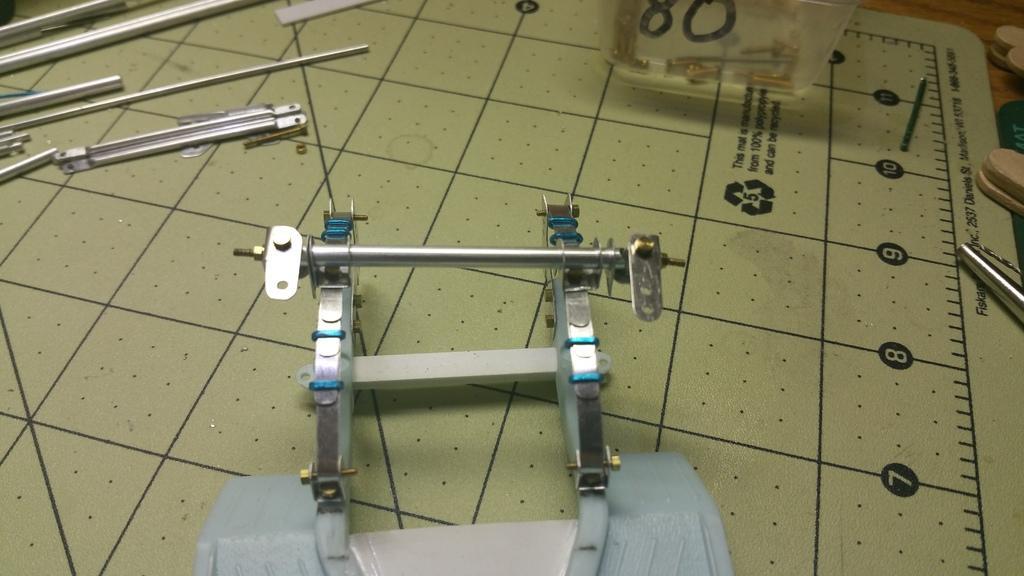

Nytrozilla Posted November 21, 2015 Author Share Posted November 21, 2015 Joe, my sincerest apologies for not commenting on your front wheels btw......they turned out stellar. cheers, tim I'll take your word for it My Man. If anybody knows what stellar is, that would be you. And you feel free to chime in whenever the mood strikes or life allows. We really should talk again soon though. This is one of those times when I poke my head in, tell you all I haven't gone INTERSTELLAR, get you all jazzed when I tell you I'm actually making progress and then have no pictures to show for it. I am on my (hopefully) final steering knuckle / spindle production and will have a working set up shortly. I couldn't find a working combo of wire / rod diameter to nut size for the U-bolts, so I made brackets that the axle will slide through. The brackets bolt to the leafs. Trust me. Quote Link to comment Share on other sites More sharing options...
Codi Posted November 21, 2015 Share Posted November 21, 2015 I trust ya' Joe.......can't wait to see how your solution works out. cheers Quote Link to comment Share on other sites More sharing options...

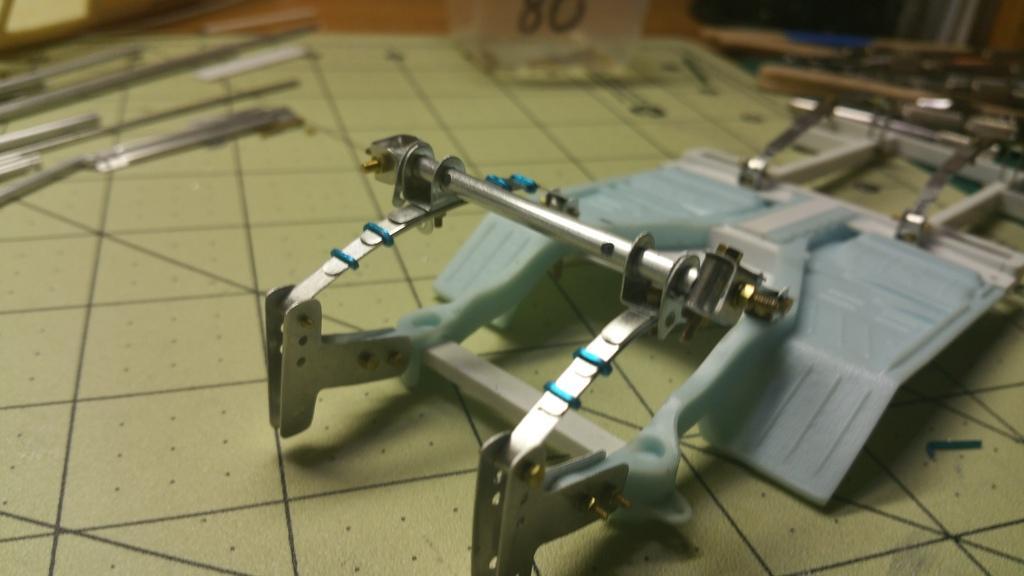

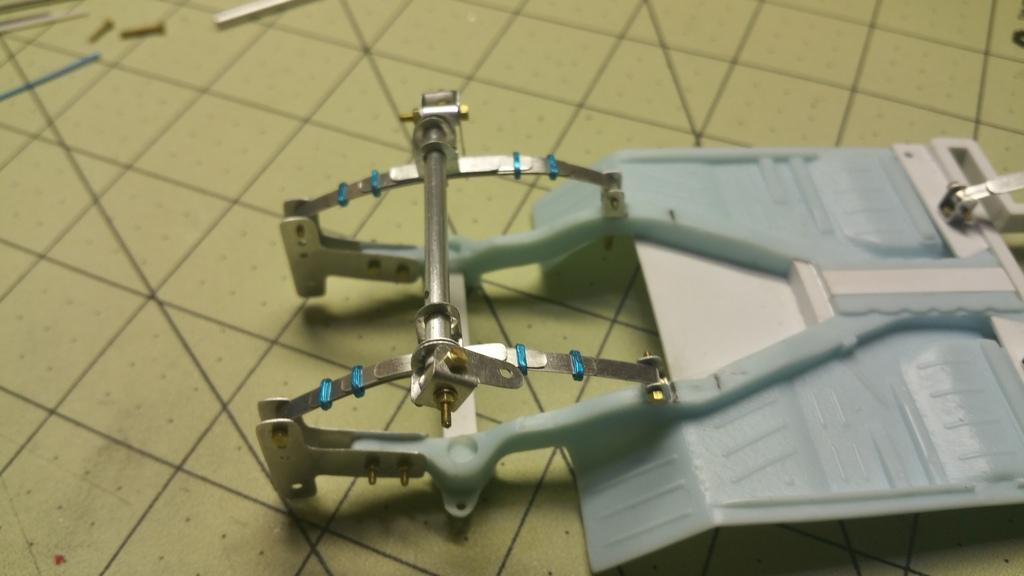

Nytrozilla Posted November 22, 2015 Author Share Posted November 22, 2015 Alrighty Folk. Here's what we've been waiting for. To start assembly, I had to make some leaf retainer clips before attaching the axle brackets to the spring assembly. I took some of the same wire I used for the wheel spokes and flattened a long length with flat nose pliers and a roller. It was too easy to make a hook end, then wrap the wire around the leafs, cut to size, then crimp. No CA required to keep them in place. Lastly, I installed the axle brackets. Nextly, notice that on the axle, only the left spindle tube is attached permanently. I'll glue the other end after I make sure the radius rods are positioned right. Once that happens, the springs and axle will be a permanent unit. Also of note on the axle are the two holes. Those are for shocks. Awwww Maaaaan, I gotta' make SHOCKS !!!???!!! I guess the last thing will be the tie rod. Just a note: Everything is still loose so it may appear lopsided or off center. When it's all tightened, if that's still the case it's going in the trash compactor. Enjoy. Quote Link to comment Share on other sites More sharing options...
gasser59 Posted November 22, 2015 Share Posted November 22, 2015 Now that is some engineering my friend. Looks sharp. Quote Link to comment Share on other sites More sharing options...
10thumbs Posted November 23, 2015 Share Posted November 23, 2015 Looking very good Joe. Nice work on an intricate assembly. Quote Link to comment Share on other sites More sharing options...
cobraman Posted November 23, 2015 Share Posted November 23, 2015 Looks top notch ! Quote Link to comment Share on other sites More sharing options...
GTJUNIOR Posted November 24, 2015 Share Posted November 24, 2015 So much detail! Very inspiring. Keep it up, can't wait to see more. Quote Link to comment Share on other sites More sharing options...

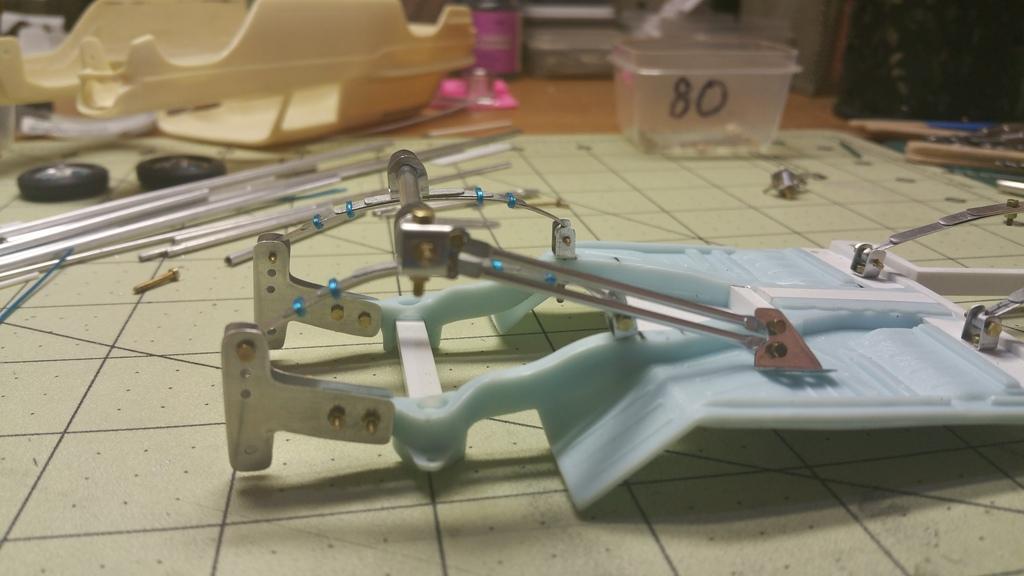

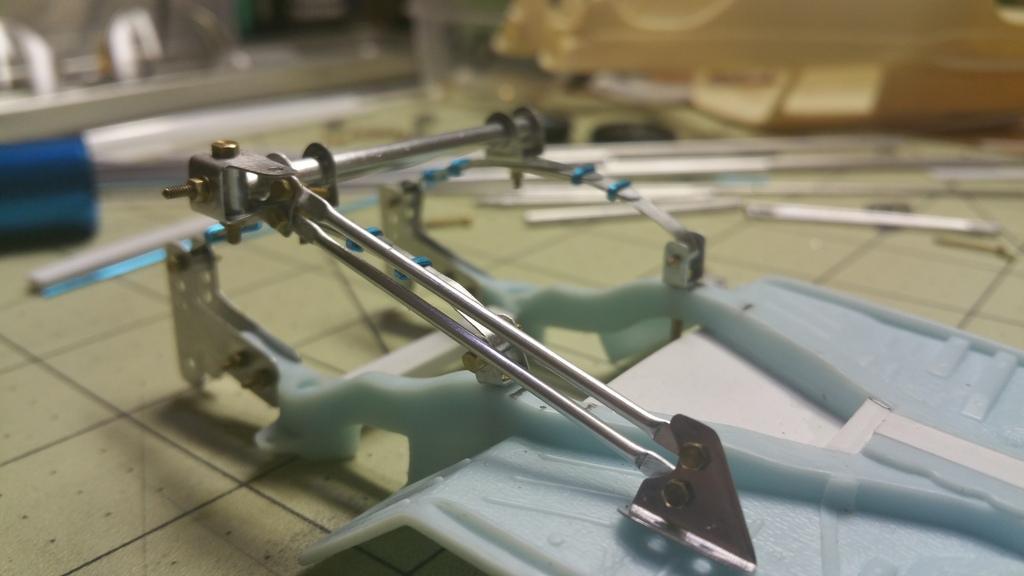

Nytrozilla Posted November 24, 2015 Author Share Posted November 24, 2015 Thanks everybody for the kind words....(Does that sound familiar?)..... Here's a quick update with the radius rods in place. I was worried that I'd have to shorten one on each side due to the angle, but it's fine. It also clears the tie rod that I haven't made yet. Quote Link to comment Share on other sites More sharing options...
Codi Posted November 25, 2015 Share Posted November 25, 2015 Nice job Joe. Can't wait to see you shocks too. Cheers, tim Quote Link to comment Share on other sites More sharing options...
Nytrozilla Posted November 25, 2015 Author Share Posted November 25, 2015 Nice job Joe. Can't wait to see you shocks too. Cheers, tim Sure thing Brother Tim. I'll get right on that as soon as you make me some upper and lower coil housings. Guess I'm going to have to use my Dremel as a lathe. That will be a first. Quote Link to comment Share on other sites More sharing options...
