top dragster scratch build

[comp1839]

so, my real 1:1 '37 pro street build is getting a little long in the tooth and i really miss building my 1/8 scale cars. i decided to take a break and start a little build off to the side. this will be a top dragster build. the brass tube  chassis will be 275" w.b. car (that's 34 and 3/8" in 1/8 scale) hard tail. the unique part of this chassis will be how narrow the rear will be. i'll be shooting for 8"-10" between the rear tires. it will most likely have a half body on it.   the power plant will be a totally scratch built sonny leonard headed hemi BB chevy . dual dominators and possibly 2 kits.  i'll be scratch building a powerglide trans for this build. actually everything but the strange 9.5" top loader center will be scratch built including the rear wheels which will be weld delta and the fronts will be some weld carbon fiber experimental wheels i saw awhile back. i hope you enjoy. feel free to ask questions or post comments.

initial drawing.

i started the motor awhile ago but now it has a purpose.the block in progress.

belt drive.











Edited July 15, 2017 by comp1839

[comp1839]

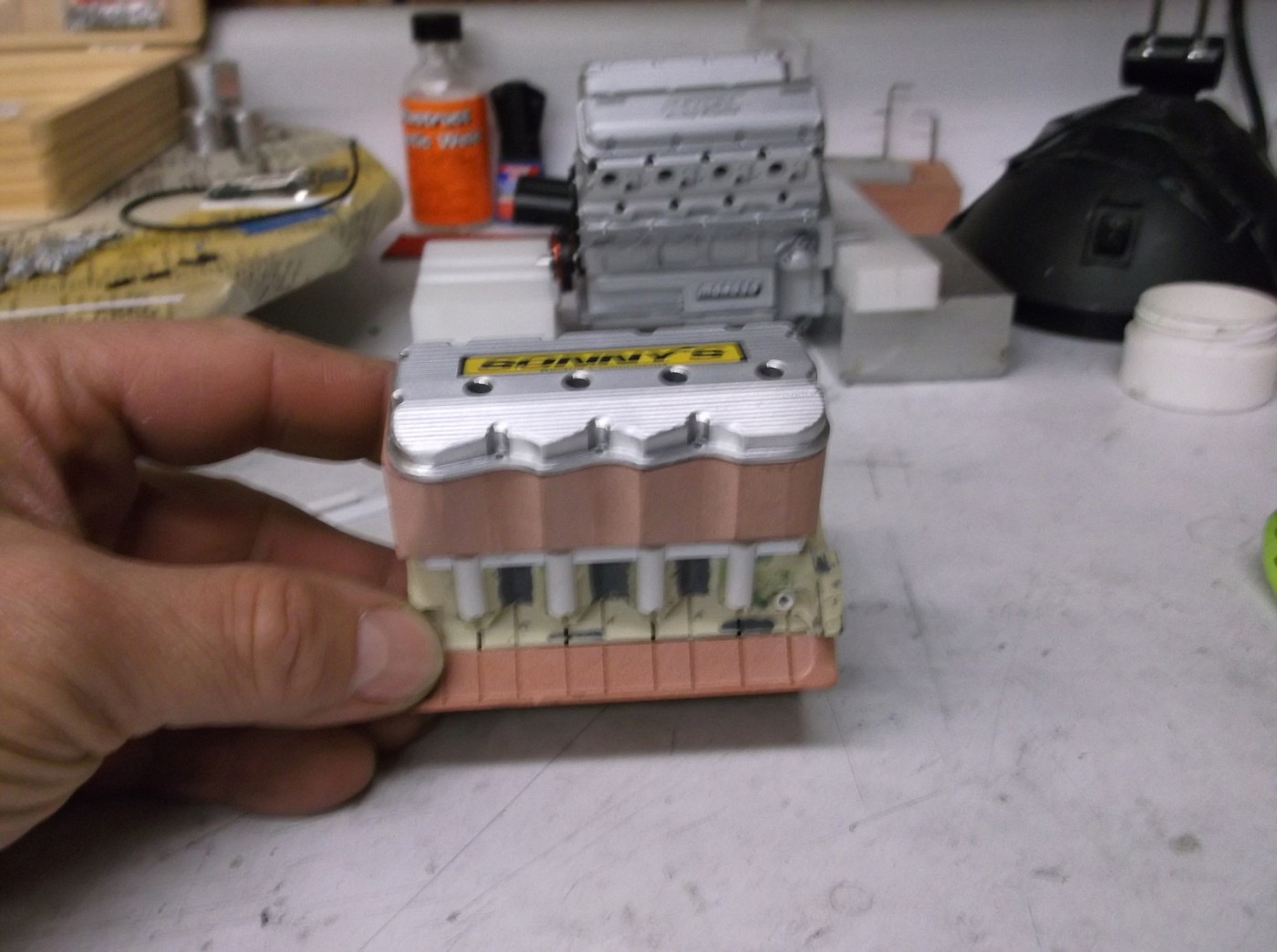

here are the valve covers and cylinder heads. all hand machined.

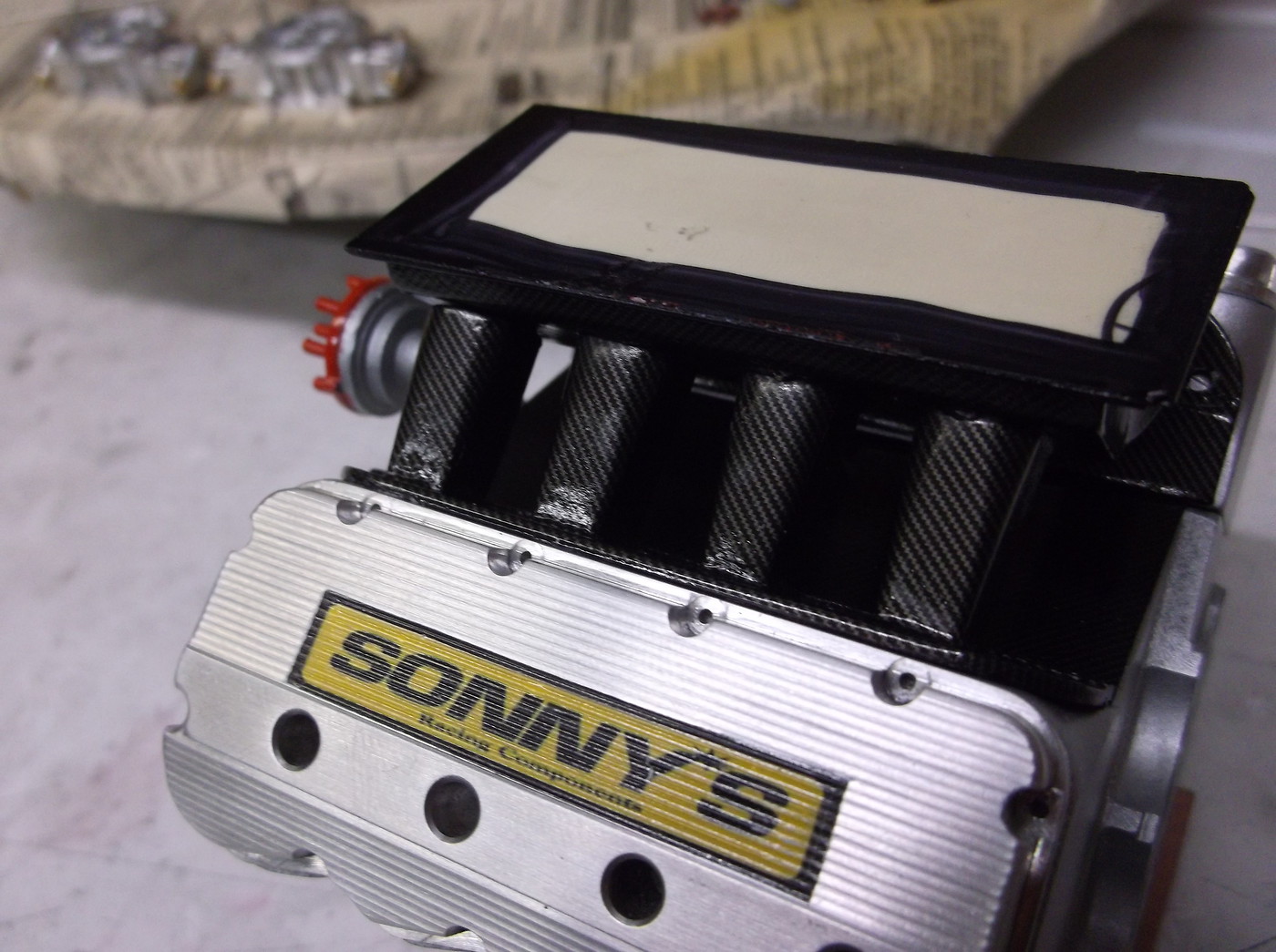

carbon fiber intake.

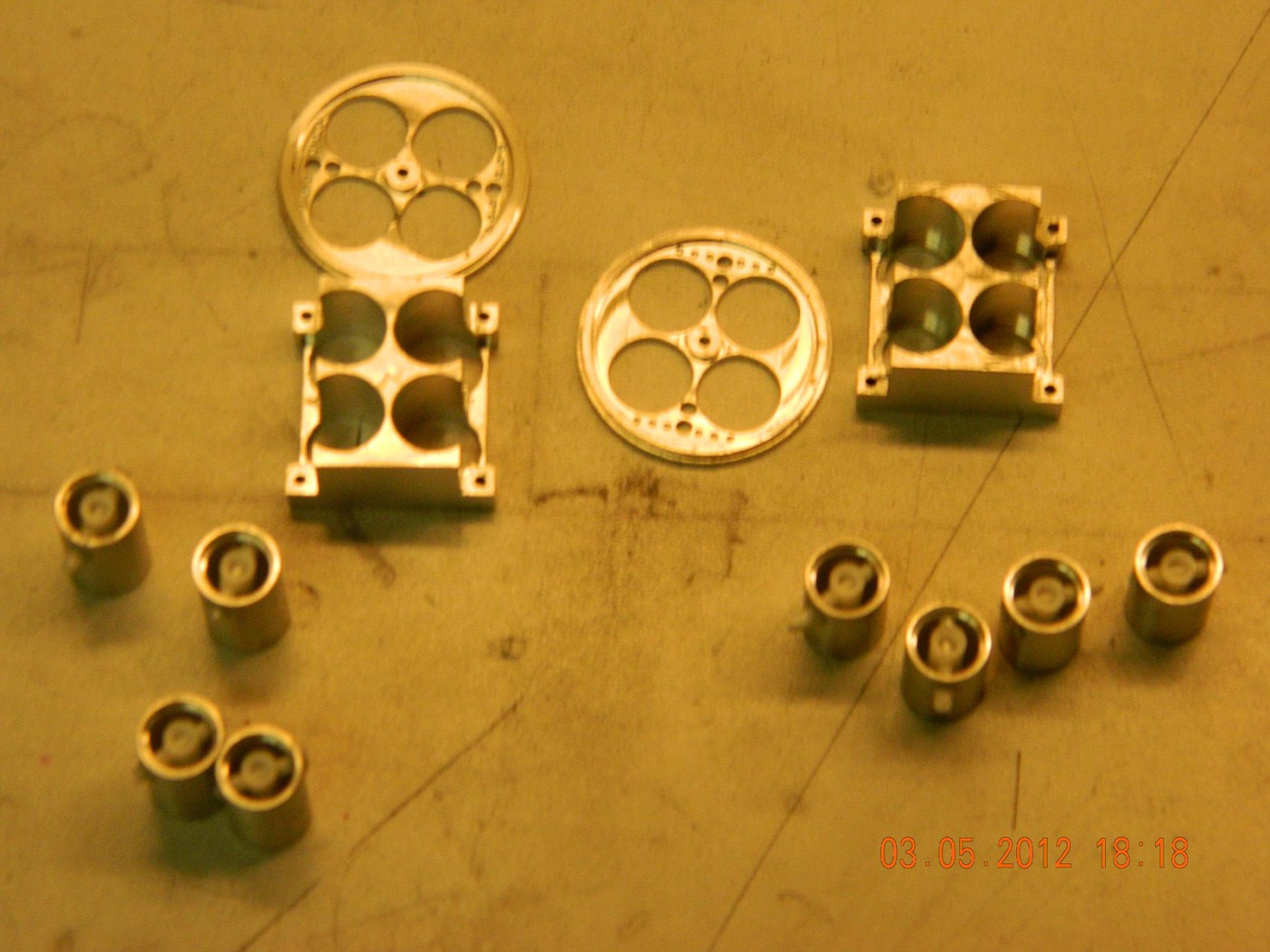

billet holley dominator carbs.

made some accelerator pumps and linkage still need to make the pump arms. also made a billet plenum top.



Edited July 16, 2017 by comp1839

[comp1839]

these are the wheels i intend on using at the present time.

fronts.

rears.
