A tale of two Merlins

[landman]

In a continuing effort to bring variety into the FTB engine shop, I purchased two Merlins on eBay. One is a resin casting of the Airfix Mosquito, the other was the engine sprue of a Trumpeter Spitfire.



Edited October 25, 2020 by landman

[landman]

The resin engine was missing its supercharger so I copied the other one and installed it. It is the wrong one for a Mosquito but it is what I had.

Edited October 25, 2020 by landman

[landman]

The plan was to do one as a display unit like this one:

and the other one as a foundling like this one, maybe not so rough but badly weathered anyway:





Edited October 25, 2020 by landman

[landman]

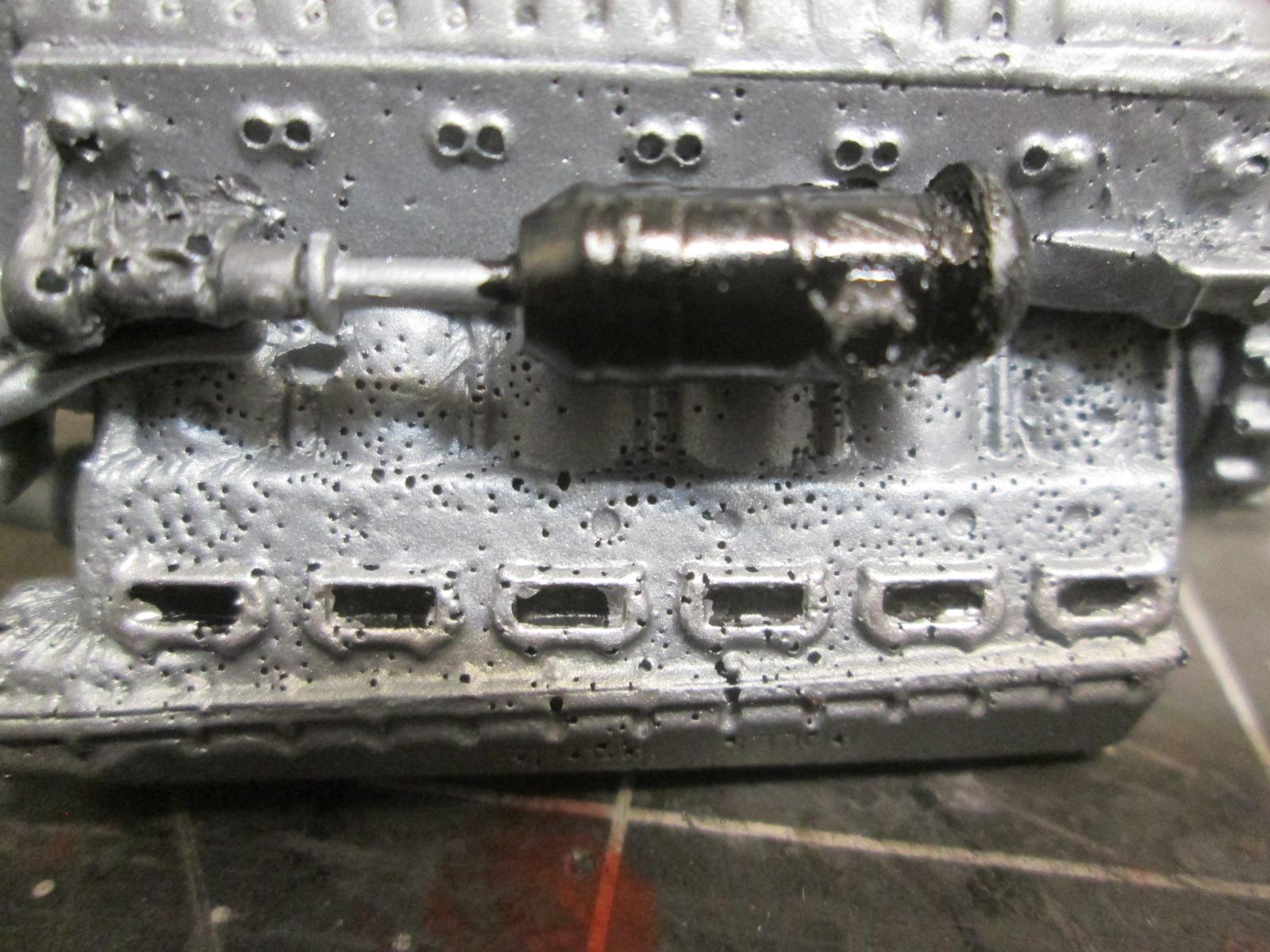

Now I have a big dilemma. The resin unit is riddled with pinholes and would lend itself well to a deteriorated status, but it is more detailed than the Trumpeter unit.

Edited October 25, 2020 by landman

[landman]

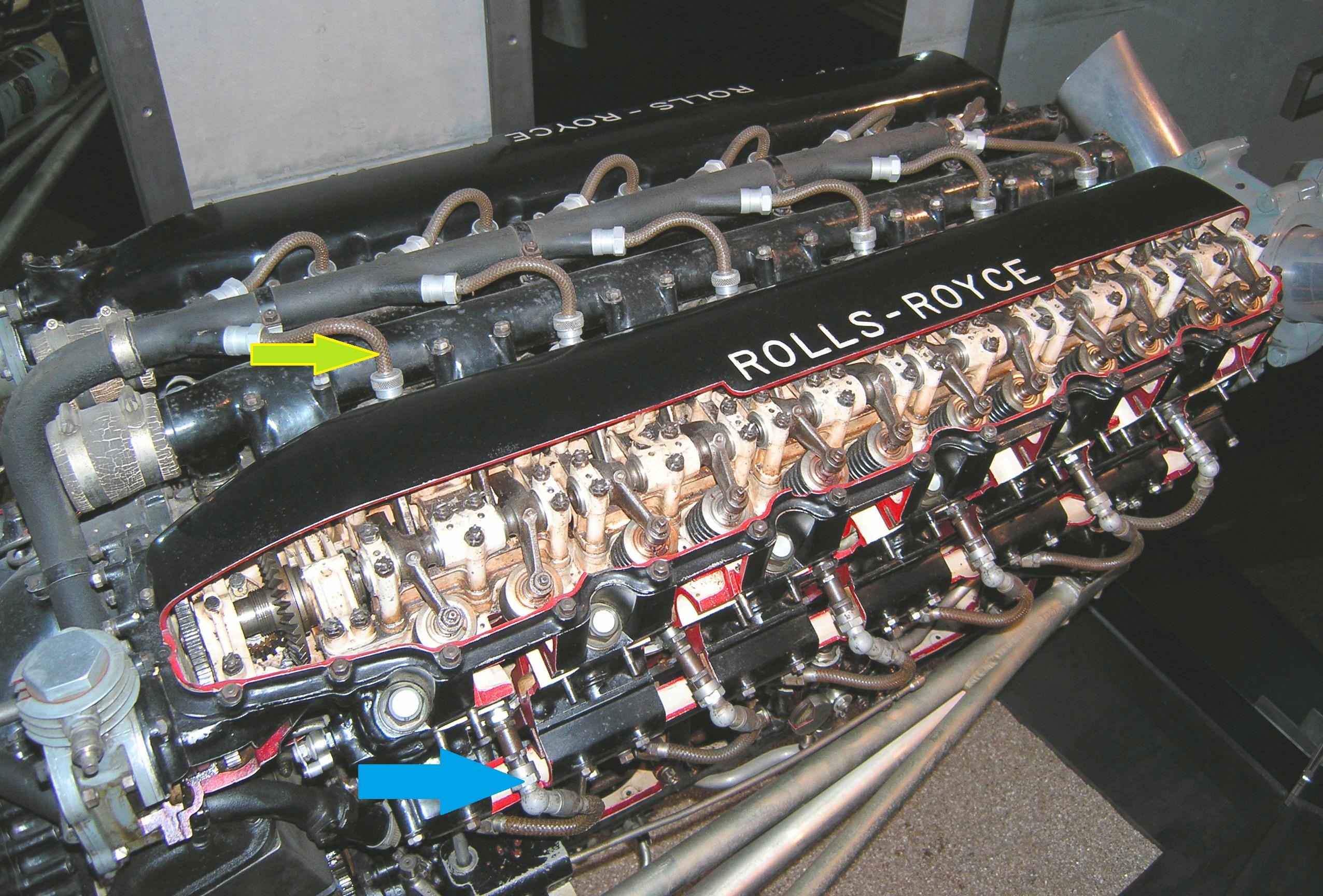

Another question, am I correct in assuming that the conduit shown by the arrows house spark plug wires or are they fuel lines?



Edited October 25, 2020 by landman

[wisdonm]

That's the worst resin that I've seen, ever.

[landman]

Meanwhile, i started adding those details.

Edited October 25, 2020 by landman

[landman]

  On 3/23/2019 at 12:09 AM, wisdonm said:

That's the worst resin that I've seen, ever.

Expand

I think that is why it was painted flat black. And that's why I think it is the best one for the heavily weathered effect.

[landman]

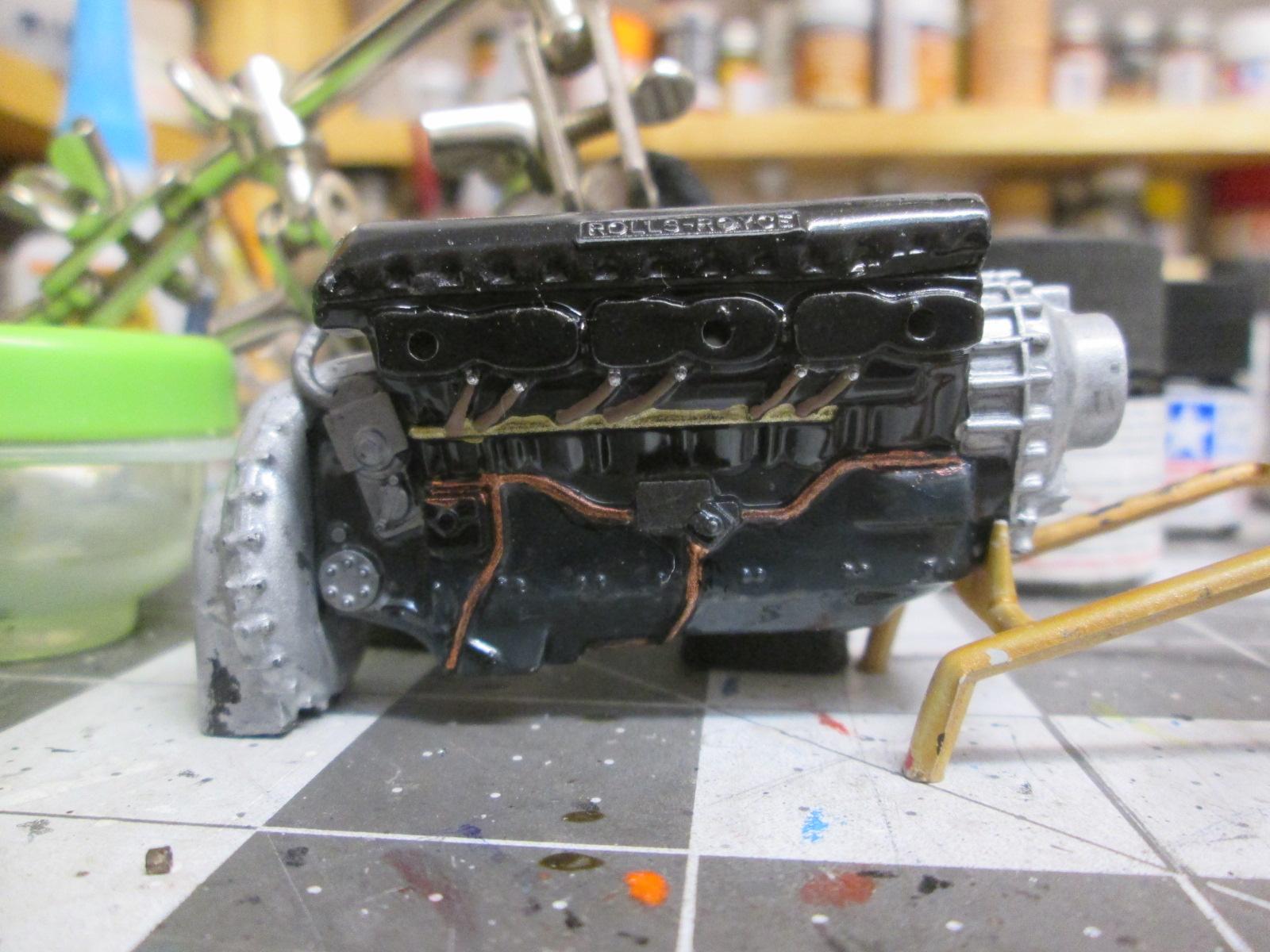

I have the resin one pretty well where I want it. I''l do the other one next. We'll see which one become the right candidate for the wrecked version.

Edited October 25, 2020 by landman

[landman]

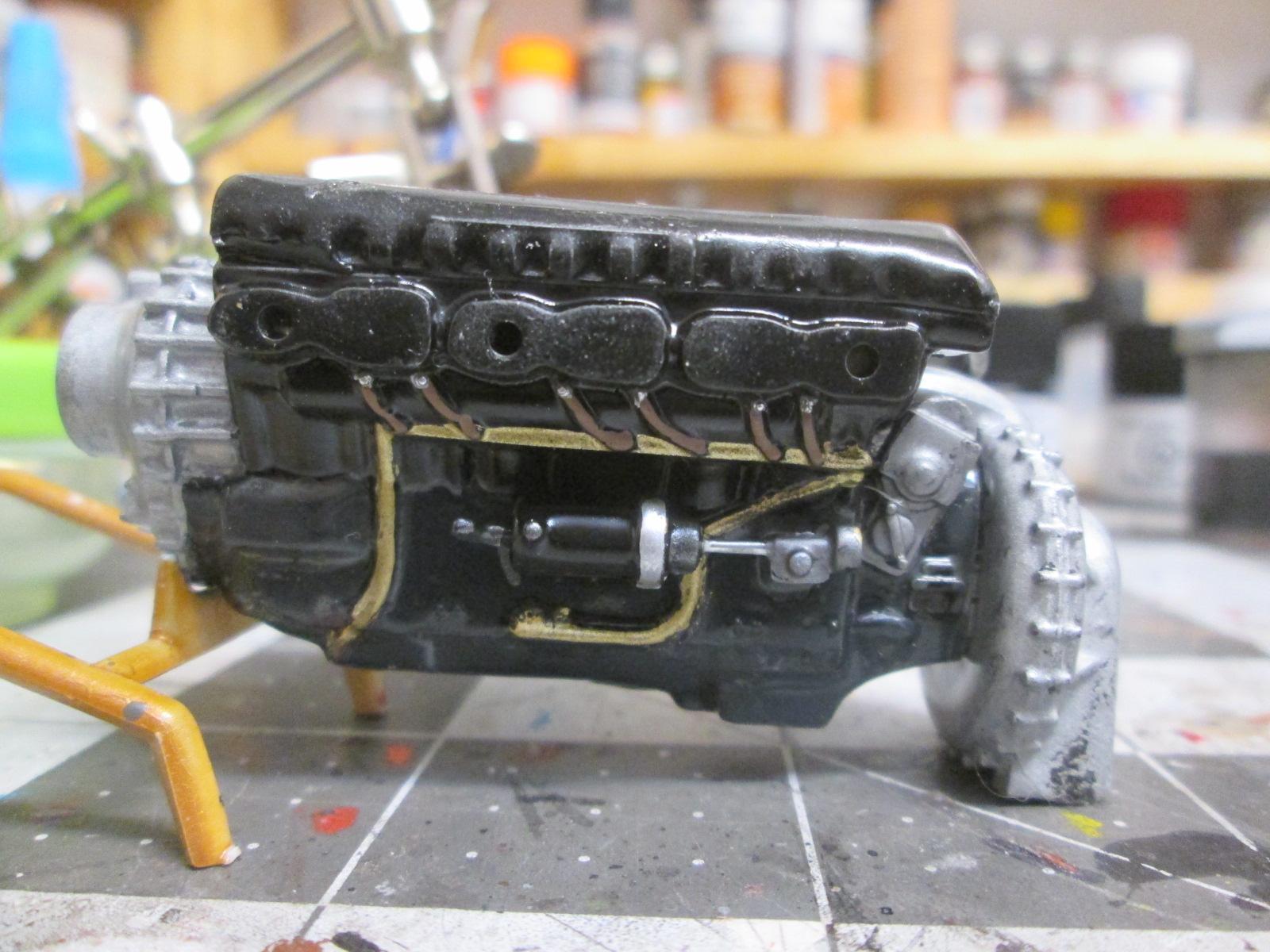

Adding detail to the Trumpeter version.

Edited October 25, 2020 by landman

[landman]

Gummed it up a bit.

Edited October 25, 2020 by landman

[Force]

  On 3/22/2019 at 8:40 PM, landman said:

Another question, am I correct in assuming that the conduit shown by the arrows house spark plug wires or are they fuel lines?



Expand

They are spark plug leads as the Merlin has two ignition systems, the Merlin also has a carburetor...so fuel lines they are not.

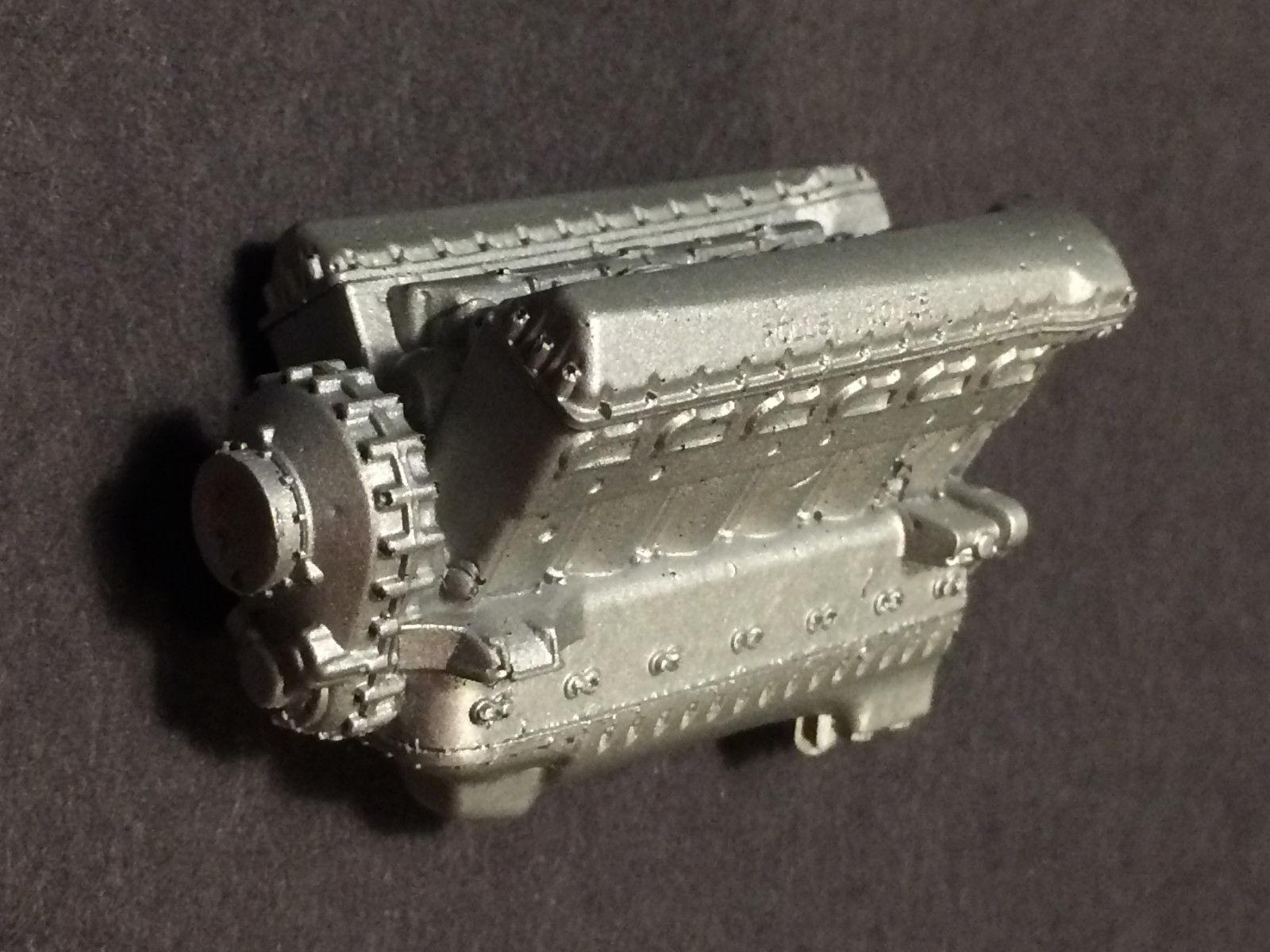

Airfix has a nice crisp Merlin in the 1:24th scale P51D Mustang kits, it's the Packard version of the Rolls Royce Merlin 66.

Edited March 27, 2019 by Force

[landman]

  On 3/27/2019 at 10:27 PM, Force said:

They are spark plug leads as the Merlin has two ignition systems, the Merlin also has a carburetor...so fuel lines they are not.

Airfix has a nicer Merlin in the P51D Mustang kits, it's the Packard version of the Merlin 66.

Expand

Thank you sir.

[Force]

If you get a chance to get the Airfix P51D engine buy it, you will not be disappointed.

[Intmd8r]

Nice work Pat - shame about the resin piece.

I love this engine!  Living in southern Ontario, I get the privilege of seeing and hearing the Merlins in action on the Lancaster from Hamilton from time to time.  What a sound!

Could not imagine what it would have been like to be on the ground looking up at this beast and several dozen of its friends overhead.

Keep up the great work

[Ace-Garageguy]

Interesting project, looking good.

It's difficult to believe that anyone with a gram of competence or self respect would sell a pinholey mess like that resin thing though.
