landman Posted September 24, 2019 Share Posted September 24, 2019 Is the custom engine in this kit based on a real engine or is it the designer's imagination's product? If it is real what are the components, dual carbs and that fancy intake manifold? Quote Link to comment Share on other sites More sharing options...
Ace-Garageguy Posted September 24, 2019 Share Posted September 24, 2019 (edited) Though there may very well be a ridiculous twin-carb adapter that bolts to the stock intake manifold, to get any meaningful performance increase, it would be necessary to provide more "holes" for carbs, rather than trying to flow them both through the flange intended for one on the OEM manifold. Welding on additional flanges was one way it was done in the early days before catalog-everything. A typical twin-carb cast manifold replaced the OEM, like this... EDIT: For lotsa alternatives in reality, Google image-search "twin carb adaptor stovebolt 6" or similar. Edited September 24, 2019 by Ace-Garageguy Quote Link to comment Share on other sites More sharing options...
landman Posted September 24, 2019 Author Share Posted September 24, 2019 Thank you Bill. What do you figure the carbs might be? Mony possibilities I suppose. Quote Link to comment Share on other sites More sharing options...
Ace-Garageguy Posted September 24, 2019 Share Posted September 24, 2019 (edited) I pulled the kit out and looked...kinda hard to tell. Sorta blobular, and I didn't spend much any time trying to figure out if they were supposed to represent anything real. Edited September 24, 2019 by Ace-Garageguy Quote Link to comment Share on other sites More sharing options...
landman Posted September 24, 2019 Author Share Posted September 24, 2019 11 hours ago, Ace-Garageguy said: Though there may very well be a ridiculous twin-carb adapter that bolts to the stock intake manifold, to get any meaningful performance increase, it would be necessary to provide more "holes" for carbs, rather than trying to flow them both through the flange intended for one on the OEM manifold. Welding on additional flanges was one way it was done in the early days before catalog-everything. A typical twin-carb cast manifold replaced the OEM, like this... EDIT: For lotsa alternatives in reality, Google image-search "twin carb adaptor stovebolt 6" or similar. Looks like they were trying to copy the Fenton type intake but didn't see the headers so they made it fit the original somehow. I already have a '37 216 in the collection so I thought i'd do the "hotrod" version but that intake somehow looked suspicious. thanks for the info. Quote Link to comment Share on other sites More sharing options...

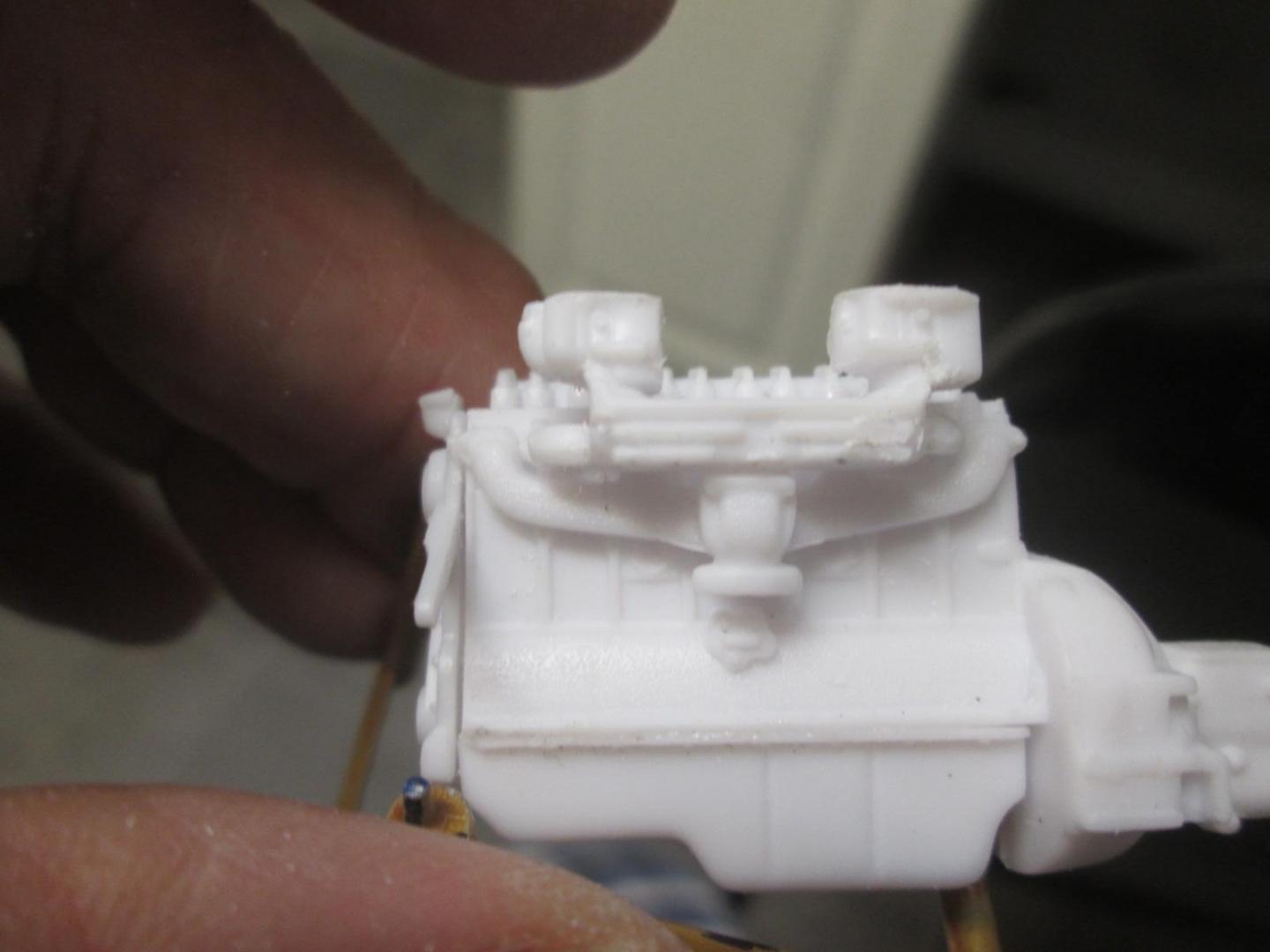

landman Posted September 26, 2019 Author Share Posted September 26, 2019 On 9/23/2019 at 9:02 PM, Ace-Garageguy said: Though there may very well be a ridiculous twin-carb adapter that bolts to the stock intake manifold, to get any meaningful performance increase, it would be necessary to provide more "holes" for carbs, rather than trying to flow them both through the flange intended for one on the OEM manifold. Welding on additional flanges was one way it was done in the early days before catalog-everything. A typical twin-carb cast manifold replaced the OEM, like this... Modified the weird manifold and mated it to the stock runners to give something similar to your photo. Now do the float chambers go to the back or front? Quote Link to comment Share on other sites More sharing options...

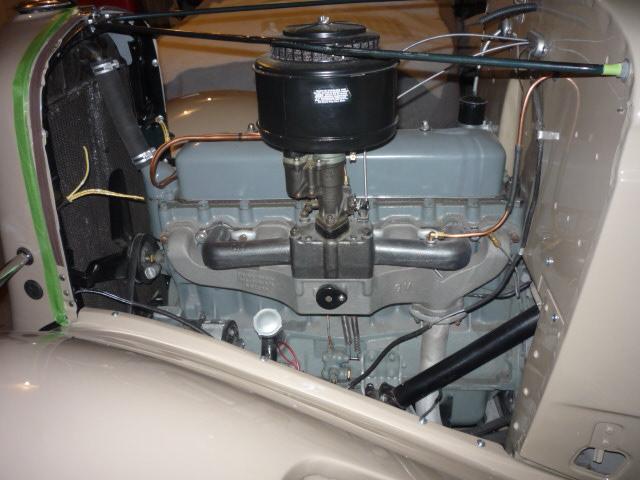

landman Posted September 26, 2019 Author Share Posted September 26, 2019 Just remembered, the one on my '34 had the float bowl in front. Quote Link to comment Share on other sites More sharing options...
Ace-Garageguy Posted September 26, 2019 Share Posted September 26, 2019 What you have now looks good. Nice conversion of something stupid into something workable in reality. Quote Link to comment Share on other sites More sharing options...
landman Posted September 26, 2019 Author Share Posted September 26, 2019 1 minute ago, Ace-Garageguy said: What you have now looks good. Nice conversion of something stupid into something workable in reality. Thank you Bill. Quote Link to comment Share on other sites More sharing options...
Dave G. Posted September 26, 2019 Share Posted September 26, 2019 A 216 splash engine with twin carbs must put out about 96 hp flat out for about six minutes then blow up lol ! Sorry, couldn't resist ! Still all in all good stuff. They were great little engines but not much to work with for hot rodding, people tried anyway. BTW 6.5-1 compression ratio ! Quote Link to comment Share on other sites More sharing options...
landman Posted September 26, 2019 Author Share Posted September 26, 2019 (edited) 2 hours ago, Dave G. said: A 216 splash engine with twin carbs must put out about 96 hp flat out for about six minutes then blow up lol ! Sorry, couldn't resist ! Still all in all good stuff. They were great little engines but not much to work with for hot rodding, people tried anyway. BTW 6.5-1 compression ratio ! I'll keep you posted on how it fares. There is an engine rebuilder around here, called FTB who can convert it to inserts and full pressure lubrication. Edited September 26, 2019 by landman Quote Link to comment Share on other sites More sharing options...
Dave G. Posted September 26, 2019 Share Posted September 26, 2019 20 minutes ago, landman said: I'll keep you posted on how it fares. There is an engine rebuilder around here, called FTB who can convert it ti inserts and full pressure lubrication. I'm sure it will be fine, you're not gonna beat on it like the circle track guys did back when I was a kid and at that they didn't do all that bad really in terms of finishing races. Quote Link to comment Share on other sites More sharing options...
