Medieval Cannon scratchbuild in 1/25 scale

[Brizio]

I always wanted to build a cannon, finally I decided myself to do it. I'm going to build it out of wood, and the scale is 1/24.

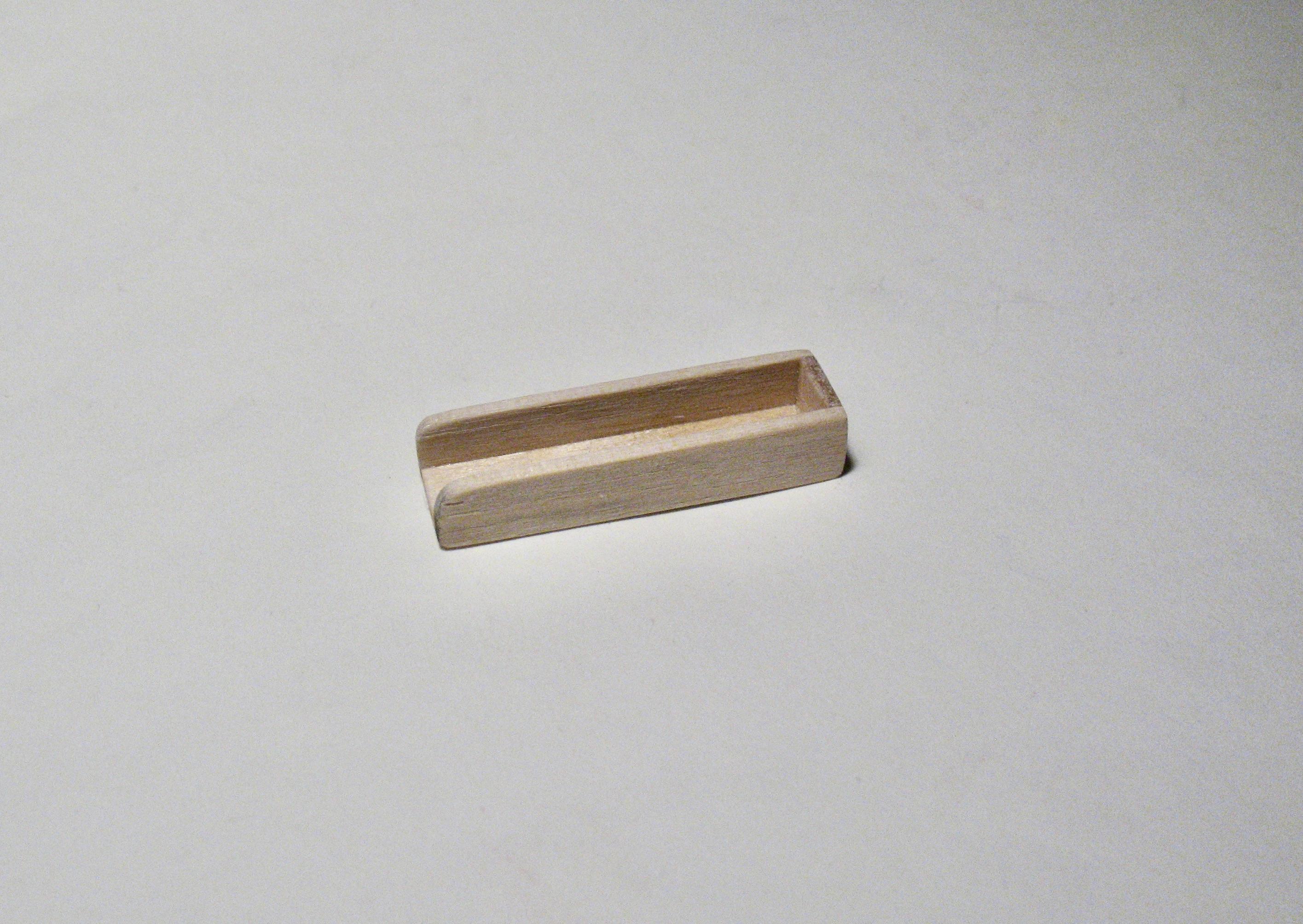

Here the main part for the cannon.

Here the handle that will go on it.

[Brizio]



Main frame done.

[Brizio]

Made some wheels

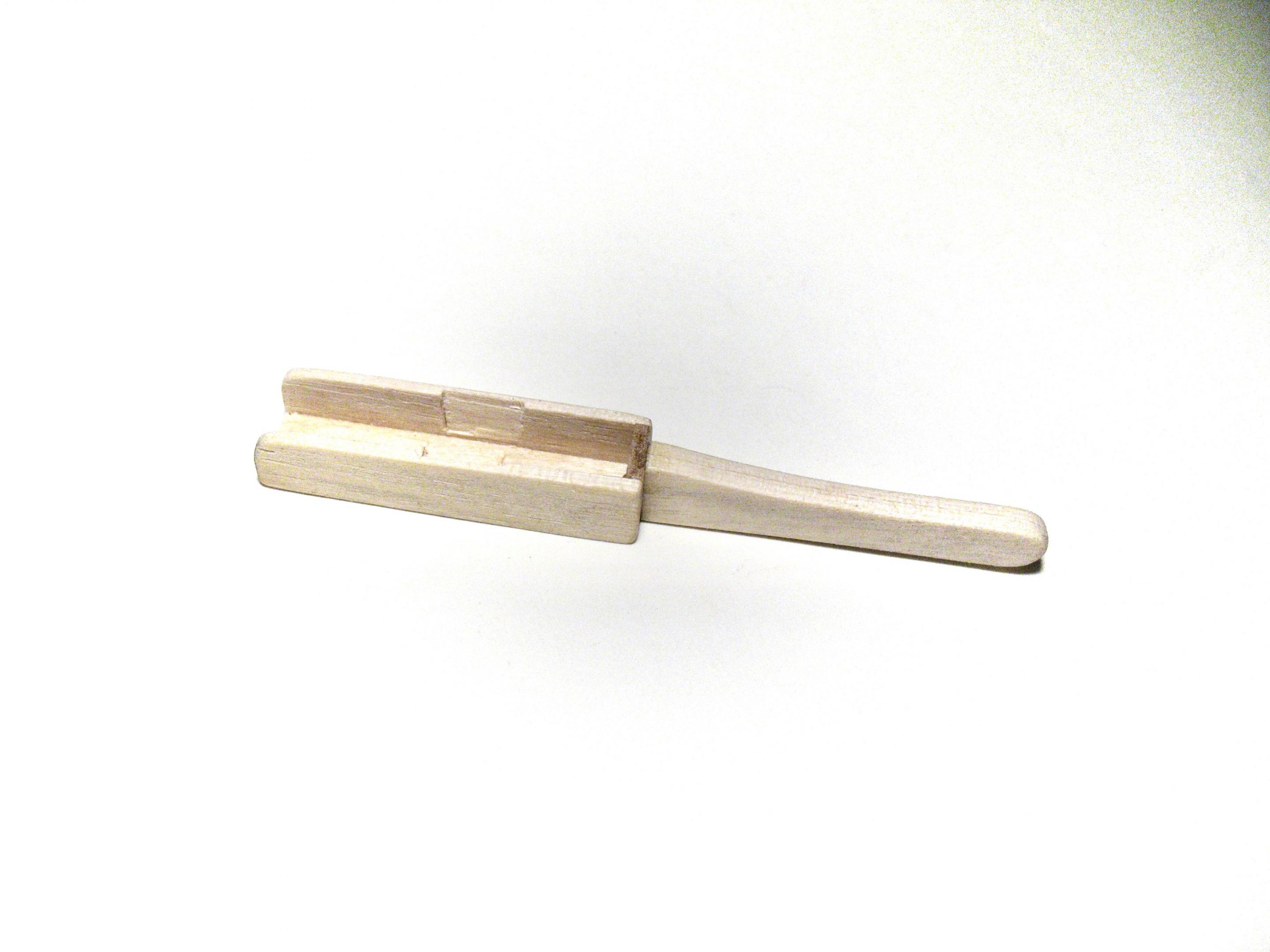

Cannon holder and handle



[Brizio]

Test fitting the brass cannon

Test fitting wheels and made all the braces



[cobraman]

This is going to be nice !

[Brizio]

  On 5/6/2020 at 7:51 PM, cobraman said:

This is going to be nice !

Expand

I like how it came out, I finished few days ago, still need to post pics... Thanks!

[Brizio]

Here the last pictures before open a post of it on the shelf section.

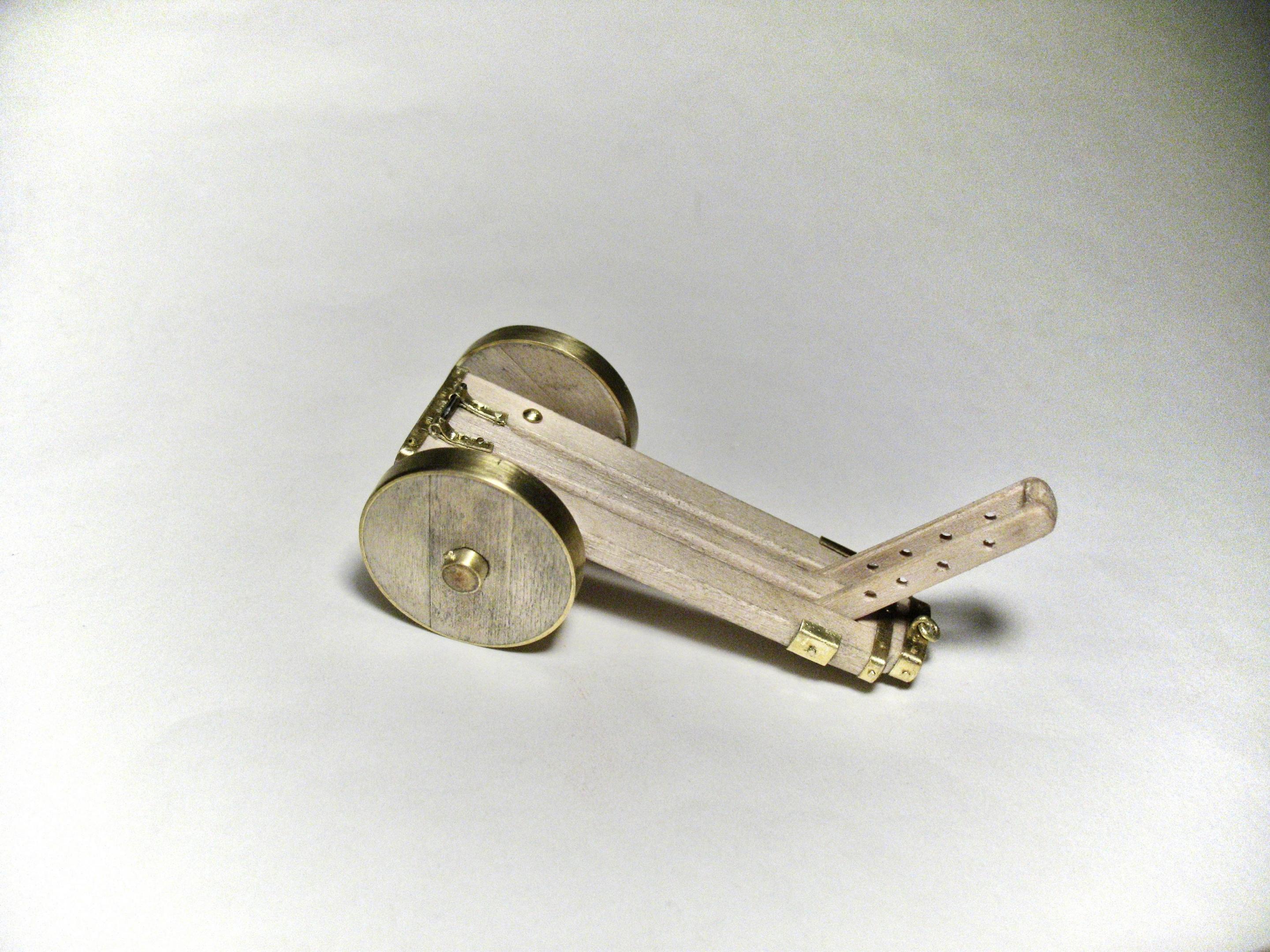

Test fit the last pieces made before painting. Hinges on the front for tilt the cannon and the rear mount that will regolate the height

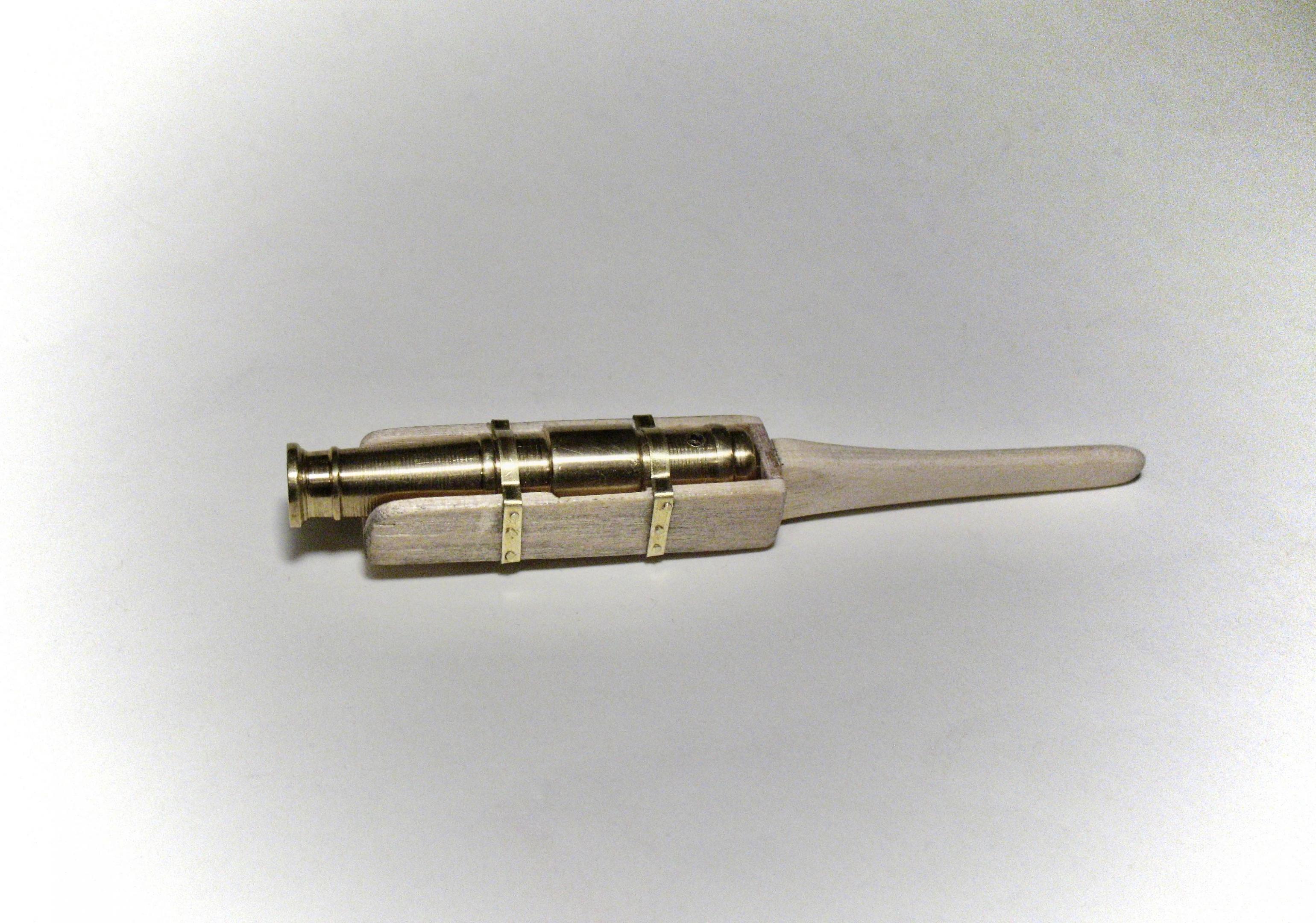

Made all the bracket and rivets that will hold the cannon in place

[David G.]

I think that it's cool that models like this can be built by following methods similar to those those that would have been used in building the original.

Nicely Done!

David G.

[Brizio]

  On 5/9/2020 at 12:22 PM, David G. said:

I think that it's cool that models like this can be built by following methods similar to those those that would have been used in building the original.

Nicely Done!

David G.

Expand

Very similar

Thanks David
