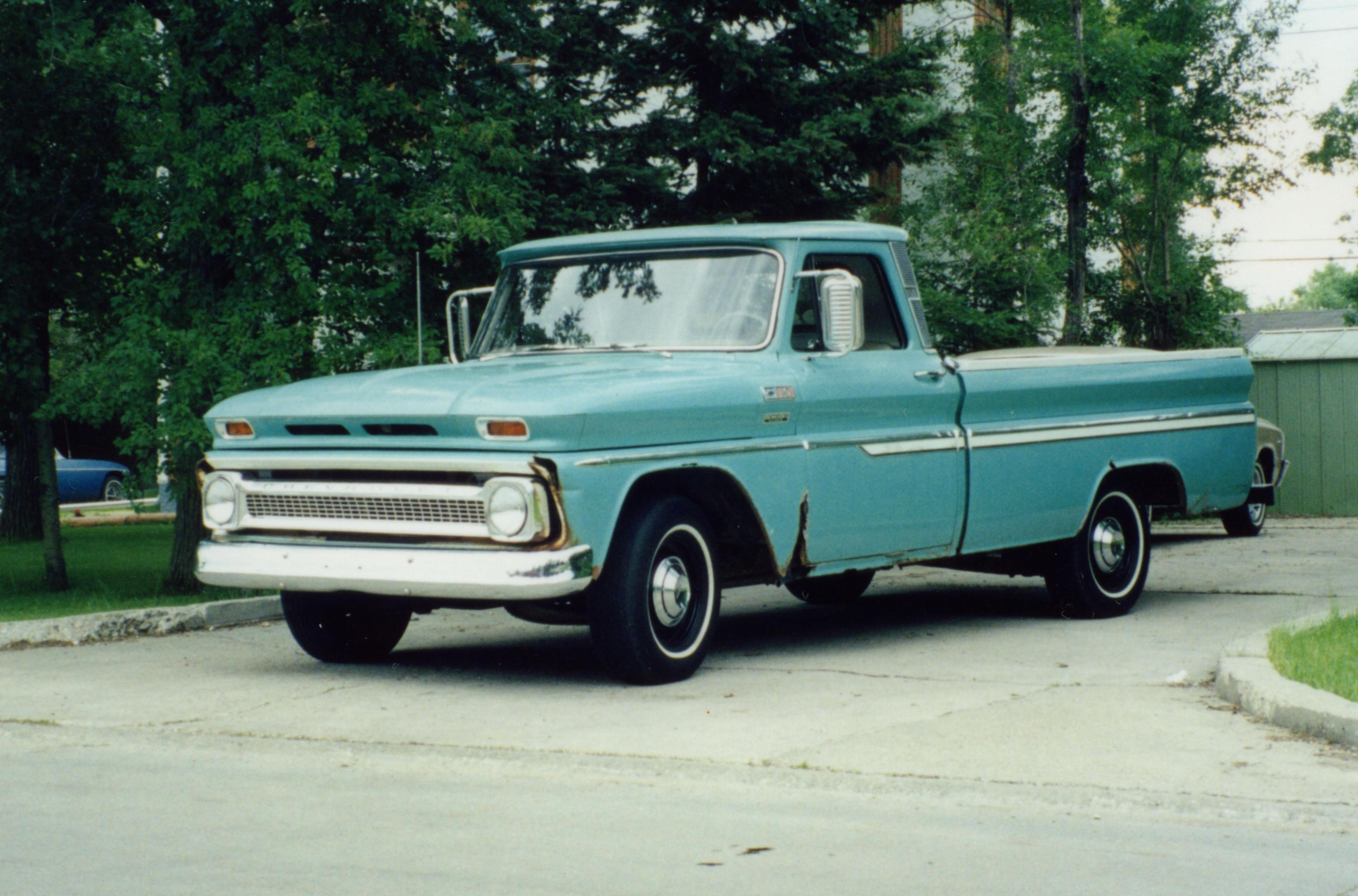

TheBEAUMONTGURU Posted December 30, 2023 Share Posted December 30, 2023 I starting on another project i have always wanted to do. This is a replica of a real truck i owned 30 years ago. 1965 C10 Custom Cab 8foot fleetside with all the custom cab options, chrome grill and bumper, factory Powerglide automatic, radio, backup lights, tach dash, 283. I will be using 2 Revell 66 chevy SHORTBOX fleetside kits plus the amt 60 fleet and a bunch junk from the parts bins! 1 Quote Link to comment Share on other sites More sharing options...

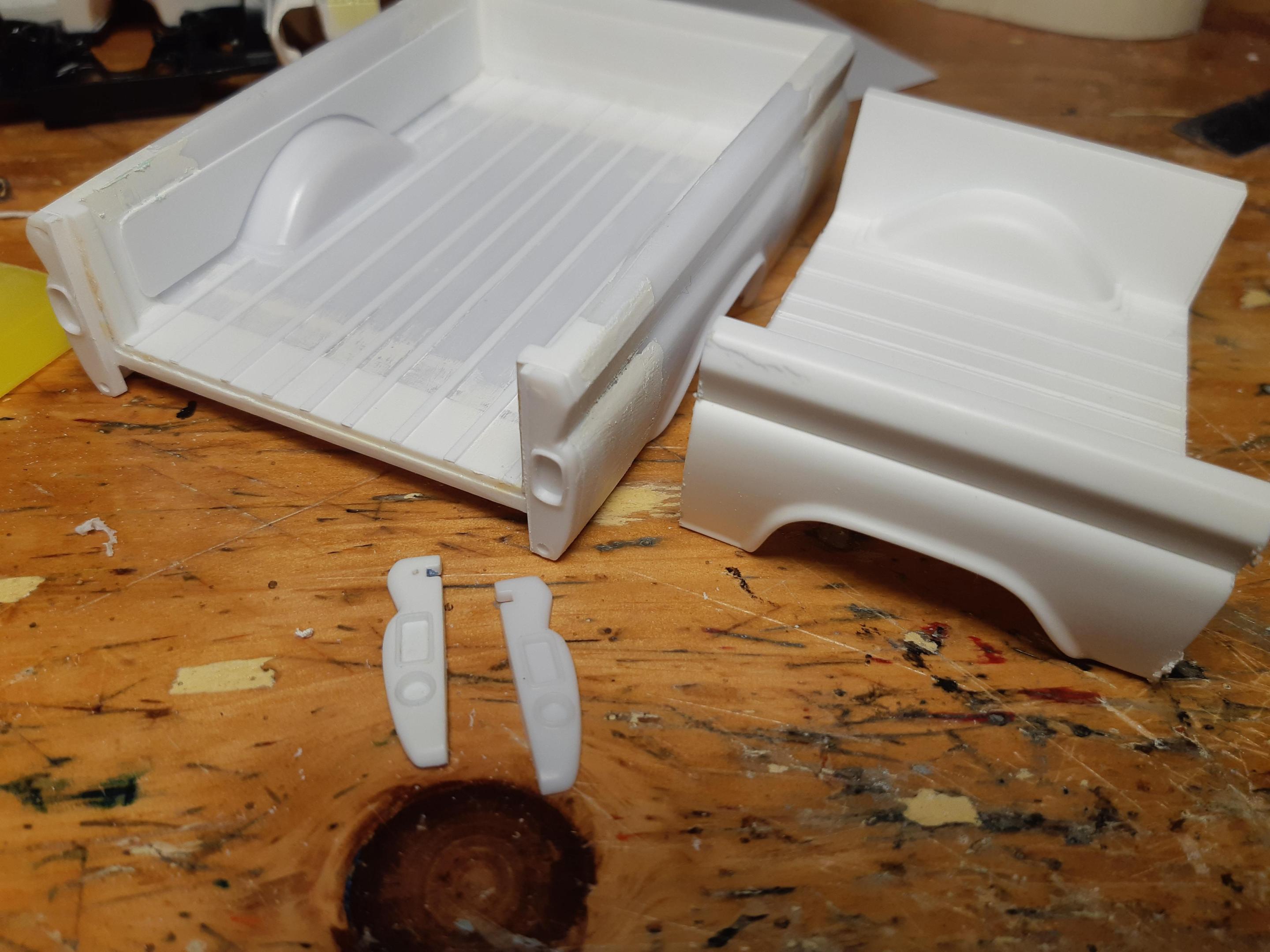

TheBEAUMONTGURU Posted December 30, 2023 Author Share Posted December 30, 2023 here is the hard part. taking 2 SHORTIES and making an 8 footer...............seamlessly. what a pain! the revell taillights suck so i used the back facias from the AMT 60. It will have a stock appearing wood box floor that will all be painted body color like they did at the factory. My real truck still had the green paint on the wood and the strips, so i dont have to get too fussy with wood graining and painting details. 1 Quote Link to comment Share on other sites More sharing options...

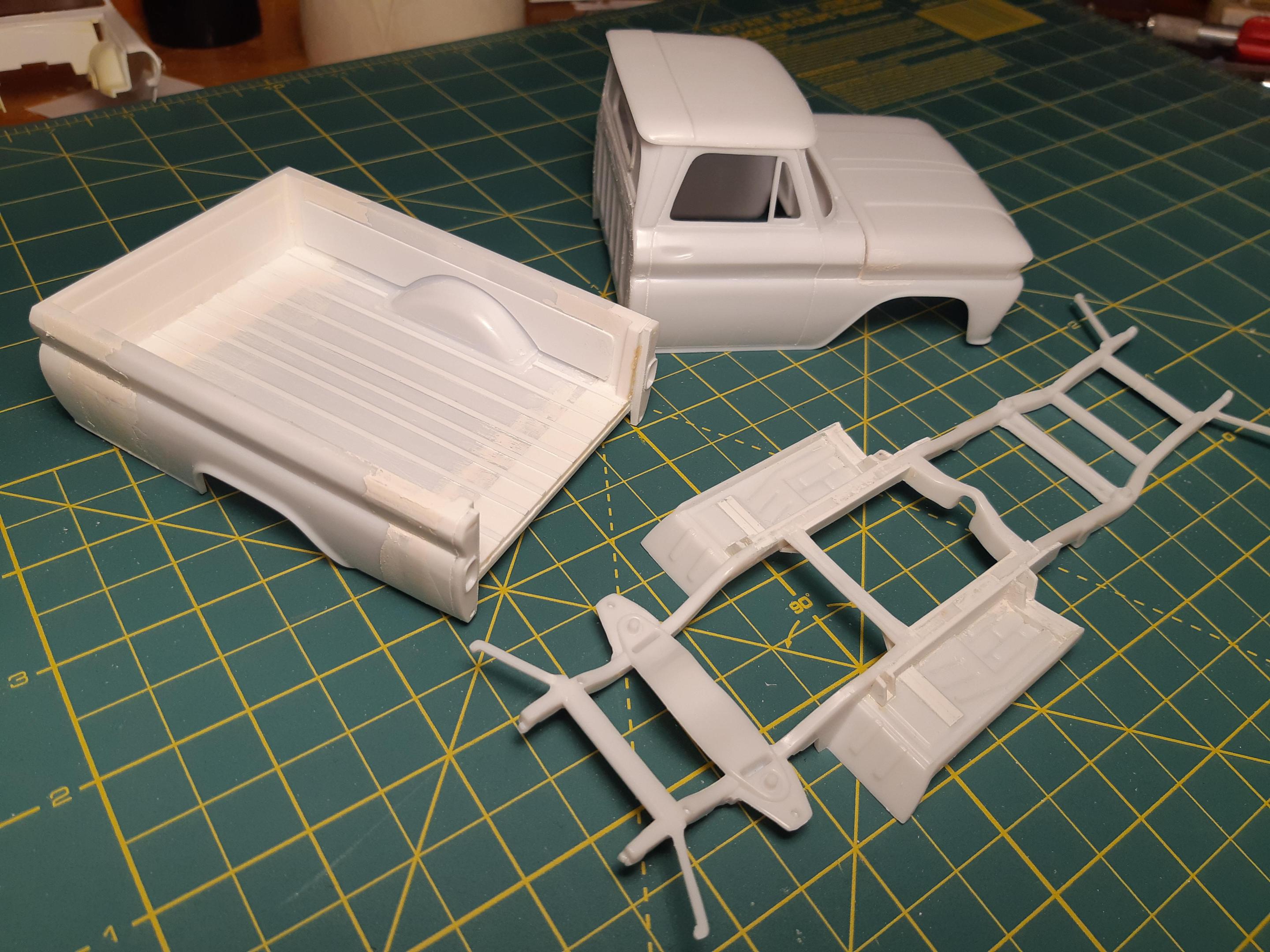

TheBEAUMONTGURU Posted December 30, 2023 Author Share Posted December 30, 2023 I lengthend the chassis under the cab beween the body mounts(this is the correct place that was different between a LONG and a SHORT. will have to add a slight amount to the rear bumper area, but that wont be too hard or noticeable. Main concern was getting the wheel base to match the frame and the box. 1 Quote Link to comment Share on other sites More sharing options...

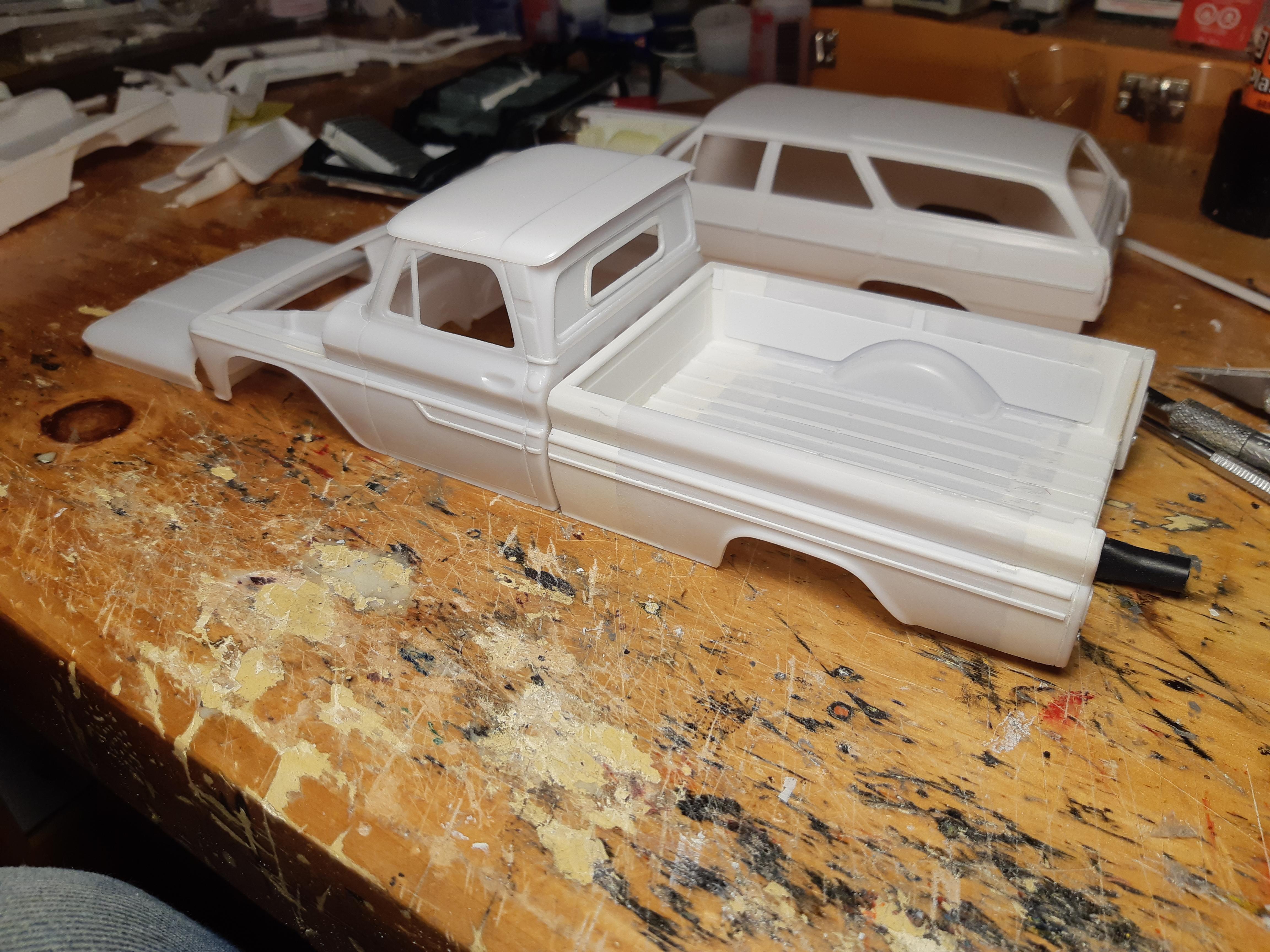

TheBEAUMONTGURU Posted December 30, 2023 Author Share Posted December 30, 2023 this pic was another day of work yesterday. Making all the side moldings from evergreen. I converted the cab to a small back window using sheet styrene and 1/2 round rod. and made the rear pillar mouldings About 2 hours just in re-scribing panel lines and body lines. Almost ready for a heavy coat of primer-then it can sit and shrink for a couple months. I also made box floor strips and drilled what seemed like 2 million small depressions to replicate carriage bolts(its all getting painted green so no need for super details 5 Quote Link to comment Share on other sites More sharing options...
leafsprings Posted December 31, 2023 Share Posted December 31, 2023 (edited) Great project, coming along nicely. That was considered a "loaded pickup" back then, most were base model 6 cyl 3speeds, but most did have small back windows and longer 8' beds. The wood was actually painted all black. Very difficult to find these type of photos. Edited December 31, 2023 by leafsprings Quote Link to comment Share on other sites More sharing options...
AmericanMuscleFan Posted December 31, 2023 Share Posted December 31, 2023 Great job! I love this kind of body modification, you are talented, the photos speak for themselves! I see you joined the forum recently, so I would like to welcome you. 👋 Quote Link to comment Share on other sites More sharing options...
TheBEAUMONTGURU Posted December 31, 2023 Author Share Posted December 31, 2023 Thanks guys, yes i should have joined long ago. Leafsprings, its funny because i agree with you about the wood being painted black, i have seen most american plants painted the wood black, but my truck was built in canada in oshawa, and was 100% original paint, and it still had a ton of green paint on the wood( i think the truck had a cap on it for alot of its life). I have seen other canadian built ones with evidence of body color on the wood too. Just one of those interesting differences on a canadian build. BTW that is a really cool photo you posted! is it from a dealer brochure?? Quote Link to comment Share on other sites More sharing options...
leafsprings Posted January 1 Share Posted January 1 On 12/31/2023 at 10:06 AM, TheBEAUMONTGURU said: Just one of those interesting differences on a canadian build. BTW that is a really cool photo you posted! is it from a dealer brochure?? That explains it. I've heard there are several differences between Canadian and American built vehicles. I've collected many truck brochures over the years, but that photo is from a "mailer". They usually have better photos than what is found in typical brochures. 1 Quote Link to comment Share on other sites More sharing options...
dodgefever Posted January 2 Share Posted January 2 Neat work on the bed sides. I'm also working on a long fleetside conversion, so I'll follow along. Sadly, I haven't owned a real one. Quote Link to comment Share on other sites More sharing options...
gautreau Posted January 3 Share Posted January 3 On 12/30/2023 at 2:24 PM, TheBEAUMONTGURU said: here is the hard part. taking 2 SHORTIES and making an 8 footer...............seamlessly. what a pain! the revell taillights suck so i used the back facias from the AMT 60. It will have a stock appearing wood box floor that will all be painted body color like they did at the factory. My real truck still had the green paint on the wood and the strips, so i dont have to get too fussy with wood graining and painting details. Do you happen to have measurements at all where you cut the 2 beds at all? Quote Link to comment Share on other sites More sharing options...
TheBEAUMONTGURU Posted January 3 Author Share Posted January 3 I cant really remember what my measurements were. i was using a 1/24th scale ruler! it was about 12/32nds of an inch in the back and about 3/4 inch in the front. I used this picture one of the other forum members posted showing a original SMP longbox, so i just made sure that my cutting would yeild these results. Sorry i cant remember who provided this pic, but thanks to whoever it was!! Quote Link to comment Share on other sites More sharing options...
dodgefever Posted January 3 Share Posted January 3 The long beds had a 127" WB; short beds 115", so you have to add a scale 12" in front of the wheels i.e. 0.48". Then 0.24" behind the wheels to make it up to a 96" bed. Also, note that the long bed was shared by the C20, so had slightly larger wheel openings than the short fleetside, which was only available as a C10. Quote Link to comment Share on other sites More sharing options...
leafsprings Posted January 3 Share Posted January 3 IMO, the promo truck has a more accurate grill than the Revell issue. The promo grill is wider and headlight buckets are smaller and headlights are not directly below turn signals. 1 Quote Link to comment Share on other sites More sharing options...
TheBEAUMONTGURU Posted January 4 Author Share Posted January 4 (edited) I agree with you on the grill, the Revell one sucks. im looking at the headlights on the tree and they look like they are gigantic!! im going to see what i can do to modify it. but it still has to stay chrome Edited January 4 by TheBEAUMONTGURU added more detail Quote Link to comment Share on other sites More sharing options...
dust collectors Posted January 5 Share Posted January 5 Looking forward to see how you sort out the grill since you did such a nice job with the long bed conversion. Quote Link to comment Share on other sites More sharing options...

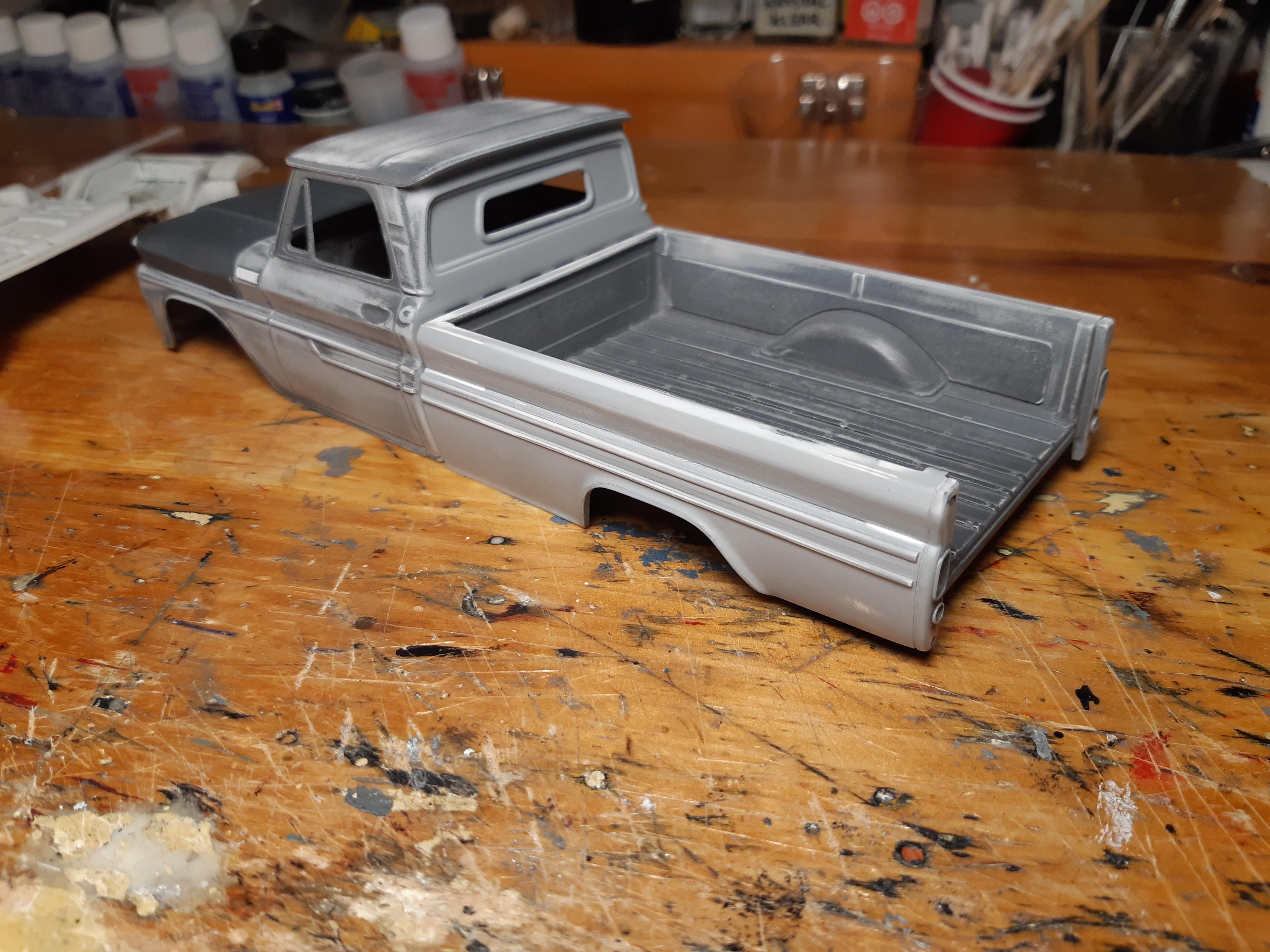

TheBEAUMONTGURU Posted January 20 Author Share Posted January 20 got the bodywork done and primered(a couple of times). lots of block sanding. Pretty sure it would have been easier to block out a real truck! Getting all the spliced panels to look invisible is a daunting task! 1 Quote Link to comment Share on other sites More sharing options...

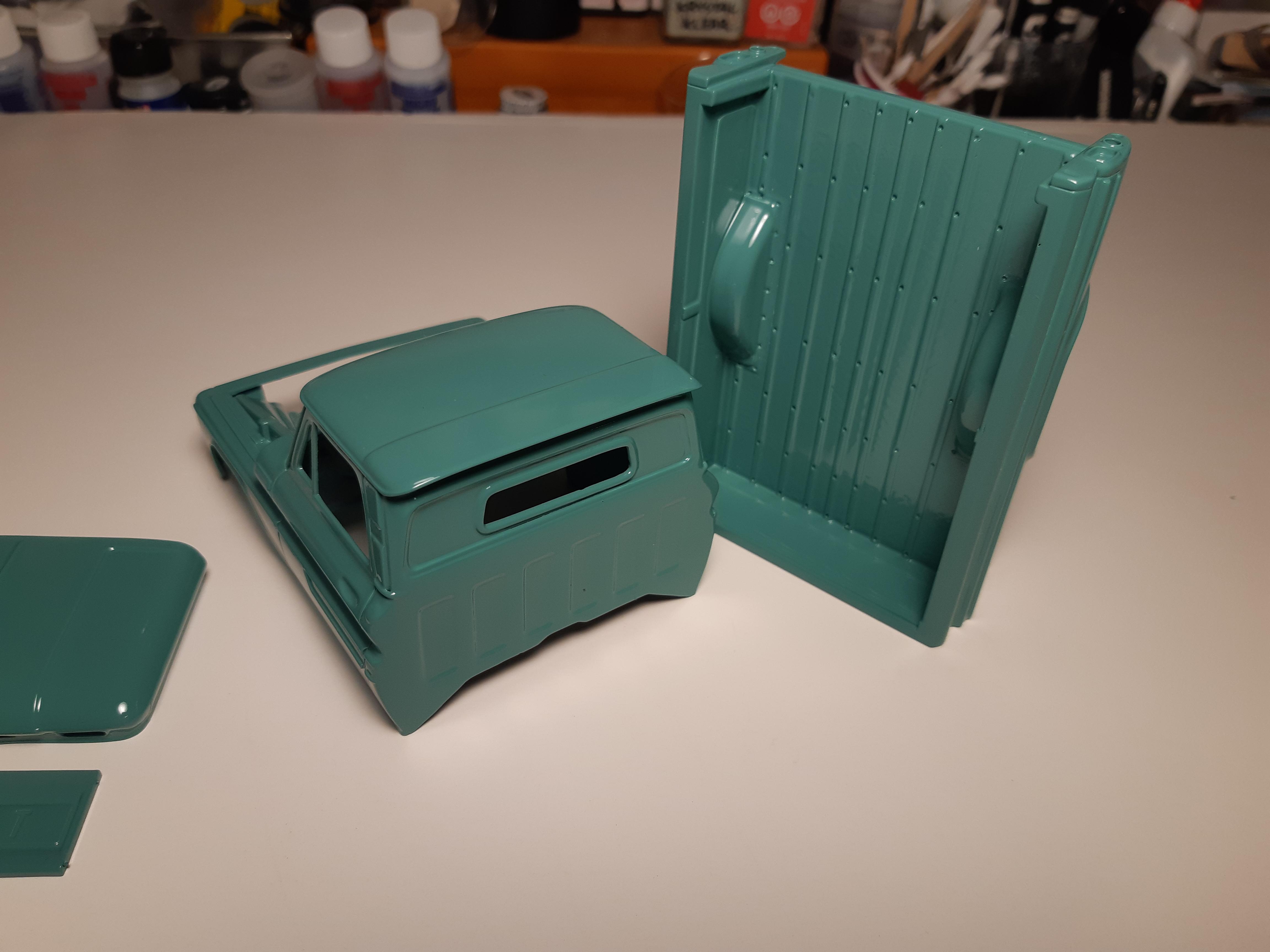

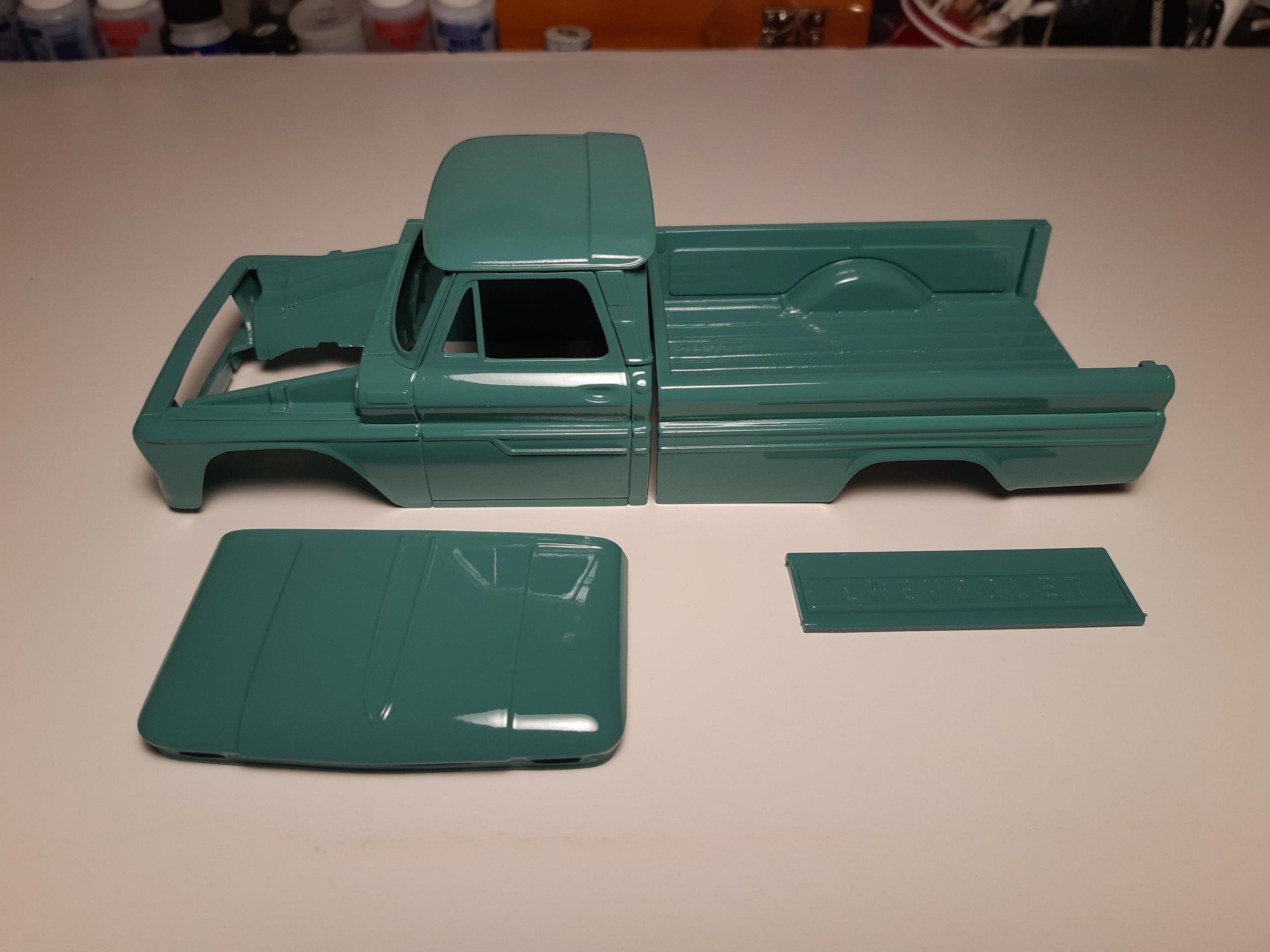

TheBEAUMONTGURU Posted January 20 Author Share Posted January 20 Shot some paint on it yesterday. I used 20 year old Dupont Centari from my real truck. GM paint code 503 Light Green. I really like spraying centari. its not available anymore, but i shot lots of real cars with it and got very good results. Im very happy with how it went on the model. Im going to maybe cut down a few dust spots, but otherwise its super flat. Ive never used an airbrush. this is a cheap automotive touch up gun with a 0.8mm tip. its all i've ever used. 6 Quote Link to comment Share on other sites More sharing options...
Hoffman Posted January 22 Share Posted January 22 Nice work!! Quote Link to comment Share on other sites More sharing options...
