Hi everyone, this is what I am working on next.  My plan for this model is to make it a fairly detailed model.  I will be scratch building some items, enhancing kit parts and adding some aftermarket items.  To the best of my knowledge there are no kit specific detail up sets for this.  There is a basic PE sheet in the kit.

This will not be a typical Tamiya shake-and-bake model kit.  It is a '60s tooling that was originally designed to be motorized.  I will try to keep this thread updated as much as possible.  I am normally way ahead, building wise, compared to what I post in my updates.  This time I will try to keep it closer to real time that way if anyone has ideas and/or suggestions I can incorporate them.

There is not a whole lot of photographic evidence about these cars.  I have several websites that I bookmarked, I have one crazy over the top builder who pretty much scratch built his kit that I reference and I purchased a PDF from Modeler Site that has a lot of good ideas.  Please, if you know anything about this car of where I can find good reference pictures of it, let me know.  I will greatly appreciate it.



20220403 213921

20220407 194815

20220407 212237



Edited by Nacho Z
Edited title
Link to comment
Share on other sites

Thing 1

do a search on Flickr if you dont have good photos of the engine

ive got / seen some engine bay photos - the ribs on the cam covers are gold and not silver …

  • Like 1
Link to comment
Share on other sites

40 minutes ago, absmiami said:

Thing 1

do a search on Flickr if you dont have good photos of the engine

ive got / seen some engine bay photos - the ribs on the cam covers are gold and not silver …

Holy cats, I honestly never thought to look at Flickr nor did I realize that you could search it!  So a big “Thank You!!” to you, Andrew.  I have been to Getty Images, Alamay and Motorsports Images. I’ve hit Pinterest and FB as well as general Google searches. Wow, the first response I received was perfect!

Regarding the ribs, I have seen them silver and yellow/gold. Not sure what they ran in 1968. I know Ebbro/Tamiya give you red wire for the plug wires but most pictures show them as yellow. 🤷‍♂️  On a different point, I’ve found the #18 car, (the only decal option in this kit), with and without the nose wings.

Link to comment
Share on other sites

1 hour ago, absmiami said:

Once again thank you, Andrew!  In my introduction I mentioned that I had a couple of sites bookmarked, this is one of them!  I found it by looking through the F1M site.  I do appreciate your willingness to help me out.  It is exactly what I was hoping for!

Link to comment
Share on other sites

It is always kind of fun at the beginning of a build to be able to pick and choose what you want to work on.  The further along you are the less choices you have.  It will be a while before I actually start doing any assembly so I'm just working on whatever strikes my fancy.  I am also sharing this on my FB page and I have a lot of non-model building friends so I tend to explain a lot of things to them that model builders already know.  Some of those pictures will make it into this build thread.  In this post I will caption each photo as needed.  The caption will be above the corresponding picture.  As I said in my first post this is not a shake-and-bake Tamiya kit.

The ejector pin marks are both innies and outies...lol.  Innies are filled with CA glue and hit with kicker.

20220411 221733

20220411 224310

The nose cone and wings will take a little work to be presentable.  The holes for the wings are too large and the nose has two small but deep gouges.

20220410 185057

I added shims of various thicknesses to the holes and trimmed them off once the glue set.

20220411 224927

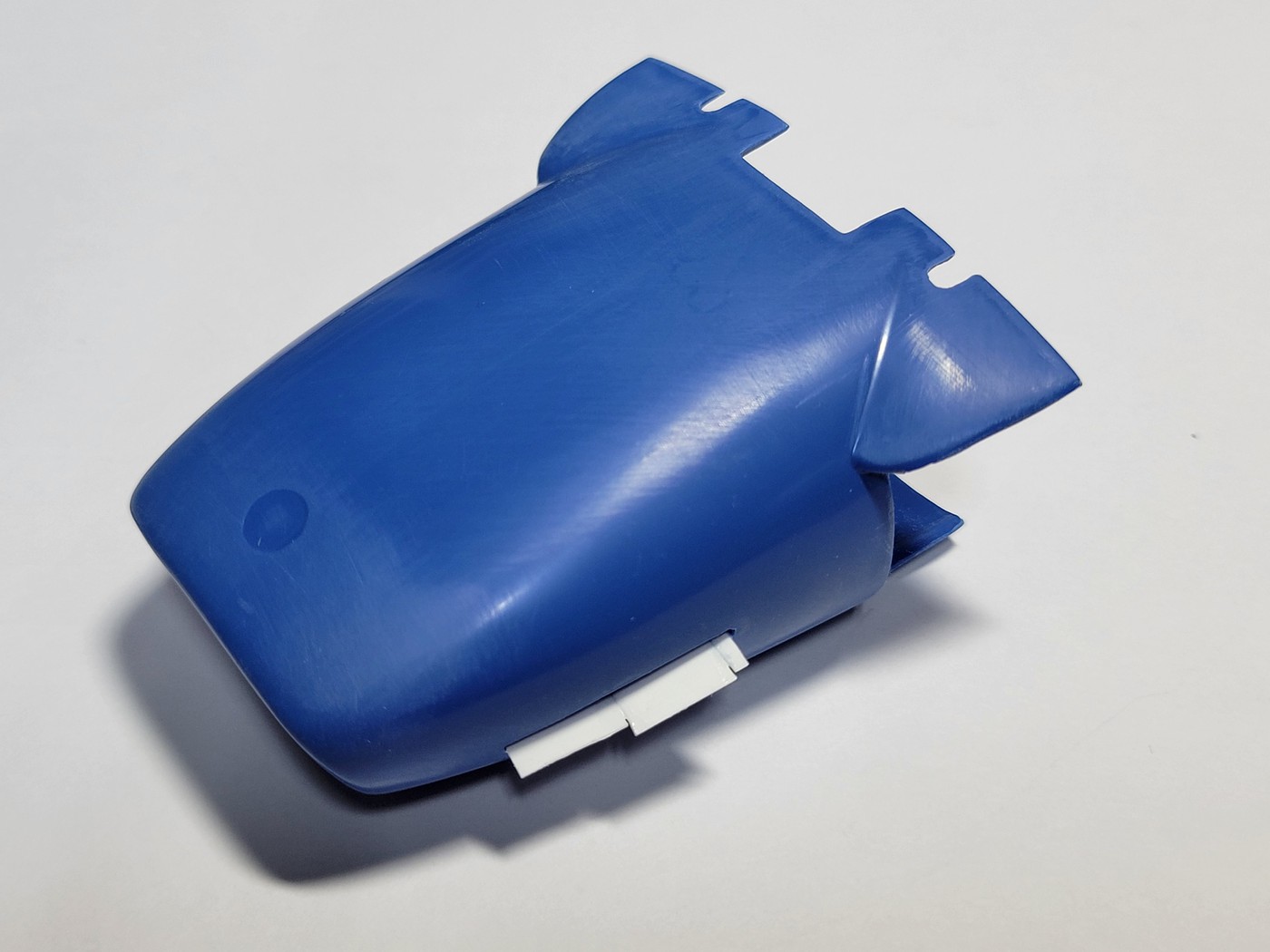

20220413 214413

20220412 204229

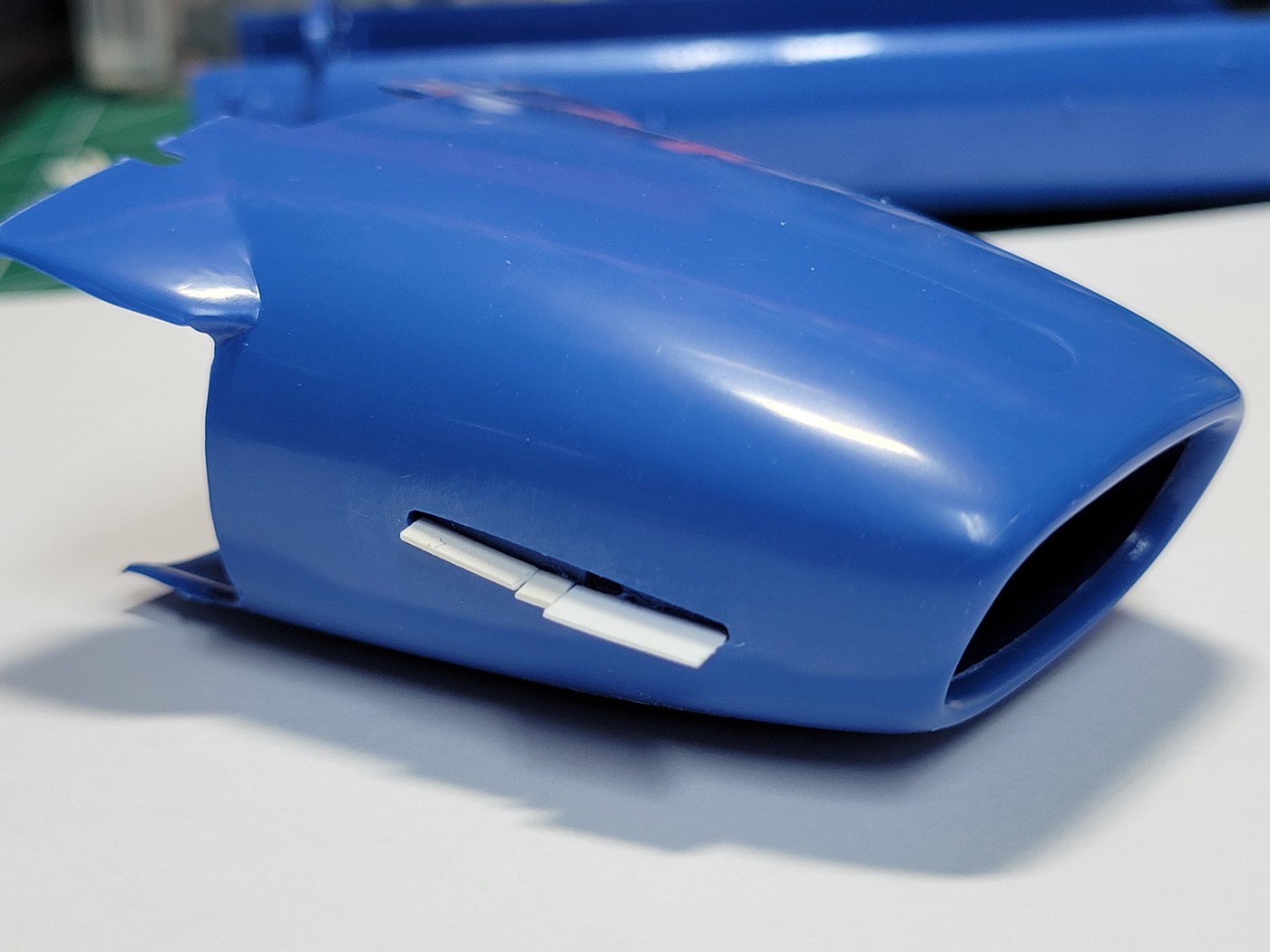

The wings now fit snuggly with very little to no gap.  Here they are fitted with no glue.  Before, they would have just fallen out.

20220413 214858



Link to comment
Share on other sites

As stated earlier this tooling is from the '60s and was one of their motorized kits.  There is no footwell to speak of.  The battery compartment takes up that real estate.  I decided to remove the battery compartment and make a new footwell and pedals.  I am not the world's best scratch builder so I kept it pretty basic.

Here is what I started with:

20220407 212237

Here is an interior view.  The end of the battery compartment, (right side of picture), is as far as the interior goes.  When you viewed the cockpit it was very apparent and looked horrible.

20220416 145617

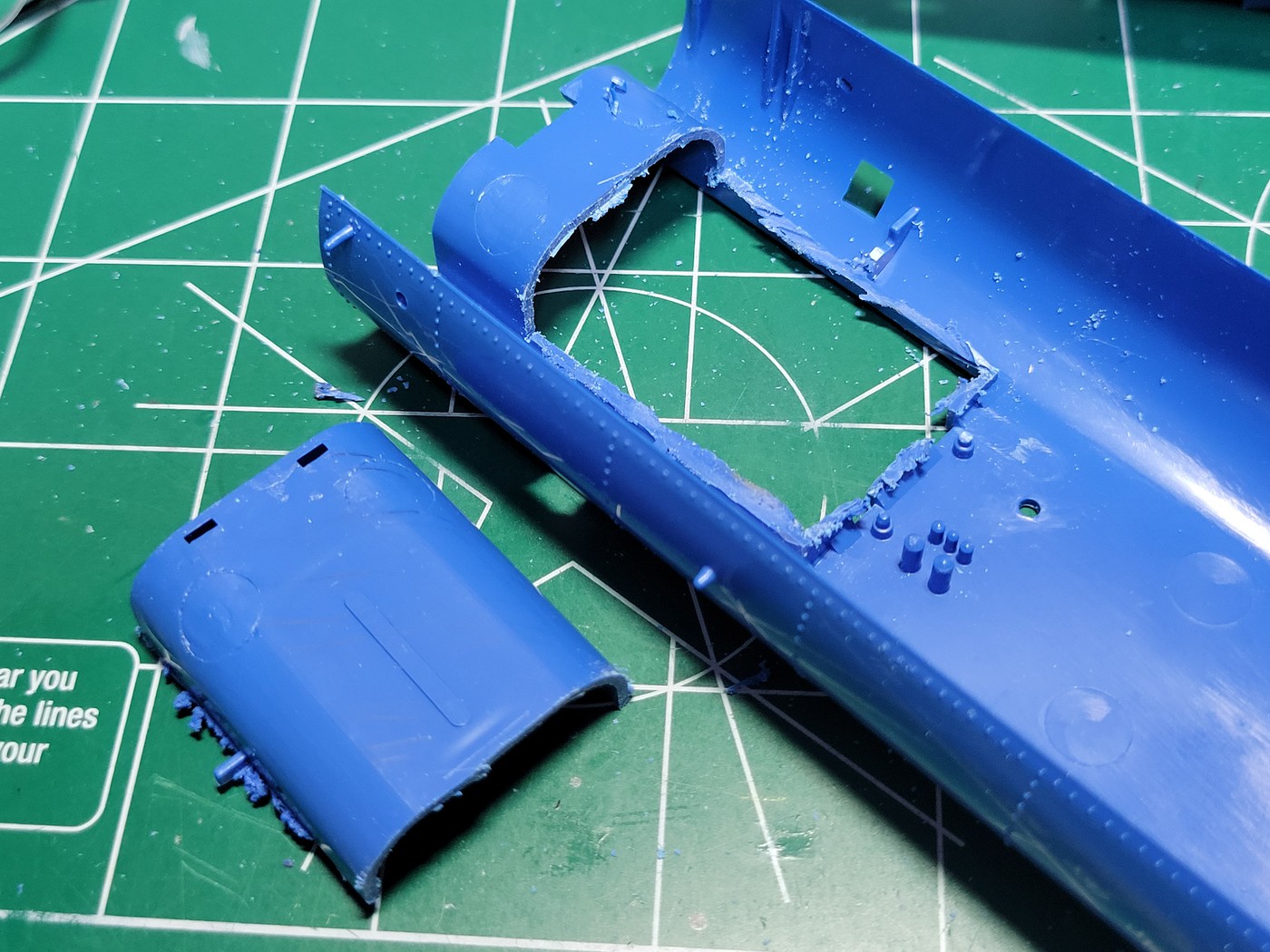

Figuring out how much to cut out took a little forethought.

20220416 153726

The new footwell has its basic shape.  More bits of styrene will be added to this before it is completed.

20220416 191054

Once the new area was created I was able to close up the area by adding the battery compartment door.  I used CA glue and kicker to fill in the rather large gaps.

20220417 174049

Link to comment
Share on other sites

Once I had the new footwell created I wanted to add some pedals.  As I stated in my last post, I am not the world's greatest scratch builder but I thought I would give it a go.

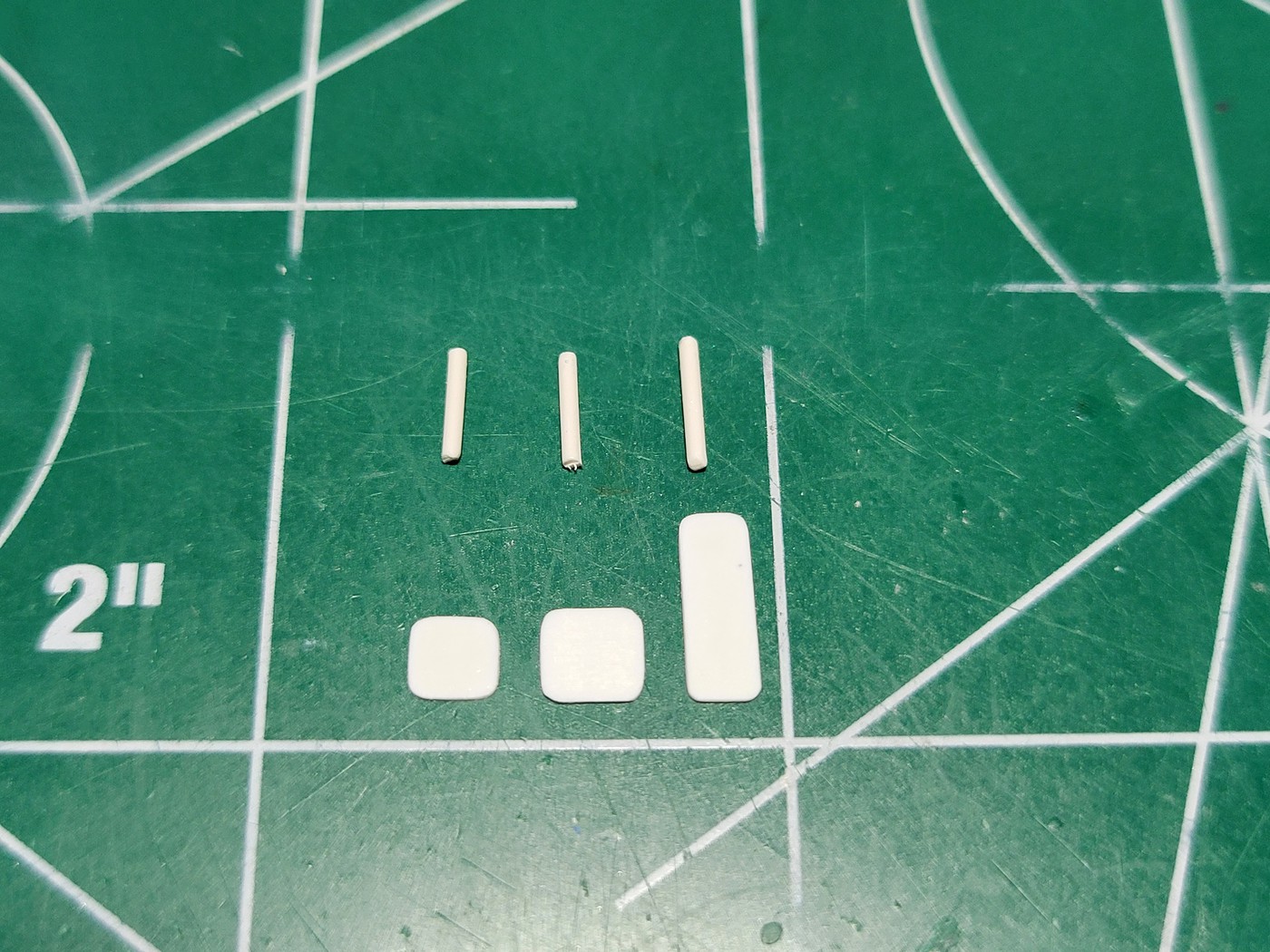

I started with the basic shapes.  The clutch pedal is smaller than the brake pedal.

20220417 115710

A quick mockup to check spacing.

20220416 214247

I temporarily put in the gauge cluster to see if the pedals would be visible.

20220416 214355

Adding a little more detail. The 1:1 had brackets and a rod for a pivot point for each pedal.

20220417 133332

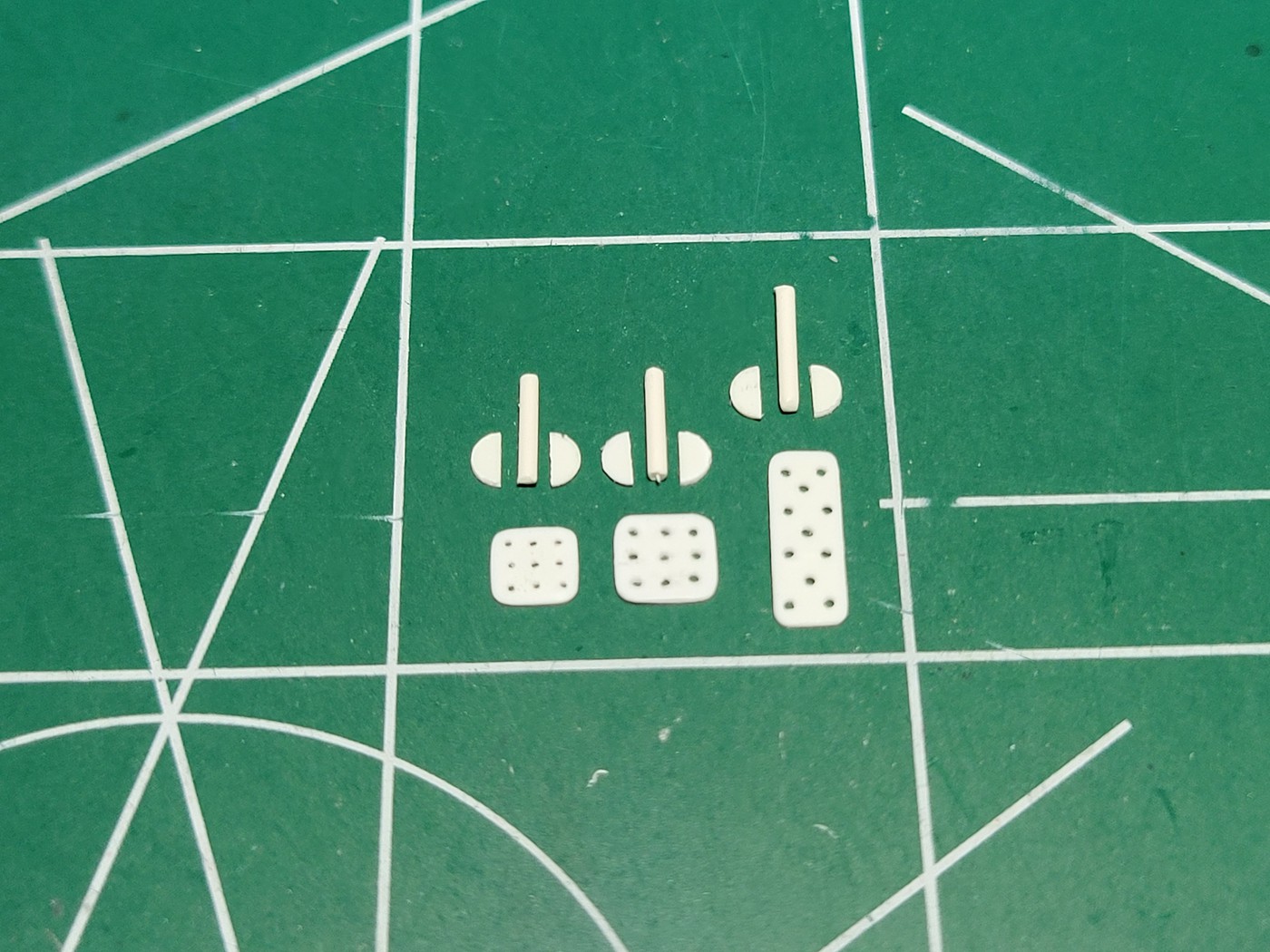

Here are the parts for the pedal assembly.

20220417 131700

I will add bolt heads and bolt/nut heads to each bracket.

20220418 203020

Link to comment
Share on other sites

Hi,

Great start and modifications!

This is a beautiful kit but it really needs modification and enhancement.

Pascal



Link to comment
Share on other sites

  • Nacho Z changed the title to Ebbro/Tamiya 1:12 1968 Matra MS11 F1
19 hours ago, Belugawrx said:

Nice start on the Matra, John.

I will be watching this come together...Cheers

Thank you, Bruce!  I want to keep doing regular updates on this as it will kind of force me to keep working on it.  I only wish I could find more reference photos of the plumbing on it.  I hate to guess about some of the details but I may not have a choice.

Link to comment
Share on other sites

8 hours ago, Pg265 said:

Hi,

Great start and modifications!

This is a beautiful kit but it really needs modification and enhancement.

Pascal



Thank you, Pascal!  This one is from your home country!  I will try to do it justice.  If you happen to know any good French websites that may have information about this car I would love to know about them.

Link to comment
Share on other sites

The next update is what I call the evolution of the gauge cluster.  I want to add some detail to it.  I tried a few things and had more failures than successes.  However, in the end I will end up with a nice assembly.

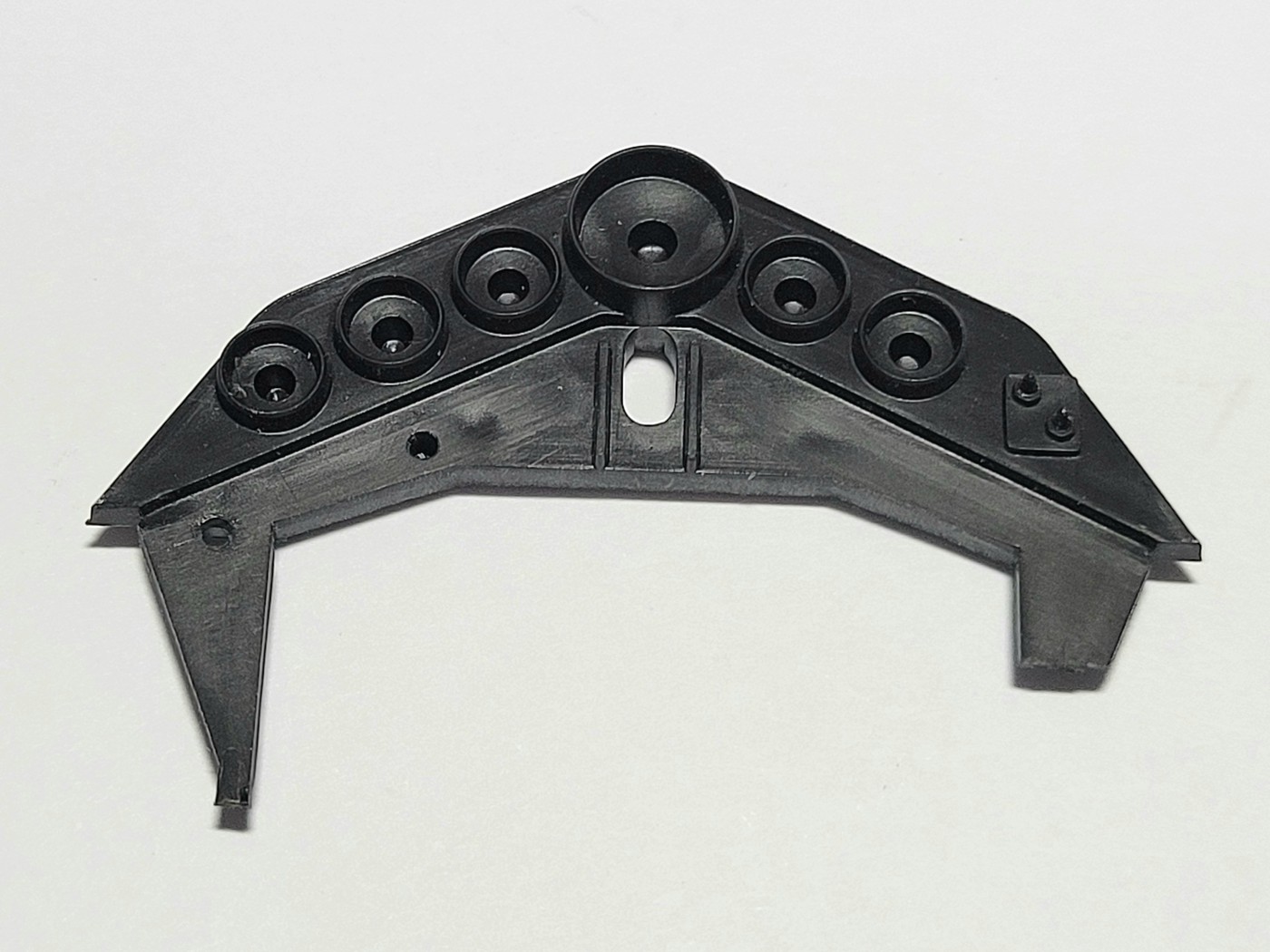

Here is the kit part.  I have cleaned up the ejector pin marks.  The gauge bezels are to be aluminum in color.  There is no way that I can paint them neatly.  I thought I would paint it black with a wire ring on the top of the bezel.

20220414 203856

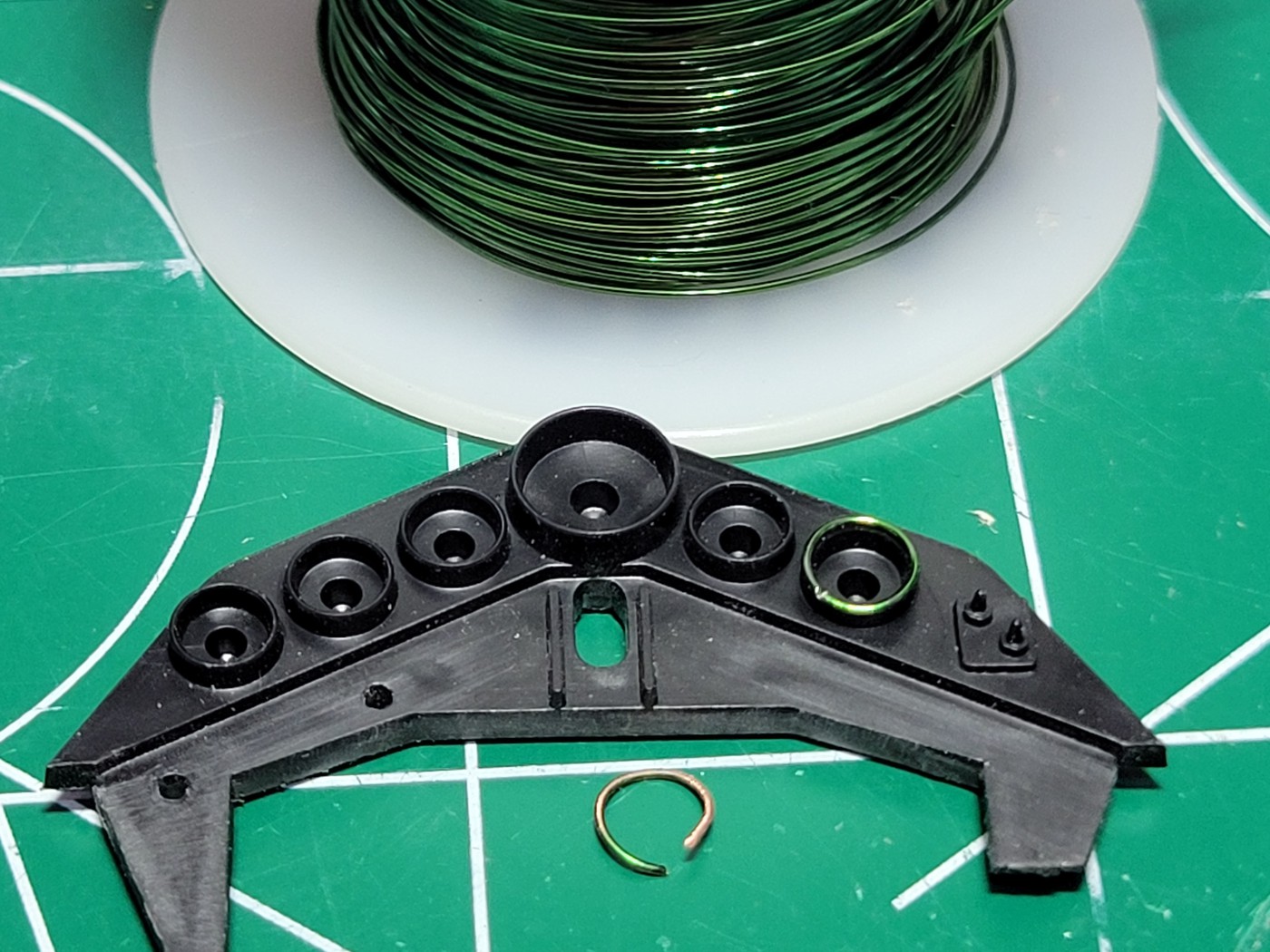

This is the first experiment with some spare wire I had laying around.  I just wrapped it around a drill bit.  See the far right gauge.  This might work.

20220413 205301

Second experiment.  I might be on to something.  I need to get the rings to lay flat and I need to close up the small gap.

20220413 213601

I will replace the molded in toggle switches with these beautiful Top Studio items.

20220416 141915

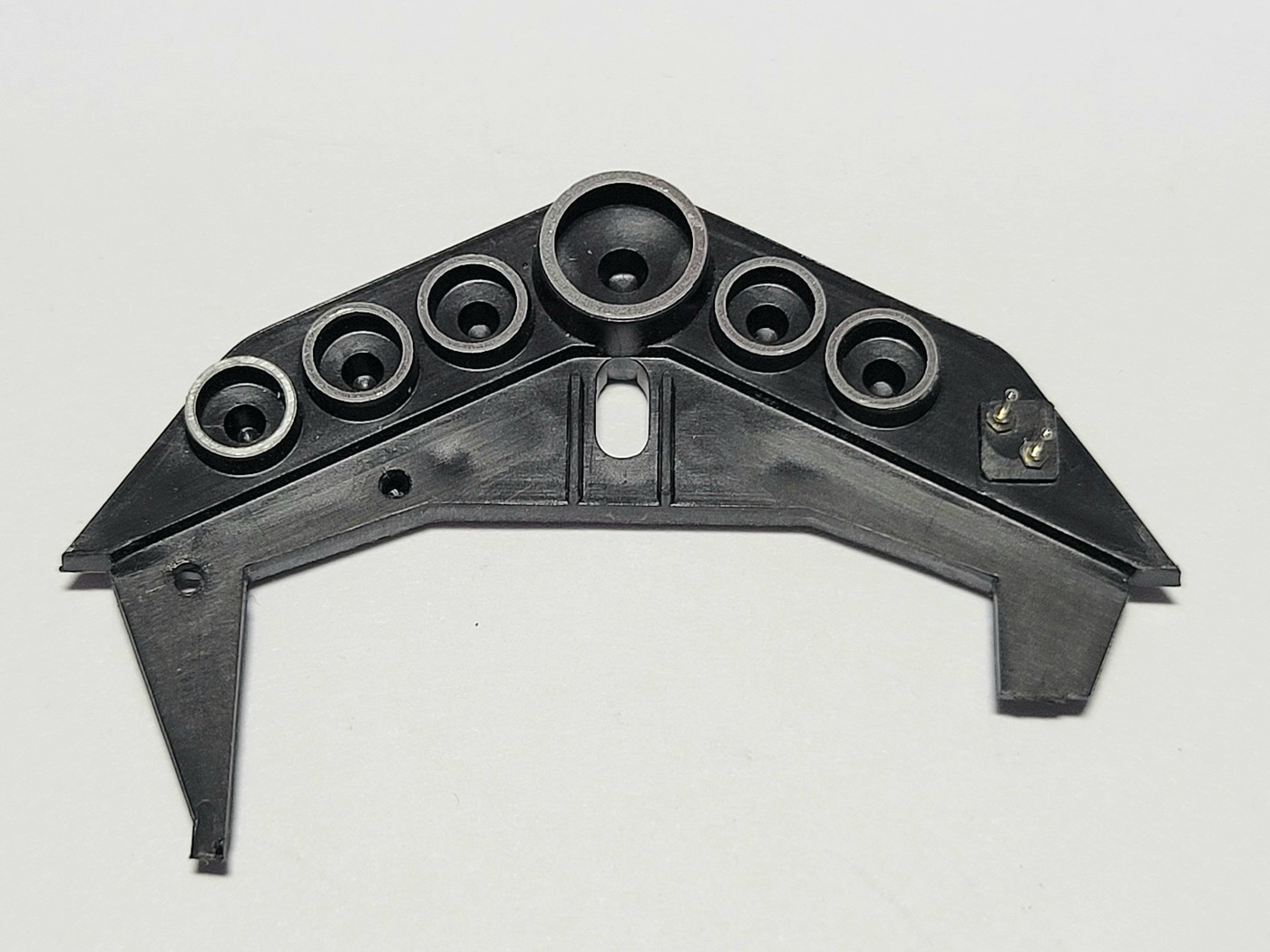

Those homemade bezel rings were bothering me and then I remembered that I had Scale Motorsports "Wizard O's".  Much better.  Toggle switches temporarily installed.

20220414 222405

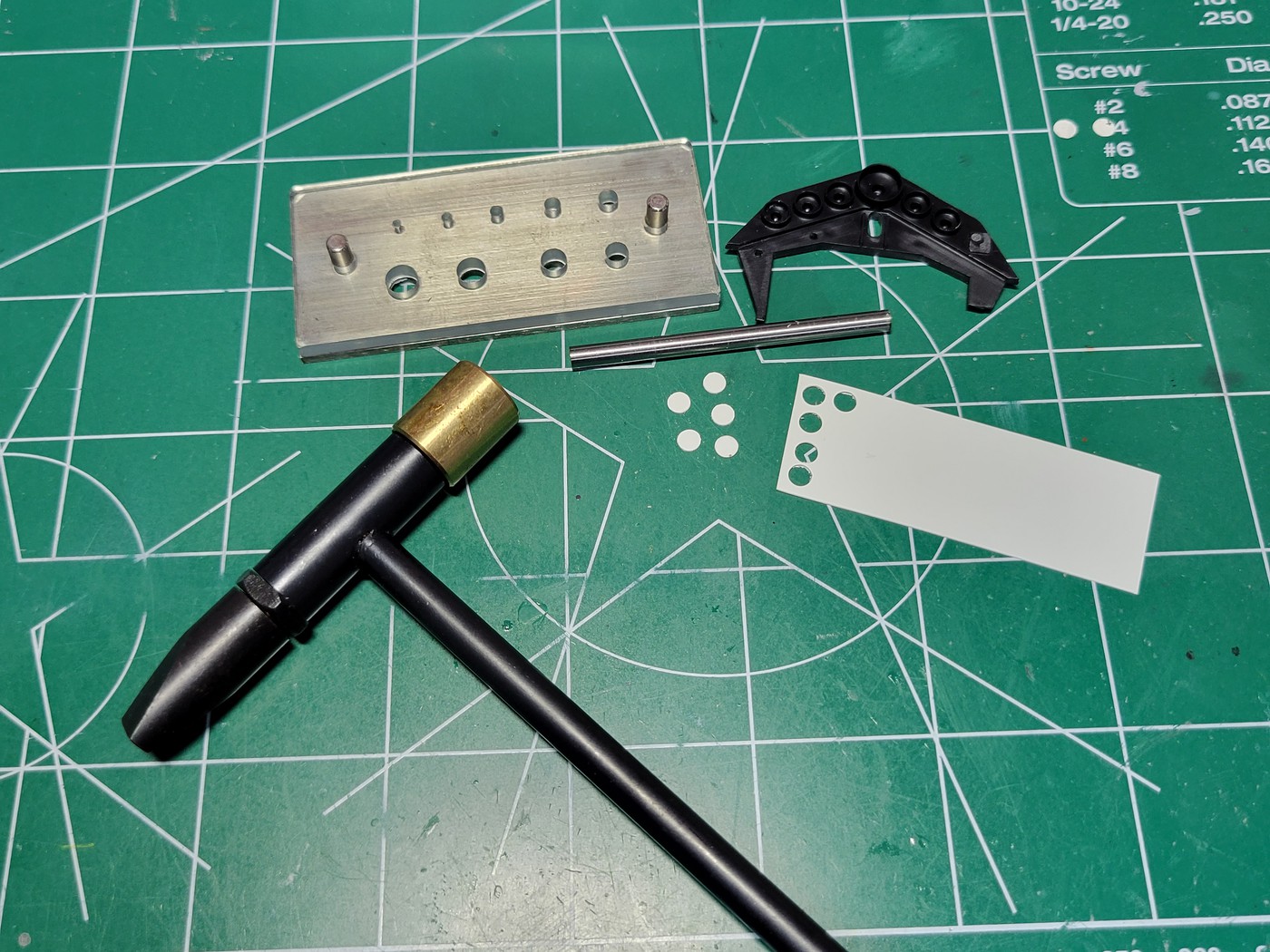

There were these weird wells in each gauge.  I am sure that when I place the decal in the gauge area it will slightly sink into the hole.  I used my punch set to make discs.

20220416 134022

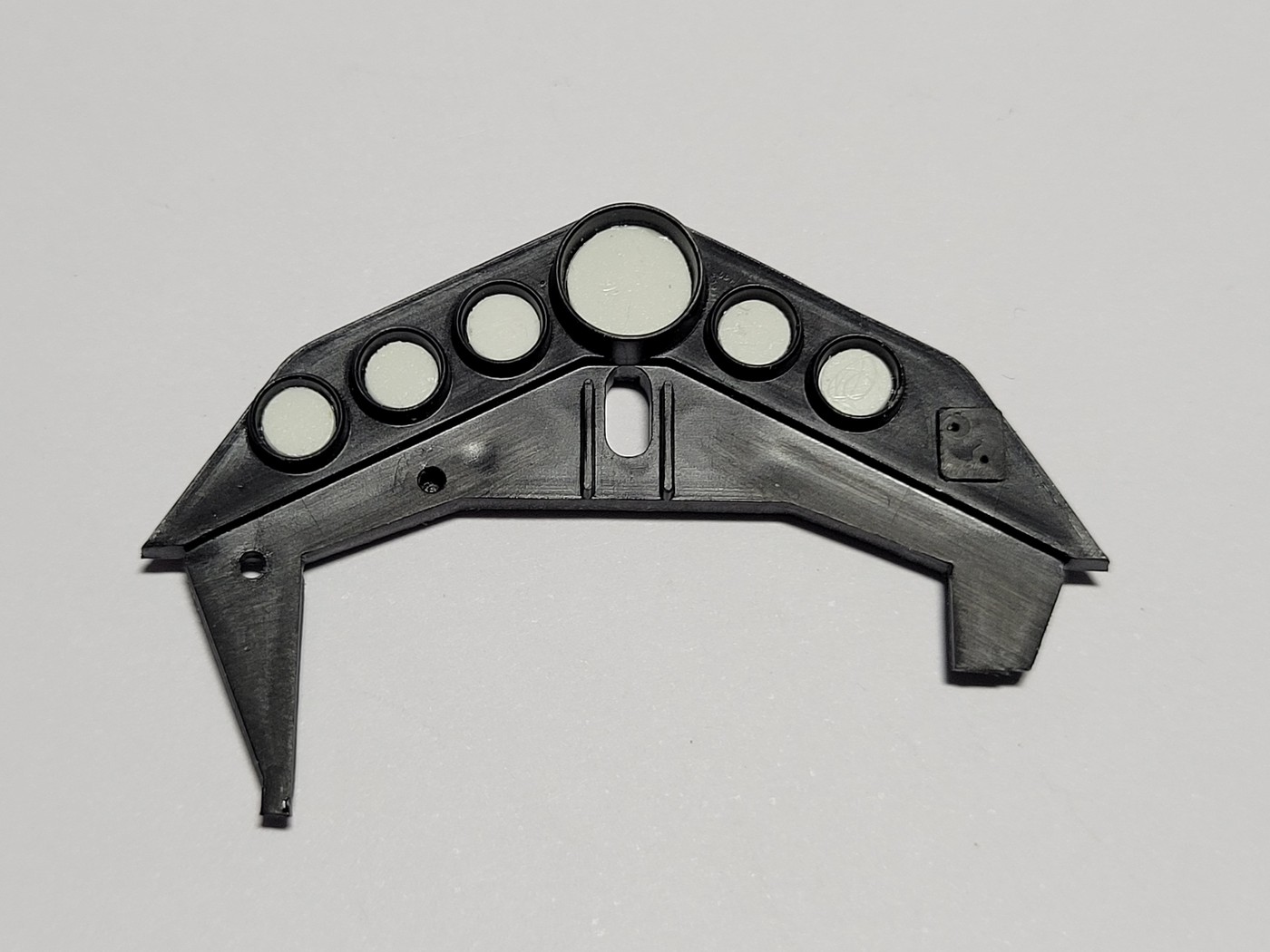

Problem solved.

20220416 142135

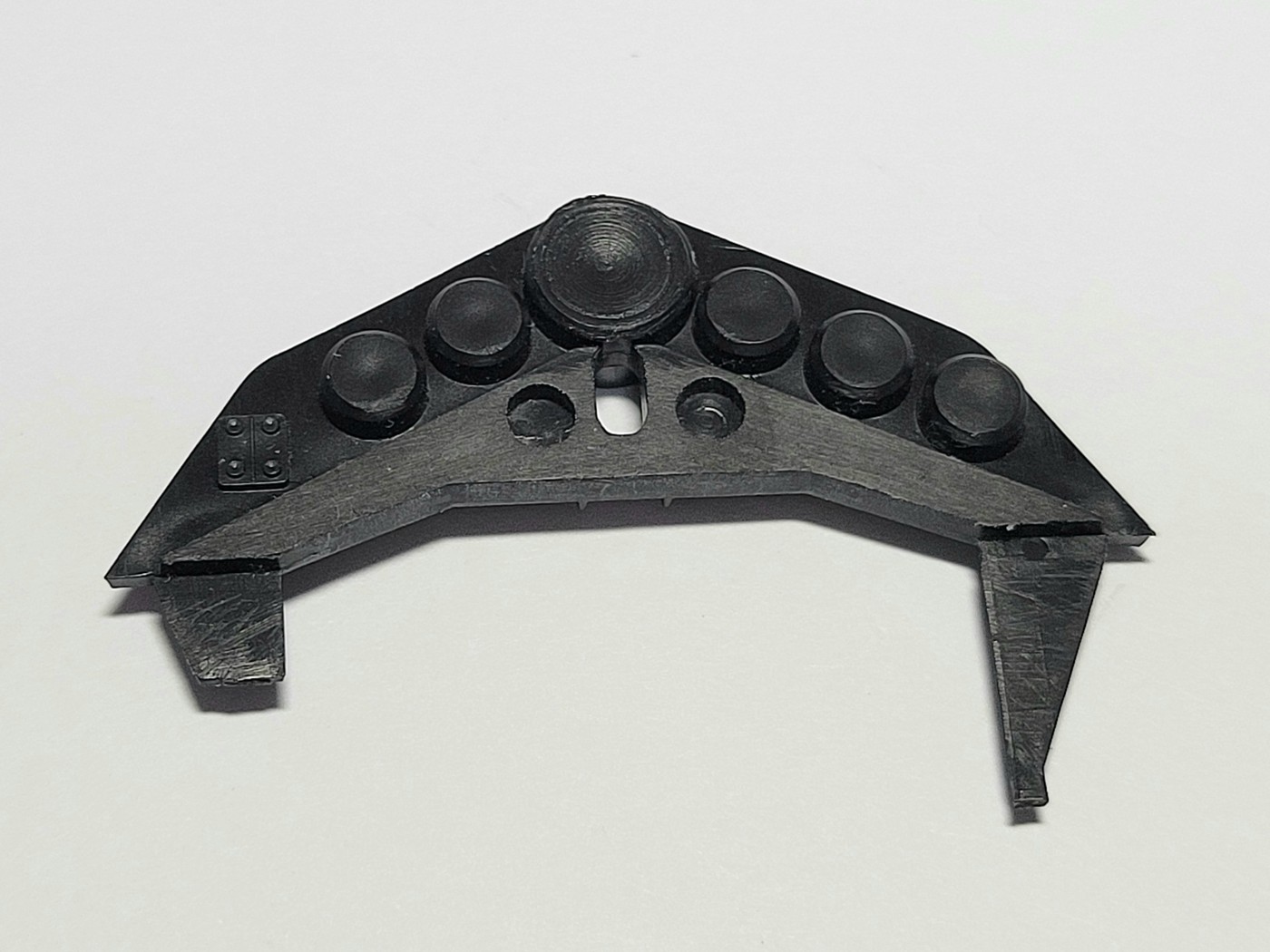

Here is the backside of the gauge cluster.  I will wire and/or plumb each one as appropriate.

20220414 203908

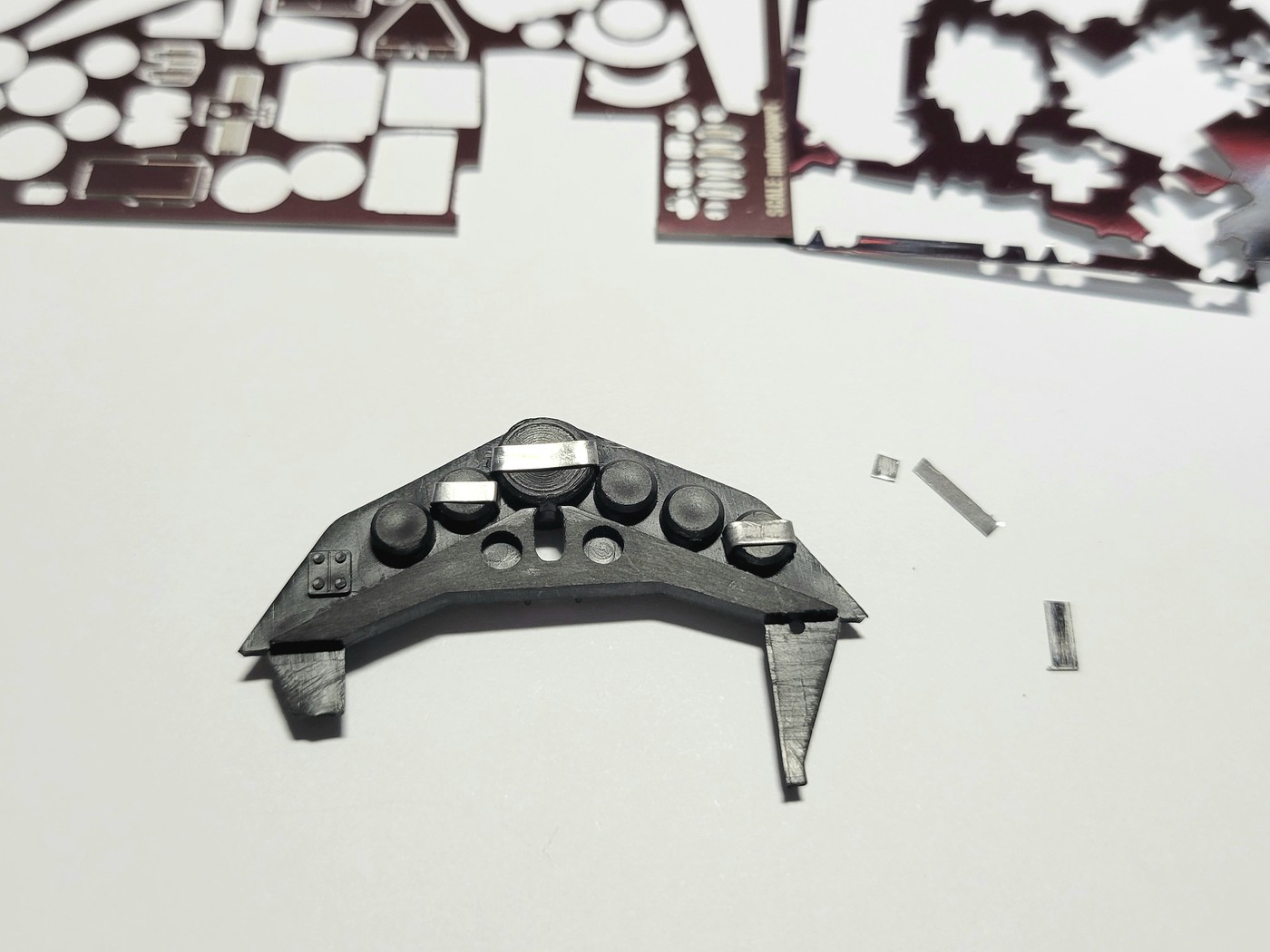

Each gauge has a bracket that holds it in place.  I tried to replicate the brackets with leftover PE runners but was unhappy with the results.  I had nothing thin enough.  I will use BMF instead.

20220414 213039



  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...

Not the most exciting update but I wanted to show what I'm working with in terms of quality.  This really increases the build time to an already long-term build.  Keep in mind this is a '60s tooling.

The rear bulkhead had both raised and indented ejector pin marks.

20220423 223333

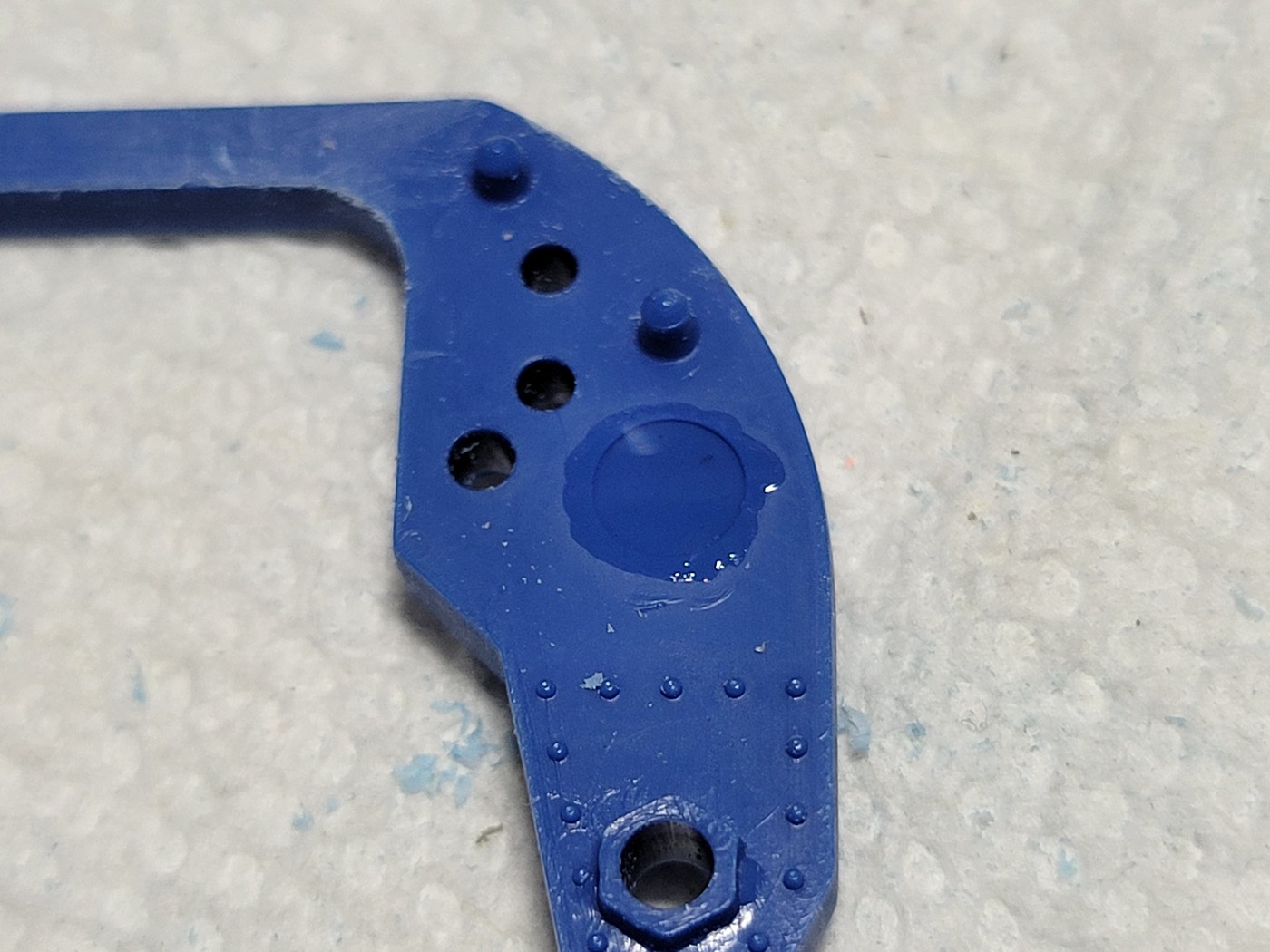

I use CA glue and kicker to fill these in.

20220423 223630

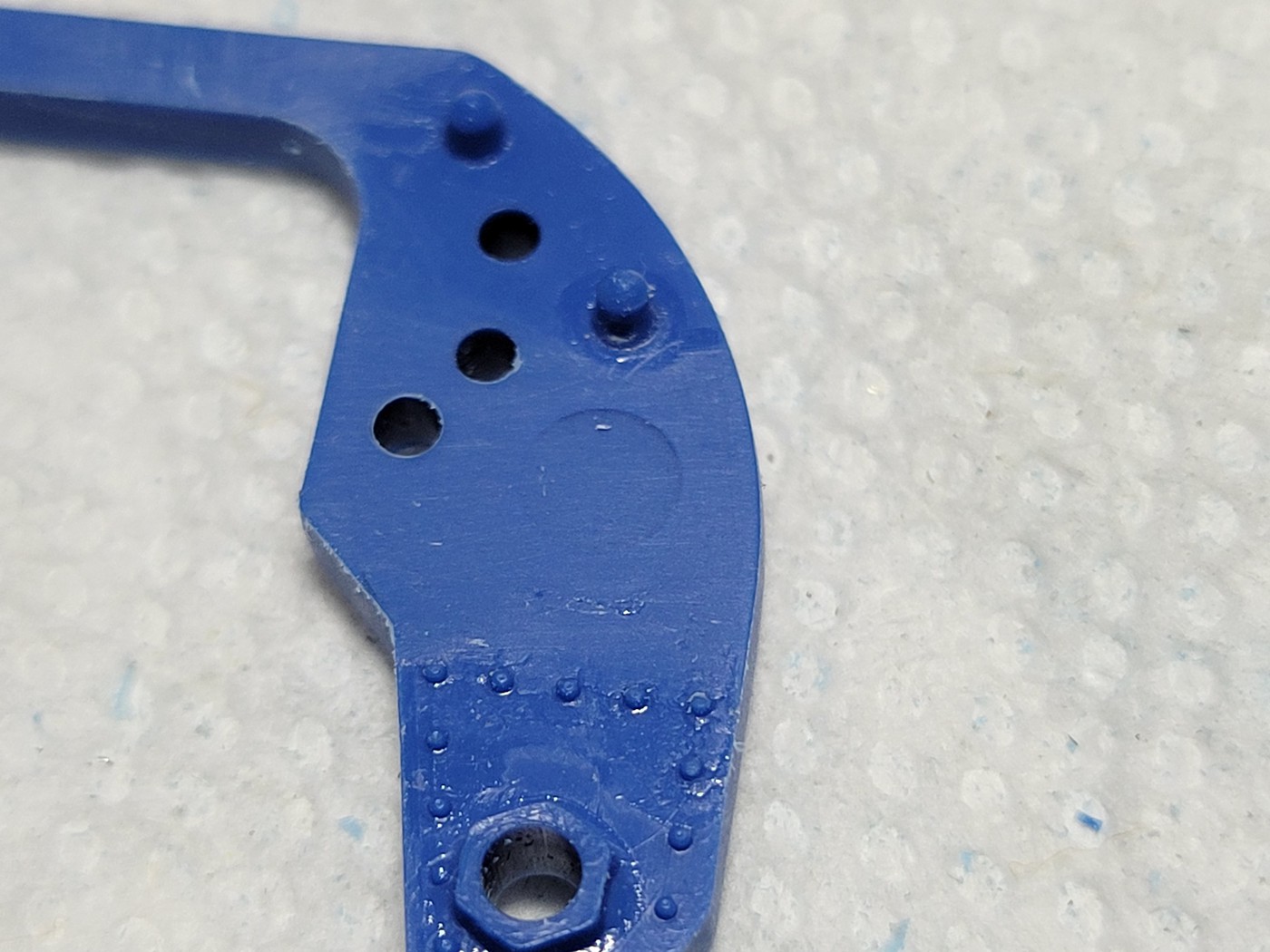

Sanded smooth.

20220423 225447

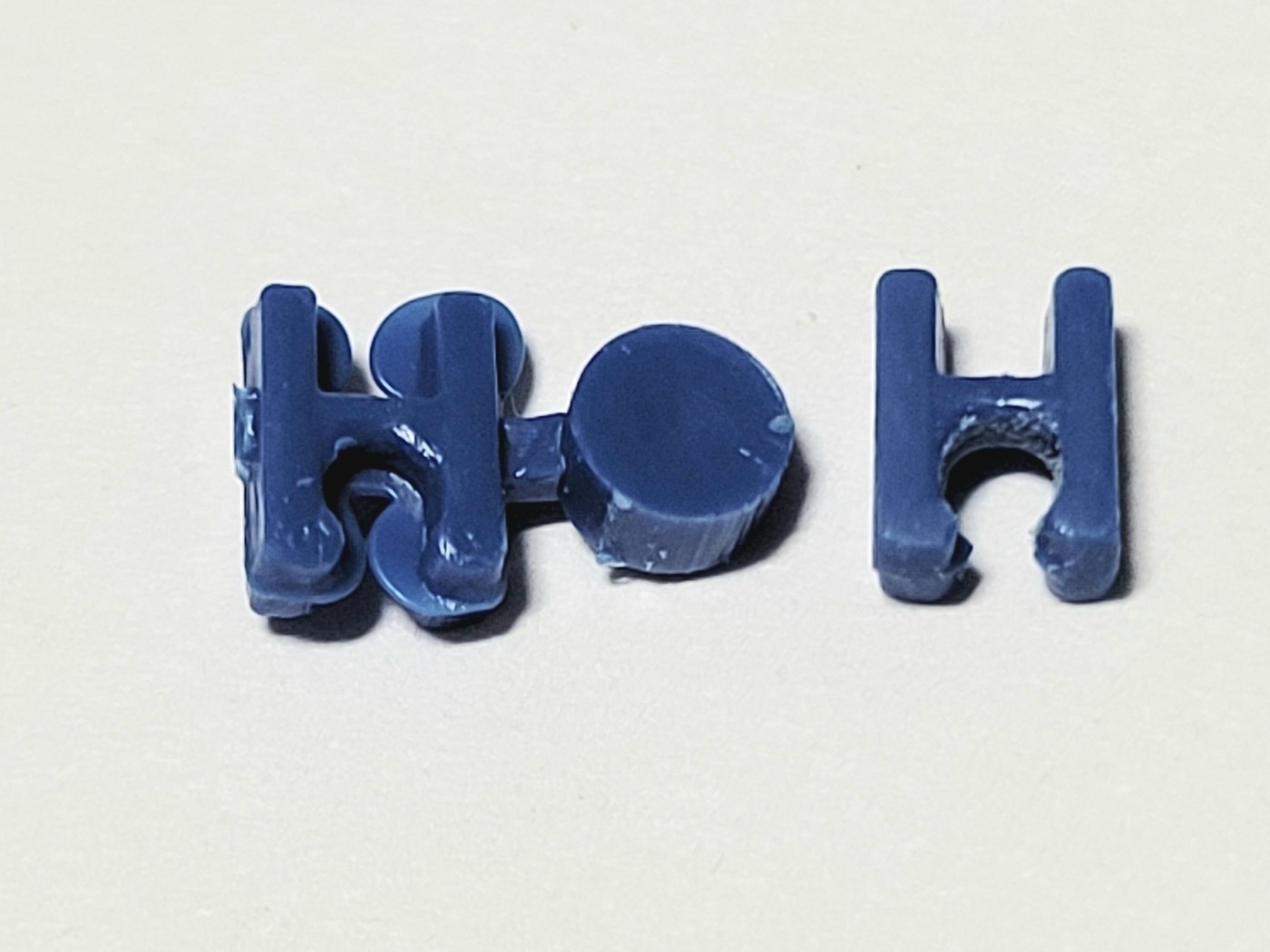

Part on the left is prior to clean up, the one on the right is after.

20220423 201112

Another thing that I had read about this kit and photos of built kits backed this up was that the wheels were too wide for the tires.  In the release that I am building there was a little note in the supplemental instruction sheet that said to remove 2.5mm off of the wheel back along a small ridge.

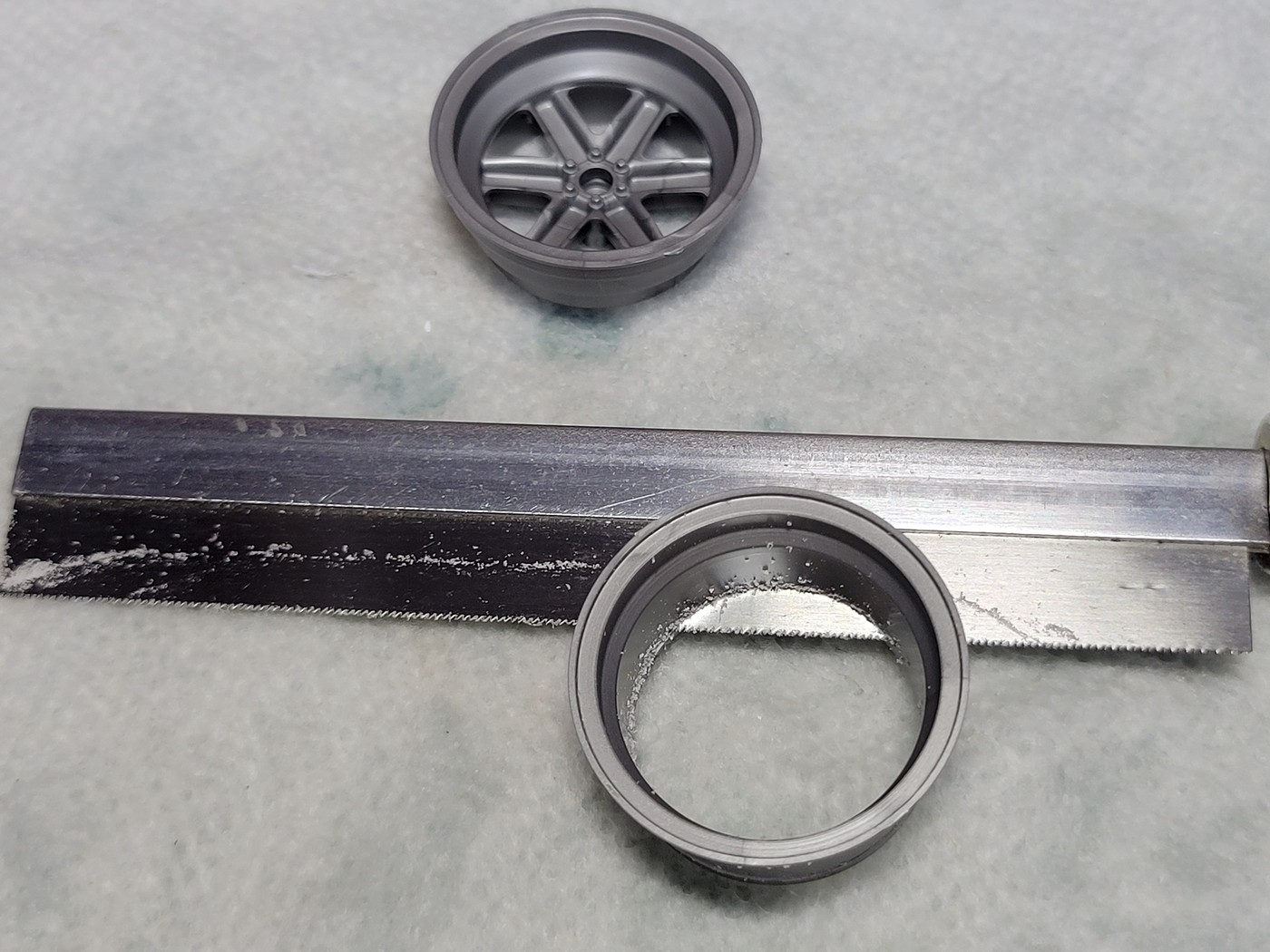

20220422 220803

20220422 220746

Here is the result of removing the 2.5mm of material.  Original on the left, modified on the right.  The tires now fit perfectly.

20220423 192743

Last up is the front bulkhead.  There is literally no kit supplied detail to it.

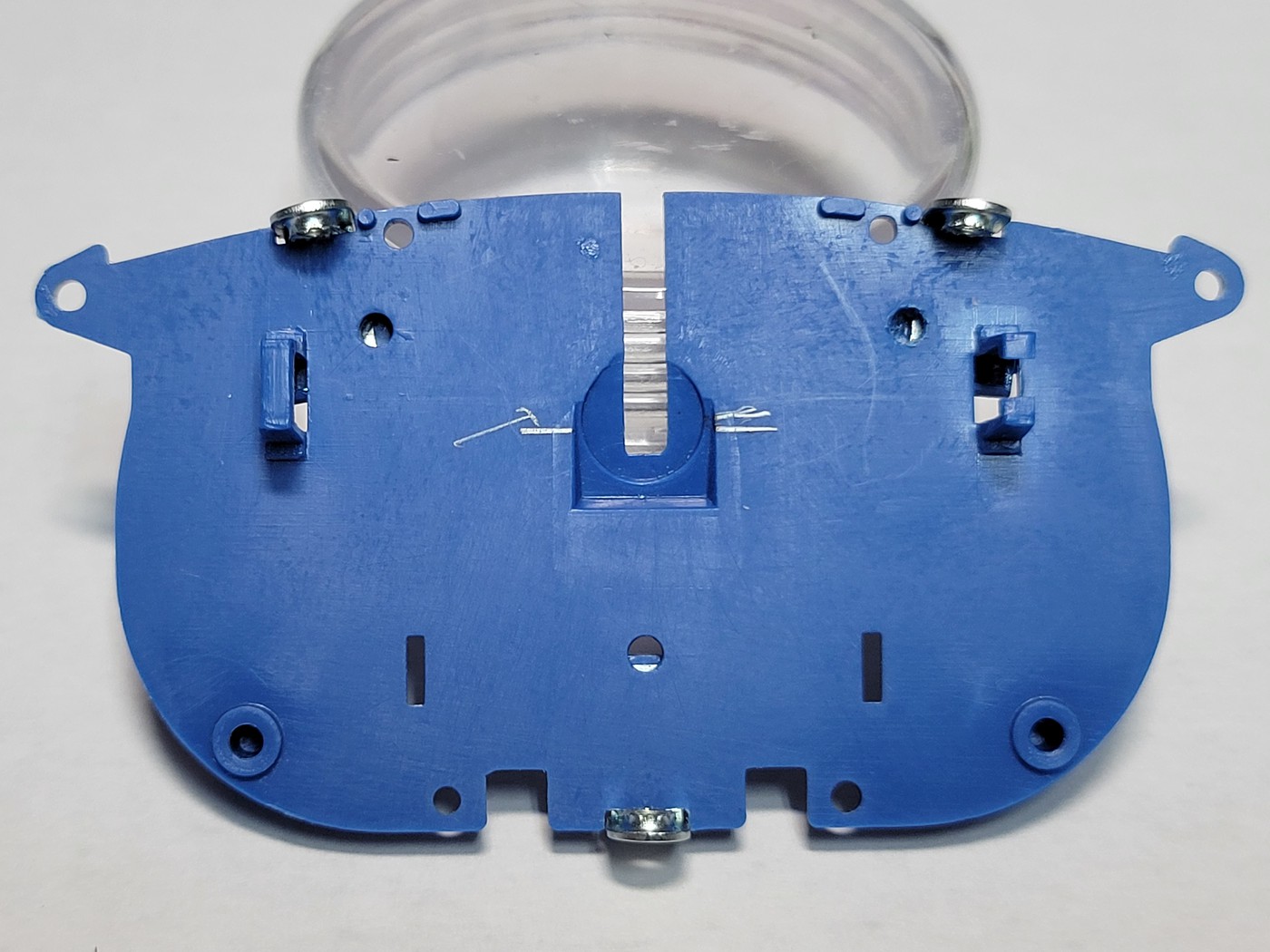

20220424 204951

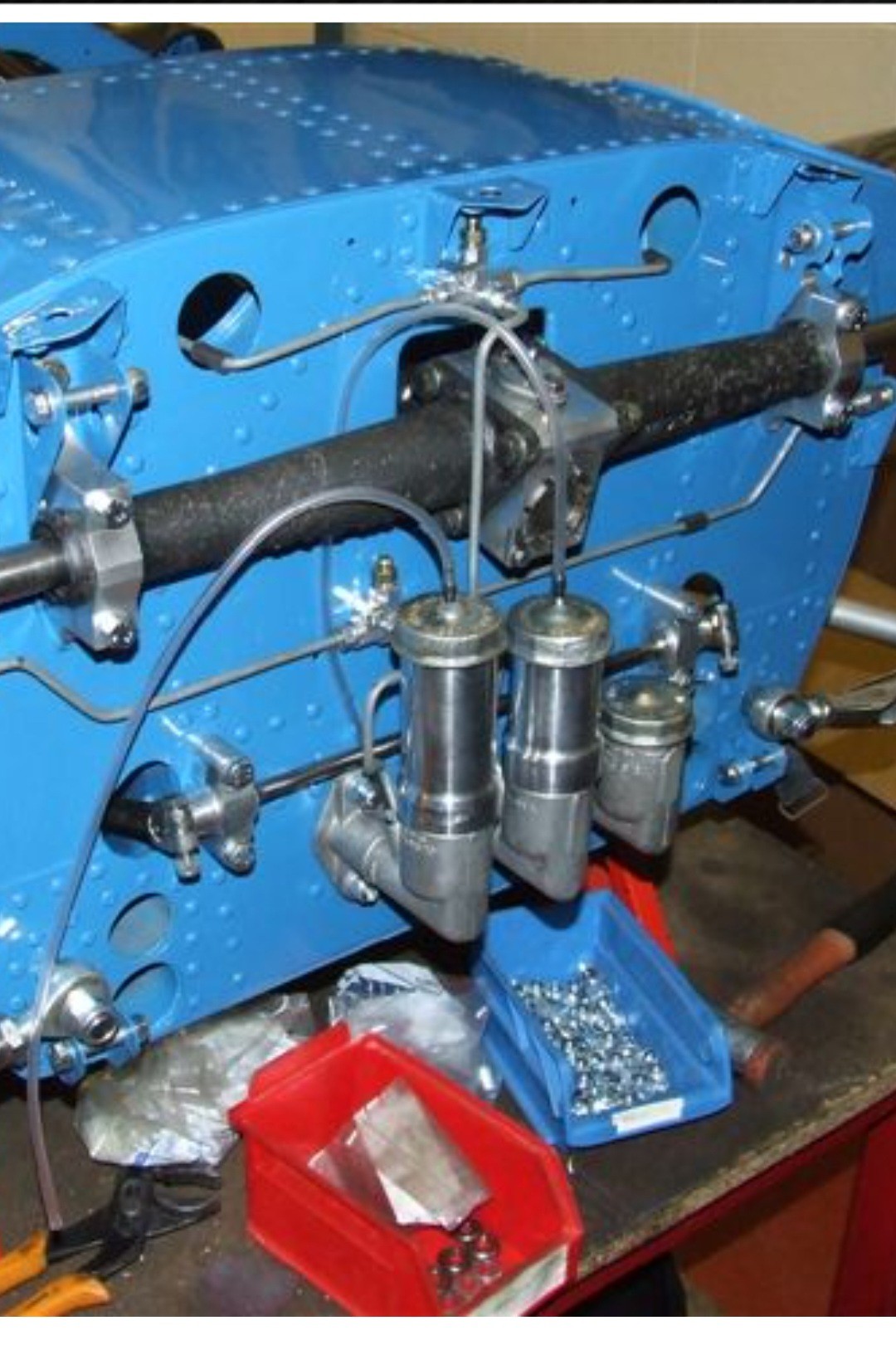

  With any luck it will look like the picture below when I am done with it.  This is from the restoration of the real car.

Screenshot 20220428-190051 Chrome

Link to comment
Share on other sites

John...I built this kit many, many moons ago, when it was first released as a matter of fact. Have been following your WIP with great interest and your attention to detail  is awe inspiring. I have another kit of this that I want to convert to Jackie Stewarts Matra/Ford. Have all the pieces, just have to get the ambition.  Will keep following your WIP...keep up the great work.

  • Like 2
Link to comment
Share on other sites

5 hours ago, Rich Chernosky said:

John...I built this kit many, many moons ago, when it was first released as a matter of fact. Have been following your WIP with great interest and your attention to detail  is awe inspiring. I have another kit of this that I want to convert to Jackie Stewarts Matra/Ford. Have all the pieces, just have to get the ambition.  Will keep following your WIP...keep up the great work.

Rich, I consider this high praise coming from you!  I am basically quoting this from several other guys who have built this kit, it is nearly impossible to build an exact replica of a certain car with what you are given in the kit.  My goal is to build a clean, well detailed model which may or may not have existed in real life.  As you know these cars constantly changed. Photographic evidence is lacking for this Matra so I’m doing the best that I can with what I  have and the skills, (or lack there of), that I possess.

Link to comment
Share on other sites

2 hours ago, Chris Smith said:

It’s coming along nicely, looks great

Thank you, Chris!  I have more interesting updates coming shortly.

Link to comment
Share on other sites

I'm still early enough in this build that I can jump from one step in the build sequence to another.  There is still a lot of work to be done before I can start gluing and painting.  I'm actually still figuring out what I'm going to leave as is and what I'm going to try to detail.  I'm also trying to test fit as much as I can.

Here is the underside of the front where the nose will attach.  There was a gap that could not be ignored.  I added sheet styrene.

20220426 201126

Looking from the front to the rear.

20220426 201152

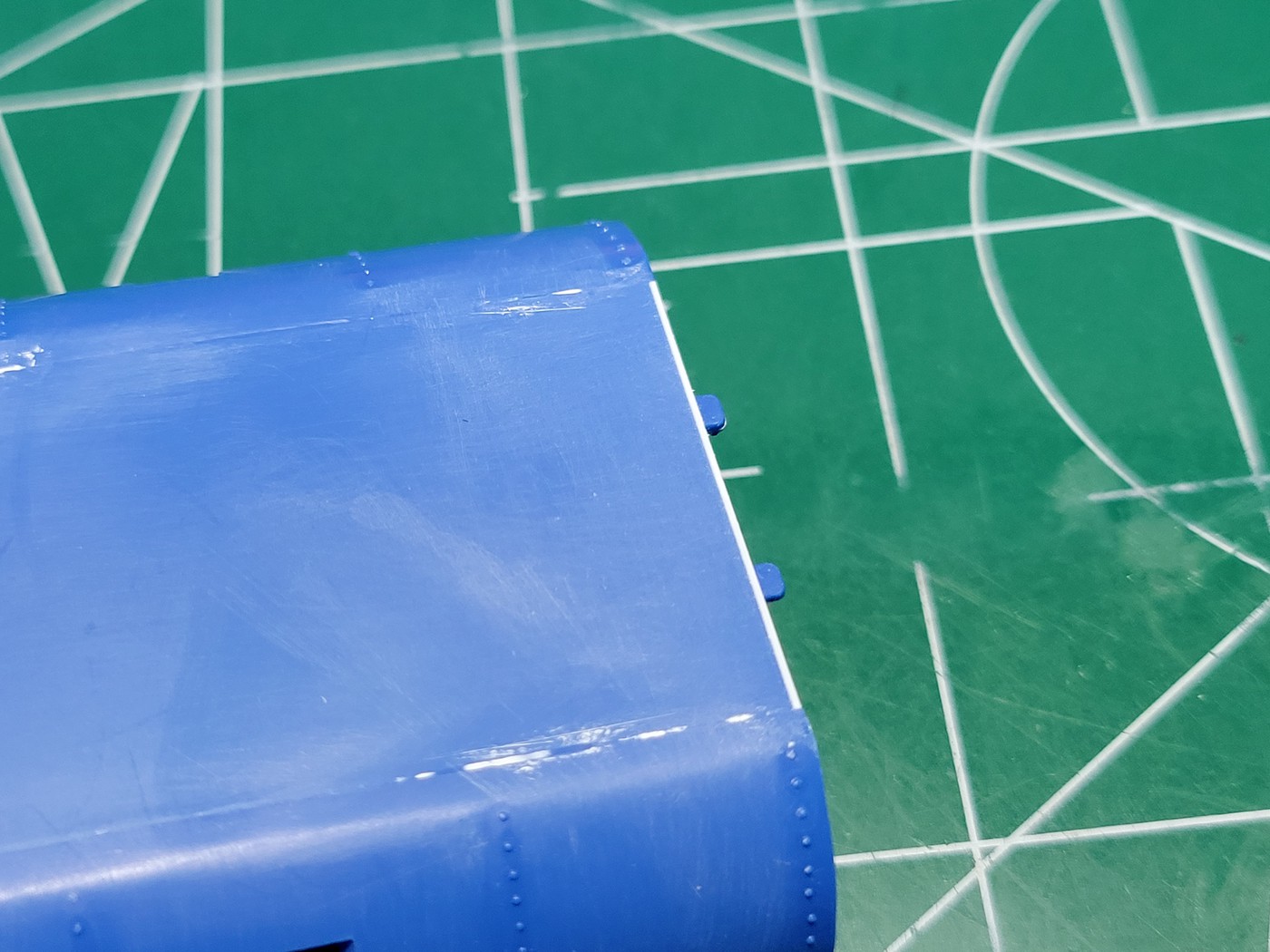

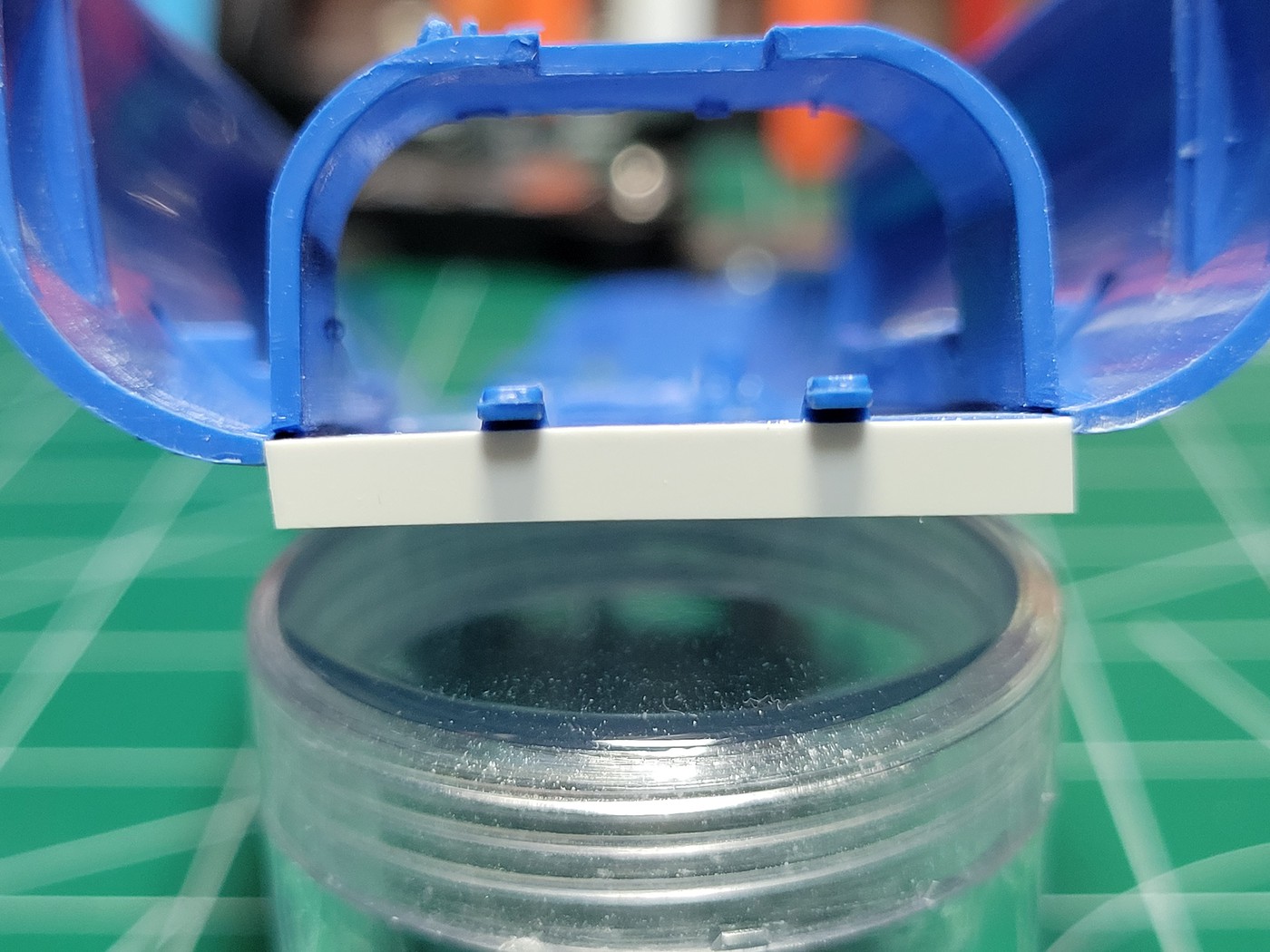

Sheet styrene has been trimmed and sanded.

20220426 201806

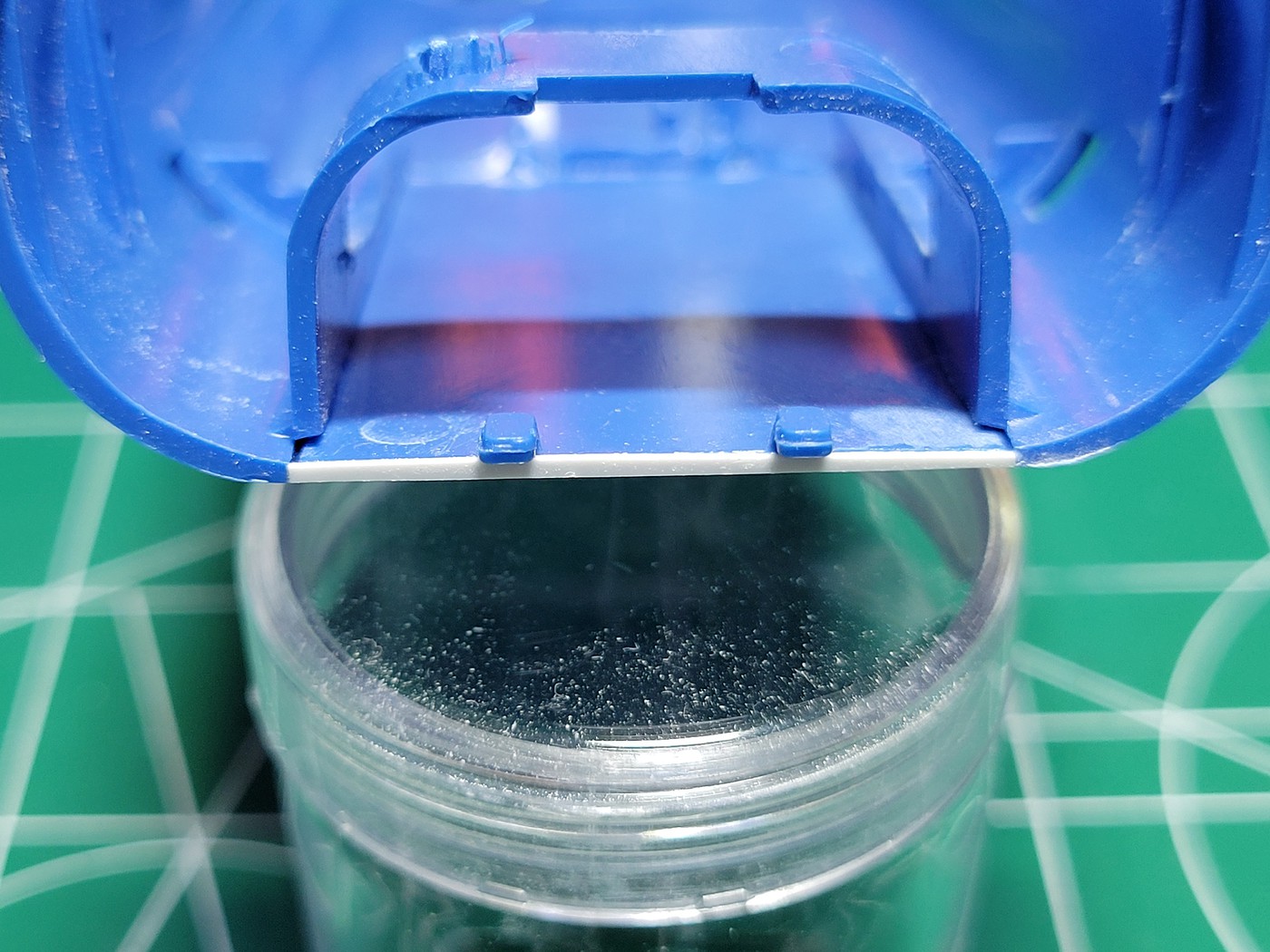

Another view.

20220426 201832

I have started work on the engine.  There were a lot of kit parts that were chromed and the 12 air funnels were some of them.  Unfortunately the air funnels and injectors needed to be cleaned up.  There are terrible attachment points on the funnels and the injectors are incorrect for the Matra V-12 engine.  I have made new injectors.  But first, look at how Tamiya tooled the funnels.  The attachment points are on the delicate and highly visible funnel lips.  I did two sessions of oven cleaner on the kit chrome trees.  The chrome came right off but the lacquer coating gave me some issues.

20220503 213134

20220503 213103

Here is a picture of all 12 air funnels cleaned up.  The opening at the base is where the kit injectors go.  I had one air funnel that had a chunk broken out of it at the attachment point.  I did some careful filling and sanding with Tamiya putty.

20220504 214148

Link to comment
Share on other sites

Posted (edited)

Nice work cleaning up the funnels.  Almost every kit from every manufacturer molds these type parts the same way, its maddening.  I wonder why?

Edited by bbowser
typo
Link to comment
Share on other sites

2 hours ago, bbowser said:

Nice work cleaning up the funnels.  Almost every kit from every manufacturer molds thes type parts the same way, its maddening.  I wonder why?

Good question, Bruce.  I’m sure they thought about it and came to the conclusion that this was the best way to go.  I have scratch built new, correct injectors and shot the funnels in primer to check my work.  I have found that I had more sanding and/or putty work on those attachment points.

Link to comment
Share on other sites

Keeping on the subject of air funnels and injectors.  I have been concentrating my efforts and work on these.  At this time they are not finished but are close to being done.  I will share the progression of my work.  I will keep repeating that I am not the world's best scratch builder.  I have a general idea of what I want to accomplish and then it takes me several tries to figure out how to make it.

The kit supplied injectors are incorrect for any Matra engine that I have seen.  The kit supplied injectors are also poorly molded and would have taken a lot of work to make them look presentable.

Here are two pictures from the internet of what the 1:1 look like.

Screenshot 20220503-211127 Chrome

Screenshot 20220507-203248 Google

This is what the kit supplied setup would look like.

20220514 194400

20220504 214529

20220504 214512

I came up with a basic game plan of how to make new ones and how to correct the existing air funnels.  I glued the incorrect injectors into place on the funnels.  I cut off the injector "arms" and then filled the leftover gap with CA glue.  I hit the CA glue with accelerator and sanded the area smooth.

20220510 202846

I tried to create the base for the new injectors by hand but quickly realized that I would never get 12 uniform bases.  My wife cut them out for me on her Cricut.  They are slightly oversized.  I wanted to be able to add the injector nozzle and two bolt heads to each one.

20220503 201629

20220503 202043

20220514 201814

I cut two different sizes of brass tubing to represent the nozzle and its base.

20220514 205800

I used .7mm MasterClub bolts.  Here is the first mockup.  Nothing is glued into place yet.

20220512 203934



Link to comment
Share on other sites

Im using the Master Club bolts too - thinking they may be tough to get going forward …

thought on the finish of the injection trumpets - im getting good results w the Alclad airframe aluminum - although you’ll have to be careful w handling onve painted …

Link to comment
Share on other sites
