Hey all Well today I got one of the flatbed trailers cut down from 40' long to 28' long. I also modified two of the dual axle suspension systems into a tri-axle suspension system. Still alot more to do, plus I found out when converting the suspensions that I need another flatbed trailer kit (that makes four total😱). Here are some pictures for yous to perose over.

Thanks everyone I did a little more work on this today. I have the dolly almost completely done. It needs some more plumbing & fittings and paint. 😁😉 This view shows the dolly. I made this from an extra set of AMT trailer suspension, extra fifth wheel and AMT tires to match the tires on the two trailers that go with it. Bottom view shows the start on the plumbing. The neck pivots for road changes. I used some 3/8" foam cord to fill out the tires on the rims, now they fit good. Well that's it for now be back soon. Ron G

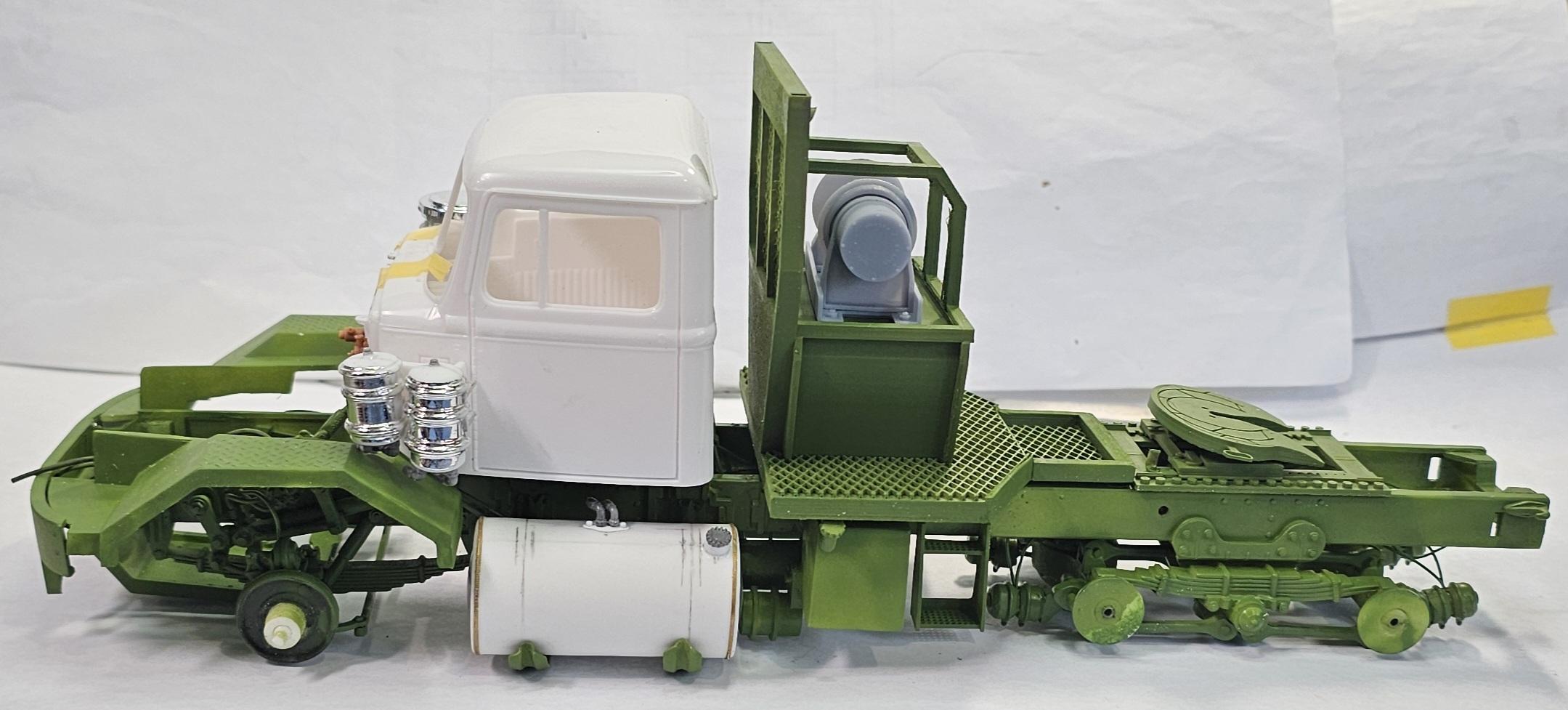

Hey all I know have the Wheels and Tires permanently mounted on the truck. I still have along way to go on this, all the fiddly detail bits, plus painting the cab and hood, weathering,etc.😁😉 here are so.e mock-up pictures.

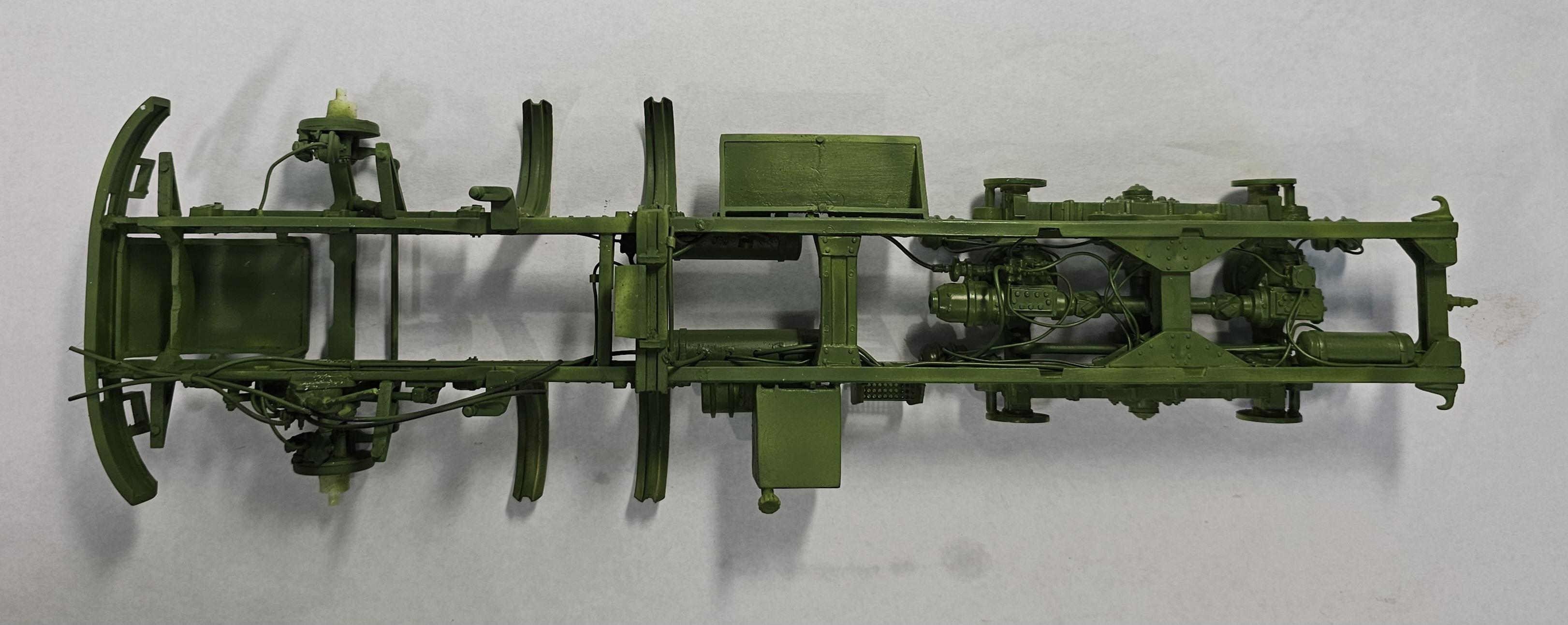

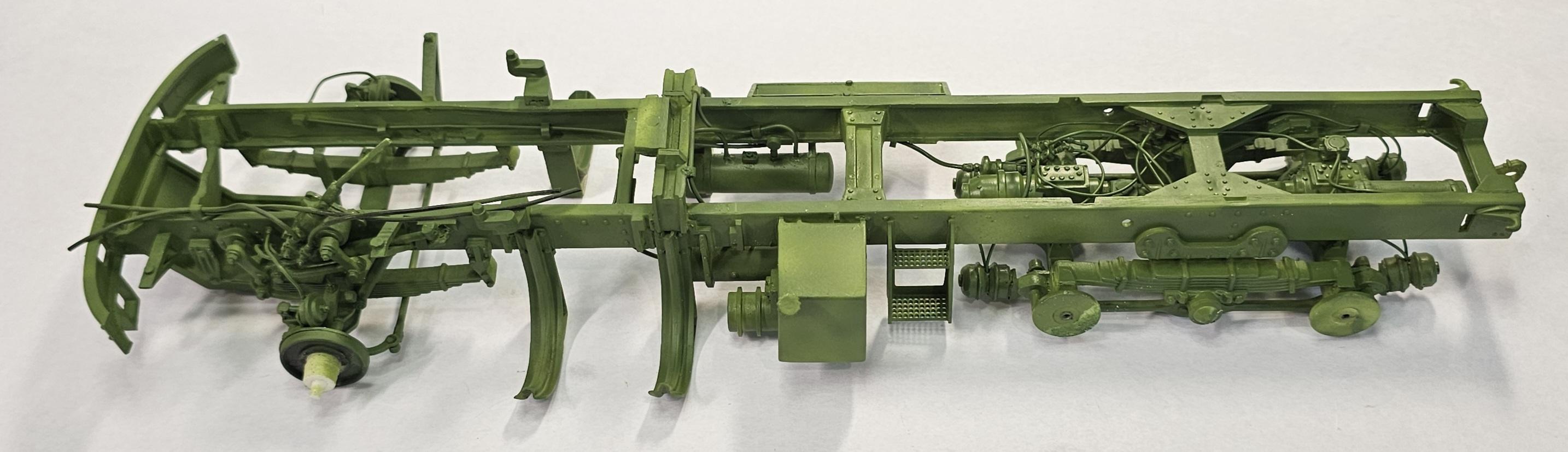

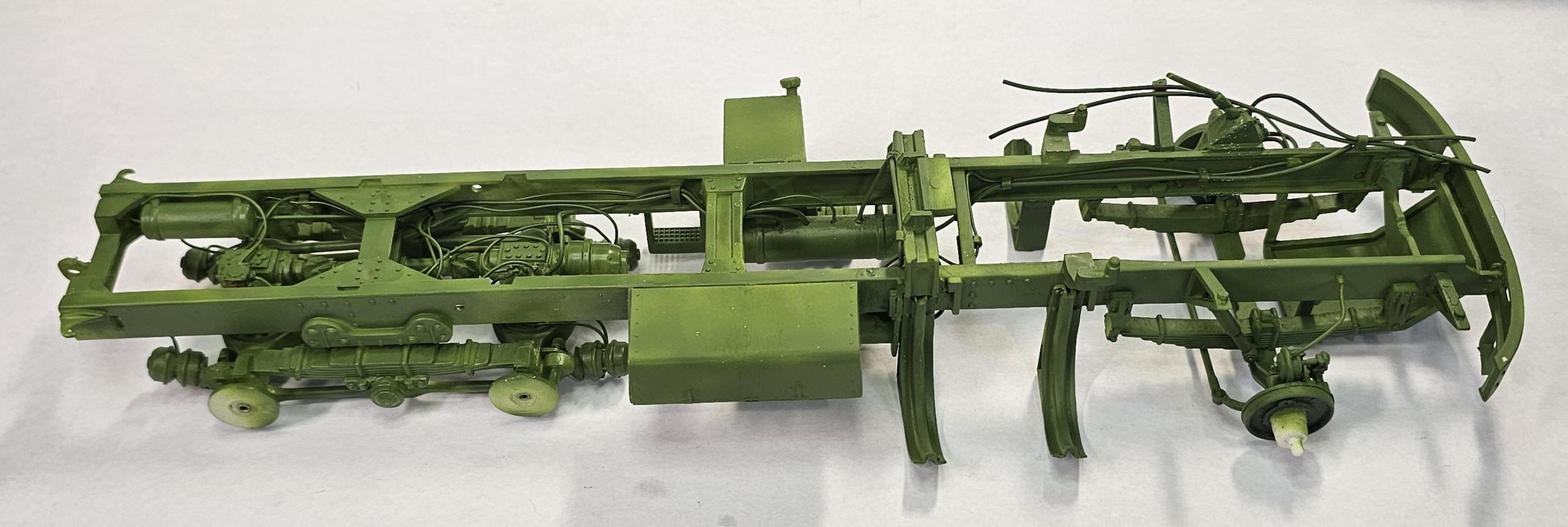

Hey all Well I finally have the frame, wheels, grill guard, front fenders, fifth wheel and headache rack painted in the Tamiya X-15 light green. Most of it is still drying in the paint booth but here is the frame and wheels. Ron G

Hey all Well the "Buzzin Dozen" showed up today from Auslowe in Australia. This is a nice casting from Auslowe, but they did short me the air compressor.🤔 I replaced it with one from the parts box. It's going to be a squeeze to fit it in the A.H. Kenworth, especially with the twin turbos. 580 H.P. / 1,450 lb-ft torque. Ron G

Thanks Warren I will definitely let you know. Ron G

Hey all Like I said this is a future project. Back in 1980 I almost bought one of these to go out on my own O.O.😁👍 But, alas it didn't happen, so I'm going to recreate the truck I almost owned in miniature. It will be a Michelin double. A dual flatbed trailer set-up for hauling Suicide Coils. Right know I'm collecting the things I will need to complete this build. I need two to three AMT Fruehauf flatbed trailer kits, an extra fifth wheel, load binders, etc. I have the Astro 95 kit, a resin DD 8V92T, the materials I need to make the steel coil loads (steel grey craft paper) to simulate the rolled steel coils. This view shows the overall concept of the whole rig. This view shows the truck. This view shows the wheels and tires. Another view of the wheels and tires. This is the kit I have. This is the Auslowe resin D.D. 8V-92T. It will be awhile before I start on this I'm still working on the Autocar, plus everything else I have going on. I'll be back with more soon. Ron G

WOWZZERS! Scott thats sweet. Ron G

Thanks Brian It's just the primer the final color will be Tamiya X15 light green for frame and wheels a d X5 for cab and hood. Ron G

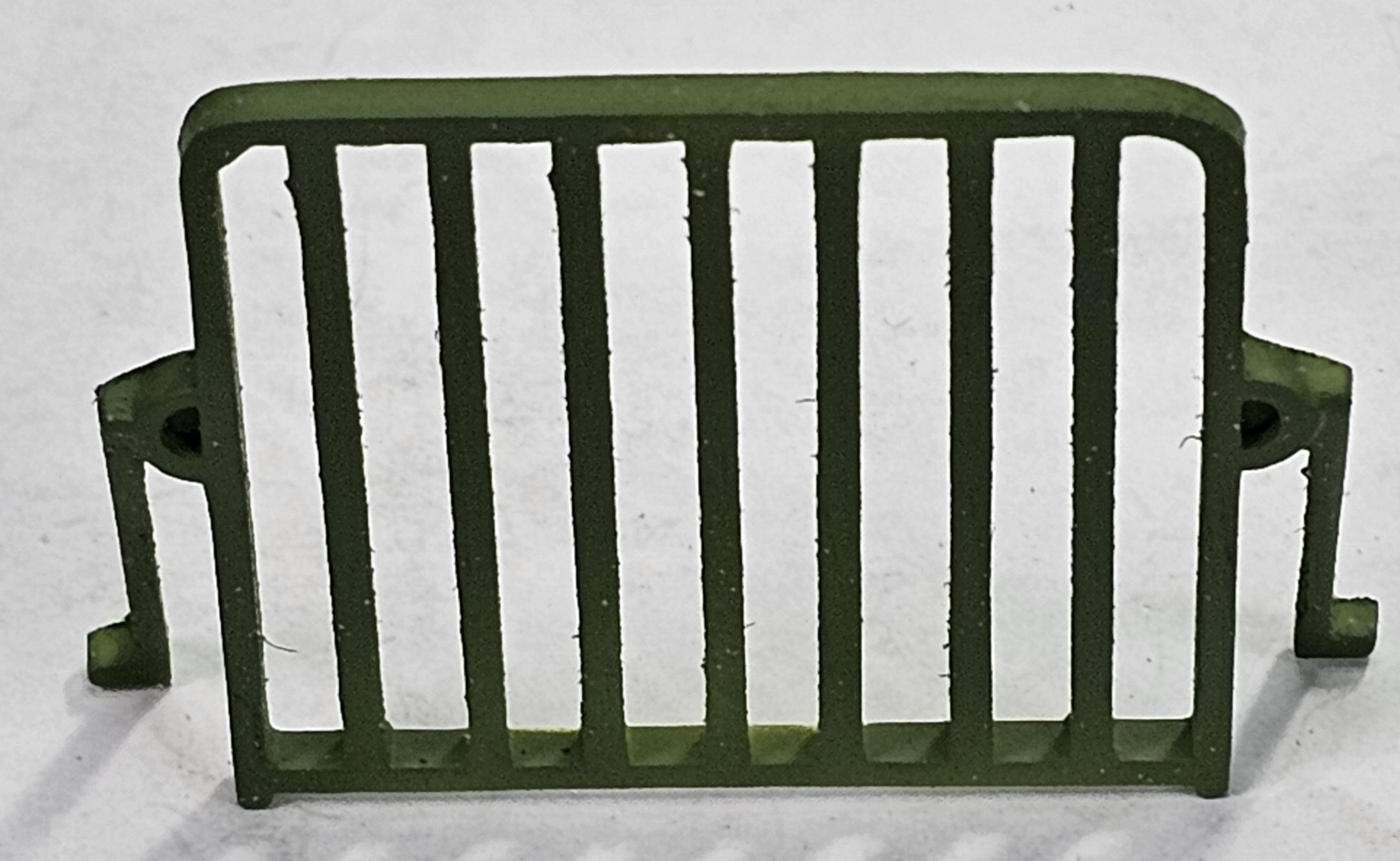

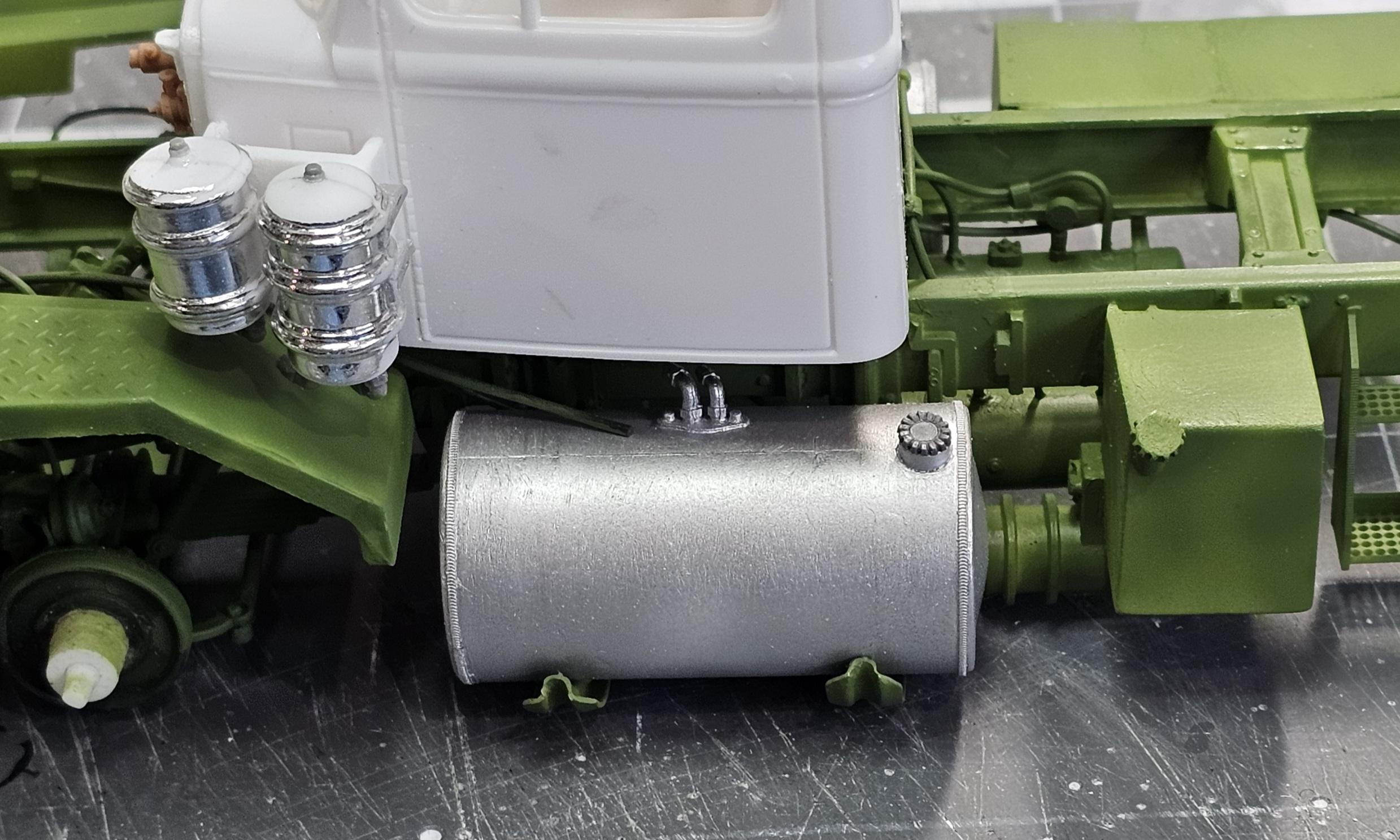

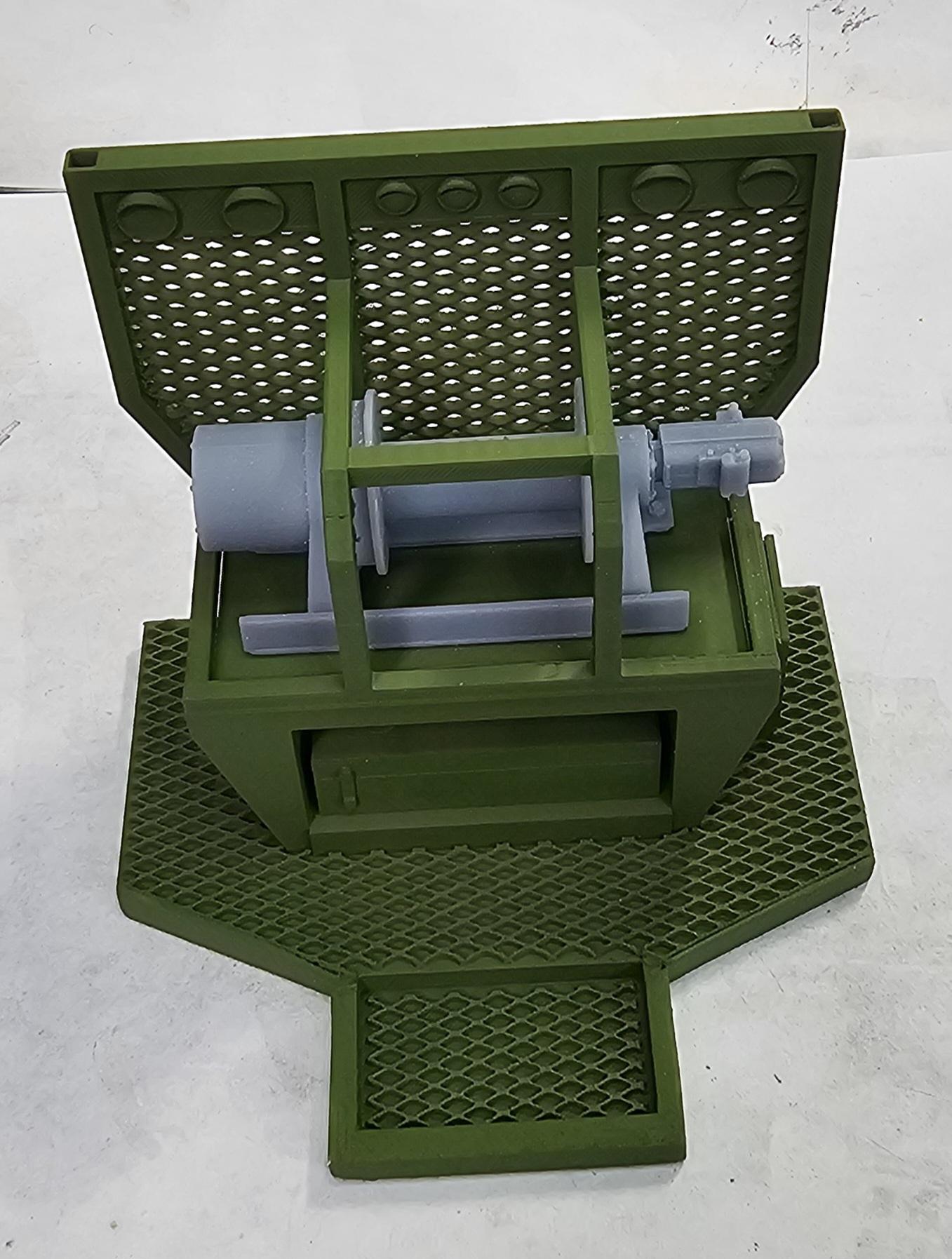

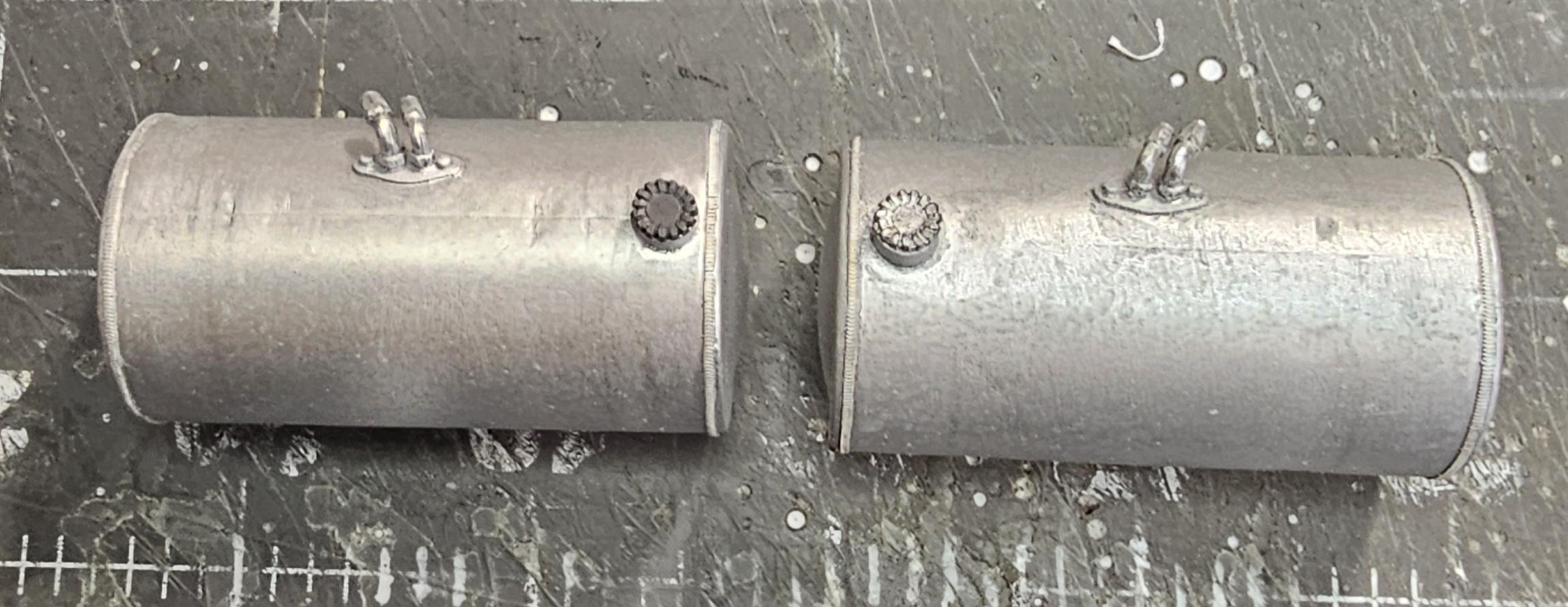

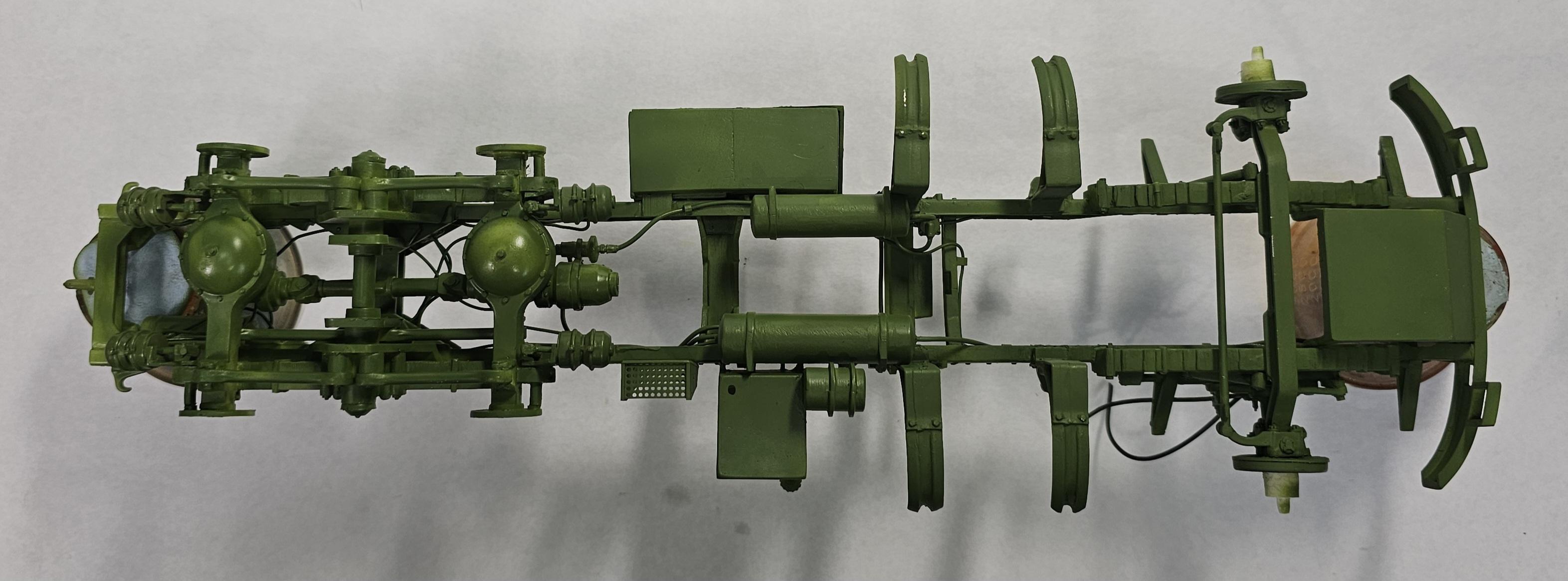

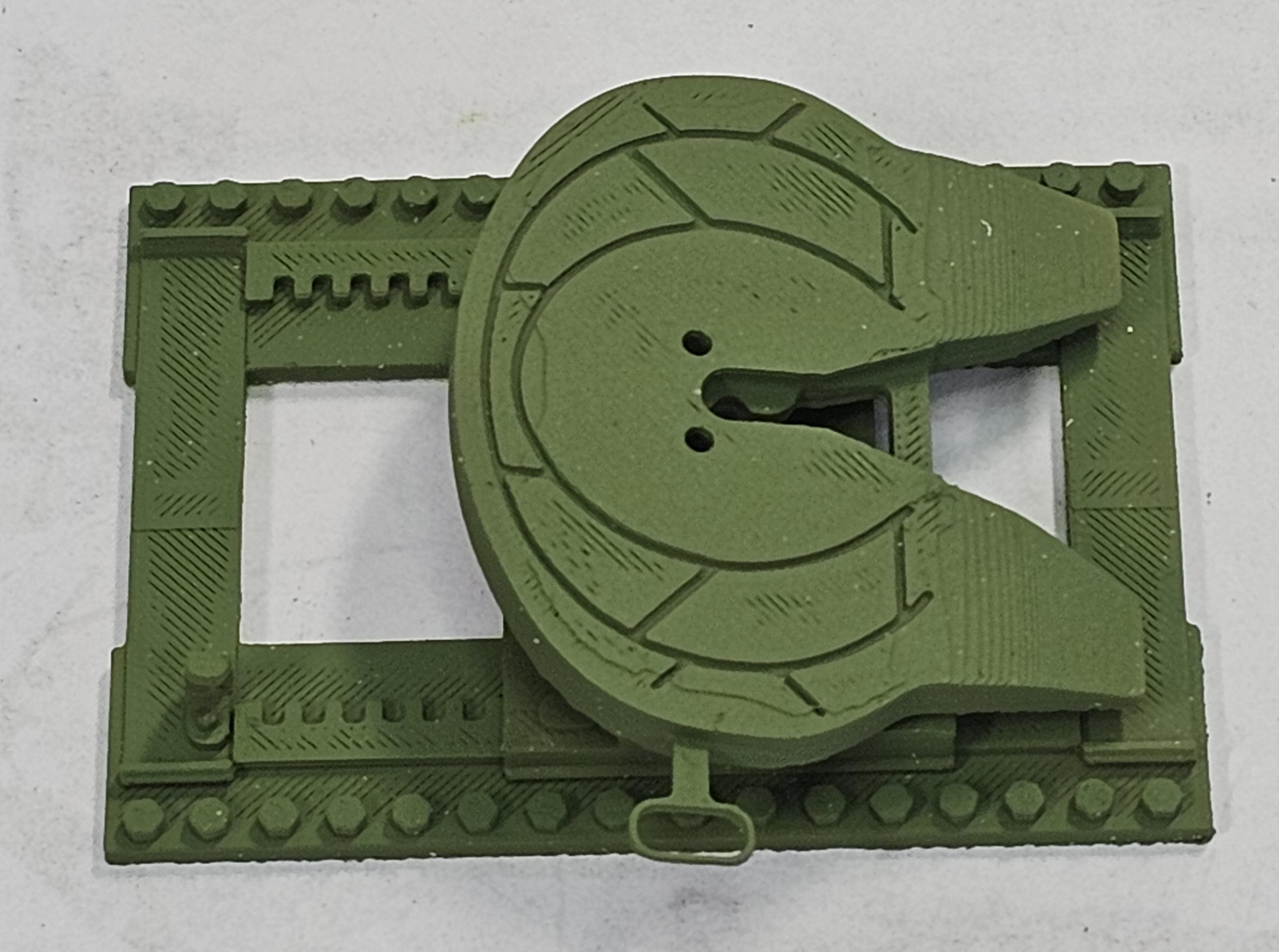

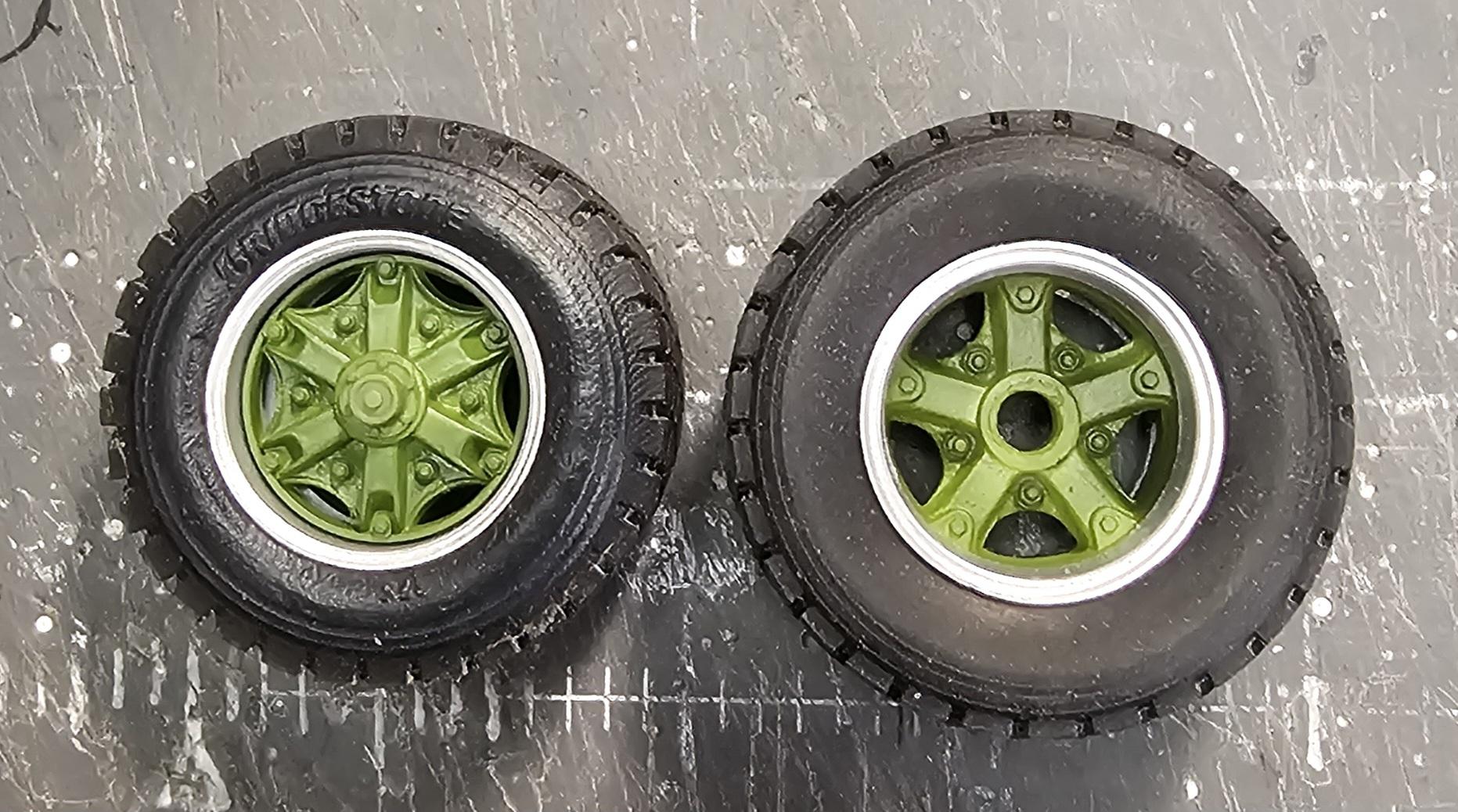

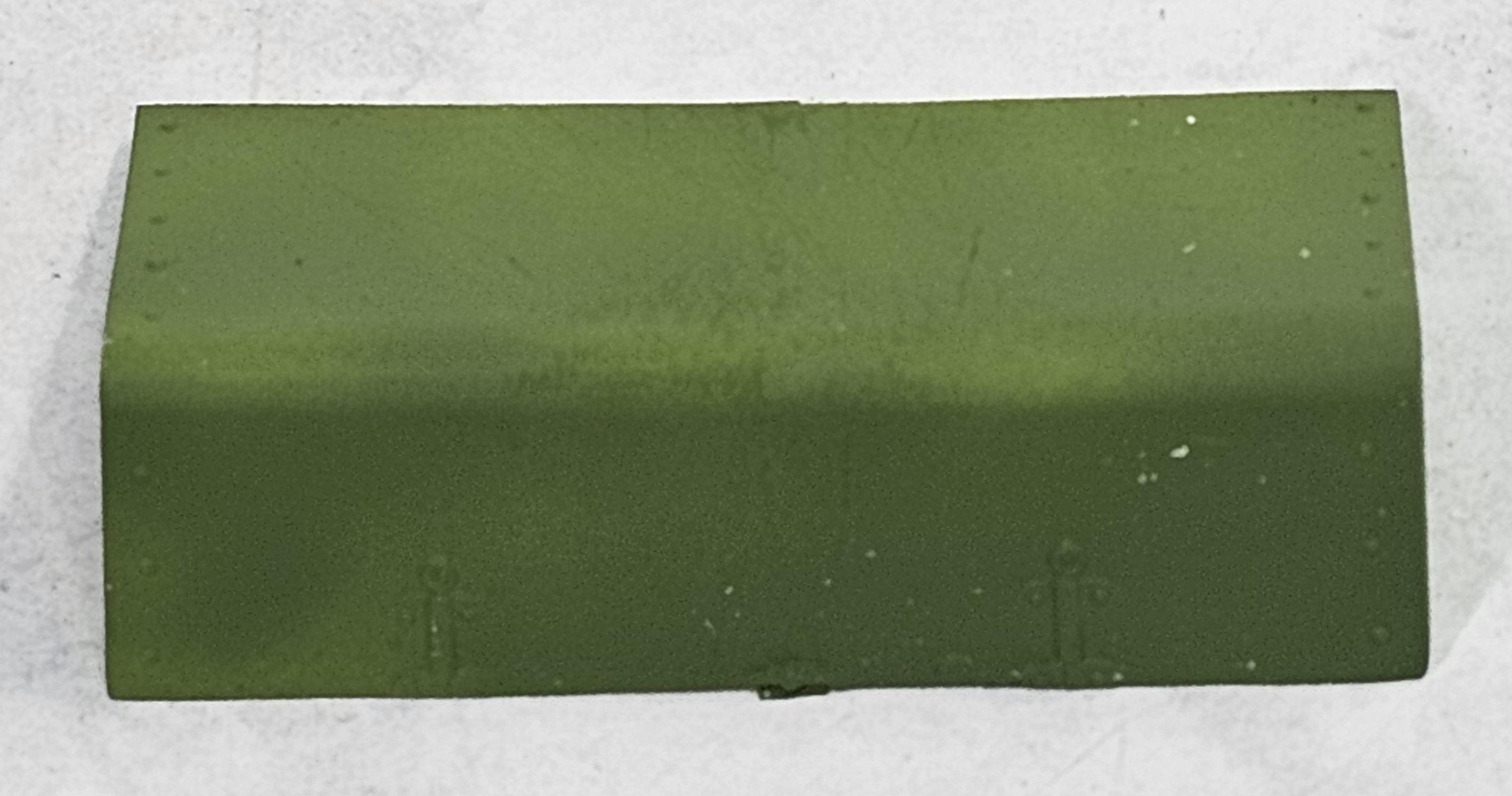

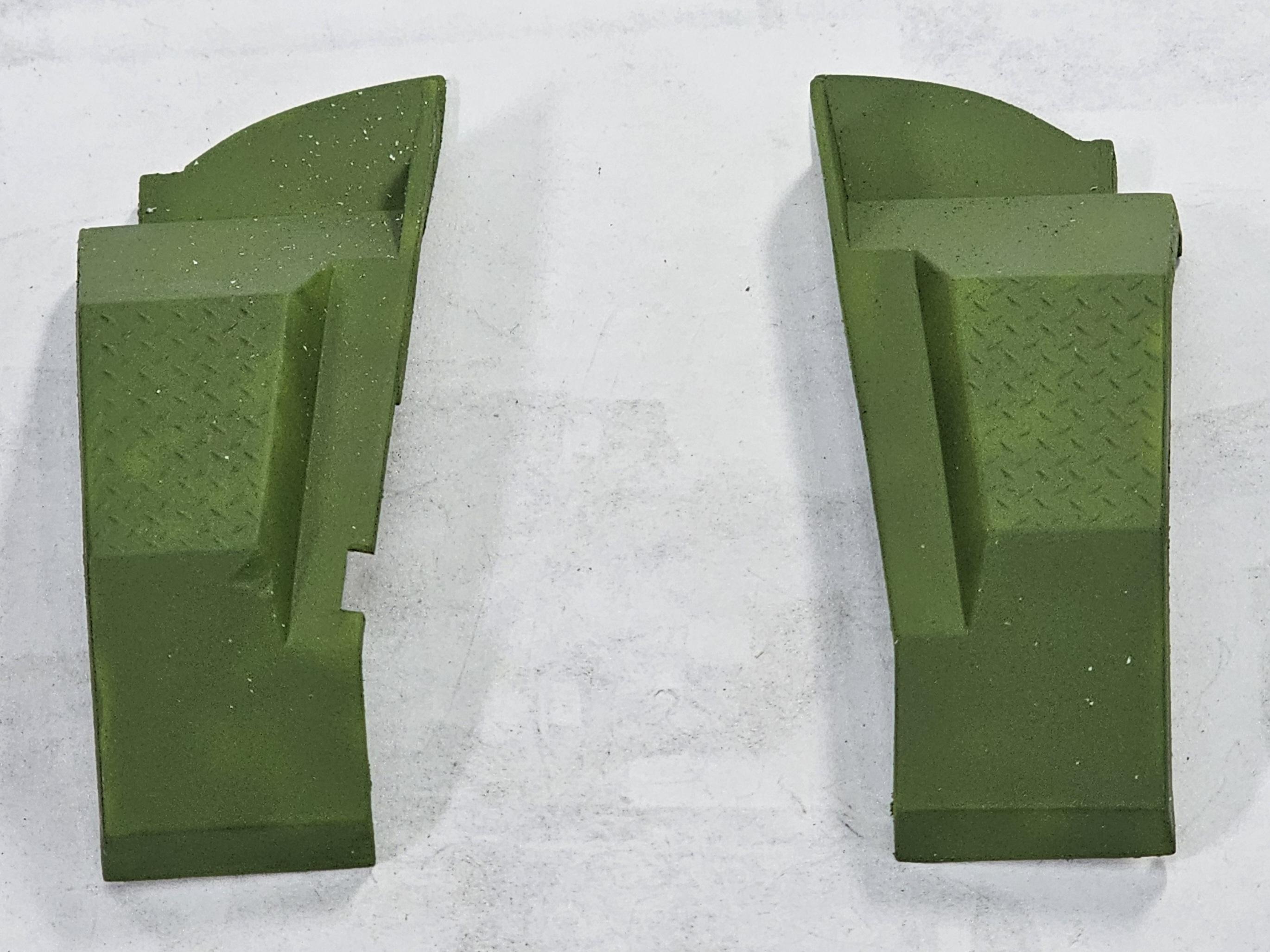

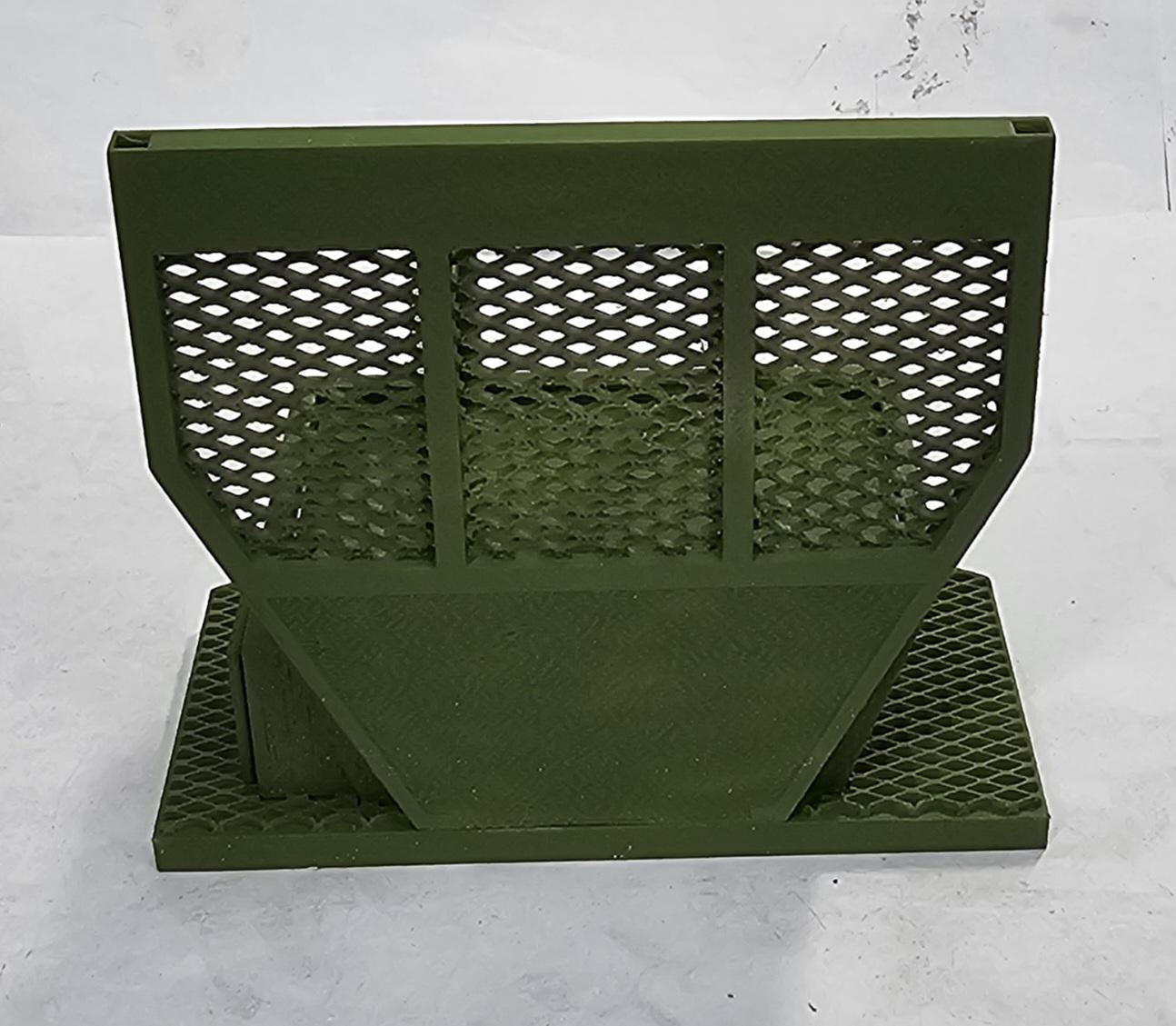

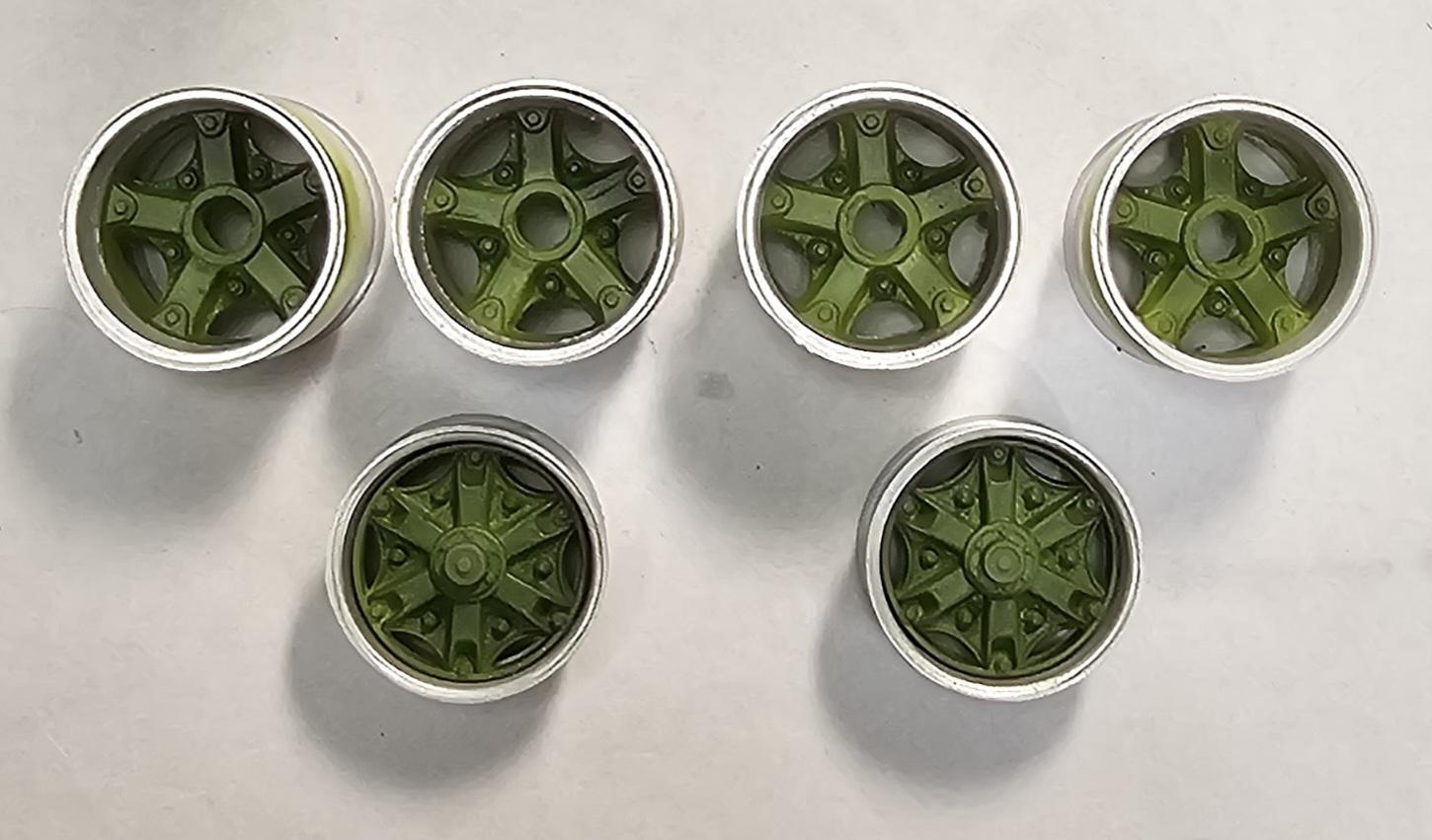

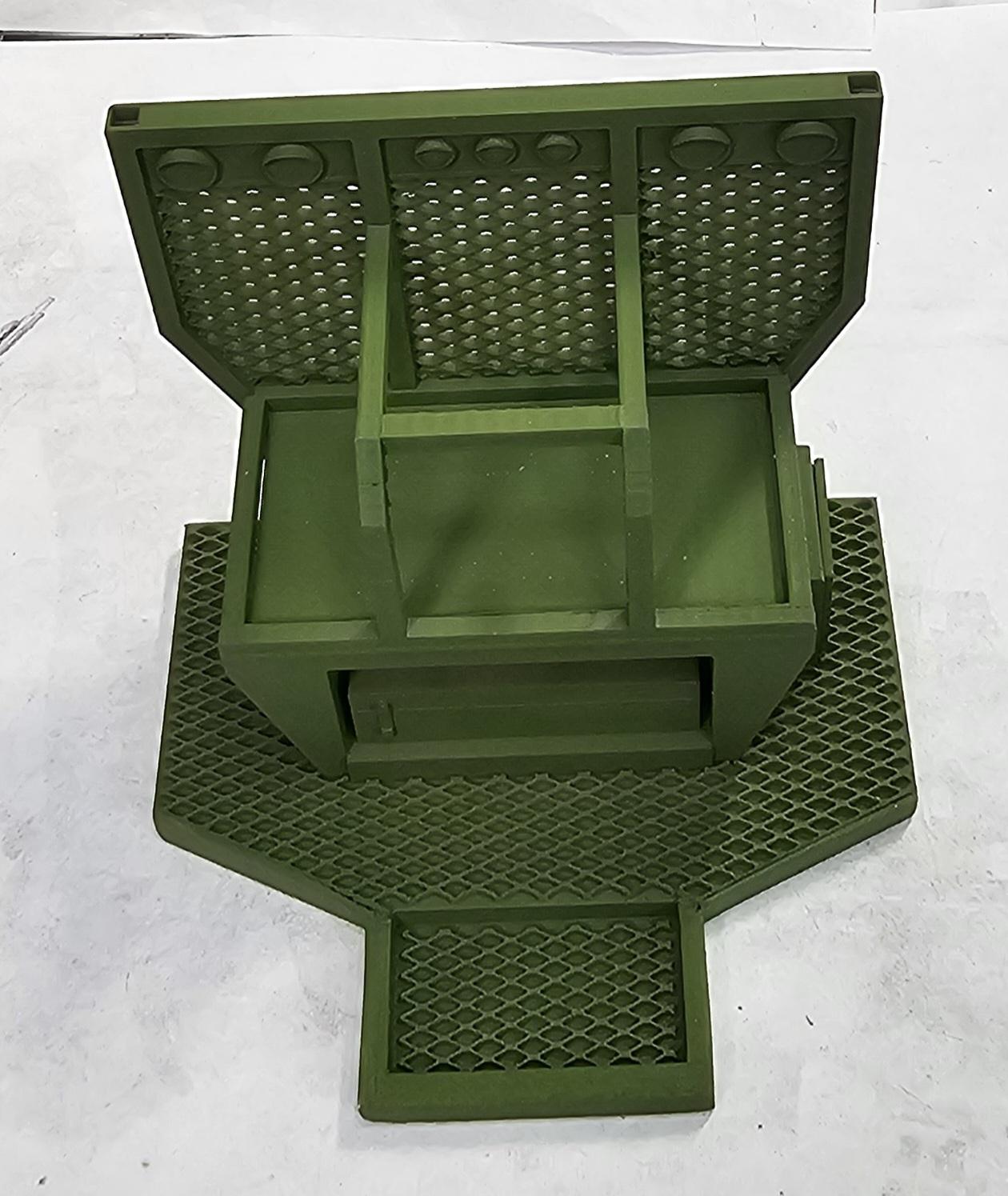

Hey all I got some more work done on this build. I now have the rest of the air lines done Another view of the front air lines. I finally got this thing painted after being hounded by my Pal Jeff...lol. It's now a "Shrek" green.🤢 It's my primer coat, and at first it was giving me a real pain the you now what! But I finally got the bugs worked out. So here are some pictures for yous all to look at. This view shows the headache rack. This view shows the headache rack with the winch sitting in place. This is a view of the back of the headache rack. This view shows the front grill guard. This view shows the battery box cover. This is the inside of the battery box. This is the three fifth wheel parts. The fifth wheel assembly. This view shows the front fenders. left hand side view of the frame. Top view of the frame. Right side view of the frame. Bottom view of the frame. A little mock-up veiw. this view shows the front & rear wheels. This view shows the fuel tanks and I can see I have some putty work to do on them. Tank in place. I painted them with Vallejo metal paints half white aluminum and half aluminum. It must not have been mixed well because it was very spputtery. This view shows the wheels and the tires. Well that's all for now be back with more updates soon. Ron G

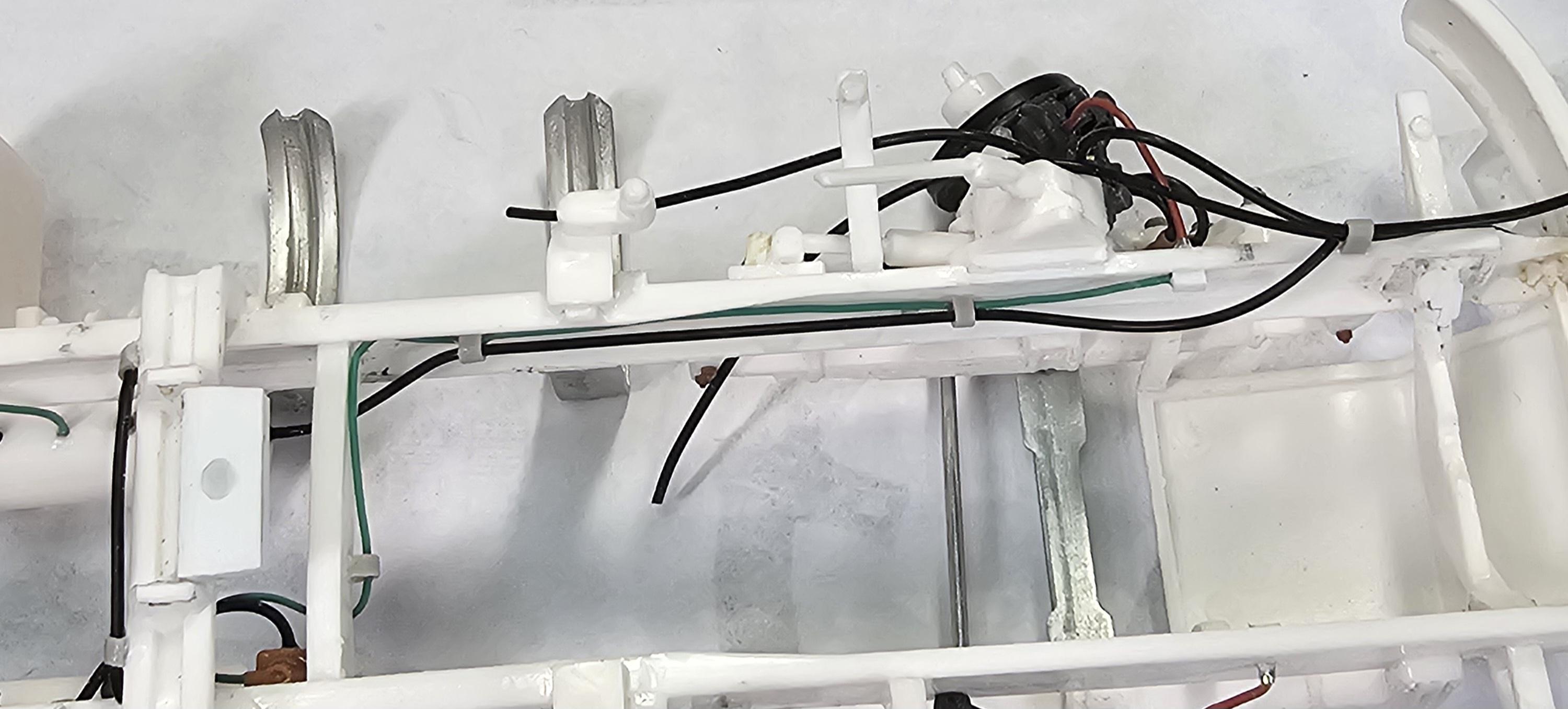

Hey all A few more pictures for you to look at. I added some lines from the fuel filters to the fuel pump. I also added the two oil lines for the turbos and some more oil lines on the oil cooler. This is the truck it will be going in. AMT's new Peterbilt kit. Ron G

Yeah Jim, it's really very well made. Every thing fits good. The instructions are photos, not much advice, but I made it through.

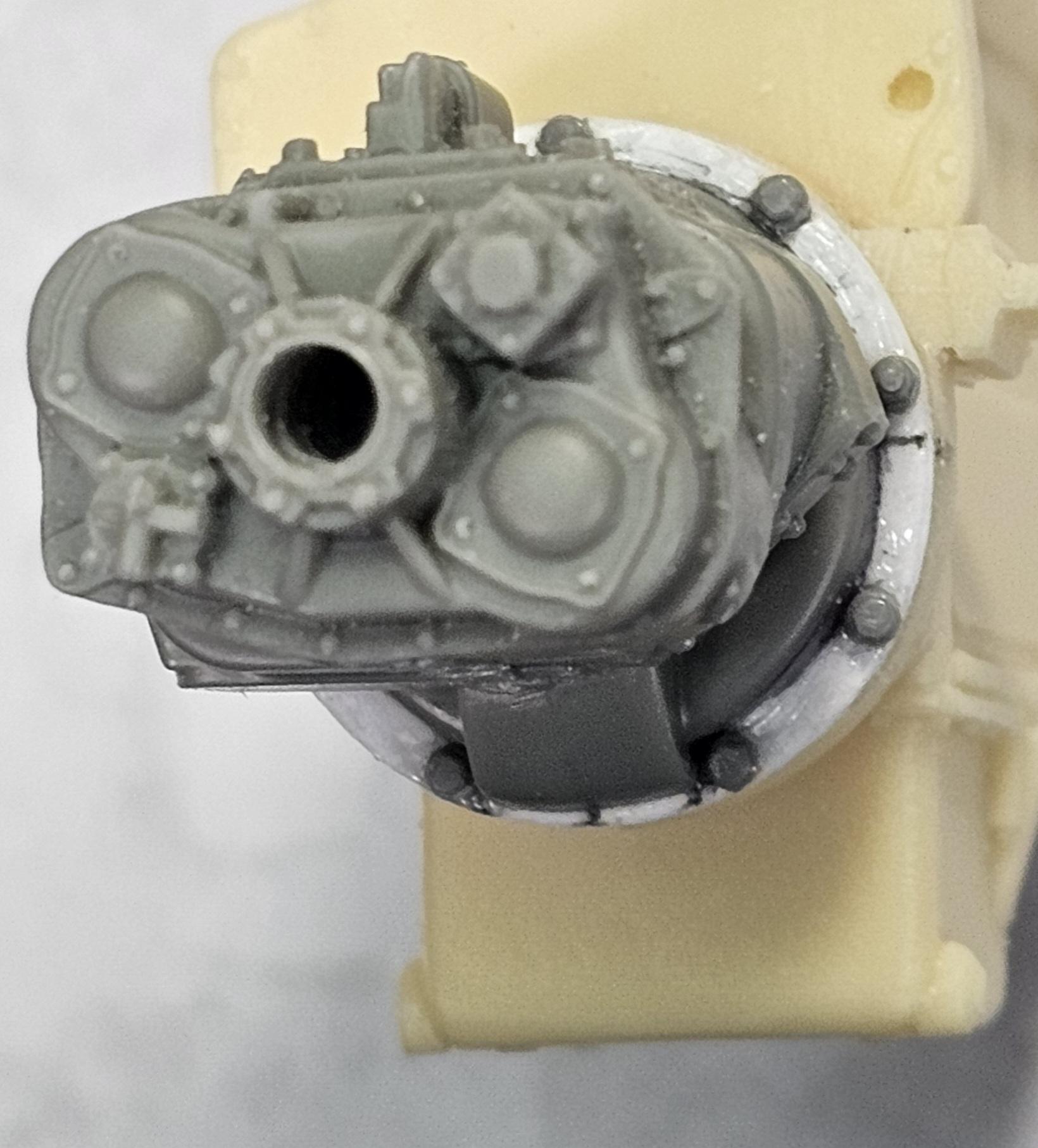

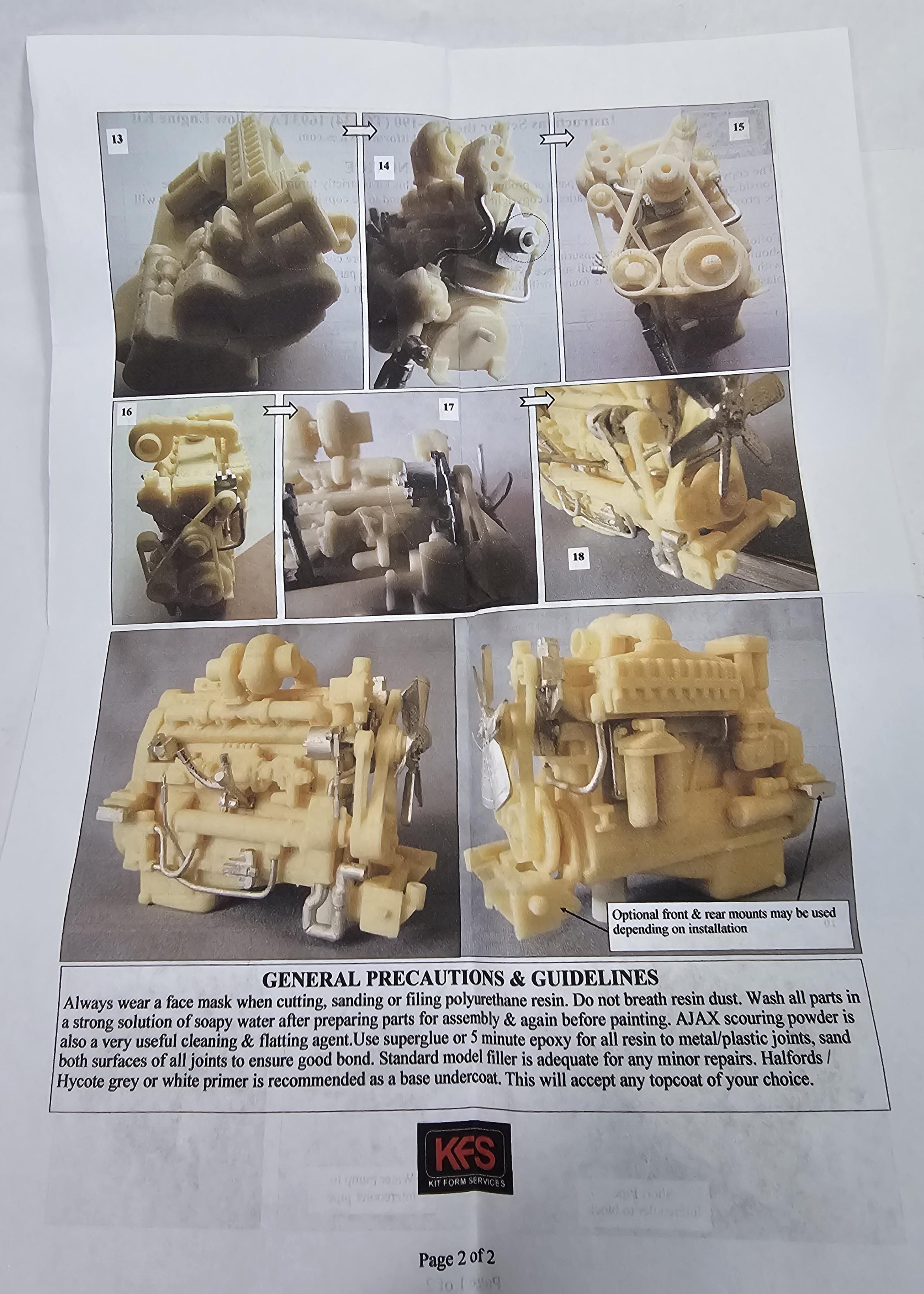

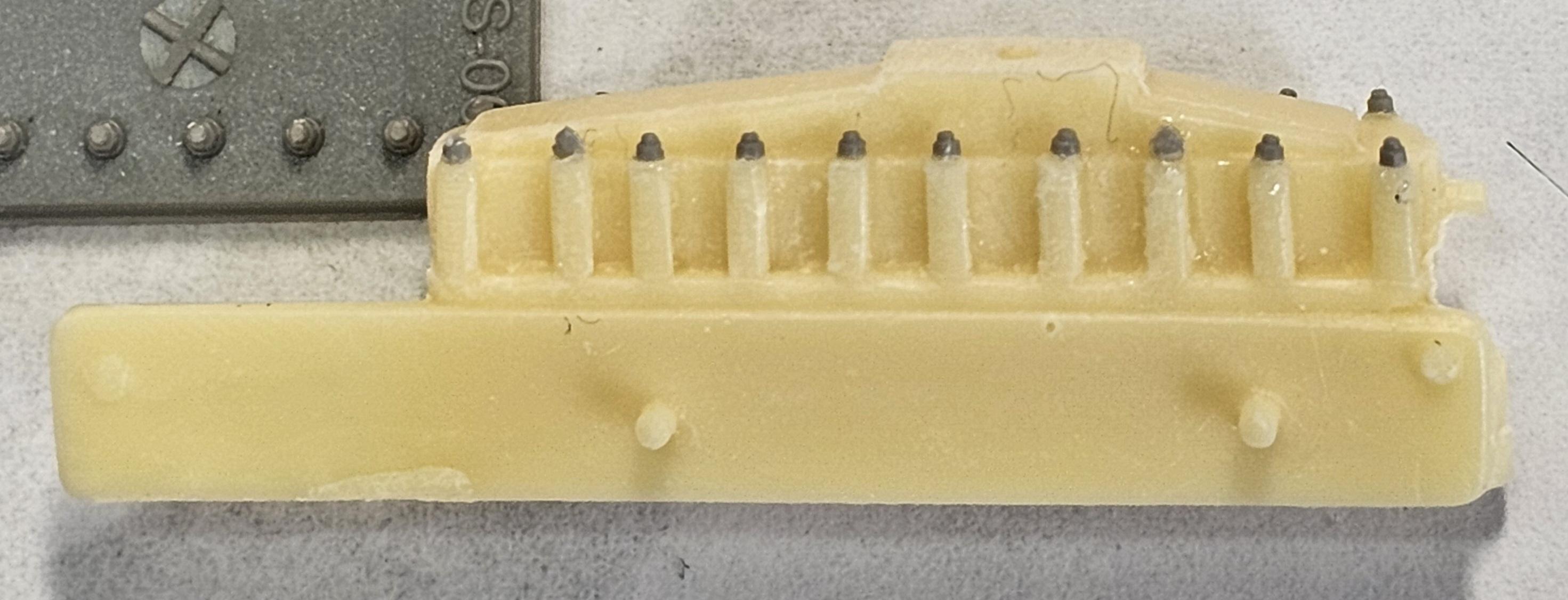

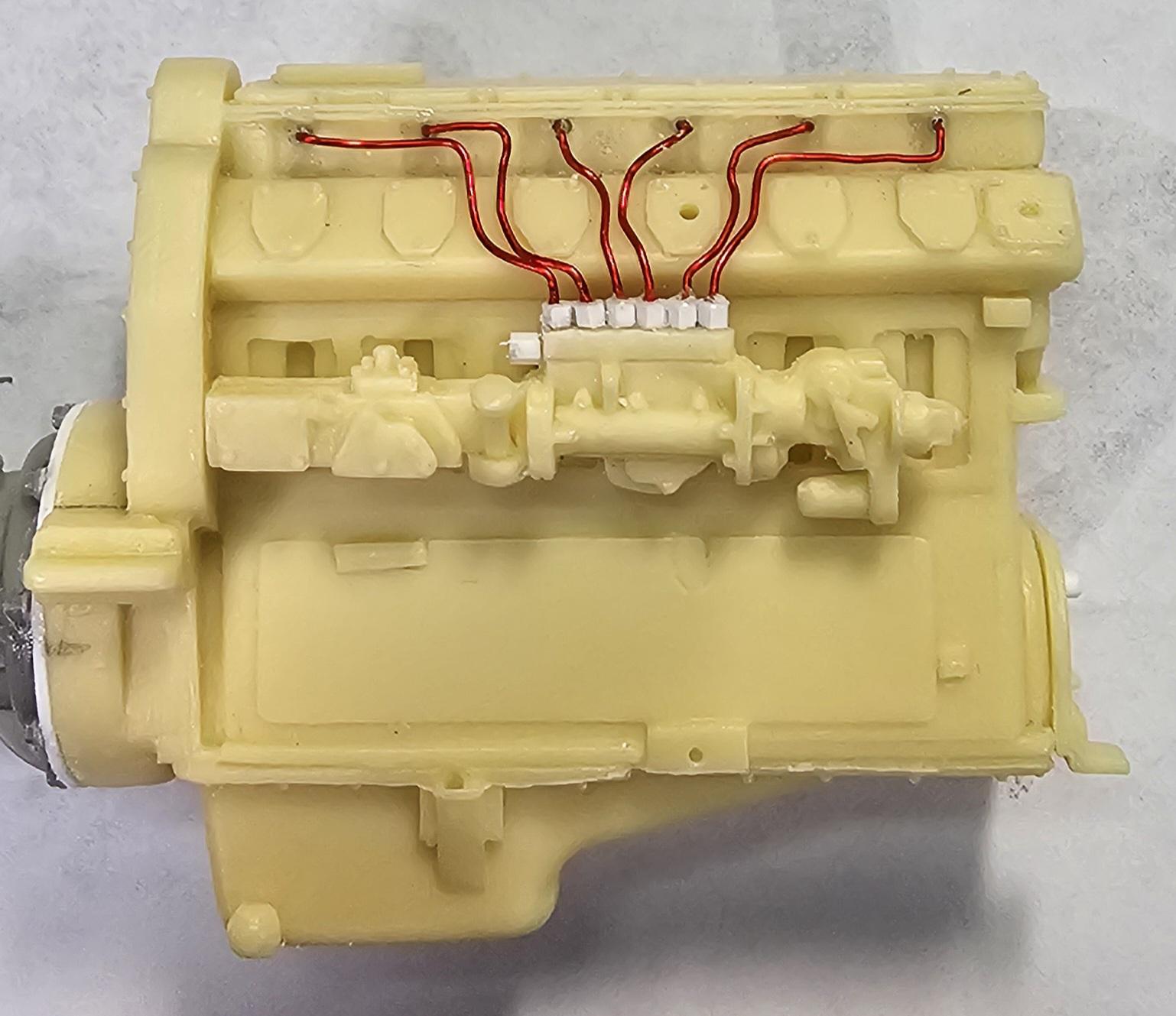

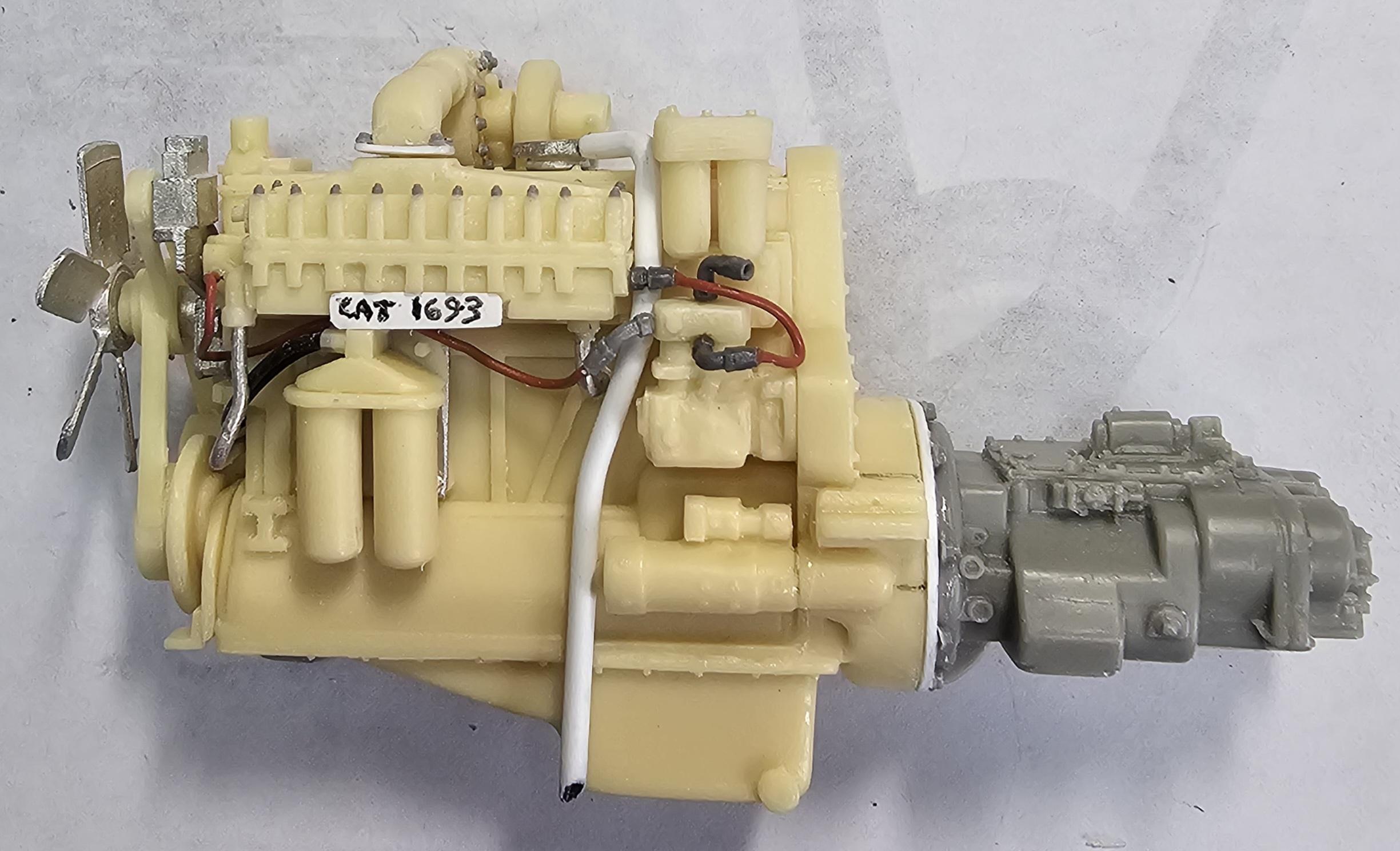

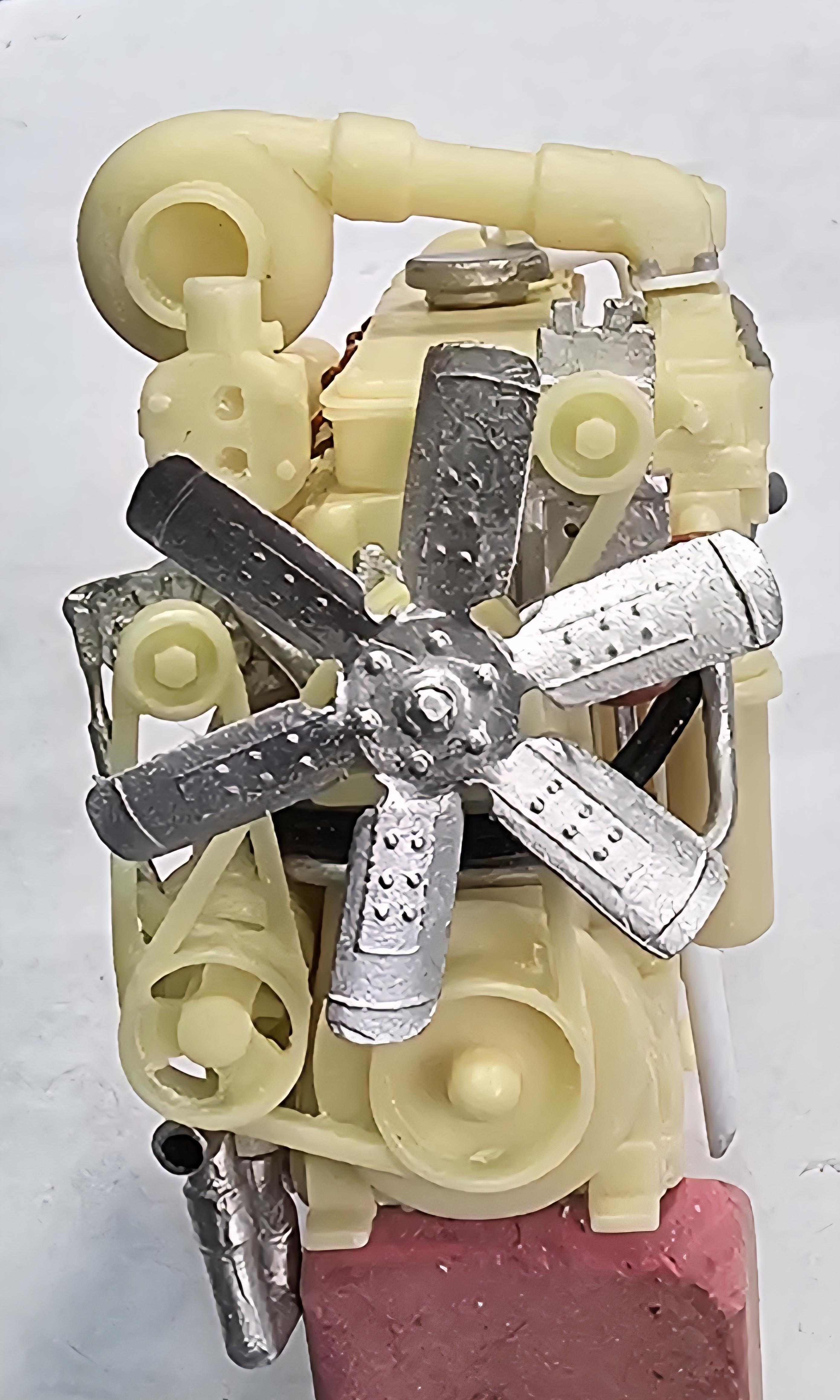

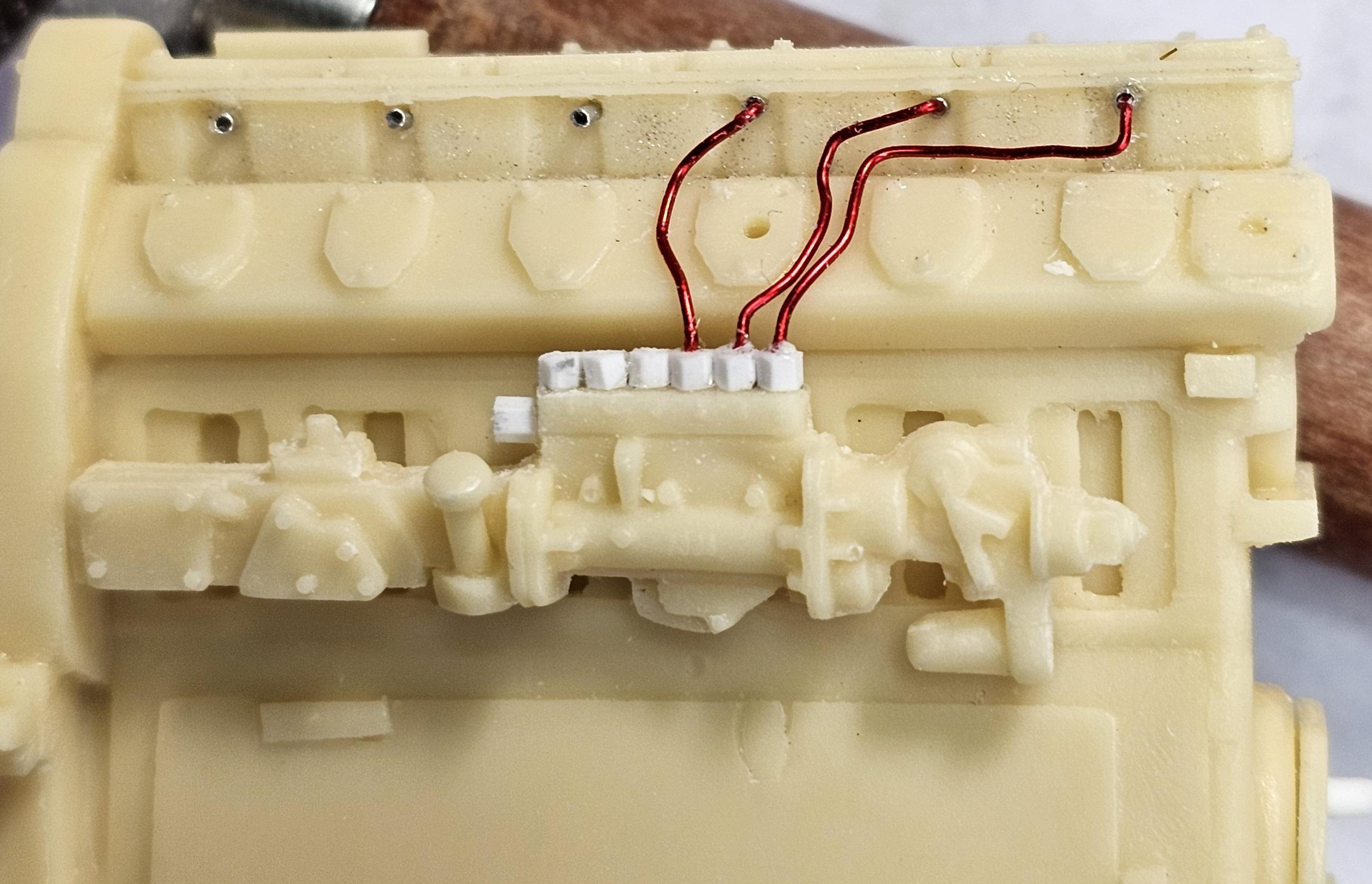

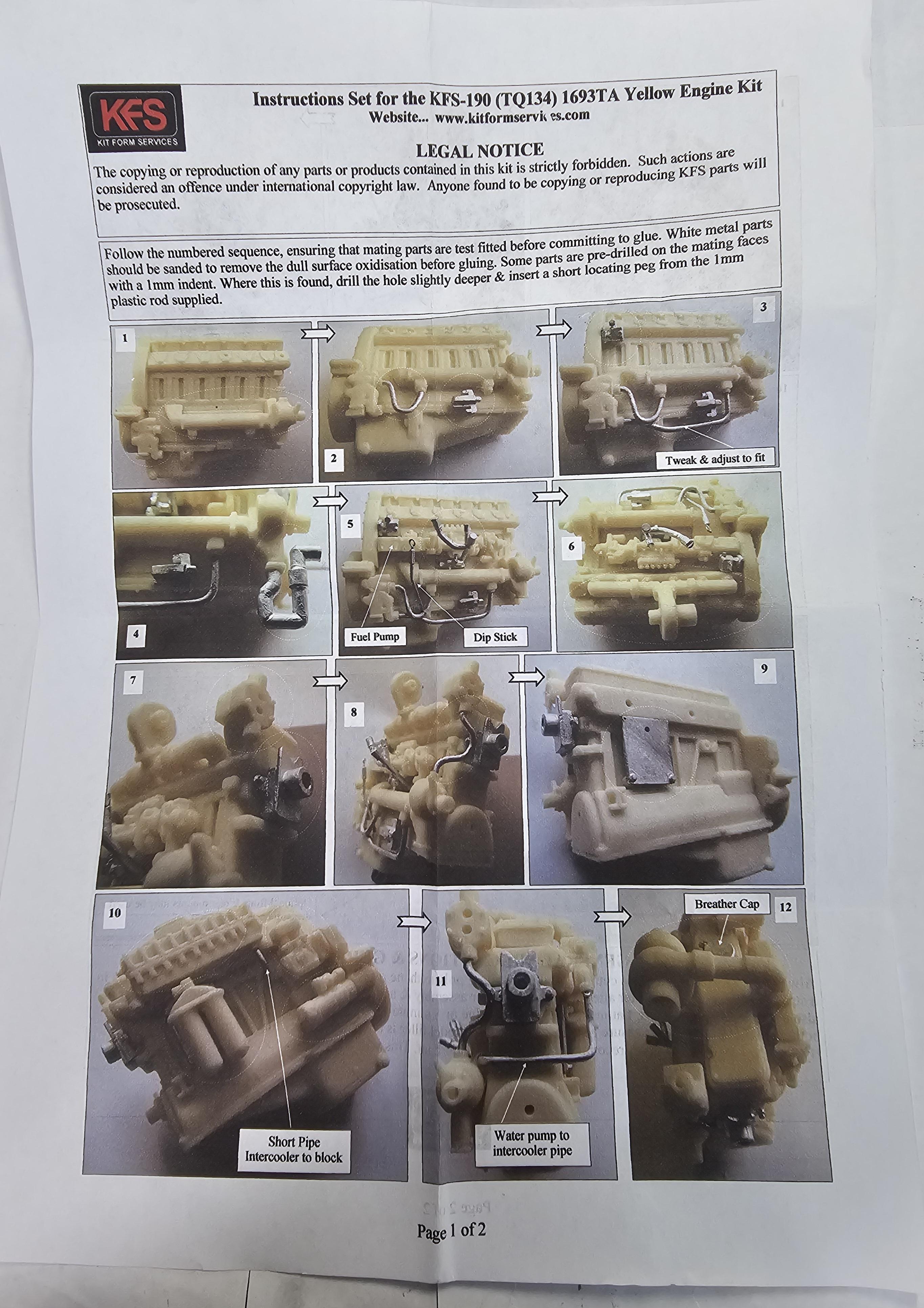

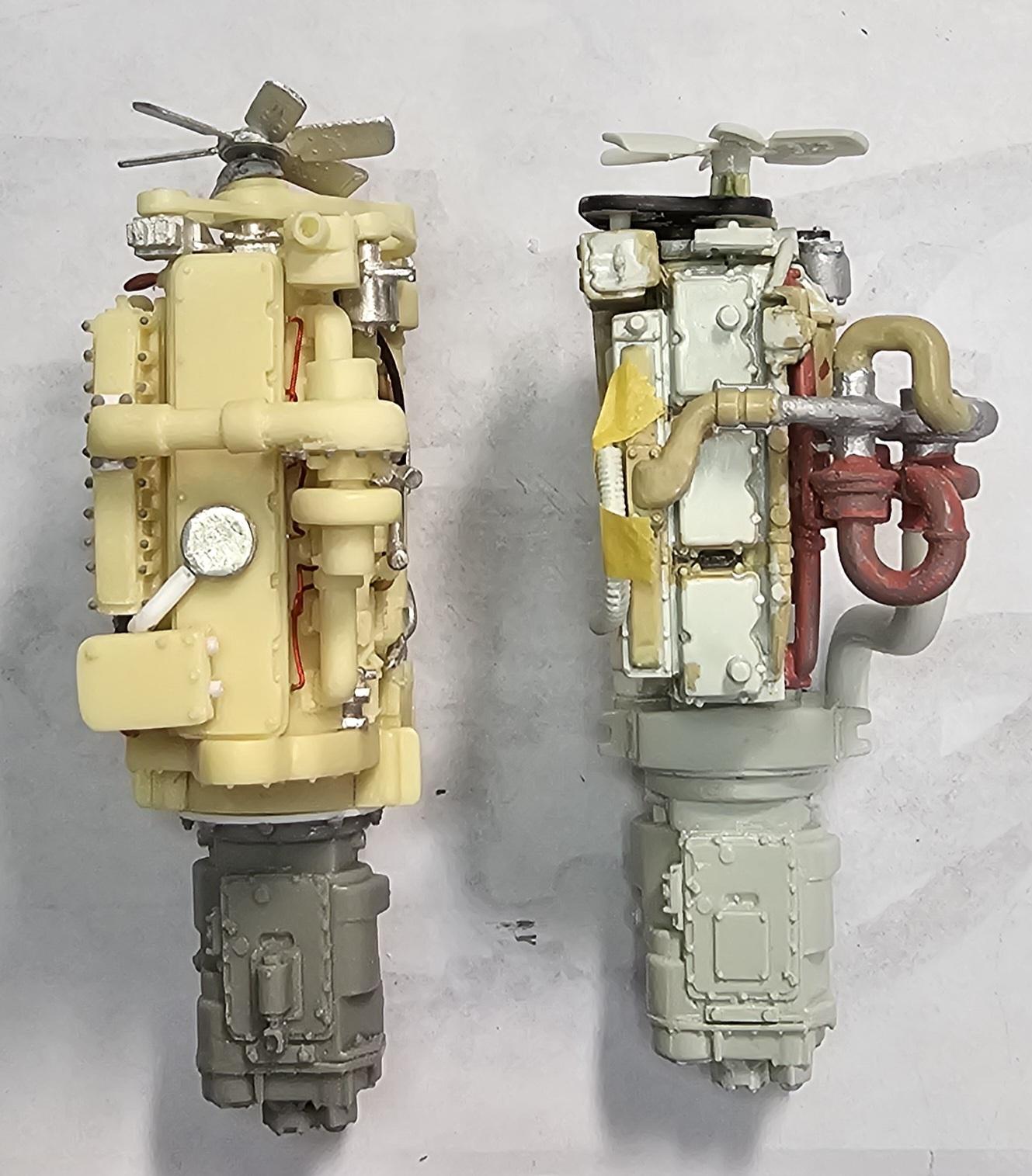

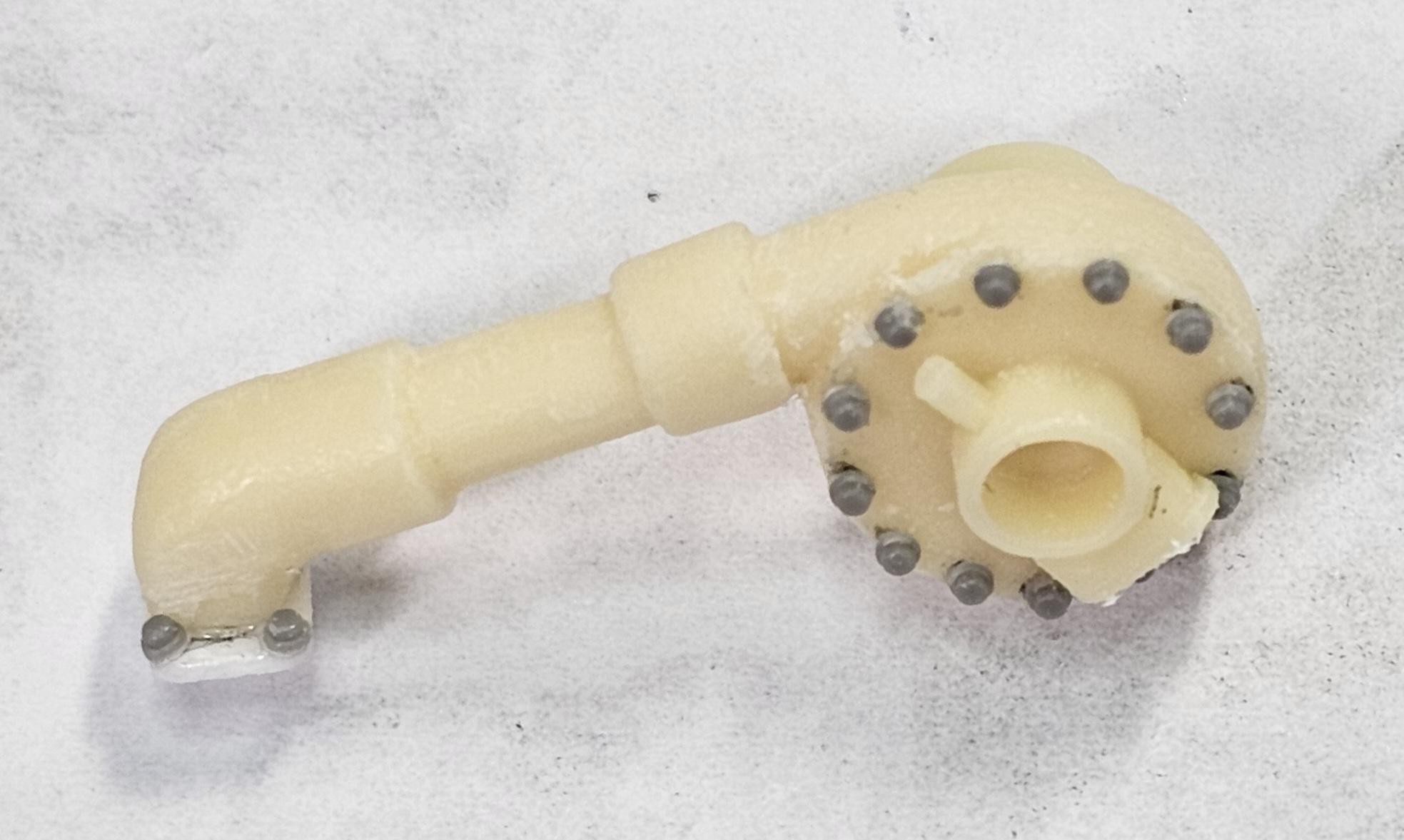

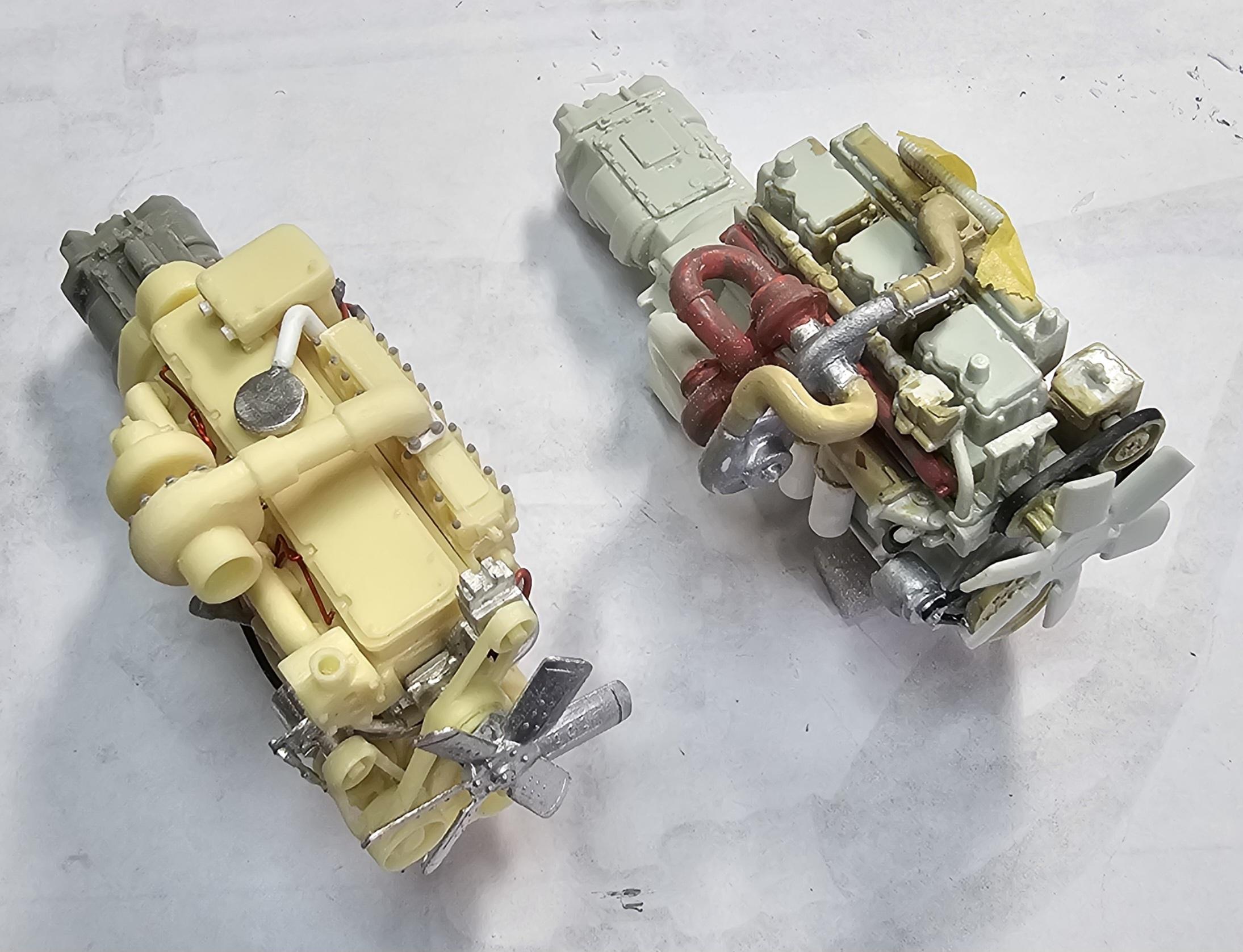

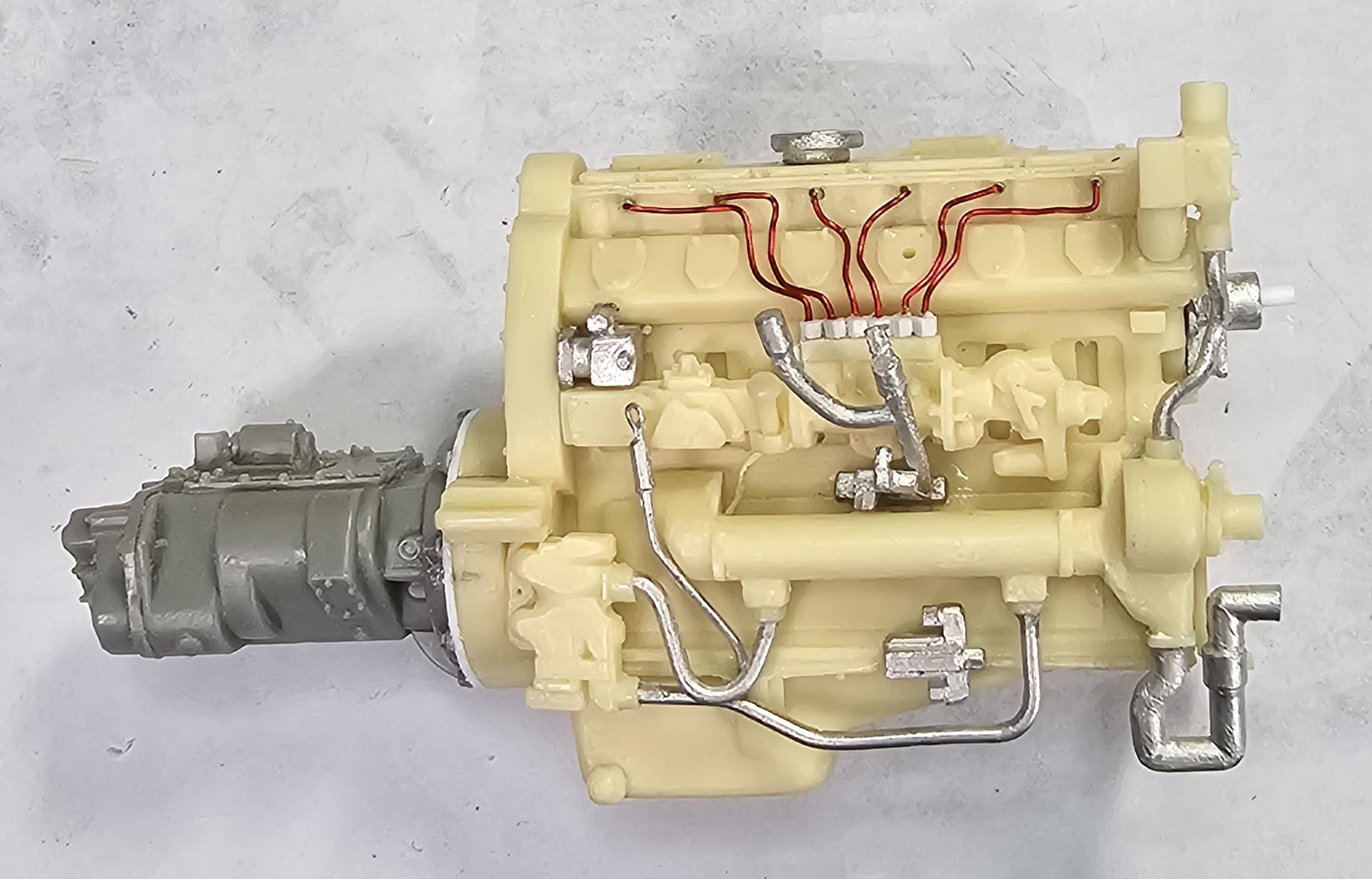

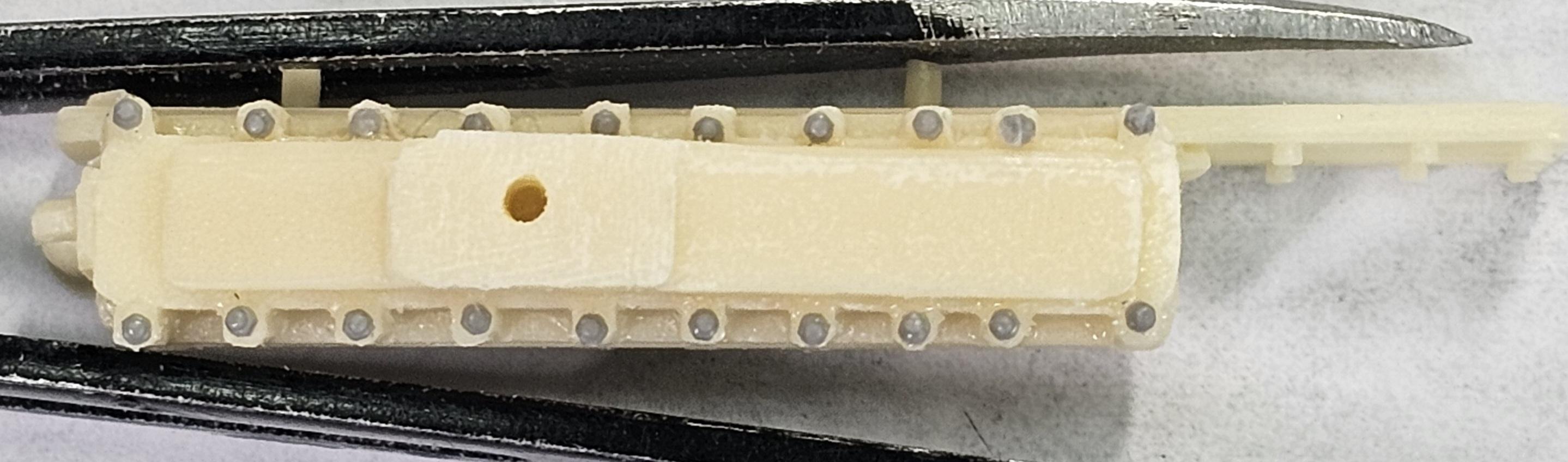

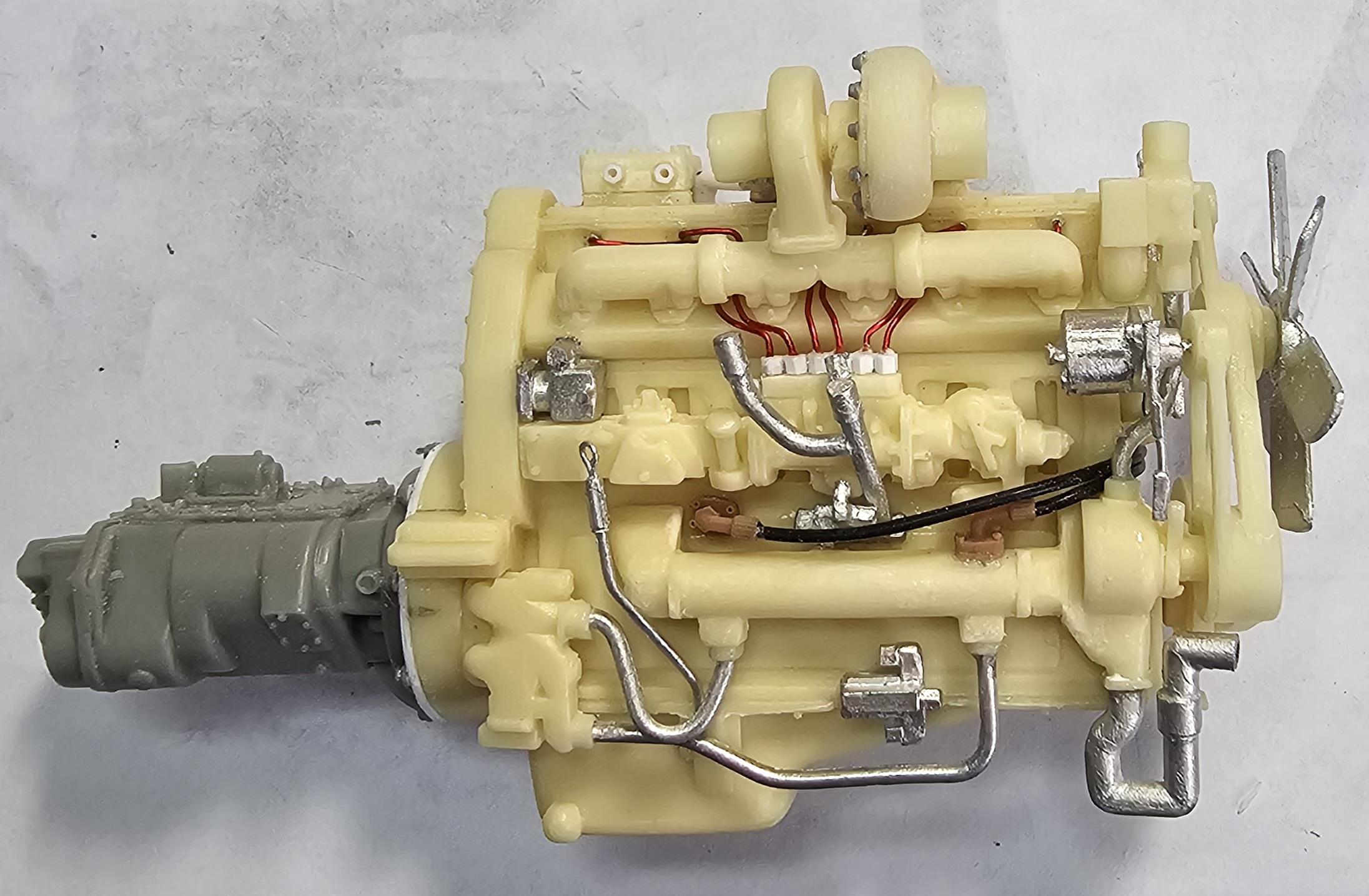

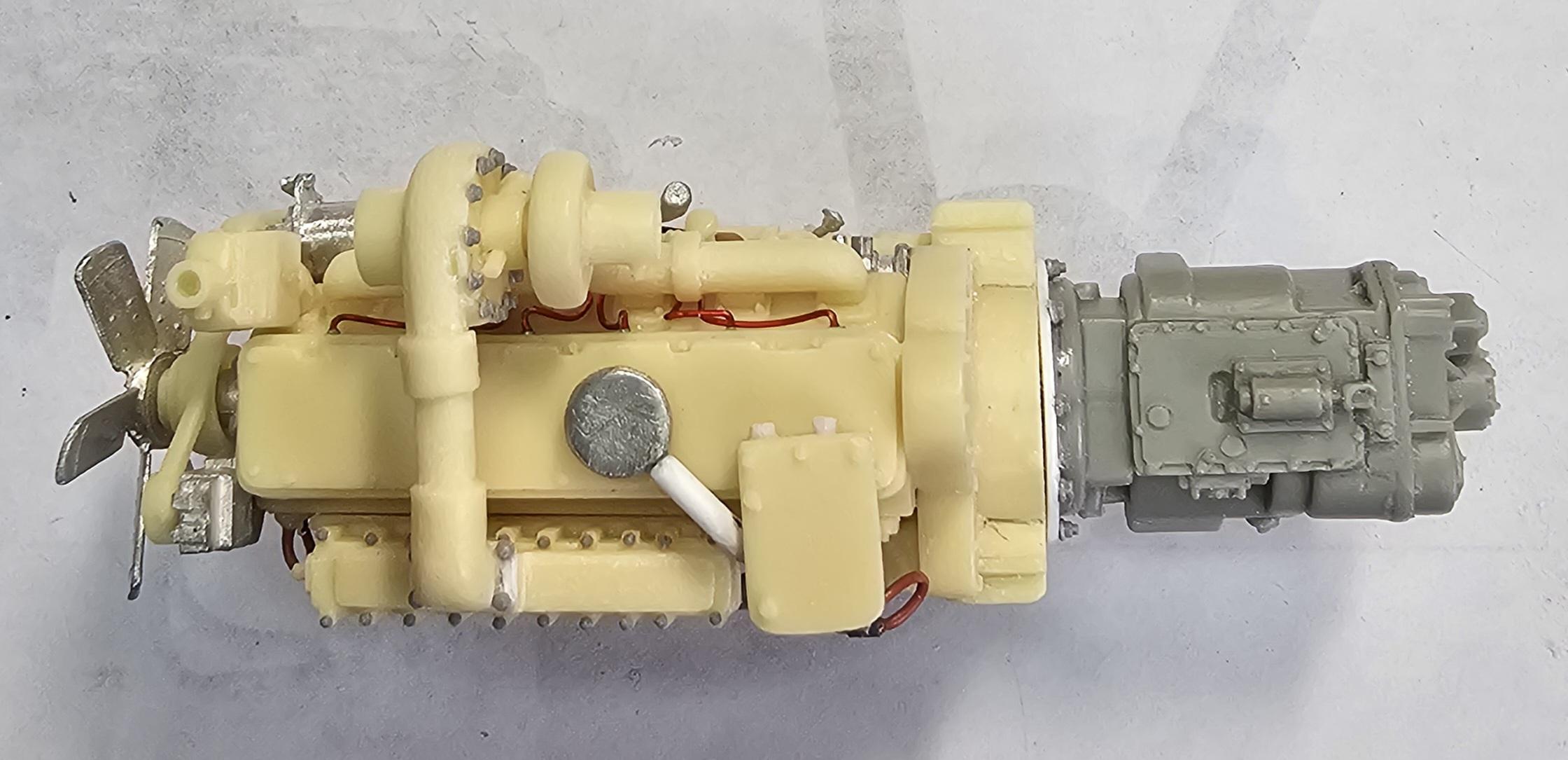

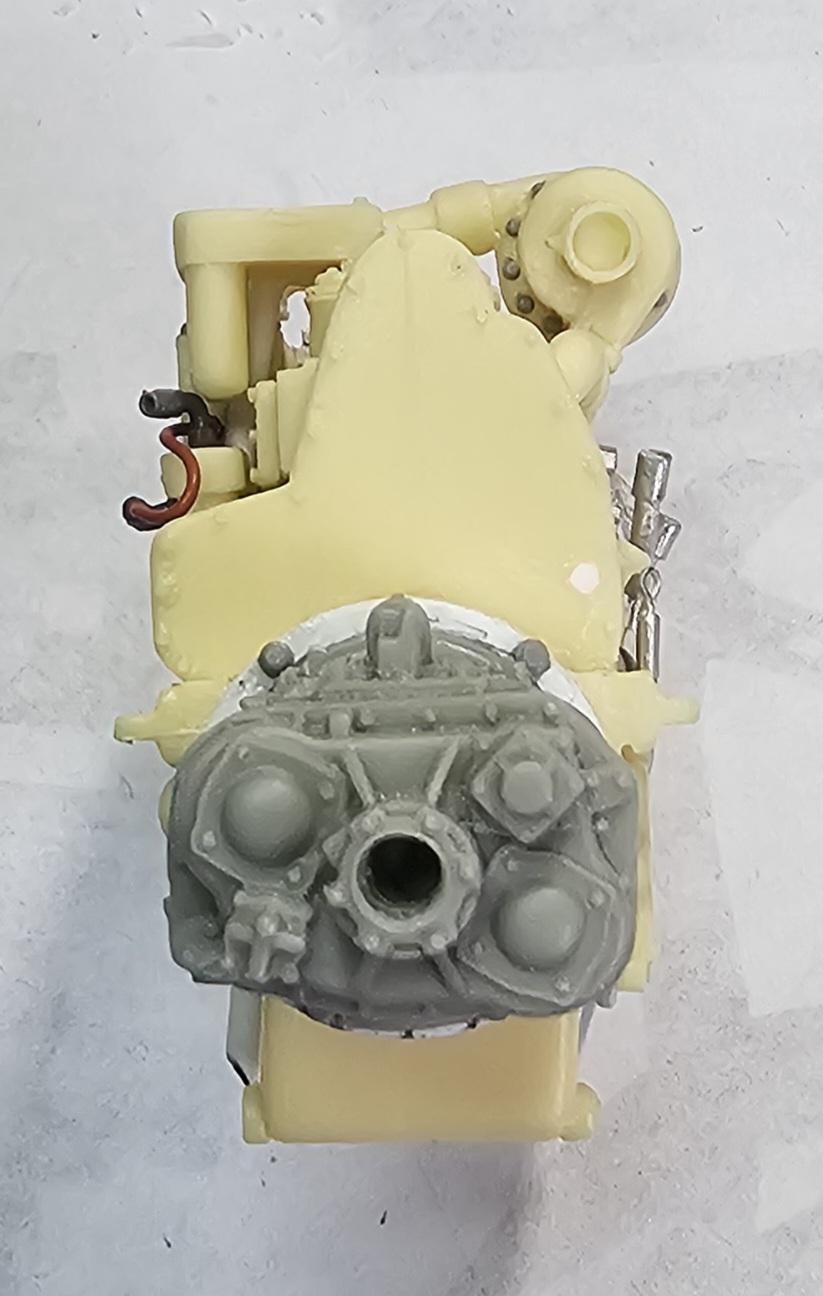

Hey all Okay, here we go on what I did to improve this engine and assemble it. I hope you guys enjoy this. First page of the instructions. Second page of the instructions. This view shows the Aftercooler. I added some 0.8mm (TINY!) Meng bolt heads to it. Side view of the aftercooler. Back side of the aftercooler. Front view of the engine with white plastic pin for the lower fan pully to attach to. (You get a peice of plastic rod in the kit) This view shows the 18spd transmission that I'm using for this. I sanded off the mounting flange on the trans because it was to small (3/4" dia.) I then replaced it with one made from 0.03" plastic (7/8" dia.). Then I added some 1.4mm Meng bolt heads to the new flange. This view shows the start of my plumbing for the fuel pump. You can just barely see the Albion aluminum tubes I used for the fittings in the head. I tried to drill out the cast on fittings, but they were to small and broke, so I replaced them with the Albion aluminum tubes. And here it is completed. The fittings on the pump the (white ones) are made from slicing off small lengths of Plastruct hexagonal plastic rods 0.06" to the correct length. I tried to drill out the cast on fittings, but they were to brittle and broke, so I replaced them with the Plastruct peices. 😢 This view shows the intake turbo and pipe. I added some Meng bolt heads (4) 1.0mm to the flange & (12) to the intake compressor.(This picture got out of sequence). Top view of the Cat 1693TA and a Revell NTC-475 compound turbo Cummins for comparison. Right side view of the engine Right side view of the engine completed. Note the two brownish fittings on the oil cooler, these go to the oil filters on the other side. This view shows the left side of the engine. You can see the fittings on the air compressor the one with nothing attached to it is the feed to the air tank. The other two I did from a photo that I have. Top view of the engine. Front view of the engine Rear view of the engine. These next three pictures show the this engine compared to the Revell NTC-475 Cummins. It is a big motor! It's old, it came out in 1964 and was in production up till 1974 maybe a touch later. Well that's it for now be back soon with more. I plan on putting this in a AMT " Cross Country Hauler" Peterbilt for power. Ron G

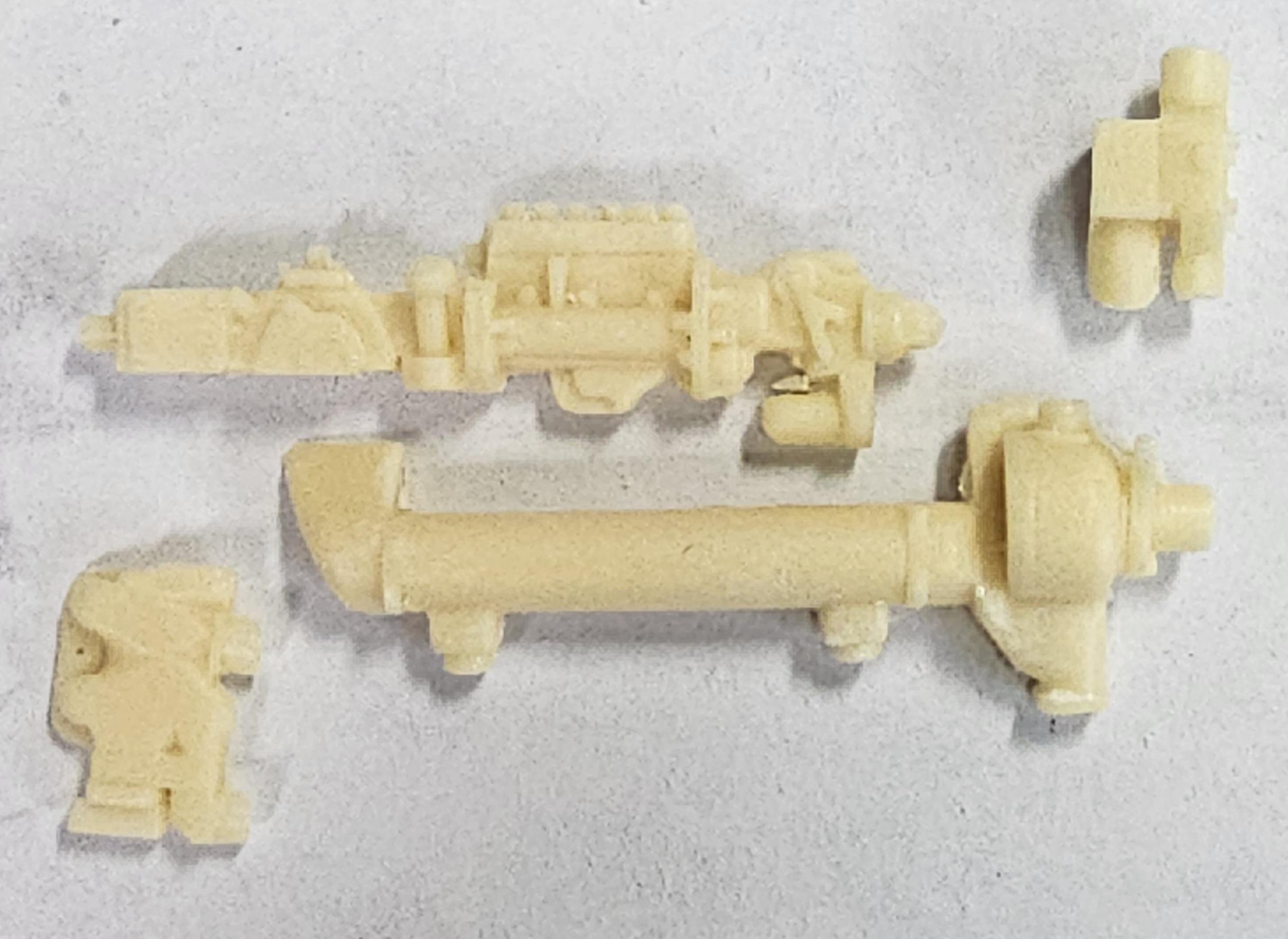

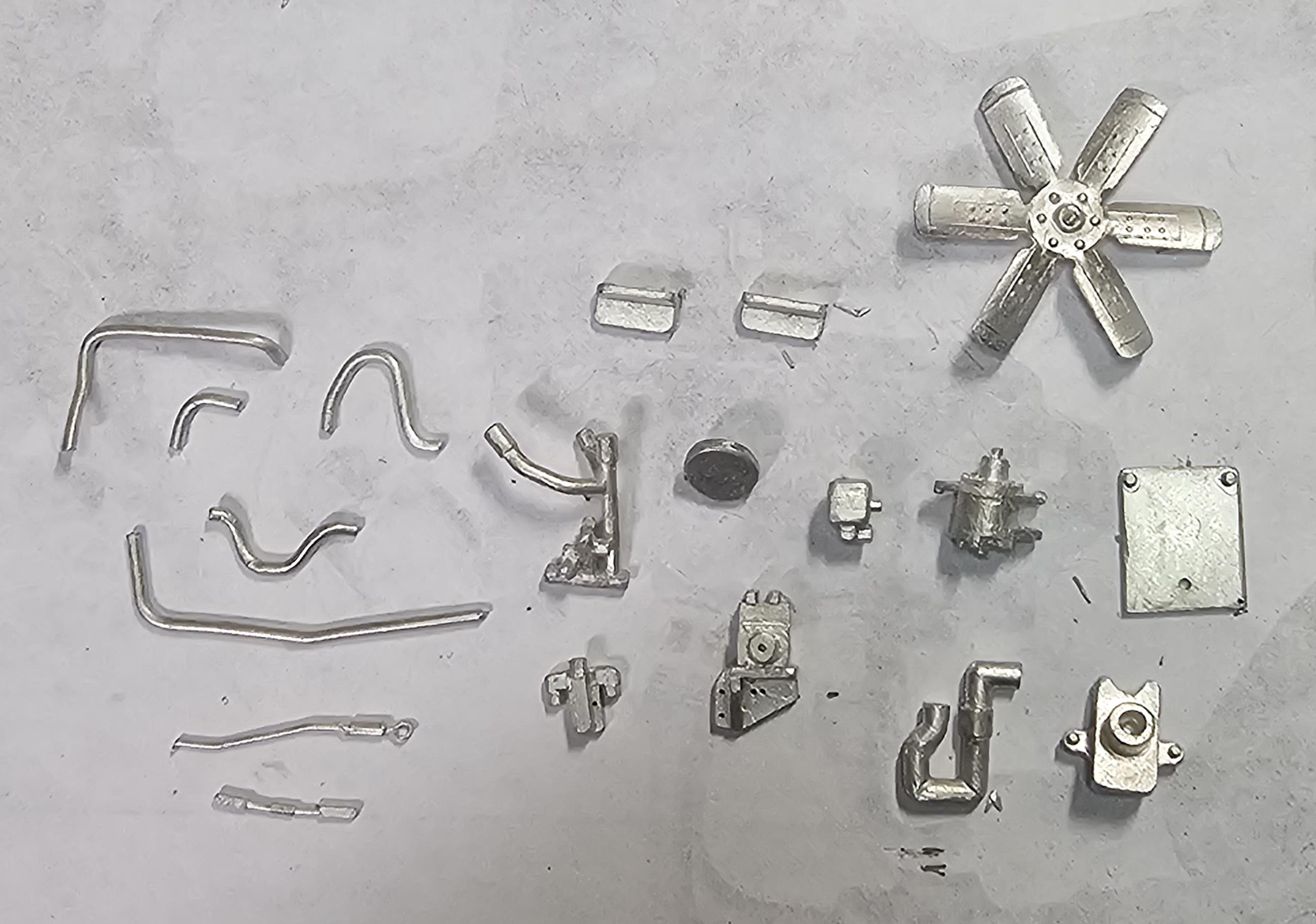

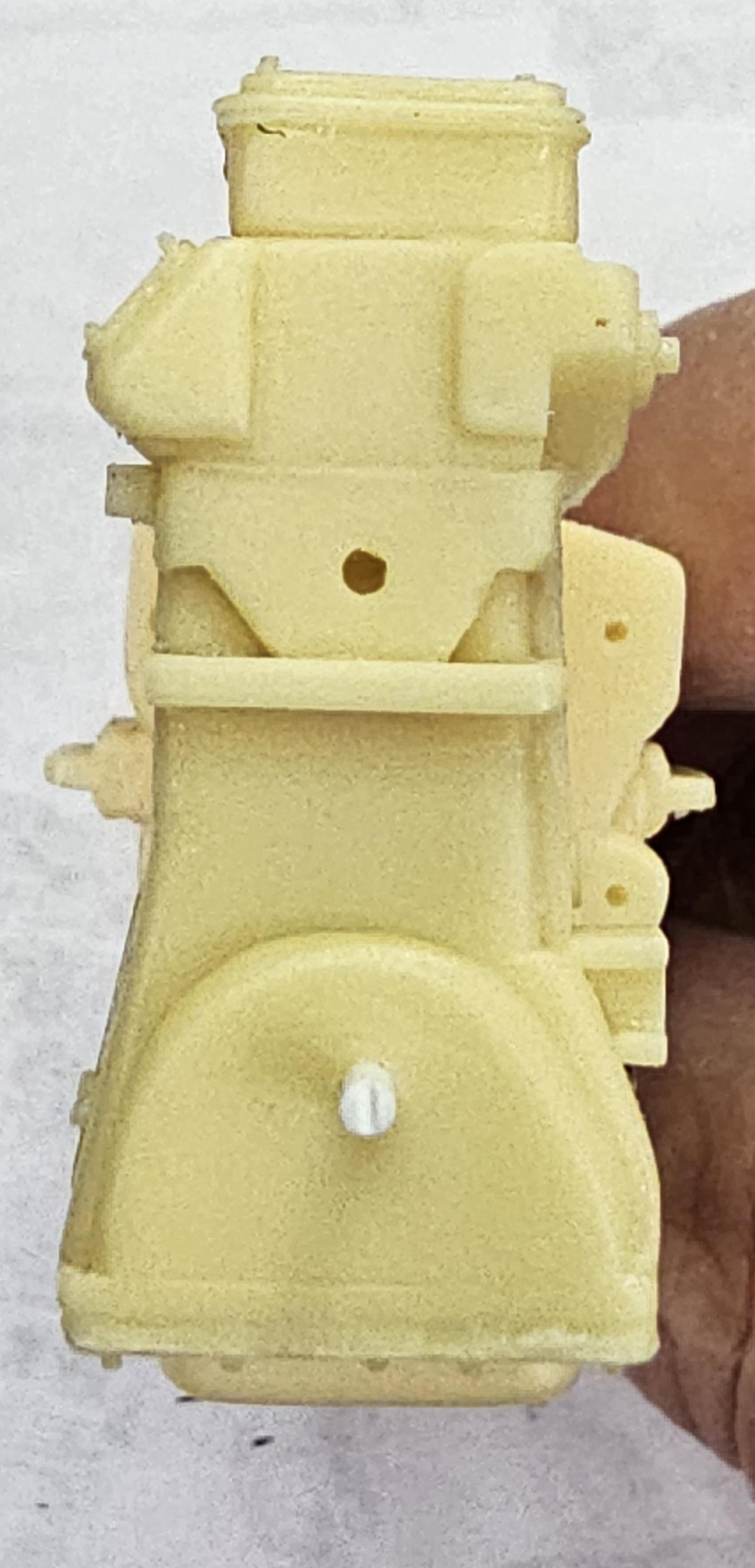

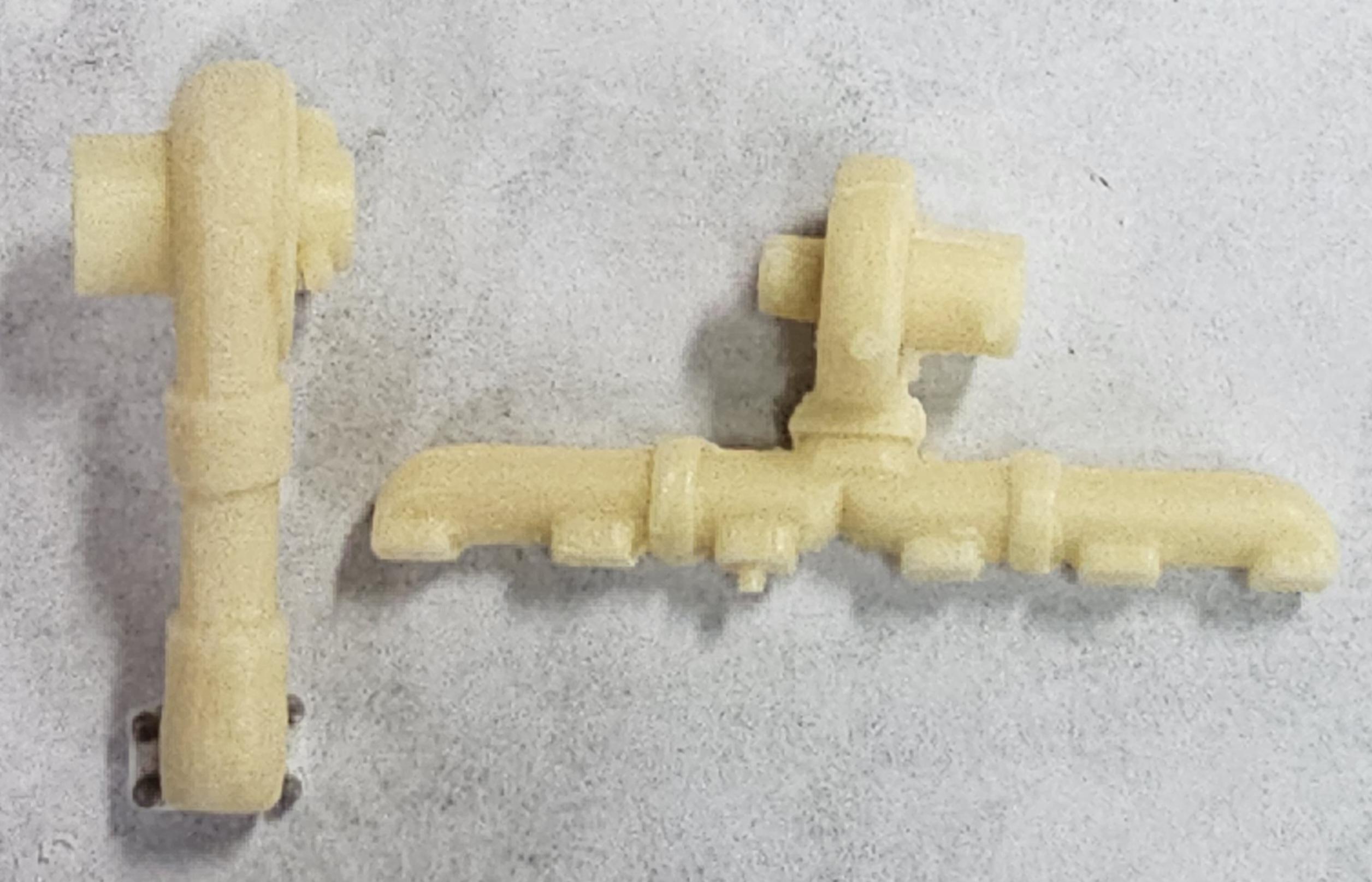

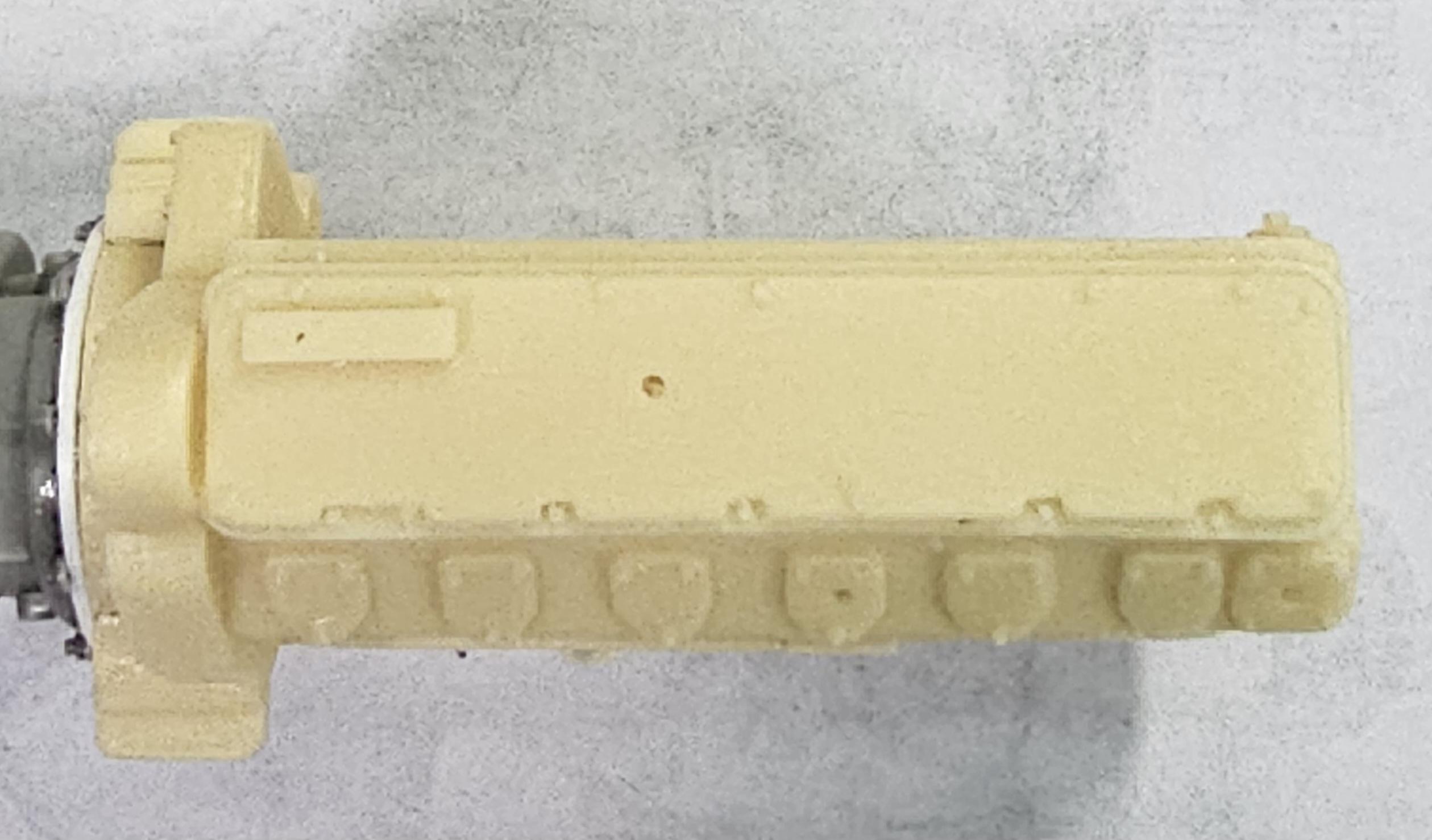

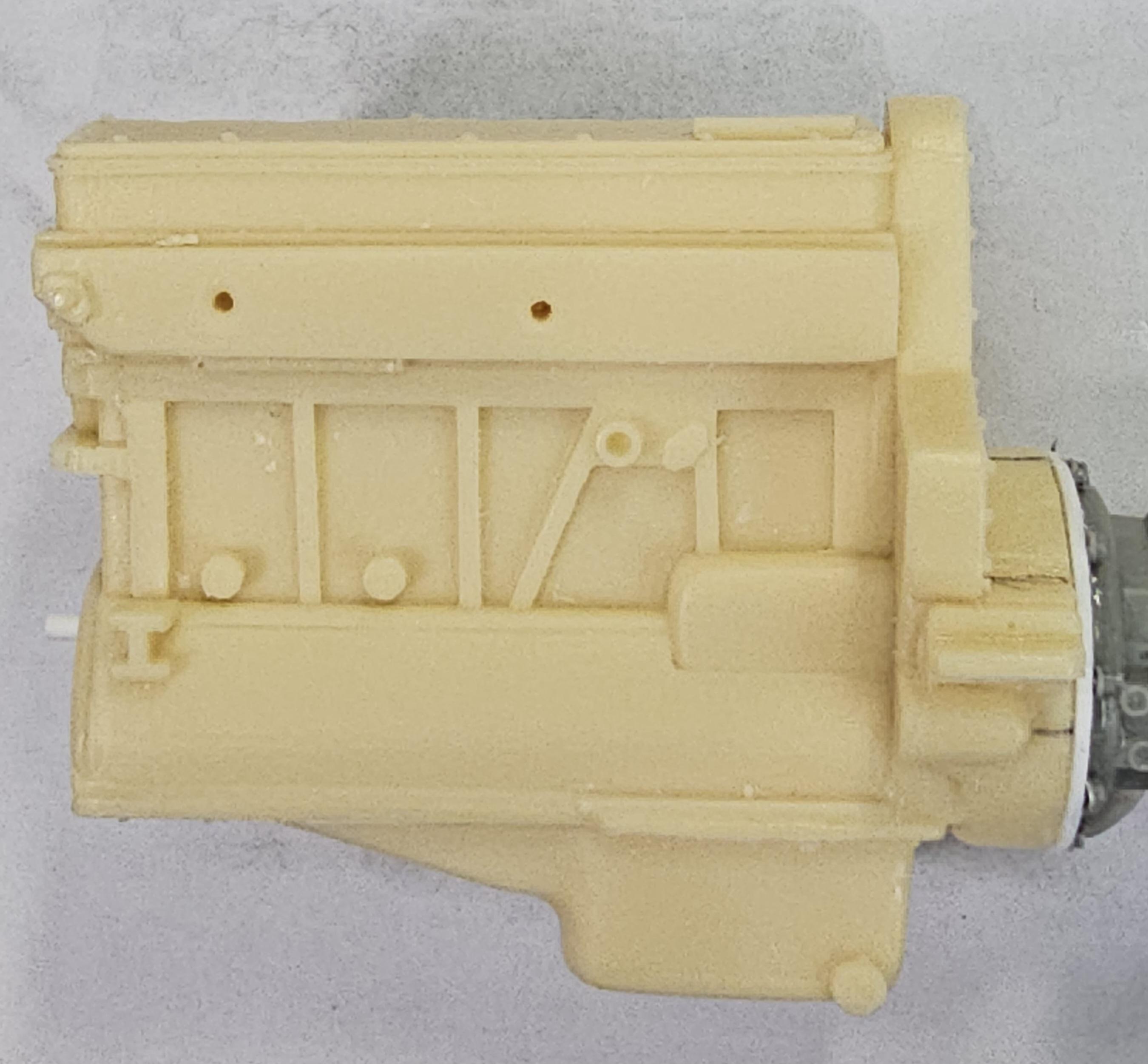

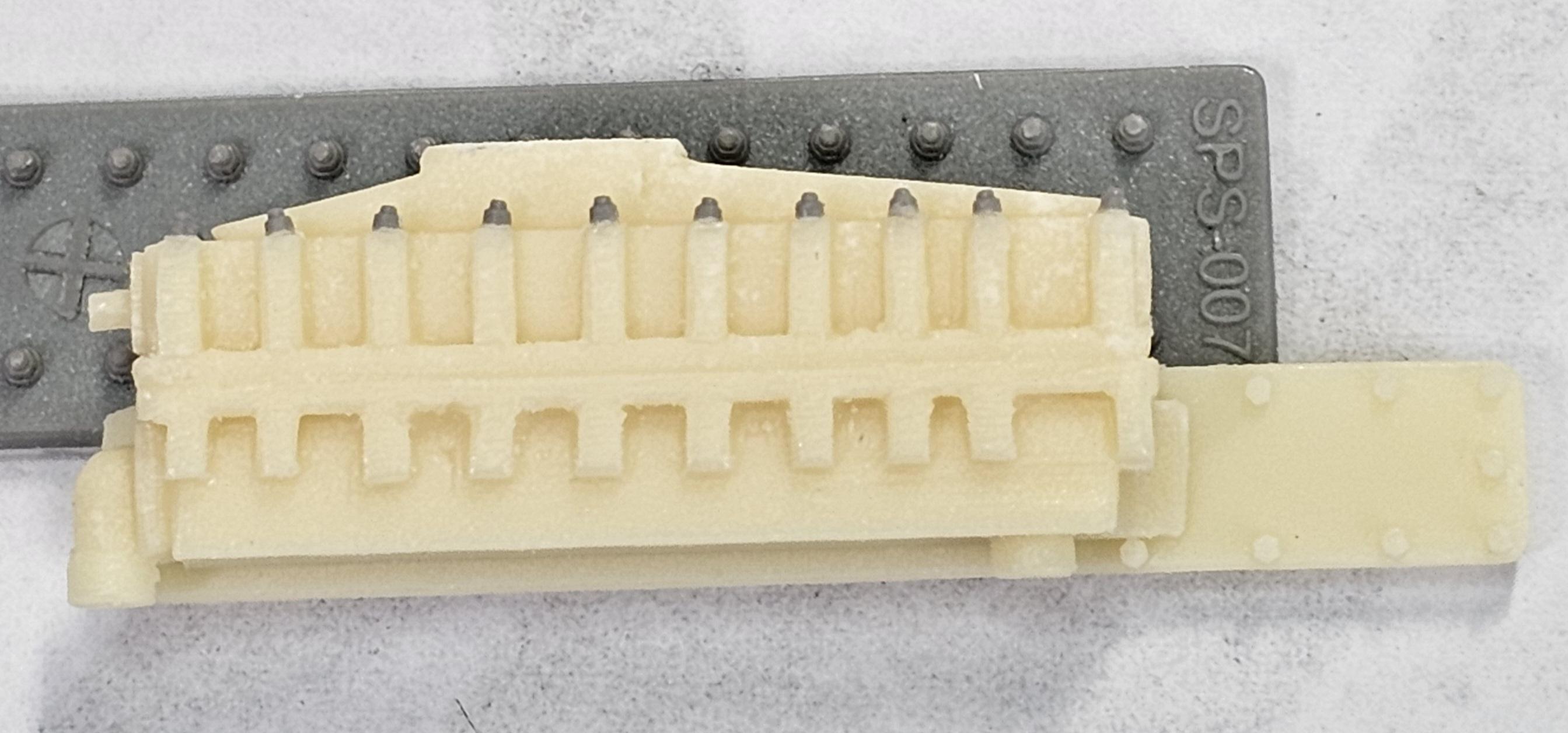

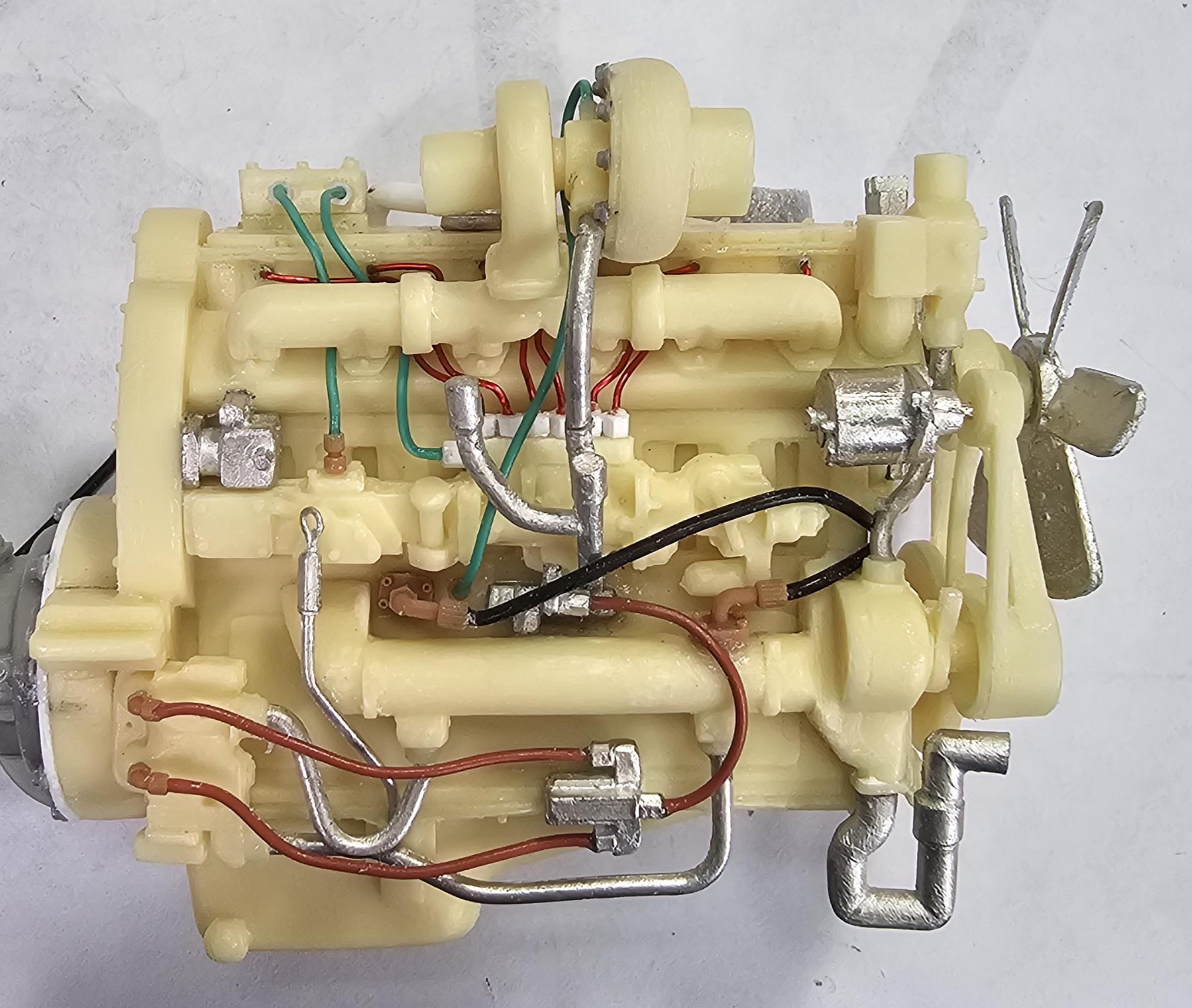

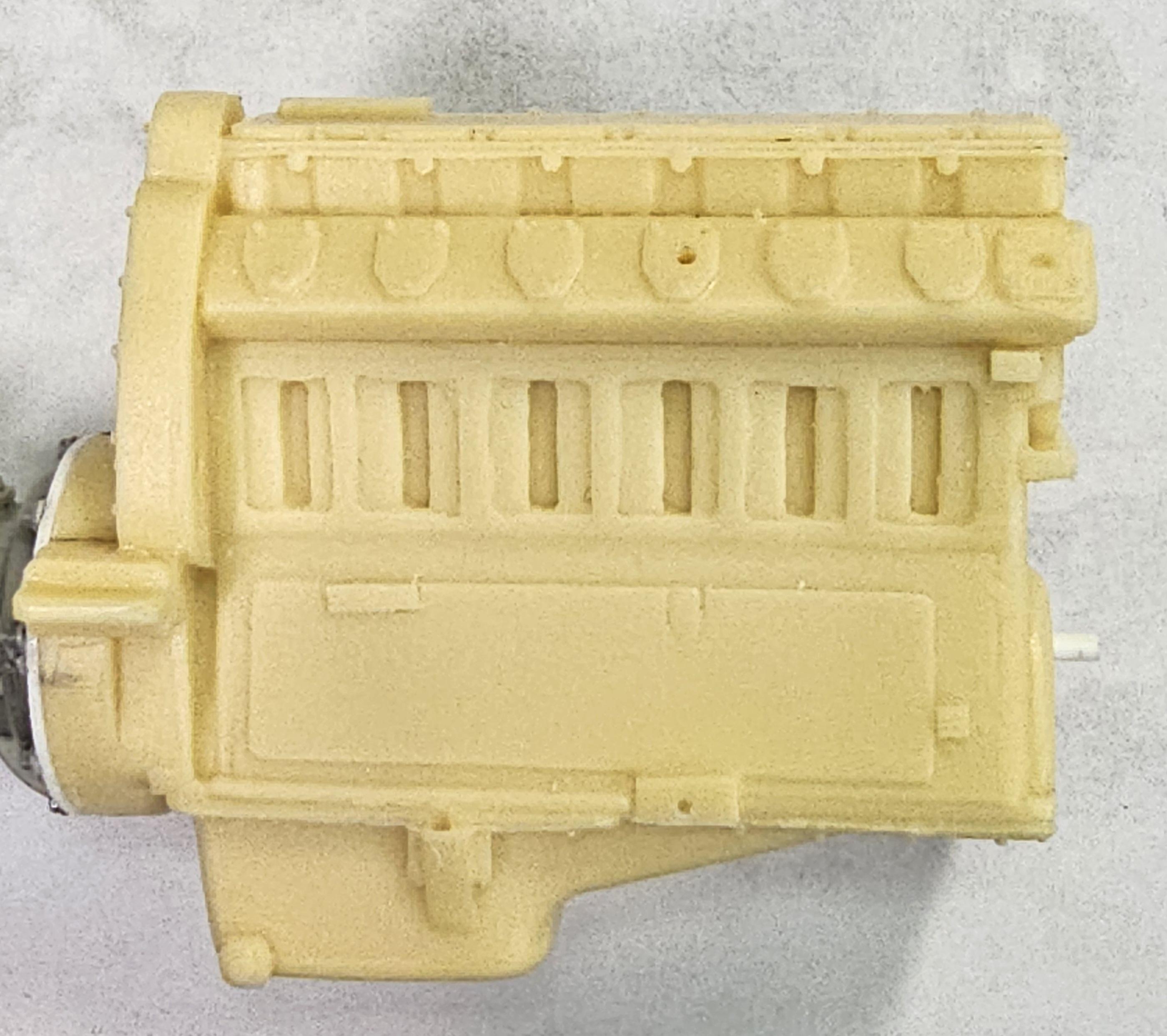

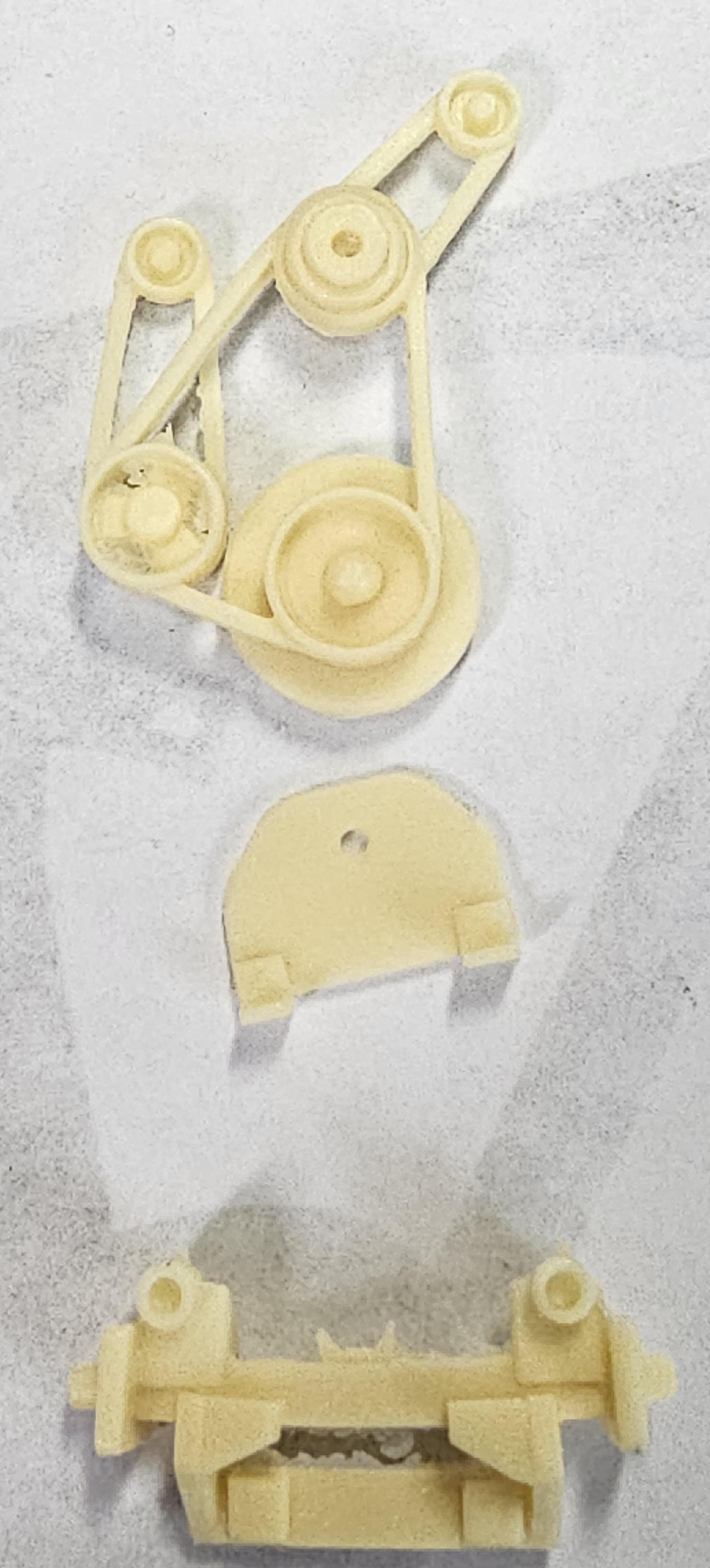

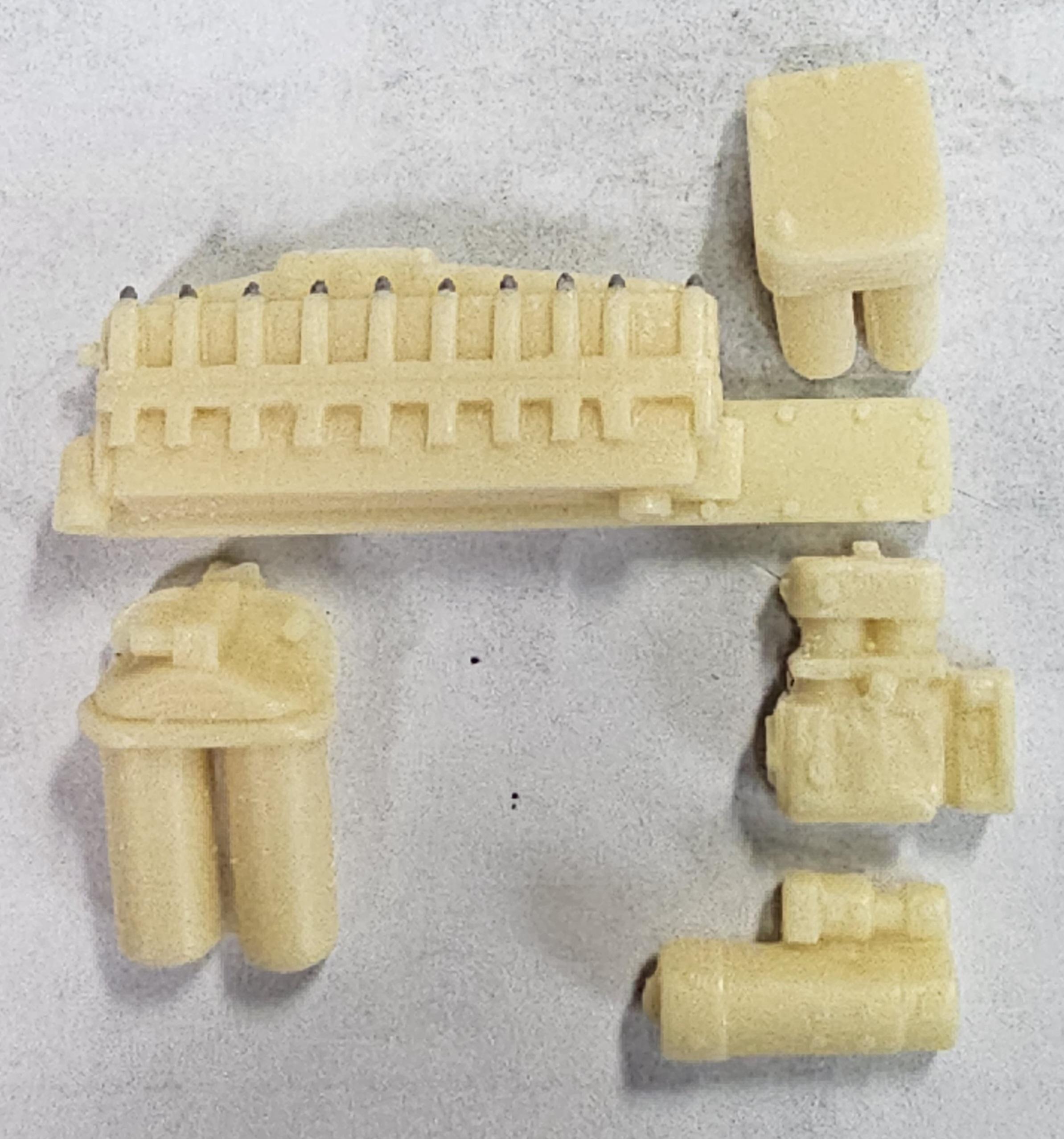

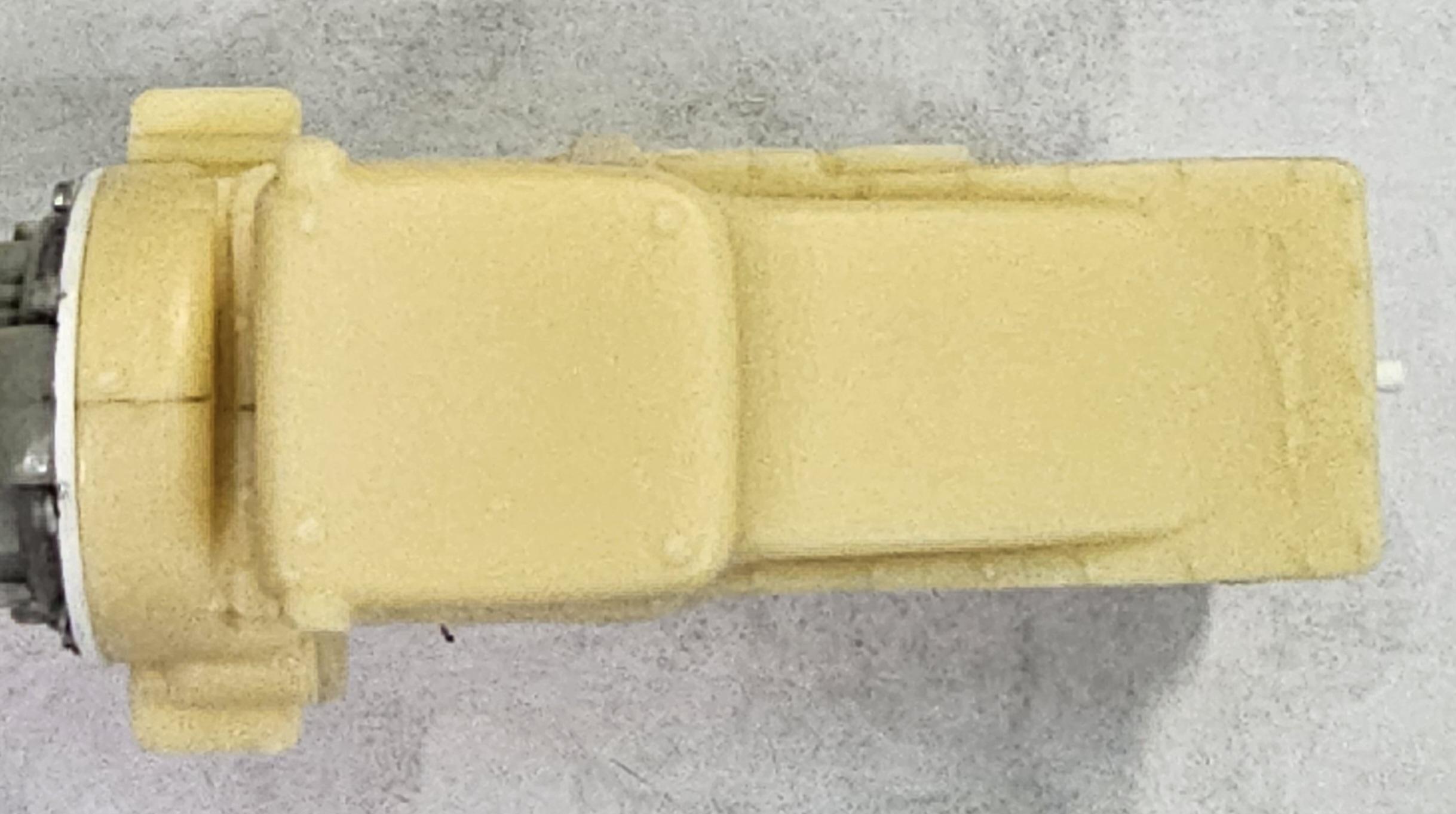

Hey all Like the title says. This is not a build thread. Since it's already built.😁 It's a KFS Cat 1693TA engine in resin & white metal. I thought you guys would be interested in this for use in any of your build projects. So here are some pictures for yous to perose over. This is a left side view of the engine. It comes as one big peice, block, bell housing, head and rear gear case. This is a right side view of the engine. This is a top view of the engine. Bottom view of the engine. These are the exhaust turbo with manifold and intake turbo with pipe. This view shows the parts that go on the left side of the engine. Two top fuel filters, aftercooler (I added the grey bolt heads 20 of em!😱) two lower oil filters, air compressor and starter. this view shows the fan belts, front motor mount and front cross member. This view shows the left hand side parts. Oil cooler, oil manifold, fuel pump and thermostat housing. These are the white metal parts. It's not to bad to put together. You just need to take your time and follow the instructions (yeah you get a two sided set of instructions in color!) Next post I'll show more of my mods and how I plumbed it. Ron G
