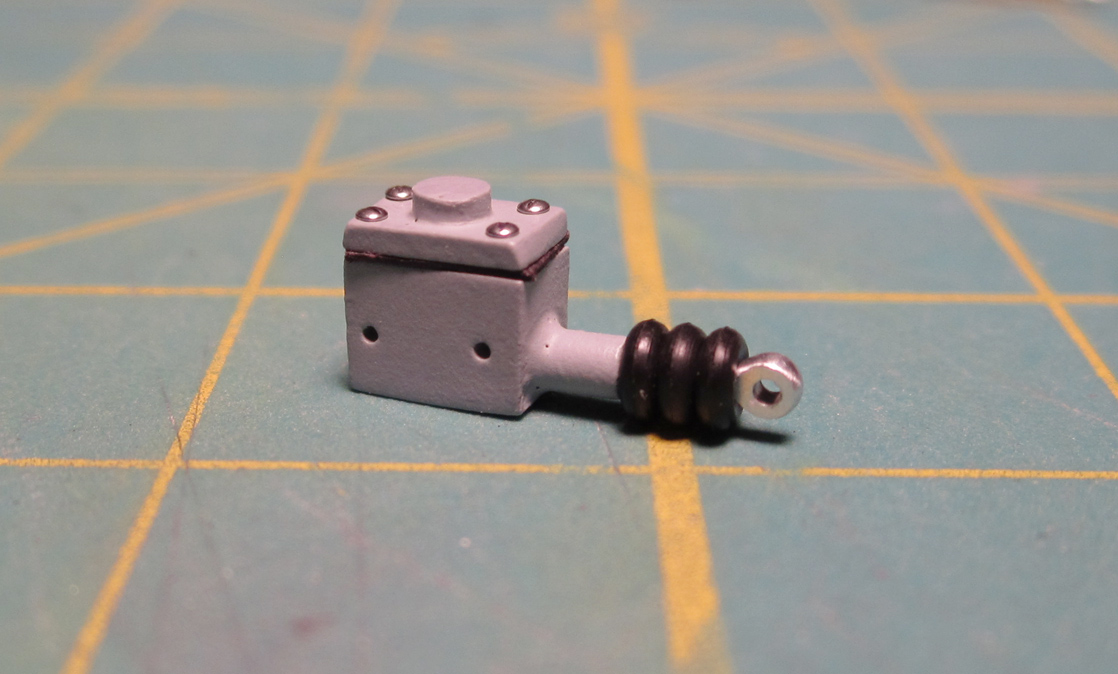

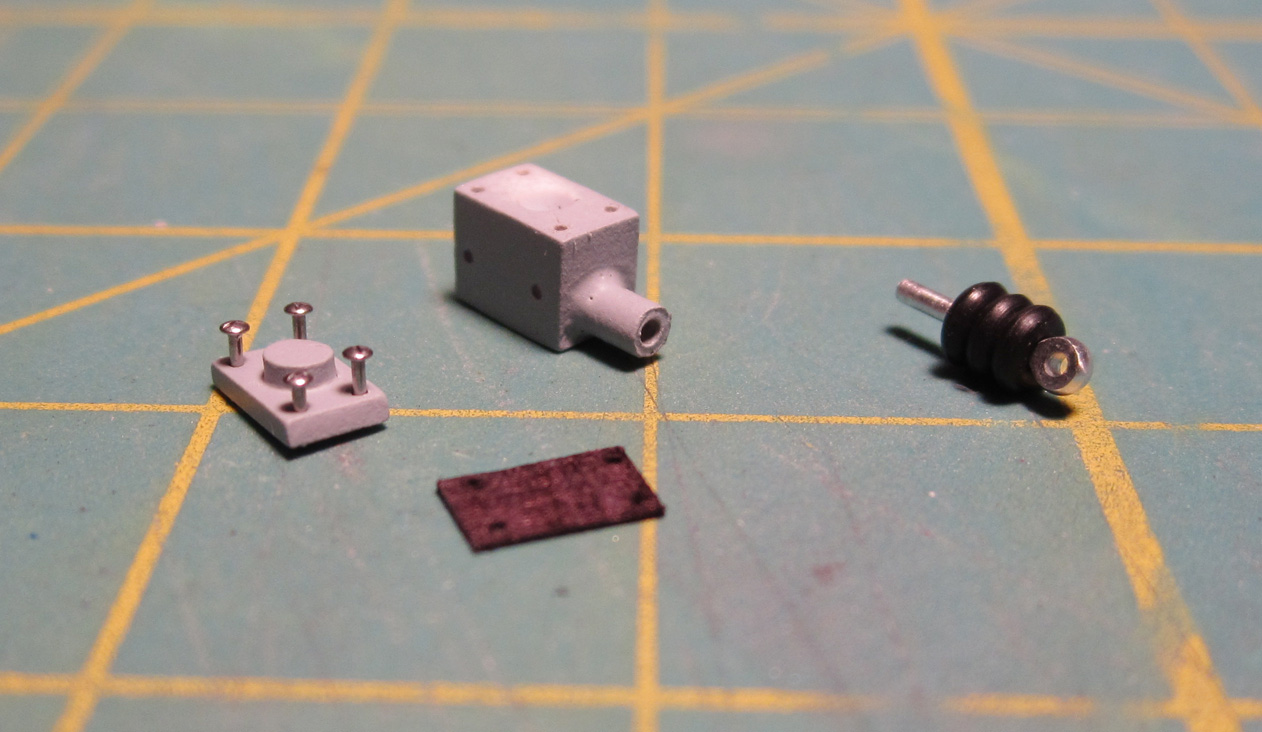

Mooneyzs Posted October 19, 2012 Author Posted October 19, 2012 (edited) Hey Everyone.... thank you all of the wonderful comments, I really do appreciate them. Well I have finally started feeling better and getting over this cold. I still have a little of it lingering but I didn't let it stop me from getting a little time at the bench tonight. I wouldn't say I got a whole lot accomplished but enough to just about have the master cylinder reworked. So from the previous one you saw I had it set up as a dual piston type which is used on car with front and rear brakes and since this car only has rear brakes I had to make the change. So I got it redone as a single piston as well as made a gasket for the top and was able to get it in primer. Here are a few pics and I will be working on a lot more this weekend. Here is all of the parts laid out. The Master Cylinder body and top is scratch built. The gasket was made from a 3x5 card cut to size then colored with a black sharpie. The piston is a rod end from RB Motion and then I used 1/32" O-rings stacked for the rubber boot: Here it is all assembled, I am planning on painting it this weekend with one of my Alclad aluminum colors: Edited June 19, 2020 by Mooneyzs
GoatGuy Posted October 19, 2012 Posted October 19, 2012 Good to hear you're doing better. The single piston unit looks great and now I know why they would use single versus dual. Hope you have more time this weekend to get parts painted.
futurattraction Posted October 19, 2012 Posted October 19, 2012 It's looking great Chris. I'll look forward to seeing it, and other pieces, progressing in the coming days. I'm glad it sounds like you've turned the corner on your being sick. Take care, bud!
Magic Photos Posted October 19, 2012 Posted October 19, 2012 Looks great Chris glad to see you are working on this build it is coming along great
doomcrew Posted October 19, 2012 Posted October 19, 2012 coming along nicely chris. looking forward to seeing more. steve
Prostreet Posted October 19, 2012 Posted October 19, 2012 I missed the last couple updates, Parts are looking good Chris.
edboys Posted October 20, 2012 Posted October 20, 2012 Chris, Sorry to hear you haven't been feeling well and hope it passes soon. Just wanted to know if you received the updated parts I sent you recently? I know you commented on the Mallory mag, but have you gotten the new heads and valve covers?
Mooneyzs Posted October 22, 2012 Author Posted October 22, 2012 Dave... thanks bud! Scott... thanks man! Mike... thank you. It was also great to catch up with you yesterday as well. Steve... Thanks Joe.... No worries man. I know life gets busy Mark... Thanks bud... Hopefully you got my email. Sorry I didn't send an email sooner. being sick screwed me up a little wondering if I had told you or not when I received the parts... lol I do have an update with both new parts on the engine.

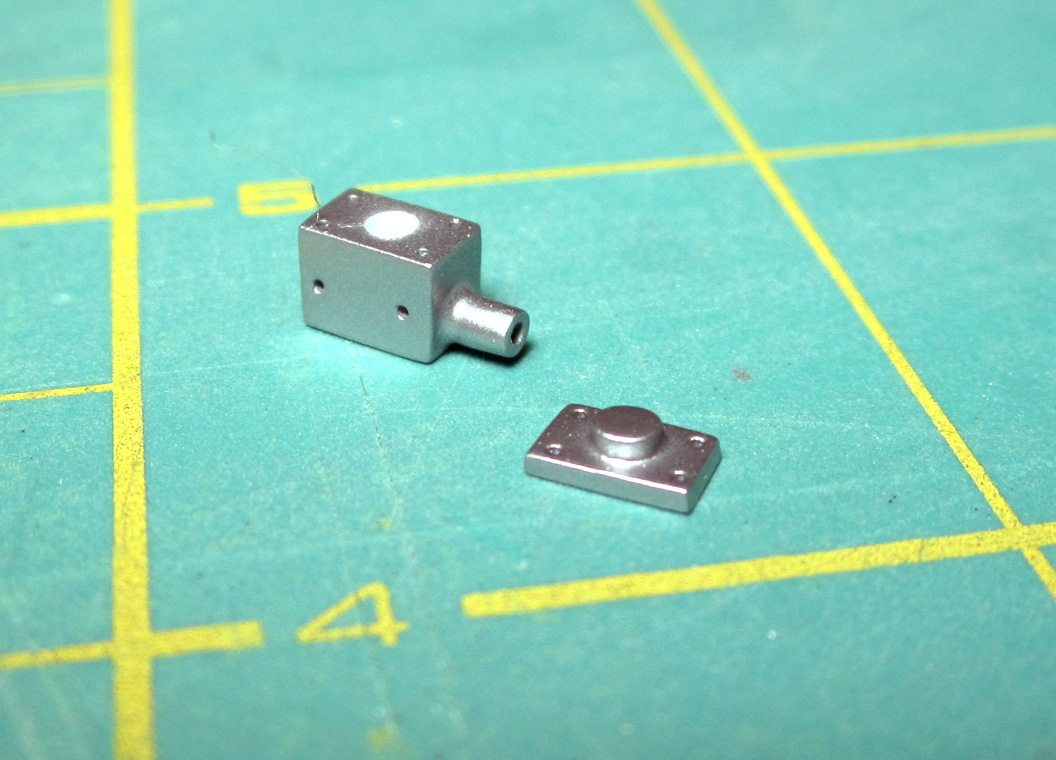

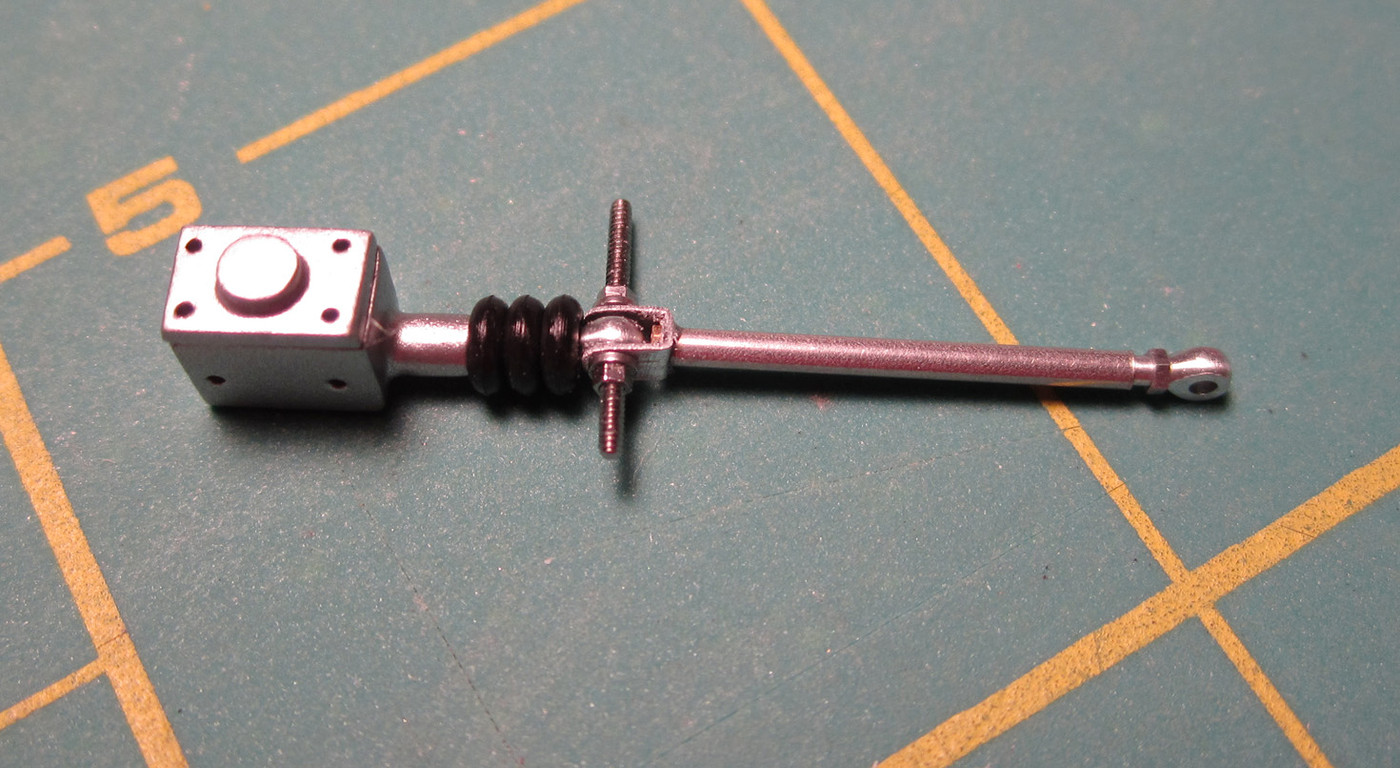

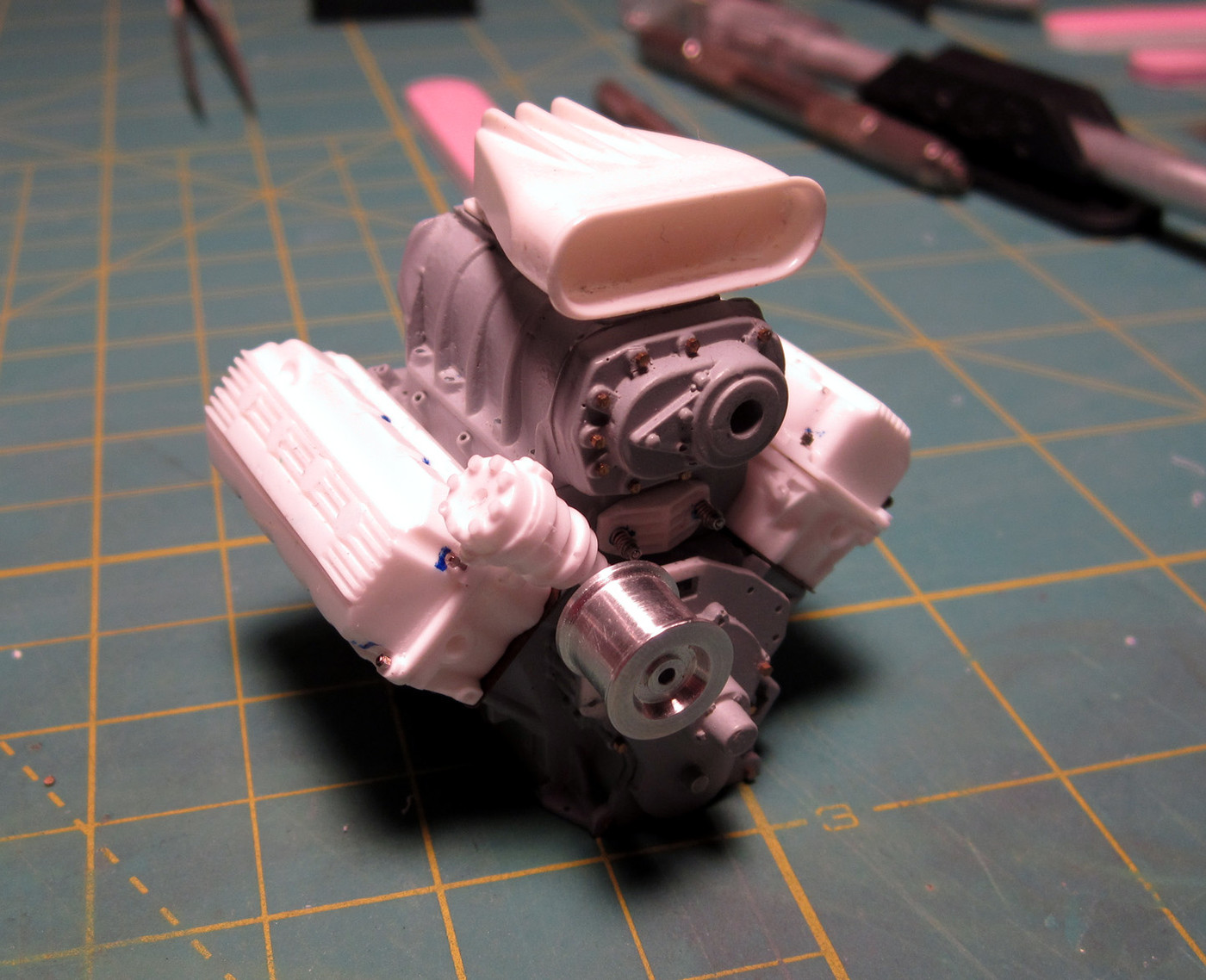

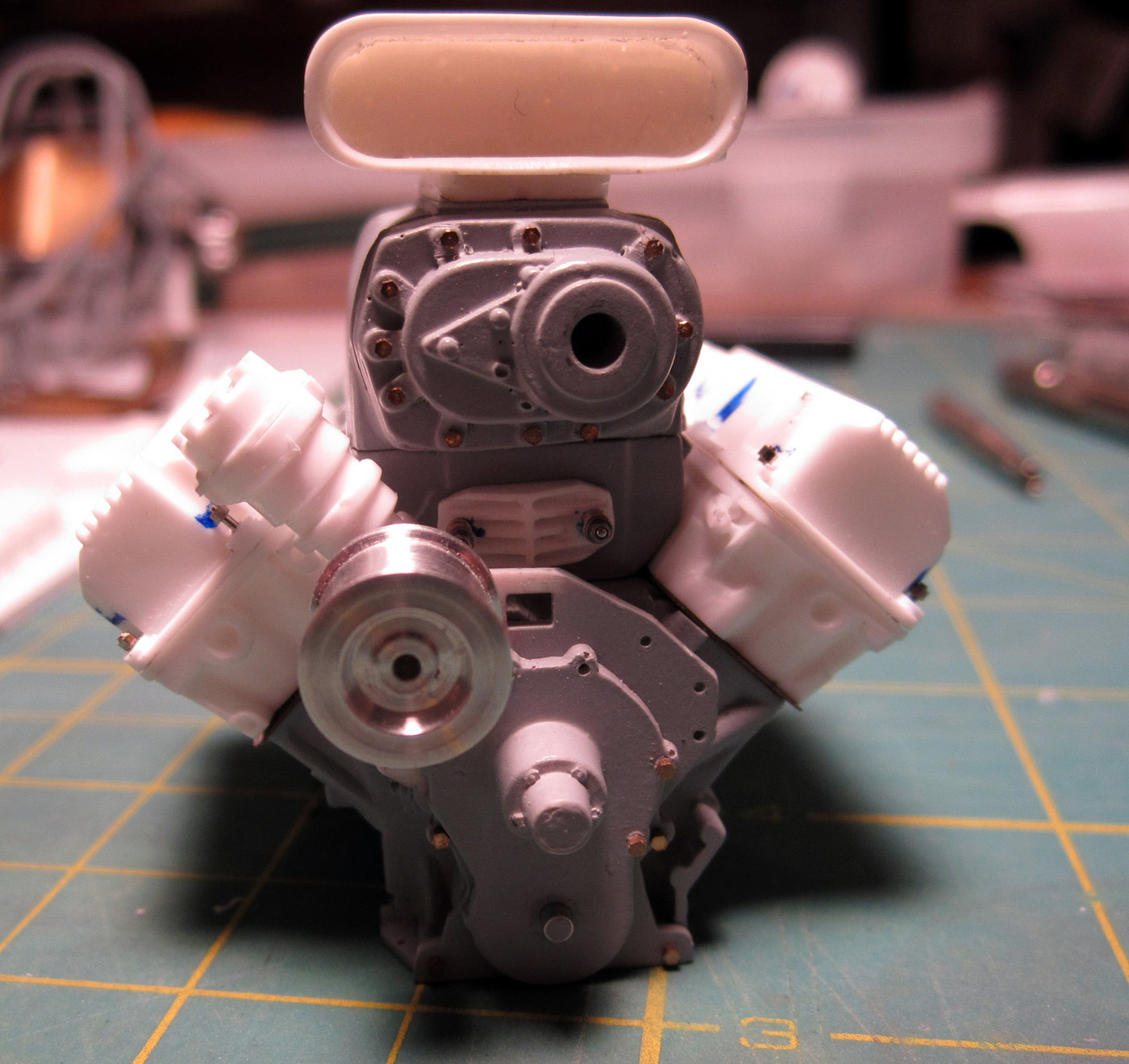

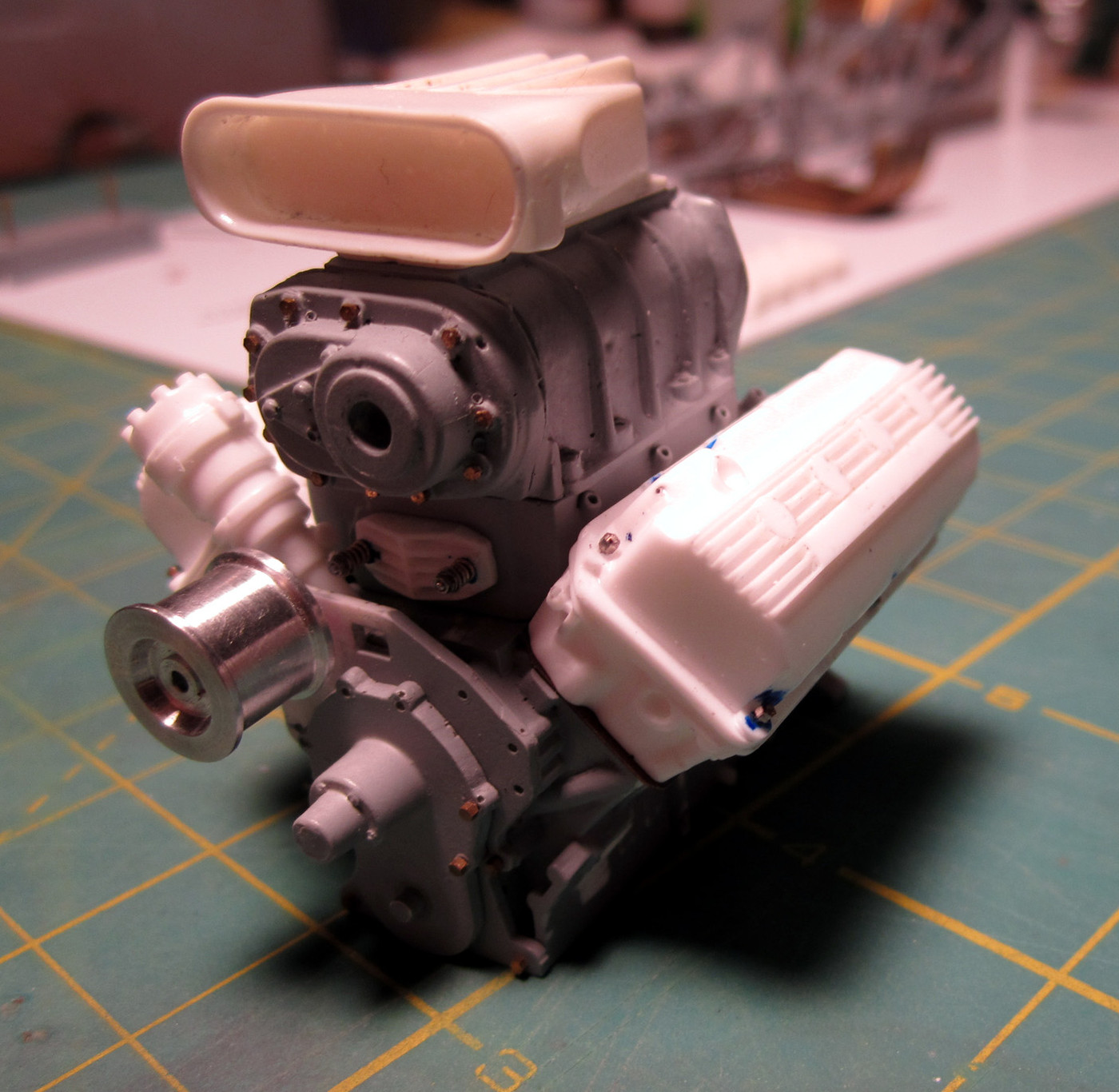

Mooneyzs Posted October 22, 2012 Author Posted October 22, 2012 (edited) Alright fellas.... I was able to get some bench time in today and little last night but not as much as I was originally hoping for but it's ok because I made some progress. I was able to get my master cylinder painted as well as making my new linkage from the brake lever to the master cylinder. Then I stared to work on the engine block and the new parts I received from Mark Johnson. swapped out the heads and valve covers and had to re-drill all the holes. I still have to drill holes for the headers into the heads. And then I was able to drill the hole for the new Mallory Ignition for the engine as well. Here are a few pics of the progress..... Here is the Master Cylinder after I painted it with Alclad #102 DurAluminum: I also reworked the linkage between the master cylinder and brake handle. Since I switched the master cylinder to a single piston. I ended up having to be creative on how I made the connection for the new linkage and here is what I came up with: I have got the new valve covers and heads that Mark had sent me. I drilled holes for the bold hardware into the valve covers and then transfer drilled them into the heads. I Will be drilling the holes for the spark plugs in the valve covers and will be putting in RB motion turned spark plugs as well as needing to drill the holes for the header bolts into the heads: Here is the Mallory Ignition from Mark Johnson. got the angle and hole drilled for it in the right location: Here is the other valve cover: Edited June 19, 2020 by Mooneyzs
