2011 LeMans winning C6R GT2

Recommended Posts

Hello,

   Anybody that is somehow familiar with sports car racing series like IMSA and FIA LeMans in the last 20 years or so knows about the successful Corvette Racing team. They started in 1999 with the C5R and have evolved with the road car to the C6R and current C7R.  However,  not everybody is aware that there were actually 2 generations of C6R.   The C6R debuted in 2005 and continued the C5R domination in the GT1 category in IMSA.  However, by 2008,  they were so dominant, competition started to fade away.    So Corvette Racing decided to move from  GT1  to the GT2 category looking ahead at the new for 2010 GT class regulations.  While the GT1 was based on the Z06, the new GT2 C6R would be based on the ZR1, the flagship of the brand.  Debuting in mid season 2009,  as preparation for a full 2010 season, this second generation C6R had to comply with the GT2 rules.  The frame of the car was aluminum instead of steel, the engine was smaller and was down about 100 horsepower compared to the GT1.  Mandated steel rotors replaced ceramic rotors. The windshield was now a production unit and aerodynamics were different, with far less downforce when compared to the GT1 car.  Continuous improvements helped the team to continue the success until it was replaced with the C7R in 2014.  One of those success stories was a win in the GTE Pro category at the 2011 24 Hours of Le Mans....  And that's why we are here.

Here is a pic of the 2011 LeMans winner

There are no model kits of the GT2 C6R that I'm aware of.  I had the idea of doing one maybe combining a Revell  ZR1 and a C6R but that would have been a lot of work.

In a strike of luck,  I came across a cheap Corvette friction toy that shared the body with another cheap RC toy.  I noticed it said "Corvette C6R" and  "Licensed by GM".  Looked at it and lo and behold it looks like a GT2 C6R body.  So I bought it. Actually bought all 3 but that's another story.




Without much hope, I took it to the workbench and before I knew it, it was disassembled and the body took an overnight  swim in brake fluid. I went with the white plastic car instead of the yellow for obvious reasons.  The proportions look ball park good and it seems it may be a starting point for something, with a lot of work.

So this is a very long shot and there are plenty of things I'll need to worry about down the road. But for now, let's see if I can get to first base with it.
A C6R kit will be the donor of many parts in this.


The body is plastic and while it seems to be styrene, it is softer and more flexible than a kit's body.  Maybe because it is intended to bump into things as an RC car.   The mirrors are rubber and hopeless so they were discarded.  I thought the body was a one piece slammer style but to my surprise, the one piece glass is just a black molded piece.

Here comes bodywork like if there's no tomorrow!

Thanks,

Share this post


Link to post
Share on other sites

Corvettes are some of my favorite race cars so I will definitely be watching this one.  I had a similar project in mind but was also thinking of using the Burago die-cast as a source for parts.

This print hangs over my desk so I have a source of inspiration.

YS Corvette C6.R.jpeg

Share this post


Link to post
Share on other sites

I maybe wrong, but studio 27 make a kit of this car a few years back. A while ago Hobbyeasy.com had some on sale.

Share this post


Link to post
Share on other sites

I have seen these models at the local Tuesday Morning variety stores but with thee blacked out windows did not give them a second look.  Now that I know what they are I may be tempted to pick one up.   Thanks for the background information.

Share this post


Link to post
Share on other sites

Let the MADNESS begin!



One down, about 17 body openings to go!   After working the openings,  I will have to fill ugly mounting screw holes, mirror holes etc.

Thanks,

Share this post


Link to post
Share on other sites

Just happened to swing by Tuesday Morning on the way to the barber shop and low and behold they still had the Braha C6R Corvettes, $4.99 for a white friction one and $9.99 for the R/C version.  Thanks again for tip Ismael.

Share this post


Link to post
Share on other sites

Hello,

My plan is to attack bodywork in several rounds.

Round 1: Open what is closed but needs to be opened
Round 2: Close what is open but needs to be closed (screw holes, mirror locators etc)
Round 3: Real bodywork alterations

Let's fast forward about a week's worth of cutting.  Of course these will need to be reviewed and adjusted, but round 1 is done:










Thanks,

Share this post


Link to post
Share on other sites

Hello,

  Filled the gigantic mirror holes (see pics above) by stacking and gluing styrene strips.  Body filler was added and finished sanding smooth.  After all bodywork is complete,  primer will reveal the true progress but that is still a long way ahead.





Thanks,

Share this post


Link to post
Share on other sites

Great job so far Ismael. Like your last C6R build I'll be watching.

Share this post


Link to post
Share on other sites

Coming along very nicely Ismail. A great idea using these as base models and running with them, great start, thanks for sharing.

Share this post


Link to post
Share on other sites

Hello,

  The screw holes that held the discarded rear wing have proven to be a challenge to fill. Slowly working on it.2v2EZ6VLzxJ21ND.jpg

Thanks,

Share this post


Link to post
Share on other sites

Ismael -- Great start on this! I'll b following -- I had the same idea, and purchased the white friction model as well, I'm planing on doing the 2013 car with 60th anniversary livery, from Pattos Place. Also will use the C7R kit for mirrors, wings etc.

best of luck!

Al

Share this post


Link to post
Share on other sites

Hello,

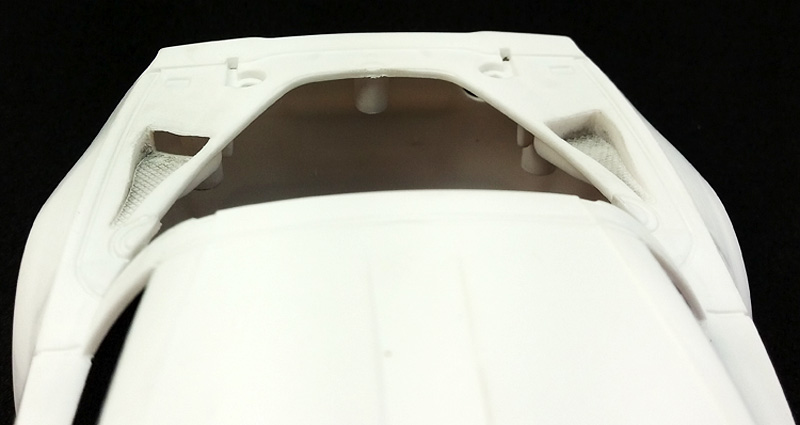

  Getting deeper into body mods.  Getting the overall shape with styrene strips into the ballpark before finishing with putty.  The rear diffuser was redesigned for 2011.





Thanks,

Edited by ismaelg

Share this post


Link to post
Share on other sites

Hello,

  Because of the subject I have a detailed thread active on the race car models forum.  So I haven't updated this one in a while.  Here is a summary of the latest updates:

Looking at this car, something is bothering me. Something doesn't look right.  And that is the tail lights.  They are too big,  too round and too low.  So I'm looking at possible ways to fix it.  This snap Corvette had already donated the decklid for a full detailed C6 convertible a long time ago.  So I cut the rear bumper.  The idea is to trim close to the taillights and somehow graft it into the GT2 body.  Most likely they will be separated as 2 pieces: left and right.










Measured a million times to ensure proper location. Now I need to fill the surgery scars with putty so I can smooth and blend everything together...


Thanks,

Share this post


Link to post
Share on other sites

Thanks Josh!

I still haven't looked at the headlights but most likely will look into the Revell C6R kit.  But before that, I'll look into the toy's unit to see if there is anything usable.

Thanks,
Ismael

Share this post


Link to post
Share on other sites

I saw these at Ross discount stores and wondered if they could be turned into nice models. Thanks for answering that question, it looks like it's coming along well.

Share this post


Link to post
Share on other sites

Hello,

It's been  a long time since last update.  I'm happy on how it is going.  This was actually done months ago.




Will you excuse my 0.01mm discrepancy?



Thanks,

Share this post


Link to post
Share on other sites

Hello,

  Some progress on this one.

From this:



To this


Thanks,

Share this post


Link to post
Share on other sites

Hello,

  Destruction in the name of construction!
Rusty Trusty was let loose!



Testing...

Thanks,

Share this post


Link to post
Share on other sites
