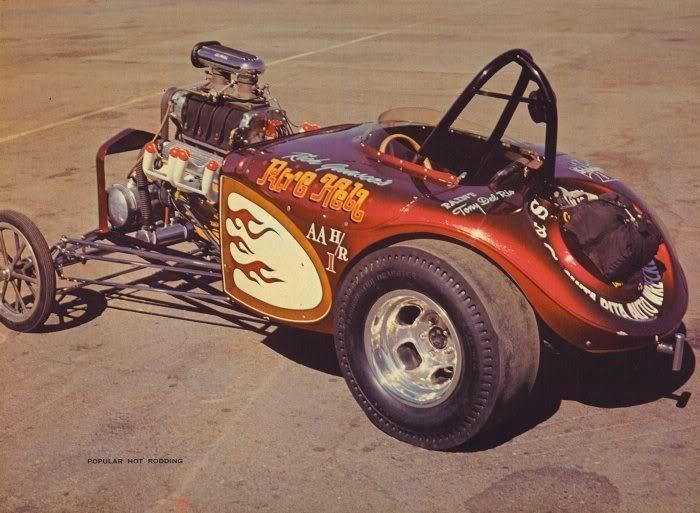

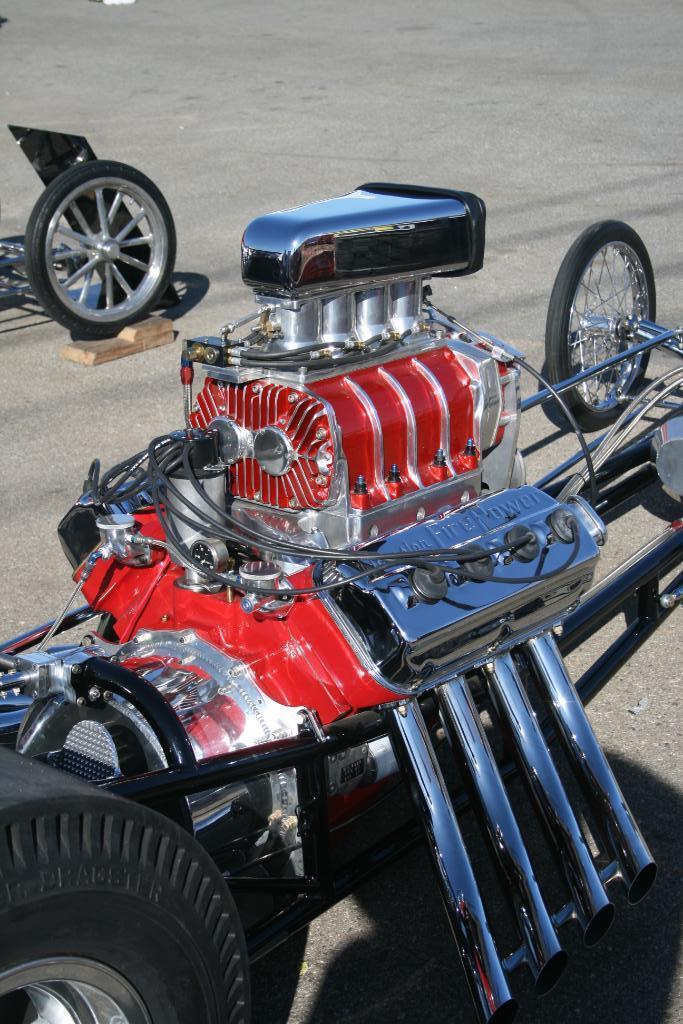

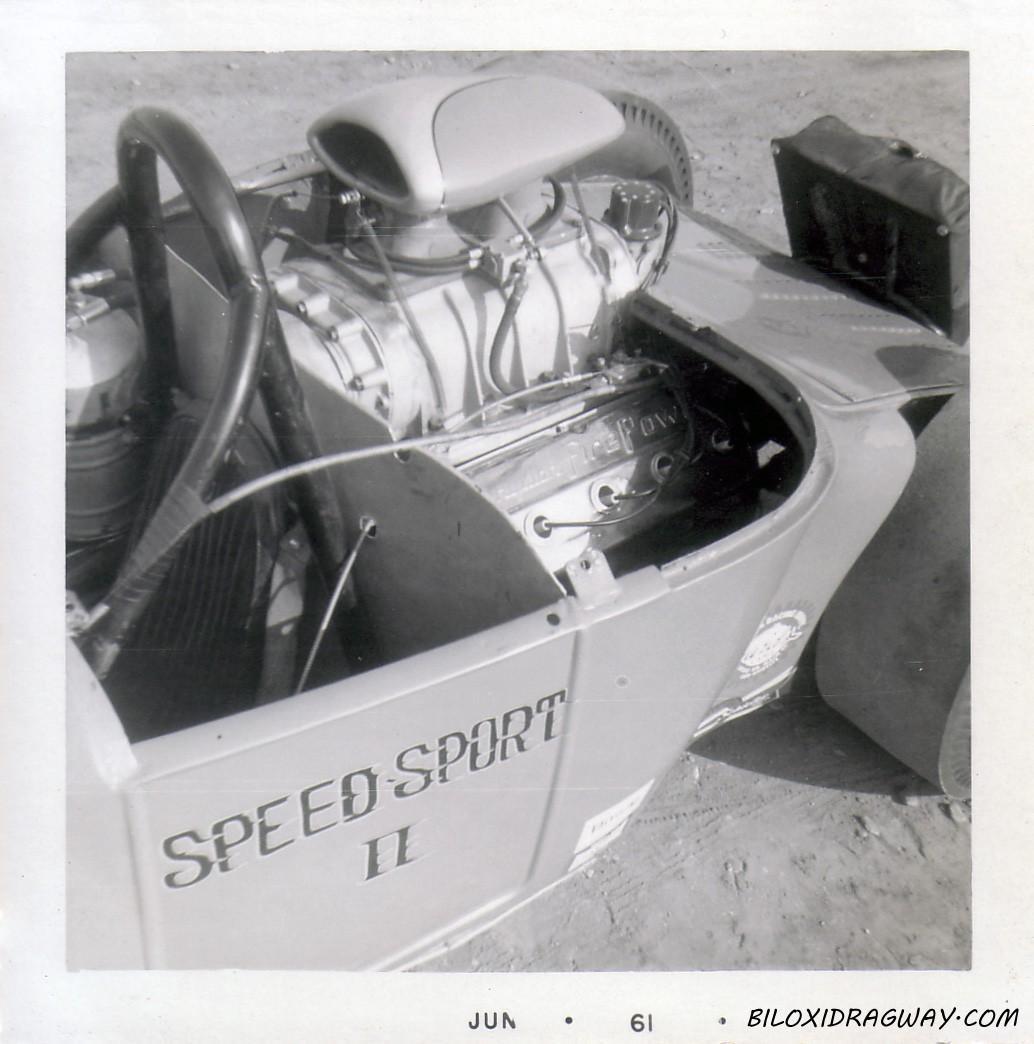

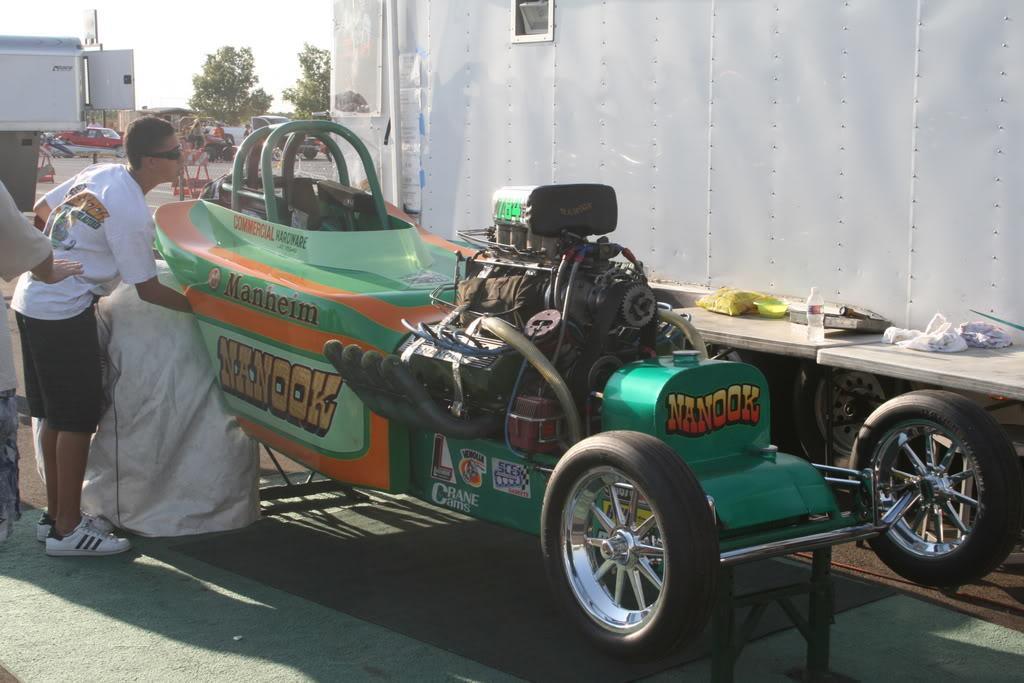

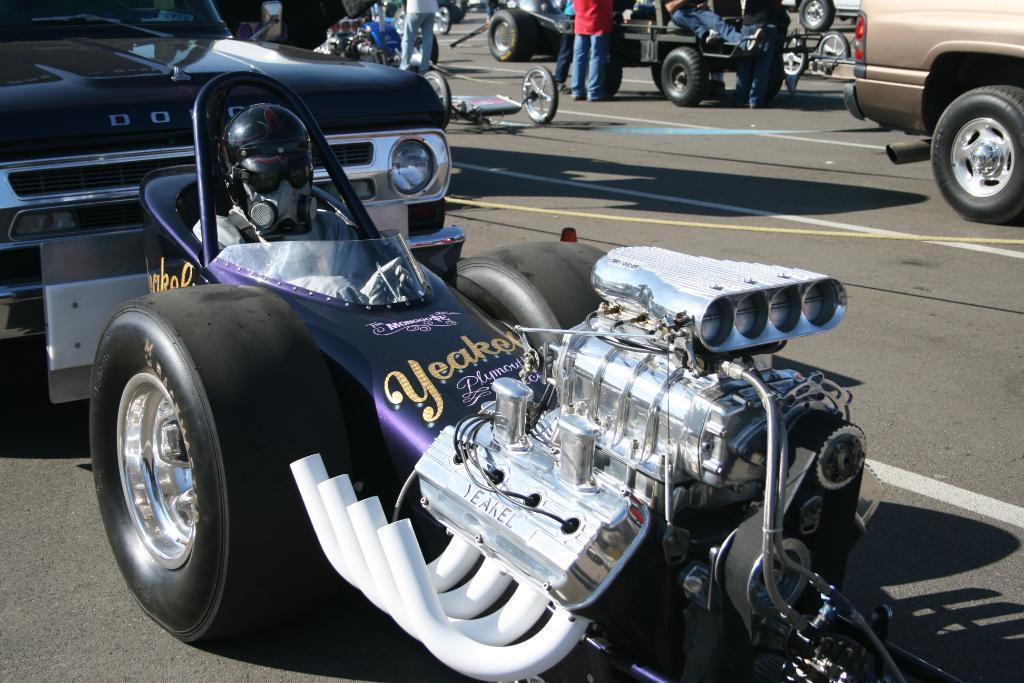

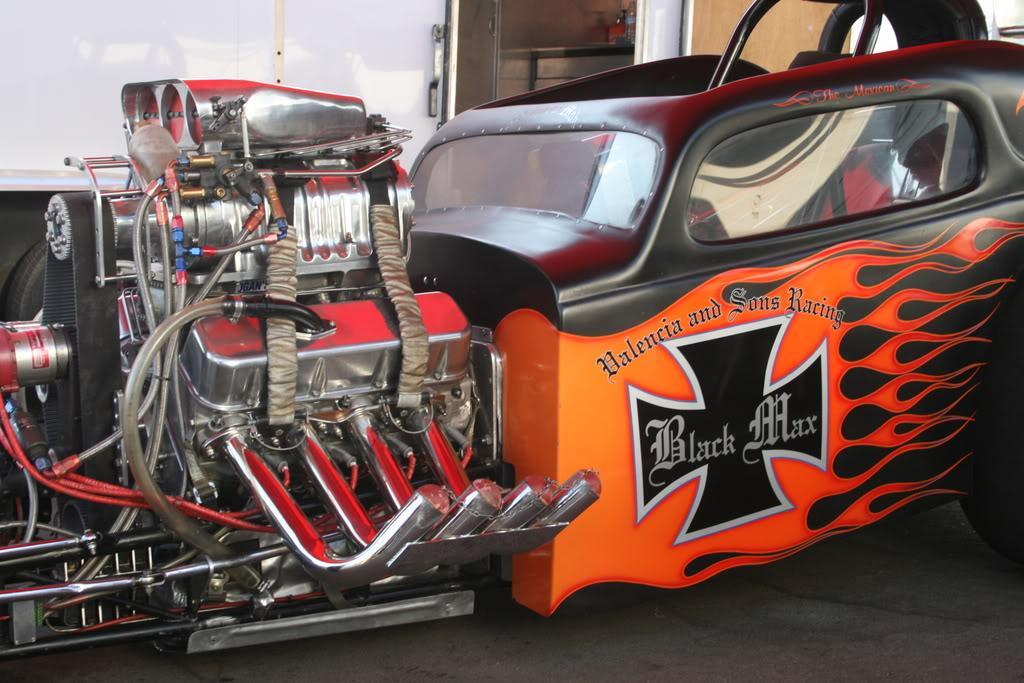

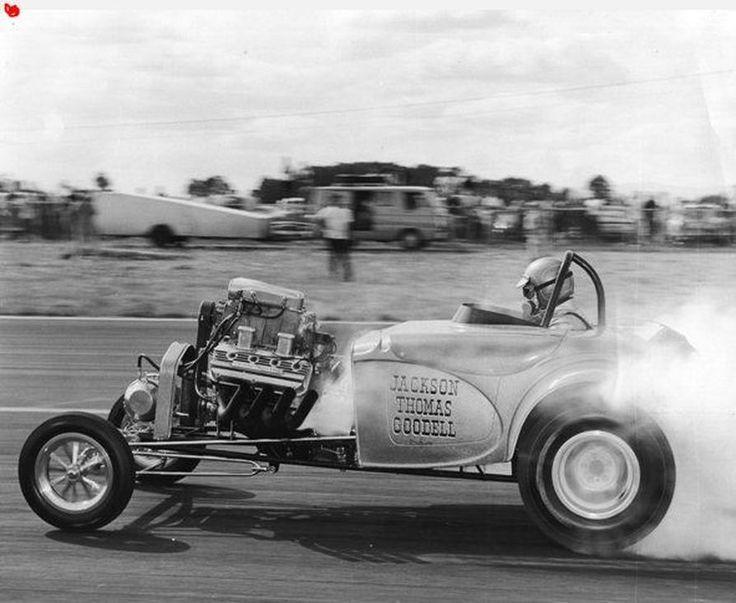

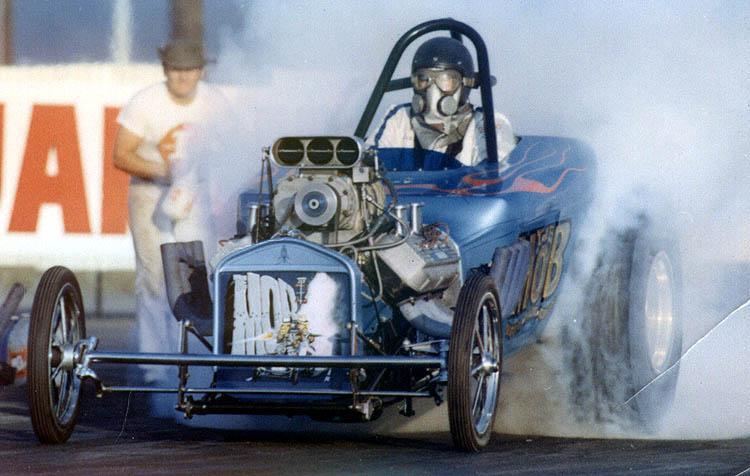

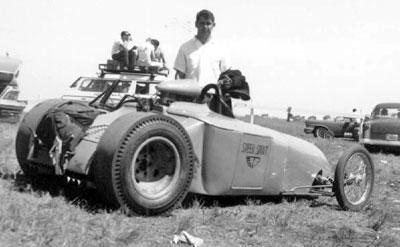

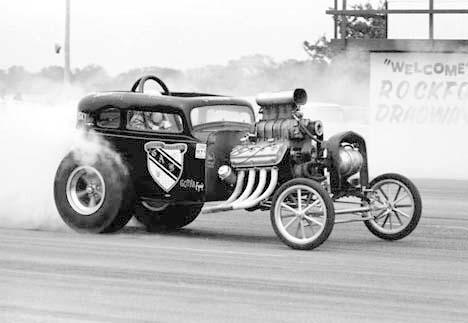

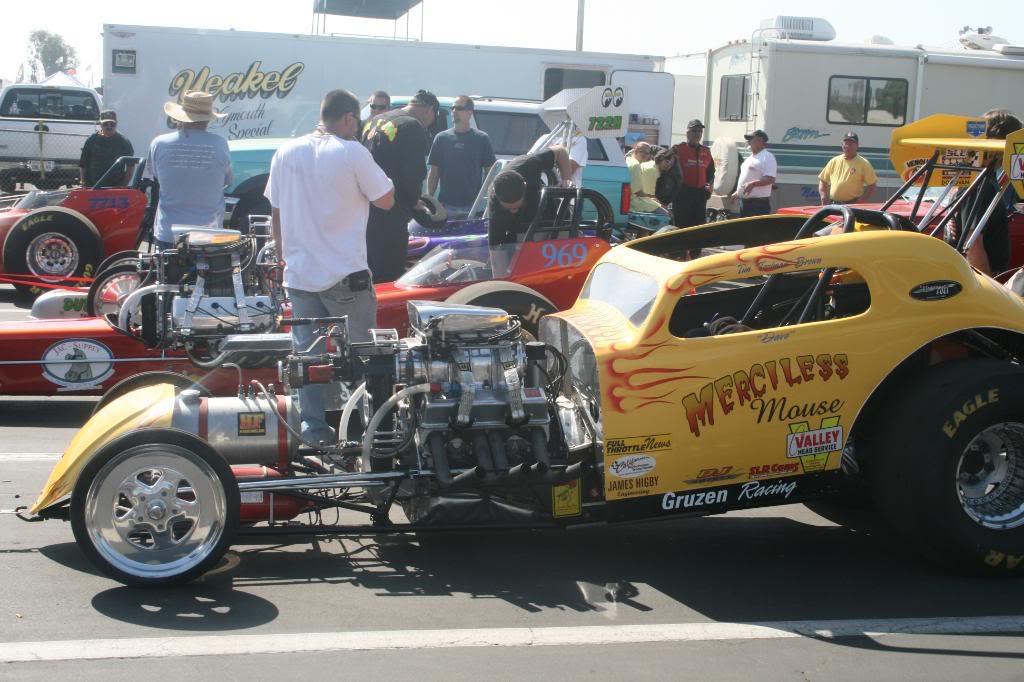

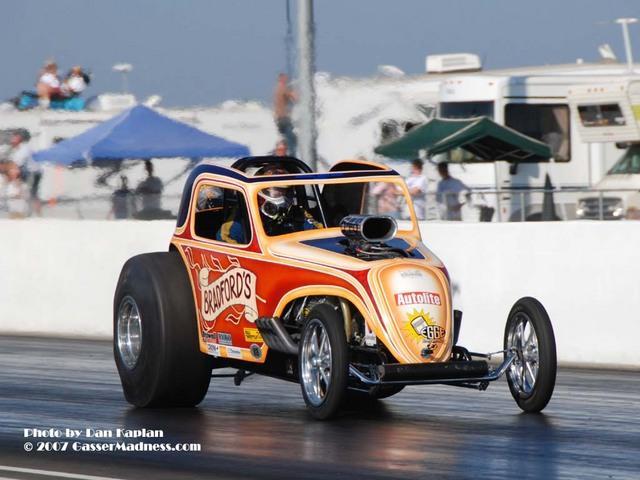

Speaking of Altereds , here's some Fuel cars!

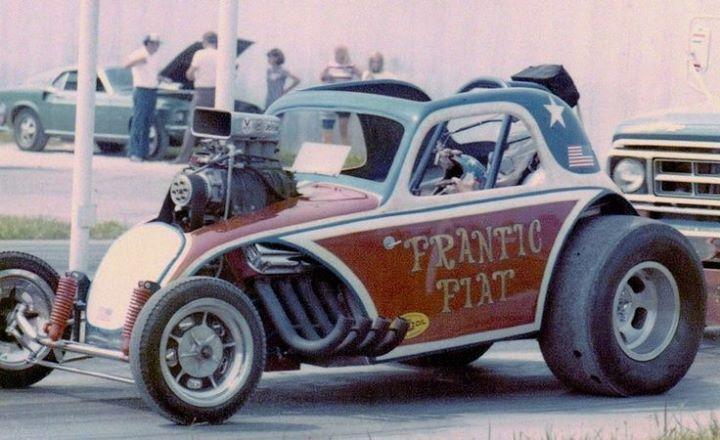

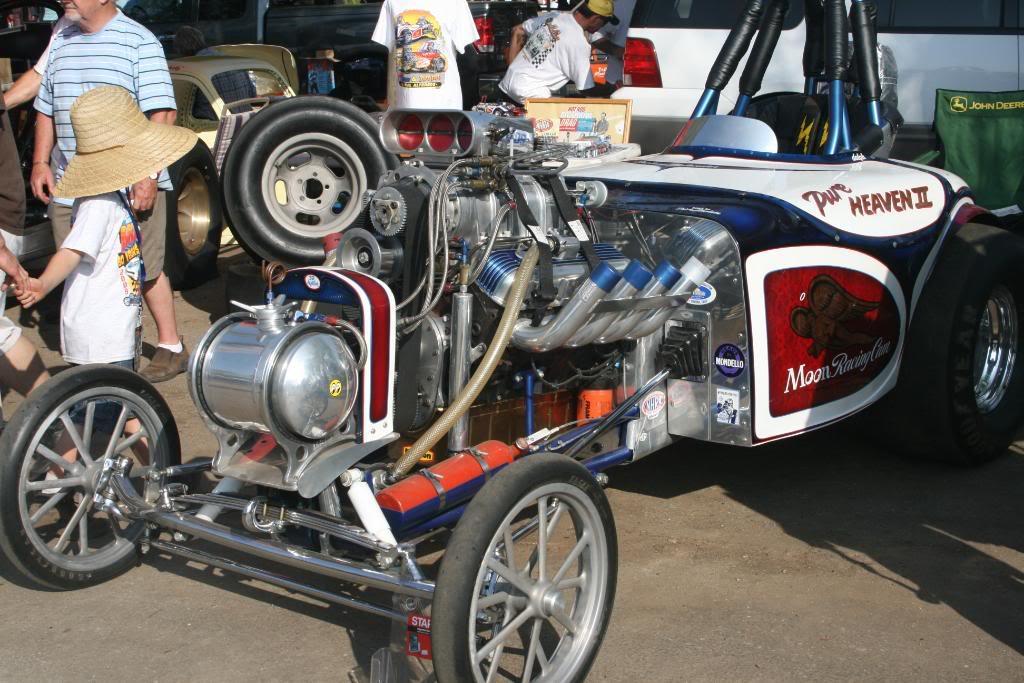

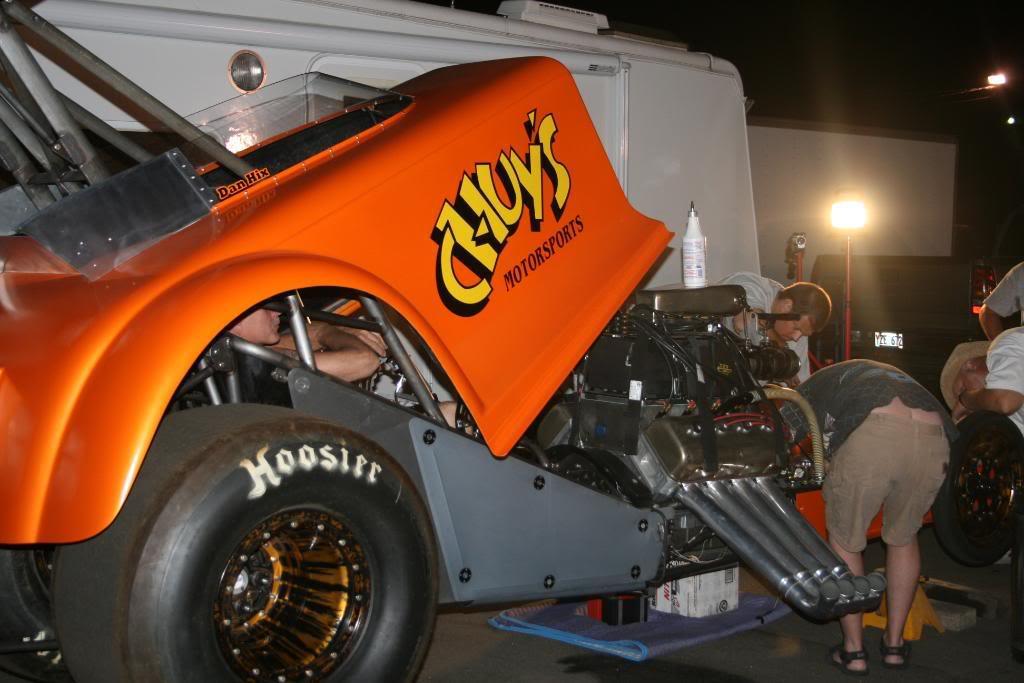

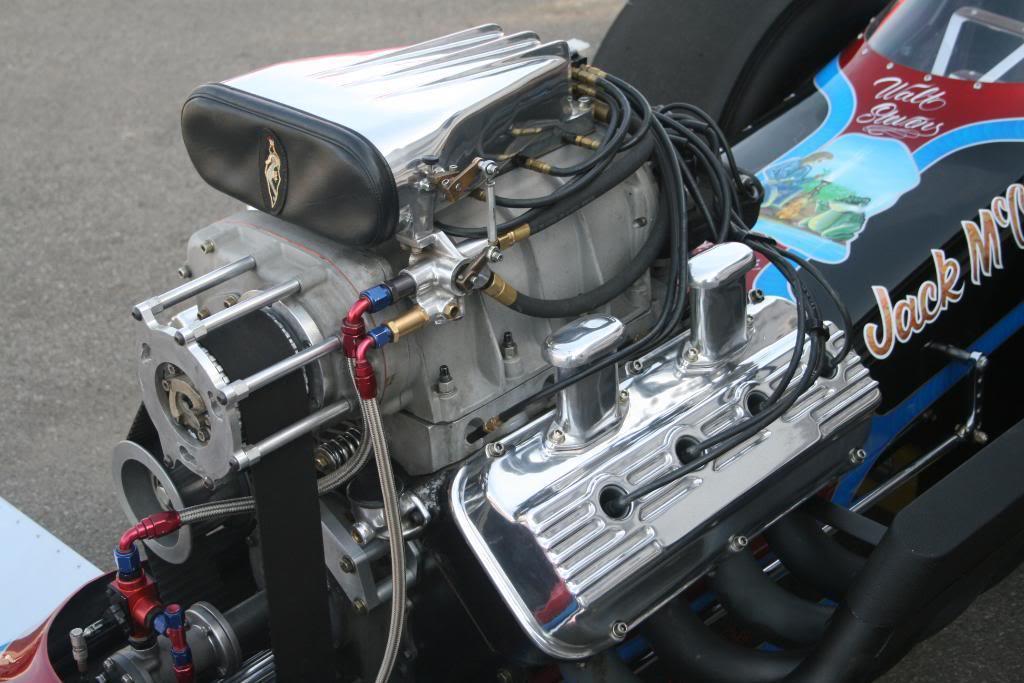

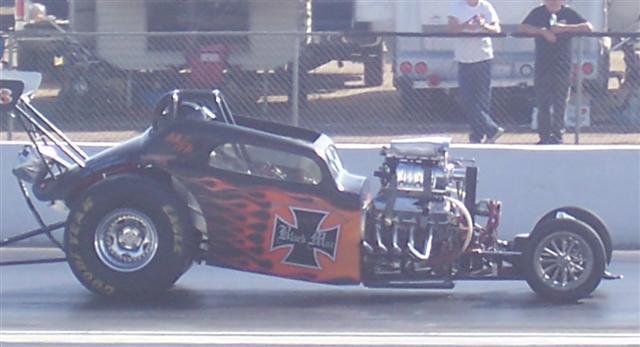

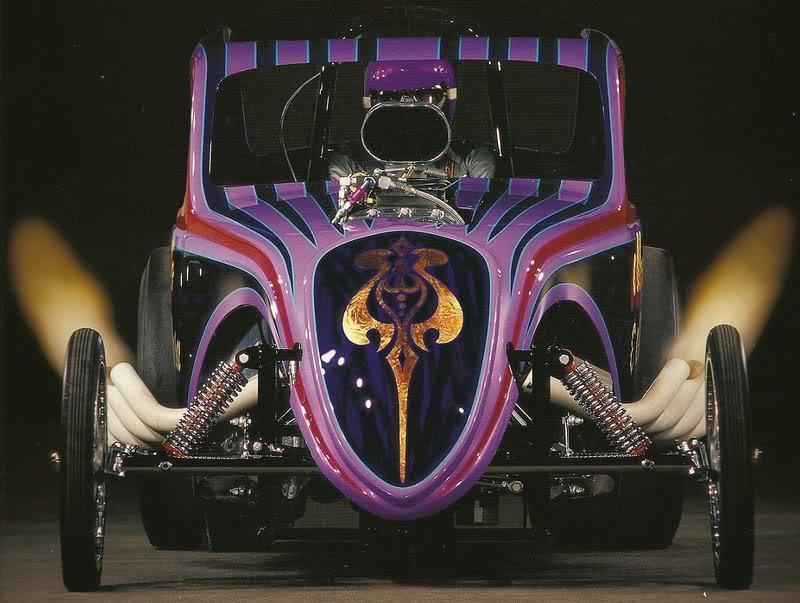

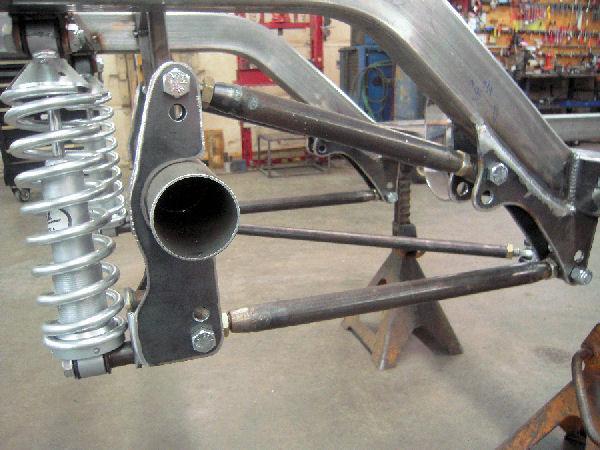

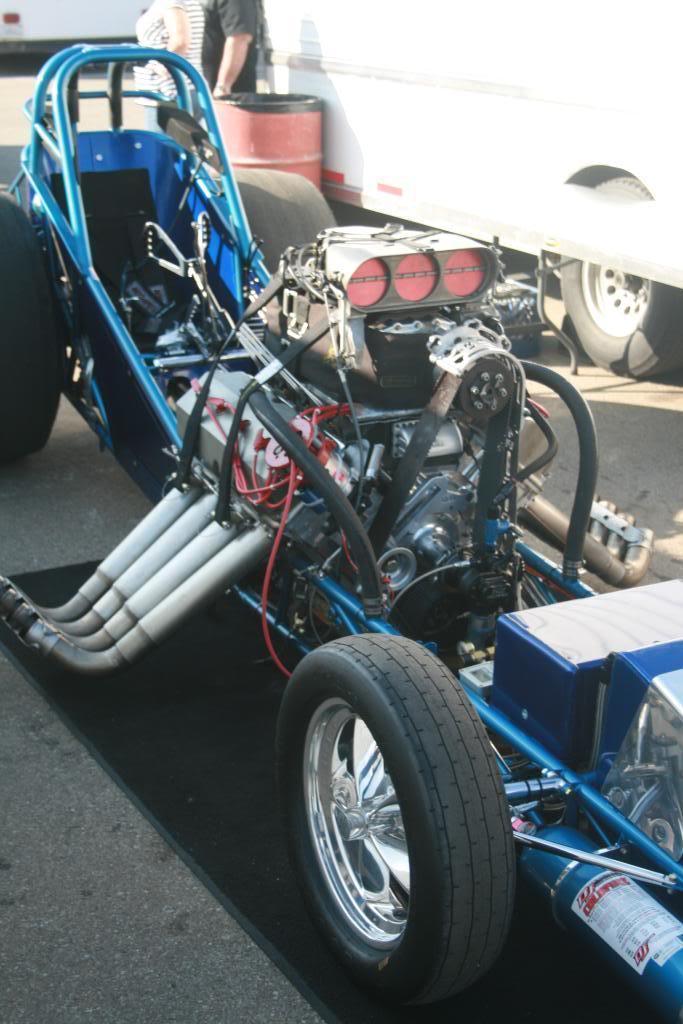

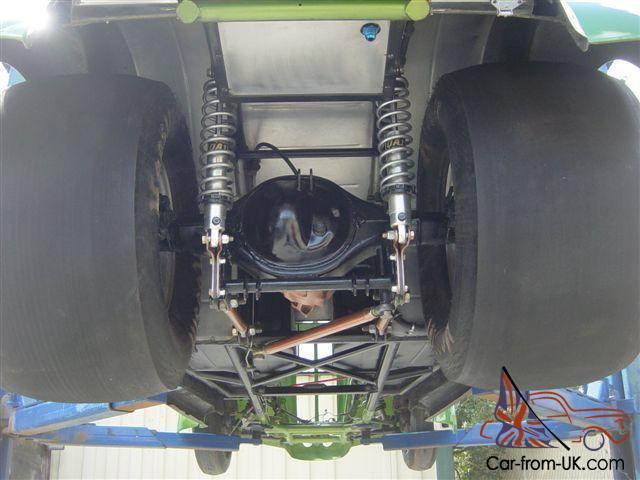

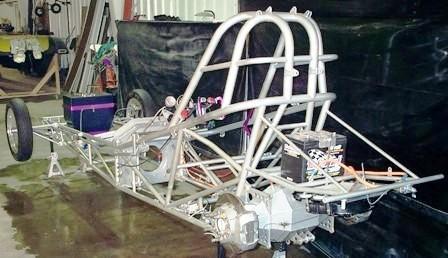

I've looked at several dozen pics of altereds and am not finding suspended rear ends. Same for 70's FC's. Sorry! Here's a couple pics of modern coil over setups for Pro Street and a sand dragster. The thing is, fuel altereds and funny cars are high horsepower cars that hook up much better with solid mount rears, the big low pressure slicks also act as suspension of sorts. First modern solid mount, then coil overs. They are 4 links.

Thanks! Call me Gary. Glad to help a fellow HAMB'er or modeler anytime!

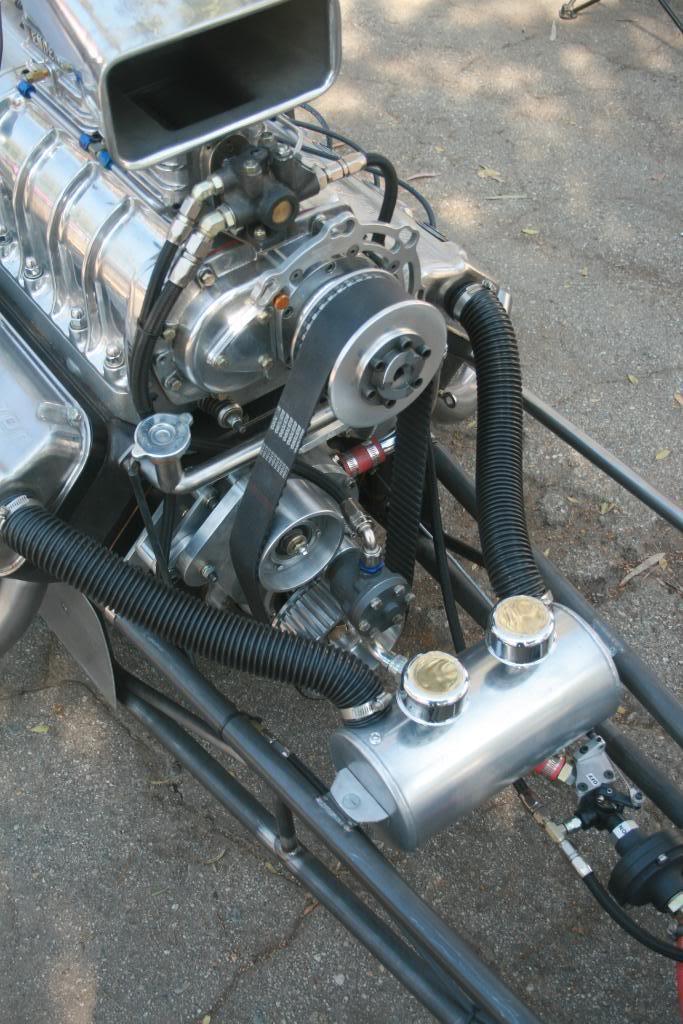

If you want a suspended rear I'd go with coil over shocks ala Logghe funny car style. Not many FA's used any suspension, but i'd do that if you want a late 60's look. For mid 60's semi elliptical leaf springs might work. Almost all fuel altereds used a solid rear though. Same with funny cars. I can't think of any 70's FC's with a suspended rear, and if it was , I'm sure it would be coil overs. What did you have in mind?

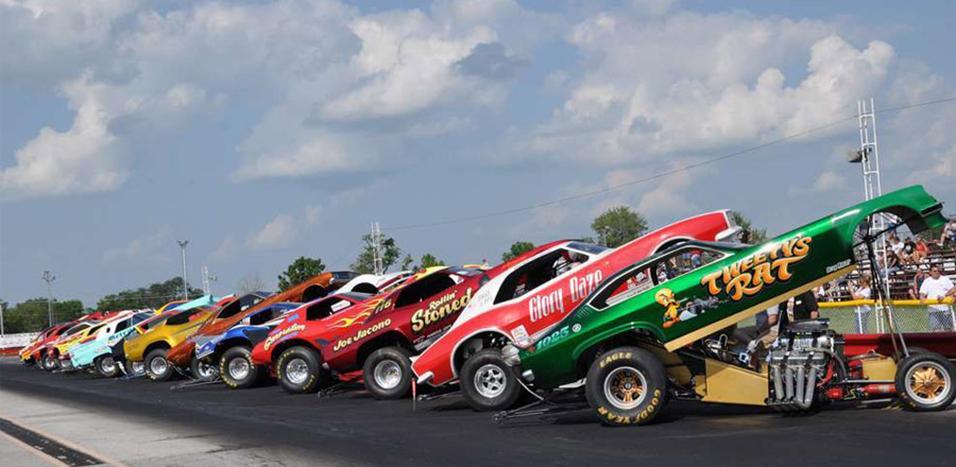

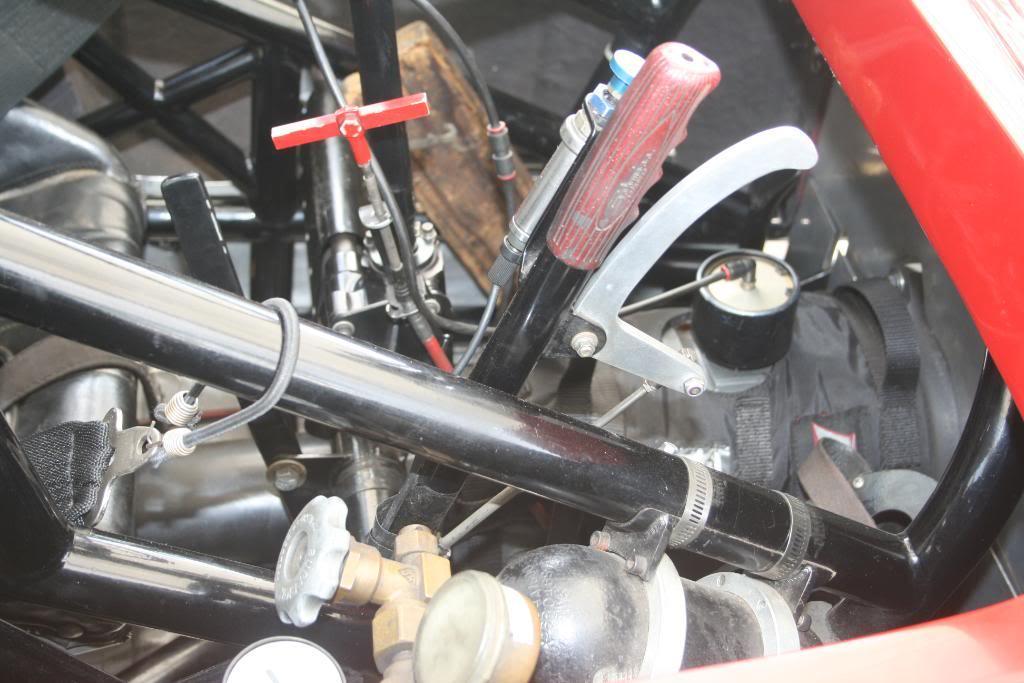

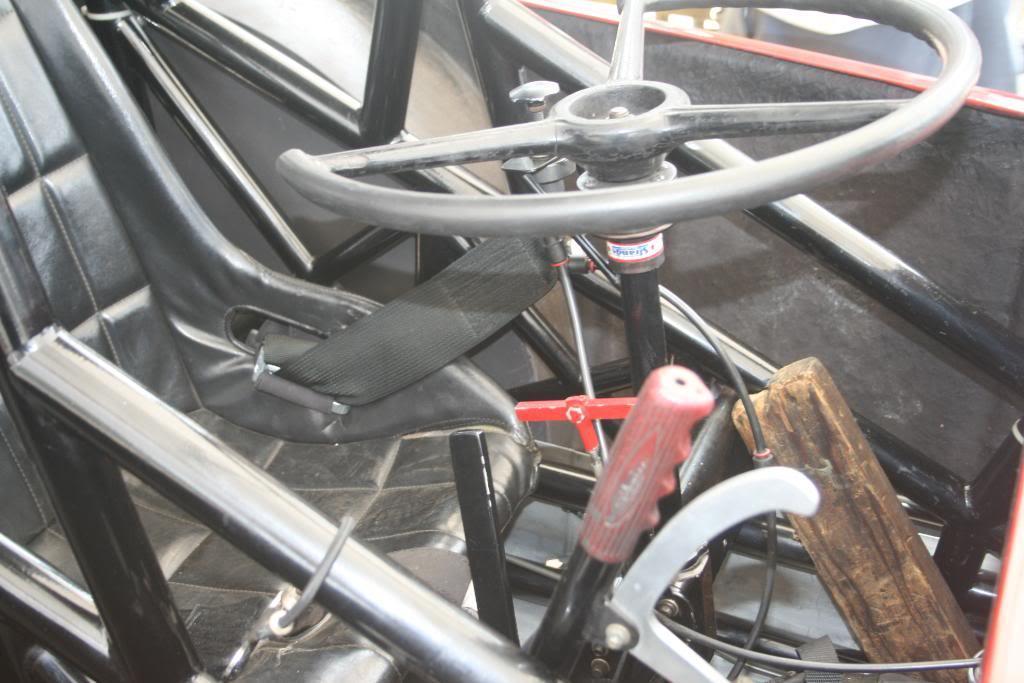

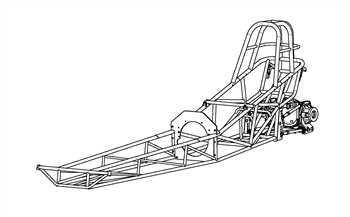

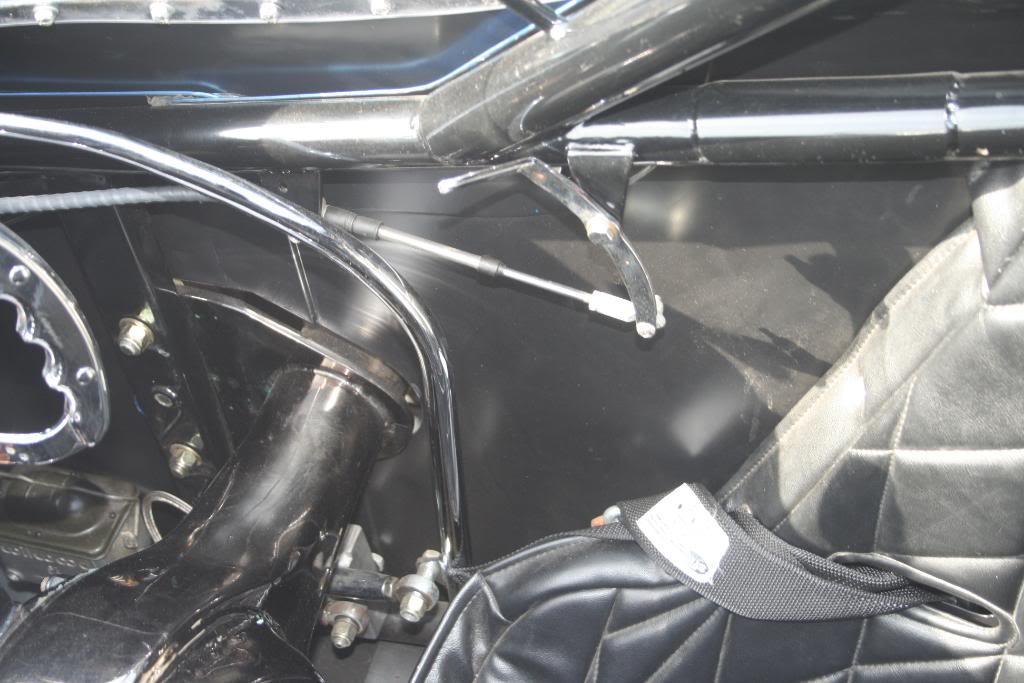

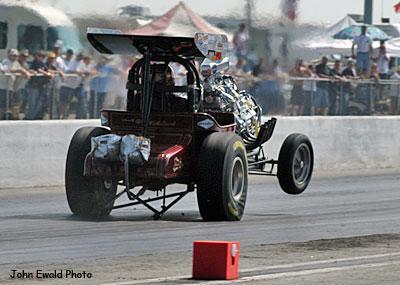

Altereds use solid mount rears. I posted several pics of how these are mounted. They are bolted onto a bracket welded to the frame ( see pics). They vary according to what the builder wants or likes. Fire bottles are deployed by the driver by pushing or pulling on a lever. Look at the Winged Express pics, the bottle is on the roll bar. the lever is the orange T handle. The spray is directed by a line and nozzle to the driver, the motor or both. Lots of FC's use two bottle mounted on the chassis, one for the motor, one for the driver. Look at the FC chassis pic above. The fire bottle is mounted right by the front tire on the outside of the chassis. MOST 70's cars mounted the bottle(s) on the chassis close to the driver.There is probably one on the other side as well, most modern cars use two.

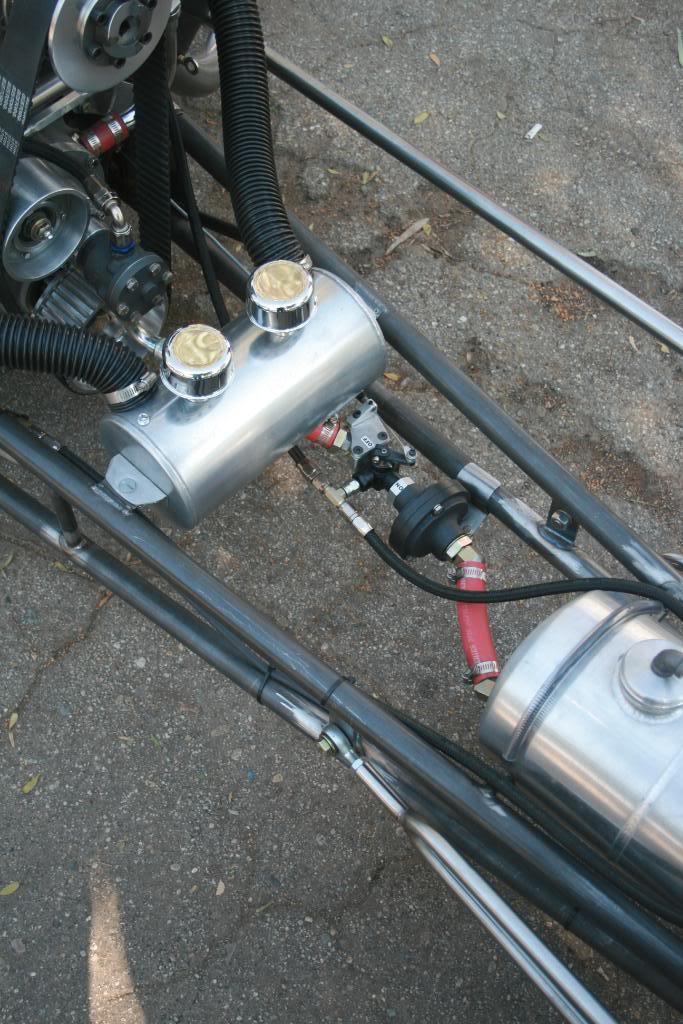

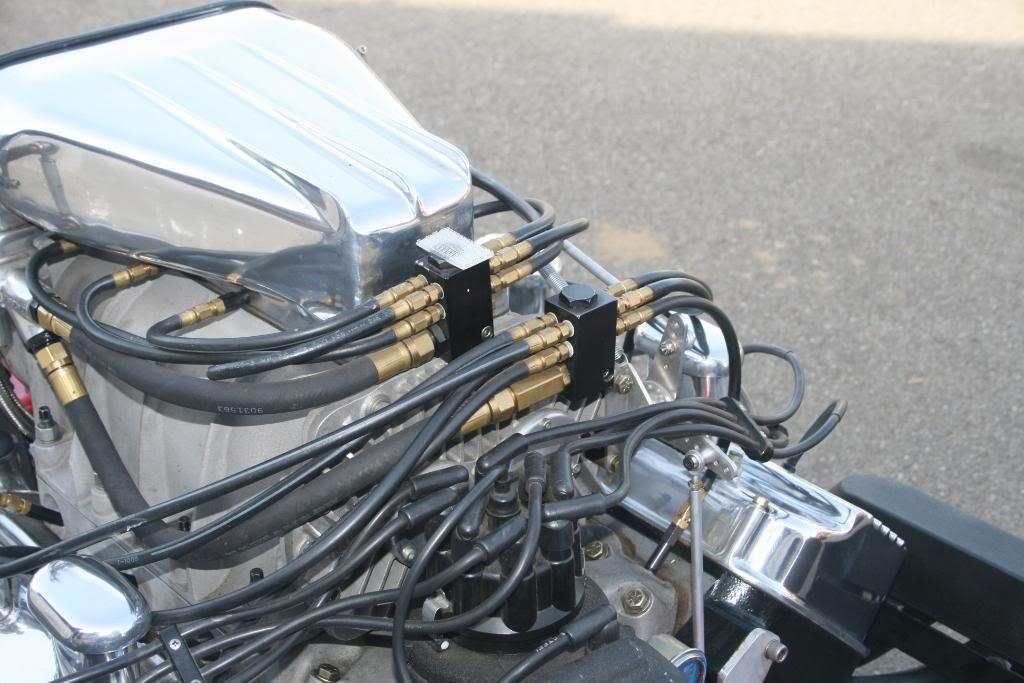

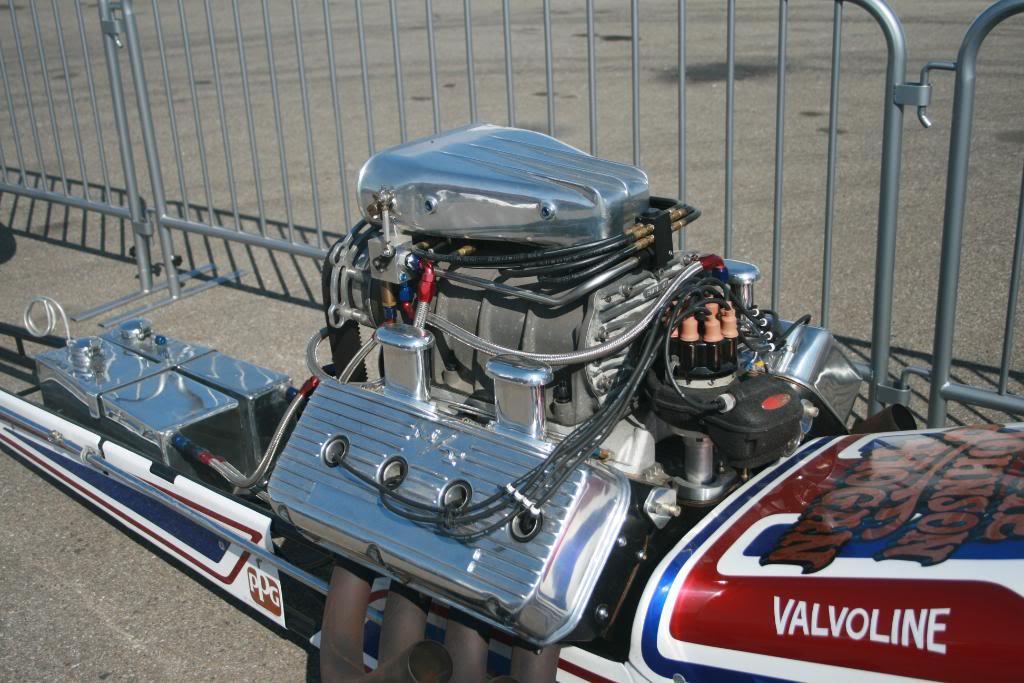

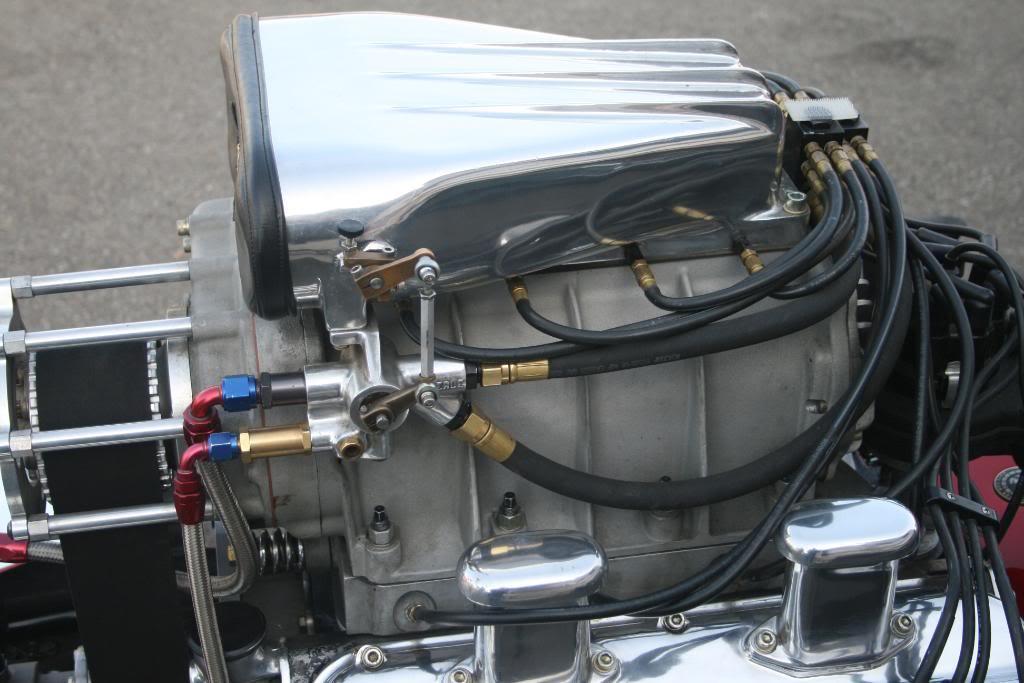

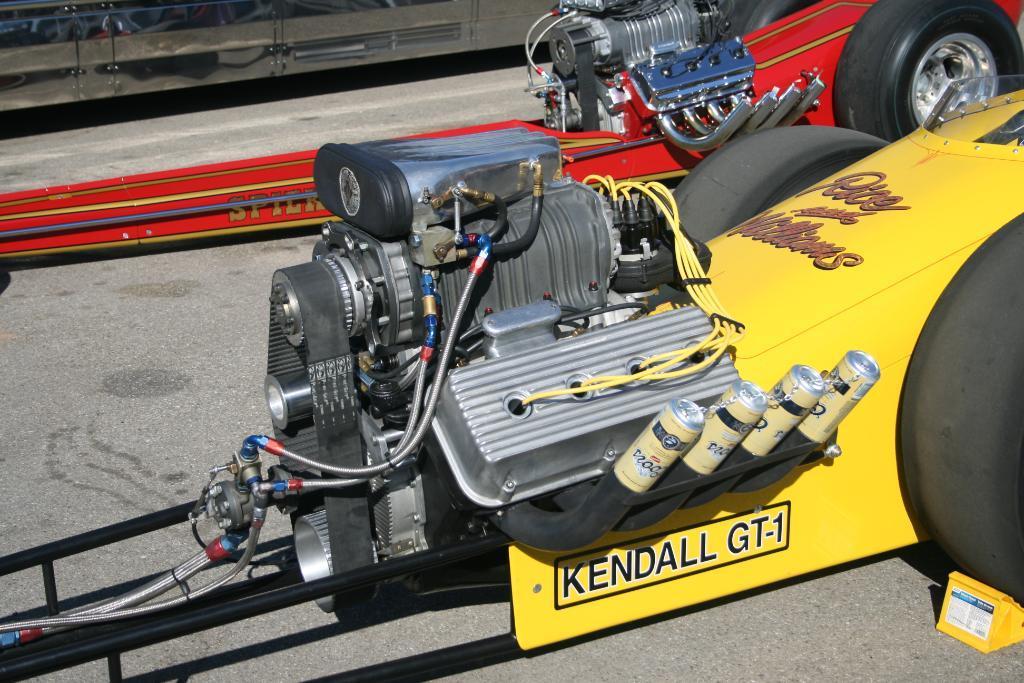

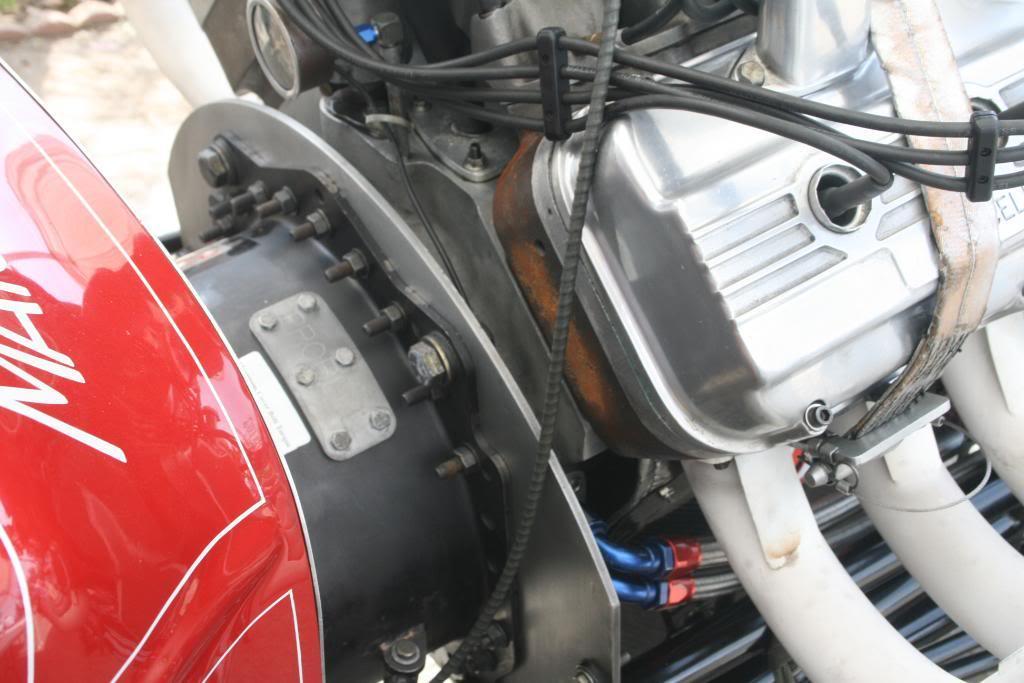

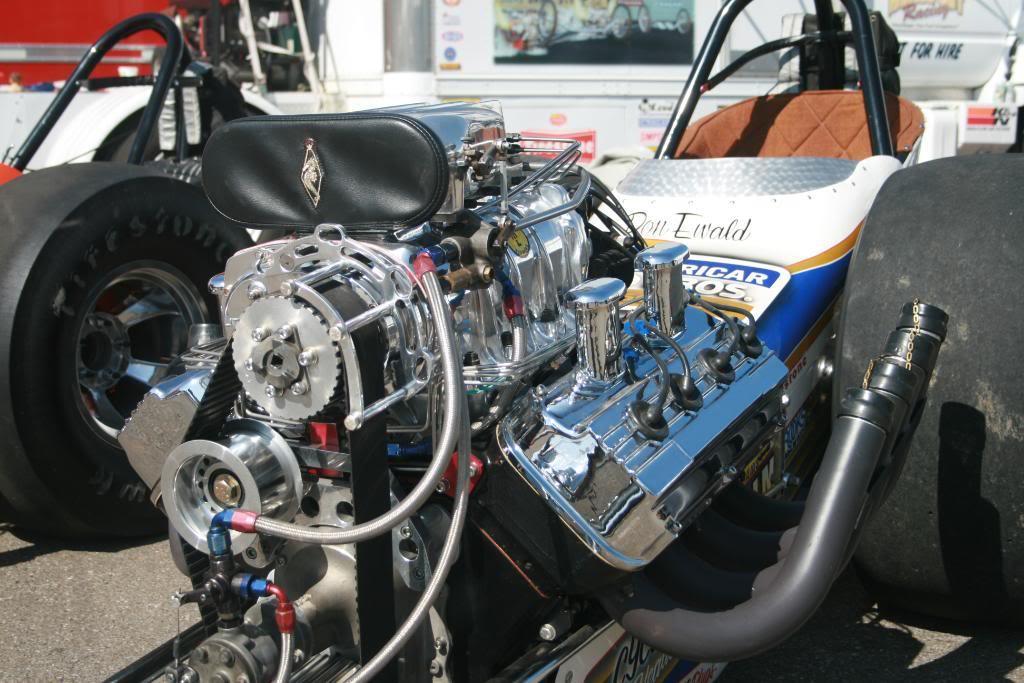

Here's some generic fuel systems from late 60's cars. Not really any difference between funny cars and dragsters. The main changes into the 70's were: bigger fuel pumps, use of steel fuel lines and more of them. By more of them I mean injectors started in the early 60's with two lines, then four, then eight. About 1966 splitting the fuel by introducing intake manifold lines, one per cylinder with ( usually ) eight on the injector hat. More fuel, more power! This is called "over" and "under". There is no one setup, though all are very similar. 70's were pretty much the same. I included another solid mount rear end pic from a dragster that more clearly shows the mounting.

Again, note solid mount at top left

Note solid mount rear axle at upper left.

Page 2 Cal Hydro

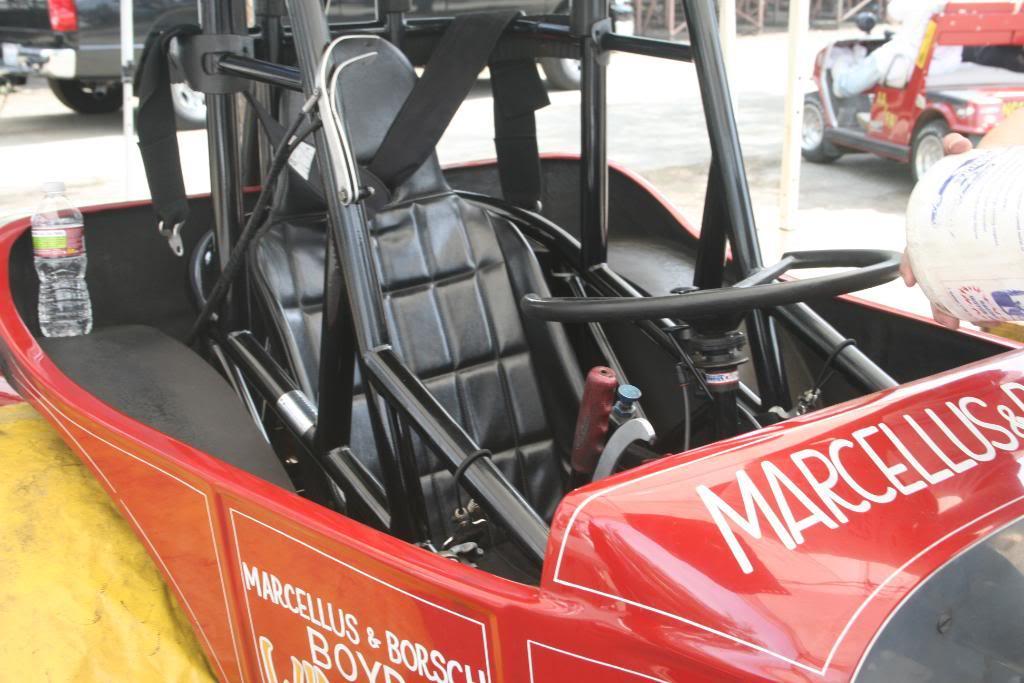

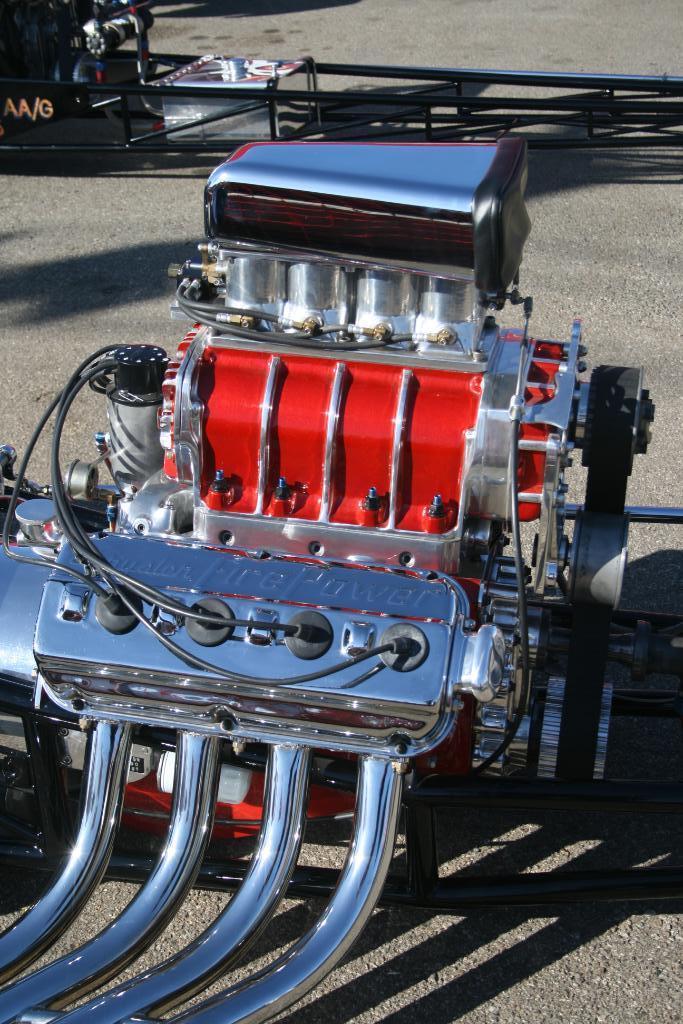

Jeez, my scans won't post!! The first one did. Anyway, here's some shots I took of the Winged Express. The first one is not mine.

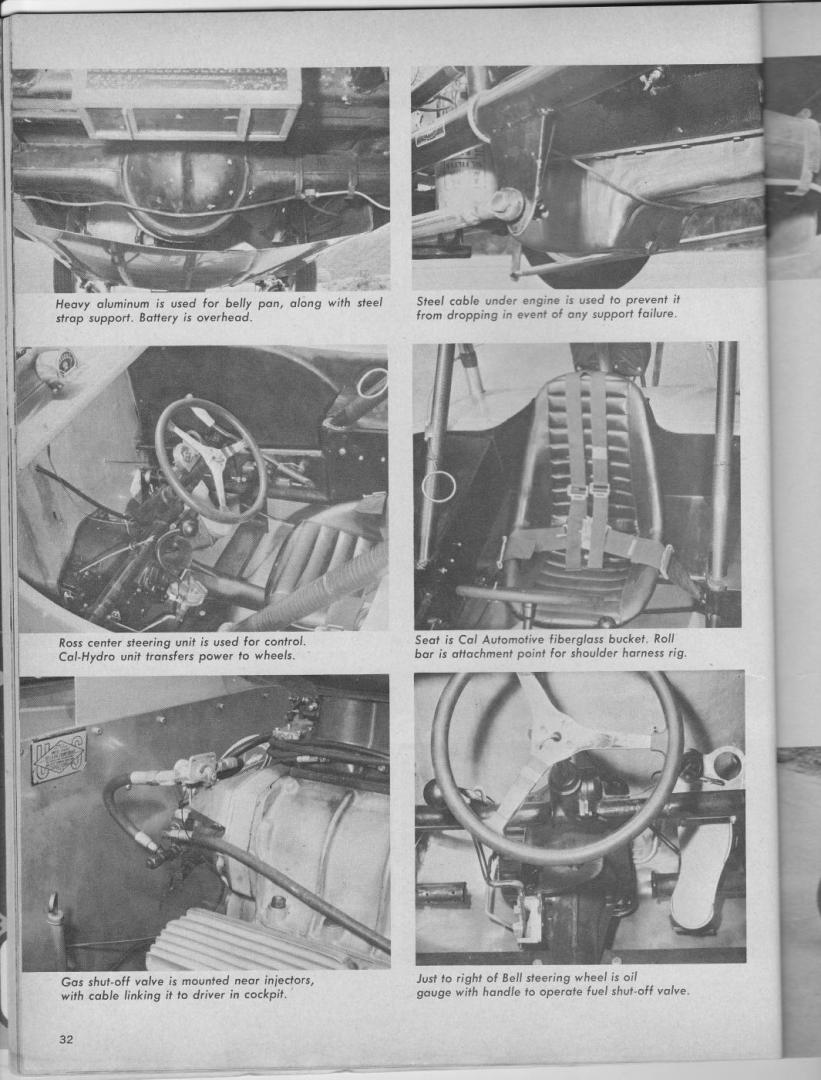

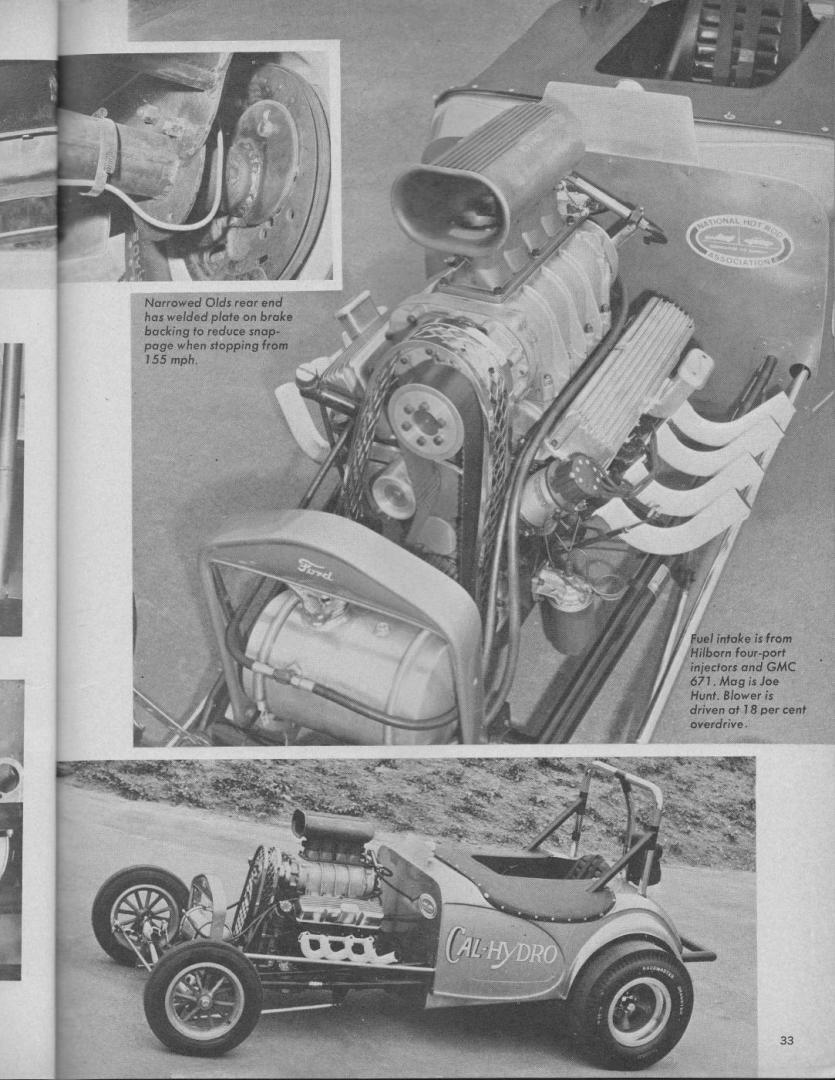

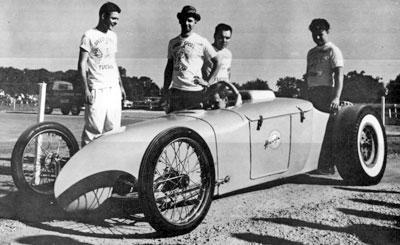

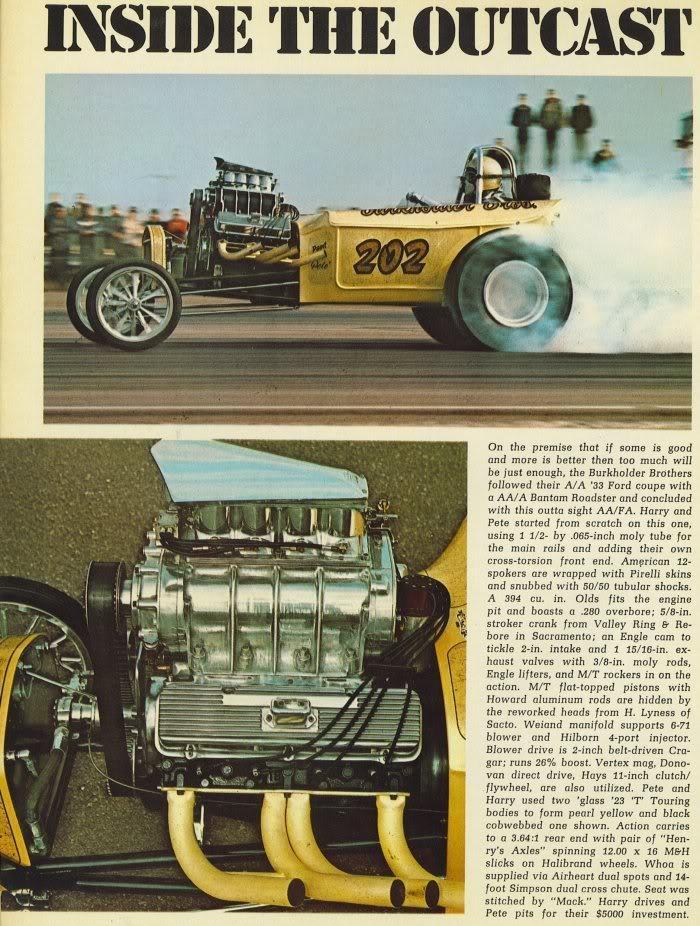

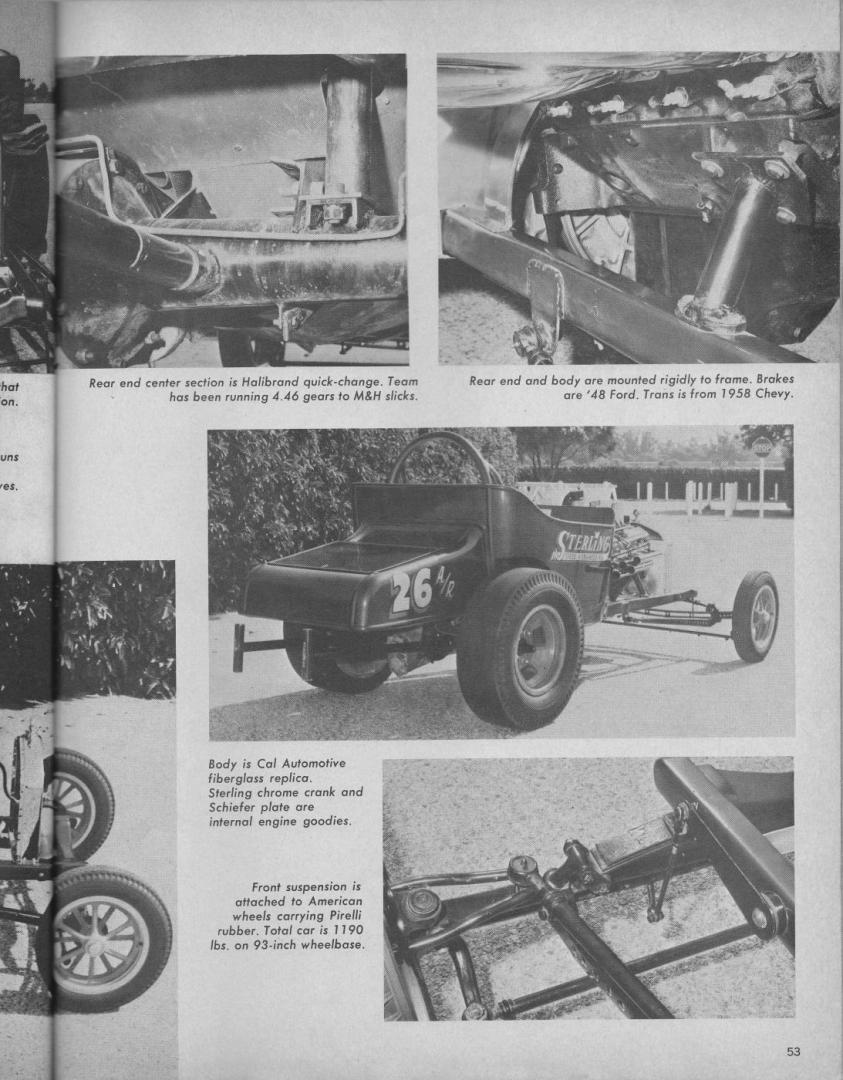

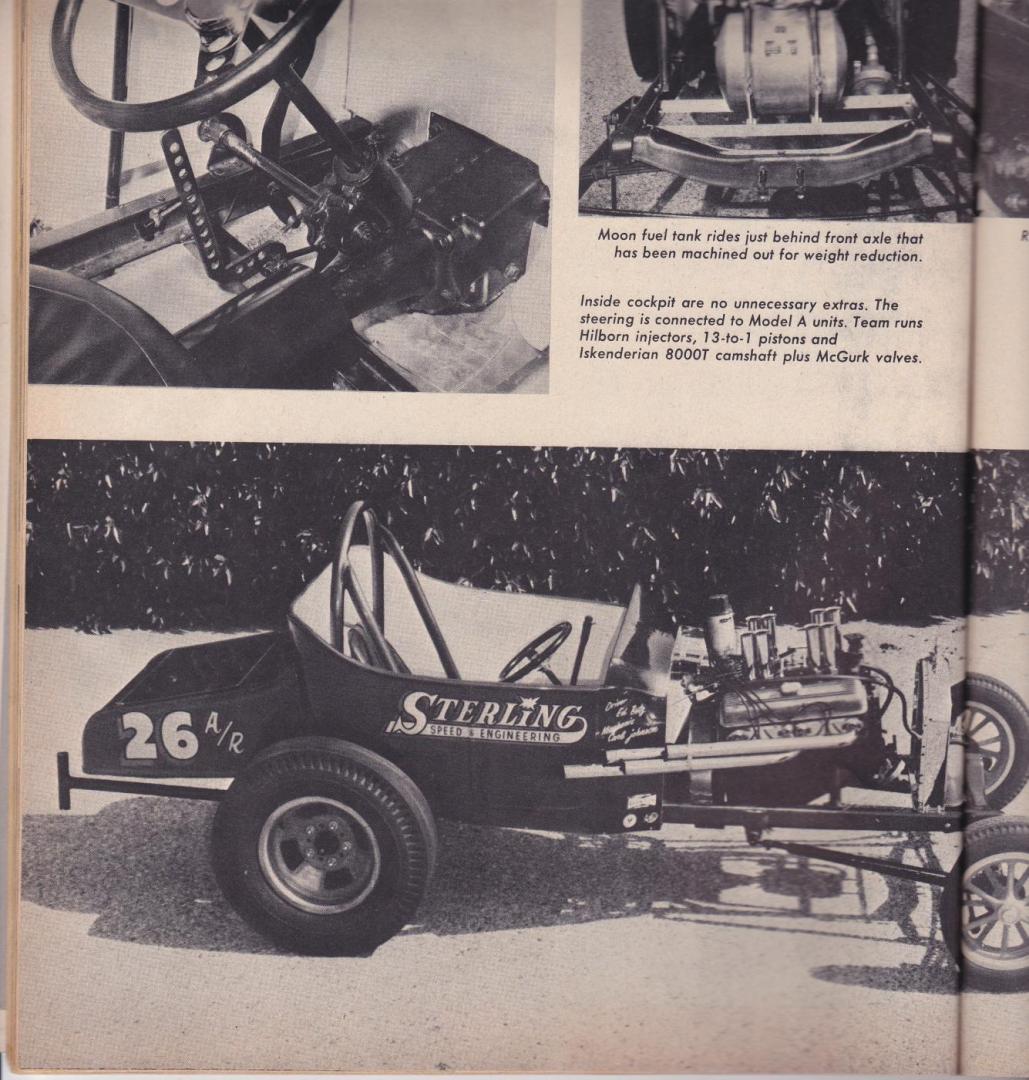

Ok guys, here's a start. First, COOL Bantam Michael! In a nutshell, both Fotki and Photobucket are ripping me off! I had free accounts, but now they "changed" the rules and want me to pay! I'm laid off and poverty stricken, so I need to copy about 7,000 pics from those sites to one of my computers! BUT, I realized these magazine scans from the Feb '65 issue of Popular Hot Rodding better illustrate your altered questions ( I hope). Solid mount rear ends are NOT directly welded to the chassis, there Are flanges ( one on each side ) welded to the axle housings that bolt to steel brackets or plates that ARE welded to the chassis. These scans are of two altereds, the Cal Hydro Bantam and the Sterling Engineering T. Study the scans, I think you can see what I mean. I have also scanned the interior shots. As an aside, note the "steel cable" that runs under the engines. This was to prevent the engine from dropping if ir blew. Most "hot" 60's cars used these cables. I also have several pics of the current Winged Express, but it's a little more complex than the 60's version. Here goes! Hope this helps and makes sense!
