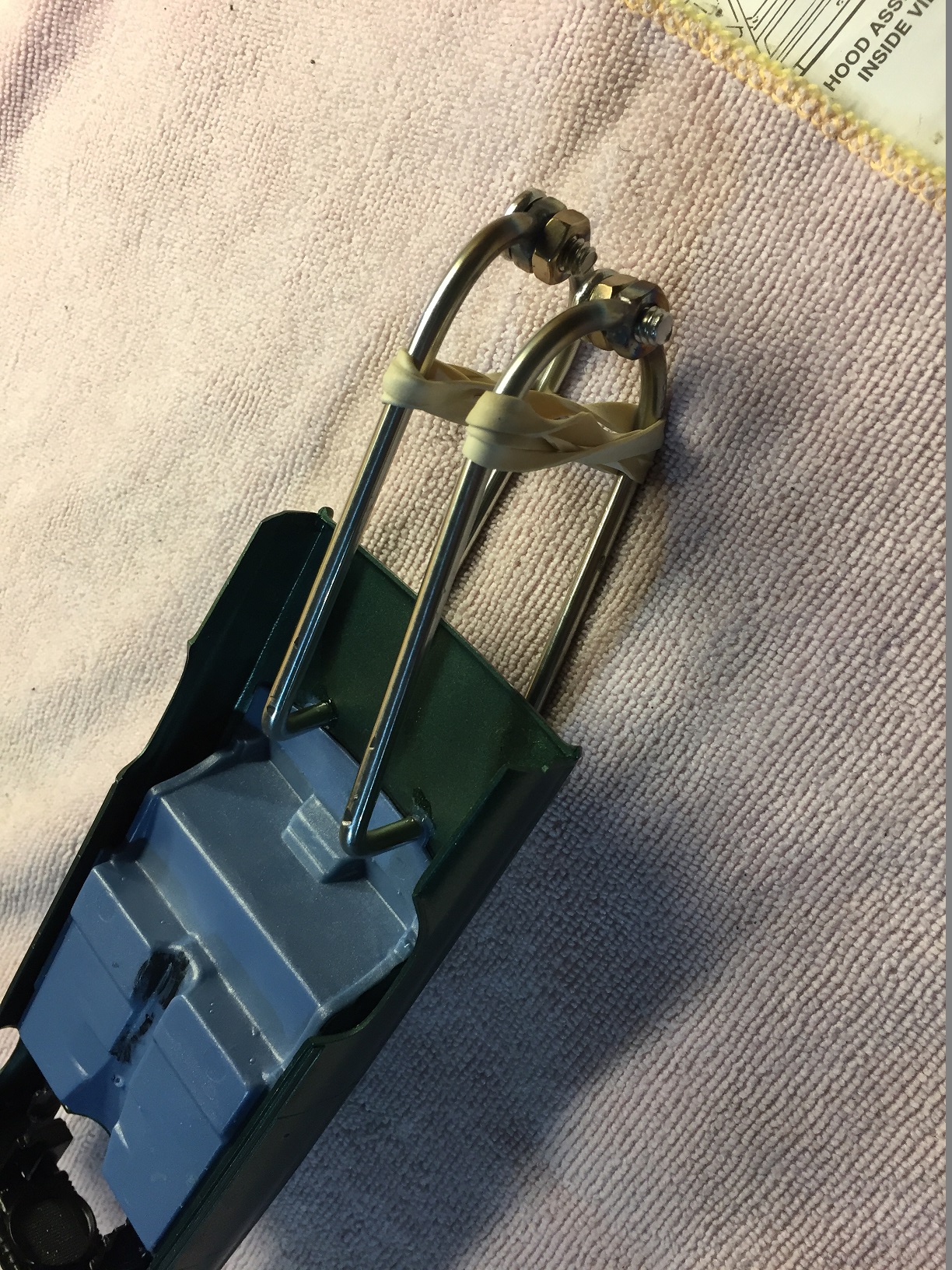

NOBLNG Posted January 7, 2018 Posted January 7, 2018 (edited) Here are a couple of long reach clamps I made to help glue the interior into this GTX. They are pretty handy and the clamping force can be varied by how many times the rubber band is wrapped around. I put some self adhesive gasket on one leg to protect the paint. Edited January 7, 2018 by NOBLNG picture change
BigTallDad Posted January 7, 2018 Posted January 7, 2018 Great idea; instead of multiple wraps of a rubber band, consider this: http://www.modelcarsmag.com/forums/topic/102170-variable-length-rubber-band/?tab=comments#comment-1429461
Jim N Posted January 9, 2018 Posted January 9, 2018 Pardon my ignorance, but what are the metal pieces and where did you get them? That is a clever way to clamp model parts.
peteski Posted January 10, 2018 Posted January 10, 2018 12 hours ago, Jim N said: Pardon my ignorance, but what are the metal pieces and where did you get them? That is a clever way to clamp model parts. Looks like he made it all himself. Welded some nuts to a bent steel rod. Pretty clever (if you have welding equipment handy).

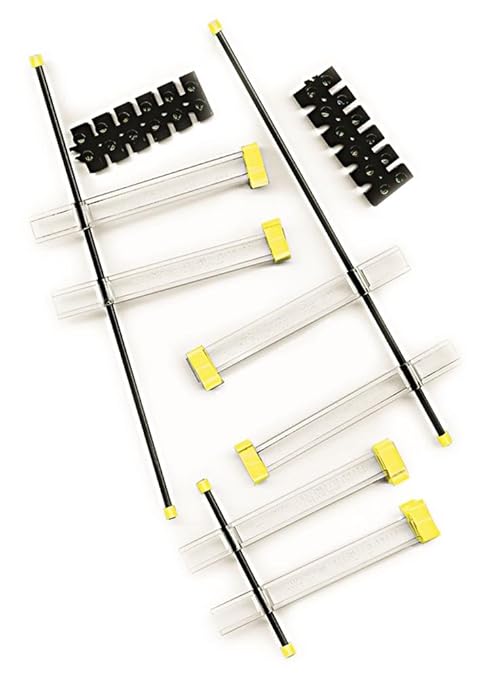

afx Posted January 10, 2018 Posted January 10, 2018 For those like me that are welding challenged I use these Berna clamps.
Jim N Posted January 10, 2018 Posted January 10, 2018 11 hours ago, peteski said: Looks like he made it all himself. Welded some nuts to a bent steel rod. Pretty clever (if you have welding equipment handy). Thanks for the information Peter. I took a closer look at the pictures and I'll bet you are right.

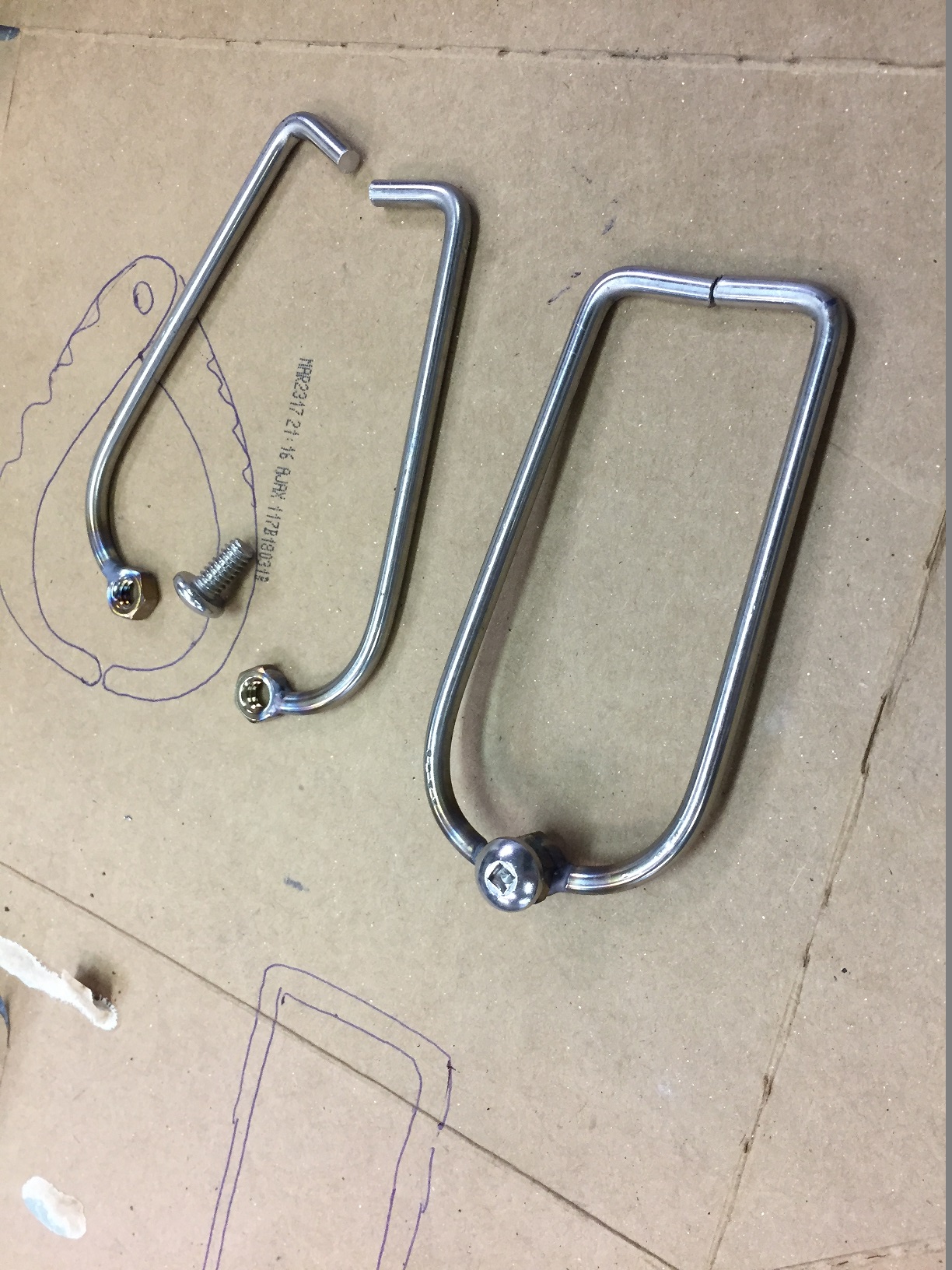

NOBLNG Posted January 12, 2018 Author Posted January 12, 2018 (edited) Yes, I made them myself. they are 3/16 stainless steel rod tig-welded to 1/4" s/s nuts. The inner nut is drilled through so the bolt only threads into the second one so it doesn't bind. They would not have to be stainless, I just had it on hand. At the top of the first picture you can see my sketch of my original idea. I was going to cut them from 1/8" aluminum with a jigsaw. They would not require any welding. Edited May 12, 2018 by NOBLNG
