Detailing a truck engine

[Vince66]

Help  I would like to detail some of my truck engine's but can't seem to find any offerings or articles.

Any helpful muchly appreciated thanks for your time.

Edited January 10, 2020 by NothingAsFineAsaW9

[landman]

See if you can't Google some of these.

[Jim B]

Here is a list of Ken Smith's truck detailing articles from Car Modeler: https://public.fotki.com/modeltrucks25thscale/model_magazine_articles/car_modeller/

Search around that Site.  There is a wealth of information there.

[Vince66]

Thanks guys I tried pulling up this info last night and no luck so it helps very much.

[Vince66]

One more stupid question I'll ask here instead of wasting another post.

I have the Italeri Western Star 5964SS kit and need to know what engine is in the kit and if it's a Cummins black or red top power plant in the kit or a driptroit series 60

[DRIPTROIT 71]

I had that kit when it first came out, but I swapped out the engine when I built it. It's definitely a Cummins and I think it's supposed represent a N14.

[Vince66]

So most likely a red top had an N14 in my FLC116 at Knight trans

Thanks black motor red top it is then.

Much appreciated.

[Force]

It's most likely meant to be a N14 but the engine is still the same NTC as they used in several other truck kits starting with the Freightliner FLC kit but without the aftercooler.
The NTC and N14 looks very different in the cylinder head area, especially the valve covers, but that didn't  Italeri bother to do anything about, they just modified the intake area and instead of a water to air aftercooler on the engine they did an air to air intercooler in front of the radiator and it's the only upgrade they did...so it's not a correct N14 by any means.
If you want a more correct N14 Auslowe has one.

Edited January 11, 2020 by Force

[Vince66]

Thanks force but build box stock being on a disability budget.

Appreciated though doesn't surprise me on the short cuts.

[chuckyr]

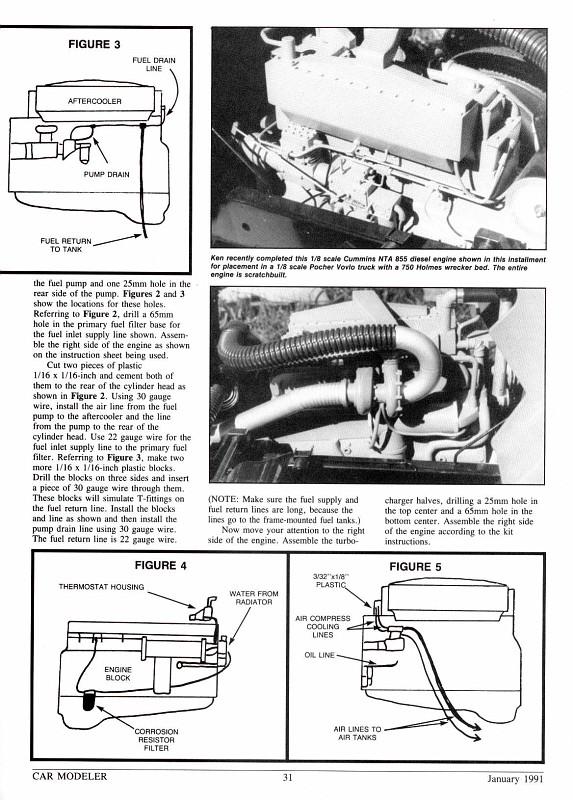

I uploaded those Ken Smith articles on the Dutch Model Club site years ago.  They were all scanned in.jpg format and should have no problems downloading..  A Freightliner FLC brochure I have, which mirrors many photographs and information from the Testors Freightliner FLC kit confirms that it is indeed a mid 1980s Cummins NTC350 engine.

When it comes to detailing engines, I always refer to brochures and repair manuals.  The internet is full information.  Every engine's set up is different based on the type of truck, the options, engine requirements, etc.  And of course the final reference is an actual engine in the type of truck you are building.

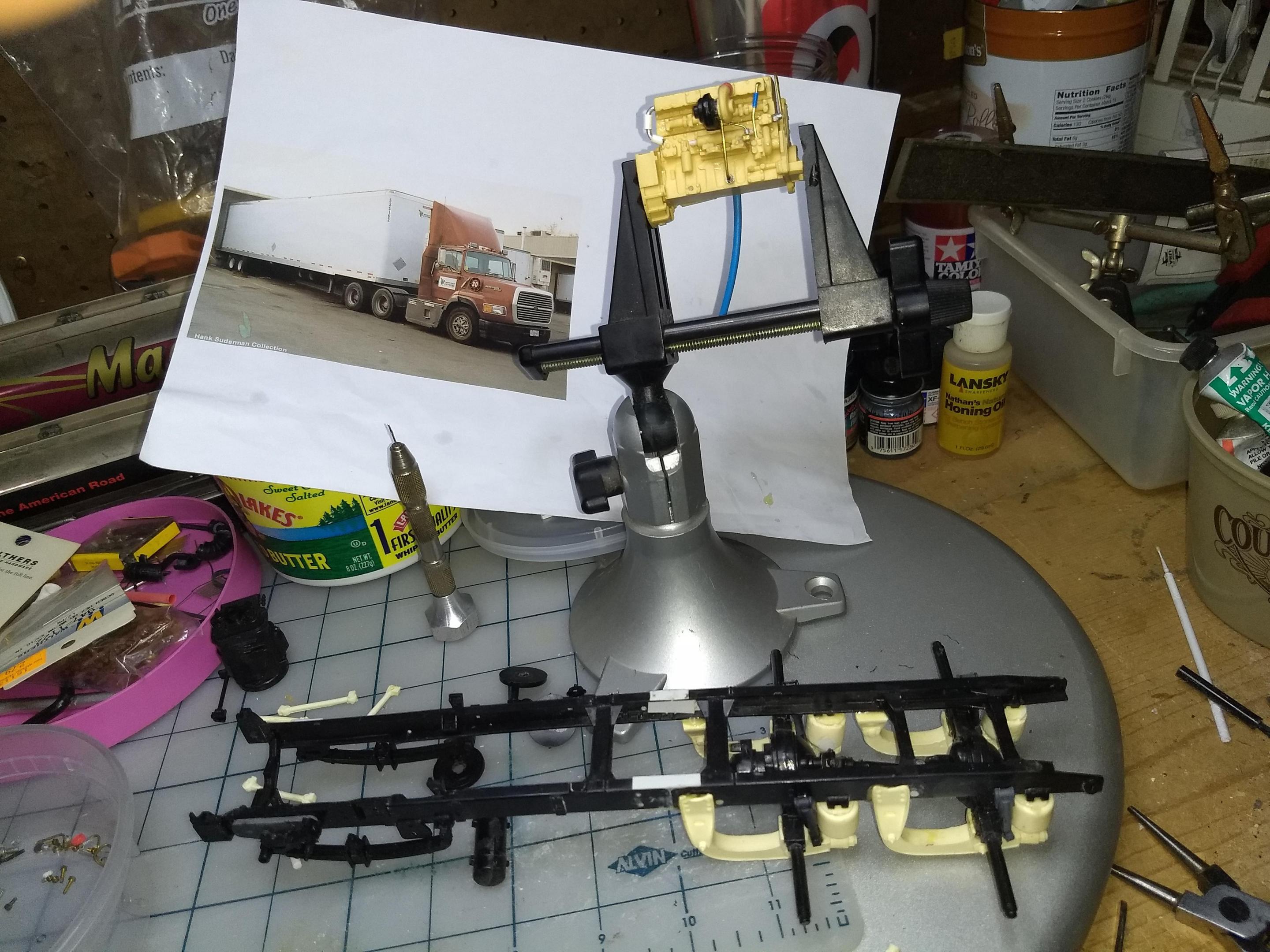

This is a photo of a R&C Resin Cummins  L10 I am detail for a Ford Aeromax 106.



[Vince66]

Thanks Chuck so basically era wise a beige motor .

[chuckyr]

Yes, Cummins Beige.

[Vince66]

Great shot Chuck thanks

[iamsuperdan]

I almost never use the kit instructions as reference when painting. Whenever possible, I'll search for pics of the real deal to try and match.

For some reason though, I can rarely find decent pics of truck engines! They're always dirty, caked with years of work.
