futurattraction Posted July 22, 2014 Author Share Posted July 22, 2014 Thanks Ray... More to come! Quote Link to comment Share on other sites More sharing options...
1 bad55 stan Posted July 22, 2014 Share Posted July 22, 2014 I just love looking at these updates.This is a fantastic wip.Carn't wait for the next update!!! Quote Link to comment Share on other sites More sharing options...
johnbuzzed Posted July 22, 2014 Share Posted July 22, 2014 Still watching, patiently waiting... Quote Link to comment Share on other sites More sharing options...
futurattraction Posted July 22, 2014 Author Share Posted July 22, 2014 Thank you Stan. I'm figuring to keep working on the oil pan and get the rest of the prep done for plug wires and will probably nurse a few other small projects along at the same time. John - patience is the name of the game... at least with me! Quote Link to comment Share on other sites More sharing options...
am73grand Posted July 23, 2014 Share Posted July 23, 2014 (edited) Scott, your work on this is amazing. When it's done it's gonna look like someone shrunk the real one!!! Edited July 23, 2014 by am73grand Quote Link to comment Share on other sites More sharing options...
futurattraction Posted July 23, 2014 Author Share Posted July 23, 2014 I hope so, Ron... Thanks for stopping by. Quote Link to comment Share on other sites More sharing options...
Dragfreak Posted July 23, 2014 Share Posted July 23, 2014 The engine looks phenomenal, nice work Scott! Quote Link to comment Share on other sites More sharing options...
futurattraction Posted July 23, 2014 Author Share Posted July 23, 2014 Thanks Jason! I spent a lot of time modifying an AMT Boss 302 block to convert it into a 351C-inspired block. I added the extended timing chain housing, water jacket plugs, scallop around where the distributor goes. I also added the cut-out around the fuel pump block off plate and reshaped the intake manifold mounting surface to look like the Cleveland intake. Also added a bunch of detail to the ends of the cylinder heads. As you'll see (if you haven't already), I've also got scratch-built Moroso valve covers for it... I'm trying to decide how I want to finish a set for this build... Quote Link to comment Share on other sites More sharing options...
tyrone Posted July 24, 2014 Share Posted July 24, 2014 Super cool updates Scott... your doing an excellent job... Quote Link to comment Share on other sites More sharing options...
fractalign Posted July 24, 2014 Share Posted July 24, 2014 Wow this looks really cool. I will have to back track on this one, because I only just found it. Quote Link to comment Share on other sites More sharing options...
futurattraction Posted July 24, 2014 Author Share Posted July 24, 2014 Thanks, as always, for looking in Tyrone. I ended up making the extension tubes out of .042" OD stainless tubing and am adding RBM nuts to the end of them to simulate part of the fittings. They'll slip fit over some .033" tubing that's inserted into the pan. My RBM hose ends can then slide right into the extension tubes and be really secure. Hopefully I'll have pics up of that before too much longer... Thank you, Robert. Feel free to look through the thread. There have been some stops and starts, burps, etc., along the way, but I'm making progress - albeit it slow... Quote Link to comment Share on other sites More sharing options...

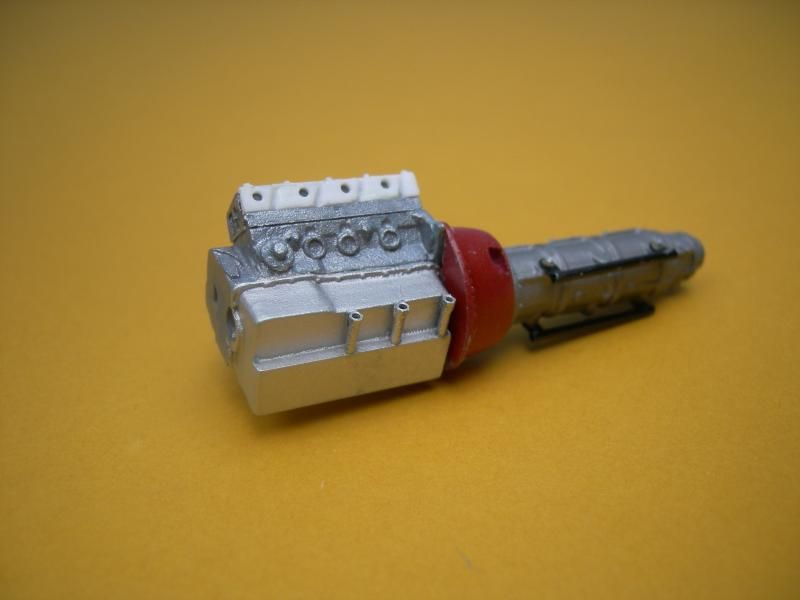

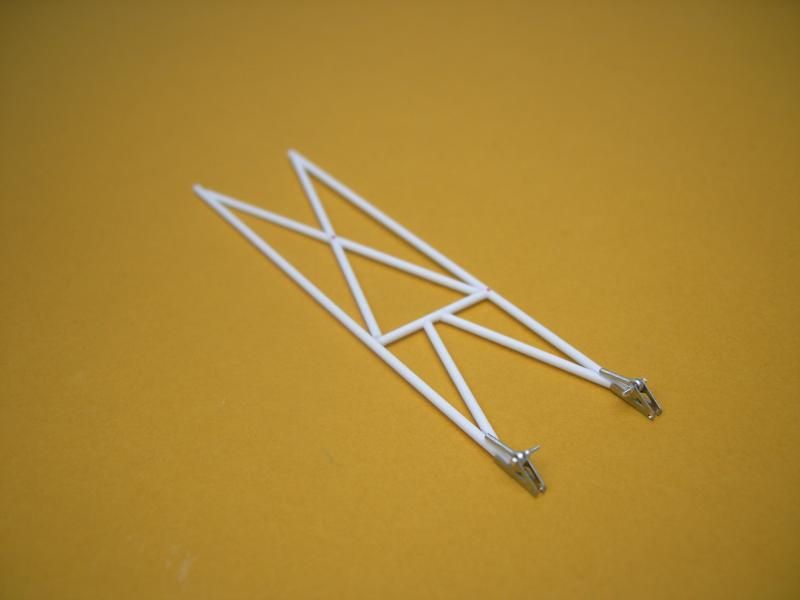

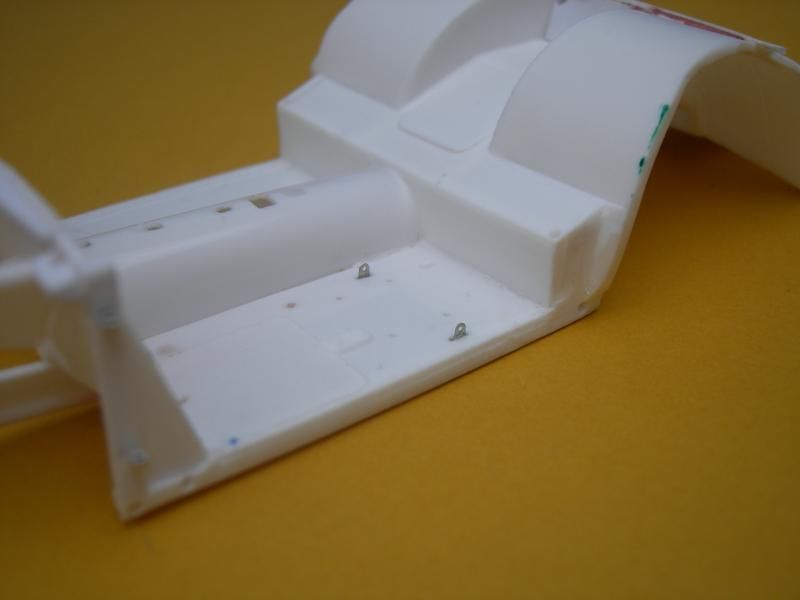

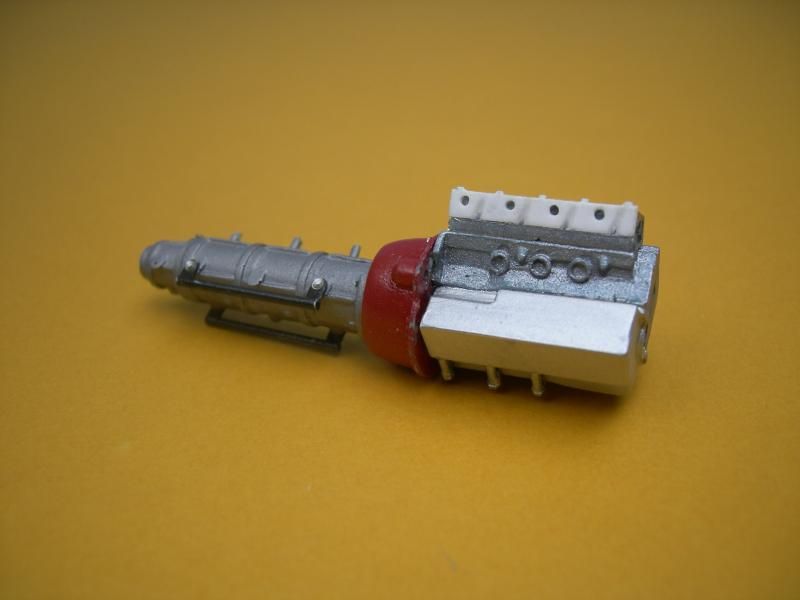

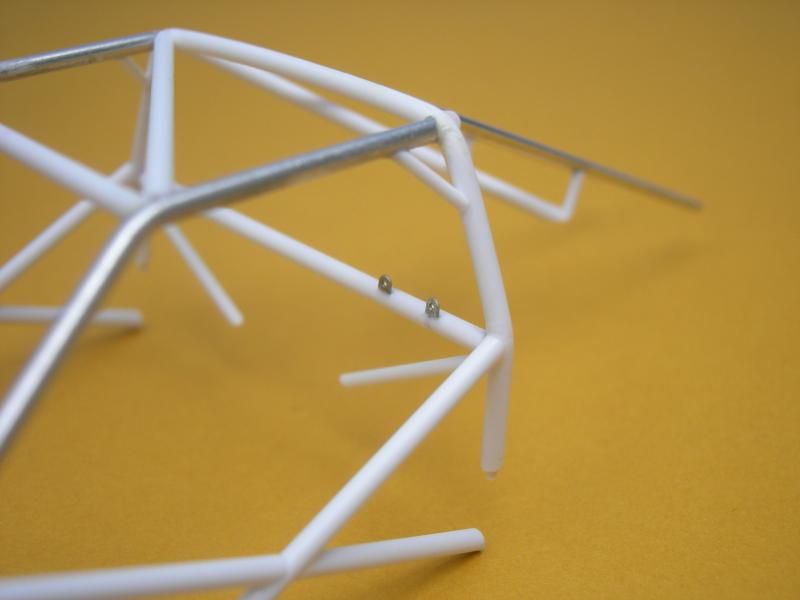

futurattraction Posted August 18, 2014 Author Share Posted August 18, 2014 Remind me never to jump the gun and glue things together that shouldn't be... LOL It was a real pain to modify the dry sump on my engine with the pan attached. I finally accomplished it, but it would have gone faster and looked a bit better if I'd exercised a bit more wisdom. Anyway, here are the progress pics with the extended sump and pickup tubs attached. I also made a bit of progress on getting racing harness mounting tabs and set braces added to the chassis. I also got started on the wheelie bars. I'm using one of my sets of PE wheel housings. I'm using RBMotion #1504 rod ends for the upper links and some way or other drilled out the eye on two of them and added stainless steel sleeves to size the hole down to .020". There isn't enough material around the housing hole to go any larger than that. The rod is .050" Plastruct. The #1504 rod ends have a .033" shank, so I made a fixture out of stainless steel tubing so I could drill centered holes in the rod. Holes are approximately .050" deep so the rod ends will have decent engagement inside the rods. The upper bars must be bent slightly so they'll clear the underside of the chassis. I haven't gotten that far yet. Quote Link to comment Share on other sites More sharing options...
1 bad55 stan Posted August 18, 2014 Share Posted August 18, 2014 Just awesome Scott!!! Quote Link to comment Share on other sites More sharing options...
Dragfreak Posted August 18, 2014 Share Posted August 18, 2014 You leave me speechless with every update Scott, keep it going! Quote Link to comment Share on other sites More sharing options...
Nitrozilla Posted August 18, 2014 Share Posted August 18, 2014 Wowza Scott, that's jaw droppin' awesome. I like it a lots. Quote Link to comment Share on other sites More sharing options...
ClayK Posted August 18, 2014 Share Posted August 18, 2014 I love your work Scott. You have such patience and dedication. Fantastic stuff! Quote Link to comment Share on other sites More sharing options...
Mooneyzs Posted August 18, 2014 Share Posted August 18, 2014 Scott... I admire your attention to detail on the little things. You remind me alot like myself striving to capture everything we can on our builds. This build is coming along great and I look forward to more. Awesome work my friend. Quote Link to comment Share on other sites More sharing options...
Force Posted August 18, 2014 Share Posted August 18, 2014 Very nice Scott. Quote Link to comment Share on other sites More sharing options...
Ira Posted August 18, 2014 Share Posted August 18, 2014 Great Build! Real Nice Work... Quote Link to comment Share on other sites More sharing options...
tyrone Posted August 18, 2014 Share Posted August 18, 2014 Looking good Scott... you've got me wanting to re-do my wheelie bars now...lol.. Quote Link to comment Share on other sites More sharing options...
futurattraction Posted August 18, 2014 Author Share Posted August 18, 2014 Stan - Thanks bud! I appreciate it, Jason. You do some really nice work yourself! There's more coming, so hang onto that jaw... LOL Thanks so much Clay. I work at the speed of a glacier - maybe slower - so I guess I better be patient! haha Chris - yes, we both have sort of a penchant for the detail, don't we. It can be a blessing and a curse. I can't wait to get some new photo etch in. I've got a handful of motor plates geared toward fitting this chassis and engine combo, including a dry mount pump mounting provision on the bottom of the plate. I'm very curious how all that will fit together. Thanks much, Håkan. I appreciate it, Ira. Tyrone - Sorry bud. I didn't mean to mess things up for you. LOL Quote Link to comment Share on other sites More sharing options...
Jade043 Posted August 18, 2014 Share Posted August 18, 2014 Man I can't wait to see this finished it's going to look amazing Quote Link to comment Share on other sites More sharing options...
am73grand Posted August 19, 2014 Share Posted August 19, 2014 Scott this is looking awesome!!!!! Quote Link to comment Share on other sites More sharing options...
futurattraction Posted August 19, 2014 Author Share Posted August 19, 2014 You and me, both, Aaron! Hopefully I can execute everything in the way I want to... Thanks Ron! Quote Link to comment Share on other sites More sharing options...
Mooneyzs Posted August 19, 2014 Share Posted August 19, 2014 Scott... you couldn't be more correct about it being a blessing and acurse focusing on these little details. Don't stop what you are doing, I have no doubts that you will be able to execute everything the way you want to. I know you have a vision in your mind hoe you want this to turn out and I know you will be able to achieve it. I am the same way and feel i have been in a slump with my funny car the past few weeks. I need to get back to the bench and get that fire back. I am looking forward to seeing you get the new photo-etch. I am sure it will fit and look great. Keep up the encouraging work here. Quote Link to comment Share on other sites More sharing options...
