fractalign Posted October 18, 2014 Author Posted October 18, 2014 Hey Guys. Just a quick update, A work commitment kept me from getting anything done today. I did go down the garage and get some more shots. With the C pillars done I will need to focus on getting the rest of the body done. I plan to get some more measurements tomorrow around the parcel shelf and rear window and hopefully begin to piece the rest of this area together.

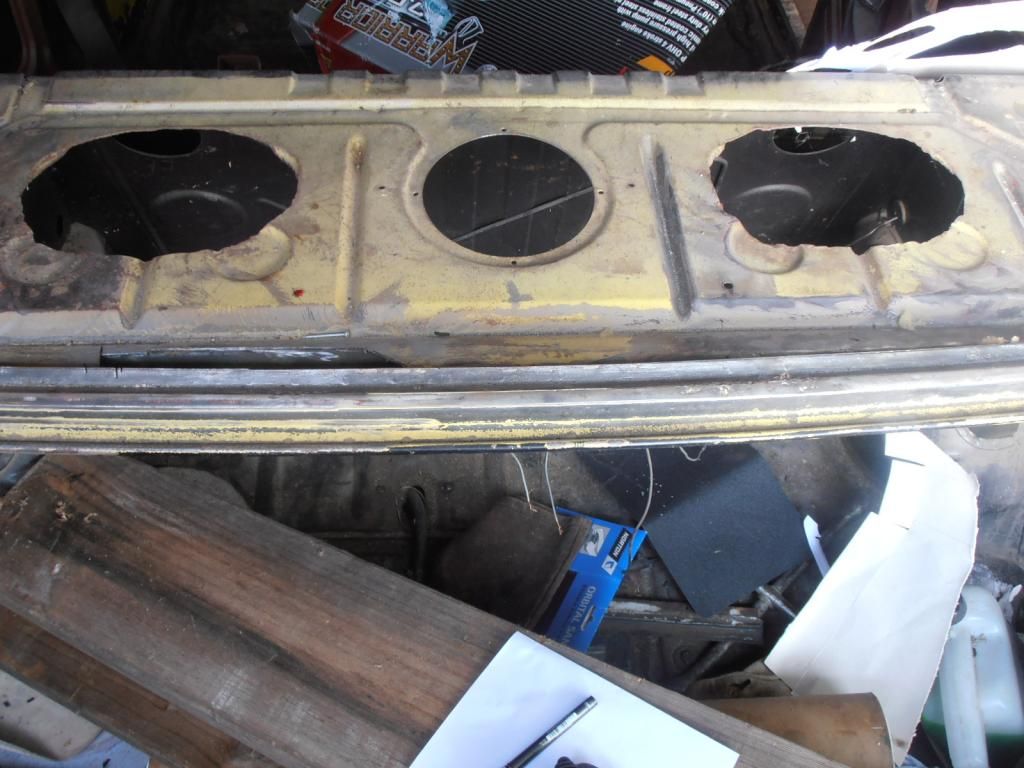

fractalign Posted October 19, 2014 Author Posted October 19, 2014 Hey guys. I started work on the parcel shelf today. Here is a shot of the 1:1.

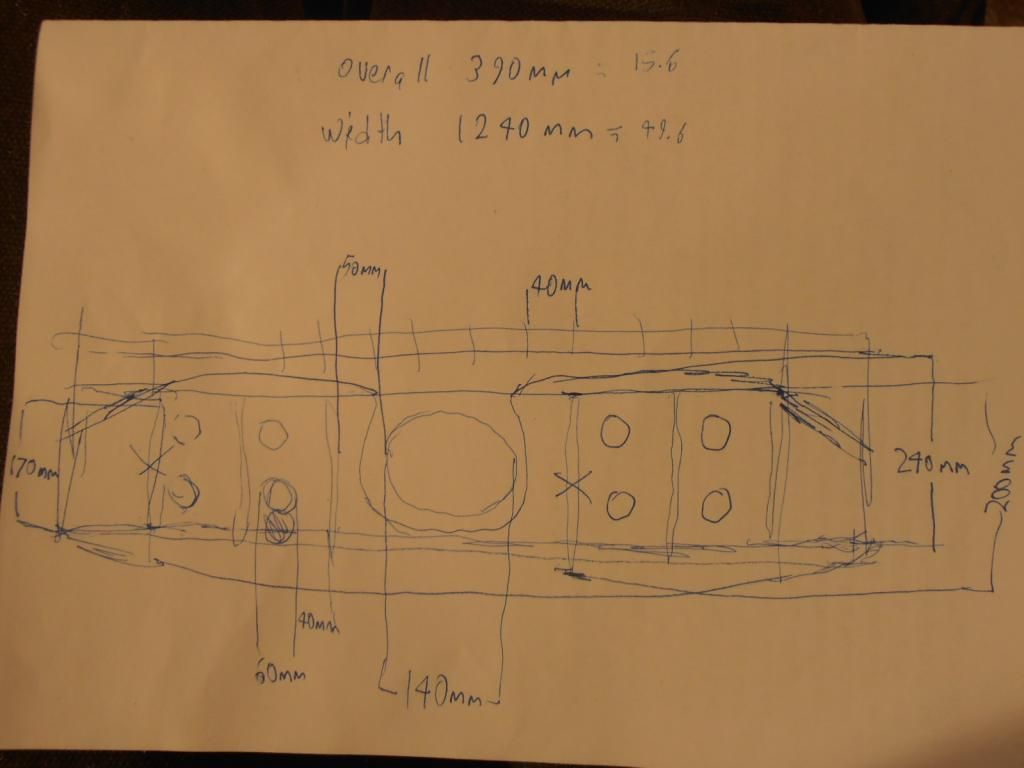

fractalign Posted October 19, 2014 Author Posted October 19, 2014 (edited) I made up a basic sketch of the parcel shelf and then got most of the measurements from the 1:1. Its a fairly complex structure with various recesses and holes. It will be done in two layers. One thing I should add is that the two oval holes either side of the centre hole are not factory based. They were cut out "correction butchered out" by the previous owners for speakers. Because I plan to restore the 1:1 I will need to repair this area. In the sketch I Have corrected this area. Edited October 19, 2014 by fractalign

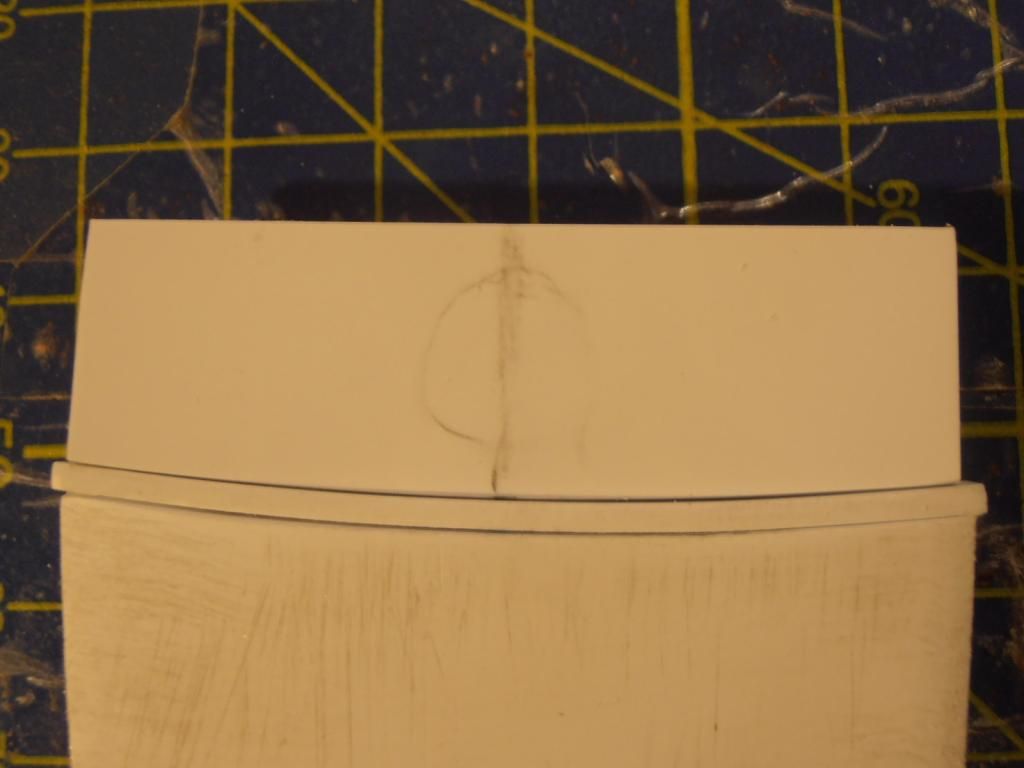

fractalign Posted October 19, 2014 Author Posted October 19, 2014 I am off to simple start with the parcel shelf. I will begin drilling the holes tomorrow.
spotarama Posted October 19, 2014 Posted October 19, 2014 (edited) what, you're not going to replicate the butchered speaker holes? there wouldn't be a torana out there that doesn't have those.....on a related matter, holes like those will fail you on a RWC down here (victoria) for compromising structural integrity and you'd have to have them repaired and engineer certificated to get the vehicle registered.just another way to get old cars off the road or genuine safety matter ? Edited October 19, 2014 by spotarama
fractalign Posted October 20, 2014 Author Posted October 20, 2014 And here I was thinking NSW had the most stringent engineering laws. Having said that, the holes should never have been cut and it is definitely something that I will be repairing a soon as a can find a suitable replacement panel.
fractalign Posted October 20, 2014 Author Posted October 20, 2014 Hey Guys. I was getting ready to cut the holes for the parcel shelf when I realised I needed some more measurements. So down too garage I went. Here are the extra measurements.
fractalign Posted October 20, 2014 Author Posted October 20, 2014 With measurements taken I was keen to get the centre hole drilled so I used the biggest drill bit I could find and made the hole about 7.8mm.
fractalign Posted October 20, 2014 Author Posted October 20, 2014 I had no idea that the actual hole was only 5.6 mm until I scaled down the full size measurement. With the hole to big for the parcel shelf I came up with an idea.

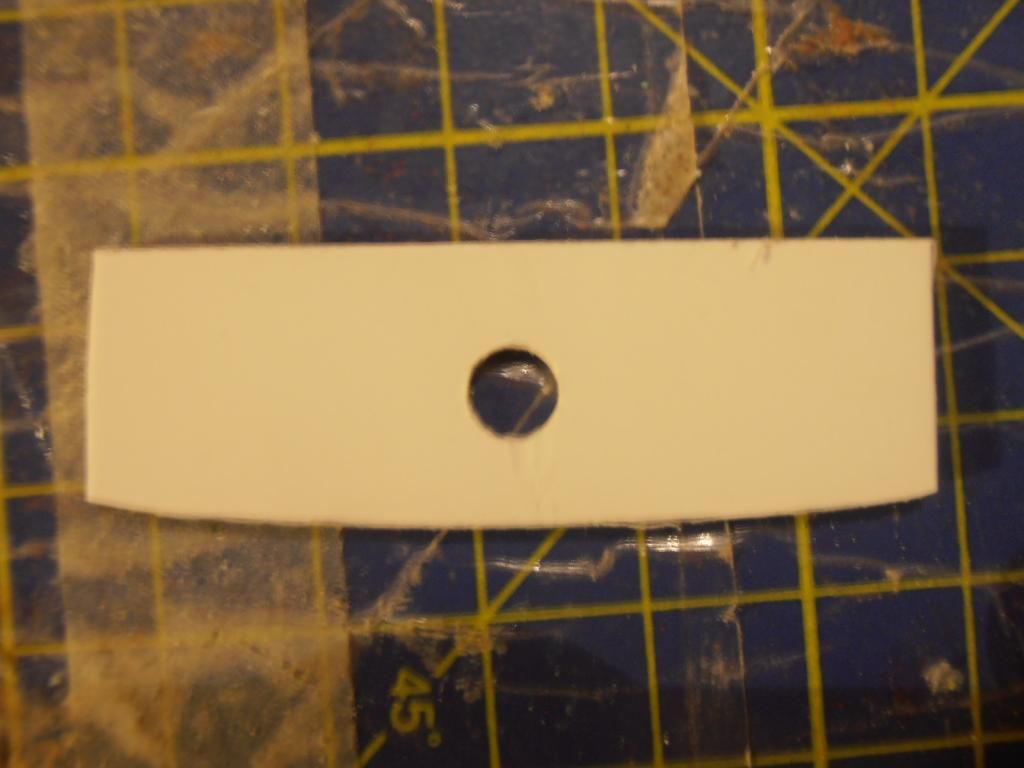

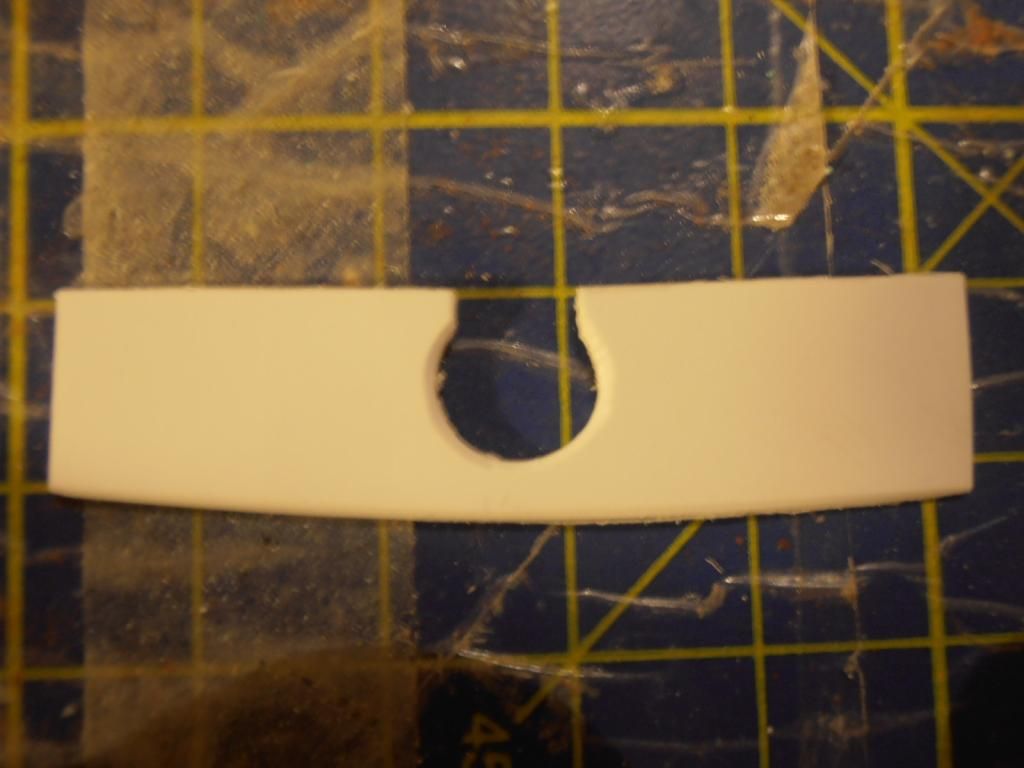

fractalign Posted October 20, 2014 Author Posted October 20, 2014 Here is what I did. This will be the second layer of the parcel shelf. So for once I actually turned a mistake into a victory.

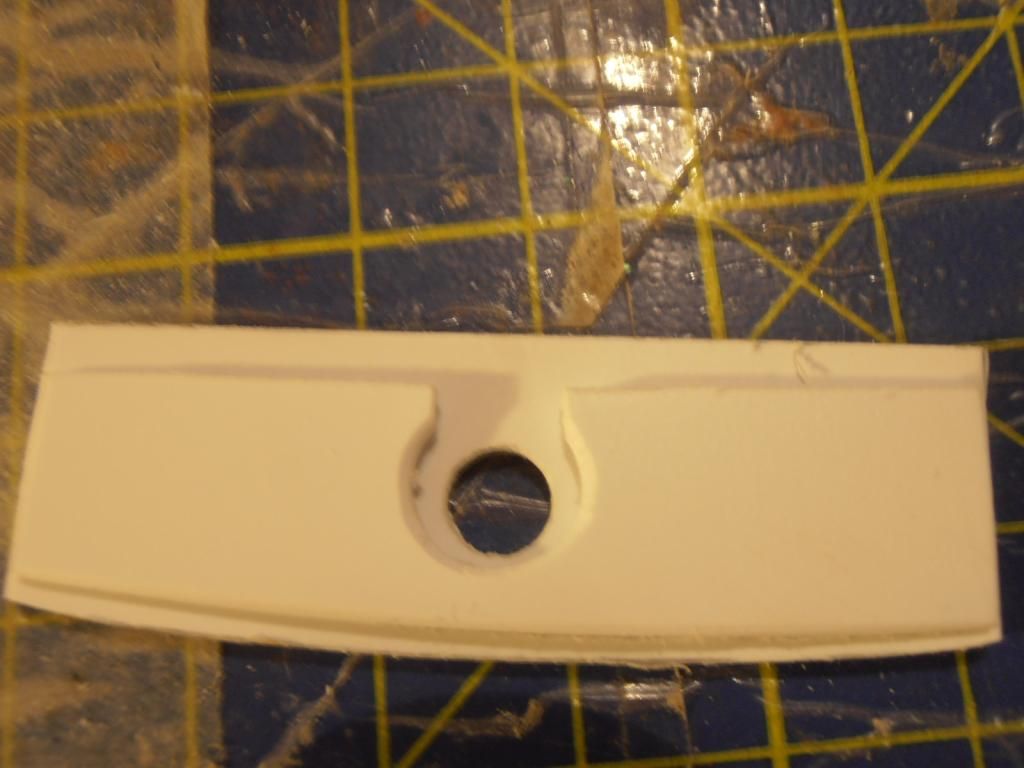

fractalign Posted October 20, 2014 Author Posted October 20, 2014 The new parcel shelf with the forrest diameter hole was cut.
fractalign Posted October 20, 2014 Author Posted October 20, 2014 Here is how they should eventually look minus the ugly speaker holes of course. Next task will be to get more measurements for the upper layer and begin making the recesses.
fractalign Posted October 21, 2014 Author Posted October 21, 2014 (edited) Thanks for compliment Jim. Now before anybody get too excited I should let you know that I won't be posting anything up for at least the next week. I am going away on Friday and I will need to start preparing for the weekend, to top that off, I have come down with something. I will be trying to get as much rest as I can over the next few days to try and re-charge. Sorry about the inconvenience but these things happen. Cheers ! Edited October 21, 2014 by fractalign
fractalign Posted November 3, 2014 Author Posted November 3, 2014 Hey Guys. First post in nearly a fortnight, I was hoping to be well and truly back into the build but serious car accident a couple of days after the last post has left me with a broken wrist. I am awaiting surgery, so all in all a serious stuff up, ps.....one hand typing is no fun either. I am not sure when I will recommence the build but I will let you know when, hopefully sooner rather than later, the right hand is fine but if the arm ends up in a cast things will be very difficult. Sorry for the stuff around guys, I really appreciate all your support and I hope that I can get back into the build once my wrist begins to heal. Cheers !
66belair Posted November 3, 2014 Posted November 3, 2014 Your work is to me is beyond belief! Best wishes for a speedy recovery.
TFchronos Posted November 3, 2014 Posted November 3, 2014 Take your time recovering, we'll all be waiting here patiently. As Mike said, best wishes on your recovery.
codea Posted November 3, 2014 Posted November 3, 2014 Bugger mate. Sorry to hear that. Worst thing that you can take from a modeller is the ability to model, especially when he can't do much else. Hope the pain can be managed with amber medicine and I hope you make a speedy recovery.
fractalign Posted November 7, 2014 Author Posted November 7, 2014 Thanks for the kind words guys, I am looking forward to getting back into the build as soon as a I can. Cheers !

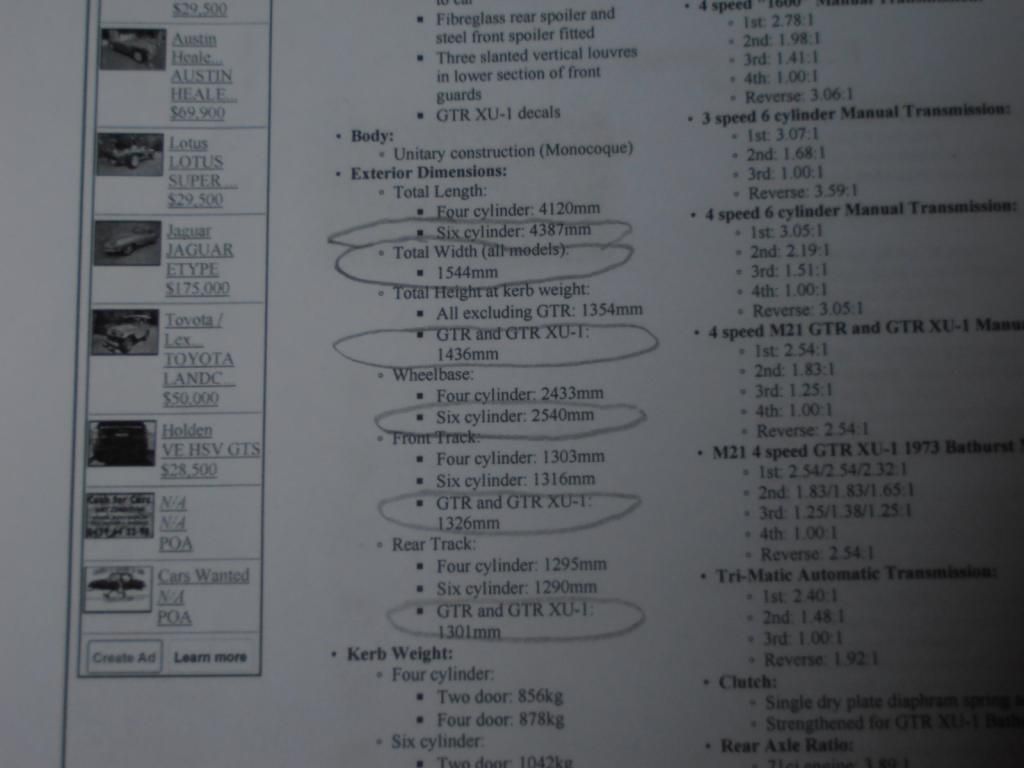

fractalign Posted November 20, 2014 Author Posted November 20, 2014 Hey Guys. After nearly a month away from it I decided to get back into the build. My arm is still in cast but the next but with the next check up still a month away I can't wait any longer. I have already lost a month and I don't on losing another. With move movement of my right hand somewhat restricted I am finding most tasks a challenge. The last thing I was working on was the parcel shelf, that is on hold at the moment duh to its complex structure. Instead I have decided to focus on the body again. A couple of weeks ago I was looking for parts for my Torana the 1:1 version and I came across this. Titled "Torana Specifications" It had the important measurements for each model type. I circled the ones relevant to the XU-1 since my own version is only a standard model. This was also an opportunity to the cross reference my own measurements.

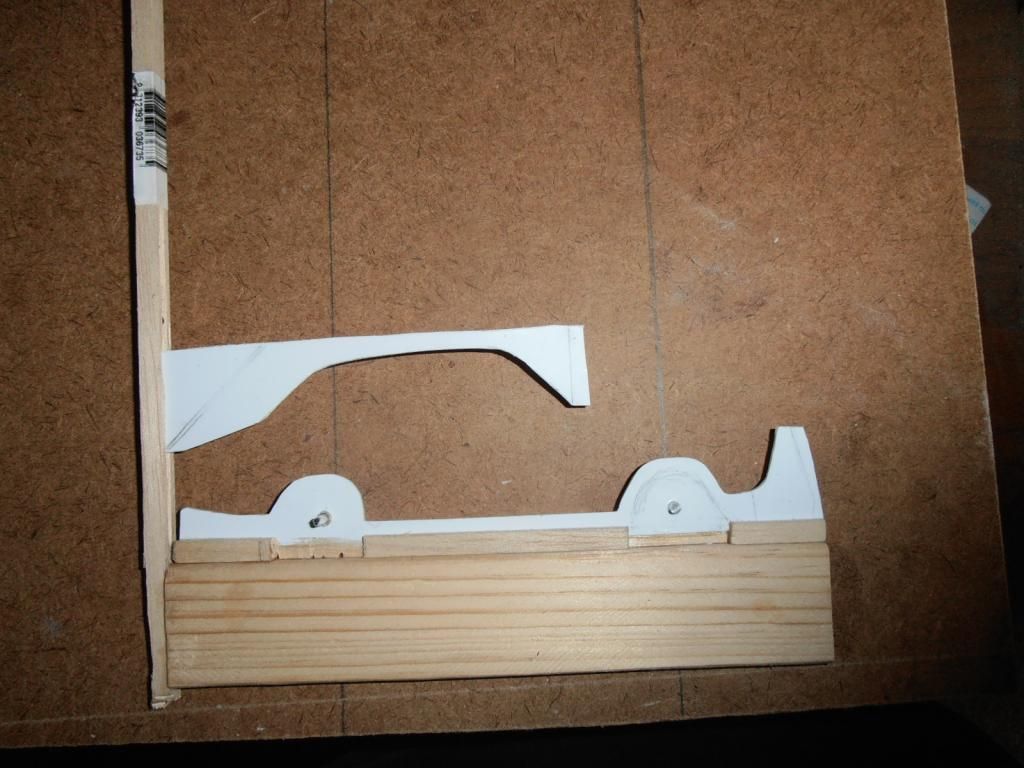

fractalign Posted November 20, 2014 Author Posted November 20, 2014 With the wheelbase measurements worked out I decided to put this together. The lower contour gauges for the under side had the side cut away for the addition of wheels. A piece of timber was added top the bottom edge to reinforce the gauge. Another piece of ply was added to the back and a slat was cut to allow the upper count our gauge to be added. I also cut holes where the wheelbase was measured from and added axles for the wheels.

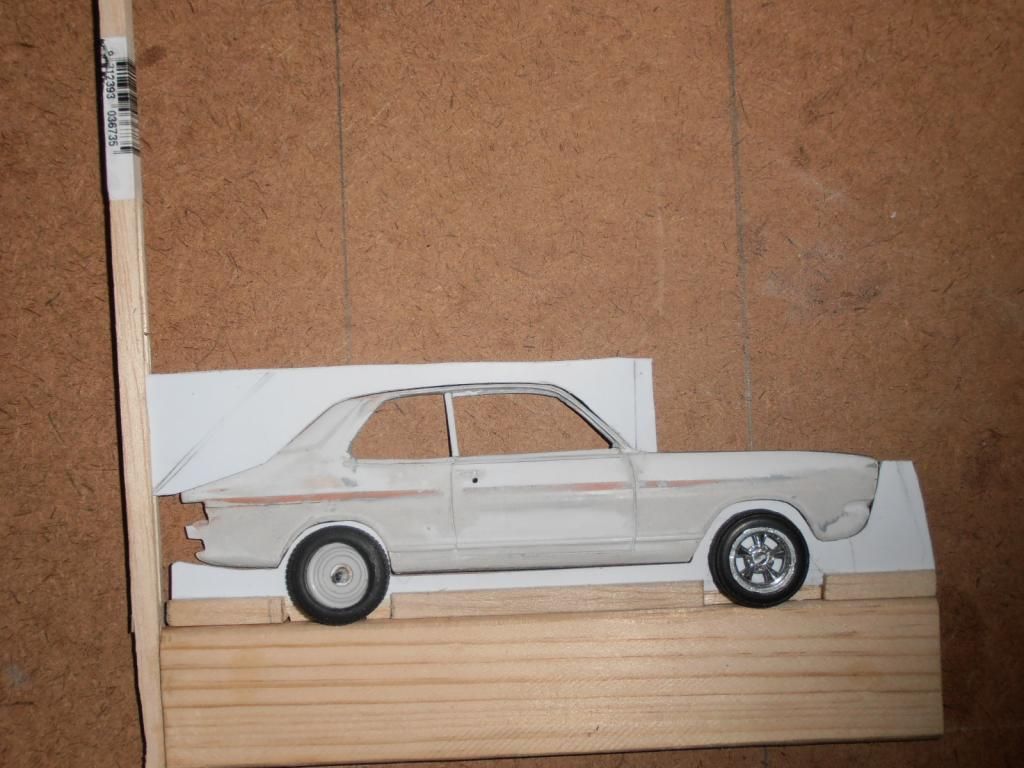

fractalign Posted November 20, 2014 Author Posted November 20, 2014 (edited) Here is how its looks with the body and wheels added. Once all the parts of the contour gauge are added the unit will surround the whole body and because the wheelbase is already set up with the axles in place, the other body side will be able to resemble this one. The next task will be to finish the windscreen/hood contour gauge and add it. Edited November 20, 2014 by fractalign
