Speedfreak Posted September 14, 2014 Share Posted September 14, 2014 Great job Tim, can't wait for more. This car is a beauty. Quote Link to comment Share on other sites More sharing options...
Nitrozilla Posted September 15, 2014 Share Posted September 15, 2014 I love seeing anyone have success after my Hawaiian disaster. That trunk is a beautiful addition to what will be a show stopping build. Quote Link to comment Share on other sites More sharing options...
Codi Posted September 16, 2014 Author Share Posted September 16, 2014 Thank you for the comments guys. As an fyi, I chose to make the trunk lid out of brass as the piece I cut out had some very subtle compound curves in it. I thought it would be impossible to keep a reasonable gap on the lid when removing it. I try for tight tolerances on door / trunk openings and it's easier to fab out of brass when necessary to meet that goal. Still took me 3+ hours to do that seemingly simple task. I have a new found appreciation for the beautiful brass tubs (and other brass work) on Clay's mustang. Cheers, Tim Quote Link to comment Share on other sites More sharing options...
ClayK Posted September 16, 2014 Share Posted September 16, 2014 Thanks TIm...the trunk looks great. Sometimes brass is the perfect material for things like that. You just can't work with plastic the same way and get as good of a result. Keep it up! Quote Link to comment Share on other sites More sharing options...
Codi Posted September 17, 2014 Author Share Posted September 17, 2014 Thanks Clay, as you well know, I could never replicate the lid in plastic...I keep staring at your tubs and just smile at the effort you must have put into them. Kind of a quiet week for building on the Henry as I just installed the DRO yesterday on the mill. Took way too long I think to do what seemed a straightforward task. It was me, not Sherline I assure you. Thankfully, I was fortunate enough to meet someone from this forum that really knows their way around milling and machining and he's offered some one on one time to help me learn my way around. I am very excited about the opportunity to learn from an experienced machinist and all around good person. Cheers, Tim Quote Link to comment Share on other sites More sharing options...
mnwildpunk Posted September 18, 2014 Share Posted September 18, 2014 I only can think of one word phenominal Quote Link to comment Share on other sites More sharing options...
MarkL Posted September 20, 2014 Share Posted September 20, 2014 My mind is blown! Quote Link to comment Share on other sites More sharing options...
rustybill1960 Posted September 20, 2014 Share Posted September 20, 2014 Tim your craftsmanship shows in the build Thank you for sharing here with us It truly is an inspiration! Looking forwar to more soon Later Russ Quote Link to comment Share on other sites More sharing options...

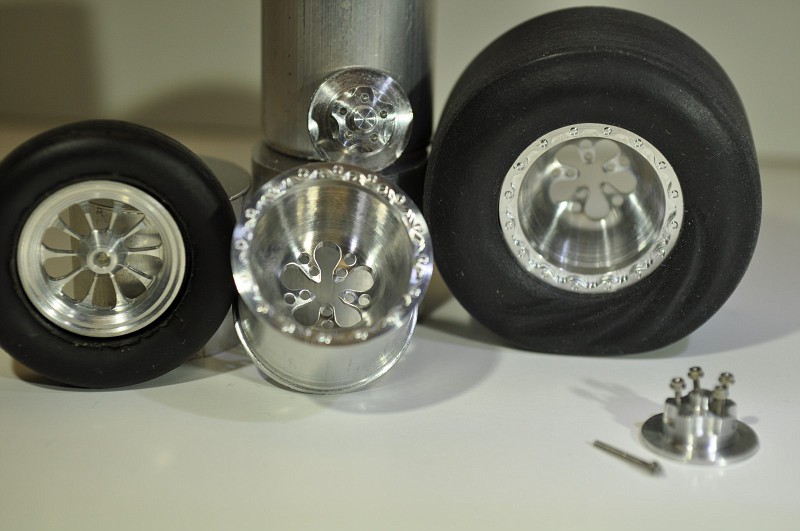

Codi Posted September 21, 2014 Author Share Posted September 21, 2014 Small update but boy they sure are pretty....got these Saturday from Jim @ MicroNitro. The new Weld Delta 1's and I ordered them with the drilled hubs for display purposes. Great product from a great company. I have threaded rod for the studs that I'll cut to length and flanged threaded nuts to secure em'. Cheers, Tim Quote Link to comment Share on other sites More sharing options...
turbo nova Posted September 22, 2014 Share Posted September 22, 2014 Nice, I may be able to own a set in 1/25, I priced a set for the race car WOW $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ Are you gonna leave em natural or do em black with the big delta stickers inside. That rotor and wheel are gonna look killer. Quote Link to comment Share on other sites More sharing options...
Mooneyzs Posted September 22, 2014 Share Posted September 22, 2014 Tim... those are some killer looking wheels. Jim does some nice work. Quote Link to comment Share on other sites More sharing options...
Codi Posted September 22, 2014 Author Share Posted September 22, 2014 Thanks Chris, I most certainly agree. J ames, I'm not sure yet...I'm going to polish the centers possibly and see how they look and then decide...a lot will depend on the final color of the car. If I go with a satin/flat black finish, then the polished wheels will likely look the best. Cheers, Tim Quote Link to comment Share on other sites More sharing options...
Codi Posted September 22, 2014 Author Share Posted September 22, 2014 Hello everyone, so today I made up a simple chassis jig for the chassis. I combined Clay's technique of magnets over steel sheet (which I've used to solder and it's very effective) AND Comp1839 aka Daves idea of the machinist angle blocks but I substitued thin, bendable aluminum for the "L" brackets in the photos. The idea is I can lay down paper/blueprints like Clay and glue plastic over top (don't use CA, use plastic weld as the CA will stick to the paper) OR solder up a brass chassis on it. The "L" brackets are drilled to secure to the table (20gauge steel) with machine screws (I have magnets making them stand up in the photo) After making sure the table was level I drilled the 4 corners for the feet. The feet are machine screws turned upside down. I can drill and place the "L" brackets whereever needed, drill a hole in the tall upright portion to place the front spindles OR the rear axle through to hold it securely to the jig. The face of the brackets are square and on the front ones I can mark them for the appropriate angle for the proper offset / angle while doing my setup just like Dave does. The brackets are cheap and easy to make and can drilled for any particular bed. I'll let you know how it works when I put it to use and include some photos too if it does. Quote Link to comment Share on other sites More sharing options...
comp1839 Posted September 22, 2014 Share Posted September 22, 2014 tim, this is a fantastic idea!!!!!!!! VERY creative, i love it. yes, please keep us informed on how it works for you. Quote Link to comment Share on other sites More sharing options...
Red rocket 10 Posted September 22, 2014 Share Posted September 22, 2014 BRILLIANT I've gotta try it ........................ Leonard Quote Link to comment Share on other sites More sharing options...
bobthehobbyguy Posted September 23, 2014 Share Posted September 23, 2014 The chassis jig looks great. Looking forward to see how it works. Quote Link to comment Share on other sites More sharing options...
slusher Posted September 23, 2014 Share Posted September 23, 2014 (edited) Wheels are so impressive.. Edited September 23, 2014 by slusher Quote Link to comment Share on other sites More sharing options...
pturley84 Posted October 3, 2014 Share Posted October 3, 2014 This just blows my mind! amazing scratch/detail work. You sir are a master! Quote Link to comment Share on other sites More sharing options...
Codi Posted October 3, 2014 Author Share Posted October 3, 2014 Hi everyone, promise this thread isn't dead. Not by a long shot. I've been spending the last week or so fixated on my Frankenstein Mustang ProMod body. I'll post those updates SOON. It's really come along in my estimation. And I've been doing my research on various sub components and how far I want to go to detail / fab them. Cheers to each and everyone of you. Tim Quote Link to comment Share on other sites More sharing options...
bobthehobbyguy Posted October 18, 2014 Share Posted October 18, 2014 Done anymore with the chassis jig? Quote Link to comment Share on other sites More sharing options...
Codi Posted October 18, 2014 Author Share Posted October 18, 2014 Hey Bob, well....I've been making the brake calipers for the car to work with the Delta 1 wheels. Nothing in my parts bin was to my liking so I decided to make them from scratch...out of titanium no less. I know that real discs brakes aren't made of titanium but the color is just so cool that when you see them, I think you'll agree it was a good decision. Next week I should have some pics to post. ALSO, I've been trying my hand at milling on my Sherline. It's finally setup AND I've had the great opportunity to work with Dave (comp1839) in learning how to set it up properly and to actually use it finally. The learning curve is steep but with his help I'm making positive headway. For those of you that have never had the pleasure of meeting the man, I'll say up front, he is one cool dude and a great mentor. And his 37' Chevy is simply unbelieveable. I want to get the entire rear end assembly, brakes, hubs, diff, caliper supports completed before I get onto the actual chassis construction. It might seem backwards, but I have my dimensions tightened down and I want to be sure that the parts fit when all is said and done. I'm following the same process that II did on my 33' Willy's when I fabbed the chassis and suspension and it worked out pretty well. Cheers, Tim Quote Link to comment Share on other sites More sharing options...
bobthehobbyguy Posted October 18, 2014 Share Posted October 18, 2014 Codi actually doing the rear first makes sense . Doing the chassis first makes it a lot harder. Loking forward to more. Quote Link to comment Share on other sites More sharing options...
D. Battista Posted October 19, 2014 Share Posted October 19, 2014 Been checking this out for a while.... Thought I'd throw my 2 cents in... You sir are a true craftsman.. I enjoy and admire your work as much I like looking at John Terisi's and Clay Kemp's builds...! You guys are in another league than I am... as I stick to using mostly plastic and use some aftermarket parts. But I don't machine my own parts. Though work like you guys do...does inspire my builds to be in scale and realistic looking. Really like your work Tim...! and thanks for sharing...! Quote Link to comment Share on other sites More sharing options...
itsclayyoo Posted October 19, 2014 Share Posted October 19, 2014 I would REALLLLLLLLY love a tutorial on the turbos you made. Im building the f-bomb camaro, and cant seem to get the turbos right. Private message me if you can help out any. Thanks -clay Quote Link to comment Share on other sites More sharing options...
10thumbs Posted October 19, 2014 Share Posted October 19, 2014 What a wonderful model! Jim, good idea if you're not covering up the motor, put couple drops of gasoline on it so it would smell and everyone will think it will fire up! Guys, even his tweezers are cool looking! Michael Quote Link to comment Share on other sites More sharing options...
