Sergey

'90s GMC TopKick C7500

Recommended Posts

Hello my dear colleagues!
I haven't write here for a long time....
As I am American Medium Duty  trucks fan, I can't stand to work (make a model) on this one.
:
autowp_ru_gmc_c7500_topkick_dump_truck_2
The only thing I will change is the rooth. I like standart one. And I not sure about the bumper. May be I will use the stock one. I bought the resin on e-bay couple years before. I guess it's Perry's:
The grill is fited to suit.
There are couple fuel tanks and acumulator boxes in kit. Plus chequered plates and buckles for hood and boxes in separate bag:
I like this kit. Quality of the cast rather high. No boubles.
There is pimple on a back wall, like the real cab has. Also bottom line need correction.
Door handles are made through
Interior tub is flat as usuall.
I have PDF with dimensions, so I can say the scale of a kit is something between 1/24 and 1/25.
Toolbar sits rather high. Next photo shows it better.

 The steering wheel is too small for this truck. It's a pitty - no head lights lenses or wind screen in a kit. No instruction too.....

Edited by Sergey

Share this post


Link to post
Share on other sites

This kit is based off the AMT 88-97 Chevy pickup kits, the glass from that kit should fit perfectly. The bumper in the kit is the light duty version where the red truck has the heavy duty bumper, it should be super easy to make out of Evergreen pieces. I learned how to drive a manual transmission in a truck pretty close to this one.

Share this post


Link to post
Share on other sites

So, the bottom of back wall of the cab has filled up:

Almost finised on the left side, not on the right. Here is the original:


Door pockets and elbow-rest are up graded too:

Share this post


Link to post
Share on other sites

...the red truck has the heavy duty bumper, it should be super easy to make out of Evergreen pieces.

Thank you Brian! Of course I can do that. I'm not sure which one I like best jet.

Edited by Sergey

Share this post


Link to post
Share on other sites

Sergey great build subject you have going here. I'm looking forward to see how you build this one. Do you have any colors lined up yet ?

Share this post


Link to post
Share on other sites

Very interesting project. I love detail-oriented threads like this one. I too am interested in this class of trucks so I will be following closely.

Share this post


Link to post
Share on other sites



    Sergey,

              It looks like you have chosen a good subject to model. And knowing your penchant for details. I would say this one will be really nice when you finish it !







      Be Well

      Gator

Share this post


Link to post
Share on other sites

Do you have any colors lined up yet ?

Well, I searched all over the internet for color schemes of TopKick. Haven't faund anything better, then first picture. Do you have something interesting on mind?

Share this post


Link to post
Share on other sites

The red looks good. Next question the dump truck body or to roll back flat bed ? Or some thing else? The dump body from the AMT Ford dump truck kit may be a good fit as a idea.

Share this post


Link to post
Share on other sites

The model will be the same as a dump truck on first photo, except the high rooth and some decals for the doors.

The dump body from the AMT Ford dump truck kit may be a good fit as a idea.

You're reading my mind. I planed to use AMT Ford kit for chassis and dump body, but Ford's frame is differs from GMC's. It has higher frame spar piece in the middle. So I use KFS frame. I show you later. Dump body will be reworked too for modern style.  I already bought Evergreen strips.

Share this post


Link to post
Share on other sites

So, the steering wheel has been remade. I used the rim from Ford LNT kit. The rest of steering wheel are styrene, epoxy patty, wire, piece of sprue. Though Ford's rim is 1mm bigger, then TopKick one should be it has an ideal cirkle.


I also made the gear shift lever.
14_zps6uxlcskj.jpg~original
Here is how it should be:
21_zpsab24d3vy.jpg~original
I also filed down the bottom and back side of the dash. Now it sitssits a litle lower.

25_zpsrgw4nuhw.jpg~original
Almost like at home. Erly Tahoe and Silverado have the same cab and dash.
Chevrolet_Suburban_SUV20520door_1992_zps
27_zpsz9r0z7zs.jpg~original

autowp_ru_chevrolet_c_k_2500_extended_ca
26_zpse74ceak8.jpg~original

Edited by Sergey

Share this post


Link to post
Share on other sites

Well, I searched all over the internet for color schemes of TopKick. Haven't faund anything better, then first picture. Do you have something interesting on mind?

Something "retro" as in these '70s GMC stripe designs out of the paint scheme thread?

Share this post


Link to post
Share on other sites

Something "retro" as in these '70s GMC stripe designs out of the paint scheme thread?

Well, it is hard to transfertransfer COE paint scheme on such conventional. Genelal hood sides slightly higher, then TopKick's, so it not so easy too. Perhaps Ford L-series have similar hood and that schemes in the bottom of first page will suits TopKick.....         I should think it over.                               Thank you Russell anyway!





Share this post


Link to post
Share on other sites

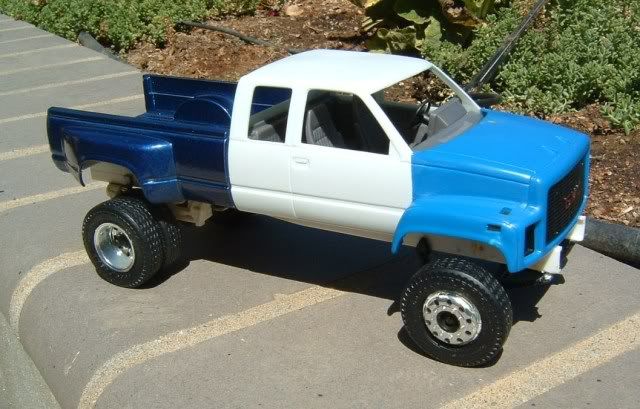

Nice work.  Here's one I started about 5 years ago.  The front clip is from a DG Productions model.  I plan to switch to Moebius tires and wheels.


Share this post


Link to post
Share on other sites

Nice work.  Here's one I started about 5 years ago.  The front clip is from a DG Productions model.  I plan to switch to Moebius tires and wheels.

Thank you guys! Hey Craig! Where is that bed from?

I guess the cab is Silverado's?

Edited by Sergey

Share this post


Link to post
Share on other sites

The more I work on TopKick cab, the more imperfection I found....
Here we see, that the bottom of the back wall of the cab is not parallel to under grill bar. So the cab/hood is twisted slightly.
Here headlight niche was depressed on hood corners. Stock state on the left.
Now let's make a frame. I tried CNC-milled frame from KFS.
There are nice cross members in a kit, though it is hard to glue bottom and upper strips to the main strip at once.... I think I must make a jig next time
There should be reinforcement abowe rear boogy. This was made of right angle and styrene. Perhaps I will change it a little.

Try on.
The inside of the grill was treated with ceramic blade to open the holes. Here they are almost opened. The side columns of the grill shouldn't be opened on a real truck. That's why I used ceramic blade for accuracy.
Head light bezels was made of halves of 5 mm plastic tube and pieces of styrene by sides. Also I found head light lenses in my spares
I guess it's a resin copy of this Ford's face
The only probleme, that sikkens resin has tinted yellow in time.  Anyone knows vhere can I get transparent resin, that won't get yellow anymore.

Edited by Sergey

Share this post


Link to post
Share on other sites



    Sergey,

             Nice work ! What do you think of the KFS frame kit? Would you recommend it ??







   Be Well

    Gator

Share this post


Link to post
Share on other sites



    Sergey,

             Nice work ! What do you think of the KFS frame kit? Would you recommend it ??

   Be Well

    Gator

Well Mark..... For those who want to make a model using resin without donor-kit (like me), or for the man who scratchbuild models, KFS frame kit is must have IMHO.

Edited by Sergey

Share this post


Link to post
Share on other sites

Thank you guys! Hey Craig! Where is that bed from?

I guess the cab is Silverado's?

Sorry for the delayed response, I haven't been on the site in a while.  The cab and bed are from AMT's C-3500 phantom dually kit.  I had lowered the original kit and made bigger rear tubs to fit the tires.

Share this post


Link to post
Share on other sites

Finally I've finished season work and returned to TopKick:
Here I used Italeri's steering axle + suspension, although steering link was altered.
Notice a piece of plastic between frame rail and front suspension bracket. Original Italeri frame has a radiator pocket this place.
Rear suspension is a copy of AMT's one. You can see different tubes to fix axles in suspension brackets.
Rear tyres are from Mo luminium. Bought some years before. I can't decide now which wheel discs to use: Italeri's spare wheel (without a hub) or AMT's one. The tyre can suit to both. On Italeri it is taller - 43,5 mm, then on AMT - 42 mm. I plan to use hubs from Mo luminium too.
Some semi result. It takes time to drill rear axle through.
It is temporary asembly. I think to shorten the frame by 9 mm to fit 14 ft. Dump body.
All I left to do is to make a dump body for fitting.

Edited by Sergey

Share this post


Link to post
Share on other sites

Small update. Here I made a blank (I hope it correct word) from balsa wood.
IMG_6798_zps39d2itom.jpg~original

Stick a plastic to frame
IMG_6799_zpsvxqv2uir.jpg~original

Warmed it over gas oven and cover a blank with plastic.
IMG_6800_zpsqbcujrjt.jpg~original
Unfortunatelly plactic goes covered with very small pimples. Plastic thickness is 0,1mm.
IMG_6802_zpsxco5yli5.jpg~original
Why could it happen?
