1 hour ago, Mopar - D said:

Nice progress Jeff I can see you are doing a good job on keeping your squirrels out of your way.

Hahaha yeah the snow started spitting here over wknd, they hauled outside to squirrel away more food. Its easy to stay focused..for now cause this build is so fun searching for the Easter eggs I need to add.  Reminds me of your Dan gurney build,  so many details coming together

Link to comment
Share on other sites

16 hours ago, Mopar - D said:

Jeff any updates?

Not much since last post , been trying to iron out few details around wing tower .  Finally settled on specific truck to build should make for interesting model

Link to comment
Share on other sites

Tinkered w Autocar today, working on the wet tank / cable pulley boxes for the side wing . I quickly realized my last frame mod wouldn't allow to me use parts I had available.  I'd screwed up the measurement needed for the parts to fit between cab and dump box . That mistake now forced me to fab up my own parts..not difficult,  just more work than I planned .

There's a large wet tank mounted on the top of  the horizontal cable box that pulls the wing inwards. Heavy brackets attach this large assembly to the frame along with the vertical tower that houses the other pulleys and equipment.

I built a narrower box and wet tank to fit behind the cab . I really didn't like how cramped it turned out...so out came the razor saw . Adding a section of scrap frame rail stretched the frame out again.

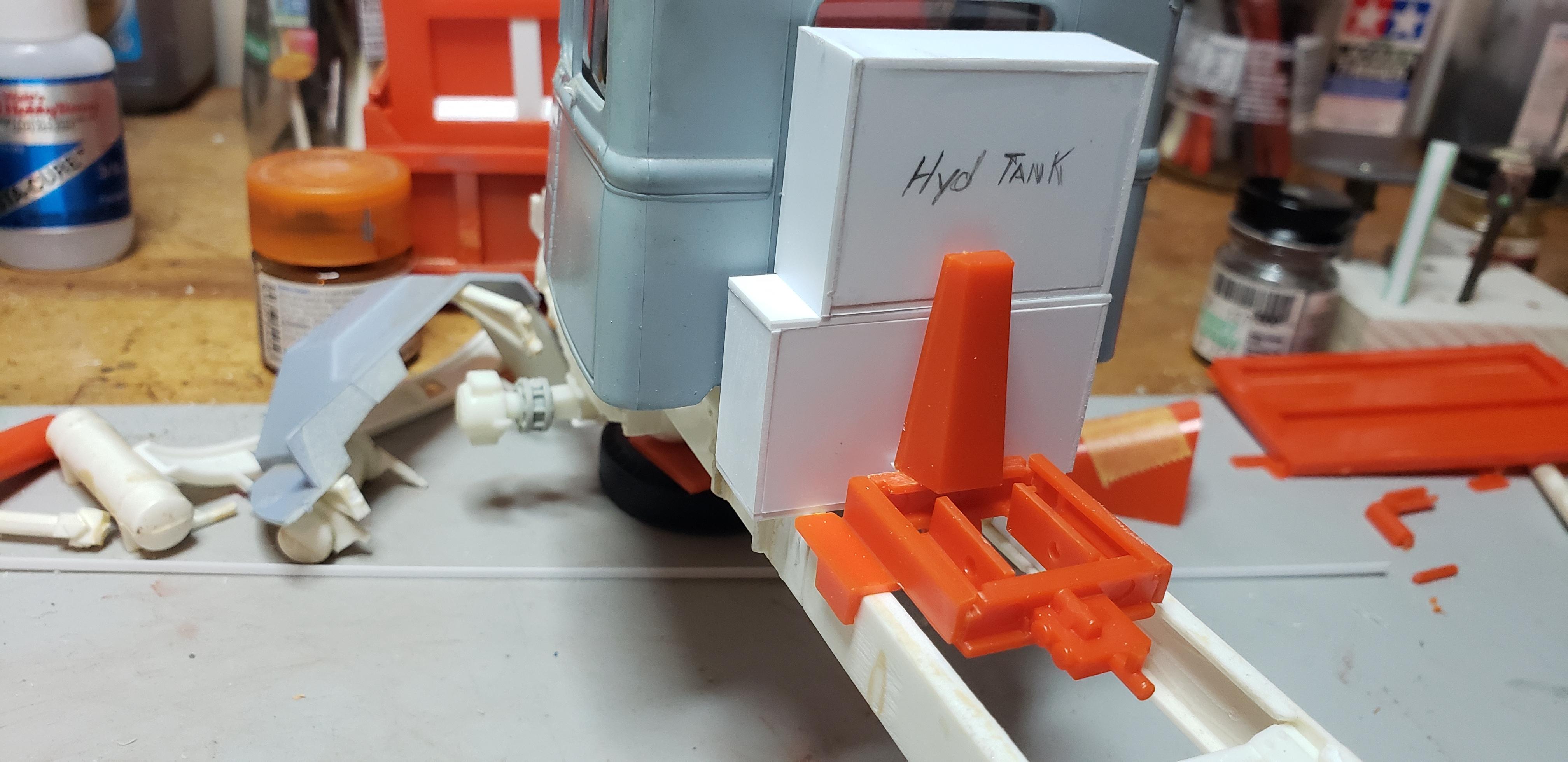

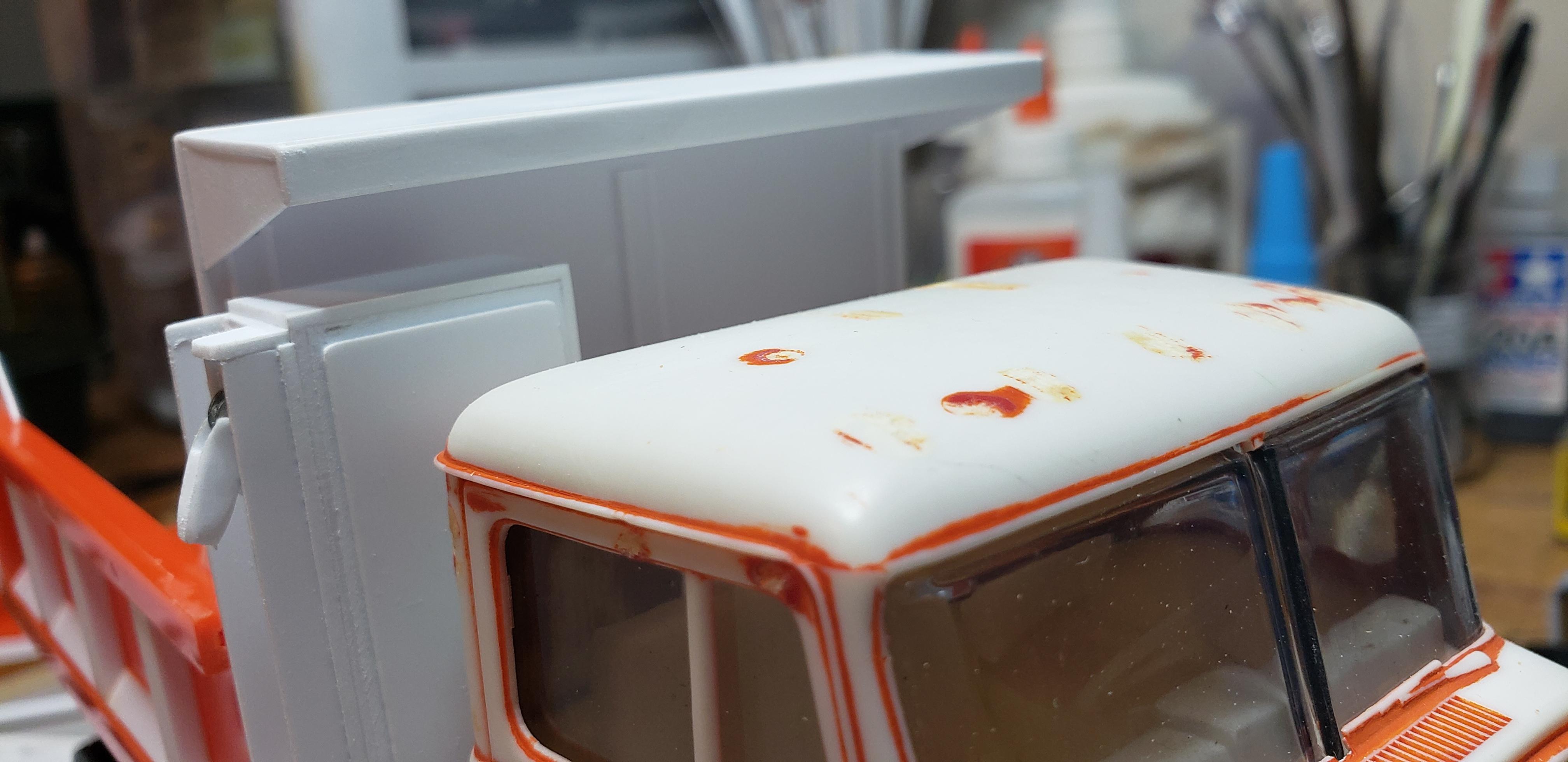

Here's the parts roughed in..much more detail is planned . It was very tight ..



Normally I love demo..but this caused issues later that might require a new frame ..not certain yet .

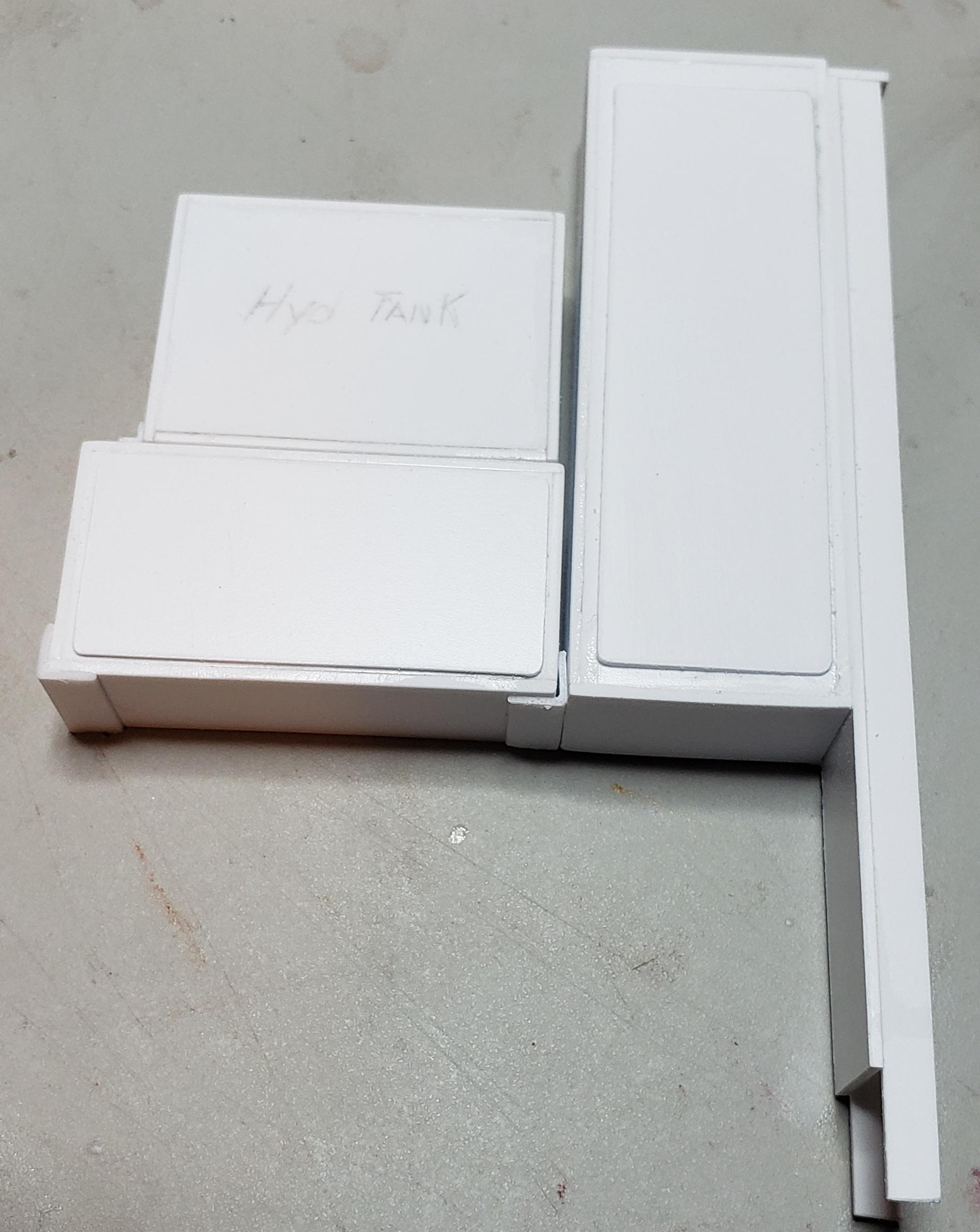

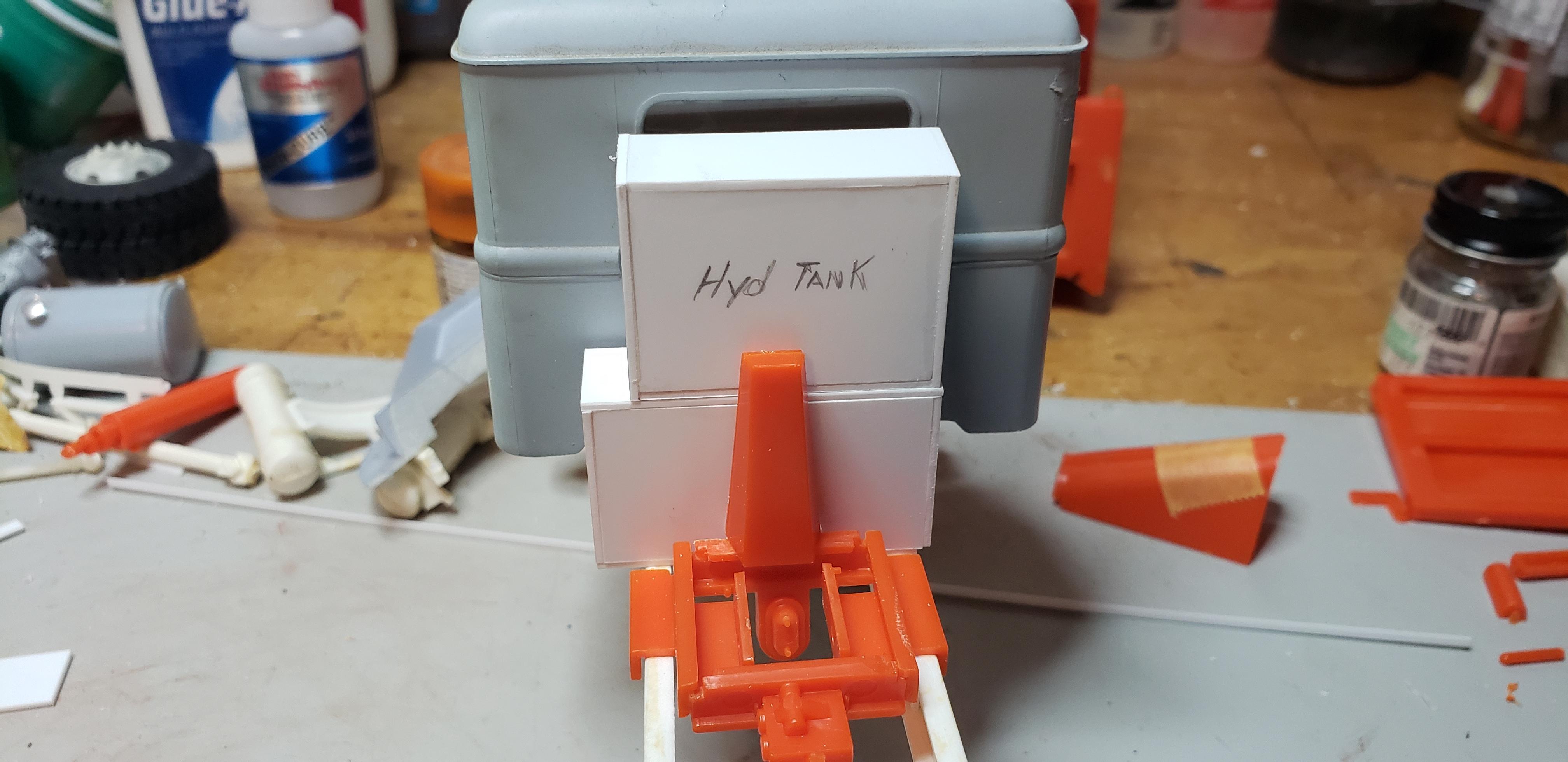

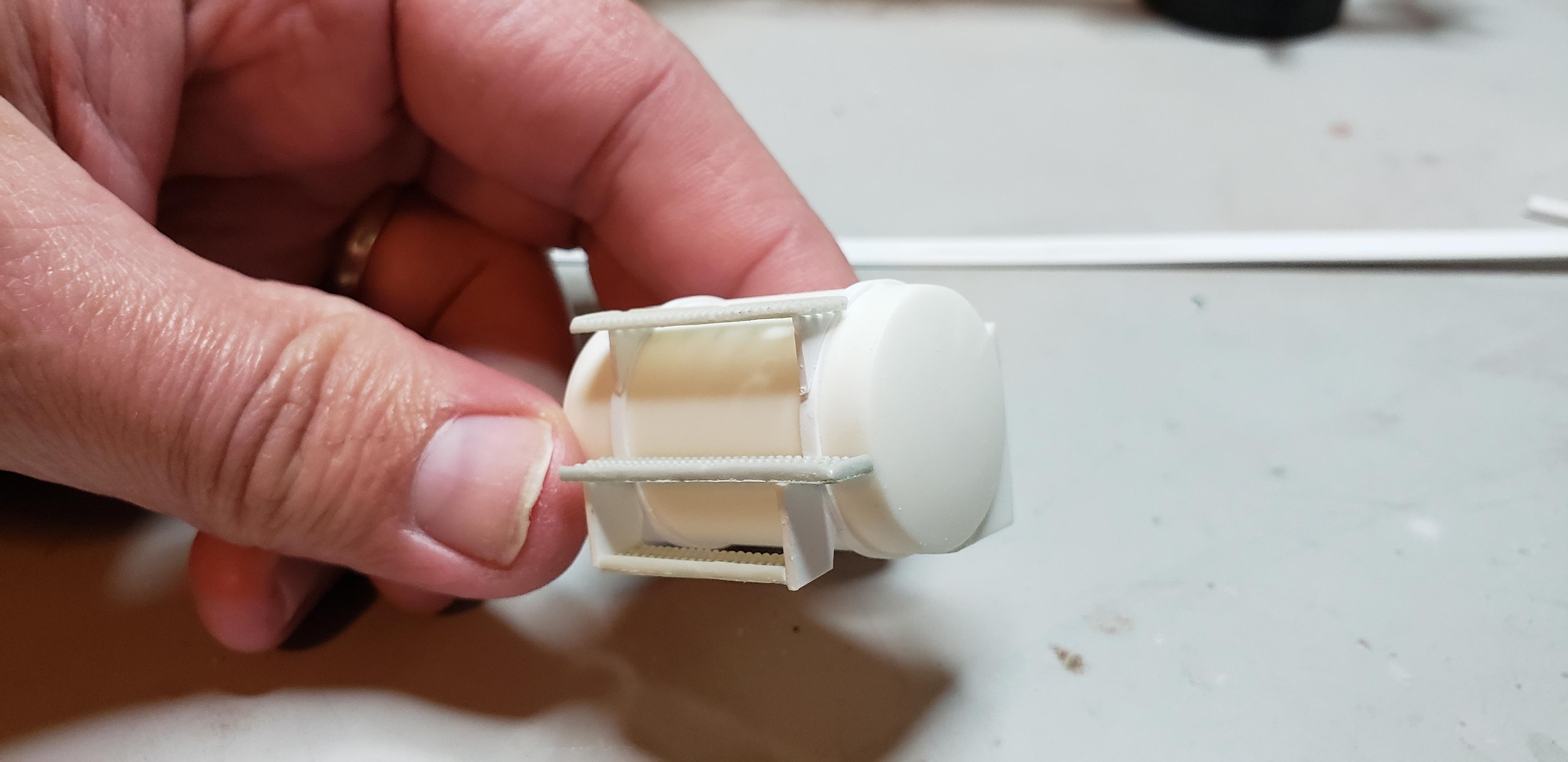

The wet tank, and pulley boxes

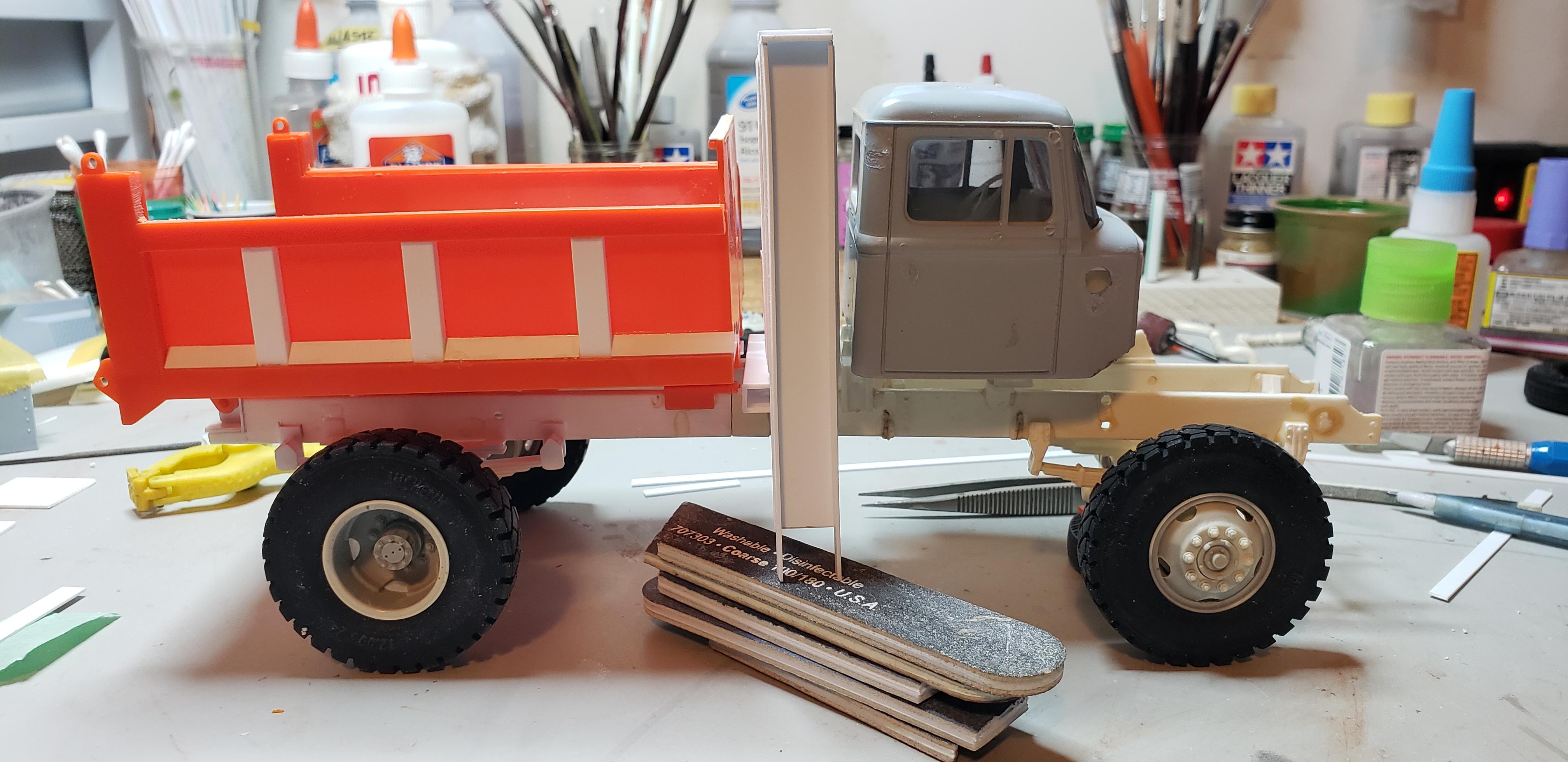

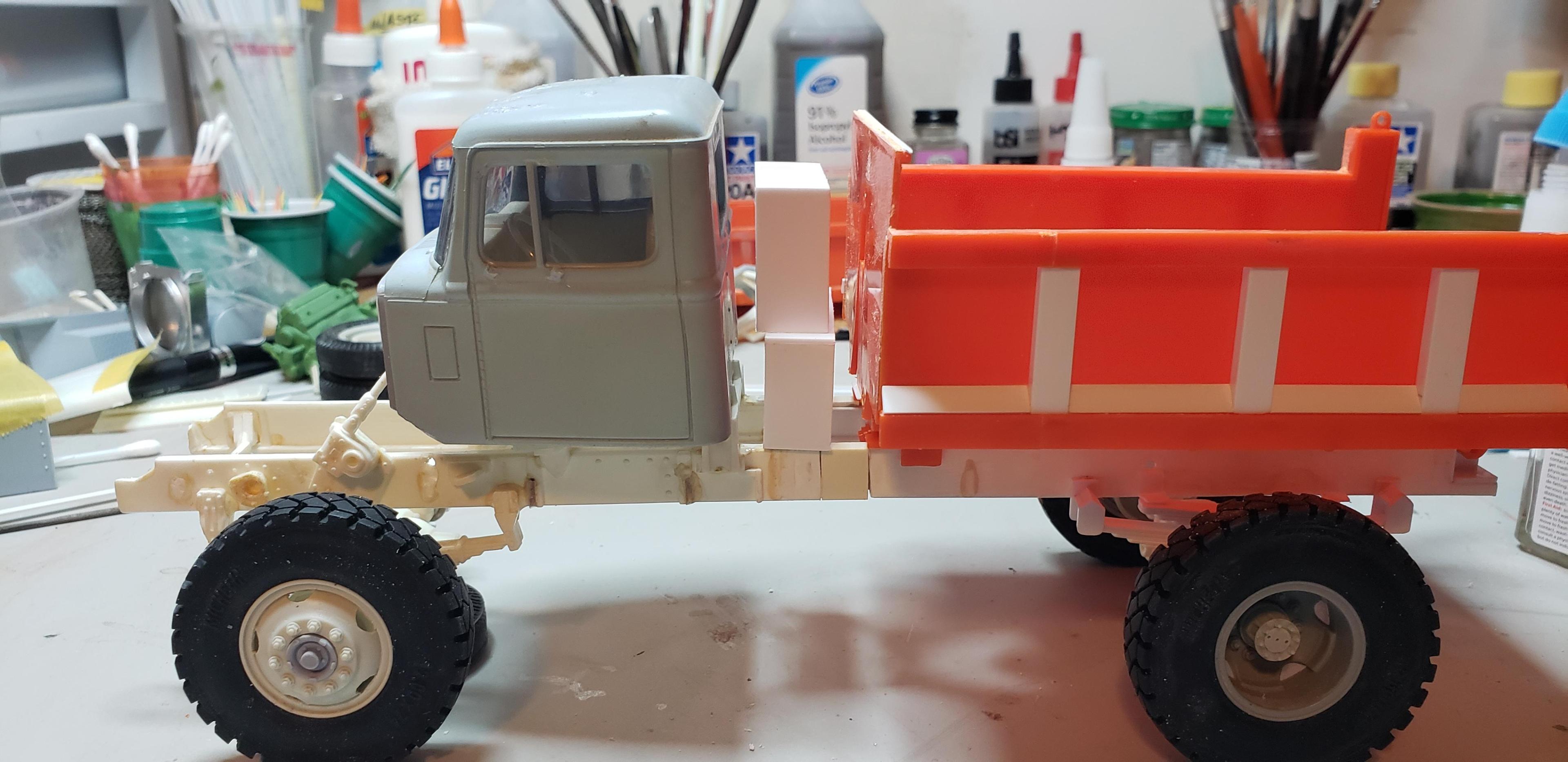

Mocked up on the truck..and I noticed my cut wasn't square . The new cut caused a bowed frame , and humped up. I absolutely won't settle for leaving this , so this chassis has become a mock up frame . I'll use a new set of rails after getting the major work done

Thanks for following




Link to comment
Share on other sites

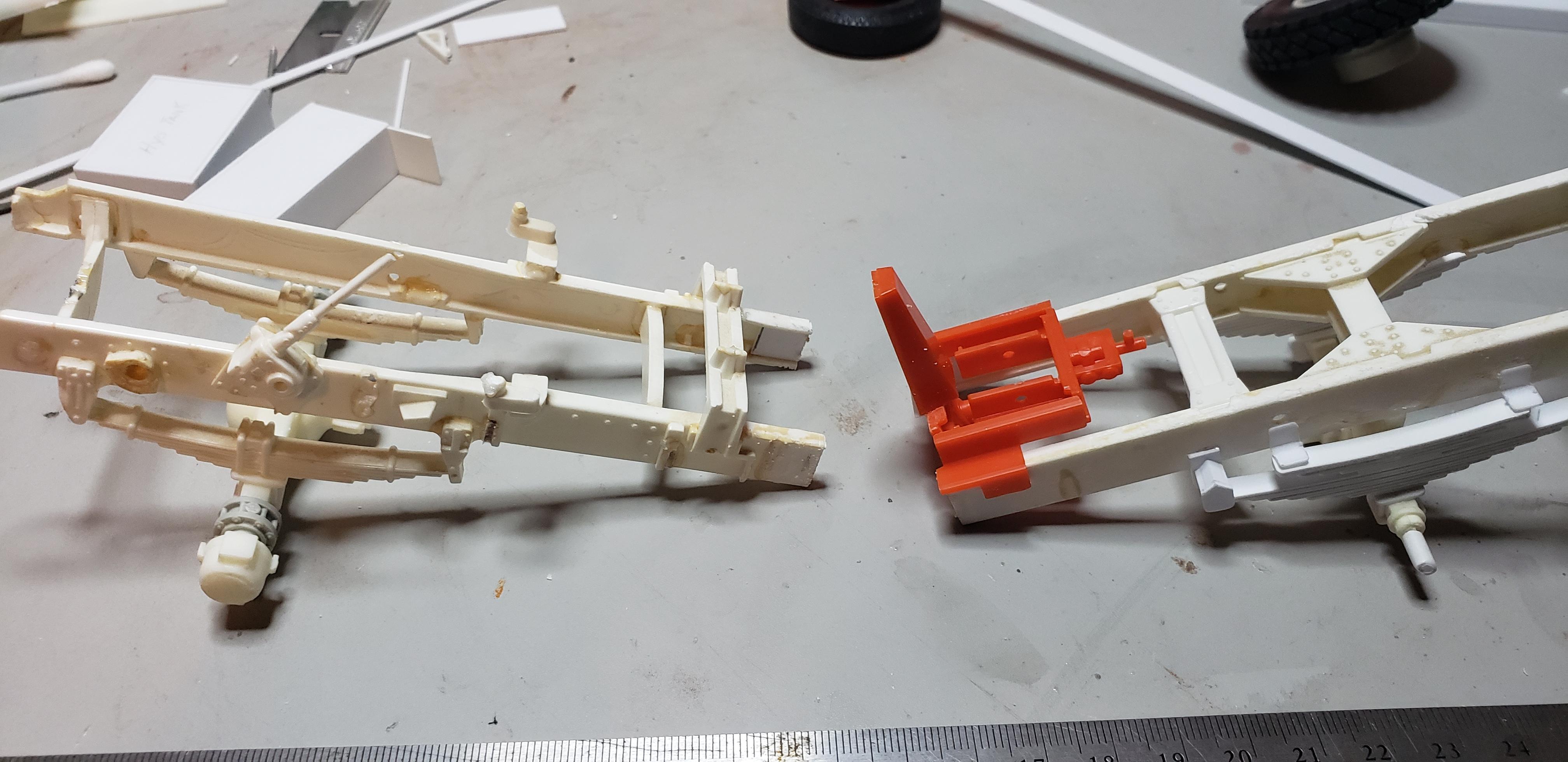

Well sadly the donor frame was retired . The older plastic didn't approve of my squirrels fondness for power tools. They wanted to correct the bow and arch that developed . We sat around listening to country music awhile and got back to work. Enough crying over it...that waters down the bourbon

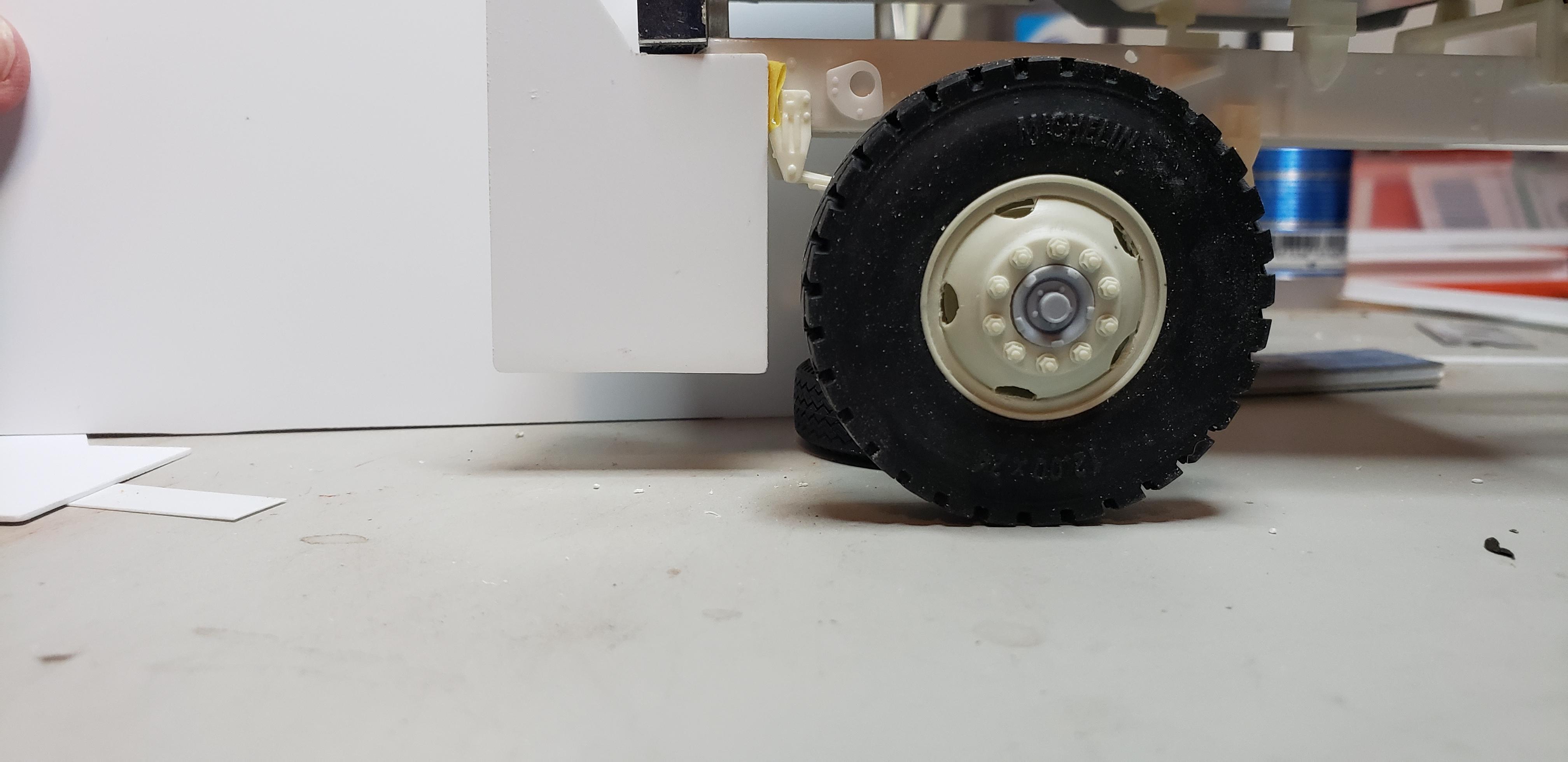

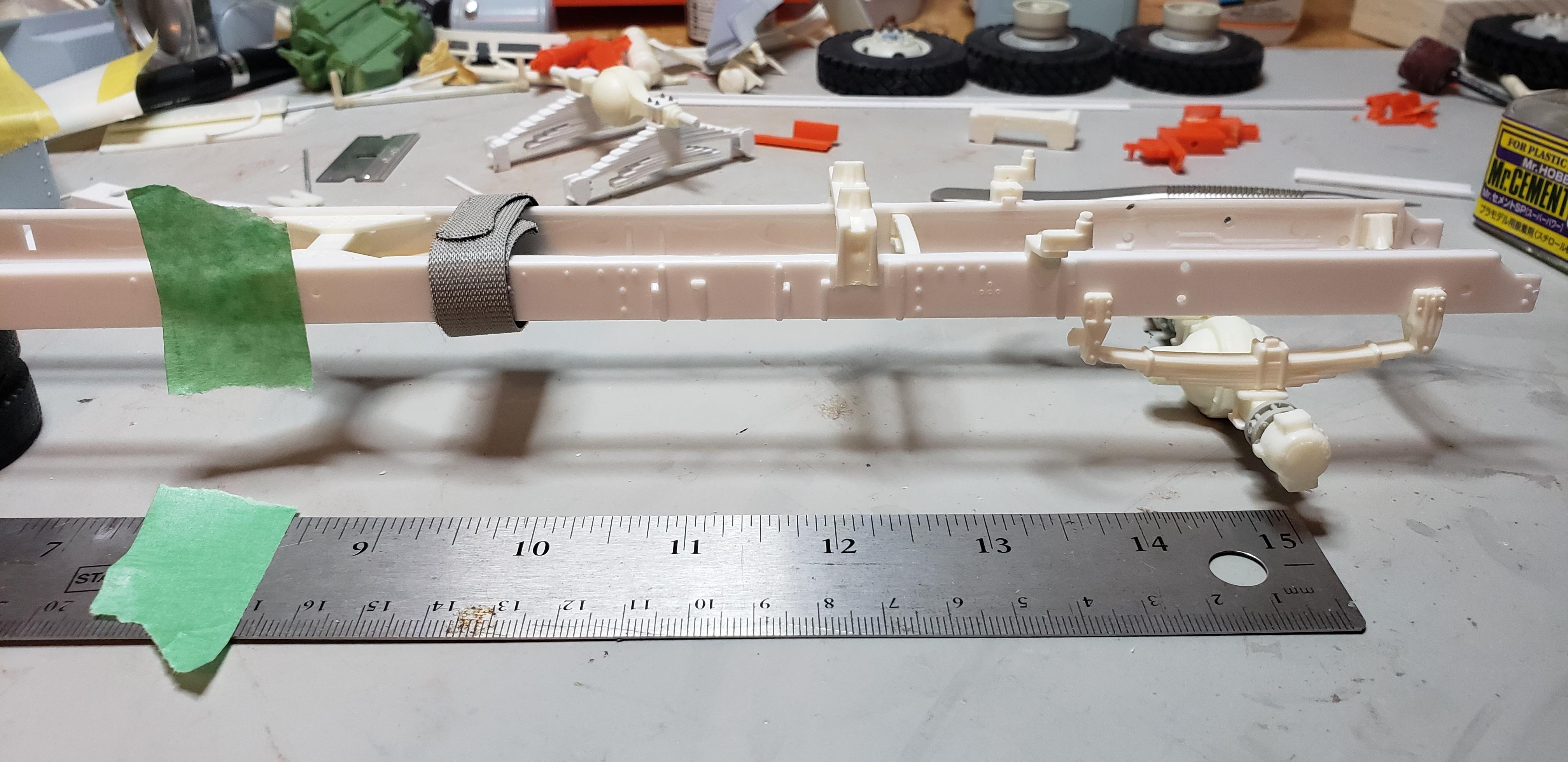

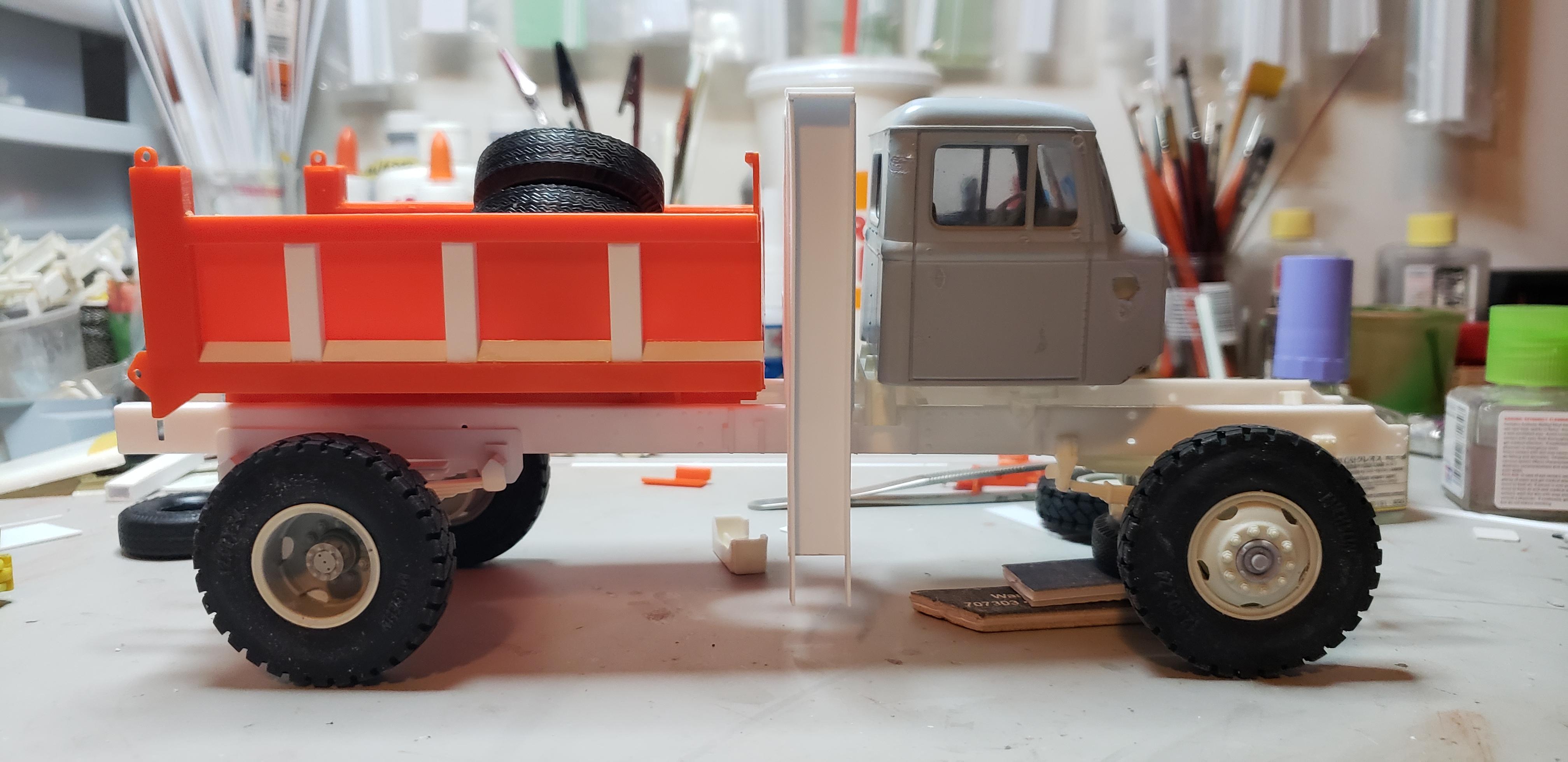

I had another nearly intact parts truck w new frame parts..here I go again. This time I built the front end parts leaving the rear frame  parts off . Mocking up the cab, wing tower and bed showed me where the rear tire would line up similar to my photos . I just shifted the loose crossmember back till satisfied.  The old chassis wheelbase was 165..the new one lands around 186 . This actually looks better overall. 20211124_181623.thumb.jpg.935d259fe5d8703b8c954859e9b413ac.jpg

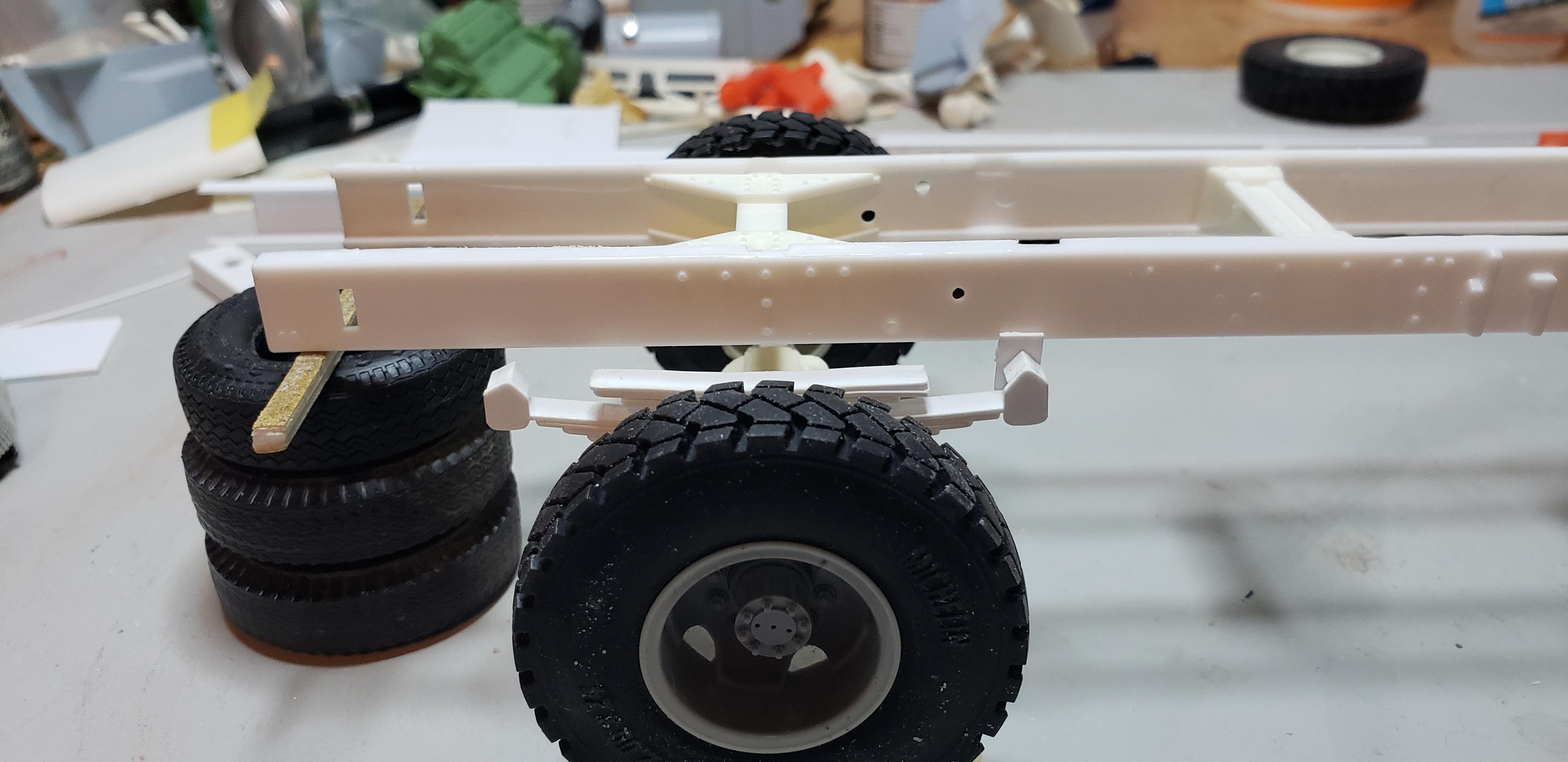

Well the axle wanted to live right in line w these molded on bolts..easy to match other side ...but you can see my mounts are short now .

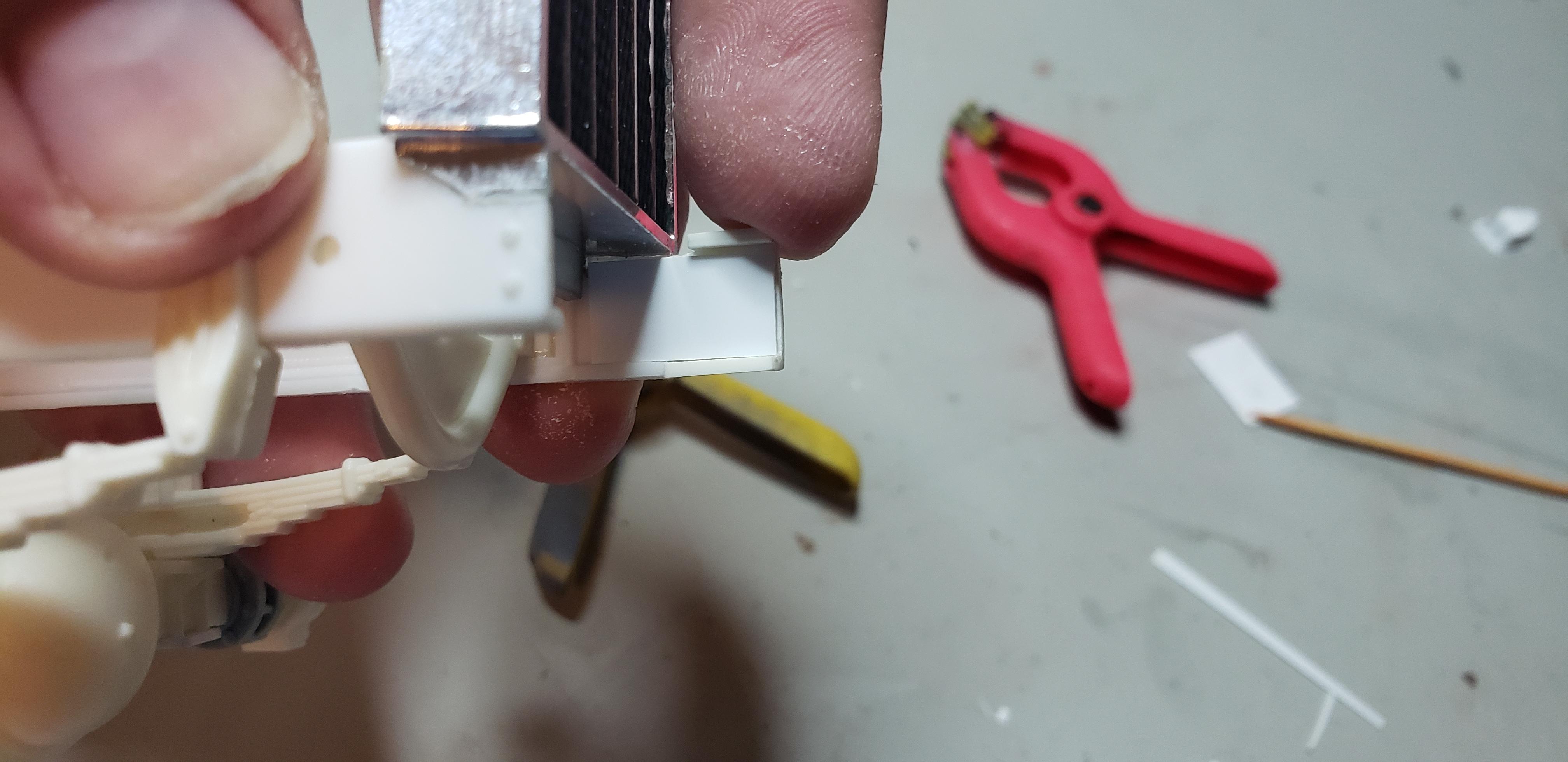

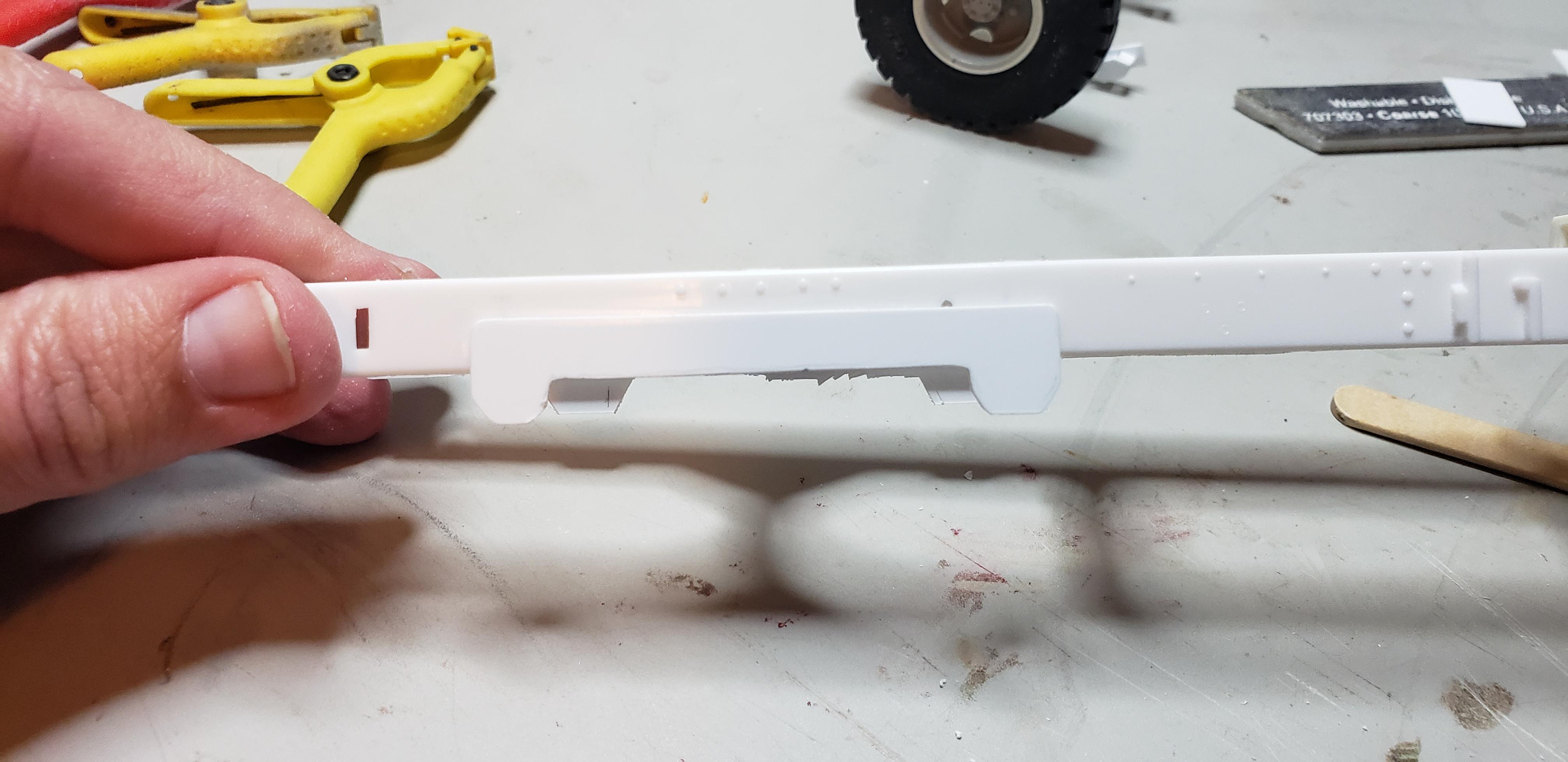

Buddy sent me a few photos of plows w fishplates  for this purpose.  I used a strip of 030 for mine.

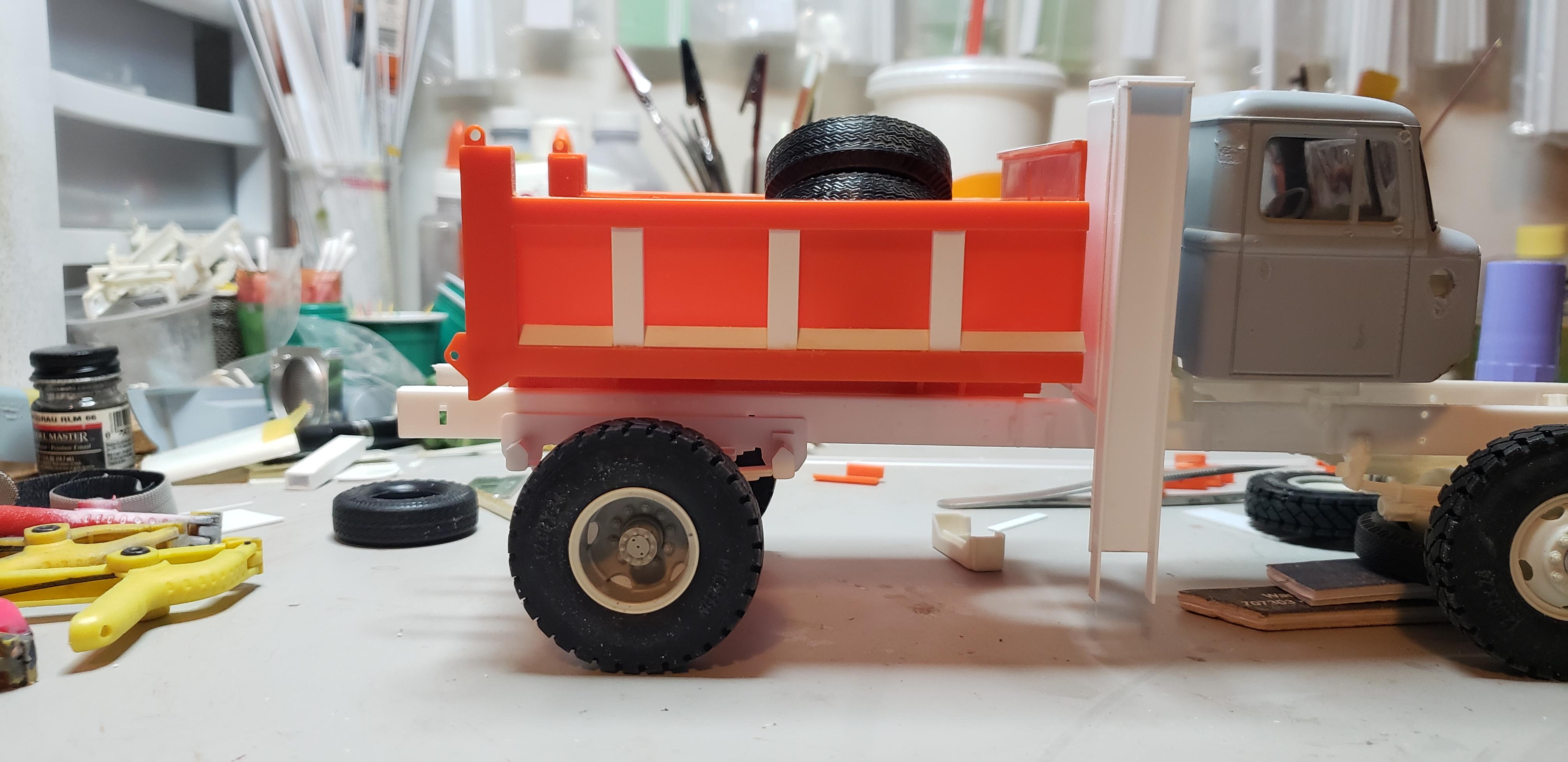

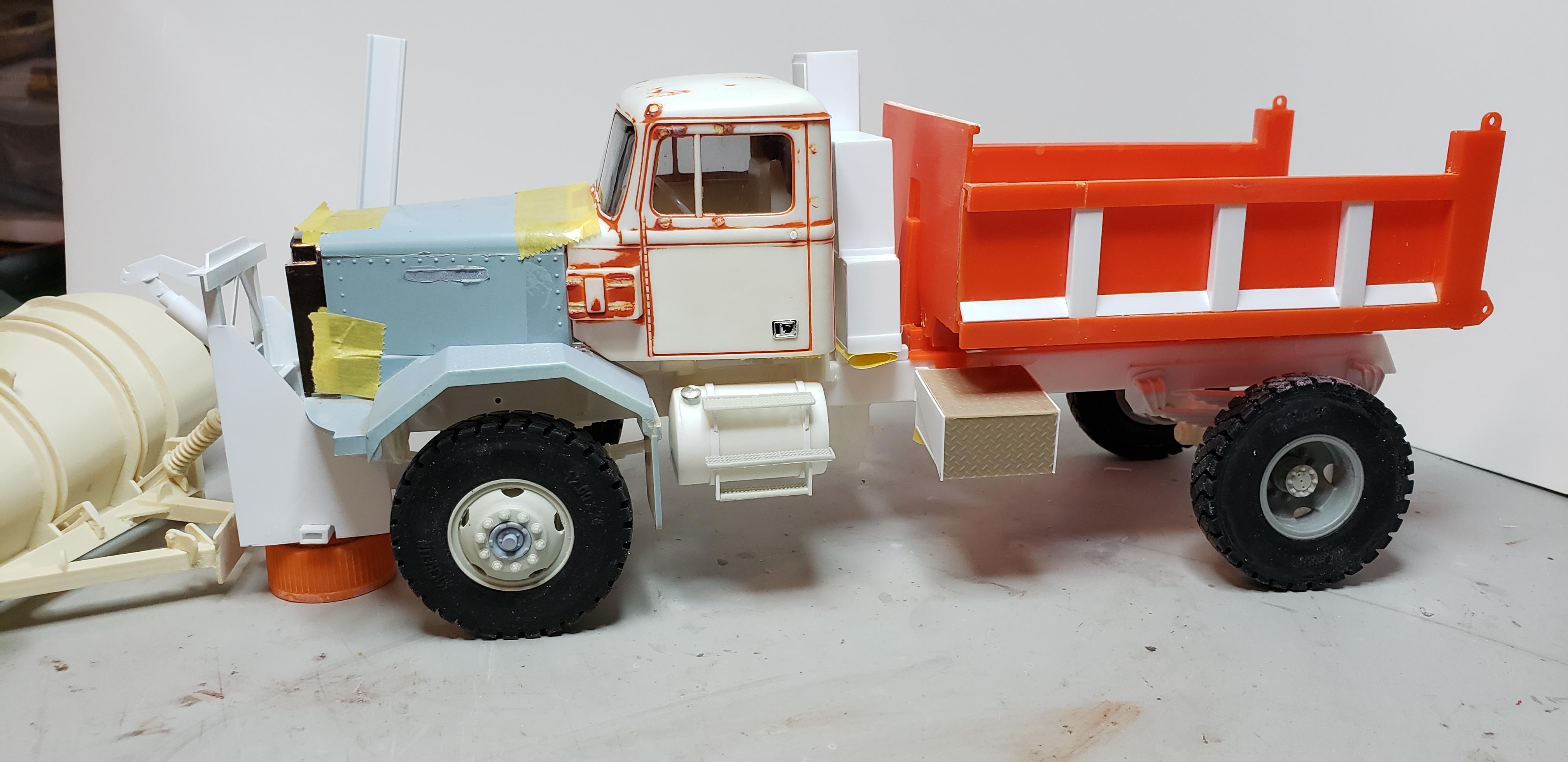

Test fitting everything together ❤  nice and level, frame is square and so clean. Now to figure out the box pivots again. Heres the new layout. Theres a small frame cut needed on the end  but I'm leaving it awhile



Thanks for following along , be back w updates after I dry out the turkey tomo and resort to box mac and cheese 🧀

Happy Thanksgiving to all my friends on here too! Hope everyone has a great holiday

Link to comment
Share on other sites

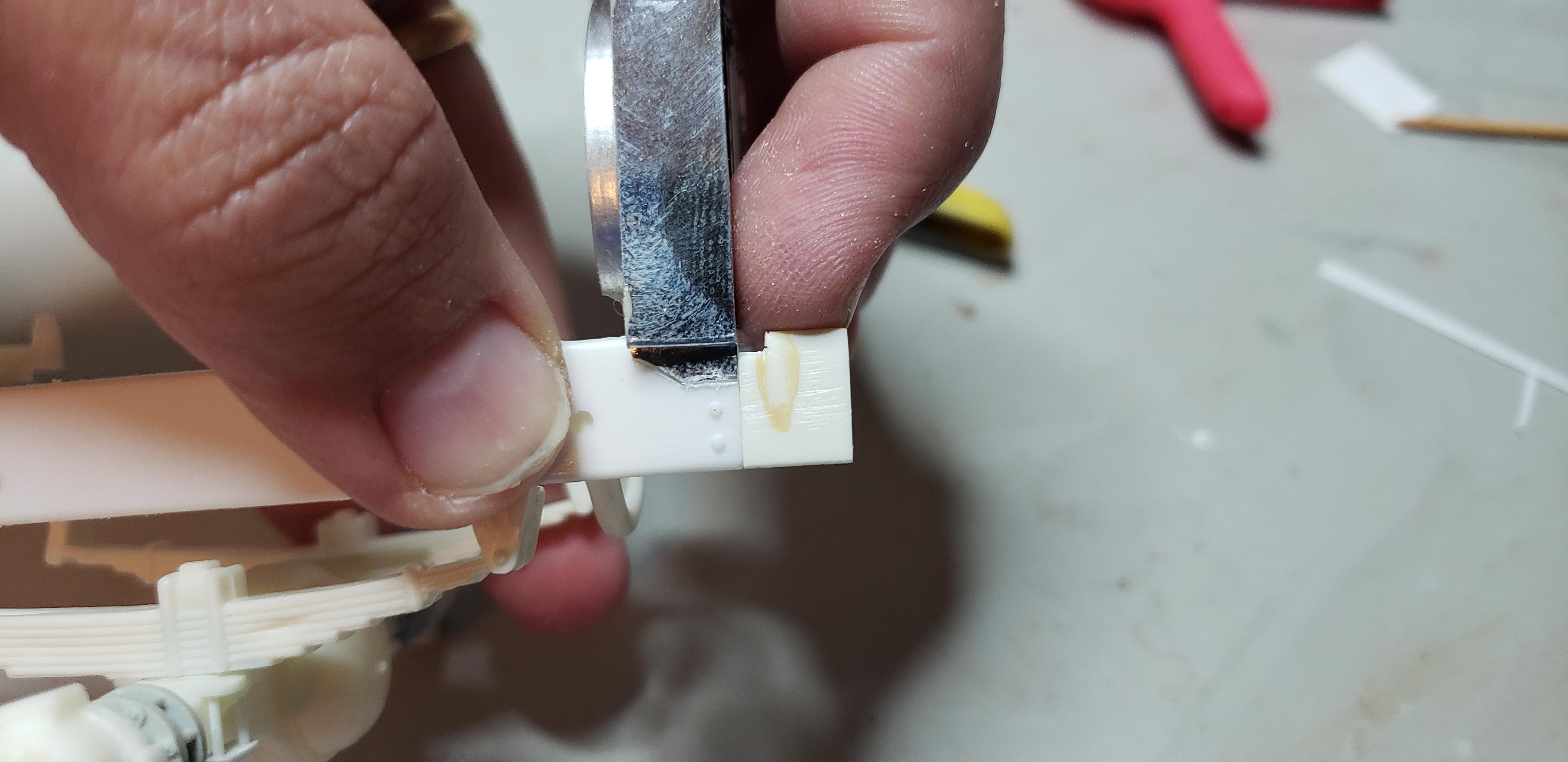

Spent a few hours working on the plow , notably the plow hitch.  The stock autocar frame doesn't have any extension forward of the radiator,  so I used pieces of the retired frame for small extensions.  20211125_092905.thumb.jpg.9d5337c23ffda6b3f04edd7049c64b72.jpg

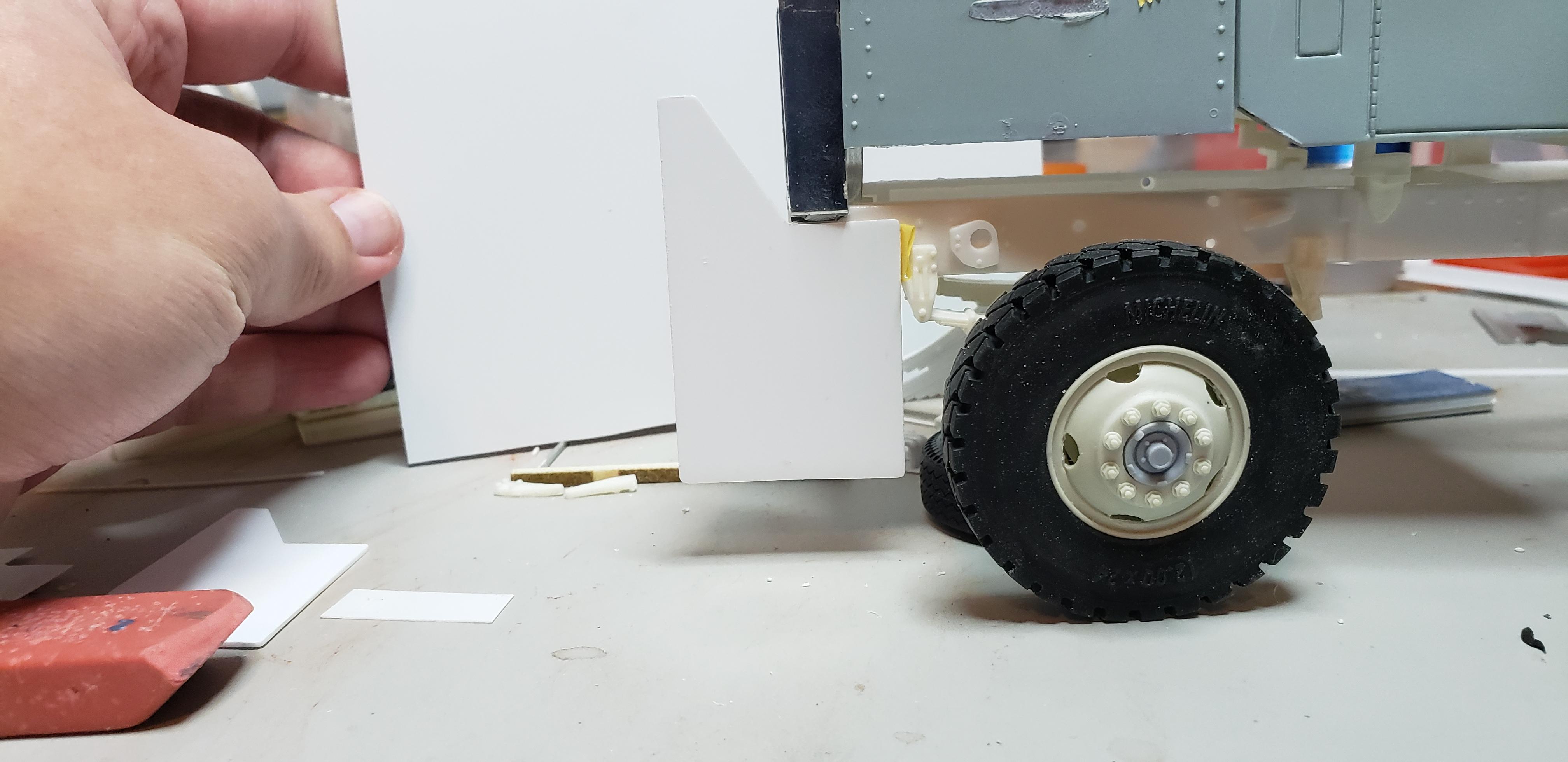

I worked out a pattern for hitch side plates, using the mk 1 eyeball. Judging the ground clearance off the front wheel , and width off the grill.

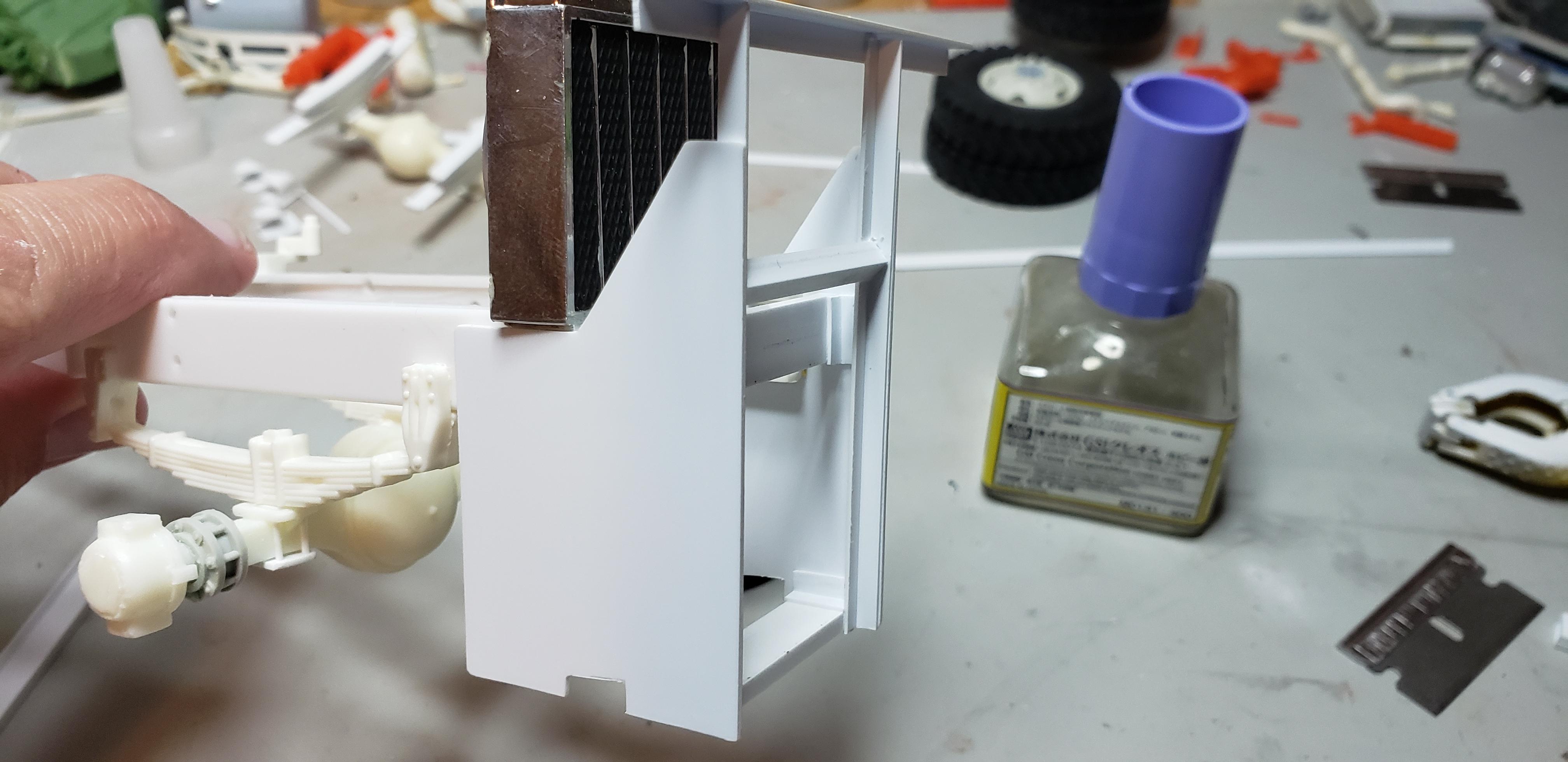

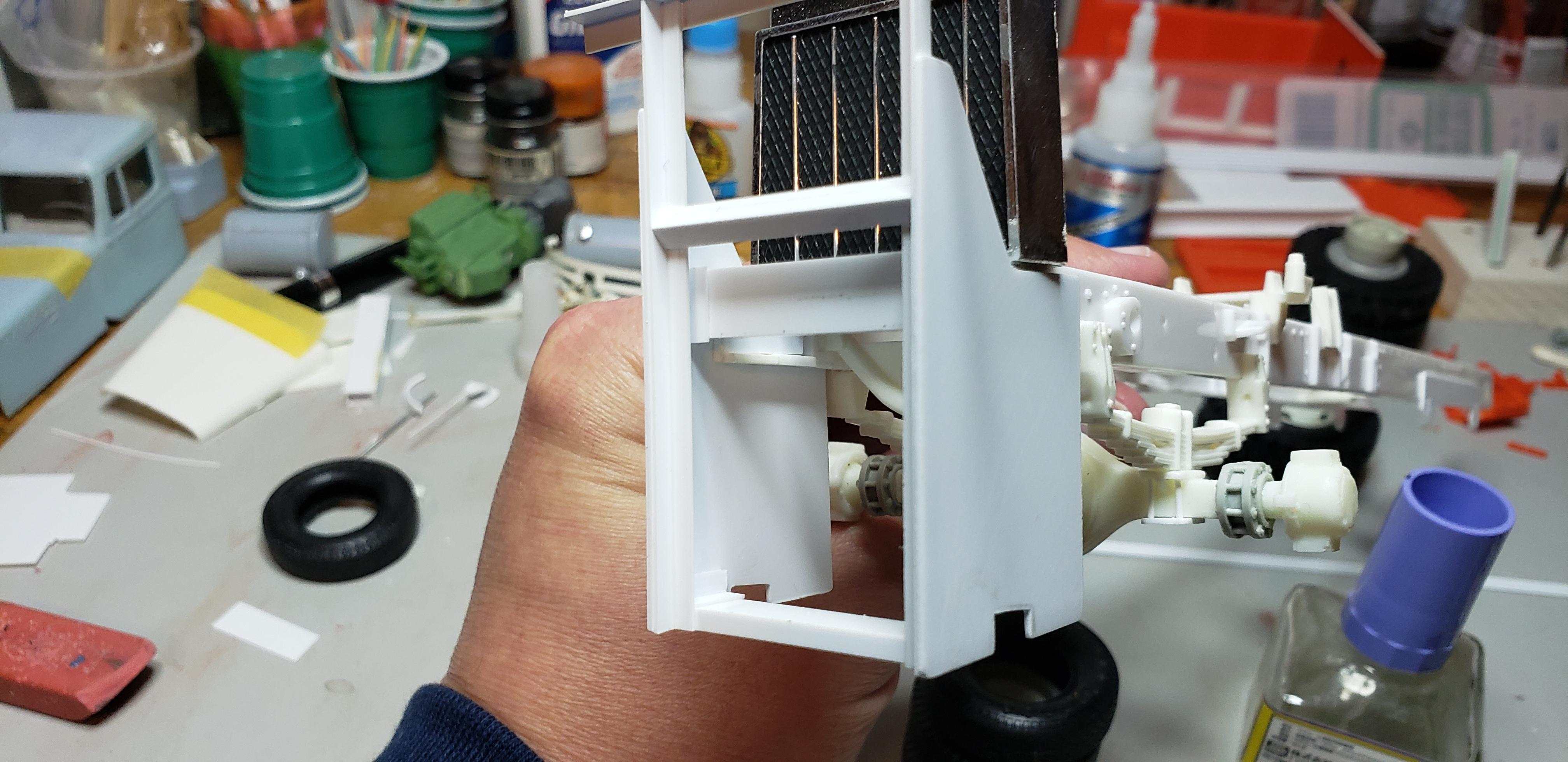

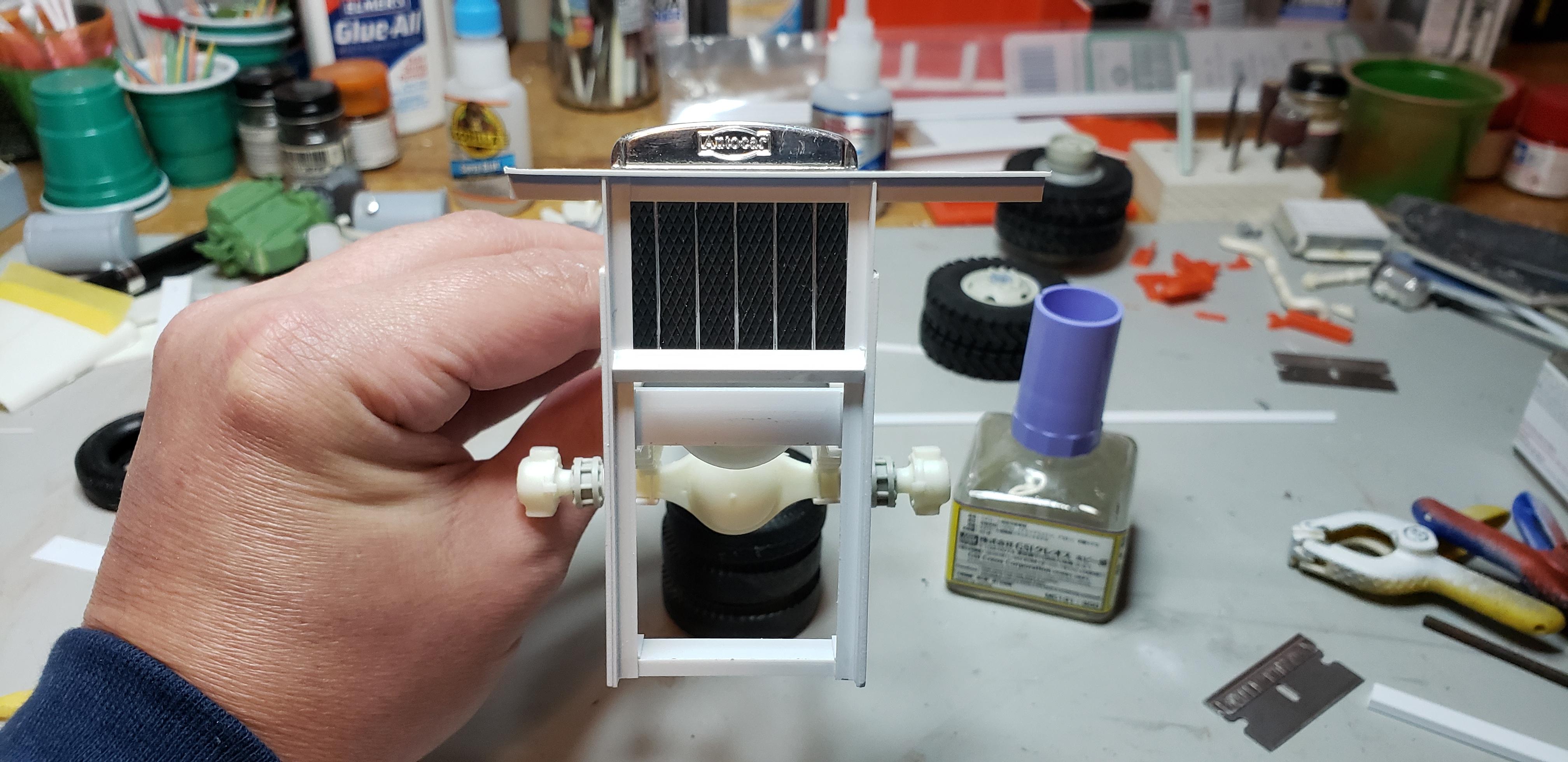

Building the framework once the sides shape was determined was simply stacking angles/ tubes . I really enjoyed building the skeleton for hitch, now the remainder of the  plow fittings can be installed / fabricated . Heres the start of the hitch assembly. I reinforced most of the fittings w angled plates , later ill add  meng bolts .

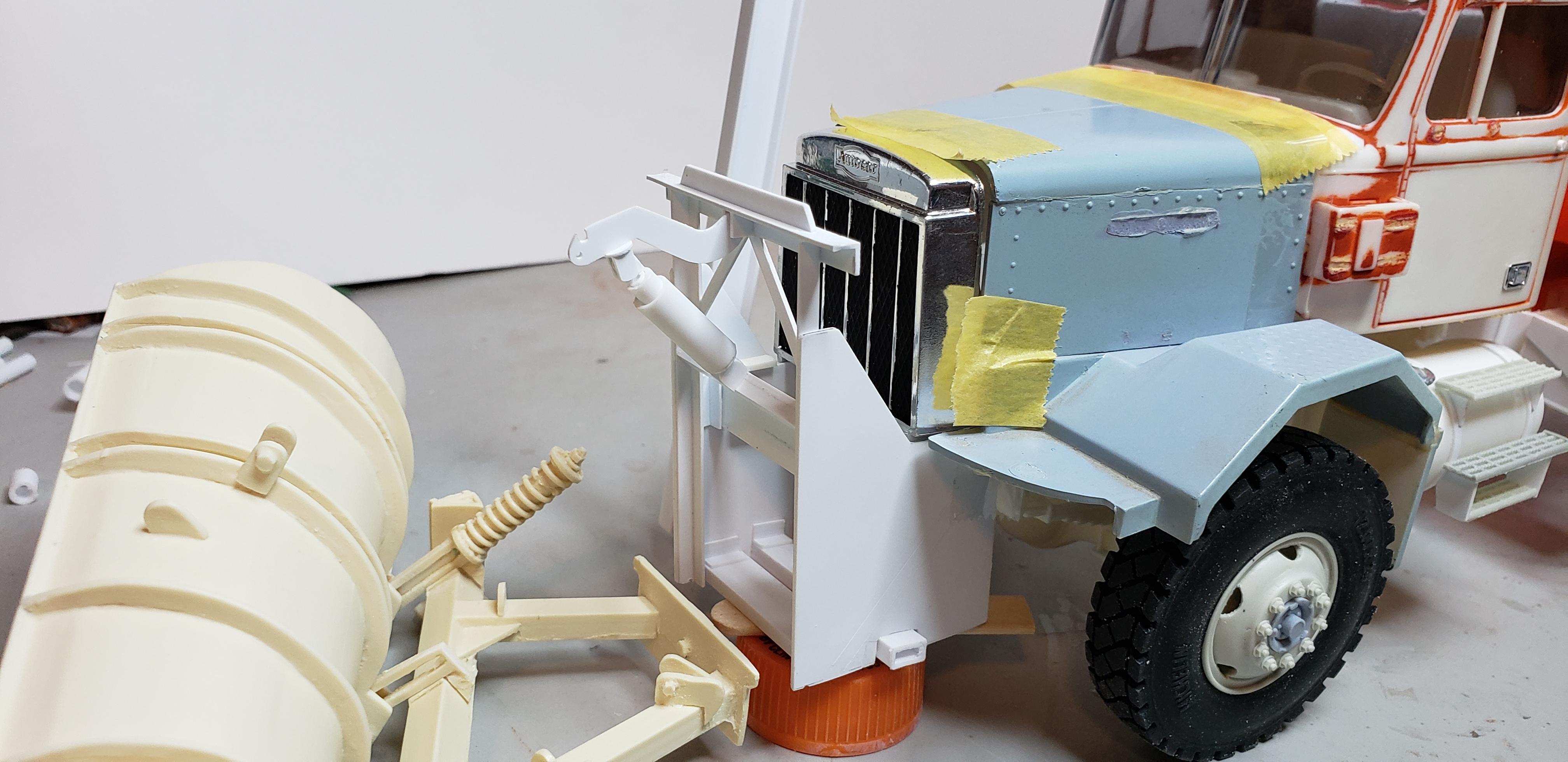

A very important detail i wanted to capture was the alignment of the hitch to the radiator.  The top rail will have several work / driving  lights fit. The lights will be level w the autocar emblem on the grill shell. The upper angled plate is just mocked up, I wasn't sure how wide I wanted to leave it during mock up.

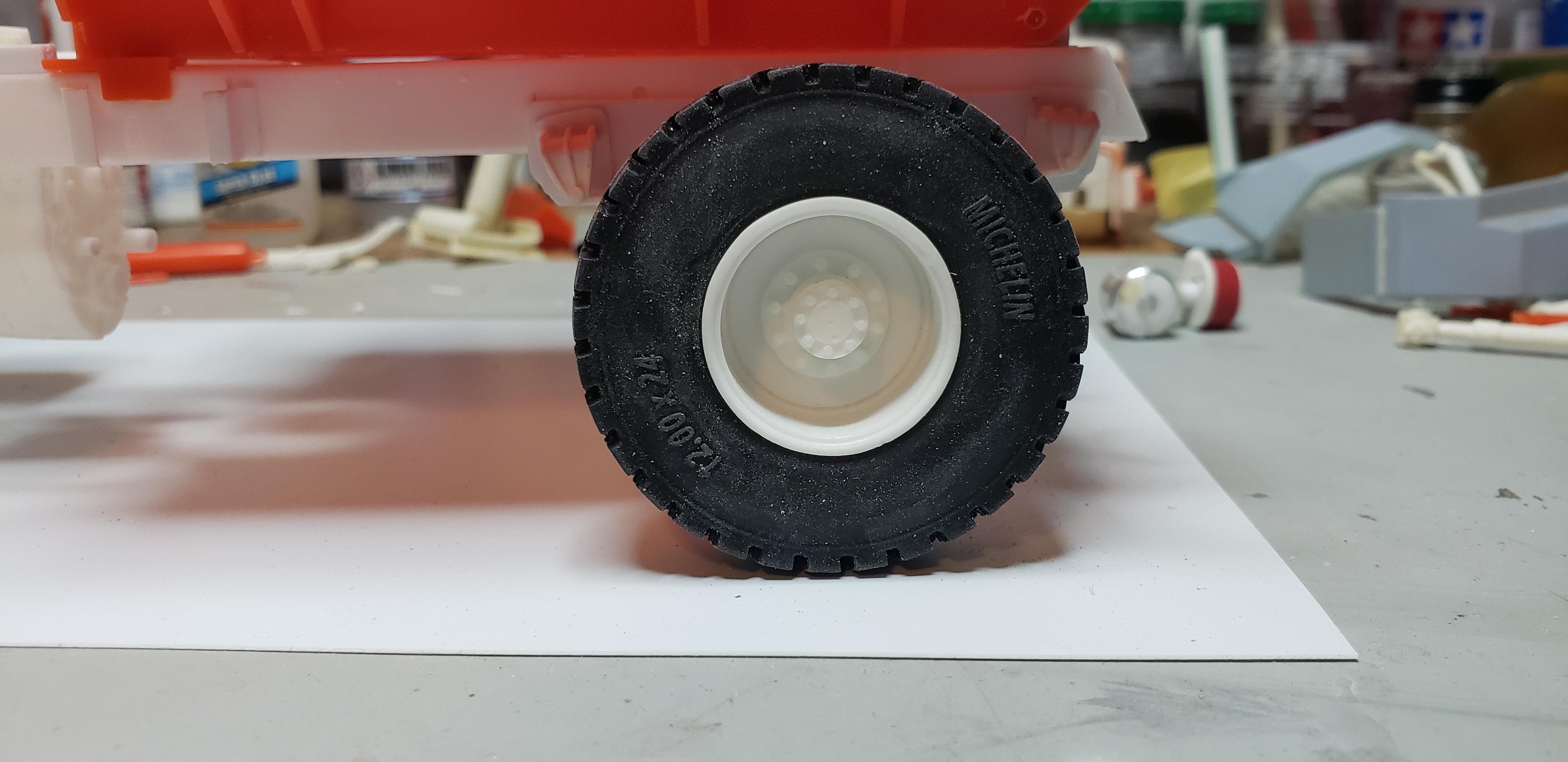

A good friend thats building the same truck cast the proper type rear wheels for this project. He's sending me a set and some driving lights to light the snow covered roads .

Thanks for following along!

Link to comment
Share on other sites

7 hours ago, Sam I Am said:

Wow Jeff, you are moving right along. Sorry the box didn't work,  but I bet if you leave it on the bench you or the squirrels will come up with some ideas.

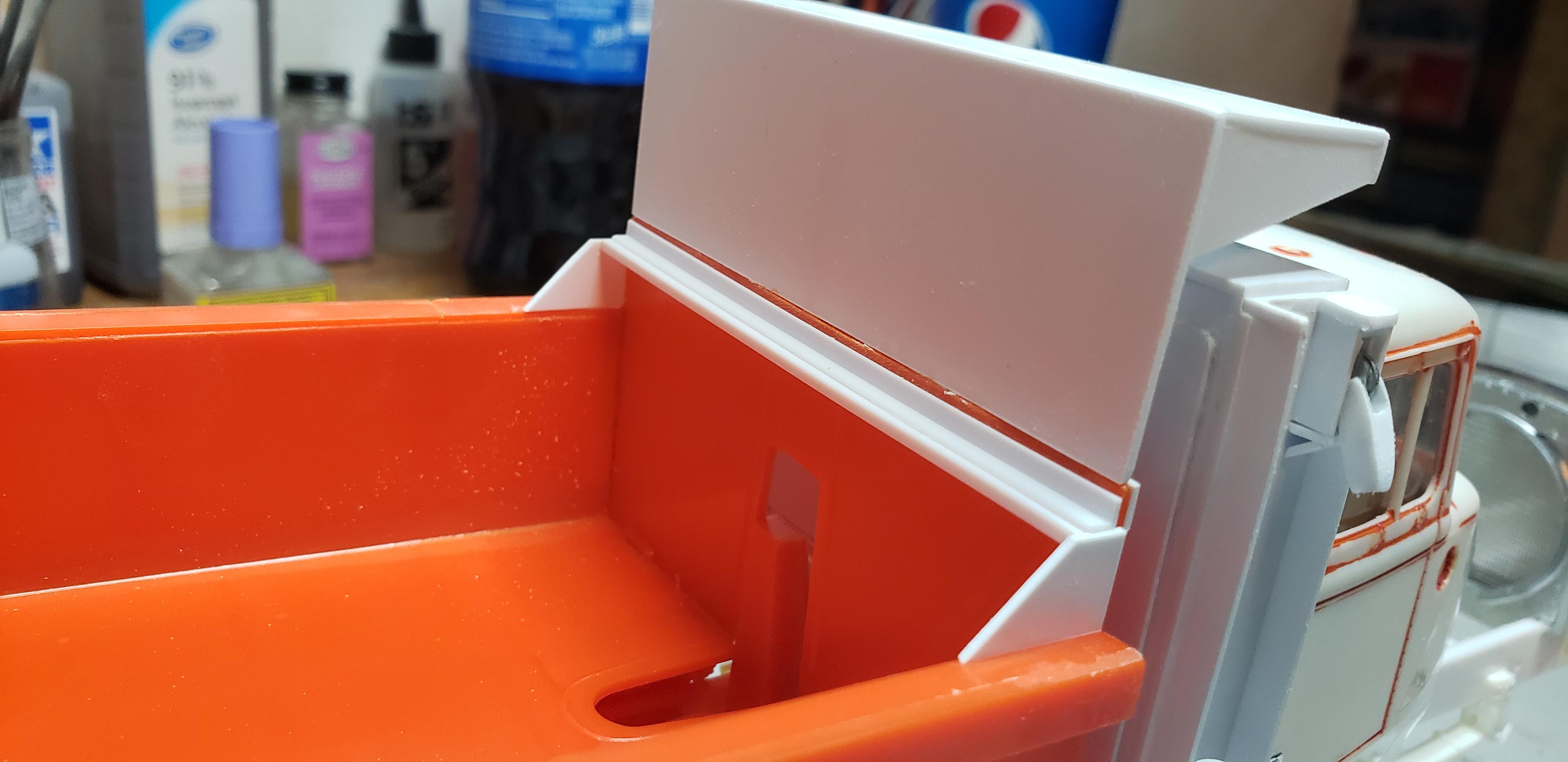

Thanks Sam , I'm really enjoying this build and the squirrels haven't side tracked progress.  The box already has a future..coming soon !

Link to comment
Share on other sites

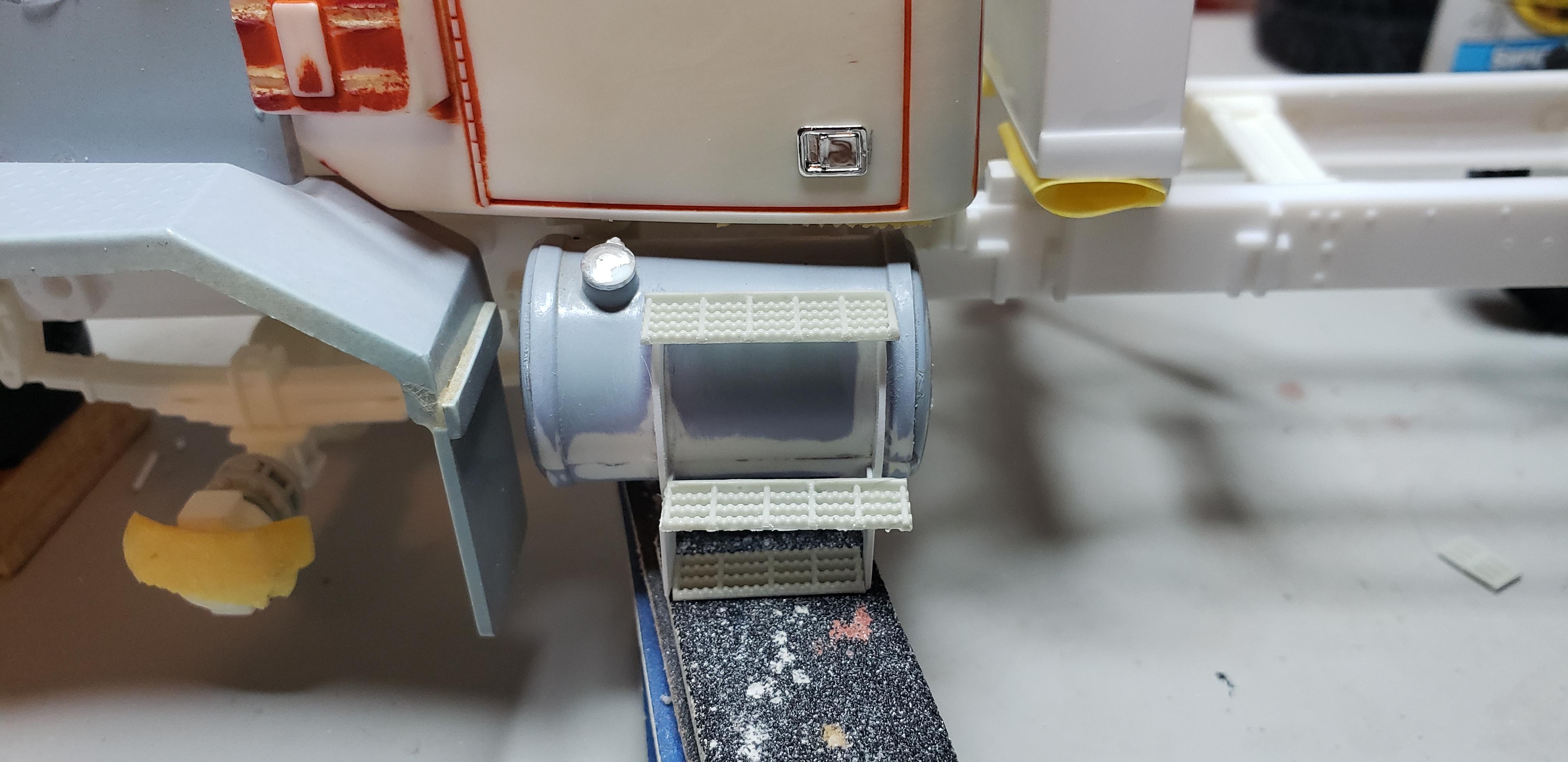

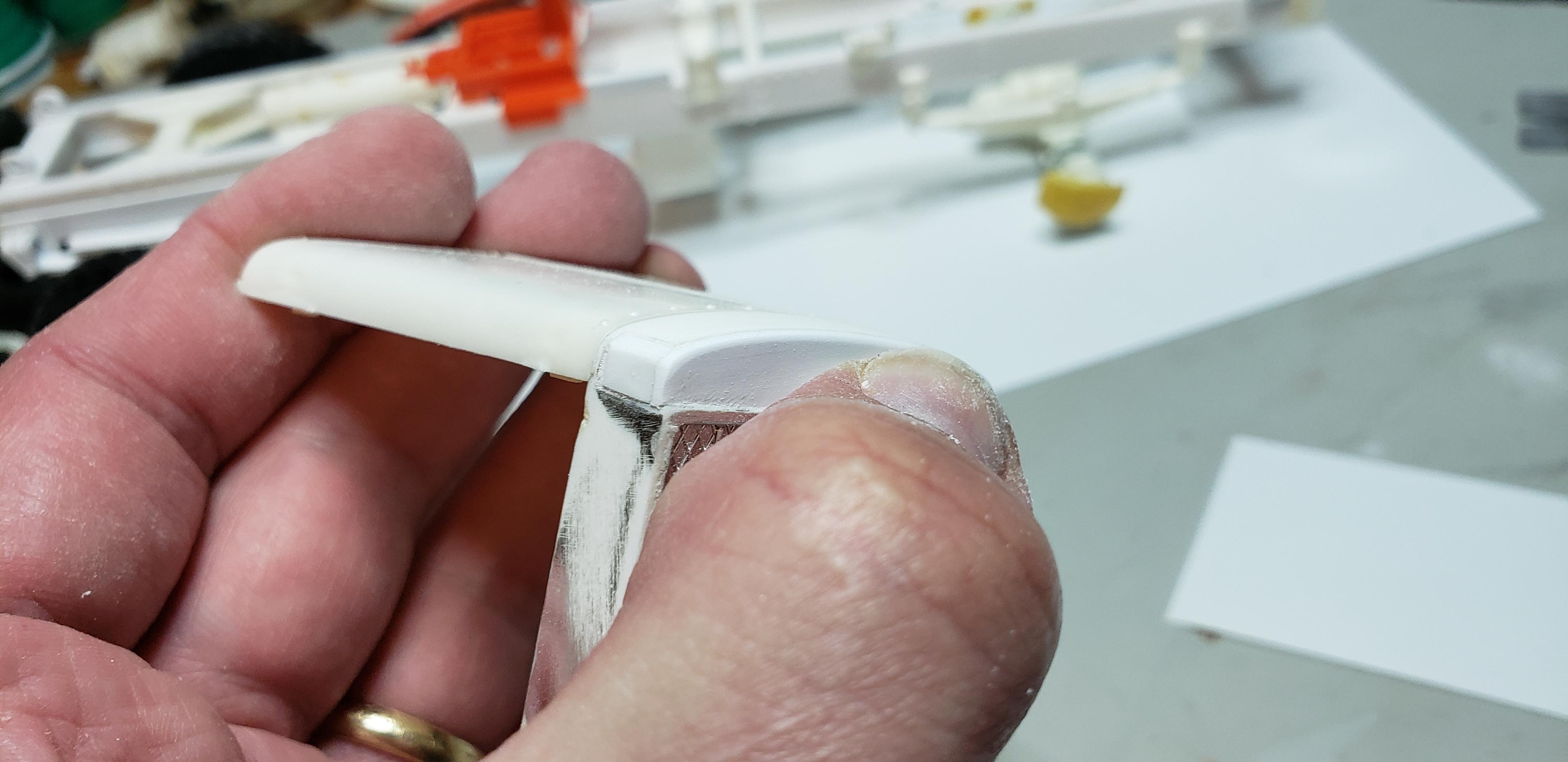

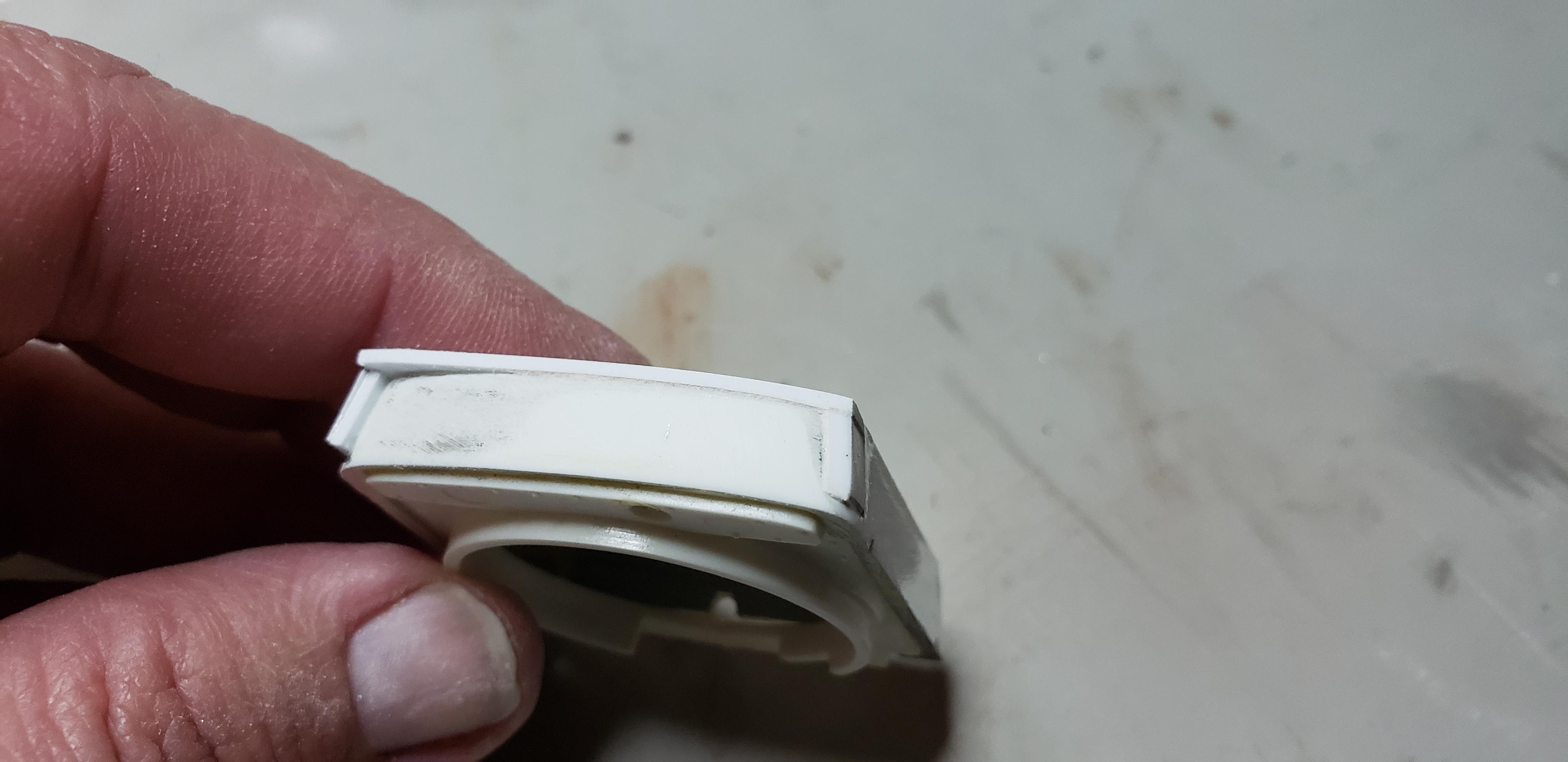

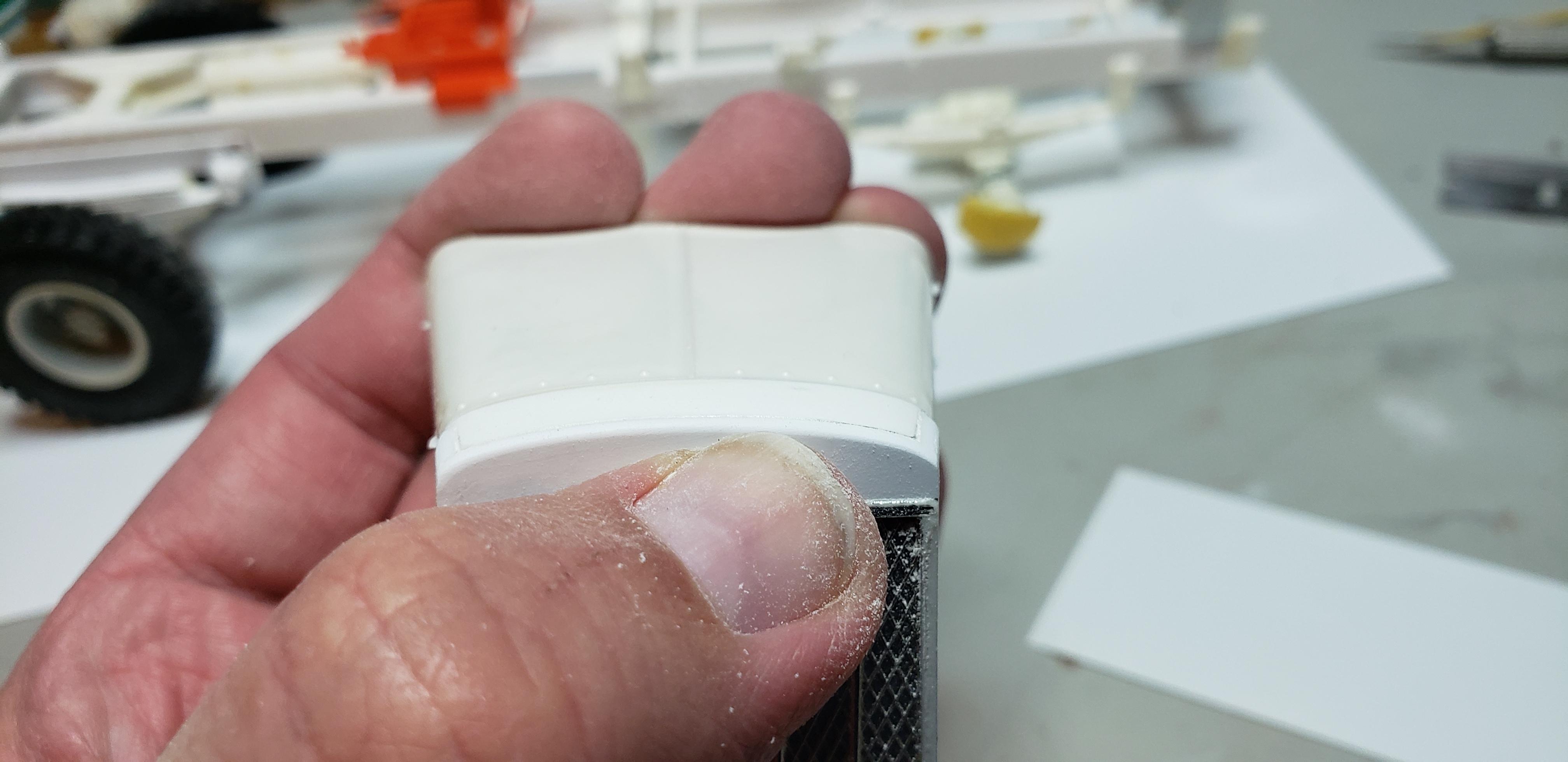

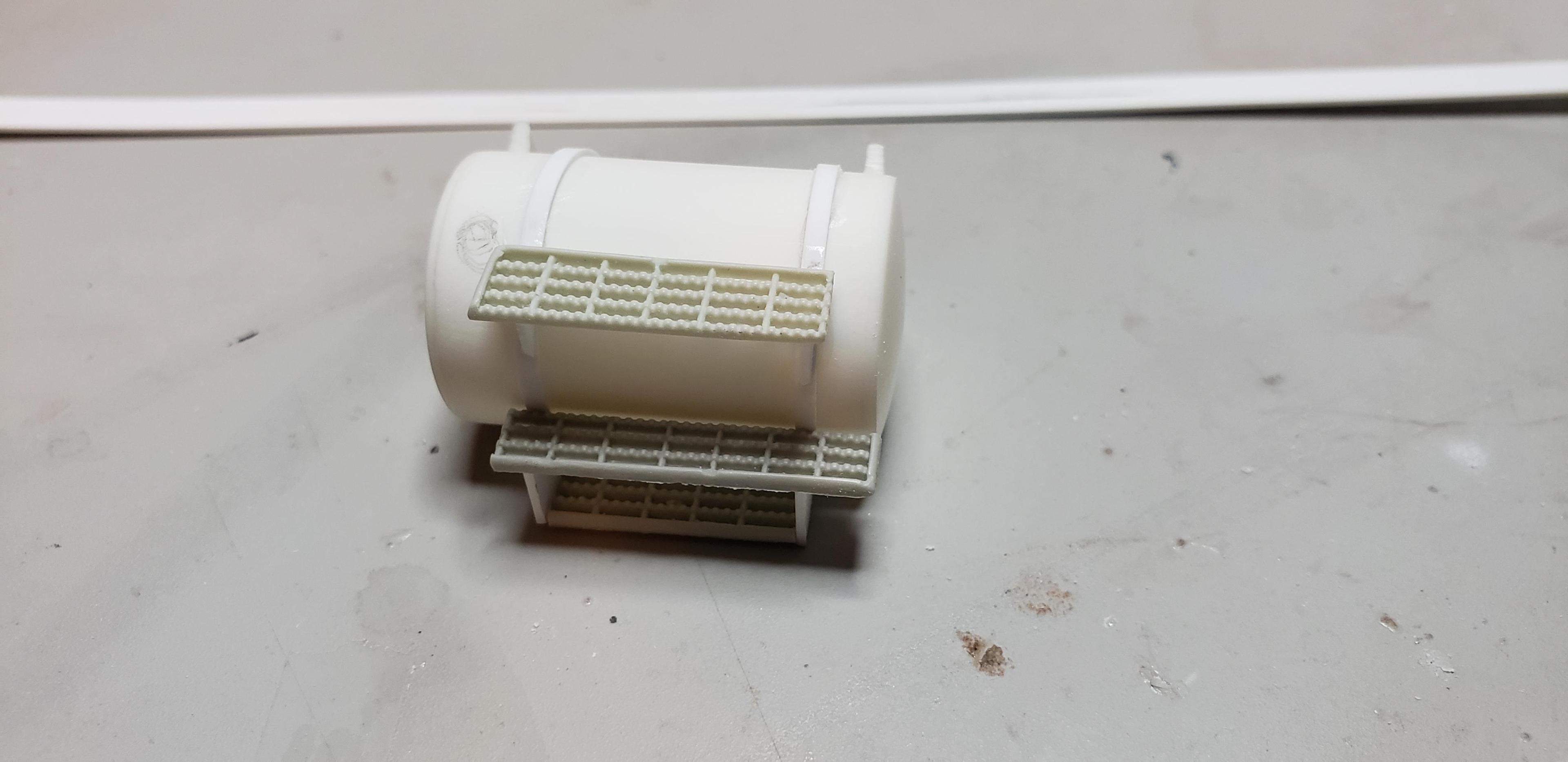

Wknd update, tackled a few smaller items that I could bust out fairly quick. Studying photos showed changed to the kit fuel tank steps. I used some curved sheet for mounts, then deck plate for the treads.

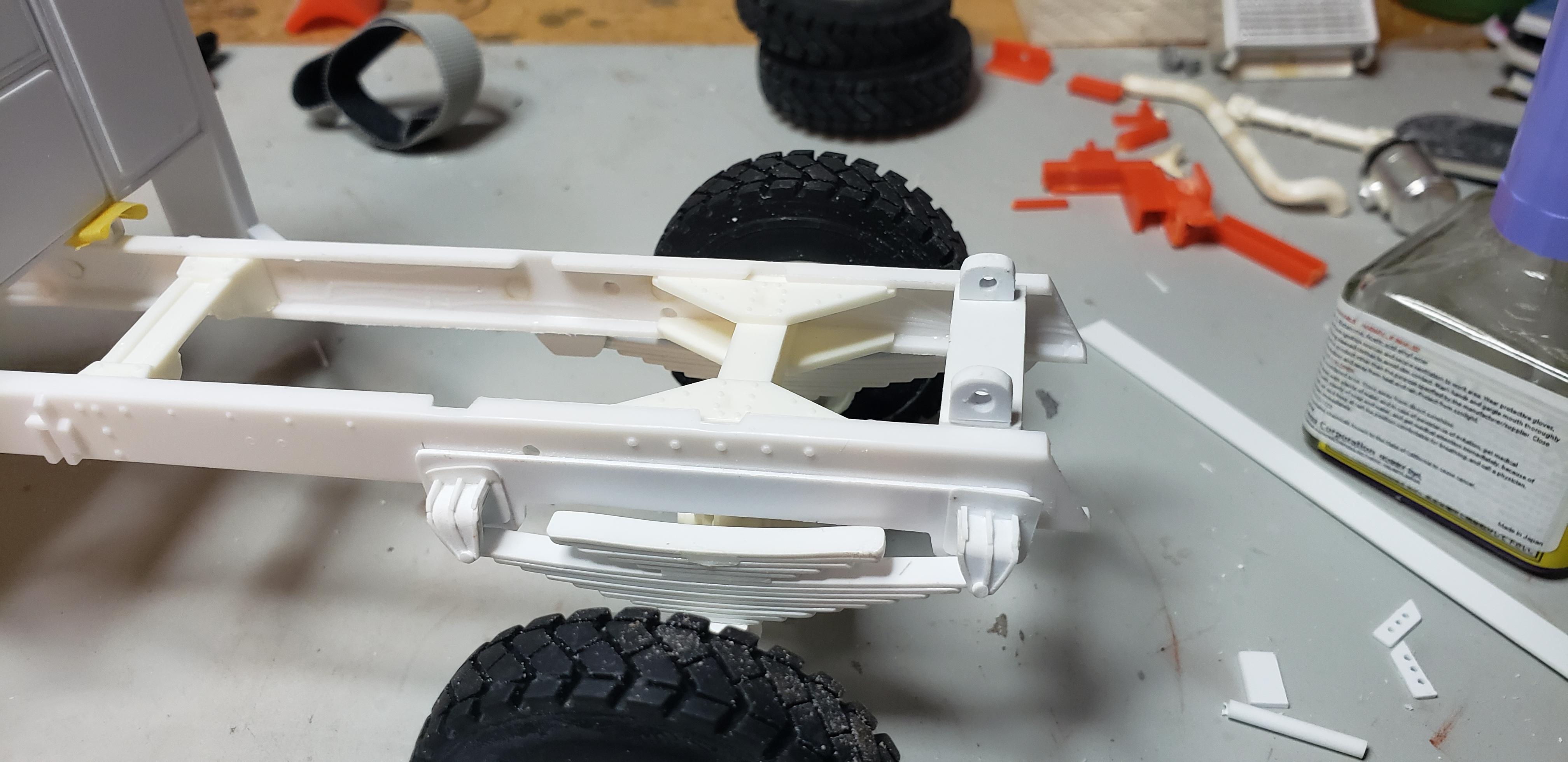

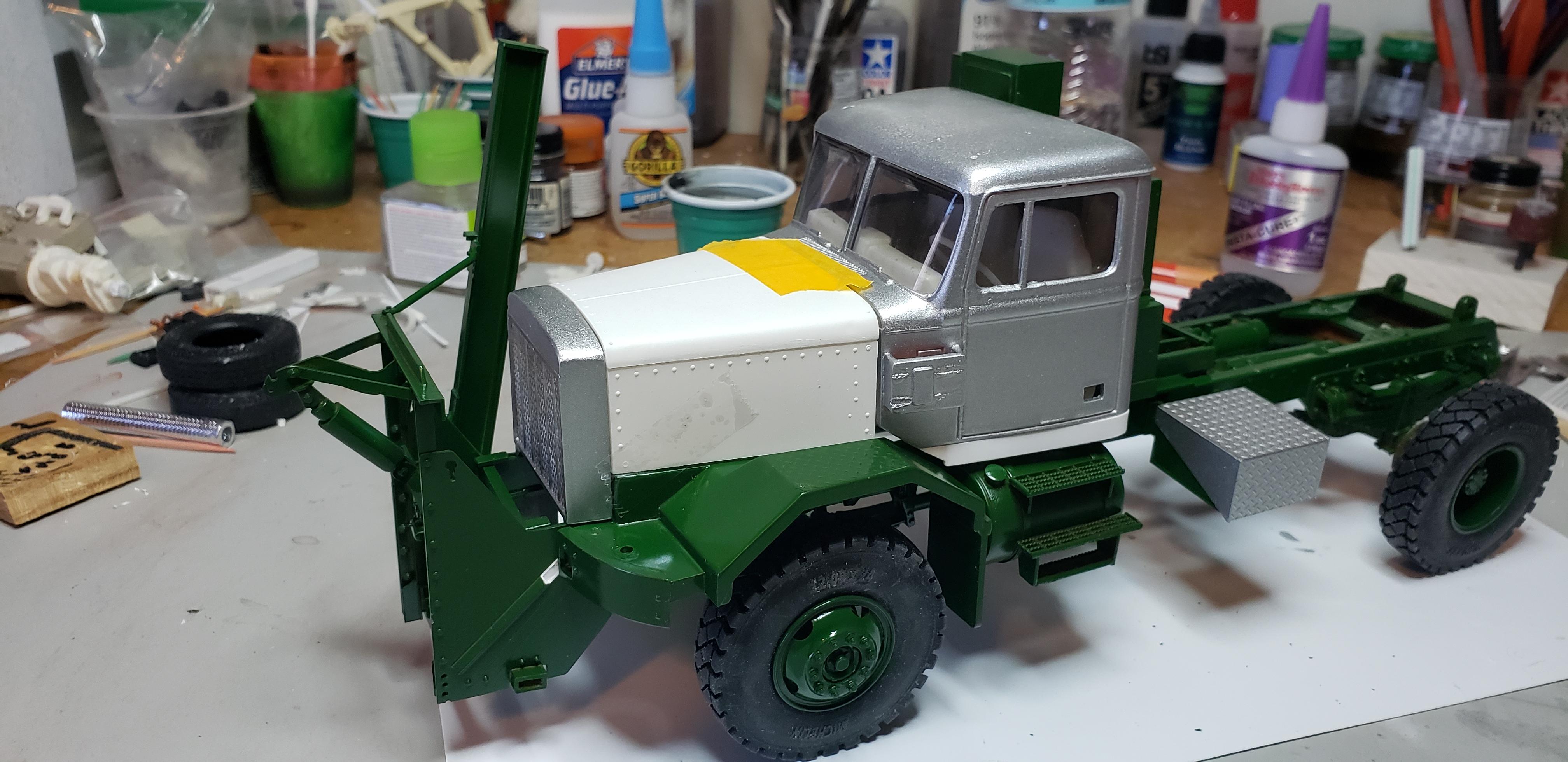

I finally got around to angle cutting the frame rails, adding a c/m on the end from I beam then installing the dump bed pivots. The rear susp is waiting for bolt details and the overload stops above the spring pack..or whatever their called.

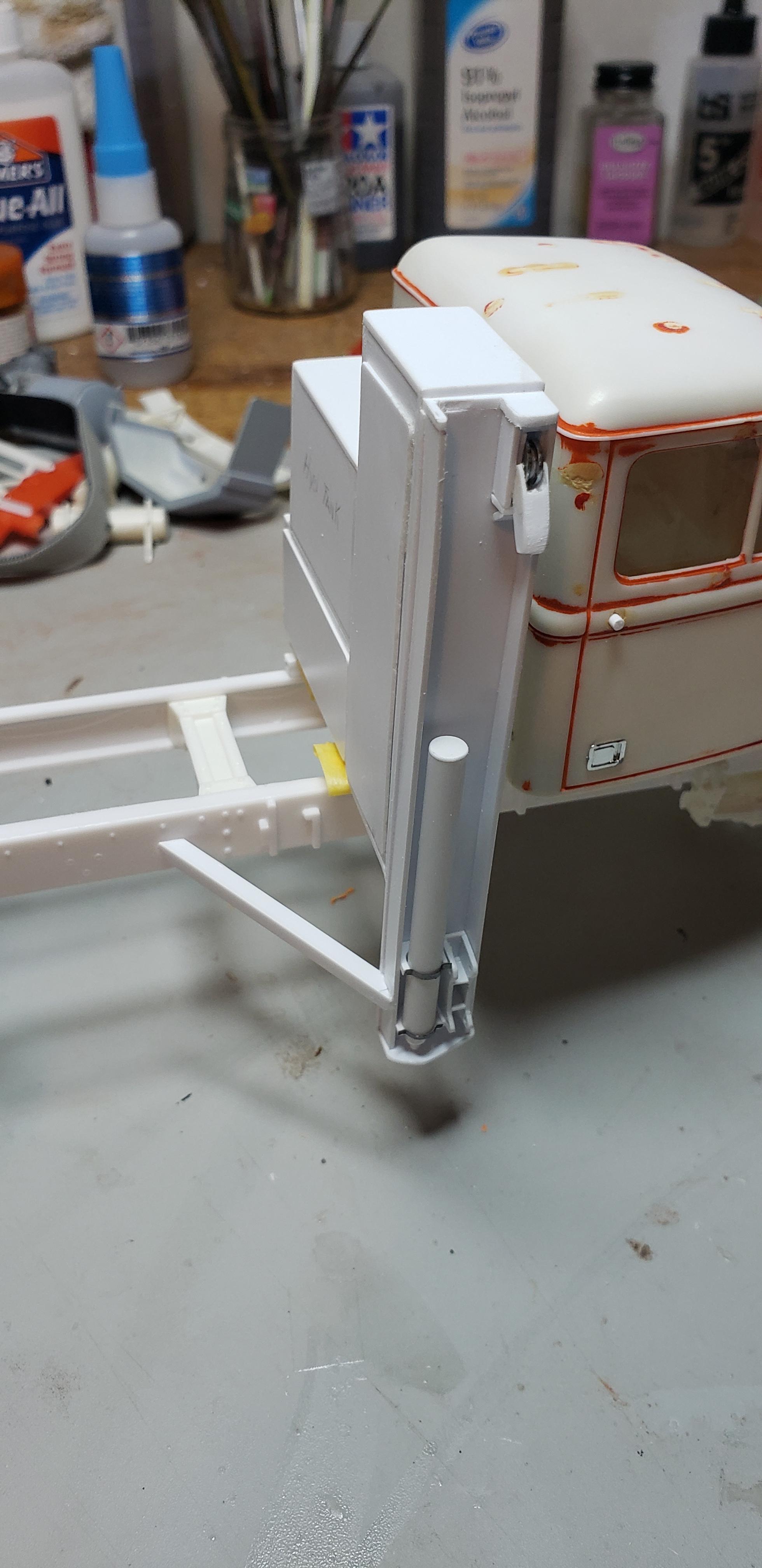

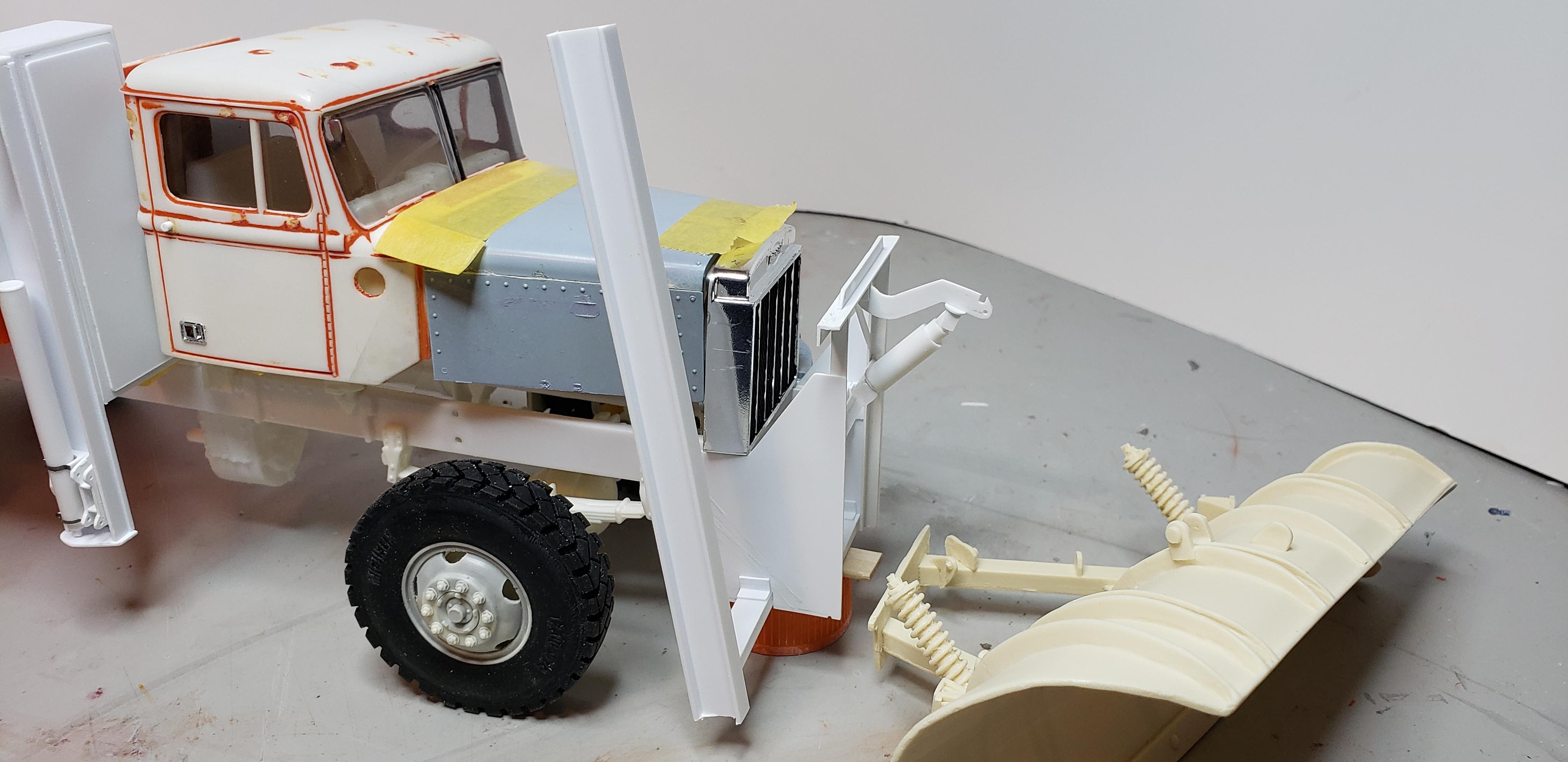

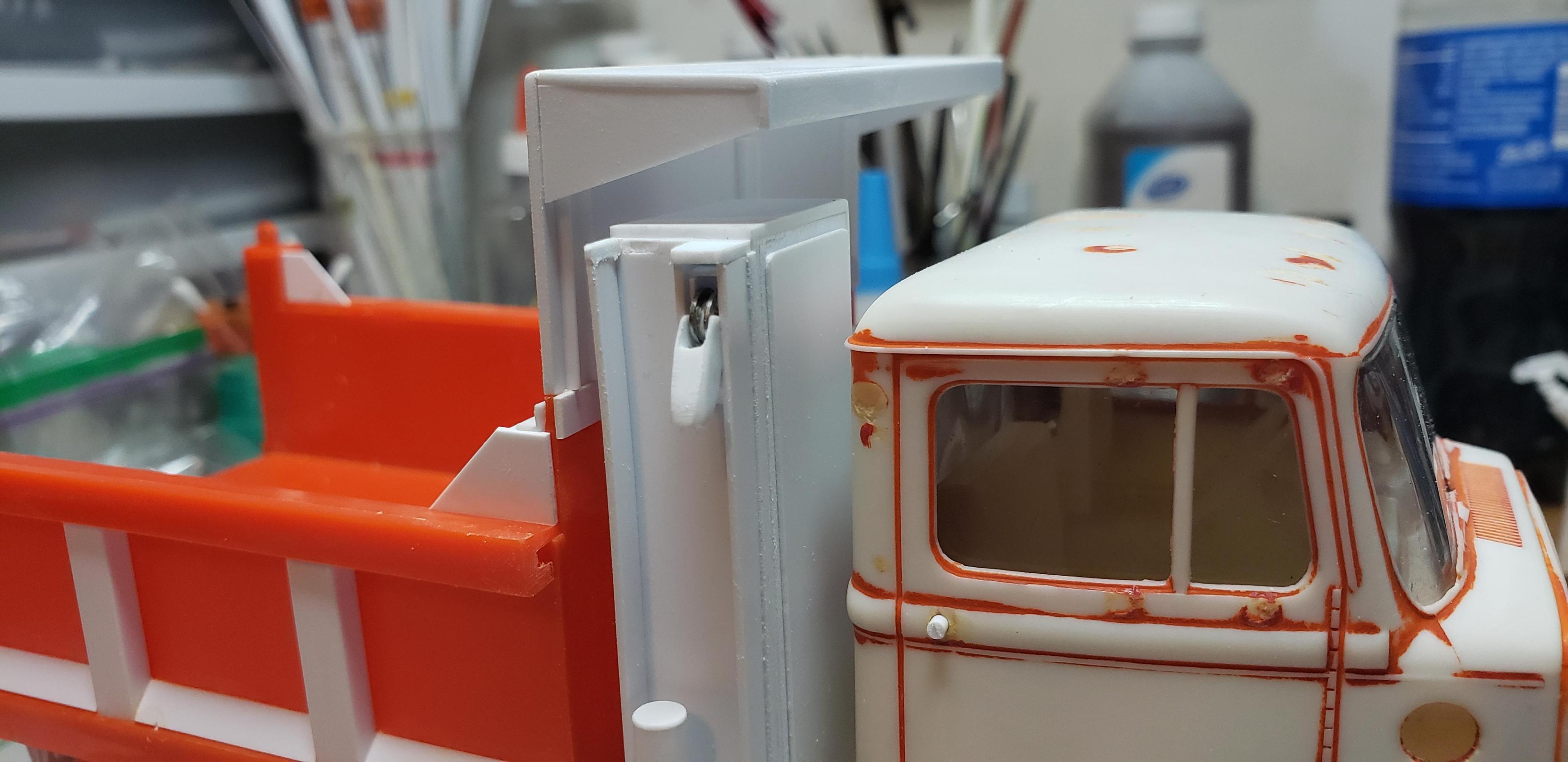

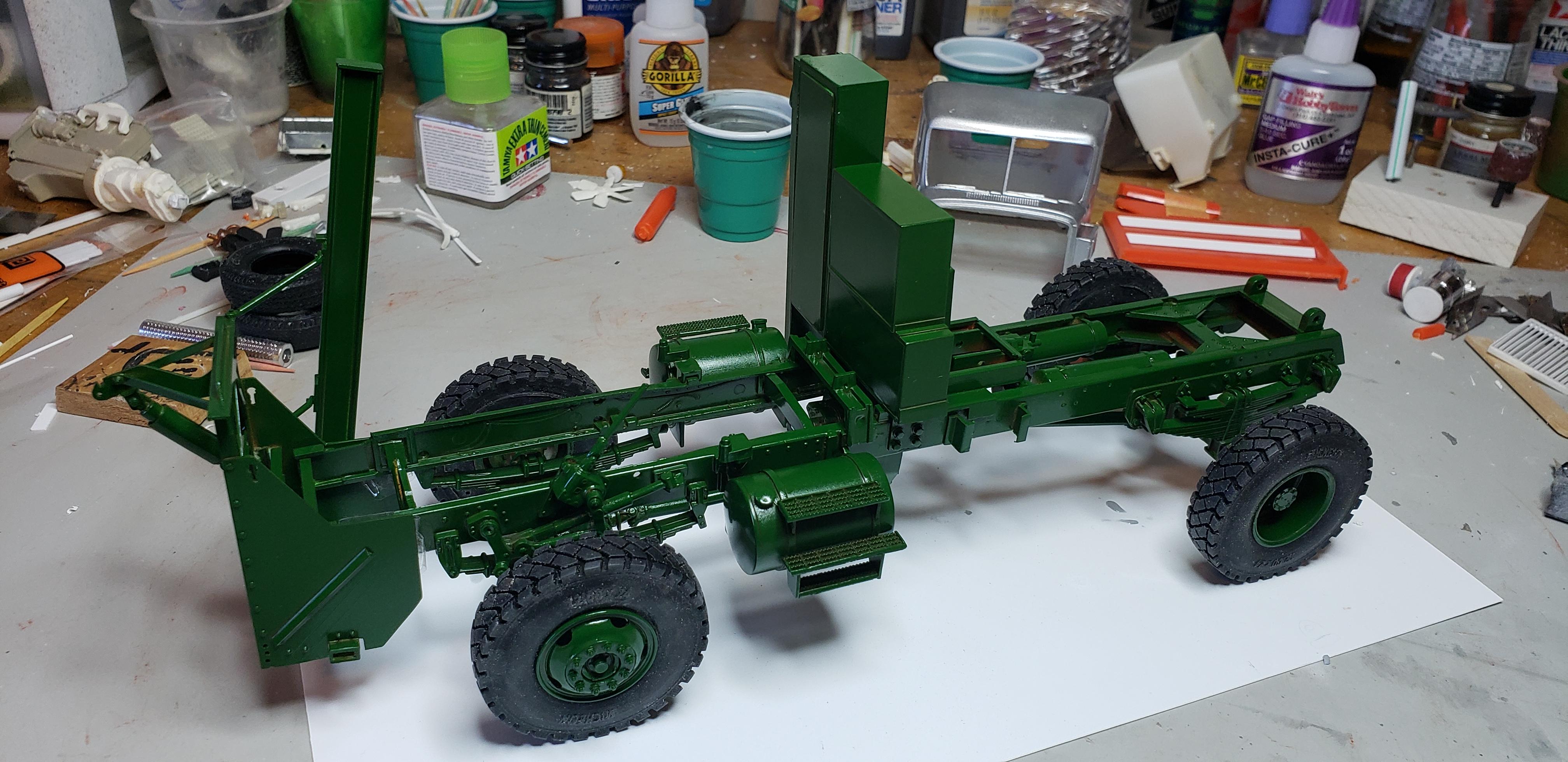

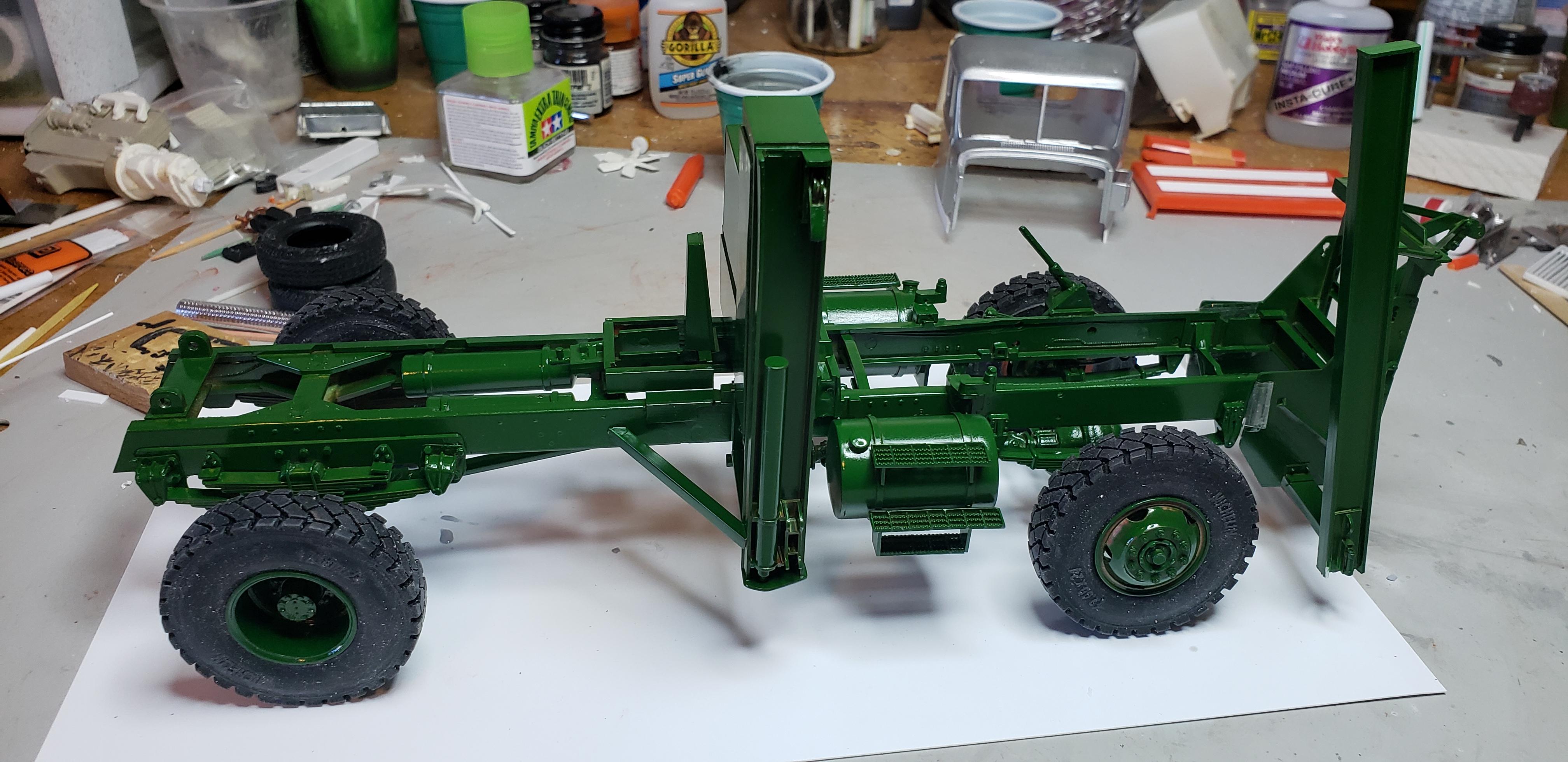

The wing tower pulley, lift cylinder and wing rod strut mounts were fabbed up, and temporarily installed w a bar that'll be welded to the frame rail.

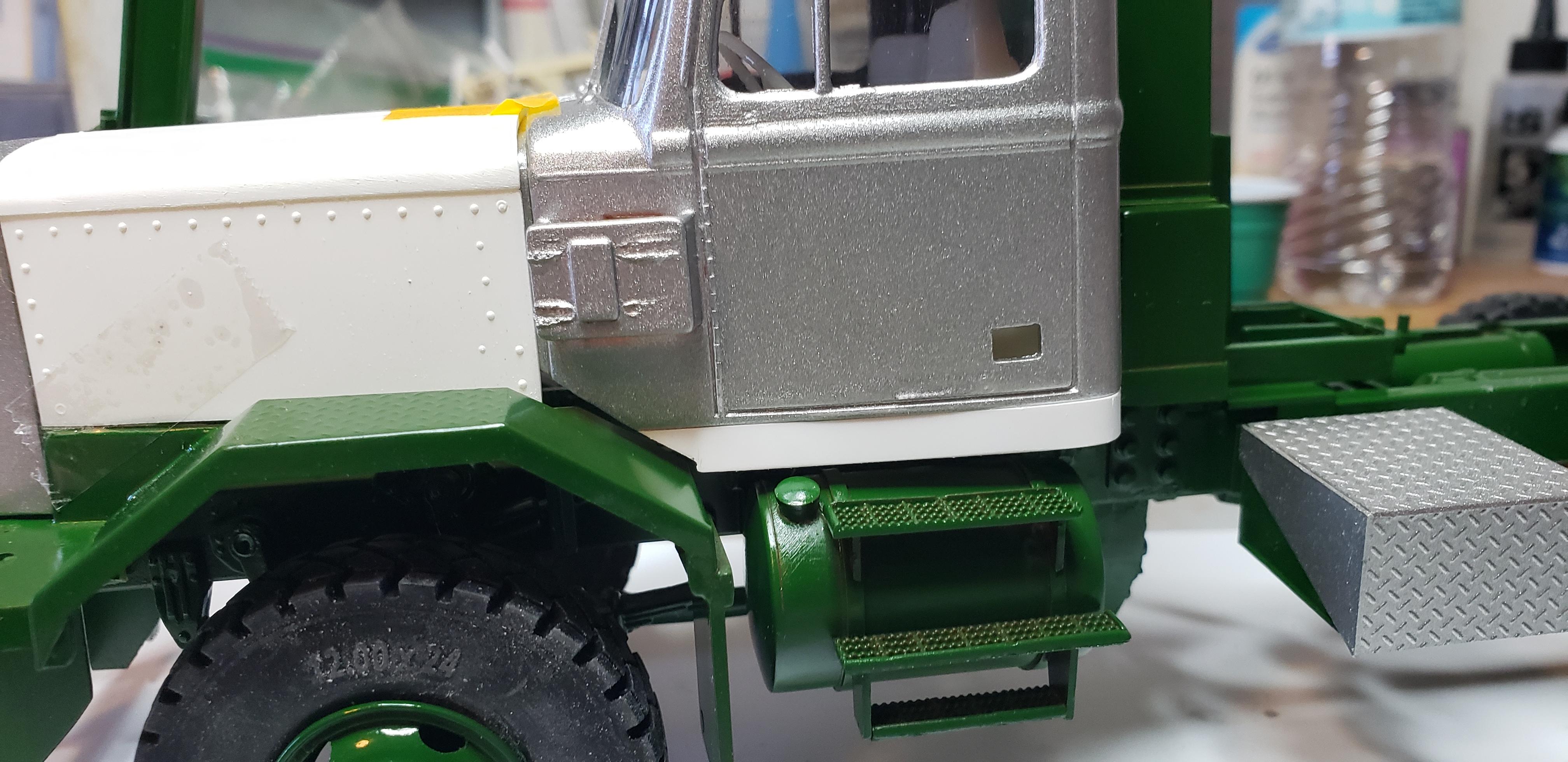

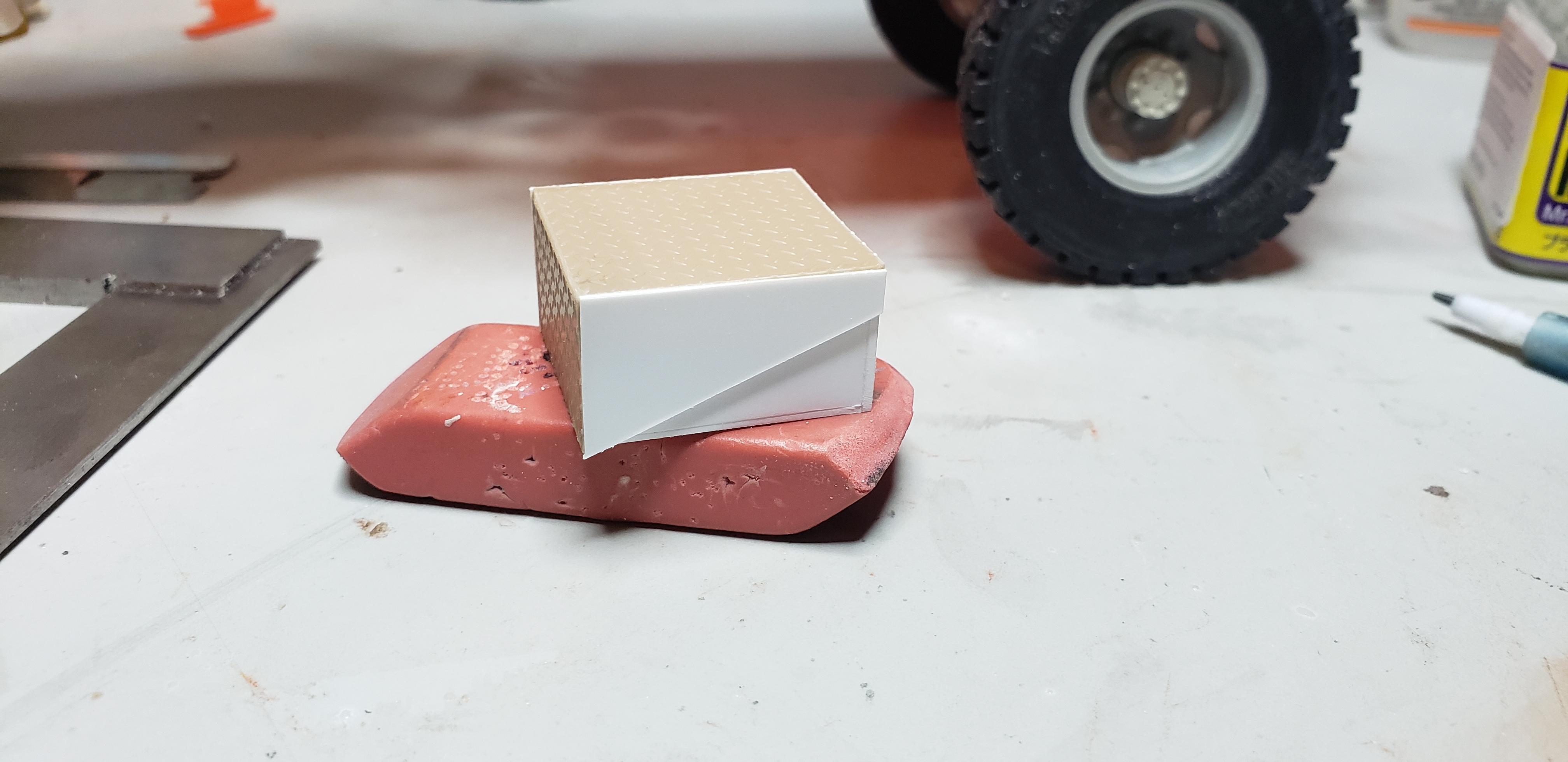

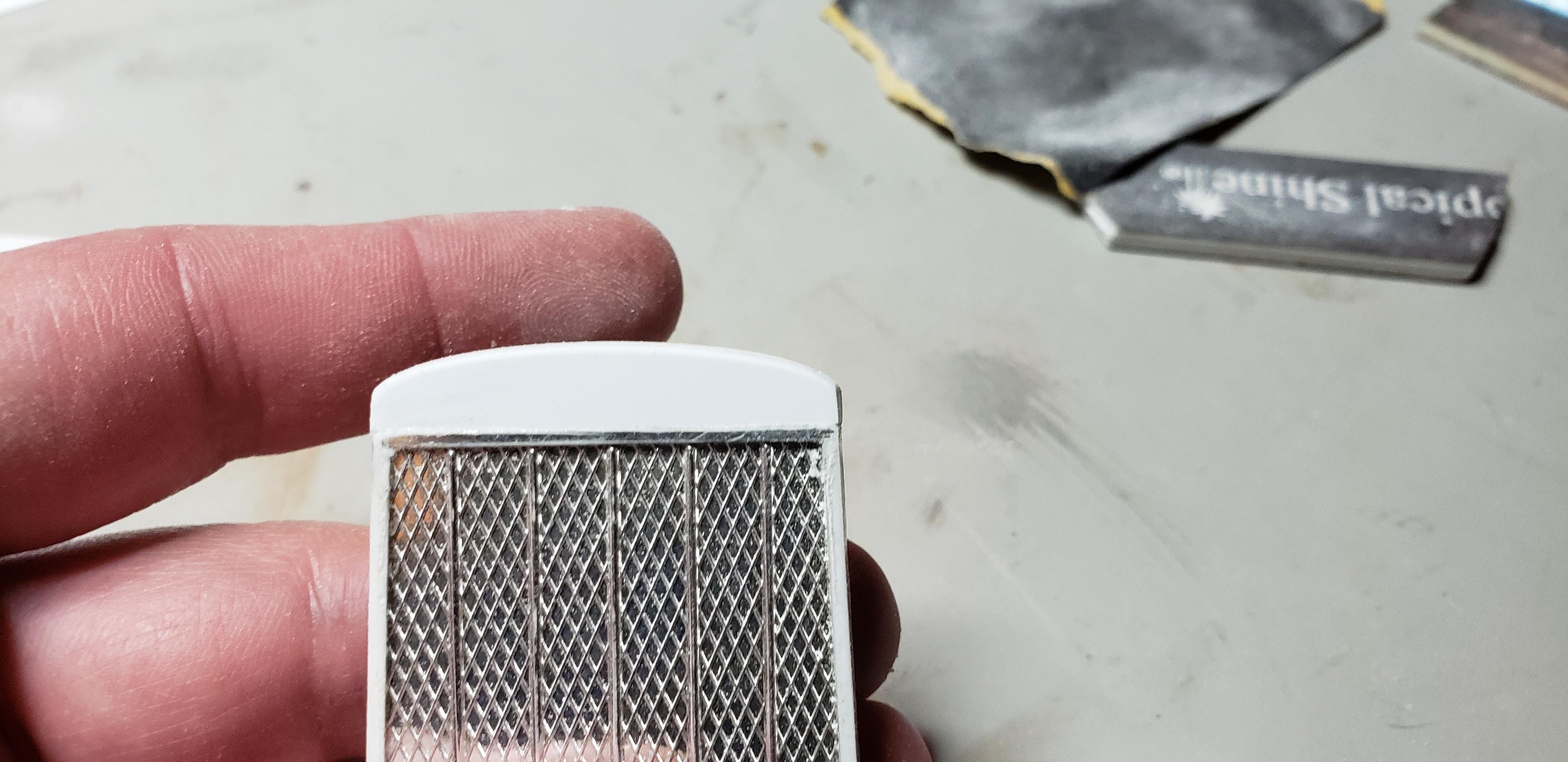

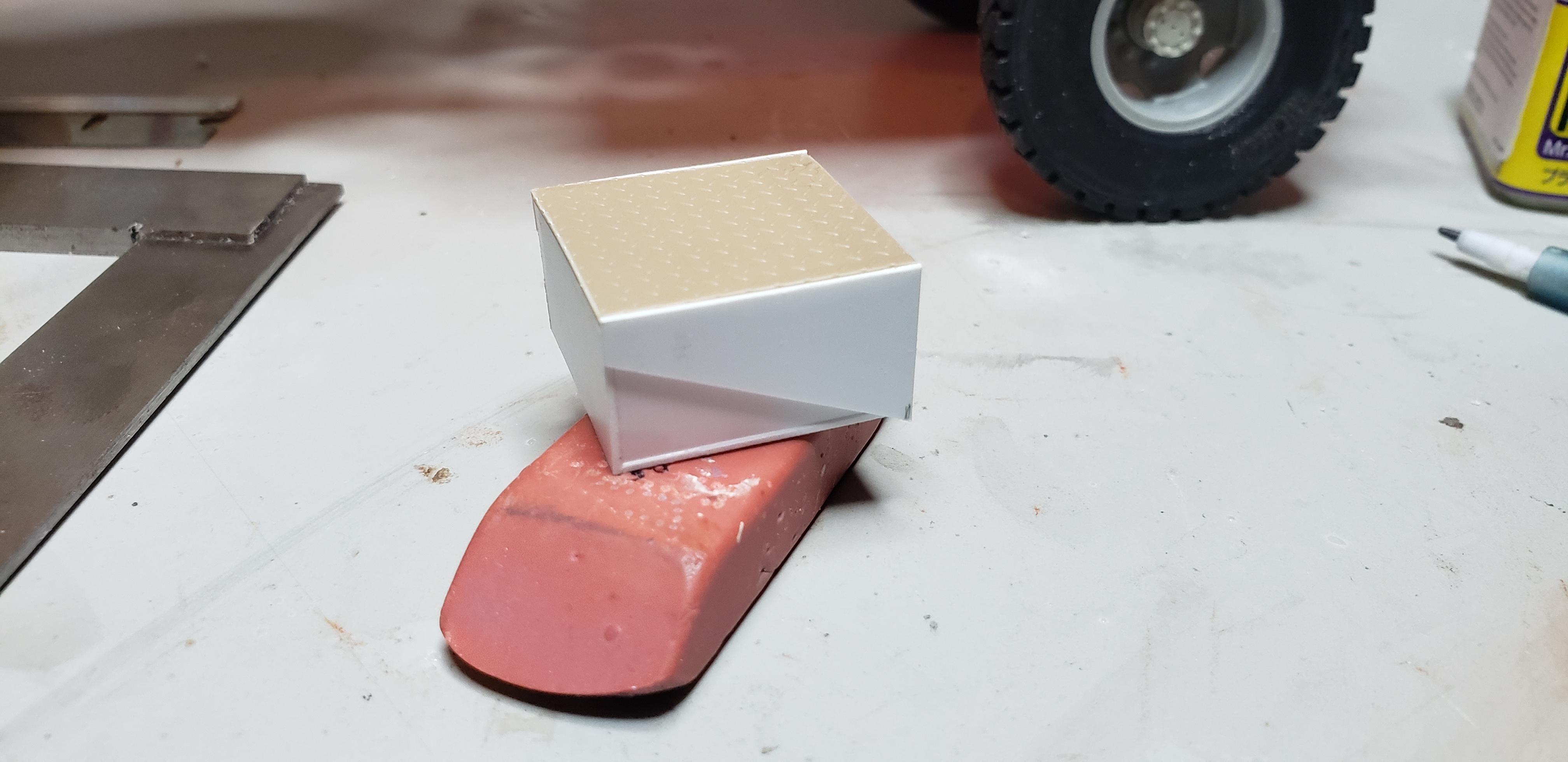

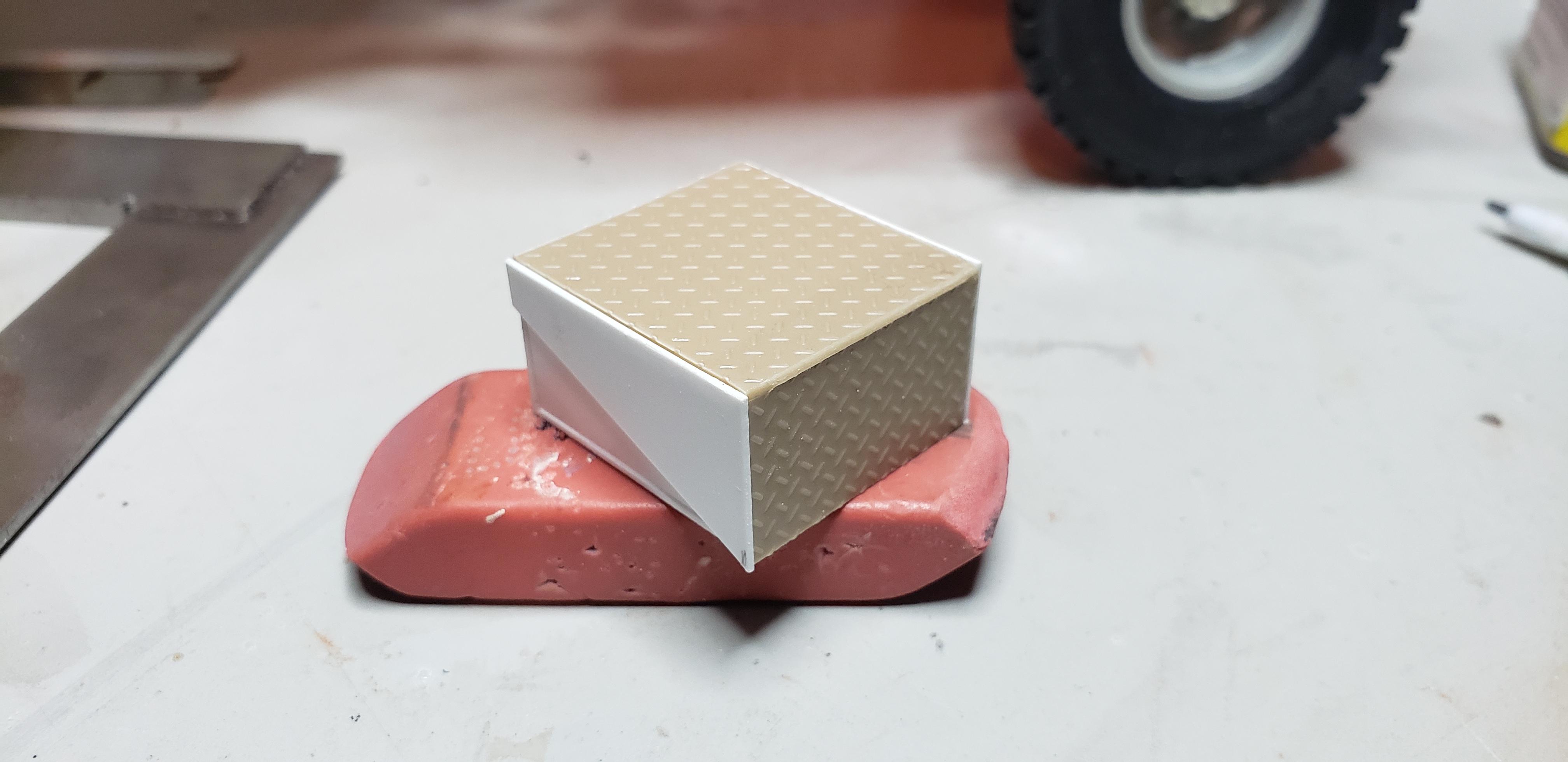

Lastly the truck wouldn't have any electrical power without its battery box . I tested out my new machinist square from micro mark to cut straight lines . I covered the top and front w plastruct diamond plate . Wrapping the hinged sides w angle cut sheet finished it up .




Thats it for the wknd ..gotta wire up a new  kitchen outlet tomo. We've been updating the old wiring in the house room by room. Turning off the main panel for a few minutes  while adding the breaker will keep things from getting exciting  !
