AMT "Miller" GMC Astro 95


Recommended Posts

I've started on this kit, and fairly soon into it I've hit a block that I'm not sure what needs to be done to correct it.

This is the Detroit Diesel 8V-71 (I think it's the same engine as in the Pete 352 kit).

In the photo, I'm holding the parts in place per the locations on the instructions to test fit everything.  You can see that there is quite an "angle" on the belt and pulley assembly that obviously isn't right.

Anyone had this issue  ?




Link to comment
Share on other sites

  • 2 weeks later...
On 1/10/2022 at 8:59 AM, OldTrucker said:

I did on the GMC Astro kit I'm building. I just opened the hole up a bit, will have to do the same with the fan.

Thanks for the reply !

I'm guessing then you also nipped off the pin that came through that bracket on the center pulley ?   I'm assuming that pulley shaft shouldn't really extend past the bracket.



Link to comment
Share on other sites

I'm building the same truck. I didn't notice the leaning pulleys until I seen this post. I'll have to go fix that on mine! I'm working on the cab height at the moment so if you have any questions on your build just let me know or take a look through the pics on my thread.

Link to comment
Share on other sites

10 minutes ago, doorsovdoon said:

I'm building the same truck. I didn't notice the leaning pulleys until I seen this post. I'll have to go fix that on mine! I'm working on the cab height at the moment so if you have any questions on your build just let me know or take a look through the pics on my thread.

LOL... yes the "leaning tower of pulleys"    😉



  • Haha 1
Link to comment
Share on other sites

On 1/24/2022 at 11:12 AM, doorsovdoon said:

I'm building the same truck. I didn't notice the leaning pulleys until I seen this post. I'll have to go fix that on mine! I'm working on the cab height at the moment so if you have any questions on your build just let me know or take a look through the pics on my thread.

Since you are working on the same kit -- did you have this issue ?

The right side rear suspension fits fine on the frame rail (since there is only one pin).  But on the left side, the pins in the suspension don't line up at all with the holes in the frame rail.  You can see in my picture that the pin is like 1/2 a hole off.





Link to comment
Share on other sites

47 minutes ago, Goodwrench3 said:

Since you are working on the same kit -- did you have this issue ?

The right side rear suspension fits fine on the frame rail (since there is only one pin).  But on the left side, the pins in the suspension don't line up at all with the holes in the frame rail.  You can see in my picture that the pin is like 1/2 a hole off.





oh, that's odd. I had a similar issue. The suspension pins went in the holes just fine with me but the right rear leaf spring hanger wouldn't sit tight to the frame because the hole was too low, the rear most wheel would have been lower than the one in front of it, only by a couple of mm. I just cut the pin off and glued the hanger tight to the frame.

Link to comment
Share on other sites

40 minutes ago, doorsovdoon said:

oh, that's odd. I had a similar issue. The suspension pins went in the holes just fine with me but the right rear leaf spring hanger wouldn't sit tight to the frame because the hole was too low, the rear most wheel would have been lower than the one in front of it, only by a couple of mm. I just cut the pin off and glued the hanger tight to the frame.

Thanks -- yeah...  typical AMT assembly process...  whack off the pins on parts that have them  😉

Link to comment
Share on other sites

  • 4 weeks later...

Hi all:

I've been away for a while due to my mother's passing.

I picked it up again this afternoon and have another question.  If you look at the photo, you can see the connection at the top of the water pump doesn't mate with the fitting for it on the piece labeled "water connections".  I'm guessing I need to file on the left side of the "water connections" piece so that it will tuck under the back of the front  cover and move that piece to the right  ??




Link to comment
Share on other sites

  • 1 month later...

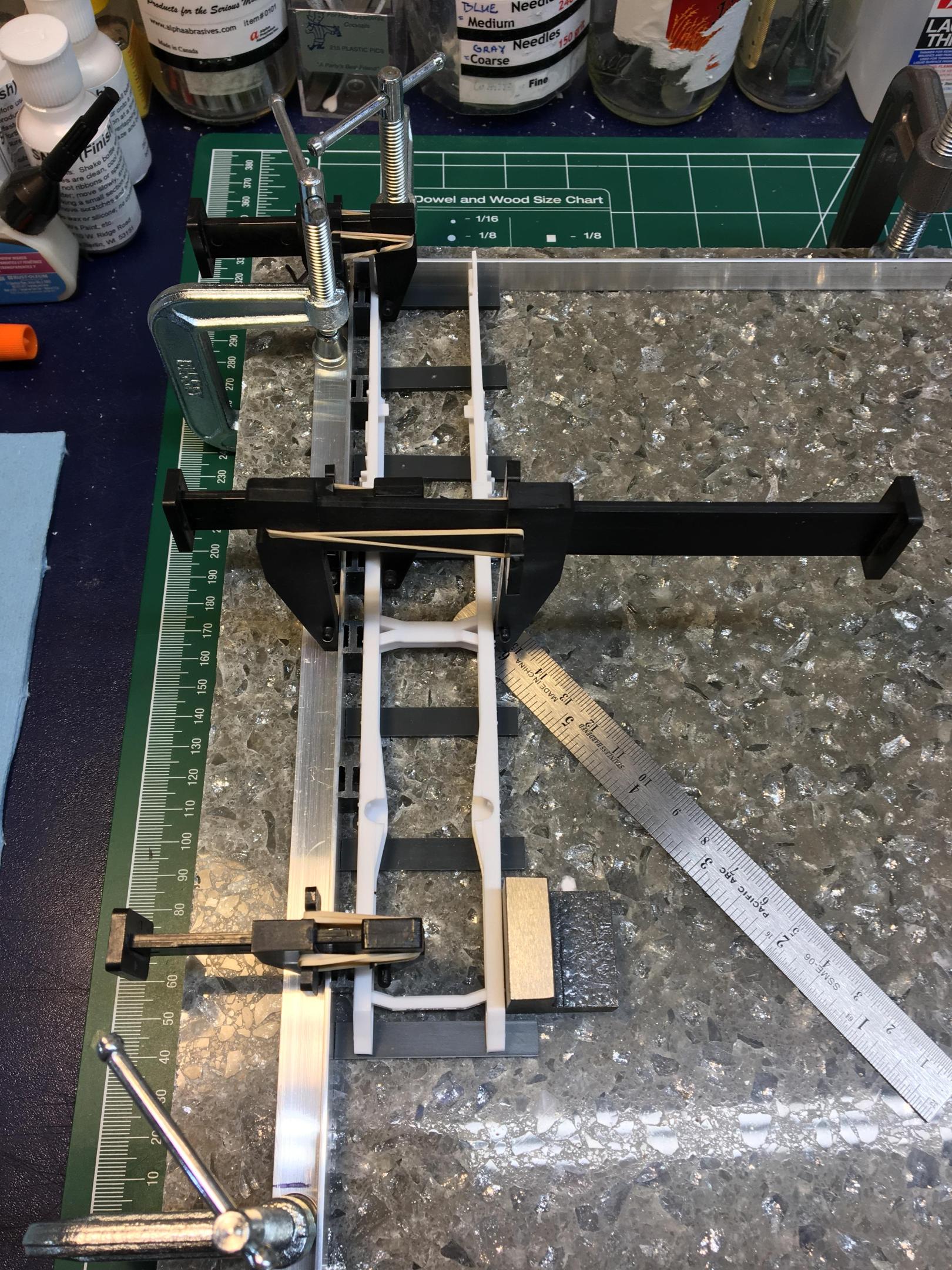

Finally working on getting the frame glued.   Made a "frame jig" to make sure I get it square, flat, and true.  The frame always makes me nervous because I've had some where one rail "leads" the other and then I ended up with rear axles that "dog tracked" or the cab tilting and not landing square on the rear supports, etc.    I needed something to help me get 'em square and true.






Link to comment
Share on other sites

23 hours ago, Mopar - D said:

That’s a nice frame jig. I sure could use one like that.

Thanks.   I got tired of ending up with hoods that didn't close "square" and axles that "dogtrack".  I had to do something!



Link to comment
Share on other sites
