Snake45

Scratchbuilding a Hurst (-ish) Shifter

Recommended Posts

(By request.)

I did this whole thing in one shot in under 2 hours one morning. You can probably do a better one than mine. Heck, I'm sure my next one will be better but I just wanted to get this particular project done and move on.

This is easier than trying to cut or shape a shifter lever out of flat styrene, and as a bonus, you'll be making three or four of them at the same time.

I started with some Evergreen strip styrene like this. I bought a package of the stuff, which looks to be about 2 x 3 scale inches, to make hot rod frames. (Yeah, that'll happen someday.) If you don't have this on hand, I'll tell you in a minute how you can get by with thinner styene.

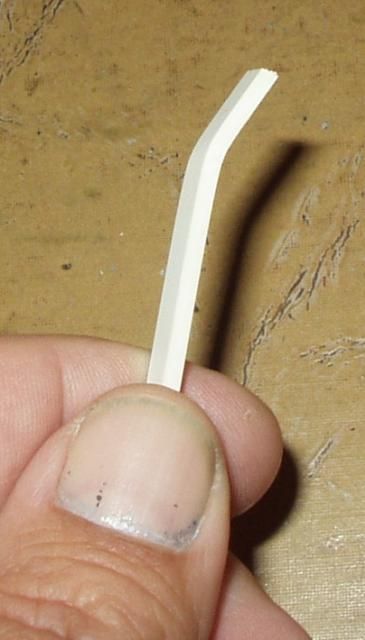

Most Evergreen plastic can be bent cold, with the fingers, but this stuff is so thick that when I tried it, it either broke in two, or cracked horribly at the bend. Tried bending it under hot tap water, which only helped a little, still got cracks. So I stuck an inch or so of the strip into boiling water for six or eight seconds, and then bent it, using pliers. I would have liked just a little more bend and could have probably gotten it either by keeping it in the boiling water a few seconds longer, or even by re-heating this piece and bending it a second time, but for this particular project, this was “good enough” and I drove on.



Don't worry about the length of either side of the bend at this time. You can cut it to whatever length you want later. You're mainly interested in the bend on the backside/inside of the curve. We'll take care of the front side in a minute.

If you don't have this thick styrene on hand, here's another way to do this and you can probably avoid the heating issue. Just laminate up your “billet” from several sheets of .020, .030, 040, whatever you have on hand. Bend the first layer, which will become the inside of the curve, then bend another layer and glue that to the first, then another layer and glue that on top, and so forth. When you have it as thick as the bottom half of the shift lever you want, you're done. Just let the cement dry (I recommend a liquid solvent cement for a solid, permanent bond) and come back to it when it is.

Now just file or sand the front edge of the top half of the shift lever to an eye-pleasing tapered shape. I didn't do anything with the back edge at all. You can also cut the top half to your desired length at this point. Mine was pretty much the length I wanted it to be at this stage, so I didn't have to cut it. Or maybe I did cut it--I don't remember.

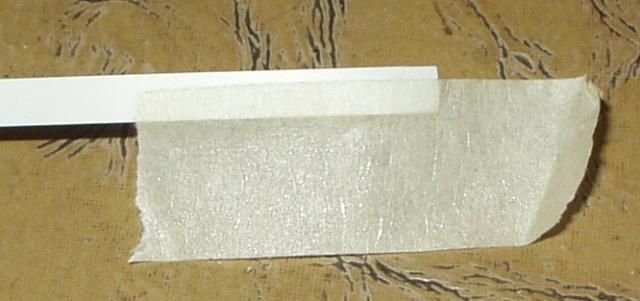

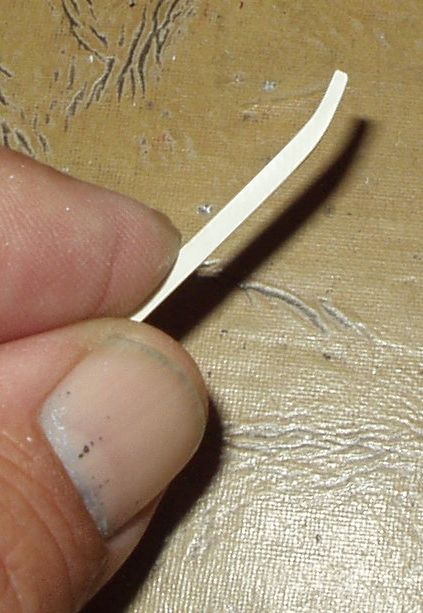

Now you're going to slice one shifter lever out of the billet/blank you just created with a razor saw. . I recommend laying tape on the plastic for a cutting guide. Don't forget to account for the kerf (thickness of the material the saw blade will remove) when you lay the tape. The cut will go smoothest if you start sawing at the bend, rather than at the end, and then proceed “up” and “down” (or outward) from there. Much easier to avoid your cut going off at an angle that way.

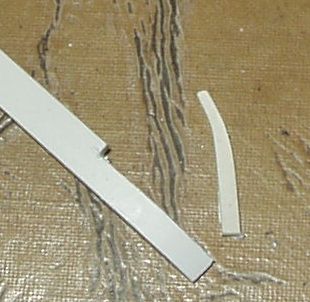

After making the “long” cut, go in from the side and cut one shift lever from your blank, still not worrying about the length of the bottom half at this time. NOTICE that I can still cut at least two, maybe three more shift levers from my prepared “billet.” How cool is that!

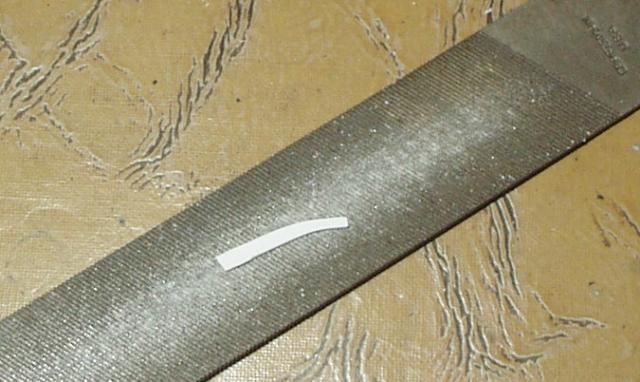

Your cut piece might be a little thick (better too thick than too thin) and/or uneven. It's easily reduced to the desired and uniform or tapered thickness by placing it flat on a file or sanding block and moving it back and forth. TIP: Lick your fingertip so the part sticks to it.


Share this post


Link to post
Share on other sites

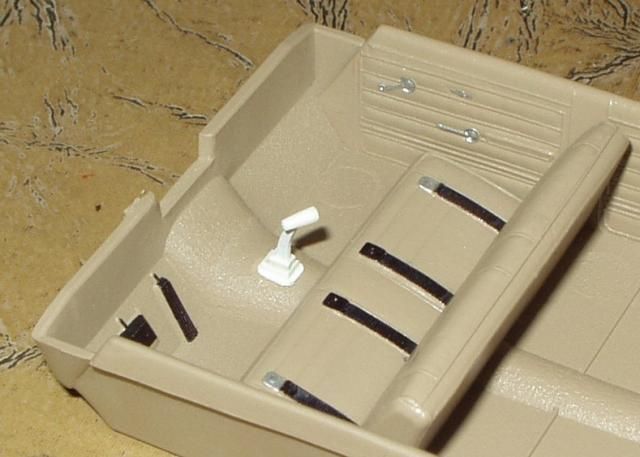

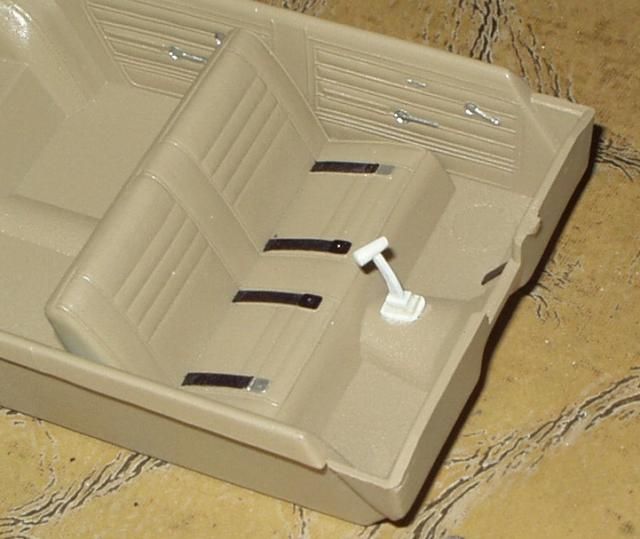

I didn't photograph making the “boot” but that's simple enough. I cut a baseplate out of .020” styrene and cemented that right to the kit floor. Then I cut two or three pieces of .040” styrene, each a little smaller than the last, rounded the corners a lick, and cemented them to the baseplate pyramid-style.

Only at this point did I decide how long I wanted the shift lever. This was just a matter of cutting pieces off the lower end until I got it where I wanted it (holding it in place with tweezers as I went). Then I cemented the lever in place on the boot with liquid cement at the joint—strong, fast, and permanent.

The T-handle is shown on in these pics, but I didn't attach that to the shift lever until after the lever was glued to the boot. We'll make the handle in just a second.




If you want a shifter ball, I've found you can build up a nice one with blobs of white glue such as Elmer's. Start small, put a round blob on there, let it dry, cover that with another round blob, let that dry, and so forth till you get the size you want. (This can take several days, of course.) Or you might get lucky and find a map pin or something with a ball the right size. Whatever, dude.

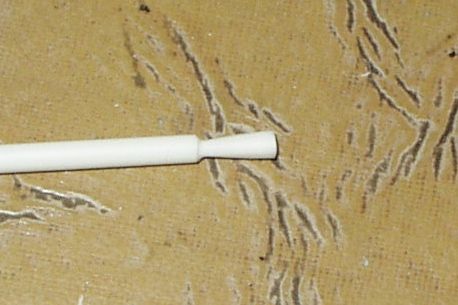

I wanted the classic Hurst T-handle so I made one out of Evergreen rod. I think this was .080” but I don't remember and it's not critical, and you can do just as well using a piece of kit sprue. The idea is to work out a tapered cone of a shape. You can carve this, or use a file, or scrape it out of the plastic, whatever works for you. Again, don't worry too much about length at this stage, as long as you've got it at least 4 scale inches or a bit longer. You can try to duplicate the exact Hurst handle shape if you want but I didn't get that anal about it, I just went for the general look.


Then cut it off and glue it onto your shift lever at whatever angle you want.

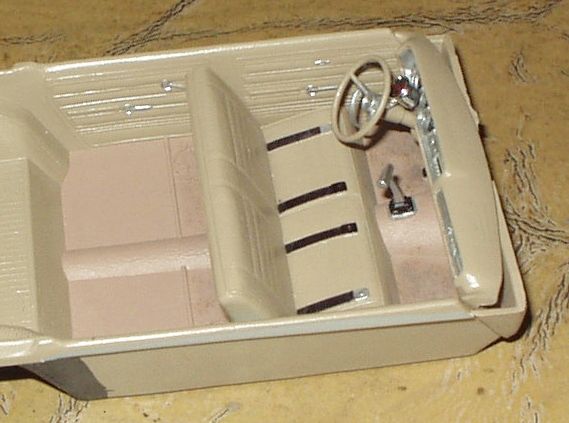

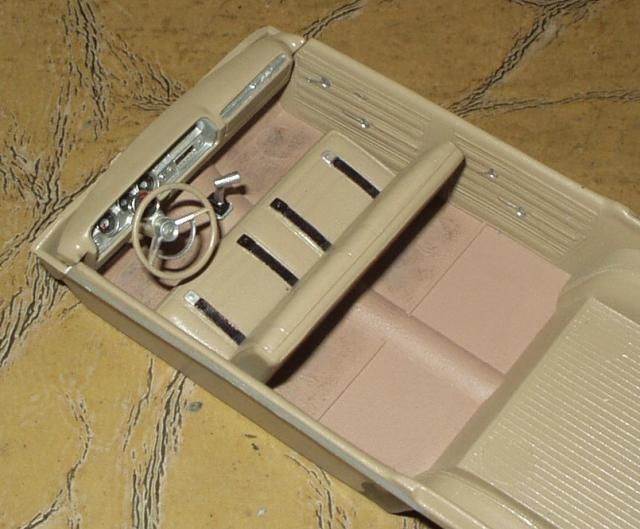

A little Black Chrome Trim on the “rubber boot,” and a little Testor Chrome silver on the shift lever and handle, and it's done. I could've/should've added a little blob of white glue up at the top end of the lever for a Line-Lock button, or a map pin for a reverse lockout, but didn't think of it till later. I could've painted the Hurst H on the handle. Maybe next time.

Total time from raw materials to installed and painted, completely finished shifter—under two hours and that includes taking the pictures along the way. If you're not in such a hurry I'm sure you can make one MUCH better looking than mine.




Share this post


Link to post
Share on other sites

thanks...snake...gonna give it a try...problem for me on this build is a already glued in the shifter so have try something on same idea....B)

Share this post


Link to post
Share on other sites
On 3/10/2018 at 8:36 AM, Day 2 Muscle said:

Hey Snake, anyway you could re-up the pics to this?

.

Edited by Casey

Share this post


Link to post
Share on other sites
12 hours ago, crazyjim said:

Places sell PE Hurst shifters.

Not to me. :lol:

Share this post


Link to post
Share on other sites

R&MCoMD offers several different styles in resin, pistol grip, T-handle etc. Sorry I don't have photos.

Share this post


Link to post
Share on other sites

But this isn't the Resin section, or the Links & Websites section, this is the Tips/Tricks/Tutorials section, where I showed how anyone can make their own. B)

Share this post


Link to post
Share on other sites

Your photos no longer appear so we can't follow your tutorial.

Edited by afx

Share this post


Link to post
Share on other sites

You can see the pics here:

http://smg.photobucket.com/user/Snake45/library/Model Cars/Details?sort=3&page=1

Pics of the finished shifter in the '65 Chevelle wagon here:

http://smg.photobucket.com/user/Snake45/library/Model Cars/Chevelles?sort=3&page=1

I'm not logged in to PB and I can see them so anyone should be able to.
