Twokidsnosleep Posted September 2, 2015 Share Posted September 2, 2015 You guys are scaring me Quote Link to comment Share on other sites More sharing options...
b-body fan Posted September 2, 2015 Share Posted September 2, 2015 You guys are scaring meDon't be afraid. Just having some fun. I'm really enjoying this build. This is going to be one awesome model. Can't wait to see more. Quote Link to comment Share on other sites More sharing options...

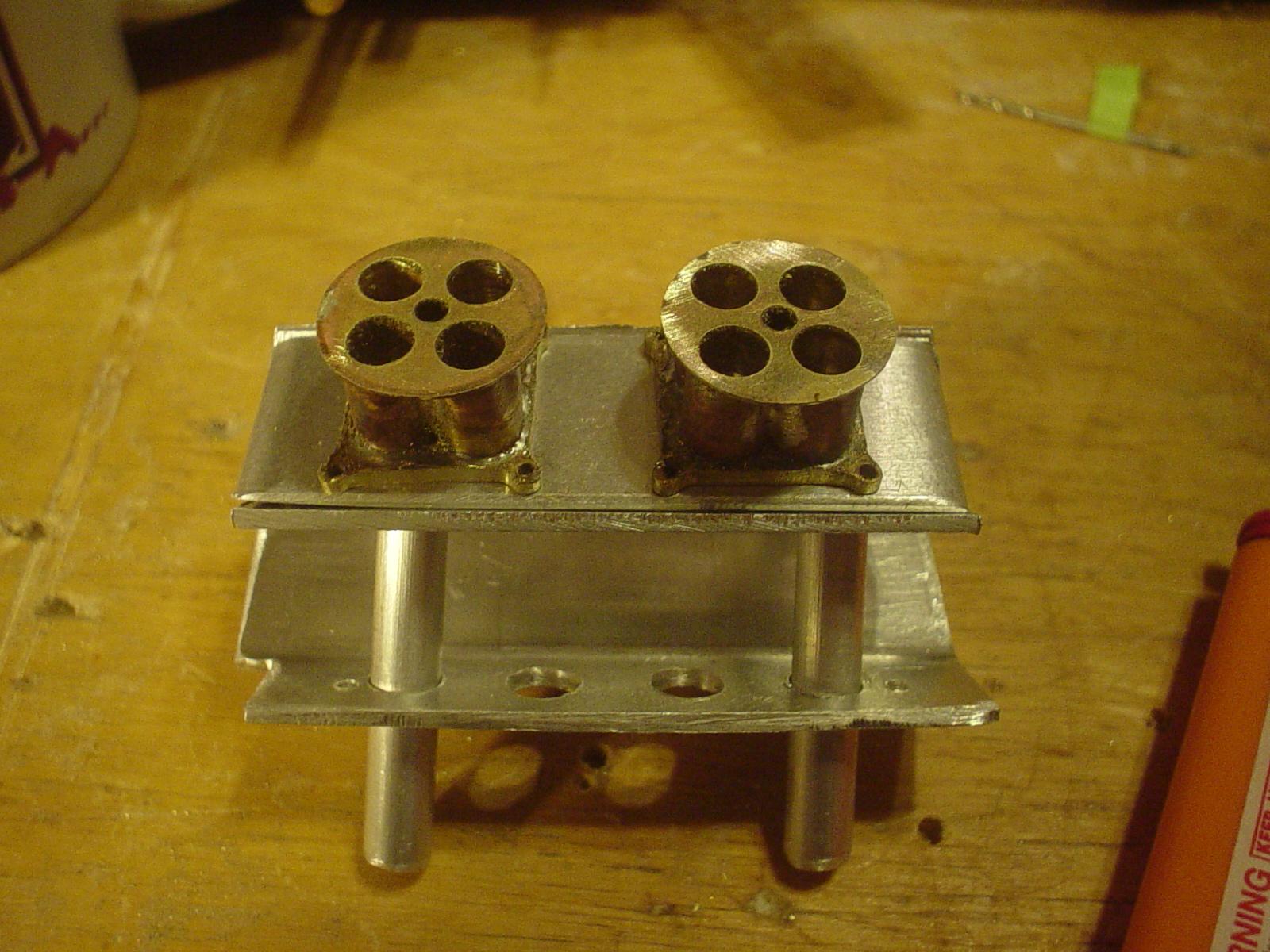

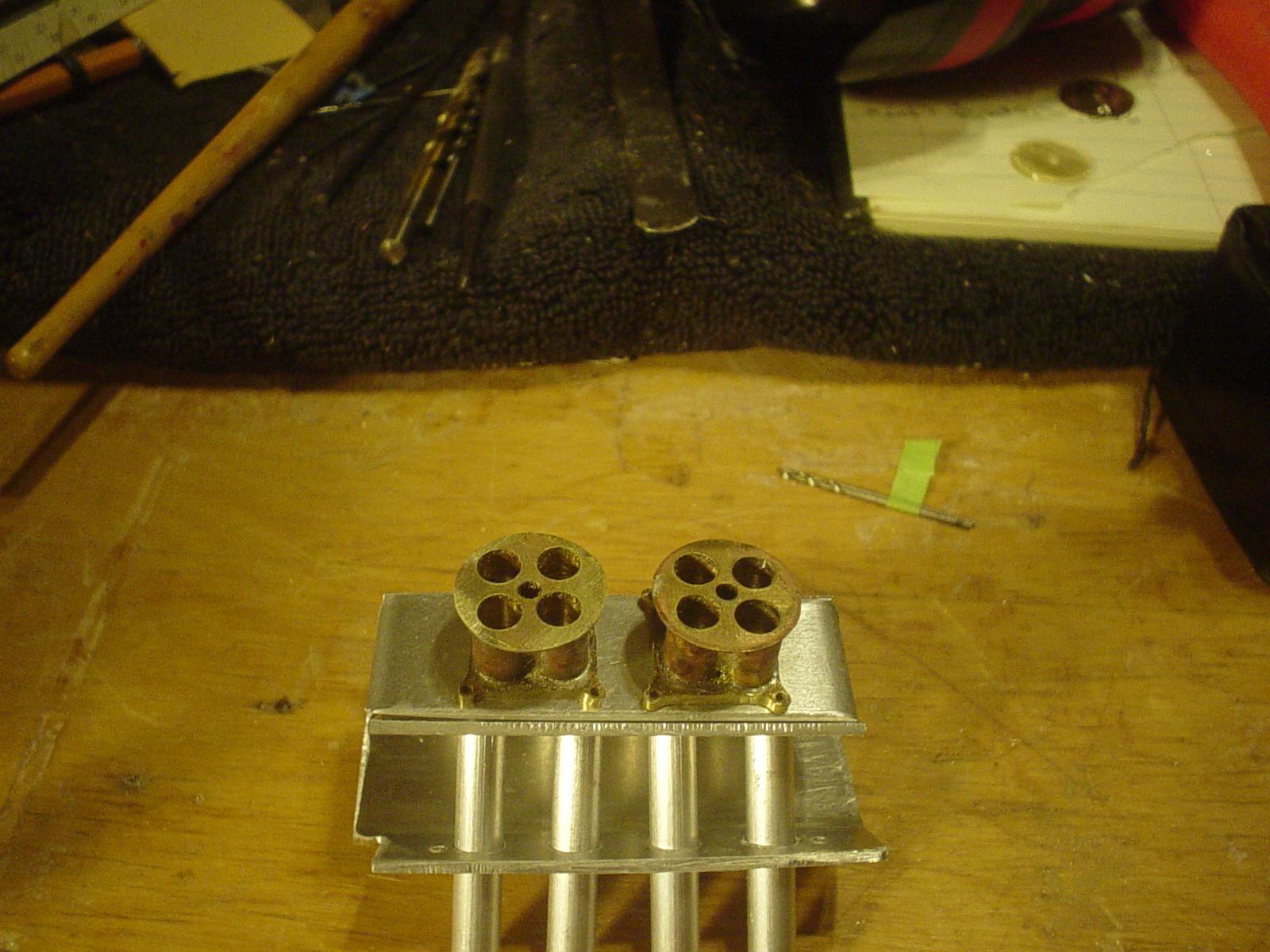

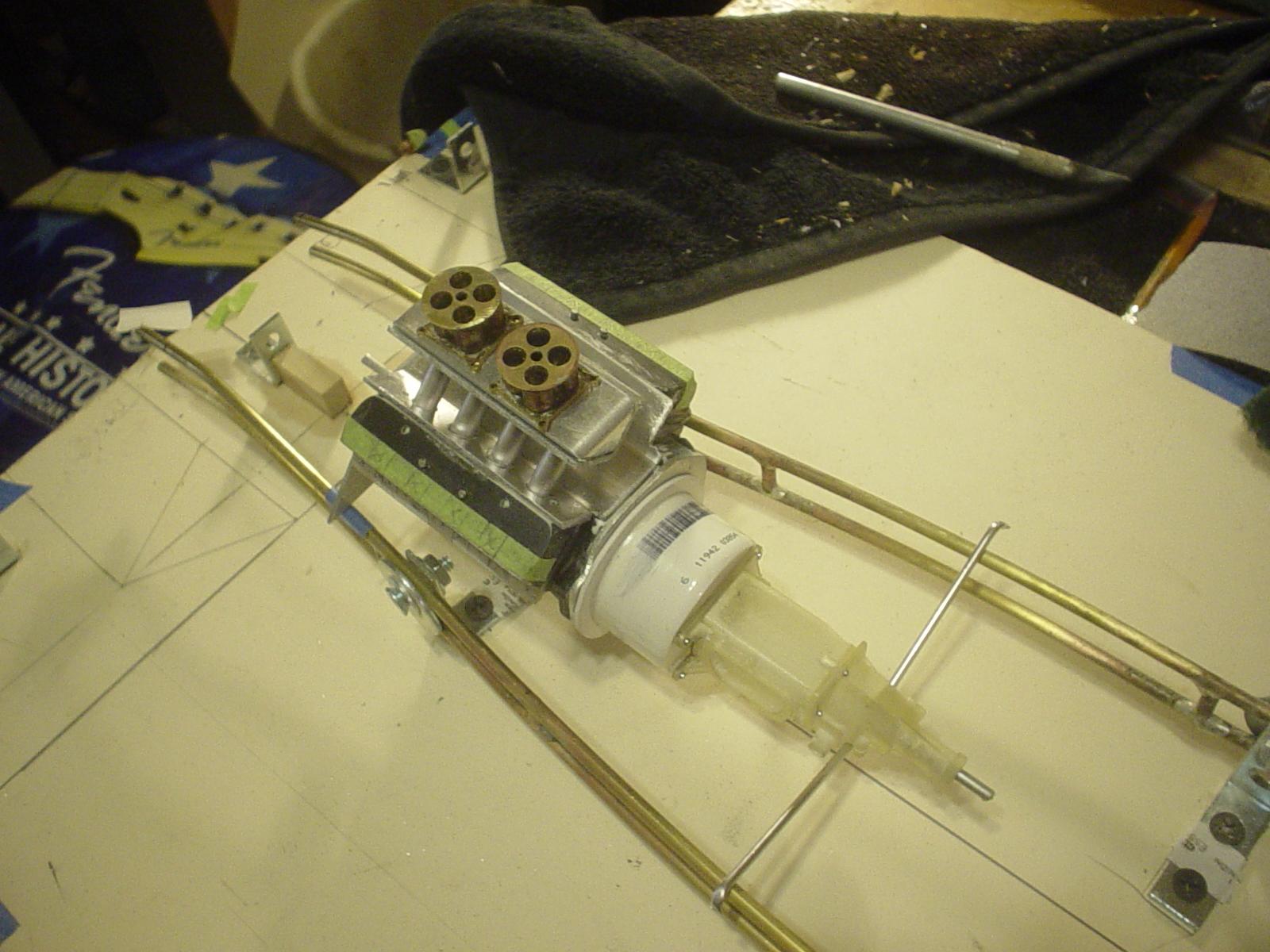

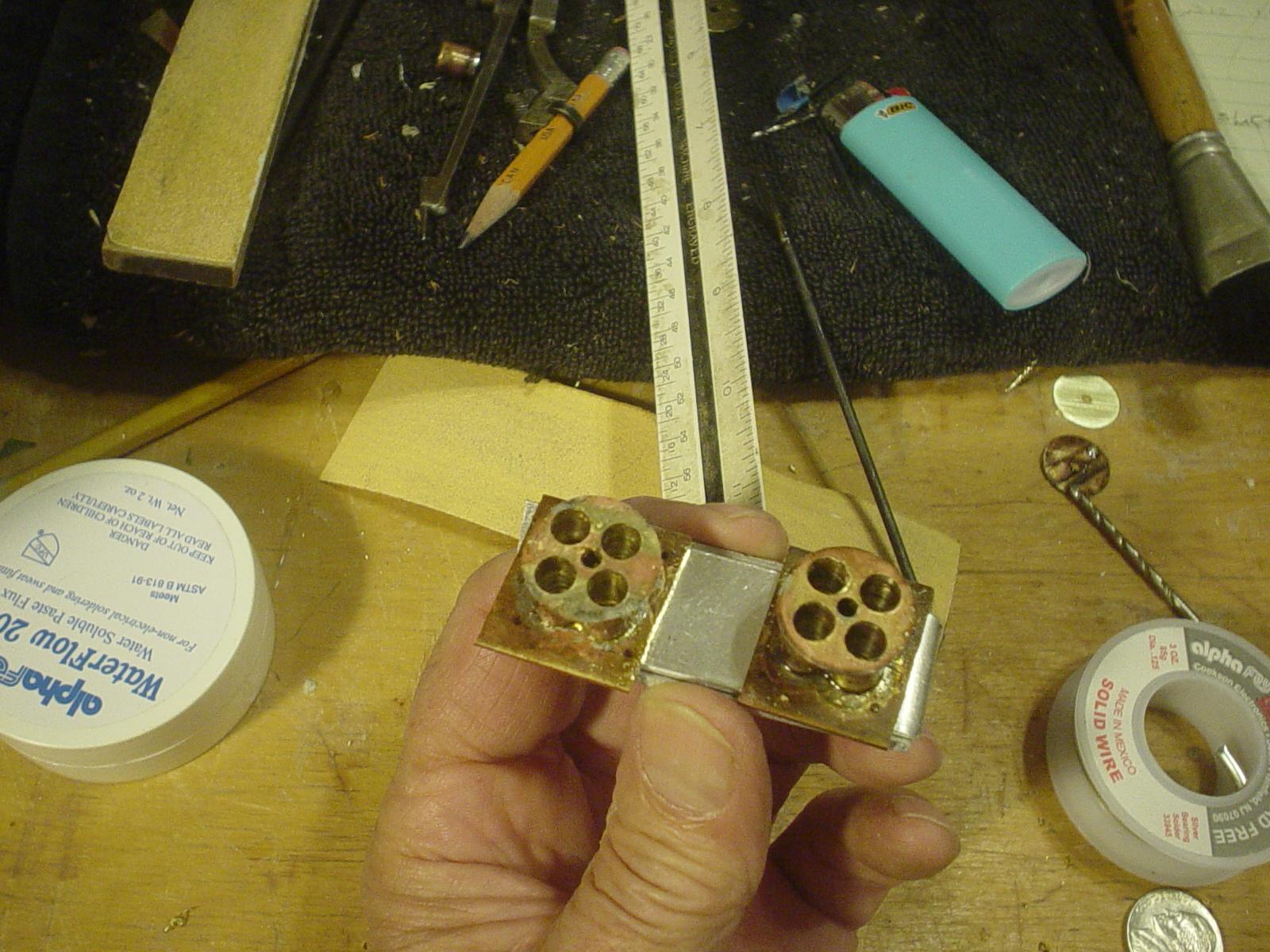

Ognib Posted September 3, 2015 Author Share Posted September 3, 2015 (edited) Word play is one of my favorite things. Top plates in place for the carburetors. Still needs float bowls & throttle shafts. Scale seems ok relative to the manifold plenum. Still need to final shape the base plates. Edited September 3, 2015 by Ognib Quote Link to comment Share on other sites More sharing options...

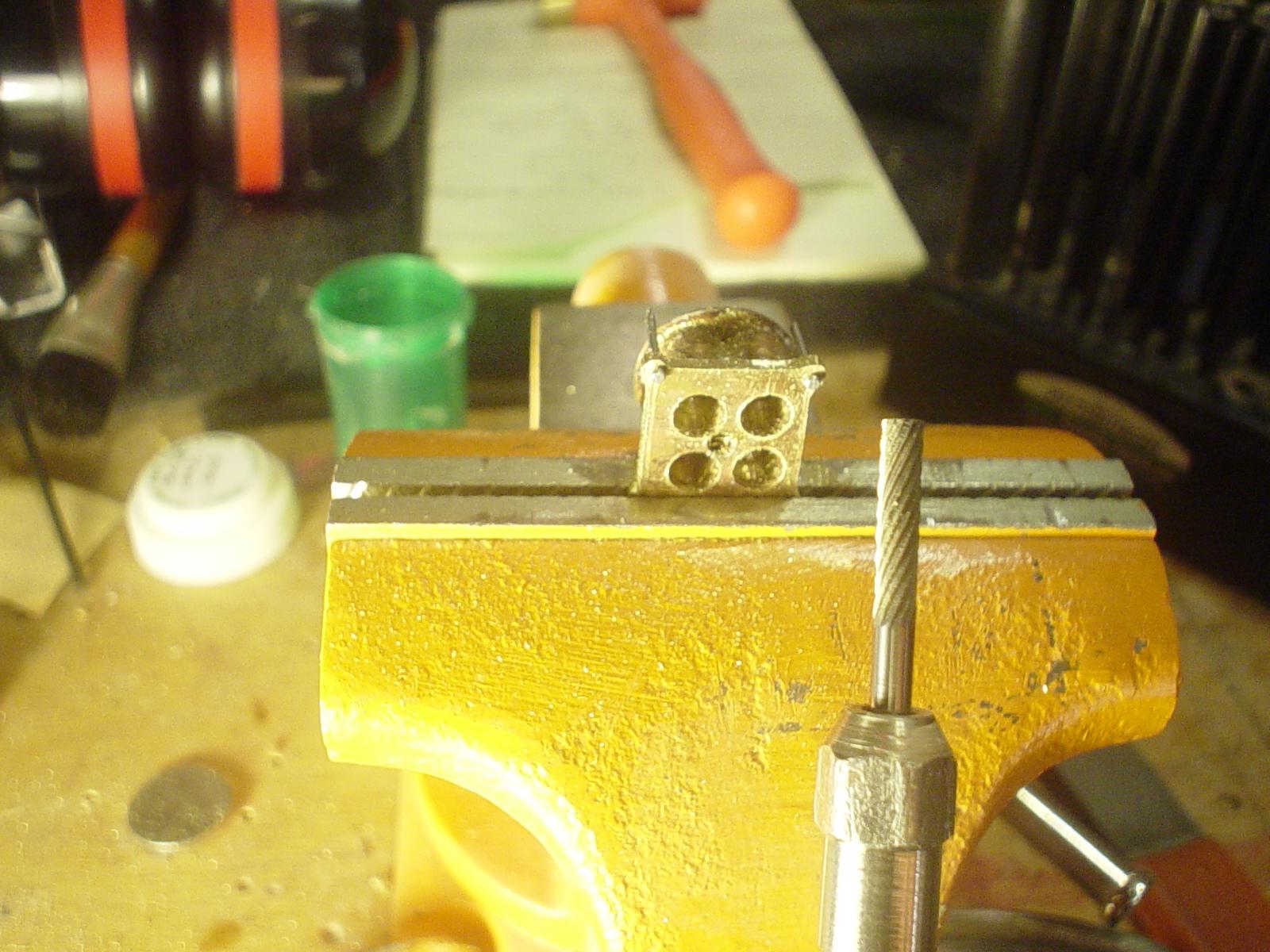

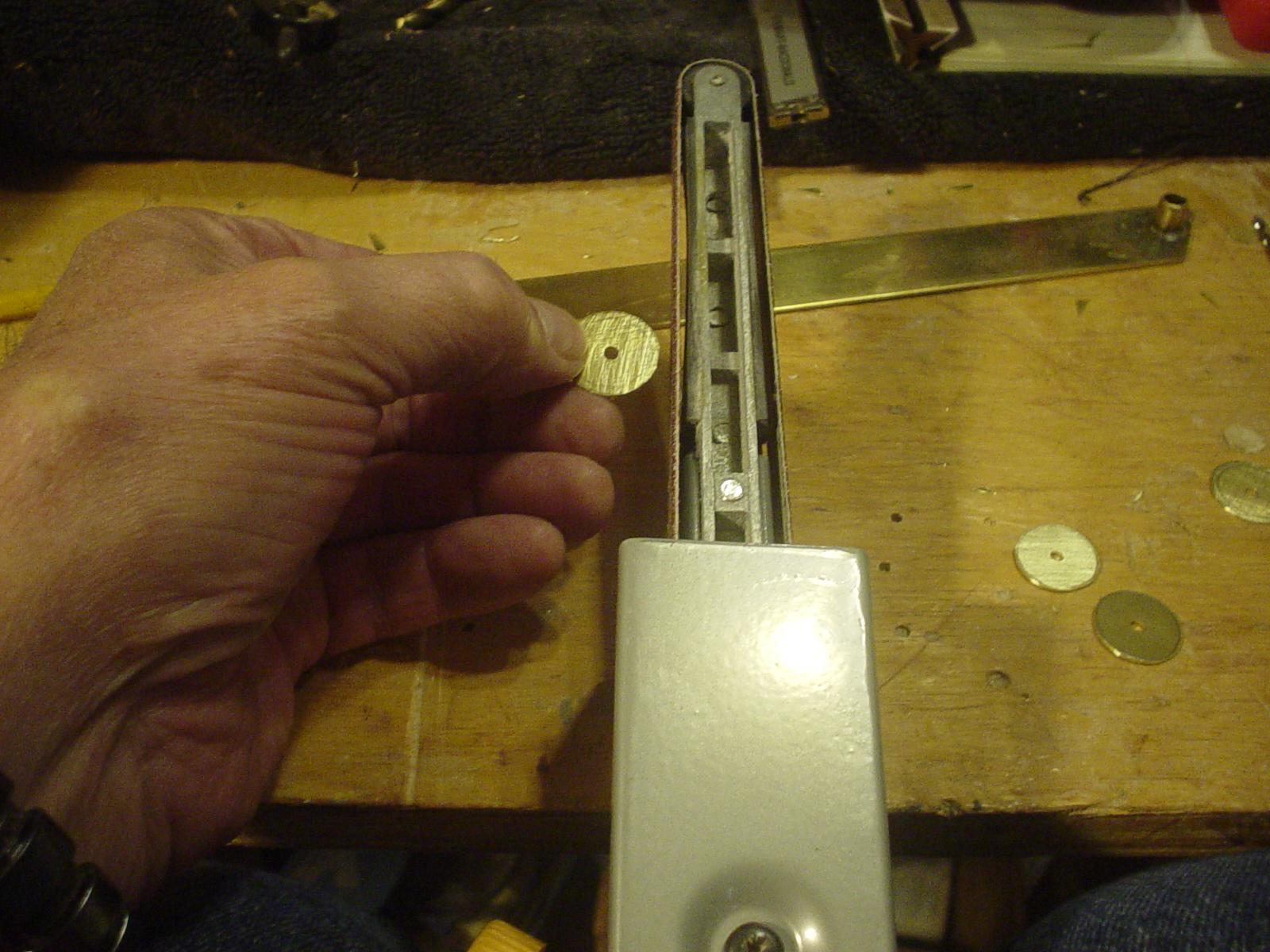

Ognib Posted September 3, 2015 Author Share Posted September 3, 2015 Scratched a line between the mounting holes but beyond that, it's all just eyeballing it to proper shape & visual balance. Quote Link to comment Share on other sites More sharing options...
Ognib Posted September 3, 2015 Author Share Posted September 3, 2015 Quote Link to comment Share on other sites More sharing options...

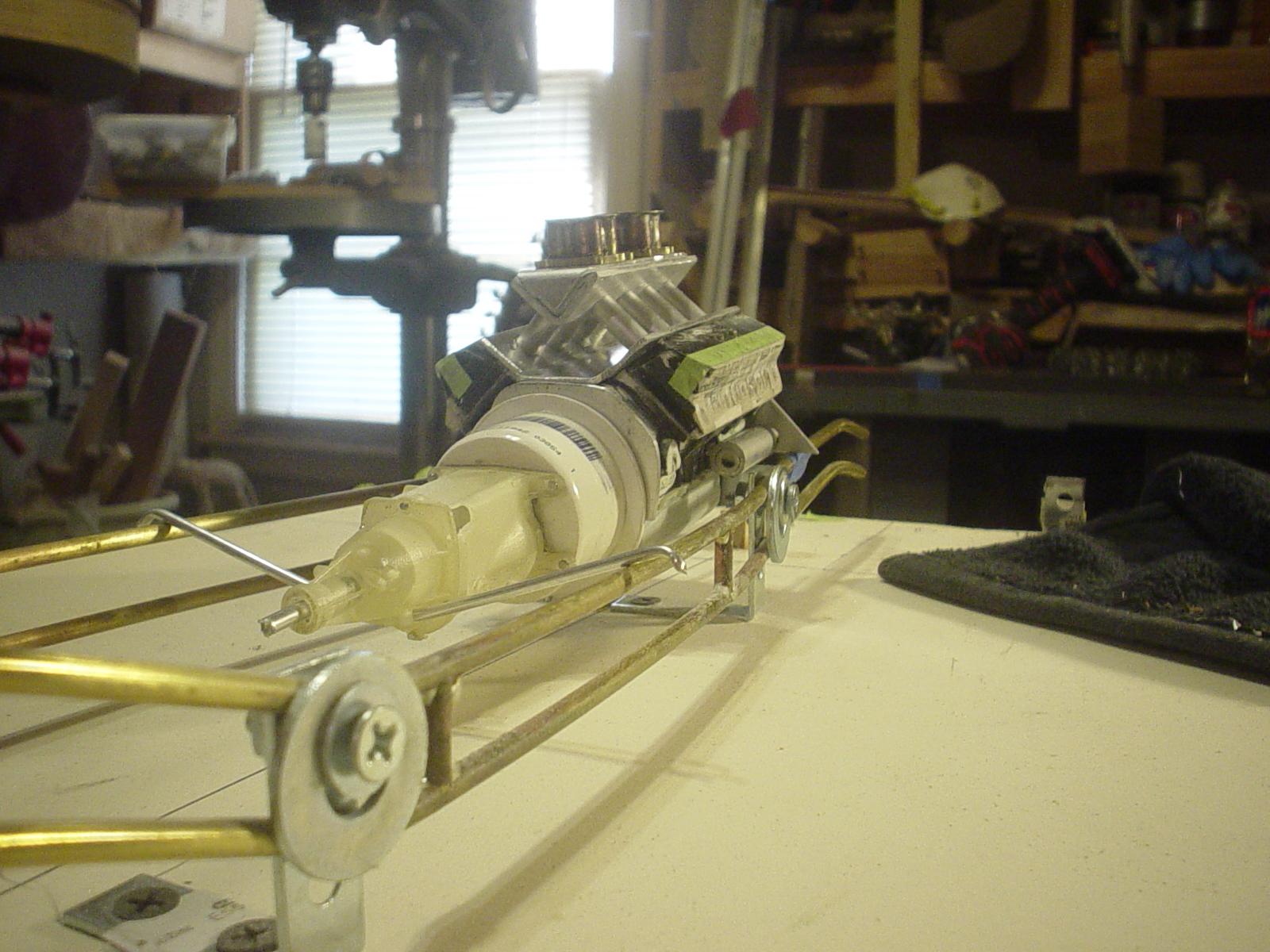

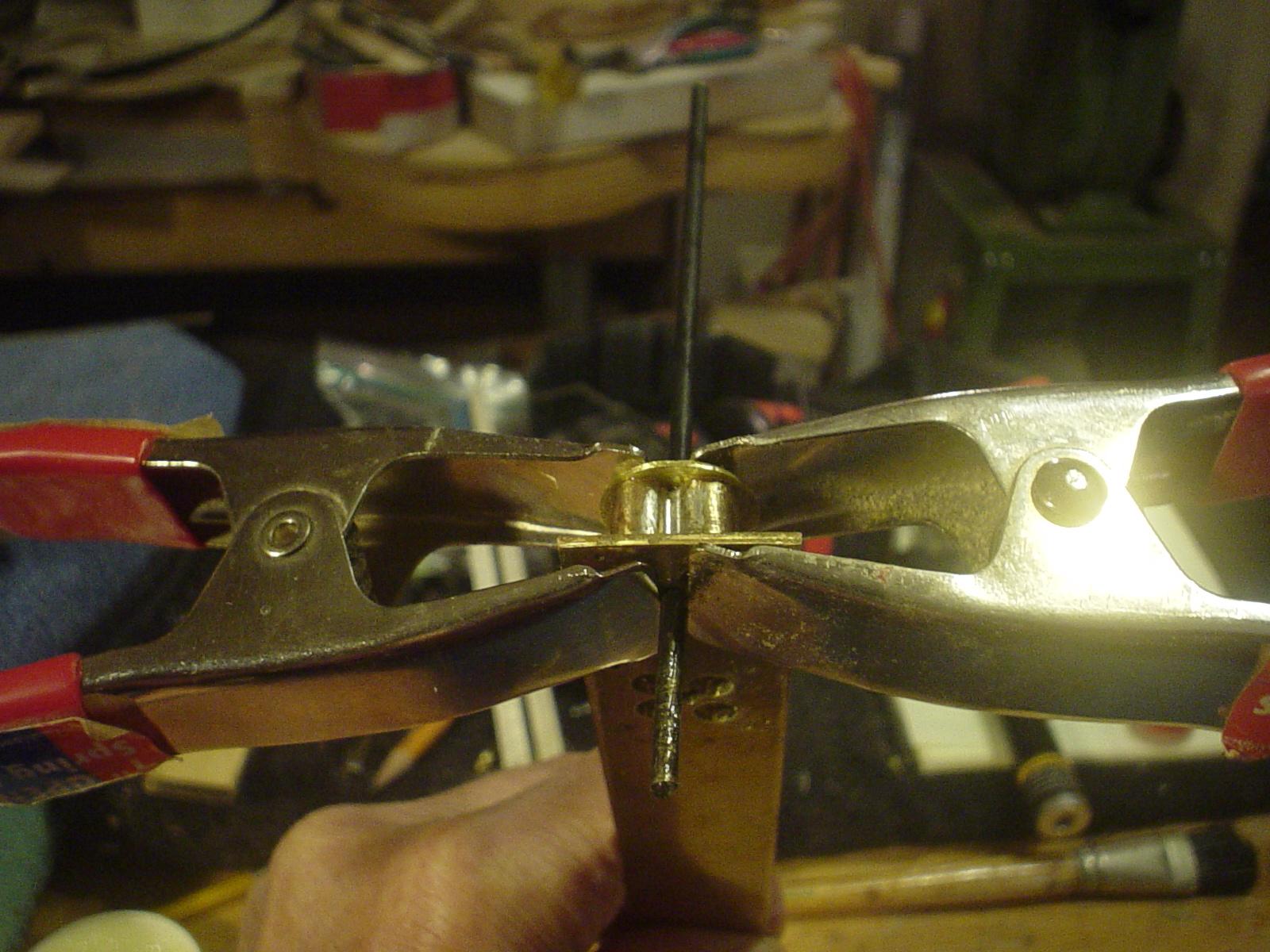

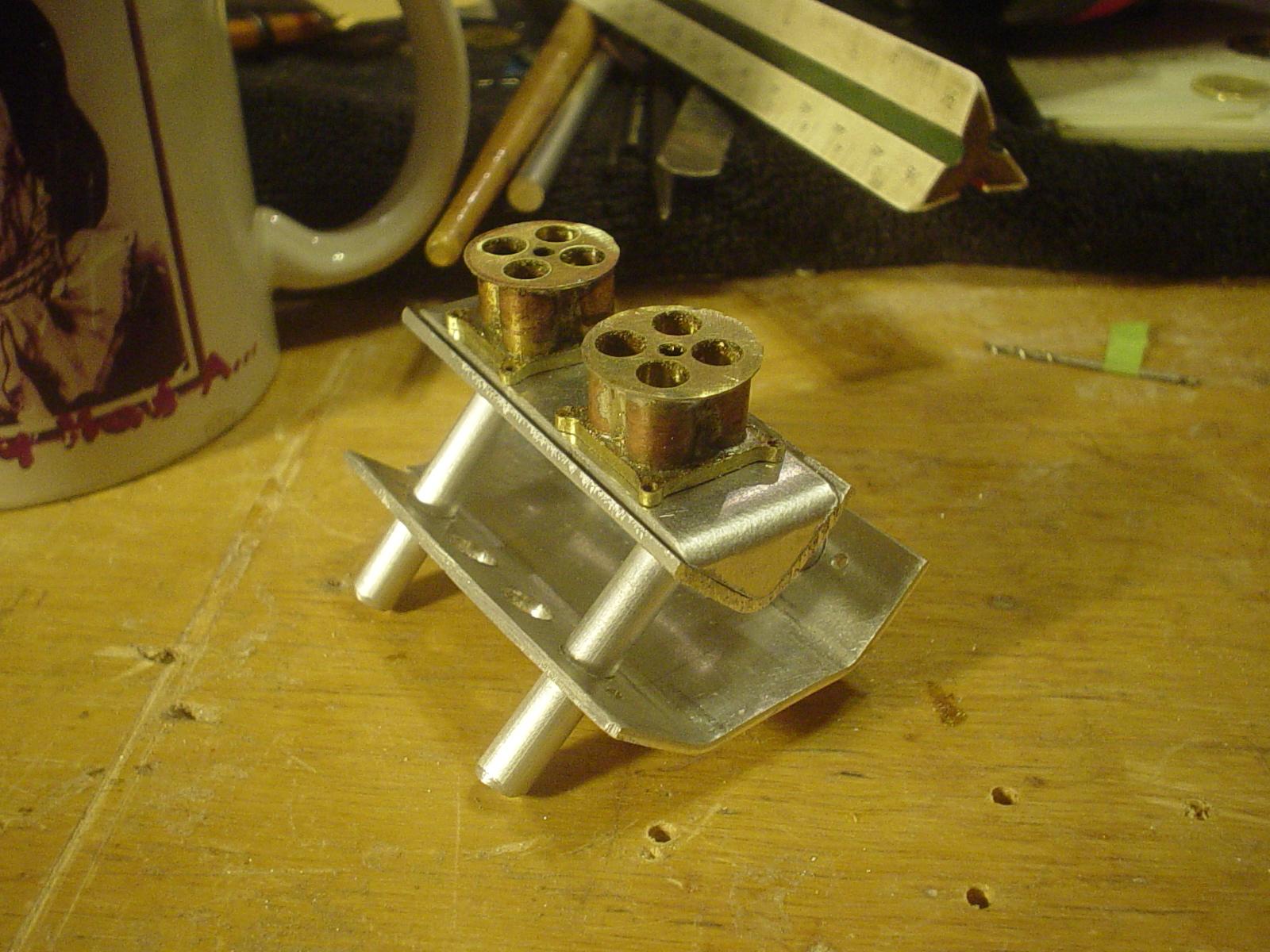

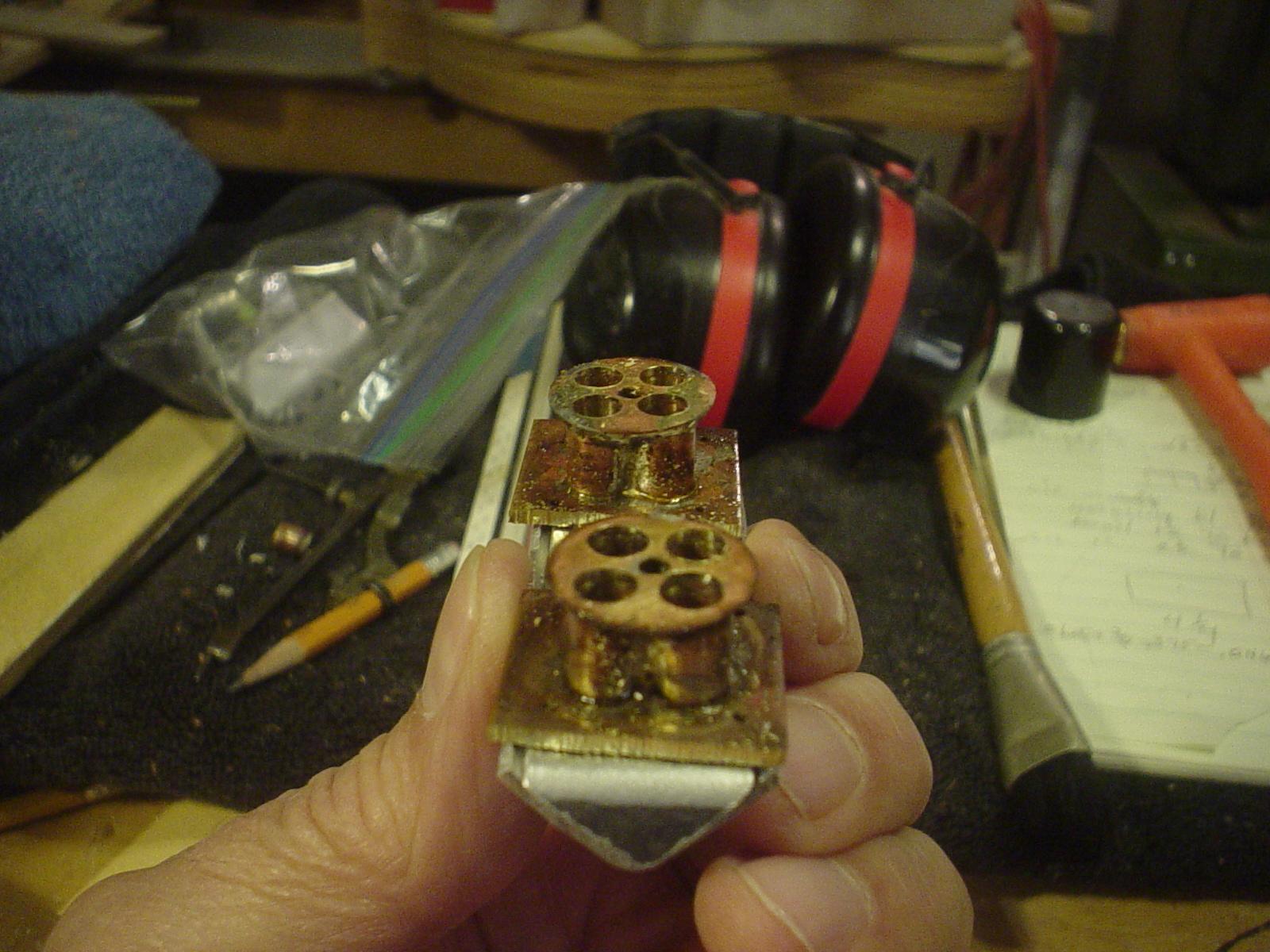

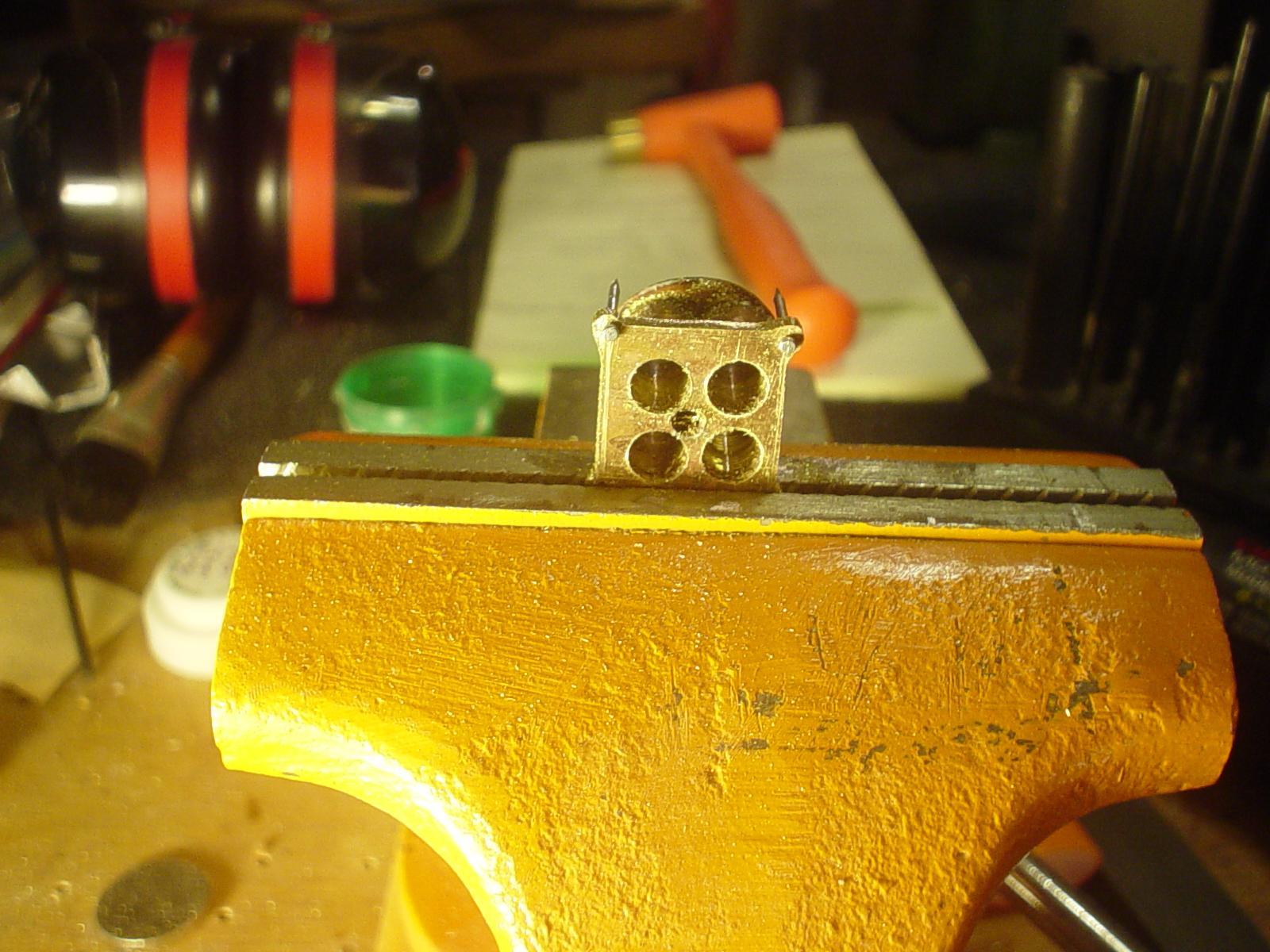

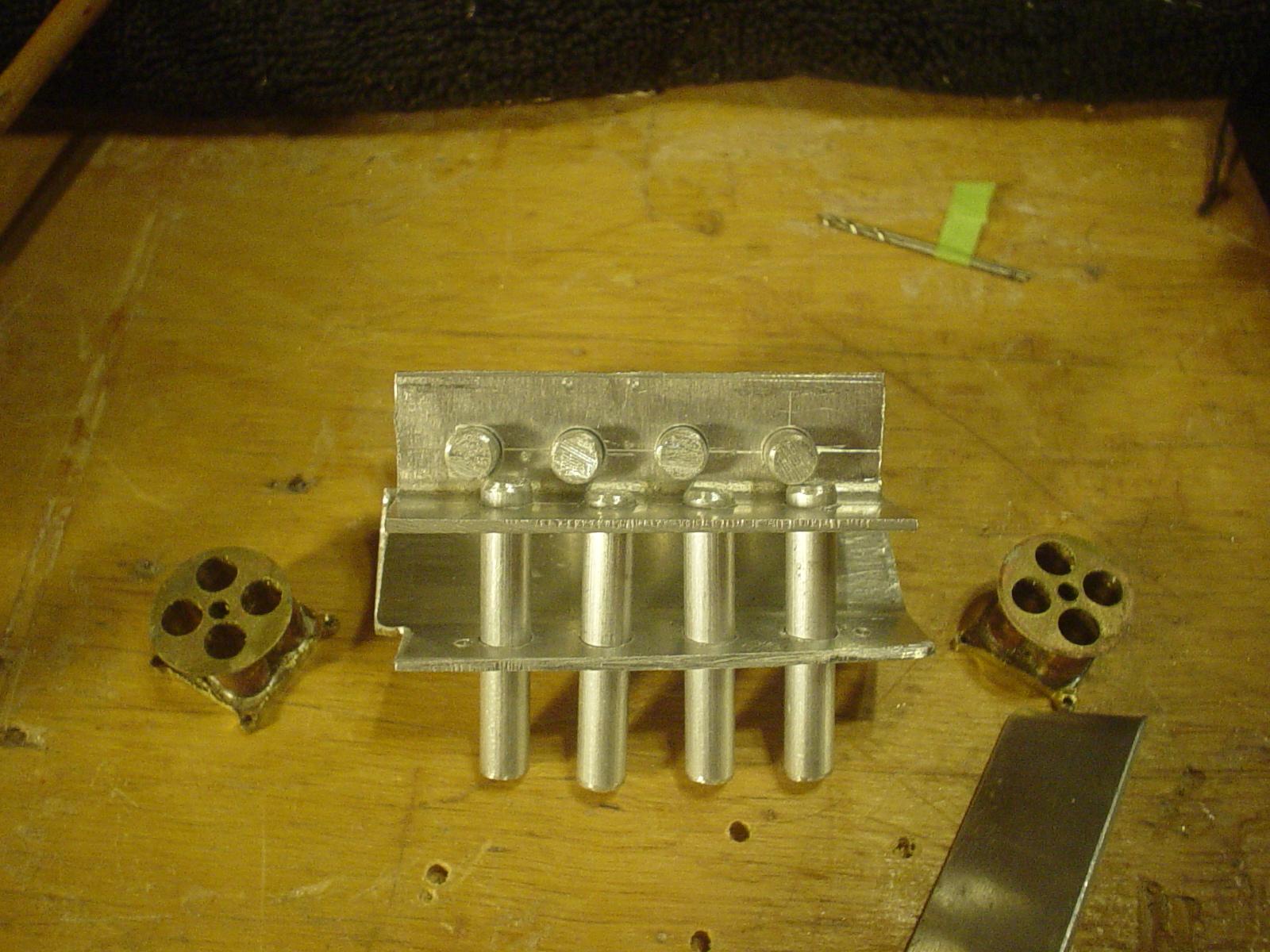

Ognib Posted September 4, 2015 Author Share Posted September 4, 2015 A tricky part to assemble & get it balanced & properly aligned...10 pieces I like the way it's looking...excited to see it on the motor & in the frame. Quote Link to comment Share on other sites More sharing options...

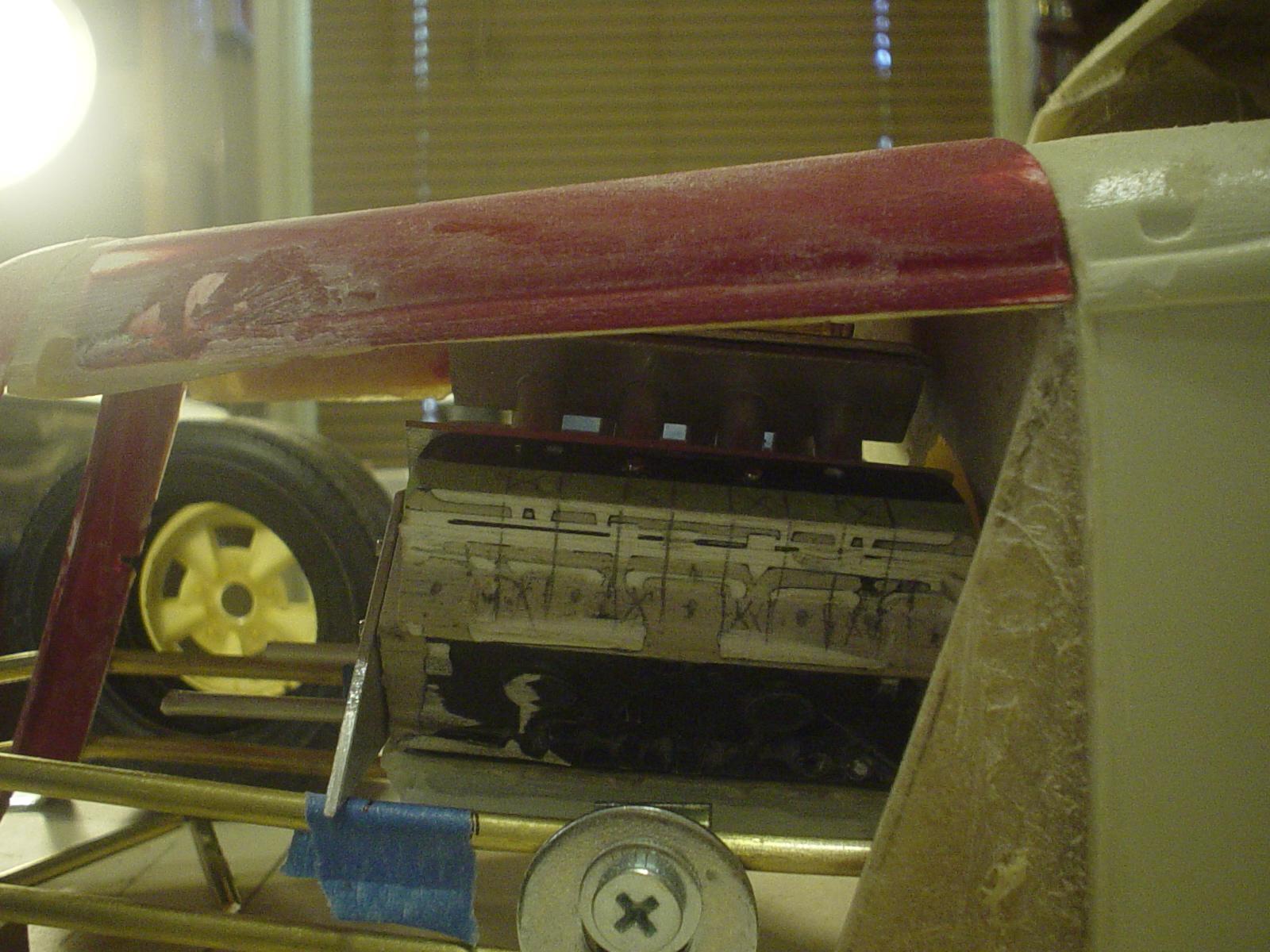

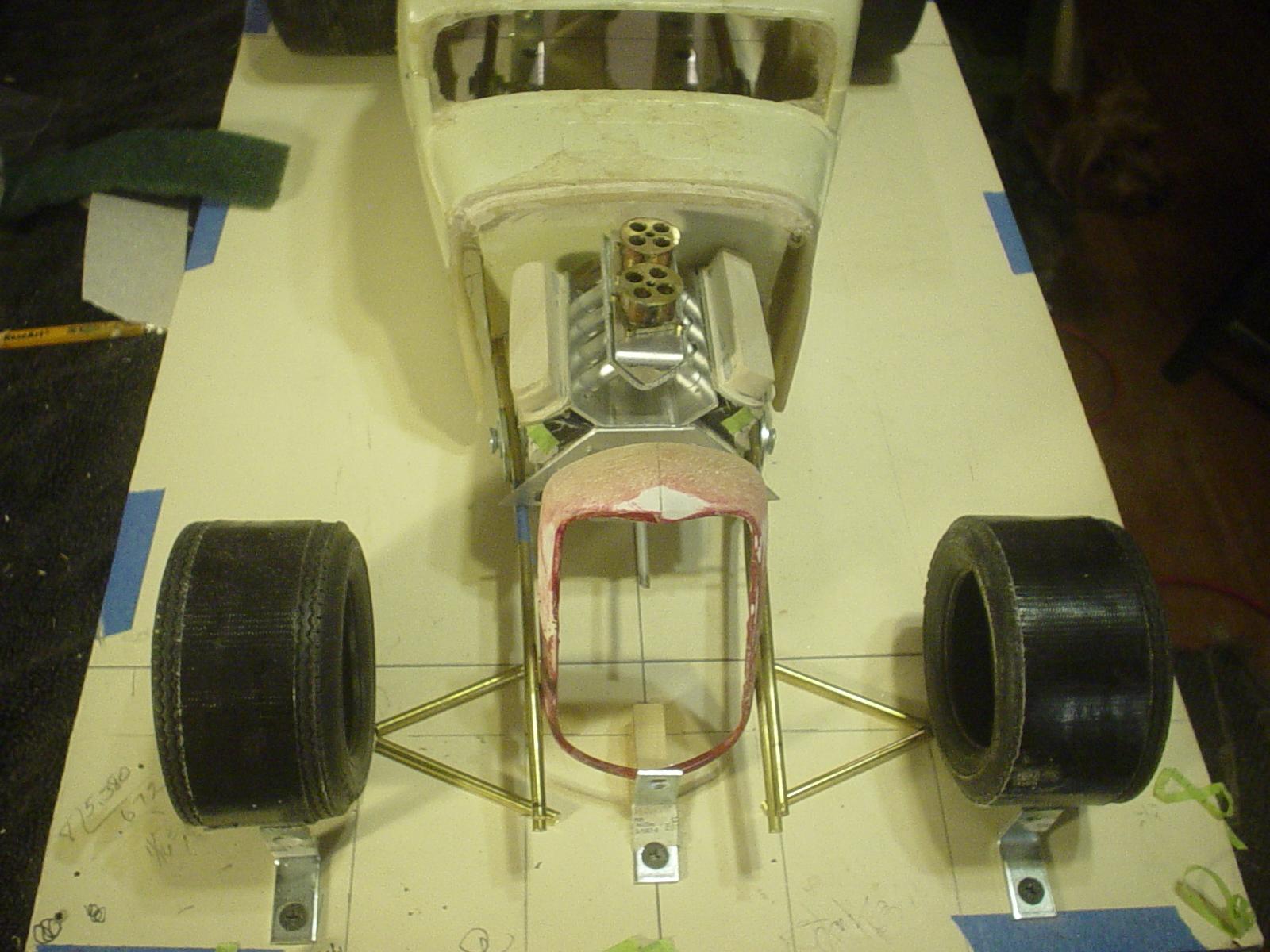

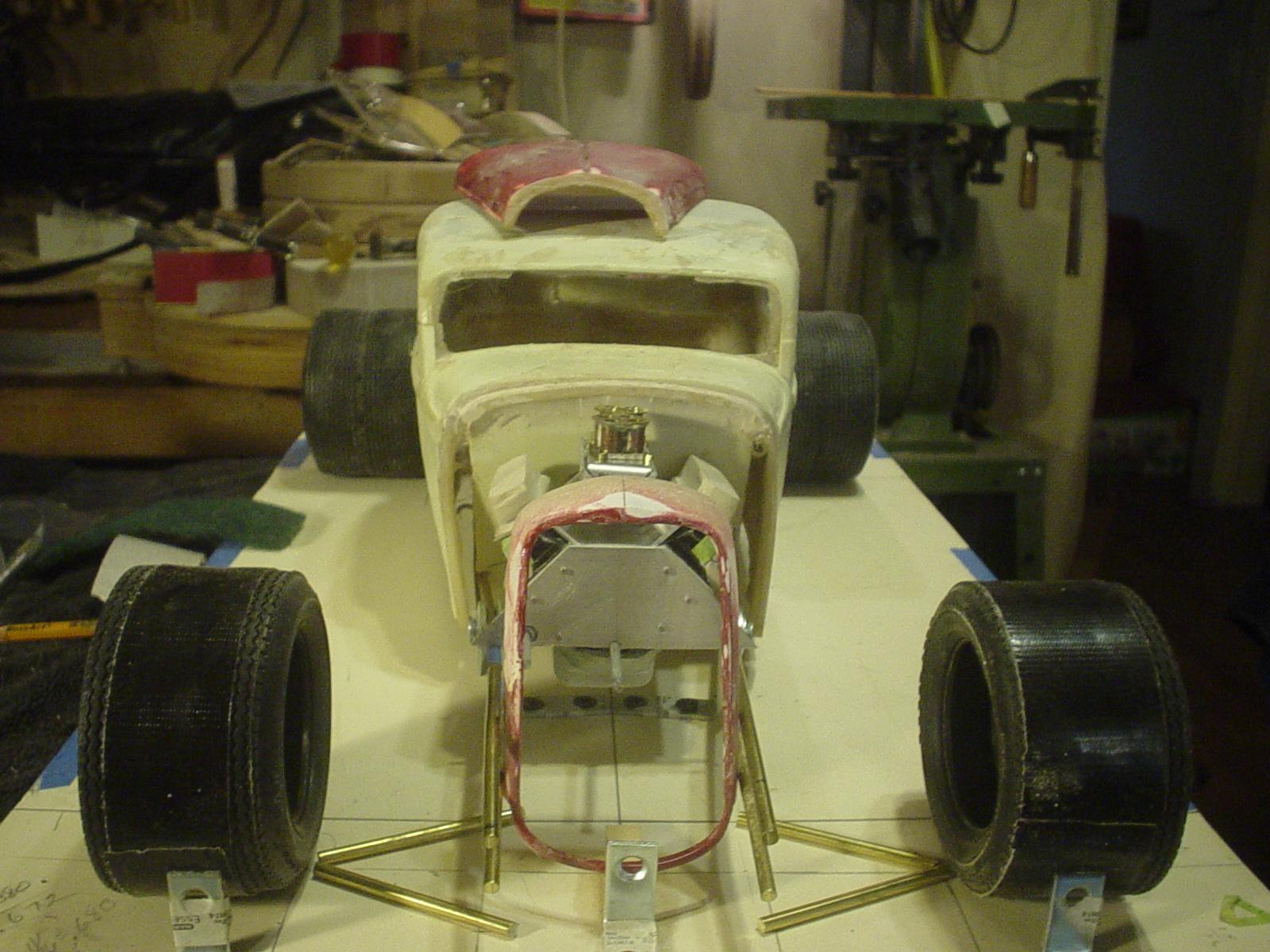

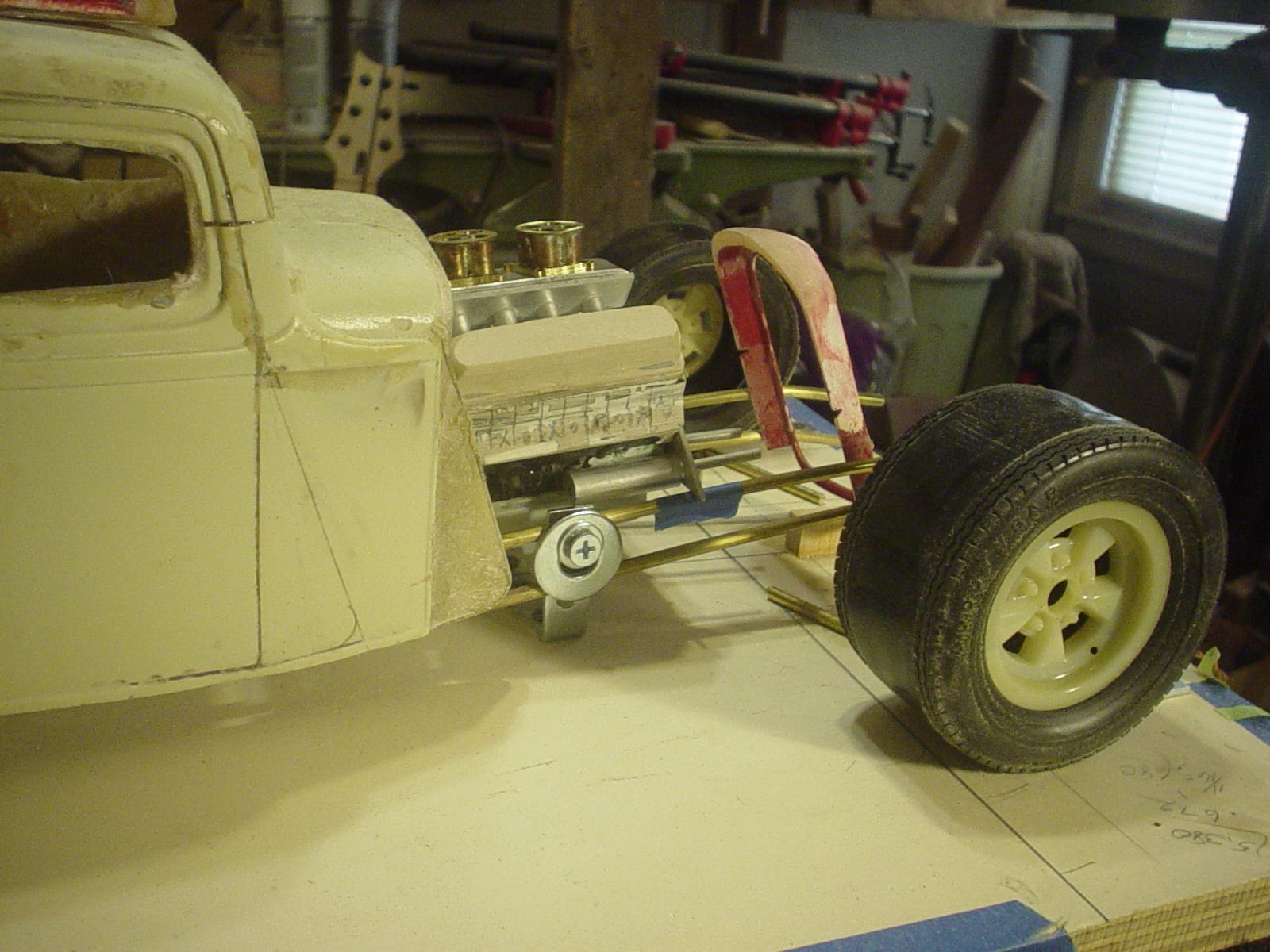

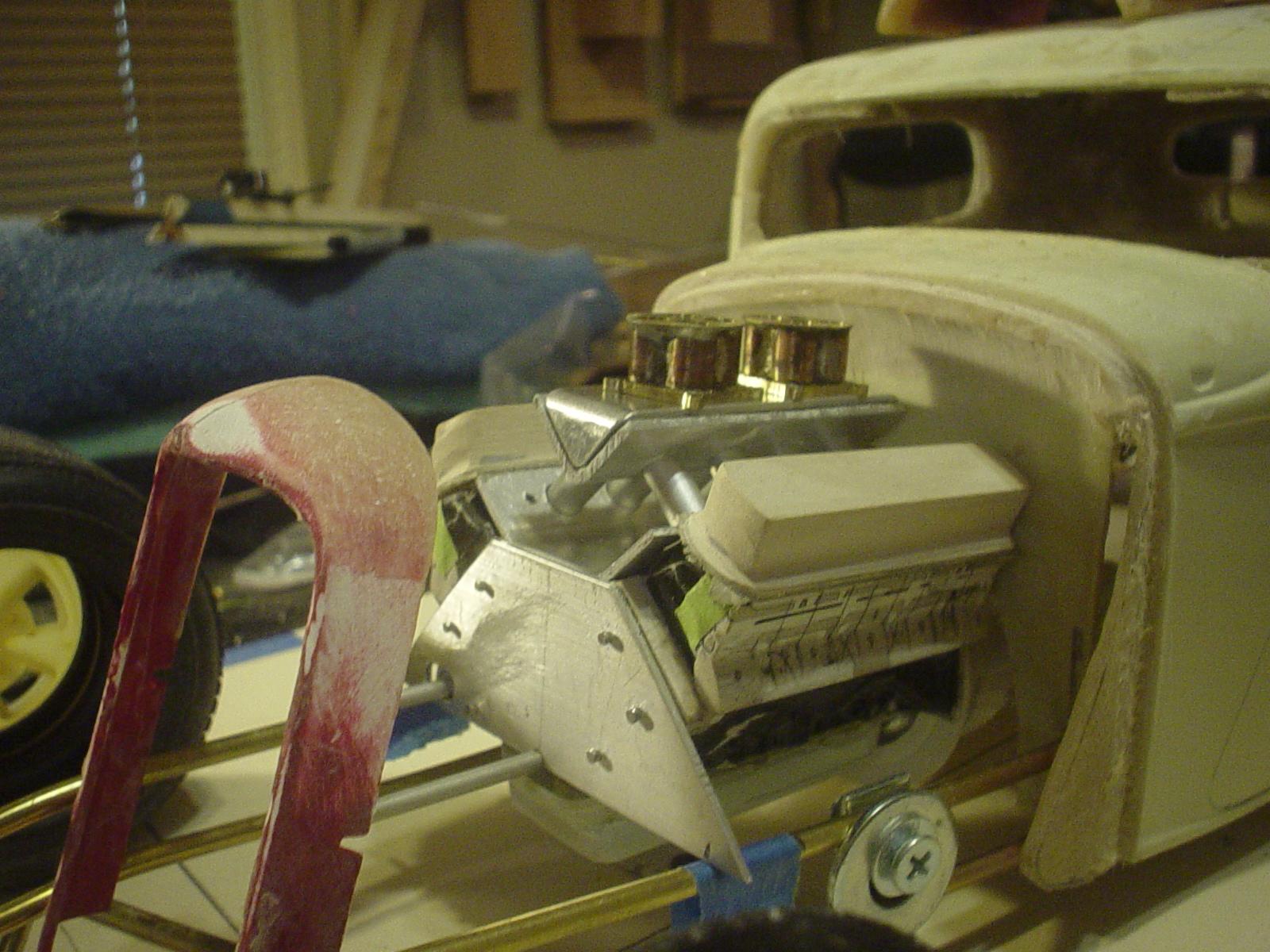

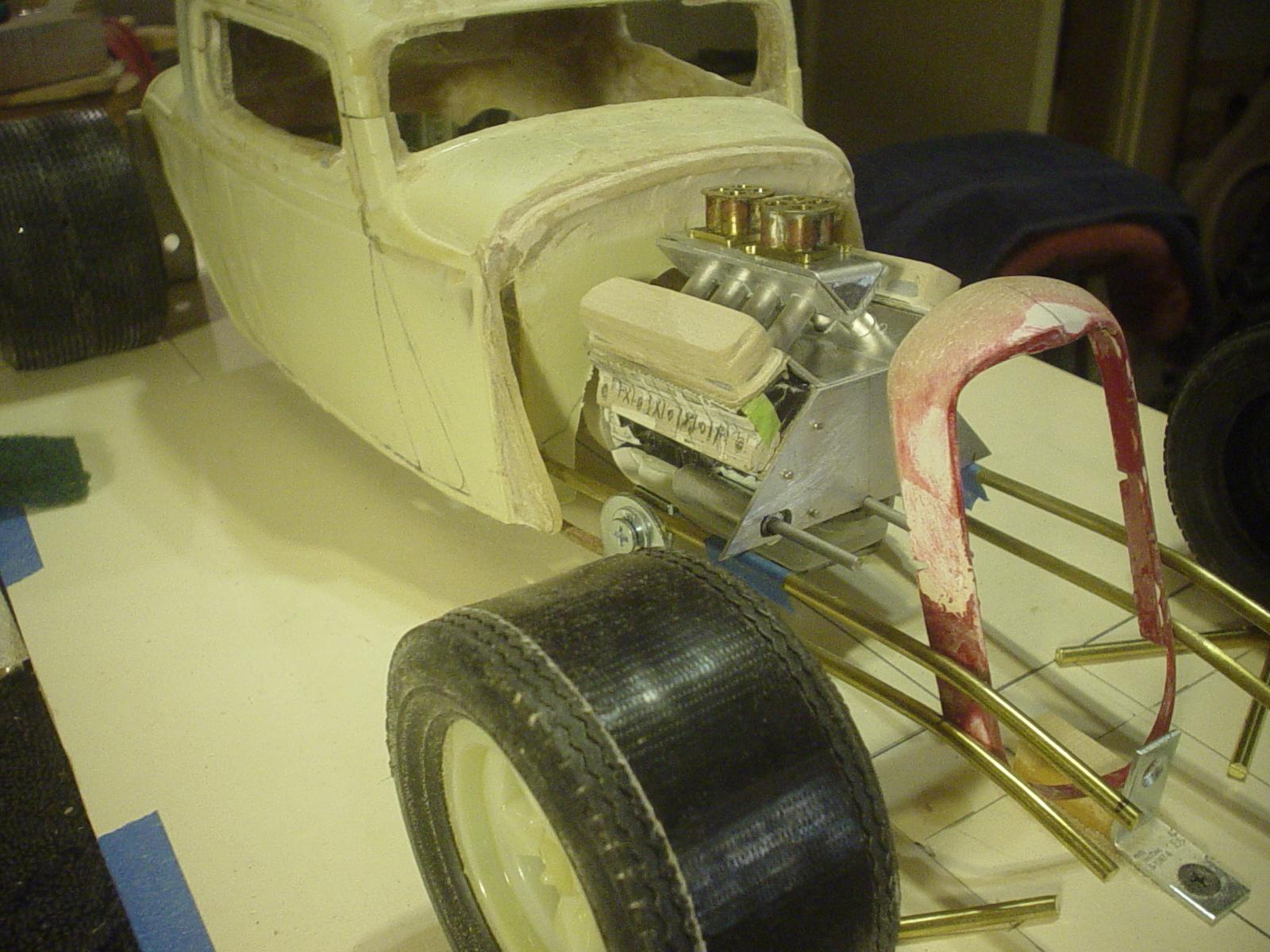

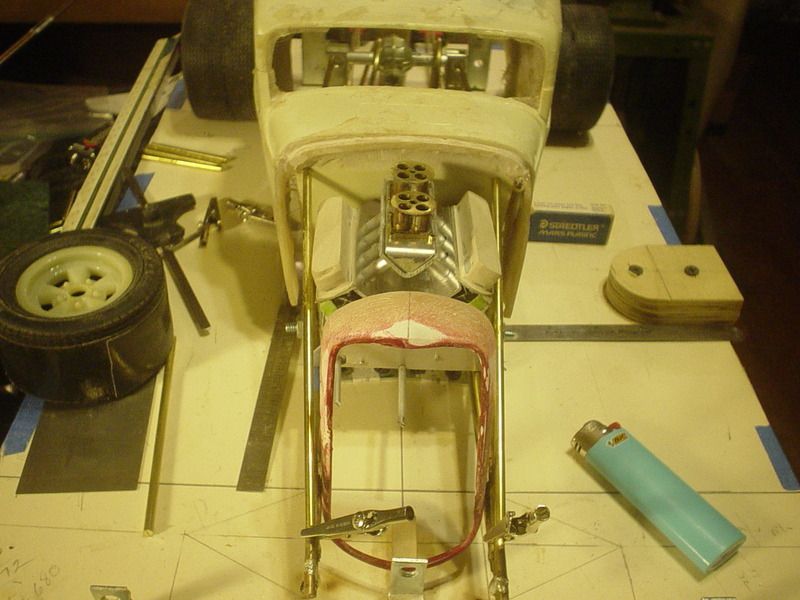

Ognib Posted September 4, 2015 Author Share Posted September 4, 2015 Ya! That's what I'm talking about. Hood fits. Zero clearance, but it fits. Bring the engine down in the frame just a bit. & it'll be good. Liking the way this looks. Quote Link to comment Share on other sites More sharing options...
bobthehobbyguy Posted September 4, 2015 Share Posted September 4, 2015 Outstanding work. Thanks for sharing the process. Quote Link to comment Share on other sites More sharing options...
b-body fan Posted September 5, 2015 Share Posted September 5, 2015 I like that intake set up. All business. Mike. Quote Link to comment Share on other sites More sharing options...
10thumbs Posted September 5, 2015 Share Posted September 5, 2015 Ray, that setup is looking wicked!Michael Quote Link to comment Share on other sites More sharing options...

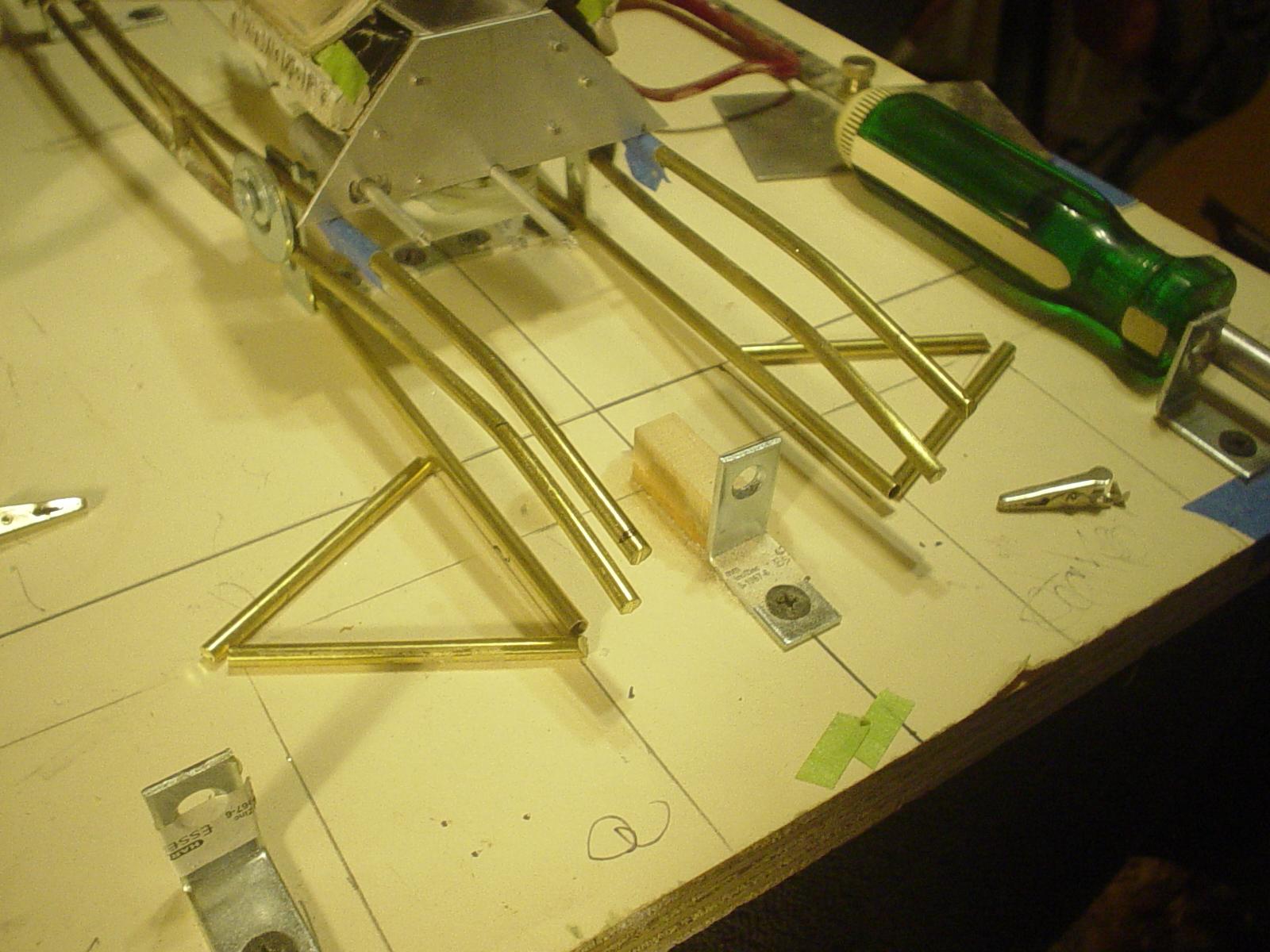

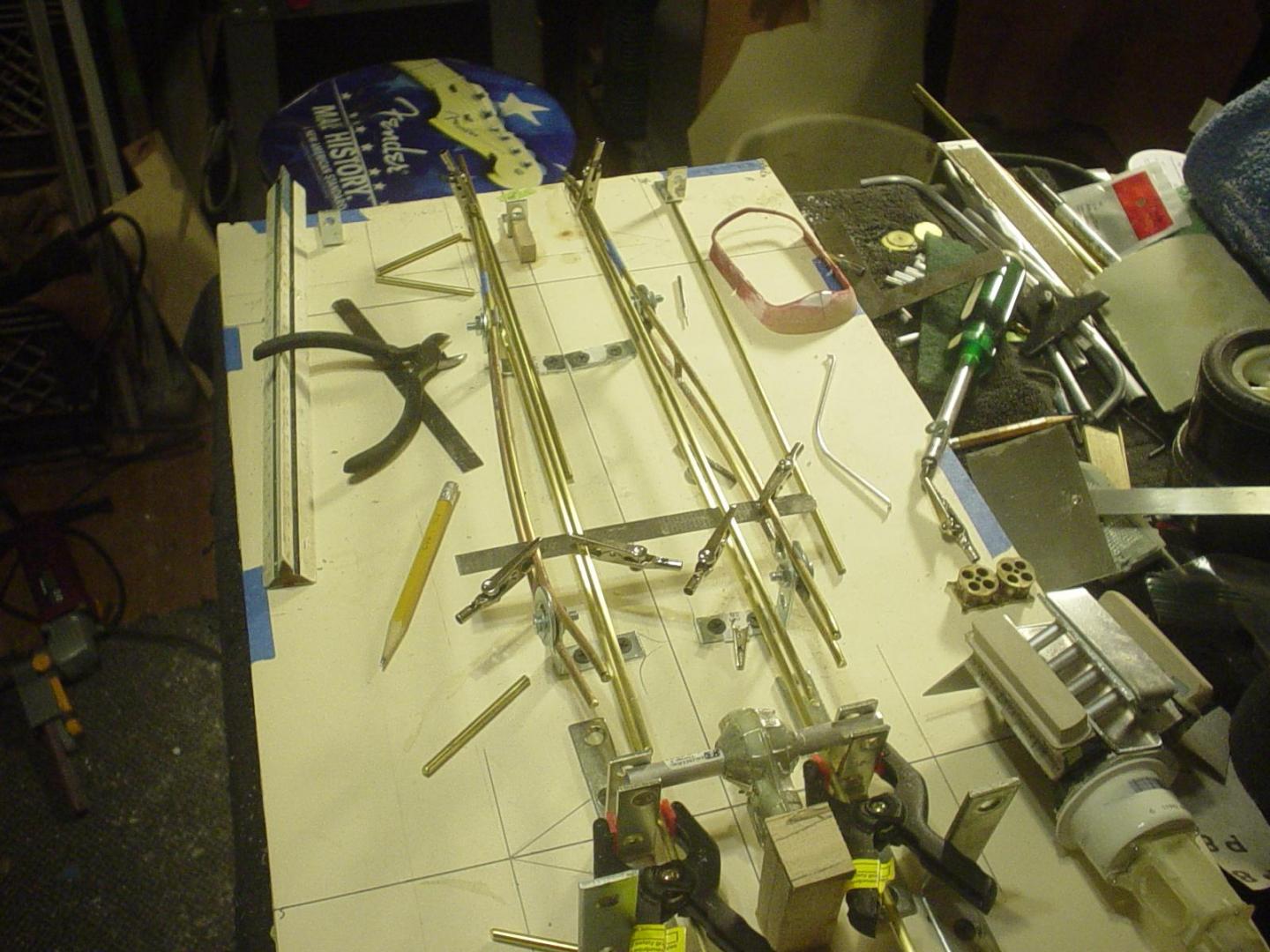

Ognib Posted September 5, 2015 Author Share Posted September 5, 2015 (edited) Thanks for the comments guys & thanks for taking a look. Yes...strictly business...form follows function...pretty is over rated! Bob, happy to share the procedure. I enjoy the writing & photography. Eyeball engineering in motion.I've done some reading on the engineering theory of tube frames/cages in preparation for this.Straight lines are the strongest...curved tubing compromises structural integrity.Inner rails, being laid out now, will actually be the main frame of the car...tying the control arm mounts solidly into the structure.The stiffer the frame, the more tuneable the suspension...think autocross corners...or nascar road racing...hard turns in BOTH directions.The curved outer rails are homage to the beautifully classic design of the 32 frame. Included in the design & construction of the front end, along with the control arm mounts, will be placement & mounting points for a steering rack which will need to be built & fitted at that time. The car has IRS as well...thus, the center section does not move...so, the rear cage area needs to incorporate adequate mounting points for this as well as caliper mounts for inboard brakes, a LARGE fuel cell,..it is, after all, a street driver with a big thirsty motor... battery & oil tank for the engine dry sump system.Let's see, am I thinking of everything here?? Ah, yes, I didn't remember to mention mounting points for rear control arms. I really enjoy the design & engineering part of building.I can loose a half a day sometimes just...thinking it through & visualizing the construction.It's like auto cad in my brain! I can see the pictures & video. Edited September 5, 2015 by Ognib Quote Link to comment Share on other sites More sharing options...

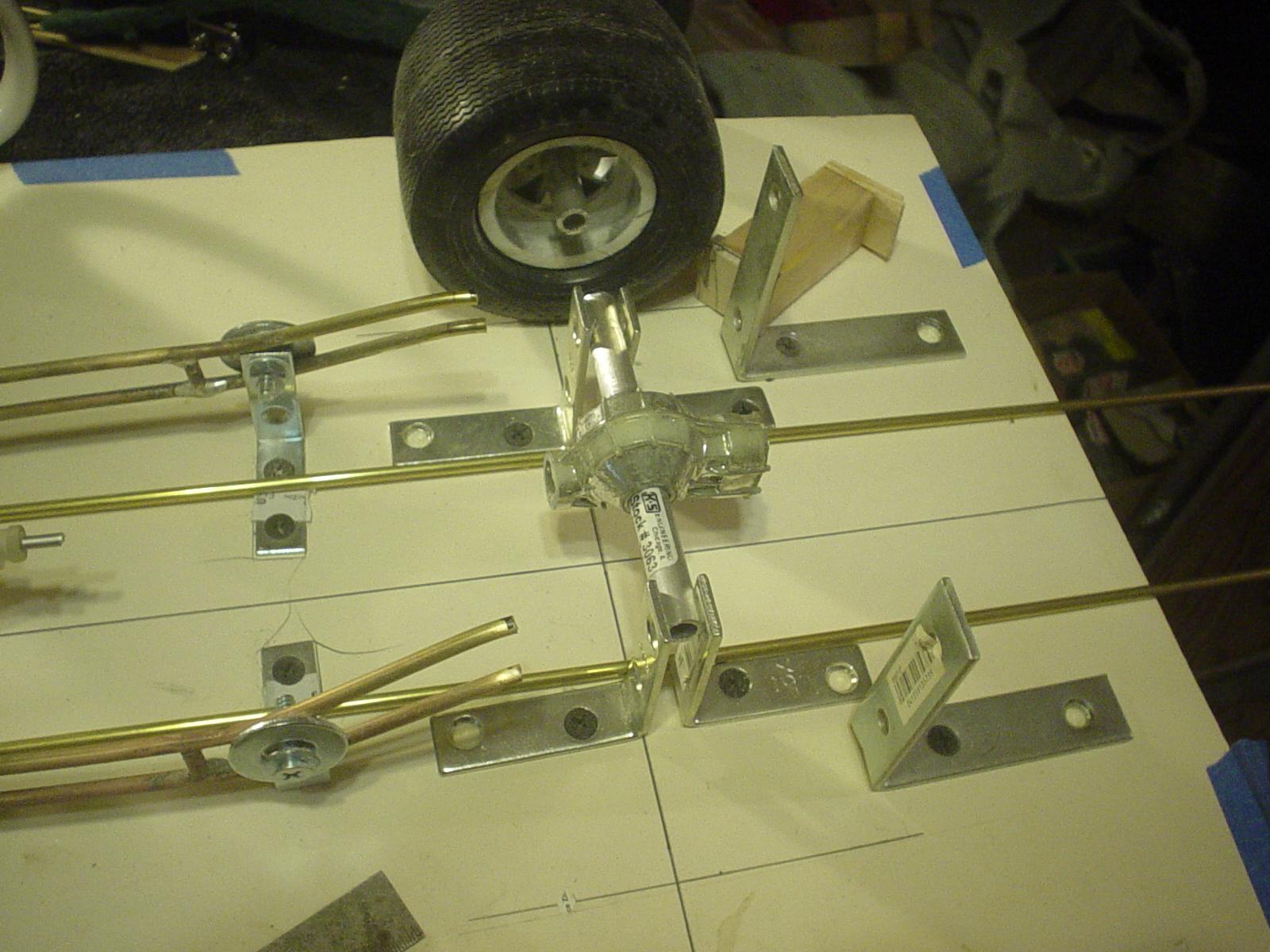

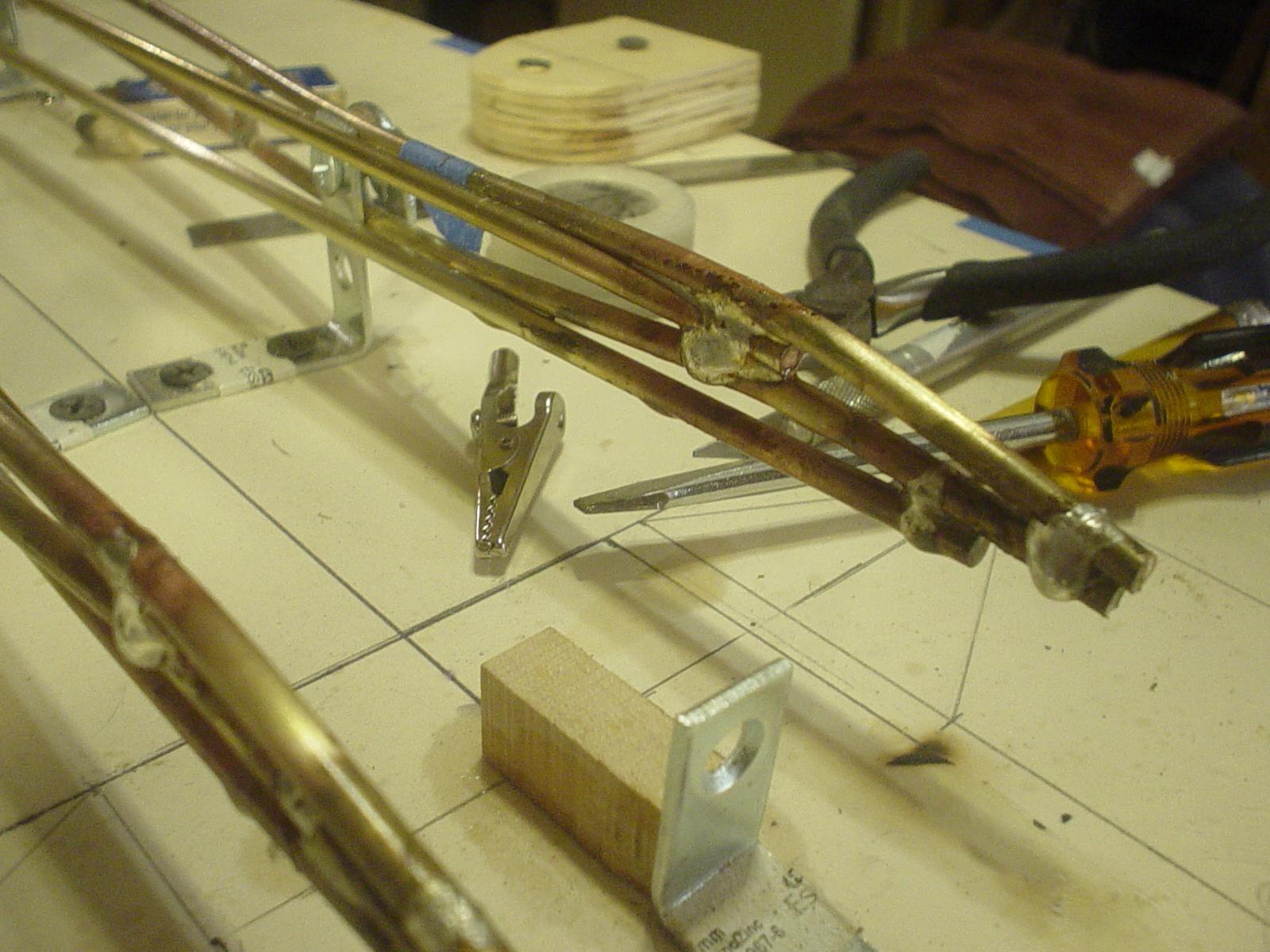

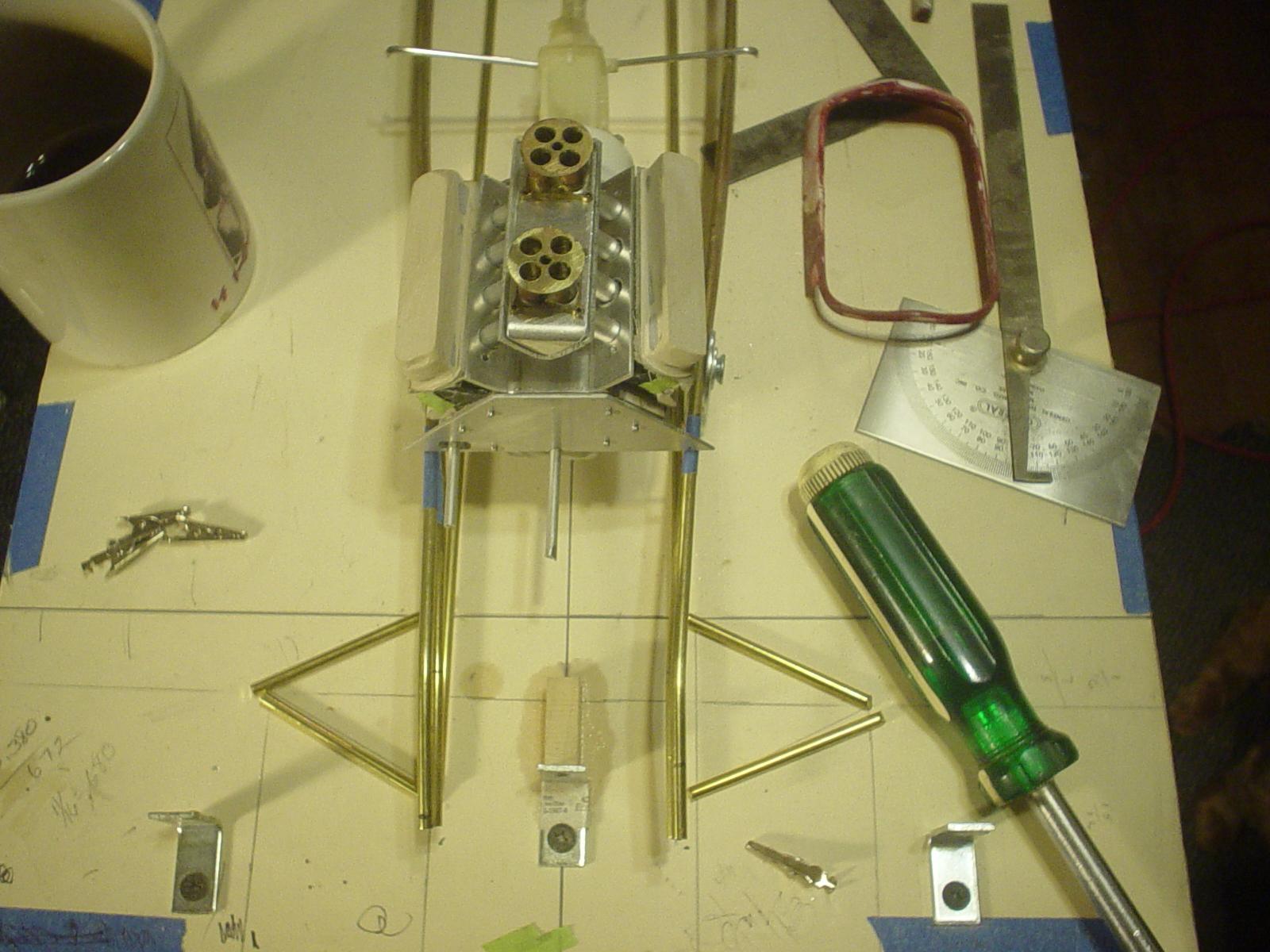

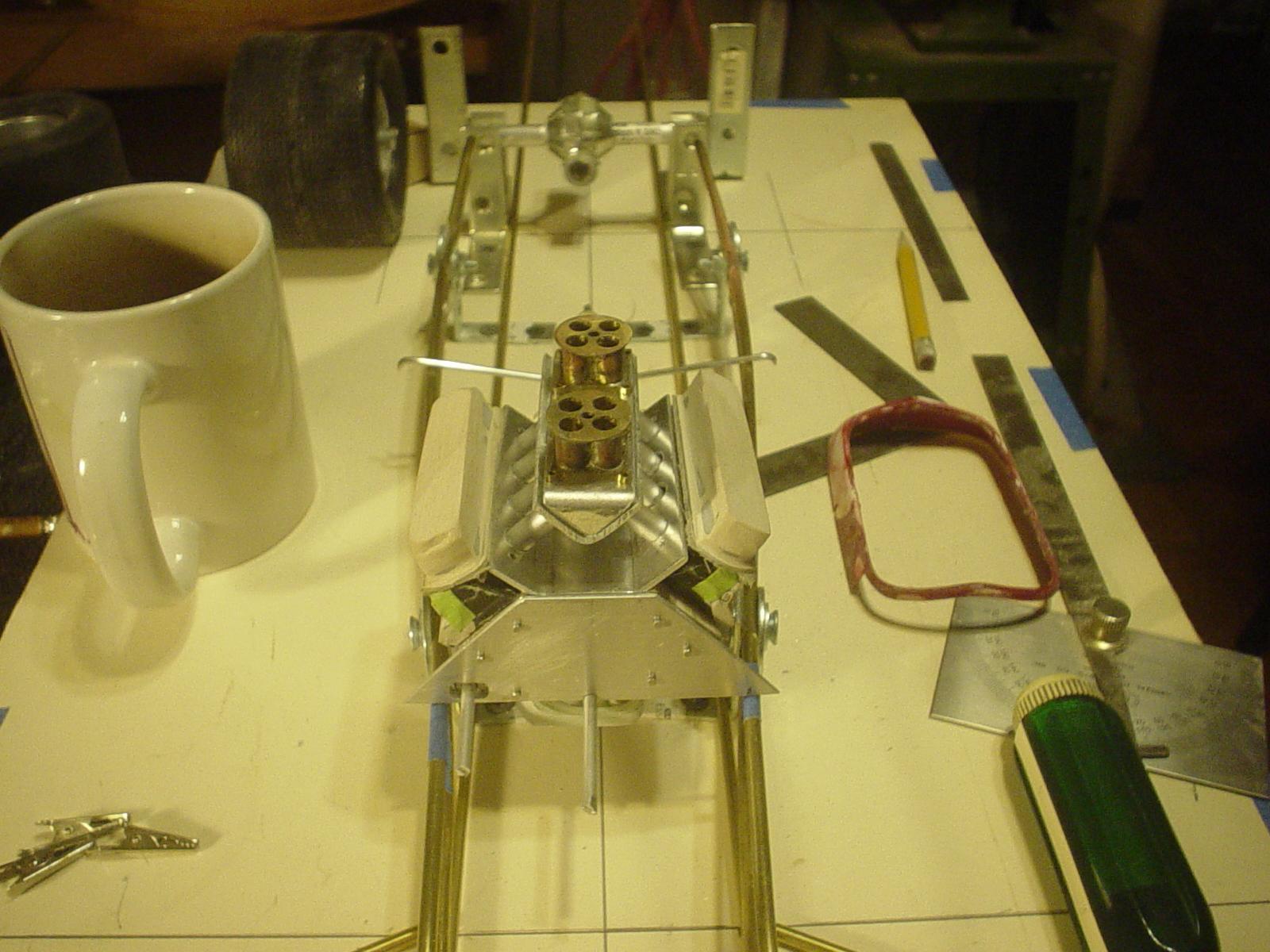

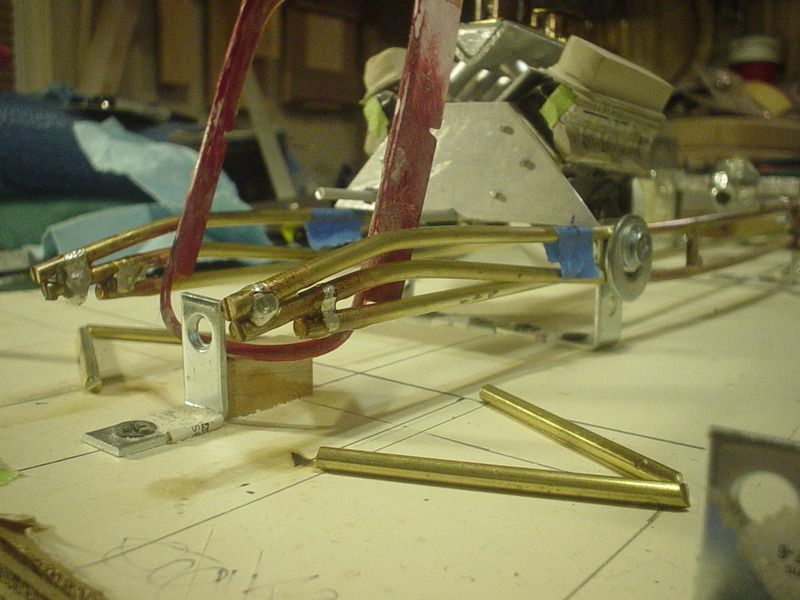

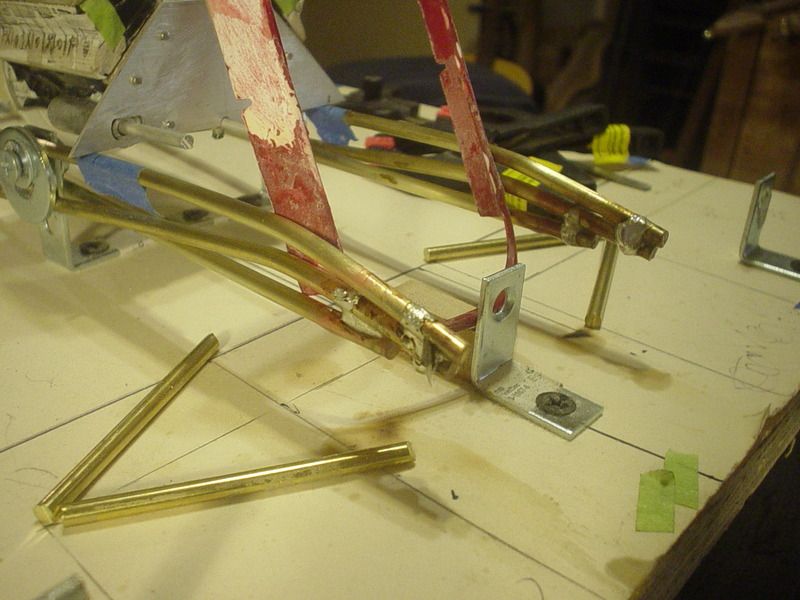

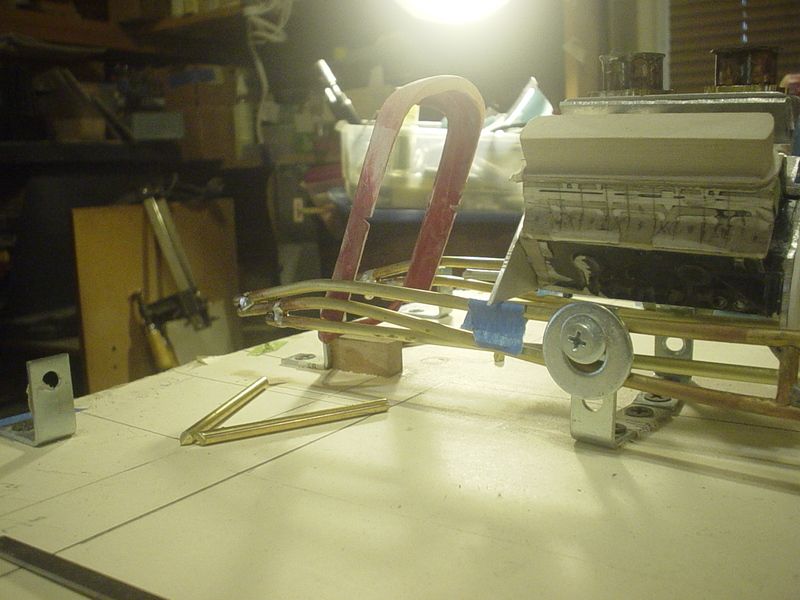

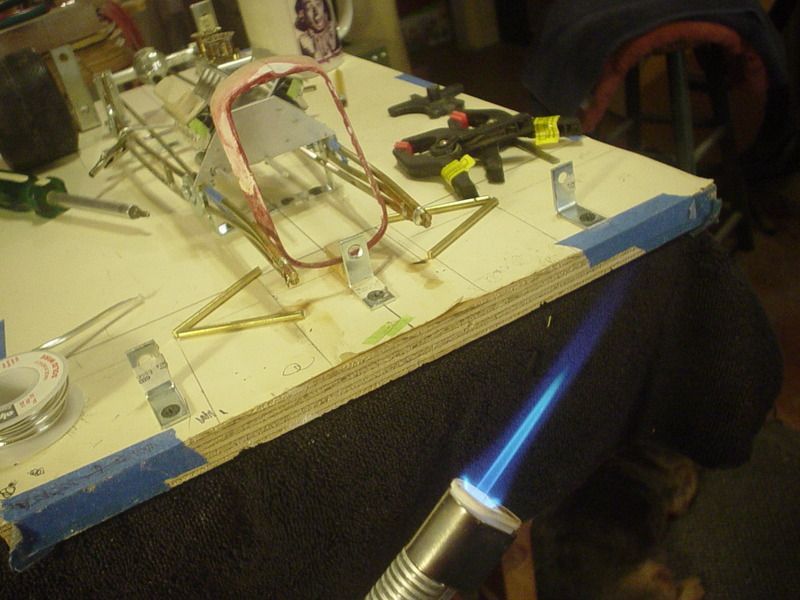

Ognib Posted September 5, 2015 Author Share Posted September 5, 2015 Butane fueled pencil torch & silver solder here. The silver melts at a considerablly higher temp than lead/tin solders...thus I can add things later with the lead without undoing previous work.Temp crossmember holds everything at the proper height.Inner rails run completely parallel to the centerline all the way back.Uprights that hold the center section have been relocated slightly & now also act as side to side locator devices for the tubes.By doing the inner rails this way, there is some visual interruption of the flow of the shaped rails, but form follows function & this is the structurally correct way to do it. Quote Link to comment Share on other sites More sharing options...
Twokidsnosleep Posted September 6, 2015 Share Posted September 6, 2015 I sent you a PM about making brass louversLooking for some help from your scratch building expertise Quote Link to comment Share on other sites More sharing options...
Ognib Posted September 6, 2015 Author Share Posted September 6, 2015 (edited) Be happy to do what I can to help. However, you'll need to resend your message...did not arrive on my side. Edited September 6, 2015 by Ognib Quote Link to comment Share on other sites More sharing options...
Codi Posted September 6, 2015 Share Posted September 6, 2015 Ray, thanks for the pics. Every scratch-builder ( and even those that don't scratch) have to be interested in the "how'd he do that" aspect of a build. I always learn something and like to try others techniques and methods on my own build(s). Appreciate ALL the time you're taking to take the pics and offer detailed descriptions as you go. btw, I'm using & learning how to use butane torch ( I think I have the same one you do) more and more on certain parts too and like what it can do when fabbing a particular part. Best to you, Cheers, Tim Quote Link to comment Share on other sites More sharing options...
Ognib Posted September 6, 2015 Author Share Posted September 6, 2015 (edited) My pleasure, Tim. Thanks for stopping in...always look forward to your comments & insights.The little torch is the cats meow...even with the silver solder & the higher melting temps...it activates the flux & brings temp up to where the solder just flows into the seam...almost instantly...on & off, just that quick.The lead/tin solder is even quicker...used both on building the carburetors. Edited September 6, 2015 by Ognib Quote Link to comment Share on other sites More sharing options...

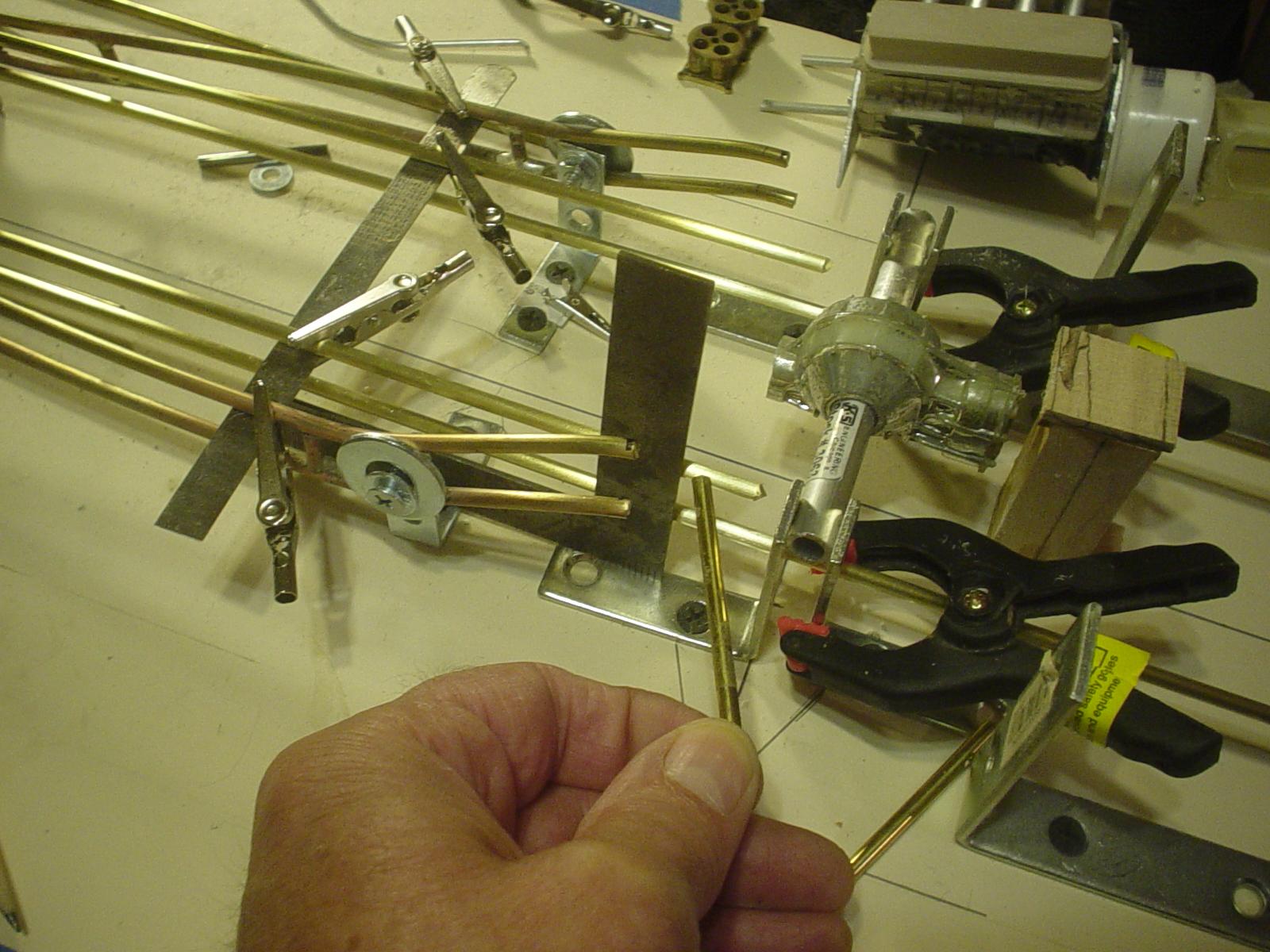

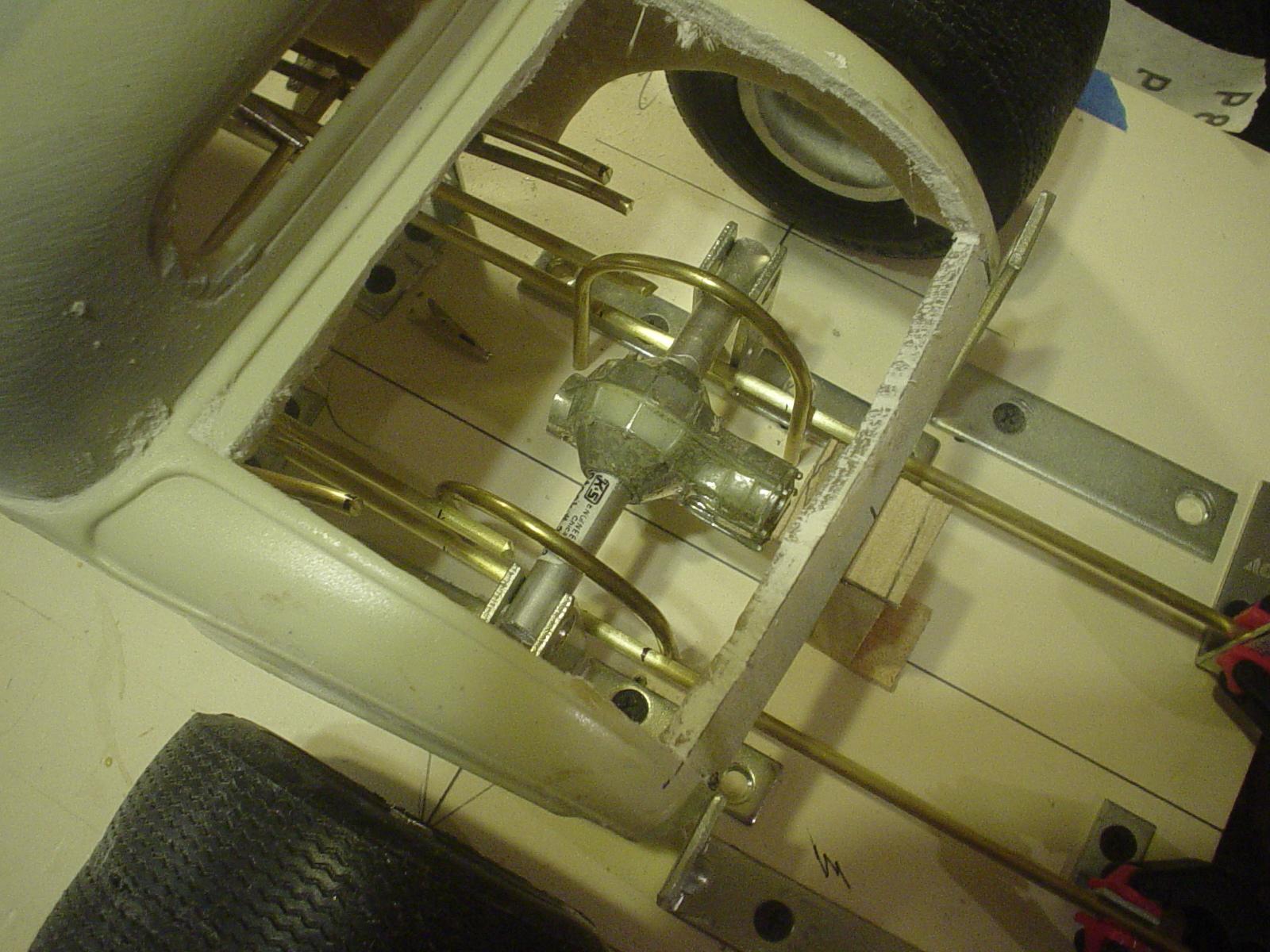

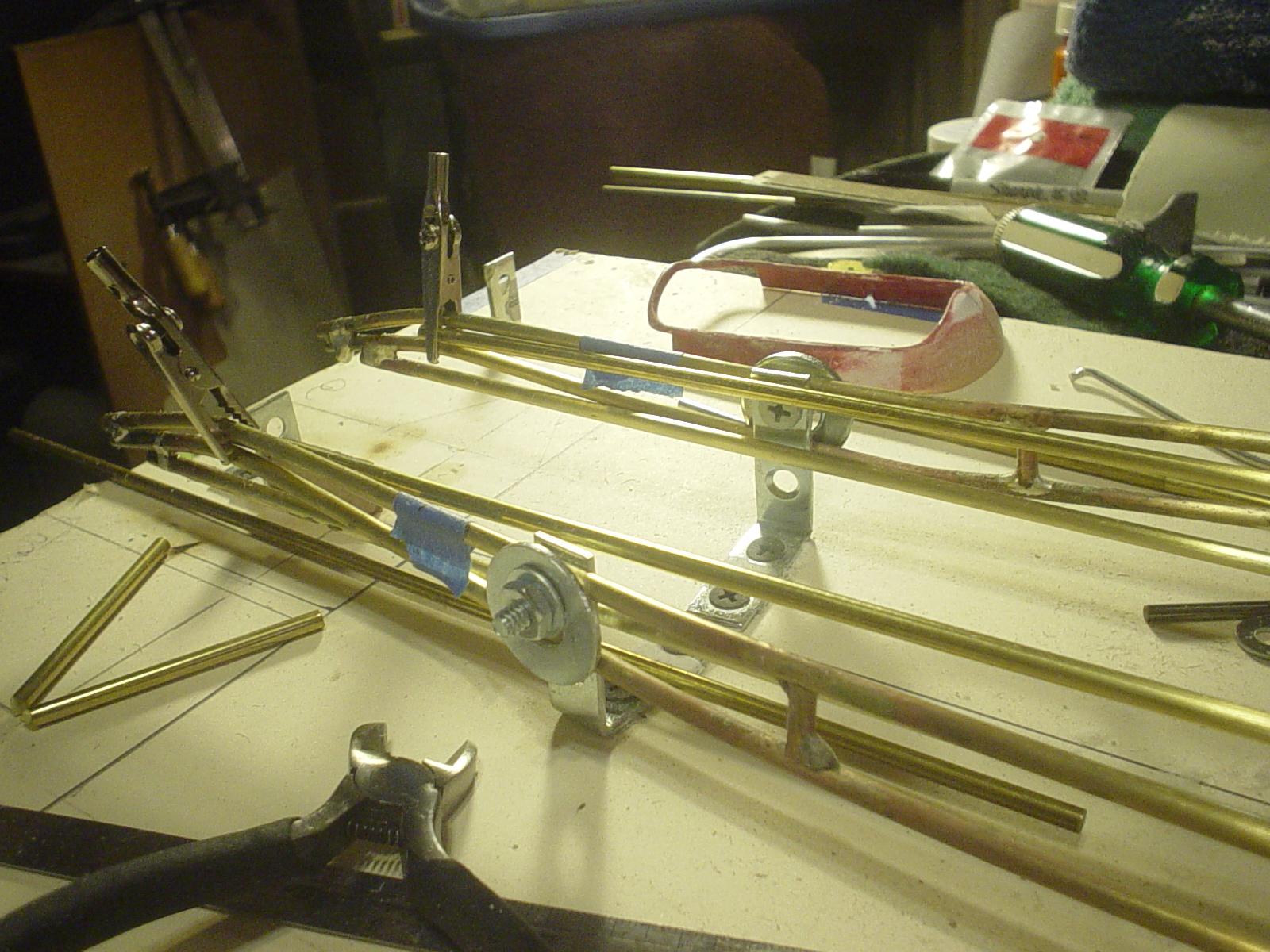

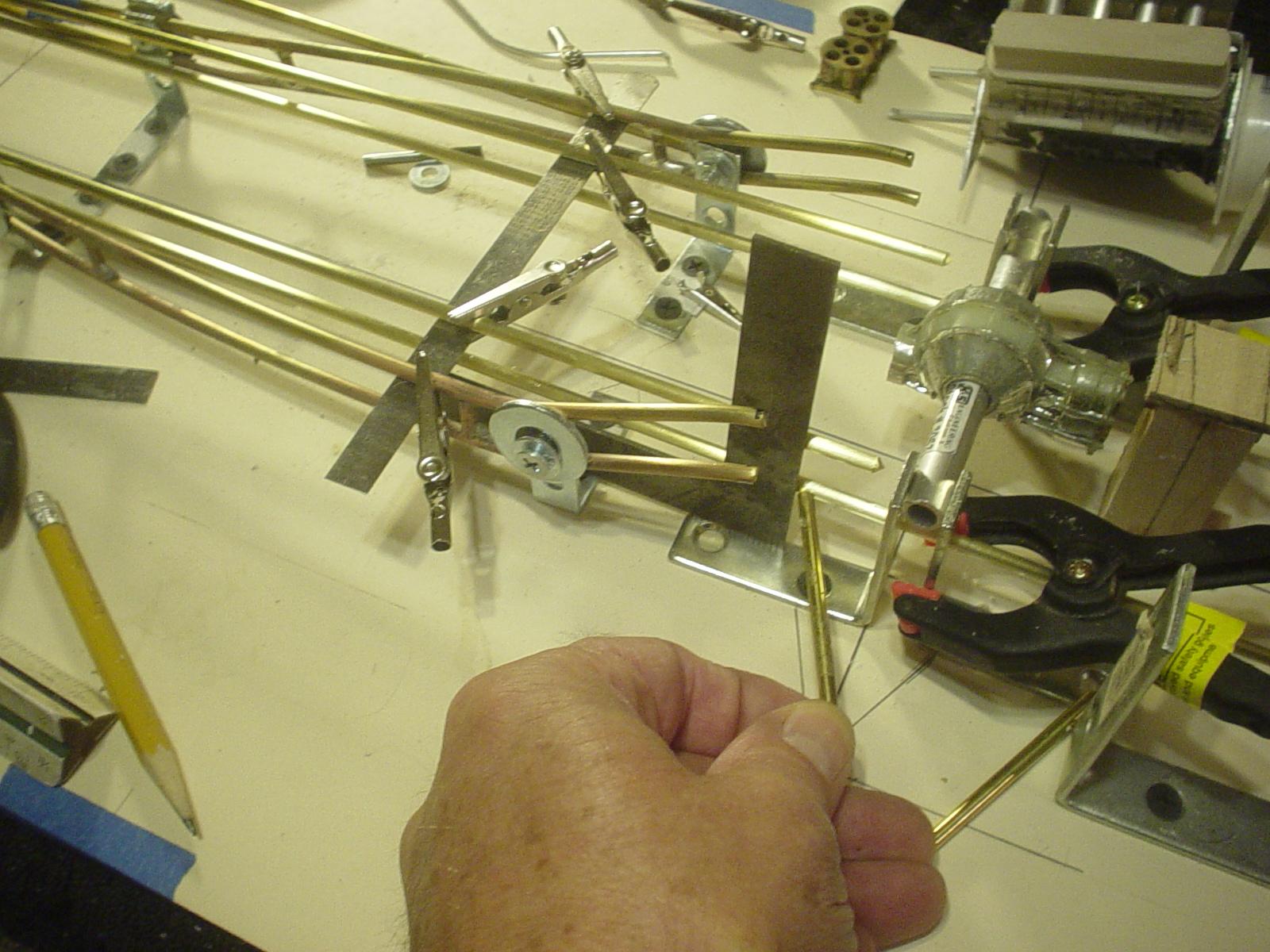

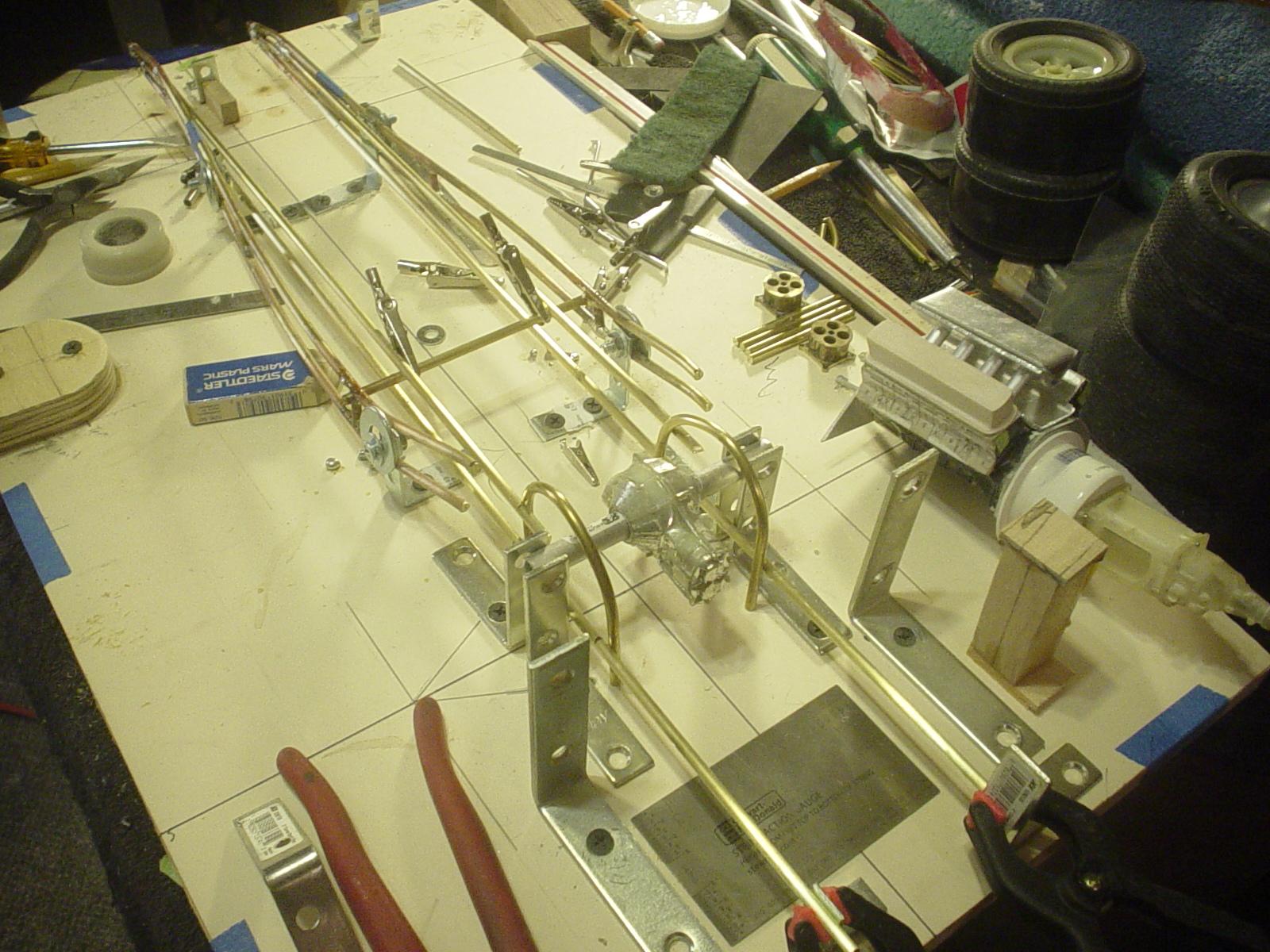

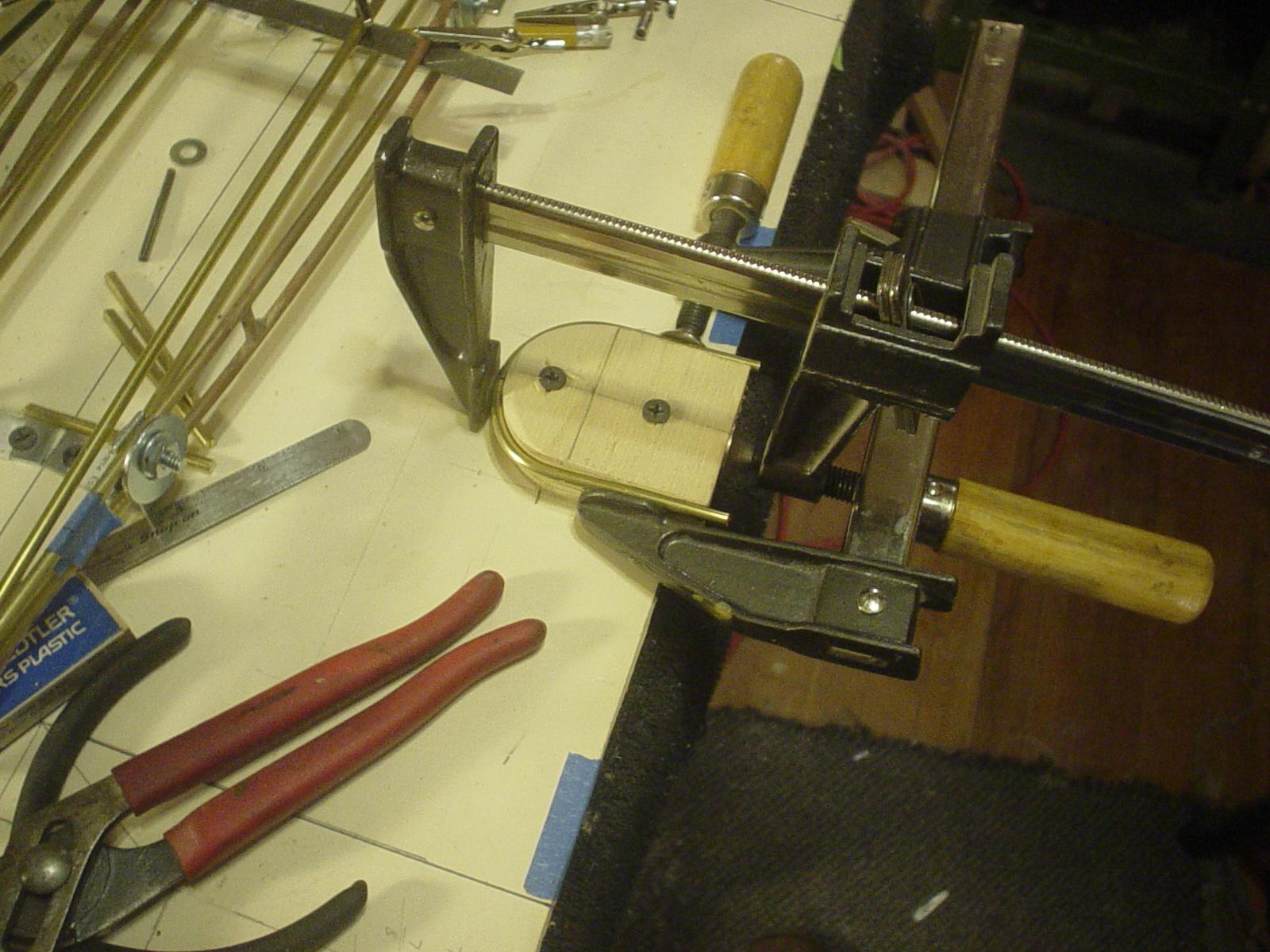

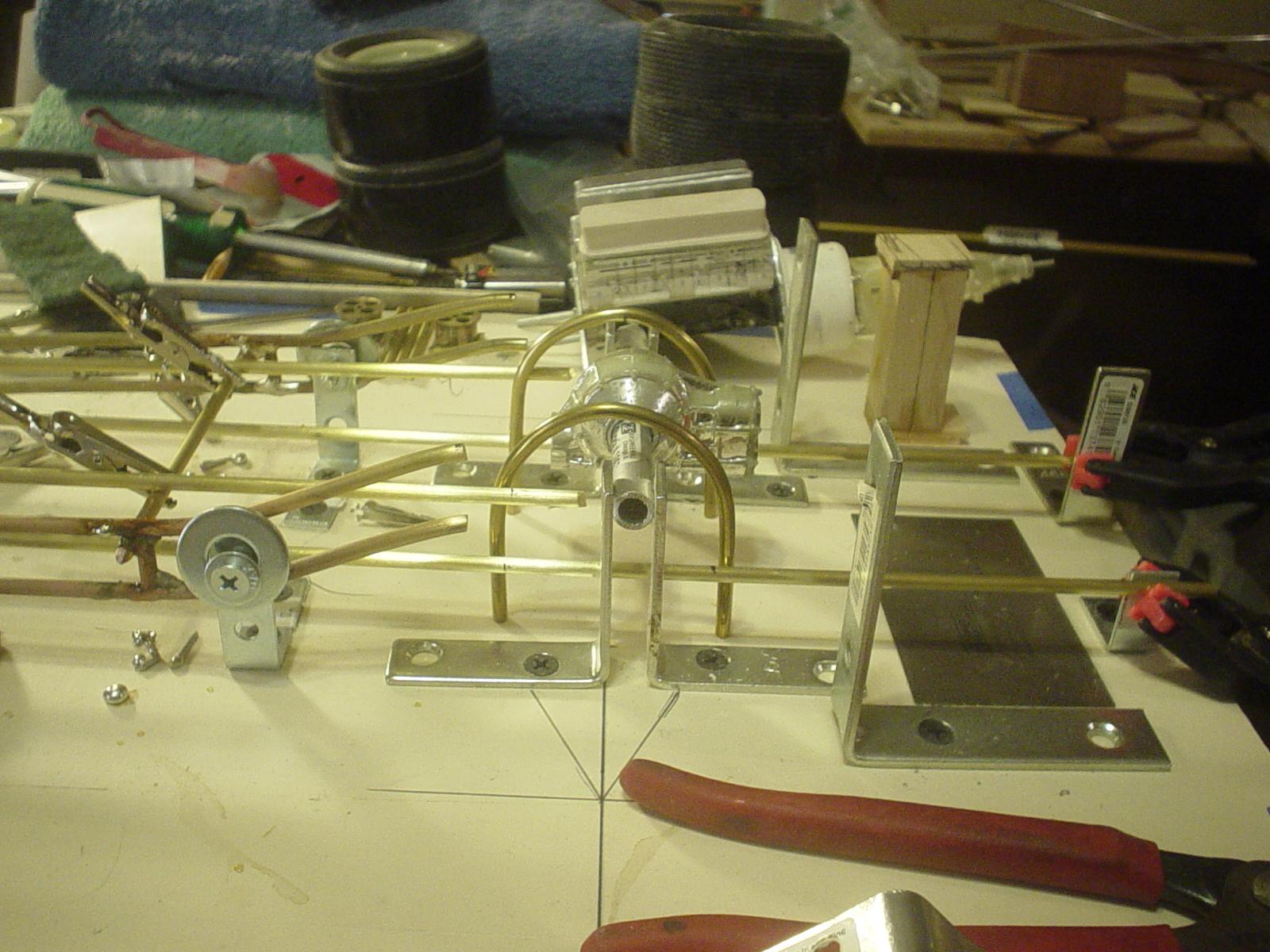

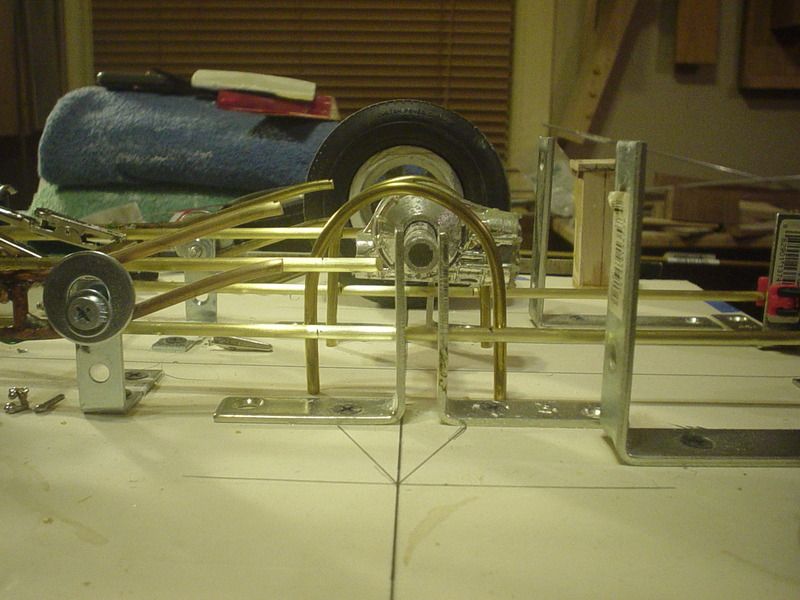

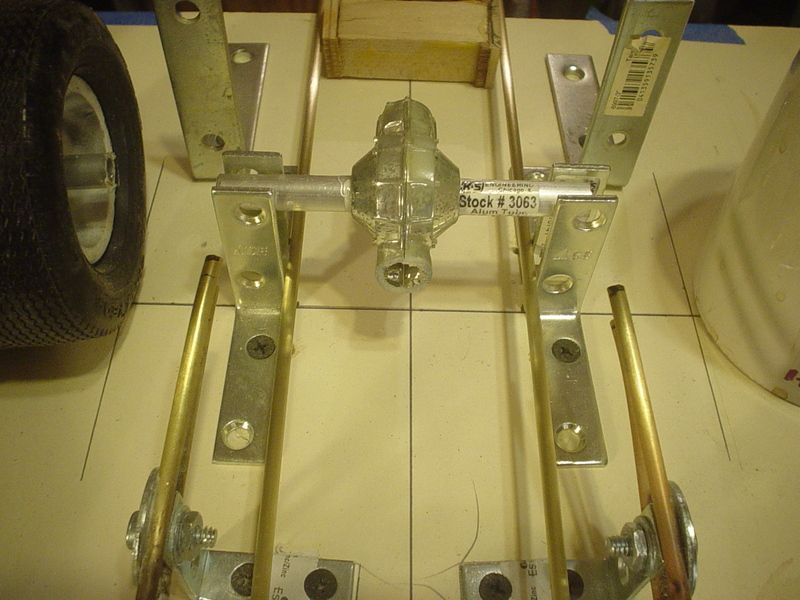

Ognib Posted September 6, 2015 Author Share Posted September 6, 2015 Upper inner rail being fitted. Lower rail will pass under the rear axle shaft & provide mounting points for lower lower control arm as well as the foundation for the center section cradle. Upper rail for upper control arm, looping over the axle shaft in the process. Nice graceful flow of lines where it all comes together in the front. Quote Link to comment Share on other sites More sharing options...

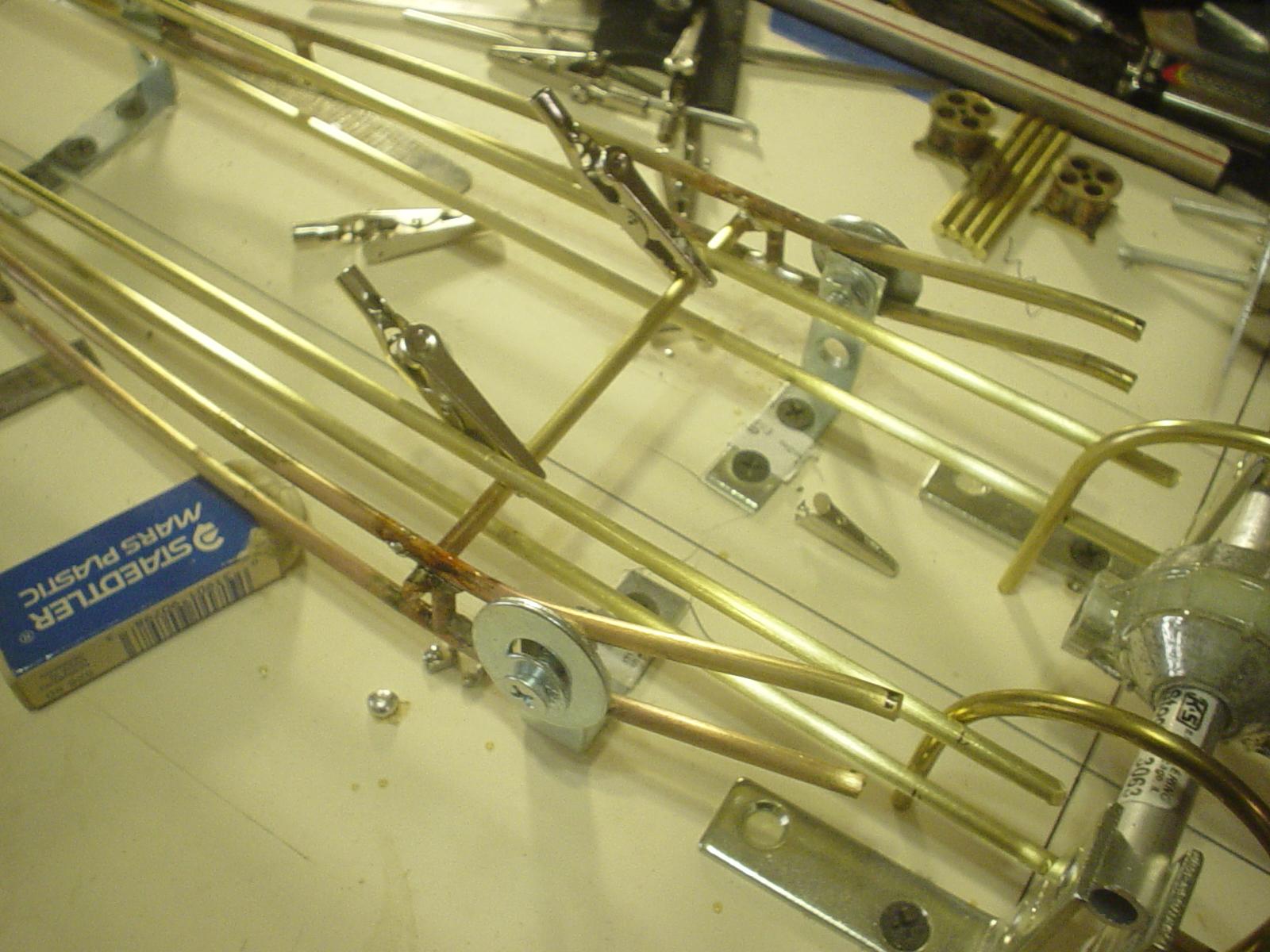

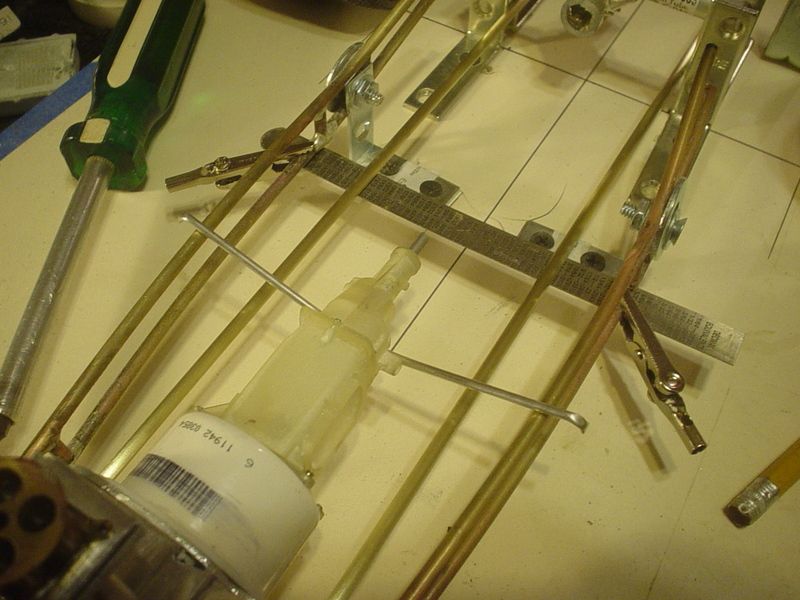

Ognib Posted September 8, 2015 Author Share Posted September 8, 2015 Top inner tube stuck in place. Stuck a temp crossmember in place to hold the upper tube at the correct height. Quote Link to comment Share on other sites More sharing options...

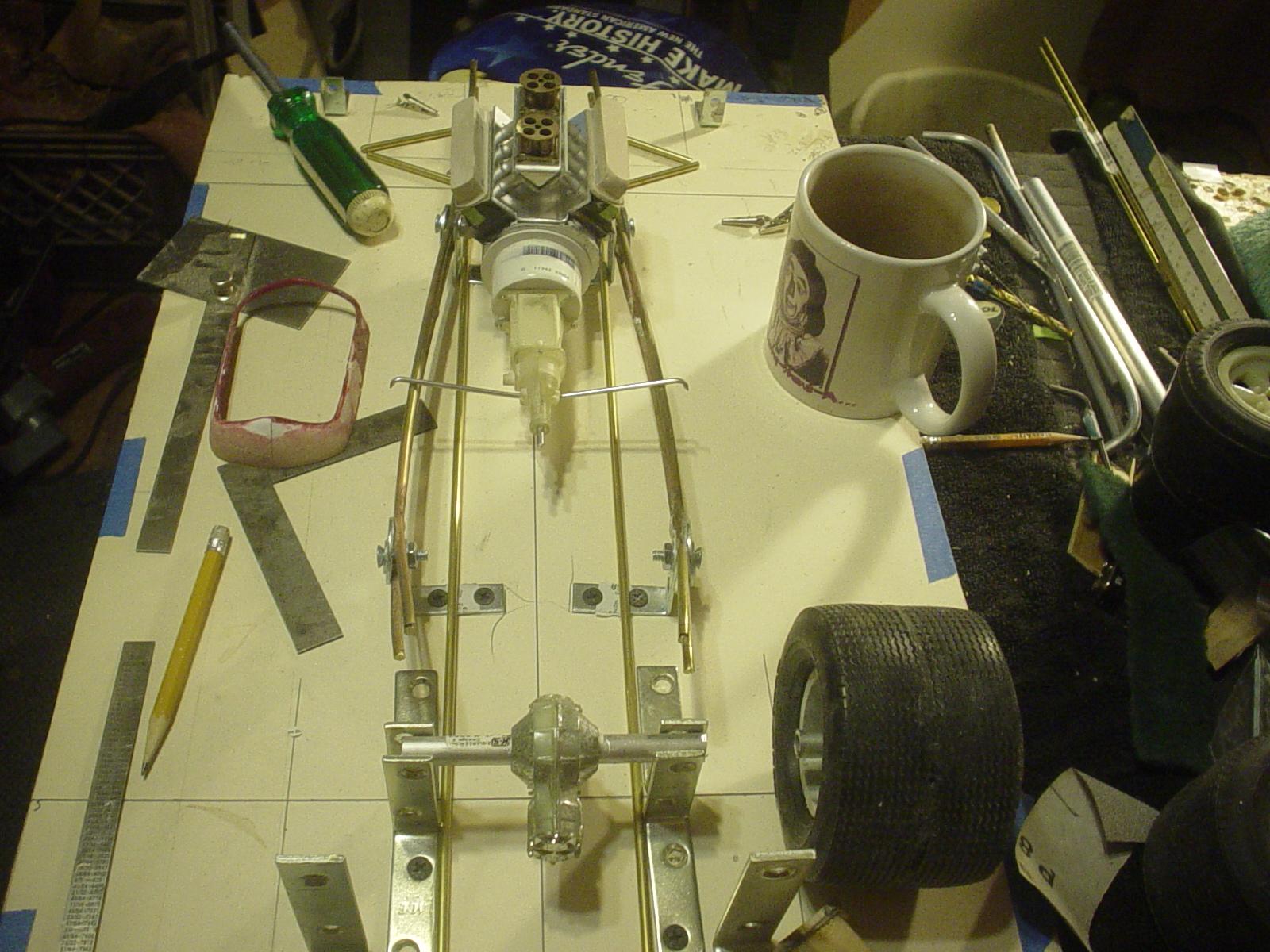

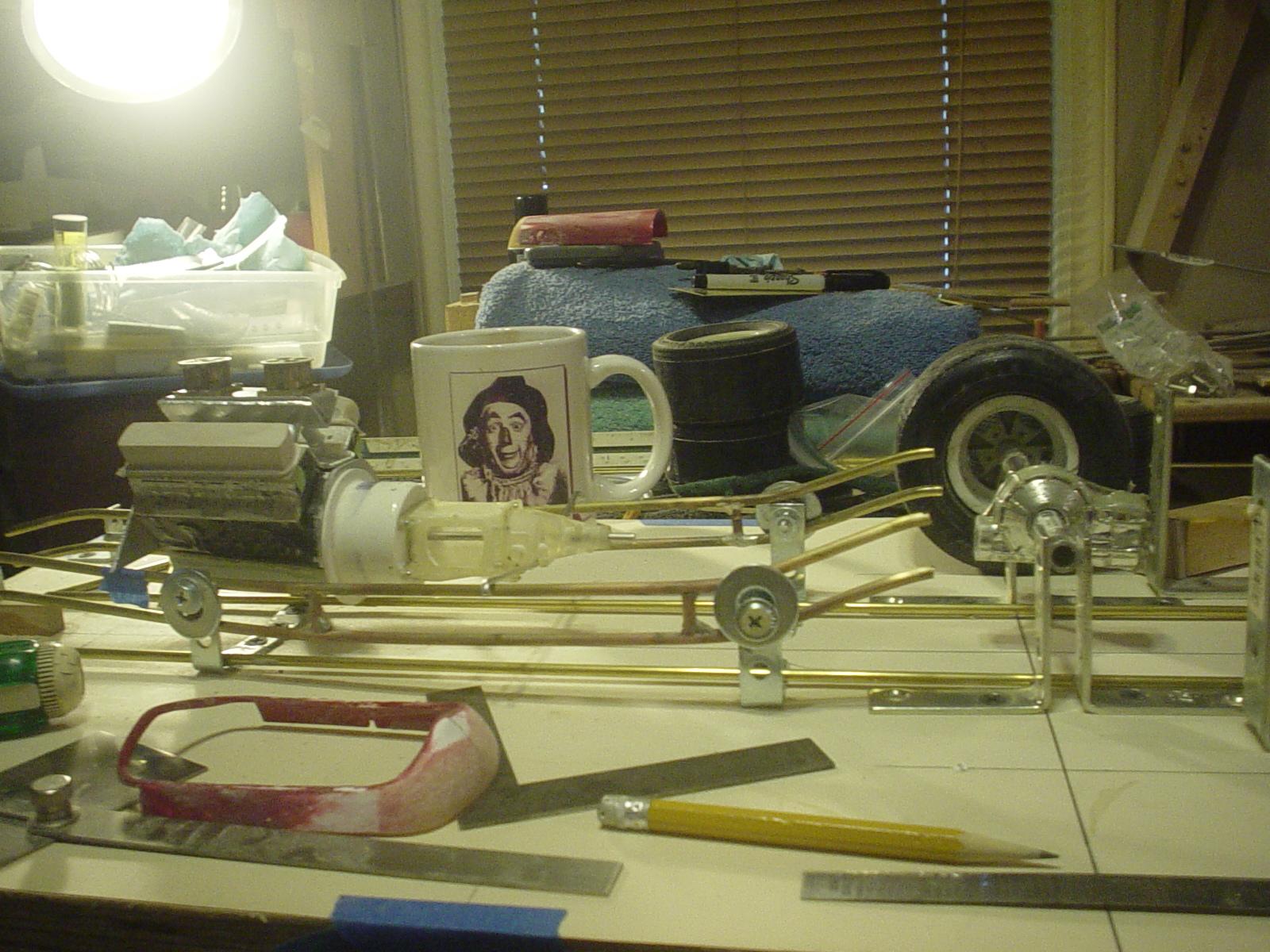

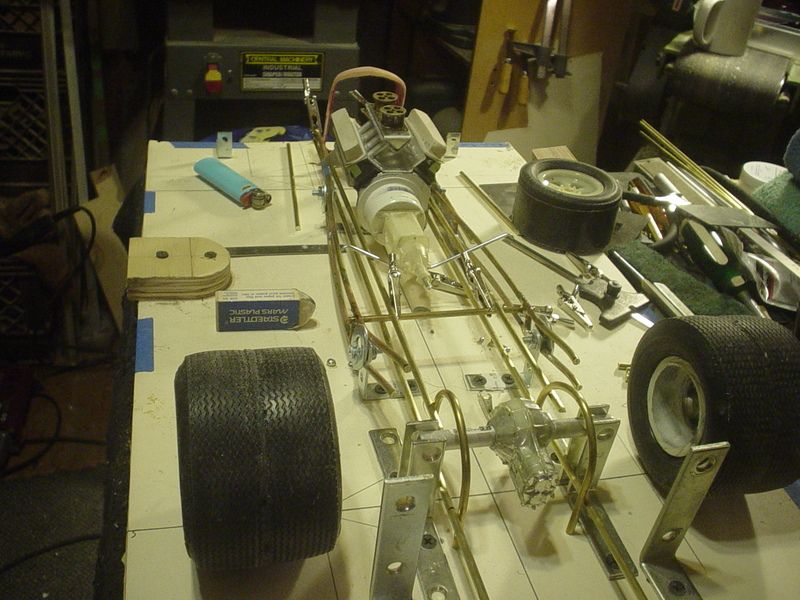

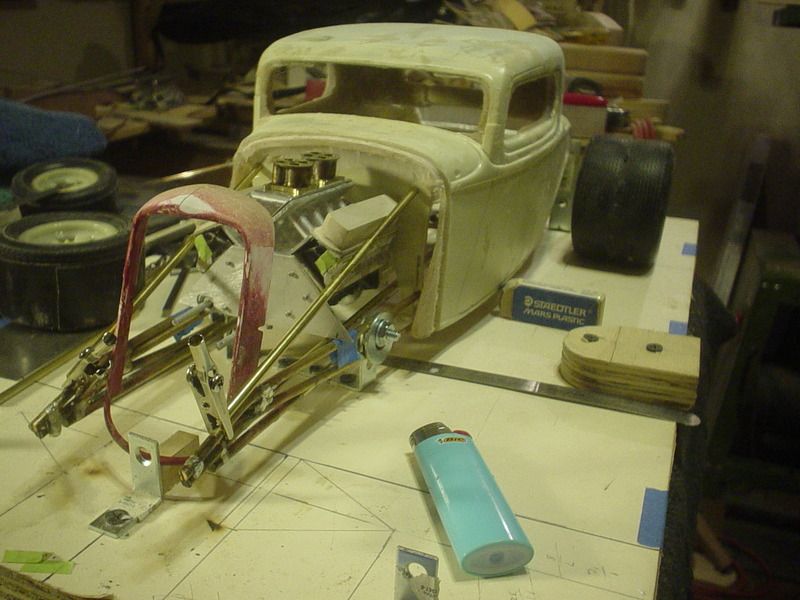

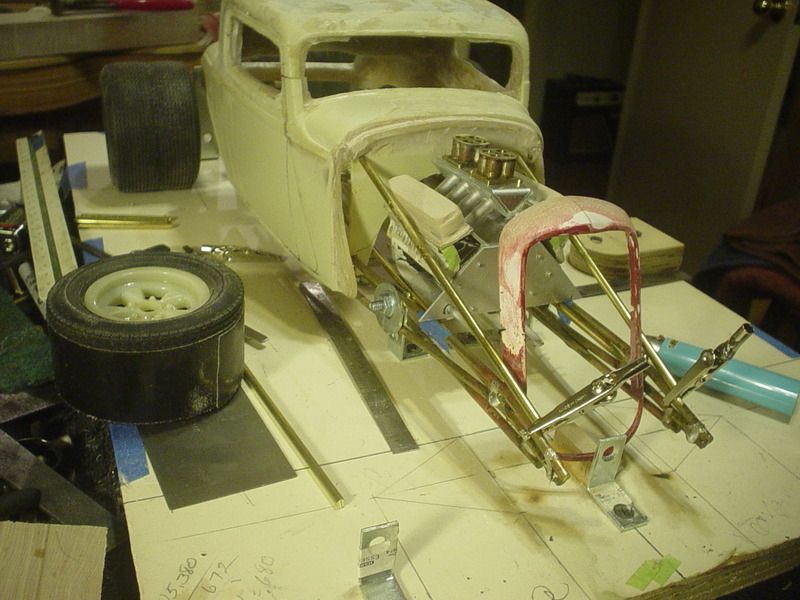

Ognib Posted September 8, 2015 Author Share Posted September 8, 2015 On going mock ups allow me to constantly visually enjoy the progress of the build as a whole & thus shows me what to do next.The beauty of working in a jig. Everything's locked in position & ya just gotta figure out how link it all together in a clean, logical, straight forward manner.Form follows function. "Pretty" is over rated! Quote Link to comment Share on other sites More sharing options...
futurattraction Posted September 8, 2015 Share Posted September 8, 2015 Looking through your chronology of pictures was mesmorizing, Ray. Quote Link to comment Share on other sites More sharing options...

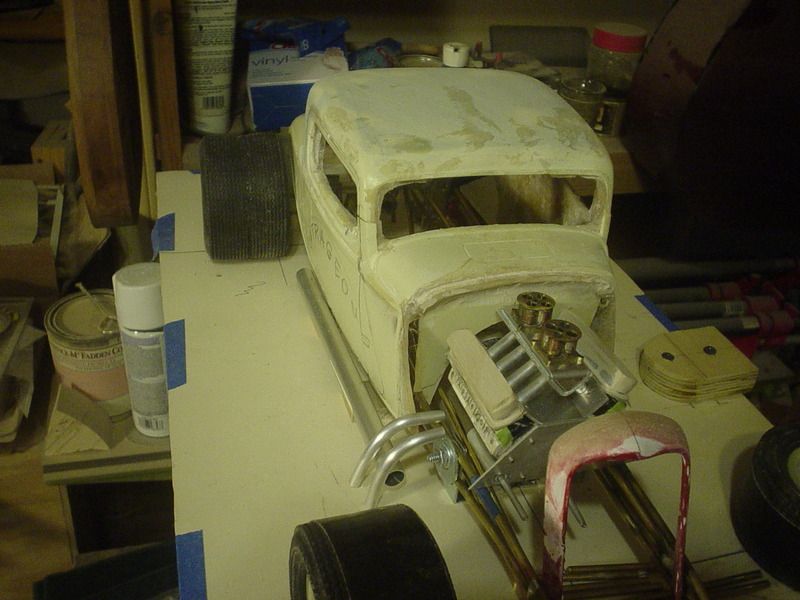

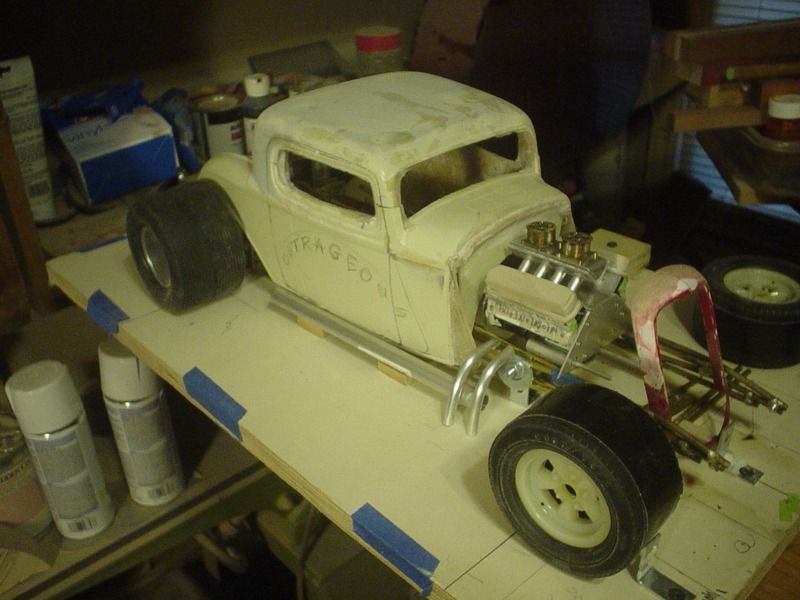

Ognib Posted September 8, 2015 Author Share Posted September 8, 2015 (edited) The on going mock up... Edited September 8, 2015 by Ognib Quote Link to comment Share on other sites More sharing options...

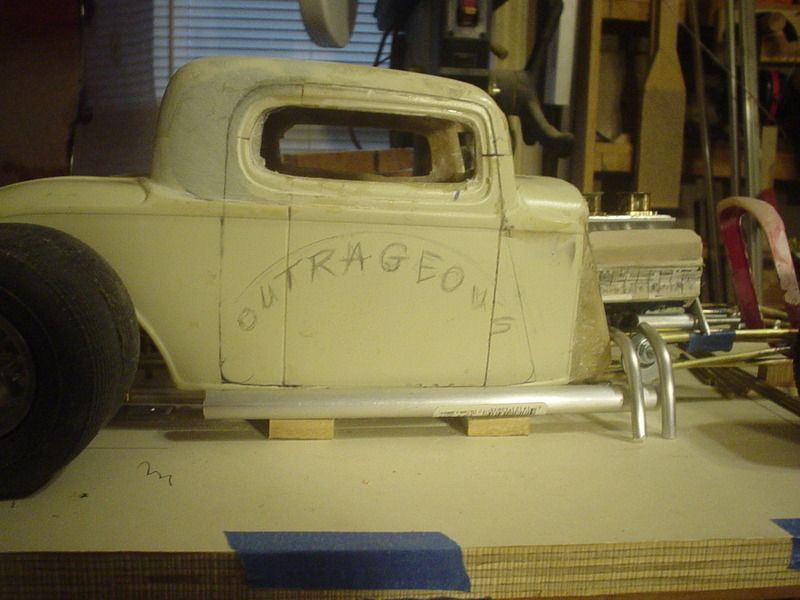

Ognib Posted September 10, 2015 Author Share Posted September 10, 2015 Something the wife picked up for me at a flea mkt...don't hold back dear, tell me how you really feel. Header primary tubes will be .250", 2" @ 1:1...necking down into a .500" dump tube with turn down, 4" @ 1:1.I'm going to set the door hinges before removing the doors to aid in getting a good fit on re-installation.Doors must come out now to give tweezer access to cabin for fitting main hoop & cowl hoop for the cage.I want these in place for fitting struts forward from the center section cradle as I build it.Glad I mocked the dump tube...I'm going to need to raise the lower door line just a bit to open above it. Quote Link to comment Share on other sites More sharing options...
Twokidsnosleep Posted September 10, 2015 Share Posted September 10, 2015 You are kicking butt on this, great progress Quote Link to comment Share on other sites More sharing options...
vintagercr Posted September 10, 2015 Share Posted September 10, 2015 This is such a cool build! I love your jig! Quote Link to comment Share on other sites More sharing options...
Ognib Posted September 10, 2015 Author Share Posted September 10, 2015 Thanks Scott...ya it's progressing pretty well at this point. Thanks for stopping in Stephen...appreciate the comments...the jig is worth the initial effort to set it up & it's simple, easy & cheap to build.Takes a bit of time to do the layout etc...gotta double/triple check all your measurements otherwise something won't fit later on. Quote Link to comment Share on other sites More sharing options...
