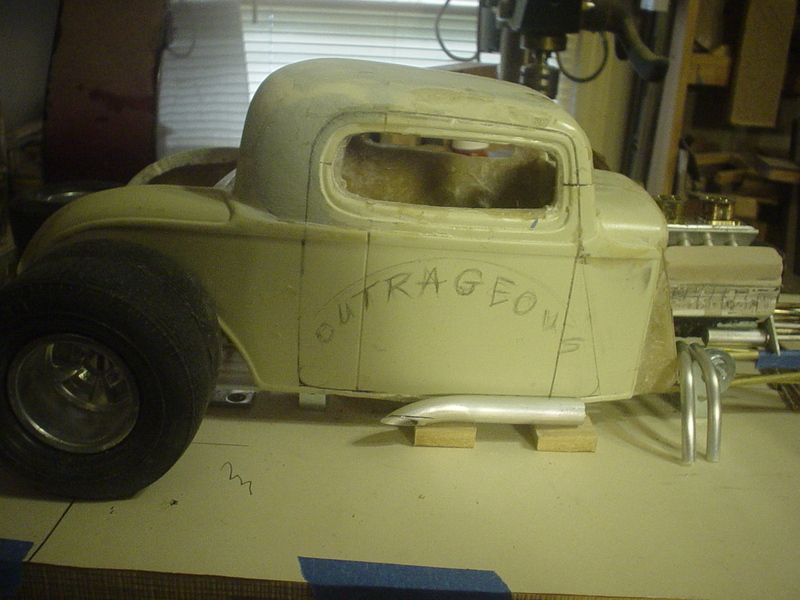

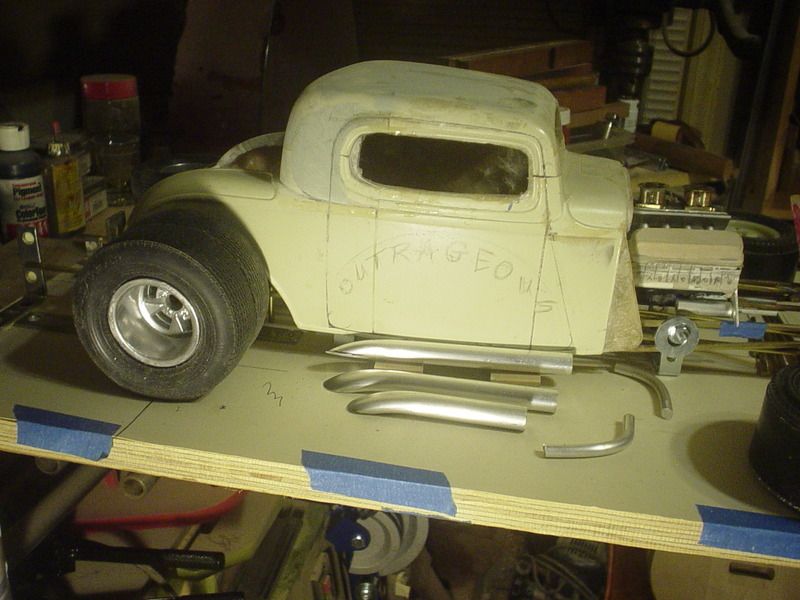

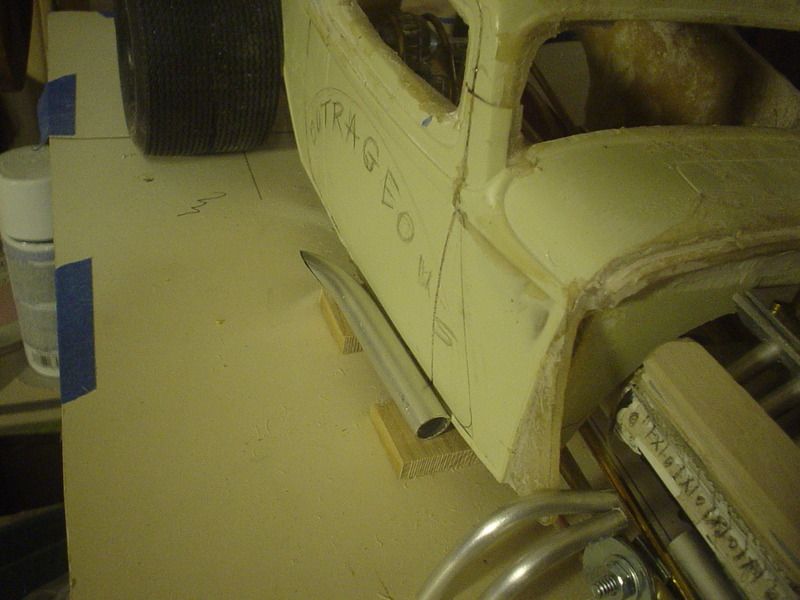

Ognib Posted September 10, 2015 Author Share Posted September 10, 2015 I only had a short piece of tube to experiment with after trimming off the 2" tail so the bender could grab it. But something kinda like this only longer with the exit back of the rear door line & the primaries feeding in about mid cowl. Quote Link to comment Share on other sites More sharing options...

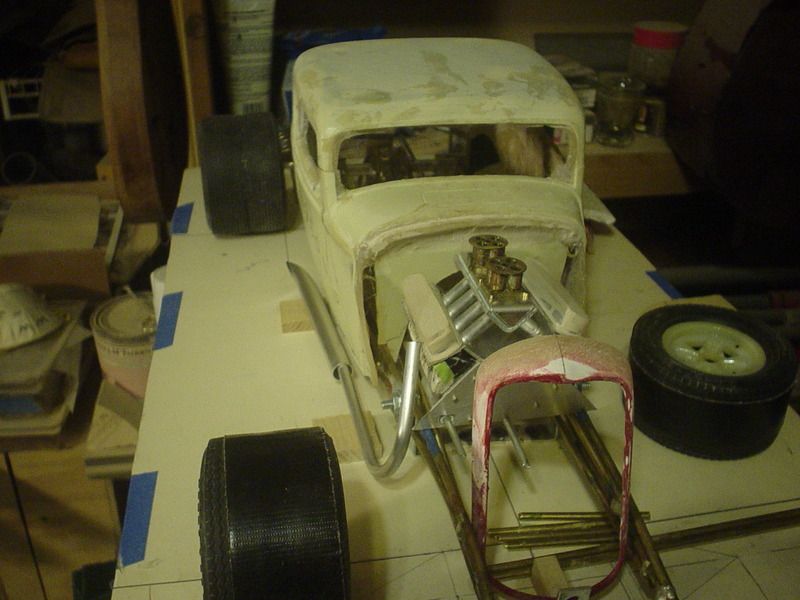

Ognib Posted September 11, 2015 Author Share Posted September 11, 2015 (edited) I've got an itch to build a set of headers right now so guess I'll take a break from the frame for a few days. I like the flow of these sprint car headers by husler...will continue the angles established by the laid back grill, cowl side & door lineWent & got some more tubing to work with. Edited September 11, 2015 by Ognib Quote Link to comment Share on other sites More sharing options...

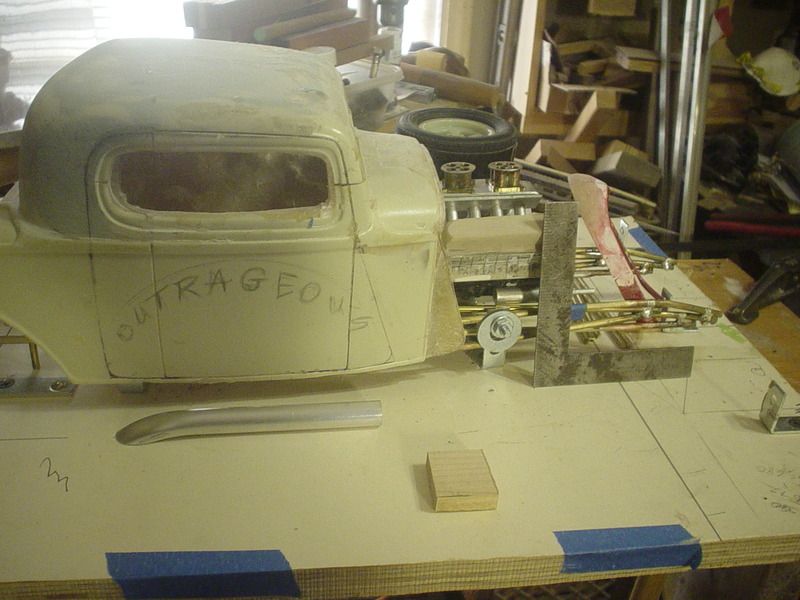

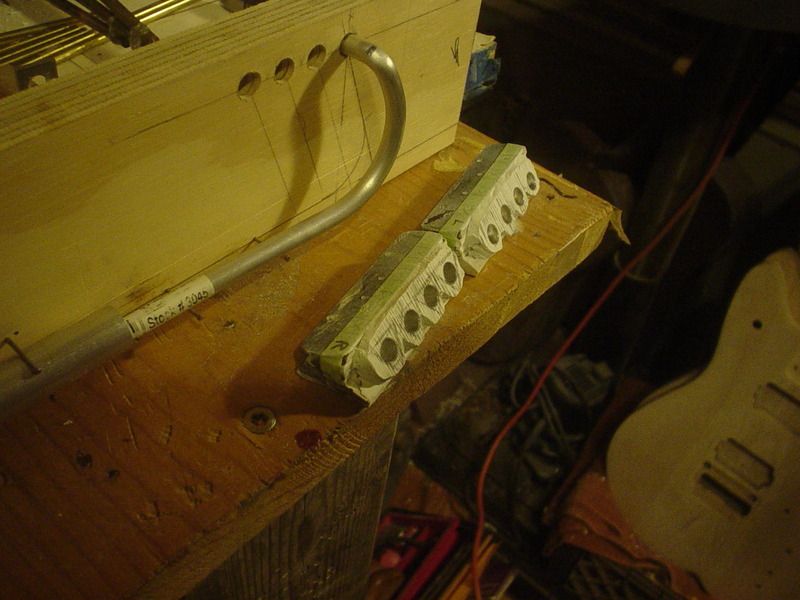

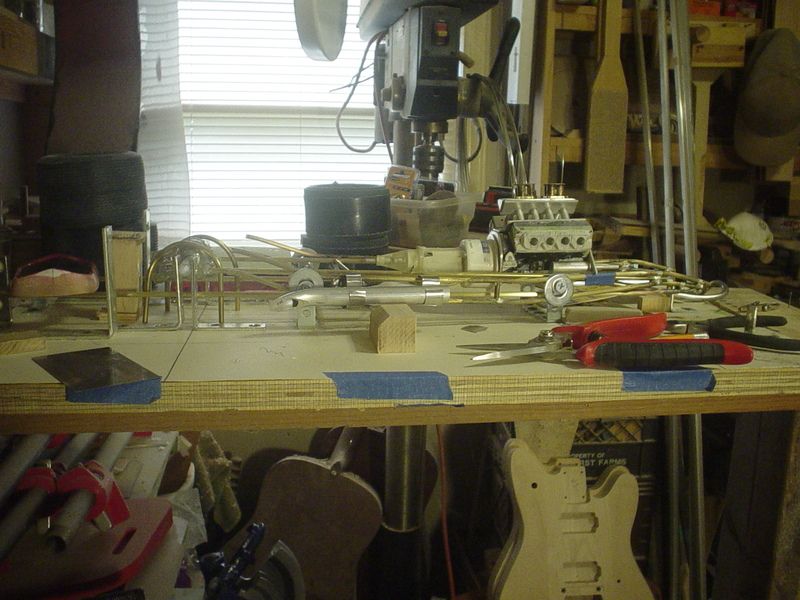

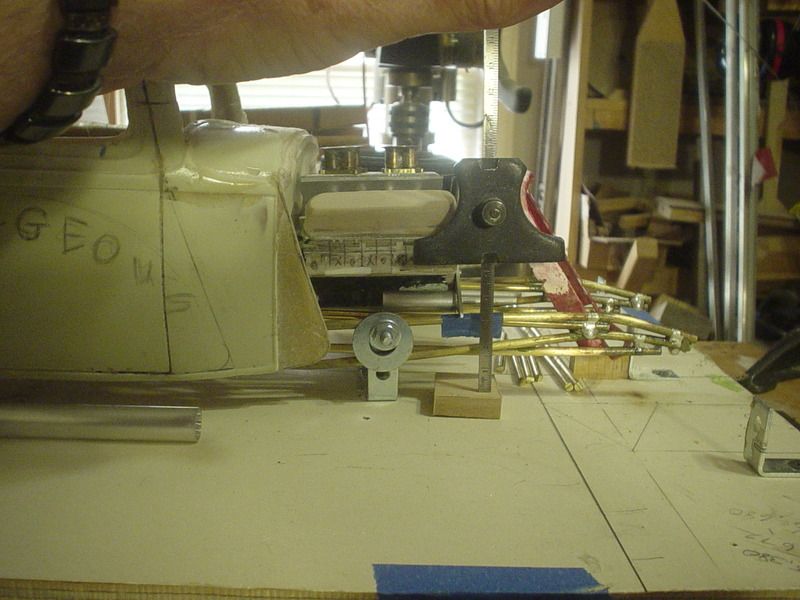

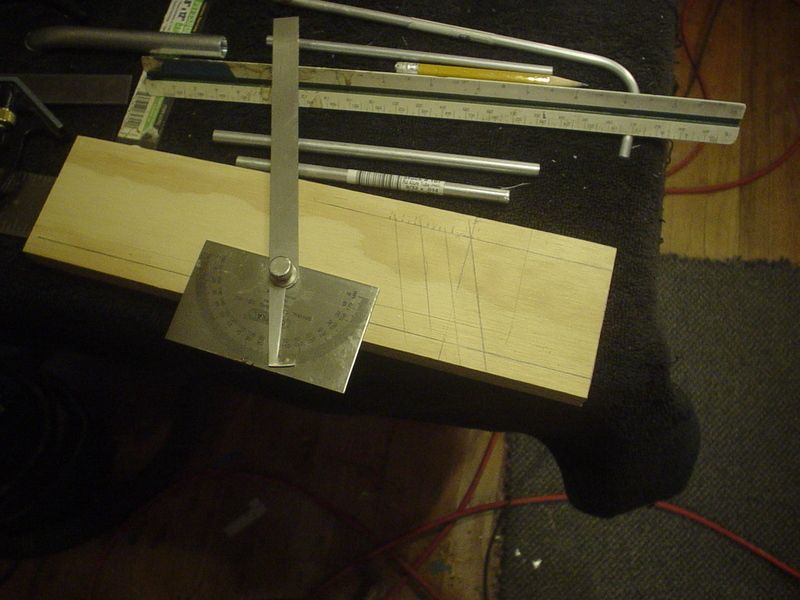

Ognib Posted September 12, 2015 Author Share Posted September 12, 2015 Talk about picking points in space...The blocks that I had the big tube on are ground clearance templates for the header build.They gotta "fit"...fill the space just right!!Square shows me where the front port relates to the platform.Depth gauge for establishing the height of the port relative to.....everything.Build jig with the complete port layout & the angle of the dangle drawn in.See how this goes... Quote Link to comment Share on other sites More sharing options...
Ognib Posted September 12, 2015 Author Share Posted September 12, 2015 (edited) Wow, two different sized pics...don't know how that happened. Edited September 12, 2015 by Ognib Quote Link to comment Share on other sites More sharing options...
b-body fan Posted September 12, 2015 Share Posted September 12, 2015 Those are going to flow nicely with the lines of the car. Very clean look. Function and fashion well blended. Quote Link to comment Share on other sites More sharing options...
Ognib Posted September 13, 2015 Author Share Posted September 13, 2015 Thanks, Michael.Hoping for good visual continuity...see how it turns out. Quote Link to comment Share on other sites More sharing options...

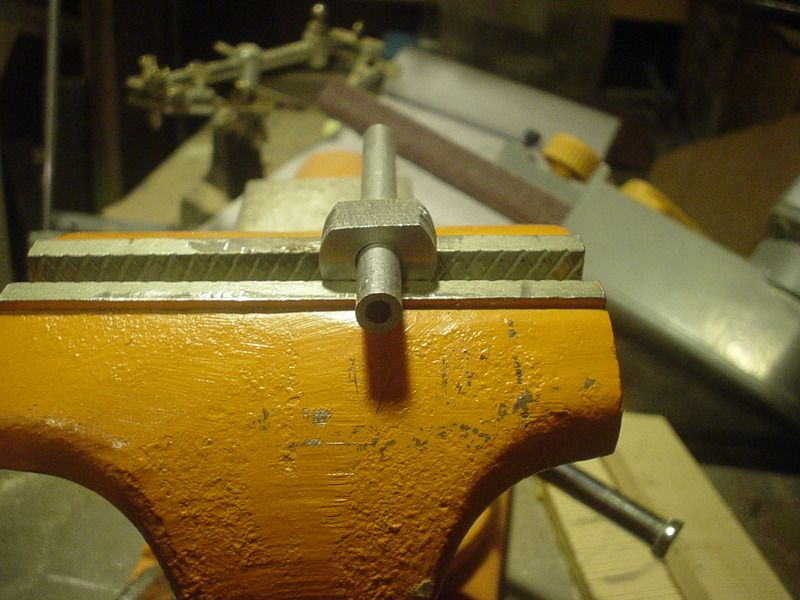

Ognib Posted September 13, 2015 Author Share Posted September 13, 2015 I have a good tight layout on the header jig & accurately executed.Tubing is 9/32...1/4" header pieces slip perfectly into...these tubes will be inserted into the heads & will be mounting points for the headers...slip em on...slip em off.By building the exhaust ports for the heads on the header jig, the layouts should be identical...build headers on jig...remove from jig...should slip right into place on side of engine.Drilled the heads oversized for wiggle room when aligning...packed them with epoxy & joined together.Nice & straight & solid. More epoxy on the front side...need to have material for bosses for header flanges & still provide pads for head bolts.Got one tube bent & in place...subsequent 5 attempts have broke on the tight bend at the top.Need to find a softer, more suitable alloy than the extruded rod. Quote Link to comment Share on other sites More sharing options...
bobthehobbyguy Posted September 13, 2015 Share Posted September 13, 2015 Nice work. For the effort to setup and use the jig pays off. Coming together nicely, Quote Link to comment Share on other sites More sharing options...
b-body fan Posted September 13, 2015 Share Posted September 13, 2015 I have a good tight layout on the header jig & accurately executed.Tubing is 9/32...1/4" header pieces slip perfectly into...these tubes will be inserted into the heads & will be mounting points for the headers...slip em on...slip em off.By building the exhaust ports for the heads on the header jig, the layouts should be identical...build headers on jig...remove from jig...should slip right into place on side of engine.Drilled the heads oversized for wiggle room when aligning...packed them with epoxy & joined together.Nice & straight & solid. More epoxy on the front side...need to have material for bosses for header flanges & still provide pads for head bolts.Got one tube bent & in place...subsequent 5 attempts have broke on the tight bend at the top.Need to find a softer, more suitable alloy than the extruded rod. Try nickel:copper alloy. It's sold at auto parts stores. They call it easy-bend. It's for brake and fuel line. I can wind the 3/16 and 1/4 around my index finger with no kinking. It solders easily also. Hope this helps, Mike. Quote Link to comment Share on other sites More sharing options...
Twokidsnosleep Posted September 14, 2015 Share Posted September 14, 2015 If you heat the tube, doesn't it "anneal" I think the word is and thus soften up a bit for bending???I did melt some aluminum tubing trying to make it heat colourize at the exhaust tips...dumb idea so be careful Quote Link to comment Share on other sites More sharing options...
Ognib Posted September 14, 2015 Author Share Posted September 14, 2015 I'll check that out, Michael, thanks. Scott, that's what I'm reading now.I know when I annealed the material when making the aluminum grill shell for the roadster, about half way through, it softened it considerably.Alloy has something to do with it as well, I think & the rod is pretty stiff & hard. Interesting... Quote Link to comment Share on other sites More sharing options...

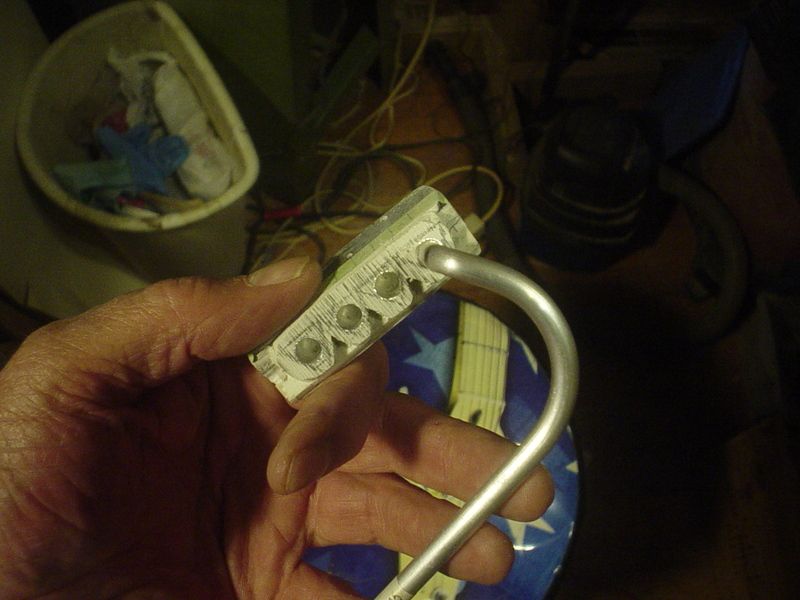

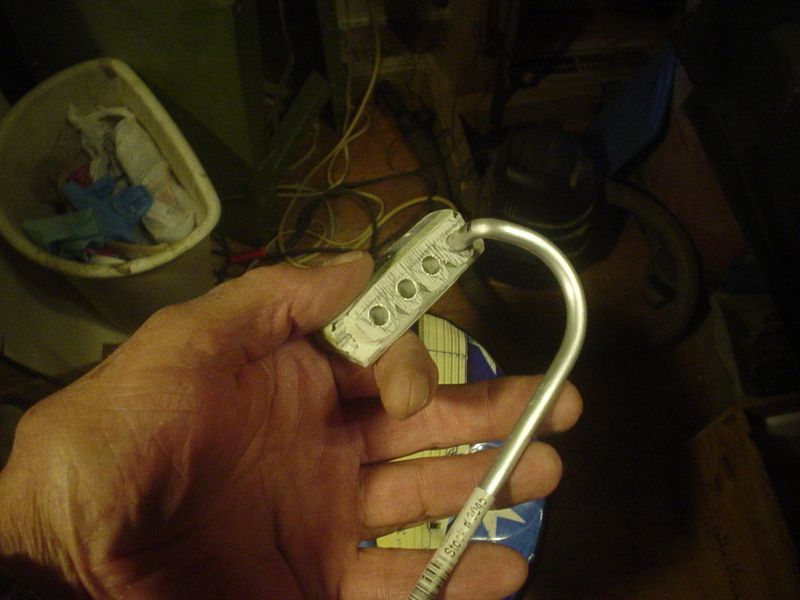

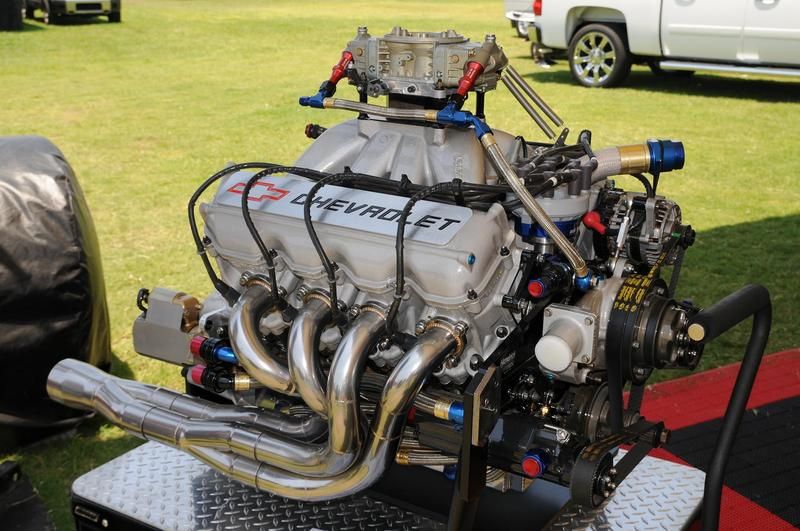

Ognib Posted September 15, 2015 Author Share Posted September 15, 2015 (edited) This is the RO7 nascar head.Very business like in it's look.Not trying to do a reproduction here, just grab the vibe & look.Especially want the individual 3 bolt per tube mounting ring feature on my heads.Trimmed most of the excess tube & epoxy off the front.Shaping some aluminum washers to use as retainer rings for the tube to head.With the tube in the head, the header just slips easily in place & hangs securely there with it's own weight. Edited September 15, 2015 by Ognib Quote Link to comment Share on other sites More sharing options...
Codi Posted September 15, 2015 Share Posted September 15, 2015 I can tell you're having fun Ray. That pic of engine you shared with us is phenomenal. THAT would be a great one to replicate EXACTLY for your rod. (hint, hint, I still like the single carb concept) Thanks for posting and sharing. Cheers, Tim Quote Link to comment Share on other sites More sharing options...
Ognib Posted September 15, 2015 Author Share Posted September 15, 2015 (edited) I am having fun building & posting, Tim. All kinds of knotty little "how am I going to do this" problems which are my strongest attraction to this. The nascar motor is a 358" small block...in my head, if this were 1:1, it would be close to 600 ci. Single 4 on this one just isn't radical enough to suit me. Edited September 15, 2015 by Ognib Quote Link to comment Share on other sites More sharing options...

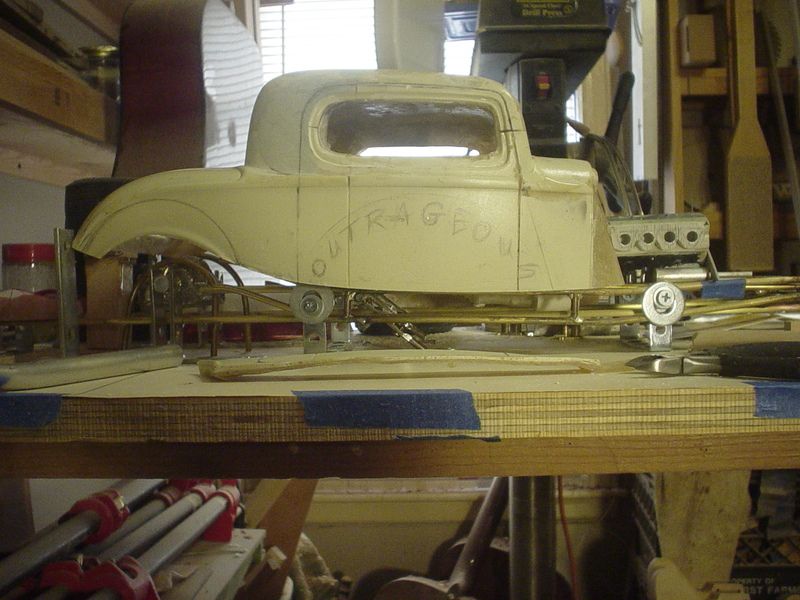

Ognib Posted September 17, 2015 Author Share Posted September 17, 2015 ...wondering what if...I were to expose the sides of the frame...& tuck the dump tubes in between the frame tubes....like such... Previous Quote Link to comment Share on other sites More sharing options...

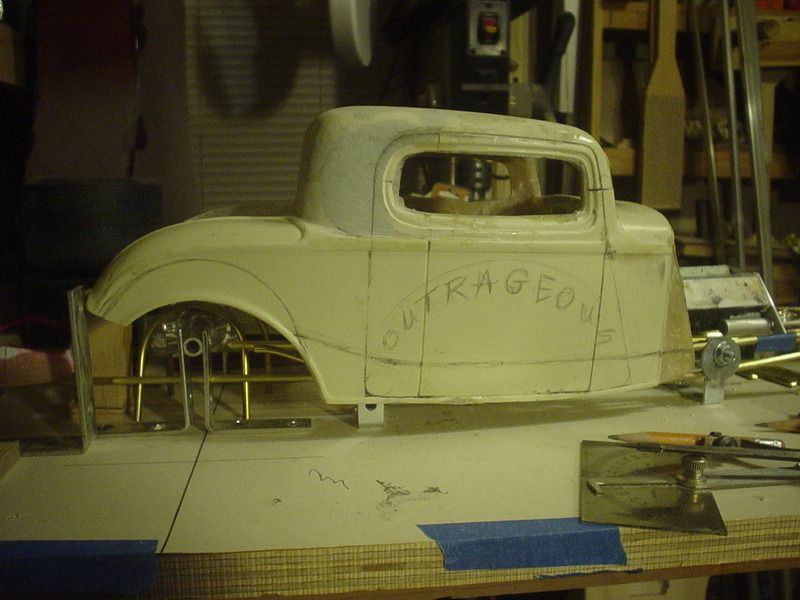

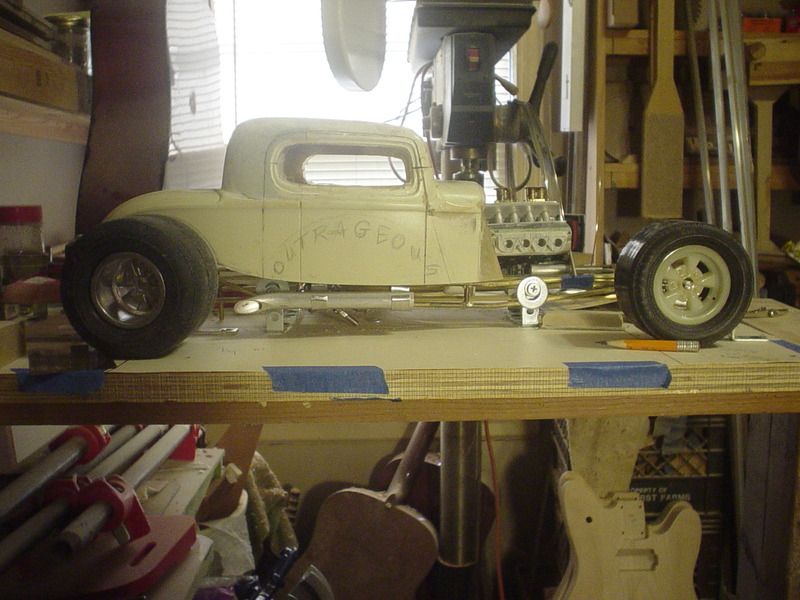

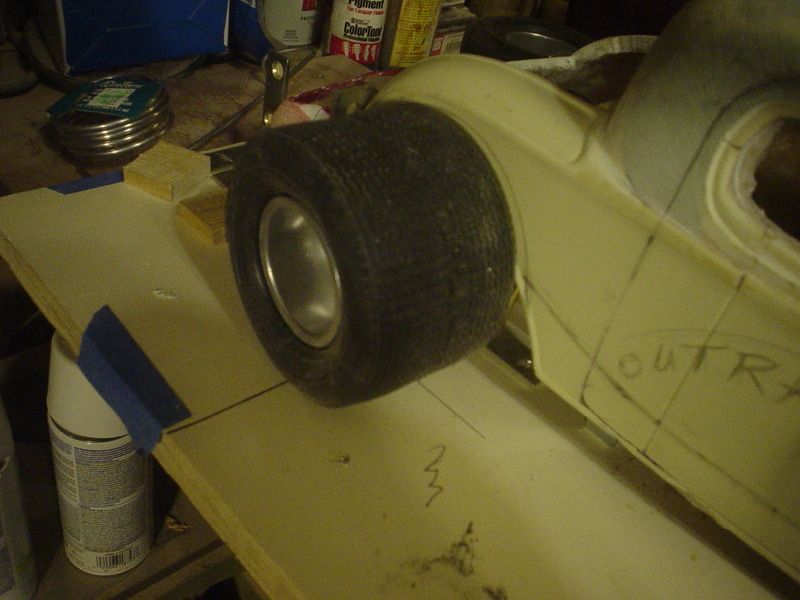

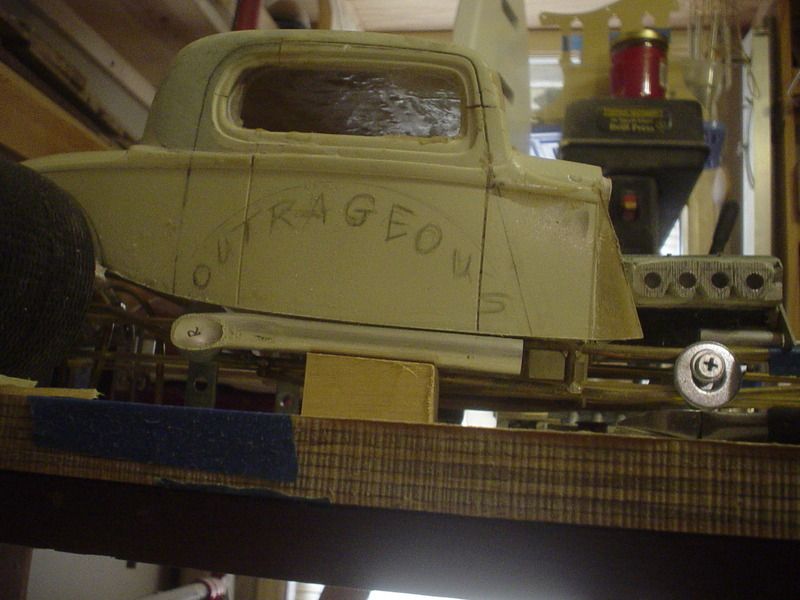

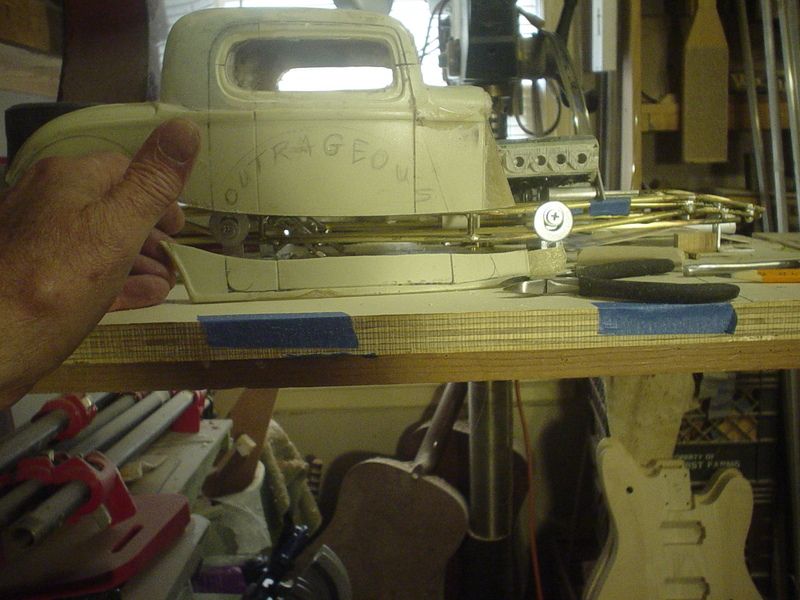

Ognib Posted September 17, 2015 Author Share Posted September 17, 2015 It has been my plan from the git-go to re-shape the rear wheel house body line to fit around the tire.That with the removal of a section off the bottom of the body would give something like this.The more I think about it, I really like the idea of having all my chassis/frame work exposed to view.A sectioned hi-boy, if you will...with total body height unchanged.A bold styling stroke or lunacy...who knows... Previous Quote Link to comment Share on other sites More sharing options...
Twokidsnosleep Posted September 17, 2015 Share Posted September 17, 2015 The frame is gorgeous, so why not show it off!!! Quote Link to comment Share on other sites More sharing options...
bobthehobbyguy Posted September 17, 2015 Share Posted September 17, 2015 I like the idea of showing the frame. Think it fits the look you are going after. Quote Link to comment Share on other sites More sharing options...

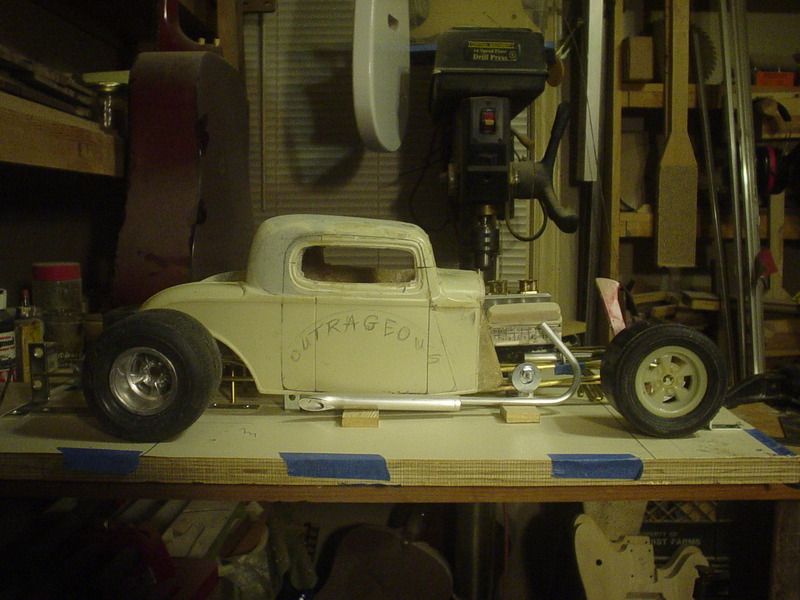

Ognib Posted September 17, 2015 Author Share Posted September 17, 2015 Glad you stopped in, guys.Thanks for sharing your comments, much appreciated!It's our nature to seek the approval of our peers & reassuring to know that they view our design elements & work favorably.If it doesn't work out, Just one clean cut left the lower section intact...a strip of mat, 1/2 oz resin & 15 min it's back to the way it was.So far, I'm diggin it.The name aptly describes my attitude towards this build...not yer daddys 50's era hot rod deuce coupe...extreme in every dimension.Gotta fab a couple of mounting brackets for the dump tube, to hang it off the frame & then it'll be header time.I got 20 ft of soft alloy 1/4" armature wire...no more broken bends.Didn't lose any cabin space, as the floor will still set on top of the frame where it would have anyway. Quote Link to comment Share on other sites More sharing options...
b-body fan Posted September 17, 2015 Share Posted September 17, 2015 I think that looks tough!!! Original without looking strange. If I wasn't following this it would take a minute to figure out what looks different. Again all business. Very cool. On a side note, are you a luthier also? Quote Link to comment Share on other sites More sharing options...

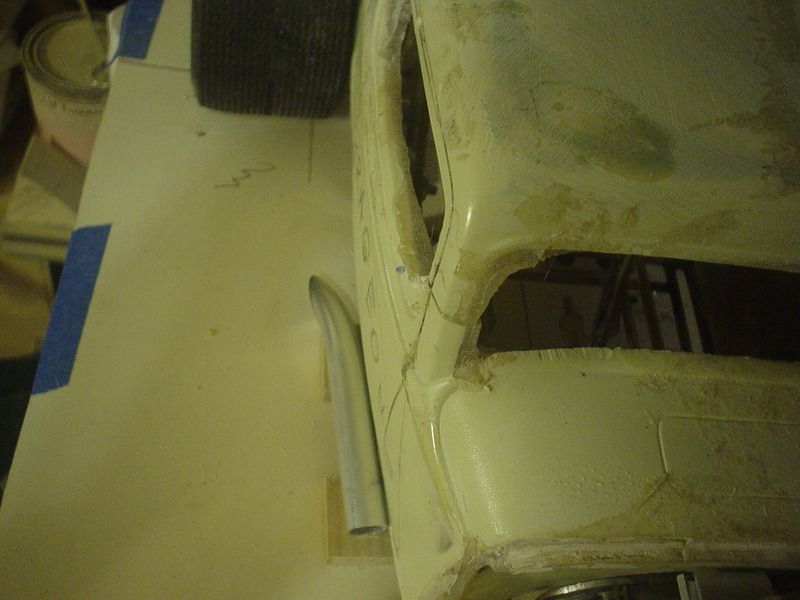

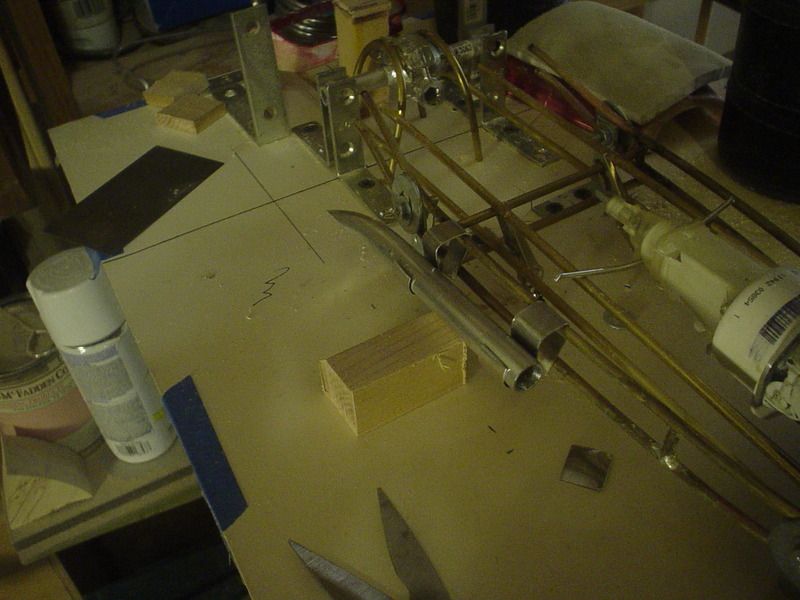

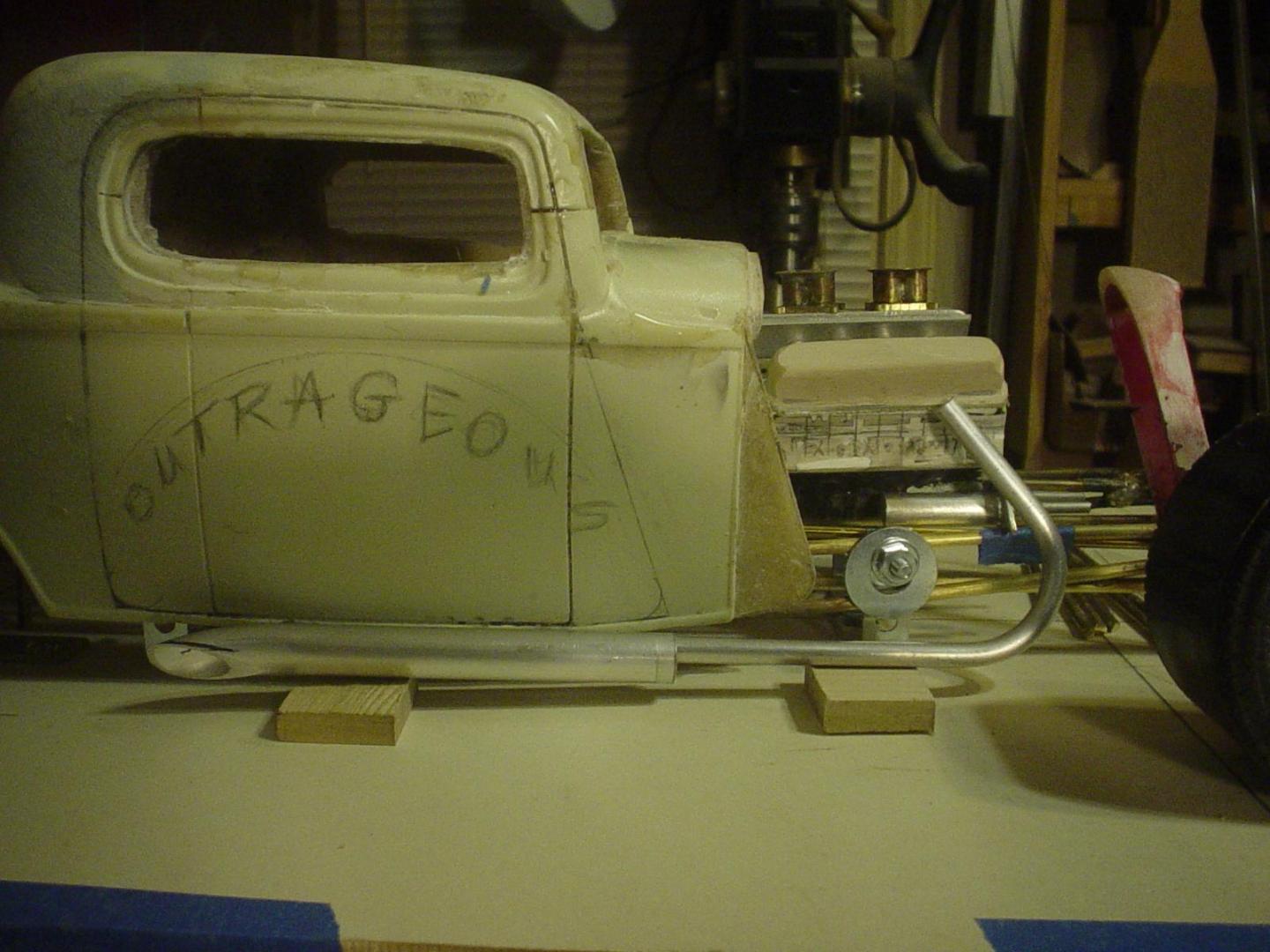

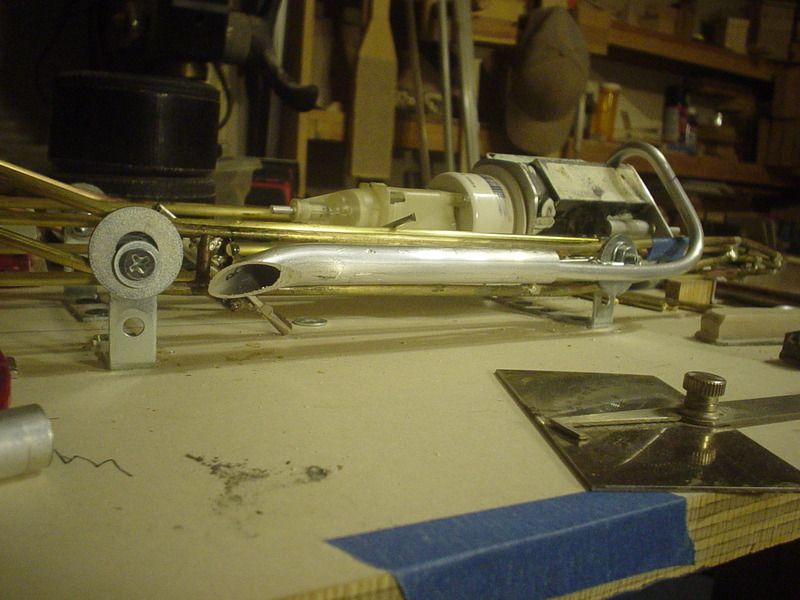

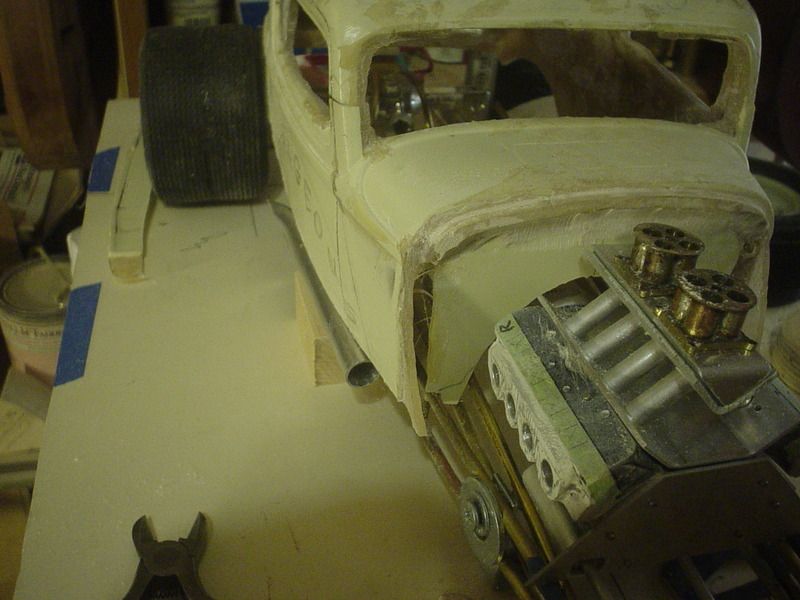

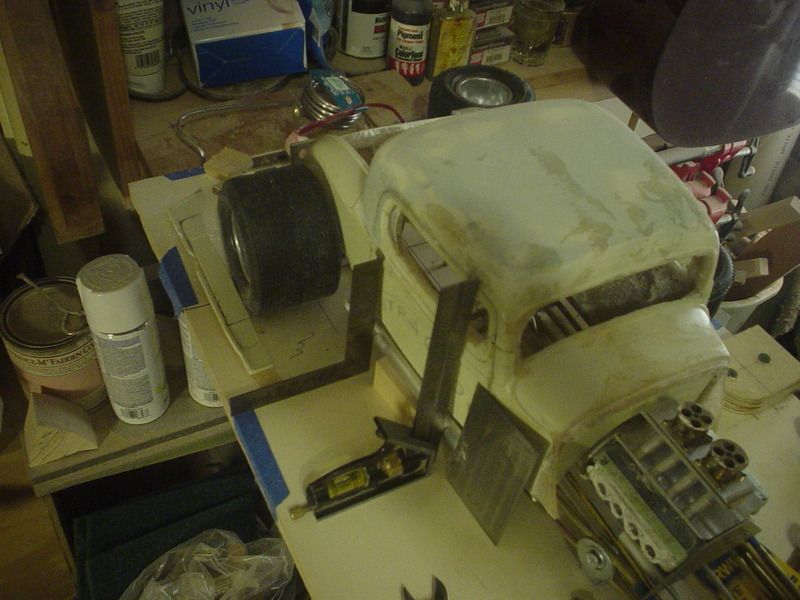

Ognib Posted September 17, 2015 Author Share Posted September 17, 2015 Thanks, really appreciate the comments. Yes, luthier going on 20 yrs now. Before that, 33 yrs in auto shops. Transferred the tubes location down to the platform so I could locate it accurately with the body off.Bent a couple of down & dirty hanger straps to hold it while I fit the header tubes to it.Later, when I'm doing the floor structure, I'll build a nice set & incorporate them into the overall design.Everything's in rough in right now...but gotta, gotta make sure everything fits now, before finishing. Quote Link to comment Share on other sites More sharing options...
futurattraction Posted September 17, 2015 Share Posted September 17, 2015 That's pretty wild looking Ray. I'm impressed with all the work you've accomplished on this in what seems to me, to be, a relatively short period of time. Keep up the great (and very unique) execution... Quote Link to comment Share on other sites More sharing options...

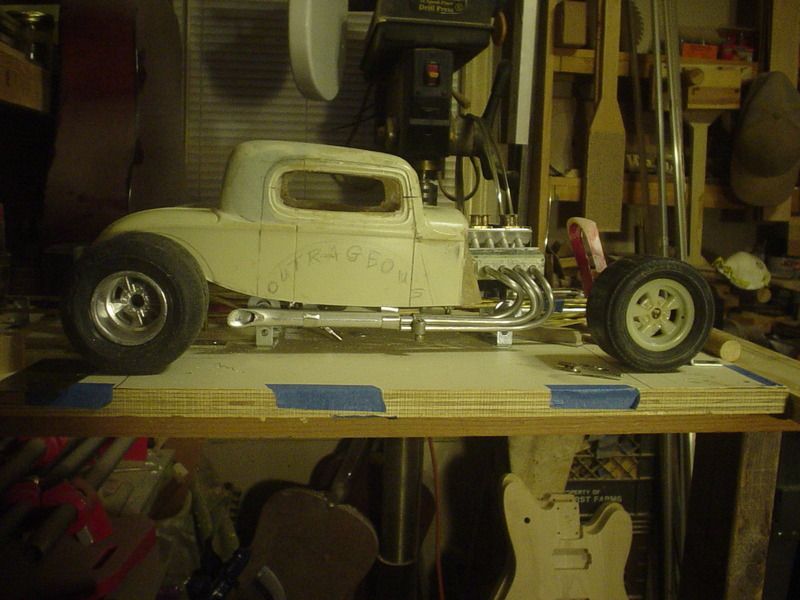

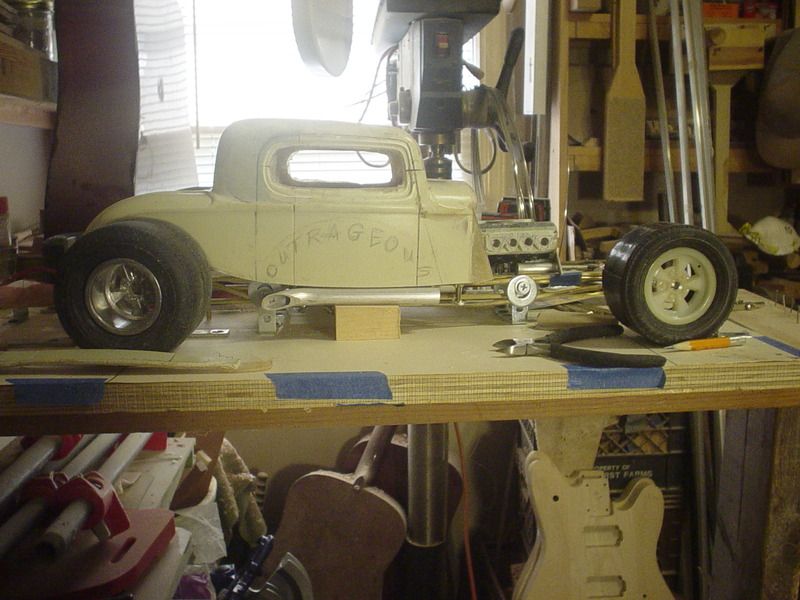

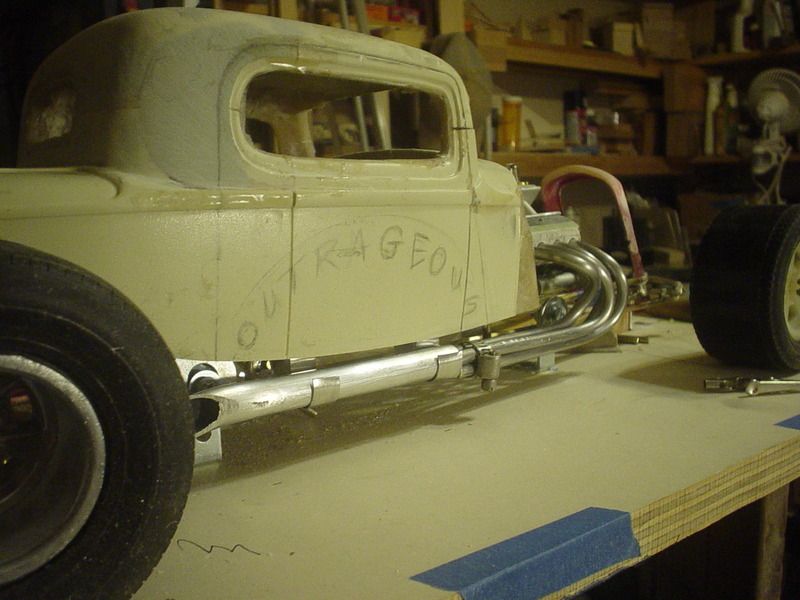

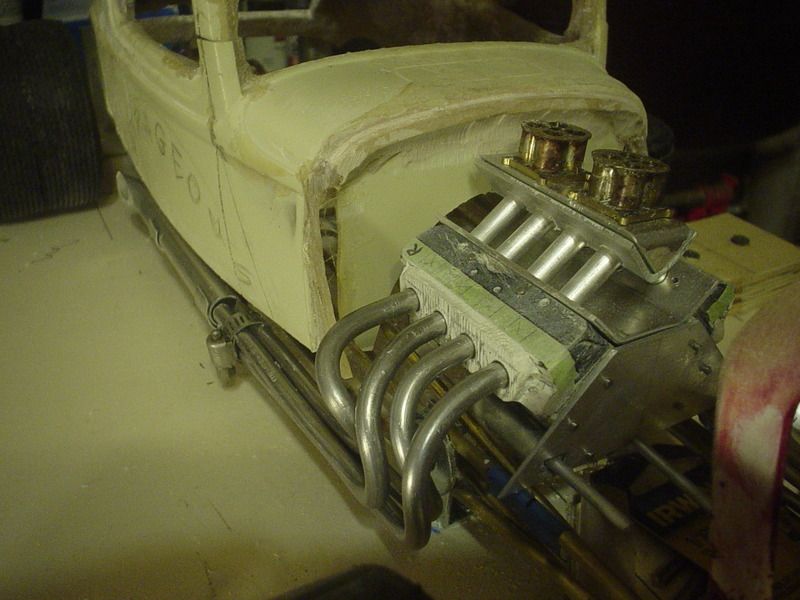

Ognib Posted September 18, 2015 Author Share Posted September 18, 2015 Hi Scott, good to see you...always enjoy your comments. Wild & unique, thanks, that's exactly what I want here. Don't want to build no cookie cutter car A couple of spots still need a bit of tweaking, but this is the basic config I wanted.Maby 80% satisfied at this point. Quote Link to comment Share on other sites More sharing options...
Twokidsnosleep Posted September 18, 2015 Share Posted September 18, 2015 Tubes are looking good!!!I like what you did with the bottom, now......Question: how about a roof chop now...might balance door-roof ratio??Just a suggestion, don't take it the wrong way :) Quote Link to comment Share on other sites More sharing options...

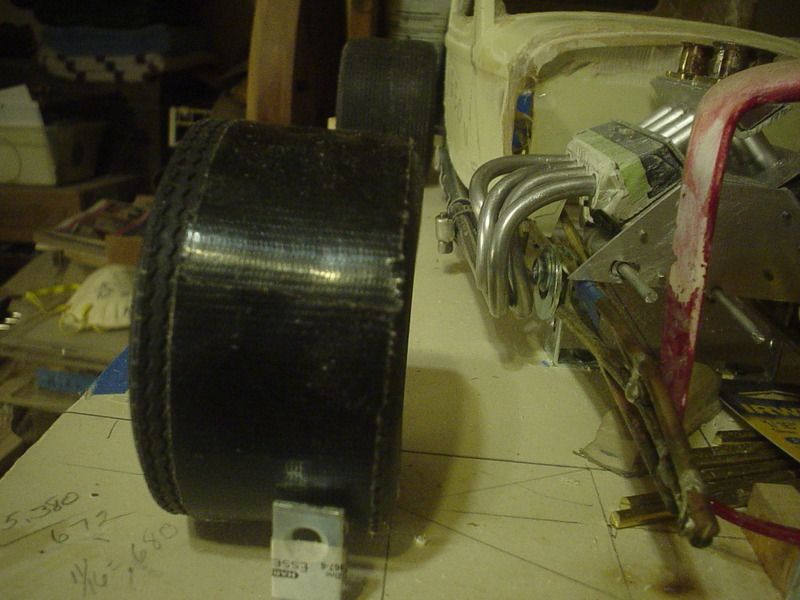

Codi Posted September 18, 2015 Share Posted September 18, 2015 Nice update Ray, those flow so well together. One quick question, in your pics from the side, the front wheel looks to be moved forward away from the center-line marked on your base. Will the wheel/tire be located as seen in the pics or did you move it for the sake of taking this set of pics? Cheers, Tim Quote Link to comment Share on other sites More sharing options...
