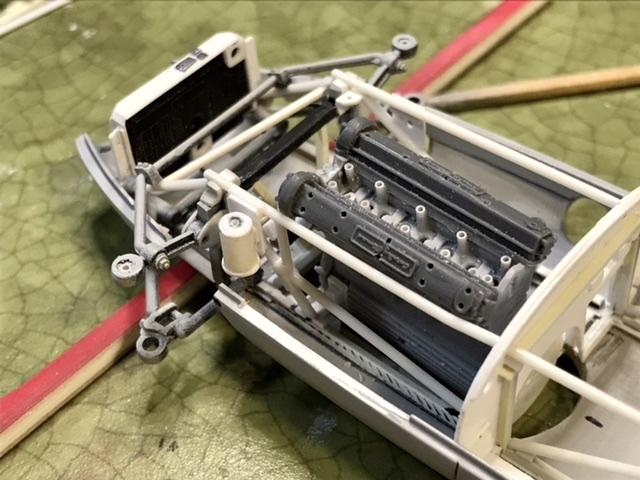

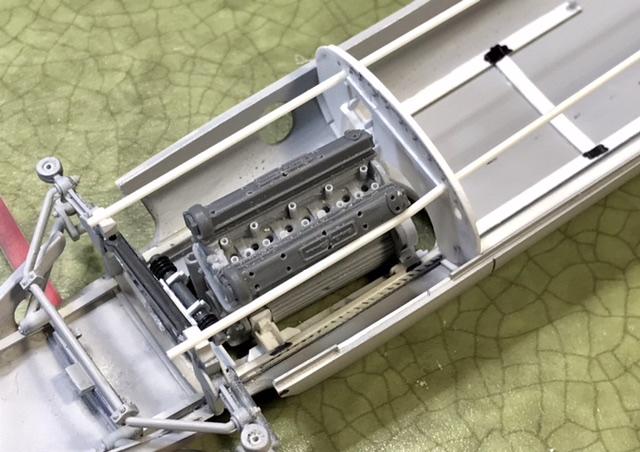

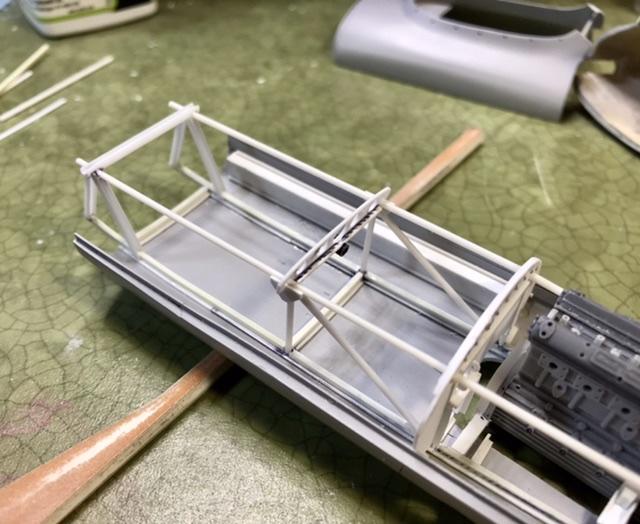

absmiami Posted July 15, 2024 Author Posted July 15, 2024 The engine position forces a kink in the left side top tube - this was actually done on the sixteens - Chapman was sometimes criticized for chassis details like this … 2

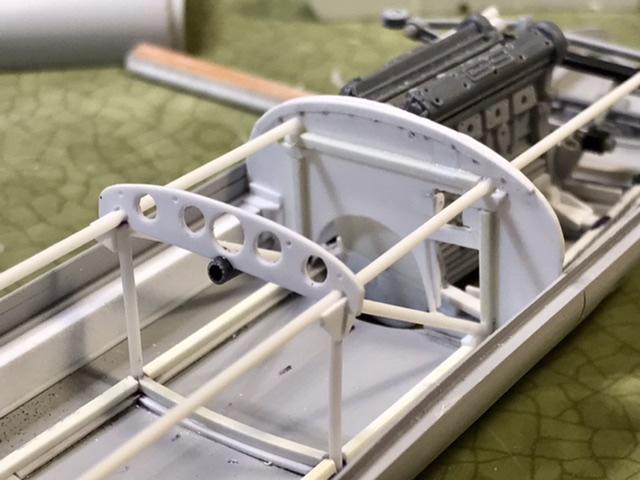

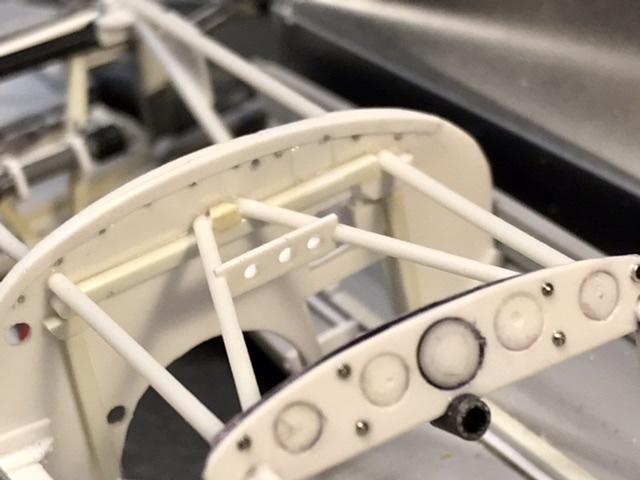

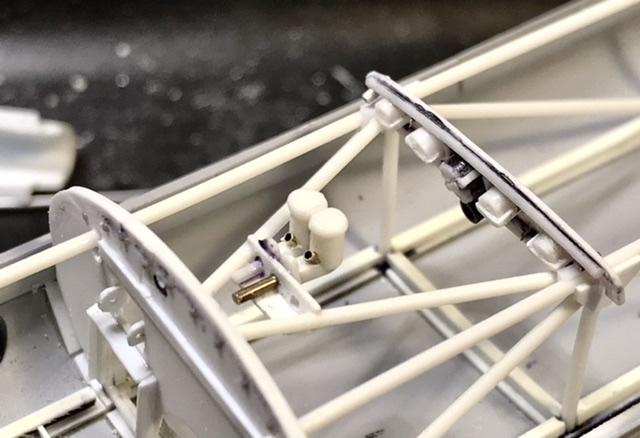

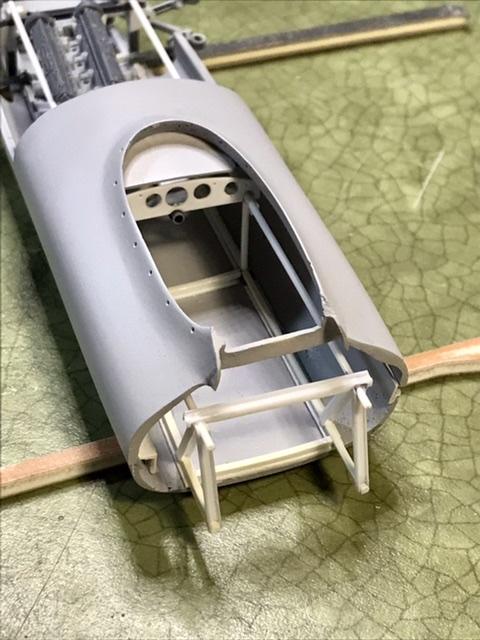

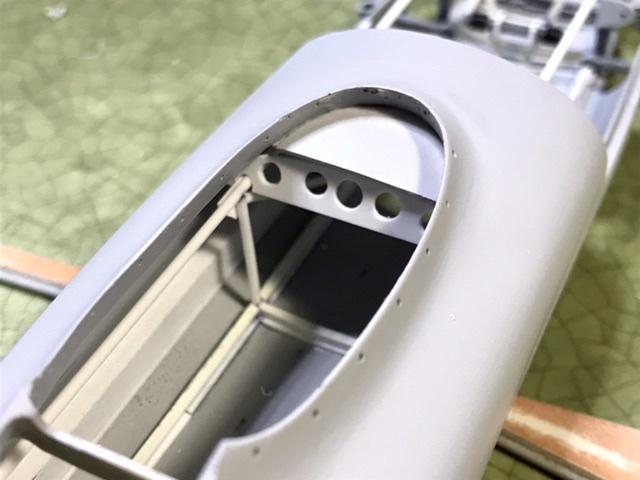

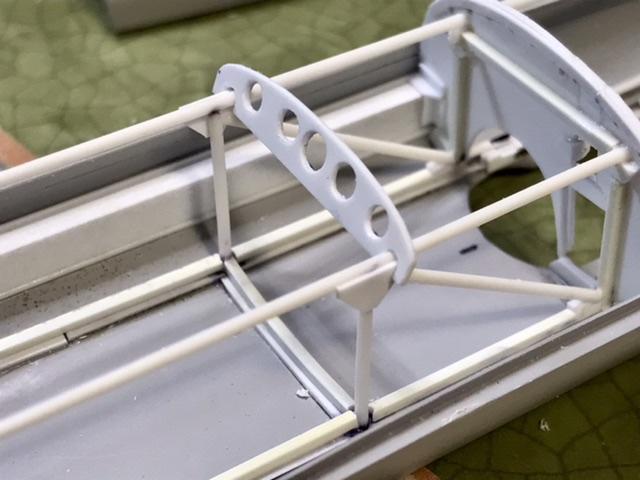

absmiami Posted July 15, 2024 Author Posted July 15, 2024 Instr gauge panel made fr .020 by .188 Evergreen strip … 1

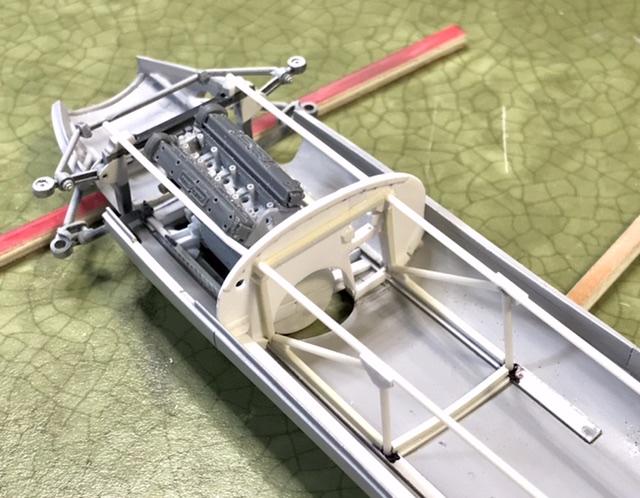

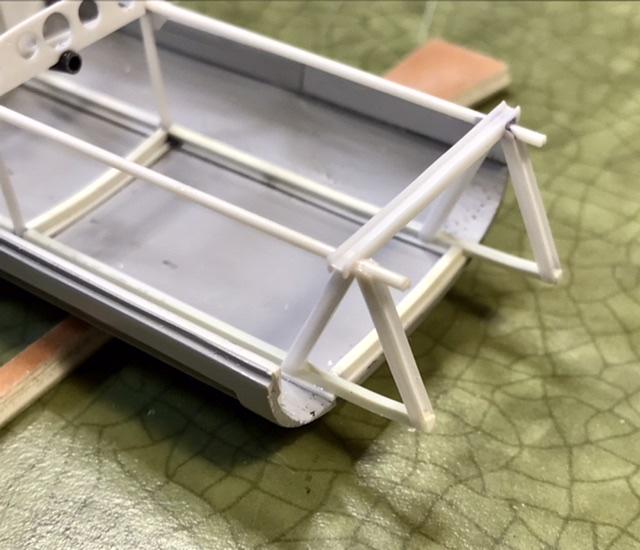

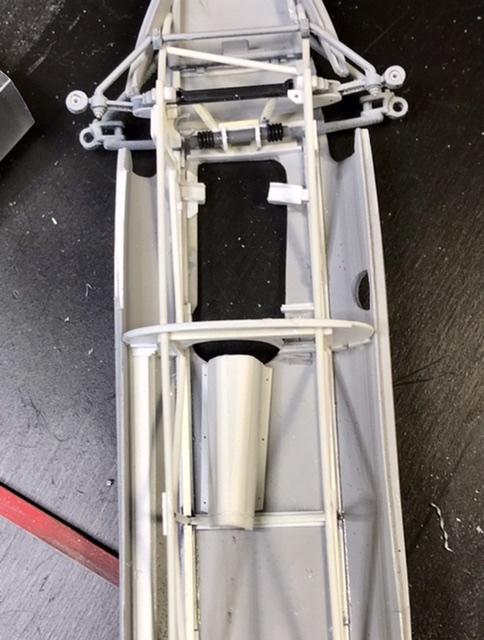

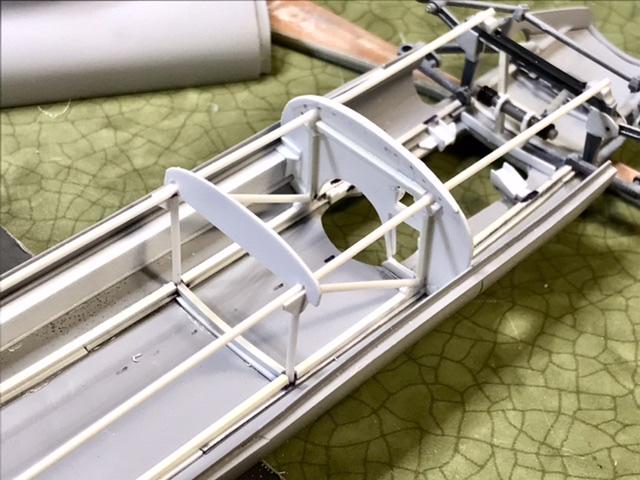

absmiami Posted July 16, 2024 Author Posted July 16, 2024 Using some short lengths of .080 H shaped Evergreen in the rear section of the chassis - this section will cradle the transaxle … 4

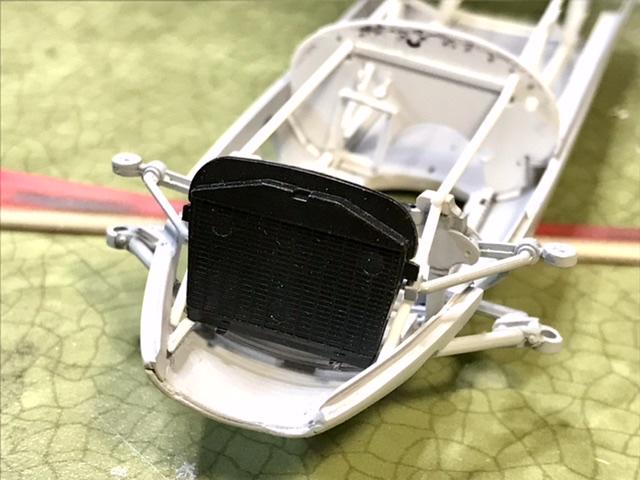

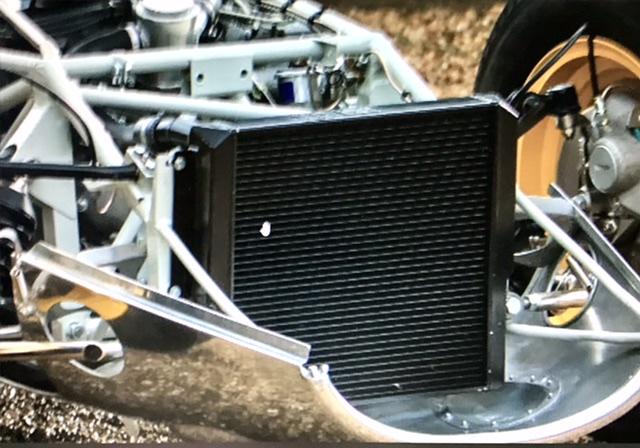

absmiami Posted July 17, 2024 Author Posted July 17, 2024 Back to the nose for the radiator - another auction photo …
absmiami Posted July 17, 2024 Author Posted July 17, 2024 Borrowing another Tamiya Super Seven kit part …

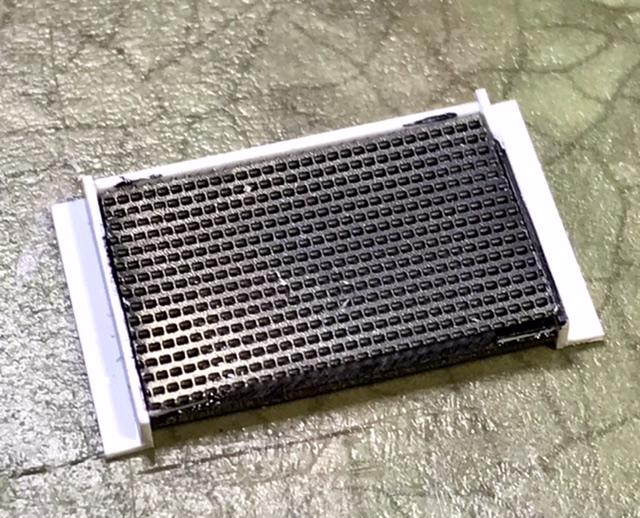

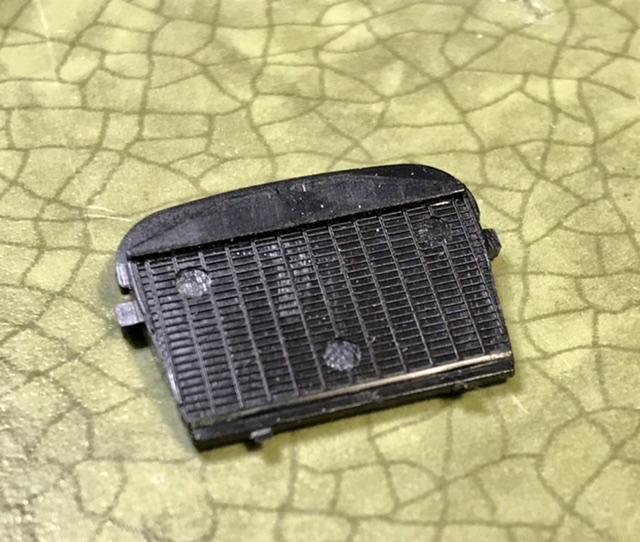

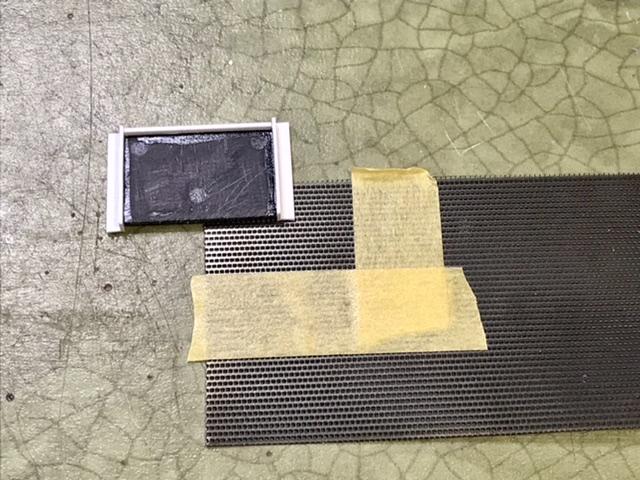

absmiami Posted July 17, 2024 Author Posted July 17, 2024 Part used as the core - filed to shape and bordered with bitsandpeices of Evergreen …. W a photo-etched grill …
Bainford Posted July 19, 2024 Posted July 19, 2024 Looking good. Really good radiator texture/detail is something the hobby is missing (or, at least, I have missed it). I have been looking for something PE for years that accurately represents radiator fins, but haven't been thrilled with anything I have seen yet. What I would really like to see is one of the better 3D printers print up a sheet of three-core radiator cores/fins. Then one could easily scratch any size or shape radiator needed by cutting a 'core' from the sheet and adding some easily made tanks. 1
Straightliner59 Posted July 20, 2024 Posted July 20, 2024 10 hours ago, Bainford said: Looking good. Really good radiator texture/detail is something the hobby is missing (or, at least, I have missed it). I have been looking for something PE for years that accurately represents radiator fins, but haven't been thrilled with anything I have seen yet. What I would really like to see is one of the better 3D printers print up a sheet of three-core radiator cores/fins. Then one could easily scratch any size or shape radiator needed by cutting a 'core' from the sheet and adding some easily made tanks. I have seen some model RR radiator grilles/screens that look pretty dang nice. I couldn't tell you which ones, but I've seen 'em!? 1
absmiami Posted July 22, 2024 Author Posted July 22, 2024 https://umm-usa.com/onlinestore/ think i got this etched screen here - checking … they sell those great razor saws that are always on display at IPMS shows …

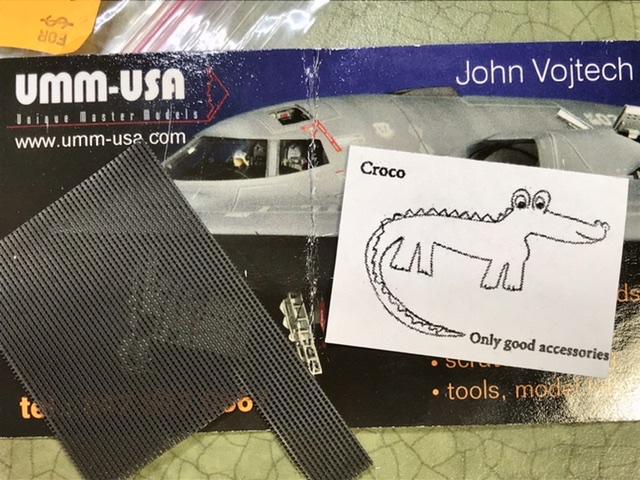

absmiami Posted July 22, 2024 Author Posted July 22, 2024 (edited) This stuff is produced by “Croco” and is the metal screen on the UMM site- croco’s “radiator screen” is good too - but sold out on this site …. Edited July 22, 2024 by absmiami 1
absmiami Posted July 25, 2024 Author Posted July 25, 2024 Gracias runningman - thinking about radiators - even the best photo-etched patterns are not true scale for 24th - but i think that good patterns mite be just over the next hill - think 3D printing - William Cunningham has done it really well in this scale … how about it Decalcas ? Making the brackets, filters and pumps in the engine bay …

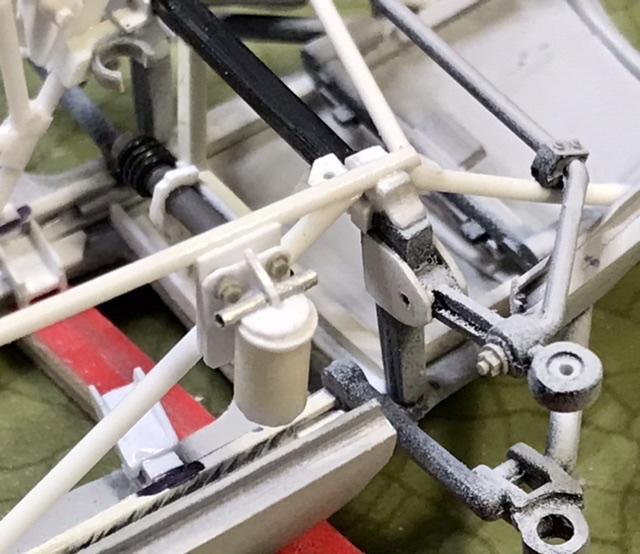

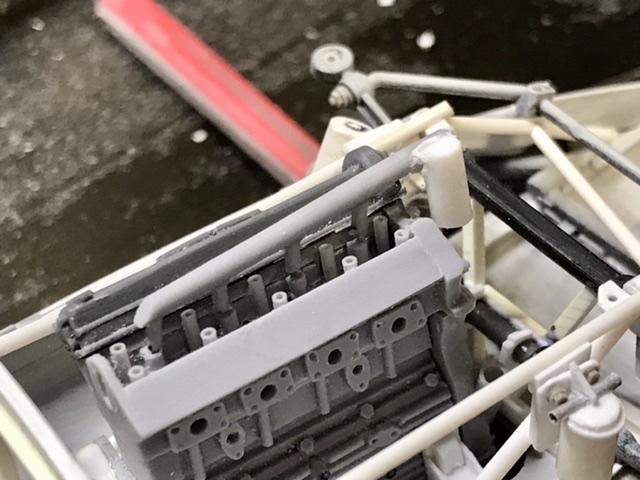

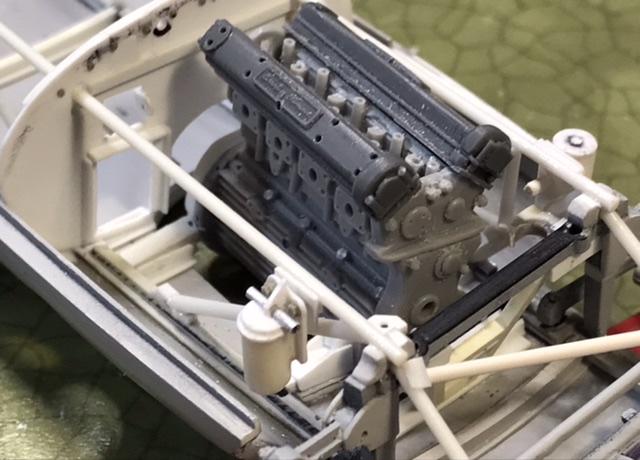

absmiami Posted July 25, 2024 Author Posted July 25, 2024 Fitting the cyl head radiator manifold pipe - took a while because it has to sit low enough to clear the profile of the bonnett …

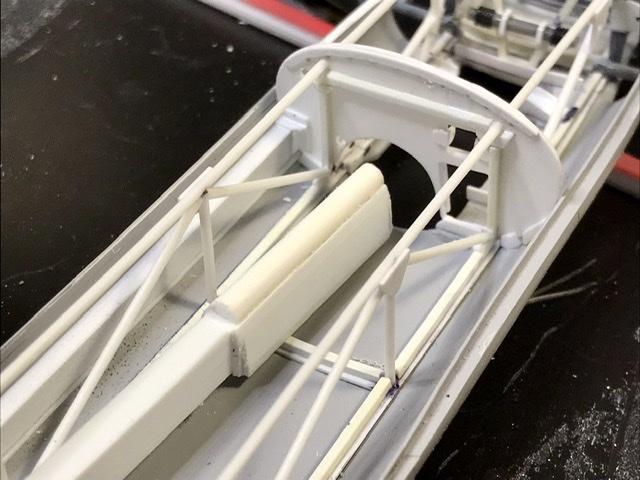

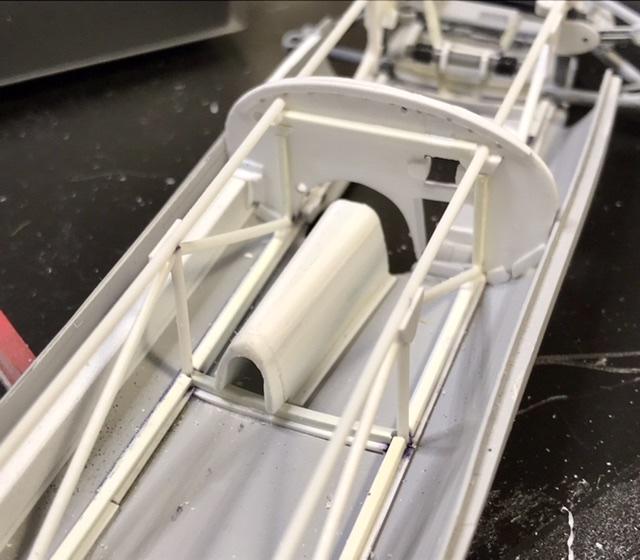

absmiami Posted July 26, 2024 Author Posted July 26, 2024 The cover for the dr shaft is a little different on every 16 - the one in privateer Halford’s 16 may - or may not - have looked like this … peiced together with Evergreen rectangular tube, strip, and topped with a Half-round strip - everything glued with Tamiya liquid glue …

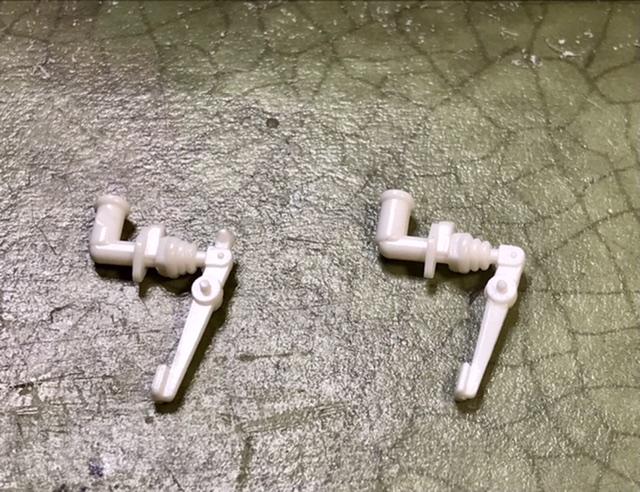

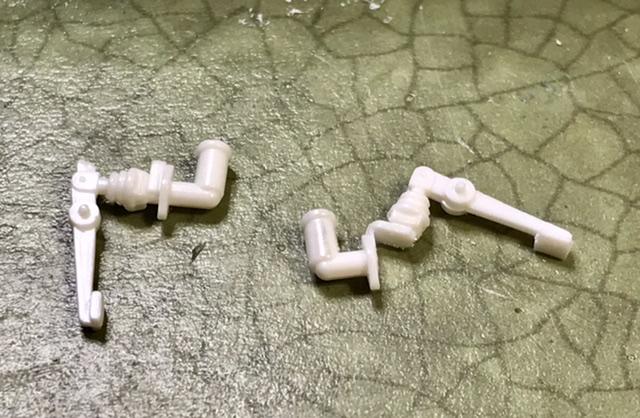

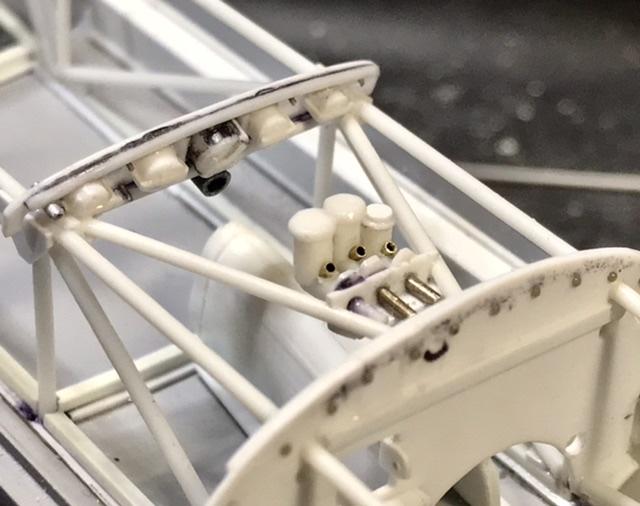

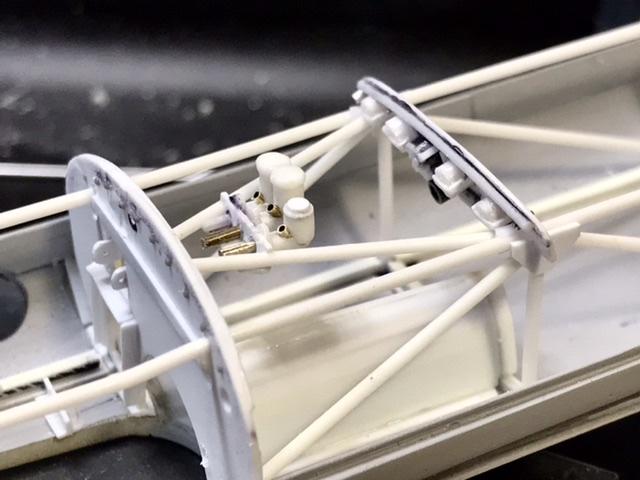

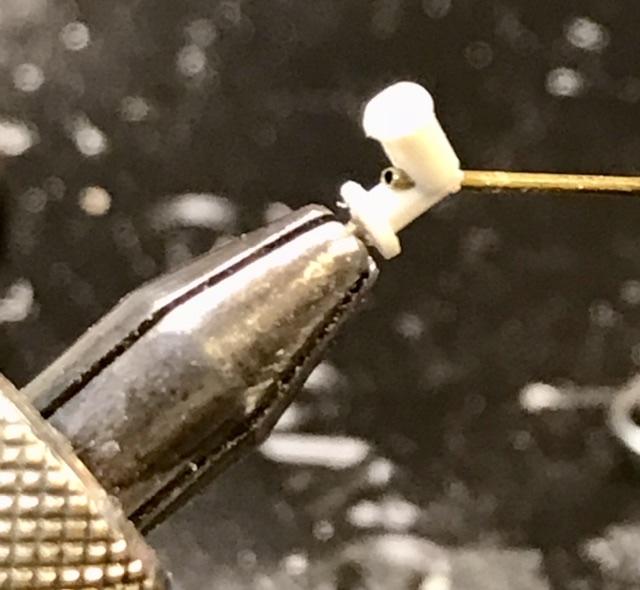

absmiami Posted July 29, 2024 Author Posted July 29, 2024 Brake and clutch pedal resevoir bottles are perched on a bracket between the dash and the bulkhead - at least on the Halford 16 …. The Tamiya super seven has some very nice castings - I’ll borrow them …

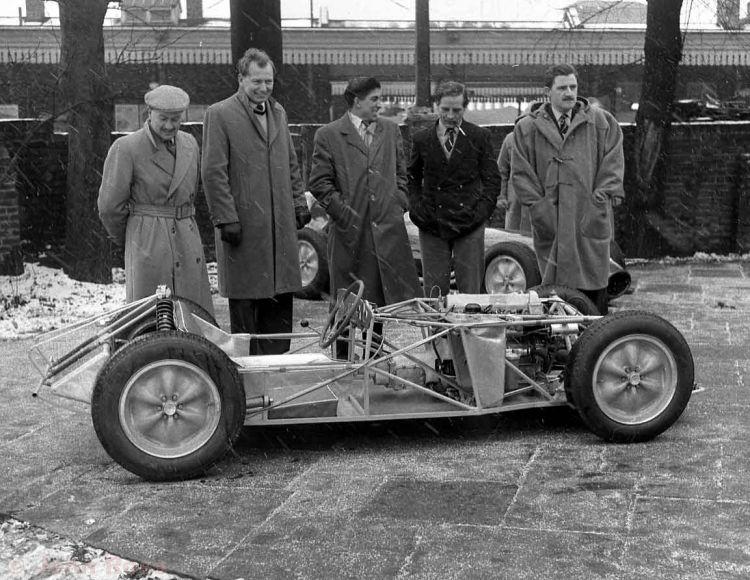

Pierre Rivard Posted July 30, 2024 Posted July 30, 2024 Your chassis fabrication looks most convincing. Period picture below demonstrates the "simplify, then add lightness" quote from Chapman. Great for winning races... not so good if you crash...
absmiami Posted July 30, 2024 Author Posted July 30, 2024 Great shot of the Lotus 12 - probably the prototype - late ‘57 - my next Lotus open wheeler i think - already at work on the body …
Big John Posted July 31, 2024 Posted July 31, 2024 Come on, that's a 1/2 scale car! Andrew, I'm proud of you, you actually used some brass in the build. Wonderful attention to the details as usual beautiful!
absmiami Posted August 2, 2024 Author Posted August 2, 2024 Bford, John, PR - gracias x 3 Bford - now that you’ve gotten your hands on the classic Merit Eleven - let me know if you are thinking about a build w a climax engine - i got a scheme for you to consider - Reaearch - the auction house photos of the Halford Sixteen are limited - there are more detailed pix of other sixteens on line - but this car went through dozens of changes during its brief competition life - and all of these cars requred lots of upgrades when they were restored - some have new chassis and many have replacement body panels- the Barber Museum Sixteen appears to be somewhat period original - but i don’t think that its a runner, so …
absmiami Posted August 2, 2024 Author Posted August 2, 2024 So - as i build up the driver’s compartment and the rear frame and suspension - i’ve got four sources to refer to - cutaways - there are several - and most are helpful - most are on-line … - the on-line Motorsports Images site - a content search for the Sixteen revealed about a dozen great black and white pix of the driving compartment, transmission, and rear frame and suspension on a series one Sixteen - the site “forbids” re-posting - which i will honor …
