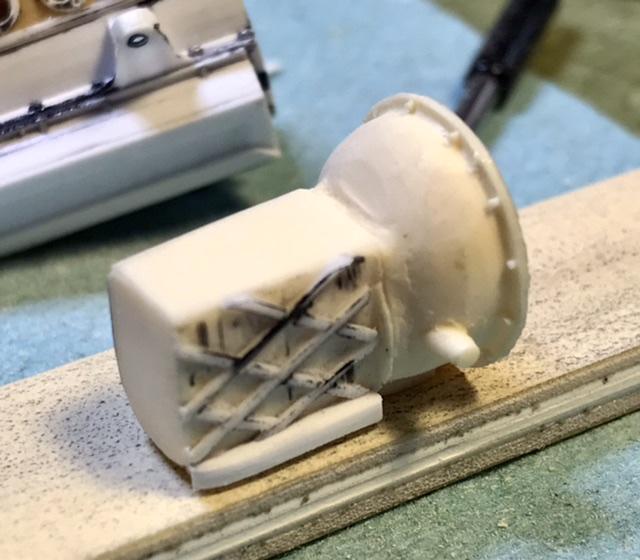

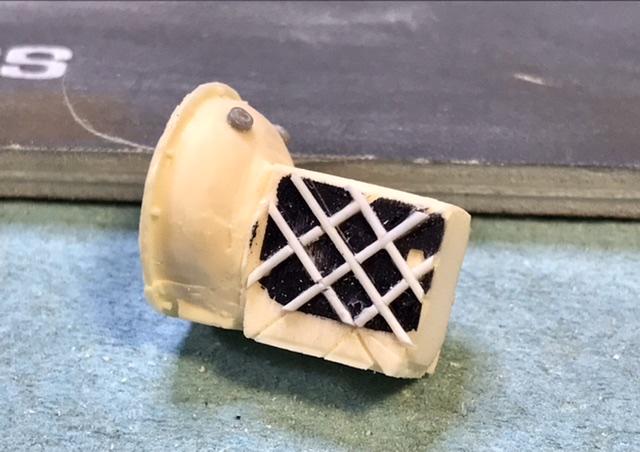

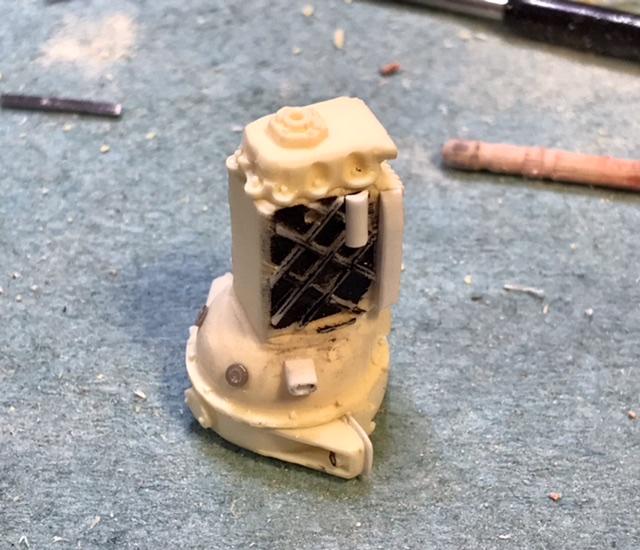

absmiami Posted May 24, 2023 Author Posted May 24, 2023 The reinforcement on the side plates are made w .020 evergreen rod - actually - .015 would be a bit more scale accurate … 1
Ian McLaren Posted May 25, 2023 Posted May 25, 2023 7 hours ago, absmiami said: ian - i’ve been lurking on your build threads in the drag section - i get my inspiration from trips to the Amelia Island Concourse in March - Amelia is now nearly as spectacular as Pebble Beach - did i see somewhere that you reside in Calgary ?? Yes I did but now live just on the outskirts
Straightliner59 Posted May 25, 2023 Posted May 25, 2023 That transmission is looking great! I love doing that kind of stuff!
Pierre Rivard Posted May 25, 2023 Posted May 25, 2023 Scratchbuilding = headaches = imagination = FUN! 1

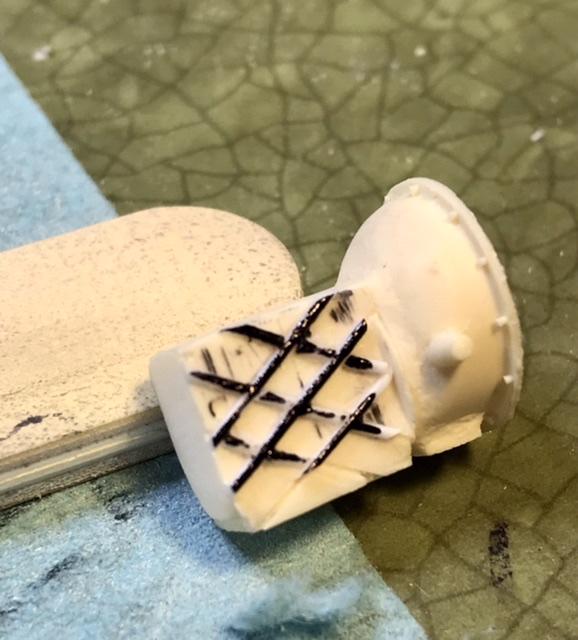

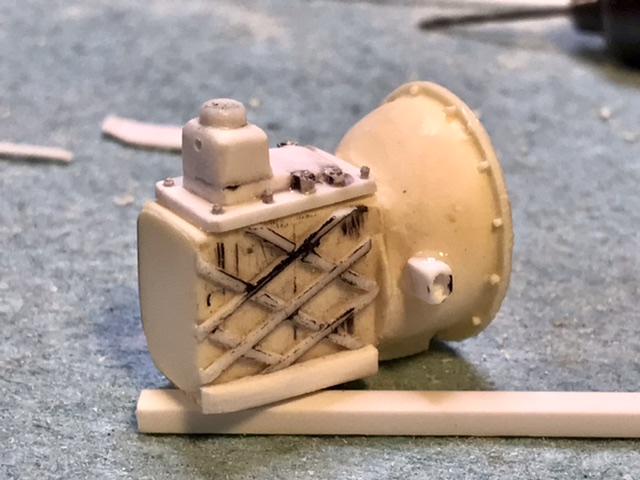

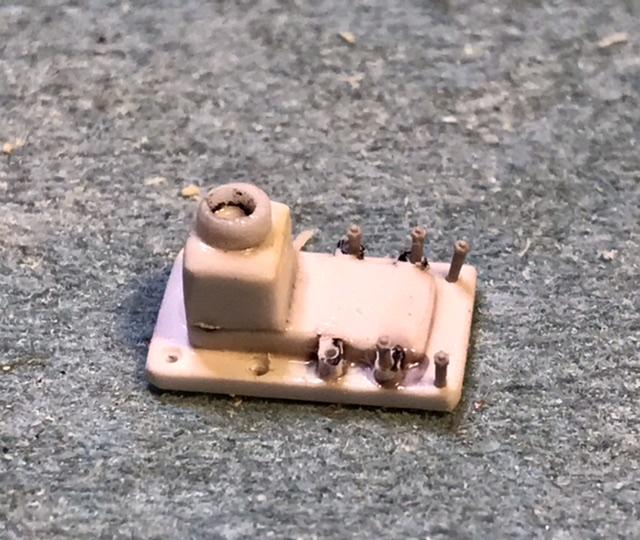

absmiami Posted May 26, 2023 Author Posted May 26, 2023 Trans cover made from Evergreen strip and drilled for some .020 Master Club resin 3d printed bolts

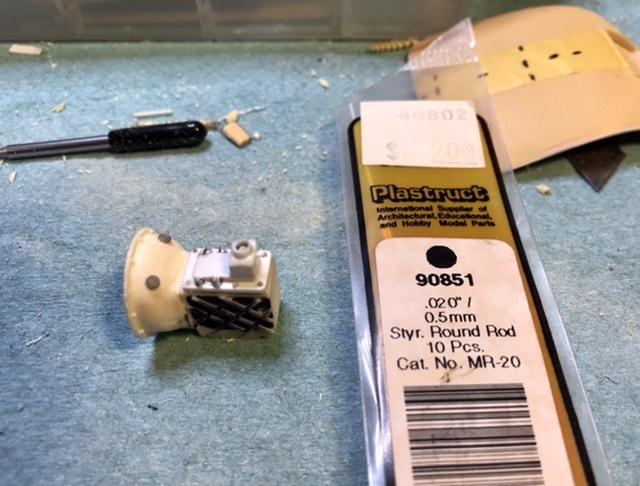

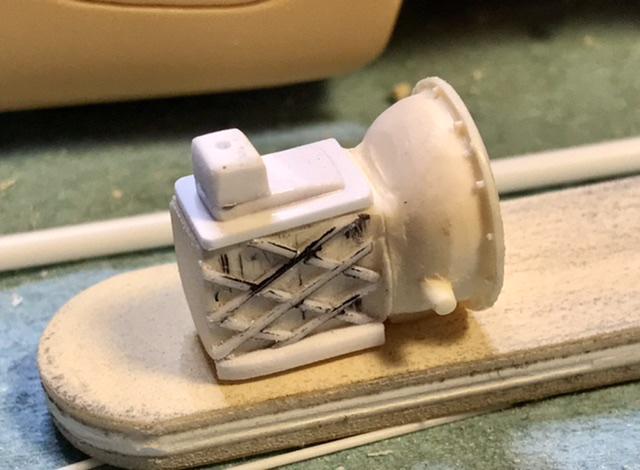

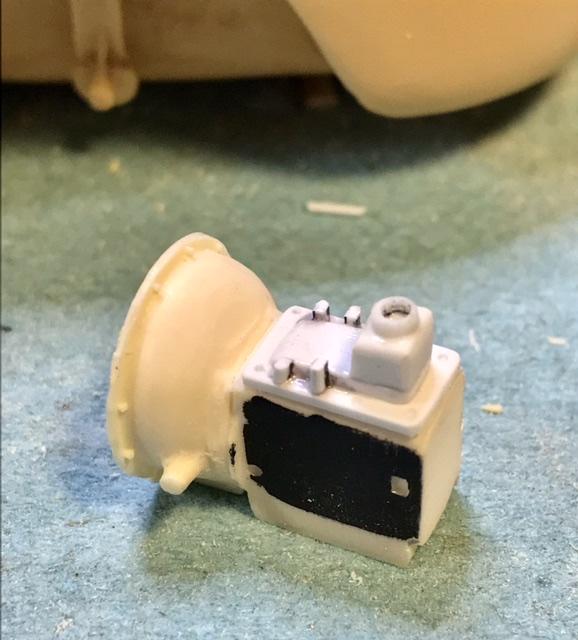

absmiami Posted May 26, 2023 Author Posted May 26, 2023 I realized that Evergreen rod is not always accurately sized - the .020 rod is actually .0225 - Plastruct’s .020 rod is dead on accurate and has a truer shape - its actually …. Round ! So im using the good stuff for the left facing trans side-plate …

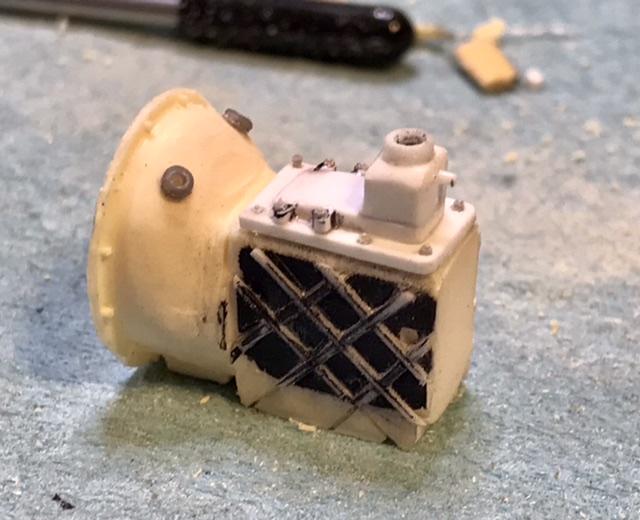

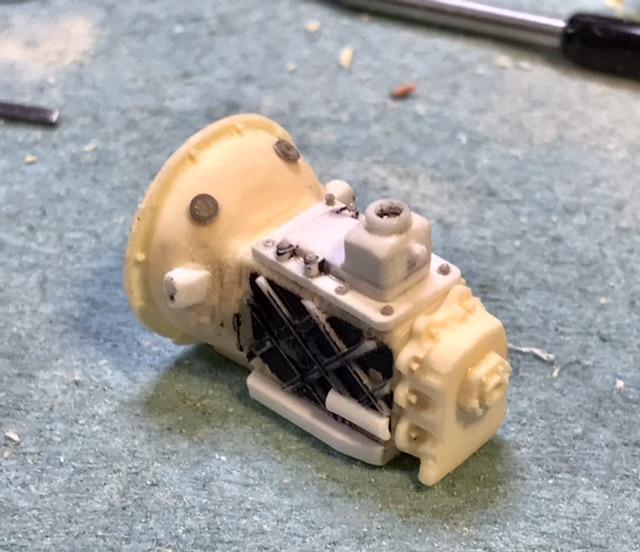

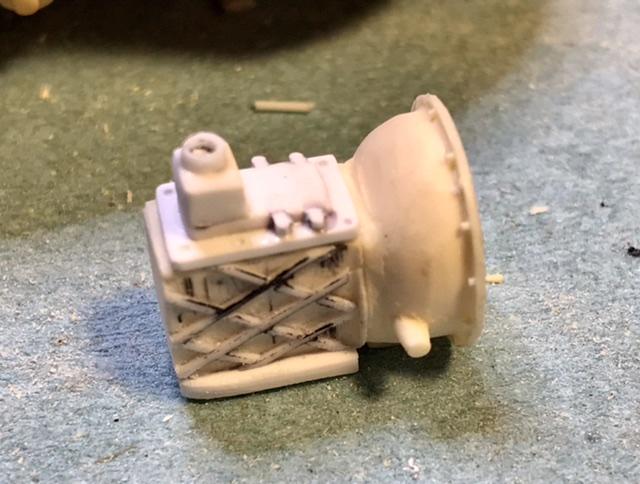

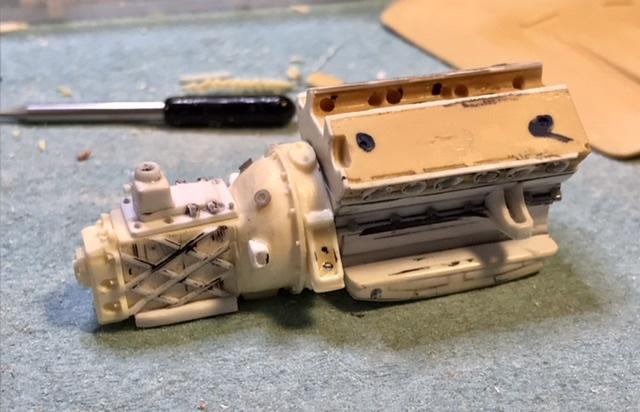

absmiami Posted May 26, 2023 Author Posted May 26, 2023 Tranny almost finished - will leave the cover plate w the shifter housing as a seperate part - because Ferrari designed a seperate shifter housing to use on the early spyder corsas and GP cars … the white parts poking out of the sides of the clutch housing are interesting - the clutch arm/fork connects to the pedal through the opening in the housing - all of the earliest Ferraris were right hand drive - but Enzo was thinking ahead - he had Colombo - or whoever designed the transmission - design the trans with left and right openings in the housing - for a clutch assembly in left hand drive cars … Gramps and Andy Martin’s photos tell all … 2
Ian McLaren Posted May 26, 2023 Posted May 26, 2023 Your work on the transmission is outstanding especially the netting, so precise. I just used some .030 evergreen rod for a switch panel and I agree with you on the shape. I wish someone here would step up and stock more Plastruct. Just one model railroad shop has any kind of significant selection.
absmiami Posted May 26, 2023 Author Posted May 26, 2023 Wait - you mean Canada still has …. Model ships ? Ill be right over …

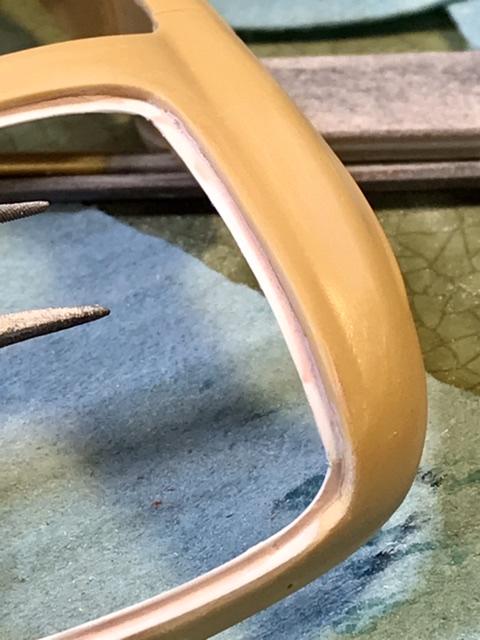

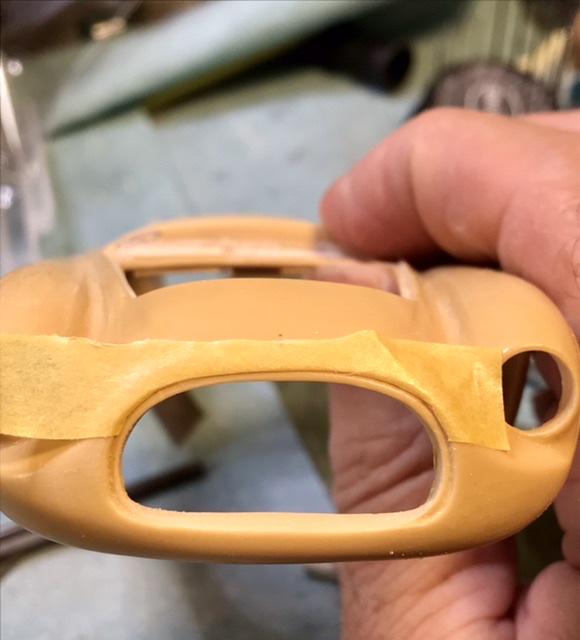

absmiami Posted May 27, 2023 Author Posted May 27, 2023 Putty, filing and sanding - to improve the appearance of the drip rails … with 2 of the files in the rescesses of my tool chest - you never need them - until you need them …

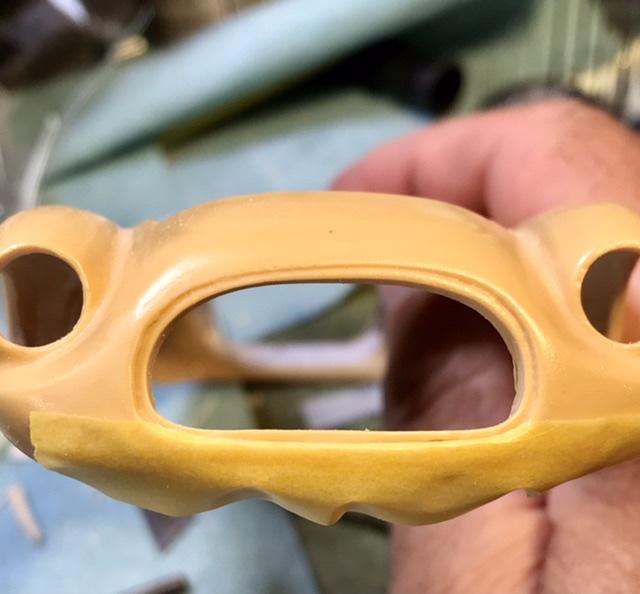

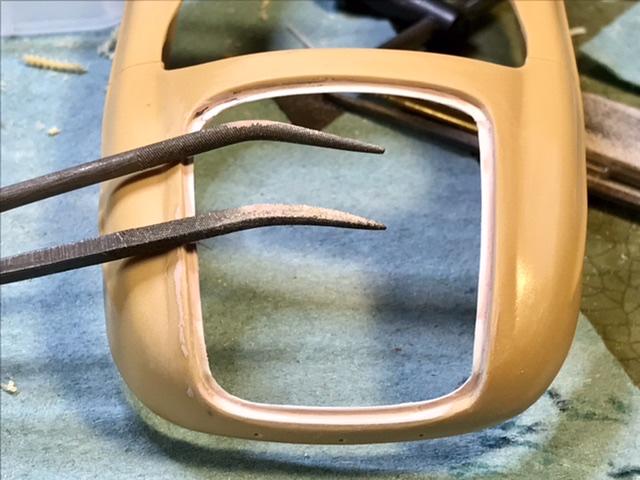

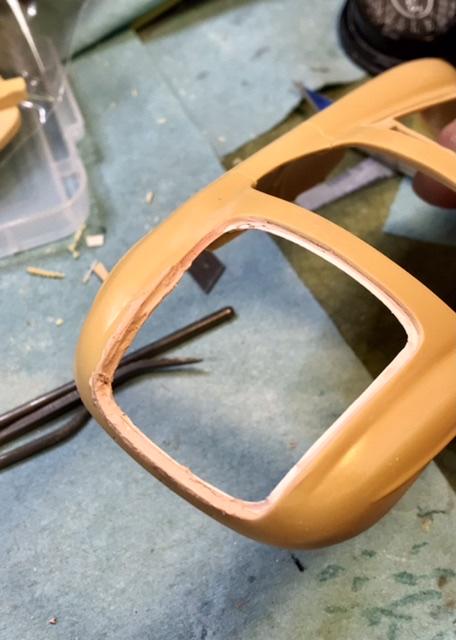

absmiami Posted May 27, 2023 Author Posted May 27, 2023 The grill trim is removed so I can reshape the opening just a little - the shape was not quite symmetric - now it is …

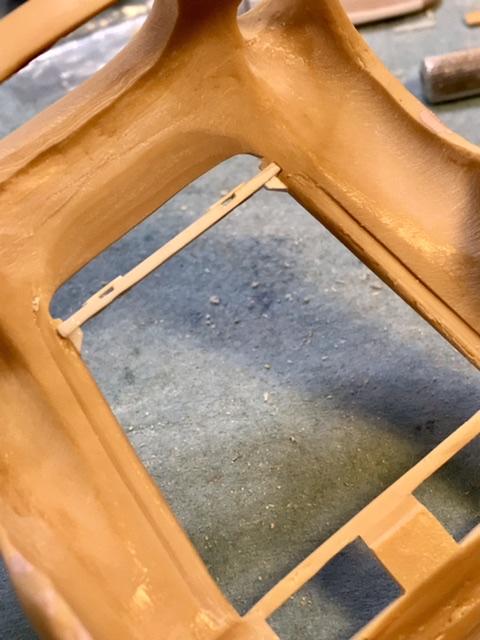

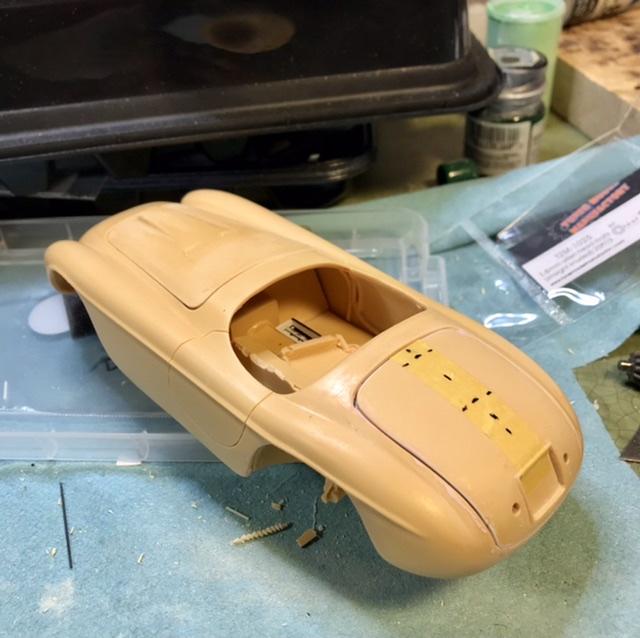

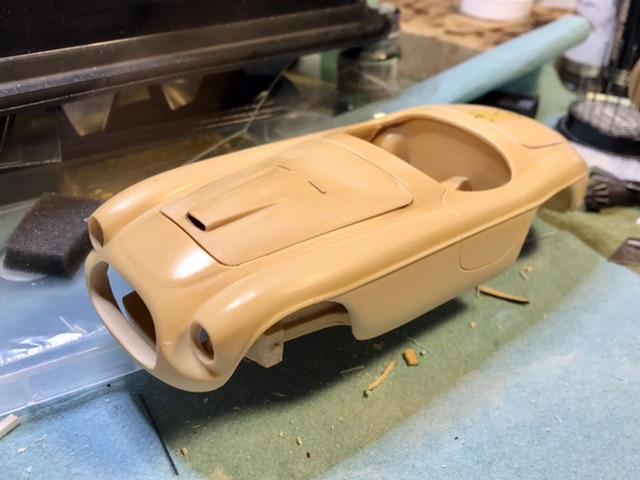

absmiami Posted May 27, 2023 Author Posted May 27, 2023 Its fri nite - 12:27 - and this is one hot body … 1
Pierre Rivard Posted May 27, 2023 Posted May 27, 2023 I would not, I know my limitations. But you should...
Gramps46 Posted May 27, 2023 Posted May 27, 2023 (edited) 8 hours ago, absmiami said: Open the doors ? Can’t decide … CAUTION When I tried to open the doors and replace with brass doors on my scratchbuilt Barchetta disaster struck. If you open the doors, I recommend you reinforce the body with brass wire in the week areas. Or put in a floor pan tied to the rear buckhead. Or solidly attach the interior bucket to the body. Edited May 27, 2023 by Gramps46
absmiami Posted May 27, 2023 Author Posted May 27, 2023 Yikes maybe i could grind the doors off - thinking -

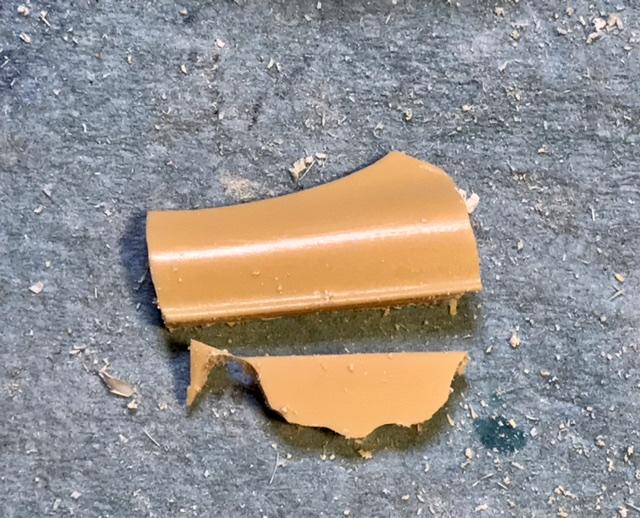

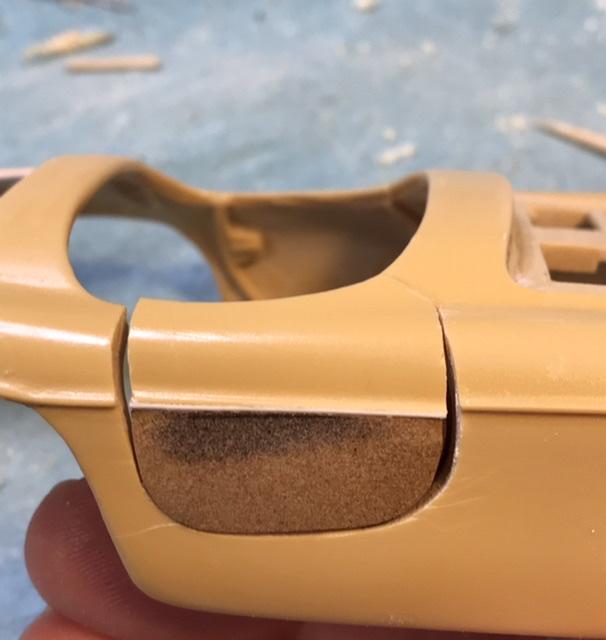

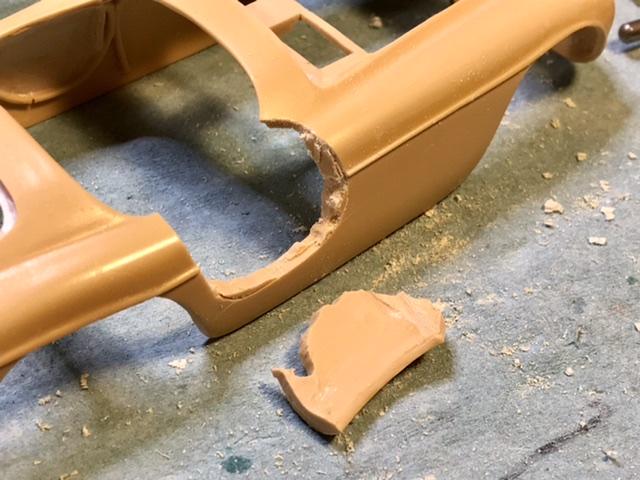

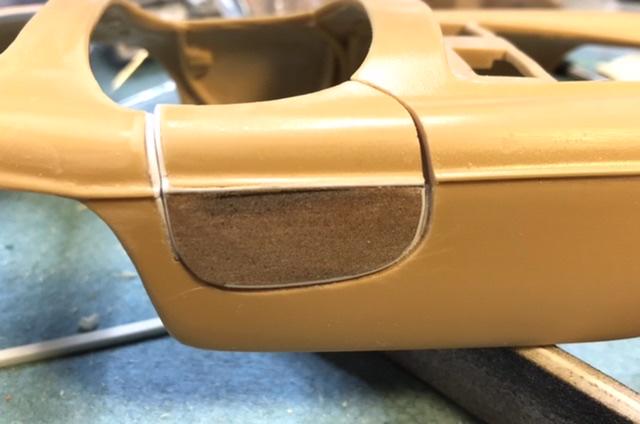

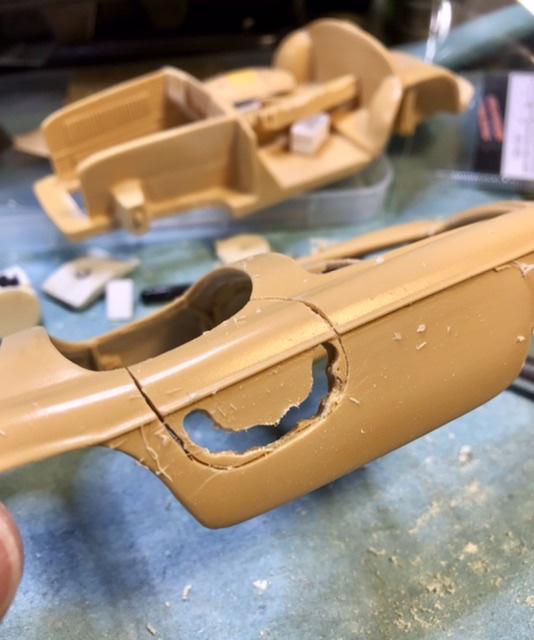

absmiami Posted May 30, 2023 Author Posted May 30, 2023 Blew the doors off well - just the driver’s side door - the casting is very thick - it ate my UMM saw - so i removed the lower half of the door but managed to remove the top half w some excitement - the bottom half of the door was made fr some renshape - glued bits and peices of Evergreen along the door jam and slowly recovered a reasonable door gap … 1
absmiami Posted May 30, 2023 Author Posted May 30, 2023 (edited) More to do - maybe a coat of primer to finish the edge profile - will do something to replace the tube structure on the inside - and figure something out for the door hinge … Edited May 30, 2023 by absmiami 1

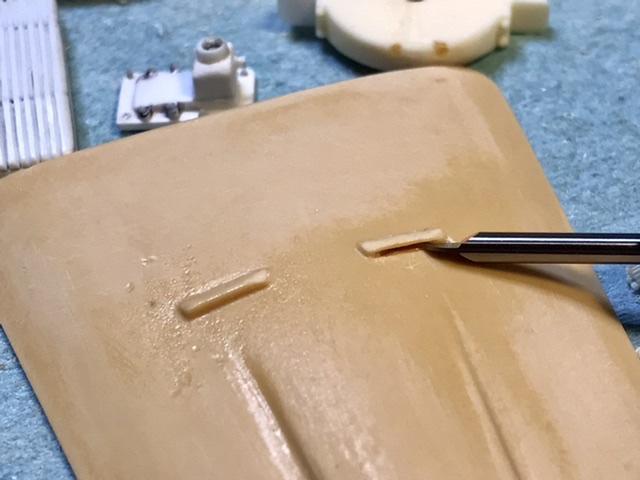

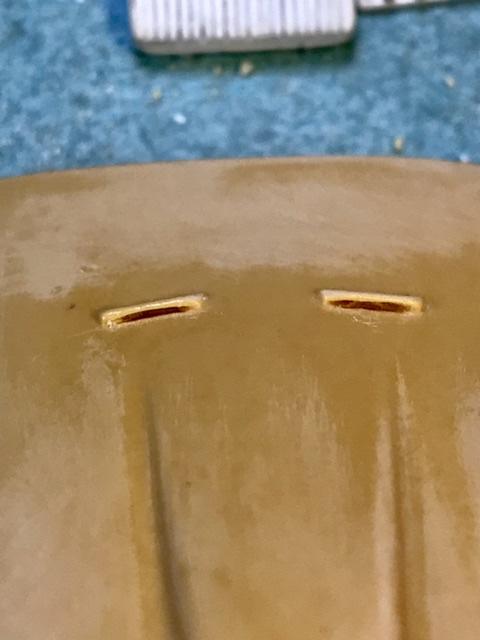

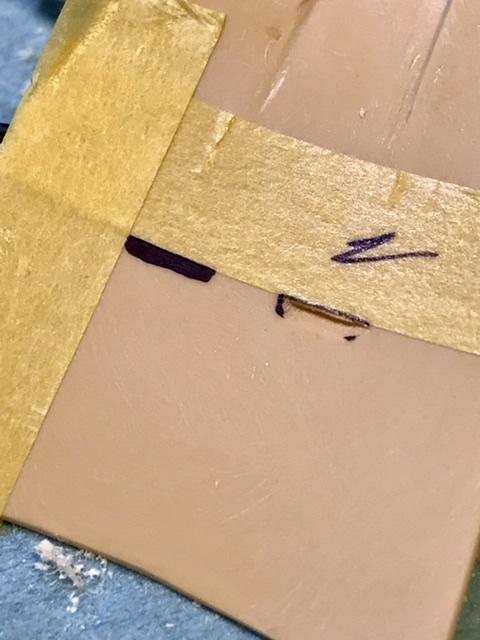

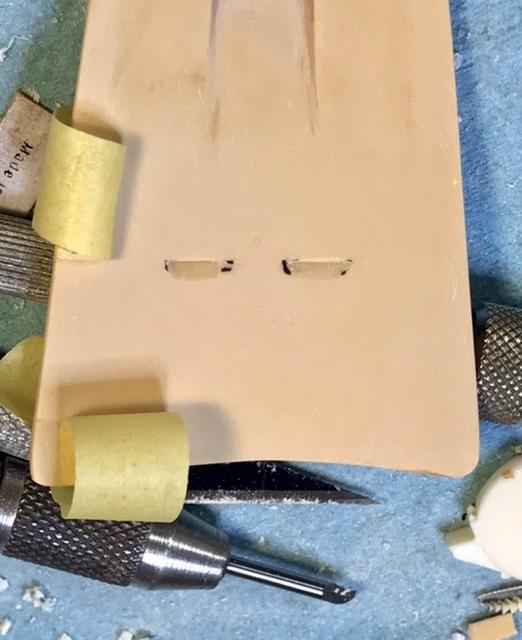

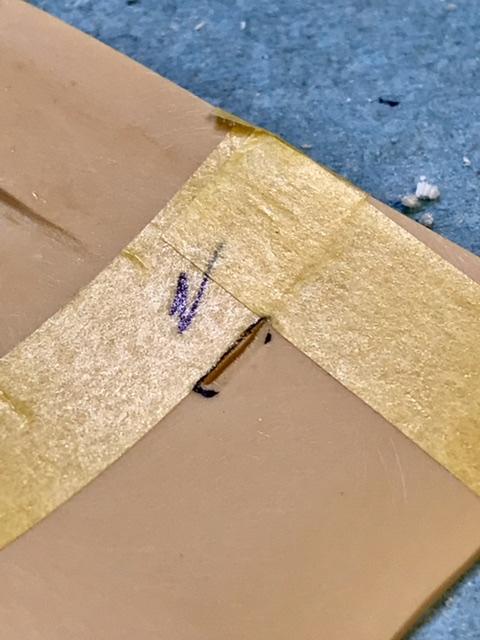

absmiami Posted May 30, 2023 Author Posted May 30, 2023 To the bonnett the two louvers are just tall enough to allow me to scribe openings - but then you need to mark and scribe the corresponding openings on the underside … 1
absmiami Posted May 30, 2023 Author Posted May 30, 2023 The leading edge ot the bonnet hinges below the trailing edge of the nose - like this - the bonnett is attached by hinges that are bolted to a cross-brace that is welded across the fenders - like this … 1
