Mooneyzs Posted February 9, 2014 Author Share Posted February 9, 2014 Niko... Thank you my friend. I had to challenge my self to see if I could make it working...lol To answer your question on painting, I will be painting the hatch and body separate. I will be unbolting the hinge and will paint the parts that way. I will probably take the edge of the hatch that sits on the body and sand it down just a tad to compensate for the little paint build up that the part may get. Scott.... Thank you. I can't take the credit on the train springs. One of the other posters here Bob... was the one that suggested it and i am thankful that he did because they worked perfect. Mark... Thank you Dave... Thank you my friend. I have to say that I am very pleased with how its turning out so far. I just can't wait to have more of the engine done and body in primer. Quote Link to comment Share on other sites More sharing options...

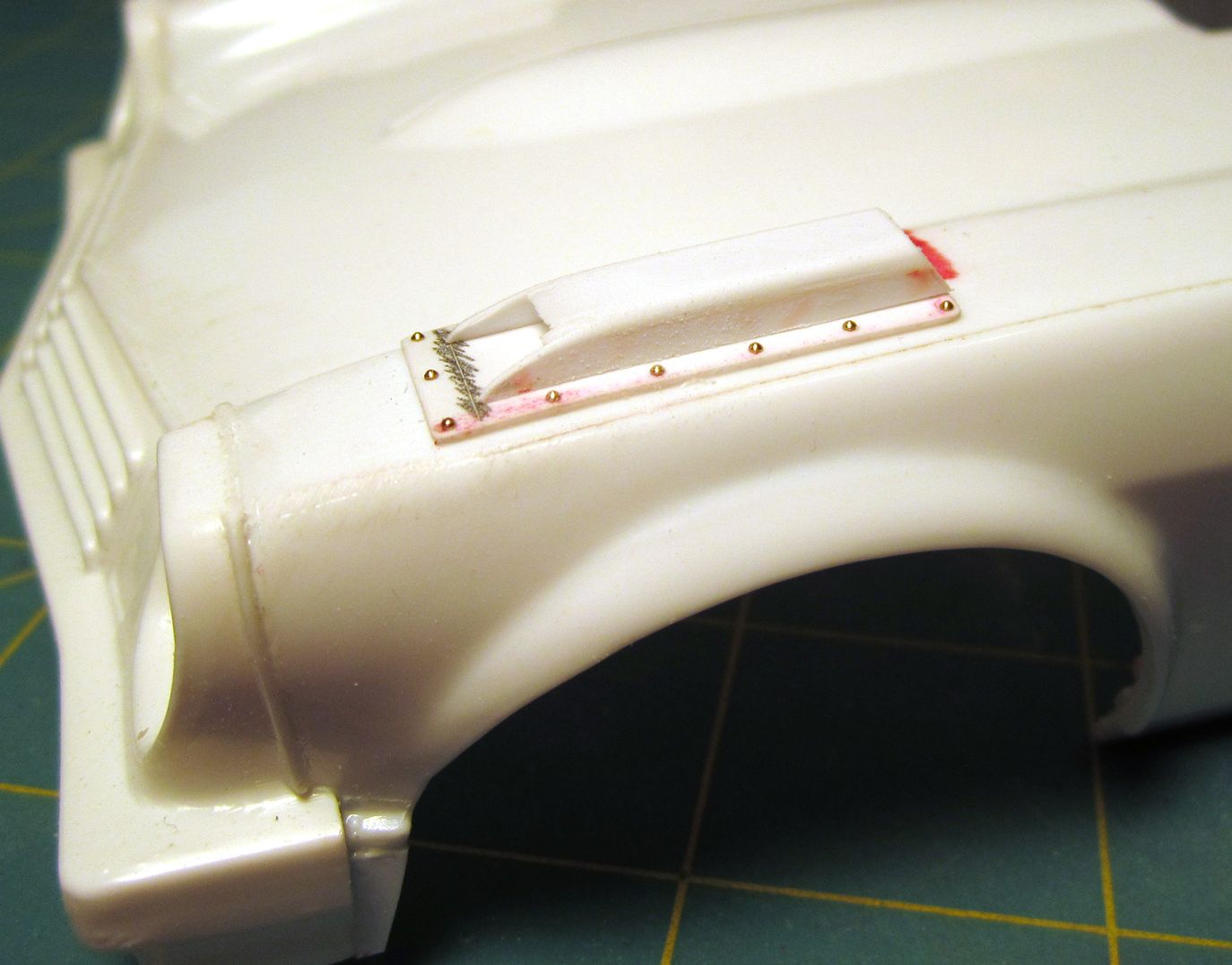

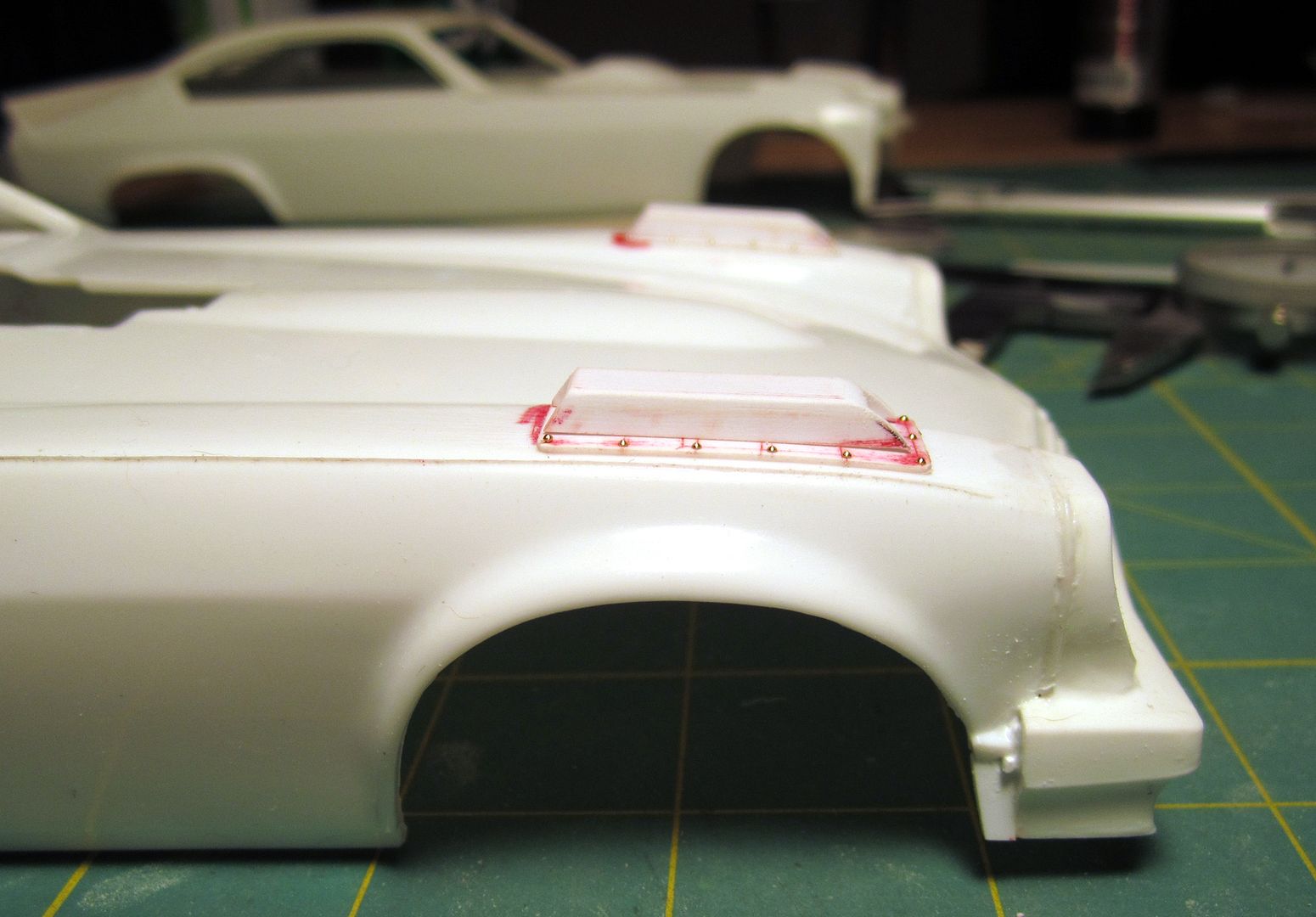

Mooneyzs Posted February 9, 2014 Author Share Posted February 9, 2014 (edited) So Fellas.... Yesterday and last night I worked on the front Air Dams that go over the front wheels. I was hoping to get the completed but I still have some work in them today but I have gotten a good start on them. I will let the pics do the talking.... Here are the reference pics I was using from the Army Vega Video on You Tube: Here you can see that the air dams are open to the inside of the body and can see the floor & tire thru it: Trying to show the side profile: Back Opening: Edited February 9, 2014 by Mooneyzs Quote Link to comment Share on other sites More sharing options...

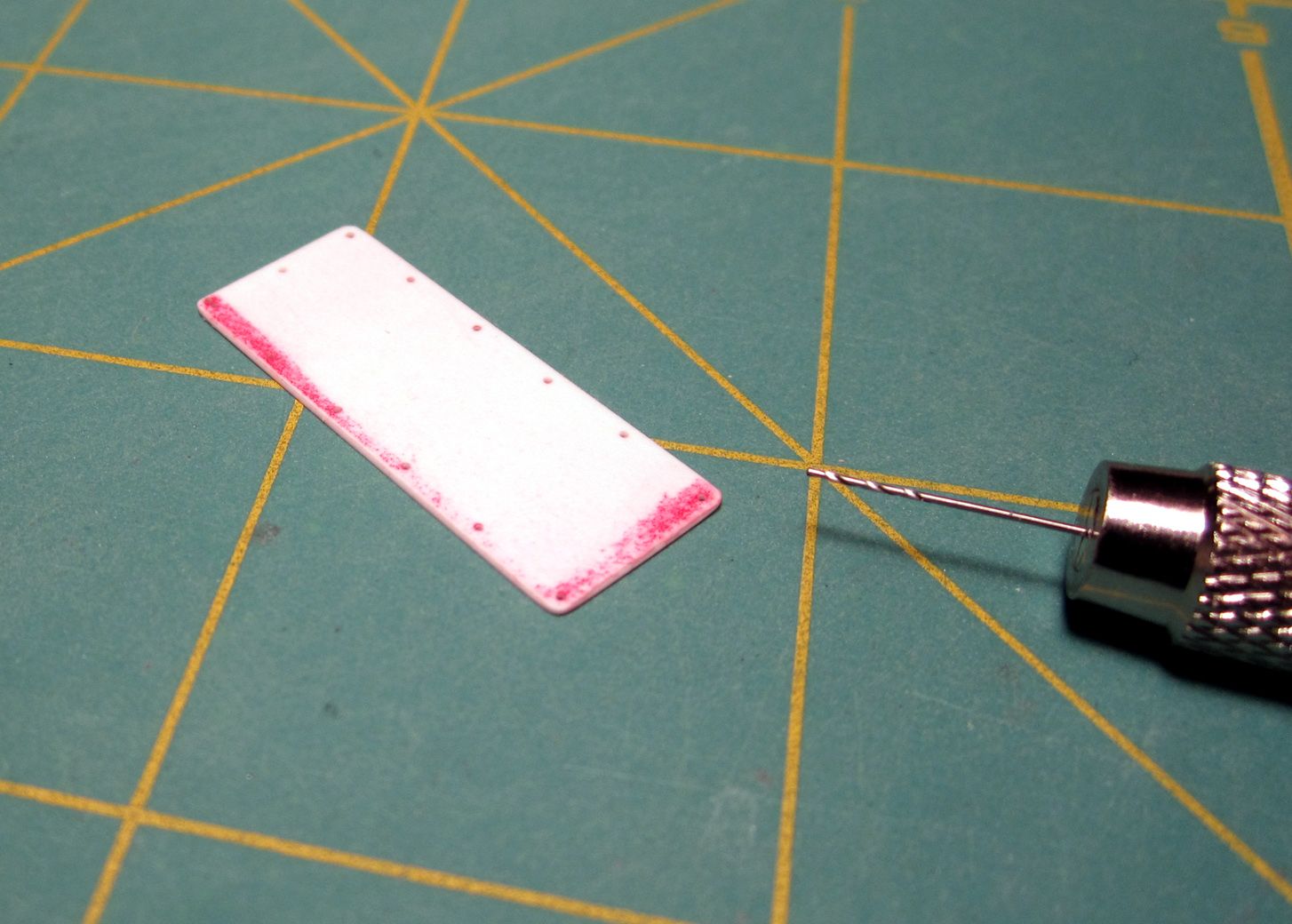

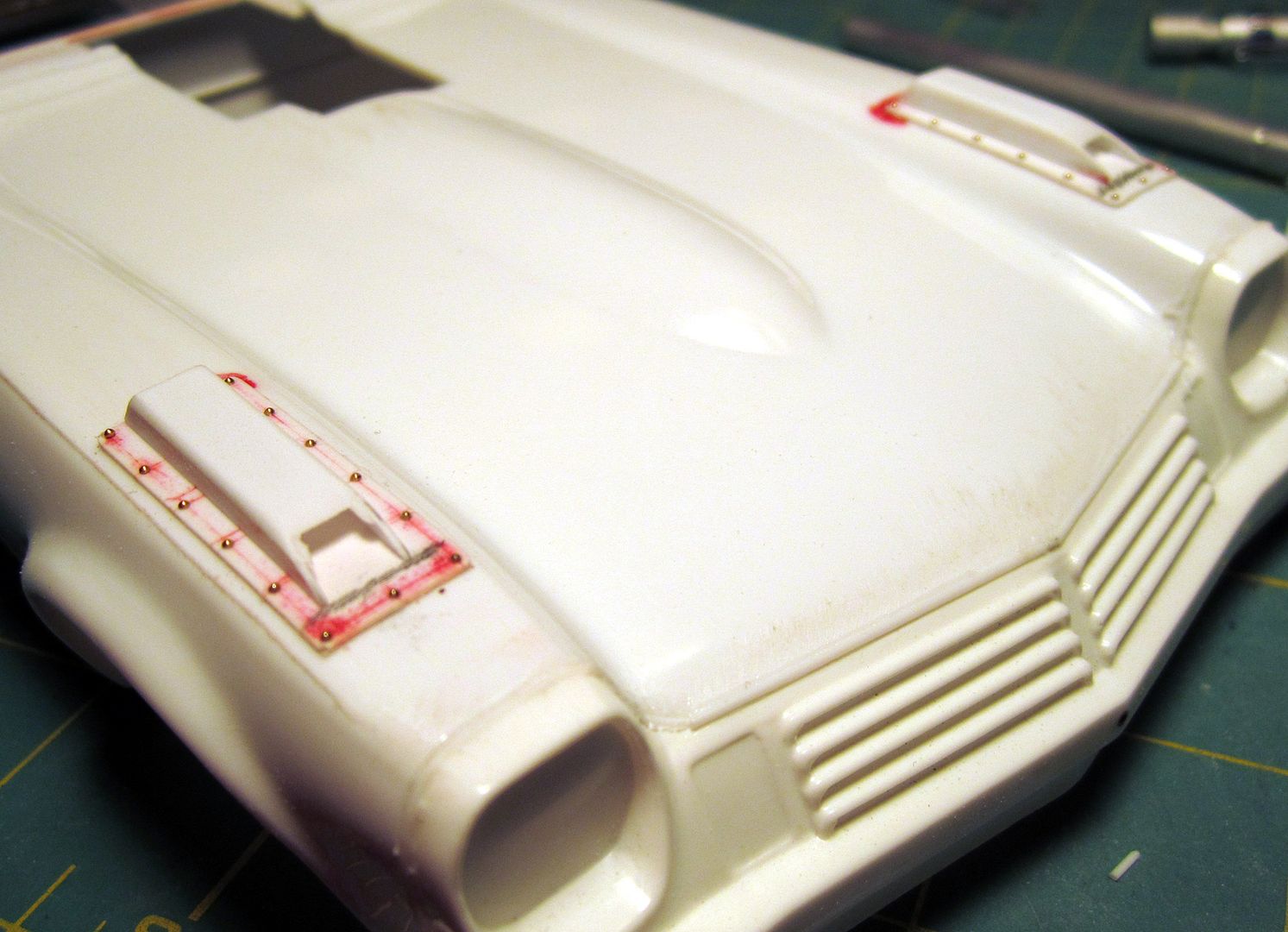

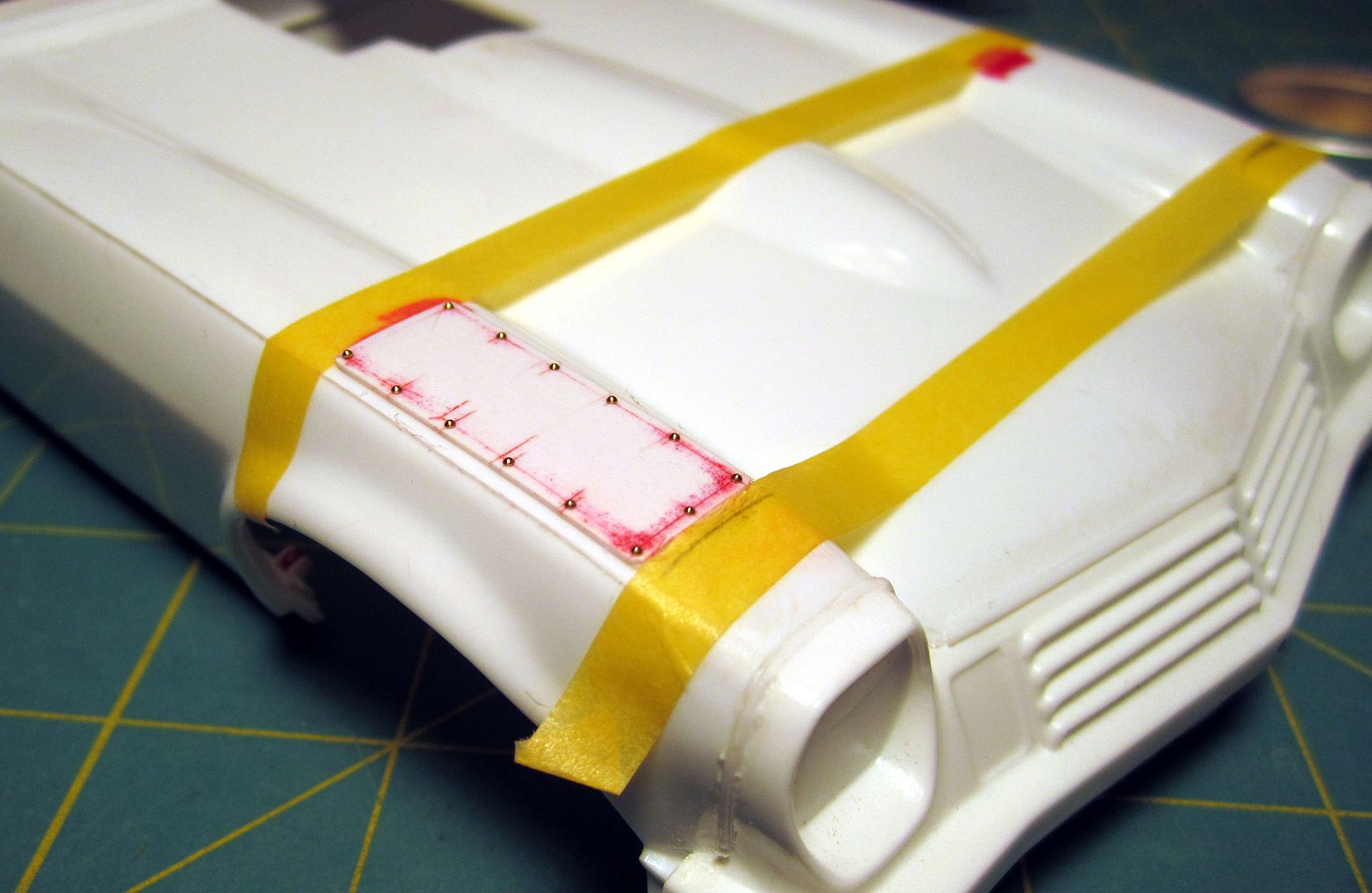

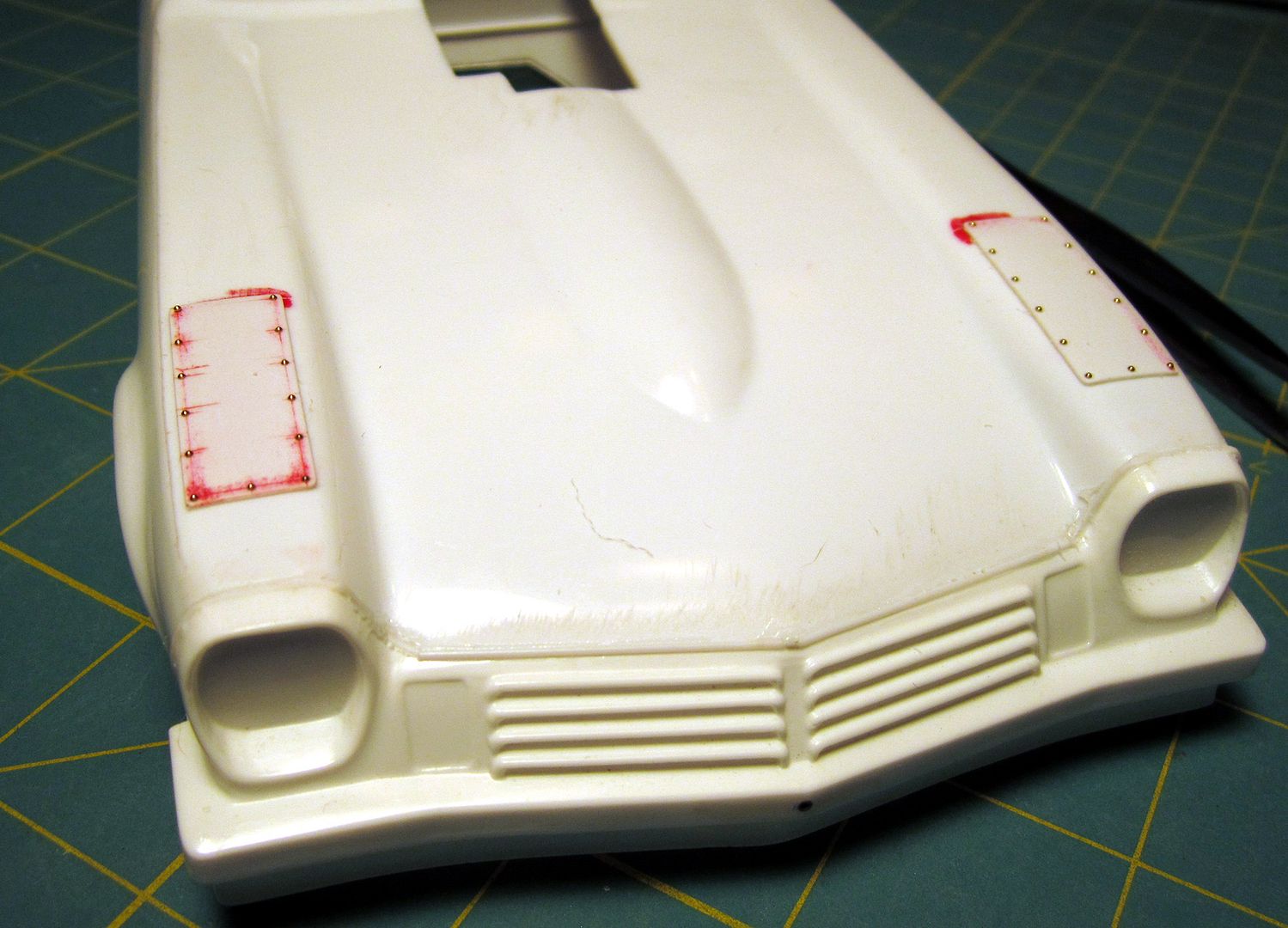

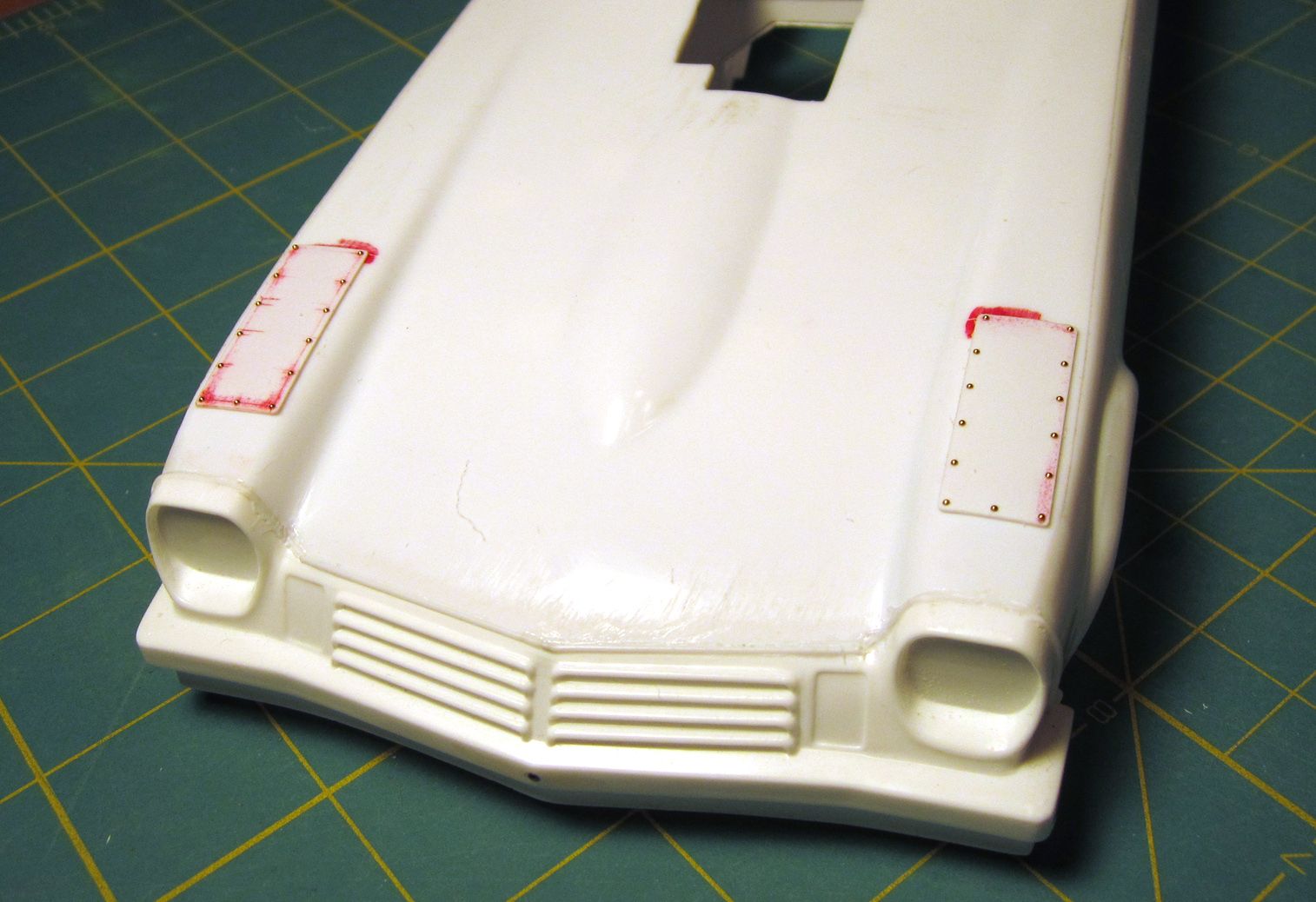

Mooneyzs Posted February 9, 2014 Author Share Posted February 9, 2014 I had started out by making the base of the Air Dam with .015" thick Evergreen Styrene, Getting it sized so it was close enough and adding holes for the rivets I will be using to hold it in place: Next I got it into the position with the help of my Tamiya masking tape as a guide where I wanted it to sit. I started by drilling one of the holes in the corner first, then I placed a rivet to pin it in place and then did the opposite corner. One by one I transfered all of the holes into the body: I did that to both sides to get the placement done first on them: More pics to follow.... Quote Link to comment Share on other sites More sharing options...

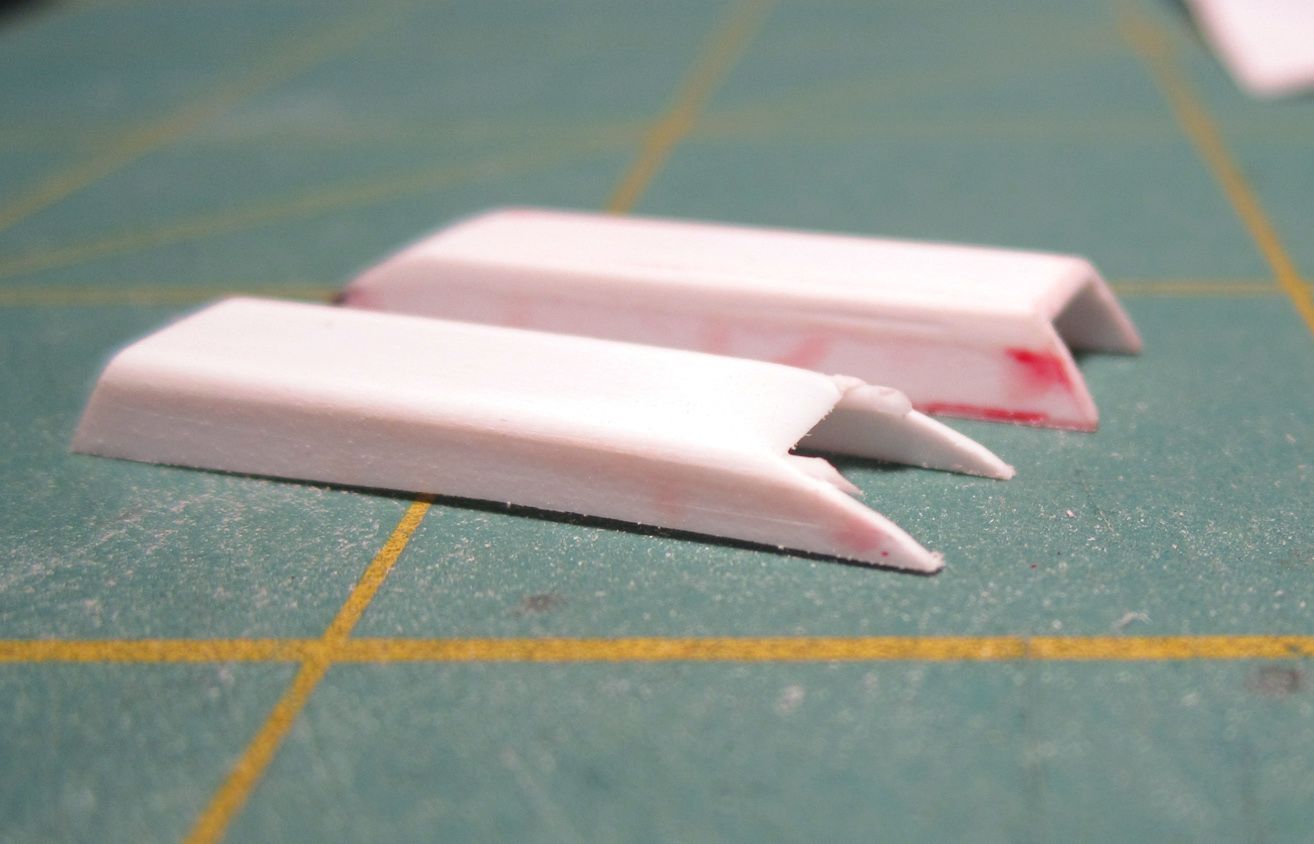

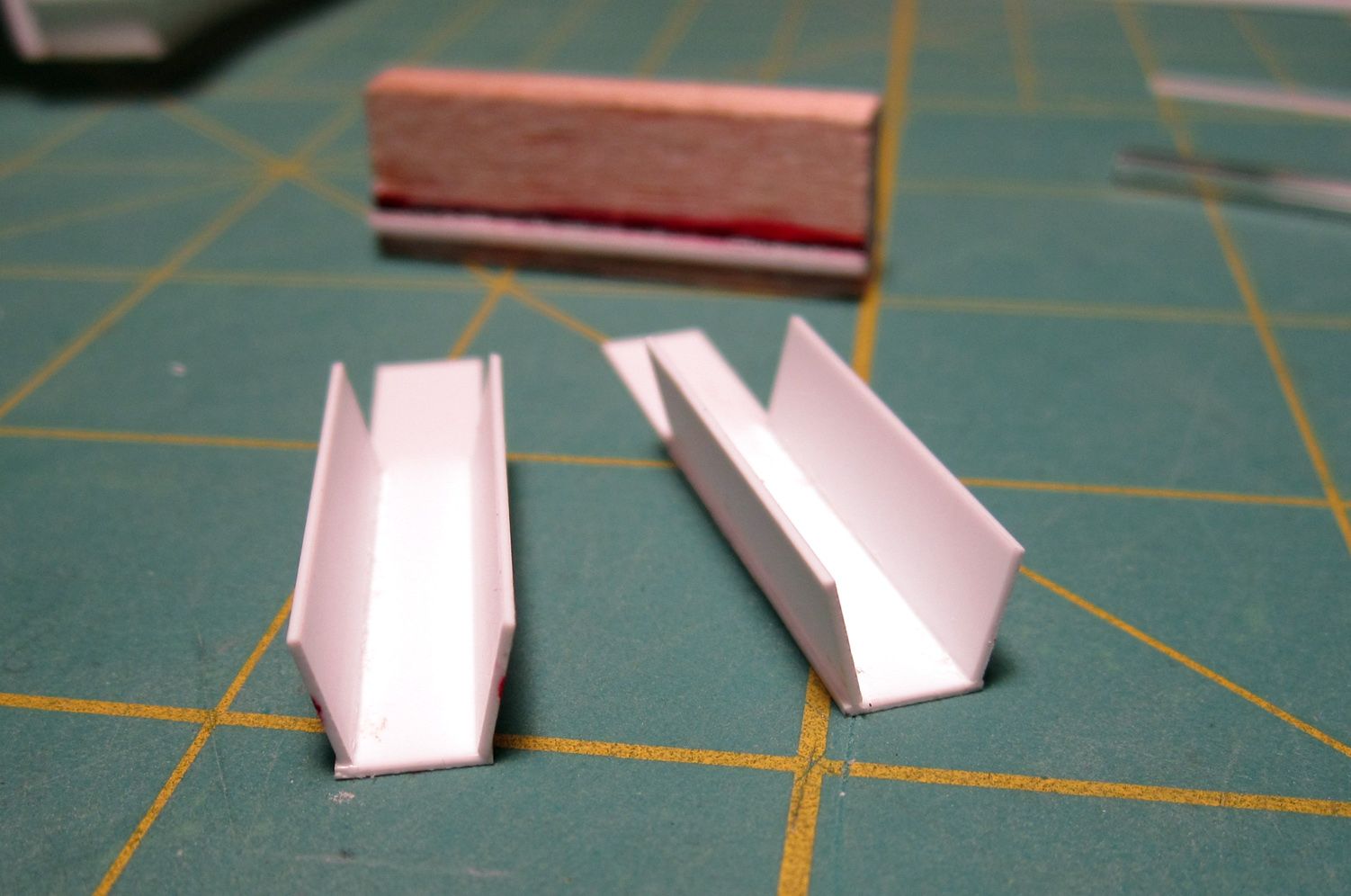

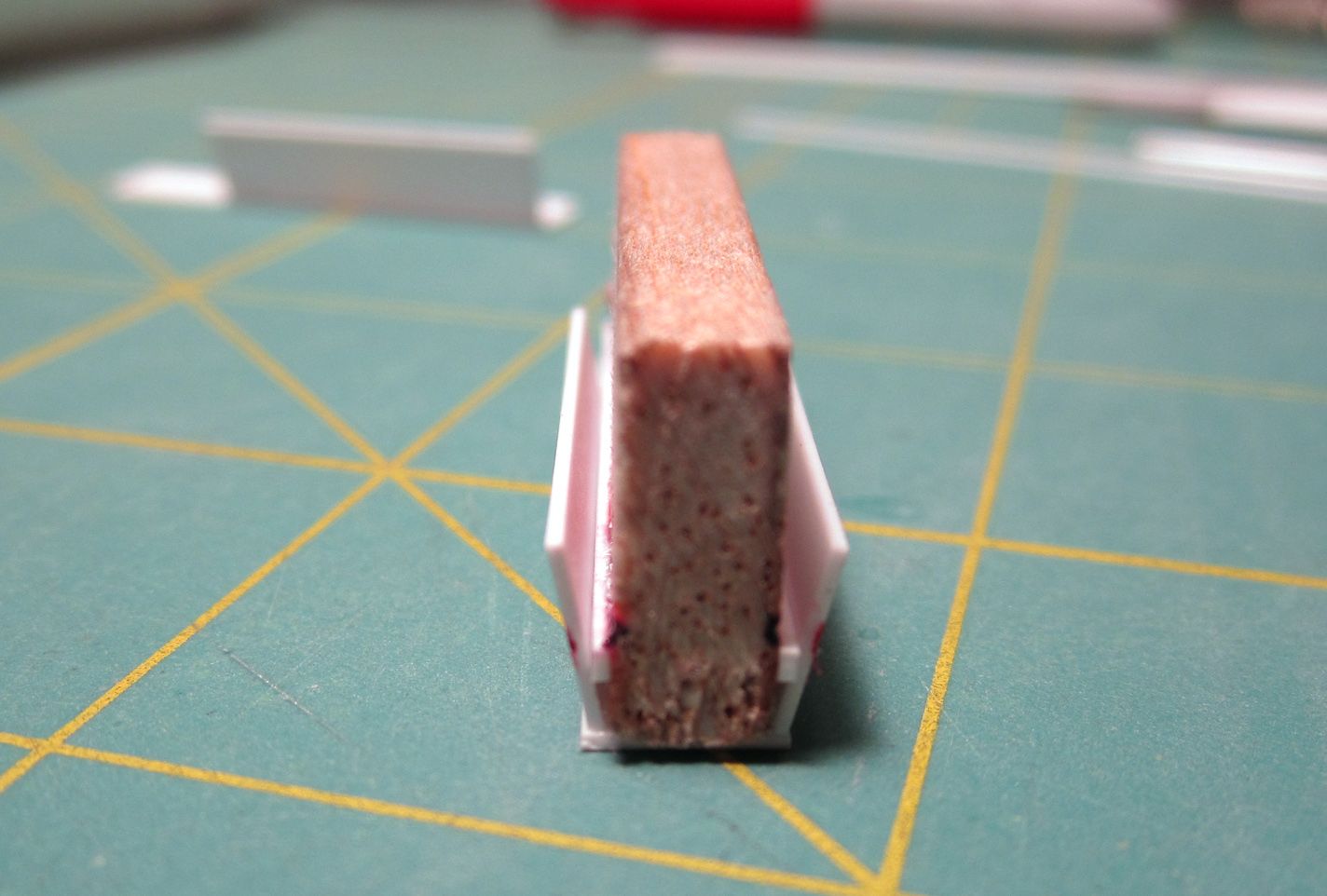

Mooneyzs Posted February 9, 2014 Author Share Posted February 9, 2014 Next I started to make the top portion of the air dams. I first made a jig by gluing some strip plastic to some balsa wood to help me keep a consistent angle when gluing the pieces. I used .020" thick plastic for the parts I was gluing together: Here is the start of the parts after they were glued on my make shift jig: ​Here are the parts after trimming the height down and adding shape to the front and rear pieces. Still not done but I need to add pieces to create the holes for the front as well as a lip for the hole on the back side: Here is a side profile view, I still need to work on shaping the front end down a little bit more. I think it needs to swoop a little more to the back with making the radius I am sanding a little bigger: I will be working on this more today. I need to add some pieces to the front to create the two holes to it. the rear outlet hole needs a little bit of plastic added to make a lip on it and then I will be drilling a hole in the base and the body so you can see thru it like the real car. So stay tuned and I will have some more updates later. I need to finish some house chores first Quote Link to comment Share on other sites More sharing options...
AZ Boy Posted February 9, 2014 Share Posted February 9, 2014 Well done, my friend...well done. Quote Link to comment Share on other sites More sharing options...
tyrone Posted February 9, 2014 Share Posted February 9, 2014 on point as usual buddy... Quote Link to comment Share on other sites More sharing options...
gasser59 Posted February 9, 2014 Share Posted February 9, 2014 Looks excellent Chris. The shape of the raised portion looks to be shorter in the front than in the rear. Are you planning on shaving the front a bit? Quote Link to comment Share on other sites More sharing options...
Mooneyzs Posted February 9, 2014 Author Share Posted February 9, 2014 (edited) Aaron... Thanks buddy I can't wait to have them completed today. Tyrone... Thank you brother. Brad.... Thank you my friend. Yep I will be changing that front up some more since the height difference is there between the front and rear of the air dam. That's as far as I got last night and was too tired to do more to it last night before bed but I do need to fix that issue today. Edited February 9, 2014 by Mooneyzs Quote Link to comment Share on other sites More sharing options...
gasser59 Posted February 9, 2014 Share Posted February 9, 2014 I just knew you'd be all over it. Quote Link to comment Share on other sites More sharing options...
Danno Posted February 9, 2014 Share Posted February 9, 2014 Looking good, Chris! Quote Link to comment Share on other sites More sharing options...

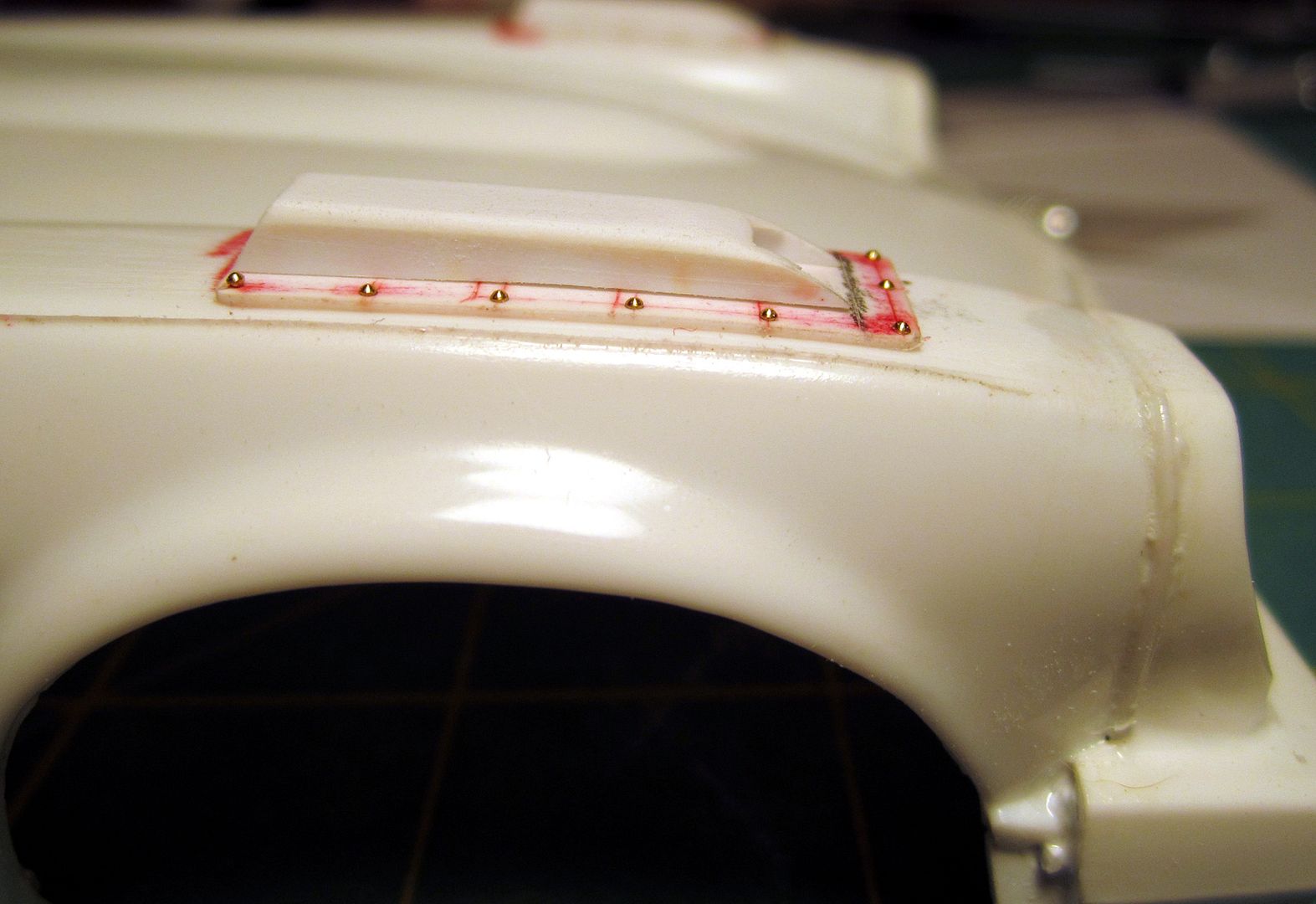

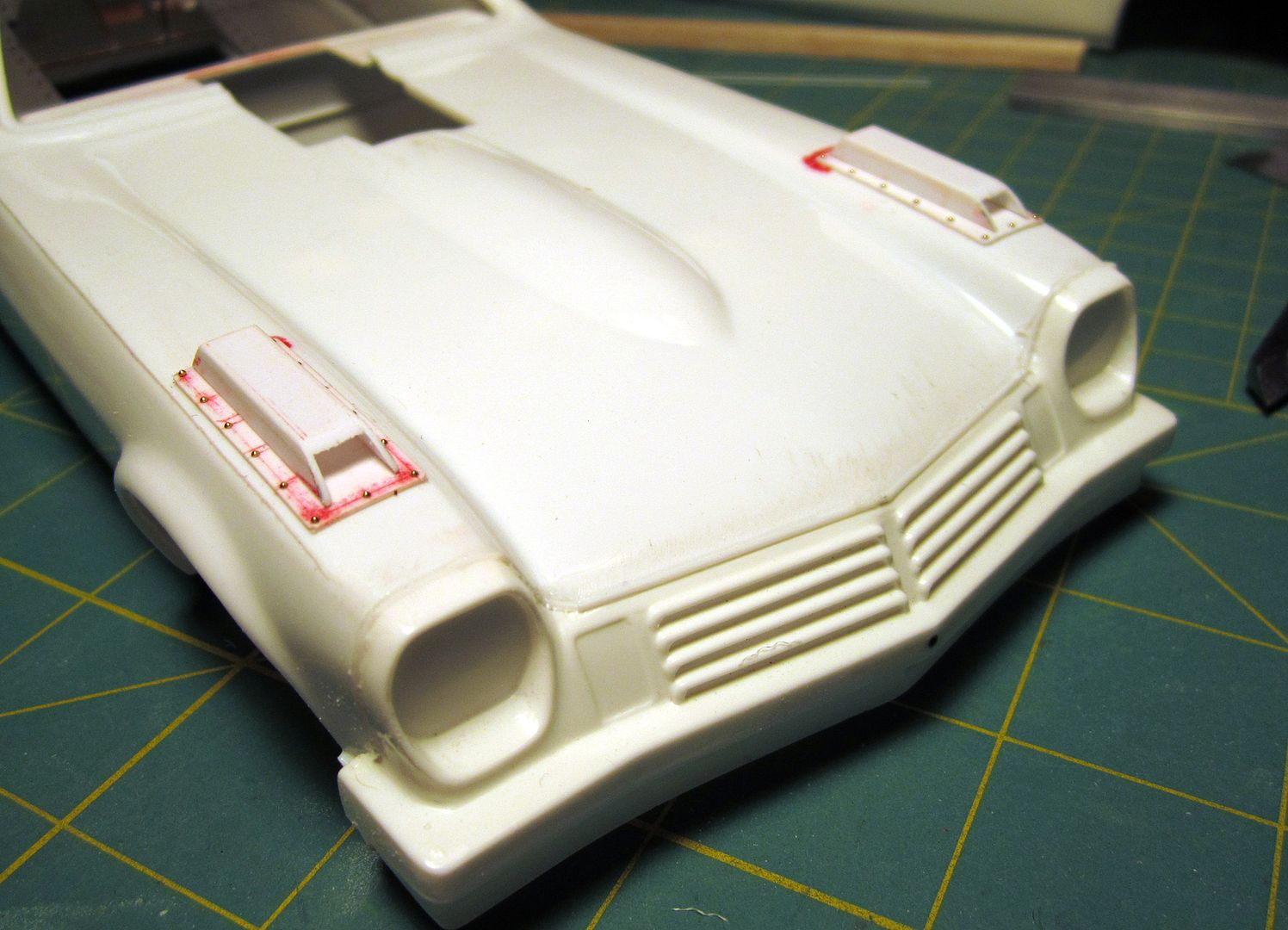

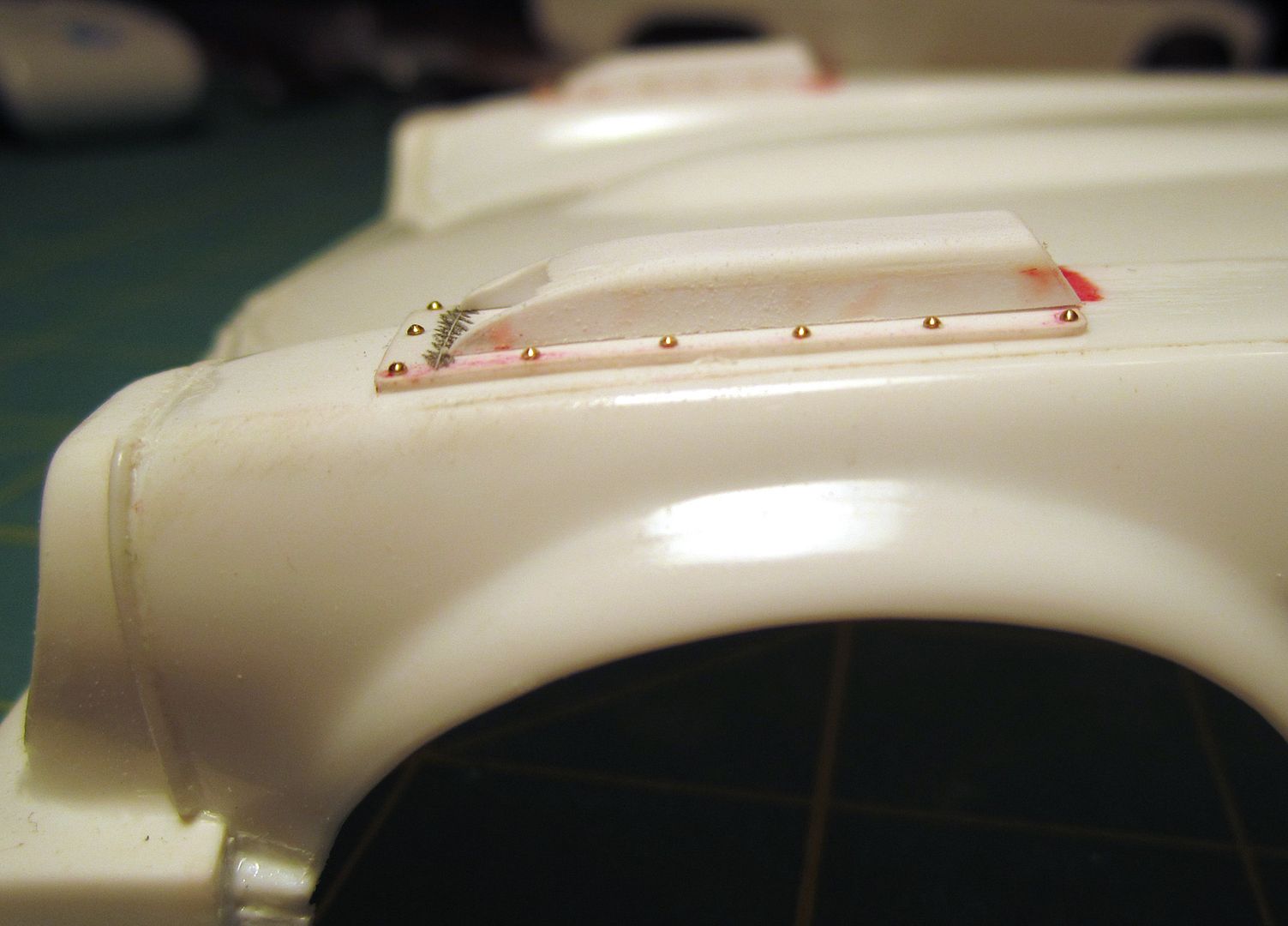

Mooneyzs Posted February 10, 2014 Author Share Posted February 10, 2014 Brad... Thanks buddy. So Tell me what you think of the update below. I think they look much better now but do you think they need to be shaped more now?? Danno.... Thank you my friend. Ok so I started messing around with the air dams this afternoon. I still have some more work to go but wanted to show progress and see what you all think with the new shape of things...... Here I stared out by shaping the front portion a little more giving it a bigger radius before I add plastic to create the openings: Here is a side view of the Right hand side: And the Left hand side: higher view of the left hand side: and both: Quote Link to comment Share on other sites More sharing options...
