fractalign Posted August 5, 2014 Author Share Posted August 5, 2014 With the window frame together, I glued it to the door frame. Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 5, 2014 Author Share Posted August 5, 2014 (edited) The final task for the night was to fit the unit inside the body to see what gaps needed filling. I then took it out and filled in the areas before putting it back in. I made sure to wet it so that the putty did not stick to it. The next task will be to work on this area in preparation for the gutter rails and once that is done to move onto the other side and finish off the other window and door frames. Edited August 5, 2014 by fractalign Quote Link to comment Share on other sites More sharing options...
Danno Posted August 5, 2014 Share Posted August 5, 2014 Wow. Nice work! Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 6, 2014 Author Share Posted August 6, 2014 Hey Guys. After finishing the drivers side window frames, I decided to get the passenger side ones up to speed. The first thing I did was line up the quarter window frame, making sure it was the same angle as the driver's side one before gluing it into place. The next thing was to glue the door frame and the window frame together like the drivers side unit. I still need to add the inner frame to the the passenger side window frame but this will be a lot easer with the two parts glued together. Quote Link to comment Share on other sites More sharing options...

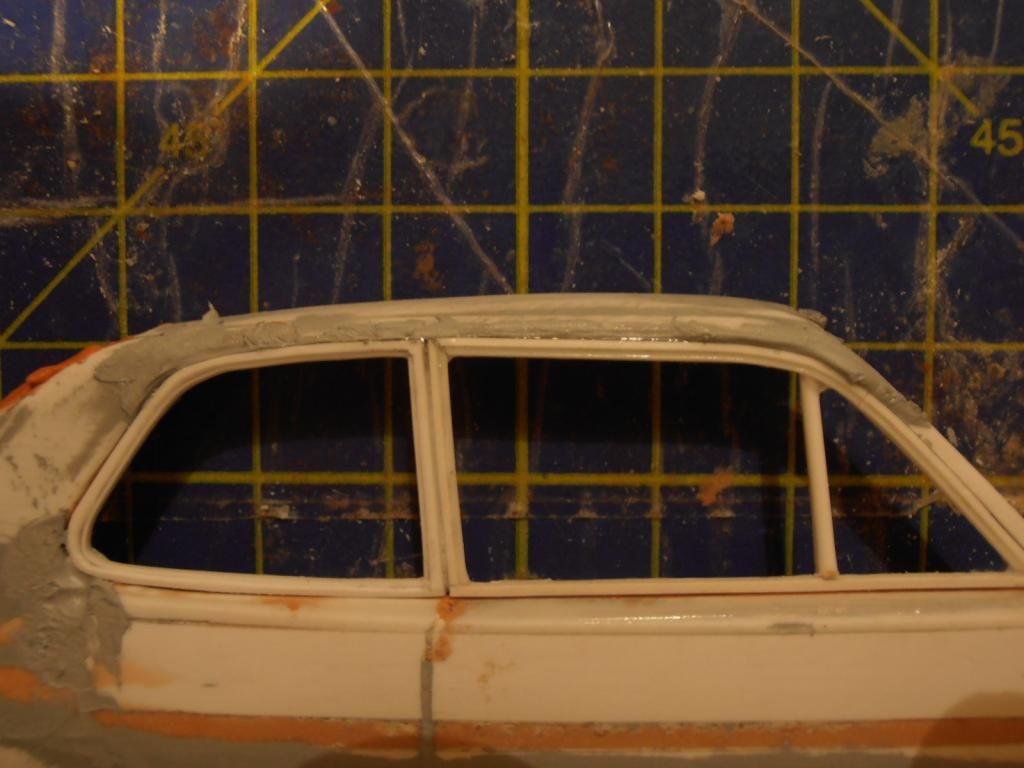

fractalign Posted August 6, 2014 Author Share Posted August 6, 2014 (edited) Since the driver's side body half is the one that leads to how the other side will look, I turned my attention to reshaping the roof and A pillar. The roof at the front was sanded down to get it looking lower. The A pillar was bevelled. I will be adding the gutter rail from this point. The material i will be using for this will be the same as material I have been using to make up in side of the window frames. Edited August 6, 2014 by fractalign Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 6, 2014 Author Share Posted August 6, 2014 (edited) On the inside I have attached the b pillar. This makes up the first part of the surround that will allow the door frame to sit flush inside the body, I will also be doing the same for the window frame. The surround that runs from the A pillar will also house the windscreen. To make up this surround I will be cutting down piece of 2mm sheet styrene to 1mm by 1mm and then cutting it in two for each A pillar. Edited August 6, 2014 by fractalign Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 6, 2014 Author Share Posted August 6, 2014 The final task for the night was to add the top to the passenger side fender. Next task will be to continue working on the window surrounds and put in the gutter rail on the driver's side. Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 6, 2014 Author Share Posted August 6, 2014 (edited) One last image. Here is one is one as a street machine/ drag car. Speaking of which, I will be going to the Street Machine Nationals on the weekend so I can expect to see a lot of cool ones like this one. This one is actually an LC Torana which is the one that preceded the LJ. The LC had a steel grill and different twilight and headlight surrounds. Edited August 6, 2014 by fractalign Quote Link to comment Share on other sites More sharing options...
Bennyg Posted August 6, 2014 Share Posted August 6, 2014 Very nice work. Ben Quote Link to comment Share on other sites More sharing options...
DynoMight Posted August 6, 2014 Share Posted August 6, 2014 Great work on the window frames! Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 7, 2014 Author Share Posted August 7, 2014 Hey Guys. Continuing on from last night, I started work on the window surrounds around the door. The first step was to cut a couple of 1mm by 1mm strips. These are for the A pillars. As well as holding the door frame in place they will also hold the windscreen in place. The windscreen will be going in from the front just like a 1:1 car. Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 7, 2014 Author Share Posted August 7, 2014 (edited) After gluing the first one in I checked to make sure the frame would sit flush with it. I then glued the other strip into place on the other side. Edited August 7, 2014 by fractalign Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 7, 2014 Author Share Posted August 7, 2014 (edited) The other body half has more or less been over looked until now. With the driver's side half up to speed, I turned my attention to this side. The first task was to make sure the frame sat flush with the strip. The next task was to bevel down the A pillar in preparation for the quarter round channel. You will notice the gap between the top of the door and the bottom of the frame Edited August 7, 2014 by fractalign Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 7, 2014 Author Share Posted August 7, 2014 To fill this gap involved making up the channel and adding it. I started by cutting a 5mm diameter piece of tubing down the centre and cutting that piece down the centre, filing it into shape. Quote Link to comment Share on other sites More sharing options...

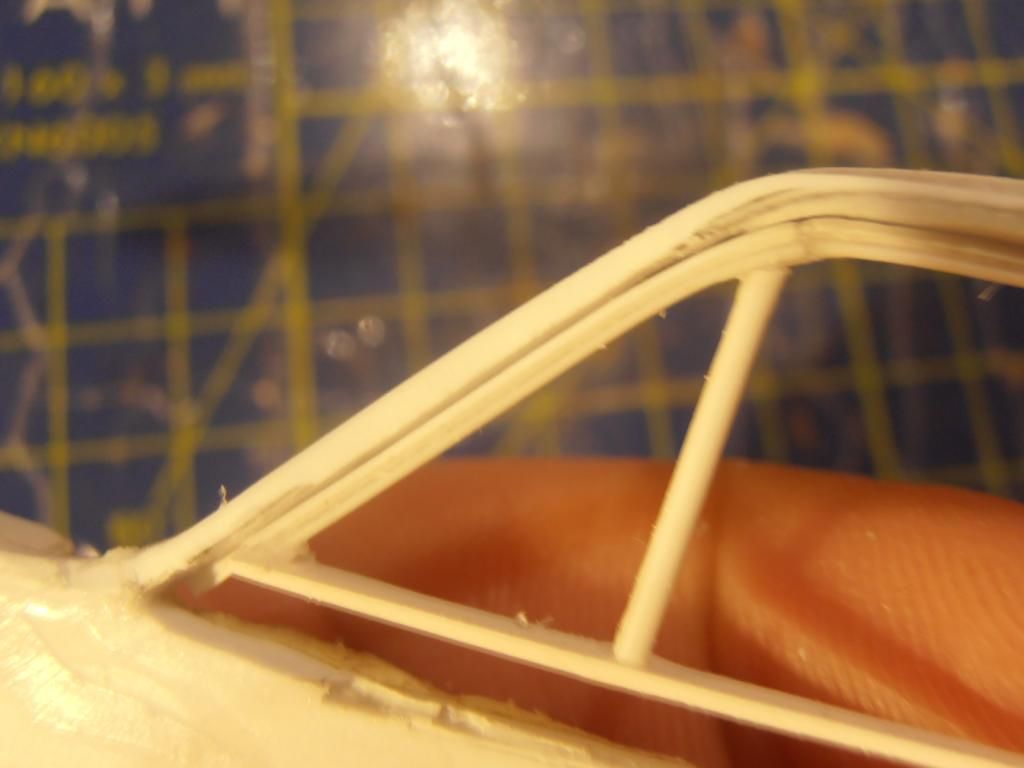

fractalign Posted August 7, 2014 Author Share Posted August 7, 2014 (edited) Here is how it looks sitting place. Still a little rough, the upper edge needs to come down at least 0.8millimetre or so for the frame to sit on top. This was real tricky to attach so once glued in, I left it to dry. Edited August 7, 2014 by fractalign Quote Link to comment Share on other sites More sharing options...

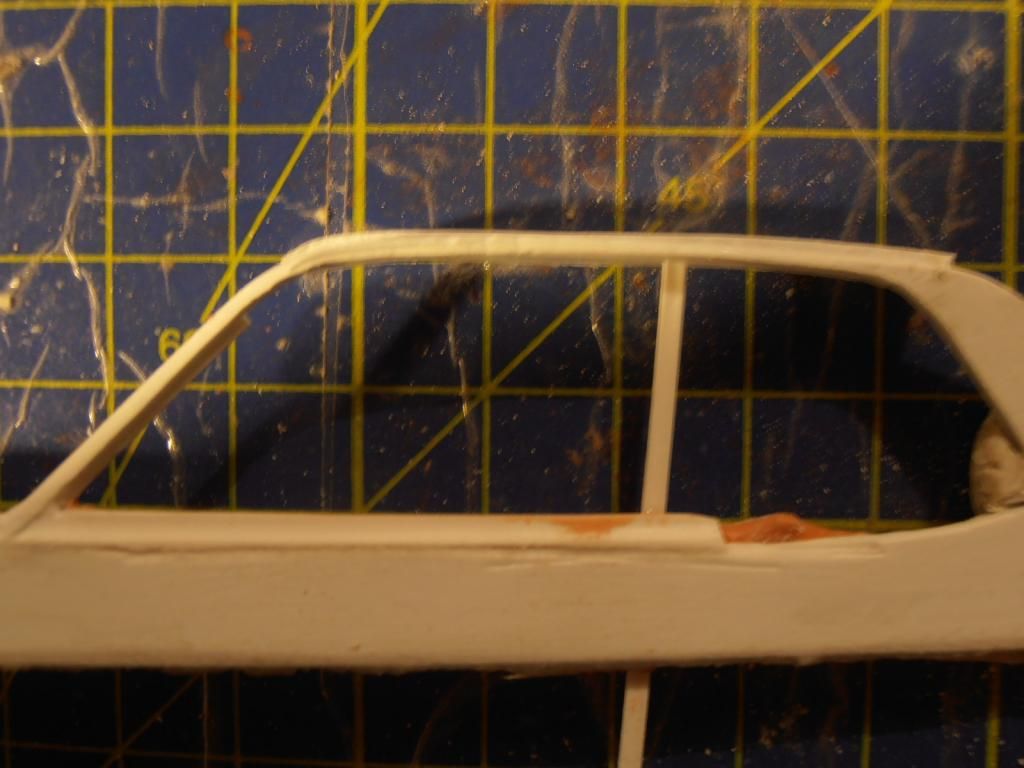

fractalign Posted August 7, 2014 Author Share Posted August 7, 2014 The final task for the night was to finish off the surrounding on the driver's side door frame. With the strip on the A pillar sitting firmly in place, I cut another 1mm by 1mm strip to sit between the A pillar and B pillar. Here is how its looking. The next task will be to to do the same to the other side and then move to the surrounds for the side windows. Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 8, 2014 Author Share Posted August 8, 2014 Hey Guys. Another update, not much done because i have been pre occupied with a build on the big rigs on the work bench forum. Anyway tonight I turned my attention to the passenger side and the first task was to sand down the quarter round channel for the frame to fit. Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 8, 2014 Author Share Posted August 8, 2014 On the other side I added the putty to reinforce the window surround and tidy up the inside. Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 8, 2014 Author Share Posted August 8, 2014 I also added the b pillar. Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 8, 2014 Author Share Posted August 8, 2014 The final image shows how the frame sits inside the body. A lot of cleaning up to do but the frame does sit flush inside body. Next task will be to continue to work on this side until its neat enough to add the drip rail and do the same on the other side. Quote Link to comment Share on other sites More sharing options...
David G. Posted August 9, 2014 Share Posted August 9, 2014 ! ! David G. Quote Link to comment Share on other sites More sharing options...

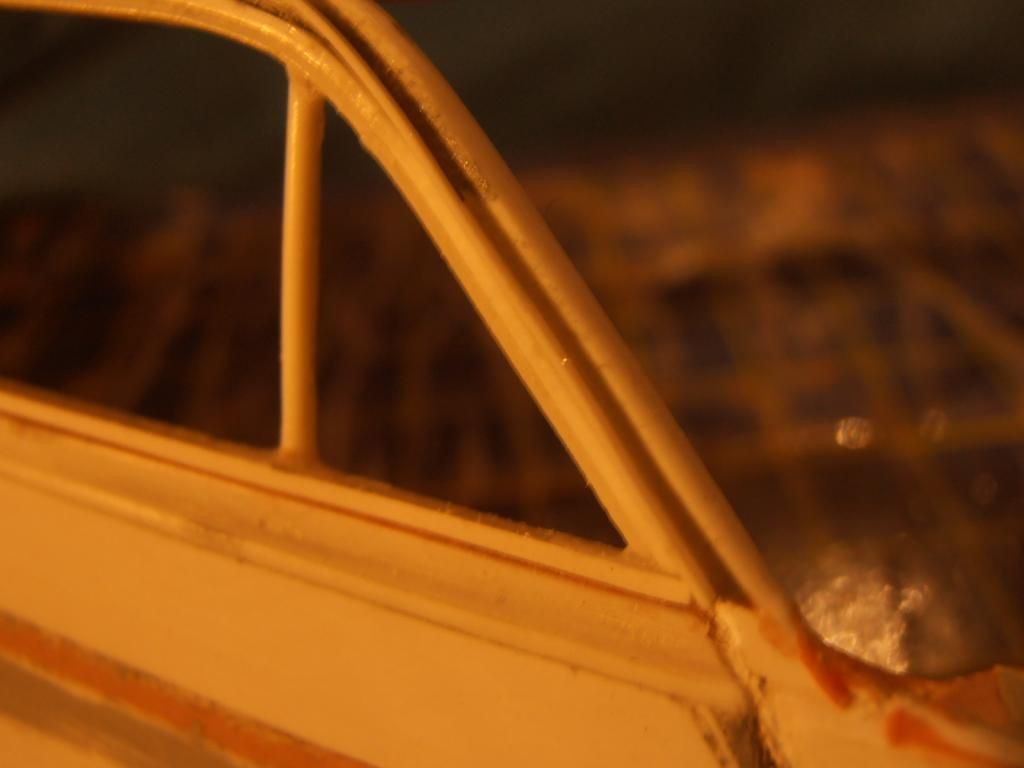

fractalign Posted August 10, 2014 Author Share Posted August 10, 2014 Hey Guys. I finally put the remaining piece in for the window surrounds and moved onto the gutter rails. Quote Link to comment Share on other sites More sharing options...

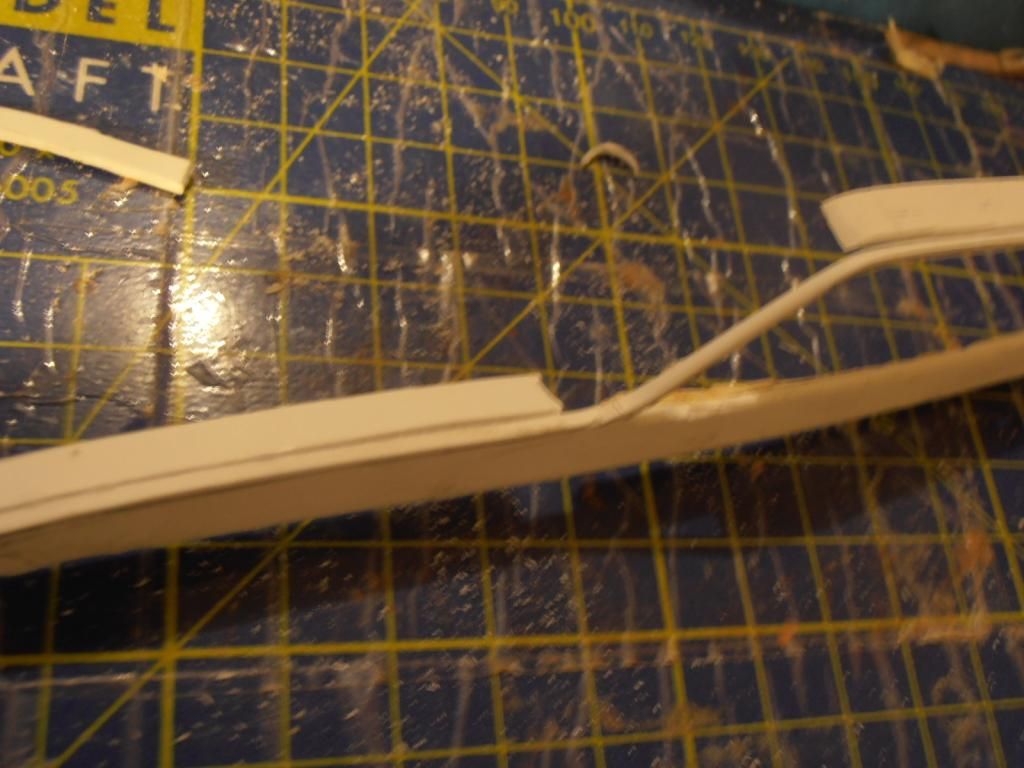

fractalign Posted August 10, 2014 Author Share Posted August 10, 2014 I made up a tab for the rail to slot into the gap between the door frame and a pillar. Quote Link to comment Share on other sites More sharing options...

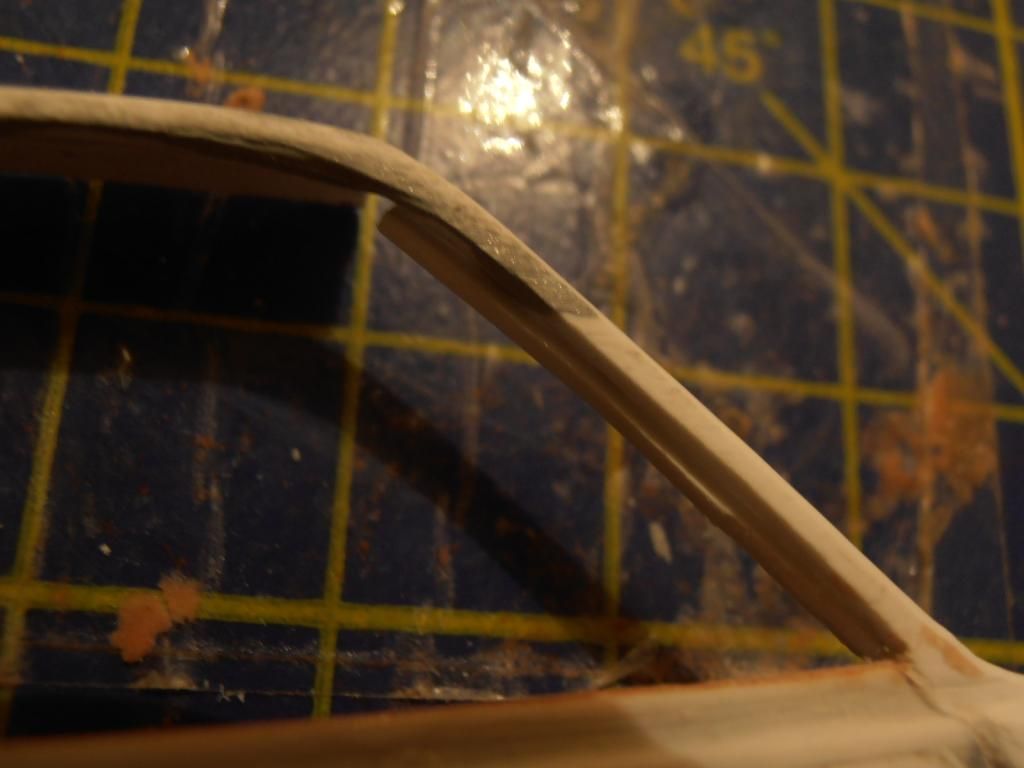

fractalign Posted August 10, 2014 Author Share Posted August 10, 2014 Here it is sitting in place. I am not sure I want to run these rails as they are a little thin so I have decided to to a break from the body for a while and move onto something else. When I have decided what thickness the rails will be I will order some more strips and attach them. Quote Link to comment Share on other sites More sharing options...
fractalign Posted August 10, 2014 Author Share Posted August 10, 2014 In the meantime I have started working on this. Quote Link to comment Share on other sites More sharing options...
