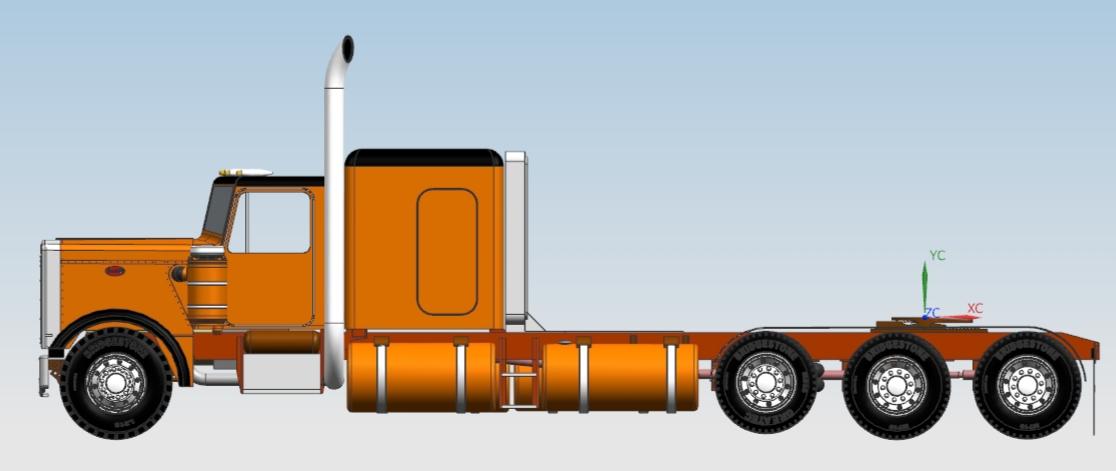

Hey all Well I did it, I started another project. I purchased some air suspensions from Shapways for the lowboy, but they were to tall, they were meant for a standard height trailer...sooo, I decided to start a new project so I could use them. I'm making a 6 axle heavy haul/steel hauler 48' flatbed trailer based off of info form the internet and kind like the AMT flatbed trailer, but different. here is my drawing that I built it from. side view of 6 axle flatbed trailer. this view shows the air suspensions that I'm using, they still need a lot of work. I now need 6 complete air brake setups. this view shows the Italeri Peterbilt 378 tractor that will be pulling it. I'm going to replace the Detroit diesel that comes with it with a Cummins from the Australian Western Star from Italeri. I have 4 extra rear duals from an old old kit that I did eons ago that I might use to add a pusher axle to it, don't know for sure, will see. Well that's it for now be back soon with more. Ron G

Yeah, that's what I'm finding out. ? Ron G

Hey metalhead Where did you get your kit, I can't find one any where, need one for up coming build project. Ron G

?? watching with great interest. Ron G

Thanks Steve

Hello Steve I used to work for Chrysler (FCA), but I've been retired for 7 years. I have done some work on Unigraphics NX16 on trailers,trucks, excavators, dozers, etc. I've been using my wifes computer that she has from FCA, she works there, but she is furloughed at home now, so I have access to it, temporarily sadly to say. The trailer, jeep and booster/stinger are all made from Evergreen or Plastistruc plastic with a few 3D printed items from Shapways and Moluminum. Wheels/tires are from Moebius, the rest is from the parts box. The excavator tracks are from Bruder toys, there 1/16 scale for there mini excavator, but are perfect for a 1/25-1/24 scale large excavator, like the Cat 374F L. Any other questions please feel free to ask, I'm glad to help. As for McComb in November Im not sure I will have the whole thing done by then. What is the McComb thing anyway? Ron G

Hey all Small update for you all. this view shows the support legs that I added to the booster/stinger and that I moved the nitrogen tank to the mounting bracket for the trailer. Also the frame braces between the tires. this view shows the support legs and crank mechanism. Well that's it, be back soon. Ron G

Thanks guys

Hey guys Small update. I did some more work on the booster/stinger. side view of the XL 42 PMB booster/stinger. I drilled some lightning holes in it. view looking down at the booster/stinger. You can see the nitrogen bag with mounting bracket I added, I also added a power pack, its under the cover with the handle, you can see the exhaust pipe for it sticking up and I added a nitrogen holding tank just above the hydraulic cylinder. this view shows the nitrogen bag, nitrogen tank and the power pack cover and exhaust. view looking down at the nitrogen tank and power pack cover and exhaust. Now all I have to do is plumb the darn thing...lol. well that's it be back soon with more. Ron G

Thanks everyone Ron G

Soon, no I still have to make that. Ron G

Hey guys I have the booster/stinger almost completely built, I'd say about 80%. I assembled everything temporarily together to see how it looks, and WOW!!!! It's Lloooonngg!!! So here are some pictures for you all to perose. this view shows the mounting bracket, the attachment/pivot bracket with the hydraulic cylinder and the booster/stinger. I have to add tge power pack, hydraulic lines and nitrogen cylinder/tank. same thing from above. this view shows the whole set up, WOW! It's over 5' long! this view shows the Peterbilt 359 heavy haul tractor attached to the jeep this view shows the XL 80 JPS jeep attached to the trailer. this view shows the XL 130 HD drop nose RGN trailer with the Cat 374F L sitting on it. The outrigger boards and deck boards are in place. this view shows the rear of the trailer attached to the booster/stinger. this view shows the XL 42 PMB booster/stinger. This view shows the whole thing from the rear looking forward. You can just see the driver waayy up there at the front...lol well that's it for now be back with more updates soon. Ron G

Based on my last order, about 3 to 4 weeks Ron G

Hey guys I now have the bracket that goes from the mounting bracket to the booster/stinger pivot point. I still need to create the cylinder, nitrogen chamber and attachment mechanism. this view shows the rear of the trailer, mounting brackets and the booster/stinger. this view shows the mounting bracket and the attachment point for the hydraulic cylinder. top view of the whole set up. Well that's it for now be back soon. Ron G

Hey all I started on the XL 42 PMB booster/stinger. Its a nitrogen charged hydraulic one. This allows you to adjust the ride height and load on the trailer. this view shows the booster/stinger and the mounting bracket that attaches it to the rear of the trailer. I need to make the bracket that attaches to the lower pivot on the mounting bracket and the upper attachment point for the hydraulic cylinder, also it attaches to the pivot pin on the booster/stinger. this view shows the mounting bracket. I still need to add the attachment points to the trailer. this shows the mounting bracket from the top. this view shows the beginnings of the booster/stinger and the pivot pin at the front. this view shows the booster/stinger from the bottom and the pivot pins keeper pin. There's a lot of work that still needs to be done. I'm waiting on air suspensions for it from Moluminum. Well that's it for now be back soon with more. Ron G

Hey all I have the brakes fixed and plumbed. I also took some pictures of the trailer with the deck boards in place. view from the side. view of the bottom. You can see the "tee" fittings that I added to the rear axle pivot brackets in order to connect the center brakes and the rear brakes to the air control valve. view from the rear. This view shows how I added the Moluminum brake chambers to the ones I had on the axles already. front air control valve. rear air control valve. both air tanks and connection pipe. I still need to add the supply and control lines. View from the top with the tires added. this view shows the deck boards in place. this view shows the deck boards and the outrigger boards added. Well that's it for now be back with more updates soon. Ron G

Hey all Today was a lot of small tedious work. I mounted one side of the outriggers to the trailer frame. Cut the two long outrigger boards and I have all the deck boards cut and sized, but didn't get any pictures of those. this view shows the outriggers folded in. his view shows them folded out. this view shows the outrigger board in place. I wish the outriggers were printed in the white detail plastic, because in the fine detail resin/plastic they are VERY!!!! brittle, and the whole weight of the excavator will be sitting on them. well that's it for now be back with more soon. Ron G

Yeah, but it keeps me from getting burnt out on one project....now I can get burnt out on 5 projects...lol??? Ron G

Thanks Mopar Hey guys I got the rear axle situation fixed and the front air suspension arms modified to fit around the trailer frame. this view shows the rear axle with the air brakes now on the correct side.duh! this view shows the center axle. this view shows the front axle and the modifications I had to make to the frame and the Moluminum parts so that they fit around the trailer frame. this view shows all of them. this view shows all of them with the wheels/tires added on. view of the bottom if the trailer rear. view from the top of the trailer rear. side view of the rear of the trailer. this view shows the trailer sitting on my Kenworth W925 and the Cat 374FL on it for perspective. I ordered some more Moluminum air suspensions for the jeep and the stinger/booster, so until I receive them in the mail there on hold. well that's it for now be back with more updates soon. Ron G

Hey guys Here's another update for you all. I received some 3D printed air suspensions from Shapways, but I guess I s#%*^ed up and got ones for a regular height trailer, not a lowboy. It would have been way to much work to rework them, so I went on line and looked around to see what I could find that might work. I went to Moluminums site and found just what I needed. this view shows the air suspension in place on the trailer. All that needs to be done now is add the shocks. another view of the air suspension from the rear. this view shows all the axles...WHOOPS!!!... I put the axle on the rear on upside down...#^*•☆... BLAH_BLAH_BLAH_BLAH! Well tomorrow I'm going to have to fix it. This was not a good day, from the first part I dropped on the floor, to the second, to the third, etc., etc. to messing up the axle, so I decided to give up and go eat dinner. this view shows the real suspension that the model parts copy, Hendrickson 30ton. Well that's it for now be back soon. Ron G

Most definitely! Along with the trailer, jeep, booster and tractor. Right now my biggest concern is the decals that I need for the excavator, XL trailer and Peterbilt 359 tractor, any ideas? Ron G

Hey guys Small update for you all. I have the lower rollers and the upper rollers done for the left hand side of the undercarriage frame. I took this photo early in the day before I added the upper rollers to it. this view shows the lower rollers and their mounting brackets. view from the bottom of the LH frame. this view shows the upper rollers and their mounting brackets. this view shows the body base sitting on the undercarriage. I added my custom made figure to this picture for some perspective. Well that's it for now be back soon. Ron G

Hey all I now have the two undercarriage side frames about half way done. this view shows the LH side frame. same thing from the other side. top view of the LH side frame. this view shows both the LH & RH side frames. this view shows them with the tracks added. this view shows them with the base frame in place. I still have to make the 3 upper rollers and the 8 lower rollers and there mounting brackets for both sides, plus the 2 steps on each side frame, both sides and the main center section that attaches to the 2 side frames and the main base frame together, plus all the bolt heads...?...Yicks! well that's it for now be back soon with more updates. Ron G
