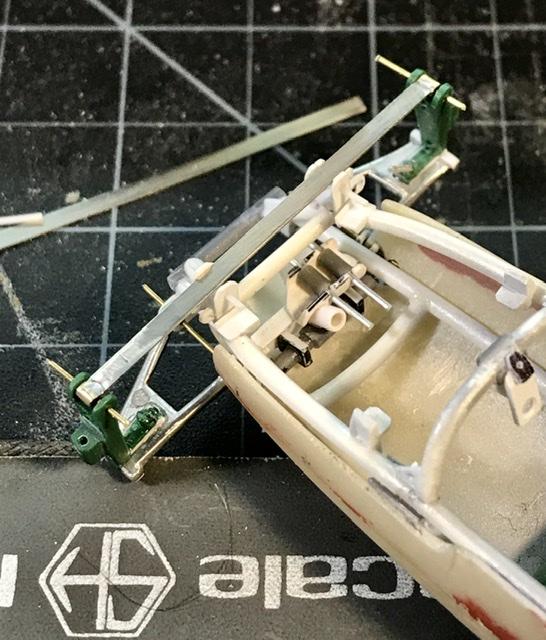

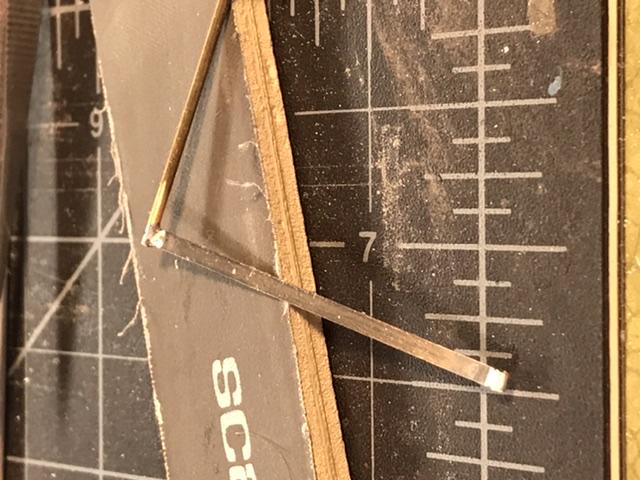

the front susp leaf spring will be made - soldered - from 3 strips of nickel silver bar - 2 scale inches wide - about .080 and .010 thick

the mounting points are not quite perpendicular - but the suspension arms in white metal can be bent a little

- just enough to give me left and right mounts that are reasonably correct

should look good when painted and reinstalled

still have to make the hub carriers and the tie rod - hope to have posable steering ….






Posted

time for a beer run

not much open here - but the local breweries are still - as is my business - which I appreciate [both...]





Posted

Unseen creatures is a new craft brewery in south miami

very good

might as well support the local brewers while things are ....

as they are .....

 the next few

parts are in nickel silver

measuring

cutting

filing

sanding

and then soldering














Posted

Soldering on the flammable balsa board again

don’t try this at home

once the spring is pinned

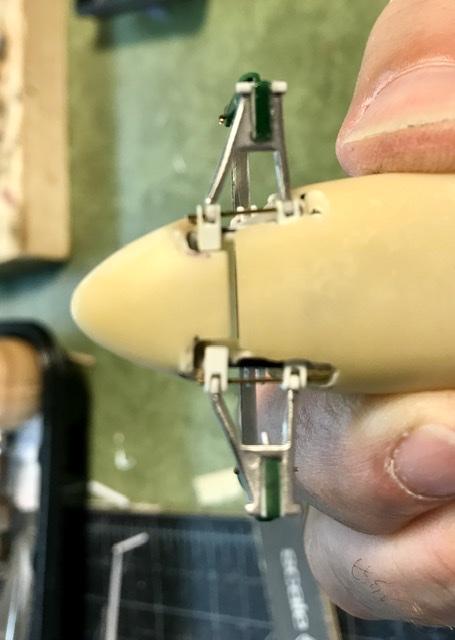

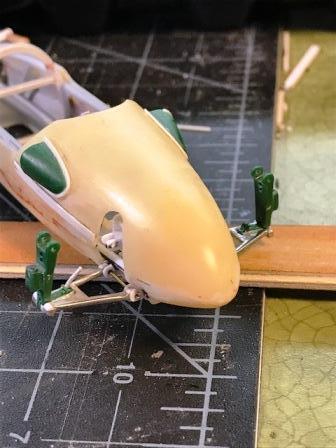

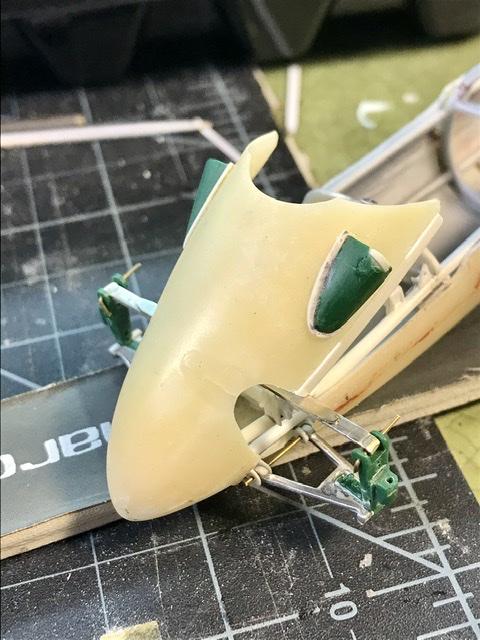

to the uprights I realized that I had to enlarge the openings in the nose

but that’s easier than reducing the size of the cut out - right?





Posted

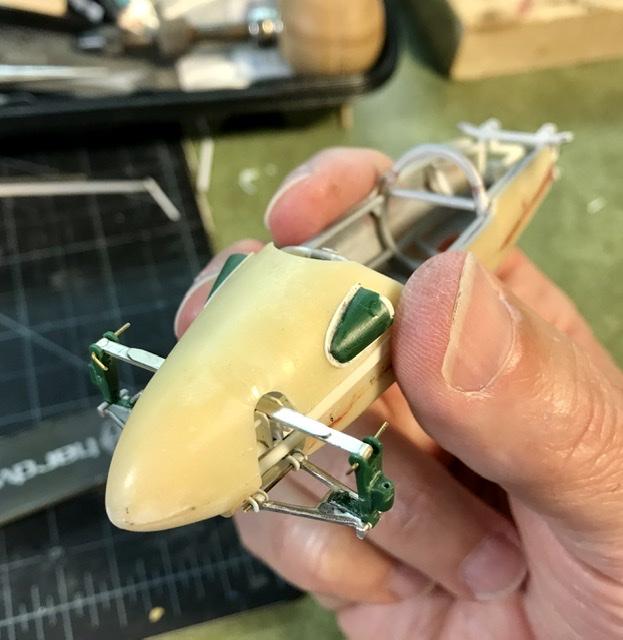

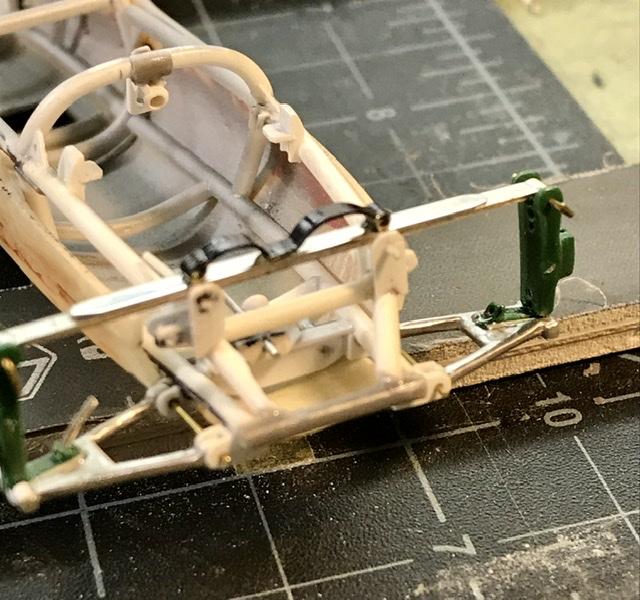

Once the spring leafs - 3 - were soldered and the opening in the nose was corrected it was time

to add some

hardware to the lead spring ...





Posted

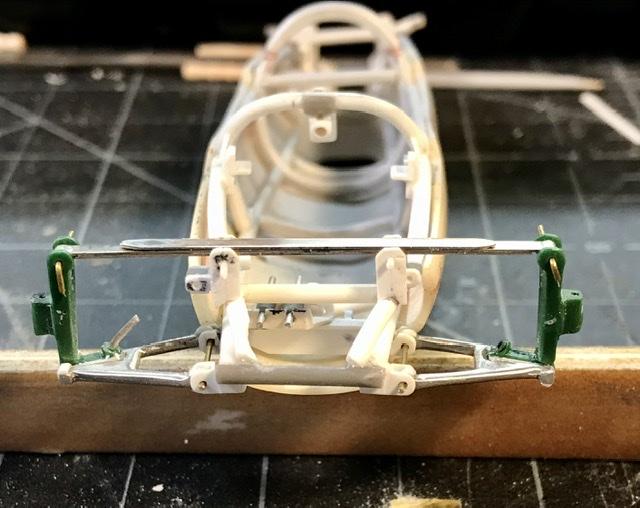

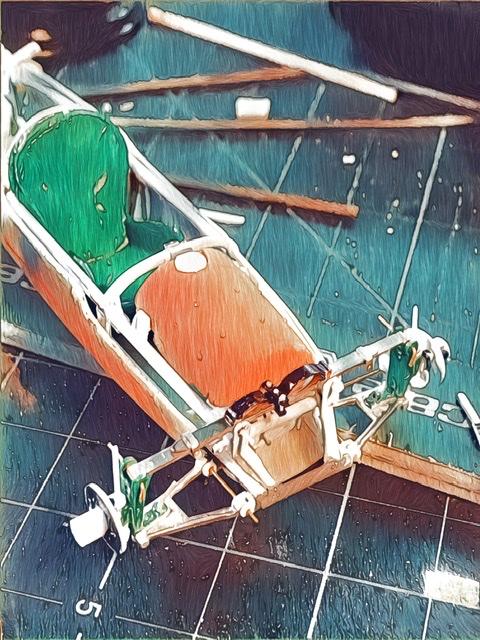

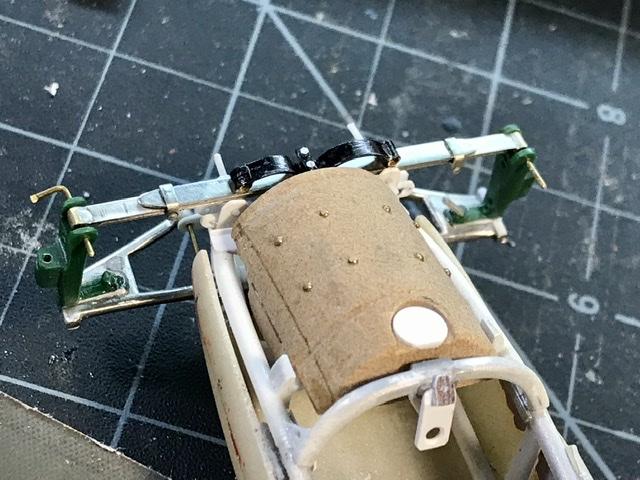

All of the cooper suspensions-

til 1960 - used a sway bar

or anti roll bar that perched on top of the leaf spring ...

that’s the black curly Q thing above the spring

the center locating bracket is

made from evergreen bar -

.020 by .040 - and RB motion aluminum .025 bolts n nuts ...

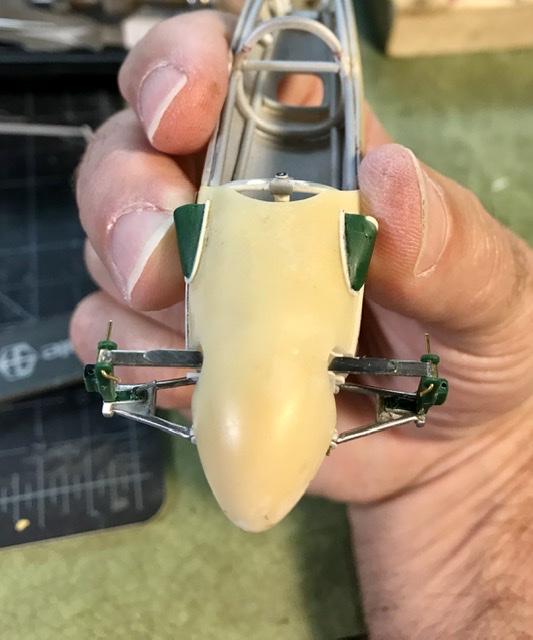

and there is a shackle bent from some nickel bar on either side of the spring ...




Posted

Thanks

The bottle has a removable vinyl (?) adhesive label

maybe I can is it for masking material ??

you never know ...

 or I could make a scale Unseen Creatures beer truck ....

Hmmmm  ....




Posted

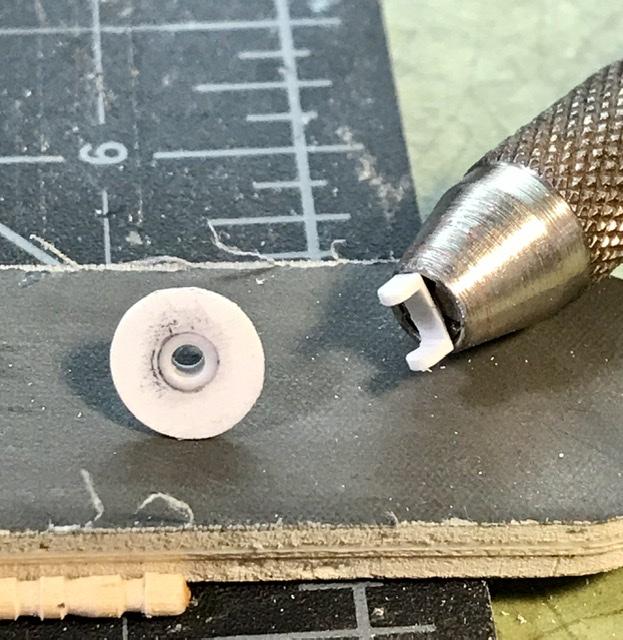

Evergreen sheet,  bar, tube

files, sanding sticks and some real small holes for bolts

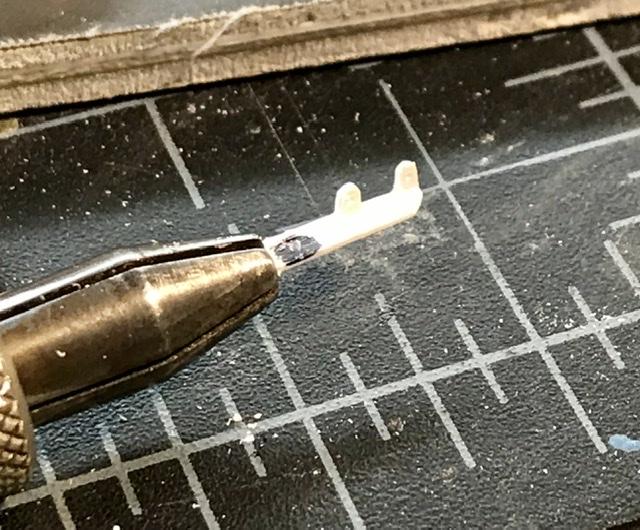

 the steering arm is filed from.080 L shape evergreen with a second piece of .015 by .060 bar to reinforce the steering arm

 the arm is then glued w Tamiya liquid glue to the backing plate

this glue was used for the whole assembly  I like the way that this glue fuses the parts for a strong bond





Posted

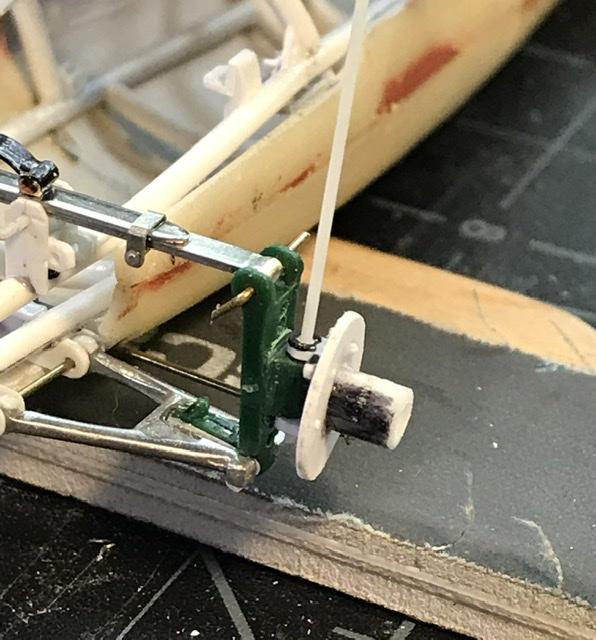

So far so good ...

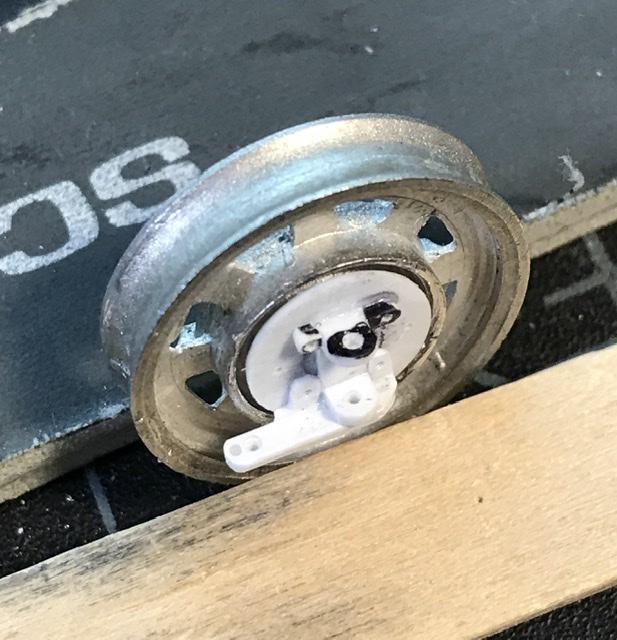

the hub carrier is held to the upright and can pivot on the pin - which at this point is simply a section of .025 evergreen rod

next I’ll make the assembly for the right wheel and see if everything points in the right direction





Posted

I haven’t gotten this much done in one weekend in years ...

my workshop is sick of seeing me ...  ...

and my bench is a disaster again ...

Posted

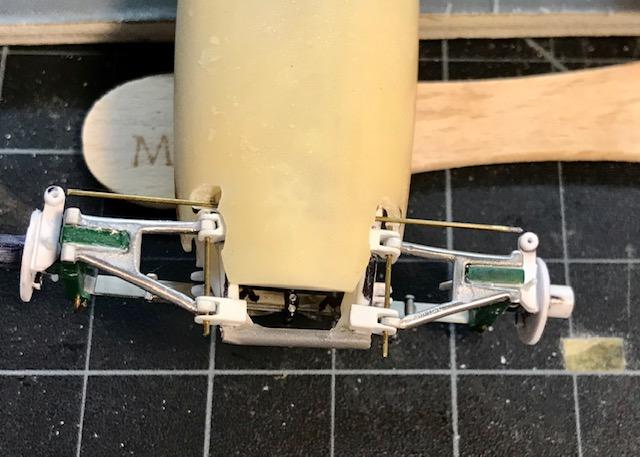

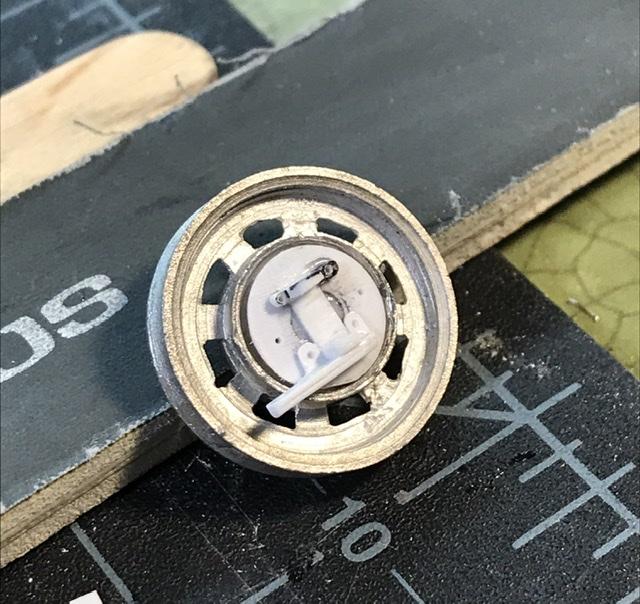

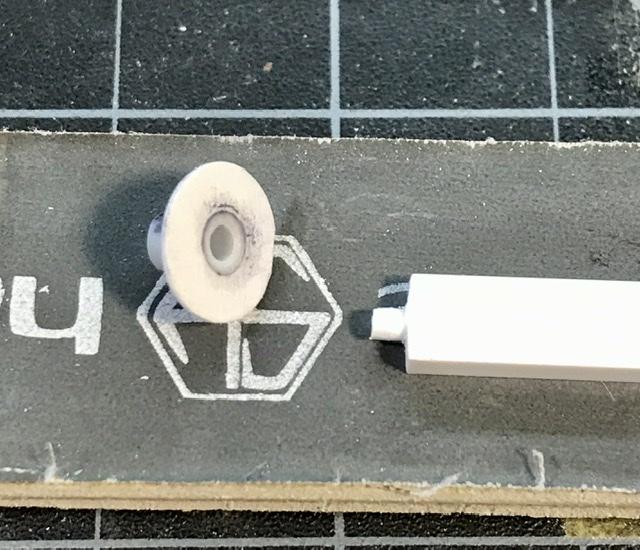

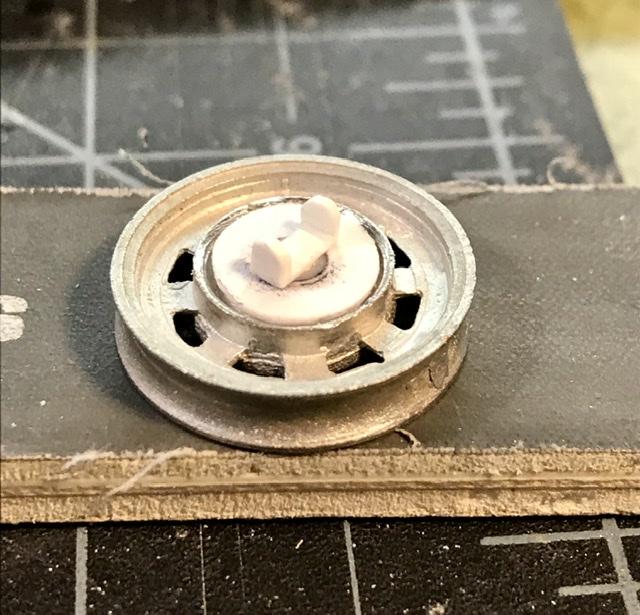

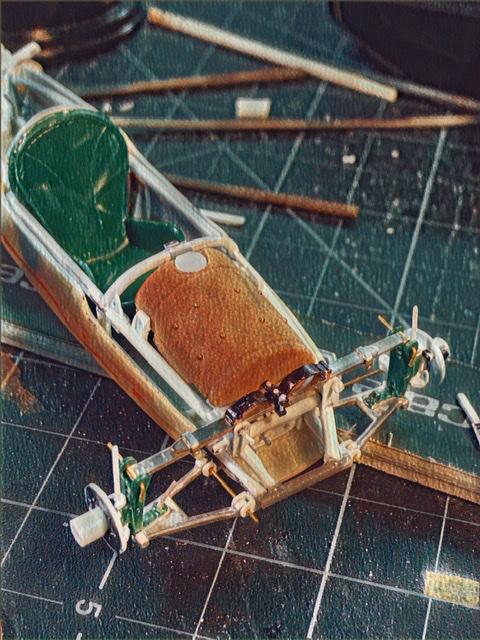

so the right wheel backing plate/hub assembly now has a friend for the left wheel ...

they are attached to the spindle to check fit and operation ….

the fourth picture has a brass rod in place to check the run of the tie rod and its relationship with the steering arms

next is a beer run

then tie rod assembly

- then some work on the wheels

and then some work on the pedals ….









Posted

Andy...outstanding scratch build work.  I can really relate to this as I just went through this with a recent build.  Thanks for posting this and the  Indy car WIP.  BTW I found an Etzel engine for my kit. Replicars and Minatures  had it. You were my inspiration.

Posted

RC. Thanks I always conspire to be a perspiration to the forum

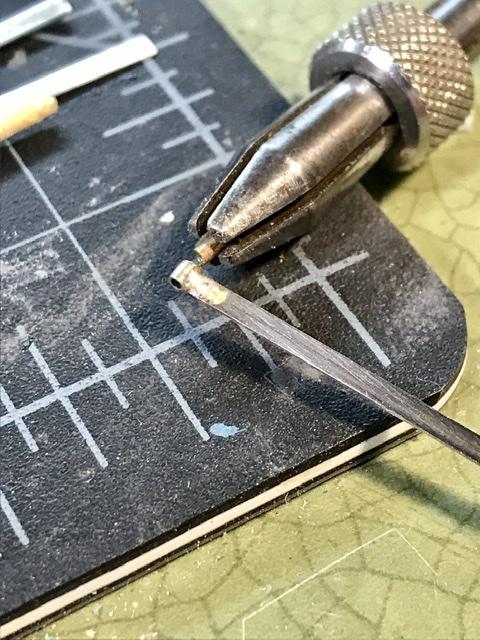

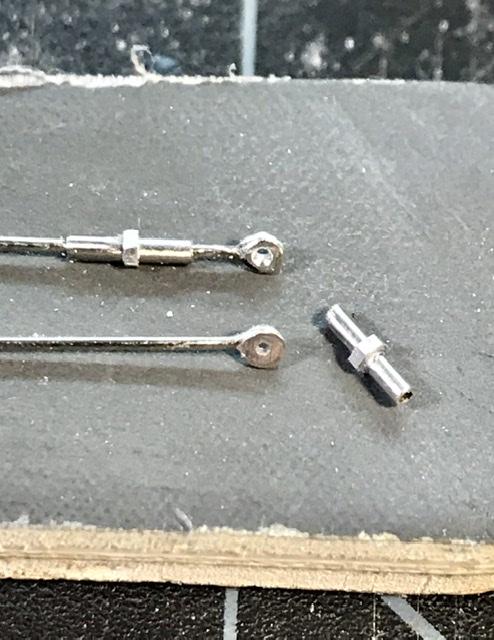

Tie rod components

nickel tube about .034

      With a stray rb motion nut

nickel rod .020

the rod end is bent w pliers to form  then filled with

solder and then drilled per the link to the shifter

will add a couple more nuts when assembling




Posted

Department of Corrections

the frame cross member in the

foot well is in the wrong place - too close to the location of the

pedals - sure to break some ankles if the cooper hit something...  so I removed it with

a small cutting burr and liquid glued its replacement about a quarter inch farther back

now I can make and

locate the pedals ...




Posted

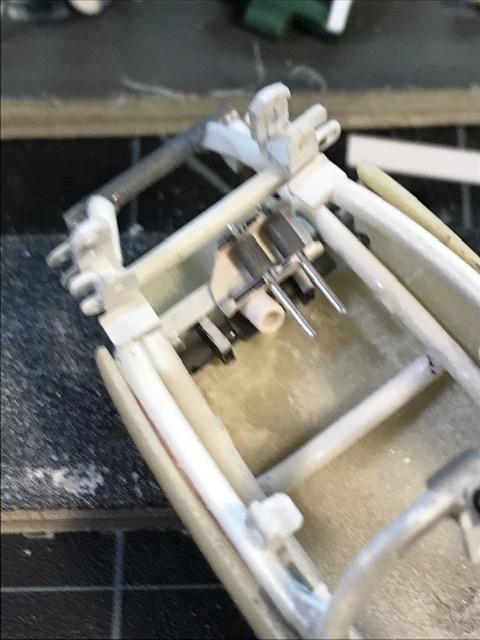

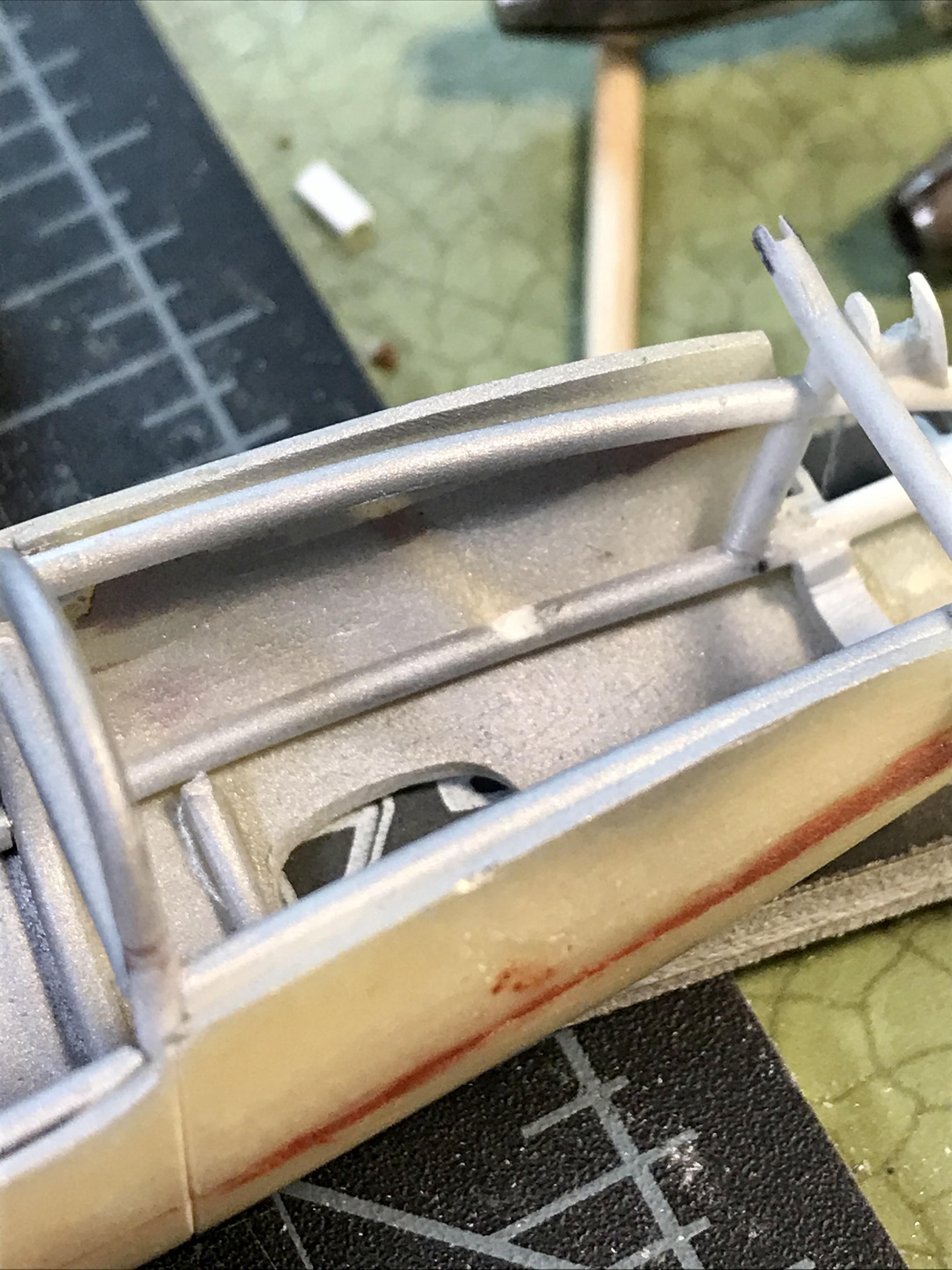

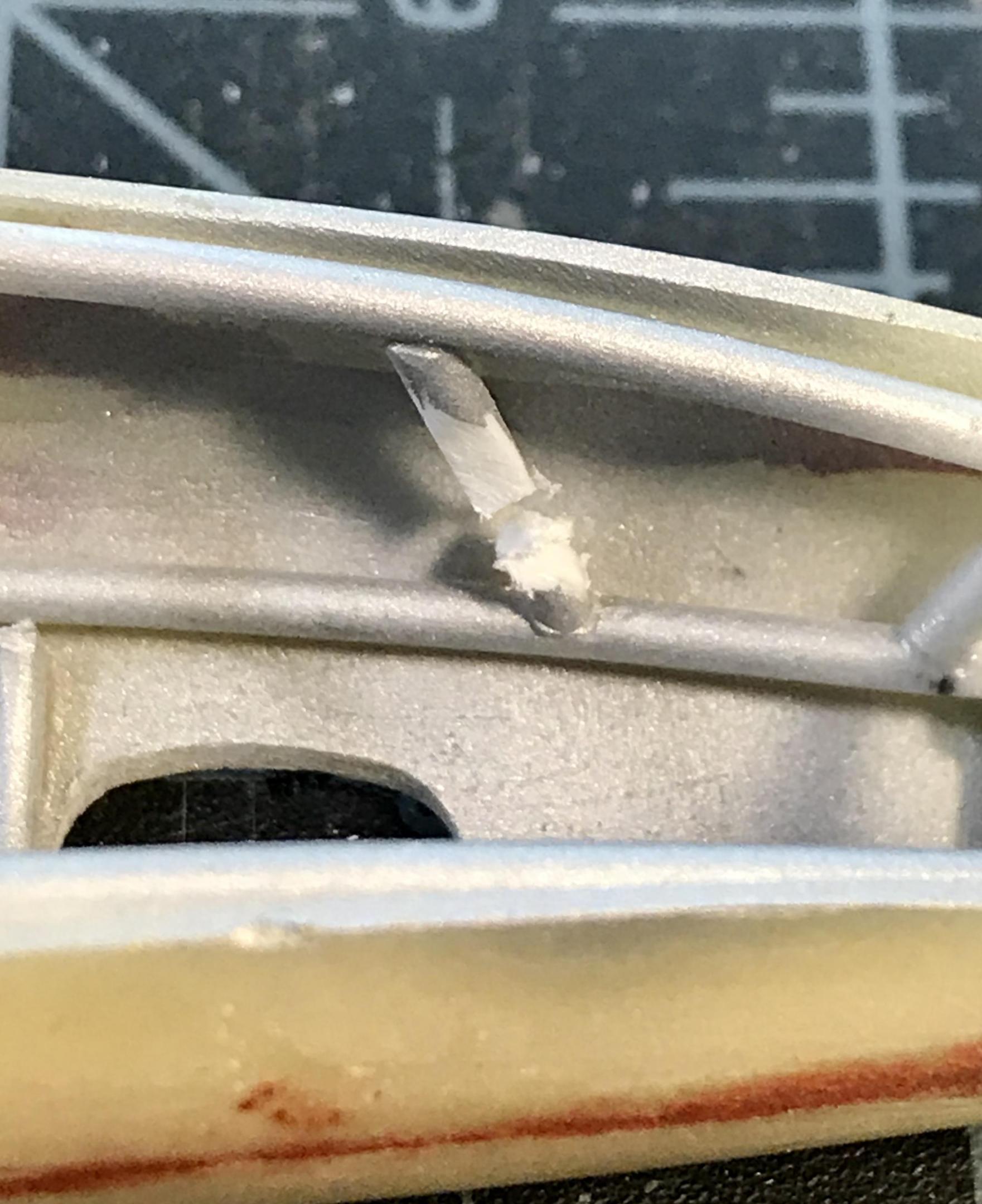

In the engine bay. The right

side brace interferes with the linkage to the fear box

i noticed that at least some of these cars were made without the brace  - so out it comes ....
