[Rusty92]

Pat, what are you using for the lines on the engine? Clear bead line of some sort? And as for the hexagon fittings also? They look great!

[landman]

36 minutes ago, Rusty92 said:

Pat, what are you using for the lines on the engine? Clear bead line of some sort? And as for the hexagon fittings also? They look great!

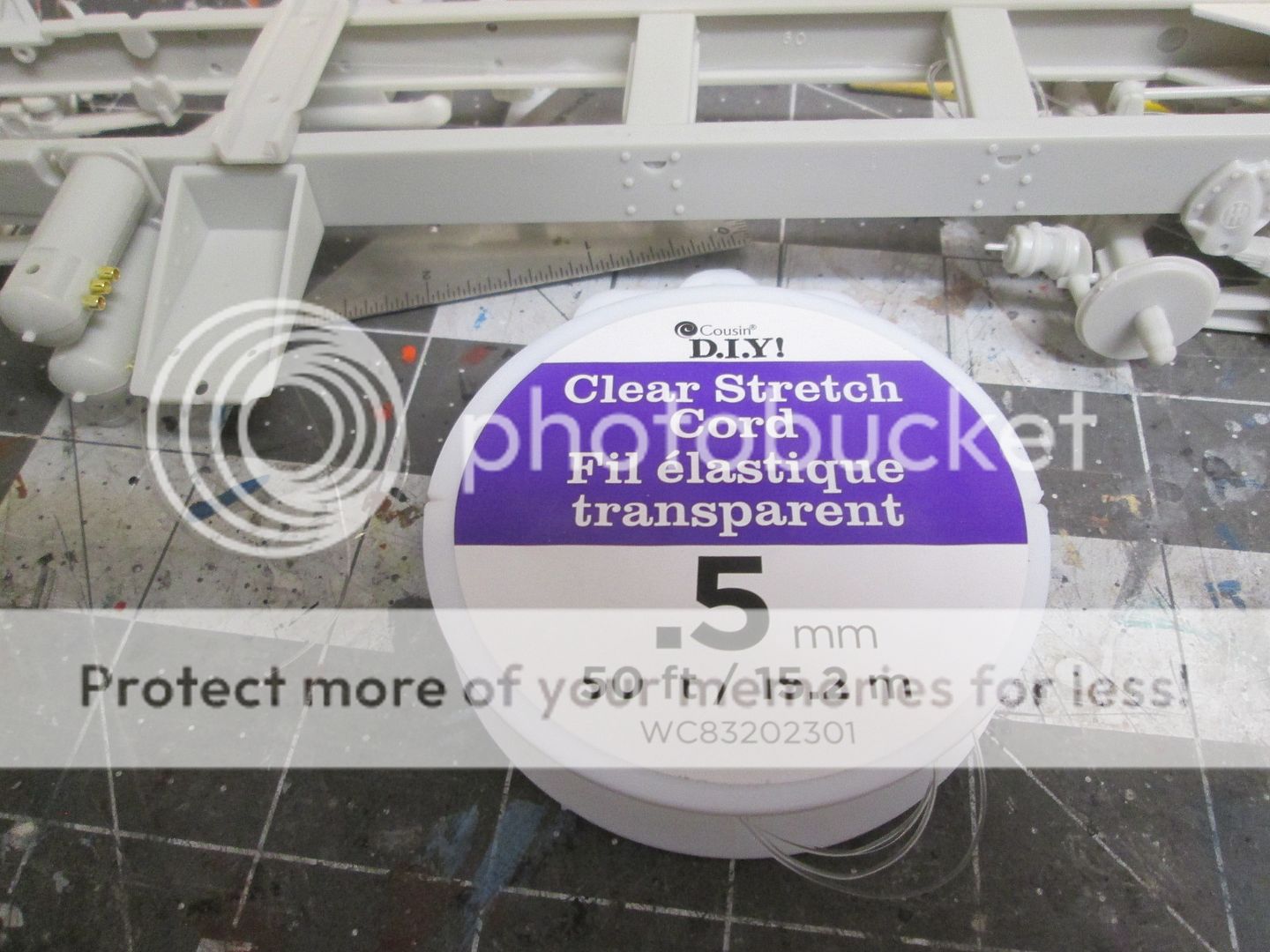

The clear stuff is Cousin D.I.Y. .5 mm clear stretch cord. The gold stuff is 24 GA Cousin beading wire. The copper stuff is 30 GA Artistic Wire. The larger silver stuff is 22 GA bare wire. Most are from Michaels and /or Dollar stores. The hex fittings are No.11 Fusion beads, https://www.fusionbeads.com/Size-11-Metallic-Dark-Bronze-Hex-Japanese-Seed-Beads-by-Toho-222

[Sam I Am]

WoW! I really want to add plumbing to one of my builds someday.  Thanks for the great pics as well as the specific items you use. I forsee a trip to HL or Michael's in the near future.

[guitarsam326]

On 2/8/2019 at 9:11 AM, landman said:

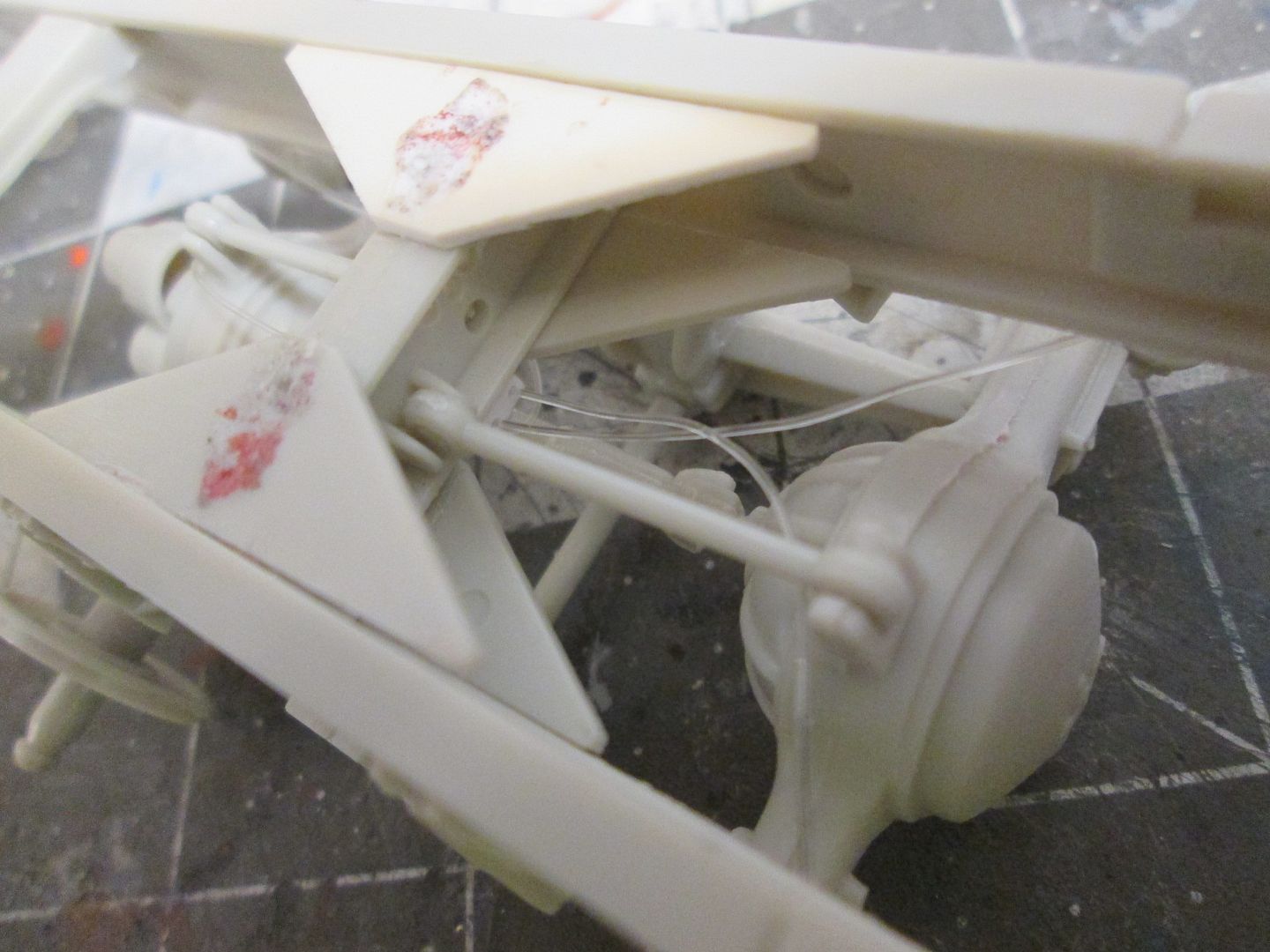

Started playing with the air lines. I see I forgot the fittings at the junction block.

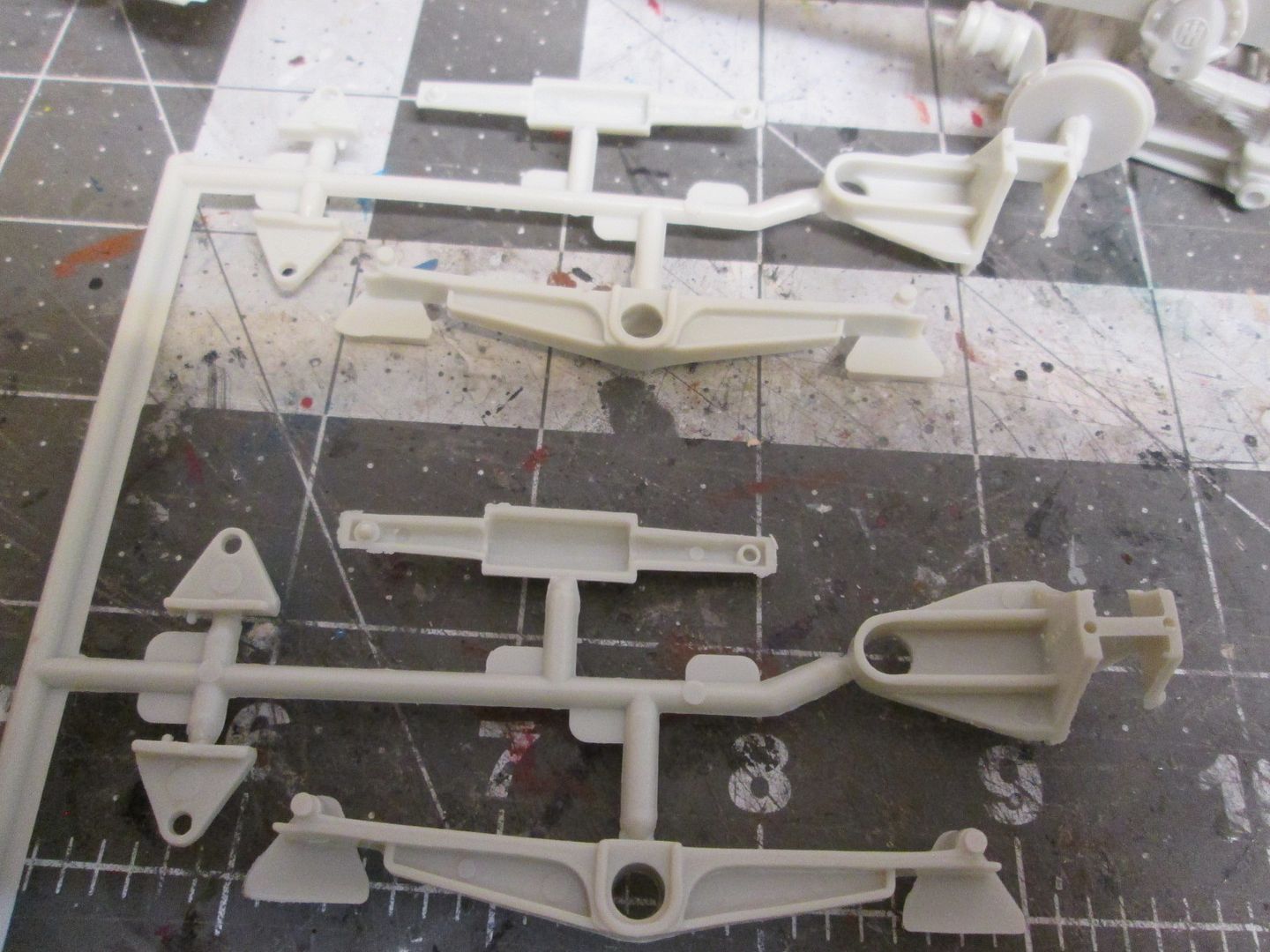

Also, there is this in the kit which looks like it is either optional or extra. Looks like a very heavy duty rear axle.

These are great kits that go together surprisingly well. The issues i remember with mine were the rear suspension has a small rake to it and i also used Aitm wheels on the front of mine, which look great but i had to do  a lot of cutting to make the wheels sit in closer to the frame......those extra suspension parts are for the DM 800

[landman]

16 hours ago, guitarsam326 said:

......those extra suspension parts are for the DM 800

I wonder what they were doing in the Paystar box. i don't have a DM 800.

[landman]

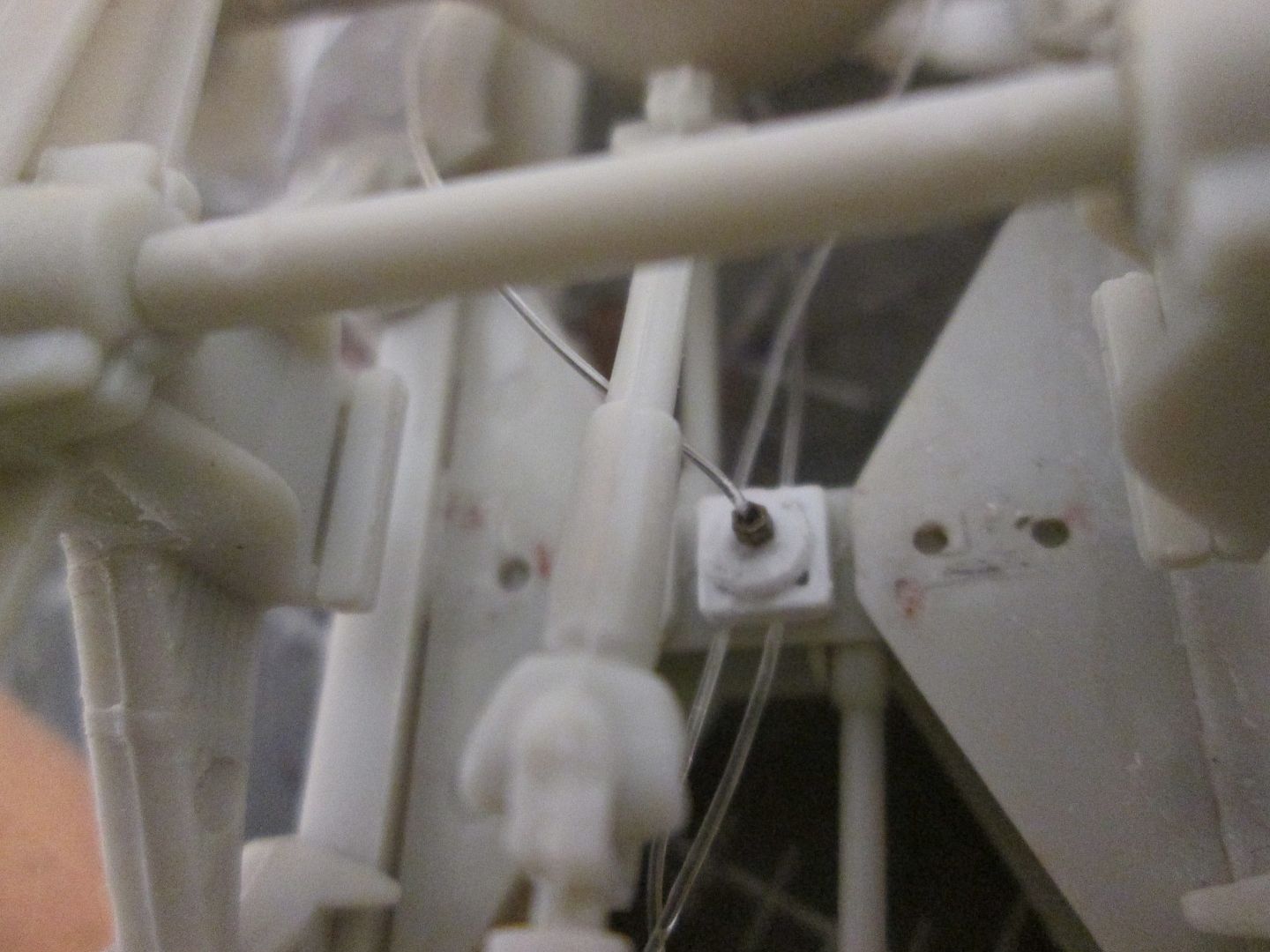

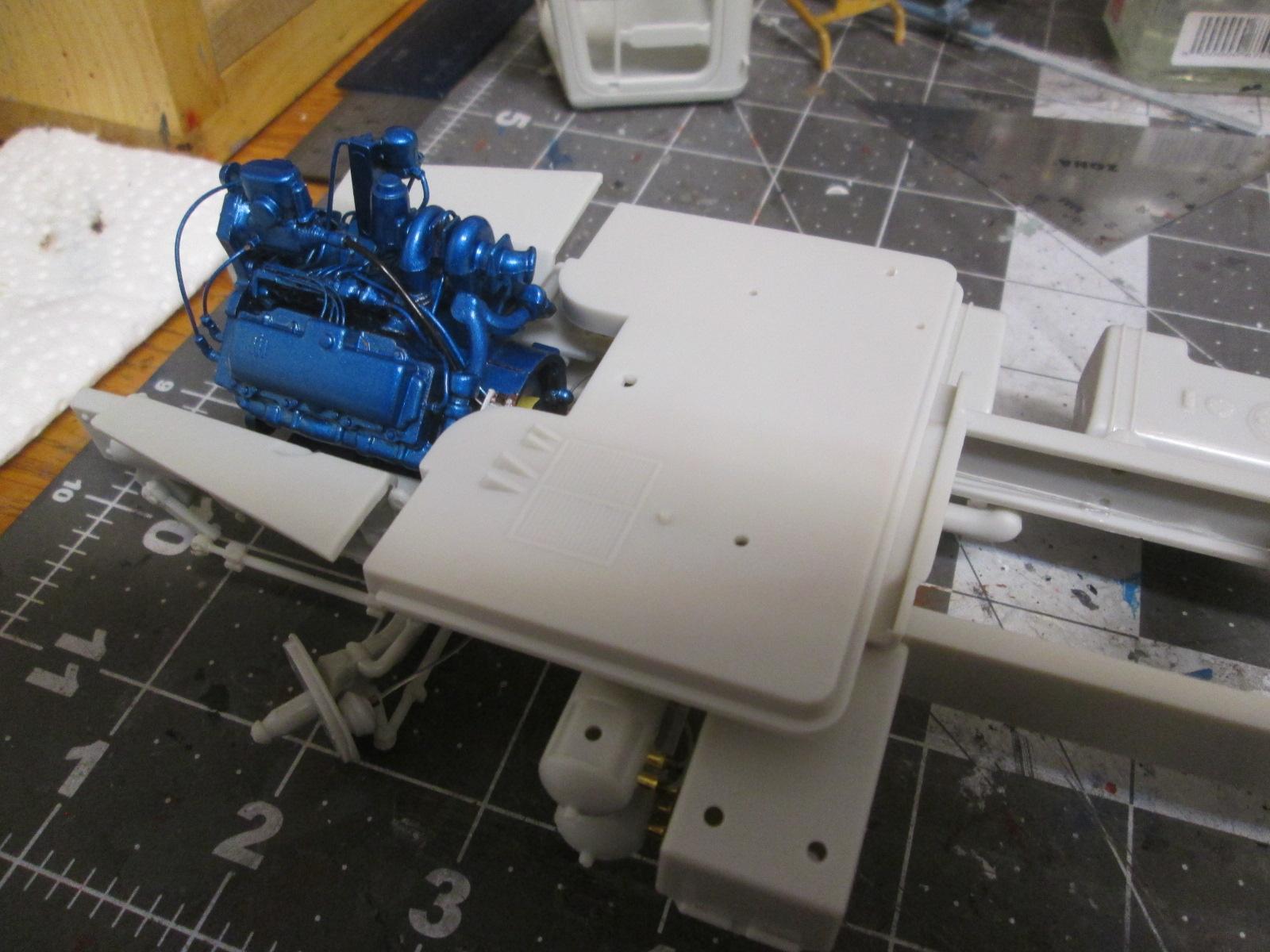

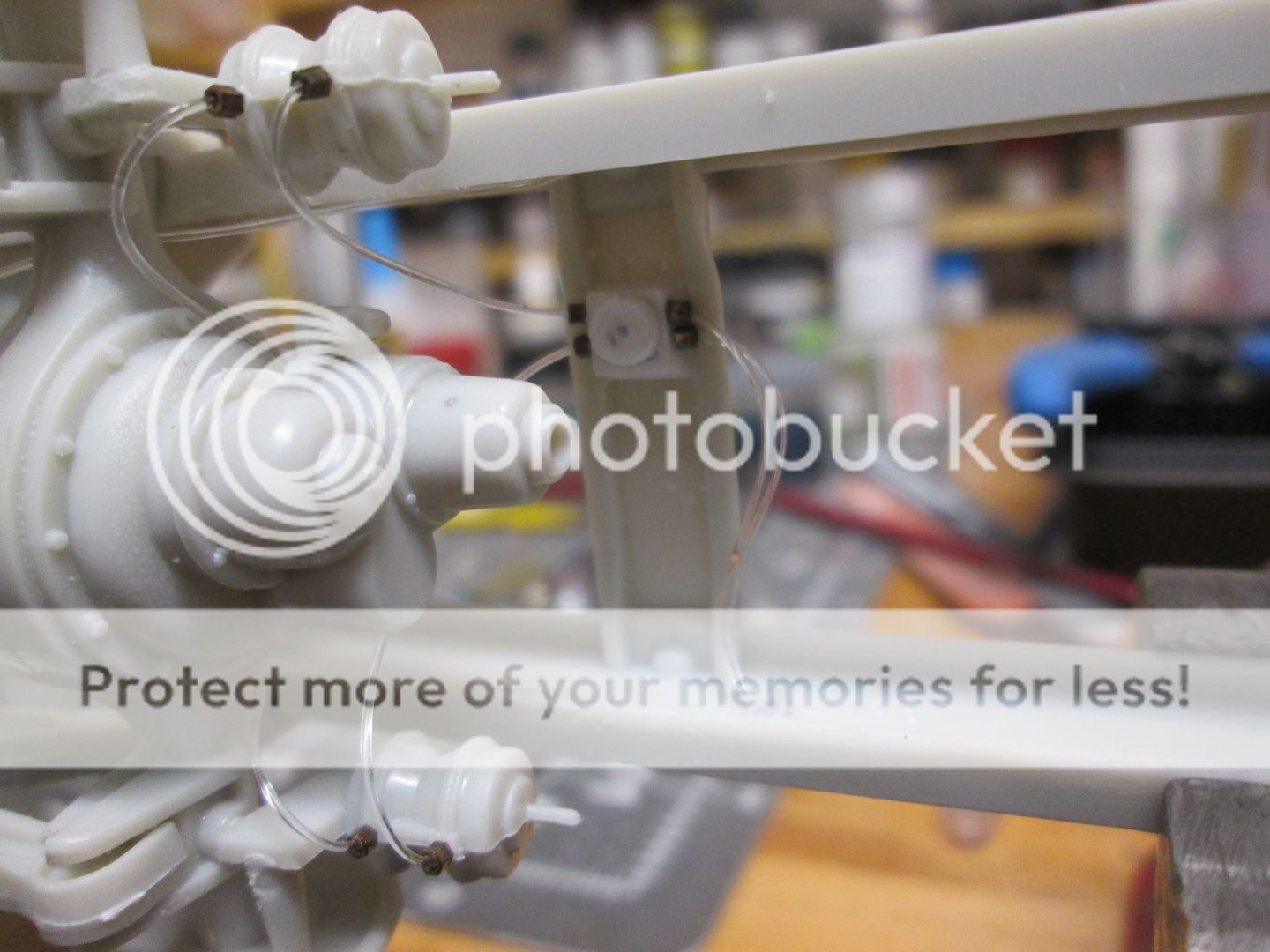

Bringing everything forward to the tanks, then on to the compressor.

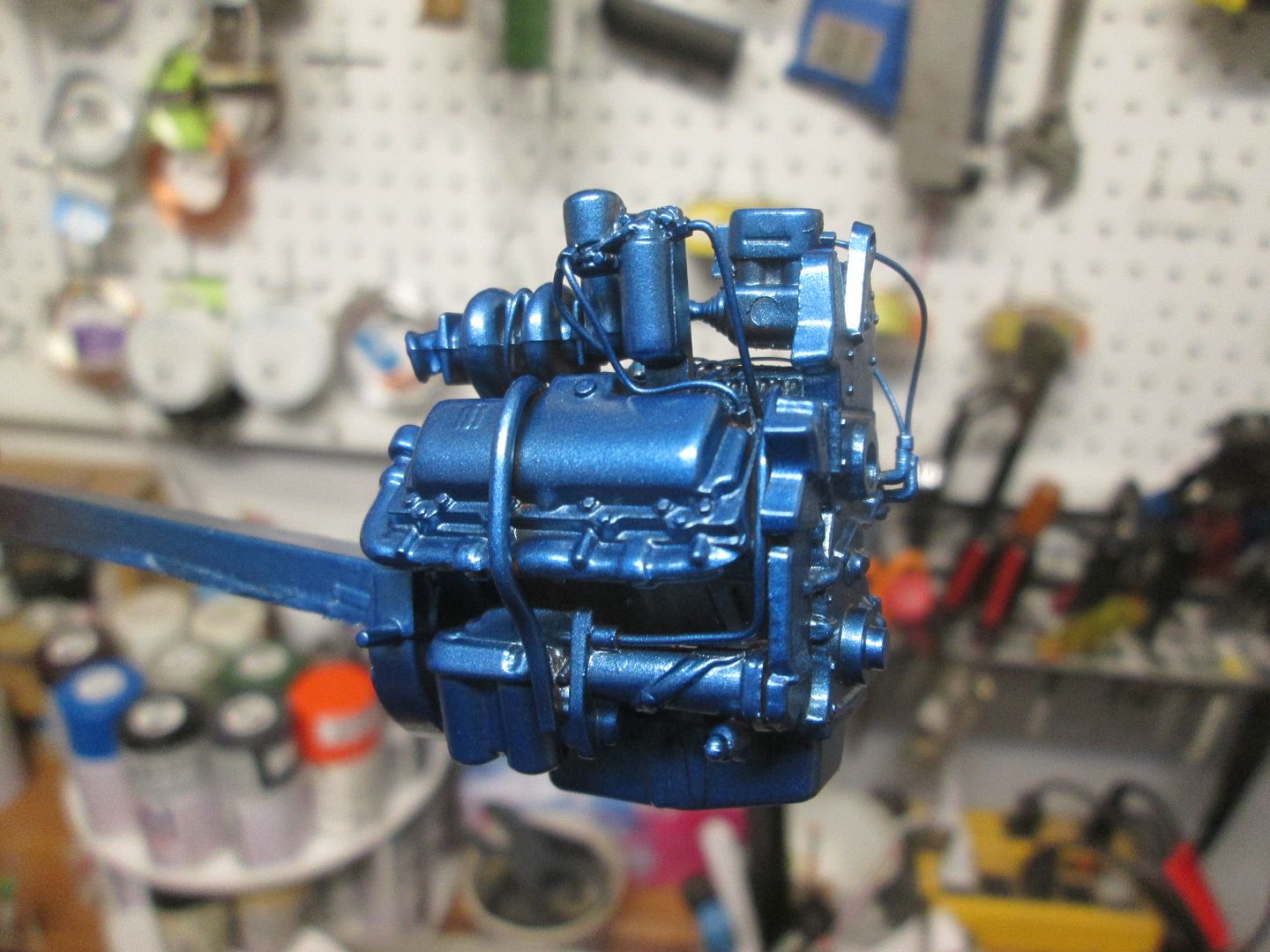

The engine is painted. Next come the detailing.

Edited October 26, 2020 by landman

[TheSDTrucker]

57 minutes ago, landman said:

Bringing everything forward to the tanks, then on to the compressor.

The engine is painted. Next come the detailing.

Fantastic detail! What are you using for the air lines?

[landman]

On 2/13/2019 at 11:00 AM, TheSDTrucker said:

Fantastic detail! What are you using for the air lines?

This,

Edited October 26, 2020 by landman

[TheSDTrucker]

Thank you! Been following this build from the start, I enjoy watching your work!

[gotnitro?]

Love watching your builds come together

Thanks for IDing the lines , I thought they might be monofilament

[landman]

Glad you guys are enjoying it. So am I. Learning as I go.

[DRIPTROIT 71]

Looks great!! I'm always learning as I go.

[landman]

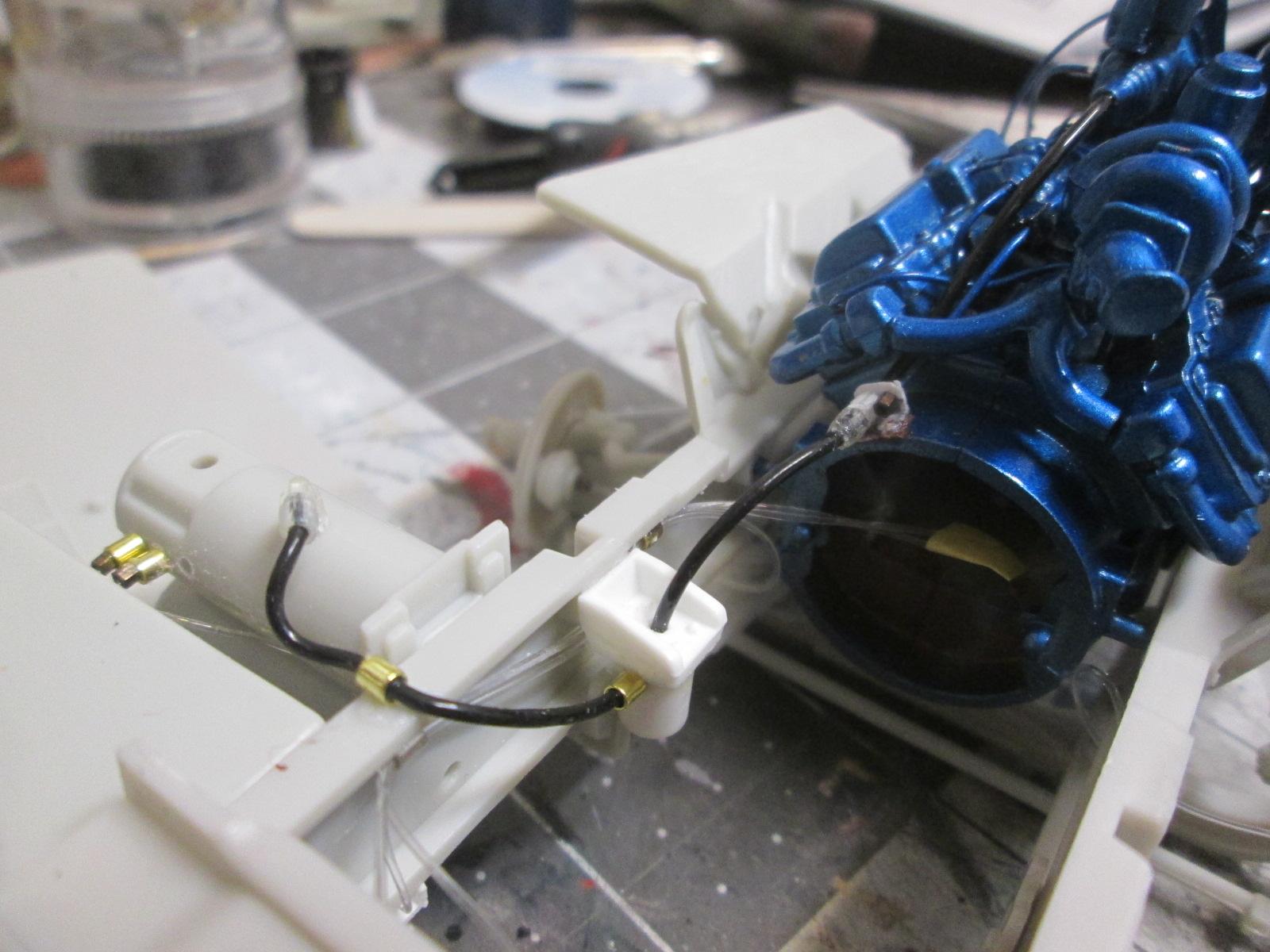

Plumbed the front end using a sketch found here. The two loose ends will connect to the valve under the foor below the brake pedal. I see some of the fittings on the tank have moved.

Making up an air dryer. it will be between the tanks and the compressor.

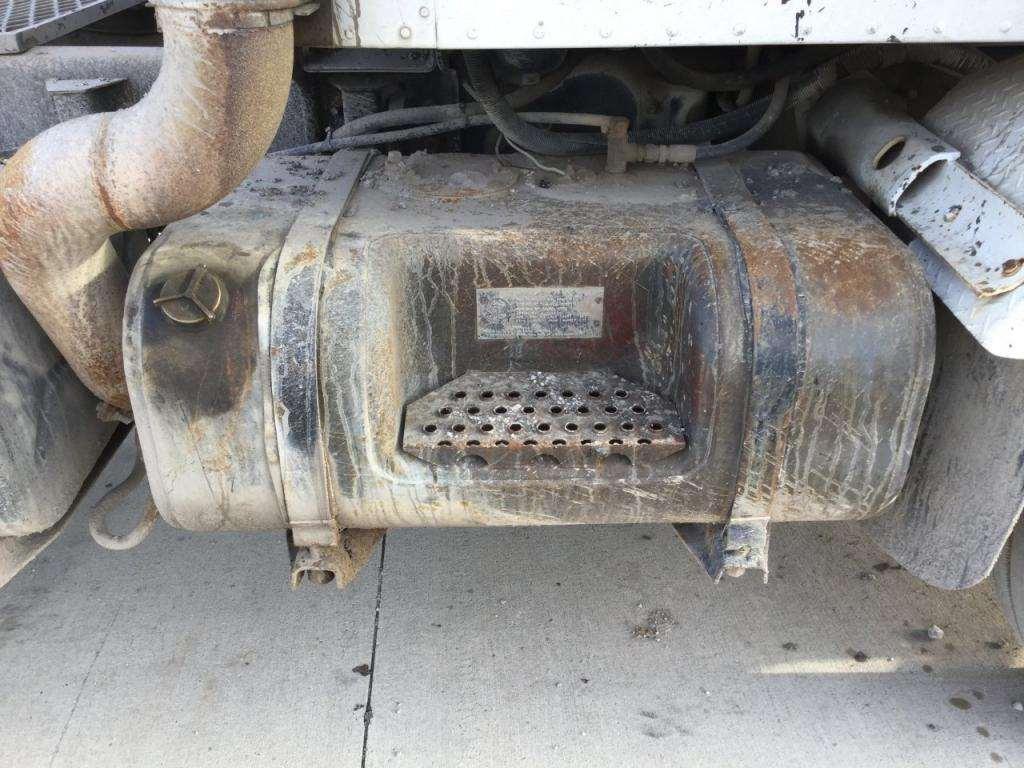

Where do the fuel lines connect on the tanks? Is the rectangular fitting where they go or is it underneath?



Edited October 26, 2020 by landman

[Chariots of Fire]

What are you using for the hex nuts on the ends of the hoses?  Fusion beads?

[landman]

3 minutes ago, Chariots of Fire said:

What are you using for the hex nuts on the ends of the hoses?  Fusion beads?

Yes.

[landman]

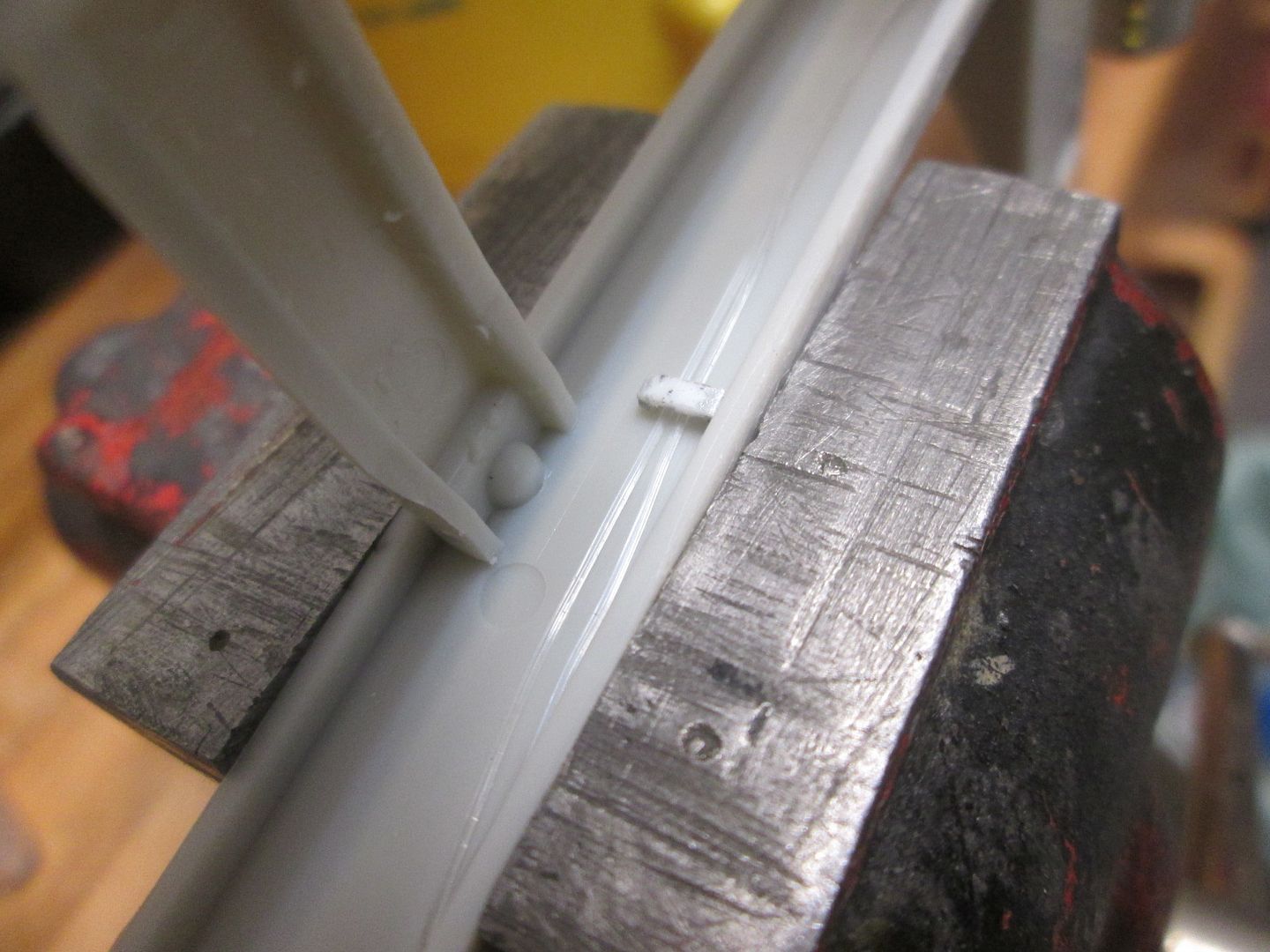

I think I have my answer for yesterday's question.

Air dryer is mounted and hooked up. Next comes the fuel lines.

Am I going to run into grief by mounting the cab floor to the frame now? It would allow me to connect those air lines before painting the frame. the instruction have you mount it to the cab first.

Edited October 26, 2020 by landman

[drinkone2]

Wow, nice work on the plumbing, and thanks for the info on what you used! I definitely need to try it on one of mine.

[gotnitro?]

Pat -  to hopefully answer your question about mounting the floor, I did just that on my paystar mixer. The cab slid right over the outside and fit well.

[landman]

2 hours ago, gotnitro? said:

Pat -  to hopefully answer your question about mounting the floor, I did just that on my paystar mixer. The cab slid right over the outside and fit well.

Thank you.

[landman]

The plumbing is complete with the addition of the fuel lines.

Bird's eye view.

Edited October 26, 2020 by landman

[tbill]

Wow, nice plumbing job, it’s a shame most of it won’t be seen once it’s all together, but fantastic just the same.

[landman]

14 minutes ago, tbill said:

Wow, nice plumbing job, it’s a shame most of it won’t be seen once it’s all together, but fantastic just the same.

Thanks. At least we have the pictures here to refresh our memory.

[landman]

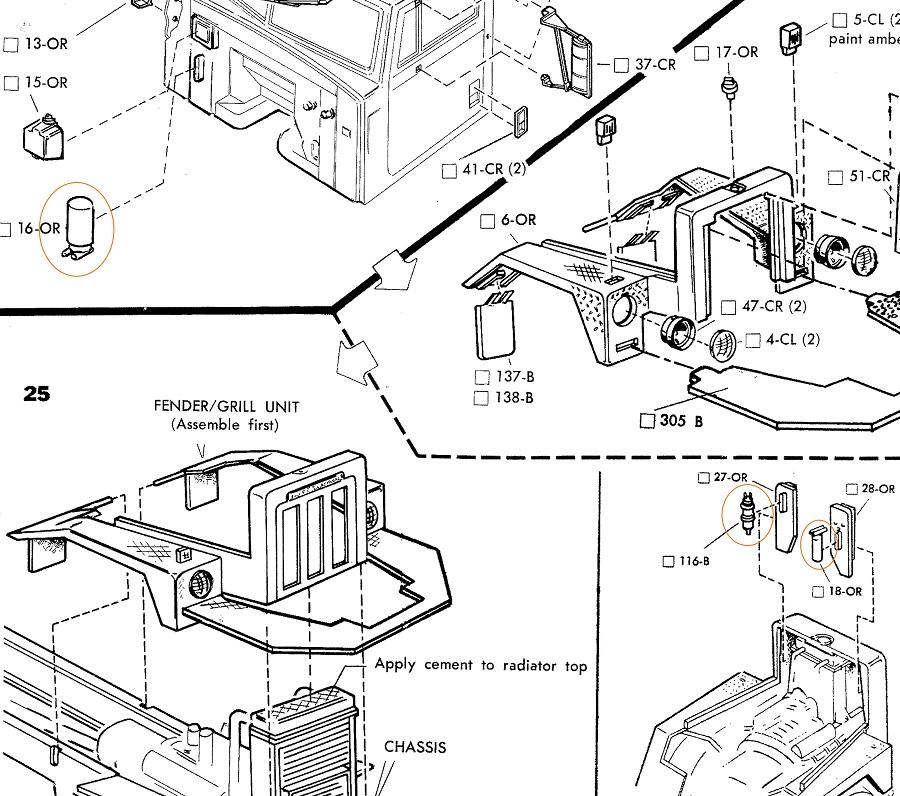

OK, now I need your help. What is the name and the function of the three canisters circled in red so I can do research on where they hook up. Thank you very much.



Edited October 26, 2020 by landman

[landman]

All that tubing is very visible in primer.

Edited October 26, 2020 by landman

[tbill]

20 hours ago, landman said:

Thanks. At least we have the pictures here to refresh our memory.

It is amazing how much detail we put into certain builds for it only to be seen in photos, cause once it’s in the display case , we hardly look at the details. We are a crazy bunch, aren’t we? Haha....
