landman Posted January 3, 2021 Author Posted January 3, 2021 19 minutes ago, gotnitro? said: Hey Pat I can take some off my autocar wrecker this afternoon and close ups if that would help ?

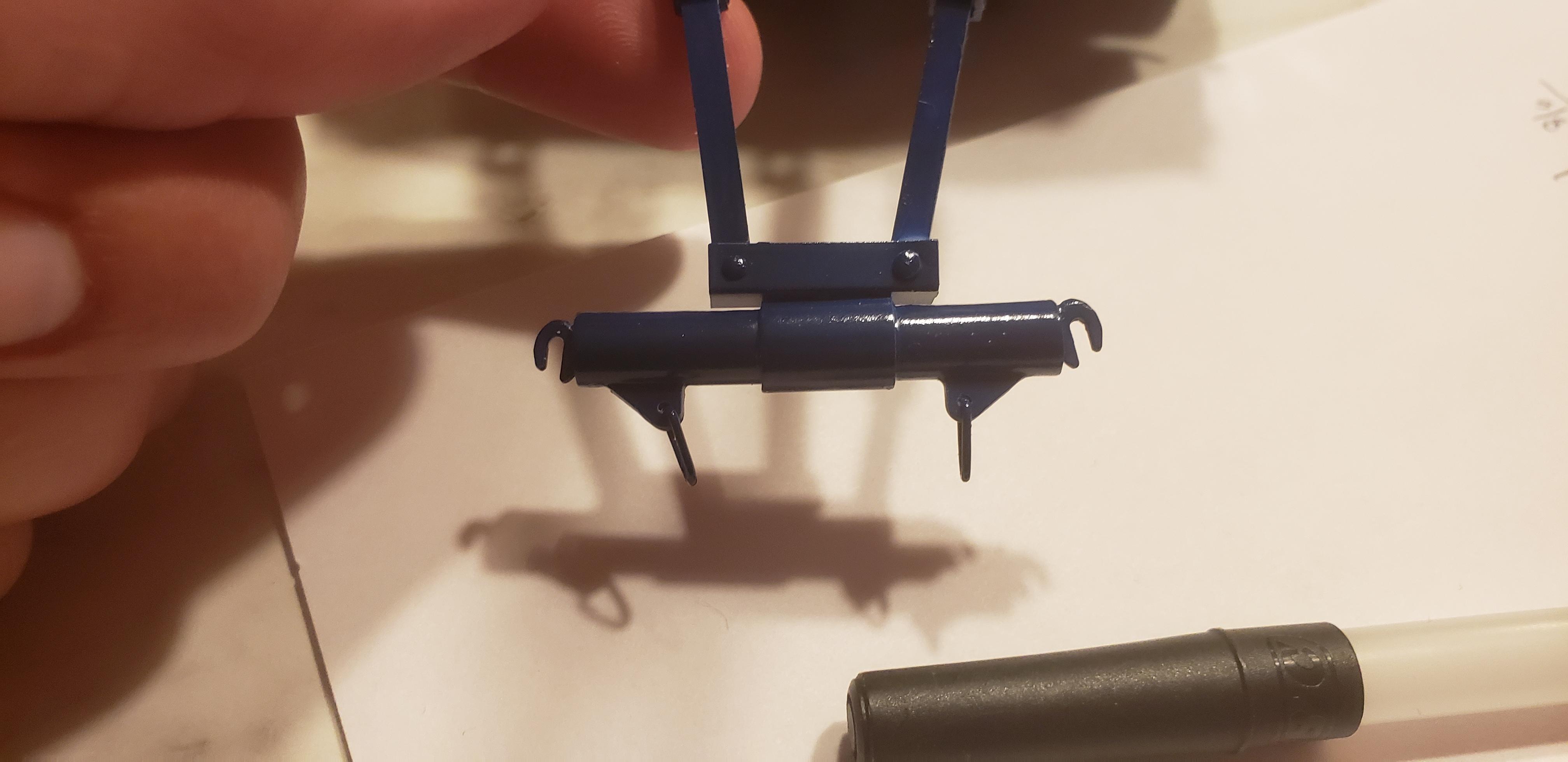

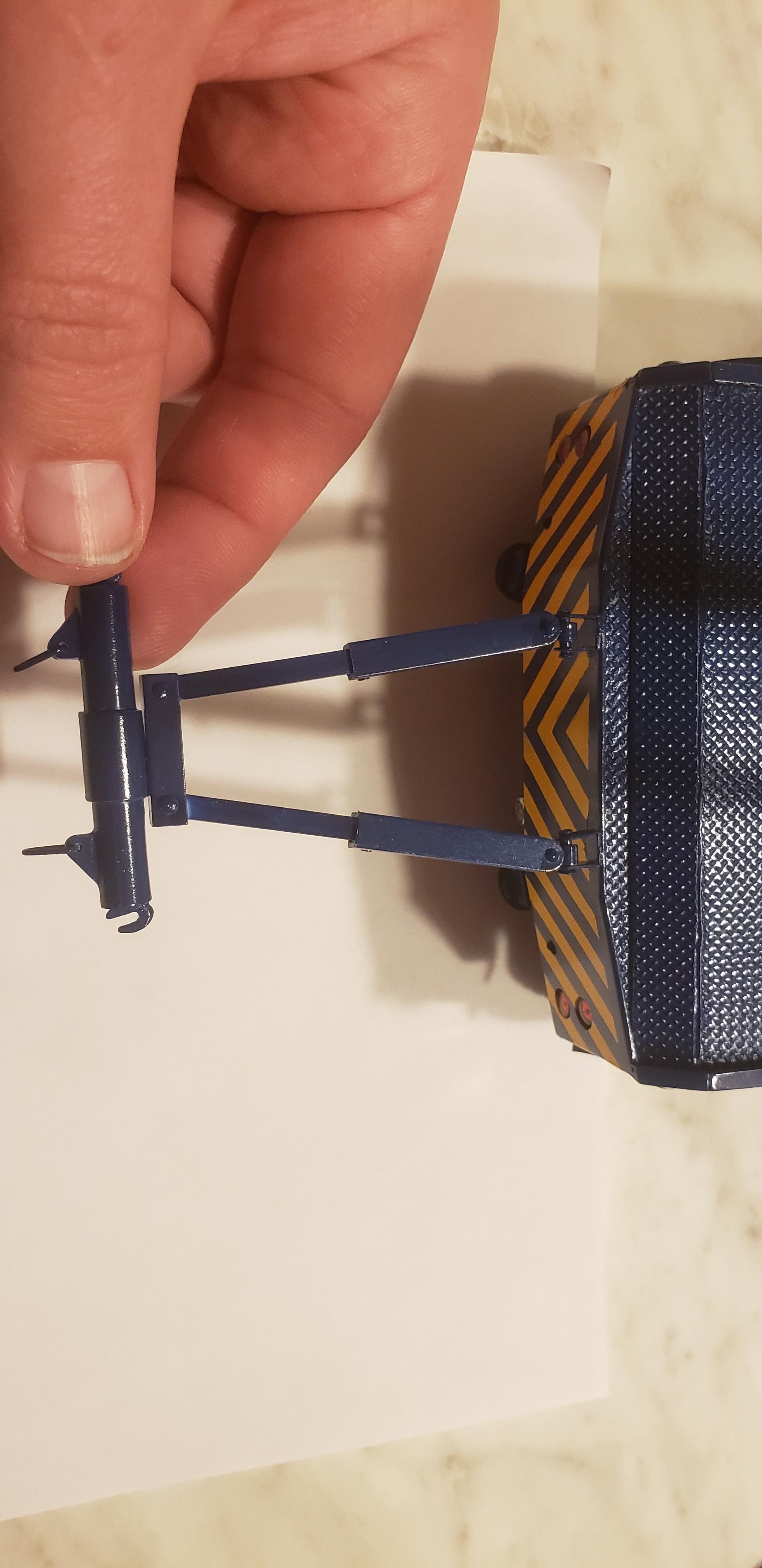

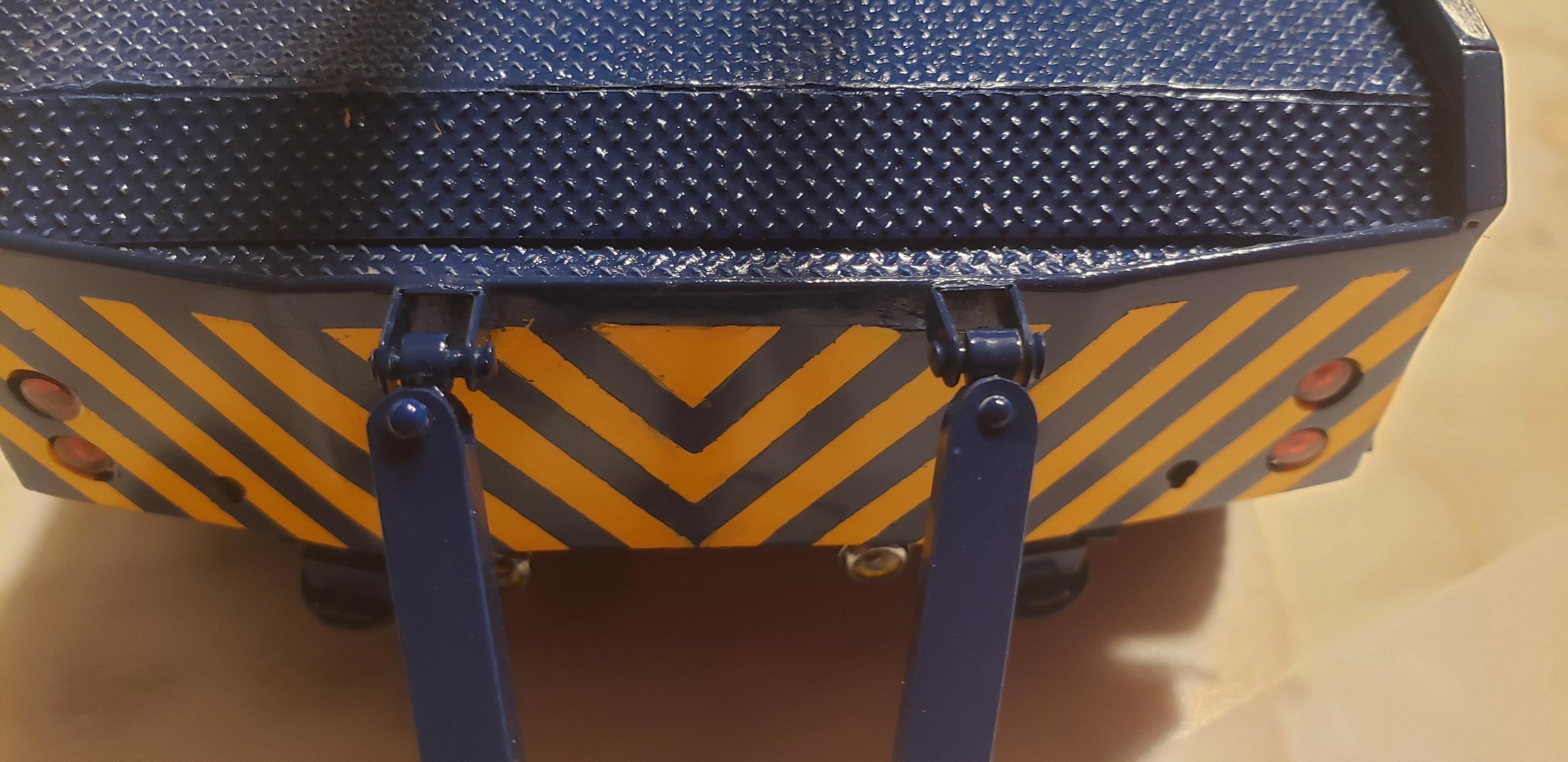

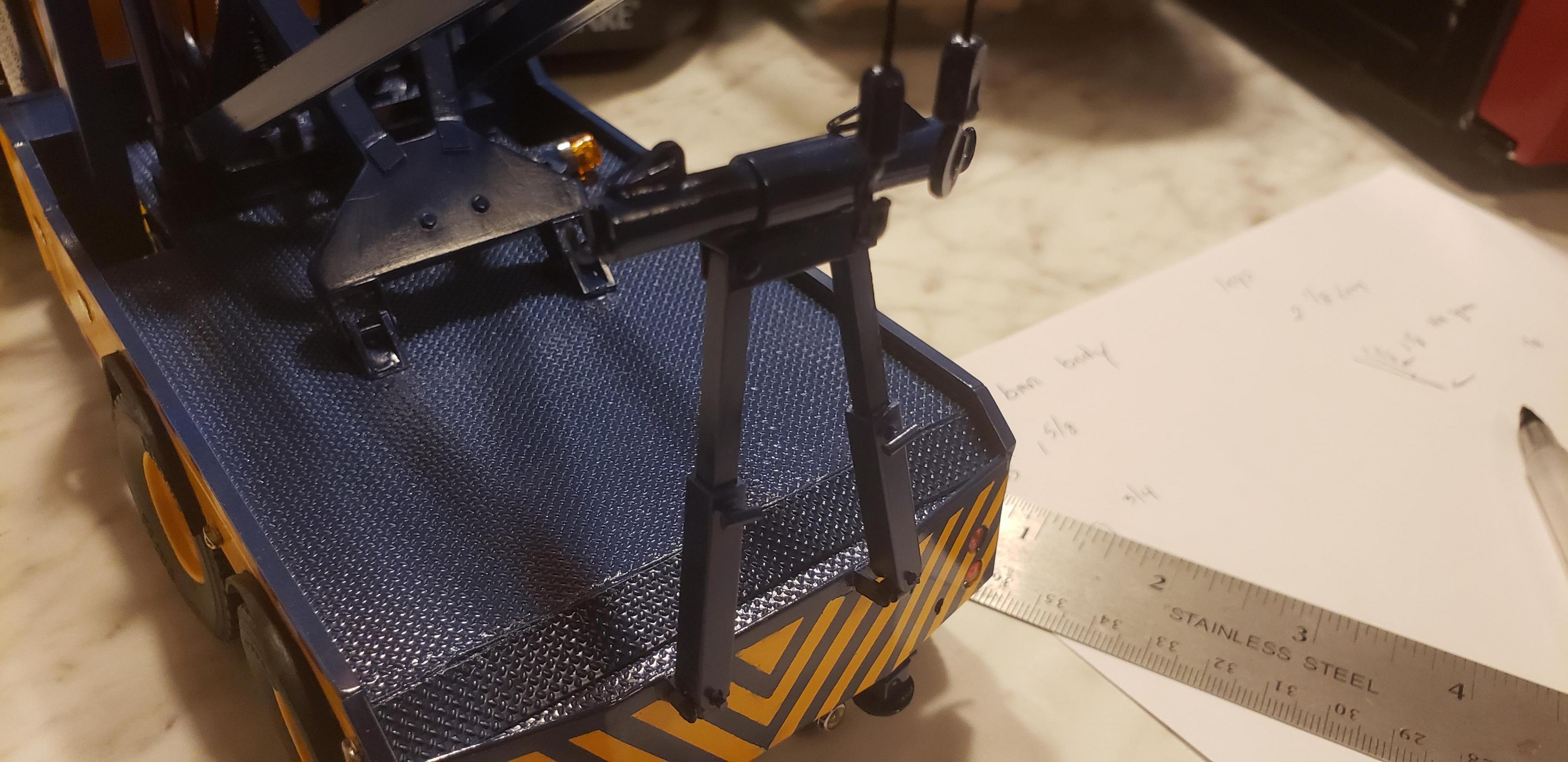

gotnitro? Posted January 3, 2021 Posted January 3, 2021 Here ya go The legs are telescopic square tube 2 1 / 8 overall length. Each section is 1 1/8 long inner one closest to truck was 3 /16 tube outer 1/8 The towbar tube body is 1 5/8 long The middle tube is .305 tube 7/16" long Outer tubes .248 " 5/8" long The rectangular section where legs join tow bar is 3/4 long x 3 /16" it was photoetch Underneath was a small shaped piece looked like T pinning both sections of legs . Real ones this allows legs to extend . Here's how KFS wanted them attached to bed body Hope this helps !
landman Posted January 3, 2021 Author Posted January 3, 2021 1 hour ago, gotnitro? said: Here ya go The legs are telescopic square tube 2 1 / 8 overall length. Each section is 1 1/8 long inner one closest to truck was 3 /16 tube outer 1/8 The towbar tube body is 1 5/8 long The middle tube is .305 tube 7/16" long Outer tubes .248 " 5/8" long The rectangular section where legs join tow bar is 3/4 long x 3 /16" it was photoetch Underneath was a small shaped piece looked like T pinning both sections of legs . Real ones this allows legs to extend . Here's how KFS wanted them attached to bed body Hope this helps ! Absolutely! Thamk you Jeff.
landman Posted January 4, 2021 Author Posted January 4, 2021 Almost ready for primer. I found some hooks on some junk frame rails, those will be added to the ends of the tube.
landman Posted January 10, 2021 Author Posted January 10, 2021 (edited) And so here it is in primer. I t will stay like this until I find out what truck it will sit on which will also dictate which color it will be. Edited January 10, 2021 by landman
landman Posted January 10, 2021 Author Posted January 10, 2021 28 minutes ago, DRIPTROIT 71 said: Man that looks good!!! Glad you like it Brian.
gotnitro? Posted January 11, 2021 Posted January 11, 2021 Very nice work Pat ! Can't wait too see the wrecker bed and chassis this goes with
landman Posted January 11, 2021 Author Posted January 11, 2021 7 hours ago, gotnitro? said: Very nice work Pat ! Can't wait too see the wrecker bed and chassis this goes with I was comsidering cutting up the Car hauler body I have. Then again, I might sratch up something smaller to use with one of the old cabovers like a '41 Chevy .
gotnitro? Posted January 12, 2021 Posted January 12, 2021 Lol decision decision either way its gonna be sweet
landman Posted January 13, 2021 Author Posted January 13, 2021 Looks like a decision has been reached. I will attempt to duplicate (or imitate) this.
gotnitro? Posted January 13, 2021 Posted January 13, 2021 Very nice !!!! Theres something about these old trucks I really enjoy , they seem to have character i guess
AmericanMuscleFan Posted January 13, 2021 Posted January 13, 2021 It doesn't matter which cab you choose, it's to put your great job on the twin-boom wrecker up front (even if it's in the back...)!!!
misterNNL Posted January 14, 2021 Posted January 14, 2021 For those attempting this or any other build requiring gears, I have an unusual source for finding nearly a dozen gears in one place. I will list the sizes in the "tips and tricks" section in a few minutes for those interested.
landman Posted January 14, 2021 Author Posted January 14, 2021 3 minutes ago, misterNNL said: For those attempting this or any other build requiring gears, I have an unusual source for finding nearly a dozen gears in one place. I will list the sizes in the "tips and tricks" section in a few minutes for those interested. ?
misterNNL Posted January 14, 2021 Posted January 14, 2021 19 minutes ago, landman said: ? 19 minutes ago, landman said: ? I just posted that info on the "Tips and Tricks" section.

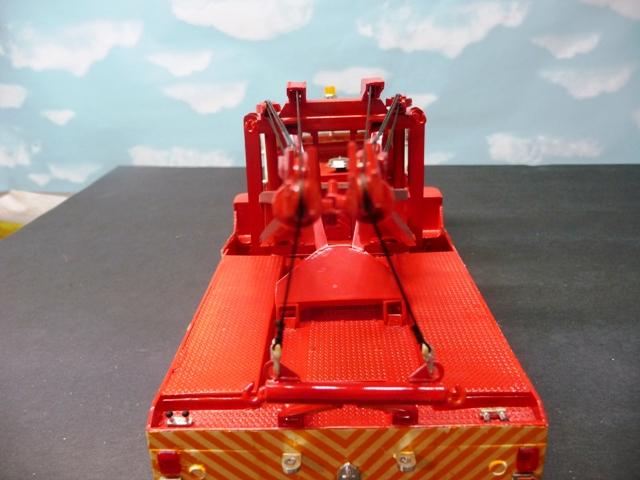

GLMFAA1 Posted January 15, 2021 Posted January 15, 2021 Got a chance to dig out the ALF/Holmes and took a shot of the boom lock. I cheated and did not use Phil's plan on the lock. I used a simple C channel with a single piece from the other boom to fit inside and then pinned it through a hole hope this helps. greg
landman Posted January 15, 2021 Author Posted January 15, 2021 2 minutes ago, GLMFAA1 said: Got a chance to dig out the ALF/Holmes and took a shot of the boom lock. I cheated and did not use Phil's plan on the lock. I used a simple C channel with a single piece from the other boom to fit inside and then pinned it through a hole hope this helps. greg It will, thanks.
DRIPTROIT 71 Posted January 17, 2021 Posted January 17, 2021 Did I understand that you are going to fabricate the cab yourself?
leafsprings Posted January 17, 2021 Posted January 17, 2021 On 1/13/2021 at 5:19 AM, landman said: Looks like a decision has been reached. I will attempt to duplicate (or imitate) this. Me thinks that Chevy is a little too light for a 750.
