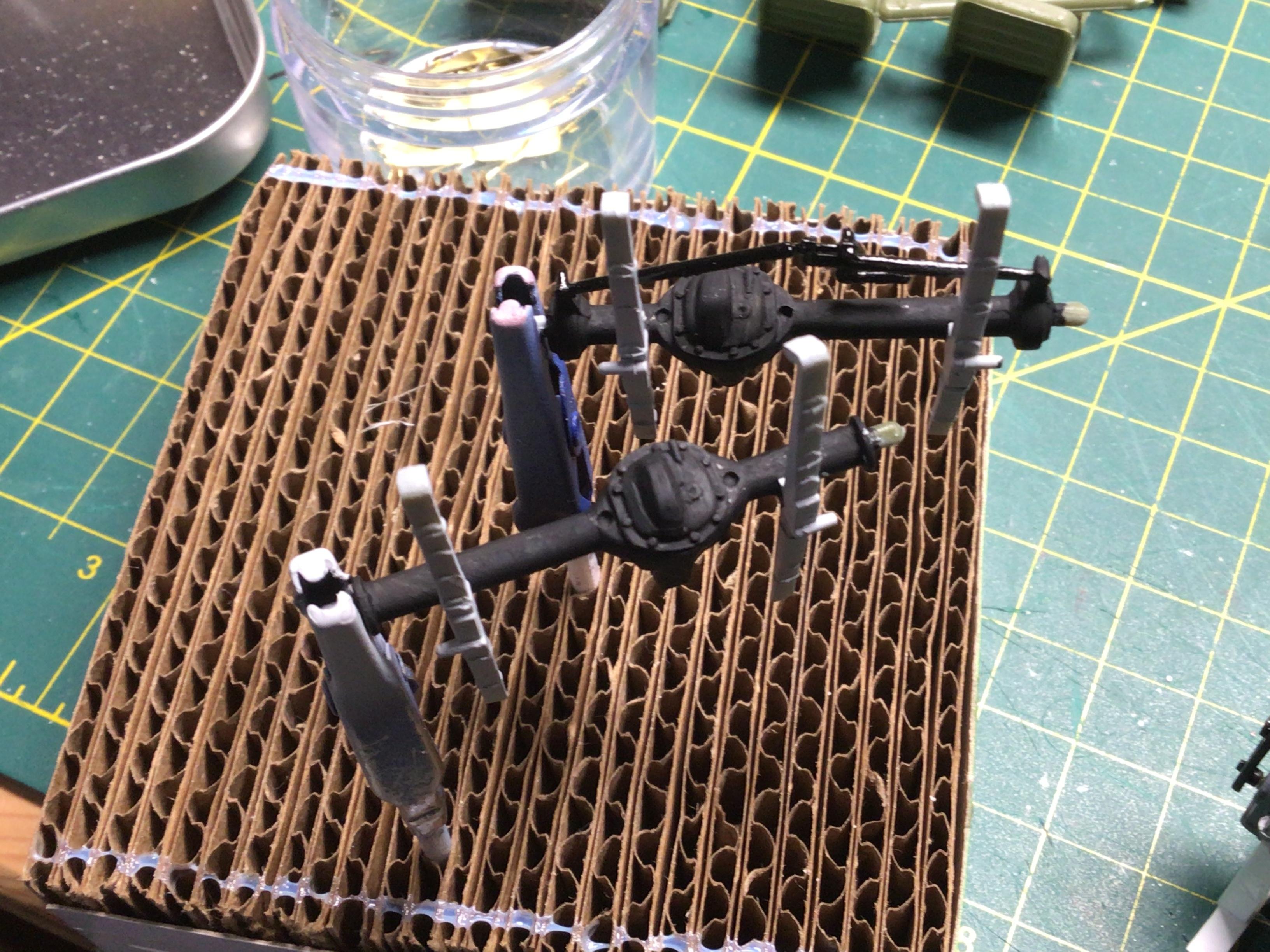

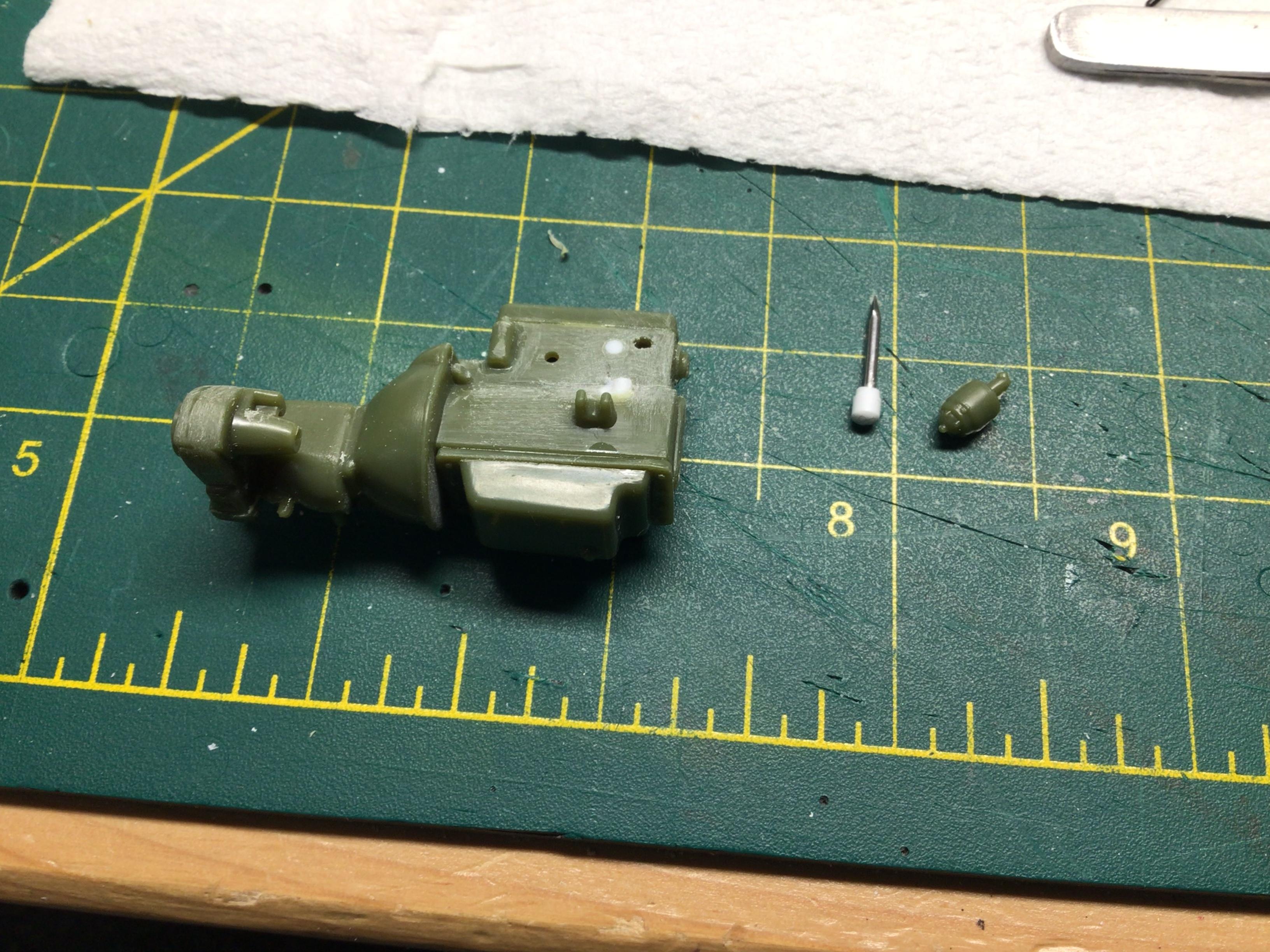

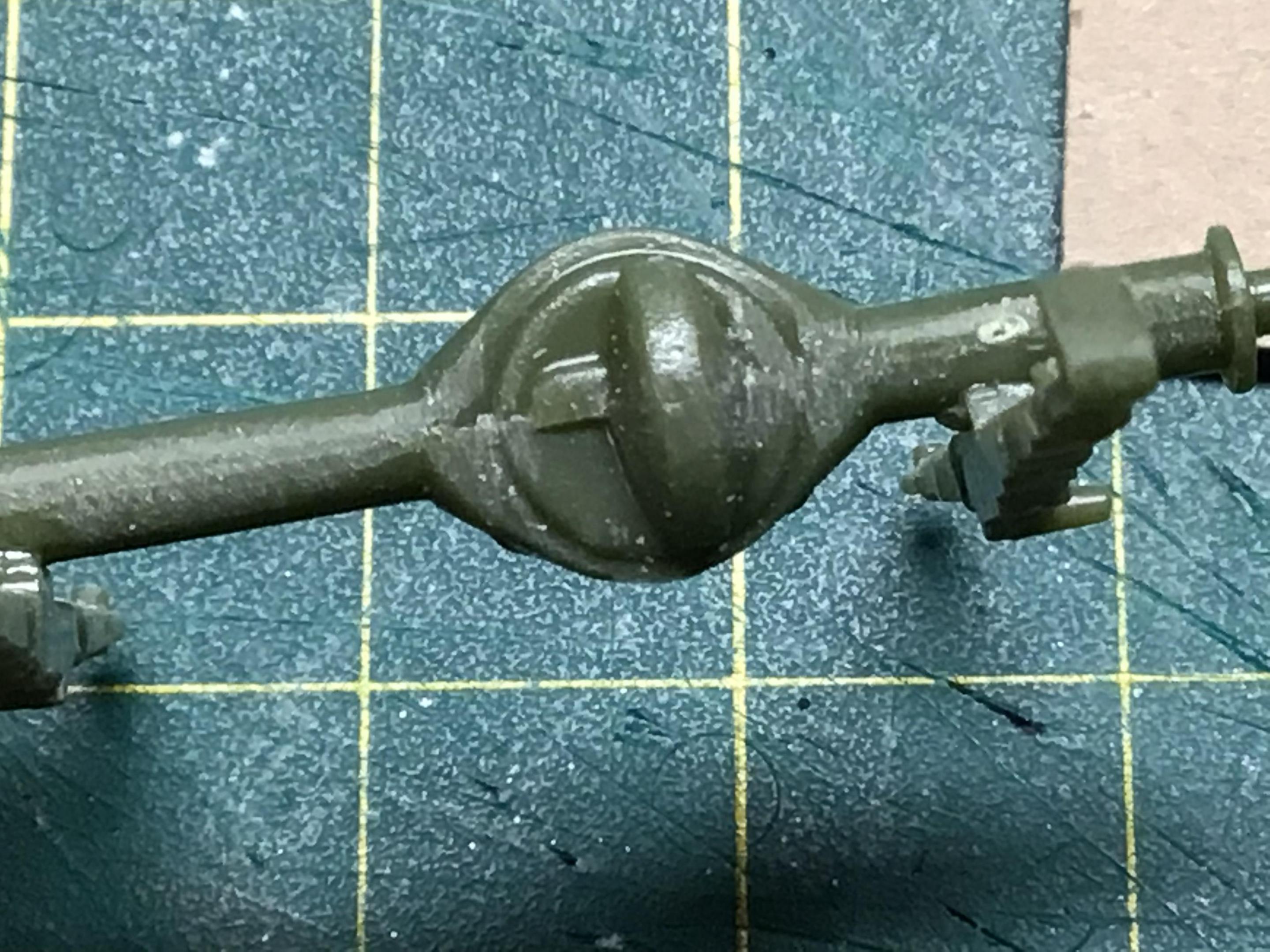

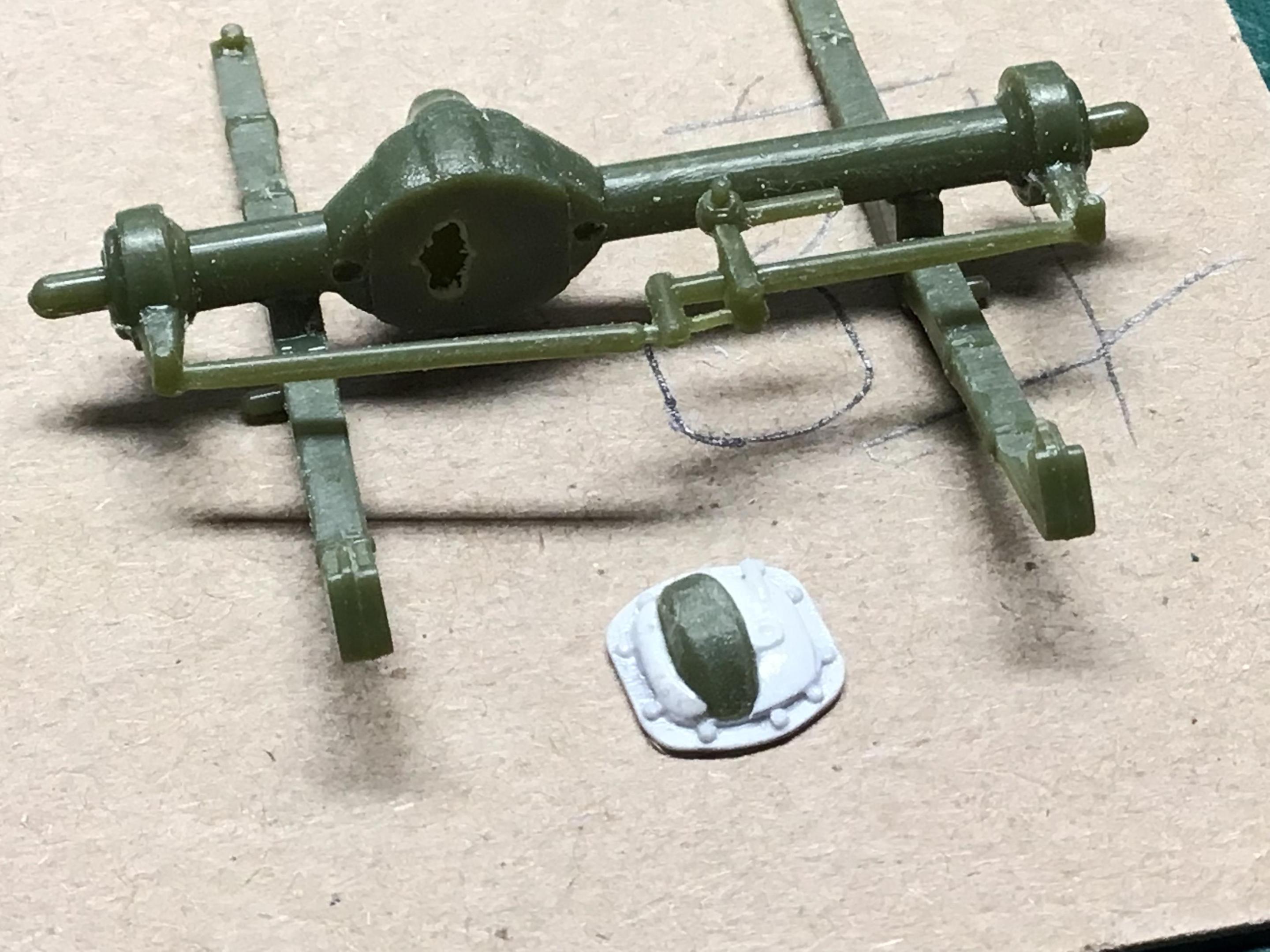

I don’t know if this build of the MPC Godzilla jeep really warrants a build thread, but what the heck. This kit can be built as an MB or a CJ-2A. I am doing a resurrected old CJ. Mostly I want to detail it and correct some issues. One is the lack of detail on the differentials, and the fact that the ring gear is on the wrong side on the rear one.

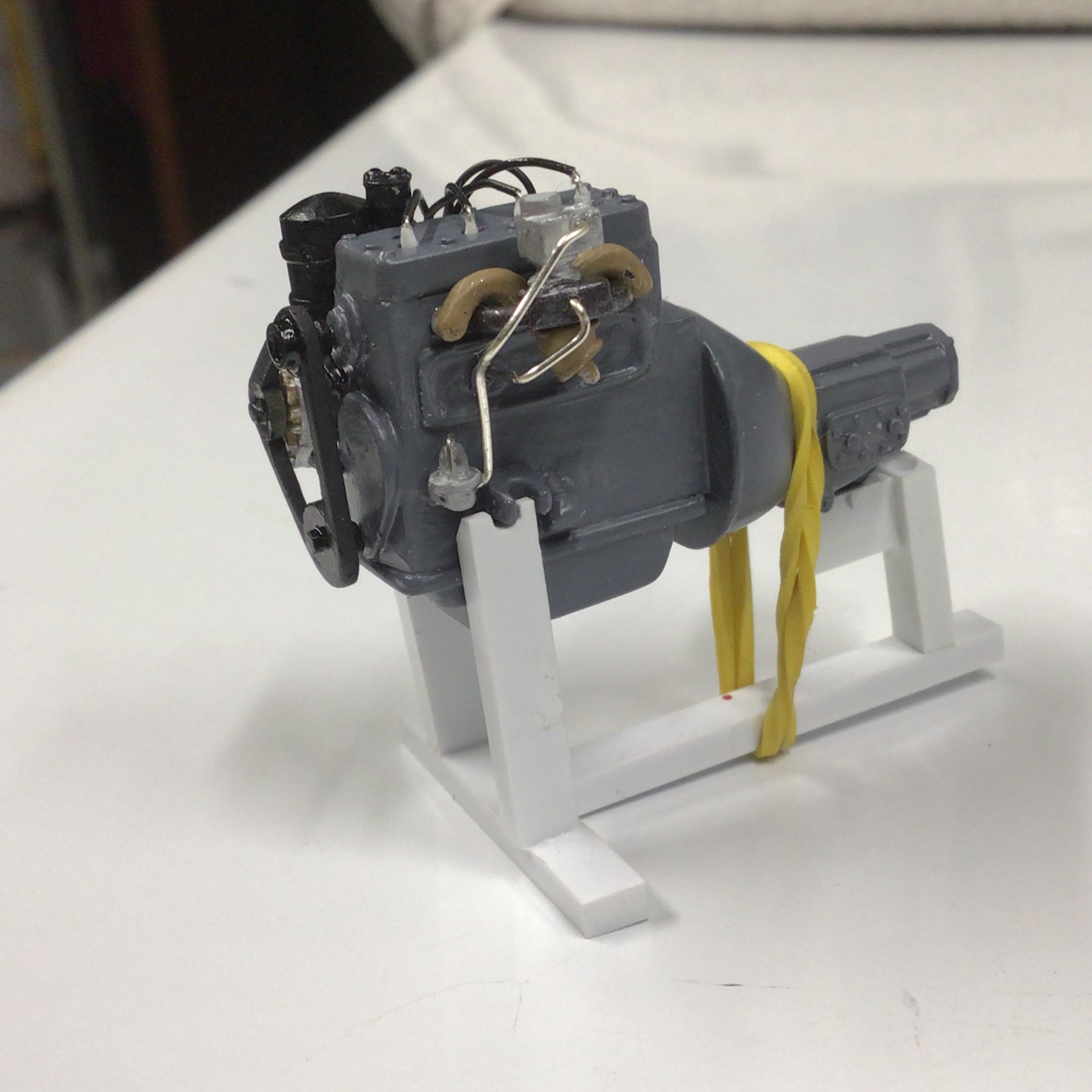

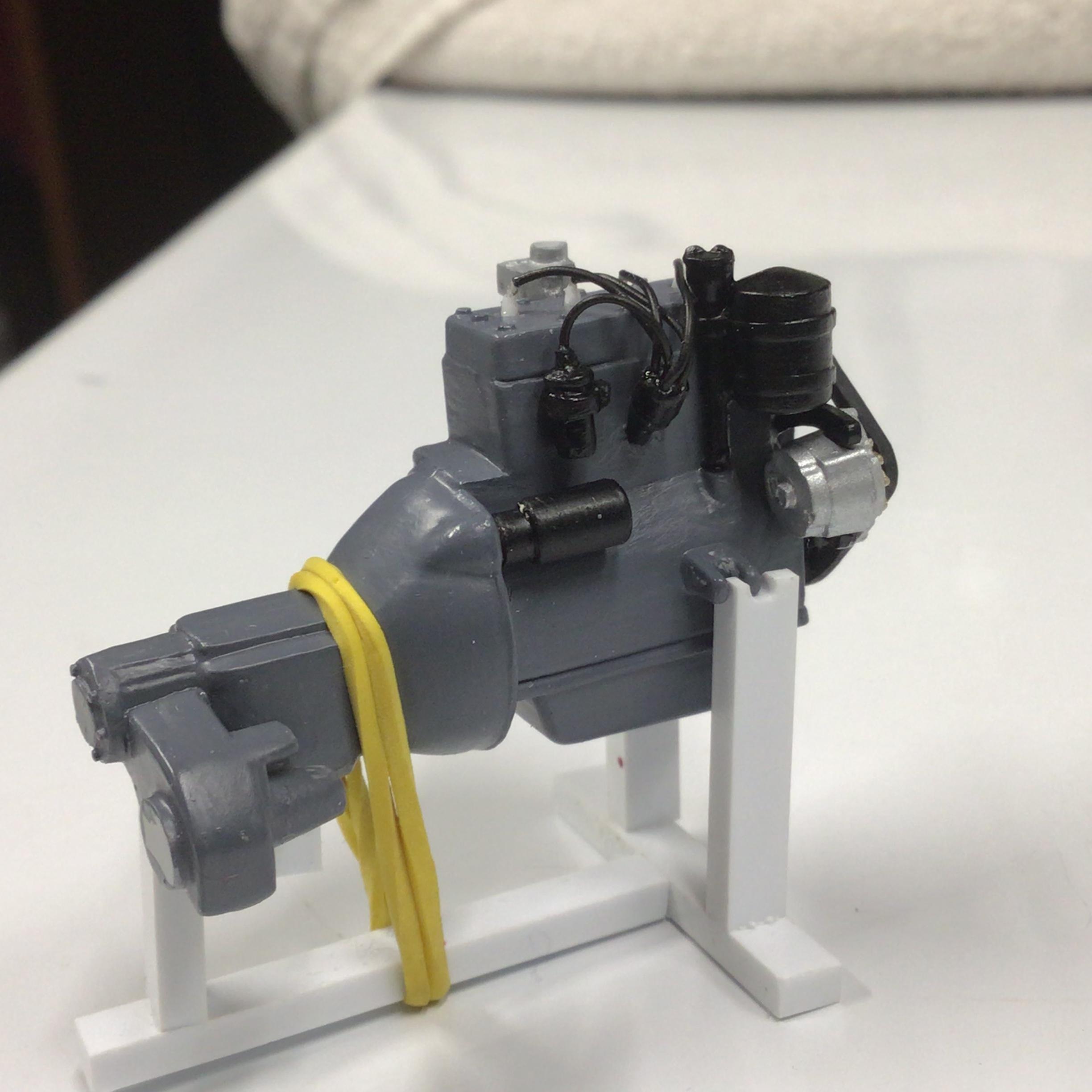

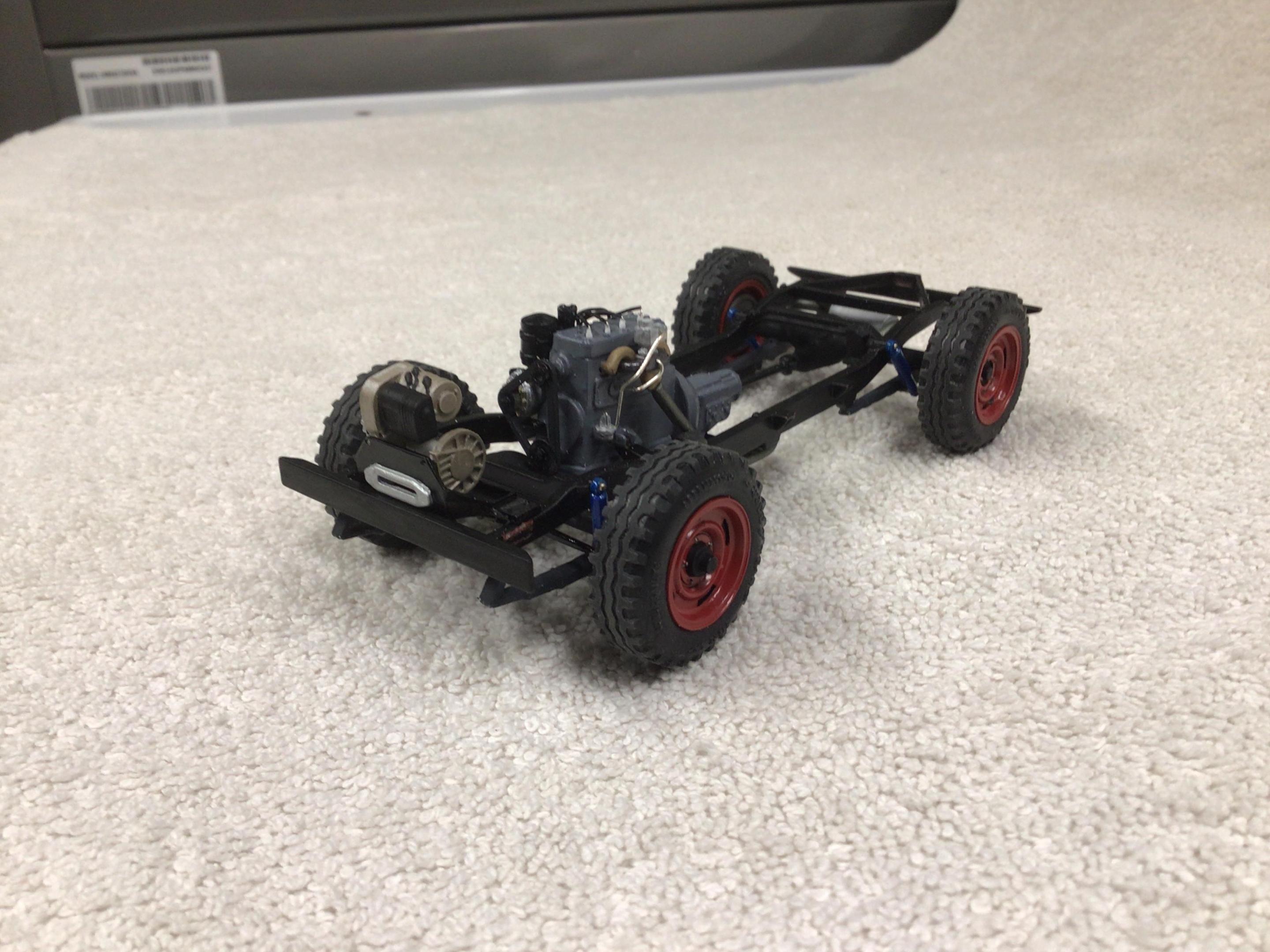

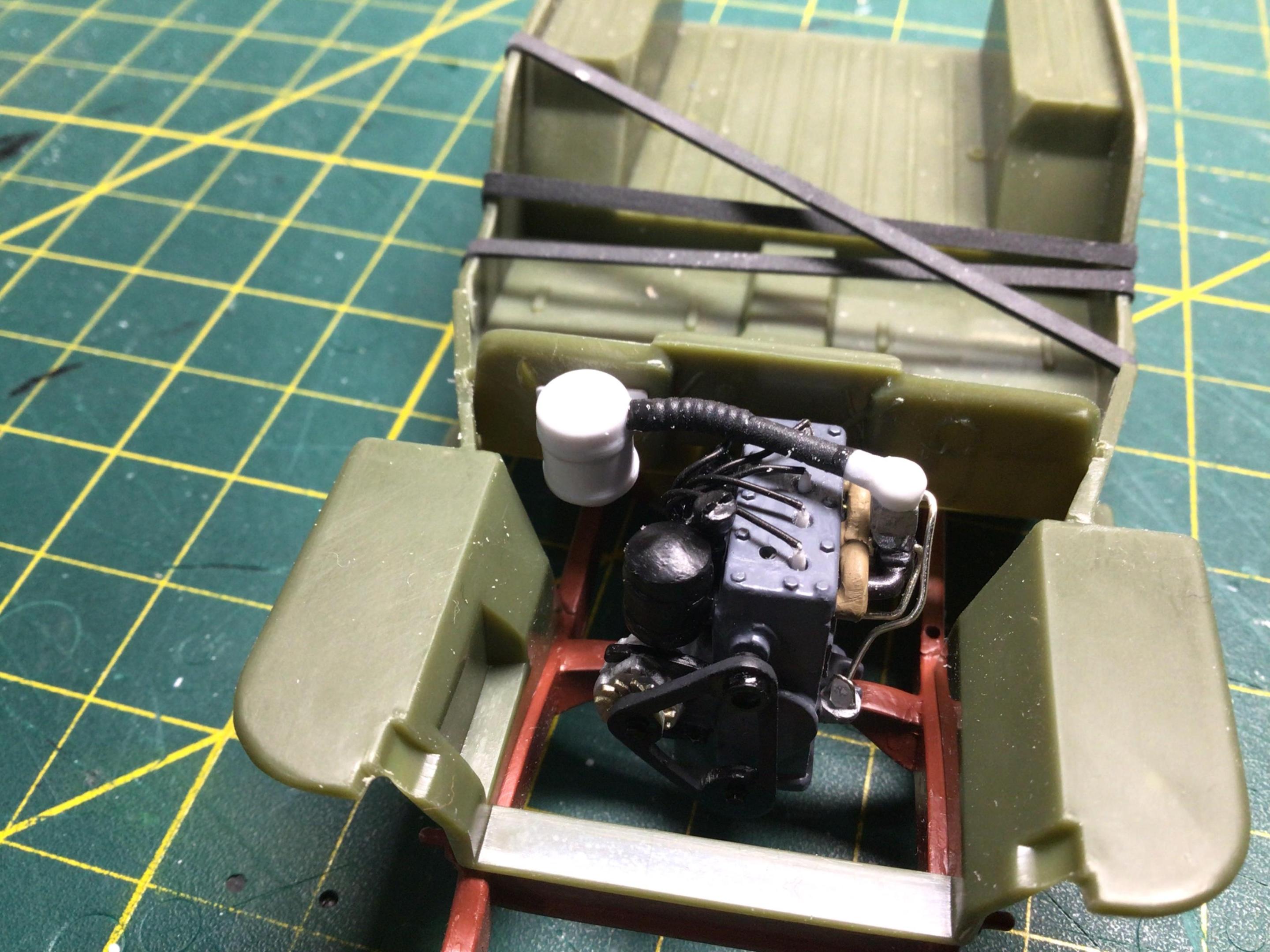

I decided to convert it to 12v, so I ditched the generator and added an alternator. I fabbed a new distributor and moved it to the center of the block where it belongs. Added a proper coil, fuel pump and air cleaner setup. I’m not real happy with my attempt at spark plugs, but they will have to do.? Comments or suggestions welcome as always!?






Edited by NOBLNG
Posted

Great looking engine and I like that you corrected the rear differential. Many would never notice such a detail.

Posted

Looks pretty good to me, Greg.  I use small brass tubing (0.018) dia. for plugs.  Holes are drilled in the head.  If desired, you can over drill just the surface of the holes to show a depression in the head.  Insert the pieces of tubing and then  carefully grind away the tubing so that they are all the same height.  Insert small craft wire in the tubing for the plug wires.  This is quite small stuff but the look is pretty good.  In the photo below you can see the "plugs" and some pieces of craft wire that will be inserted into the brass tubing.  I crimp the wire over first so that it is bent toward the distributor where the wire is cut and inserted into the top.  This is a Dodge T-214 engine, BTW that I used in the Weapons Carrier projects.


Posted (edited)
2 hours ago, Chariots of Fire said:

Looks pretty good to me, Greg.  I use small brass tubing (0.018) dia. for plugs.  Holes are drilled in the head.  If desired, you can over drill just the surface of the holes to show a depression in the head.  Insert the pieces of tubing and then  carefully grind away the tubing so that they are all the same height.  Insert small craft wire in the tubing for the plug wires.  This is quite small stuff but the look is pretty good.  In the photo below you can see the "plugs" and some pieces of craft wire that will be inserted into the brass tubing.  I crimp the wire over first so that it is bent toward the distributor where the wire is cut and inserted into the top.  This is a Dodge T-214 engine, BTW that I used in the Weapons Carrier projects.

Thanks Charles! That is a great idea. I thought that 1/16” od. was the smallest tube that K&S made. Is 0.018” the id? I just looked on their website again and see 1/32” od. tube(0.03125”) and 1mm. od. tube (0.0394”). A local hobby shop doesn’t stock it, but will order it for me so I will have it on hand.

Edited by NOBLNG
Posted

Trumpeter makes a brass tubing set called Master Tools.  There are 8 pieces in the set ranging from 1.1mm Dia. to 1.4mm Dia.  Got them at the local hobby shop.  I was told they were telescopic but they are not.  But they are good size for spark plugs.  Each piece is almost 8 inches long.  Item Number is 09944.

Posted

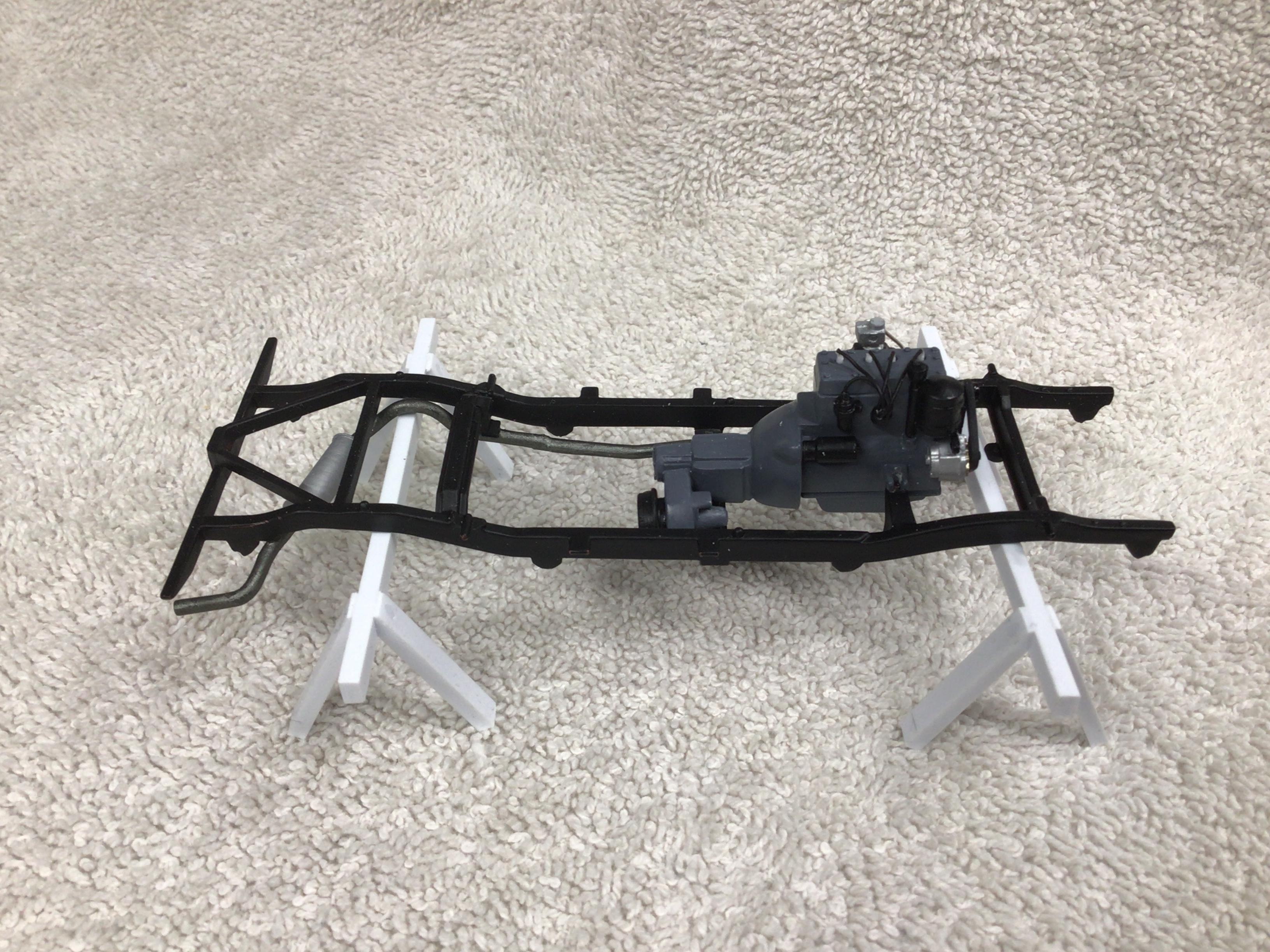

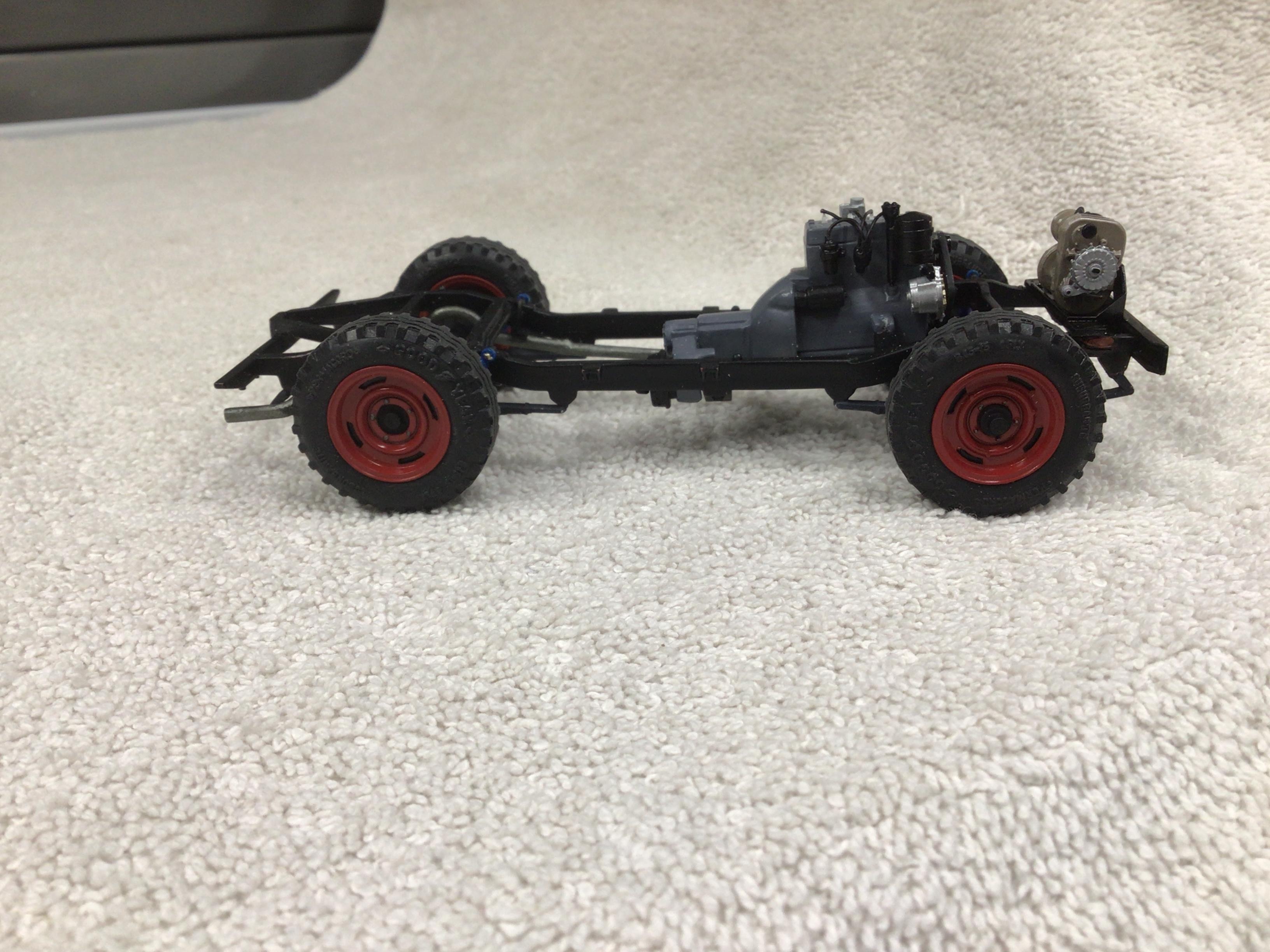

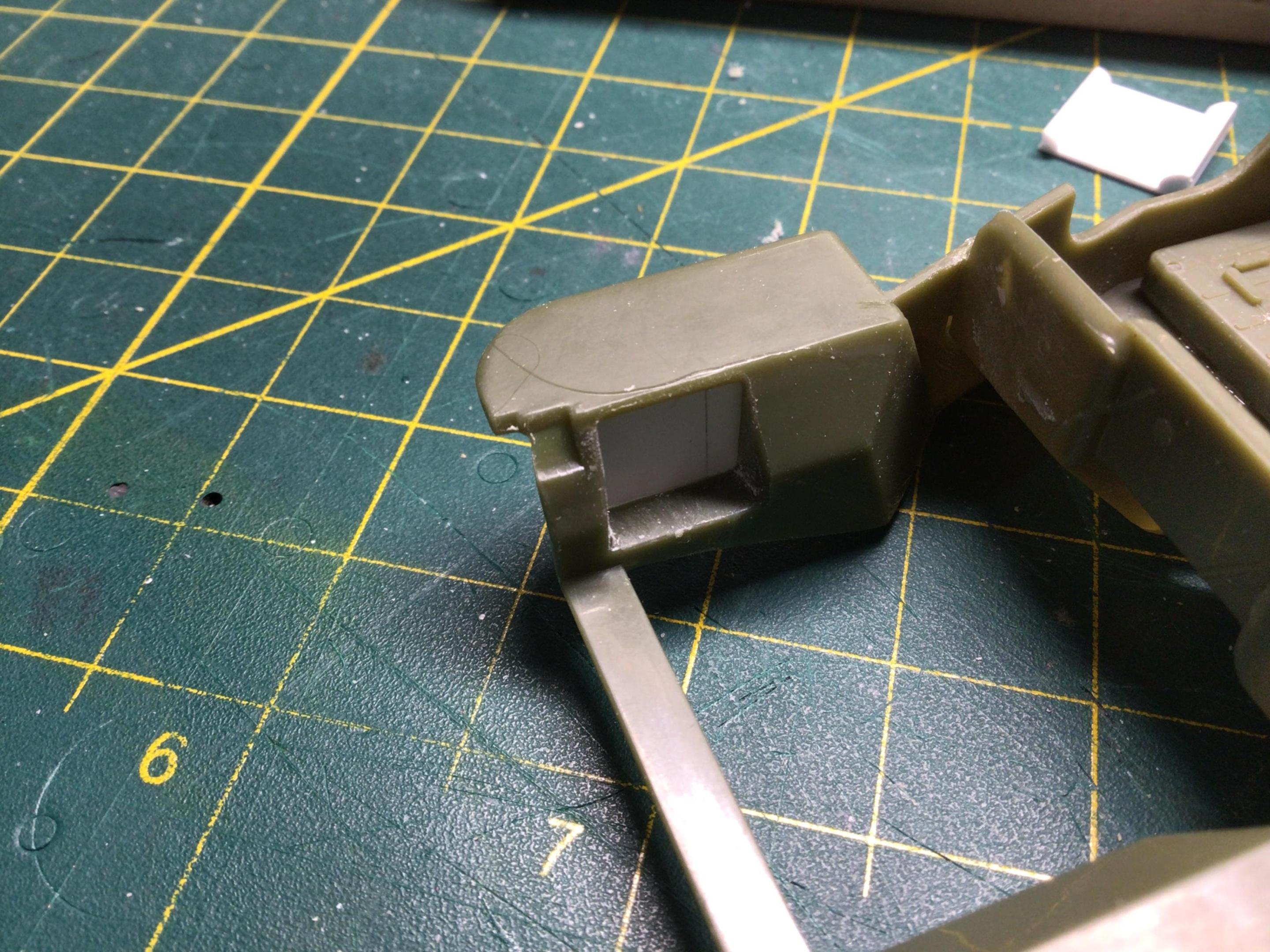

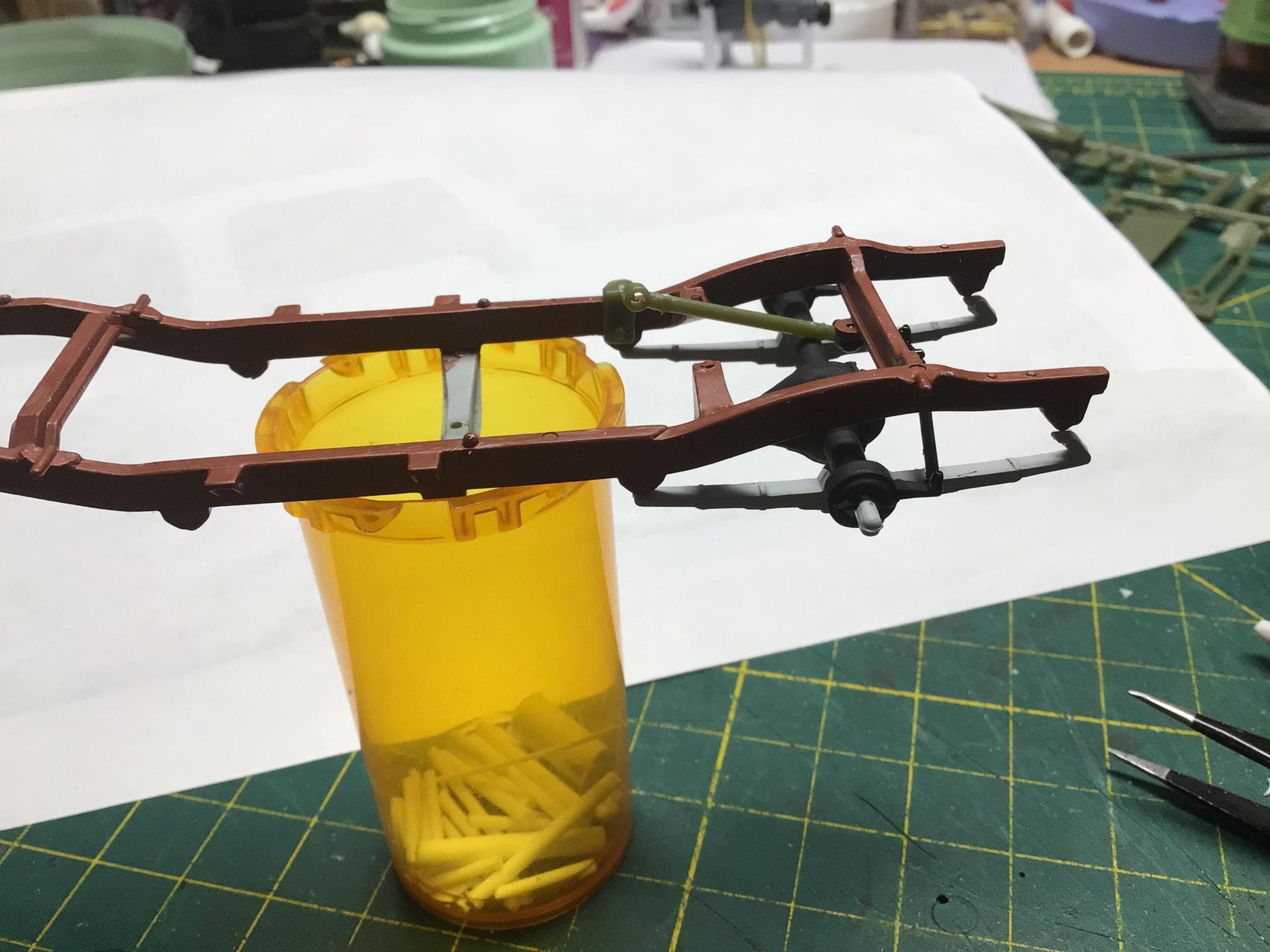

I had to enlarge the battery compartment slightly to fit the 12v battery I have. I plan on adding a winch, so I need a big battery.? The steering arm from the box to the bellcrank hits the front axle housing so I’ll have to put a bend in it or something. I got the engine in and the exhaust hooked up.




Posted (edited)

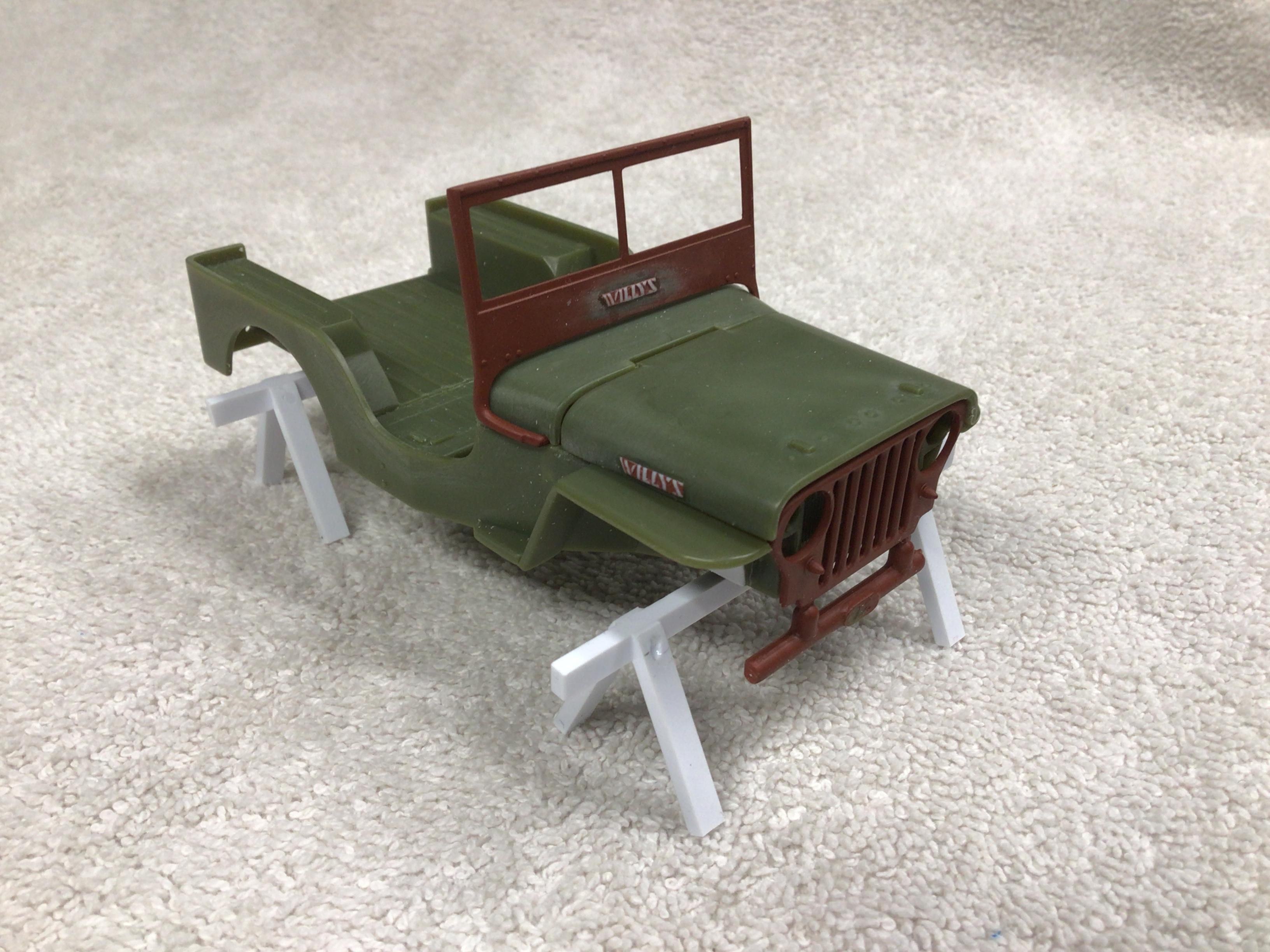

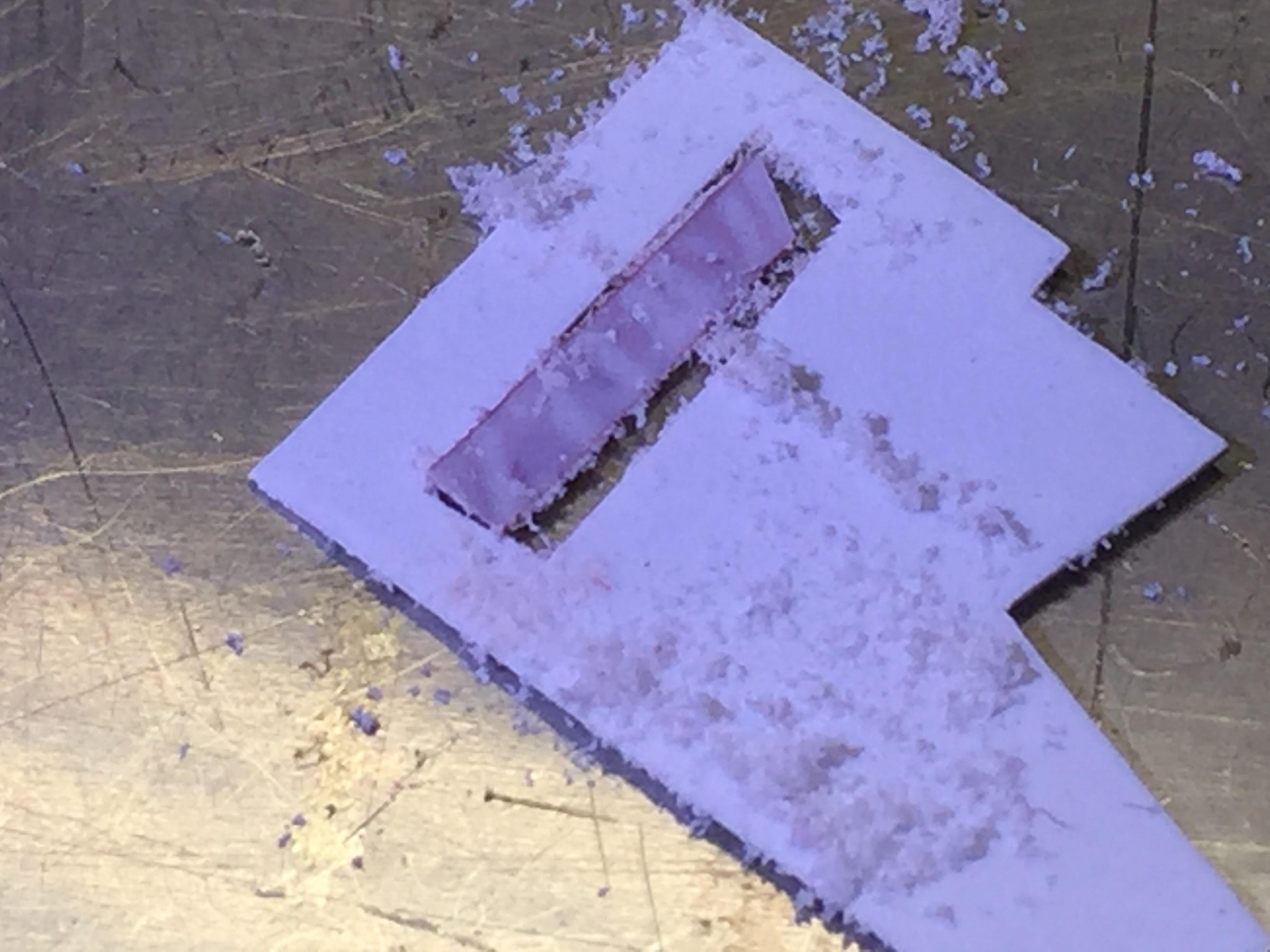

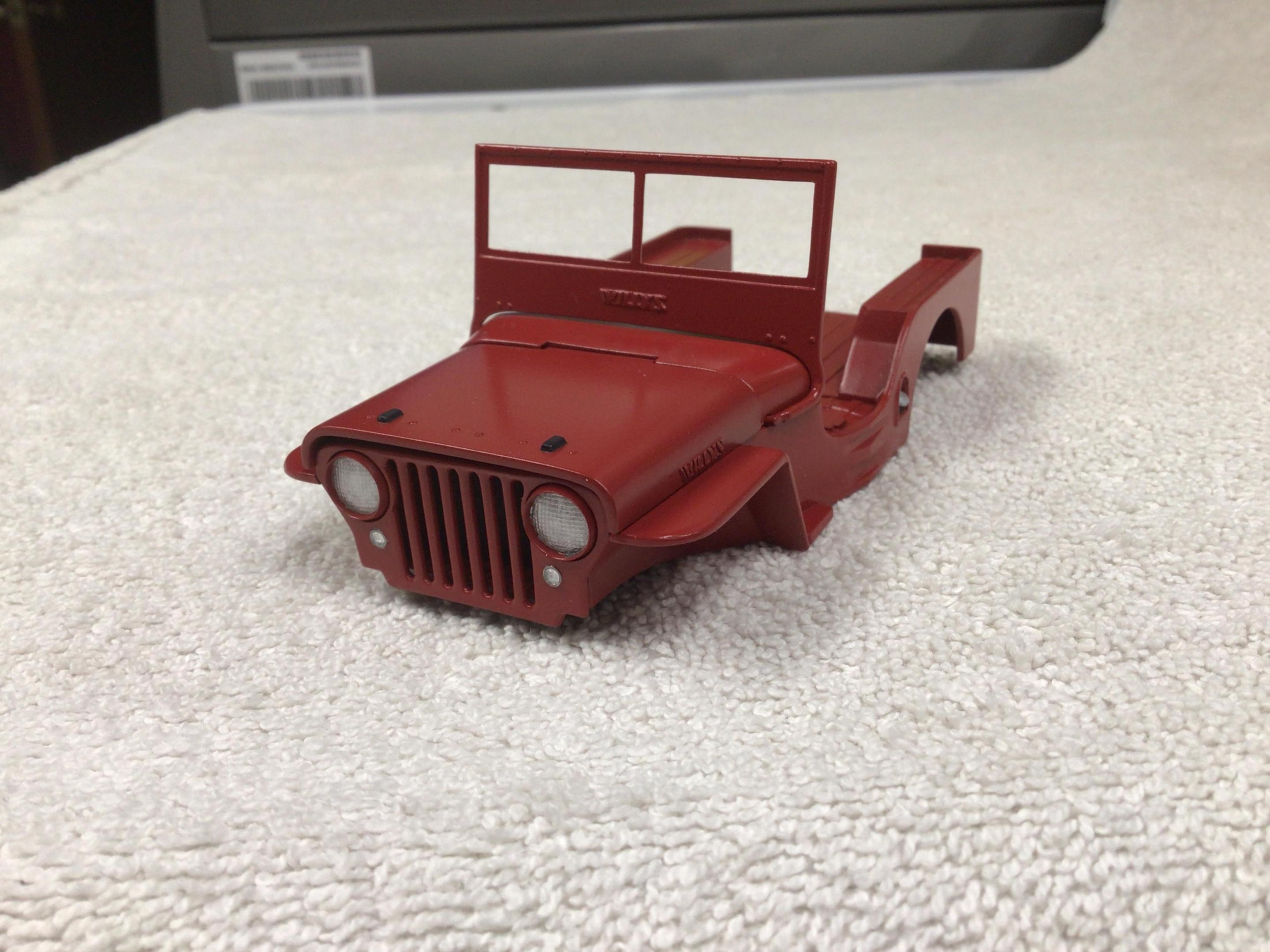

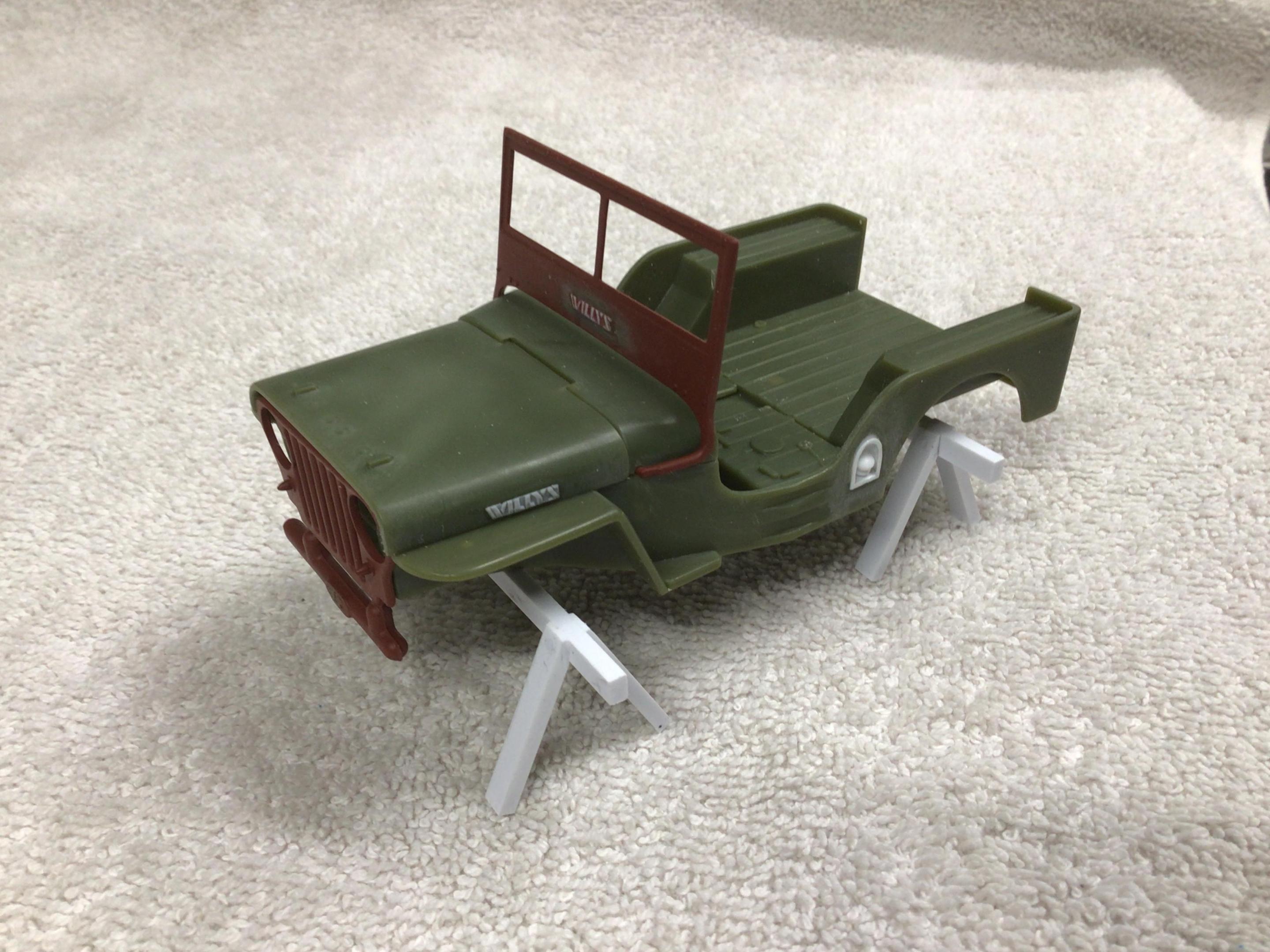

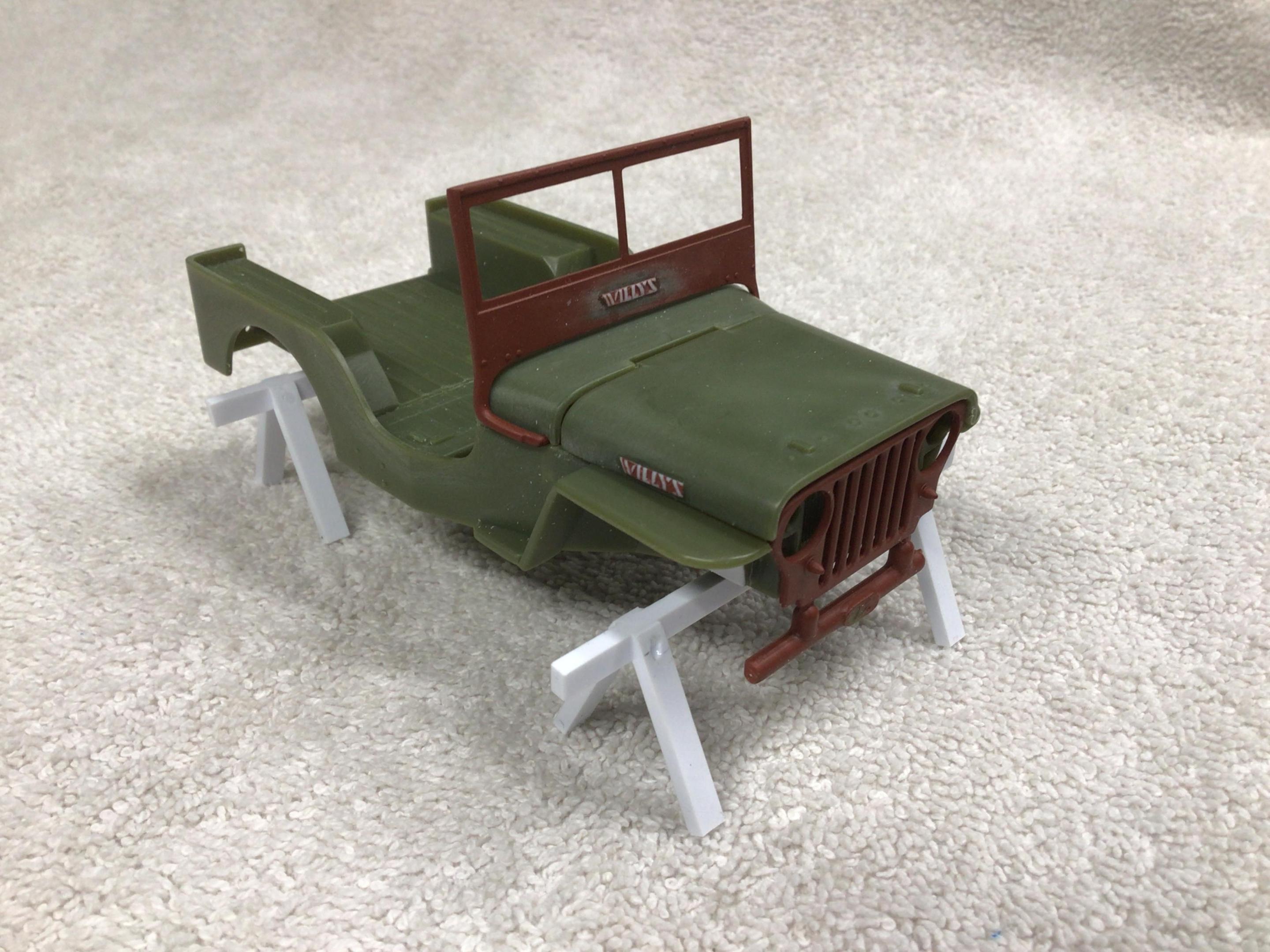

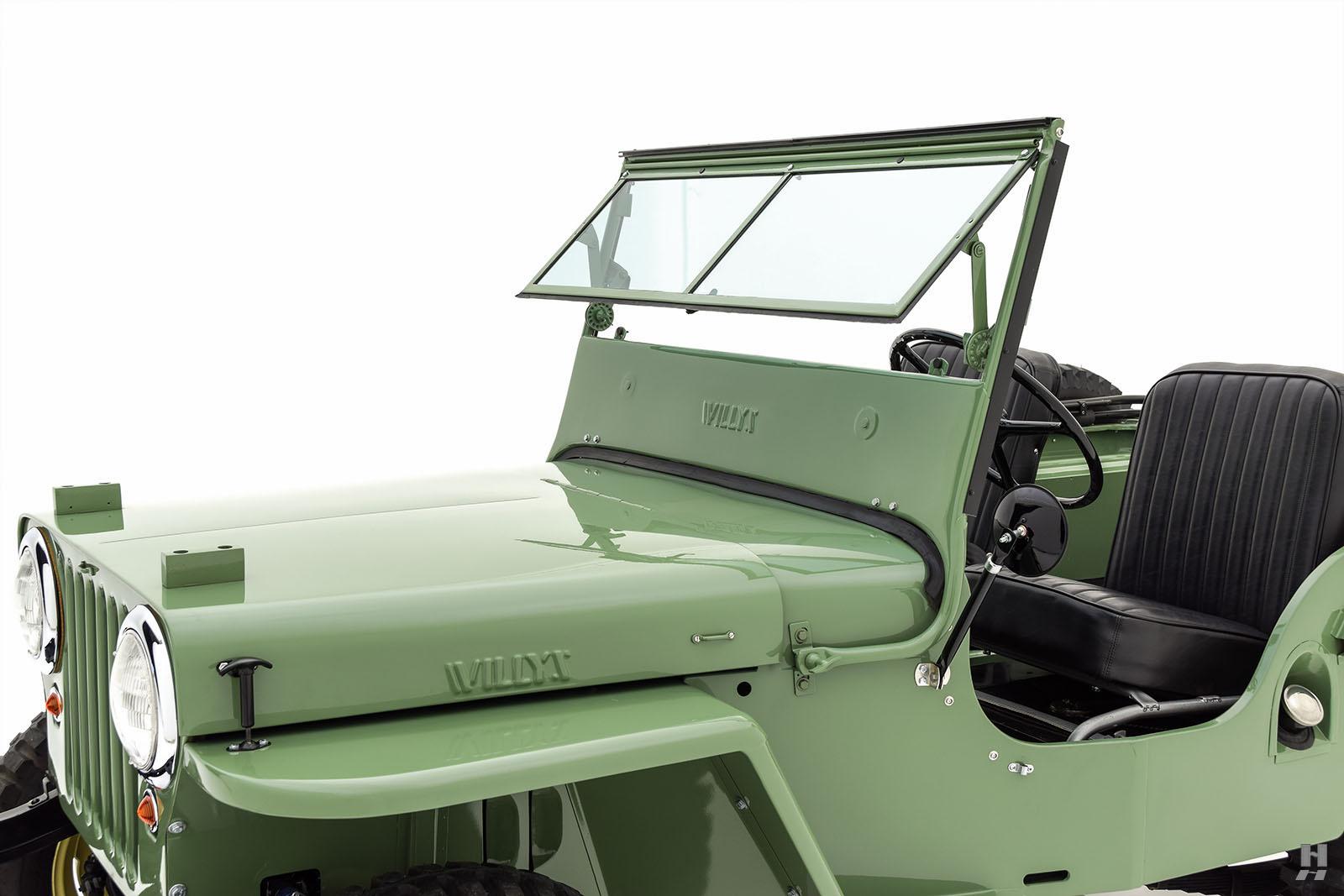

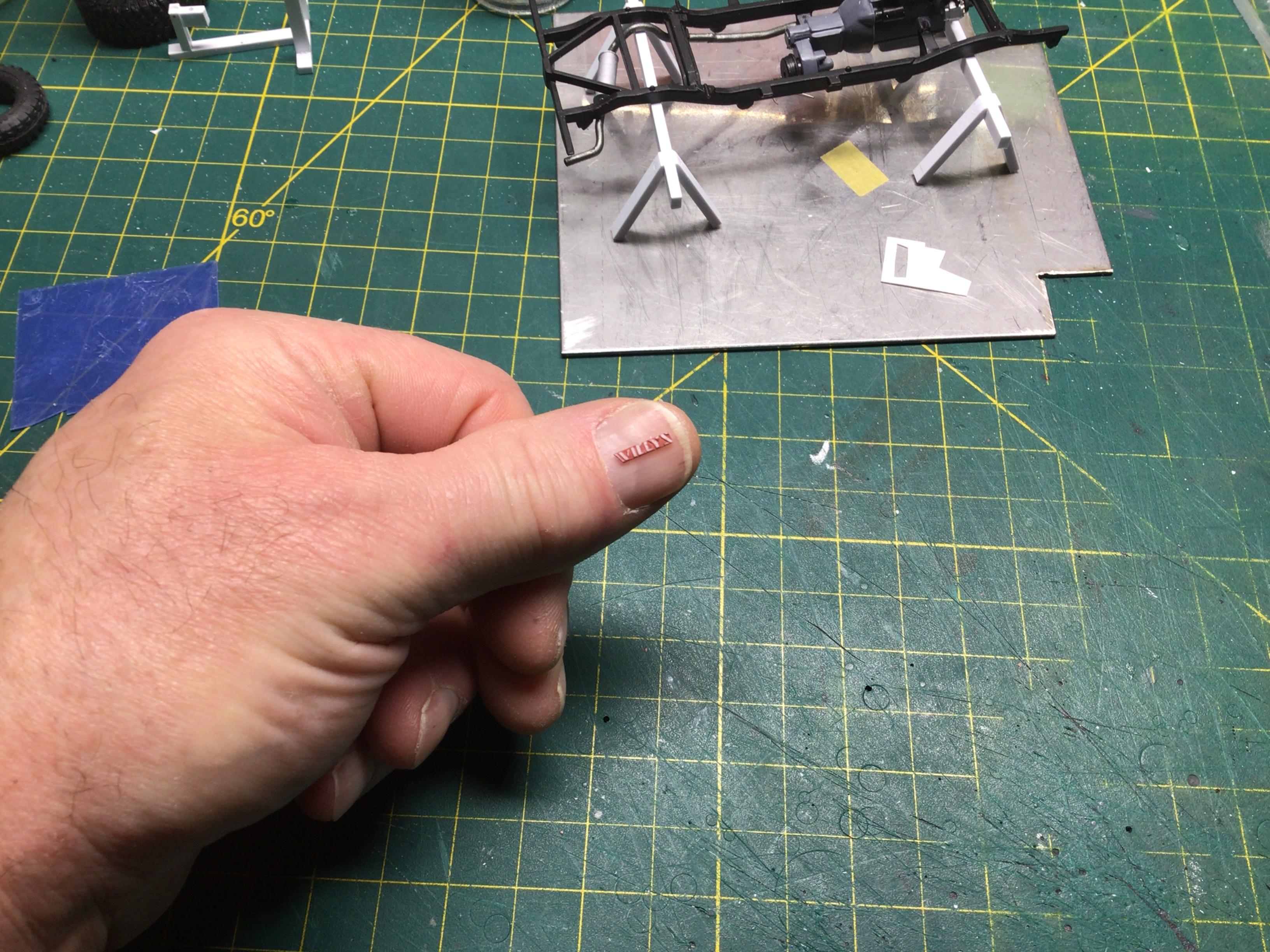

I cut the WILLYS letters out of some .010” styrene and glued them to another layer of .010”. Then I made a mold of it so I could cast it. There was no way I was going to attempt to make four identical scripts. One was hard enough!?  They came out just a touch big, but close enough.? I made a cutout in some .015” styrene and used it as a guage to file down the back of the castings till there was very little left of the second .010” layer, then attached them with thin CA. I also scratch built a gas filler neck, gasket and cap.






Edited by NOBLNG
  • Like 1
  • NOBLNG changed the title to Jeep CJ-2A
Posted (edited)

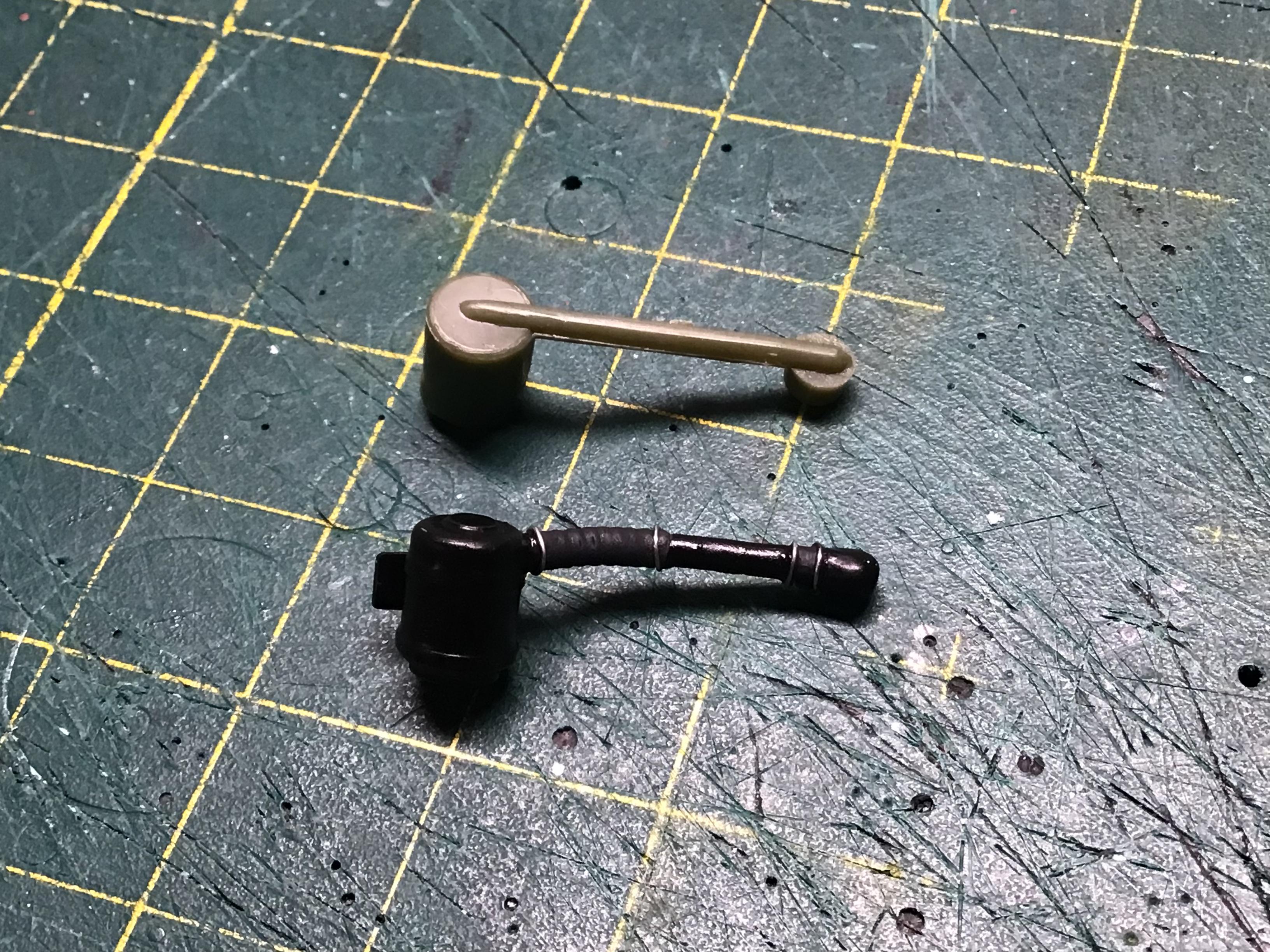

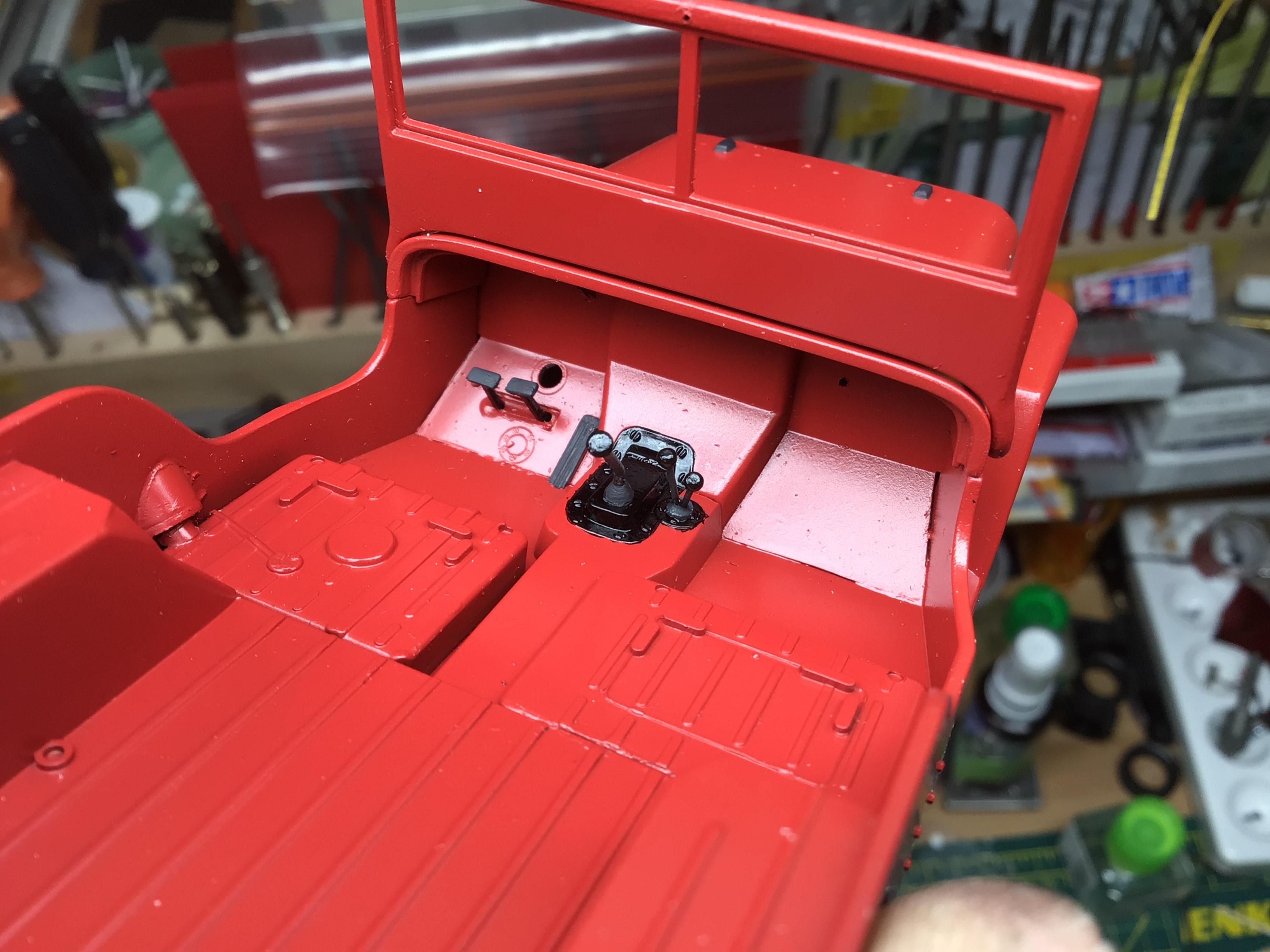

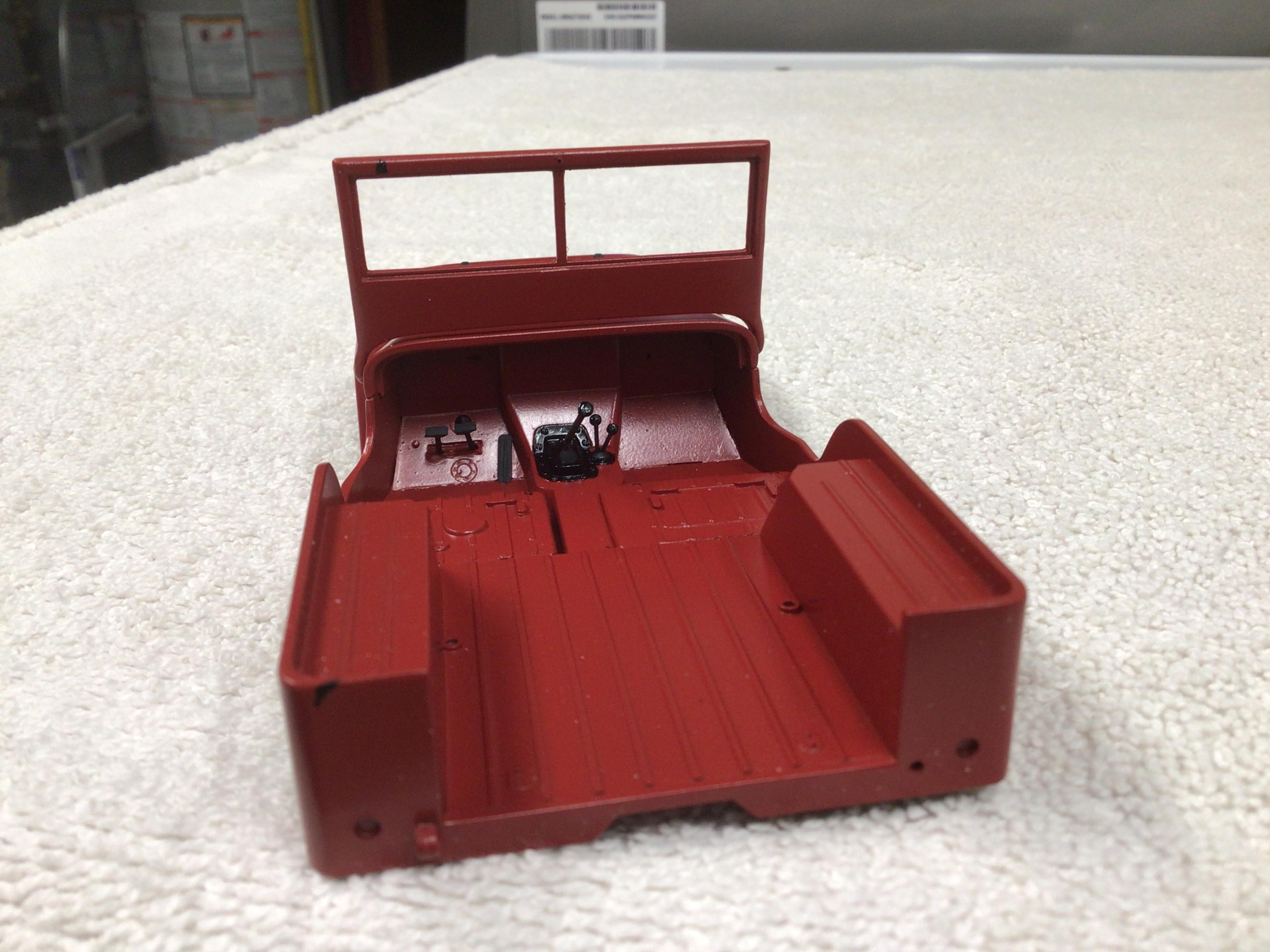

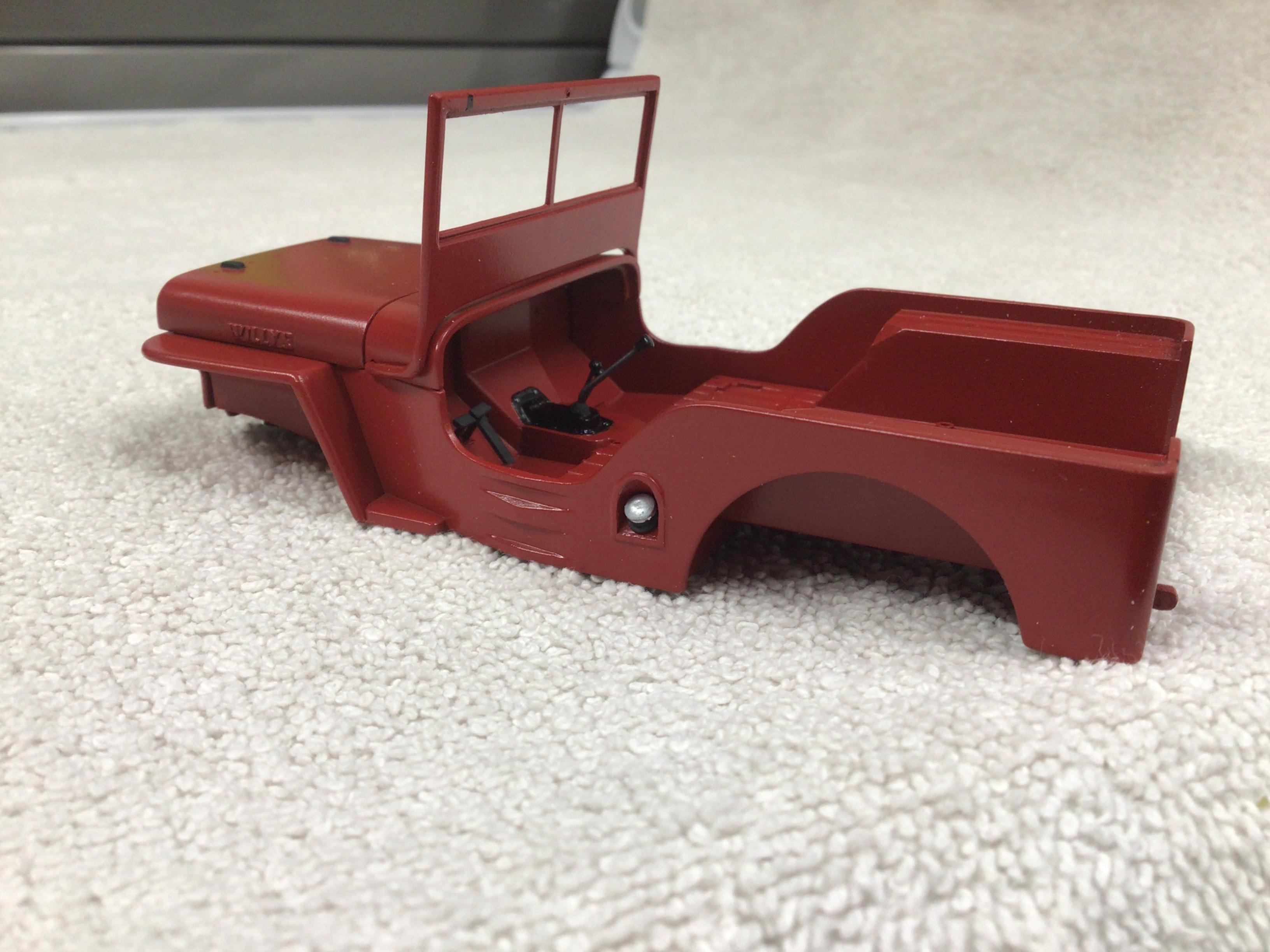

Got a bit more done on this one. The paint is Mr. Color Russet mixed 50/50 with Mr. Color levelling thinner. I scratch built some shifter levers from welding wire since the t/c shifters in the kit were pretty ugly.? The winch is a warn 8274 from Olsen Bros. I still have to wind the cable I made onto it. The hood has a slight twist and doesn’t want to sit down nice, so I will have to make a set of functional latches somehow.?







Edited by NOBLNG
Posted (edited)

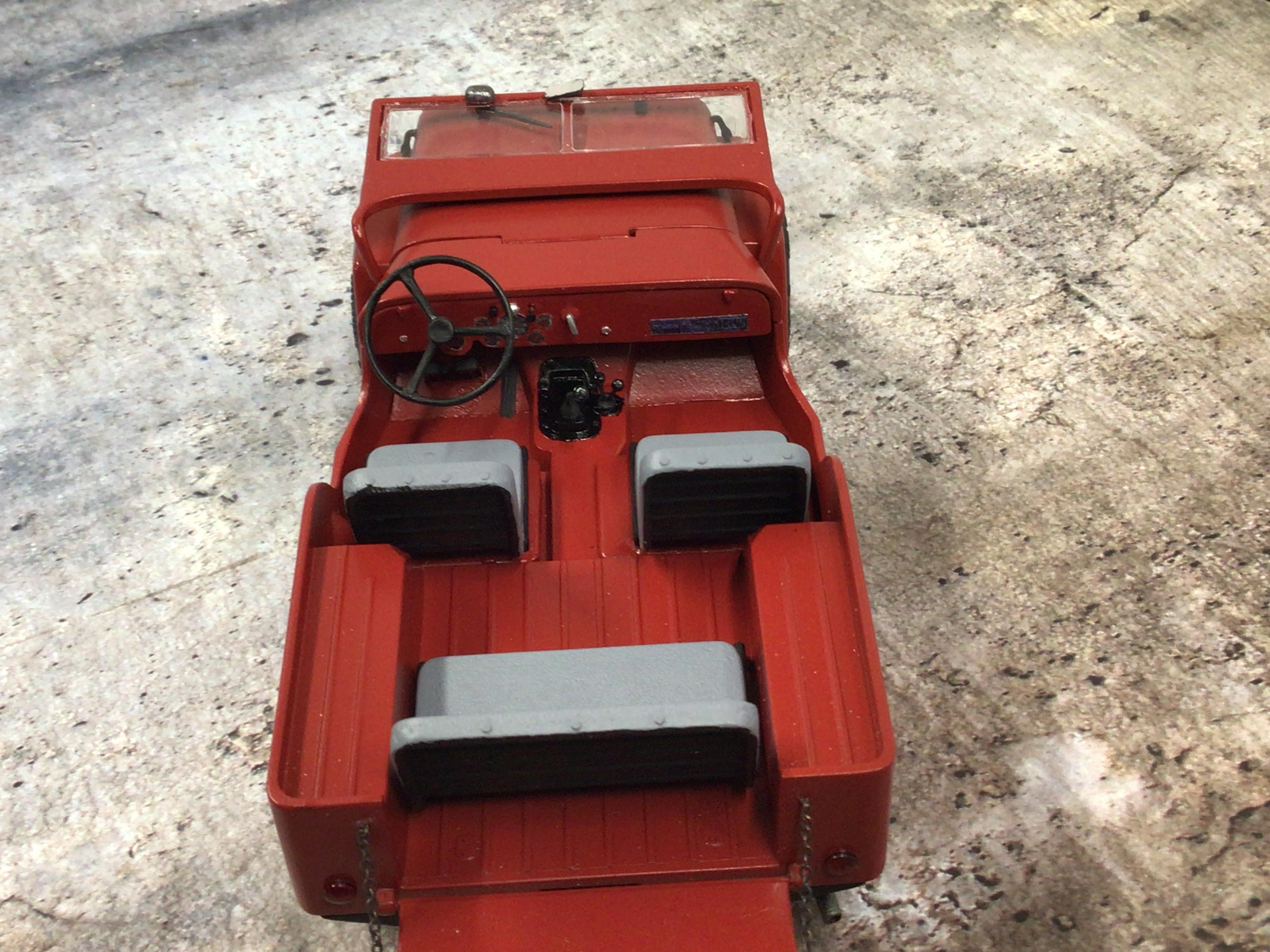

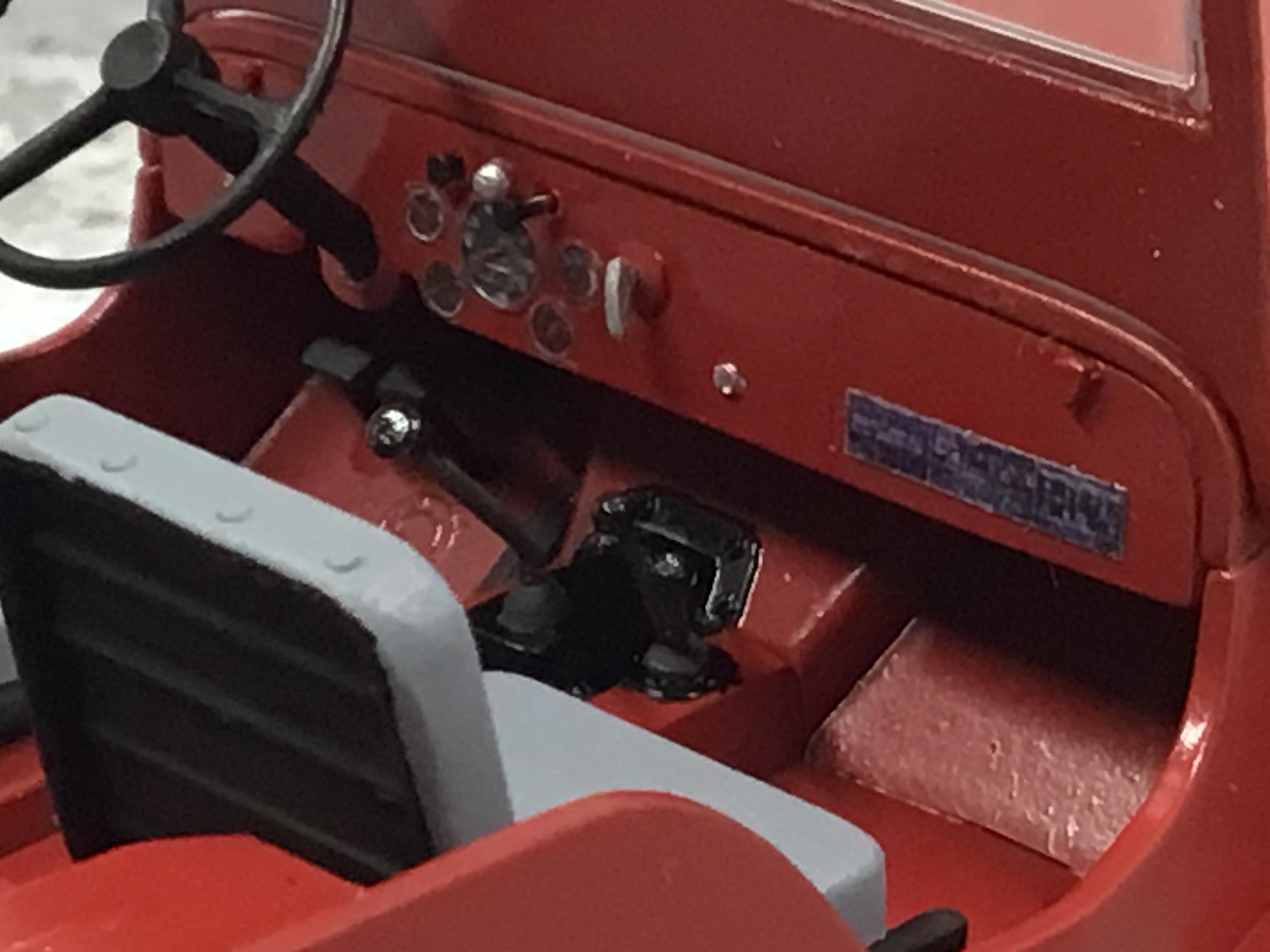

Well this one is about done. The CJs did not have a glove box like the MBs, so I got rid of it and printed a new dash plaque. I also replaced the lumps that the kit had for the park brake handle, throttle and choke knobs. I also scratched out a new rear view mirror and a wiper setup. Thanks for looking.?

More pics under glass here:  http://www.modelcarsmag.com/forums/topic/168321-jeep-cj-2a/





Edited by NOBLNG
  • 1 month later...
Posted

Added and corrected details like you've done on this add up to such a better, more accurate model. Excellent modeling.
