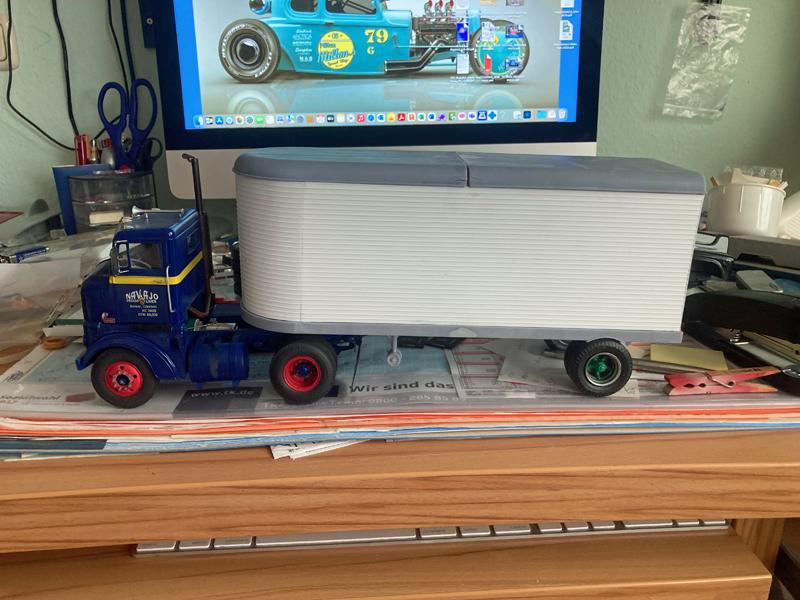

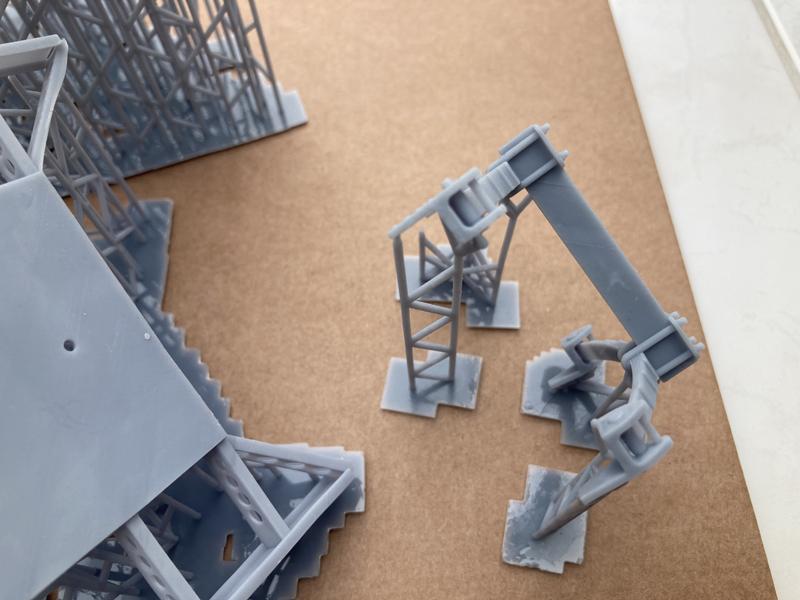

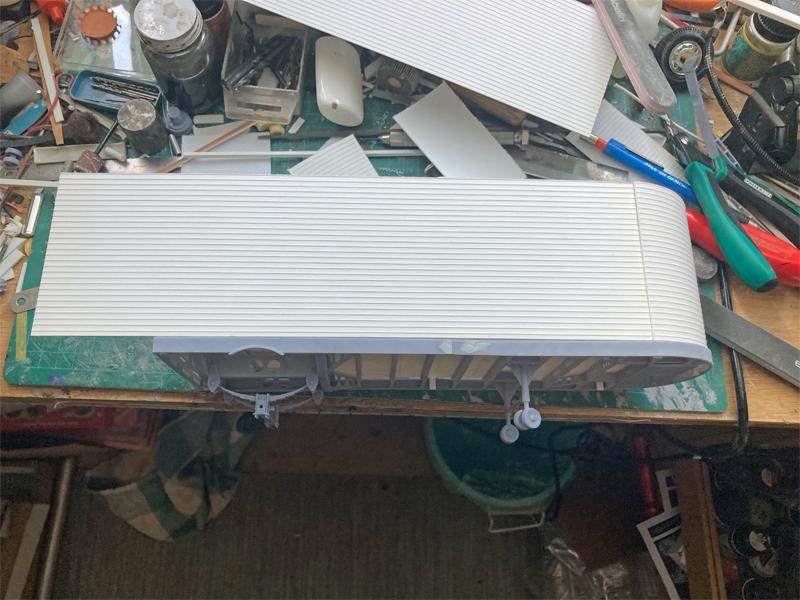

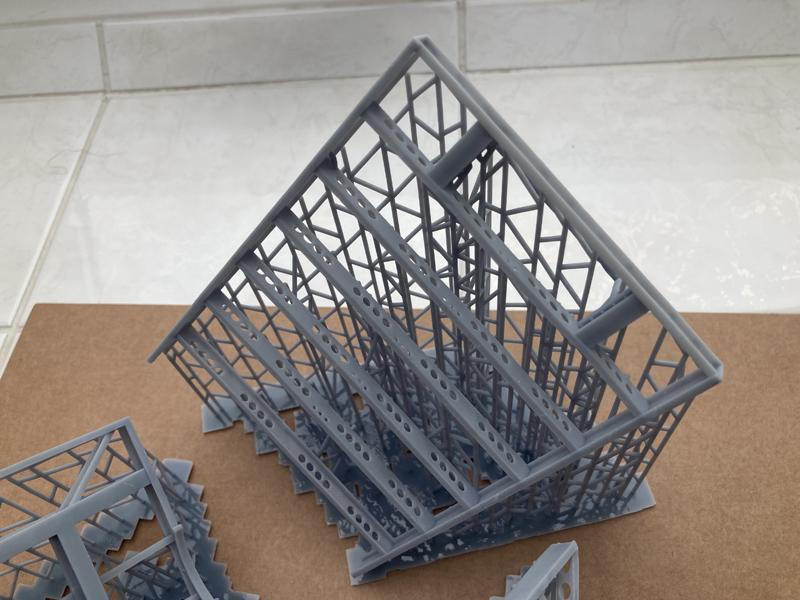

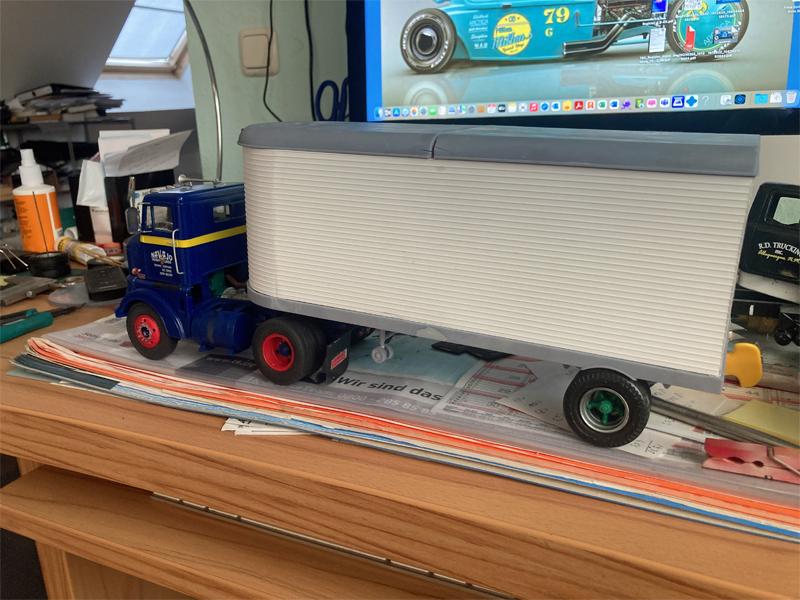

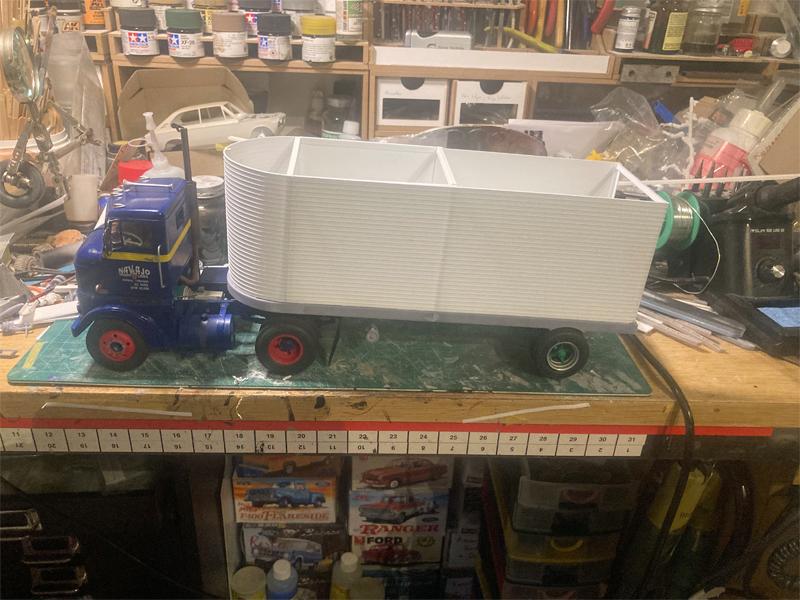

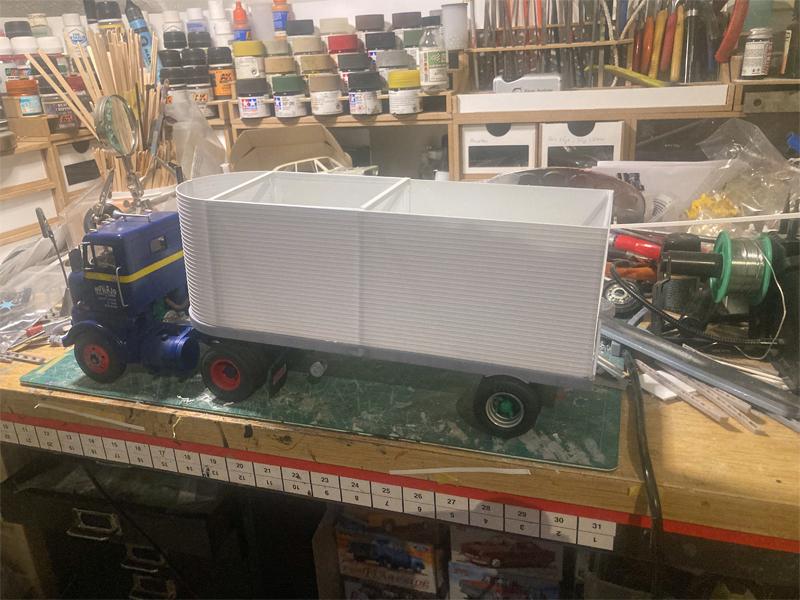

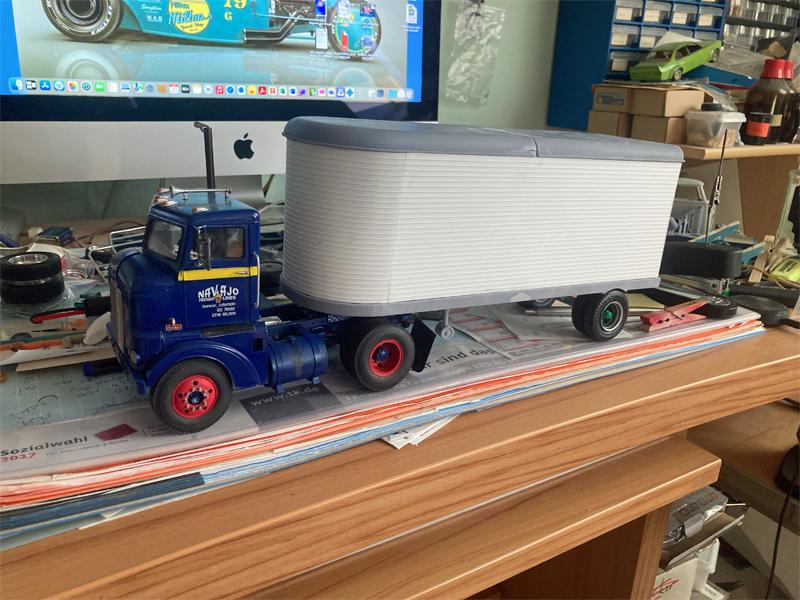

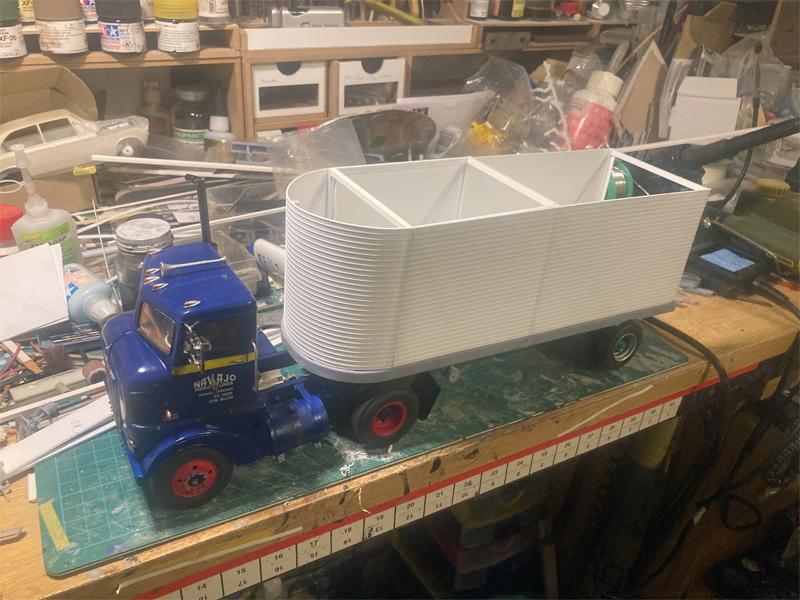

carsntrucks4you Posted June 20, 2023 Posted June 20, 2023 (edited) For my Peterbilt 280 COE I need a van trailer. I had started with designing the trailer chassis based on an old Corbitt 24ft trailer chassis. The chassis was printed in 2 sections, a 35ft 2 axle chassis was also printed. Pictures of prints shows the first 3 section 24ft trailer prototype. For the side walls I used evergreen sheets. The round front was formed with hot water and a hot fan over a printed front section that was way to heavy for the printed frame. The roof section is also 3D printed. Print jobs where done on a Anycubic Mono X Edited June 20, 2023 by carsntrucks4you 4
gotnitro? Posted June 20, 2023 Posted June 20, 2023 Well done w the corrugated evergreen sides. The printed parts look good also
cifenet Posted June 20, 2023 Posted June 20, 2023 Impressive! I like the round front and how you managed to bend the plastic sheet! And it goes very well with the truck, nice work!
Chariots of Fire Posted June 20, 2023 Posted June 20, 2023 Pretty cool! Lots of wasted filliment for the build?? Just asking.
carsntrucks4you Posted June 21, 2023 Author Posted June 21, 2023 12 hours ago, Chariots of Fire said: Pretty cool! Lots of wasted filliment for the build?? Just asking. No thats ok for me. The only drawback was that I have to print the rear roof section again because it broke while cleaning.
peteski Posted June 22, 2023 Posted June 22, 2023 Wow! Very impressive. We are seeing more and more modelers designing and printing their own models (or parts of them). I can only imagine how many design hours went into the project. But it is fun time!
carsntrucks4you Posted June 22, 2023 Author Posted June 22, 2023 3 hours ago, peteski said: Wow! Very impressive. We are seeing more and more modelers designing and printing their own models (or parts of them). I can only imagine how many design hours went into the project. But it is fun time! I think more than glueing the walls to the frame

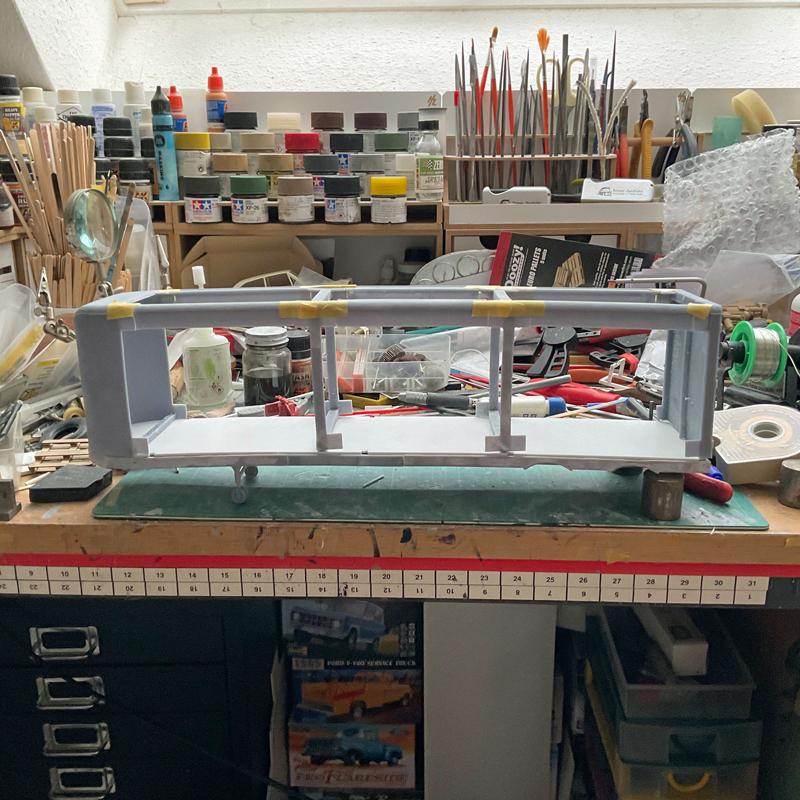

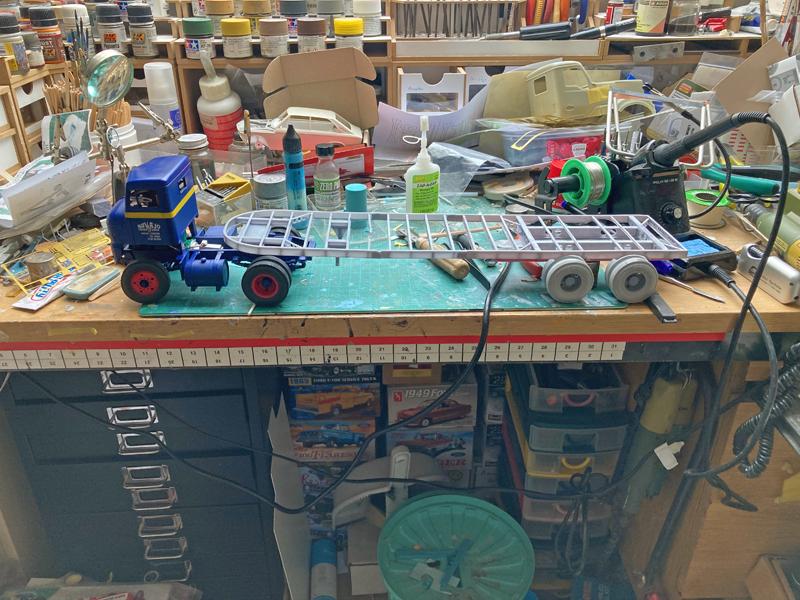

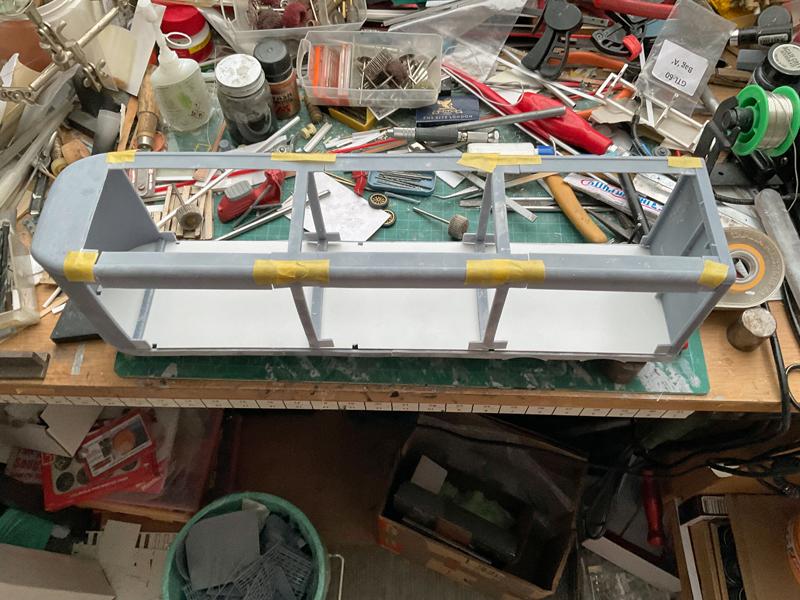

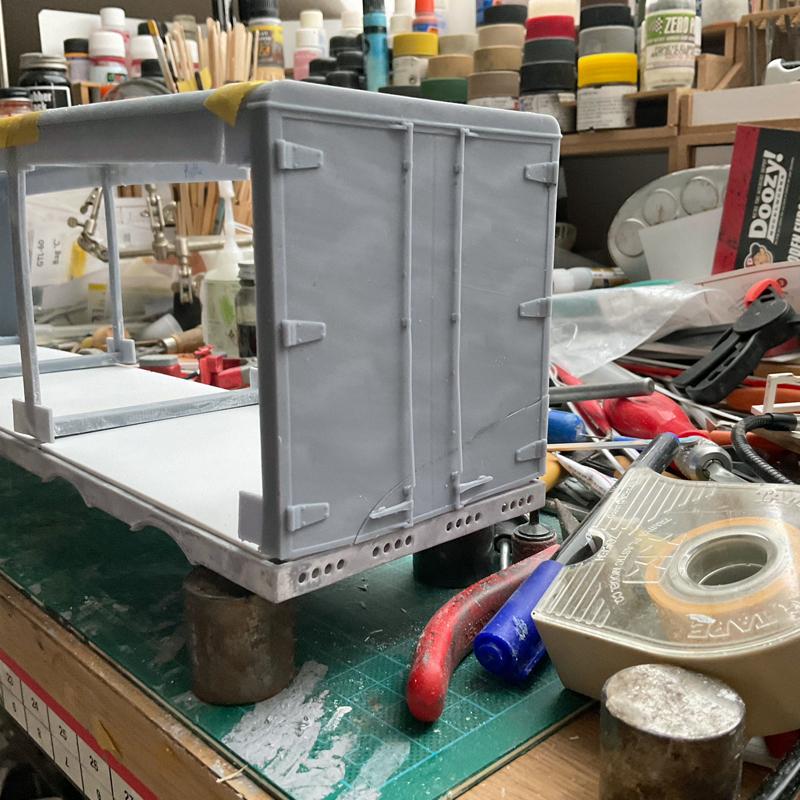

carsntrucks4you Posted July 21, 2023 Author Posted July 21, 2023 BAsed on the 24ft trailer I working on a 35ft trailer. This time with plain sides. Front and roof are different to the 24ft trailer. Rear part fall on the floor and must be printed again. 2

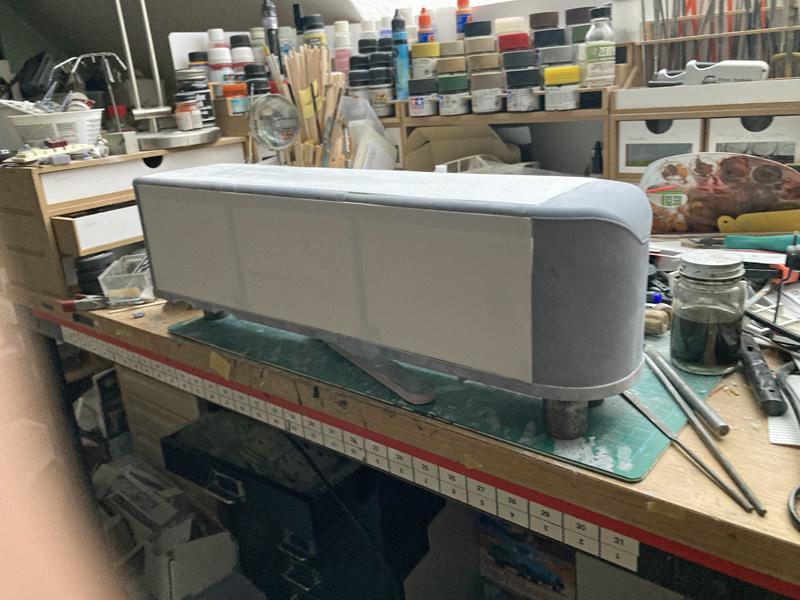

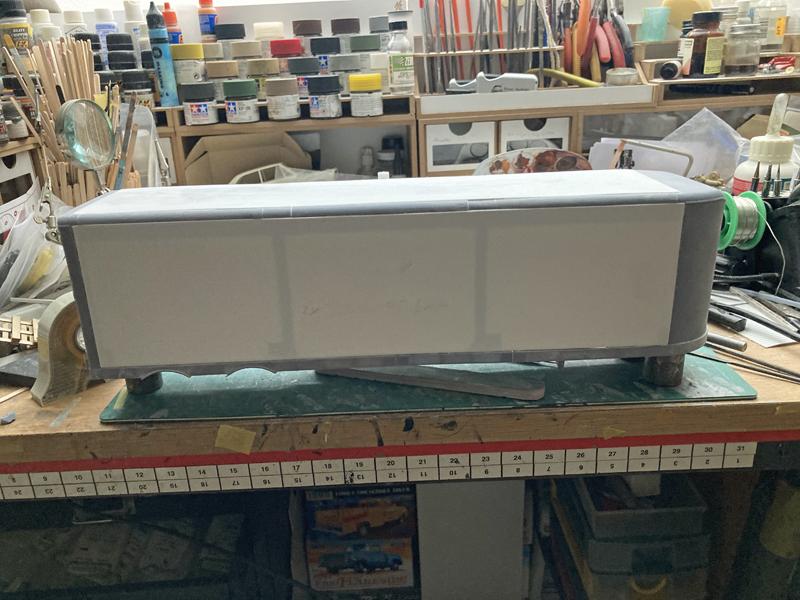

carsntrucks4you Posted July 24, 2023 Author Posted July 24, 2023 More progress on the 35ft van trailer 1
