leafsprings Posted June 18, 2017 Posted June 18, 2017 Very true! Do your research. F 100 are very different than F 250's, especially if you plan to convert the new '66 using the new 70 4x4 as a donor. A '66 F 100 4x4 conversion will be a simple frame swap ( very slight wheelbase shortening for longbed.) However the building of a '66 F 250 4x4 or '65 F 250 4x4 or '65 F 100 4x4 will require several modifications. These models came with a flareside or older style 57-'60 styleside bed on a 120" wheelbase ( 2WD '65 '66 8' beds rode on a 129" wheelbases) not to mention the older high floor cab.
mikemodeler Posted July 9, 2017 Posted July 9, 2017 Sure do, here's a quick mock up photo ..... Not sure of the release date yet. And some of the new parts. Keep in mind that some of these parts being shown are intended for other versions other then this one. These are test shot parts and not necessarily the final version. The trees in the lower picture are all new parts including the frame ..... As I make progress I'll post more photos. Steve These pictures were from 2 months ago, any chance you have completed it Steve? Would love to see this one in finished form! Also hoping someone sees fit to create a lift kit and/or 3/4 or 1 ton conversion to make a heavy duty version of this great kit!
SteveG Posted July 10, 2017 Author Posted July 10, 2017 These pictures were from 2 months ago, any chance you have completed it Steve? Would love to see this one in finished form!Also hoping someone sees fit to create a lift kit and/or 3/4 or 1 ton conversion to make a heavy duty version of this great kit!It's getting close to being finished, I do plan to post a few build up photos when I get the chance. Steve
Mercuryman54 Posted August 1, 2017 Posted August 1, 2017 is there any chance that Moebius could tool up for some Mercury trucks? 1967/68 and the new 1965/66 trucks. It's mainly just badging and tailgates
mk11 Posted August 2, 2017 Posted August 2, 2017 (edited) Decals and photoetch would solve that hood and tailgate letters are identical from 65-68. mike Edited August 2, 2017 by mk11
Casey429 Posted August 3, 2017 Posted August 3, 2017 I'm always ready for another 4x4. Seems to have been a lack of them over the years, with 4x2s prevailing even in modern tool pickups. As others have stated, trying to make an F-250 4x4 out of these won't be impossible, but it's not simply a matter of tossing on some 8 lug wheels. The only thing an F-250 shared with it's 1/2 ton counterparts (if we're sticking to the '67-'72 trucks) is sheet metal and engine options. F-100s used a 5-lug Dana 44 front axle, Ford 9" rear, and I'm not sure but may have been available with an automatic transmission. F-250s were a Dana 44 HD front (in a couple variations up though the '70s) and a Dana 60 rear. I've been told that F-250 4x4s were manual trans only up until the debut of the new '73 trucks but have never confirmed that. Just to add more to the confusion, the F-350 wasn't available as a 4x4 until 1979. Aftermarket conversions were around, but I've only seen one.
Mercuryman54 Posted August 17, 2017 Posted August 17, 2017 Any updates on release of the bumpside 4x4's?
SteveG Posted August 17, 2017 Author Posted August 17, 2017 Any updates on release of the bumpside 4x4's? Yes, I'm finishing up the box art build up as write this, should have photos up this weekend. The instructions are being completed and Dave says he just got a test shot of the last few additional parts required for this version. -Steve
SteveG Posted August 17, 2017 Author Posted August 17, 2017 (edited) I'm always ready for another 4x4. Seems to have been a lack of them over the years, with 4x2s prevailing even in modern tool pickups. As others have stated, trying to make an F-250 4x4 out of these won't be impossible, but it's not simply a matter of tossing on some 8 lug wheels. The only thing an F-250 shared with it's 1/2 ton counterparts (if we're sticking to the '67-'72 trucks) is sheet metal and engine options. F-100s used a 5-lug Dana 44 front axle, Ford 9" rear, and I'm not sure but may have been available with an automatic transmission. F-250s were a Dana 44 HD front (in a couple variations up though the '70s) and a Dana 60 rear. I've been told that F-250 4x4s were manual trans only up until the debut of the new '73 trucks but have never confirmed that. Just to add more to the confusion, the F-350 wasn't available as a 4x4 until 1979. Aftermarket conversions were around, but I've only seen one. No Automatic Transmissions were used on 67-72 F-100 4x4's Powertrain choices were either the standard 240 six or optional 360 V8 both with a 4 on the floor. The F-250 got the 300 six as standard. The kit will have the V8. If you want to build an 67- 72 F-250 4x4 you can use the suspension parts from the AMT 78 F-350 4x4 kit. Those parts are practically a drop in fit I've been told. -Steve Edited August 18, 2017 by SteveG
mk11 Posted August 18, 2017 Posted August 18, 2017 The front diff and springs in the amt F350 kit are the F100 style parts, Steve. The F250/F350 used leaf springs in front. The Dana 60 in the rear will work for an F250. It will also be accurate for an F100 as the dana 60 housing also came with the 9" Ford style axles. That's the style used in the hemi mopars. mike
SteveG Posted August 18, 2017 Author Posted August 18, 2017 The front diff and springs in the amt F350 kit are the F100 style parts, Steve. The F250/F350 used leaf springs in front. The Dana 60 in the rear will work for an F250. It will also be accurate for an F100 as the dana 60 housing also came with the 9" Ford style axles. That's the style used in the hemi mopars. mikeGood to know, thanks Mike !!

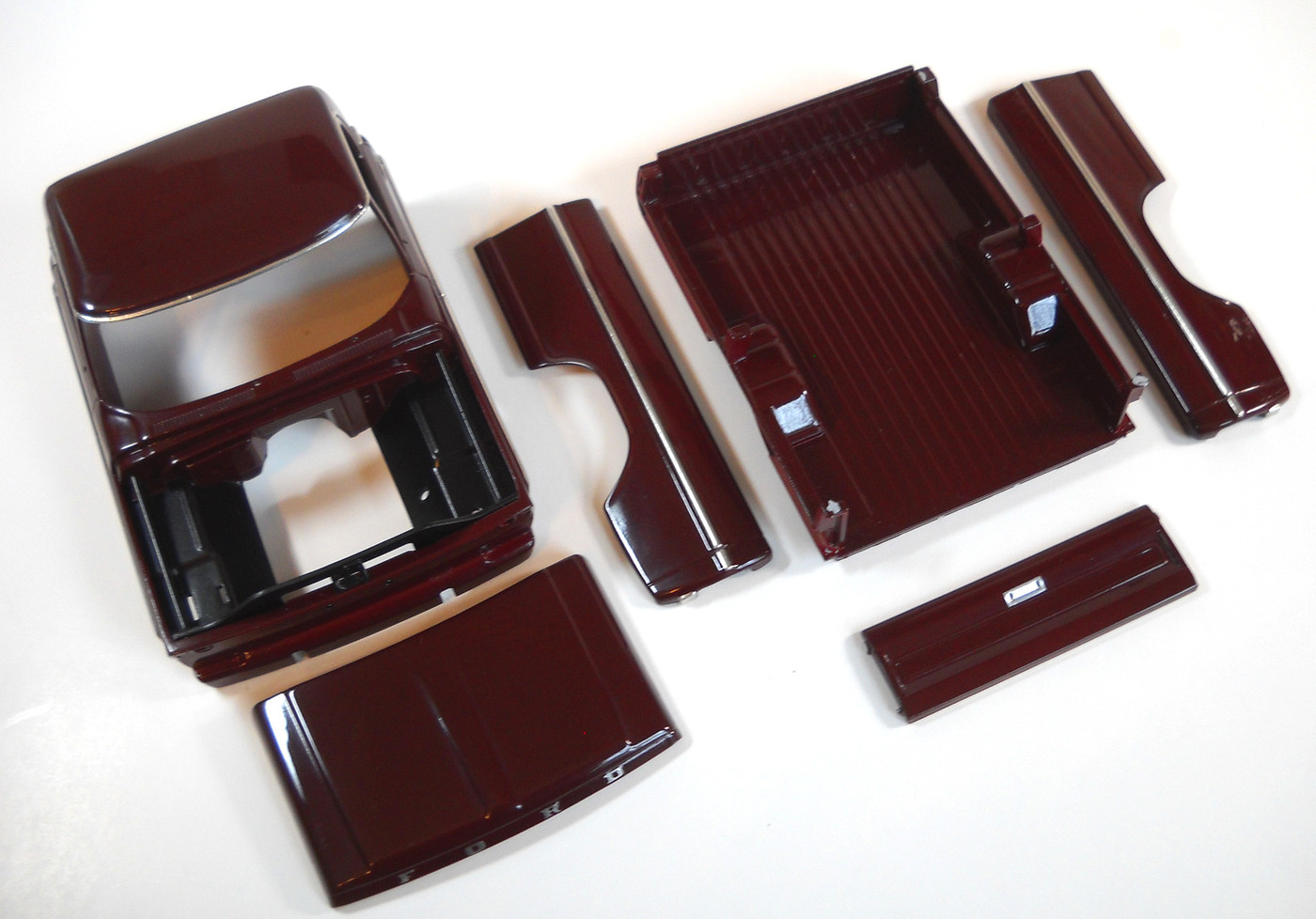

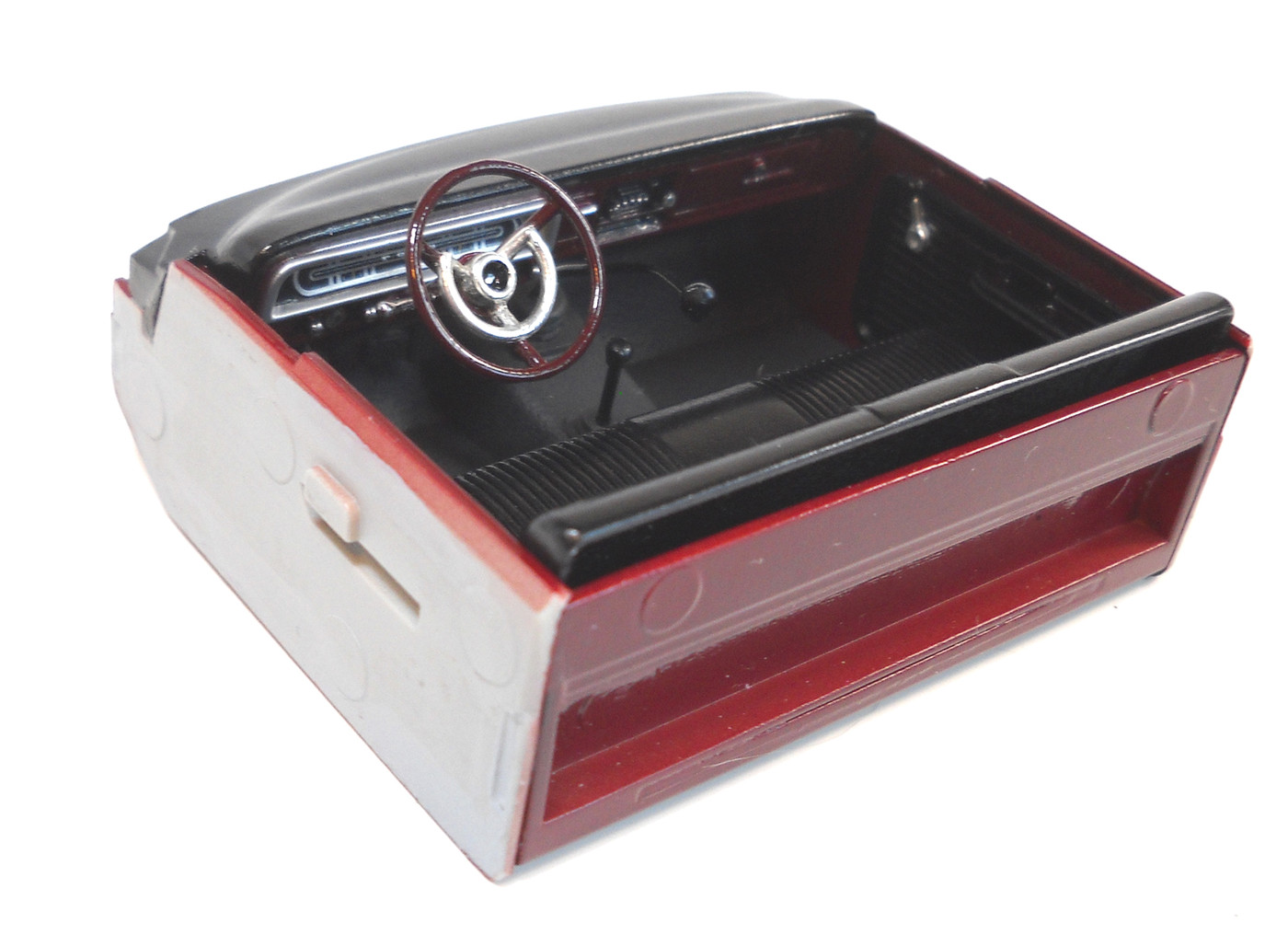

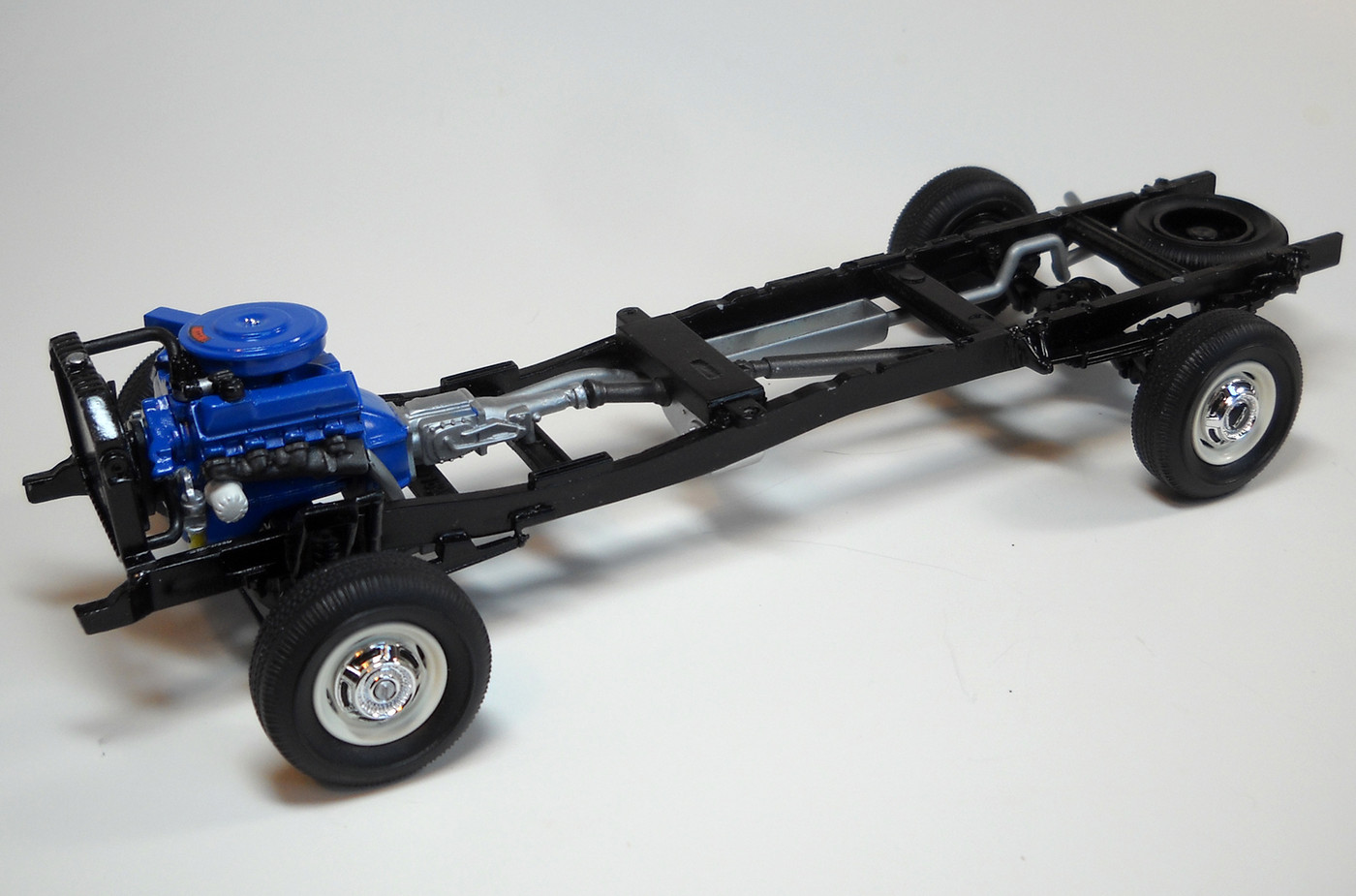

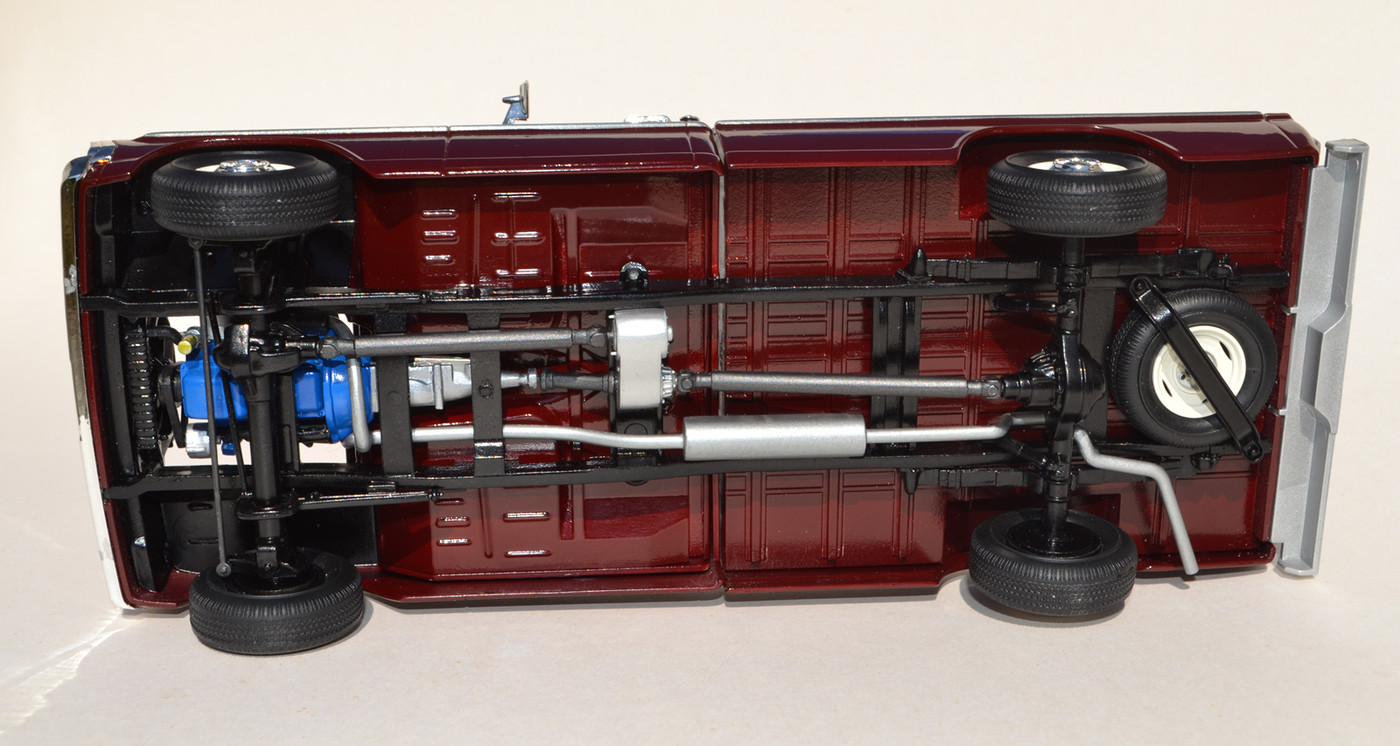

SteveG Posted August 23, 2017 Author Posted August 23, 2017 Here's some of the in process photos, I'll be adding a post to the under glass section pretty soon. I hope you like it ... -Steve
Fordboy1975 Posted August 23, 2017 Posted August 23, 2017 Love the color!!looks extremely good!!can't wait to see it all together!~Lane
leafsprings Posted August 24, 2017 Posted August 24, 2017 (edited) The front diff and springs in the amt F350 kit are the F100 style parts, Steve. The F250/F350 used leaf springs in front. The Dana 60 in the rear will work for an F250. It will also be accurate for an F100 as the dana 60 housing also came with the 9" Ford style axles. That's the style used in the hemi mopars. mikeThis is correct, we are getting an authentic F 100 4x4 chassis. An authentic F 250 4x4 chassis will require some reworking like you mentioned. About the F 350 kit, AMT just slapped the old Bronco's kit 4x4 componets to the Super Camper Special extra long wheelbase Ford pickup. The result was a product that never existed in real life. Edited August 24, 2017 by leafsprings
mk11 Posted August 24, 2017 Posted August 24, 2017 Close... but there are differences like double shocks and different brackets in the 78 bronco kit. In fact, the forward part of the bronco chassis is a great candidate to graft onto the moeb frame. mike
Lordmodelbuilder Posted September 1, 2017 Posted September 1, 2017 Looking good. I noticed that the transmission has the linkage molded to the side of it. Shouldn't this be a truck trans with the top shifter?
SteveG Posted September 2, 2017 Author Posted September 2, 2017 Looking good. I noticed that the transmission has the linkage molded to the side of it. Shouldn't this be a truck trans with the top shifter? That's a good question Brad, your probably right but I don't know for sure. What's in the kit is same trans the comes with 6 cylinder version that would probably represent a three speed column shift. However once it's built you can see very little of the transmission. I also probably should have painted the trans case a cast iron color too.
leafsprings Posted September 4, 2017 Posted September 4, 2017 Looks great! Hope the box art looks as good as this build!
Art Anderson Posted September 11, 2017 Posted September 11, 2017 (edited) Any word on the 66 yet?I spent several hours yesterday (Saturday the 9th) helping to review the first tooling mockups of the '65-66 F-100's. Once the little niggles are corrected (there are always those with first generation tooling mockups), they will be pretty cool indeed! Lots of features there, numerous variants--so hang on folks!Art Edited September 11, 2017 by Art Anderson
mikemodeler Posted September 11, 2017 Posted September 11, 2017 I spent several hours yesterday (Saturday the 9th) helping to review the first tooling mockups of the '65-66 F-100's. Once the little niggles are corrected (there are always those with first generation tooling mockups), they will be pretty cool indeed! Lots of features there, numerous variants--so hang on folks!ArtI sure hope your teaser line "Lots of features there, numerous variants" translates into drivetrain, body style and maybe even 2wd/4wd chassis options.
niteowl7710 Posted September 12, 2017 Posted September 12, 2017 I sure hope your teaser line "Lots of features there, numerous variants" translates into drivetrain, body style and maybe even 2wd/4wd chassis options.Drivetrain and chassis should more or less be carry overs from the other F-Series kits as they all used the same components. The differences would be in interior and exterior.
Art Anderson Posted September 13, 2017 Posted September 13, 2017 Drivetrain and chassis should more or less be carry overs from the other F-Series kits as they all used the same components. The differences would be in interior and exterior.The center crossmember of the chassis is farther forward on the '65-66. right below the rear of the cab. The transmissions have a much shorter tailshaft, with the driveshafts of both wheelbases being markedly longer (the long wheelbase--8' bed) has a "pillow block bearing" underneath the center crossmember, to support the 2-piece driveshaft.Art
niteowl7710 Posted September 14, 2017 Posted September 14, 2017 The center crossmember of the chassis is farther forward on the '65-66. right below the rear of the cab. The transmissions have a much shorter tailshaft, with the driveshafts of both wheelbases being markedly longer (the long wheelbase--8' bed) has a "pillow block bearing" underneath the center crossmember, to support the 2-piece driveshaft.ArtAlright so that's 6-10 new parts out of a completed chassis/powertrain assembly of close to 40? I'm glad that the specific differences will be addressed, but considering 95% is carried over I think that's still functionally "more or less carry overs".
