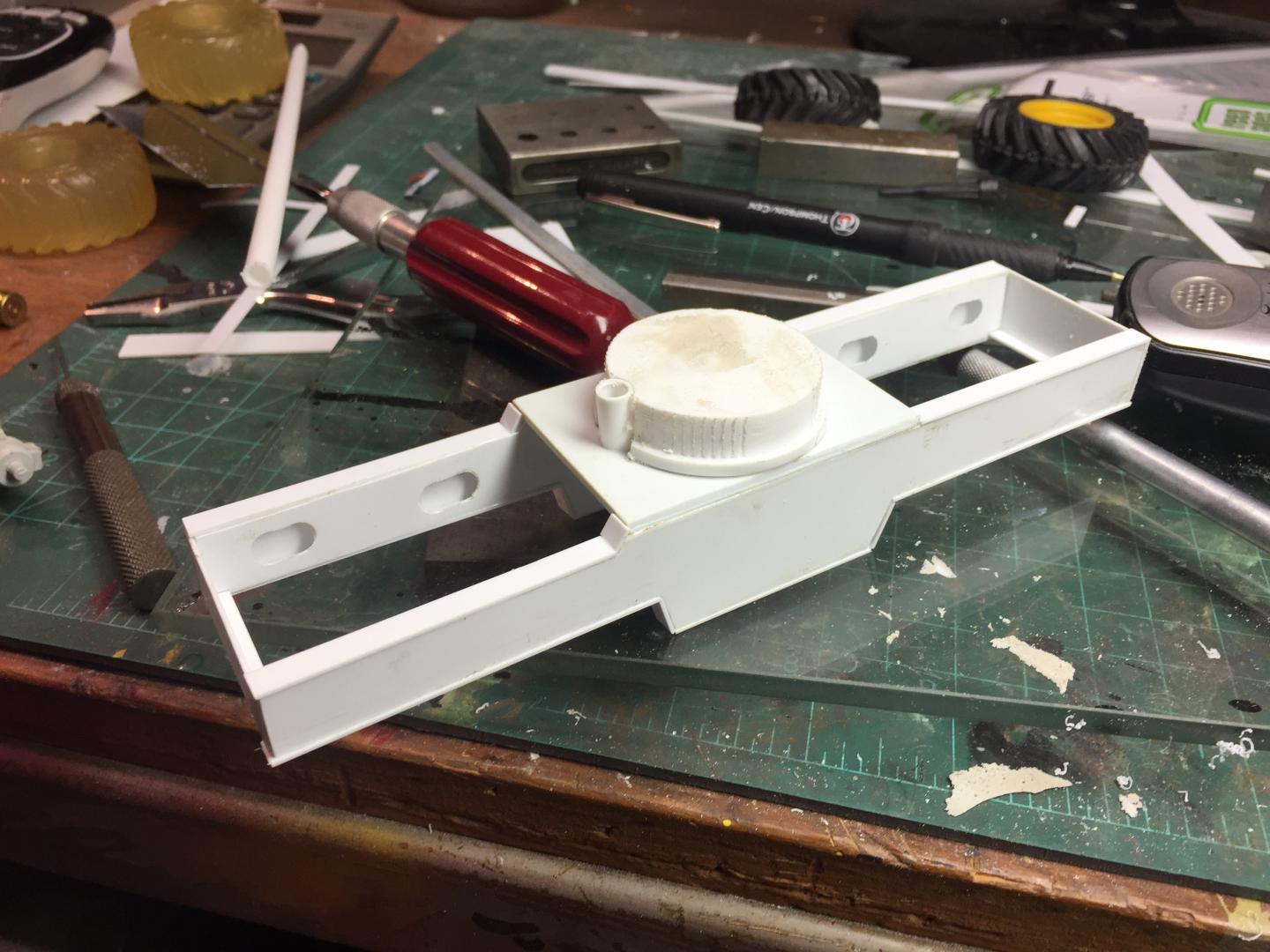

redneckrigger Posted June 17, 2019 Share Posted June 17, 2019 (edited) Started this Galion 12 1/2 ton crane tonight. Have been gathering information, details, specs and parts for it, and started cutting styrene tonight. I obtained a user's manual for it as well as a parts manual. I used to operate one of these where I used to work. Sadly, it met the scrapper's torch about a year ago. But, my memory still works at least a little bit, and lots of info online about these old workhorses will get this project done. I laid out the frame side plates and cut them out in a mirror image of each other, and then glued flanges all the way around. The boom base was then glued on top and the end cap cross members. I have two different types of tires to use, a set from the John Deere 310 backhoe, and a set of resin ones from Mark Savage. I think the Deere ones will get the nod, as they are more accurate in size, but time will tell, as the others may just look better. I am using a pair of powered axles from Moluminum. I have not made up my mind yet whether I will fabricate the boom or get Plastruct tubing for it..................again, time will tell. It will be powered by a Detroit 4 cylinder diesel.Just gotta keep myself going on this, as summer takes its toll on available building time! Edited June 17, 2019 by redneckrigger Quote Link to comment Share on other sites More sharing options...
DRIPTROIT 71 Posted June 17, 2019 Share Posted June 17, 2019 Cool project!! Quote Link to comment Share on other sites More sharing options...
redneckrigger Posted June 17, 2019 Author Share Posted June 17, 2019 2 minutes ago, DRIPTROIT 71 said: Cool project!! Thanks...........................actually just another hair brained idea like the roller I built. But, hopefully it comes out well! Stay tuned! Quote Link to comment Share on other sites More sharing options...
Tesla Posted June 17, 2019 Share Posted June 17, 2019 Great subject matter! I know you'll do a fine job. Quote Link to comment Share on other sites More sharing options...
disabled modeler Posted June 17, 2019 Share Posted June 17, 2019 Very coll project. I like the old Detroit's myself have a couple of project ideas that will need the straight 6cyl ones in them...maybe some others with the 4 cyl ones too. Your off to a good start. Quote Link to comment Share on other sites More sharing options...

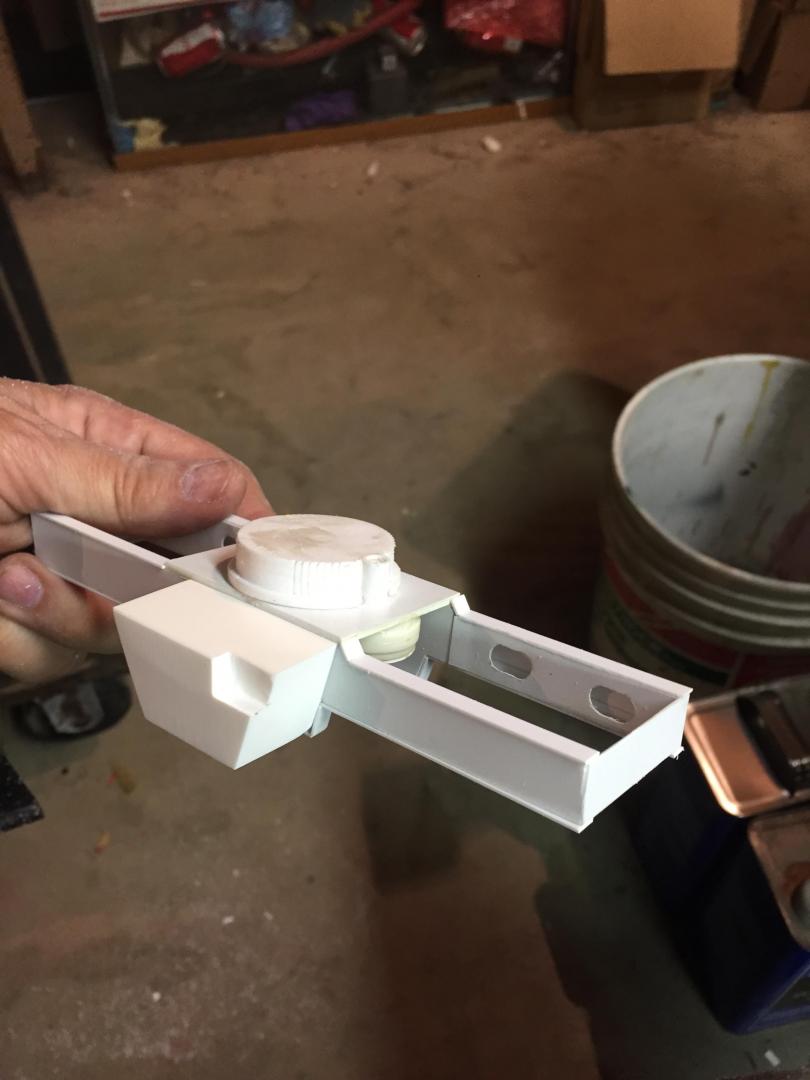

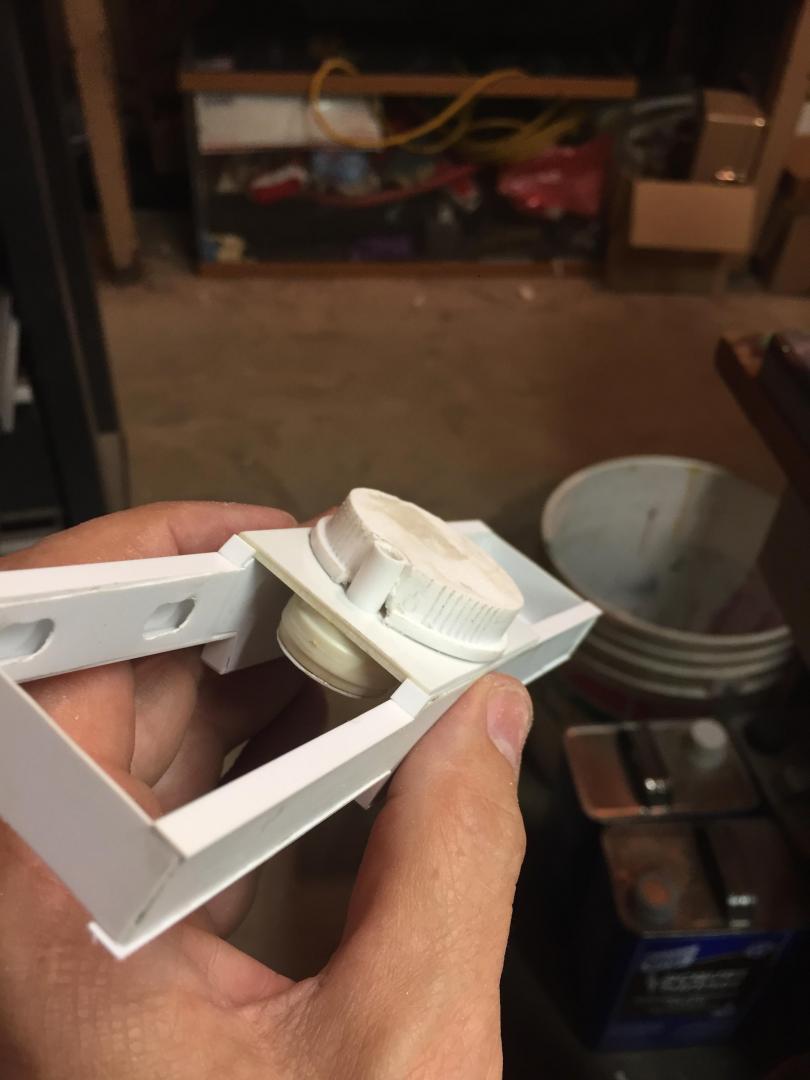

redneckrigger Posted June 17, 2019 Author Share Posted June 17, 2019 Just roughed in the turntable and boxed in the frame. Added the rotation gearbox and the fuel tank. Quote Link to comment Share on other sites More sharing options...
Vince66 Posted June 18, 2019 Share Posted June 18, 2019 Way cool. Quote Link to comment Share on other sites More sharing options...
Foxer Posted June 18, 2019 Share Posted June 18, 2019 Good to see you on the bench, Tom. I had to look this one up and should be pretty cool with your touch. Incidentally, I just found out my hair cutter's father was a crane operator for Maxi and I just met him there. His name is Scalese, forget first name, so you may know him. He's as old as I am and probably rode his bucket to inspect some structure ... one of my favorite inspection devises as I always trusted crane operators to move me around. )) My building has been in limbo for awhile. Quote Link to comment Share on other sites More sharing options...
gotnitro? Posted June 18, 2019 Share Posted June 18, 2019 Awesome work Tom Quote Link to comment Share on other sites More sharing options...
Dave Van Posted June 18, 2019 Share Posted June 18, 2019 WOW!!!! Quote Link to comment Share on other sites More sharing options...
redneckrigger Posted June 19, 2019 Author Share Posted June 19, 2019 (edited) I used to work with an Al Scalise.............crane operator supreme. I am TRYING to get some bench time this summer, but it ain't easy. But, got this far, and will keep on trying. The above photo is what I am building but it is shown without the optional operator's cab that I will be including on it. It will have kit tires, kitbashed wheels and hubs, resin engine, axles and transfer case, and everything else will be Evergreen and Plastruct styrene. Edited June 19, 2019 by redneckrigger Quote Link to comment Share on other sites More sharing options...
Foxer Posted June 19, 2019 Share Posted June 19, 2019 Thanks for the photo ... the build is sounding cool. With all the wet weather you should be getting some good bench! Quote Link to comment Share on other sites More sharing options...
redneckrigger Posted June 19, 2019 Author Share Posted June 19, 2019 (edited) 3 hours ago, Foxer said: Thanks for the photo ... the build is sounding cool. With all the wet weather you should be getting some good bench! The wet weather is a curse................spending time dragging my driveway back up the 500' hill every time we get a gully washer. But, am getting in a bit of time. That crane spent a good portion of it's life sitting right in the yard now occupied by John's Excavation in Lanesboro..............we used it there to work on all of the equipment we rebuilt every winter. The one we had was gas powered, but still was a great little machine. Sadly, now it is just a bunch of razor blades! Stay tuned! Edited June 19, 2019 by redneckrigger Quote Link to comment Share on other sites More sharing options...
Chariots of Fire Posted June 20, 2019 Share Posted June 20, 2019 OH, man! I don't envy you on your driveway. When we had our place in Maine I had the same problem. I knew every time we went there I was going to have to rebuilt the 300' driveway. Deep crushed stone finally solved most of the problem in the worst areas. Love the work on the crane! I will be following along. Quote Link to comment Share on other sites More sharing options...
redneckrigger Posted June 20, 2019 Author Share Posted June 20, 2019 4 hours ago, Chariots of Fire said: OH, man! I don't envy you on your driveway. When we had our place in Maine I had the same problem. I knew every time we went there I was going to have to rebuilt the 300' driveway. Deep crushed stone finally solved most of the problem in the worst areas. Love the work on the crane! I will be following along. Yeah, that driveway runs straight uphill at about a 12-14% grade right off the state highway. I don't even try to drive up in my truck in July without putting it in 4WD. The weight distribution just isn't right on it and it chews the **** out of the gravel. Amazingly, my Mustang GT goes up and down fine! And when it rains, I have to take my loader down to scrape up everything that washed out into the road and drag it back up the hill. The spot I live is well worth it, but it's a good thing I have a tractor/loader that is big enough to handle the continuous maintenance! Quote Link to comment Share on other sites More sharing options...
signguy2108 Posted June 22, 2019 Share Posted June 22, 2019 Tom, u need to slow down, ur making it look too easy! Seriously, cant wait to see this one done Quote Link to comment Share on other sites More sharing options...
disabled modeler Posted June 22, 2019 Share Posted June 22, 2019 Very nice..! Shame they dont make more 1/25th or 1/24rth scale equipment models in plastic like that...I know many of us would like them. Quote Link to comment Share on other sites More sharing options...
gatorincebu Posted June 23, 2019 Share Posted June 23, 2019 Tom, This looks to be a great project . I know you will do it justice . And like you I ran one with a detroit in it. Used it to set sewer manholes Be Well Gator Quote Link to comment Share on other sites More sharing options...
redneckrigger Posted July 2, 2019 Author Share Posted July 2, 2019 Got a couple of hours today to cut some styrene....................made the front and rear outrigger structures, did some body work on the turntable, got the left side tank/toolbox made and installed, and made the front and rear axle mounts. The rear is a rubber block type, while the front is a solid mount. Attached the two drive axles, and did a quick mock-up with the tires and wheels as shown. Still have to make drive hubs for the wheels, but it is starting to get "the look". I will be attacking the boom assembly next, and then all of the hydraulic cylinders for the boom, steering and outriggers. Thanks for stopping by! Quote Link to comment Share on other sites More sharing options...
DRIPTROIT 71 Posted July 2, 2019 Share Posted July 2, 2019 Looking good!! Quote Link to comment Share on other sites More sharing options...
gatorincebu Posted July 2, 2019 Share Posted July 2, 2019 Tom , It looks like you are moving right along on this project ! Be Well Gator Quote Link to comment Share on other sites More sharing options...
clayton Posted July 2, 2019 Share Posted July 2, 2019 We're did the tires and rims come from? Looks good. Quote Link to comment Share on other sites More sharing options...
Vince66 Posted July 2, 2019 Share Posted July 2, 2019 Looks like John Deere or farm tractor rims/tires. Looking really good. Quote Link to comment Share on other sites More sharing options...
redneckrigger Posted July 3, 2019 Author Share Posted July 3, 2019 19 hours ago, clayton said: We're did the tires and rims come from? Looks good. They are from the Ertl John Deere 310 backhoe 13 hours ago, NothingAsFineAsaW9 said: Looks like John Deere or farm tractor rims/tires. Looking really good. Thanks.....getting there! Quote Link to comment Share on other sites More sharing options...
TECHMAN Posted July 3, 2019 Share Posted July 3, 2019 Amazing fabrication!!!! Hats off!!!! DJ Quote Link to comment Share on other sites More sharing options...
