PHPaul Posted December 3, 2020 Author Share Posted December 3, 2020 Thanks for the link to the wheels. The front ones would probably work, but a bit spendy, I'd need two sets just for the front wheels. LOVE the buzz saw! What scale is that? Did you scratch-build the saw? Quote Link to comment Share on other sites More sharing options...
mchook Posted December 4, 2020 Share Posted December 4, 2020 Ya, I hate spending money on something I can make, especially when you have to spend 2x as much. The saw is scratch built & 1/24 scale. Quote Link to comment Share on other sites More sharing options...
PHPaul Posted December 8, 2020 Author Share Posted December 8, 2020 On 12/3/2020 at 8:51 AM, Anglia105E said: Hello Paul...... I am not wanting to hijack your thread or anything, but I can see that you are clearly knowledgeable when it comes to engineering equipment, so I was wondering what you think about this 3D printed lathe. The link takes you to a seller on Pinshape, and the price is in US $., which is a 1:10 scale lathe. I am wanting to 3D print some factory machinery for my 1:43 Hooper & Co factory, so that I can photograph some Rolls-Royce car bodies in production, with some machine tools displayed inside the factory building. I would have thought the 1:10 scale model could be scaled down to 1:43, before I print it. Does it look like the sort of machine that you would have seen inside a Rolls-Royce factory during the 1950's, in your opinion? Photos below this link...... https://pinshape.com/items/40054-3d-printed-scale-110-lathe David No sure how I missed this, sorry for the delay. That would probably be "cutting edge" technology for the early 50's, but I think it would be appropriate. Quote Link to comment Share on other sites More sharing options...
Anglia105E Posted December 8, 2020 Share Posted December 8, 2020 Thank you, Paul....... and no problem with the delay. I went ahead and reduced the lathe model to what I thought was 1:43 scale, but this turned out to be a miscalculation on my part. The lathe came out half size, so I doubled up the measurements and printed a larger model. Here are photos of all three lathe models. The two smaller lathes could be mounted on workbenches. Thanks for looking! David Quote Link to comment Share on other sites More sharing options...
PHPaul Posted December 8, 2020 Author Share Posted December 8, 2020 (edited) VERY Nice, David. The diorama looks good already! I keep thinking 3D printing would be an interesting new hobby, but when you're starting from scratch, the start-up costs and learning curve are a bit more than I have the ambition (or resources...) to take on. Edited December 8, 2020 by PHPaul Quote Link to comment Share on other sites More sharing options...
PHPaul Posted December 8, 2020 Author Share Posted December 8, 2020 Here's where I am as of today. A few more details on the top and the right side and it'll be ready for primer. 1 Quote Link to comment Share on other sites More sharing options...
mchook Posted December 9, 2020 Share Posted December 9, 2020 WOW! That looks amazing, great job. Quote Link to comment Share on other sites More sharing options...
peteski Posted December 9, 2020 Share Posted December 9, 2020 The wheels look better than I envisioned them. Very good! Quote Link to comment Share on other sites More sharing options...
PHPaul Posted December 9, 2020 Author Share Posted December 9, 2020 Thank you! Quote Link to comment Share on other sites More sharing options...
PHPaul Posted December 13, 2020 Author Share Posted December 13, 2020 Thresher is pretty much finished. May redo some of the weathering and paint the drive belts to stand out a little more. Now for a steamer to power it... Quote Link to comment Share on other sites More sharing options...
Anglia105E Posted December 13, 2020 Share Posted December 13, 2020 Excellent build, Paul...... and you must be very pleased with this model of the thresher. David Quote Link to comment Share on other sites More sharing options...
PHPaul Posted December 13, 2020 Author Share Posted December 13, 2020 Thank you. I'm not entirely happy with the weathering. I tried something new for the green moss/mildew effect and I like the color but the coverage needs work. There are a couple of other minor glitches that I'd do differently next time, but overall I'm pleased. I think my next project will be a steam engine to drive it. I'm gathering information now. Quote Link to comment Share on other sites More sharing options...
1930fordpickup Posted December 14, 2020 Share Posted December 14, 2020 The thrasher looks great. Quote Link to comment Share on other sites More sharing options...
PHPaul Posted December 22, 2020 Author Share Posted December 22, 2020 My next project/challenge in 1:64 - an Advance-Rumely steam engine to run the thresher. I invested in an entry-level 3D printer to make some of the more complex parts. I went with a Creality Ender 3D V2 and I've been learning TinkerCAD while I wait for it to arrive. I've designed a few parts and sent the file on a couple to a friend to print on his printer as a test of my design. Already learned a couple of things. Being as they're VERY small parts (10mm cubed on one) I'll need a finer nozzle than the one that comes with the printer. Haven't even got it yet and I'm already ordering mod parts for it... Quote Link to comment Share on other sites More sharing options...

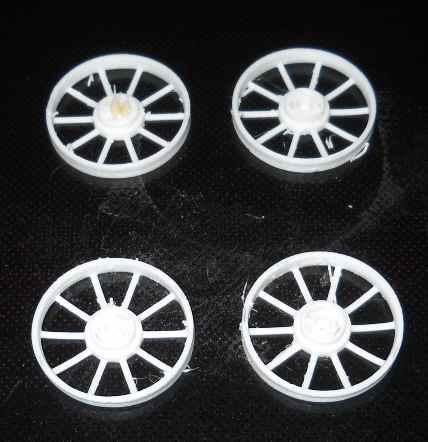

PHPaul Posted December 24, 2020 Author Share Posted December 24, 2020 Got the printer Tuesday night late - a day EARLY! Amazing, considering the season and the 'rona. Other things got in the way until Wednesday afternoon, then I put it together, figured out a couple of minor issues with the software and printed a pre-loaded test object. VERY impressed with the finish. While waiting for the printer, I did enough of the tutorials on TinkerCAD to have a basic grasp of it and designed some parts for the steamer. First attempt at printing my own designs. The front axle/pedestal came out well enough to use with a little sanding. The rear wheels were about 90%. Problem was the spokes. The ones that printed directly on the print bed were fine, but the "top" ones didn't have enough support and didn't connect to the rims, along with strings everywhere. Time for Plan B: Re-did the wheels in halves so both sets of spokes printed on the print bed. MUCH better. A bit of sanding and we're good to go. I'll clock them so the spokes alternate and glue them together Quote Link to comment Share on other sites More sharing options...
PHPaul Posted December 26, 2020 Author Share Posted December 26, 2020 (edited) Working on a 1:64 model of an Advance-Rumely steam engine for my diorama. Wheels, stack/headlight, front axle and pedestal, steam dome, water barrels and coal box all printed on the 3D printer. The rest is built from various plastic sheet and shapes. Took 4 tries on the rear wheels and 3 on the front to get results I was pleased with. I initially tried to print the wheels and spokes as a unit on the rear, but the spokes didn't always connect to the rim as they were unsupported during the print process. Then I attempted printing the wheels in two halves so the spokes were supported by the bed of the printer which worked, but gluing them together was problematic due to delicacy of the spokes and warping of the rims as they cooled. Wound up printing the rims separately and printing 4 sets of spokes (inner and outer for two wheels) on the bed and printed the spokes bigger than I really liked so they weren't so delicate. The stack came out perfect first shot, as did pretty much everything else. Long way to go yet, but it's getting there. Looking at the picture, the stack/headlight print looks a little out of scale - too big. Might scale that down a bit and re-print it. I've been getting reports that some folks can't see pictures linked from my website. Link if you can't see the picture: http://www.eastovershoe.com/diorama/steamer/steamer3.jpg bee Edited December 26, 2020 by PHPaul added thoughts Quote Link to comment Share on other sites More sharing options...
PHPaul Posted January 10, 2021 Author Share Posted January 10, 2021 Was going to post some pictures of the finished steam engine, but after looking at them, I'm not happy with the paint. Some sanding and re-painting will be needed. Quote Link to comment Share on other sites More sharing options...
plastic trucker Posted January 10, 2021 Share Posted January 10, 2021 Don't see any chickens in the yard. Quote Link to comment Share on other sites More sharing options...
PHPaul Posted January 10, 2021 Author Share Posted January 10, 2021 They're in the chicken coop behind the house. There are actually some in the yard now, hadn't received them when this picture was taken. Quote Link to comment Share on other sites More sharing options...
PHPaul Posted January 22, 2021 Author Share Posted January 22, 2021 After looking at Version 1 of the steamer for a few days, I decided to start from scratch and build V2 using more 3D printed parts. I redesigned some pieces and tweaked others to correct scale issues. It's assembled and in paint now, I'll post pictures in a day or two. Meanwhile, I'm adding details here and there on the diorama. I added an abandoned cellar hole near the sawmill. My thinking is it was the original cabin on the farm from back in the 1800's. As such holes often do, it's collected some random junk. I built a dilapidated shed to park the steamer under and added a coal bin next to the shed, using Black Diamond Coal Slag blasting media as the coal. Quote Link to comment Share on other sites More sharing options...
Anglia105E Posted January 22, 2021 Share Posted January 22, 2021 I like the corrugated roofing on the dilapidated shed...... what material is that, Paul? David Quote Link to comment Share on other sites More sharing options...
PHPaul Posted January 22, 2021 Author Share Posted January 22, 2021 The metal roofing is from Northeastern Scale Lumber. HO scale is close enough for the diorama which is actually S scale. Corrugated Metal Roofing in various scales. Quote Link to comment Share on other sites More sharing options...
Anglia105E Posted January 23, 2021 Share Posted January 23, 2021 1 hour ago, PHPaul said: The metal roofing is from Northeastern Scale Lumber. HO scale is close enough for the diorama which is actually S scale. Corrugated Metal Roofing in various scales. Thanks, Paul...... looks like a good supplier of scale stuff. David Quote Link to comment Share on other sites More sharing options...
PHPaul Posted January 23, 2021 Author Share Posted January 23, 2021 Version 2 got some scale issues fixed, some details removed and others added, and a better paint job. The original was gloss black and it looked overdone. This one is flat gunmetal, much more realistic IMHO. Still not perfect, but plenty good enough for a diorama viewed from 3 or 4 feet away. 1 Quote Link to comment Share on other sites More sharing options...
lordairgtar Posted February 21, 2021 Share Posted February 21, 2021 I'd love to do a farm dio of my grandfather's farm from the 60s. Yours is amazing. Quote Link to comment Share on other sites More sharing options...
