On 1/16/2024 at 8:04 PM, AmericanMuscleFan said:

Hello everyone,

OK, the time has come to change the type of material to make shinny parts!

I spent the last few days working with my favorite tools, the lathe and the milling machine to start the more technical part of the project if I may say so.  I really enjoy working on body modifications (or improvements), but I also enjoy scratching my head and coming up with new techniques for machining parts.  As I mentioned in a previous post, I need to put this thing on its wheels so I started with the rear mag wheels.  No real new technique here but just a new kind of wheels of the same type as I made for my '70 GTX but a little more elaborate.  I found a photo and the make (or model) on a drag racing discussion forum and they are called Appliance according to the experts.  It's a style of wheels that fits the Demon perfectly and brings a touch of nostalgia that goes well with my project I think.  And you what do you think?

I'm leaving for work for a few days and I'll come back to you next weekend.

Francis

I started with a 0.625" T6 aluminum rod.

After the diameter was reduced to fit the inner size of my Pro Stock tires, I began machining the outer side.

Right now they look like Center Line or Cragar Super Trick but I'm going to change that! ?

Looking at the target photo, I saw that there is a rounded shape at the bottom of the rear wheels so I used a ball nose end mill to create that shape.

Next I made the slots using an oval drill bit... ?  No, No, I used a carbide drill bit and using the rotary table I rotate 20 degrees to create the slot shape.  I repeated this same operation 4 more times to complete the design.

Both twins at a more advanced stage.

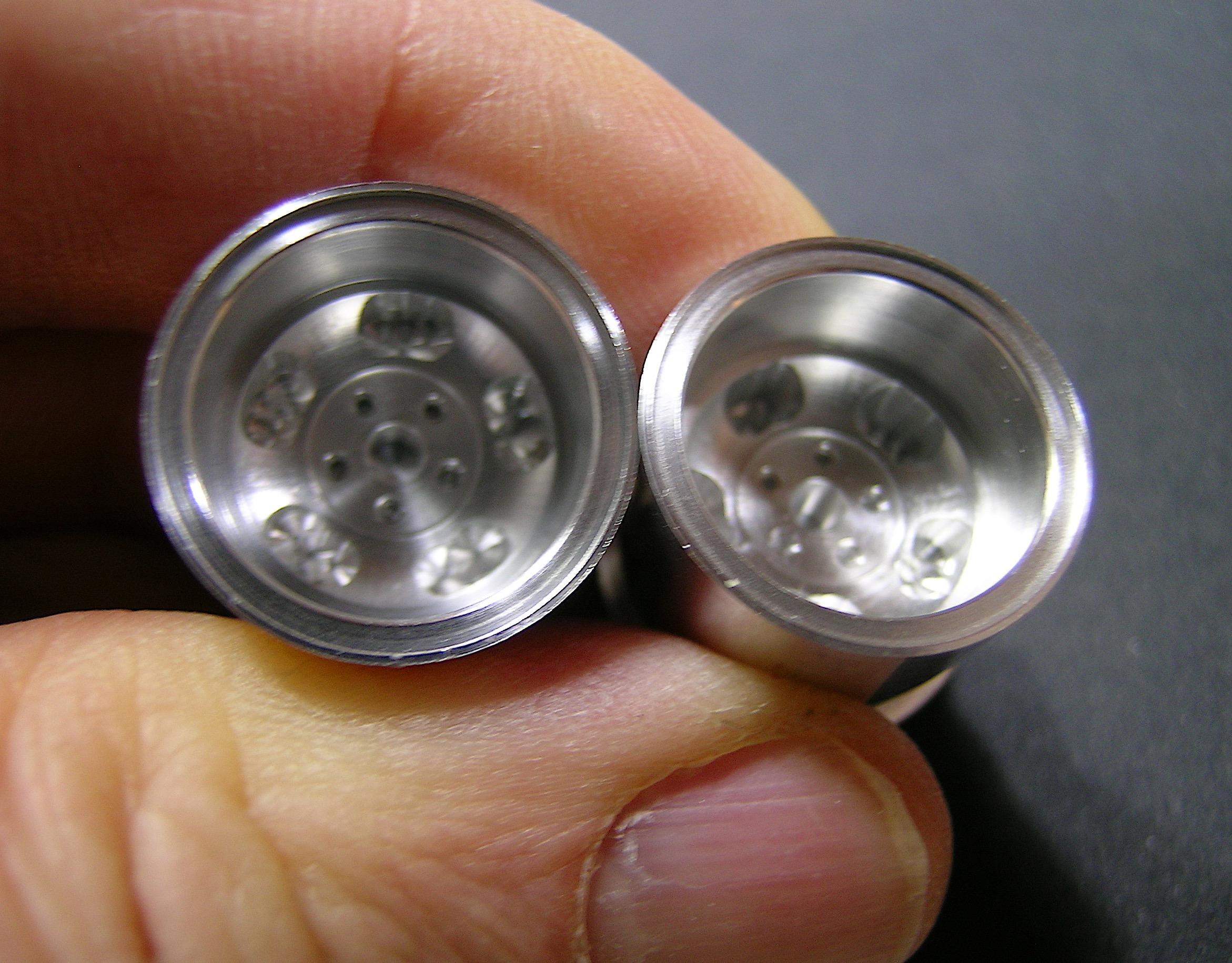

I also drilled the holes for the wheel nuts and made a small seat for each one.

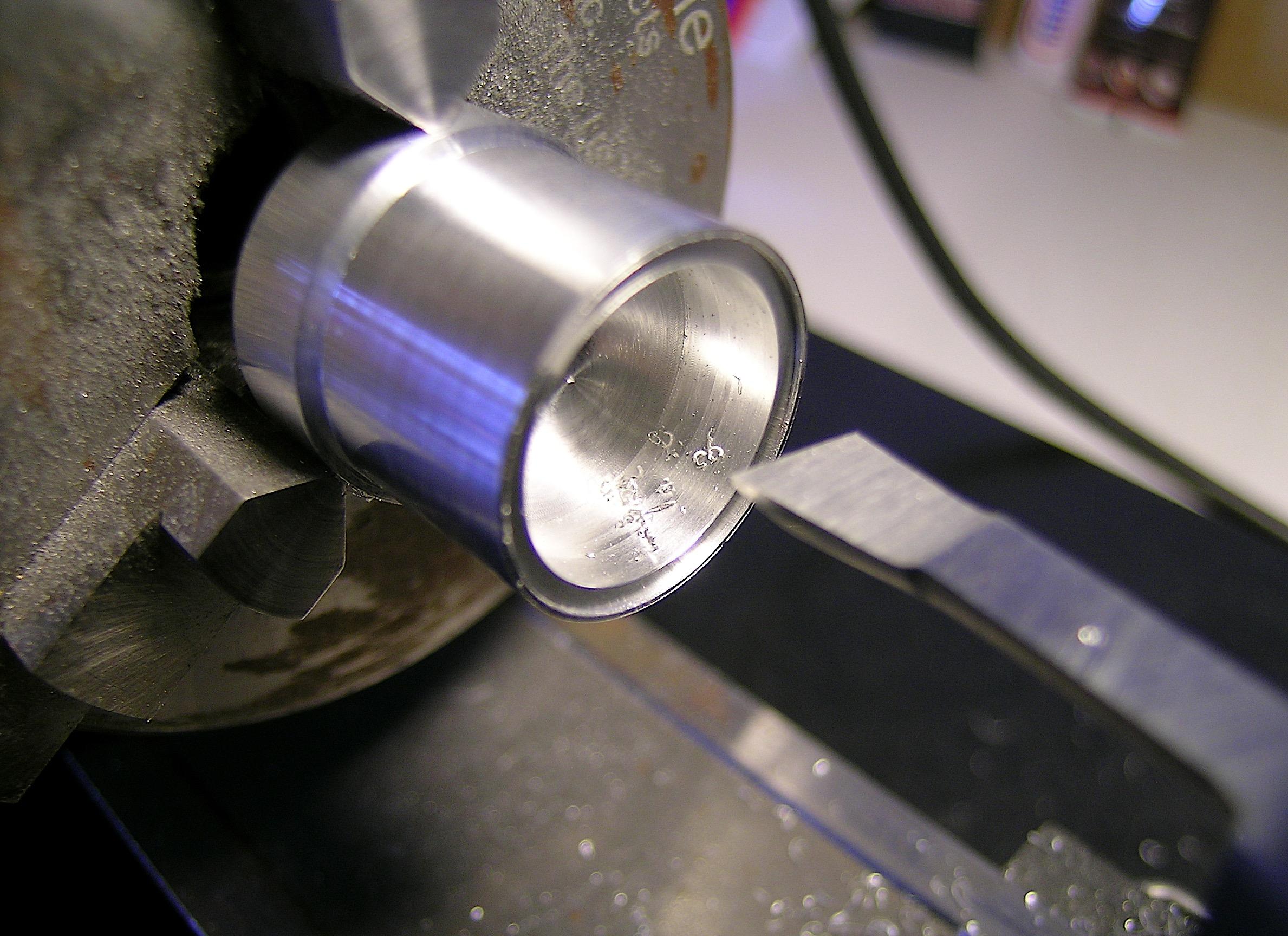

Back on the lathe to machine the back of the wheel.  Take note, it is very important to record the depth measurements of the front side so as not to go straight (or have a wall that is too thick) when working on the back side.

I remove material from the center and keep a raised portion at each end that produces the edges of the wheel.

Later I will drill small holes for the air valves they are located in the center of one slot.

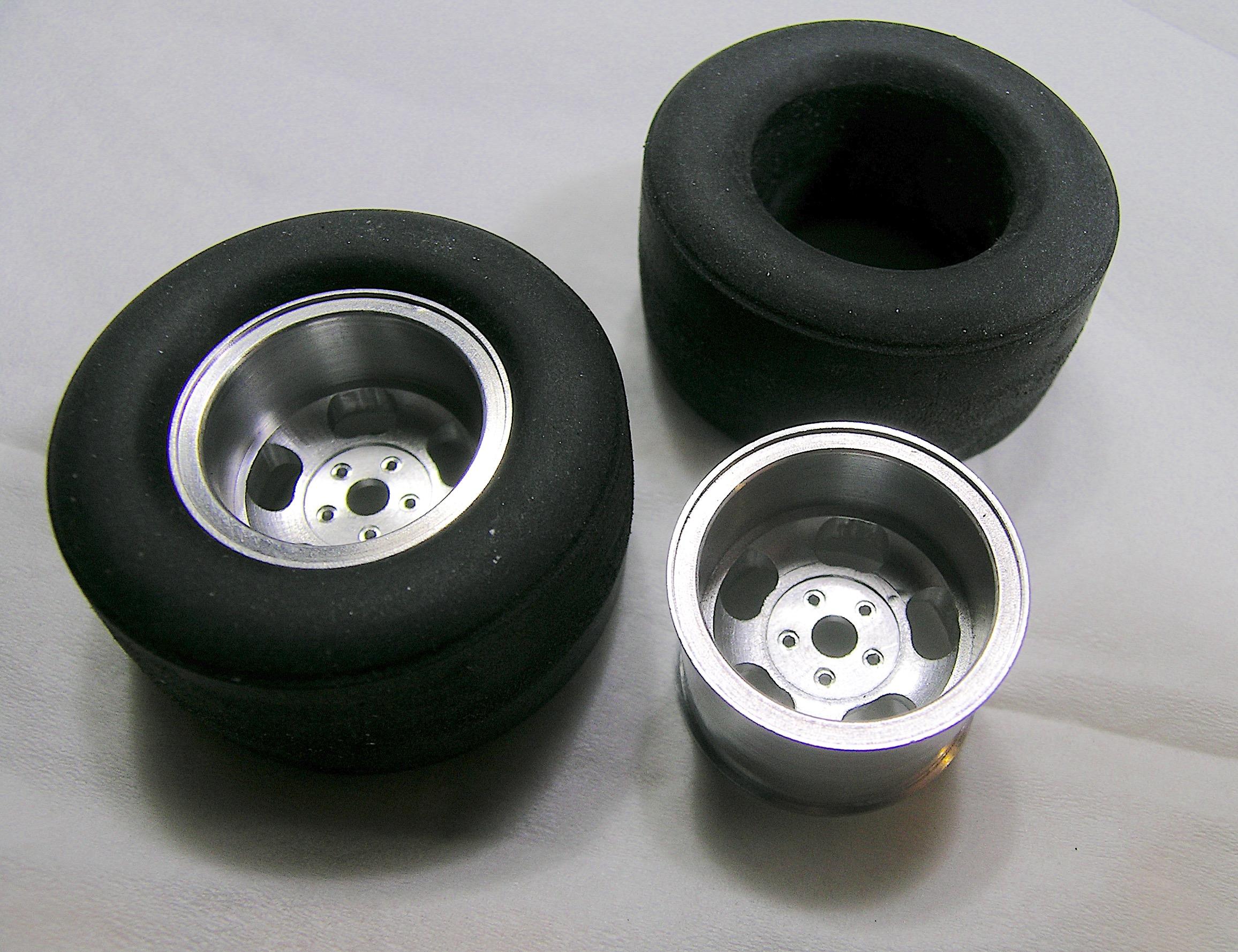

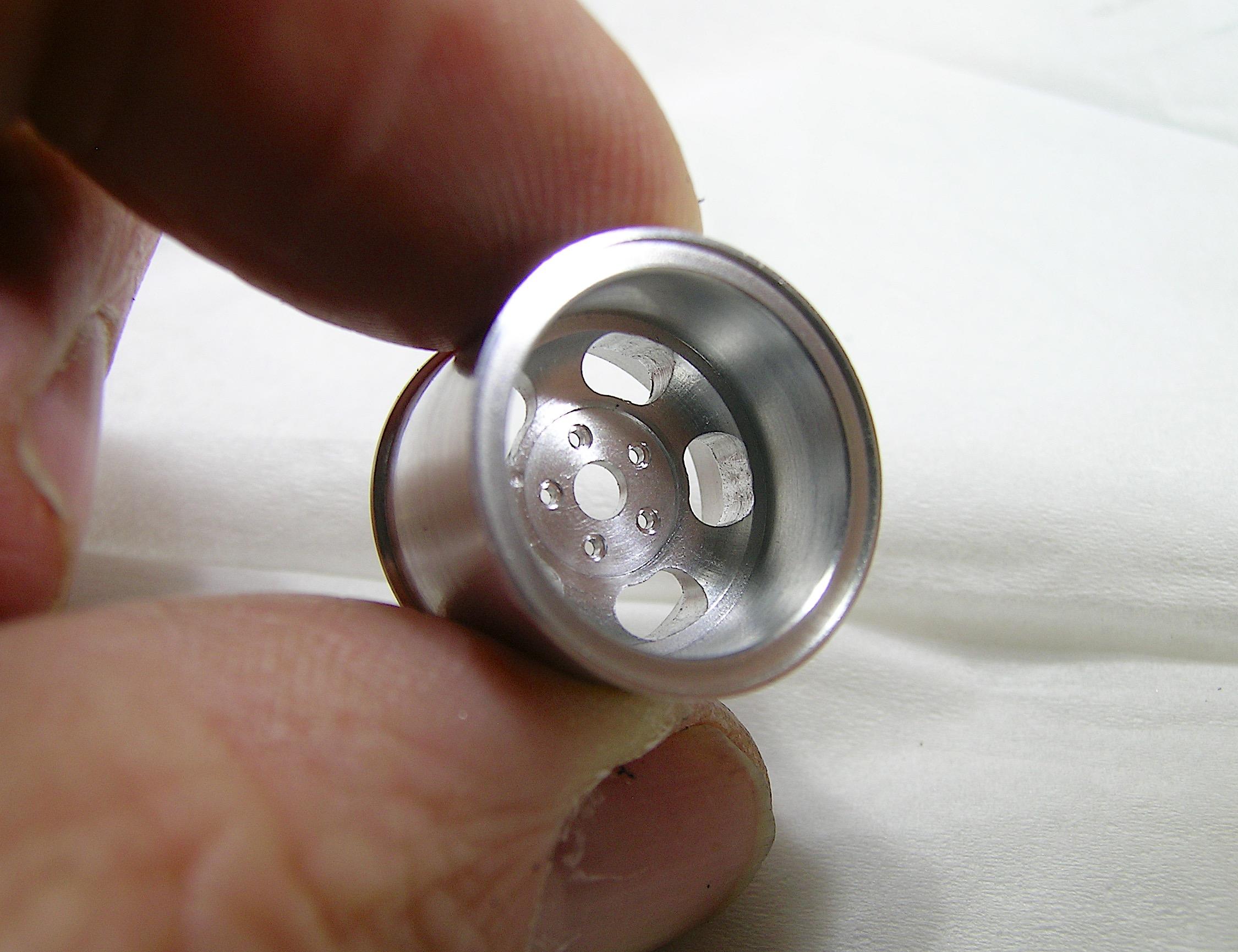

I'm pretty happy with them, I'll keep them unpolished as it gives them a vintage magnesium look.  Rear slicks are rubber compound American Satco Pro Stock.

Man those wheels look great! Amazing job!

[AmericanMuscleFan]

On 1/22/2024 at 12:54 PM, Musclecarbuilder said:

Man those wheels look great! Amazing job!

Thanks Will, I will soon post photos of the front wheels that I machined in the last few days, unsurprisingly same design but a little narrower... ?

Francis

[Randy D]

Awesome project Francis!!!! Your machining skills in plastic and metal really set the bar high Sir.  I always come away amazed.

Randy

[AmericanMuscleFan]

On 1/27/2024 at 9:25 AM, Randy D said:

Awesome project Francis!!!! Your machining skills in plastic and metal really set the bar high Sir.  I always come away amazed.

Randy

Thank you for your kind comments Randy!  It's sometimes difficult to stay fully motivated when you're involved in a long project like this and I know you understand what I'm talking about.  The constant support of our peers is one of the most important elements of any project and I cannot express enough how much I appreciate the interaction with everyone who takes the time to bring these to life, it is in my opinion the reason for this forum.  You inspire more than one and I am one of them my friend!

Francis

[AmericanMuscleFan]

Hello everyone!

Unsurprisingly but a little later than expected, the front wheels are my update for today.  The machining steps are the same as for the rear wheels but with less material to remove of course.  They are not easier to make however, the width being at a certain point in machining a problem for mounting them in the chuck.  So here are the photos and I hope you like the end result.

See you later with other aluminum or brass parts.

Francis

After reducing the aluminum rod to the desired size and machining the basic details, I transferred the blank into the rotary table chuck.

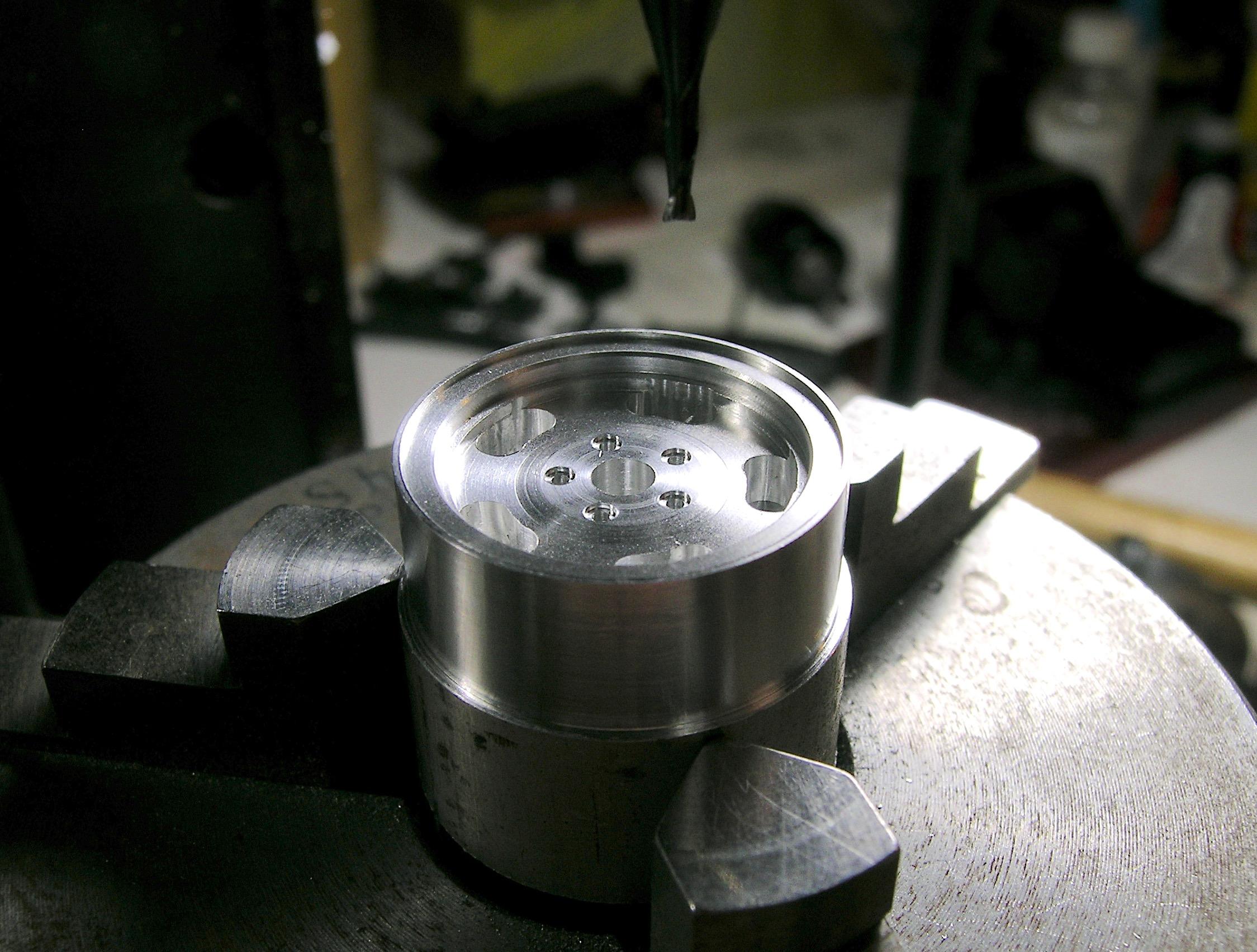

Using the same techniques and measurements as the rear wheels, I drilled the slots and holes for the wheel studs.

Before working on the back of the wheel I went back to the lathe to make the raised shape in the center on the wheel.  I could have done this initially but I forgot...!

Back on the lathe to create the groove to mount the front tires.

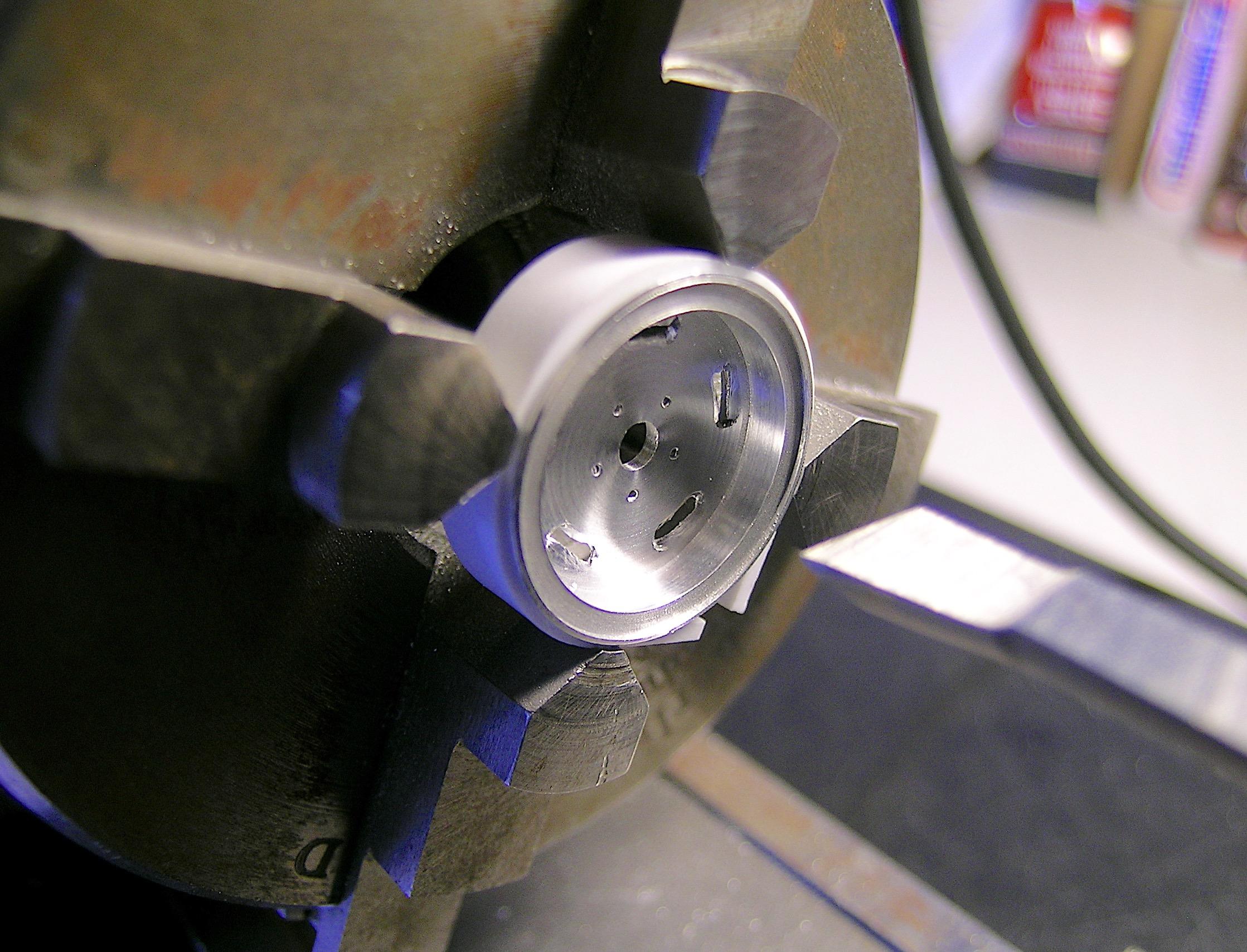

In order to machine the inner part of the wheel, I wound a strip of styrene to be able to mount it in the chuck.  I have to admit that it's a little stressful! ?

Here is the final result (exterior side).

The central wall is off-centered towards the outside because I need to provide room for the brake rotor and caliper.

The family is finally reunited, the front tires are Front Runner from Futurattraction.
