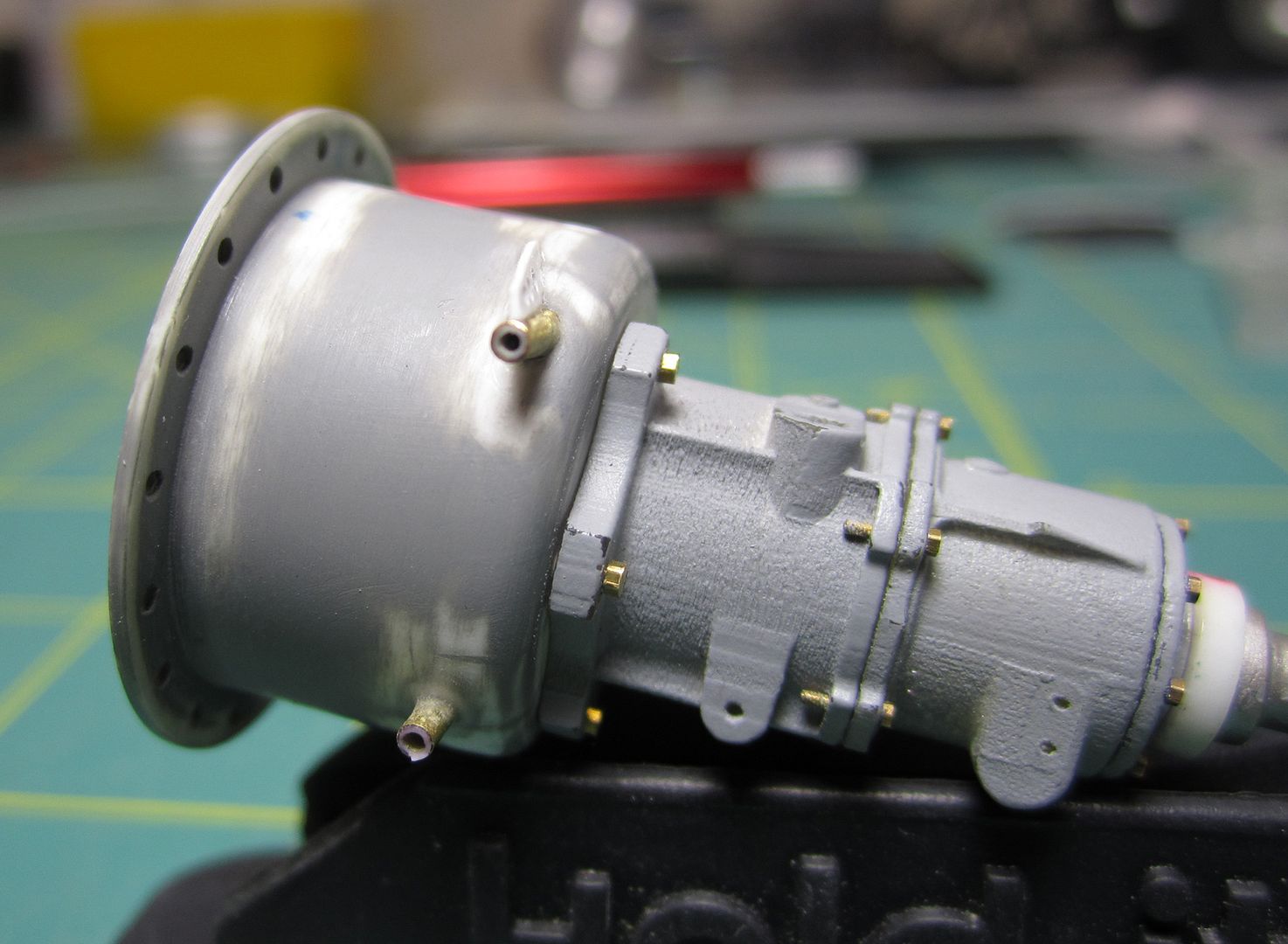

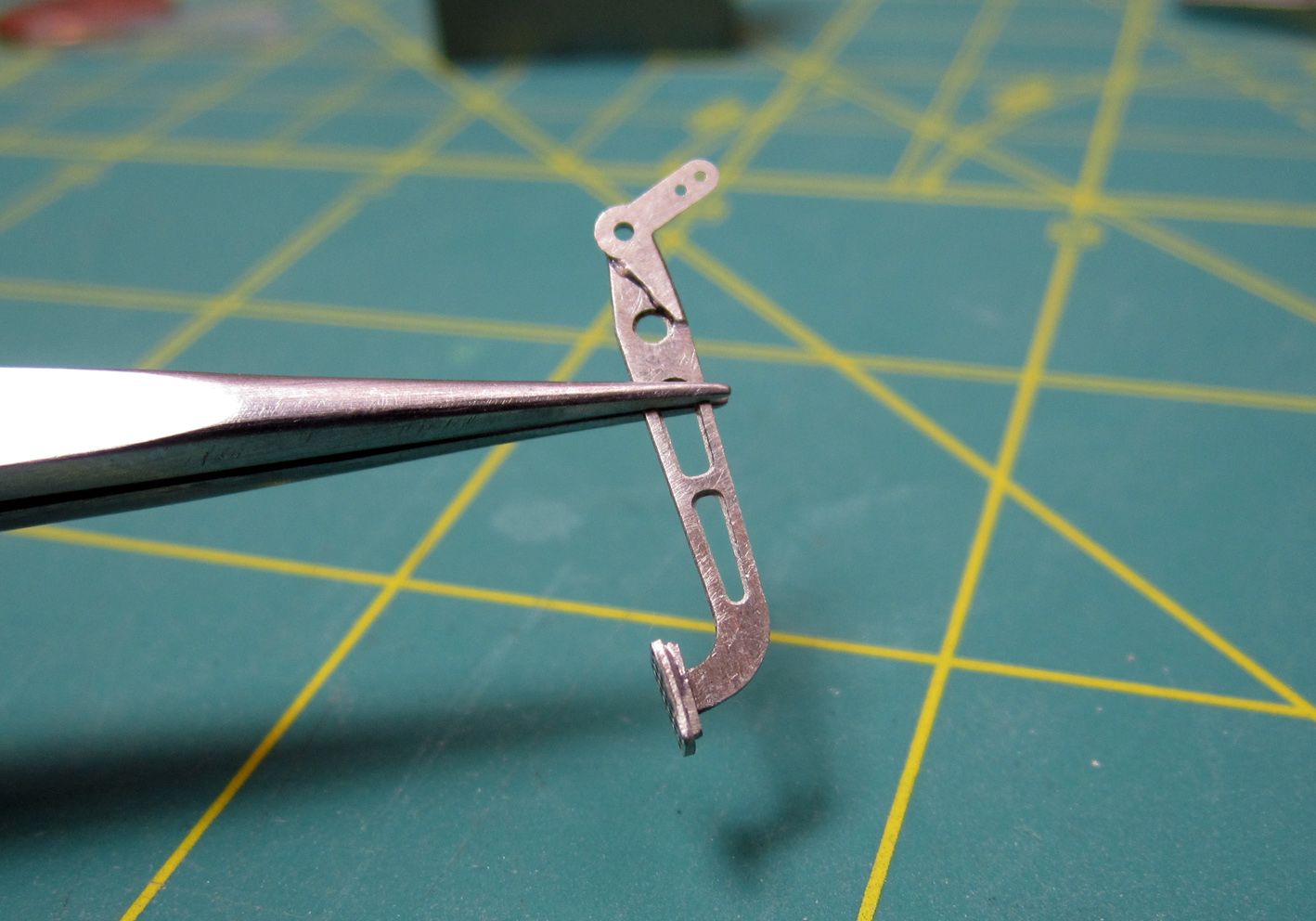

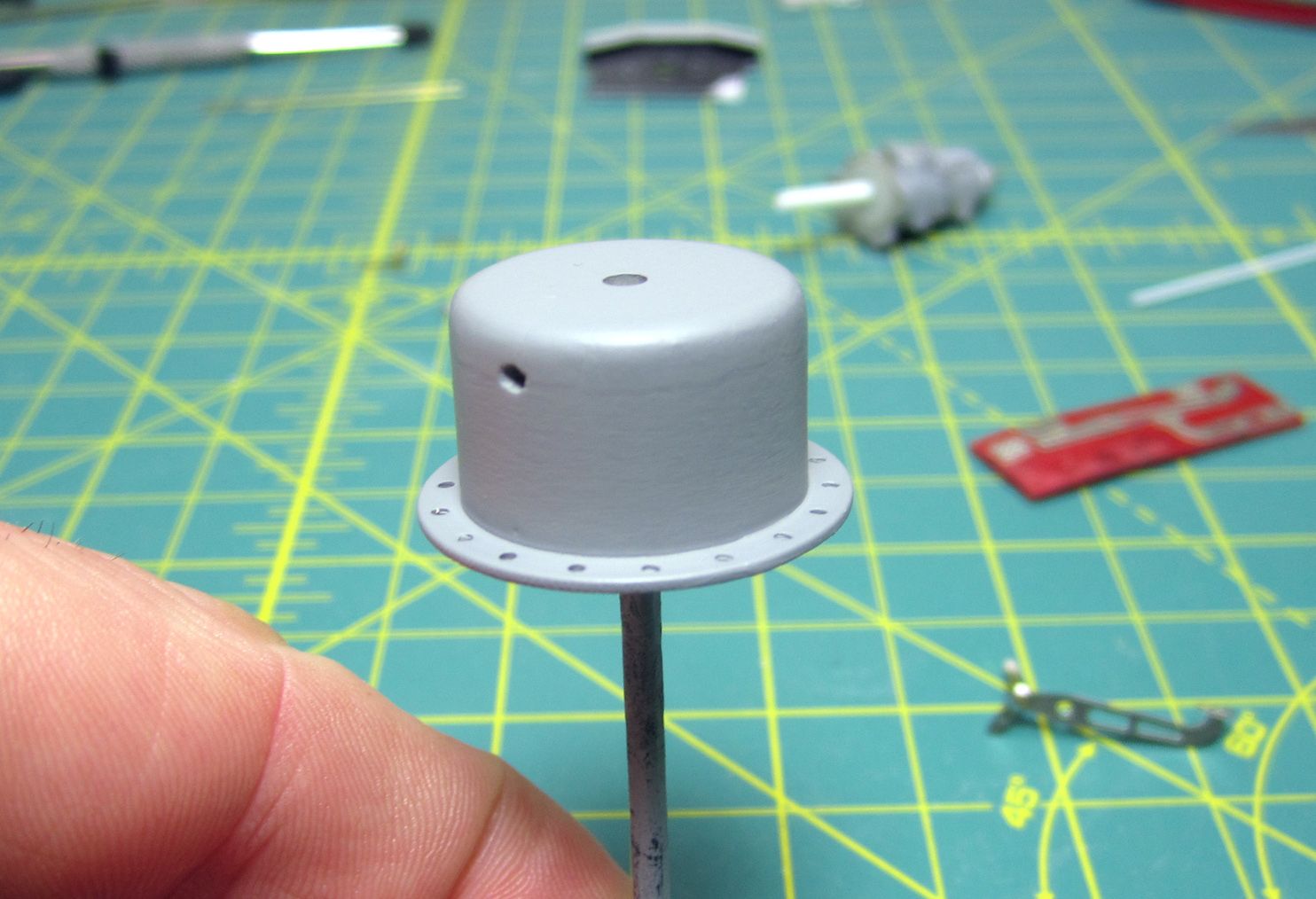

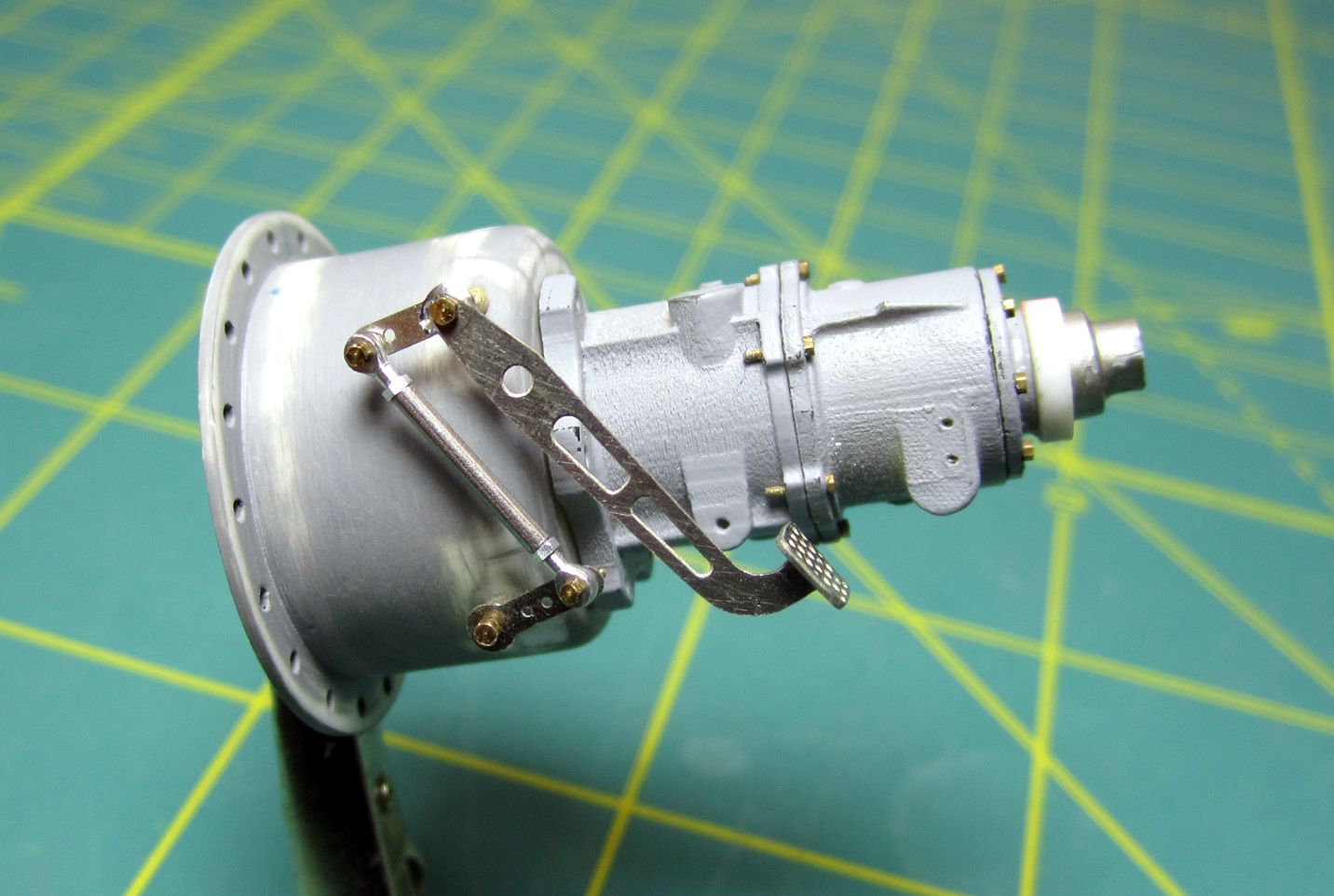

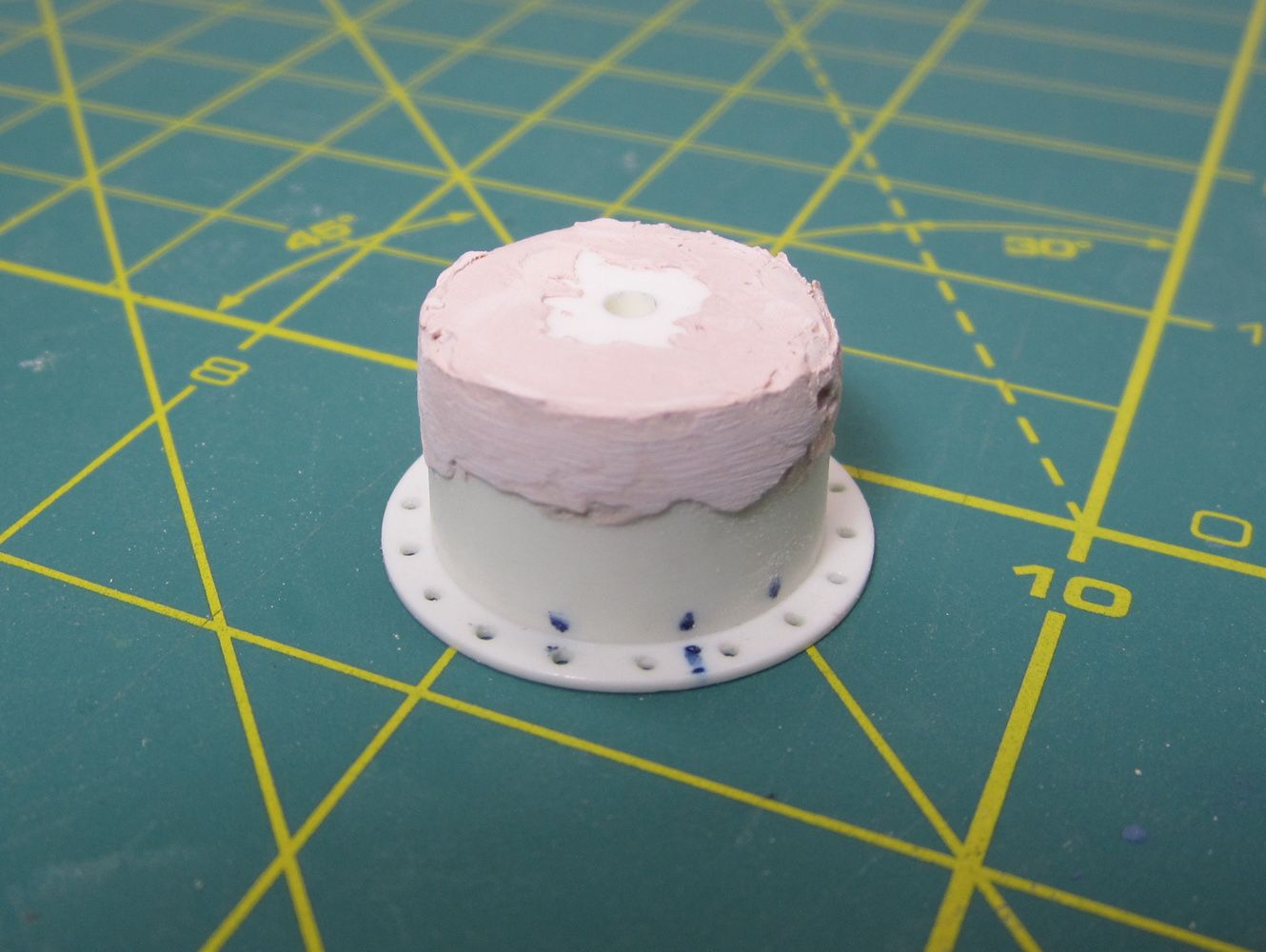

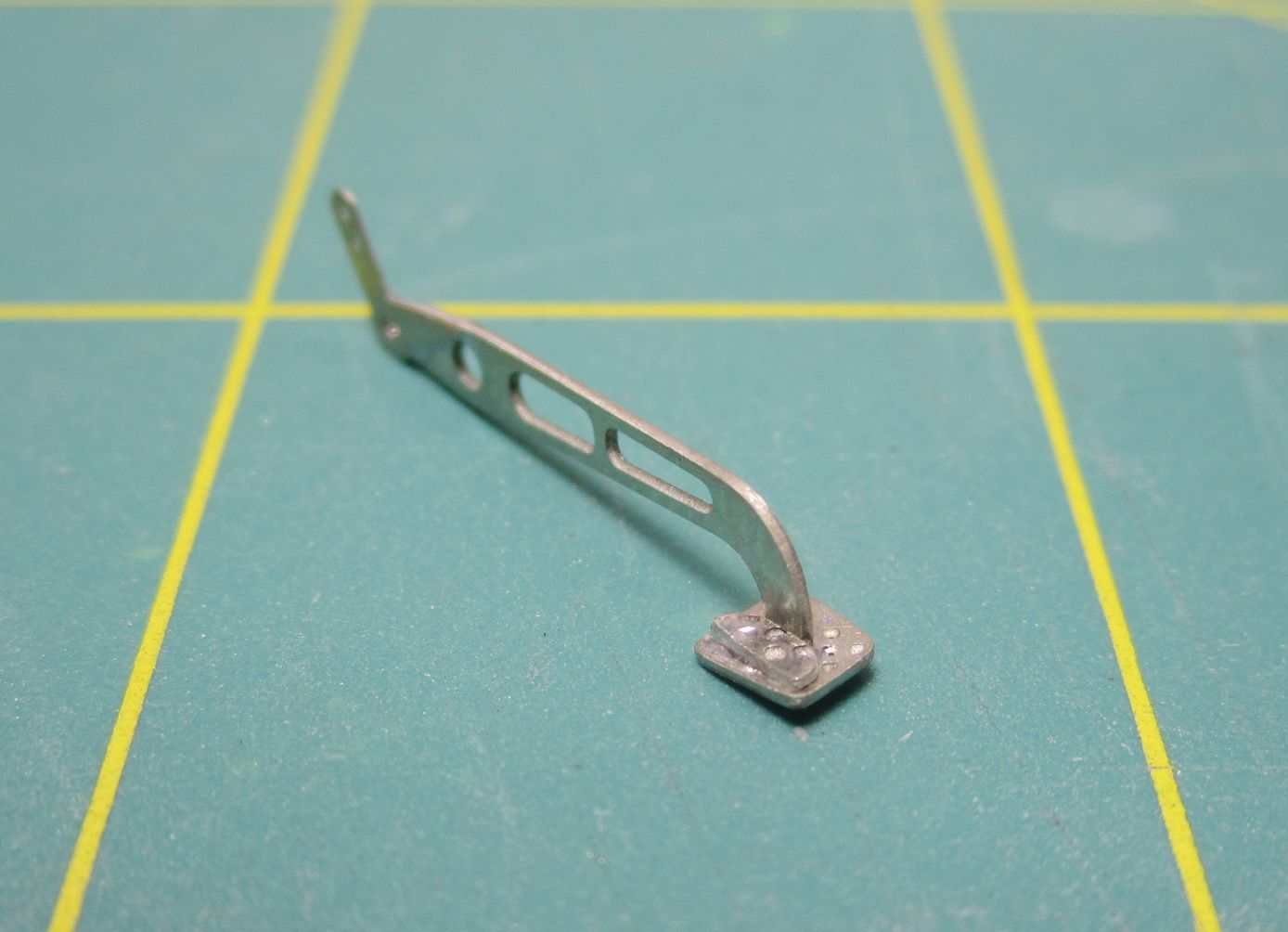

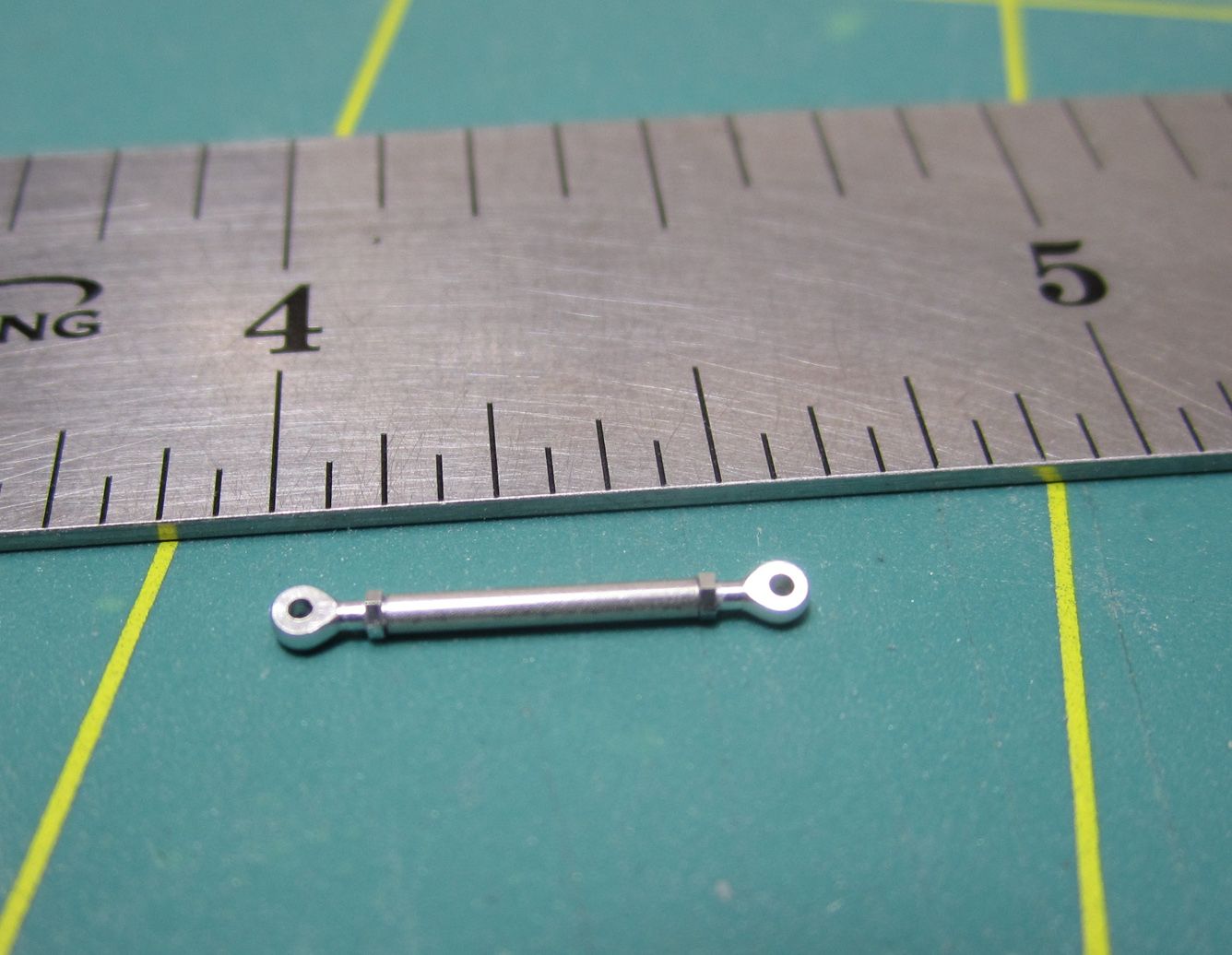

Mooneyzs Posted January 28, 2015 Author Share Posted January 28, 2015 Here I have added some bondo onto the clutch can: After sanding the bondo, I sprayed a quick coat of primer to get an idea on how it looked. and as I expected because I was rushing it I had the primer swell the bondo: Here I have sanded the clutch can a little and glued in the the mounts for the clutch pedal and linkage lever: Here is the connecting rod from the Clutch pedal to the linkage lever. Made from RB-Motion Rod ends, all parts were super glued with the green zap a gap CA: Here I have soldered the foot pad onto the clutch pedal assy: Quote Link to comment Share on other sites More sharing options...

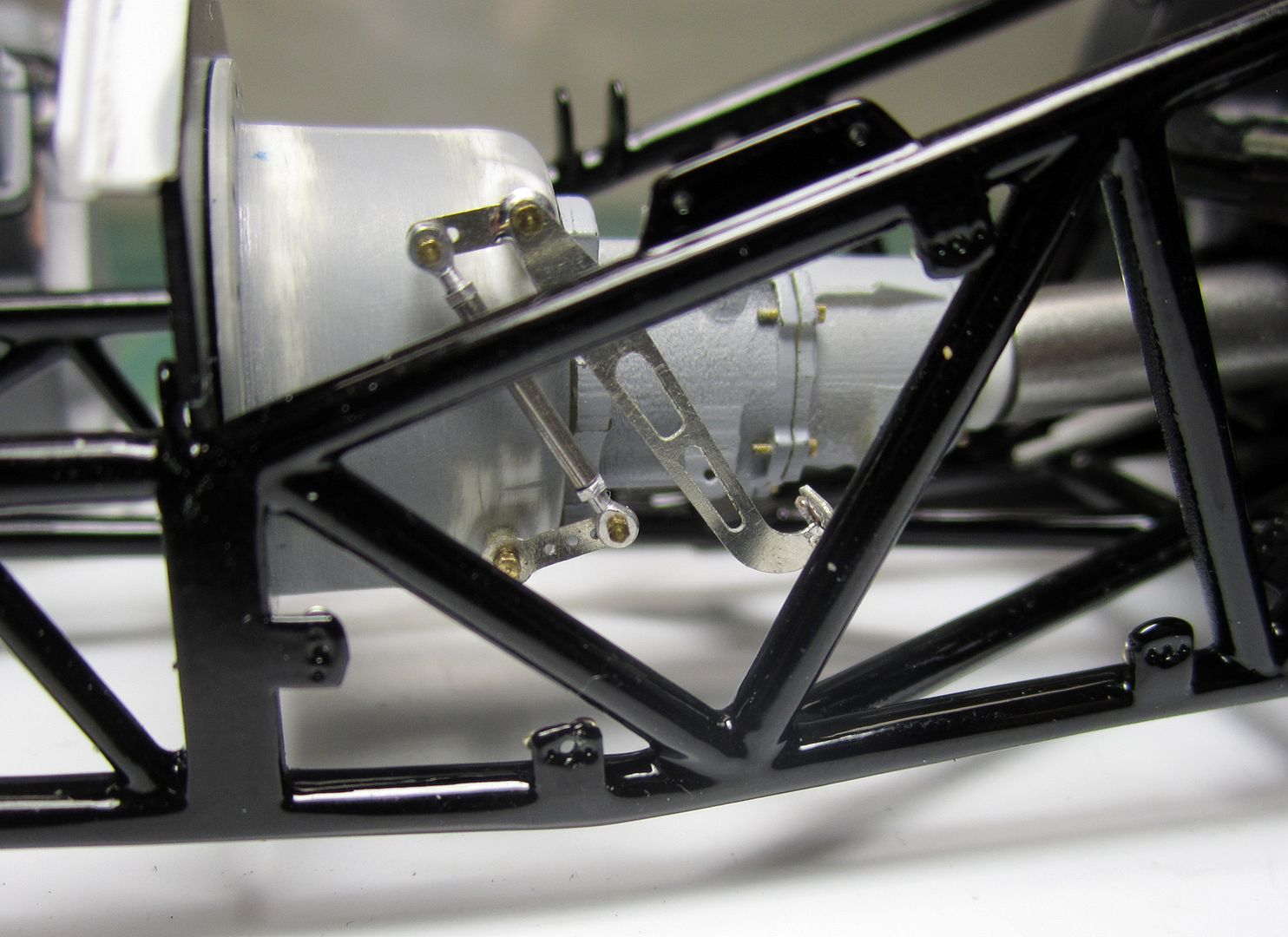

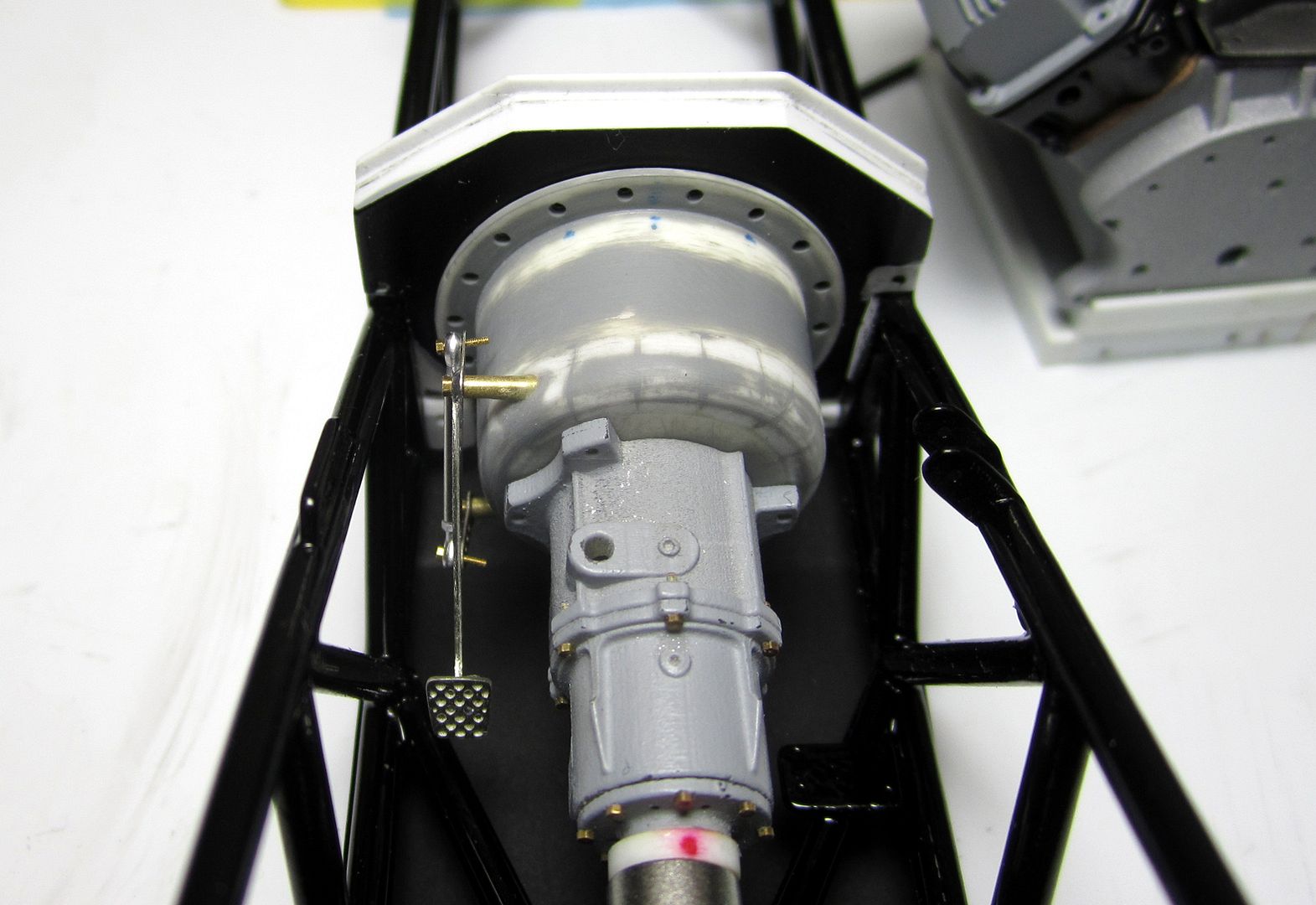

Mooneyzs Posted January 28, 2015 Author Share Posted January 28, 2015 Here is the back side of the clutch pedal trying to show the solder joint: Here it is mocked up again: Then I had to toss it into the chassis for a Mock up to get an idea of it together: Here is a top down view: Quote Link to comment Share on other sites More sharing options...
Nitrozilla Posted January 28, 2015 Share Posted January 28, 2015 (edited) Thankfully, I was totally medicated before I opened this update. Are you Freaking kidding me Chris? I might just have to fly out to Phoenix for the next show it will be in, done or not. You continue to amaze, my man. I know precision solder work is an acquired skill and you're killin' it. Carry on. Edit: Just looked up the next show on April 11 at Hobbytown. I can make that Edited January 28, 2015 by Nitrozilla Quote Link to comment Share on other sites More sharing options...
Danno Posted January 28, 2015 Share Posted January 28, 2015 Chris! This is just . . . Quote Link to comment Share on other sites More sharing options...
Mooneyzs Posted January 28, 2015 Author Share Posted January 28, 2015 Joe.. thank you.... ummm Maybe I am off my rocker??? and I need the meds...LMAO. Well I am shooting to have this done for the desert scale classic as well I would love to take it to the GSL show as well but I will not compromise the build just to get it done by then. I don't want to ruah anything and screw something up but I promise I will be building my tail off on this to funish it for the Desert scale Classic. I definitely think its possible. That would be awesome if you culd make it to the show. It's definitely the best one we have here in the valley. Danno.... did I make you speechless at the moment Quote Link to comment Share on other sites More sharing options...
Magic Photos Posted January 28, 2015 Share Posted January 28, 2015 That turned out great Chris, fits nicely in the chassis. Thanks for sharing. Keep going, project 1/16th scale Pisano Omni getting closer to starting and I need to steal you idea's. LOL Talk to you later. Quote Link to comment Share on other sites More sharing options...
gasser59 Posted January 28, 2015 Share Posted January 28, 2015 Epic awesomeness brother. I think you should post a disclaimer before viewing each update so viewers are forewarned to have their medications up to date and to be sitting down. Glad you OK Joe and I look forward to your visit. Quote Link to comment Share on other sites More sharing options...
bobthehobbyguy Posted January 28, 2015 Share Posted January 28, 2015 The clutch linkage is a work of art.. Quote Link to comment Share on other sites More sharing options...
Mooneyzs Posted January 28, 2015 Author Share Posted January 28, 2015 (edited) Mike... thank you. I can not wait until you get going on your Pisano Omni. Between your body, Chucks decals and the paint you laid down. That body is gorgeous. I am excited you are building a car for yourself. Brad... I will have to remember to posr disclaimers on some cool updates. It feels great making progress on this. I have a few minor things now with the bell housing and peddals to do. I have to add a support on the upper mount and then add the mounting holes for lenco Mid section. Then I should be ready for final primer, then paint. Well I also have to make the clutch window cover for the bell housing as well. Then I can move in to prepping the lenco pieces for paint And start on tranny blanket. I can't wait to see the pieces in paint. Bob... thank you very much. It has turned out better than I thought. although I spent more time than I thought but the extra time is worth it to me. Edited January 28, 2015 by Mooneyzs Quote Link to comment Share on other sites More sharing options...
Codi Posted January 28, 2015 Share Posted January 28, 2015 Slick Chris. Keep er' going. Cheers, Tim Quote Link to comment Share on other sites More sharing options...
Danno Posted January 28, 2015 Share Posted January 28, 2015 Danno.... did I make you speechless at the moment Uh, yeah. That clutch assembly just rocks! Quote Link to comment Share on other sites More sharing options...
futurattraction Posted January 28, 2015 Share Posted January 28, 2015 Man oh man... You're the first person I've encountered, personally, who has tried soldering any of my photo etch. Looks great! Can't wait for more, brother... Quote Link to comment Share on other sites More sharing options...
Force Posted January 28, 2015 Share Posted January 28, 2015 Very Nice Chris!! Quote Link to comment Share on other sites More sharing options...
RANDY L Posted January 28, 2015 Share Posted January 28, 2015 hi Are you going to nnl west with this piece of art.I saw it a couple of years ago,looks great Randy Ludi Quote Link to comment Share on other sites More sharing options...
Randy D Posted January 29, 2015 Share Posted January 29, 2015 Hi Chris, Fabulous detail work !!!!!!!!! Love the solder work :D Randy Quote Link to comment Share on other sites More sharing options...
Petetrucker07 Posted January 29, 2015 Share Posted January 29, 2015 Awesome work on the linkage and pedals. Very inspiring work. Can't wait for more updates. Great work so far. Quote Link to comment Share on other sites More sharing options...
gtx6970 Posted January 29, 2015 Share Posted January 29, 2015 I'm in awe everytime time I go thru updates. Quote Link to comment Share on other sites More sharing options...
Mooneyzs Posted January 30, 2015 Author Share Posted January 30, 2015 Tim... Thank you very much. Danno... Thank you my friend Scott... Thank you Brother. I thought that I would give it a try with soldering and I was glad I had success with it. It worked out way better than I thought. the key was using flux and minimal solder. Hakan... Thank You. Randy L.... Hey man I actually goofed up and I didn't get my tickets to fly up in time. A while back the prices were not bad at all and I got busy and when I checked last it was going to cost me around 800 for the whole trip and I couldn't justify spending that much for an over night trip. I will definitely be there for the show in 2016 and the good news is that this build will be completed for sure by then. Randy. D... Thank you. I have to admit that I was having fun with the soldering. I have been able to improve my technique and am much happier with how stuff is turning out. I am actually thinking of soldering the chassis out of brass for my next build. Which by the way is going to be a very cool build. Clayton... Thank you very much. I was really happy with how that linkage set up turned out. I think it ended up better than how I first thought it would go. Bill... Thank you very much for the kind words. ok Time to post tonight's progress..... Quote Link to comment Share on other sites More sharing options...

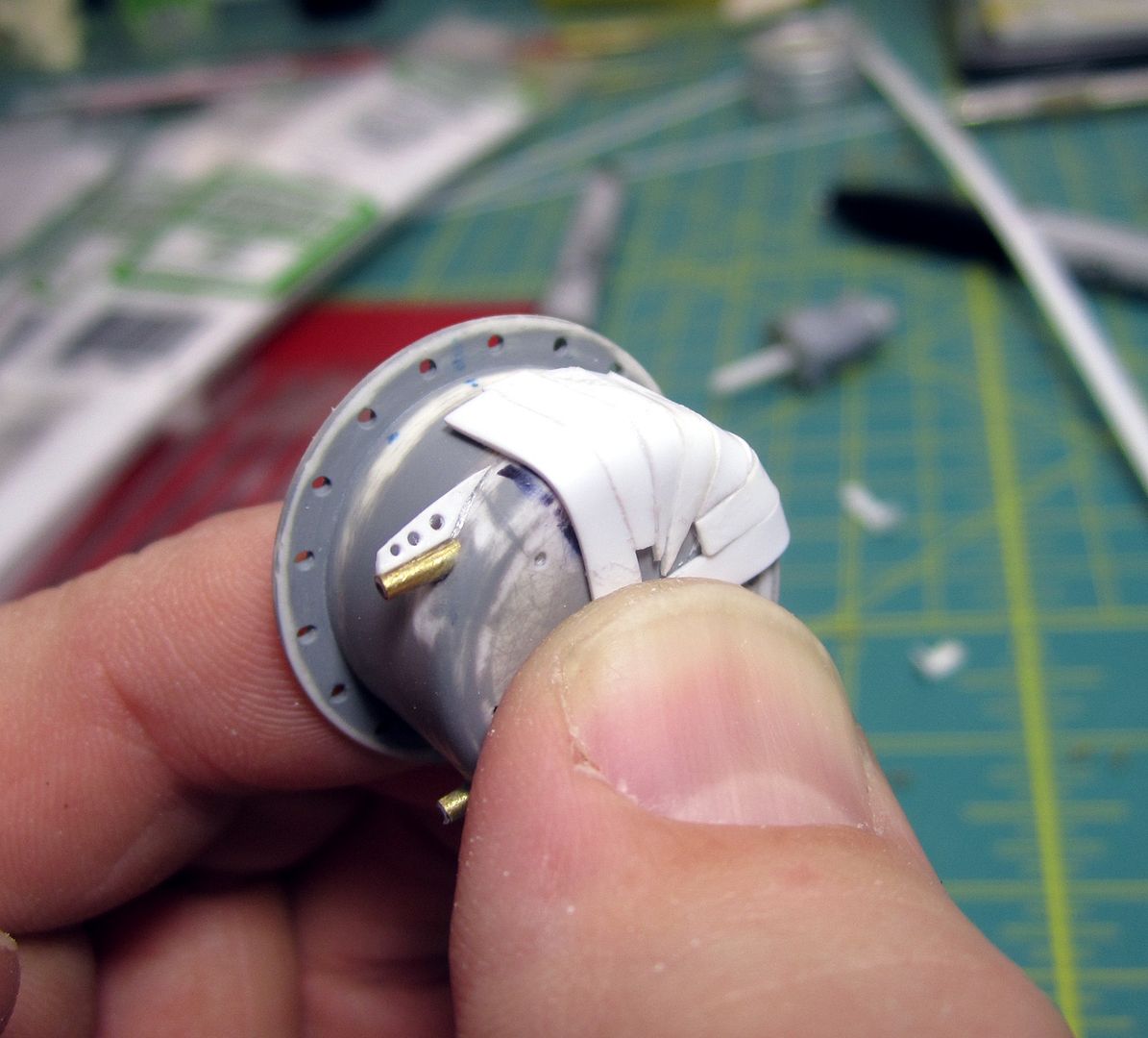

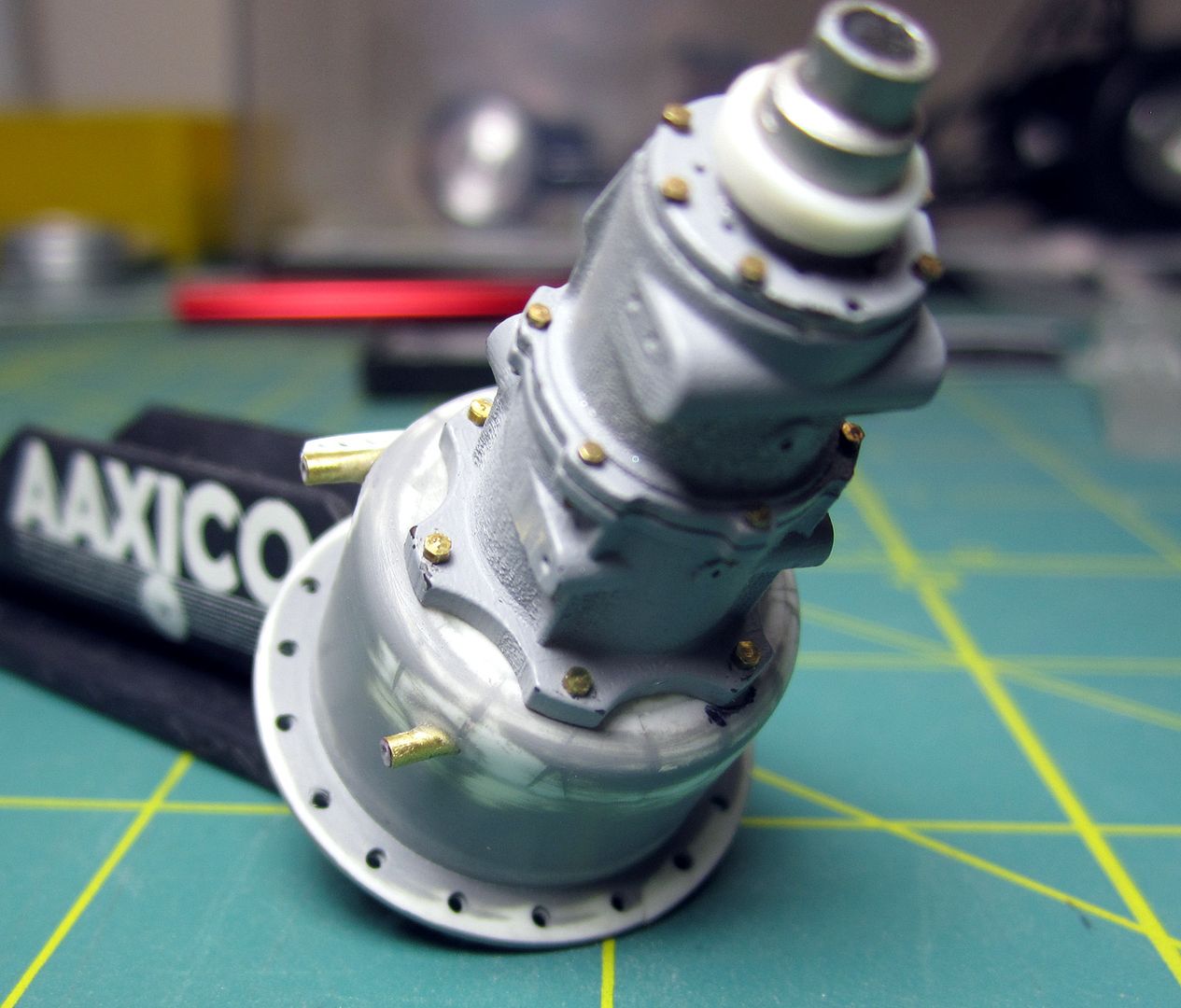

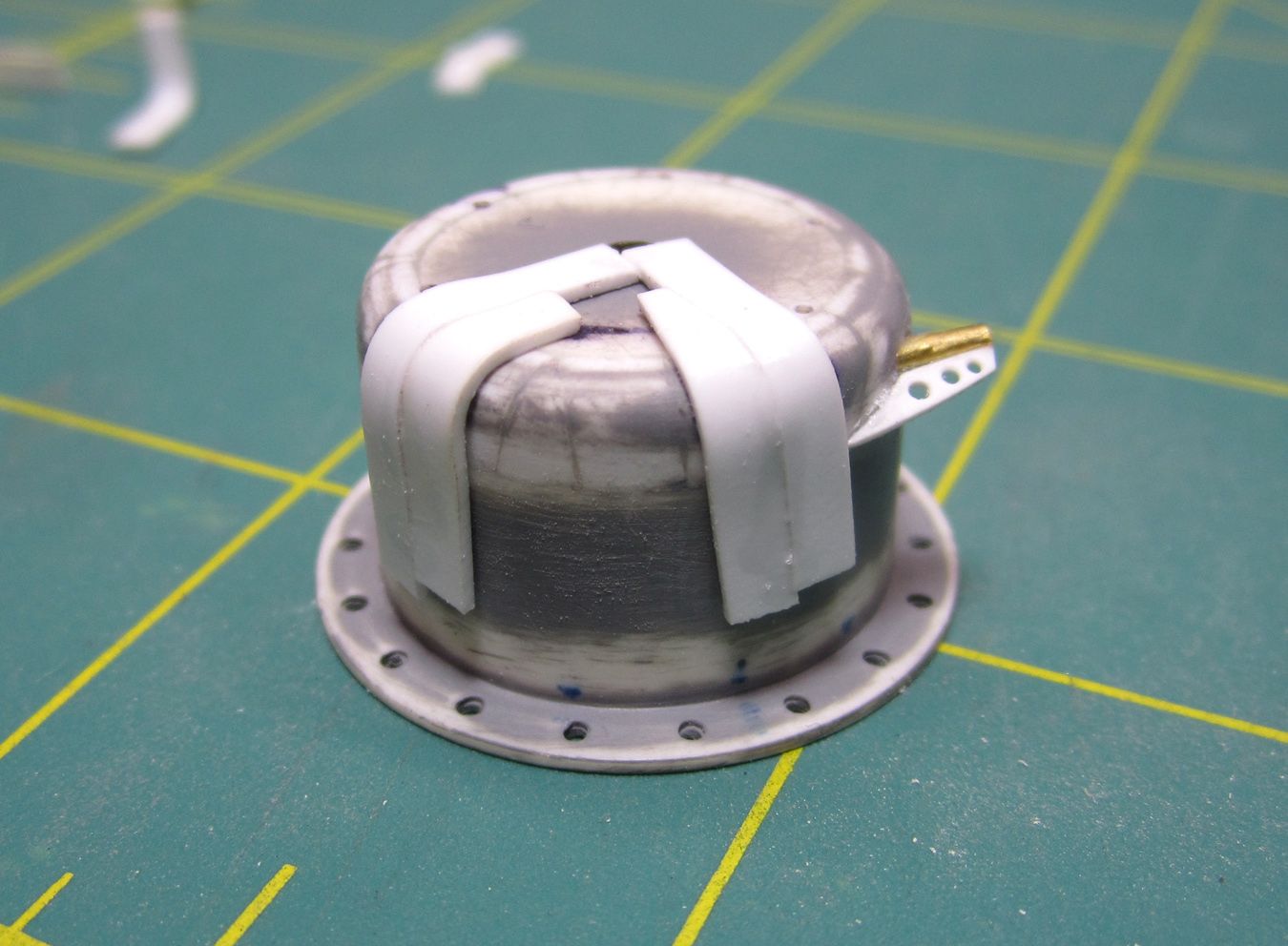

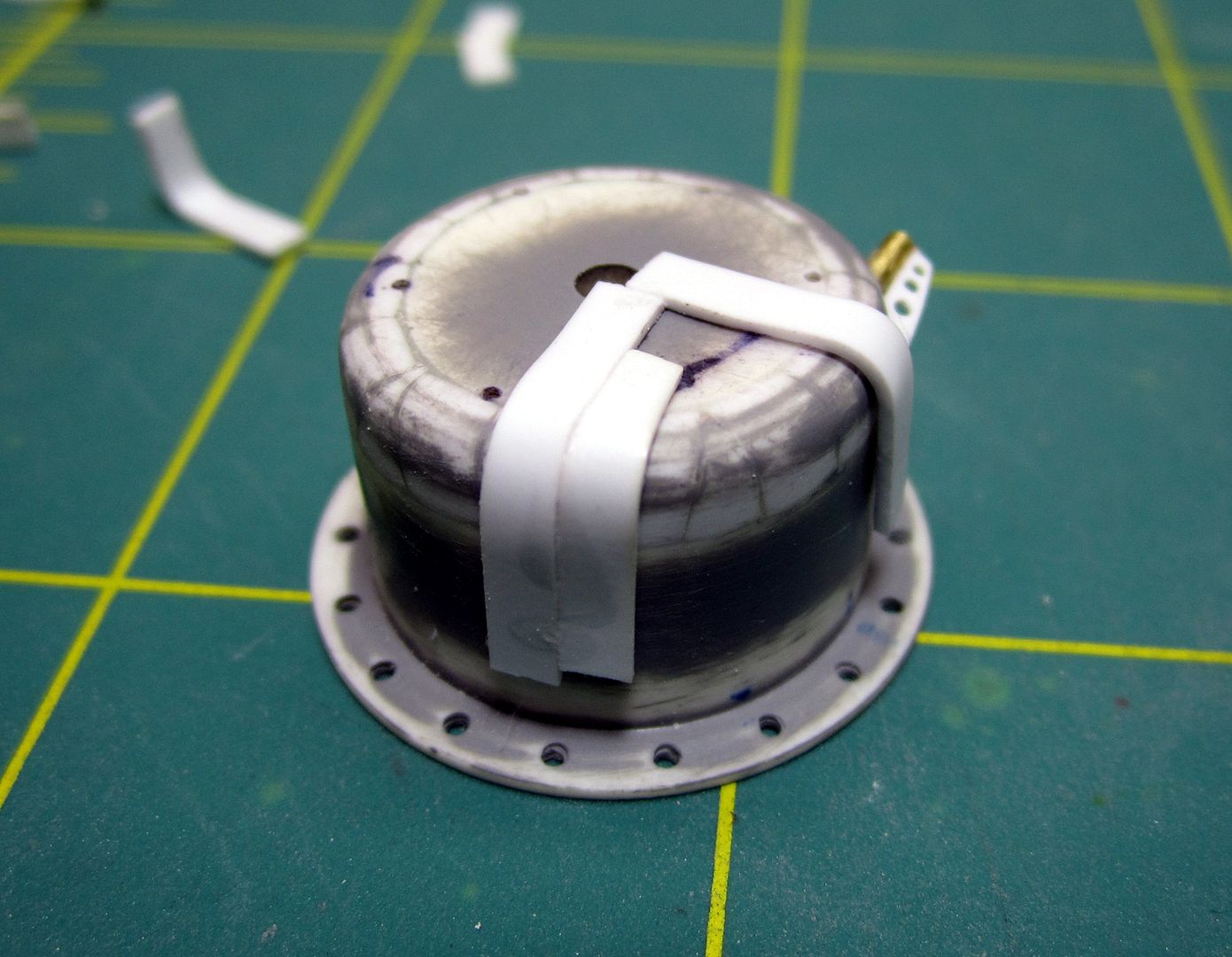

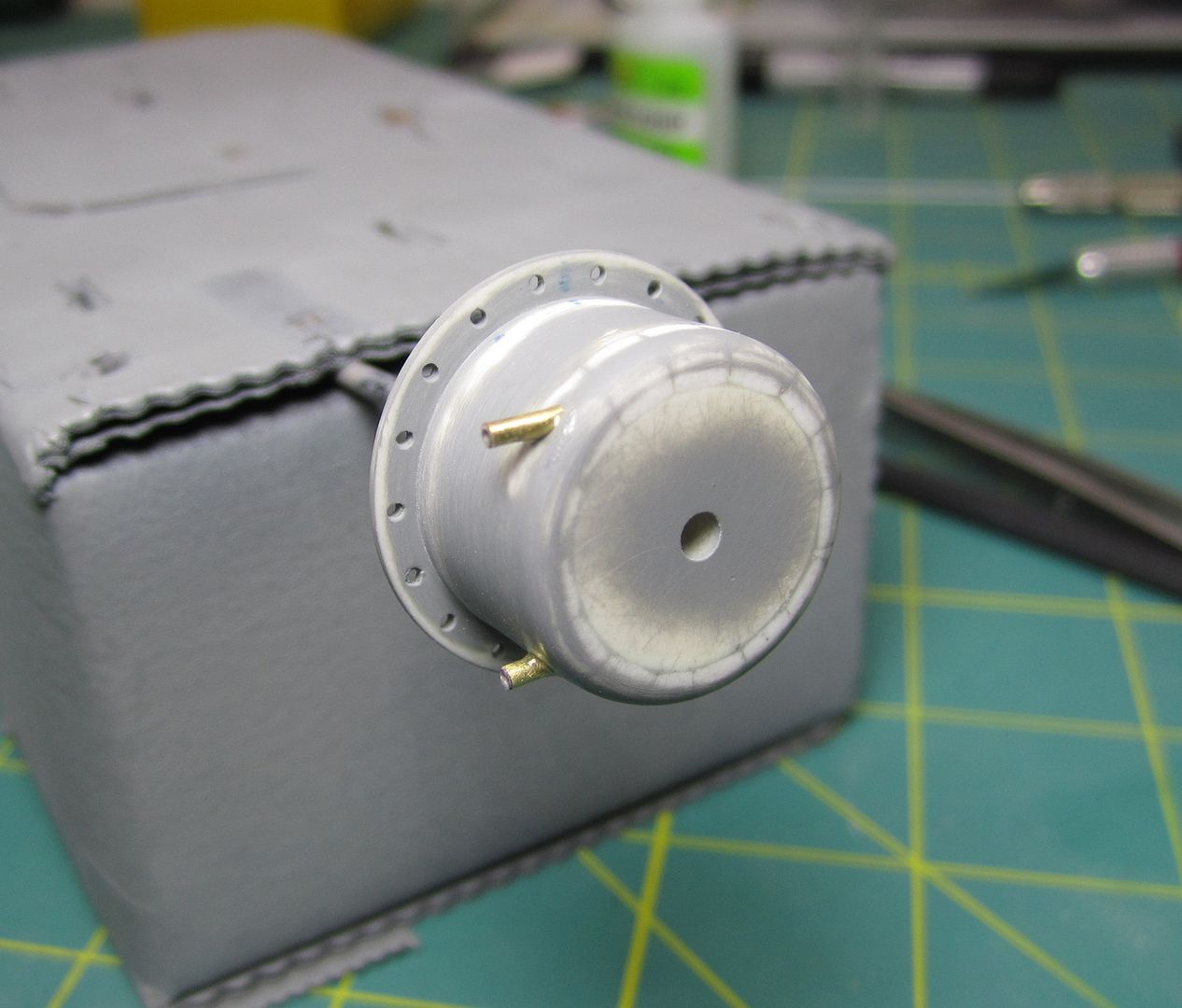

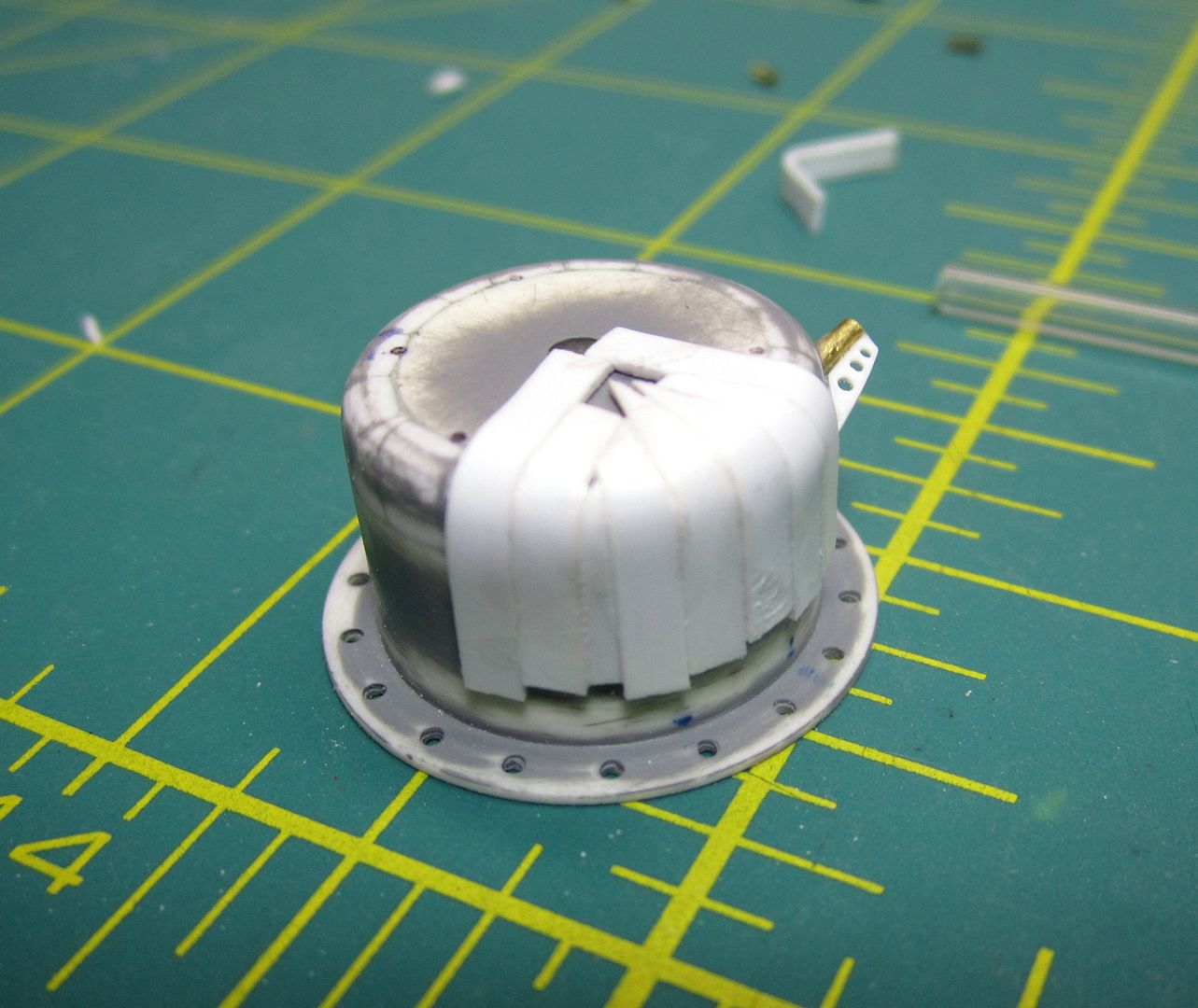

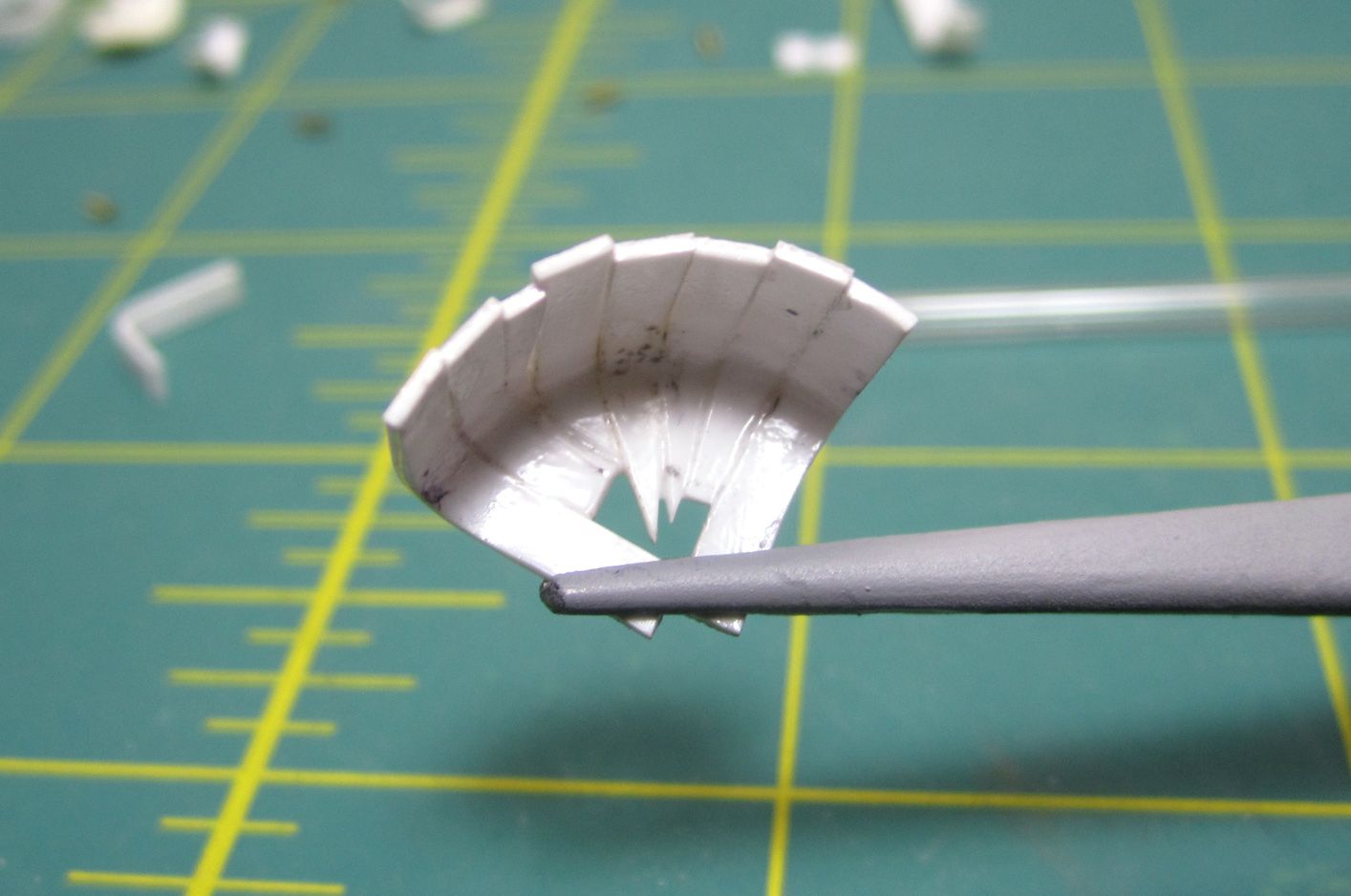

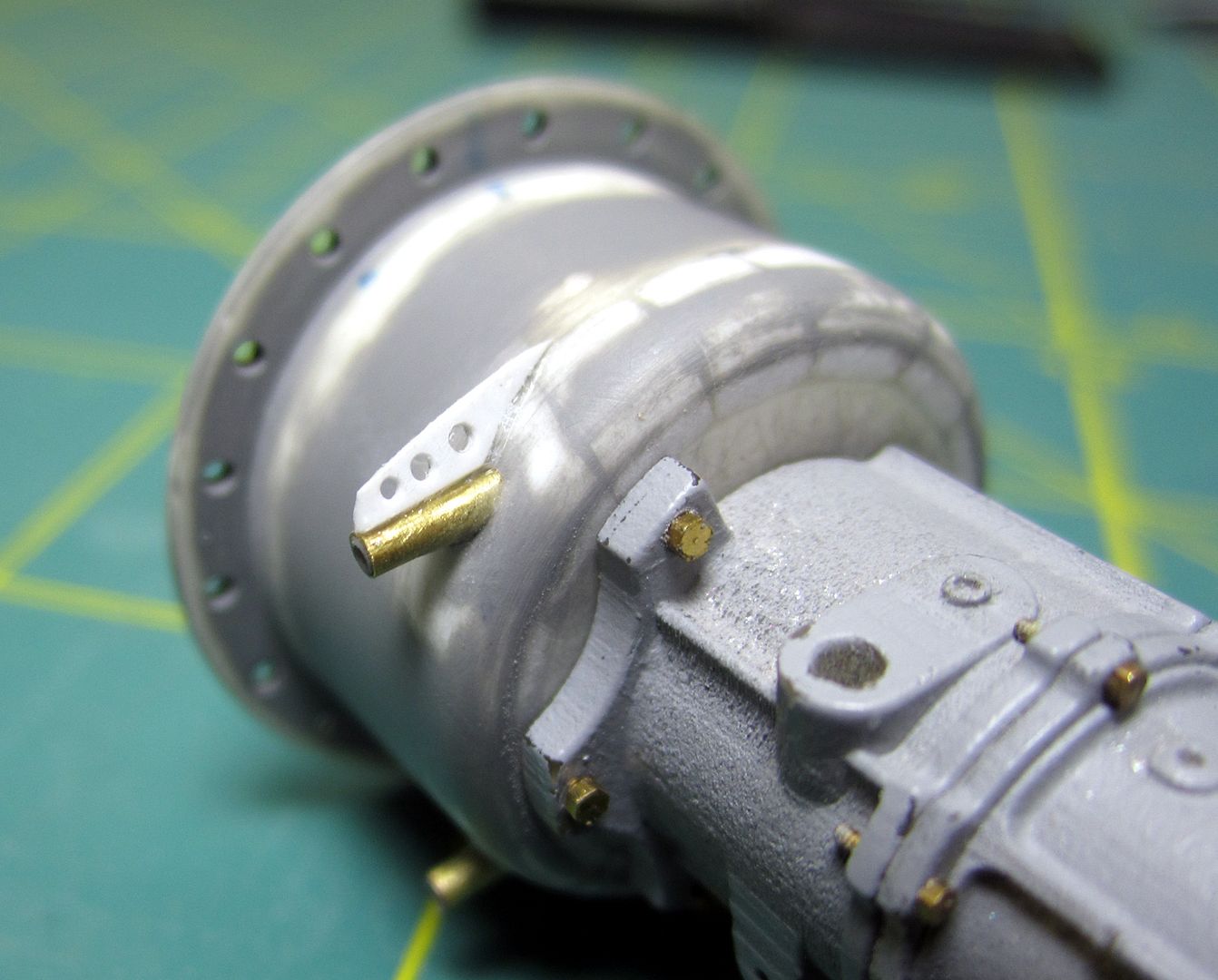

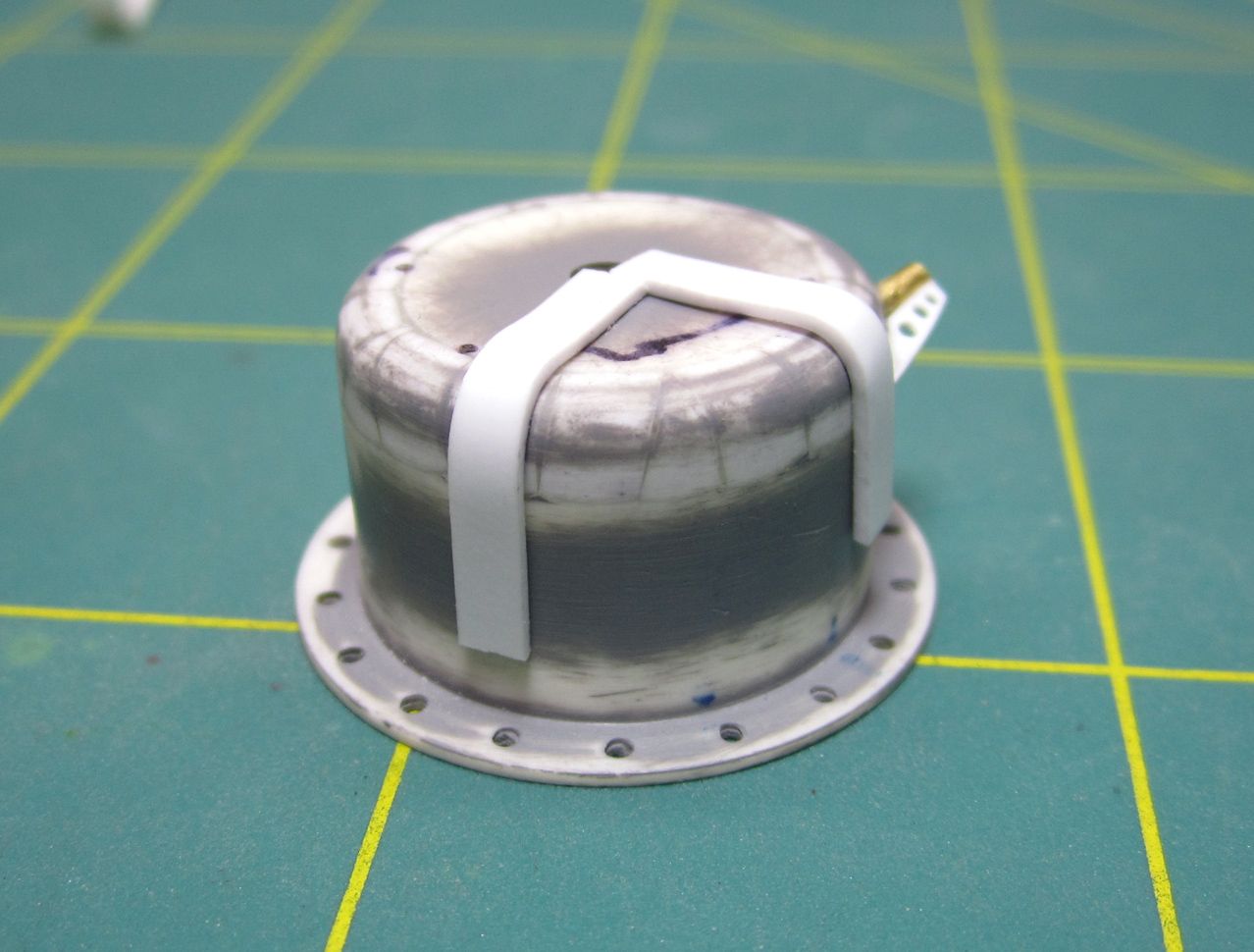

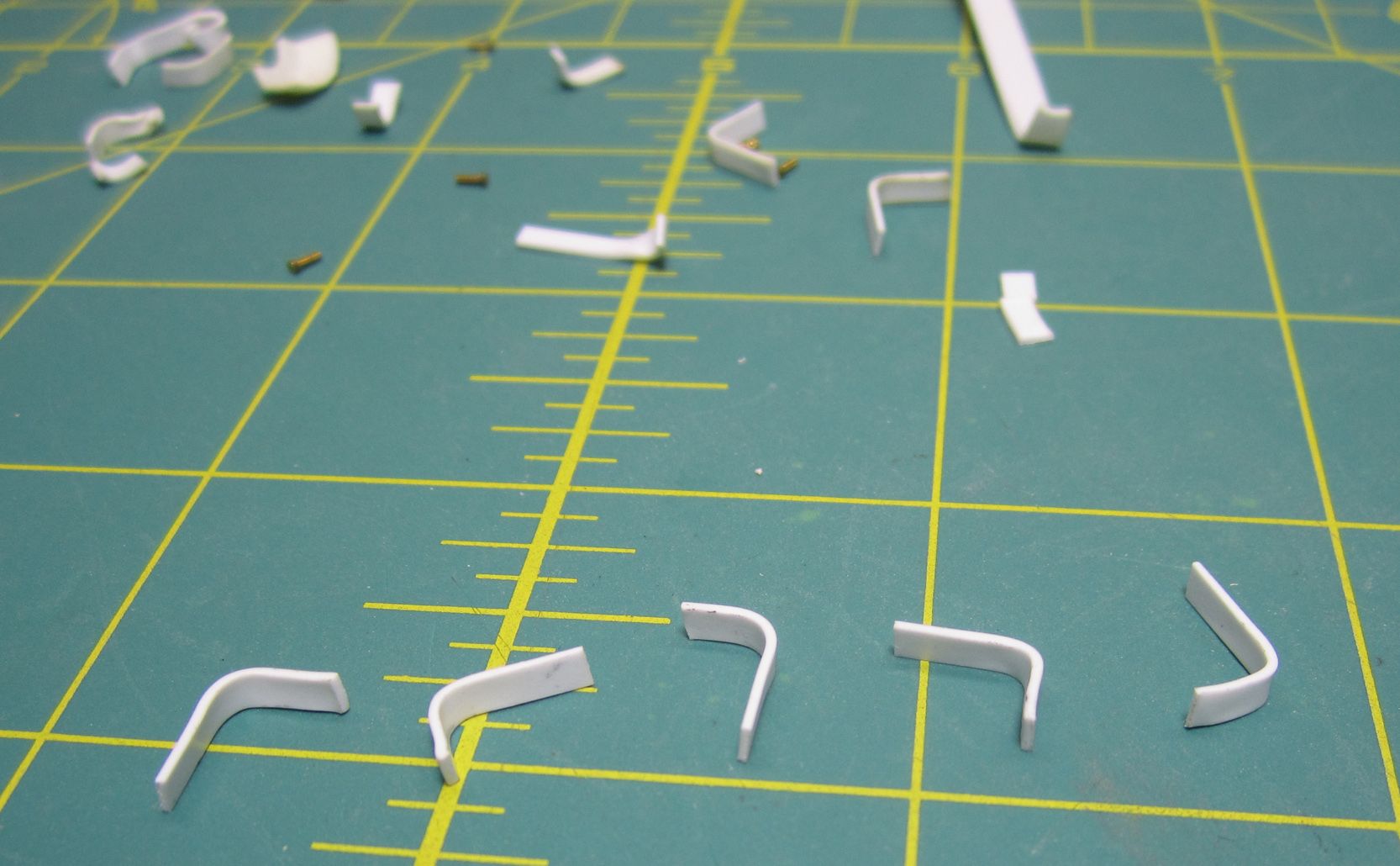

Mooneyzs Posted January 30, 2015 Author Share Posted January 30, 2015 Ok fellas... so tonight I continued on with working on the transmission specifically the bell housing. I added a support gusset on the clutch pedal mount as well as I got the bolt holes trilled and threaded for mid Lenco section that bolts to the bellhousing. Then I decided to work on the clutch window cover..... So I fabbed the support gusset on the top mount for the clutch pedal: Side View, I tried to get a little angle in on it: Here is all of the bolts in place on the Lenco section that is mounted to the Bellhousinig: Here is the start of all of the pieces that I will be using to make the clutch window cover. I made these pieces by holding my styrene above a lighter to soften it. When it got soft I used the clutch bellhousing to form the curve in the piece: Here is the Start of combining all of the pieces: Quote Link to comment Share on other sites More sharing options...

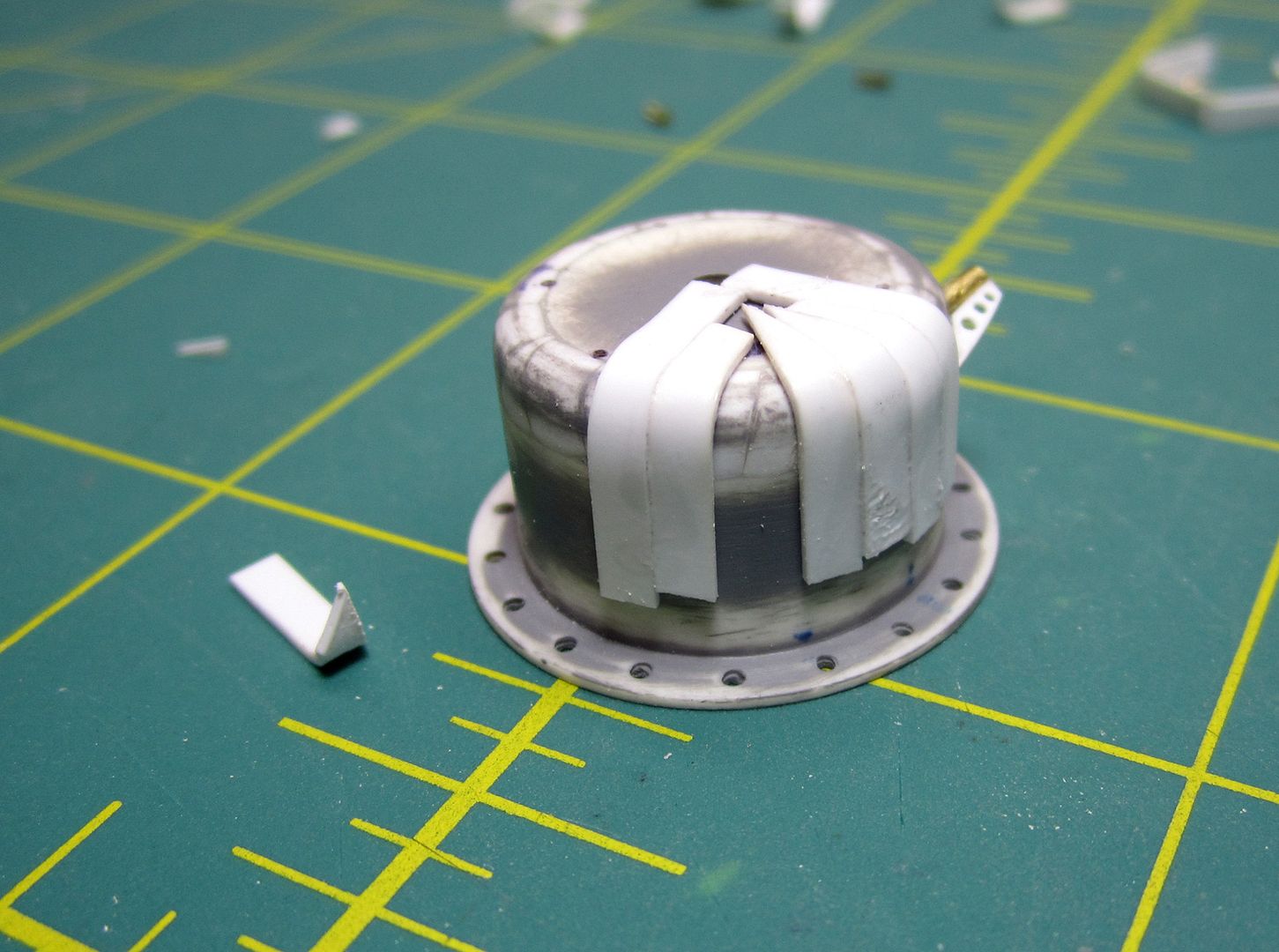

Mooneyzs Posted January 30, 2015 Author Share Posted January 30, 2015 Ok for the next few pics I am just going to show piece by piece of how I build the Clutch window cover: Quote Link to comment Share on other sites More sharing options...

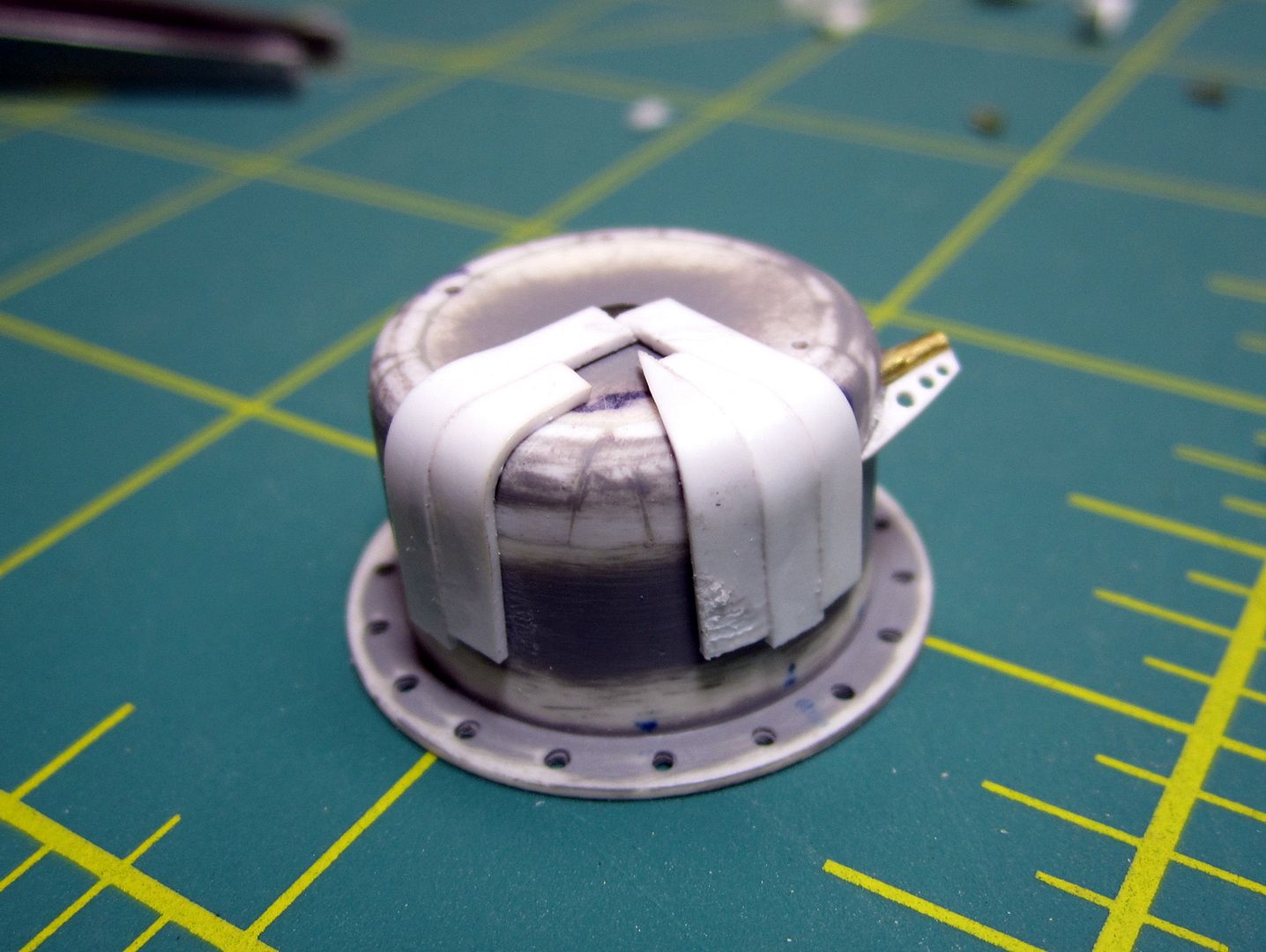

Mooneyzs Posted January 30, 2015 Author Share Posted January 30, 2015 Here it is all glued together: And here is the inside of the cover. Now I stopped here for the night so I can let the glue dry good and then tomorrow I will start trimming the cover down and adding the mounting holes for the bolts: Quote Link to comment Share on other sites More sharing options...
