Traction bars question


Recommended Posts

I am working on the AMT Baldwin Motion 70 1/2 Camaro, and am having issues getting the trac bars to sit right. I am not that familiar with 1:1 trac bars, is the leading end supposed to touch the leaf spring? Or should there be a gap? Form dry fitting, it appears that the shock needs to be shortened slight for the trac bar to sit level side to side and have the front touching the spring. If I level the trac bar, the front would be dropped down, with a noticeable gap between the front and the spring.

Thanks in advance.



Oh, and if it matters, this is a circa 1998ish release.

Link to comment
Share on other sites

Pics I've seen of old cars with them, there is usually a gap between the rubber stop on the bar and the leaf spring.  I think they are supposed to prevent/reduce leaf spring windup under acceleration?




  • Like 3
Link to comment
Share on other sites

Generally, there should be a gap.  The gap can be adjusted by changing the height of the snubber to tune the rear suspension for harder or softer launch.

traction bars - 1971 CHEVROLET CAMARO Competition Engineering C2103 Competition Engineering Leaf Spring Traction Bar Kits | Summit Racing

instructions here for traction bar installation and tuning -    C2101C2103Bolt On.doc (summitracing.com)

  • Like 2
Link to comment
Share on other sites

Thank you for the pics Rob. I knew their function, just wasn't sure on the geometry. Looks like I need to do a little detail painting first though.

Link to comment
Share on other sites

They're more correctly called "slapper bars" (though nobody much cares about word meanings anymore), and as said above, they don't necessarily touch the spring at the forward end.

Actual "traction bars" are a different animal and function somewhat differently.

08







Edited by Ace-Garageguy
Link to comment
Share on other sites

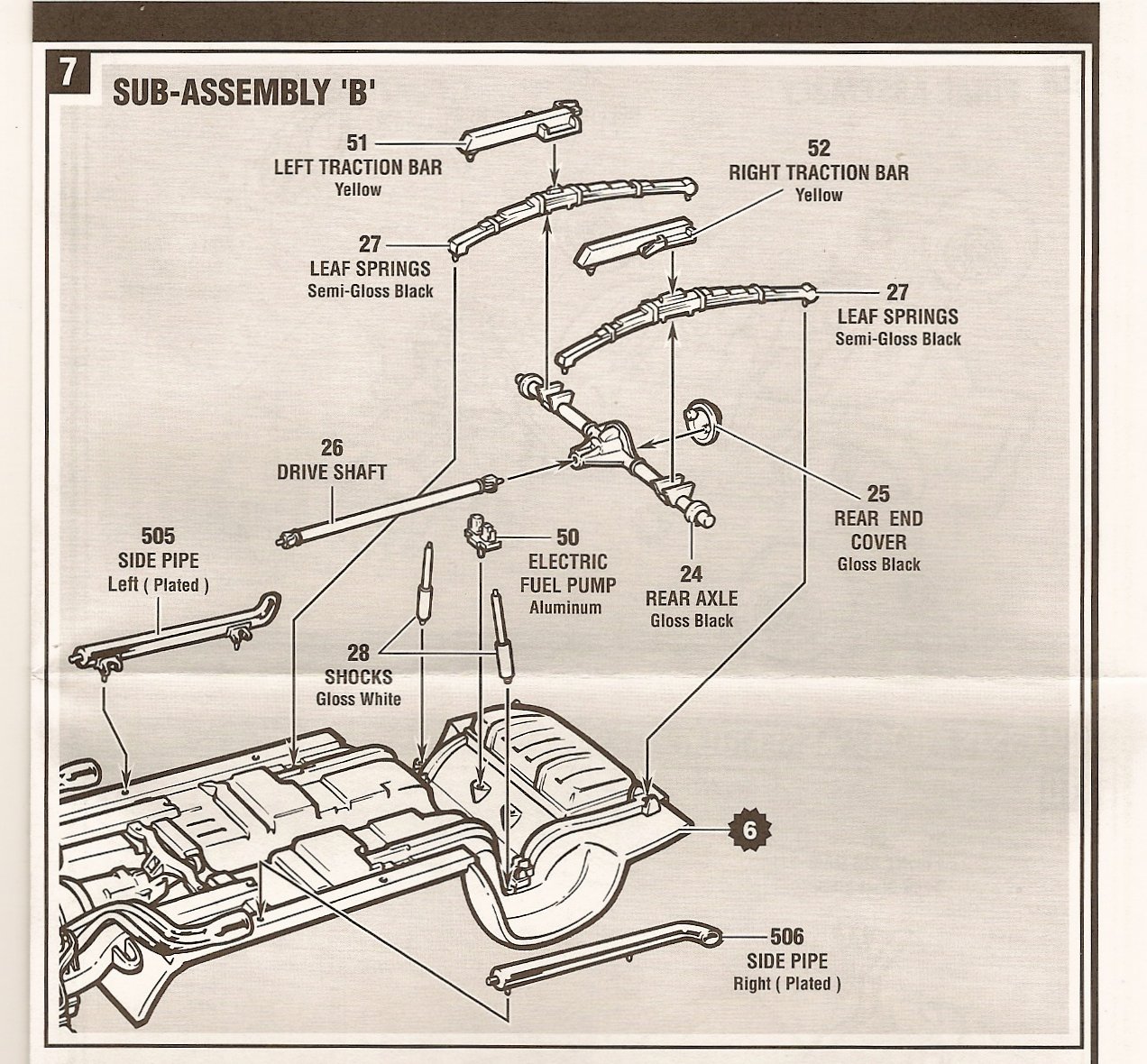

Thanks Ace. Thats the instruction sheet. Not real clear on alignment for someone not real familiar with trac bar setups. I'll get it sorted out now that I see the other pics and understand how they work.

  • Like 1
Link to comment
Share on other sites

31 minutes ago, Ace-Garageguy said:

They're more correctly called "slapper bars" (though nobody much cares about word meanings anymore), and as said above, they don't necessarily touch the spring at the forward end.

Actual "traction bars" are a different animal and function somewhat differently.

I have learned something new.  Until now I never heard of slapper bars.  But the misnomer is nothing new.  When I was a young guy, and into souping up cars (about 40 years ago), even then we all called those things "traction bars".

  • Like 1
Link to comment
Share on other sites

16 minutes ago, peteski said:

I have learned something new.  Until now I never heard of slapper bars.  But the misnomer is nothing new.  When I was a young guy, and into souping up cars (about 40 years ago), even then we all called those things "traction bars".

I've heard them called both. But, they're the same thing. I always called them traction bars.

Link to comment
Share on other sites

4 minutes ago, Plowboy said:

I've heard them called both. But, they're the same thing. I always called them traction bars.

It might be a "regional thing" like many other phrases in the American English language.

  • Like 1
Link to comment
Share on other sites

1 hour ago, peteski said:

I have learned something new.  Until now I never heard of slapper bars.  But the misnomer is nothing new.  When I was a young guy, and into souping up cars (about 40 years ago), even then we all called those things "traction bars".

"Slapper bars" were developed for street-strip dual-purpose cars because "traction bars", by virtue of their more solid mounting, with bushings at either end, could introduce a lot of ride harshness into a vehicle. Slapper bars only function during hard acceleration, when the rubber snubber at the forward end contacts the spring to limit spring "wrap-up". They can also be easily "tuned" for conditions.

The rest of the time, you can't tell they're there...other than an increase in unsprung weight that some sensitive drivers can actually feel.

"Traction bars" work differently. They bolt to the spring retainer on the axle like the slappers, but also are pivoted to a solidly mounted bracket at the forward end of the spring. They eliminate any spring-wrap-up, but as I noted, they often also introduce harshness during normal driving.

Traction Master Bars | Flickr - Photo Sharing!

Traction Master Traction Bars | eBay

Edited by Ace-Garageguy
  • Like 1
Link to comment
Share on other sites

9 minutes ago, peteski said:

It might be a "regional thing" like many other phrases in the American English language.

May be. But, they're basically the same thing. Ladder bars, however, are different.

Edited by Plowboy
Link to comment
Share on other sites

Thanks Bill!  Like I mentioned, I learned something new.

I was just a young kid with a 1976 Camaro, not a a high-performance expert.  And despite of agreeing that the world population has really dumbed down,  the improper usage of the phrase is nothing new.

  • Like 1
Link to comment
Share on other sites

Prior to about '67, "traction bars" were as I noted above, i.e. Traction Masters brand.

https://www.npdlink.com/product/traction-bars-traction-master-style/202903

With the development of slapper-bars to give better ride under normal conditions, the nomenclature "slapper bars" was used to differentiate between the two designs.

Later, as is always the case, the definitions got cloudy...and many folks called everything that had a similar function "traction bars" (including ladder bars/lift bars, though they also function differently).

But y'all can call 'em cheese doodles for all I care. People will still argue endlessly about what "lakes pipes" are too.

https://www.jalopyjournal.com/forum/threads/slapper-bars.585811/page-2

Edited by Ace-Garageguy
TYPO
Link to comment
Share on other sites

I, too, didn't realise there was a difference in not only nomenclature, but in functionality. Thanks for the new-to-me info, @Ace-Garageguy

I've heard both names employed, and have read the same. Like any colloquialism, one predominates the other, however in misnomers (e.g., "rear window" vs. "backlight". A fixed/stationary piece of glass is a "light"; a "window" can be repositioned/opened. That didn't stop the manufacturers from employing both terms in literature: "rear window defogger" and "backlight louvers", etc.).

Any time I see a torsion bar equipped car (Chryslers, i.e.) with slapper bars, I cringe. Even the factory race cars (typically, 426 Max Wedge / Ramcharger) had the 'bars affixed from the axle-rearward. Then there's the Cal-Tracs for MoPars... quite likely true traction bars as Bill has pointed out (please correct my info if it's incorrect).

  • Like 1
Link to comment
Share on other sites

6 hours ago, Bills72sj said:

For correct positioning, the rubber snubber tips should be mounted right under the front leaf spring eye.

Here are some 3 printed ones I got on Shapeways.

Traction bars.jpg

There were a few different mounting designs. I ran a set on my 66 Satellite. They only had two u-bolts, one in front of the axle and one behind, and they were not nearly long enough for the snubber to reach the front eye on the leaf spring.

Link to comment
Share on other sites

Just a note of clarification...it's really kinda OK to loosely refer to any of these things as "traction bars", as they're all "bars" that help increase traction...but only if you know the functional differences.

Sloppy terminology usually leads to erroneous assumptions that everything under the same general heading is the same, and works the same way...particularly among people with no first-hand knowledge.

Ladder-bars and lift-bars (once again, there are subtle differences in how those two work) are also routinely referred to as "traction bars" by a lot of folks...and again, the physics of operation is largely misunderstood or never even considered.

Link to comment
Share on other sites

1 hour ago, Ace-Garageguy said:

Just a note of clarification...it's really kinda OK to loosely refer to any of these things as "traction bars", as they're all "bars" that help increase traction...but only if you know the functional differences.

Sloppy terminology usually leads to erroneous assumptions that everything under the same general heading is the same, and works the same way...particularly among people with no first-hand knowledge.

Ladder-bars and lift-bars (once again, there are subtle differences in how those two work) are also routinely referred to as "traction bars" by a lot of folks...and again, the physics of operation is largely misunderstood or never even considered.

Now just to add a little confusion to things, I learned a few years back that FWD "Traction Bars" are a thing, at least for the Dodge Caliber SRT4 and 3.5l Altima, though I have see where people were putting the Caliber bars on the 3.6l Avenger and 200.  From what I understand, these keep the from arms front moving forward and back plus reduce wheel hop and torque steer on so equipped cars.

Here's one installed on a Caliber SRT4

a587924b-515c-4e07-adca-f4893c19f838.med



Quick edit, looks like there is a Honda version as well!

hardrace-7214-front-traction-bar-acura-i

Edited by Joe Handley
  • Like 1
Link to comment
Share on other sites
