absmiami

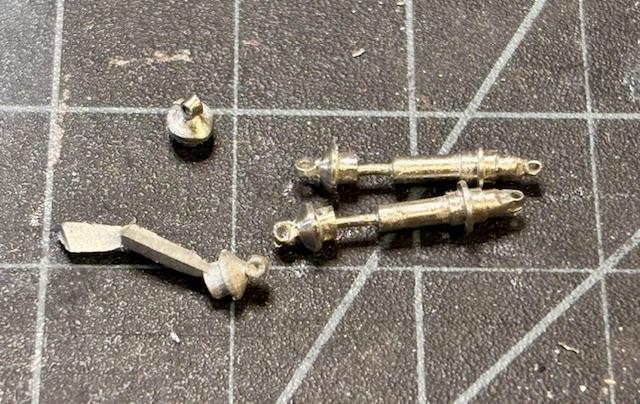

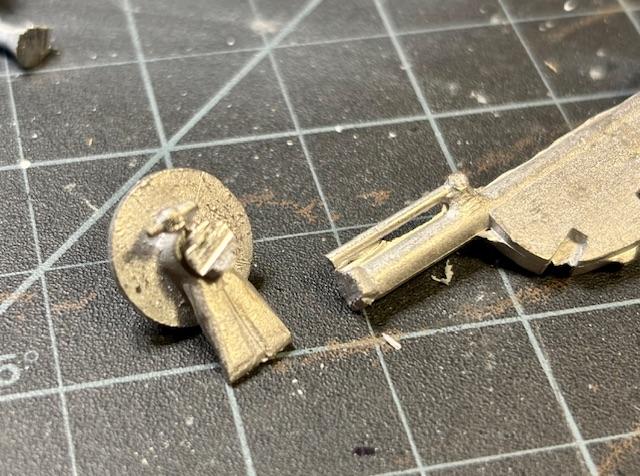

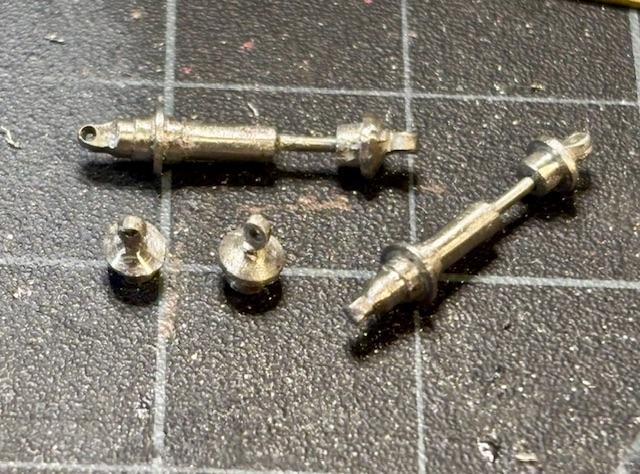

Some more white metal parts from my Gurney Eagle project - Lotus used Armstrong shocks - as did a number of F1 teams …

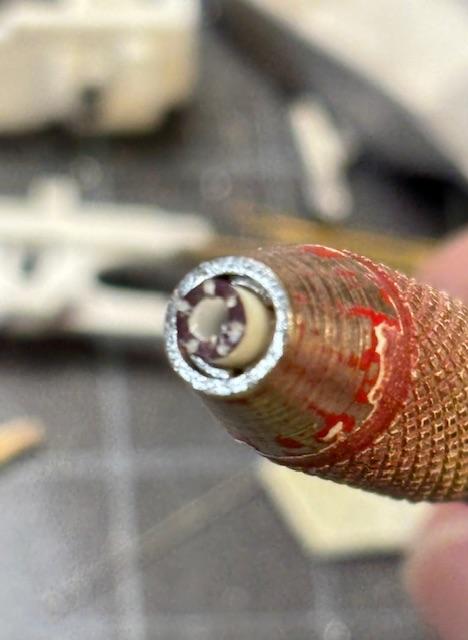

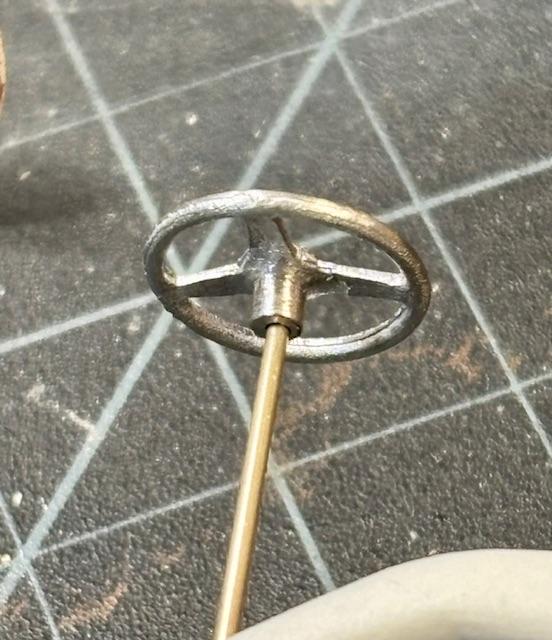

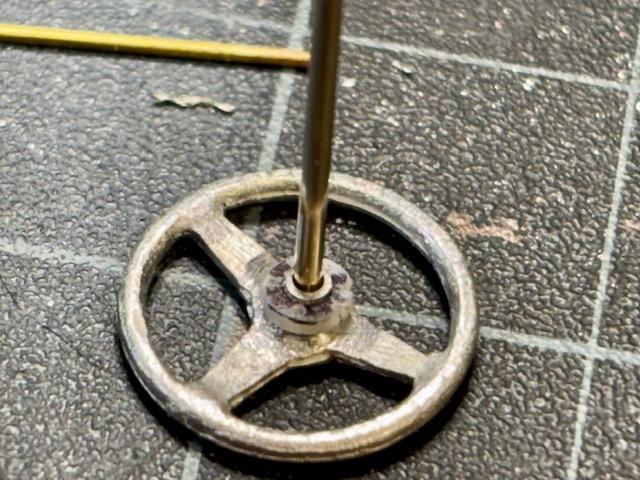

And here’s the collar for the steering wheel …. .125 Evergreen rod ….

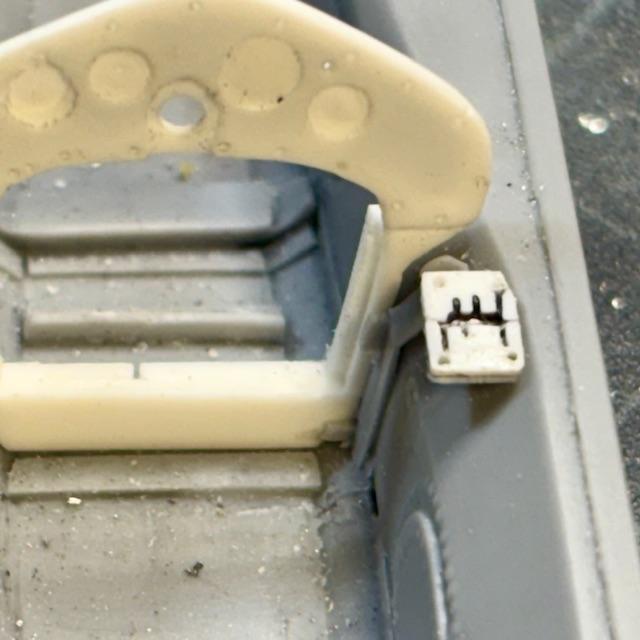

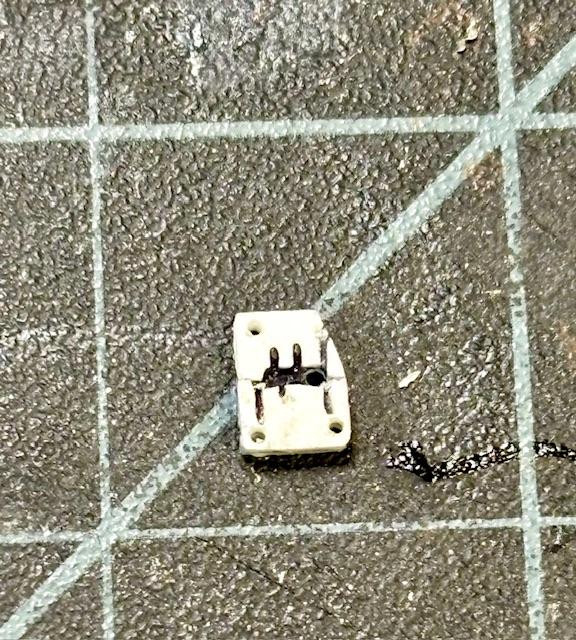

Gracias JD - here’s my first shot at the shift gate - made from Evergreen strip with slots cut with an .08 saw blade - its a maybe …

But the shifter on Clark’s 25 in ‘62 was in fact gated - so i’ll rummage around my photo-etch stash to see if i got something - or maybe grab some nickel silver strip and make it …

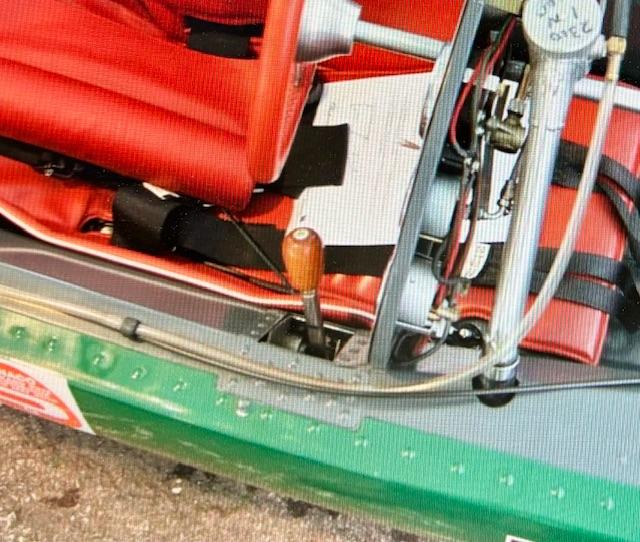

Gracias TS - here’s another example - the restored 25s do not have gated gear shift housings -

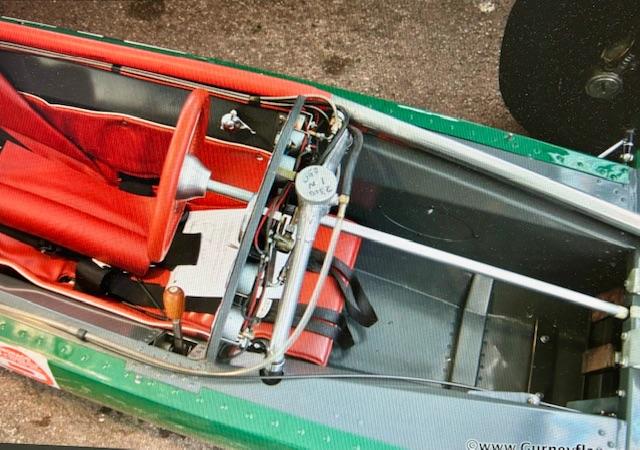

And here’s a restored 25 - using a casting in its place - not really inaccuate - because i’m sure Team Lotus utilized the casting later in the 25’s competion career - but - this is why the bl and wh images on sites like Motorsports Images are so valuable to us …

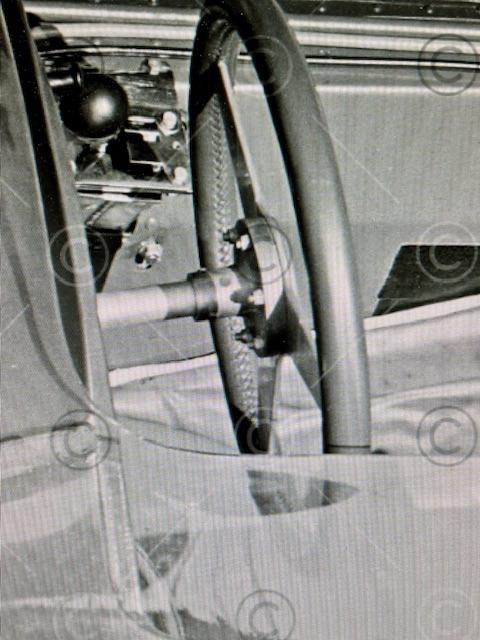

And a quick thought about research for a particular car at a particular moment of its competition life - this is the steering wheel on Clark’s 25 on its debut in ‘62 - Dutch Grand Prix - with a simple machined collar to attach the steering rod -

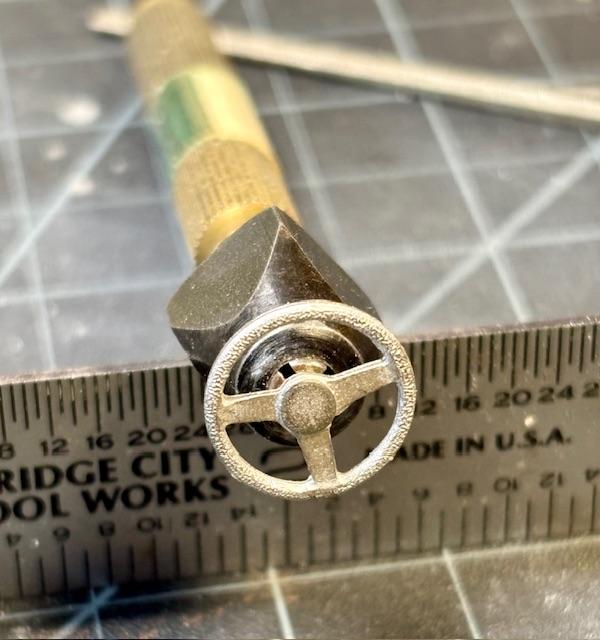

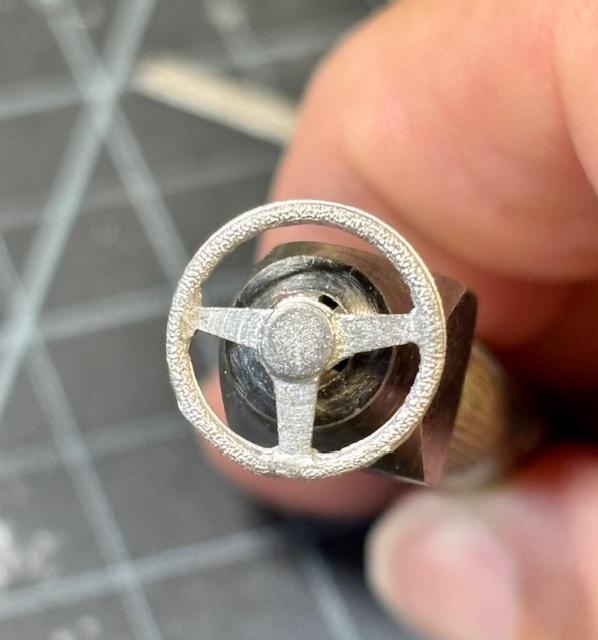

And then chucked into a Foredom drill peice to go for a spin - sanding sticks and the tips of files give the part a machined - rather than a cast appearance - just need to make a collar to place behind the spokes … and yes- I’ll need to an emblem to the center cap …

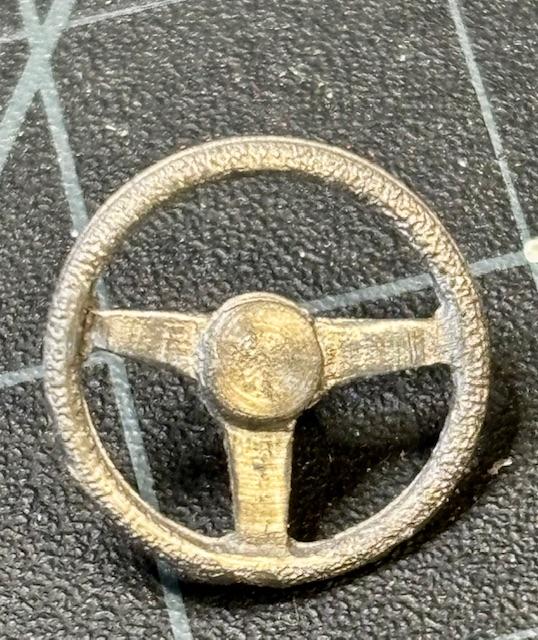

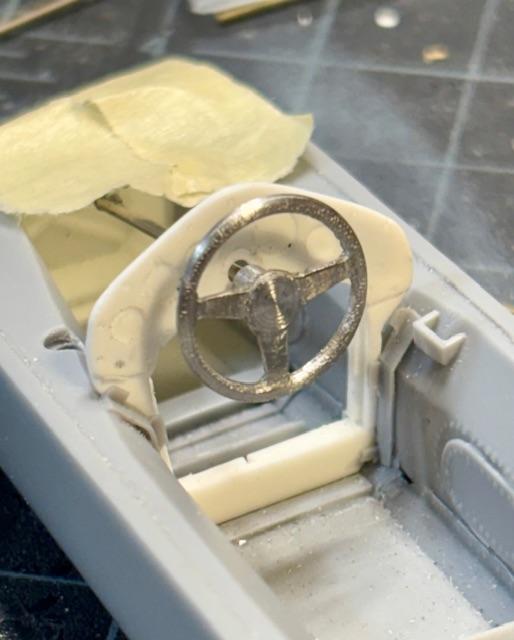

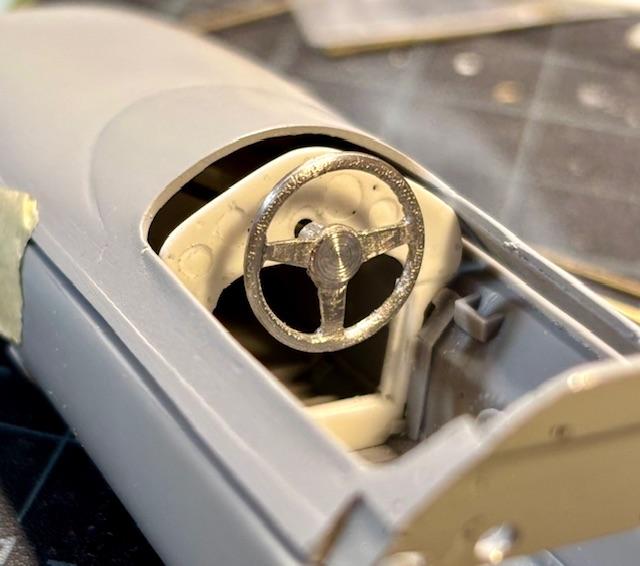

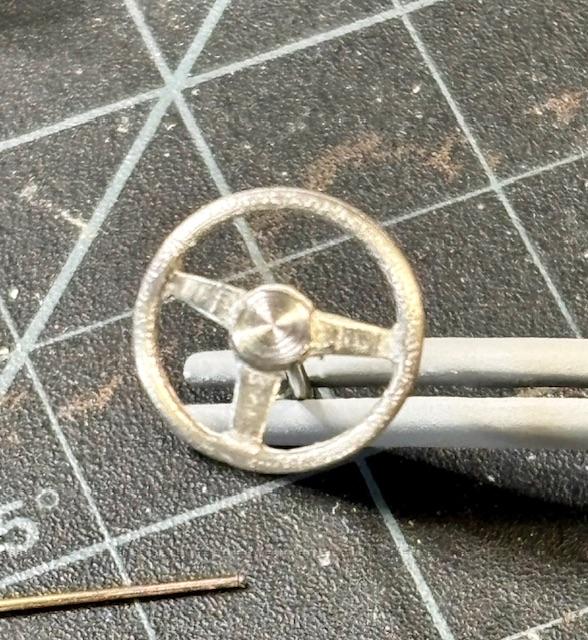

The Auto Kits wh metal steering wheel turns out to have the exact diameter - 12 scale inches - but it needs a few mods - reducing the texture appearance on the wheel grip - which was a relatively smooth leather - and and a small correction to the shape of the spokes -

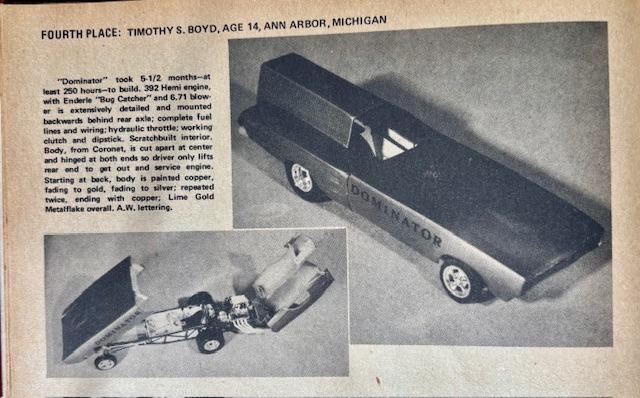

In this Oct 1968 Car Model issue - we were all introduced to Mr Keeler’s work in the mag’s iconic funny car contest - but quite a few of the placing entrants were kids - the fourth place finisher caught my eye - a precocious 14 yr old by the name of Timothy Boyd - wonder whatever became of young Timmy …. ??

Check this out …

Brake line junction - when I solder up a small part - i start with lengths of tubing - this is .026 brass - and reduce each length with files until i’ve made the part -

I got a set - just one set - you see, $2.50 was ALOT of $$ in 1971 …

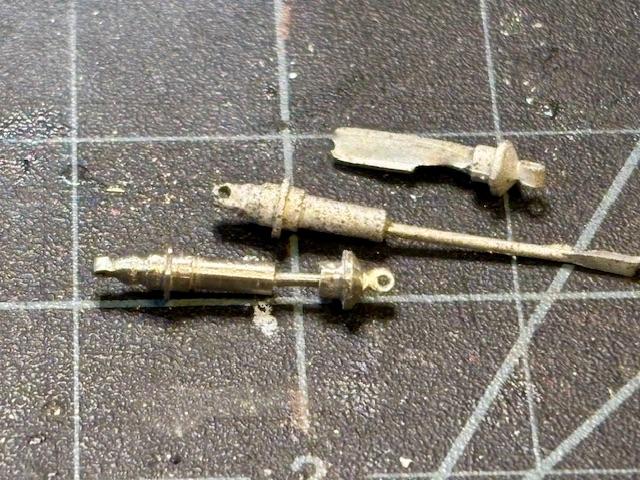

Some white metal susp parts from a years past Gurney Eagle project - to be used on the trailing arms and parallel links …

The fasteners for the trailing arms will be glued during final assembly - with a fake nut - and the length of the trailing arms can be shortened once all the parts are assembled …

Thing 1 - consider a set of early Mercedes GP wire wheels fr FPP - the resin castor in Portugal - thing II - the rims are large enough to consider hand made wire wheels - and you’re a good enough builder to tackle this …

The trailing arms will be nickel silver .040 tube - 1 inch scale - silver soldered to posts - the early 25s did not have the Len Terry designed brackets that were riveted to the sides of the monocoque on the 63 cars and many following open wheelers … the angle needed for the post follows the shape filed on to the popsicle stick - the angle was sort of hit-or-miss - but once i found the right angle i’ve got the stick as a template to solder up trailing arm brothers and sisters …

Left and right either / or

Now that i know how to use lo temp solder I’ve soldered a nickel silver post to the ends of the rockers - that’s where i can pin the top of the shocks - the shocks are in-board - housed in the footbox - this was another innovation on the 25 -

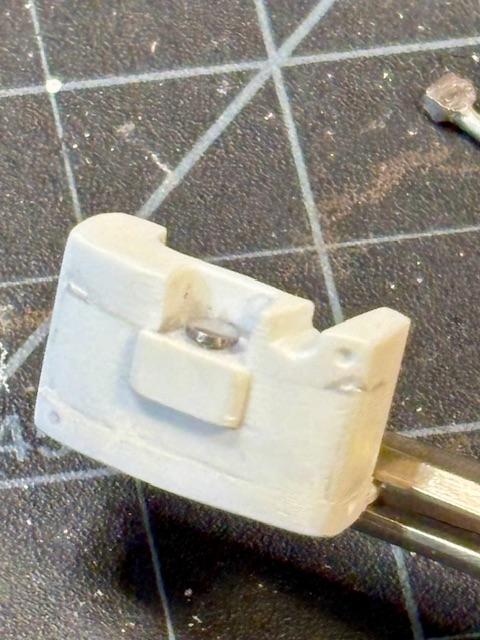

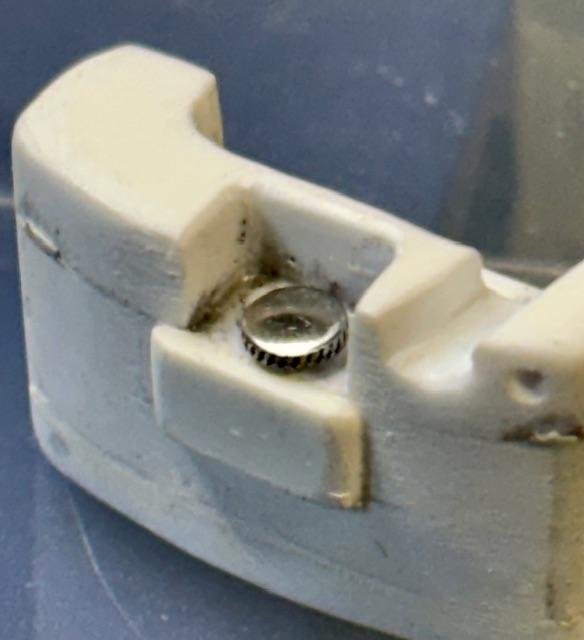

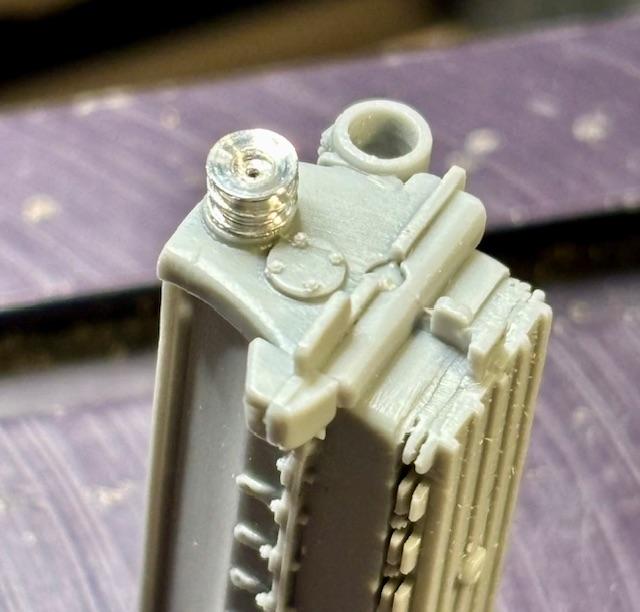

Thanks lascar ! So here’s the fuel cap …

Rex says he used old stock Testors Blue enamel - you might even have some …

This blue reminds me of the Rob Walker team dark blue - i bet you tamiya makes something that is close -

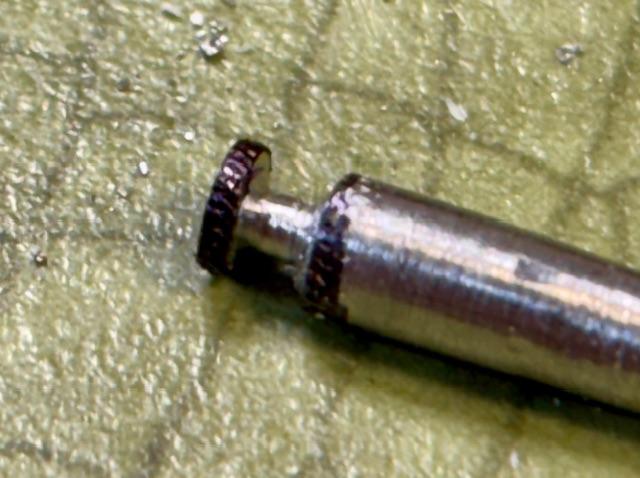

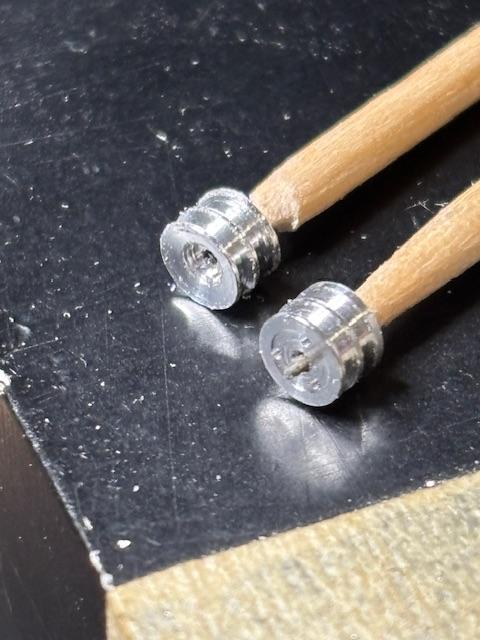

Once the rod has a slot filed to make a stem - i placed the rod on a hard surface and rolled a file over the cap end to leave the markings on the cap … here’s the results of the first experiment …

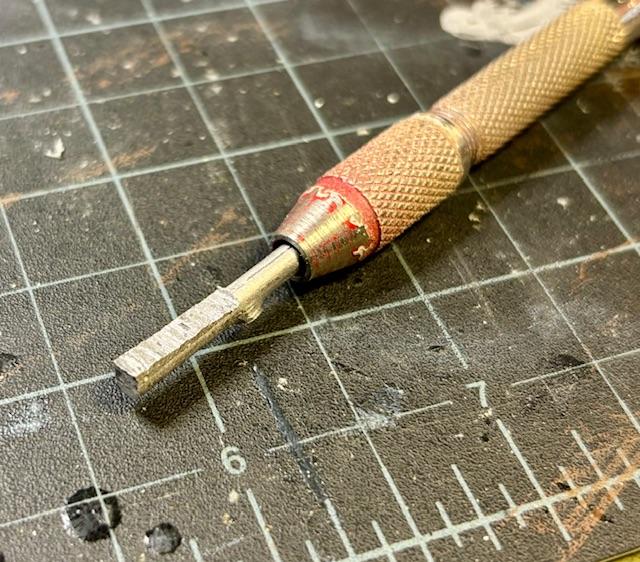

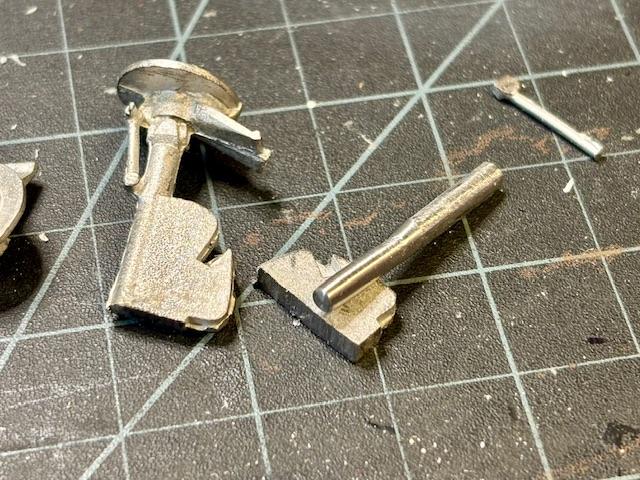

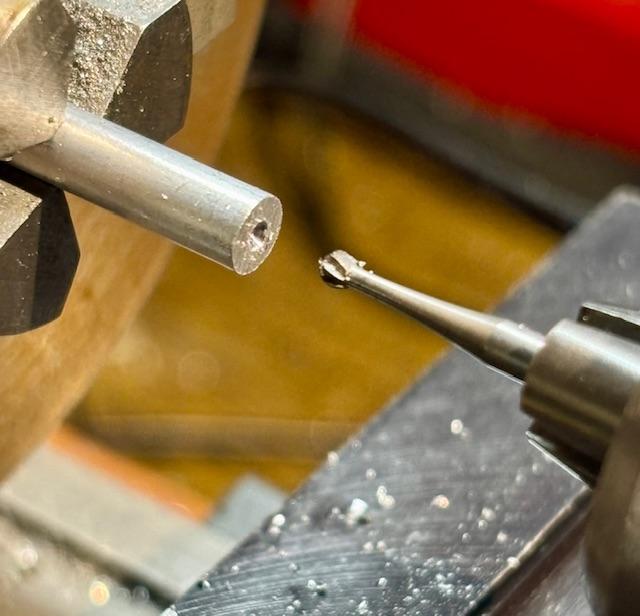

While metal is soft - so i can’t machine it - but i can turn these scraps into reasonably useful rods - and i can file and sand these with hand tools -
