Pete J. Posted March 2, 2017 Posted March 2, 2017 Tim, I was looking at what I assume is a clutch pedal(on the left side of the transmission). I don't know squat about drag cars so I will refer to it that way. Did you photoetch the shaft or machine it? Either way that little piece is a work of art. The tapered lightening holes look great! Another head scratchier for me.

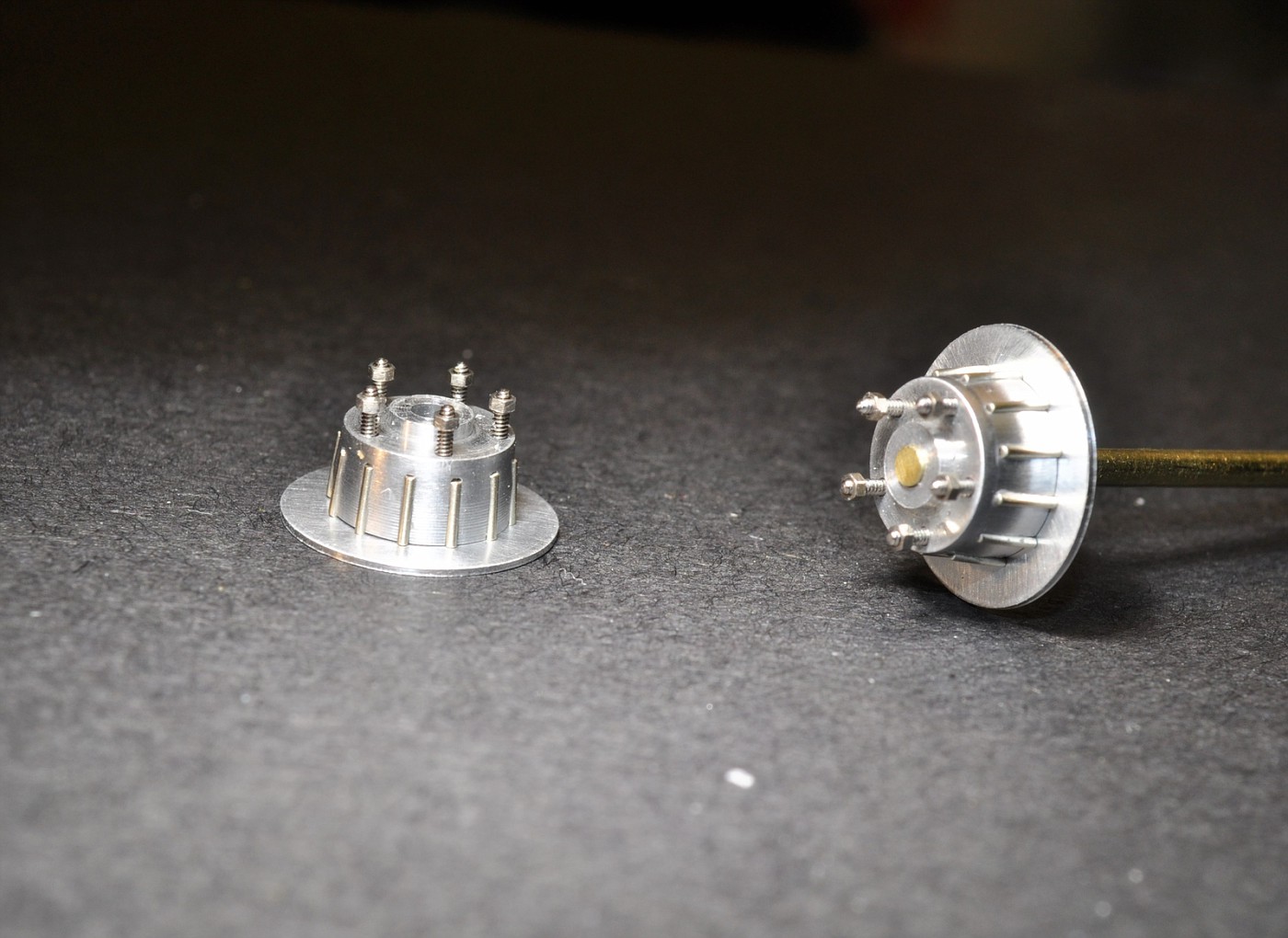

Codi Posted March 3, 2017 Author Posted March 3, 2017 Ah Pete, that clutch pedal is from Futurattraction.......I can't & won't take credit for that. It is pretty cool looking. The hubs are done, onto the calipers. cheers, tim
Mooneyzs Posted March 3, 2017 Posted March 3, 2017 Tim... Those hubs are a work of Art and they look Killer. Dude you are knocking this build out of the part. You keep raising that bar for the rest of us. I can't wait to see what you show us next that you make, all I know is it is going to be good. I am loving the look of that CS1, I am sorry I wasn't able to draw one up sooner but my plate is full at the moment and a little overwhelmed but I am glad that Paul was able to get his sized down for ya and it looks like it turned out great!! I will be patiently waiting for your next update. Cheers!!
Pete J. Posted March 3, 2017 Posted March 3, 2017 Ah Pete, that clutch pedal is from Futurattraction.......I can't & won't take credit for that. It is pretty cool looking. The hubs are done, onto the calipers. cheers, tim Oh, ok. I have not heard of them but I will most certainly take a look. I will add, that I could easily see you doing that with the other bits you have done so far. Keep it coming Tim. Looking better all the time!
mr68gts Posted March 3, 2017 Posted March 3, 2017 Tim,Glad to help. It was easy since I already had the solid model, just the wong scale lol.Looks like it printed fairly well. Btw, the hole in the side of the reverser is or should be.04 for the crossshaft bung with the crossshaft being .02 across the flats. (Hex shaft) Looks like it mated up to your bellhousing well too! Awsome work!Paul
comp1839 Posted March 3, 2017 Posted March 3, 2017 tim, incredible job on the brake hats!!!! i'm always blown away by your work in this scale. paul's lenco is killer looking!!! fantastic work paul. as far as paul's lenco fitting tim's bellhousing.....it should. this is what happens when the aftermarket does there homework and makes CORRECT parts!!!!!!!!! ti'ms bellshousing was designed to fit a lenco bolt pattern. the cs-3, the cs-1 and the cs-2 as well as the new cs-4 share the exact same mounting bolt pattern. it's a bit of a pet peeve of mine that some people / companies, make and sell imaginary parts that don't fit anything but their own stuff. it's nice to see that people who care about accuracy are starting to come into play with model parts. cudos to you paul and TDR. great work fellas!!!!!!!!!
GoatGuy Posted March 5, 2017 Posted March 5, 2017 Superlative, awesome work. Love seeing these updates and thank you for letting me visit the Den of Fantastic Automotive Art again and showing me how to make coilovers and answering my questions. Your work and enthusiasm is contagious.
Codi Posted March 6, 2017 Author Posted March 6, 2017 Thank you gentlemen......I moved onto the calipers. These are the first "halves" for the hub side. I machined them from Renshape as I'm going to paint them a custom mix of a magnesium color I came with. Once I get em' painted and assembled I'm pretty certain they'll look pretty cool with hubs and rotors. cheers, tim
Davewilly Posted March 6, 2017 Posted March 6, 2017 Holy Moly! those are insane! Great work as always Tim.. Those are going to be so fine looking rear hubs and rotors!
Randy D Posted March 7, 2017 Posted March 7, 2017 Hats, rotors, and calipers all are looking killer Tim !!!!!!!! Randy
comp1839 Posted March 7, 2017 Posted March 7, 2017 those are simply priceless tim!!!!!!! those hurst airheart calipers have extraordinary detail.
Mooneyzs Posted March 7, 2017 Posted March 7, 2017 Tim... are you freaking serious... Holy Smokes you have blown me away. man do those look great!! They are going to look so good once you get them painted an on the rear end. I am at a loss of works. Very Nice work!!
Codi Posted March 7, 2017 Author Posted March 7, 2017 Davewilly, thanks man. I gotta get to the other halves tomorrow so I can see how they look. I really want to move onto the front suspension now. Jeff, thanks and also for following along. Randy, appreciated............I keep peeking at the WIP everyday as I just know we're going to get an update from you soon. Always a treat.Dave, thanks sir. You can tell, they're small. Anxious to see some of your rail progress soon as well, your 37' is really coming together btw! Chris, as always appreciated. Did you schedule a time to check out that mill btw? Let me know how you make out. Cheers everyone!
Mooneyzs Posted March 7, 2017 Posted March 7, 2017 Tim.... I am waiting on hearing back from the seller to see if they still have it. I will keep you posted on it.
Codi Posted March 8, 2017 Author Posted March 8, 2017 (edited) Today got the other half of the calipers done and the spacer between them. Now if I could just remember which glue is best for assembling Renshape (DAVE, any suggestion on what you use? If it's CA glue, would it be Loctite OR something like Zap-A-Gap or even a 2 part epoxy?? ) Once I get that figured out I'll assembly and detail them, then paint and a few bolts to finish them. Starting to see a pattern wherein everything I'm doing currently is taking me about 15 to 20 hours to complete. I've just gotta get faster at this. As a reference for size, the longest part of each caliper at the top is 6.0mm........... cheers, tim Edited January 14, 2019 by Codi
gasser59 Posted March 8, 2017 Posted March 8, 2017 Friggin' awesome Tim. And I suppose they'll work? There's that much detail in them.
comp1839 Posted March 8, 2017 Posted March 8, 2017 BOING! as far as glue goes tim...if you use CA do not make any mistakes aligning the pieces. it will bond fast......oops i mean instantly!! you will not get it apart!! i'd use a 5 minute epoxy (of your choosing)....just in case. those brakes are a thing of beauty tim.
Codi Posted March 11, 2017 Author Posted March 11, 2017 Glued the halves together and did a quick mock-up. Primer/paint and add the bolts & they're done. I machined an aluminum support bracket that is not in the pics as an fyi. I'm going to assemble and detail the Lenco that was printed in 3D that Paul drew up next & then the front axle/suspension is on the list. cheers, tim
comp1839 Posted March 11, 2017 Posted March 11, 2017 tim, i can only imagine how beautiful this will be once it's attached to that piece of jewlery, quick change. OUTSTANDING!!!
John Teresi Posted March 11, 2017 Posted March 11, 2017 Tim.......that is just un-real!!!!!.......what a great up-date WOW!!!!!!
gasser59 Posted March 11, 2017 Posted March 11, 2017 Tim - any descriptive praise would be an understatement. I've run out of words to describe what I feel about your talents and this build isn't even close to being complete.
Davewilly Posted March 14, 2017 Posted March 14, 2017 ....Looks fantastic ..... there really is no word(s) to describe what you do that doesnt sound to weak for what is really happening. even Supercalifragilisticexpialidocious is to lame for your skills Tim!
