ROYAL CANADIAN 1/16 SCALE TOP FUEL DRAGSTER

[Ian McLaren]

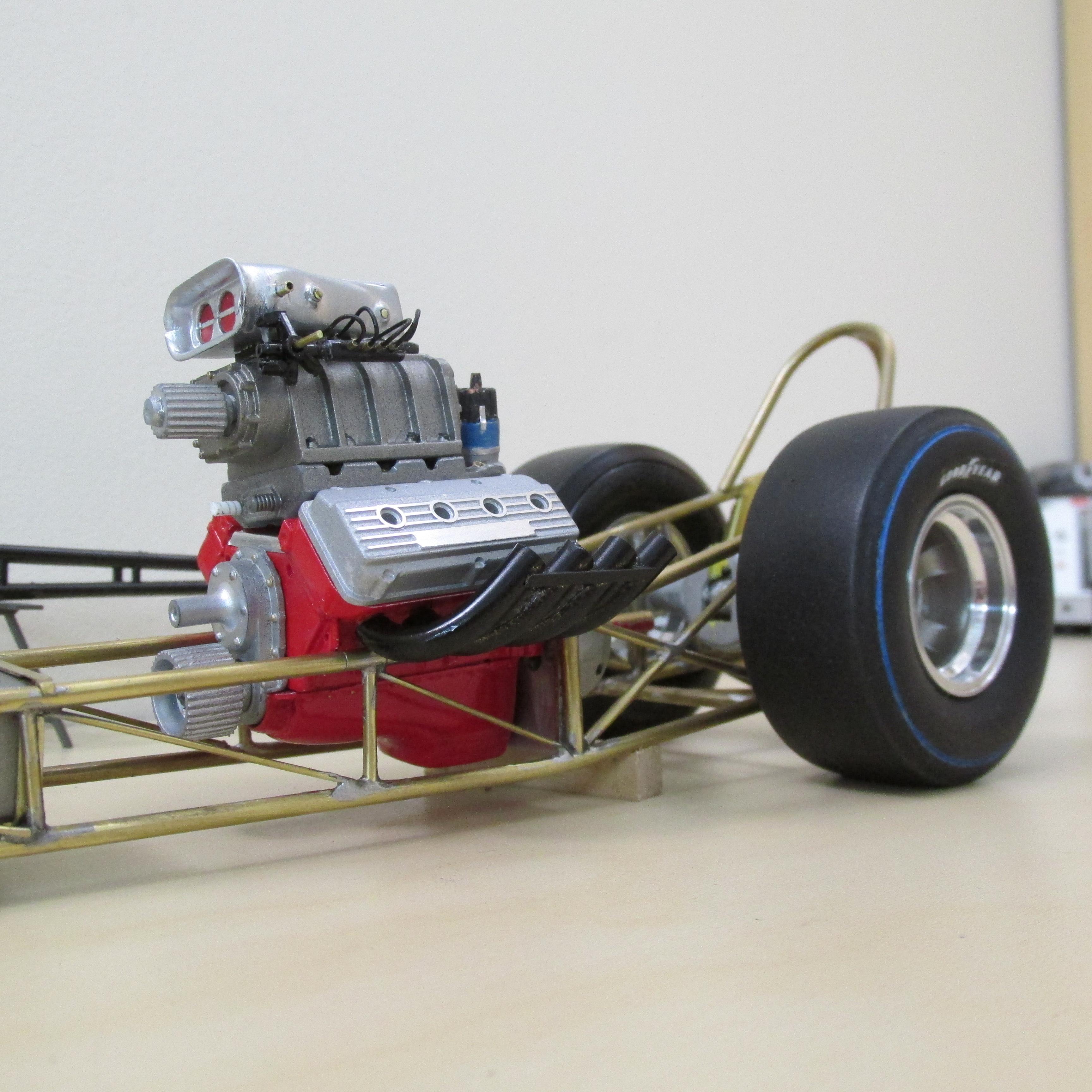

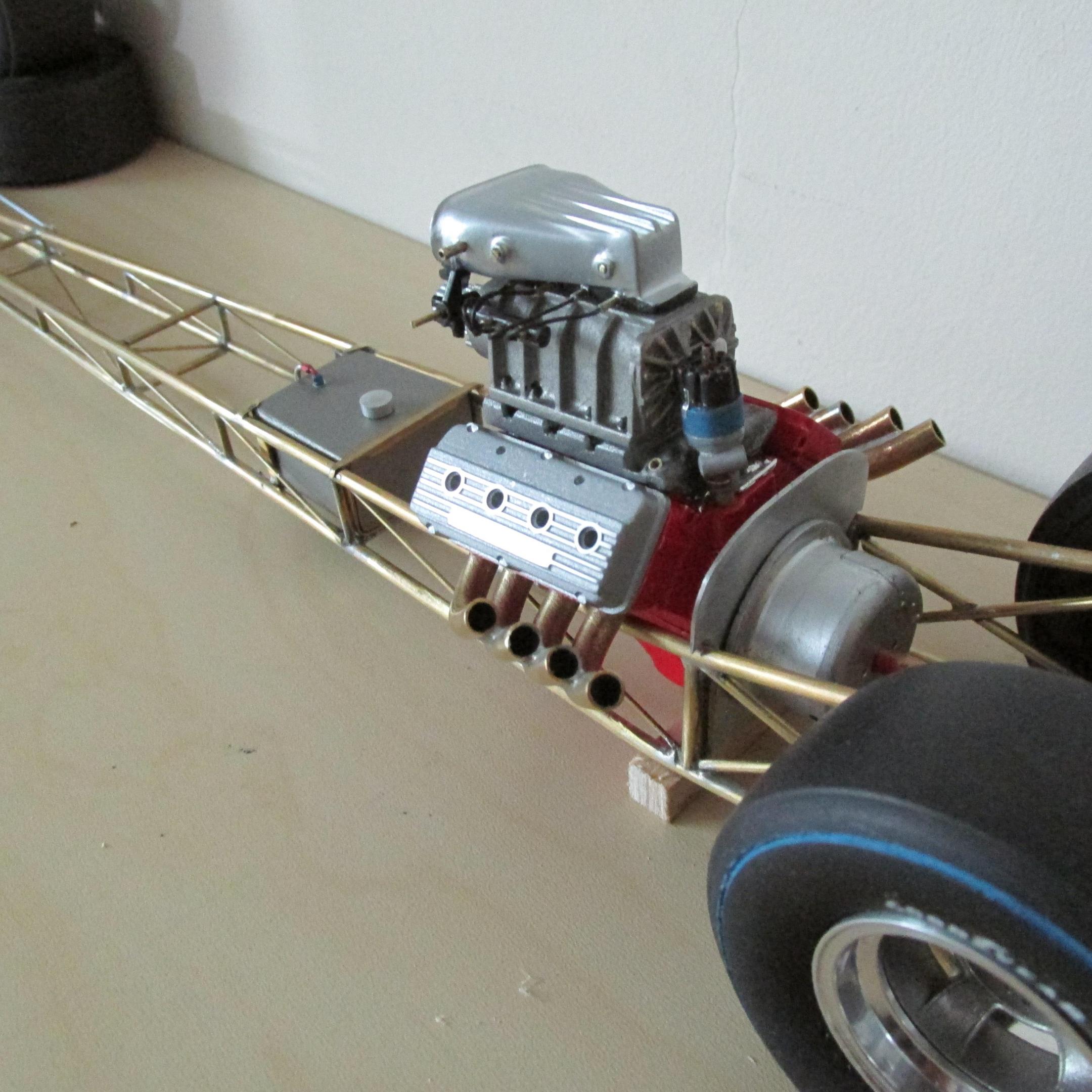

Headers just hung on the studs.  Once tightened the exits will be pretty much vertical.

[Ian McLaren]

Headers just hung on the studs.  Once tightened the exits will be pretty much vertical.

[Codi]

Headers look fantastic Ian. Are you going to add the cross brace to them?  The angle and up sweep look spot on!  cheers, tim

[Ian McLaren]

Barrel valve, and upper injectors with lines installed, fully polished machined aluminum valve cover recoated in natural aluminum and nameplate and fins re polished



[Nitrobarry]

Keep goin Ian, I`m sure Don K will be quite pleased when this is finished! Well done!

[Ian McLaren]

33 minutes ago, Nitrobarry said:

Keep goin Ian, I`m sure Don K will be quite pleased when this is finished! Well done!

Hi Barry   I'm not sure Don even knows about the project, I've been building it fir Bryan Hodges, the current owner.  Here's where I'm at today  Dropped the intake this morning , these 3D printed parts are like handling glass, I was going to change both sides  with HO gauge railroad coupler springs and RB Motion bolt pins and washers anyway. As well as cleaning up the remaining solder joints

Edited September 17, 2021 by Ian McLaren

[Ian McLaren]

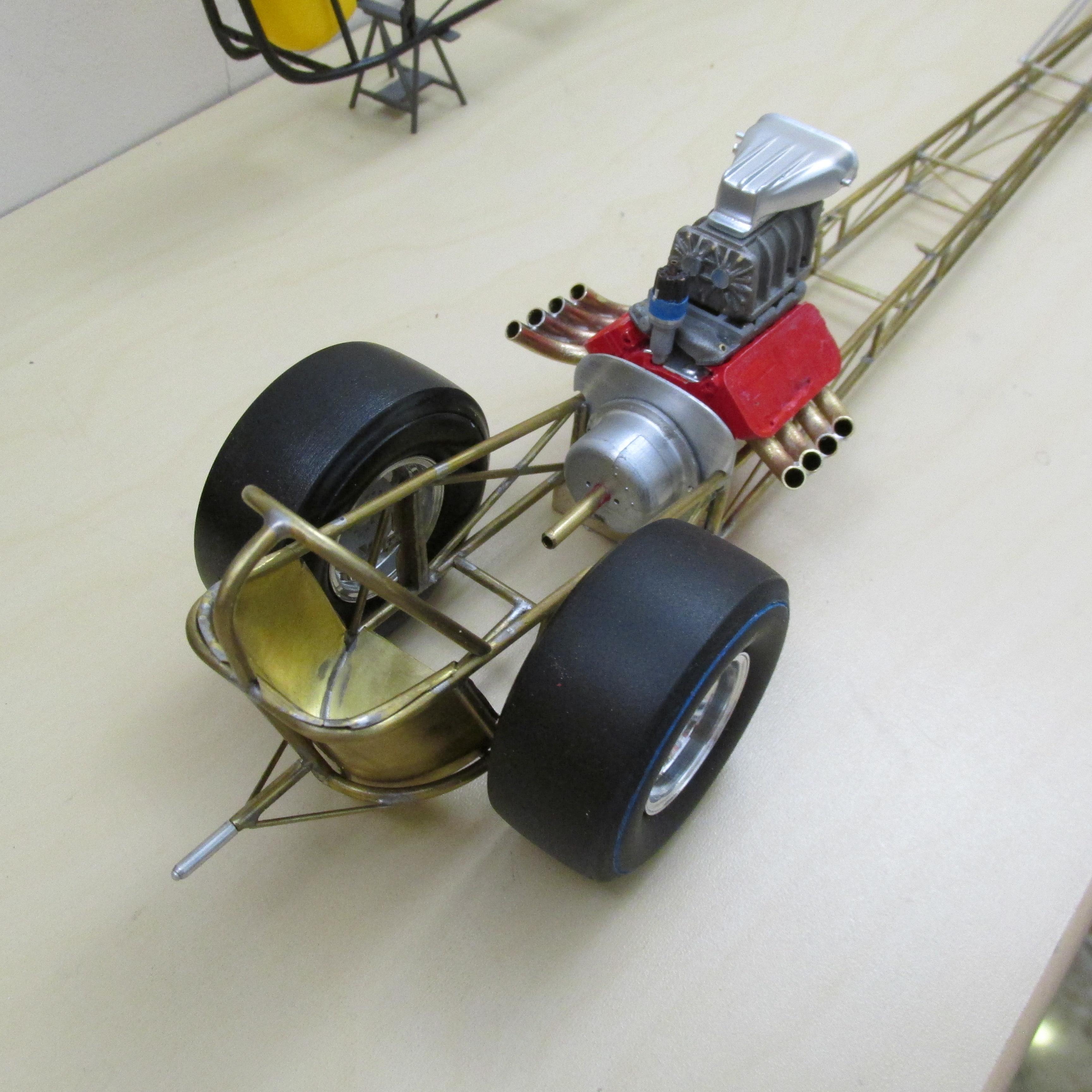

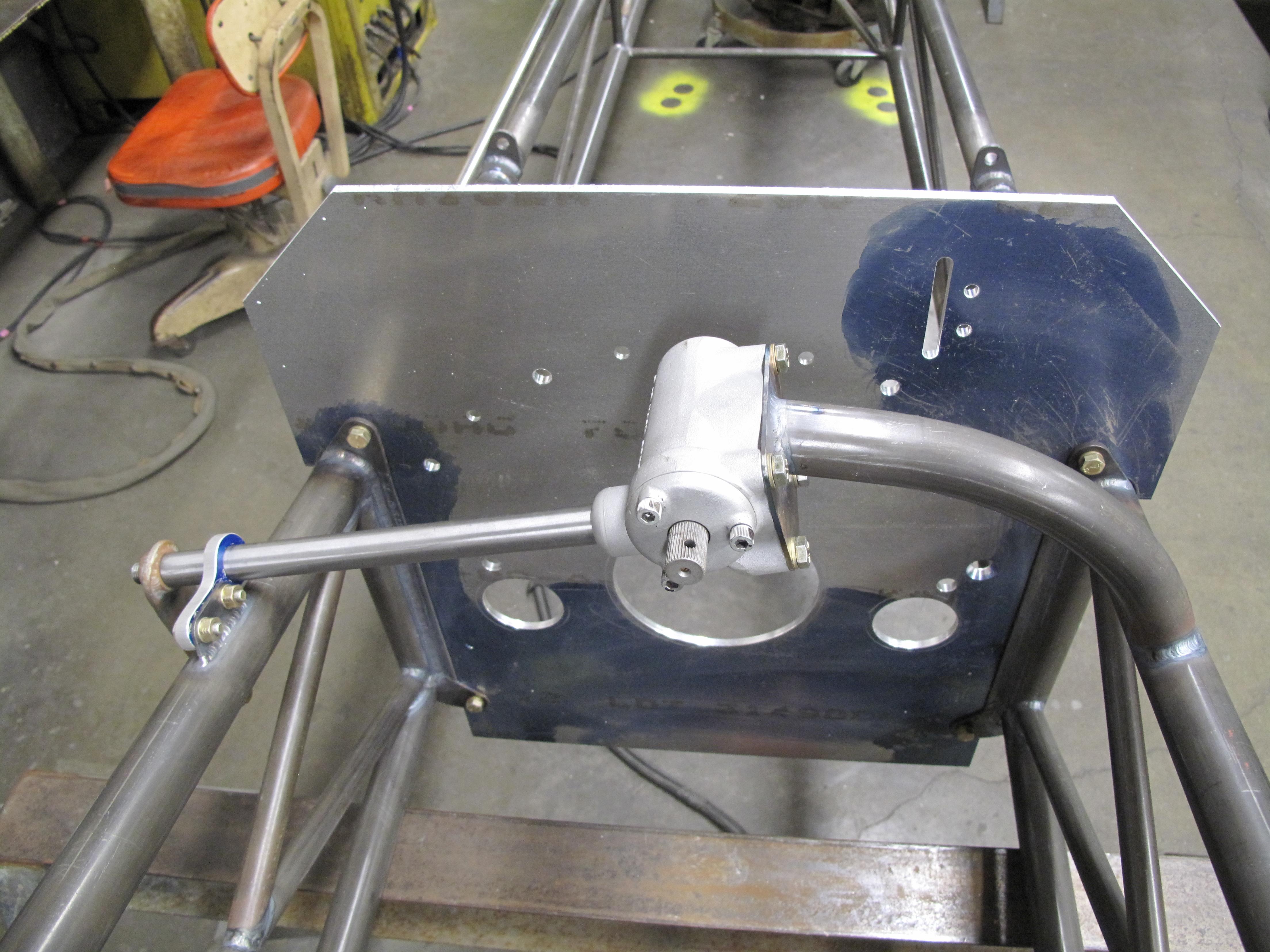

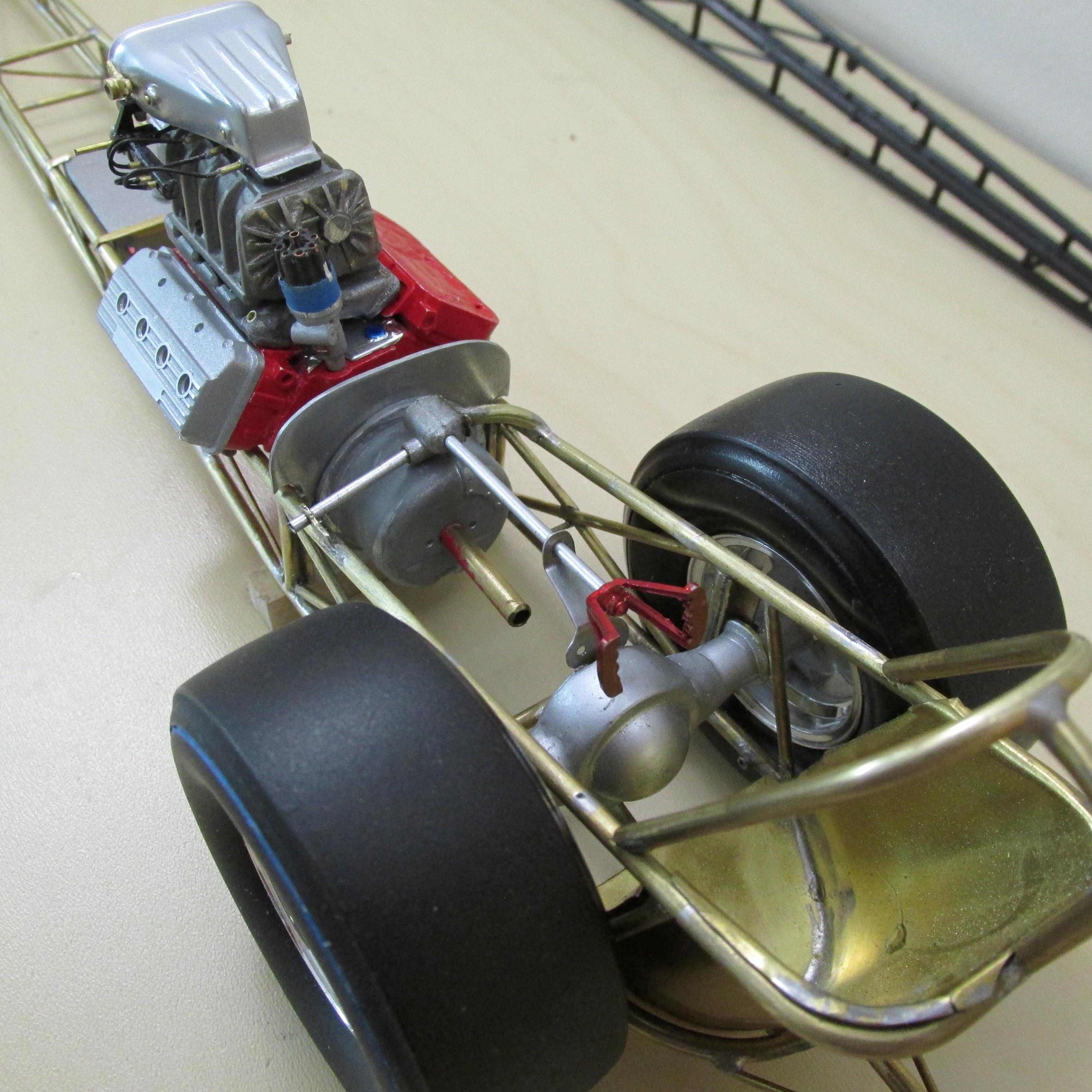

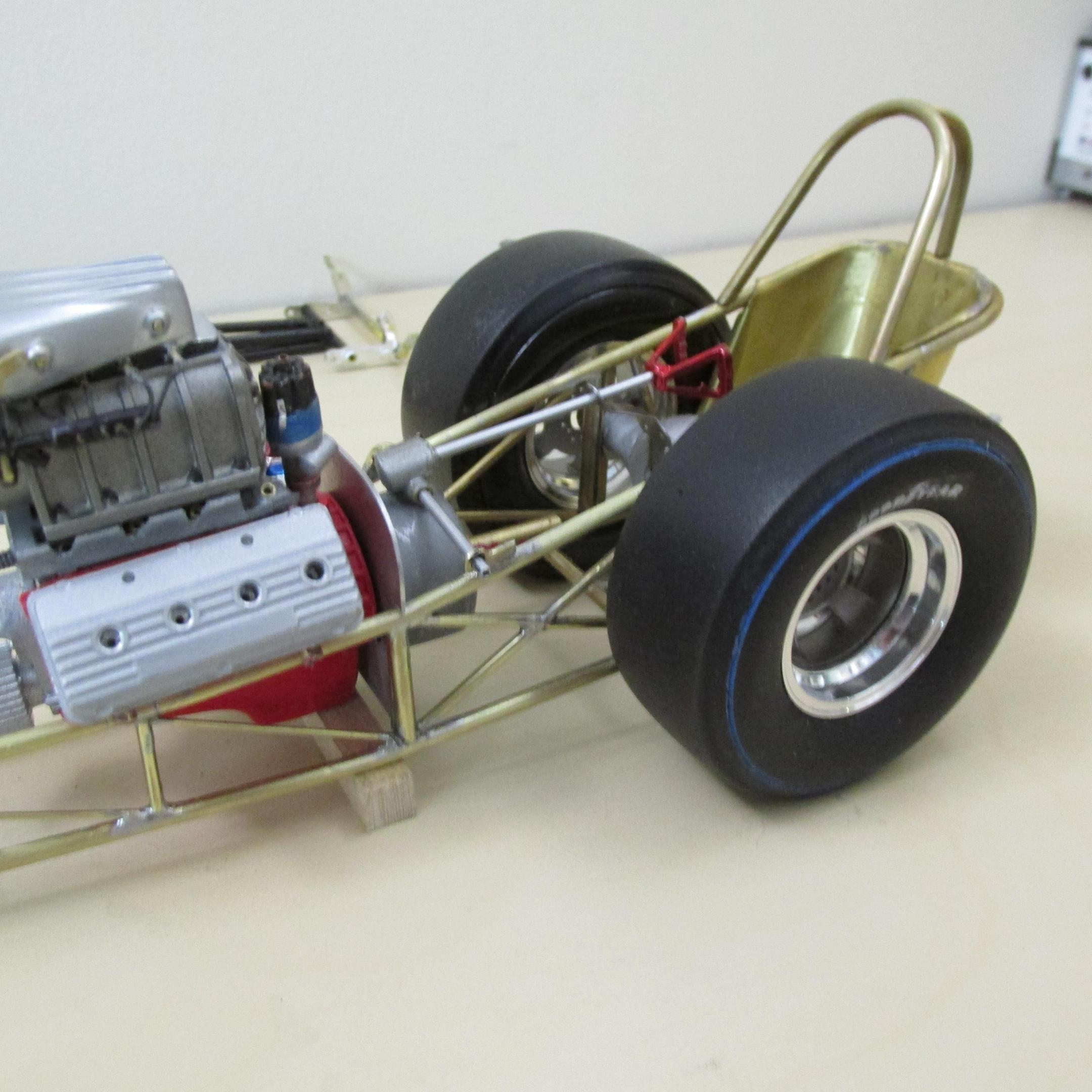

Steering box  mount fabricated and installed.  Now I have the same problem with installing the bellhousing from the top as the real car.  Also fabricated the rear steering shaft mount.  Steering wheel is a kit piece that will be replaced by a Future Attractions photo etch piece.

[Tortuga Kustomz]

Ian, you're doing an amazing work on this project man, love all the details man

[AmericanMuscleFan]

Great work Ian, you have really well replicated the 1:1 mount bracket, this build is absolutely stunning! ?

[Ian McLaren]

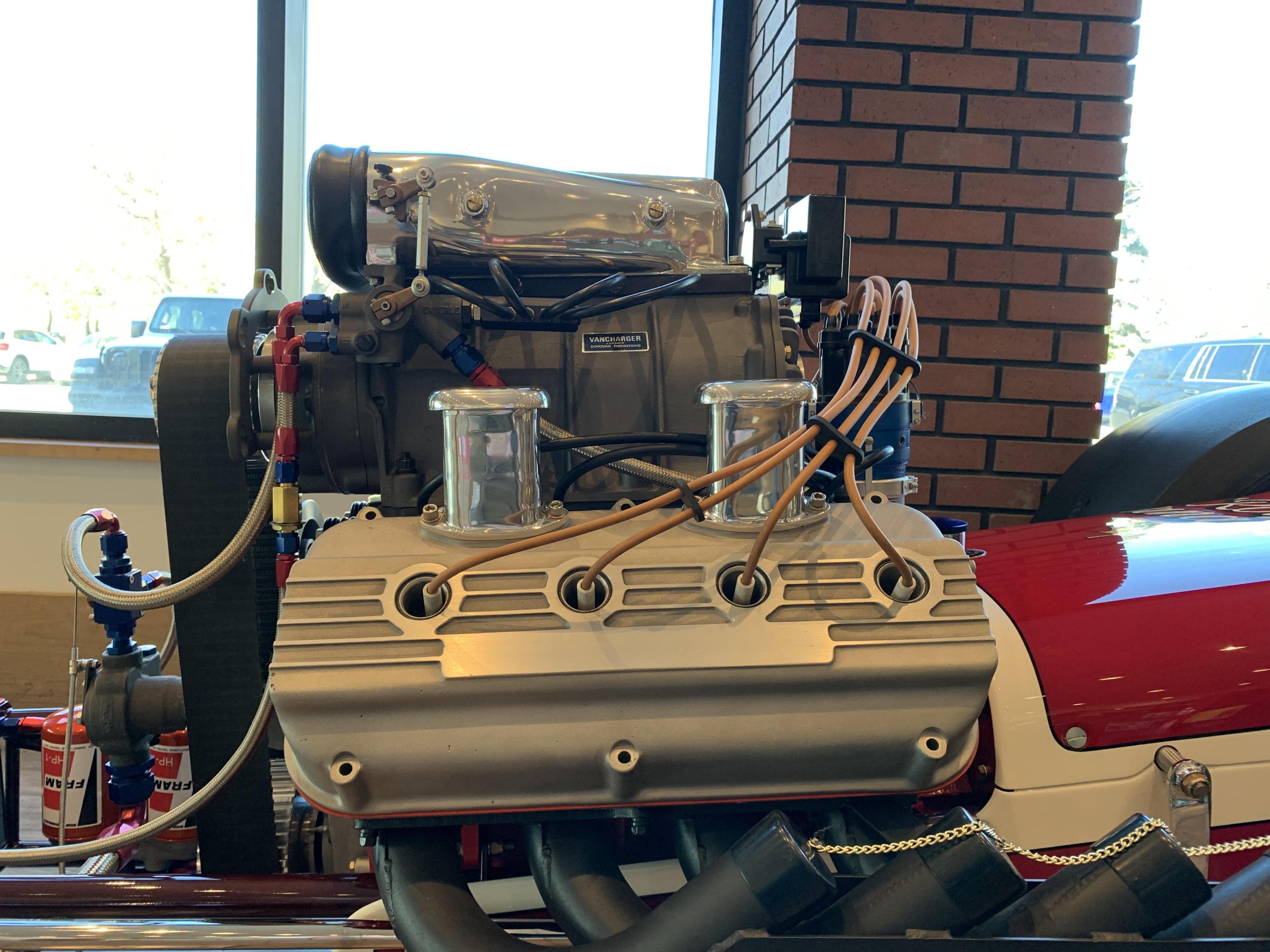

The engine is progressing, swapped out the Donovan based blower manifold for a lower profile CRAGAR manifold to match the one that is run on the car.  Lowering the blower a significant amount really enhanced the look of the engine.  Scratch built Hilborn PG-175 fuel pump as per the original and 3 way fuel shutoff valve combined with RB Motion anodized fitting to the main fuel just waiting for addition fuel lines and control cables. Working on control cables, arms and linkages next

[Lee Yoder]

Looks great!  Does LPH1320 have a website, or are they strictly Facebook?  I have managed to resist Facebook for all these years and don’t want to go down that rabbit hole.


Later,

Lee

[Ian McLaren]

5 hours ago, Lee Yoder said:

Looks great!  Does LPH1320 have a website, or are they strictly Facebook?  I have managed to resist Facebook for all these years and don’t want to go down that rabbit hole.


Later,

Lee

As far as I know they are only on face book.

[gasser59]

14 hours ago, Ian McLaren said:

As far as I know they are only on face book.

They are only on FB and you need to PM Wayde Leslie to place an order. Check out their FB page for offerings and prices.

Edited October 11, 2021 by gasser59

[Mike Williams]

On 10/11/2021 at 12:53 AM, Lee Yoder said:

Looks great!  Does LPH1320 have a website, or are they strictly Facebook?  I have managed to resist Facebook for all these years and don’t want to go down that rabbit hole.


Later,

Lee

Lee, thousands of modelers go there only for the drag racing car models groups.  Car models only, not the woke social circus.  Not all of FB needs to be avoided.

Mike..

[Mike Williams]

Looking very good Ian!

[GoatGuy]

Super update Ian. Looking forward to more of your talent

[Ian McLaren]

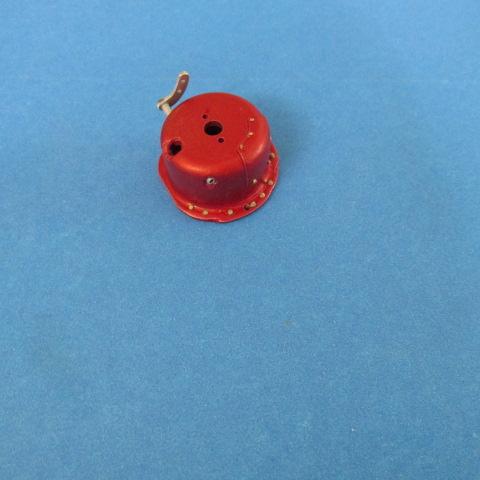

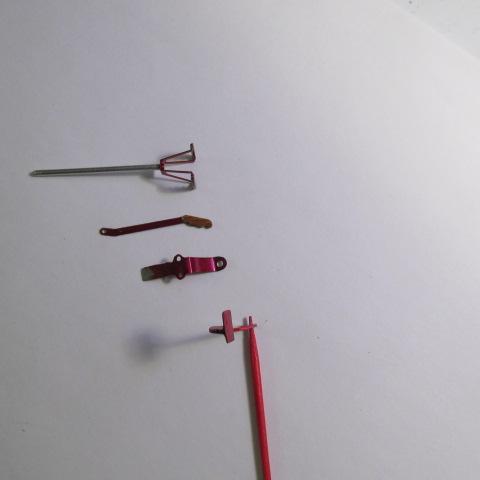

Just working on pieces right now, clutch pedal and clutch arm just have to build the rod,  note the scratch built master cylinder in the back ground, bellhousing with dust tube hole, dust tube will be added once the floor pan hole location is set.  Valve covers natural cast aluminum with polished ribs and name plate area  just waiting for plug boots, fasteners and breathers, dual parachute mounting plate and helmet bar with embossed padding also showing First color as a test and the painted helmet bar.

[Lee Yoder]

Any more progress with this Ian?



Later,

Lee

[Ian McLaren]

On 11/7/2021 at 3:06 AM, Lee Yoder said:

Any more progress with this Ian?



Later,

Lee

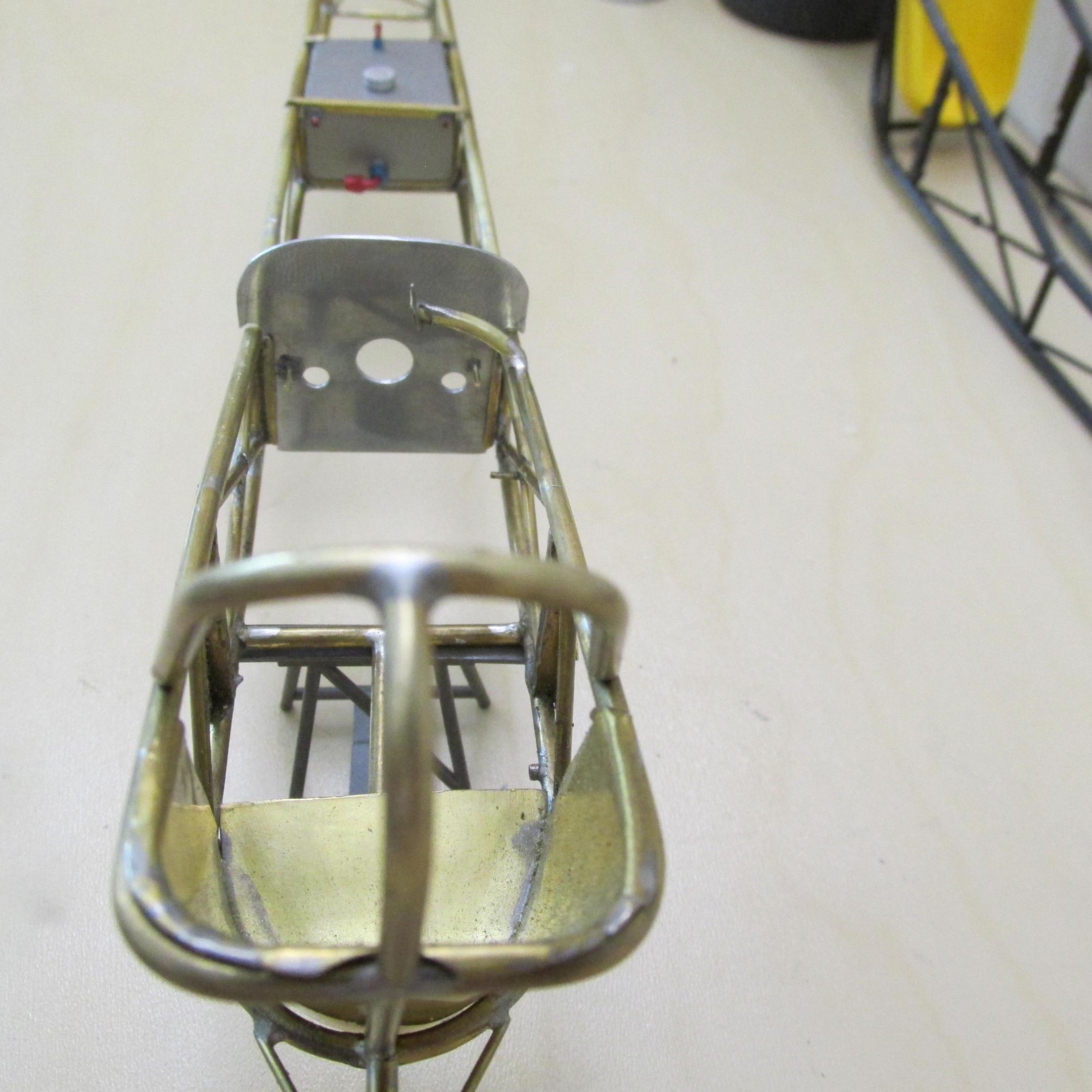

Just a bunch of bits and pieces not really the stuff of updates, but here are a couple.  Chute pack hand carved and a mold made, this is the first casting out of the mold also my first attempt at this procedure.  Aluminum rear face on the seat added. Happy with the wood on the steering wheel

Edited November 11, 2021 by Ian McLaren

[Ian McLaren]

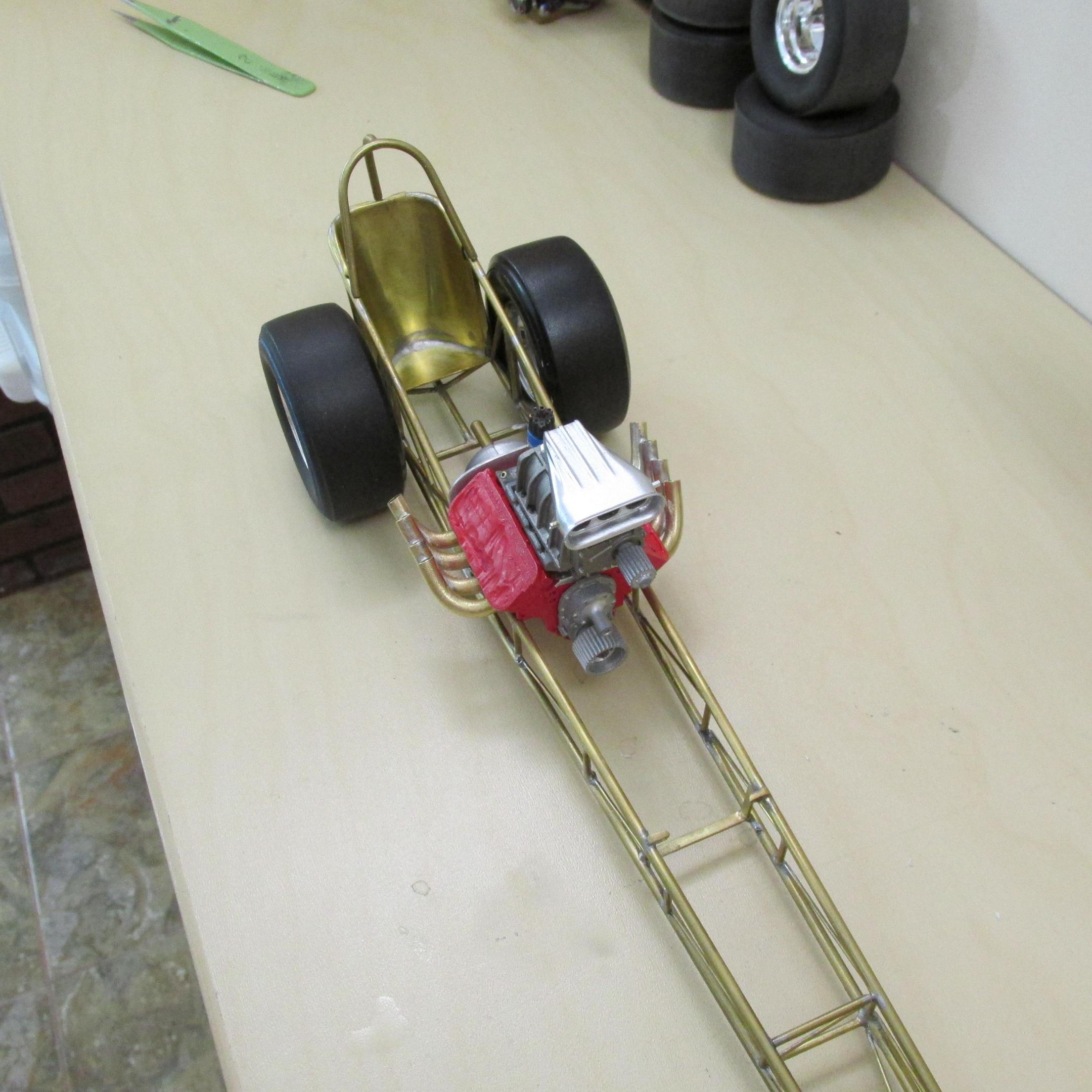

Just a rough mock up.

[Ian McLaren]

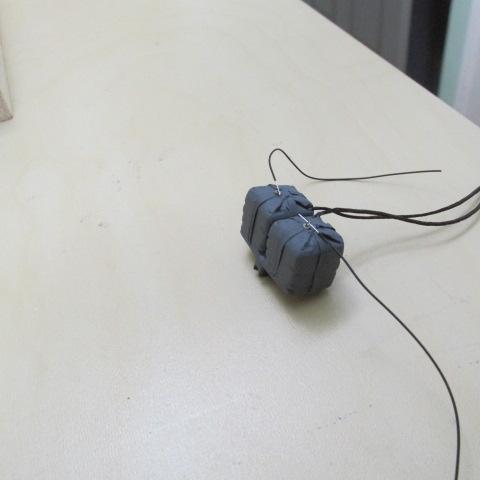

Chute packs ready

[AmericanMuscleFan]

All your fabricated parts look great Ian!   So far, it seems to me that your scale version of this dragster will really be as close as it gets! ?

[Codi]

Nice Ian, simply nice.   You've got some real talents and this is thread I always look for when it comes to updates.  cheers, tim

[Ian McLaren]

On 11/21/2021 at 4:54 AM, Codi said:

Nice Ian, simply nice.   You've got some real talents and this is thread I always look for when it comes to updates.  cheers, tim

Tim, coming from you that really means a lot. Likewise I always check for updates on your build because of the spectacular machining and modeling you constantly produce, truly inspirational.

[Ian McLaren]

On 11/18/2021 at 1:35 PM, AmericanMuscleFan said:

All your fabricated parts look great Ian!   So far, it seems to me that your scale version of this dragster will really be as close as it gets! ?

Thank you so much Francis, I always look for your updates and as I have said before I am never disappointed just fantastic modeling.
