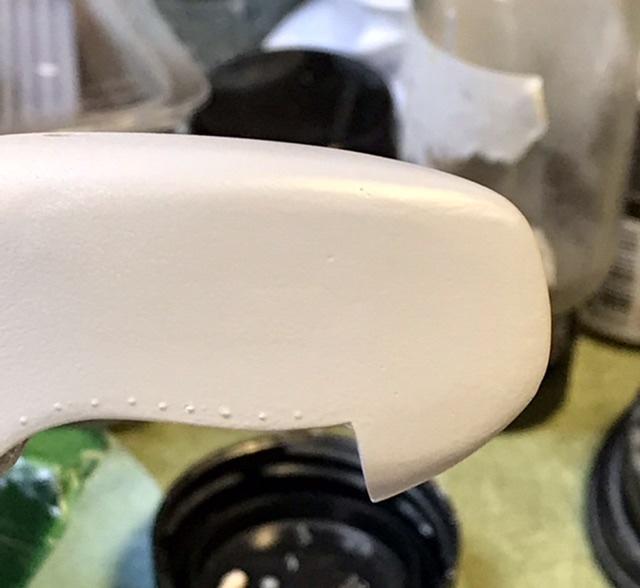

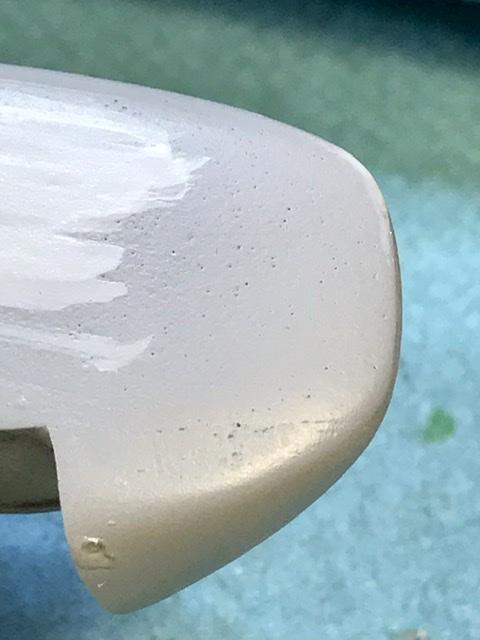

absmiami Posted February 1, 2023 Author Share Posted February 1, 2023 You can see here that the primer sands well but leaves paint in the offending pores … Quote Link to comment Share on other sites More sharing options...
absmiami Posted February 1, 2023 Author Share Posted February 1, 2023 And the paint dries quickly - which is good for those of us lacking in patience …. Quote Link to comment Share on other sites More sharing options...

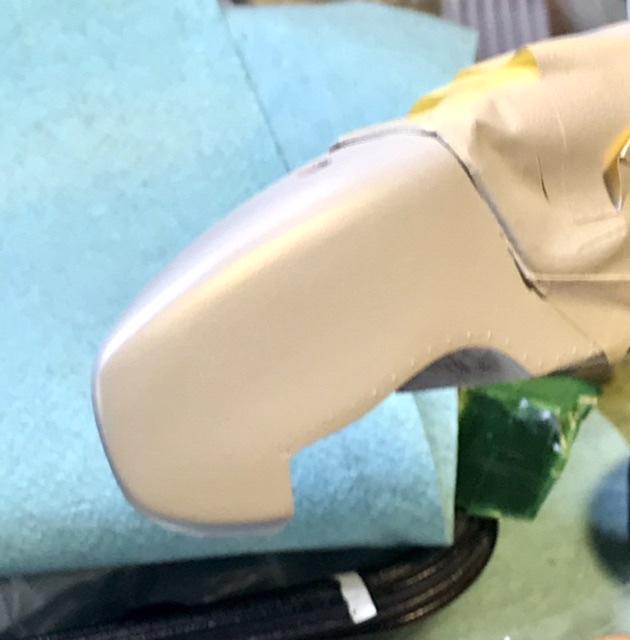

absmiami Posted February 3, 2023 Author Share Posted February 3, 2023 So the white tamiya primer does the trick - the pores in the second picture are gone in the first shot - laid to rest under a second coat of T rattle can primer … next stop is the green color coats … Quote Link to comment Share on other sites More sharing options...
Gramps46 Posted February 3, 2023 Share Posted February 3, 2023 Andrew, after a thorough analysis of your posts I have determined that you never sleep! Quote Link to comment Share on other sites More sharing options...
absmiami Posted February 3, 2023 Author Share Posted February 3, 2023 Not true! Just slept 8 hours ! .. … zzzzzz .. zzz Quote Link to comment Share on other sites More sharing options...
Pierre Rivard Posted February 3, 2023 Share Posted February 3, 2023 Took time but you got it done. Resin body right? Quote Link to comment Share on other sites More sharing options...

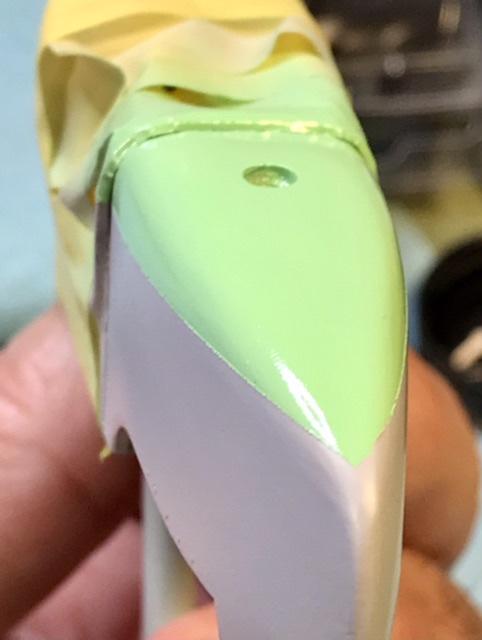

absmiami Posted February 3, 2023 Author Share Posted February 3, 2023 Yes - back on pg 1 - i think - there are some pre-i phone - super blurry pix of the Renshape - master - which Brad - and i - then resin casted …. Color coat on the tail …. model Master enamel - Who here recalls Orange Blossom Hobbies in Miami ? Quote Link to comment Share on other sites More sharing options...

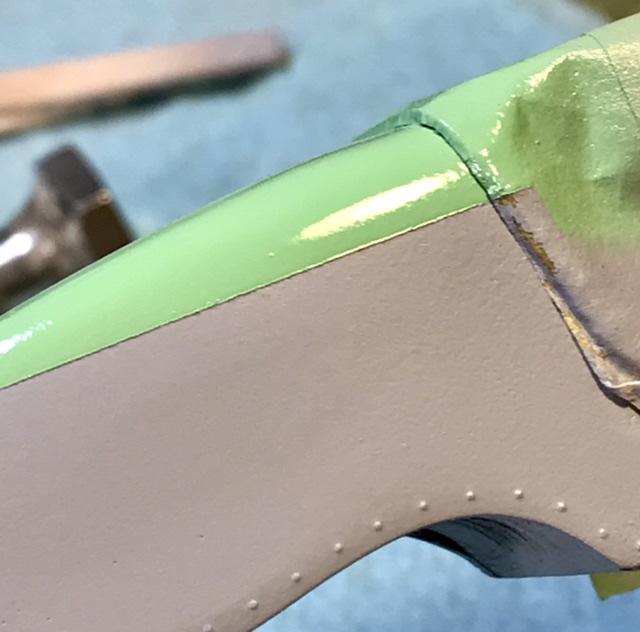

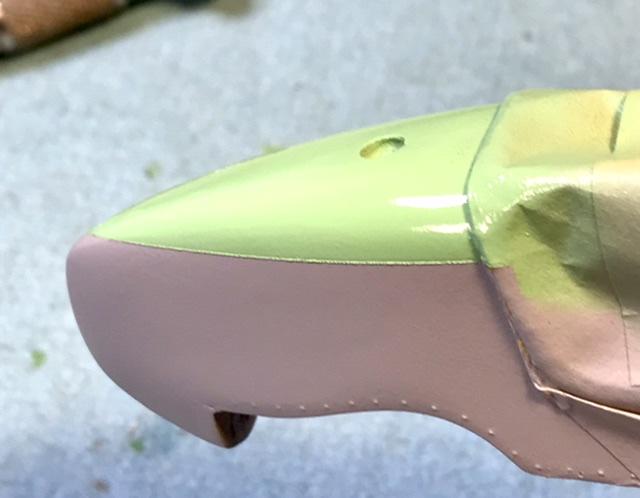

absmiami Posted February 4, 2023 Author Share Posted February 4, 2023 There is a small ridge just visible on the paint line - but i think that i can knock that down before i add the contrasting dark green below … Quote Link to comment Share on other sites More sharing options...

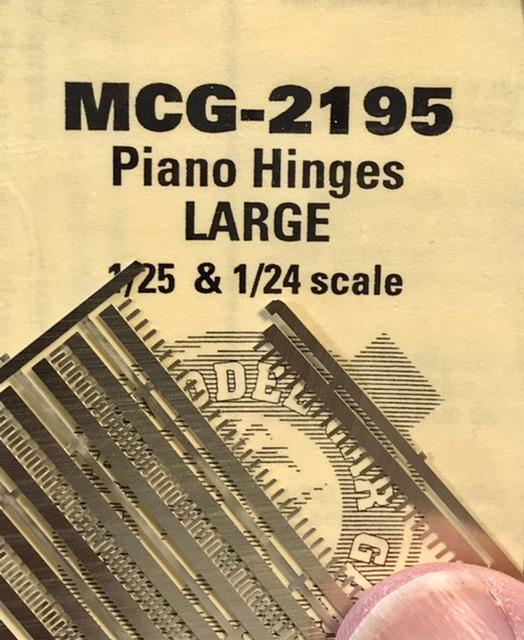

absmiami Posted February 4, 2023 Author Share Posted February 4, 2023 Next up is the hinge that sits inside the bonnet on the left side - attaching the left side panel - I’ve had this Model Car Garage hinge package for years but hadn’t tried it - Bob still has it on his site - last i checked … Quote Link to comment Share on other sites More sharing options...

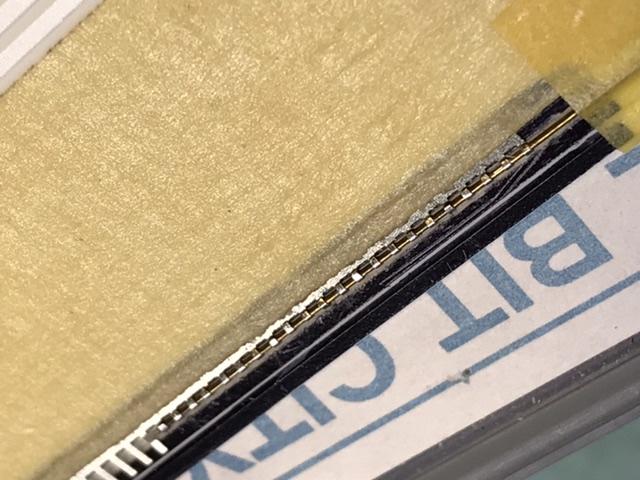

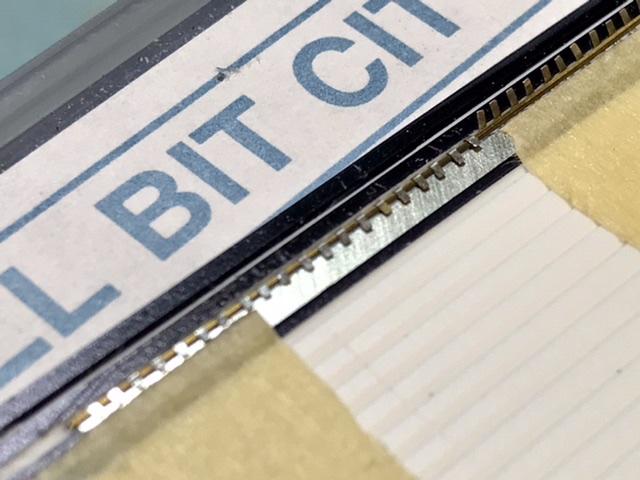

absmiami Posted February 4, 2023 Author Share Posted February 4, 2023 Instead of shaping the tabs with a photo etch bending tool - I laid out some Evergreen siding sheet with a wide pattern and made a U shaped “trench” to shape the tabs - and taped the hinge panel onto the sheet with tabs over the trench… Quote Link to comment Share on other sites More sharing options...

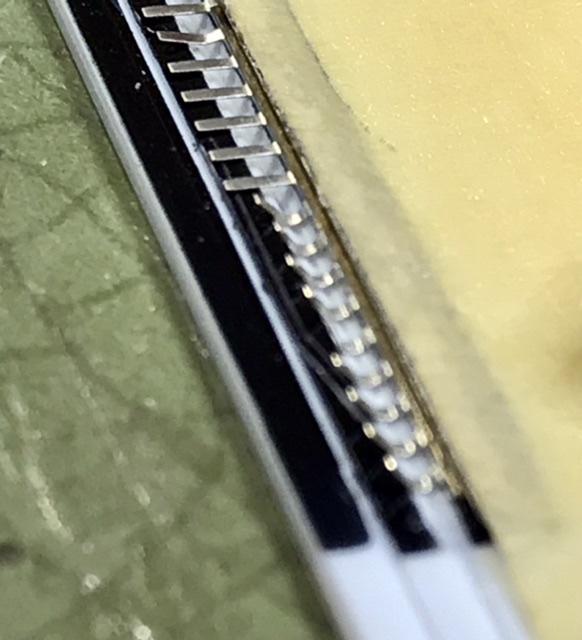

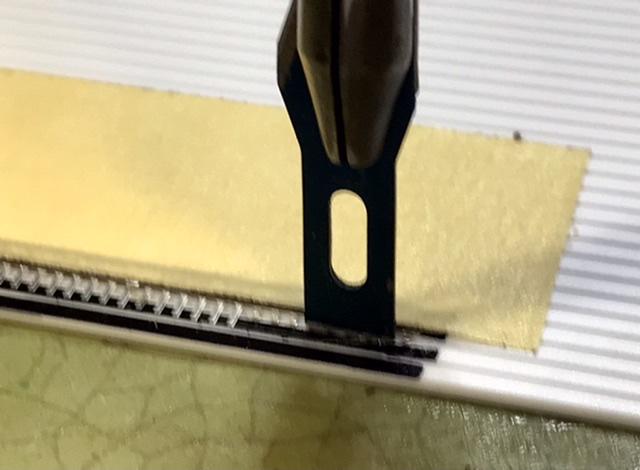

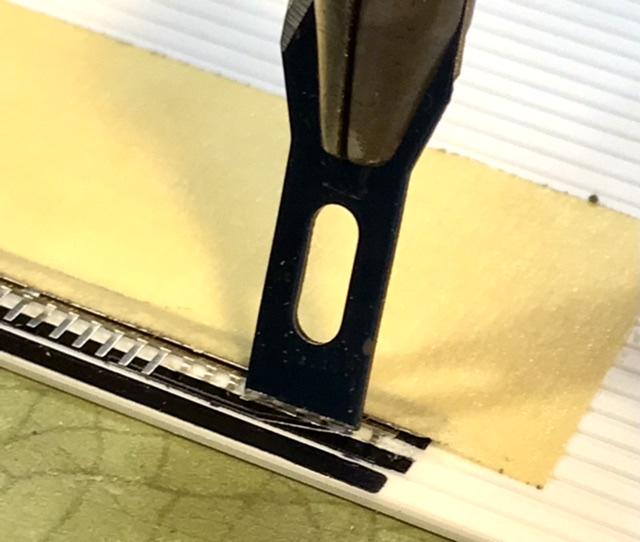

absmiami Posted February 4, 2023 Author Share Posted February 4, 2023 I then mashed the hinge tabs into the trench with the end of this Xacto blade - and a flattened tooth pick - Quote Link to comment Share on other sites More sharing options...

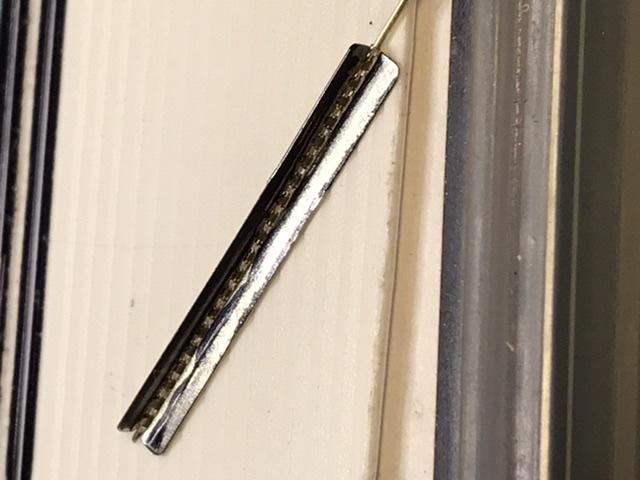

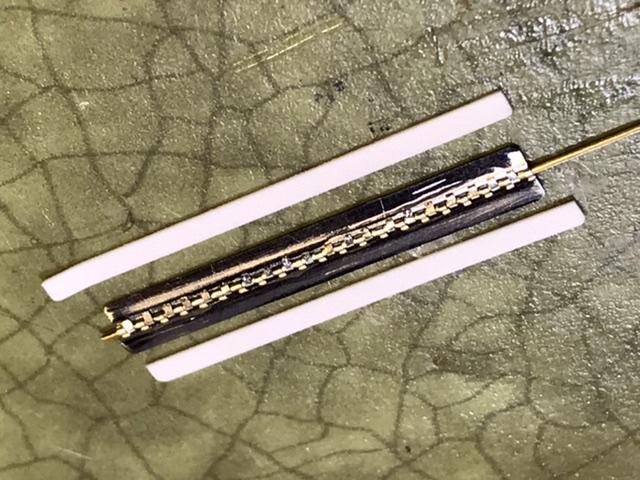

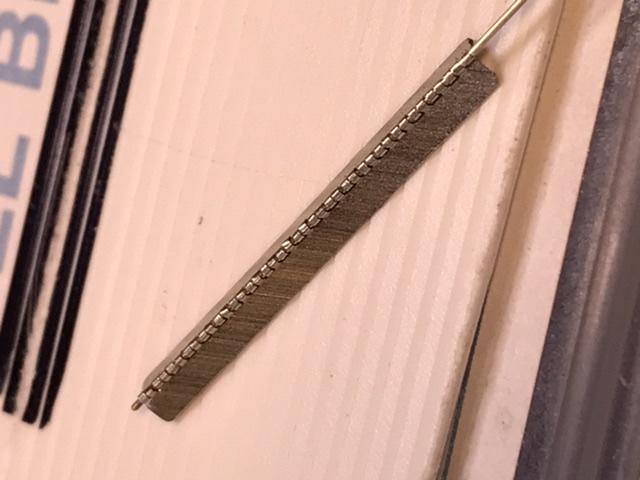

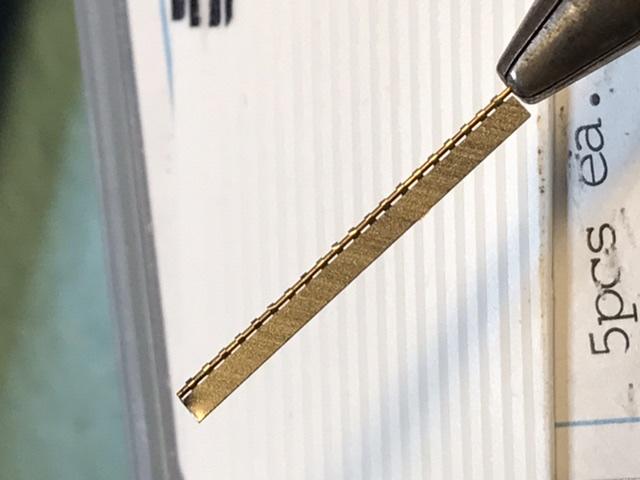

absmiami Posted February 4, 2023 Author Share Posted February 4, 2023 Then placed some .014 brass rod into the trench and bent the hinges into shape around the rod - using files, fingernails, whatever - the metal is very soft - but will hold its shape once its “worked” around the rod … 1 Quote Link to comment Share on other sites More sharing options...
absmiami Posted February 4, 2023 Author Share Posted February 4, 2023 I’ve known Mr Model Car Garage for decades - when he sold me this set years ago he swore to me that it worked - you were right, Bob … Quote Link to comment Share on other sites More sharing options...
absmiami Posted February 4, 2023 Author Share Posted February 4, 2023 Quote Link to comment Share on other sites More sharing options...
Paul Payne Posted February 4, 2023 Share Posted February 4, 2023 I have had a set of Trimaster hinges for years- never has the courage to use them- maybe now I'll try then- your bending system is brilliant! Looking forward to more construction, and of course the finished model! Quote Link to comment Share on other sites More sharing options...

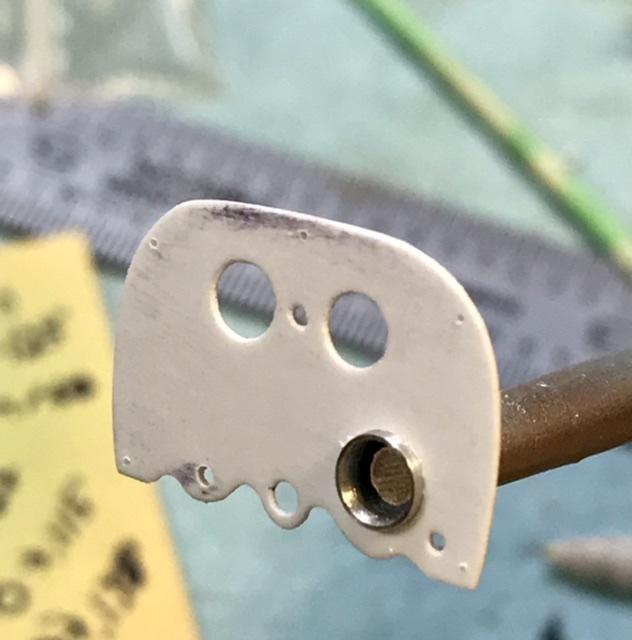

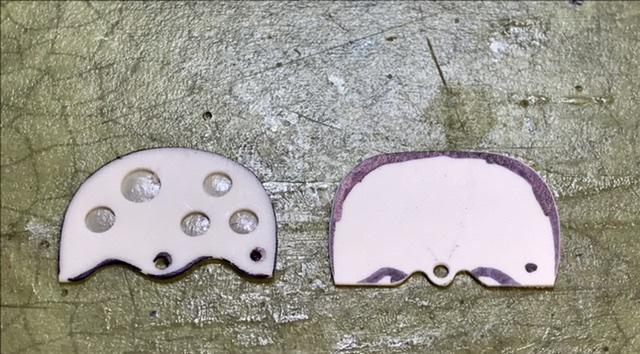

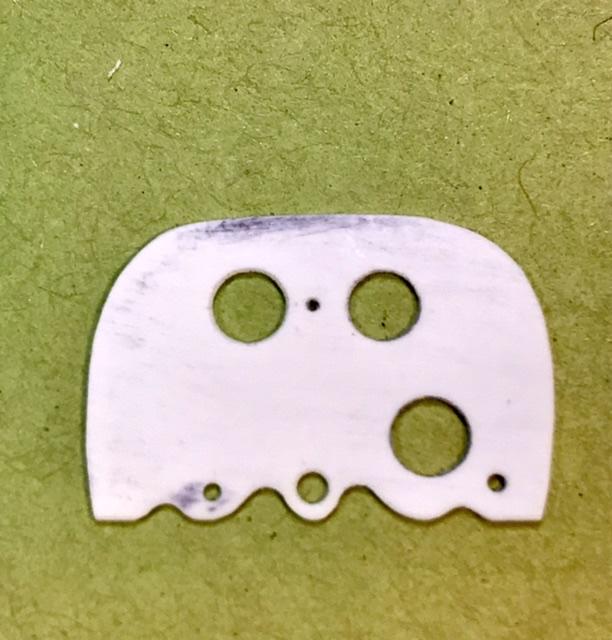

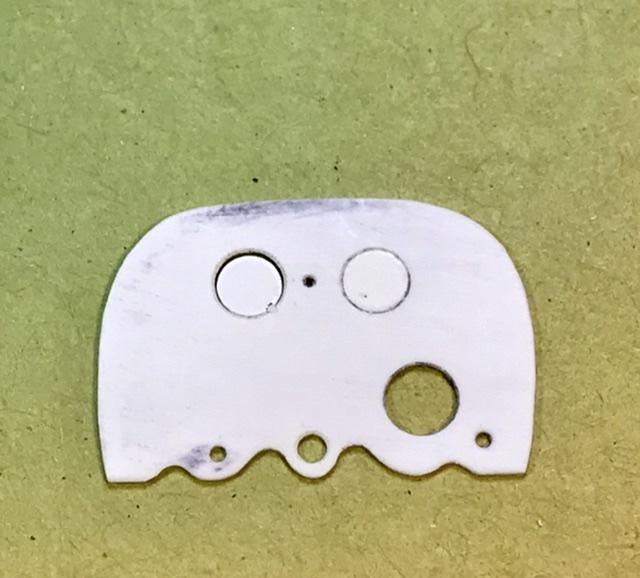

absmiami Posted February 5, 2023 Author Share Posted February 5, 2023 Time for the dash - the one on the left is the panel for the Miller 91 fr dr kit that Harold made - the dash for the 122 has a different shape because the top of the cowl is nearly flat - using a peice of Evergreen .015 sheet. Quote Link to comment Share on other sites More sharing options...

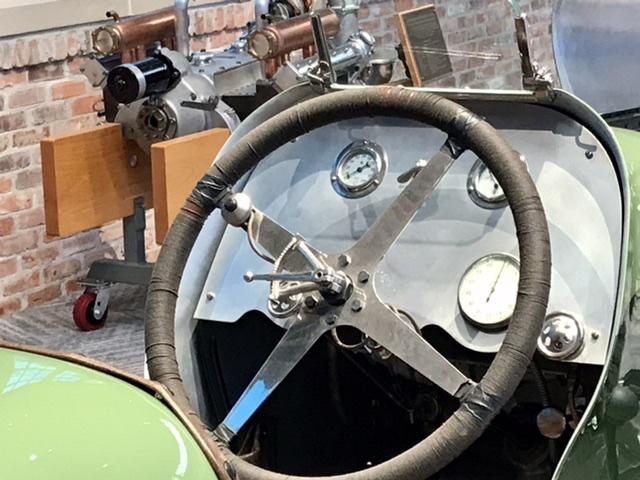

absmiami Posted February 5, 2023 Author Share Posted February 5, 2023 Took this shot at The Brumos Collection in Jacks … Quote Link to comment Share on other sites More sharing options...
absmiami Posted February 5, 2023 Author Share Posted February 5, 2023 The tach is bottm right - gauge is about .125 - the two smaller gauges are for water temp and - not sure - fuel pressure ? They are anout .100 Quote Link to comment Share on other sites More sharing options...

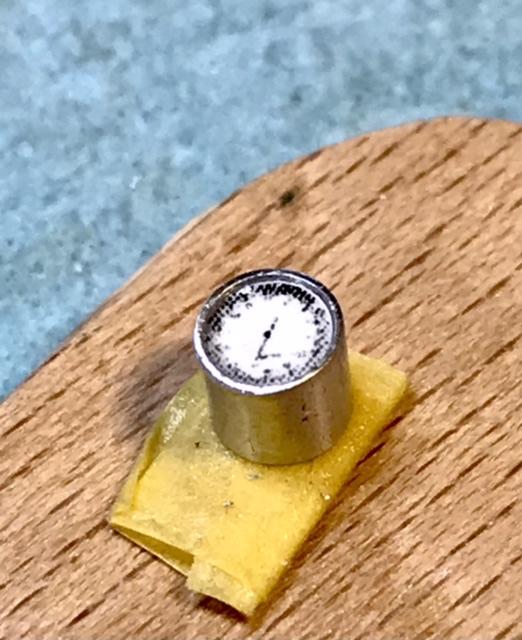

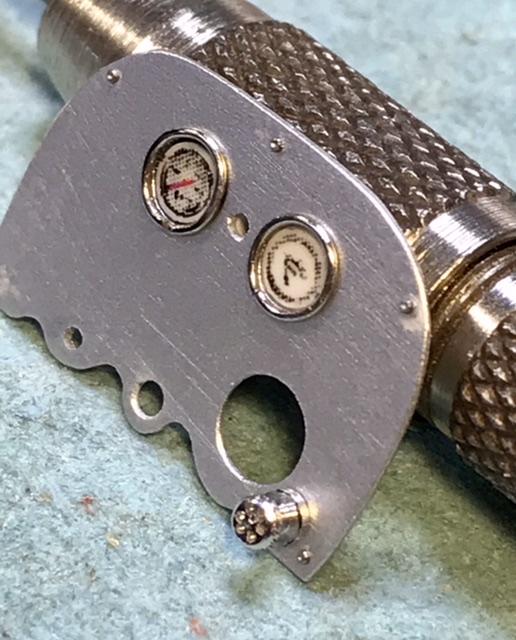

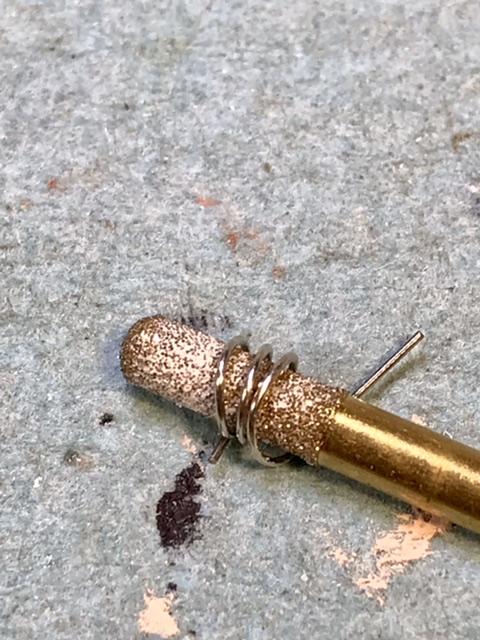

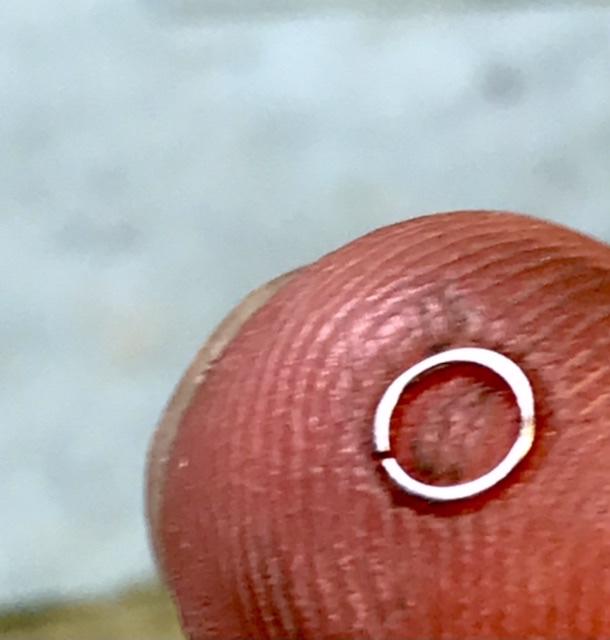

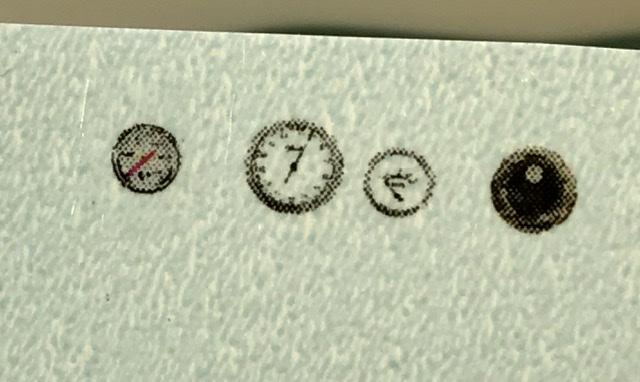

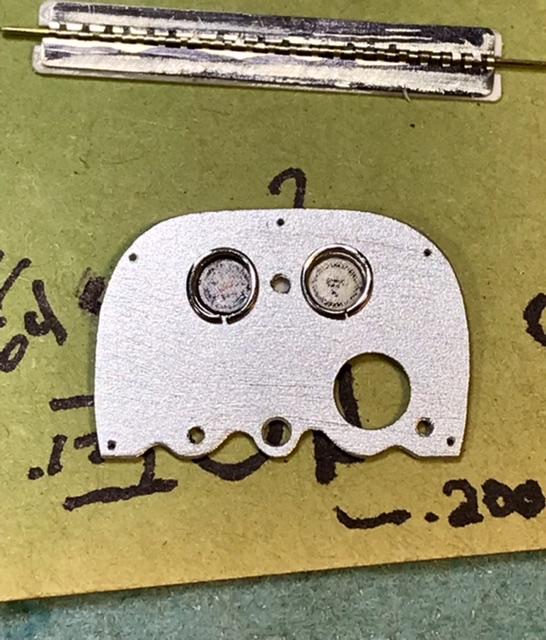

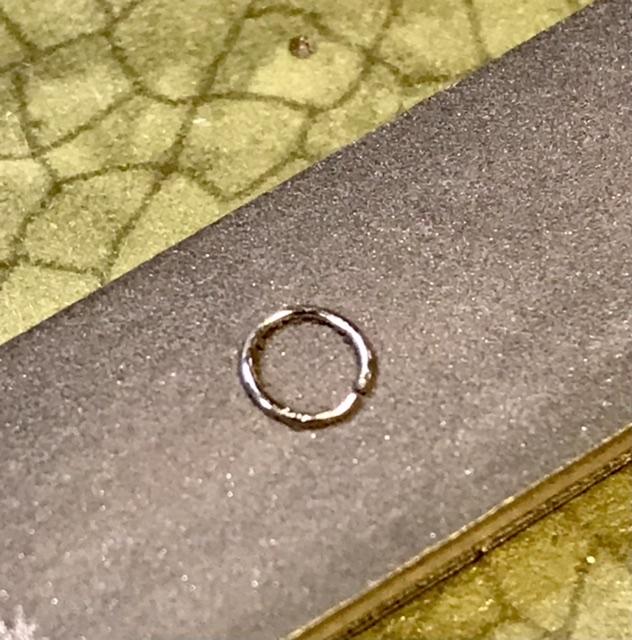

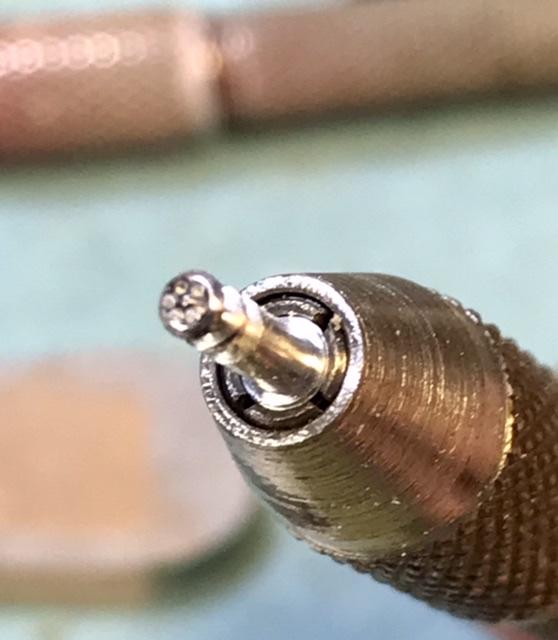

absmiami Posted February 5, 2023 Author Share Posted February 5, 2023 The bezel for the tach is a short peice of .140 alu tubing - chucked into a foredom drill and polished w a sanding stick - the bezels for the smaller gauges will be rings of nickel rod .. the gauge decals are clear coated with acrylic clear and then will be applied to the gauge discs - on the white background they will look really good … Quote Link to comment Share on other sites More sharing options...
Pierre Rivard Posted February 5, 2023 Share Posted February 5, 2023 Nice! Quote Link to comment Share on other sites More sharing options...

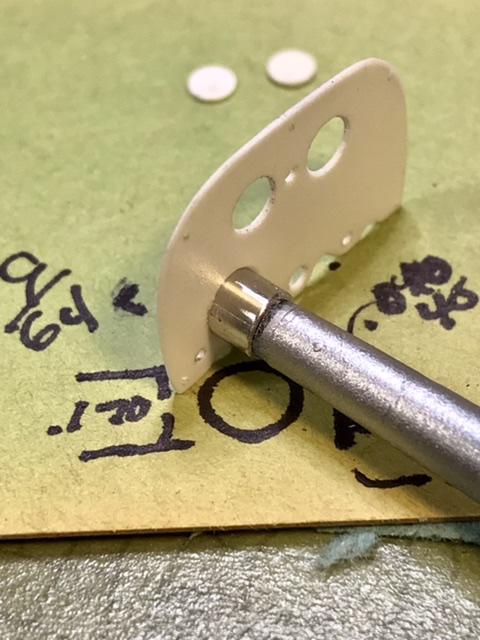

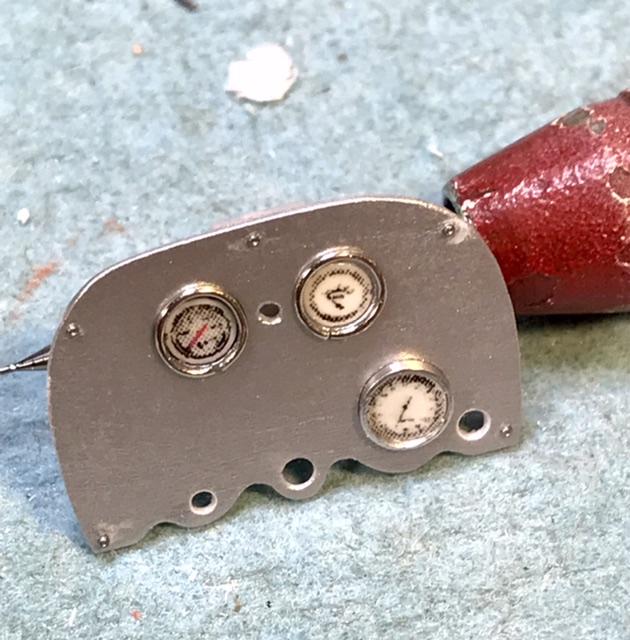

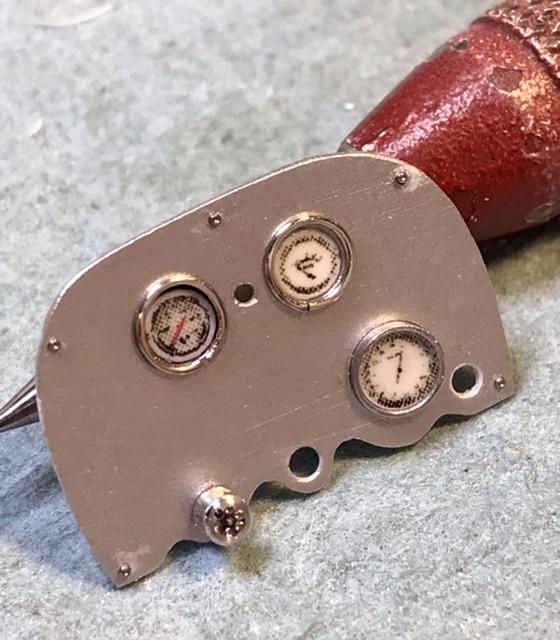

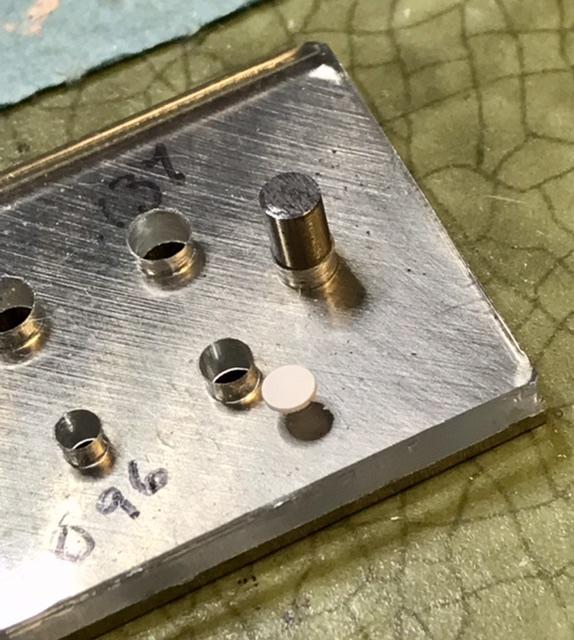

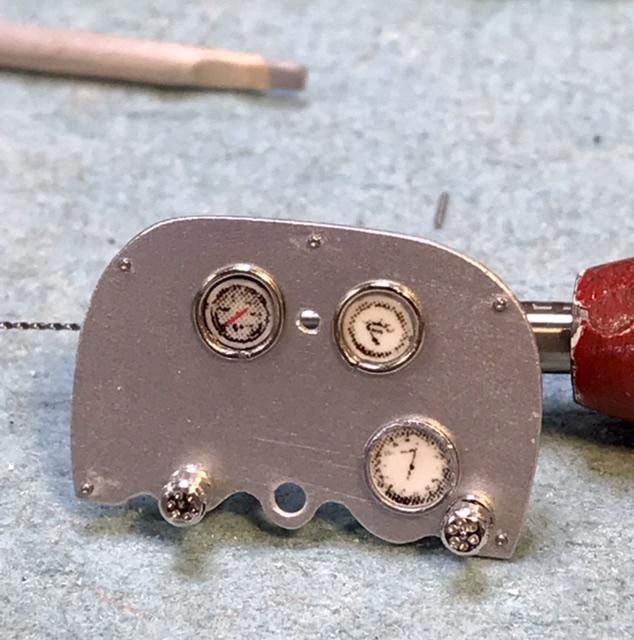

absmiami Posted February 5, 2023 Author Share Posted February 5, 2023 Mr. Circle Track made the gauges - pleased with the result - those of you that build dirt track racers know his work …. the bezels are sanded flat on the bottom - used this great new tool I bought at Dirtyoldfinger.com. - they are going fast - buy yours today … Quote Link to comment Share on other sites More sharing options...
jaymcminn Posted February 5, 2023 Share Posted February 5, 2023 On 2/3/2023 at 12:05 PM, absmiami said: Yes - back on pg 1 - i think - there are some pre-i phone - super blurry pix of the Renshape - master - which Brad - and i - then resin casted …. Color coat on the tail …. model Master enamel - Who here recalls Orange Blossom Hobbies in Miami ? Man, I loved Orange Blossom. Back in the 80's and 90's my model-building friends and I would go over from Naples twice per year or so- at first with someone's dad driving and on our own later on once we had our licenses. It was a sad day when I pulled up to see it closed. I think that OBH pretty much spoiled every other hobby shop for me... there are some nice shops in my area (Family Hobby Center here in Naples and K&K Hobby Shop in Port Charlotte, which is really awesome) but Orange Blossom Hobbies was magic. That neighborhood, though... Quote Link to comment Share on other sites More sharing options...
absmiami Posted February 6, 2023 Author Share Posted February 6, 2023 Quote Link to comment Share on other sites More sharing options...
absmiami Posted February 6, 2023 Author Share Posted February 6, 2023 Quote Link to comment Share on other sites More sharing options...
charlie libby Posted February 6, 2023 Share Posted February 6, 2023 hi andrew your project is really looking great. its going to be awesome done and in color. keep up the great updates. Quote Link to comment Share on other sites More sharing options...
