bobthehobbyguy Posted April 13, 2014 Share Posted April 13, 2014 Very nice work. Thanks for sharing all the process for building this. Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted April 13, 2014 Author Share Posted April 13, 2014 Here’s the finished coil. It’s easier to build with the coil wire boot on it now and I’ll just add the wiring after it is installed into the car. The boot is resin, cast off an aluminum master. Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted April 14, 2014 Author Share Posted April 14, 2014 The distributor is done. Same as with the coil, the plug wire boots are easier to deal with by attaching them now instead of to the wires. The boots are also cast in resin from the same master. I added the serial number/data plate and drilled the base for the control wiring. Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted April 14, 2014 Author Share Posted April 14, 2014 This is the ignition box. Matches the coil… And this is the mounting plate with shock absorbing rubber grommets (on both sides). The coil bracket is already installed. Quote Link to comment Share on other sites More sharing options...
Harry P. Posted April 14, 2014 Share Posted April 14, 2014 Pretty slick. Amazing, actually. Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted April 15, 2014 Author Share Posted April 15, 2014 Thanks Harry, I even put Allen heads on the end plates, just for you... Quote Link to comment Share on other sites More sharing options...
MonoPed Posted April 15, 2014 Share Posted April 15, 2014 Having had a Fireball system in a Fox body Mustang, it looks perfect. You nailed it! Quote Link to comment Share on other sites More sharing options...
Foxer Posted April 15, 2014 Share Posted April 15, 2014 This is NOT just "Another Super 7" I've been following all along and WoW! Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted April 15, 2014 Author Share Posted April 15, 2014 Thanks guys. I have done Mallory, Accel and MSD boxes before, so I wanted something different. Ready to be installed into the car; well, when the car is ready for it… Quote Link to comment Share on other sites More sharing options...
superbike-shaun Posted April 16, 2014 Share Posted April 16, 2014 Marc, unbelievable, i think my next reply (nope,,,,, i know my next reply will be.......how do you express drool?) absolutely awesome work, did you scan the decals yourself? shaun.s. Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted April 17, 2014 Author Share Posted April 17, 2014 Not scanned, I drew and printed the decals. And thanks! Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted April 17, 2014 Author Share Posted April 17, 2014 Battery box. Beginning of the battery Quote Link to comment Share on other sites More sharing options...
cobraman Posted April 17, 2014 Share Posted April 17, 2014 I swear they look like real 1:1 parts. Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted April 18, 2014 Author Share Posted April 18, 2014 Thanks Ray, that's kind of what I'm going for. This is the battery, an Odyssey PC680. I milled the top from resin stock and built the bottom from sheet styrene. The terminals are brass and vinyl. I drew and printed the decals as well. This is the battery box/hold down. All brass, except the aluminum hardware. This assembly is made up of 50 pieces. Quote Link to comment Share on other sites More sharing options...
vintagedragfan Posted April 19, 2014 Share Posted April 19, 2014 hi Mark, been awhile, but I have been following along on this build checking on it from time to time, gotta say, this is truly amazing stuff you are doing, although it is a dream to get a master award, kind of a waste to drag my junk to the next GSL with this sitting on the table! LOL Quote Link to comment Share on other sites More sharing options...

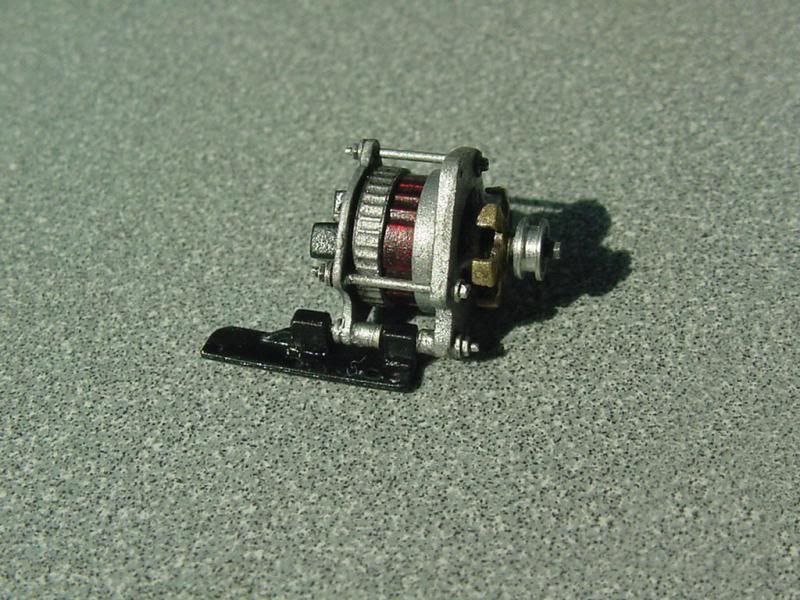

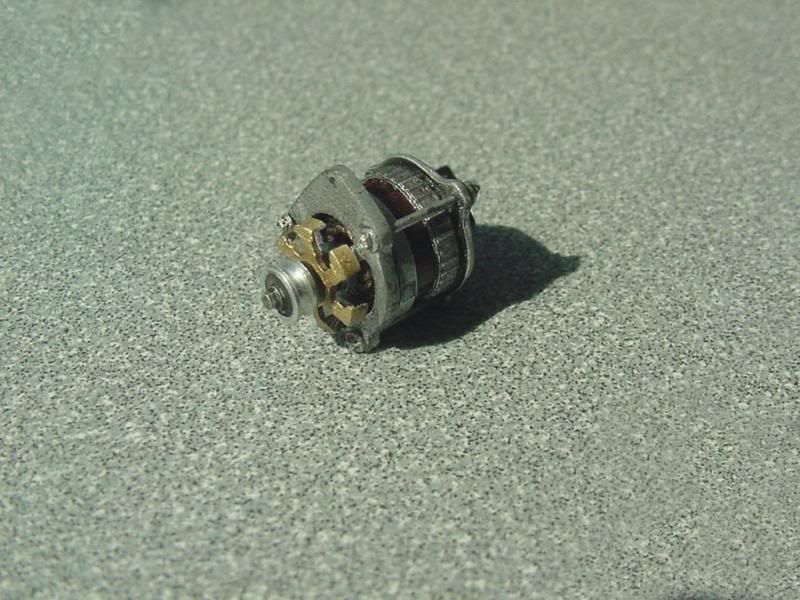

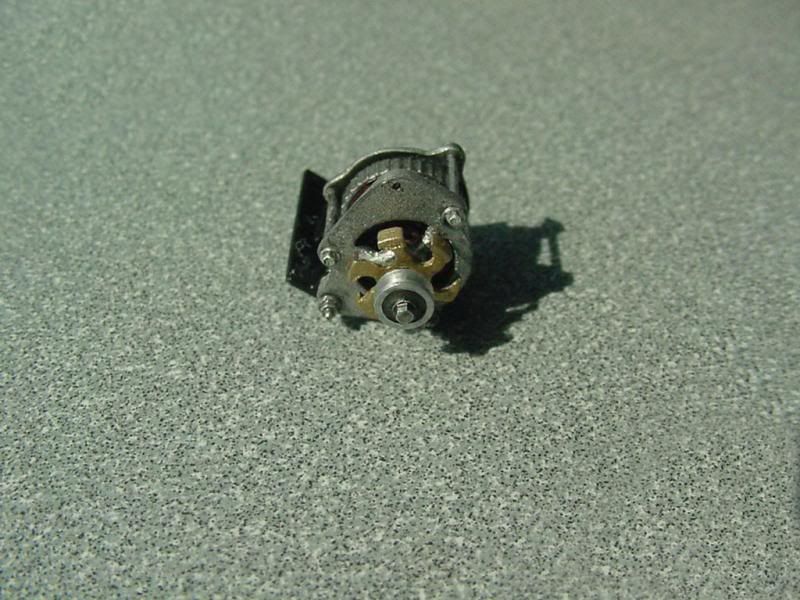

Scale-Master Posted April 21, 2014 Author Share Posted April 21, 2014 Thanks Bill, coming from you that is quite a compliment. The alternator is pretty much done. I’ll add a couple more pieces of mounting hardware and wiring after it is installed on the engine. Since it sits down low, like the starter, I dirtied it up a little. It is made up of more than 30 pieces, mostly aluminum, but also milled resin, steel, brass and styrene. Quote Link to comment Share on other sites More sharing options...
cobraman Posted April 21, 2014 Share Posted April 21, 2014 Any idea what your piece count will be when this beauty is finished ? Quote Link to comment Share on other sites More sharing options...
ScrappyJ Posted April 21, 2014 Share Posted April 21, 2014 OUTSTANDING work, Mark!!! Your builds are ALWAYS impressive! Quote Link to comment Share on other sites More sharing options...
David G. Posted April 22, 2014 Share Posted April 22, 2014 Sooo... what kind of fuel will this run on? David G. Quote Link to comment Share on other sites More sharing options...
lanesteele240 Posted April 28, 2014 Share Posted April 28, 2014 Please share your source for the decals you put on each part. Or how you go about making them. Do you take pics of the object and edit it or is there a place i can go that has this stuff ready to print Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted April 28, 2014 Author Share Posted April 28, 2014 I'm well past 1000 parts, I have no clue what the total parts count will be.As for the decals, I draw everything I print, I am "the source". (Look up Scale-Master Decals...)No "scan and edit", it is all vector art. I don't know if there is a place you can go to that has something ready to print; I do know that I don't offer such an option. Quote Link to comment Share on other sites More sharing options...
mcandela Posted April 29, 2014 Share Posted April 29, 2014 Wow, did You order these from the Summit catalog?? Get any good prices?? Looks too real, this is great. Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted April 29, 2014 Author Share Posted April 29, 2014 Actually, they are from Jeg's. I keep old catalogs from the speed suppliers for period correct reference of sometimes obscure parts. Quote Link to comment Share on other sites More sharing options...

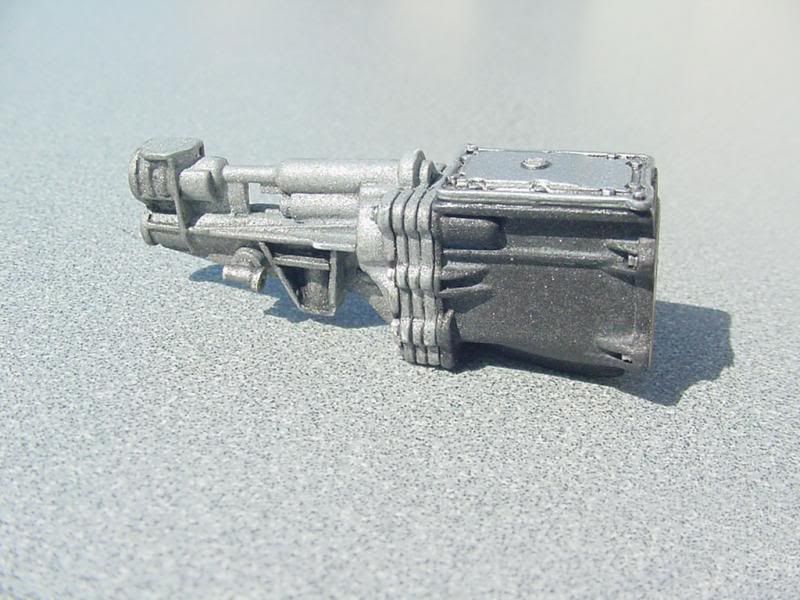

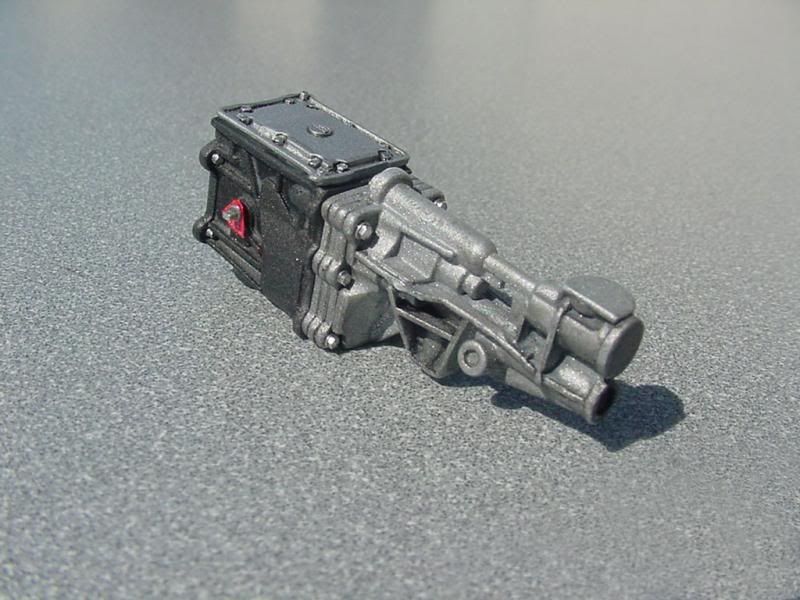

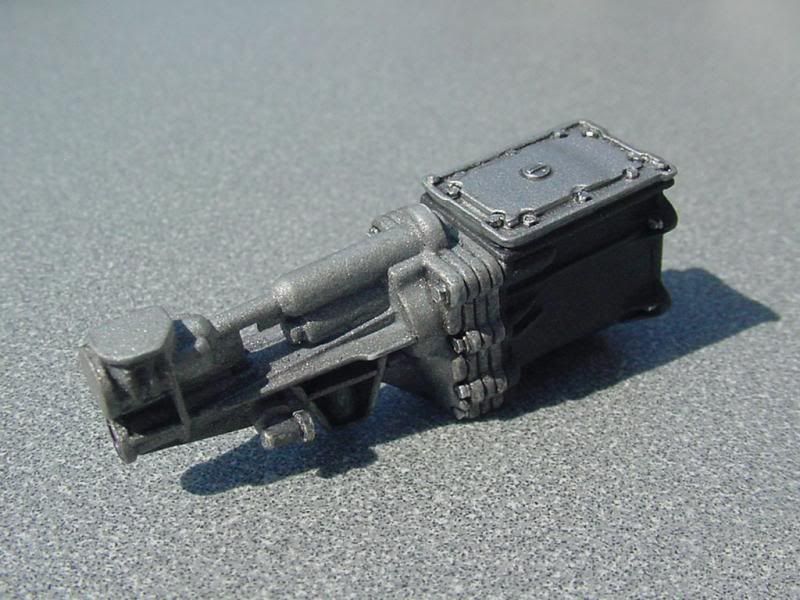

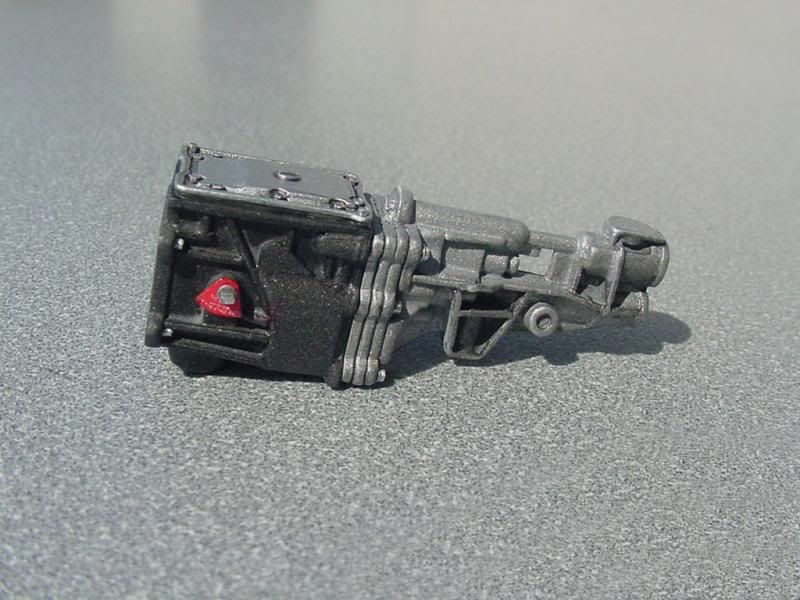

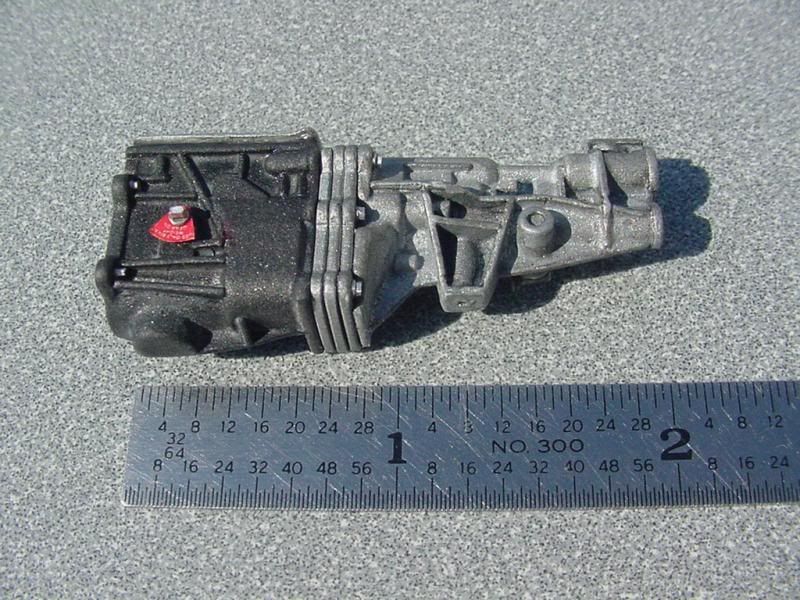

Scale-Master Posted April 30, 2014 Author Share Posted April 30, 2014 Finished transmission. I know it is well into the hundreds for the parts count on this sub-assembly, but I have no actual number. Mostly styrene construction with several brass and aluminum pieces. Quote Link to comment Share on other sites More sharing options...
Foxer Posted May 1, 2014 Share Posted May 1, 2014 geeze .... you SURE this isn't a 1:1 you're building?? Quote Link to comment Share on other sites More sharing options...
