absmiami Posted February 22, 2019 Author Share Posted February 22, 2019 some more assembly shots not sure - but I think the disc for the middle leaf is a bit thicker - I made these about .015 thick - in contrast to the thinner outer leaves ... then made the brass posts for the chassis pickup points Quote Link to comment Share on other sites More sharing options...

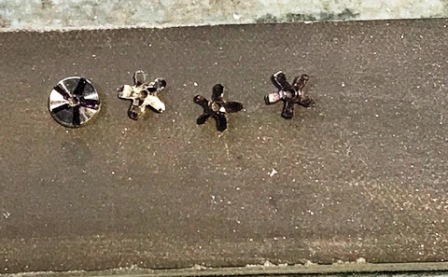

absmiami Posted February 22, 2019 Author Share Posted February 22, 2019 each shock has an outer disc that I punched from .005 copper sheet then I made the clips - that look like mechanical spiders these are hand filed from additional machined nickel discs and then simply marked black with a sharpie the shocks are attached with some castle nut castings from that Russian aftermarket company - they make the nut/bolt assembly in different sizes - I am drilling holes in the 1.6 mm size and then cutting them from the bolt casting - probably finish these with a silver sharpie - the real things are cast and therefore have a relatively dull finish ... Quote Link to comment Share on other sites More sharing options...
Gramps46 Posted February 24, 2019 Share Posted February 24, 2019 Amazing detail workmanship. Quote Link to comment Share on other sites More sharing options...
absmiami Posted May 12, 2019 Author Share Posted May 12, 2019 OOPS SNOOZING AGAIN ..... the friction shocks are done so its on to the seats - just about the last parts that I need to make ... renshape again - different sizes and shapes - mostly hand tool shaped with random tooth files and sanding sticks Quote Link to comment Share on other sites More sharing options...

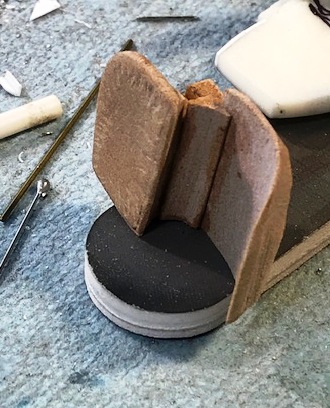

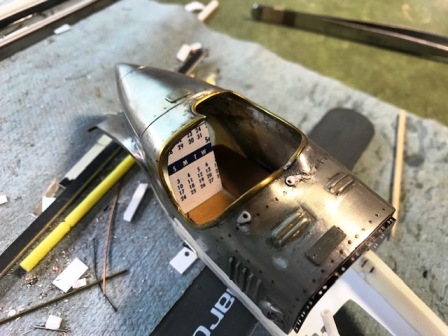

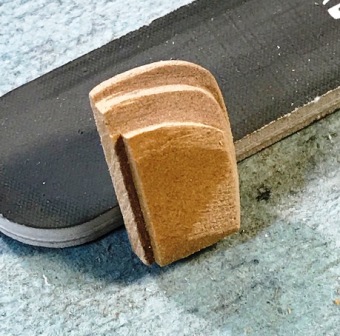

absmiami Posted May 12, 2019 Author Share Posted May 12, 2019 the driving mechanic seat back is recessed on this car - it's a neat feature but I have to piece together the renshape parts to follow the contour of the cockpit opening once I got the part roughed out I began to think about the finish ... Quote Link to comment Share on other sites More sharing options...
absmiami Posted May 12, 2019 Author Share Posted May 12, 2019 I tried shaping the part to show some creases in the seat cushion - but it wasn't working well on the mechanic seat back ... so I pulled out a bag of leather scraps and found some brown leather that matches the color on the car the grain is fine so I think it will look okay with some work to finish the leather folds at the top of the seatback and it was reasonably thin - I don't often use leather in 24th scale - but this will do ... will have to figure out the seat cushions - either cover them in leather or make "leather" cushions ... Quote Link to comment Share on other sites More sharing options...
Belugawrx Posted May 13, 2019 Share Posted May 13, 2019 Coming along very well .. nice detailing Quote Link to comment Share on other sites More sharing options...
Gramps46 Posted May 13, 2019 Share Posted May 13, 2019 Hey, some good looking progress. Quote Link to comment Share on other sites More sharing options...
Pico Posted May 13, 2019 Share Posted May 13, 2019 Leather seats - difficult to work when wrapping around corners. Wrinkles. Easier to work in 2 dimensions. Quote Link to comment Share on other sites More sharing options...

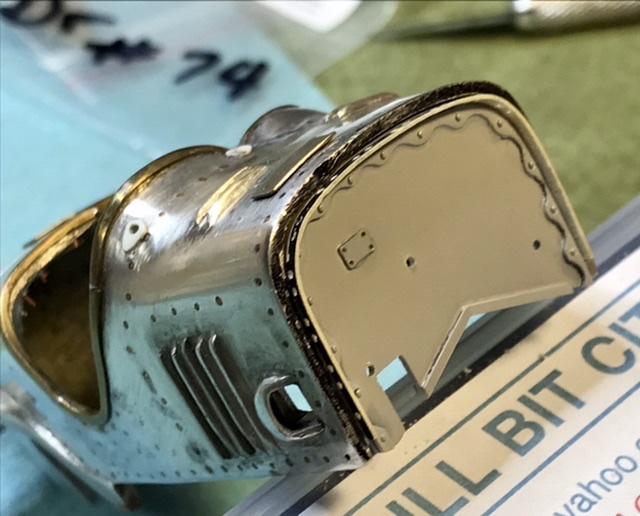

absmiami Posted March 9, 2022 Author Share Posted March 9, 2022 Asleep for two years - i’m waking sleeping beauty …. Most of the parts have been finished - but need paint - i have to re-do a few things - and then work on the finish applied to the body work - first im gonna try to get a chassis / drive train painted and assembled … Quote Link to comment Share on other sites More sharing options...
absmiami Posted March 9, 2022 Author Share Posted March 9, 2022 And a note to our esteemed moderators …. You can slide this build over to the race car subsection - por favor … Quote Link to comment Share on other sites More sharing options...
oldrevellfan Posted March 9, 2022 Share Posted March 9, 2022 Wonderfull ! Quote Link to comment Share on other sites More sharing options...
Belugawrx Posted March 9, 2022 Share Posted March 9, 2022 Nice to see this back ..can't wait to see this come together.. Quote Link to comment Share on other sites More sharing options...

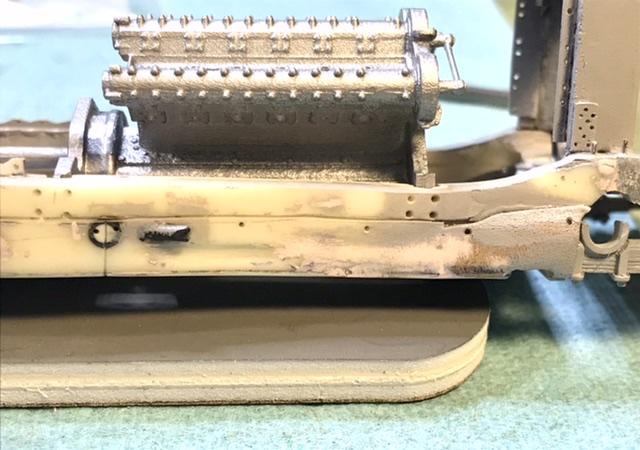

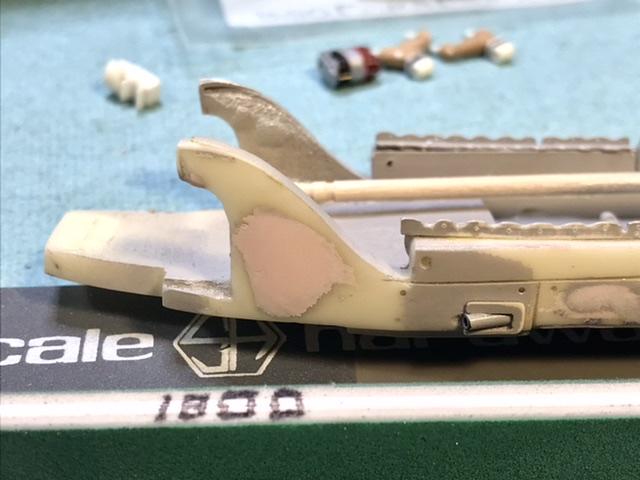

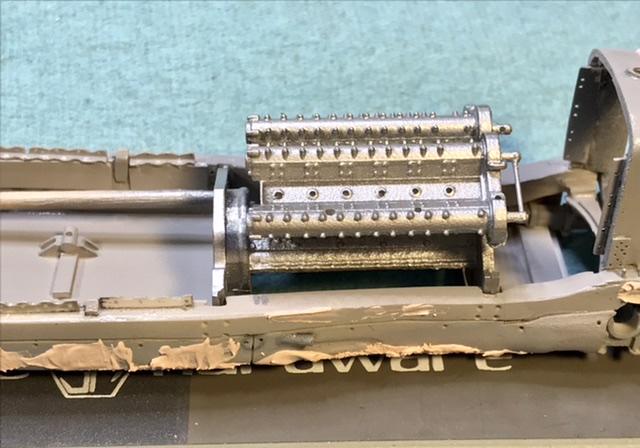

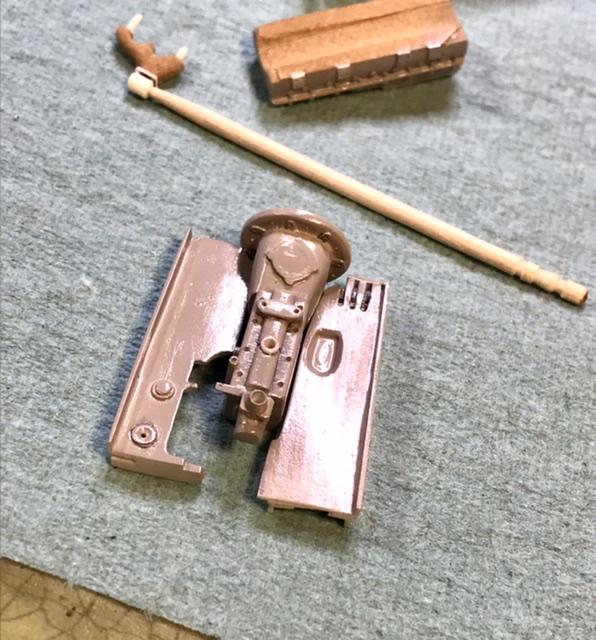

absmiami Posted March 11, 2022 Author Share Posted March 11, 2022 Thank you. Bondo to improve the surface of the chassis rails - big fan of Micro Mesh …. Finding that there 1800 sanding stick is good for sanding the bondo … Quote Link to comment Share on other sites More sharing options...

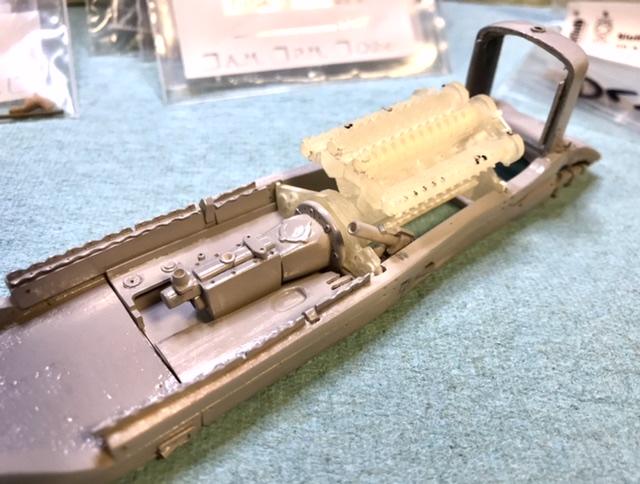

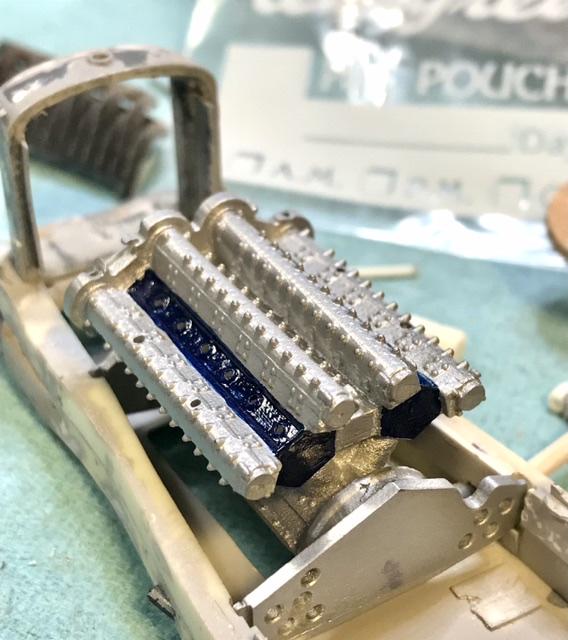

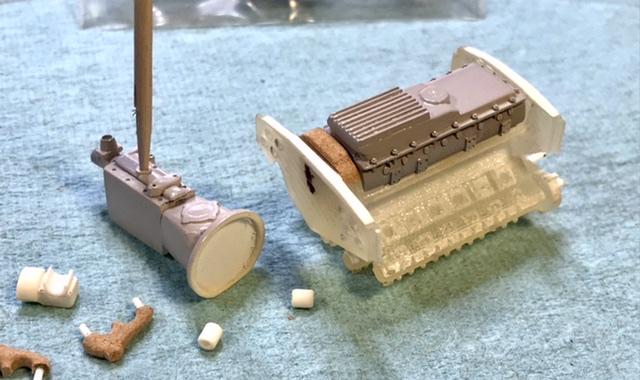

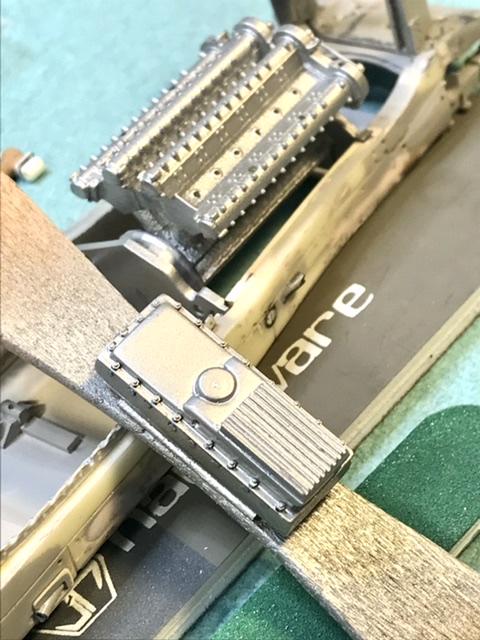

absmiami Posted March 11, 2022 Author Share Posted March 11, 2022 Building a Gloster Gladiator for an IPMS show cub display gave me chance to get familiar w Tamiya’s acrylic laquer paints - good stuff - i hand painted the cyl head royal blue - and then set off the sump pan bolts w some gun metal … Quote Link to comment Share on other sites More sharing options...

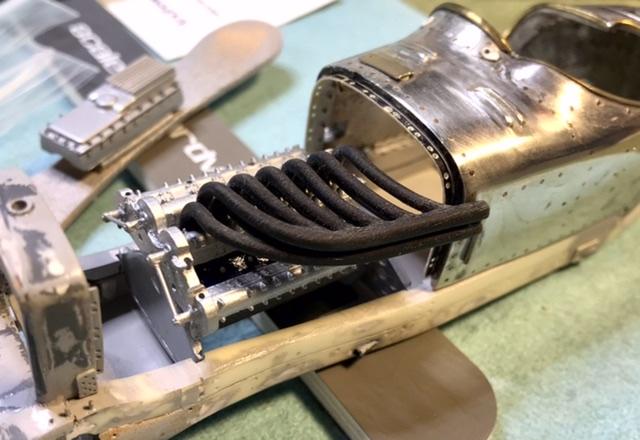

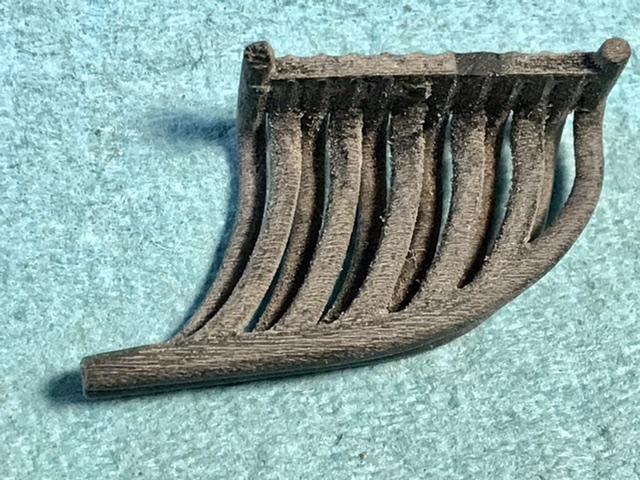

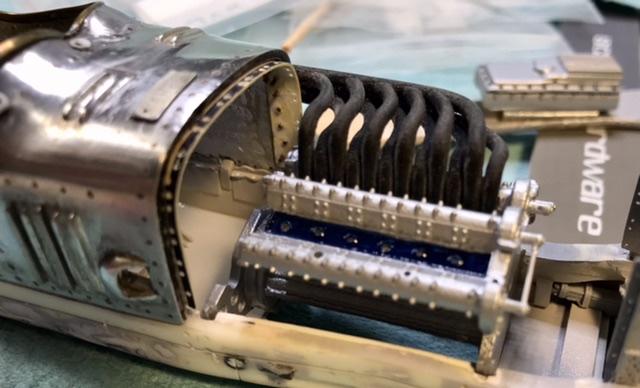

absmiami Posted March 11, 2022 Author Share Posted March 11, 2022 The exhaust manifold is really cool - forty years before BRM (and later Ferrari) swept the exhaust pipes out of the center of their DOHC engine - Delage tried it in their new 12 cylinder engine - spectacular looking but maybe not the greatest packaging ??? Quote Link to comment Share on other sites More sharing options...

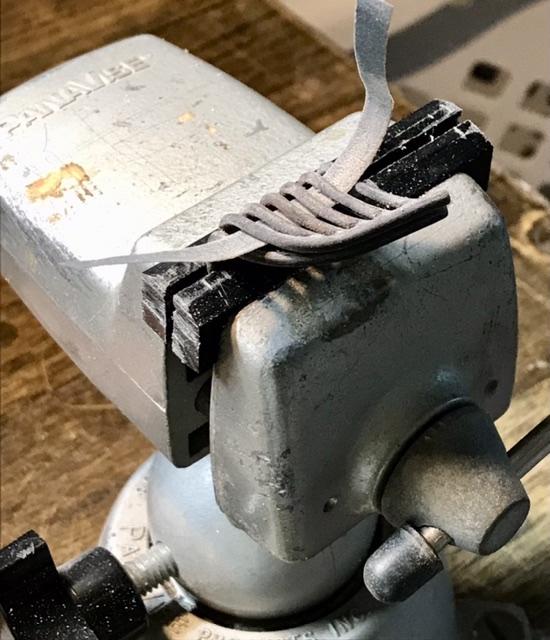

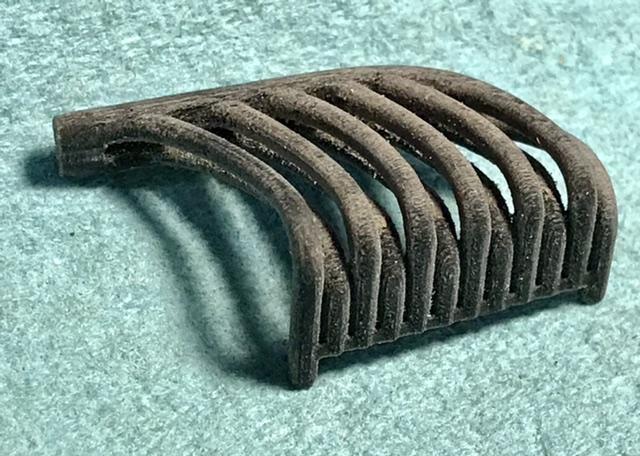

absmiami Posted March 11, 2022 Author Share Posted March 11, 2022 Pico has told me that the design was complex - but its the only way to produce this unique part …. The printed part is very strong - but is a nylon-like material requiring tedious prep - but worth the effort - ill finish this in either flat black or maybe gun metal - tbd - Quote Link to comment Share on other sites More sharing options...
Pico Posted March 11, 2022 Share Posted March 11, 2022 Lookin' terrific! Quote Link to comment Share on other sites More sharing options...
absmiami Posted March 11, 2022 Author Share Posted March 11, 2022 thanks P and thanks for these iconic exhaust pipes ... Gun metal or fl black for the pipes ?? today's Question where does flat black end and gunmetal begin ??? ??? Quote Link to comment Share on other sites More sharing options...
Bugatti Fan Posted March 13, 2022 Share Posted March 13, 2022 This is a most interesting build. Brooklands Museum had a very original GP Delzge on loan a few years ago and I was most impressed with that beautiful racing car. Brooklands is one of the most interesting transport museums in the UK and we'll worth visiting. Quote Link to comment Share on other sites More sharing options...
Straightliner59 Posted March 13, 2022 Share Posted March 13, 2022 On 3/11/2022 at 1:56 PM, absmiami said: thanks P and thanks for these iconic exhaust pipes ... Gun metal or fl black for the pipes ?? today's Question where does flat black end and gunmetal begin ??? ??? How about flat black, rubbed with some powdered graphite, then flat coated, as needed? Maybe mix the barest hint of dark brown pastel in with the graphite. Quote Link to comment Share on other sites More sharing options...

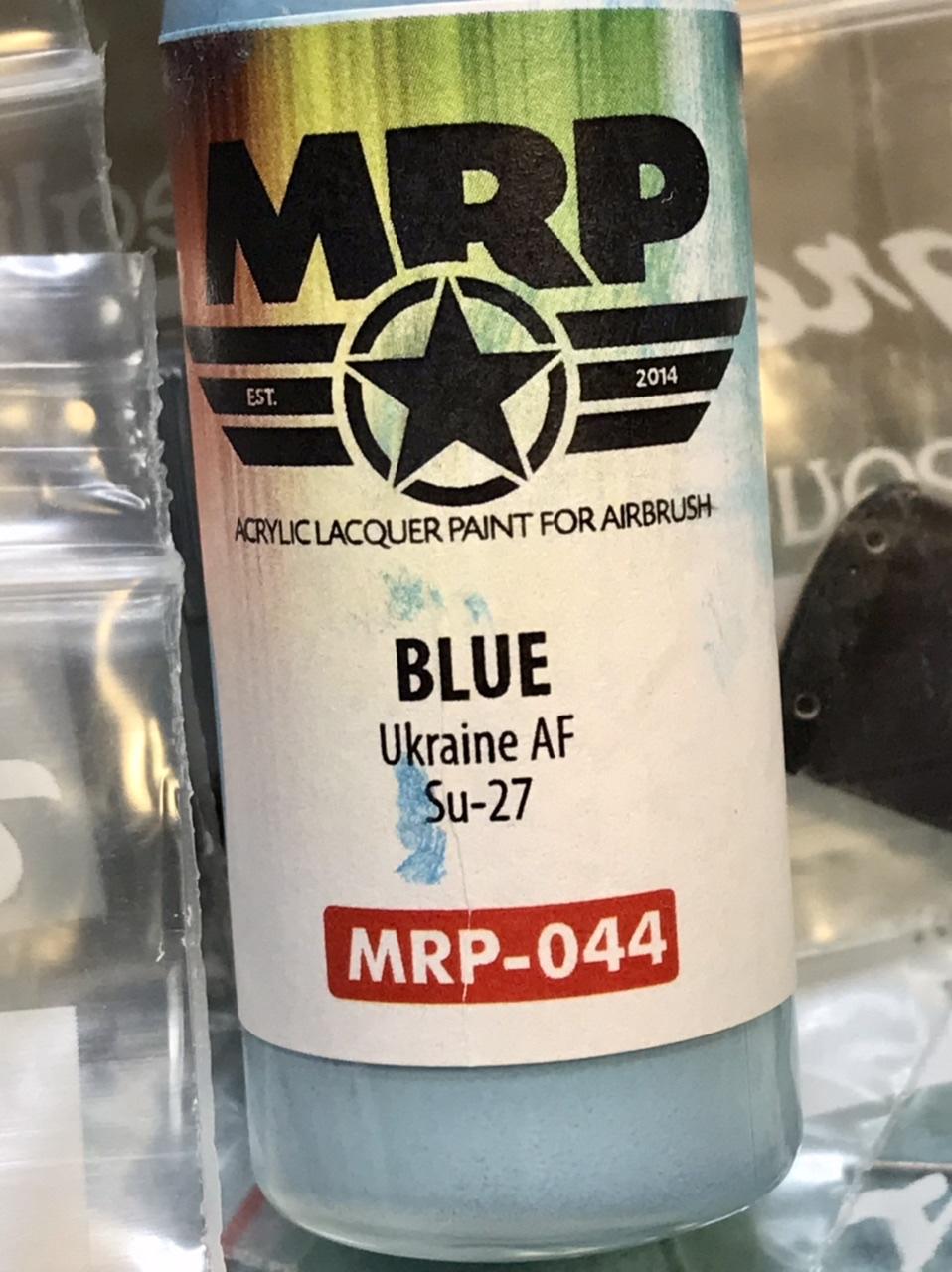

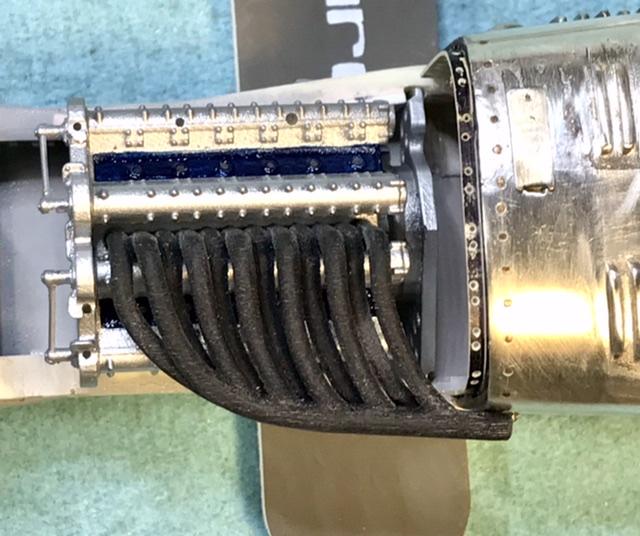

absmiami Posted March 14, 2022 Author Share Posted March 14, 2022 I like the idea of hi-liting w graphite - gracias - initially airbrushed gunmetal over the blach resin - will add some hi lites later - used the MRP paints gun metal - which is marketed to the military guys …. They also happen to offer this nice shade of sky blue … Quote Link to comment Share on other sites More sharing options...
absmiami Posted March 14, 2022 Author Share Posted March 14, 2022 Quote Link to comment Share on other sites More sharing options...

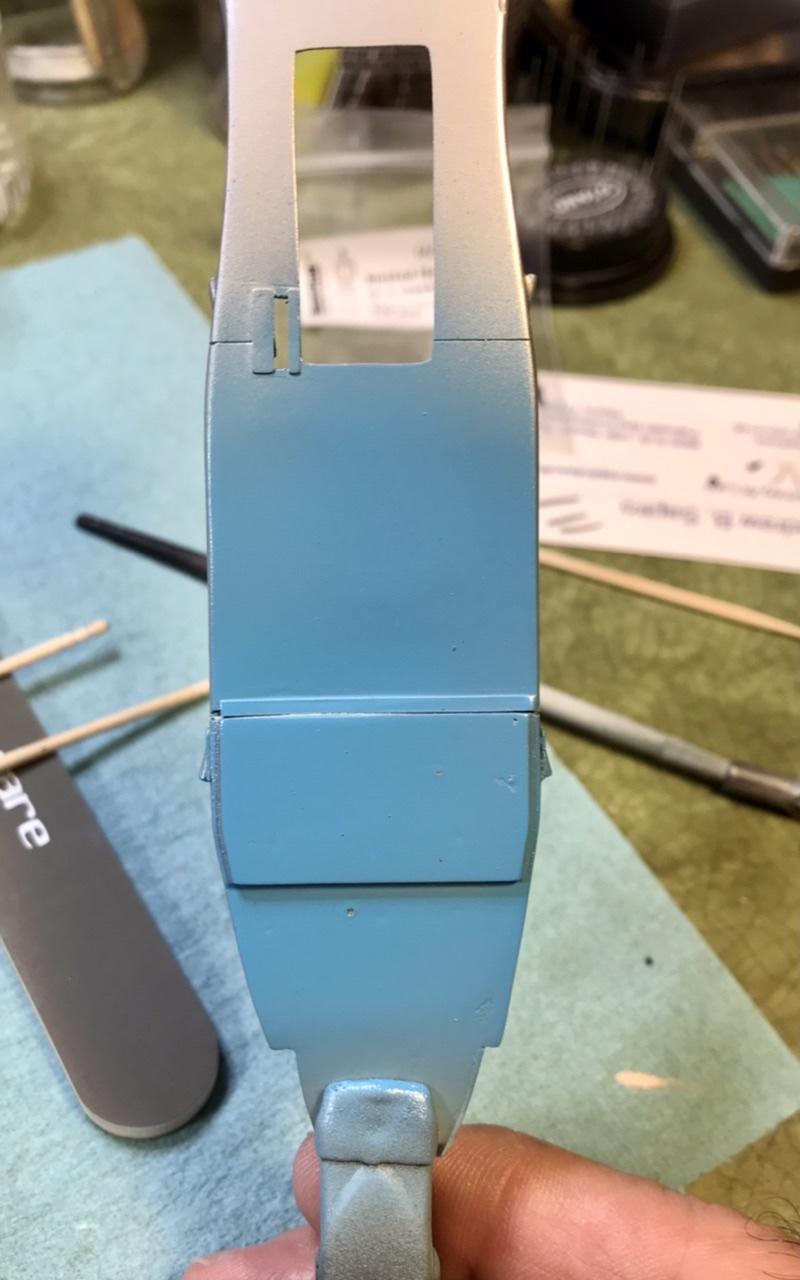

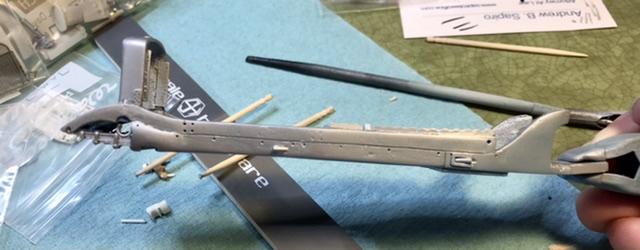

absmiami Posted March 14, 2022 Author Share Posted March 14, 2022 This particular shade is perfect for the Delage frame - but the MRP paints are not very opague - so i have to hit the frame with some silver to provide an even base color for my Ukriane AF blue … Quote Link to comment Share on other sites More sharing options...
absmiami Posted March 14, 2022 Author Share Posted March 14, 2022 The first coat is good but a little grey over the silver … Quote Link to comment Share on other sites More sharing options...
