AMT 1929 Ford Model A Mod Rod. Both Versions. Updated 10/17/2022.

[Dragonhawk1066]

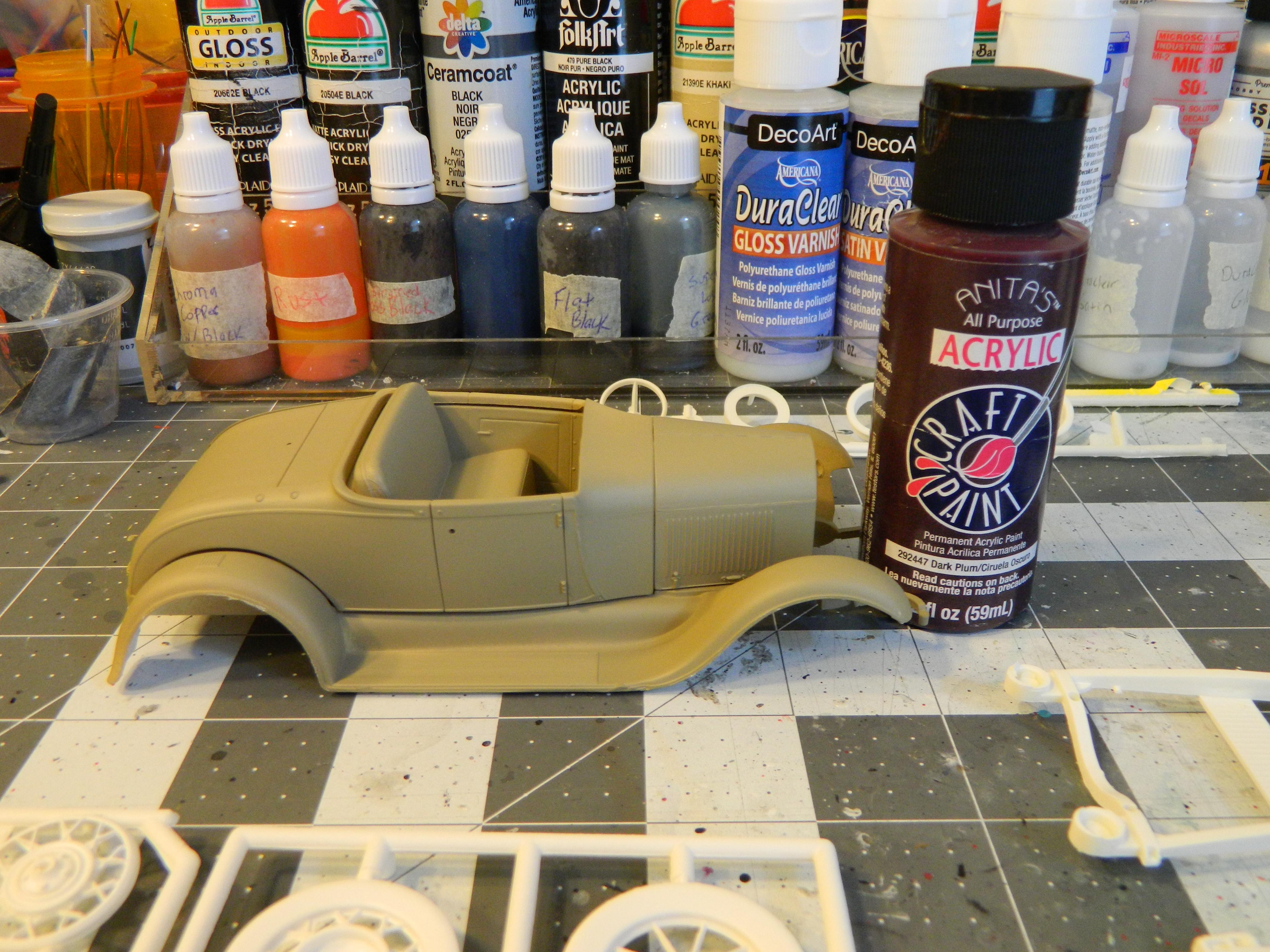

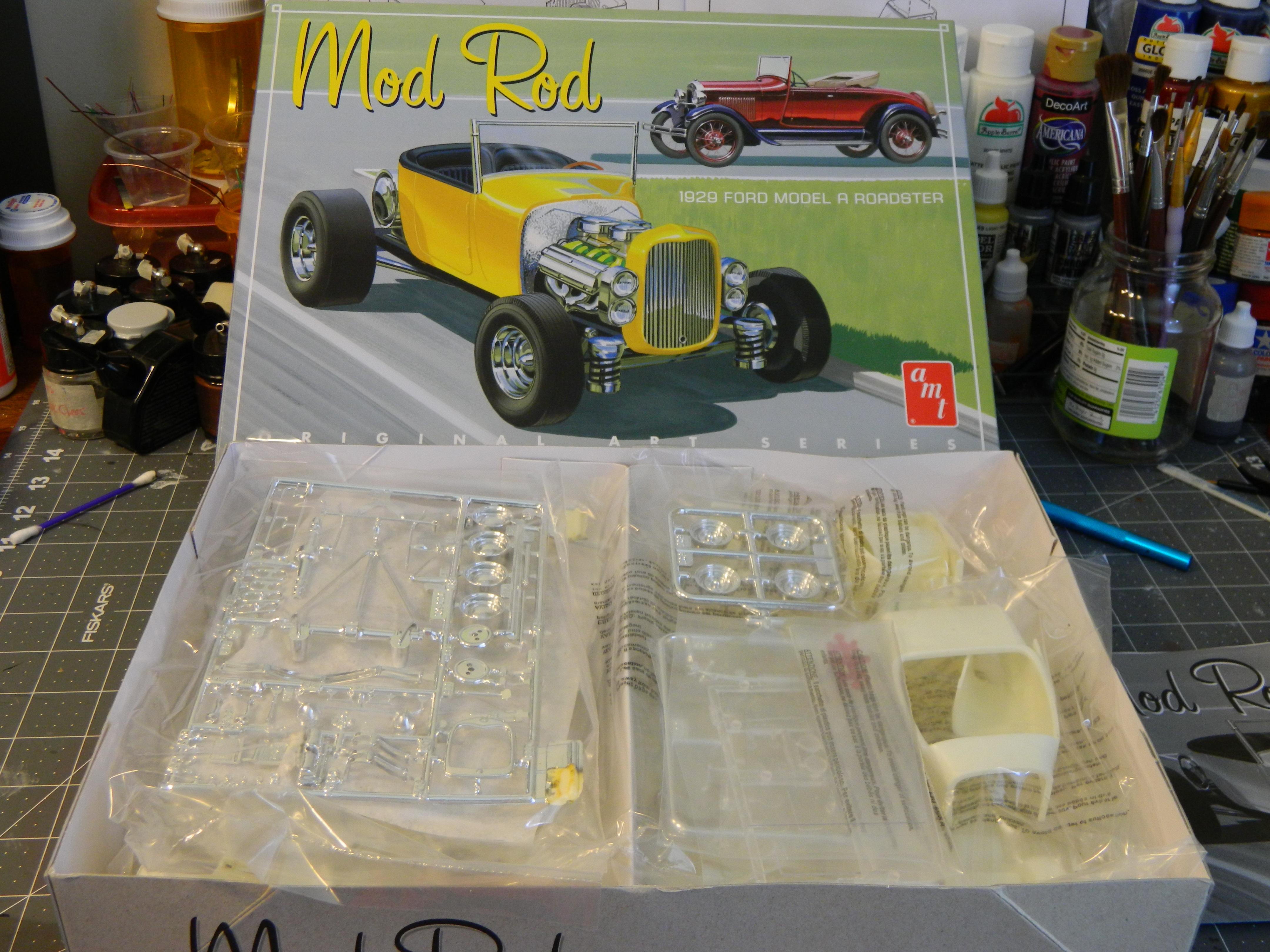

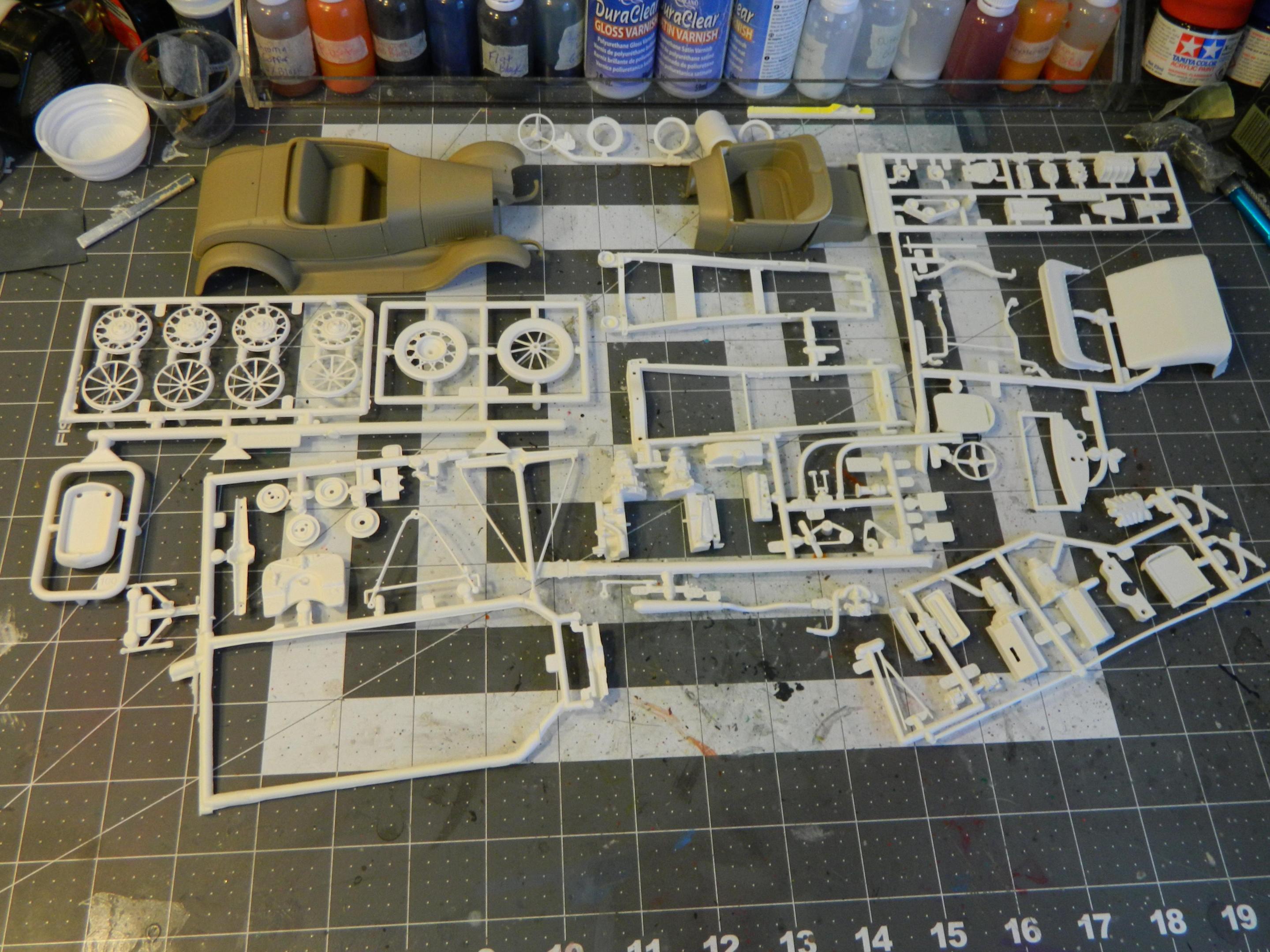

I decided to start the Mod Rod next, since I've really only built one car from this general era I figured it was time for another, or two actually. I'll be doing the stock version in Anita's Dark Plum craft paint with black fenders, top, and interior. I'm undecided on the color/scheme for the custom version but should be decided tomorrow. I got the parts I'll be using primed today, but still need to strip the chrome off more parts tomorrow to prime those as well. No real reason for the tan primer, I was gifted a can of Rustoleum Camo Flat Tan, so I thought I'd see how it works as a primer. Looks good so far. This kit has almost every part to build the Ala Kart, save for the nose piece and I would have built it like that, but I'll go for the old roadster look instead.

Edited October 17, 2022 by Dragonhawk1066

[TransAmMike]

Should be a nice project, I'm a lookin' Craig.

[Dragonhawk1066]

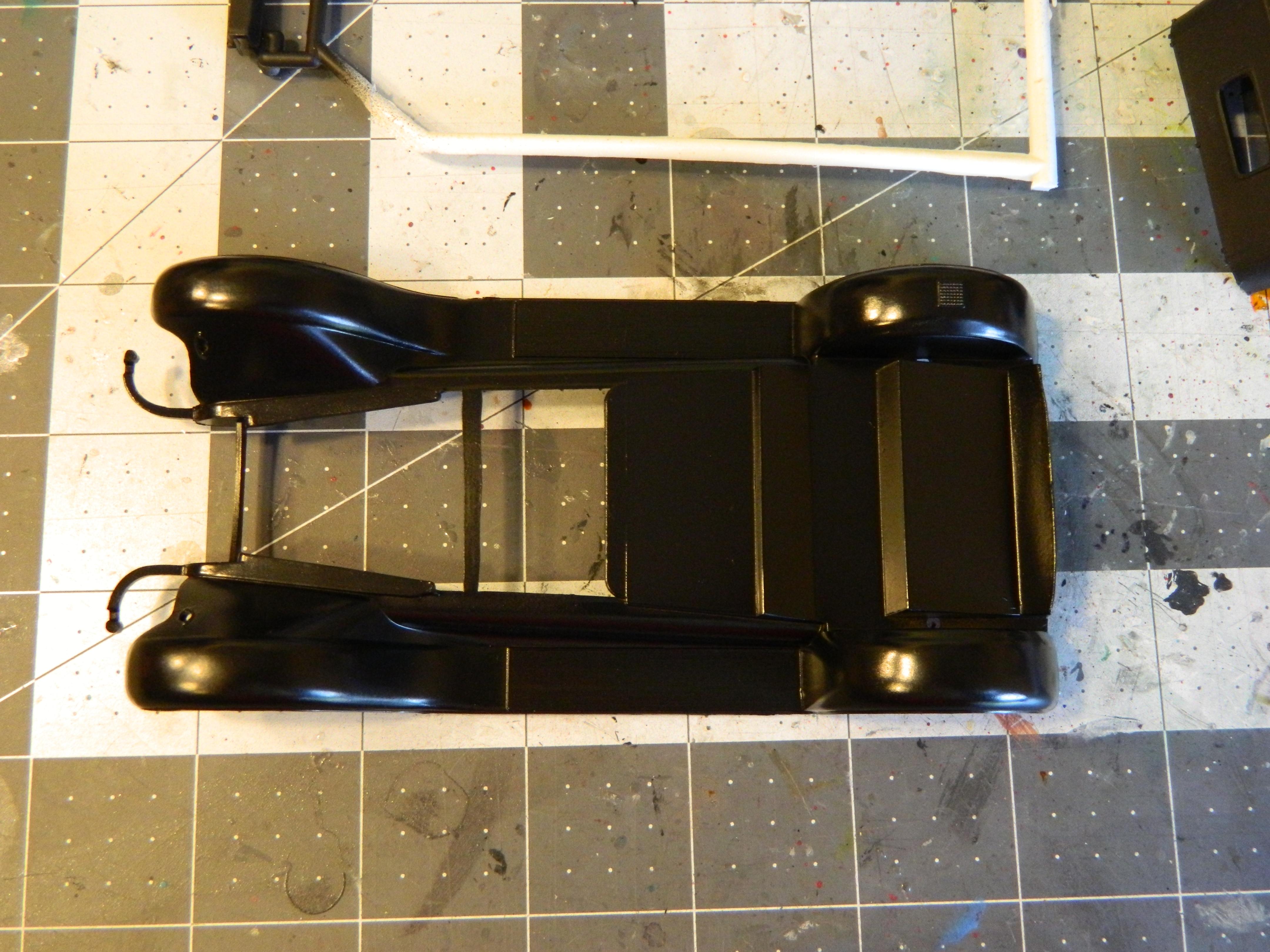

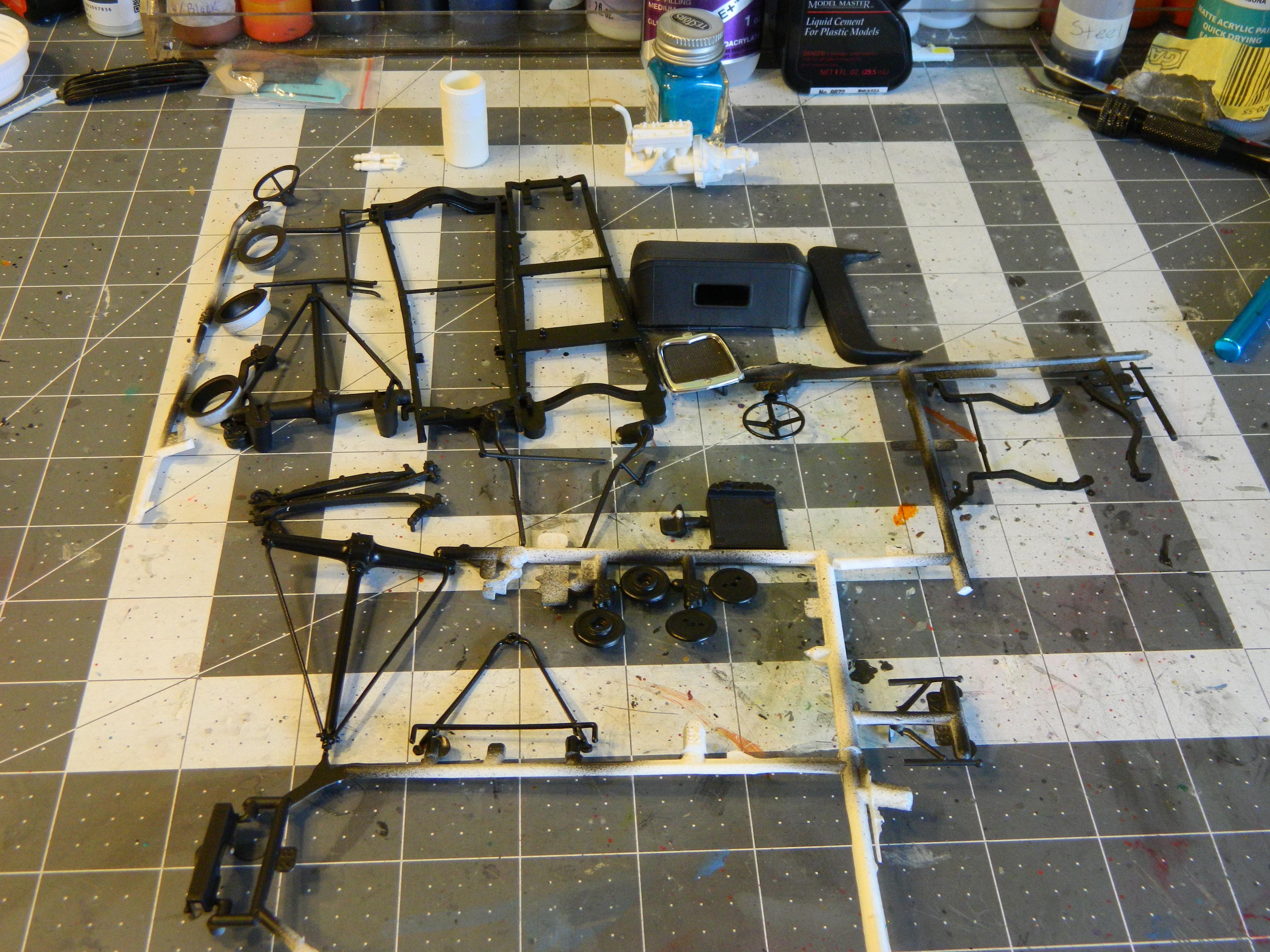

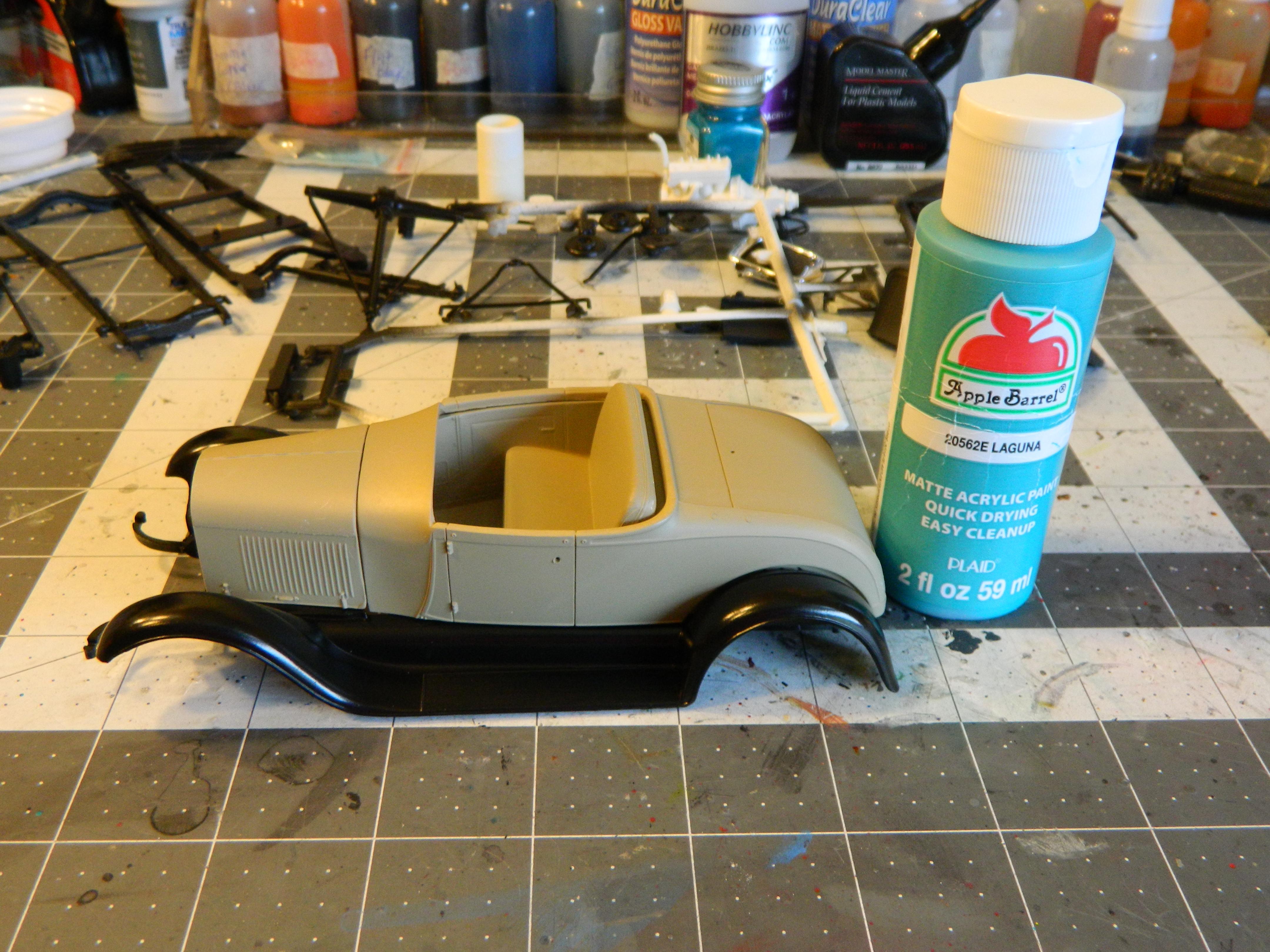

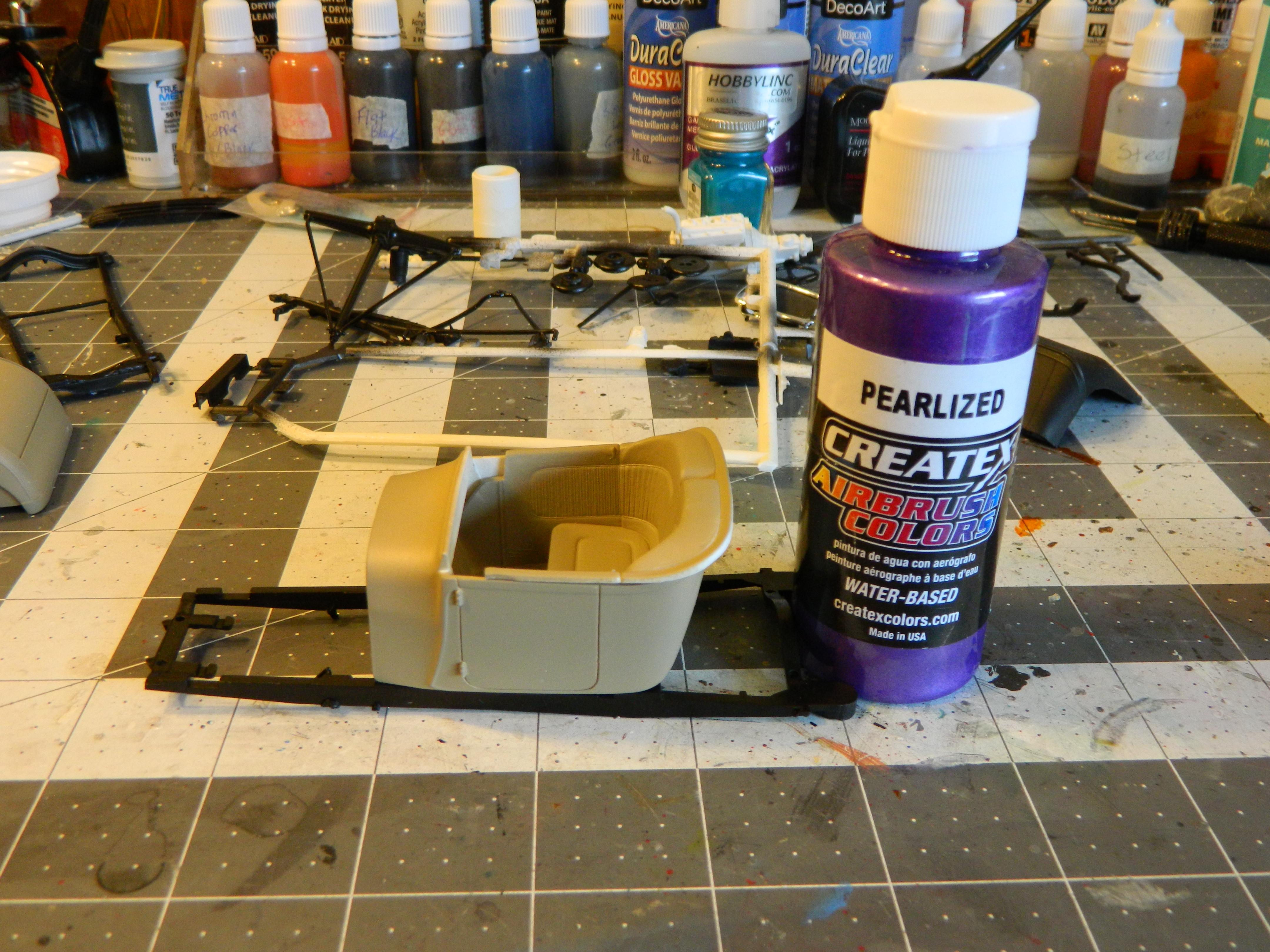

I got the flat black and glossy black painted on today, using Delta Ceramcoat for the flat, and Anita's for the glossy black. I did change my mind on the colors too, I'll be using an Apple Barrel color called Laguna for the stock version and Createx Pearl Plum for the custom roadster. Hopefully I'll be able to get those painted tomorrow.

[Slotto]

It's cool that you are using those acrylic colors. I've been using them lately to brush on parts. When you spray them thru your airbrush, what is your mix ratio? And what do you use to cut the paint? Water? Thanks!

[Zippi]

That's a nice pair of Ford's to be working on.  Great work so far.

[bill-e-boy]

Looking good

Of all the kits I have this is the one I have built most versions of

Modified Ala Kart

Fully fendered

Hiboy

and Rat Rod

and more to go





[slusher]

Nice and interesting color choices..  Looking forward to you build..

[bluestringer]

Nice.

[Dragonhawk1066]

23 hours ago, Slotto said:

It's cool that you are using those acrylic colors. I've been using them lately to brush on parts. When you spray them thru your airbrush, what is your mix ratio? And what do you use to cut the paint? Water? Thanks!

I've used them a lot for the past four years. I still use the Testors and Tamiya spray cans from time to time, but the craft acrylics are pretty much my main painting source. I started out thinning them with plain blue automotive windshield washer fluid which worked well, but I've since been introduced to a homebrew thinner mixture that is 3 parts distilled water, 1 part 91% isopropyl alcohol (although I'm sure 70% will do fine), and 4-5 drops of glycerin as a flow improver per 8 oz. batch. This mixture, to me, works perfectly and makes a very good paint flow. I usually start at 50/50, but sometimes can get to 60-65% thinner to paint, depending on the thickness of the paint.

Edited August 20, 2022 by Dragonhawk1066

[Dragonhawk1066]

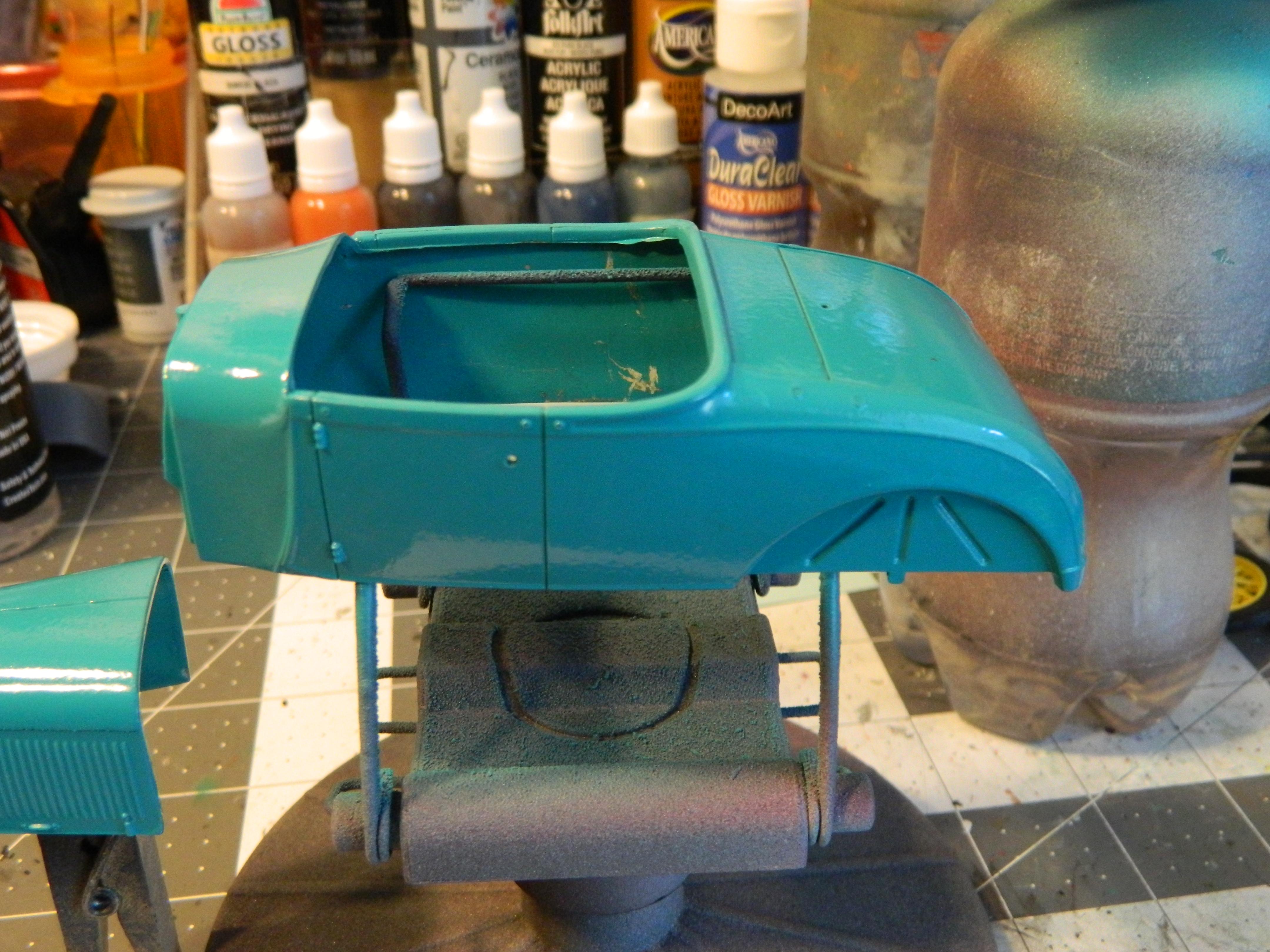

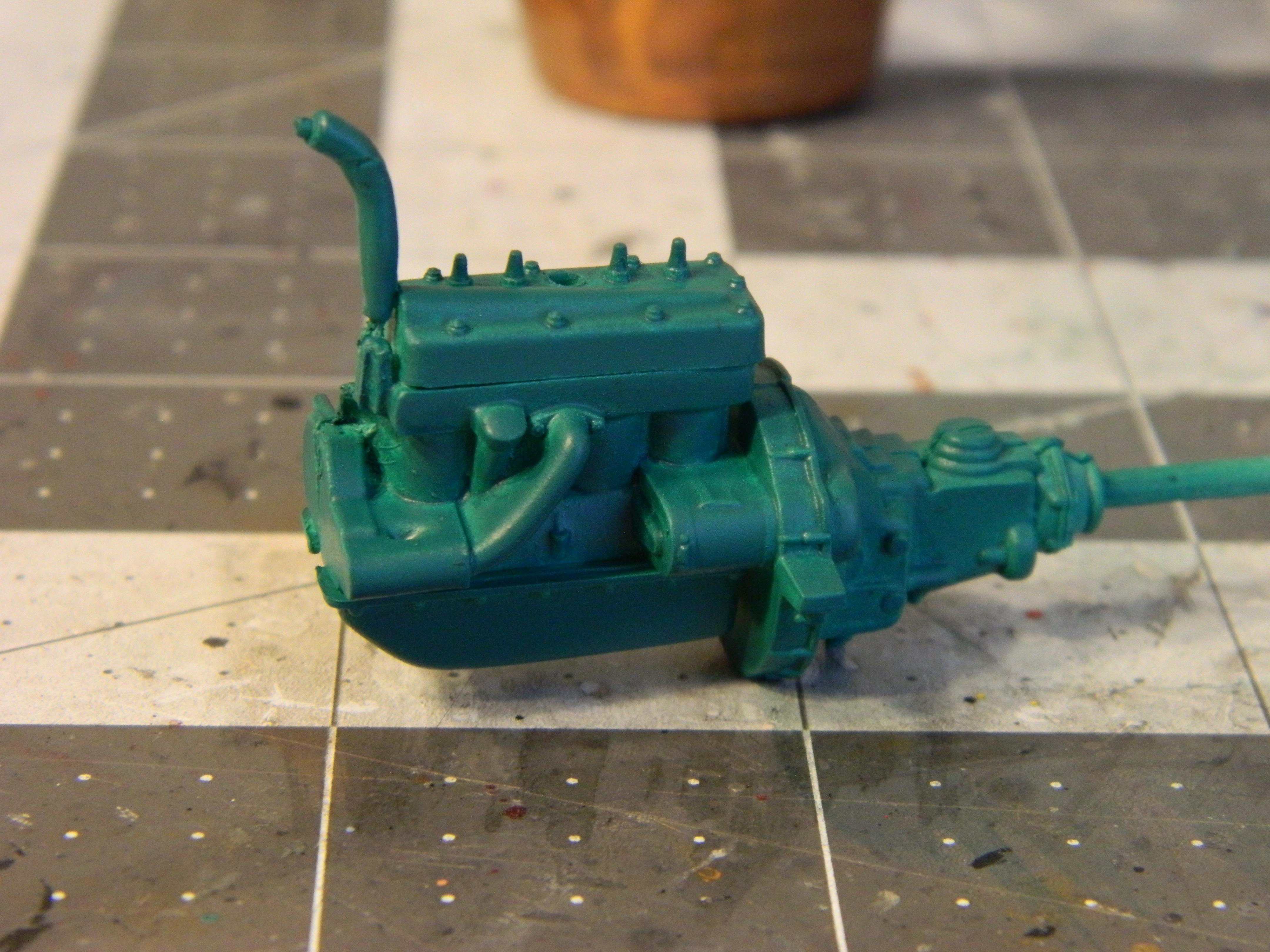

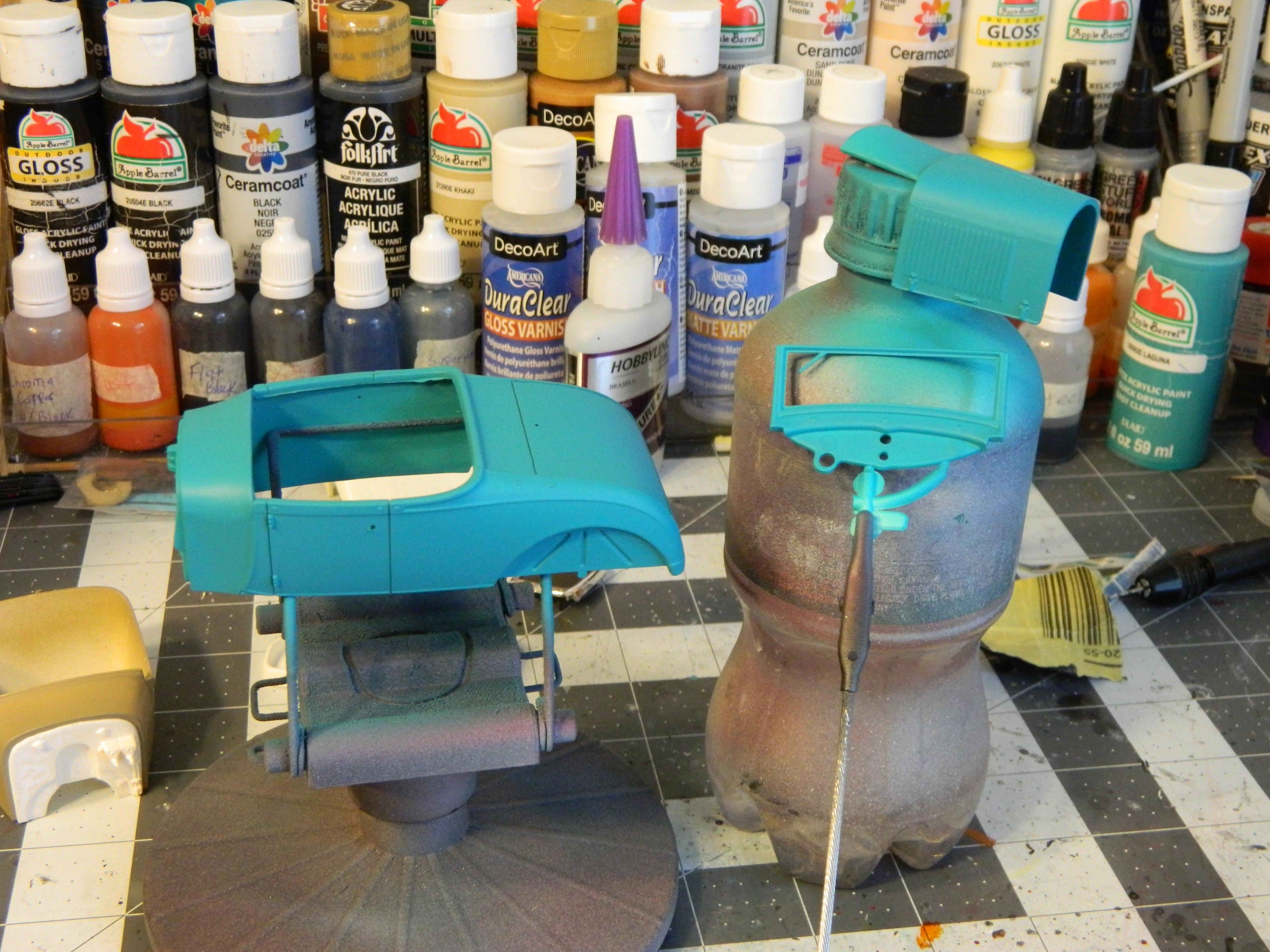

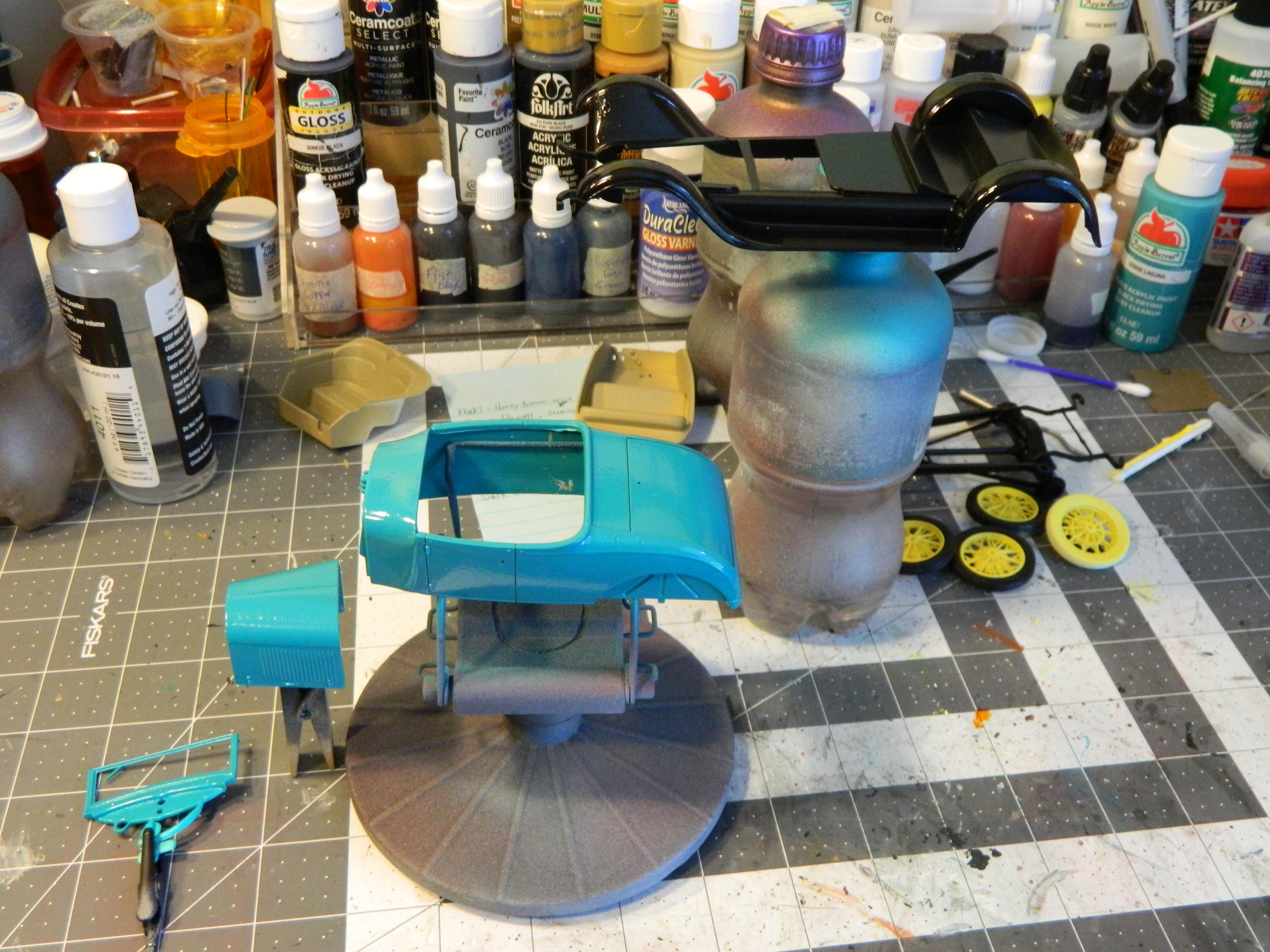

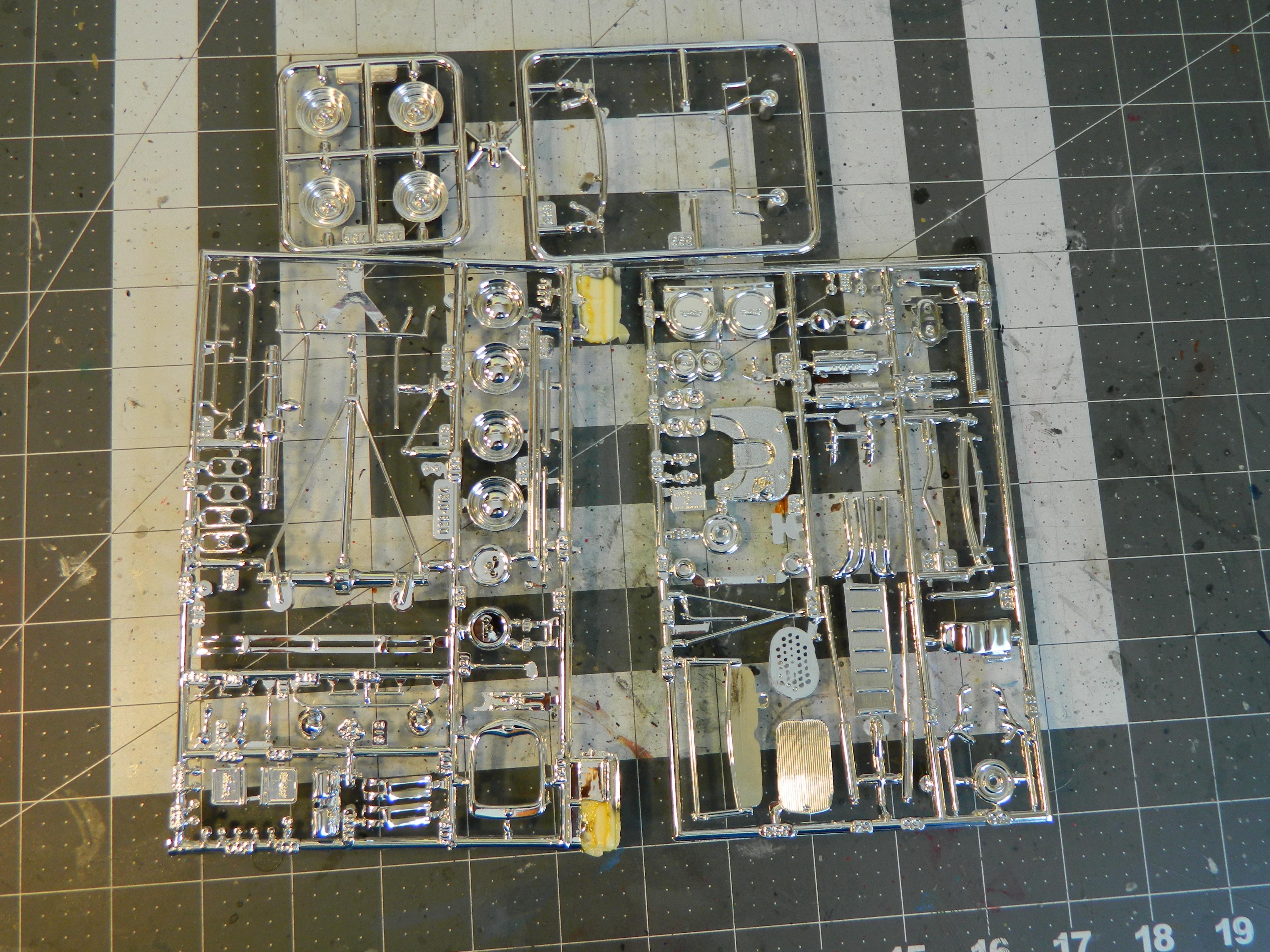

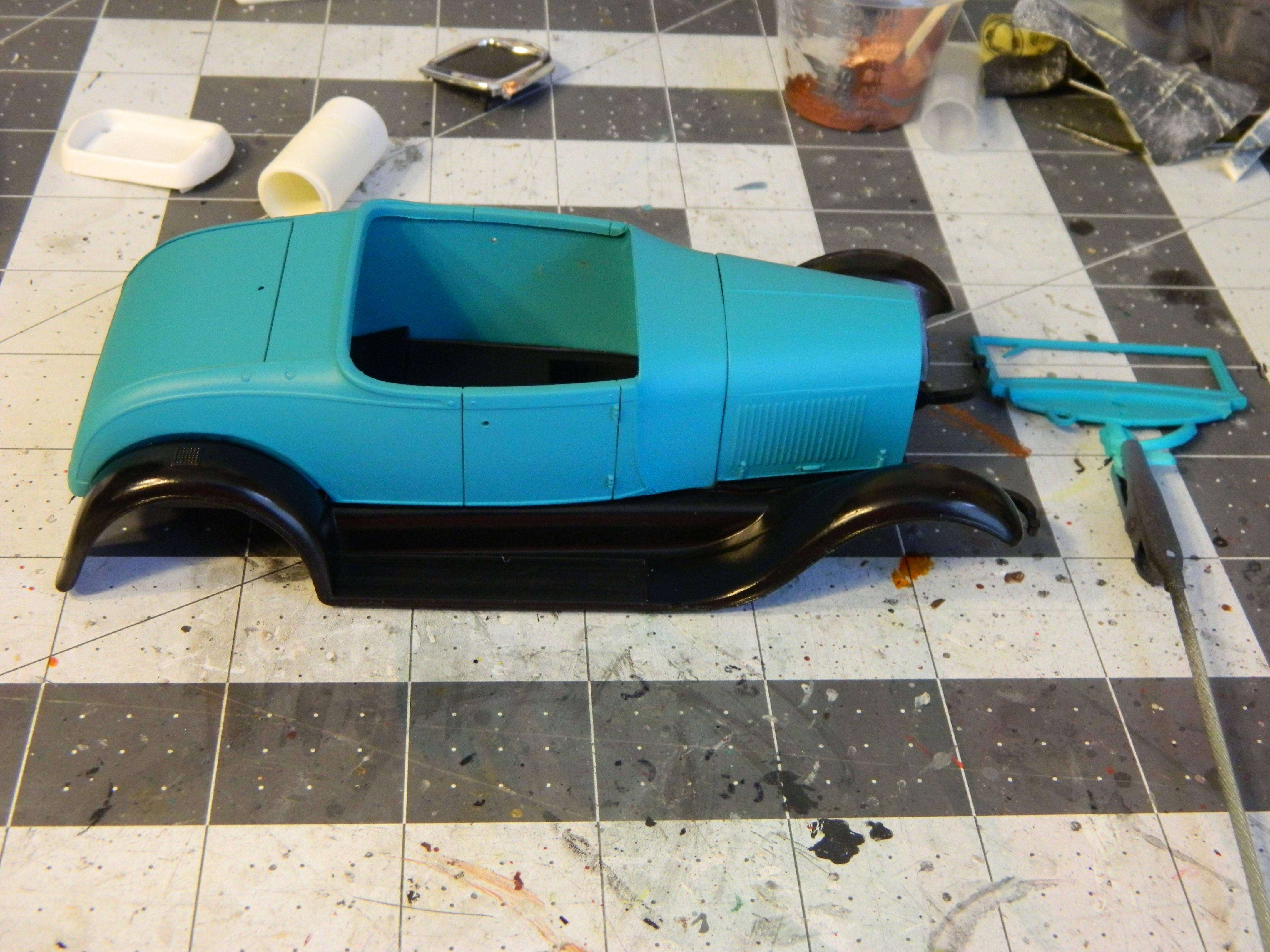

I managed to get the Laguna Blue sprayed on the stock body today. I like how it looks and can't wait to get the clear on in a couple of days. I realized I needed to strip a few more plated parts for the custom version, so I did that today. I will primer them tomorrow and hopefully get the Hot Rod painted Monday. I also mixed  up some engine paint and sprayed that this afternoon.

[slusher]

Very nice color. I like it with the black.  What do you clear the craft paint with?

[Dragonhawk1066]

On 8/21/2022 at 10:26 AM, slusher said:

Very nice color. I like it with the black.  What do you clear the craft paint with?

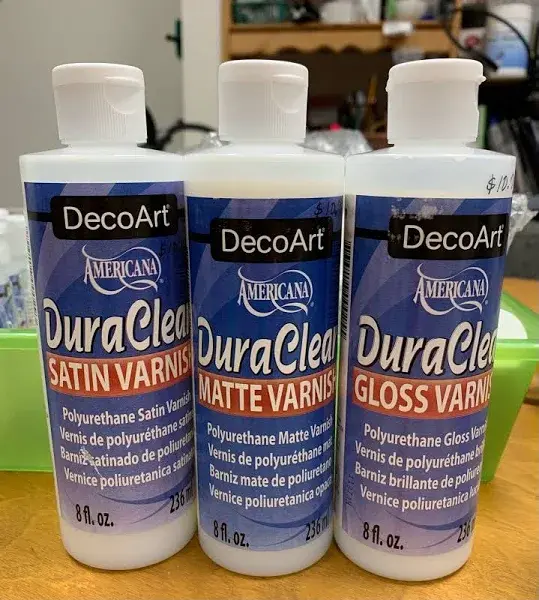

I'll be airbrushing Decoart Duraclear Gloss Varnish on this one. I've also used Pledge Floor Gloss, Tamiya TS-13, Testors Gloss, and Krylon Short Cuts Gloss on craft paints all with excellent results, especially the lacquer clears.

[Dragonhawk1066]

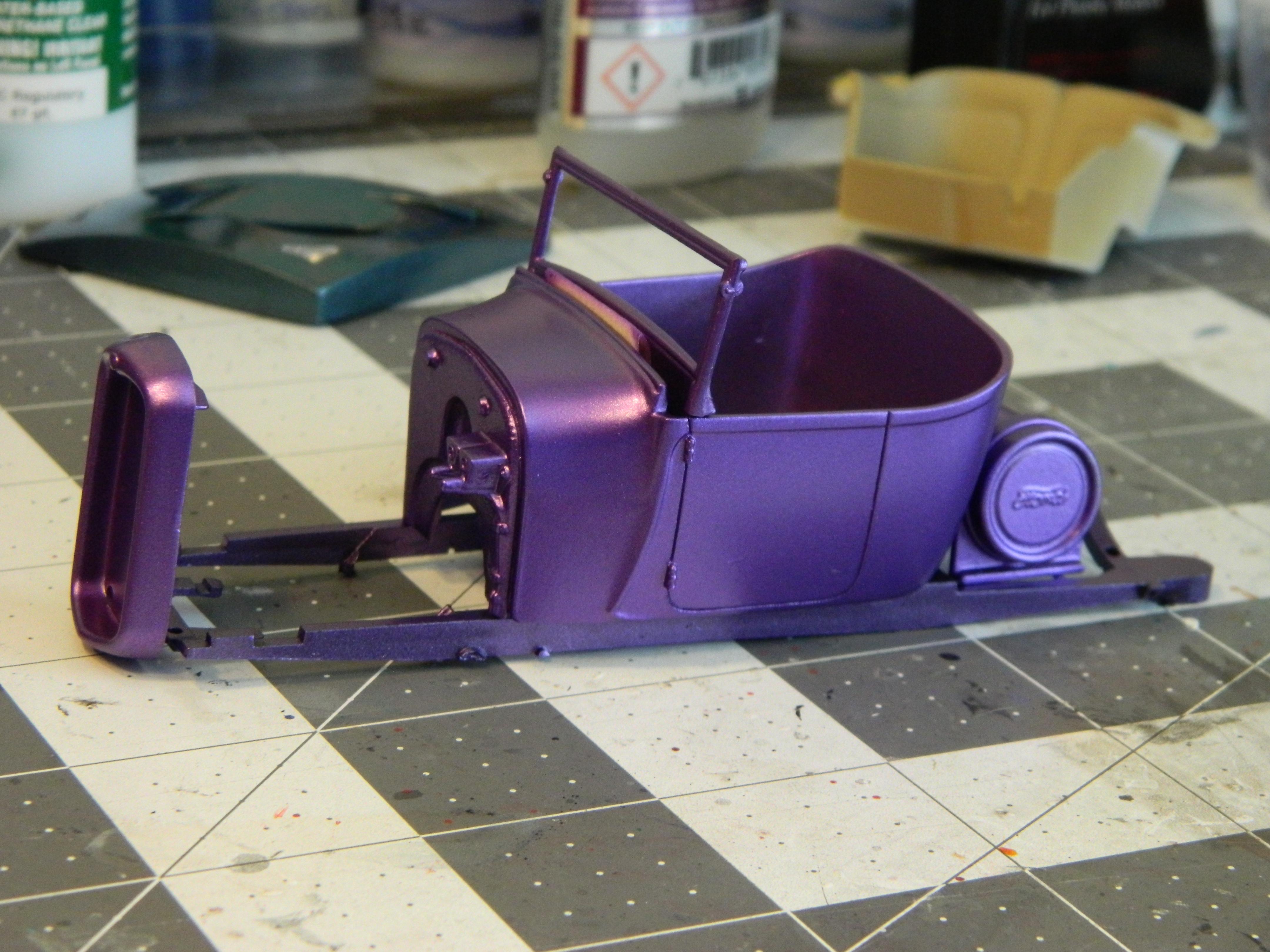

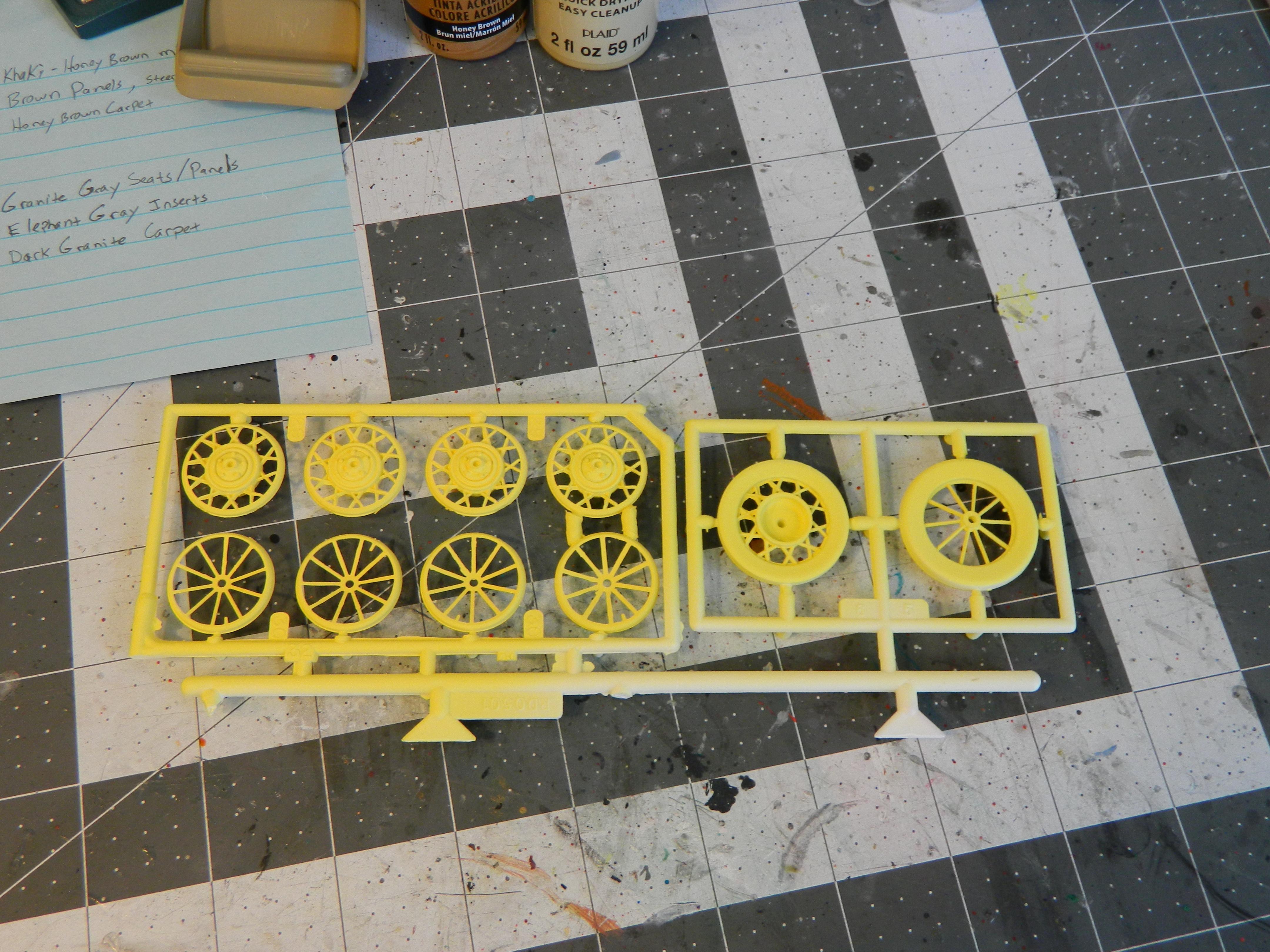

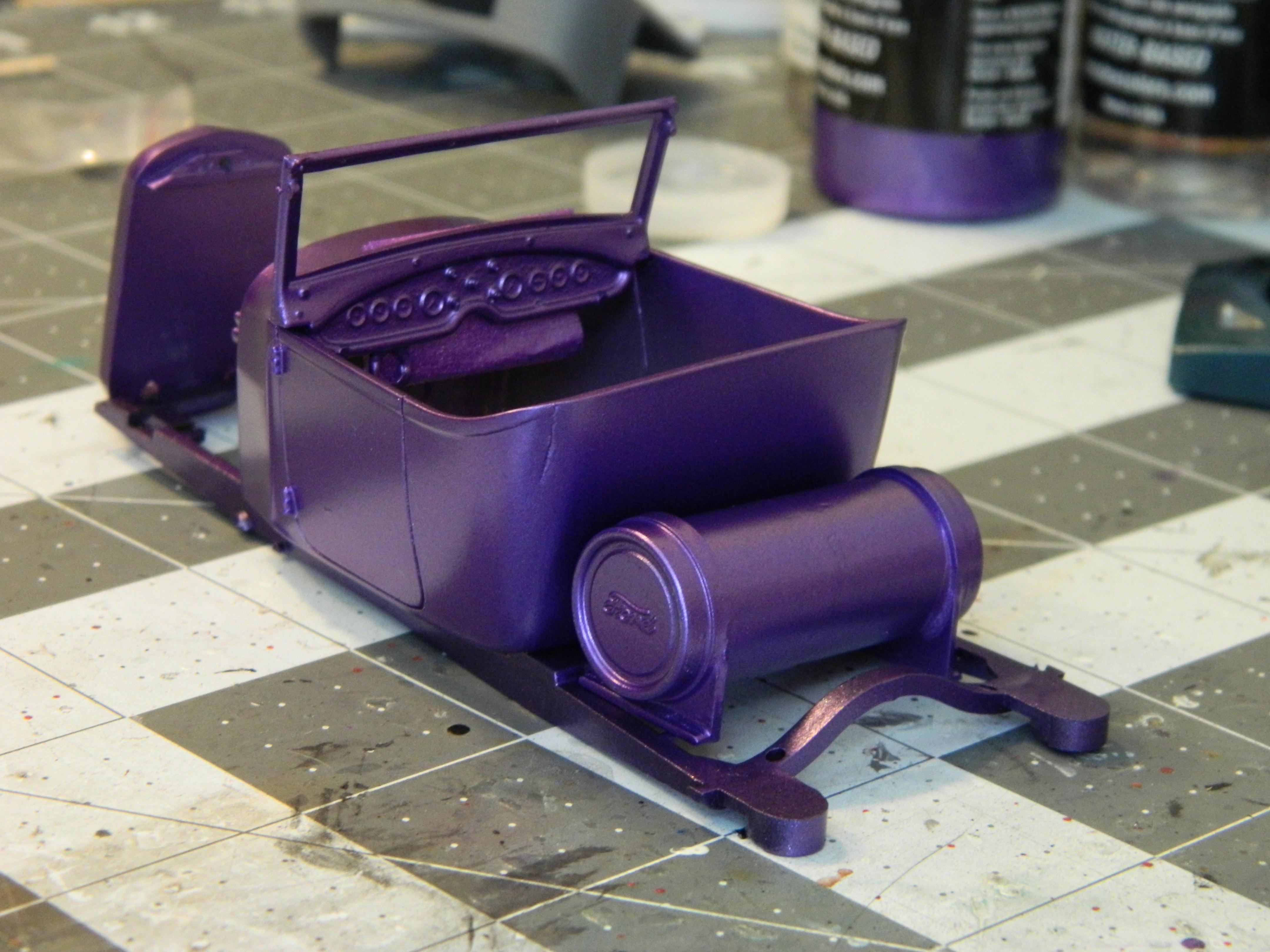

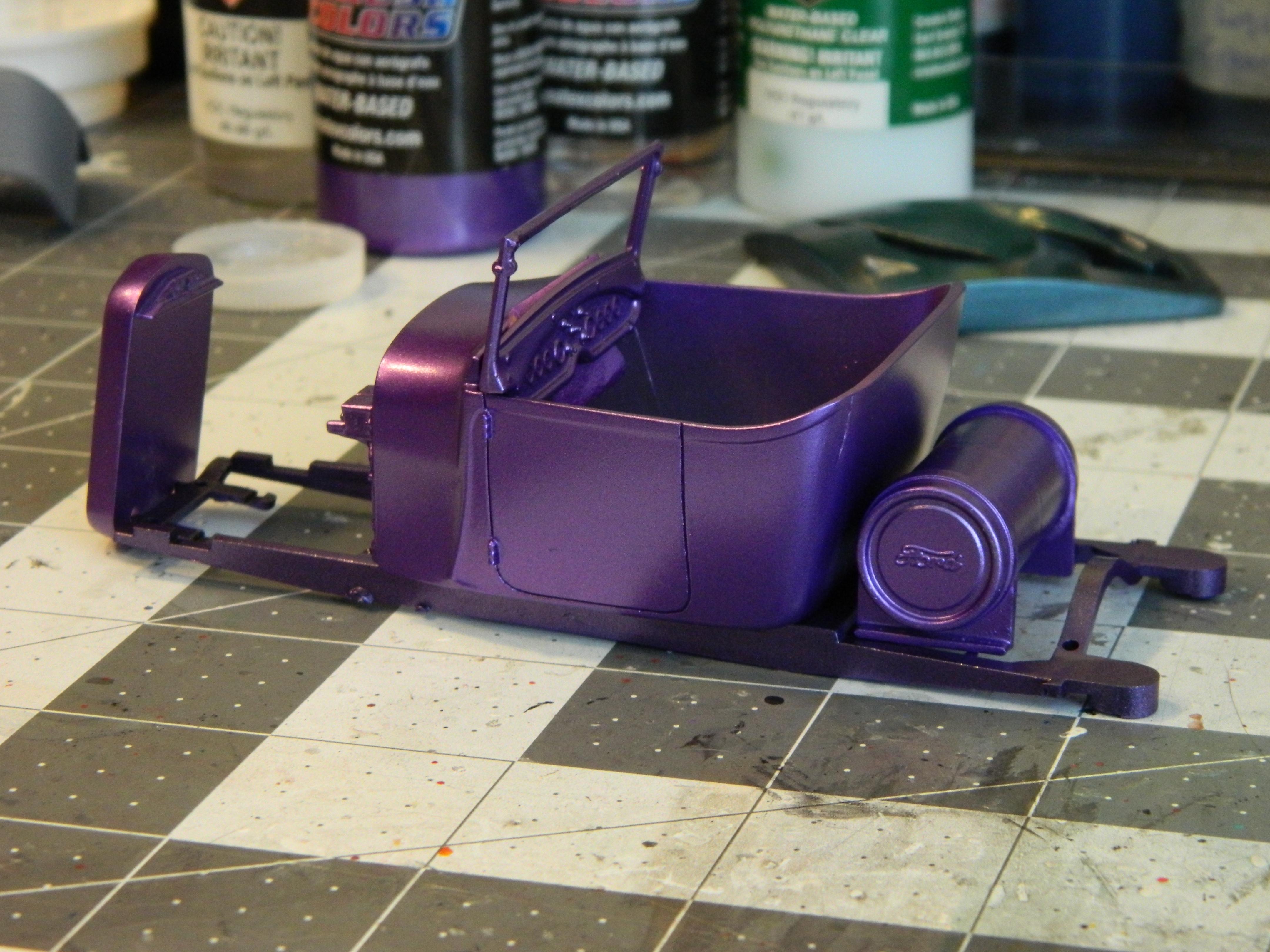

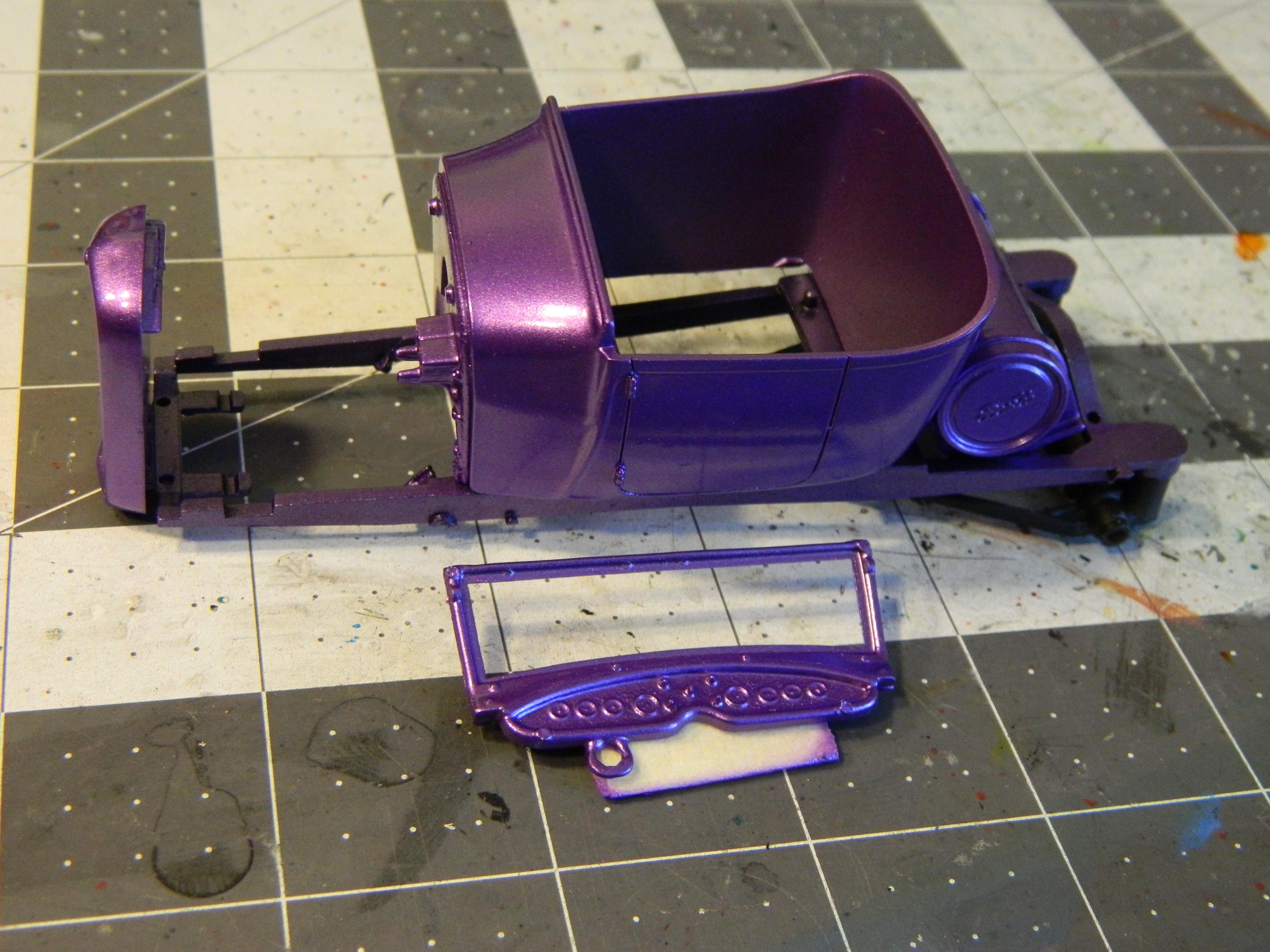

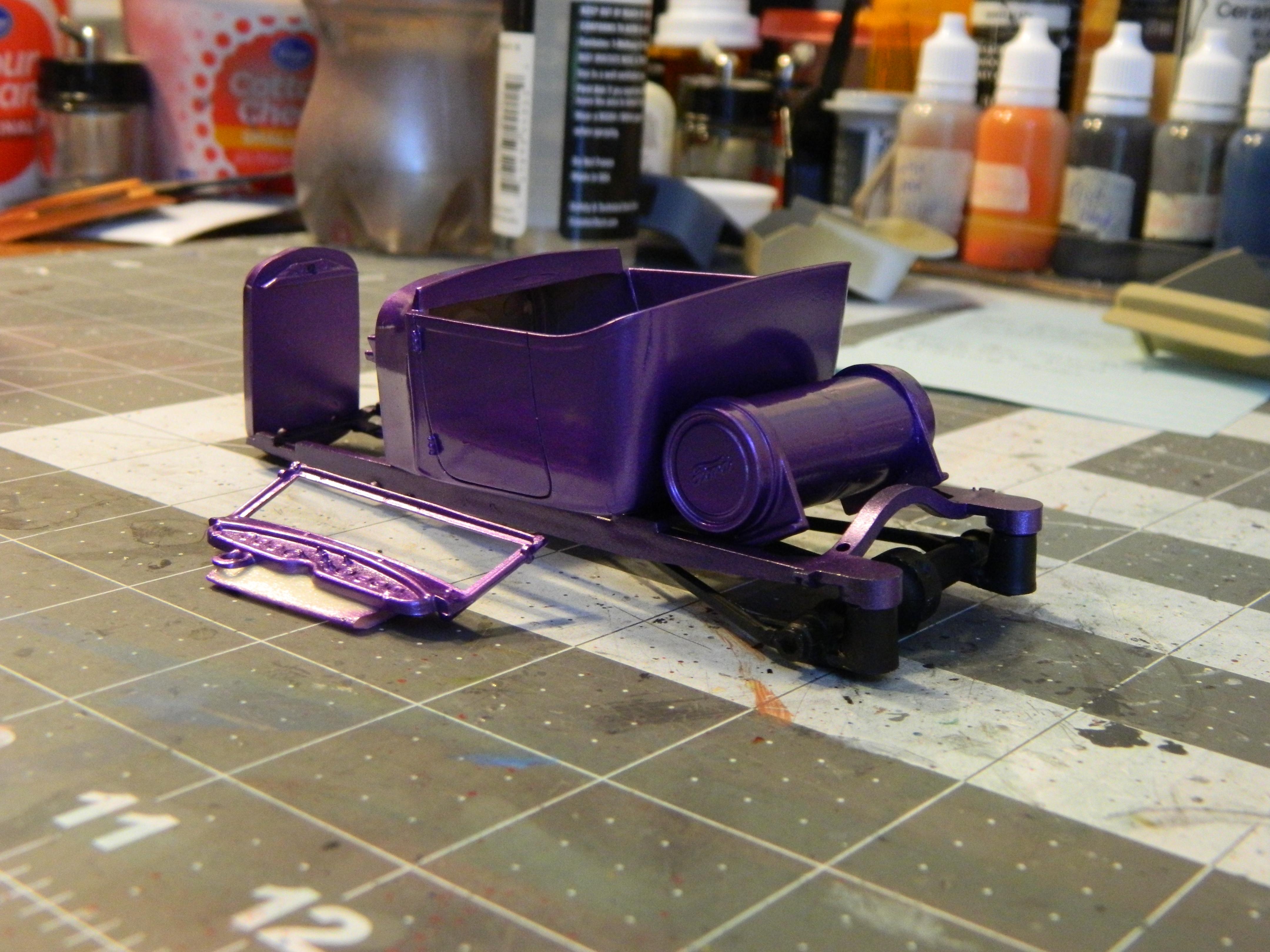

I mixed some metallic charcoal gray and sprayed it on the Hot Rod as a base coat last night, then sprayed the Createx Pearl Plum on this morning. I really like how it looks so far. I also sprayed Apple Barrel Sunny Day Yellow on the wheels for the stock version. I'm hoping to get the interiors sprayed tomorrow.

[bisc63]

Looking good! Heck, I was digging the black and camo tan look!

[espo]

Great looking colors.

[Dragonhawk1066]

On 8/22/2022 at 6:53 PM, bisc63 said:

Looking good! Heck, I was digging the black and camo tan look!

Thanks, yeah that did look pretty good together didn't it? I really wanted to go with the Laguna Blue, otherwise I probably would have just cleared the primer, lol.

[Dragonhawk1066]

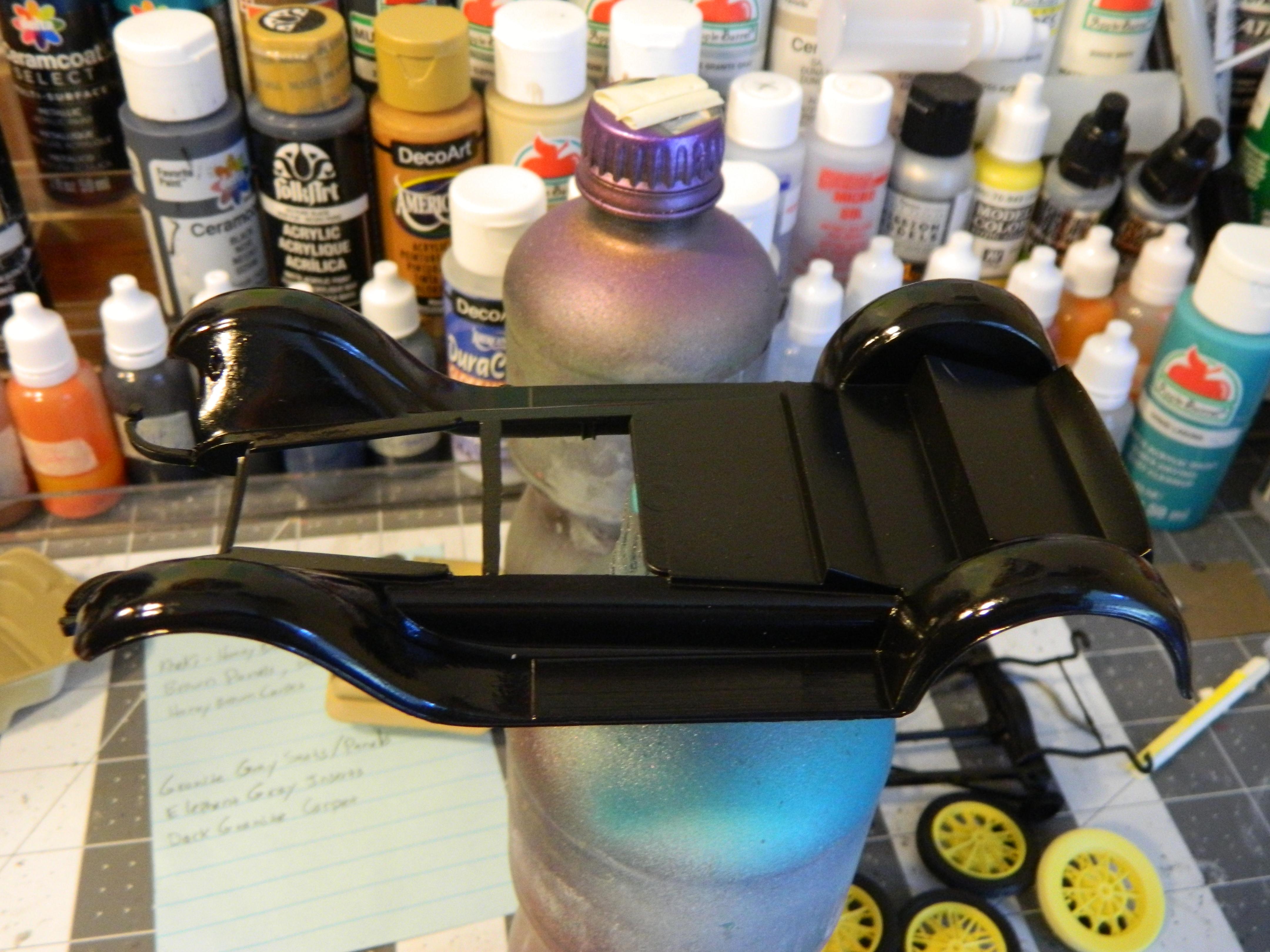

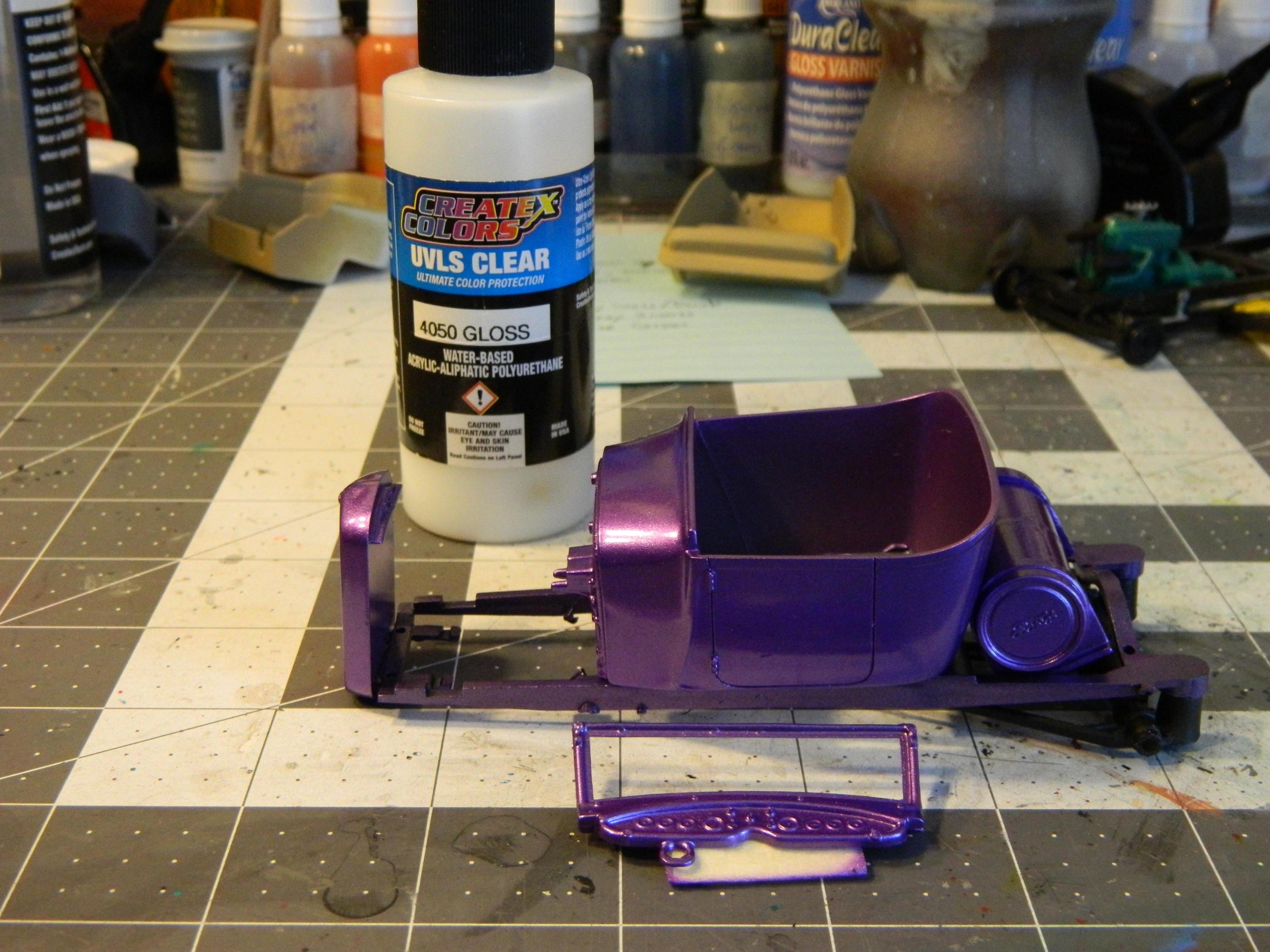

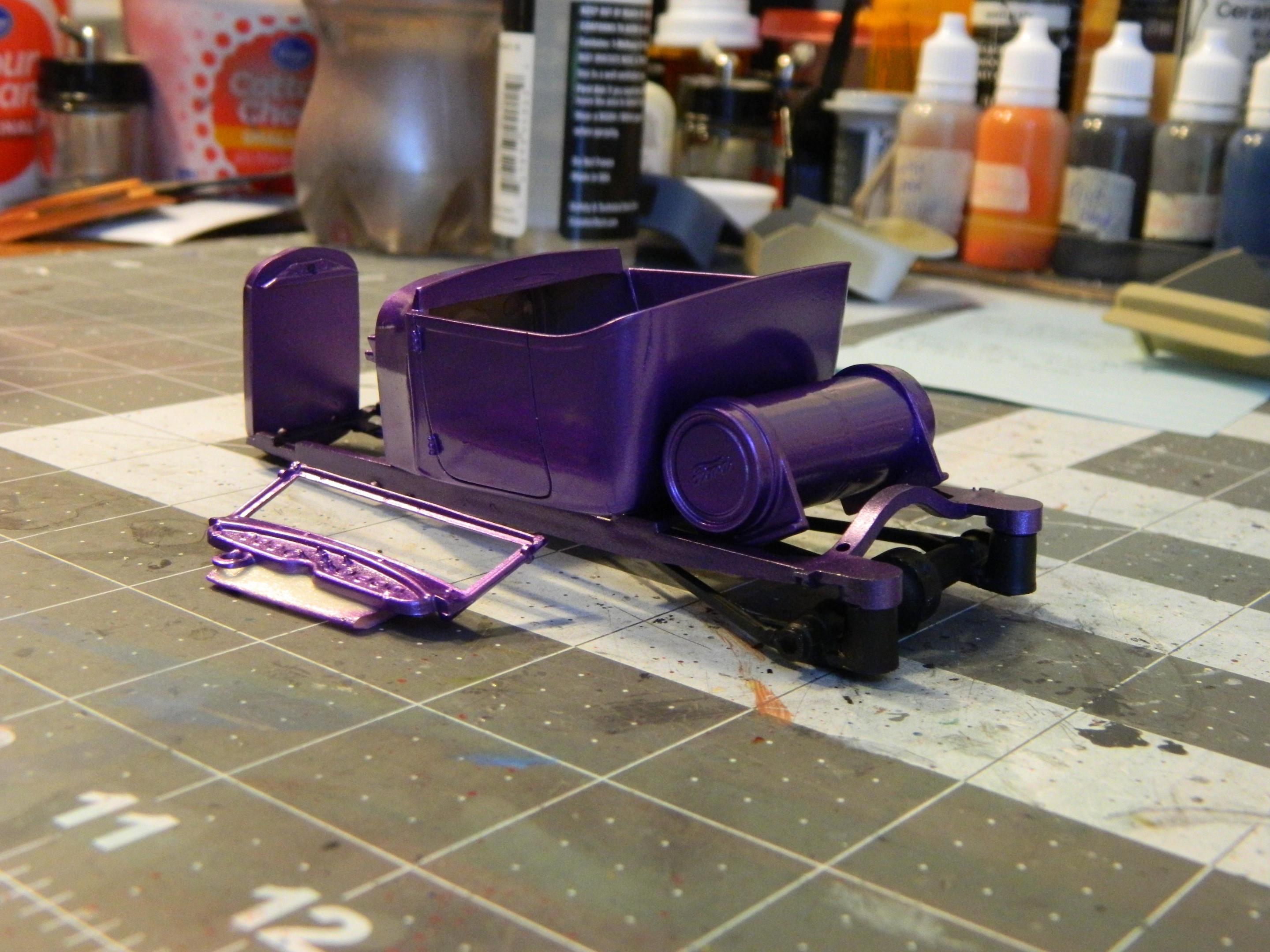

I sprayed the clear coats on both bodies today. I started with Decoart Gloss Varnish on the stock body, but either thinned it too much or not enough as it dried with some spots all over. After three coats, I decided to leave well enough alone and wait to see if it would sand/polish out. Next I mixed up Createx UVLS Gloss for the Hot Rod body, but mixed that a little too thick at first and my airbrush had some trouble spraying it consistently. After a couple of adjustments, I had a perfect mix. It laid down so nice on the Hot Rod, I decided to try it over the Decoart Varnish on the stock body. Two coats there did the trick. Still needs to be smoothed out, but much better.

[oldscool]

I like where these are going.

[bisc63]

Very nice. I like the finishes. That has what I'd call scale gloss; not too syrupy, thick, and overly shiny. Just right! "Laguna" color is nice for an old rod. You should also check out "Caribbean" from the same maker; similar color but lighter, and maybe just a little more toward the green tint. Great for 2-toning Tri-5s and old rods!







[slusher]

Great color choices,Craig!  Love the purple or plum!

[Kenmojr]

Loving your work on this kit, especially the stock roadster. Love the color scheme. And thanks very much on what you mix this paint with as DecoArt acrylics are abundant at local Dollaramas in Halifax.

Cheers and many thanks...

[Dragonhawk1066]

22 hours ago, oldscool said:

I like where these are going.



17 hours ago, slusher said:

Great color choices,Craig!  Love the purple or plum!

Thanks guys!



8 hours ago, Kenmojr said:

Loving your work on this kit, especially the stock roadster. Love the color scheme. And thanks very much on what you mix this paint with as DecoArt acrylics are abundant at local Dollaramas in Halifax.

Cheers and many thanks...

I'm glad I can help! I really like using the craft paints, in fact I use them almost exclusively now.



20 hours ago, bisc63 said:

Very nice. I like the finishes. That has what I'd call scale gloss; not too syrupy, thick, and overly shiny. Just right! "Laguna" color is nice for an old rod. You should also check out "Caribbean" from the same maker; similar color but lighter, and maybe just a little more toward the green tint. Great for 2-toning Tri-5s and old rods!







Thanks! I agree about the amount of shine, I'll wet sand and polish it to smooth it out so hopefully it won't get too much of a shine. I actually do have the Caribbean as well and it is a nice color too.

[Dragonhawk1066]

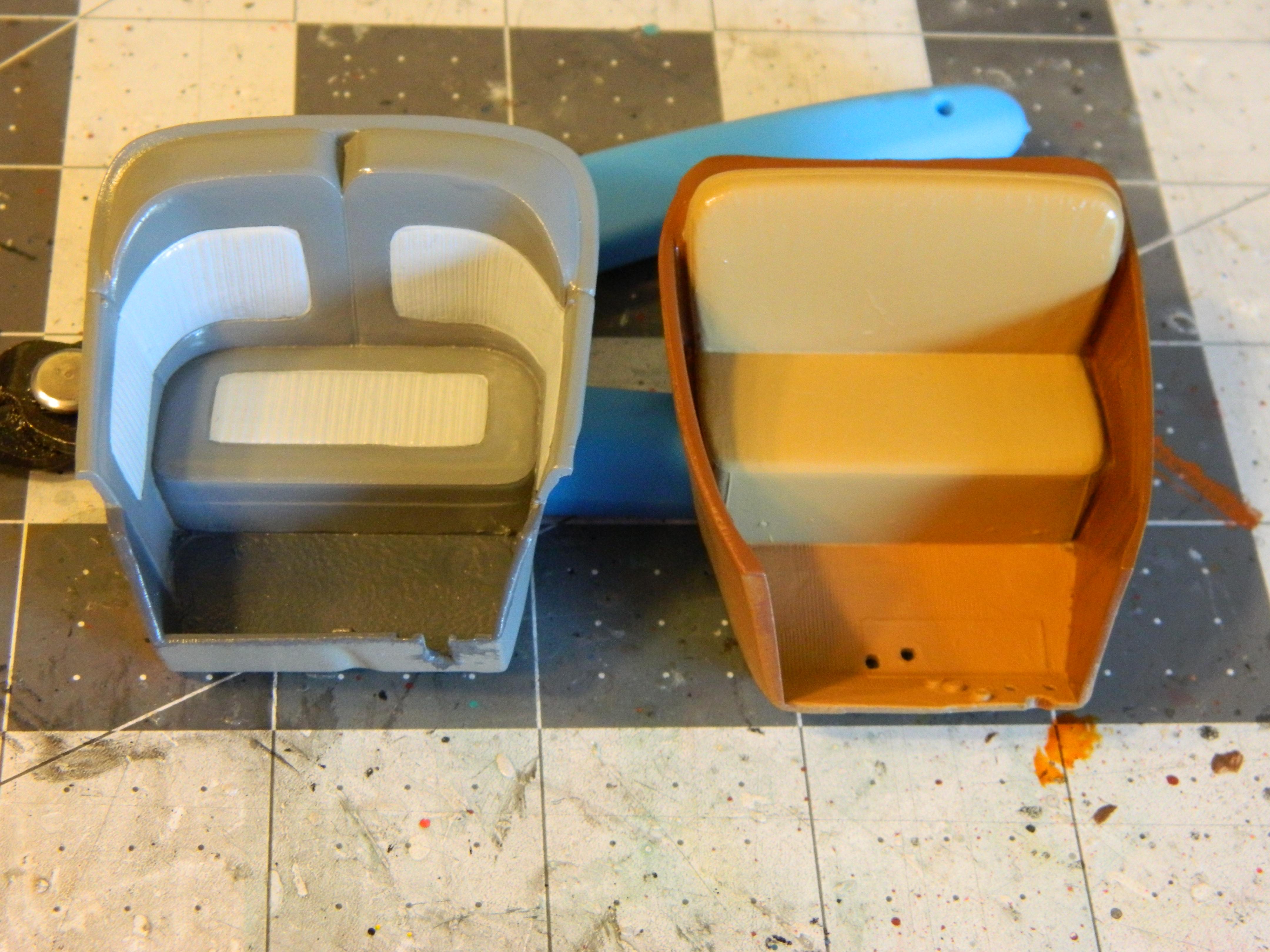

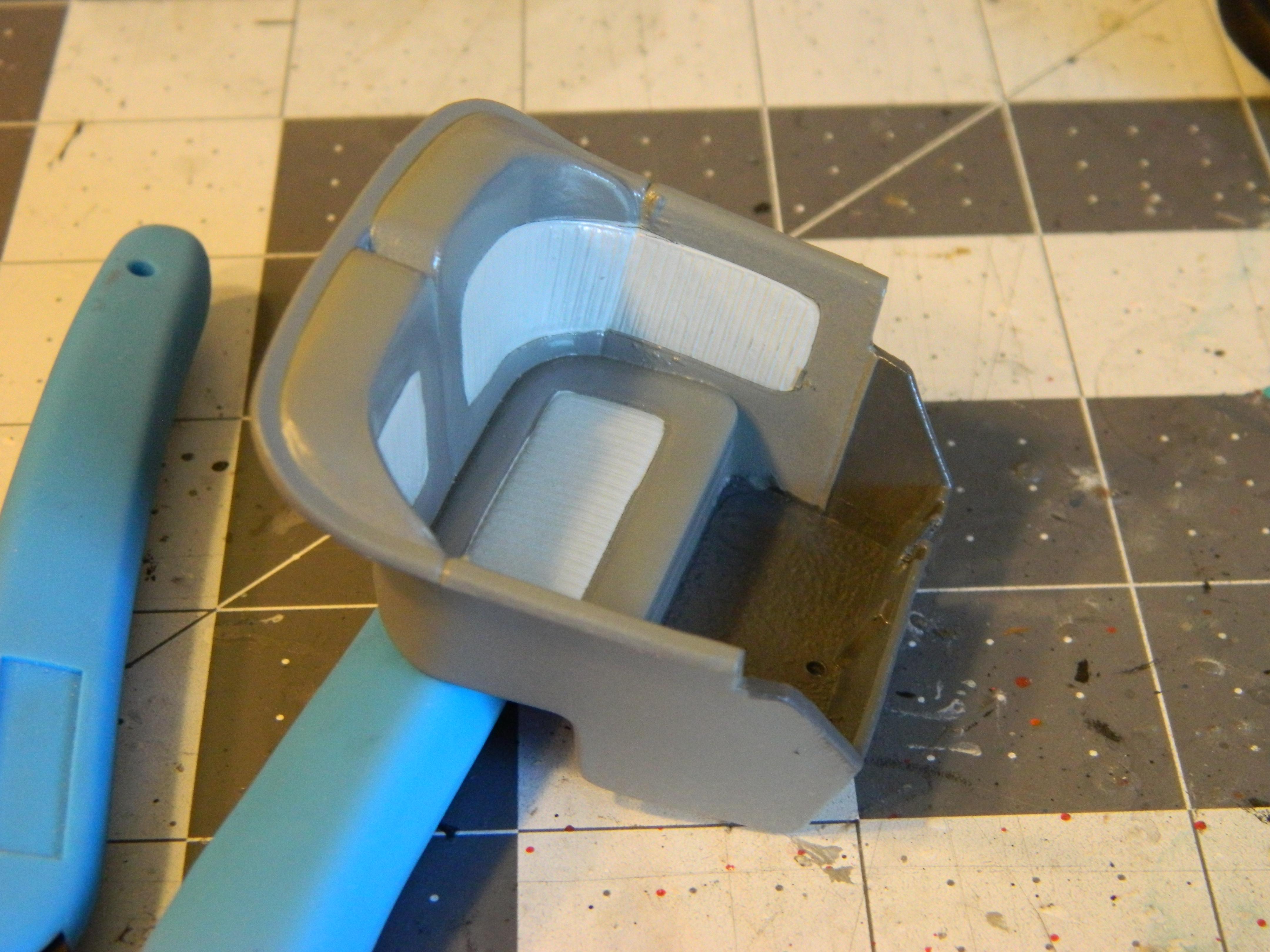

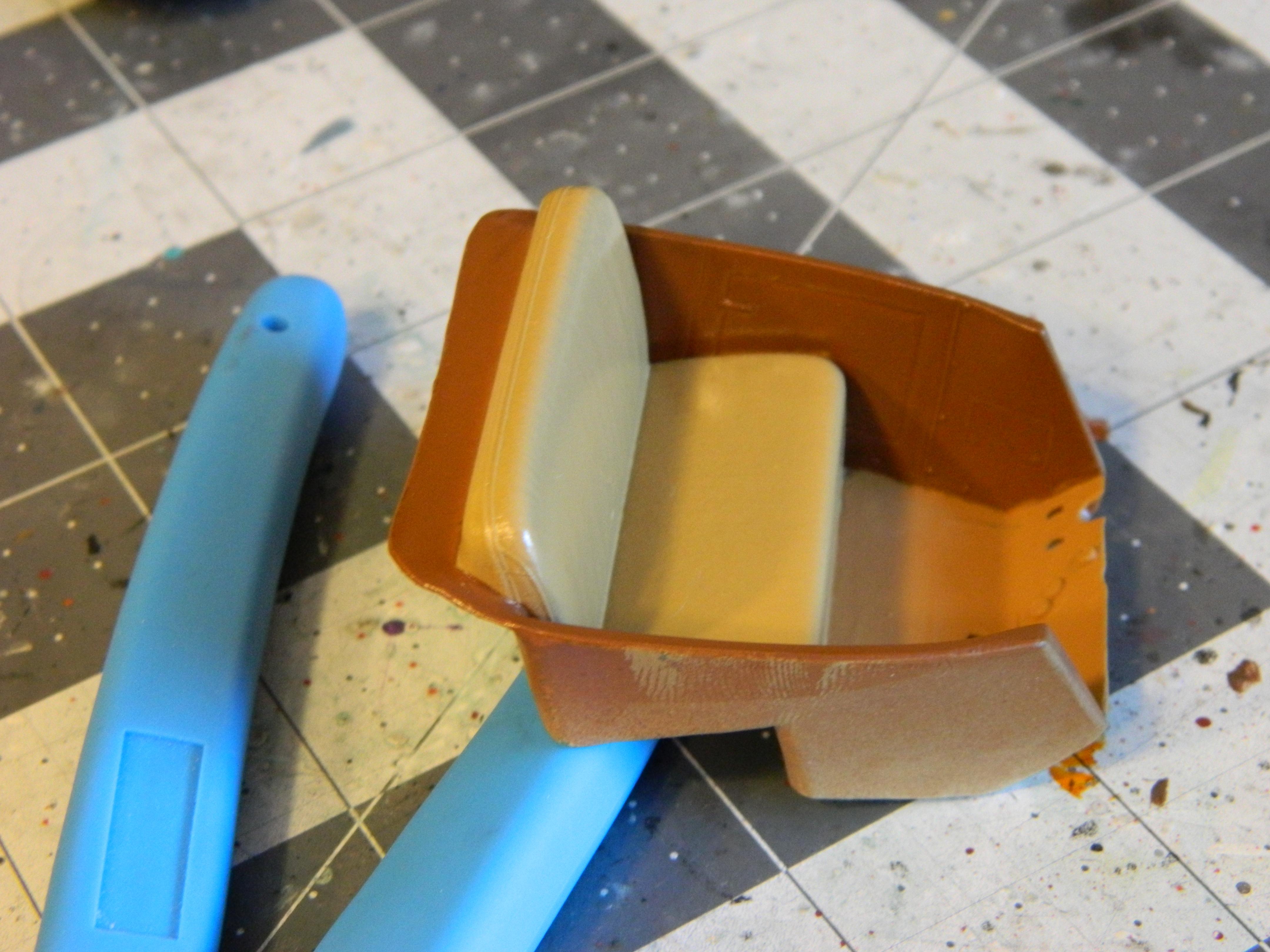

I got the interiors painted today, and also sprayed on some Satin Varnish to add some sheen. I still have some more details to paint, but I'll go ahead and start assembly and add the details when I get to them. I'll probably use the kit engine for the Hot Rod, but maybe a different induction system from the parts box. I'm also still tossing around wheel/tire combo ideas for the Rod. One of these years when I get a little extra cash?, I'll but some embossing powder for more realistic looking carpet.

Edited August 24, 2022 by Dragonhawk1066

[bisc63]

4 hours ago, Dragonhawk1066 said:

One of these years when I get a little extra cash?, I'll but some embossing powder for more realistic looking carpet.

Go to your kitchen, get some baking soda, use for carpet texture just like you would embossing powder. Works fine.

[bobthehobbyguy]

Nice work so far.
