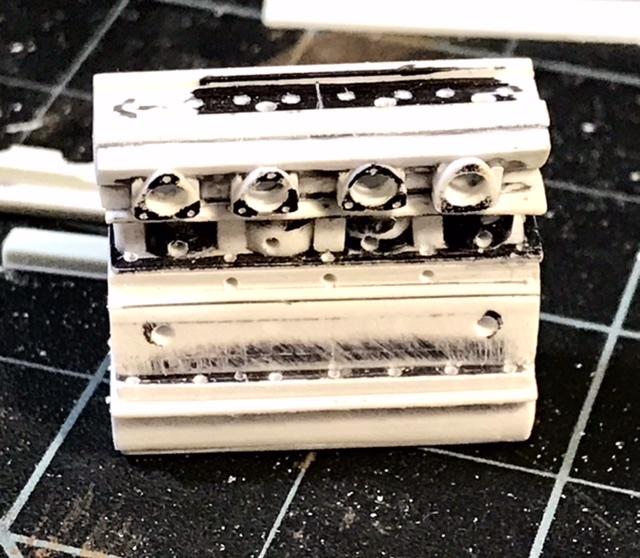

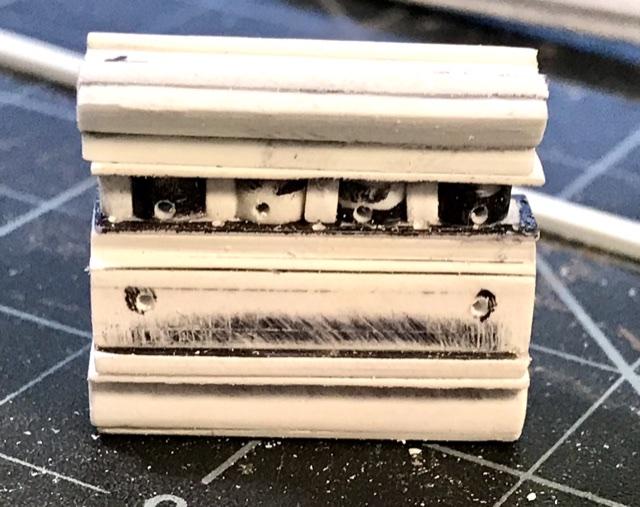

Pleasant surprise in today’s mail ... Veloce’s Ford Small Block source book has a reprint of the 30 page Ford Motor Company publication on the 65 Ford Indy DOHC engine - page for page - very nice - I had pined about getting a copy of this pamphlet on this thread last year - it hasn’t been re-produced in some years - but Author Des Hammill found my cure ... book also has some good info on the hi performance engines used by Shelby ... so maybe I should complete that DOHC Indy engine ?? ??? ya think ?
-

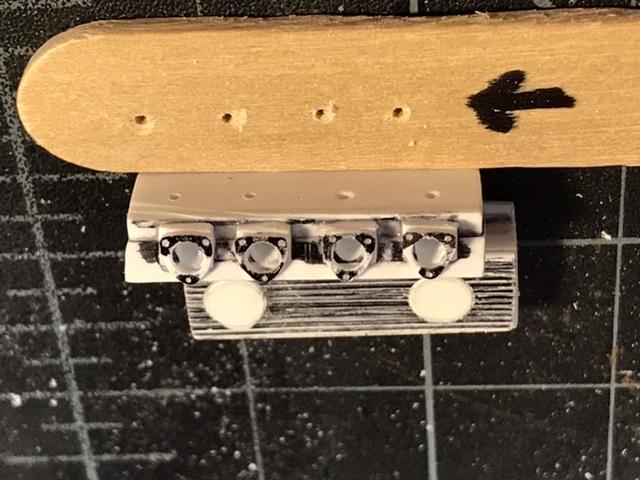

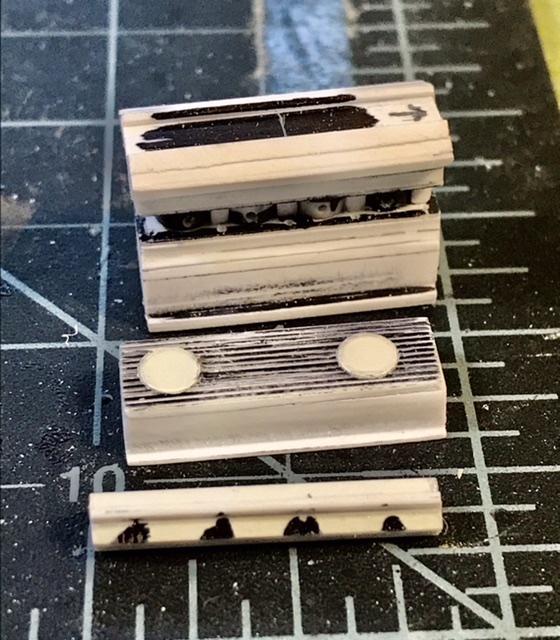

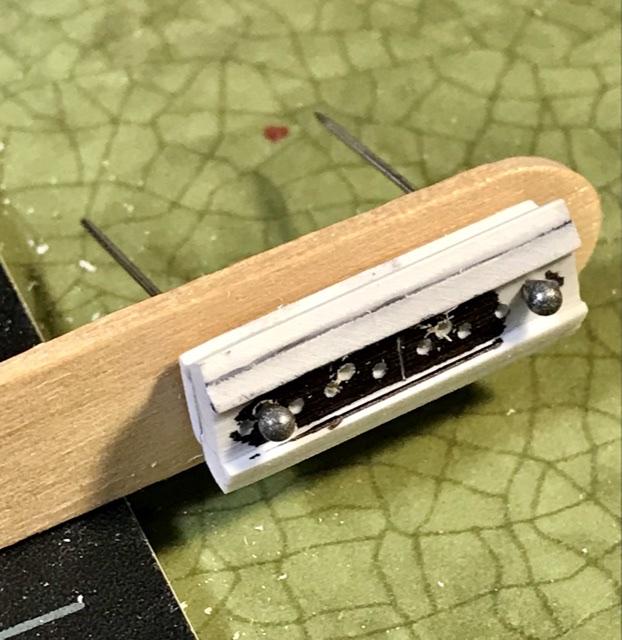

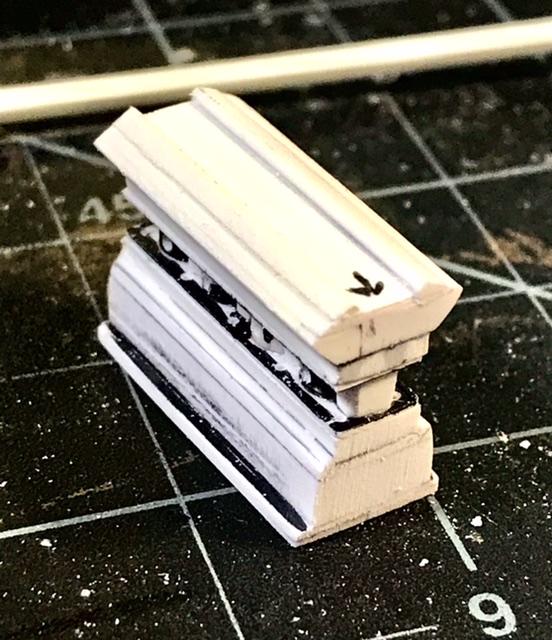

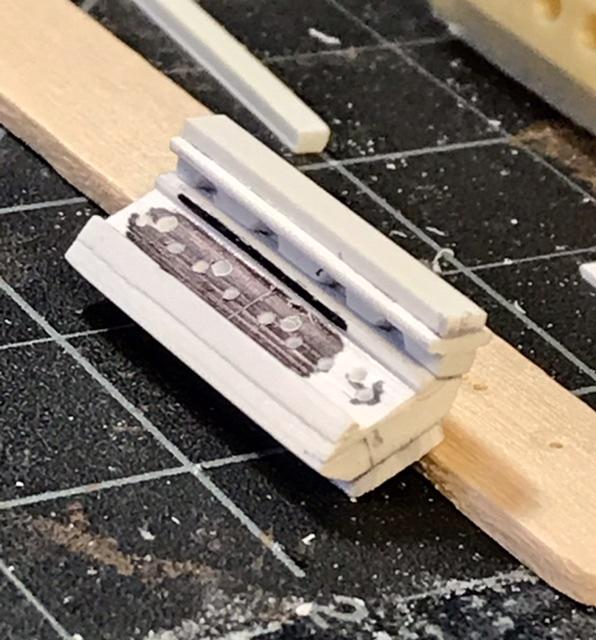

The camshaft housings were made from three strips of Evergreen liquid glued together to get the profile / Shape correct ... then added some .025 plastic pegs so I’ll get a solid attachment to the cyl head once the parts are painted ...
-
If I spend my spare time building model cars and Going to baseball games that means I’m older than _______. ???
-
If my postings start to spread out - it’s because I can finally go to some ball games. Yeah ... actually posting this on my I phone in the bottom of the 4th ... Canes are beating the Blue Devils ...
-

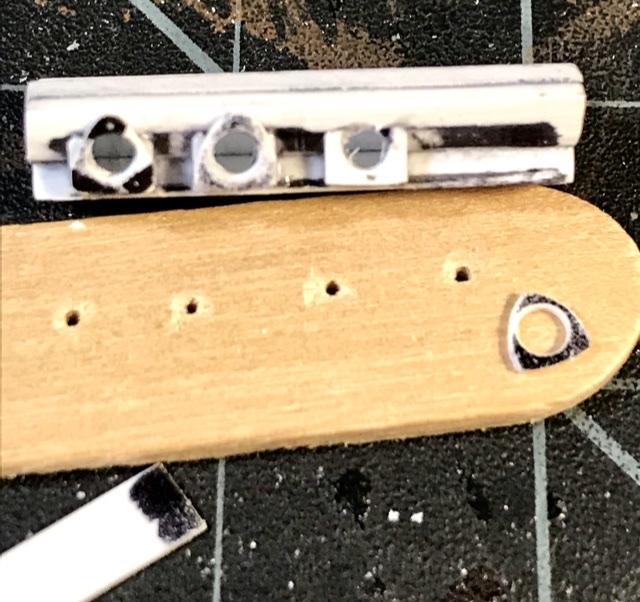

The carbs will get some aluminum caps and horns. ... time to clean up the Sherline workbench ... maybe I’ll post a photo before the cleanup. Just for laughs ... the cyl head has plug holes drilled at angles - this was a duel plug / cylinder engine - the distributor sits in front of the engine - below the fuel pump and above the water pump ...
-

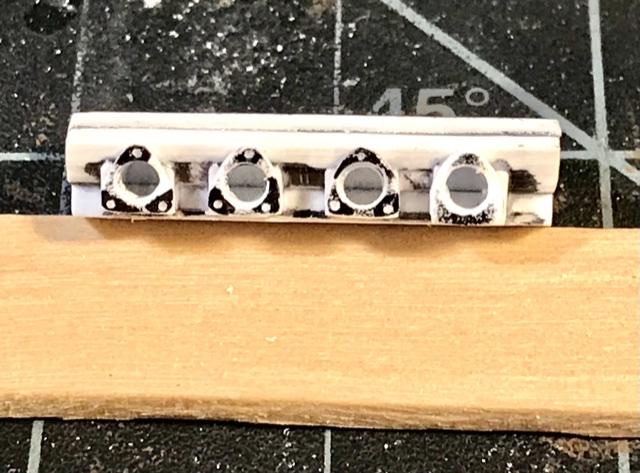

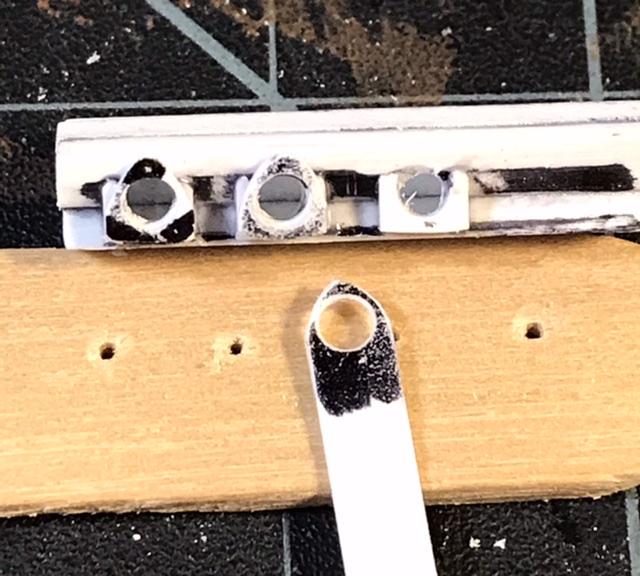

The other side of the cyl head gets angled holes for the carbs... the Amal carb bodies are soldered up from 1/16 thin tube and some .078 tubing scrounged from the back of one of my STUFF drawers ... Next is some work on the cam housings ...
-
Cooper barn find
absmiami replied to absmiami's topic in WIP: Other Racing: Road Racing, Land Speed Racers
Gracias. Saw several running together at the Barber track in Alabama a few years ago. Yes they are small and they sound like a huge swarm of ANGRY bees ... -
1966 Ford J Car Prototype
absmiami replied to Gramps46's topic in WIP: Other Racing: Road Racing, Land Speed Racers
You’re markings on the body ... was the body too wide up front but scale at the rear ?! That’s a pain ... -
And the NACA ducts aren’t so easy - got to make two small ones on my Lotus ...
- 64 replies
-
- scratch build
- amg
-
(and 2 more)
Tagged with:
-
Maybe not .... when Doug Nye did his great History of the Post War Grand Prix car Vol I - about 35 years ago - it included the factory drawings for the Vanwall space frame. Thank you Mr Nye! The current plan is to build a display chassis - as photographed / featured in the book’s chapter on the marque - actually I think that undressed chassis was once on display at the Collier Museum - now known as Rev’s - years ago - I was unable to photograph it then as the museum has always had strict photograph rules - no flash - not a problem today - with I phones - but back then - it was the “””one that got away “”. Anyway - this mite be the chassis for the Rev’s Collection Vanwall . Vanwall only built 5 or 6 .... - there is so much on these cars that I can do a nice job with what I’ve got - but boy would I have loved to have shot a roll of film on that chassis ... oh well ... and the Merit Vanwall kit may make a cameo in this project anyway ...
-
How come nobody’s asked me where this engine is going .. ??
-

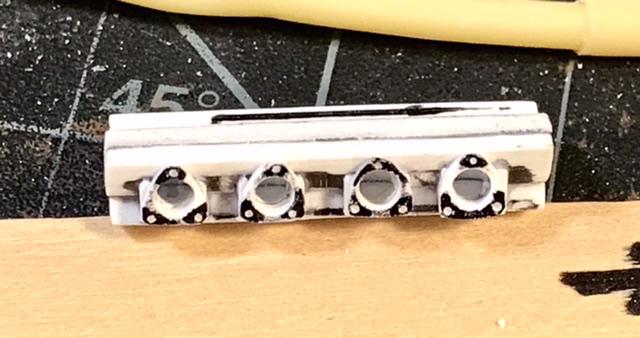

On the right side of the cyl head I’ll make the combustion ports . This engine used Amal single throat carbs in an arrangement very similar to its Norton ancestor ... I mite cheat and use some kit sourced exhaust pipes from Fernando Pinto’s very good Vanwall kit. Not Sure - maybe ...
-
The cyl head exhaust ports and flanges under construction ... evergreen strip and lots of liquid glue...
-
2 things to pay attn to while making the cyl head. The angle for the cam boxes - should be 60 degrees - and I drilled thru the head for the openings for the coolant tubes - so that I’ve got a pattern to use when I solder up the radiator manifold ...
-
Yikes ... that photo of Autolite I with the parachute is wonderful ...
-

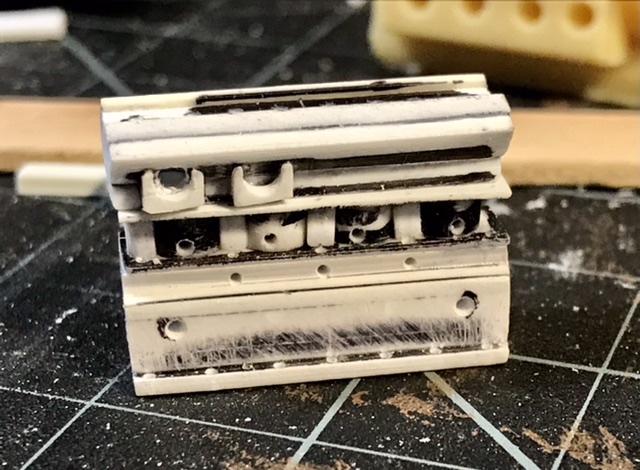

“Growing” the engine block - from the display engine photos you’ll see that the block is topped with a row of cylinder castings - I couldn’t quite work out their exact dimensions - but I used .156 evergreen tube - which is 4 scale inches - and a height of .100 - 2&1/2 scale inches in height ... that’s close enough ... the rest is all done with lengths of Evergreen strip and bar and liquid glue ...
-
