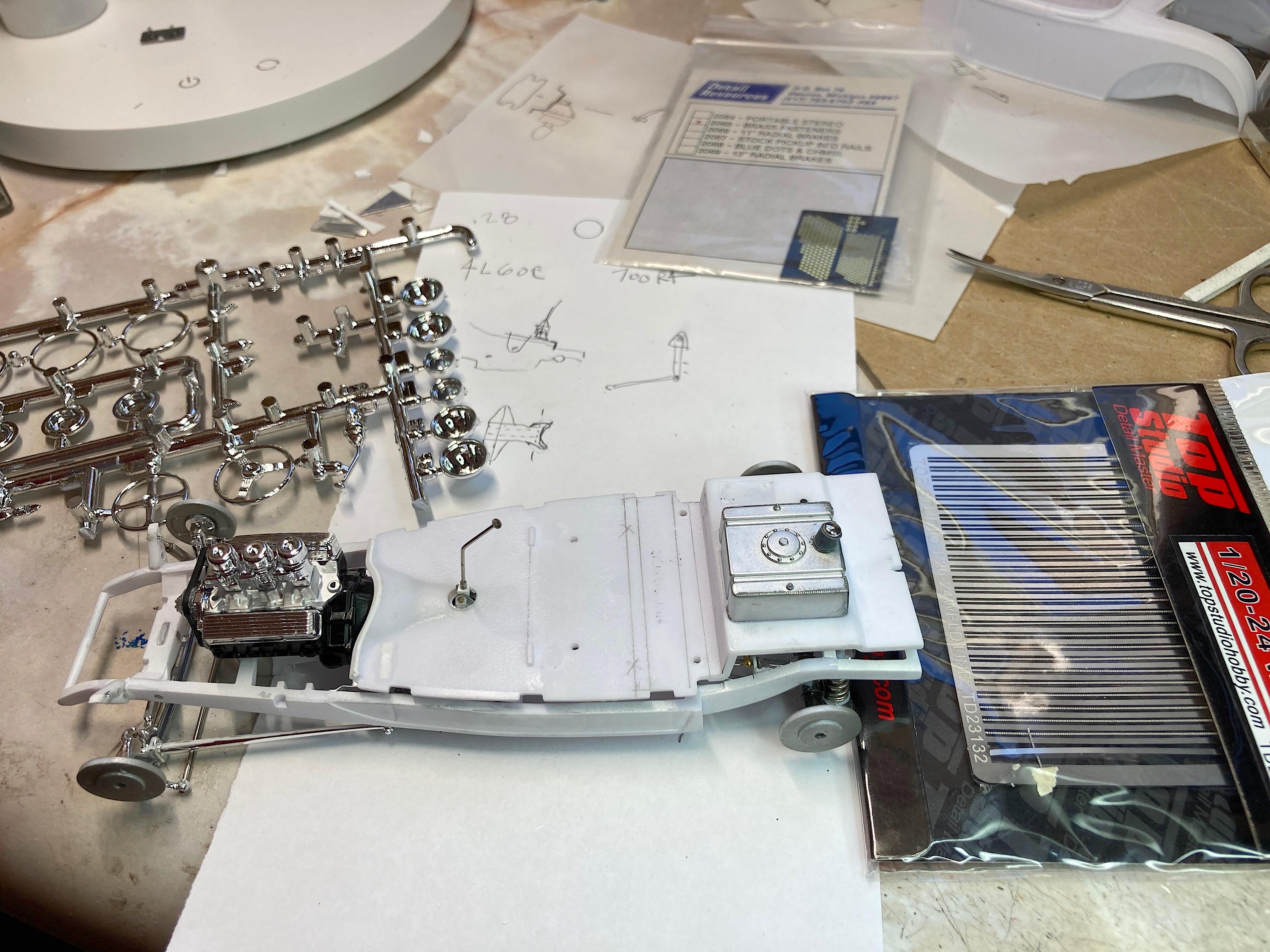

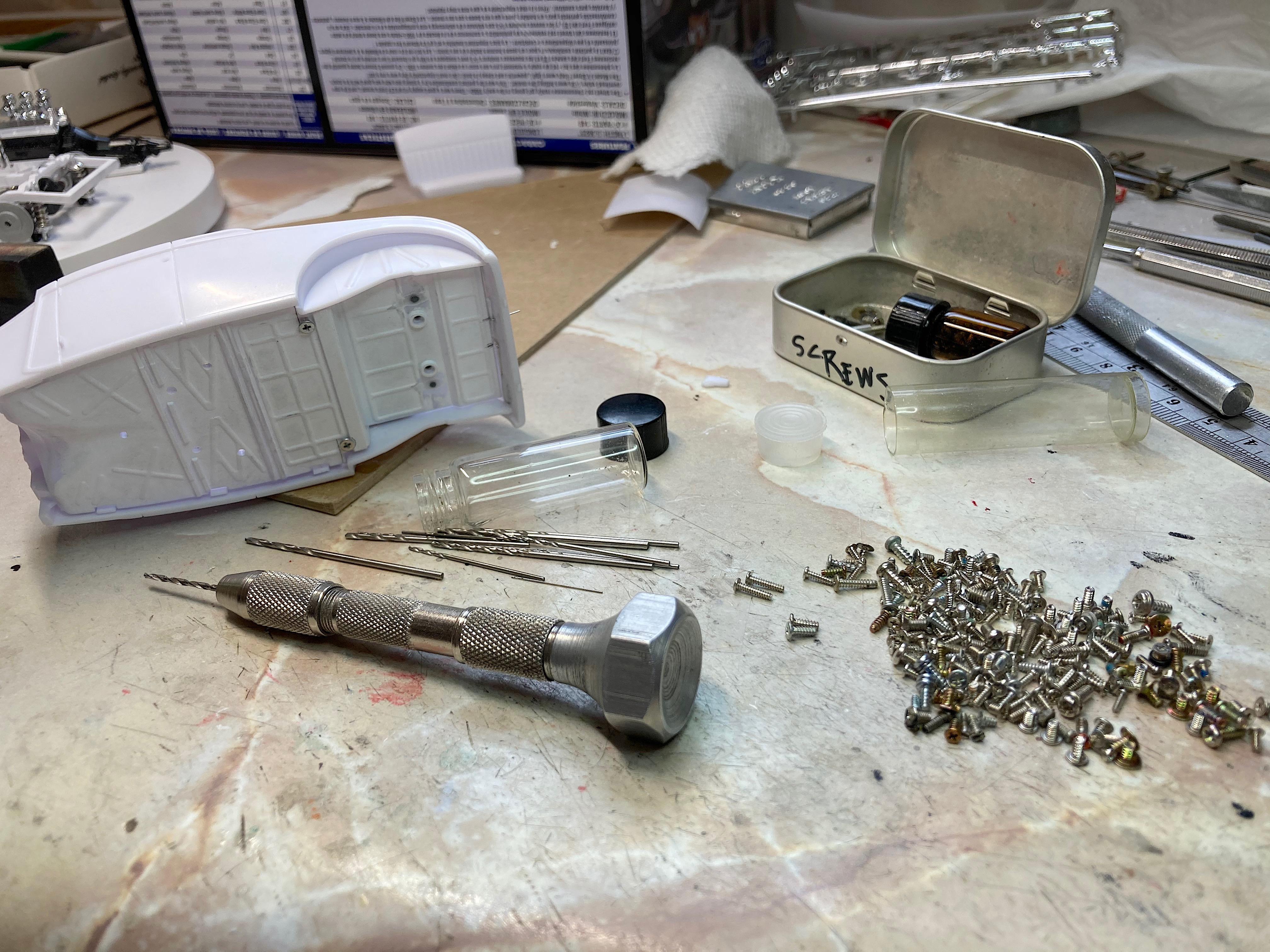

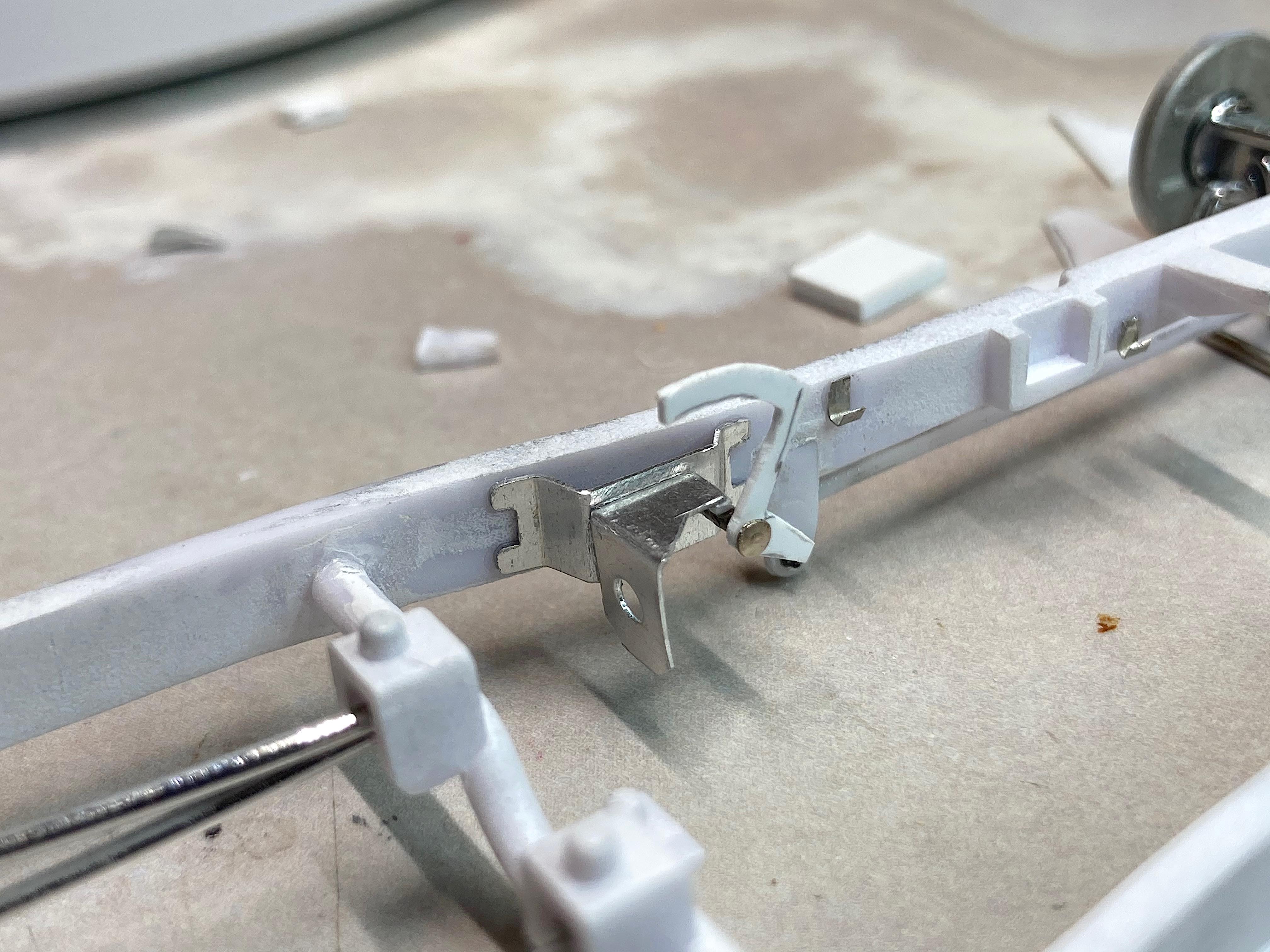

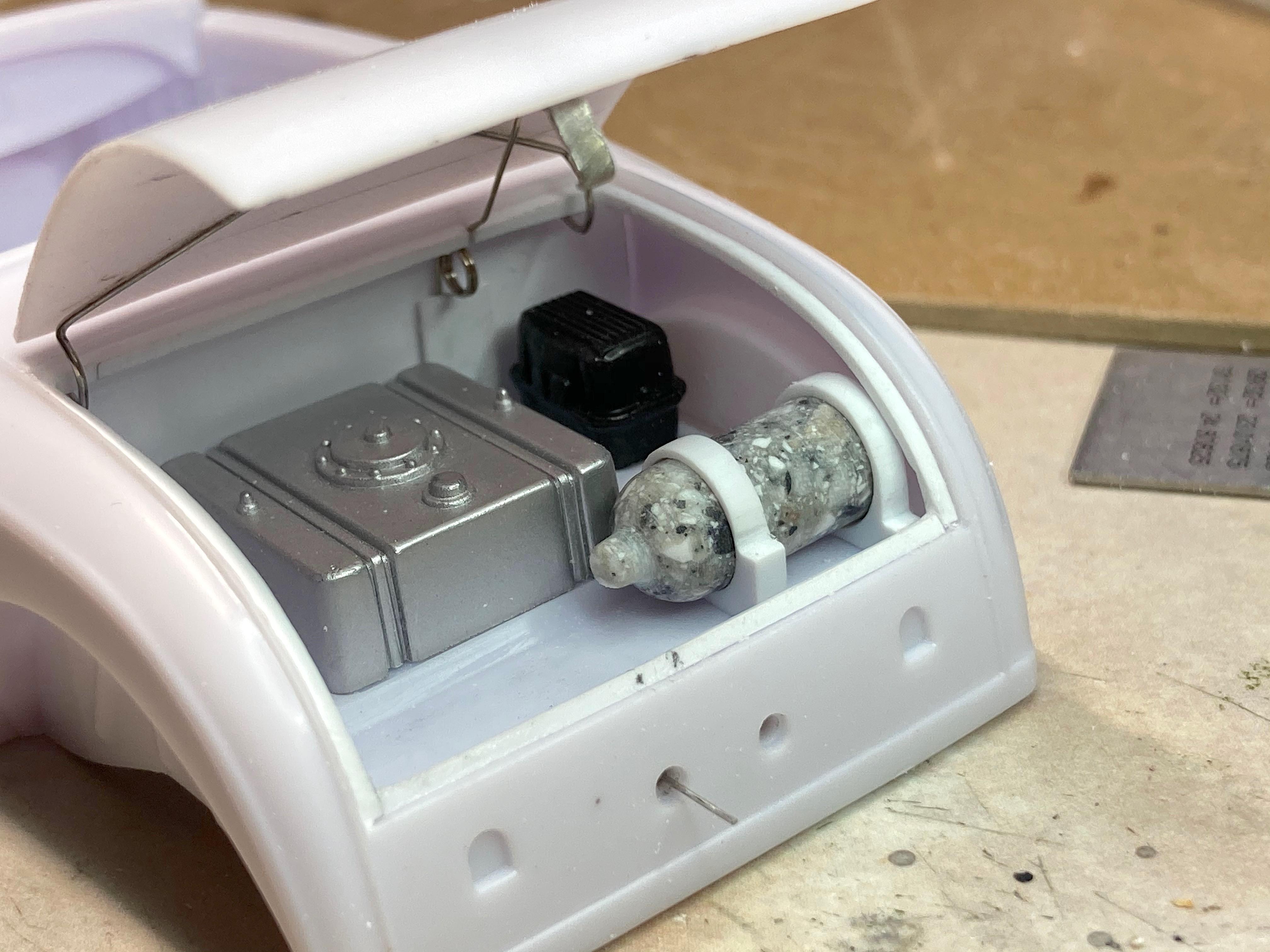

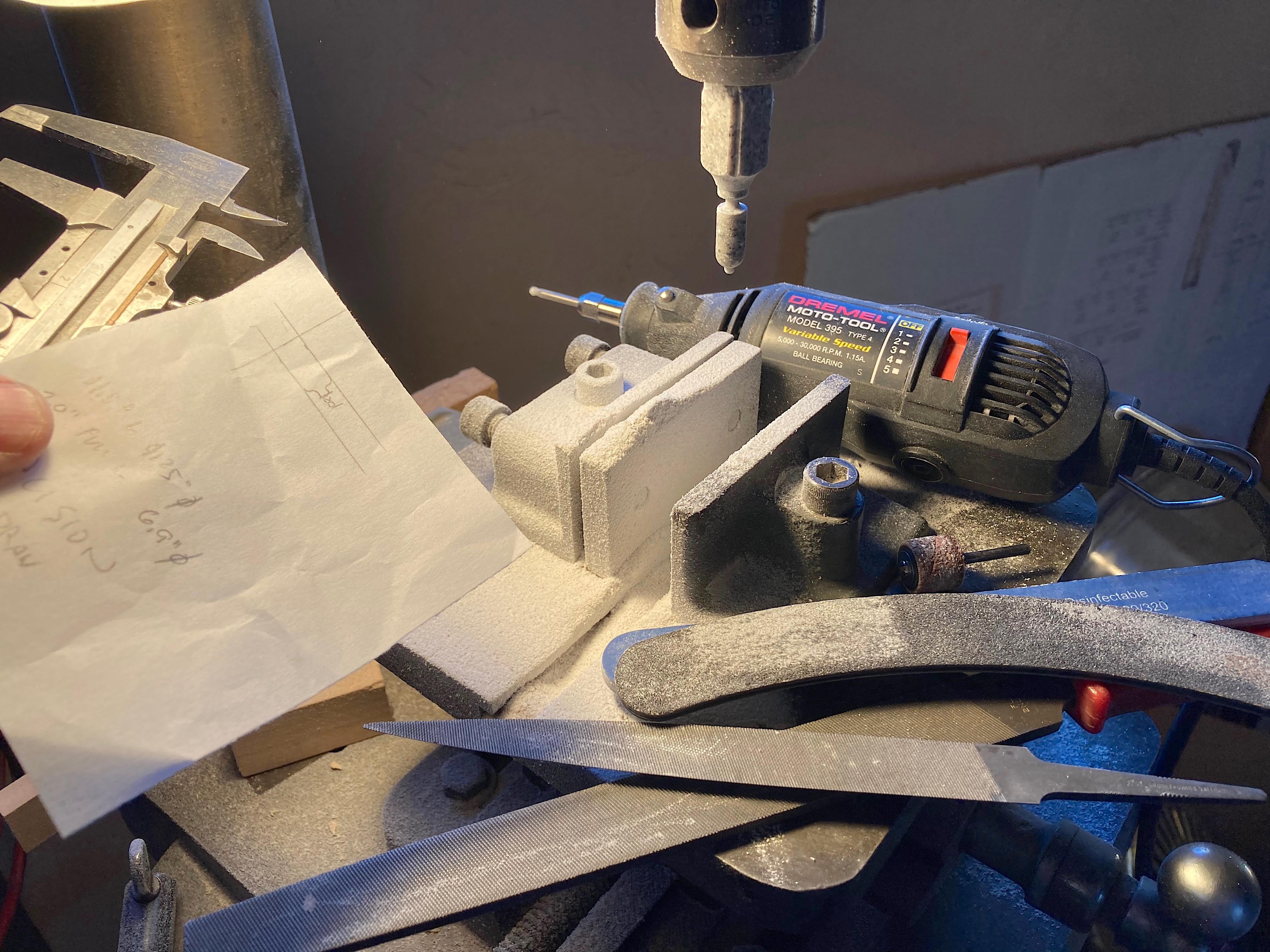

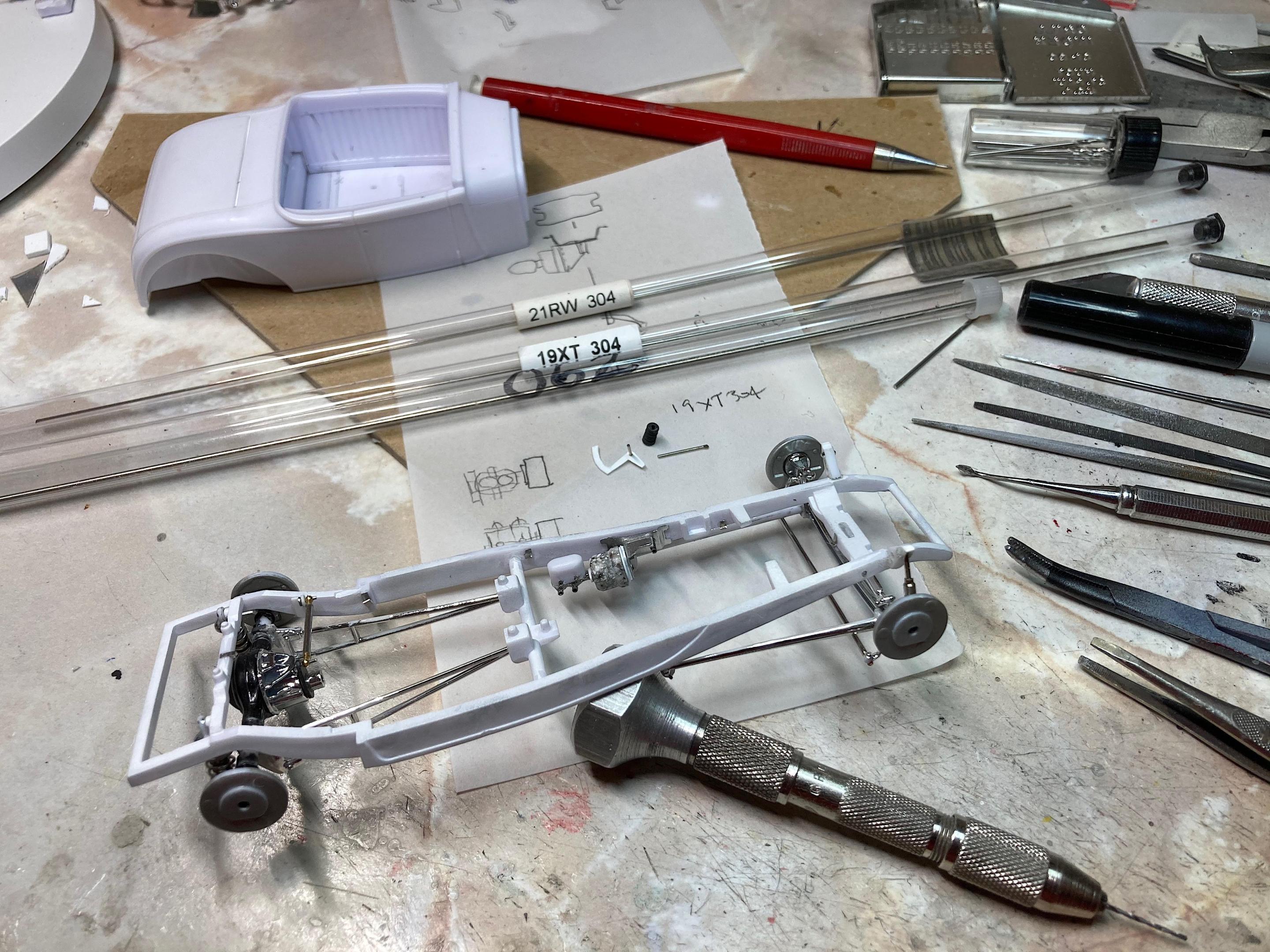

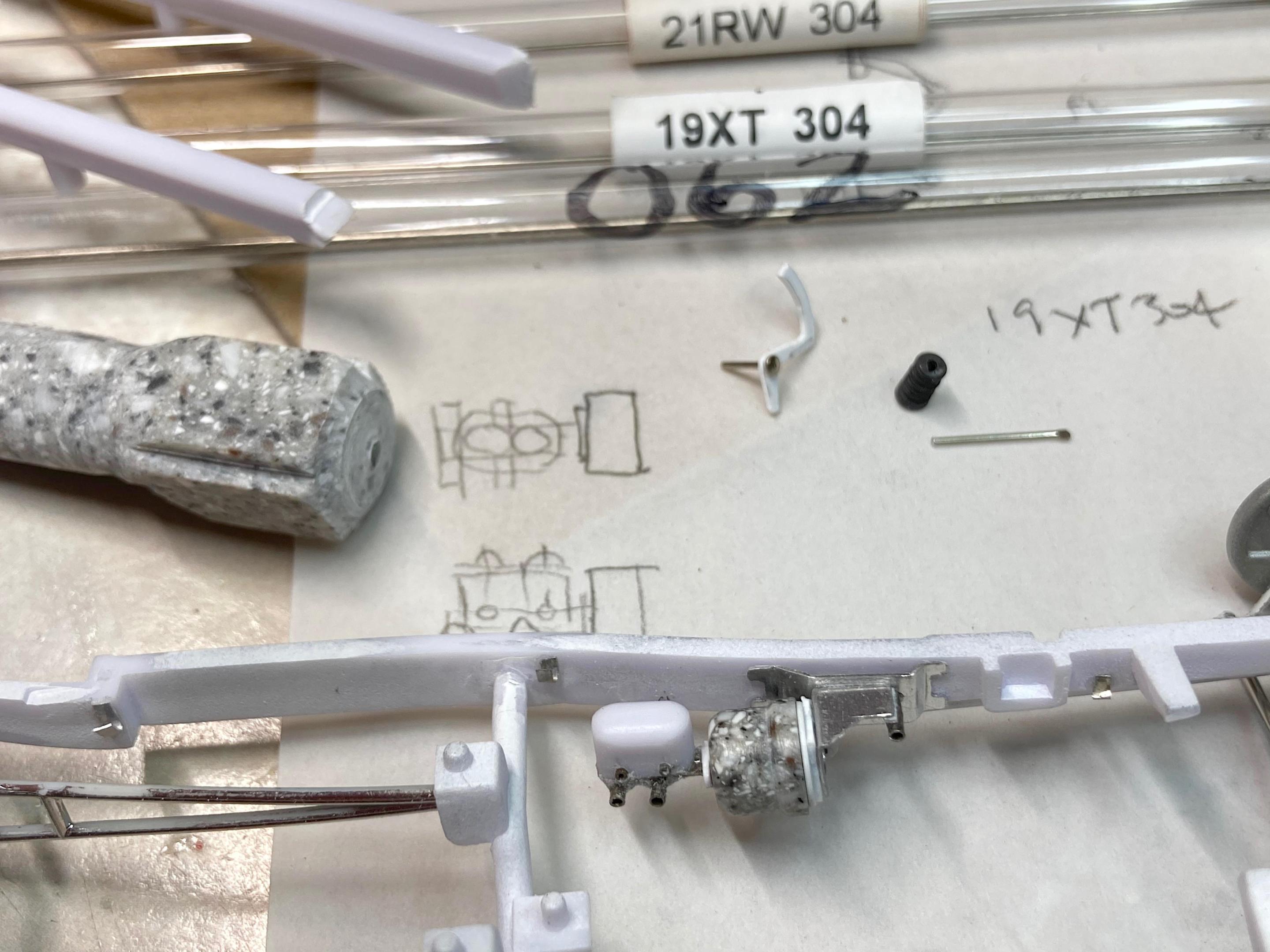

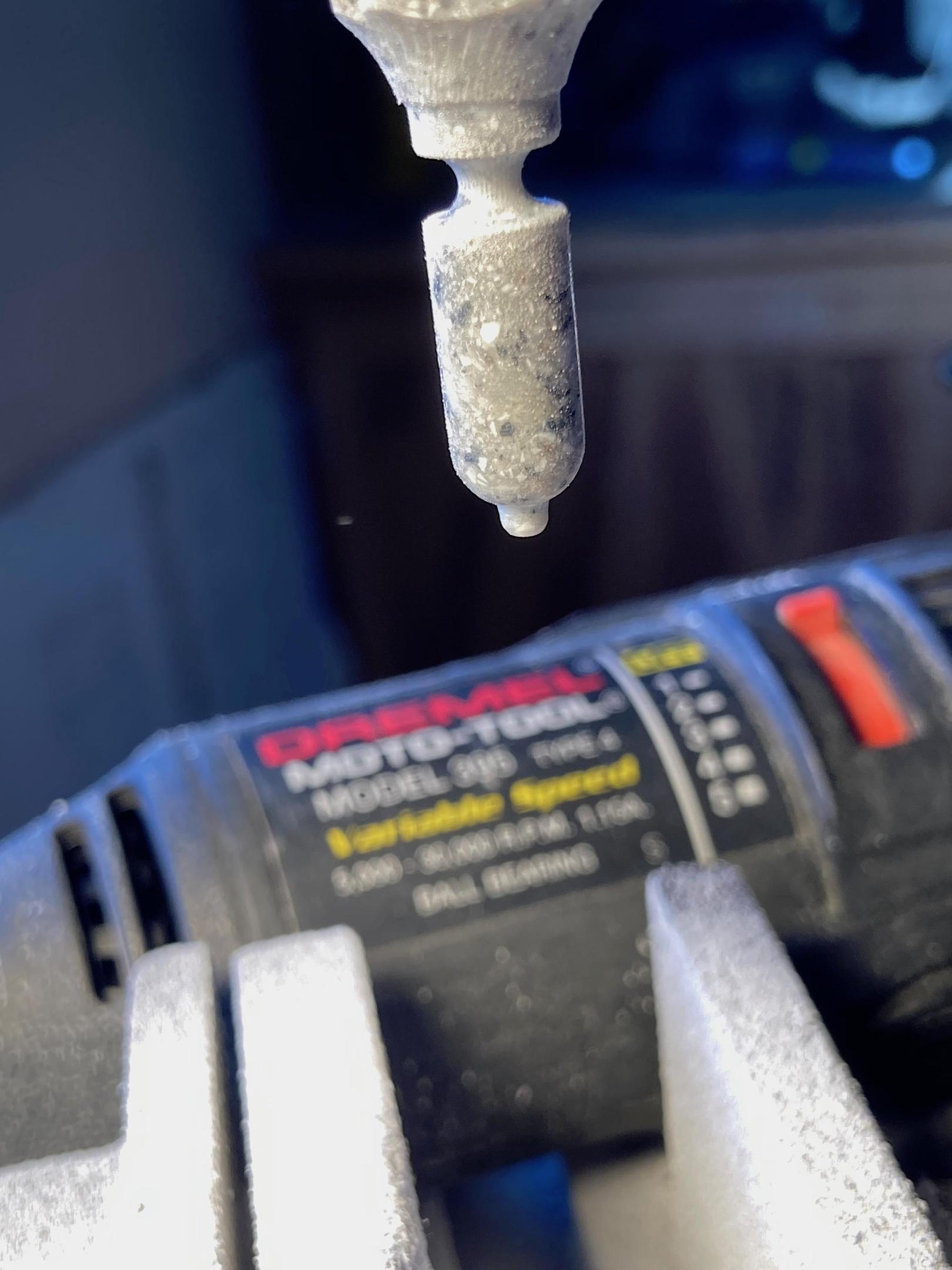

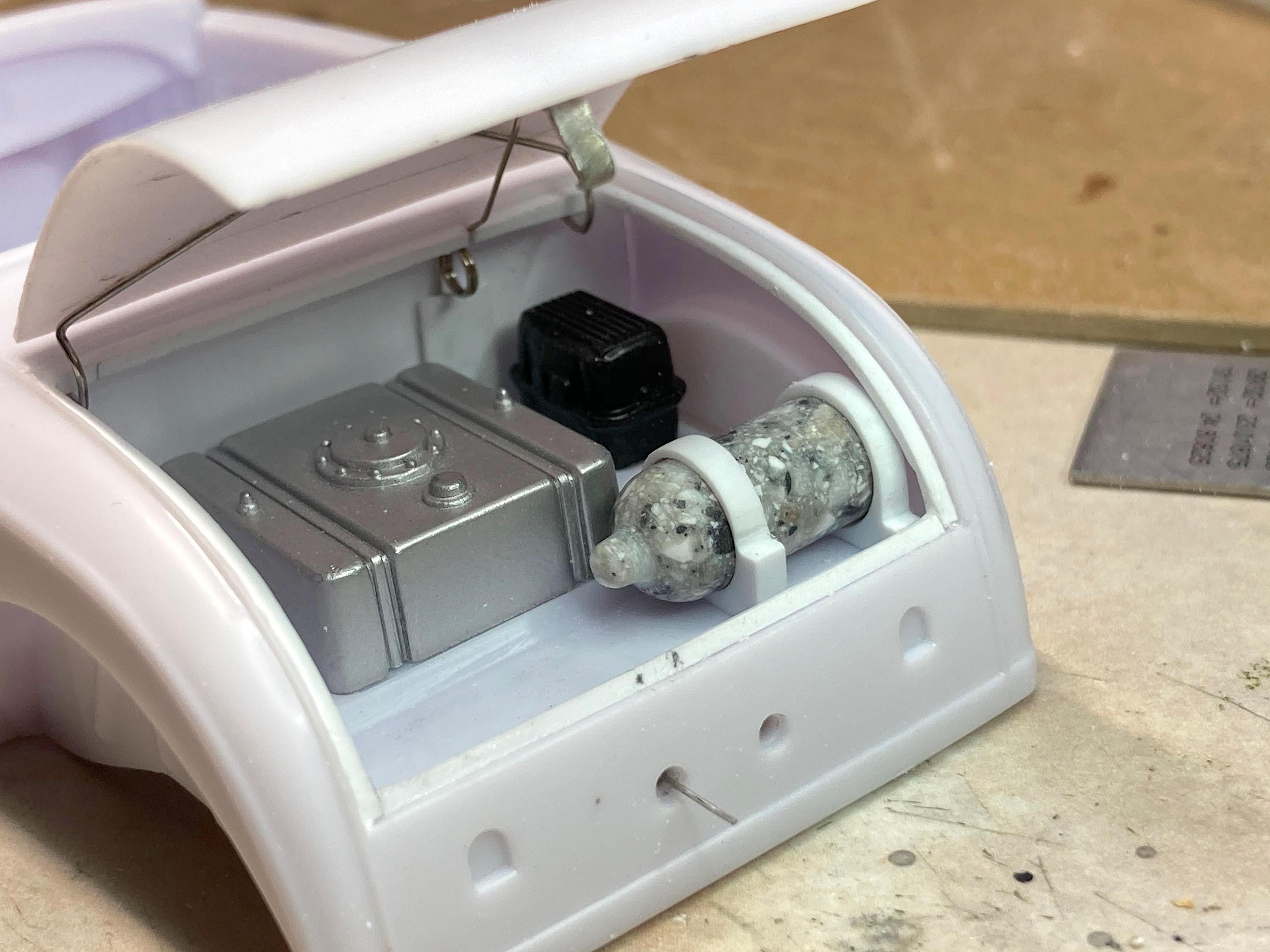

89AKurt Posted January 23, 2023 Author Posted January 23, 2023 (edited) Spent time, which does not necessarily mean make progress, on trying to improve the trunk latch, but I keep forgetting that the more I mess with something, the more likely I'll mess it up. Moved on to adding a cross strut behind the seat, made from some of the big sprue tree, so I could screw the floor to the body. Found a pair of screws from my screw stash (I scavenged from a bunch of toys and junk CD players and such during my life). Made the nitrous bottle from Corian®, using the drill press and Dremel. Picked the biggest one I could find dimensions for, almost doesn't fit. Mount is 0.1" sheet styrene, drilled the holes first. Started the brake master cylinder, specifically the frame mount. Used aluminum newspaper printing plate, and steel tubing, the pin makes it look like I plan to make it move, but not happening. Not sure if I will duplicate the cylinder shown here, or do Wilwood. Edited January 23, 2023 by 89AKurt 3
89AKurt Posted January 23, 2023 Author Posted January 23, 2023 What are the carbs on the Revell - '29 Model A Roadster? Thought I better link to my topic about the engine and transmission.

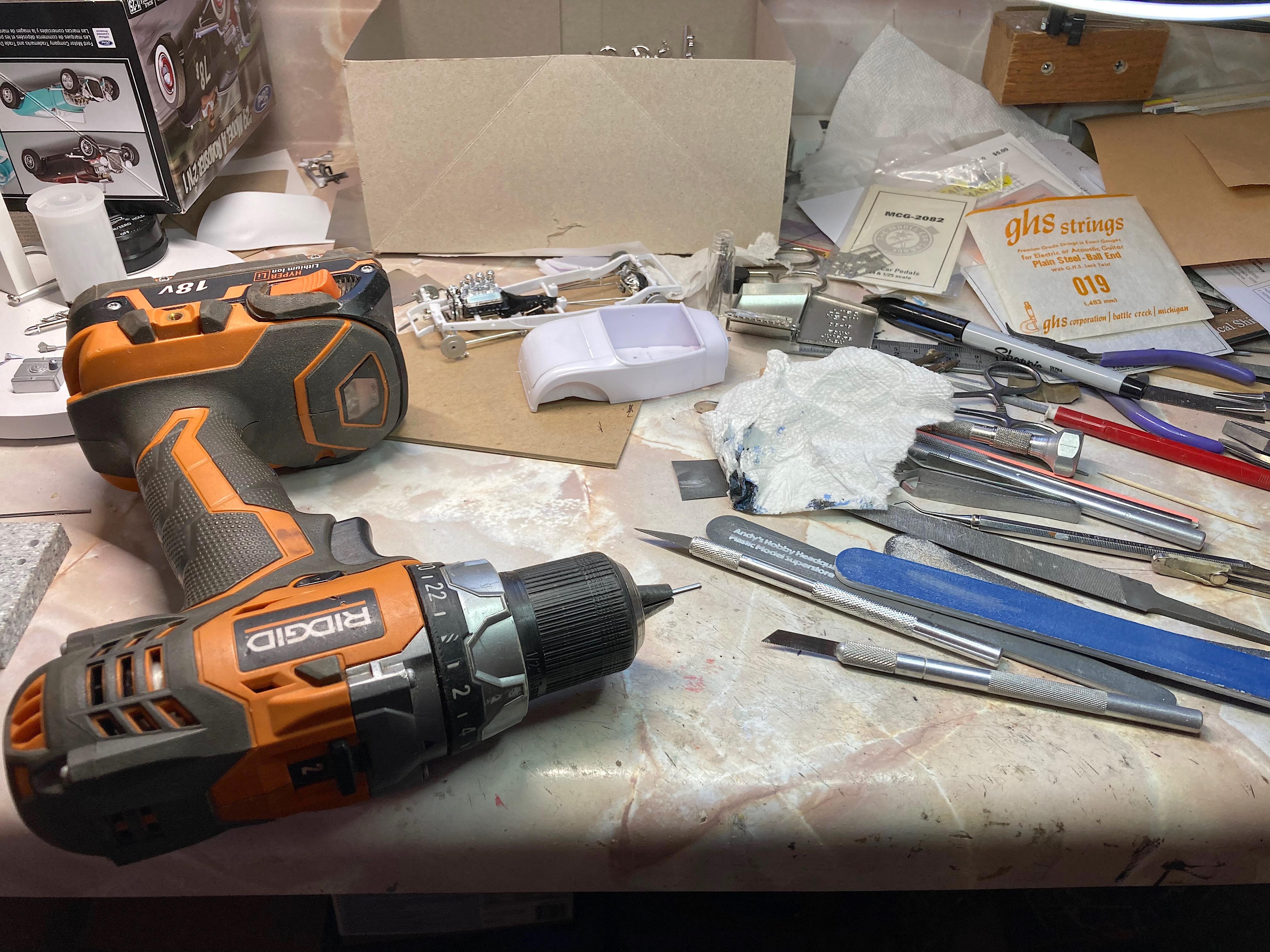

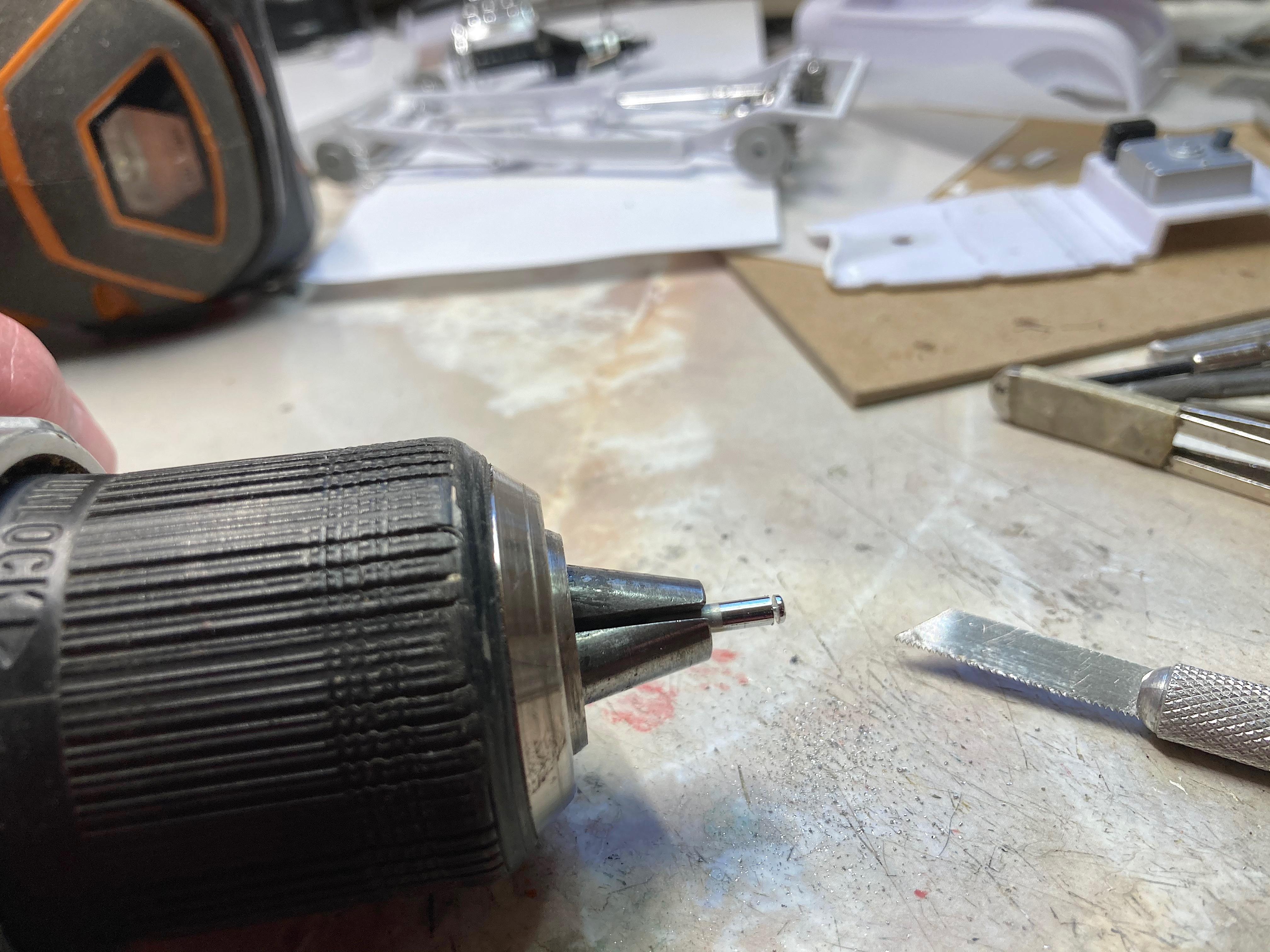

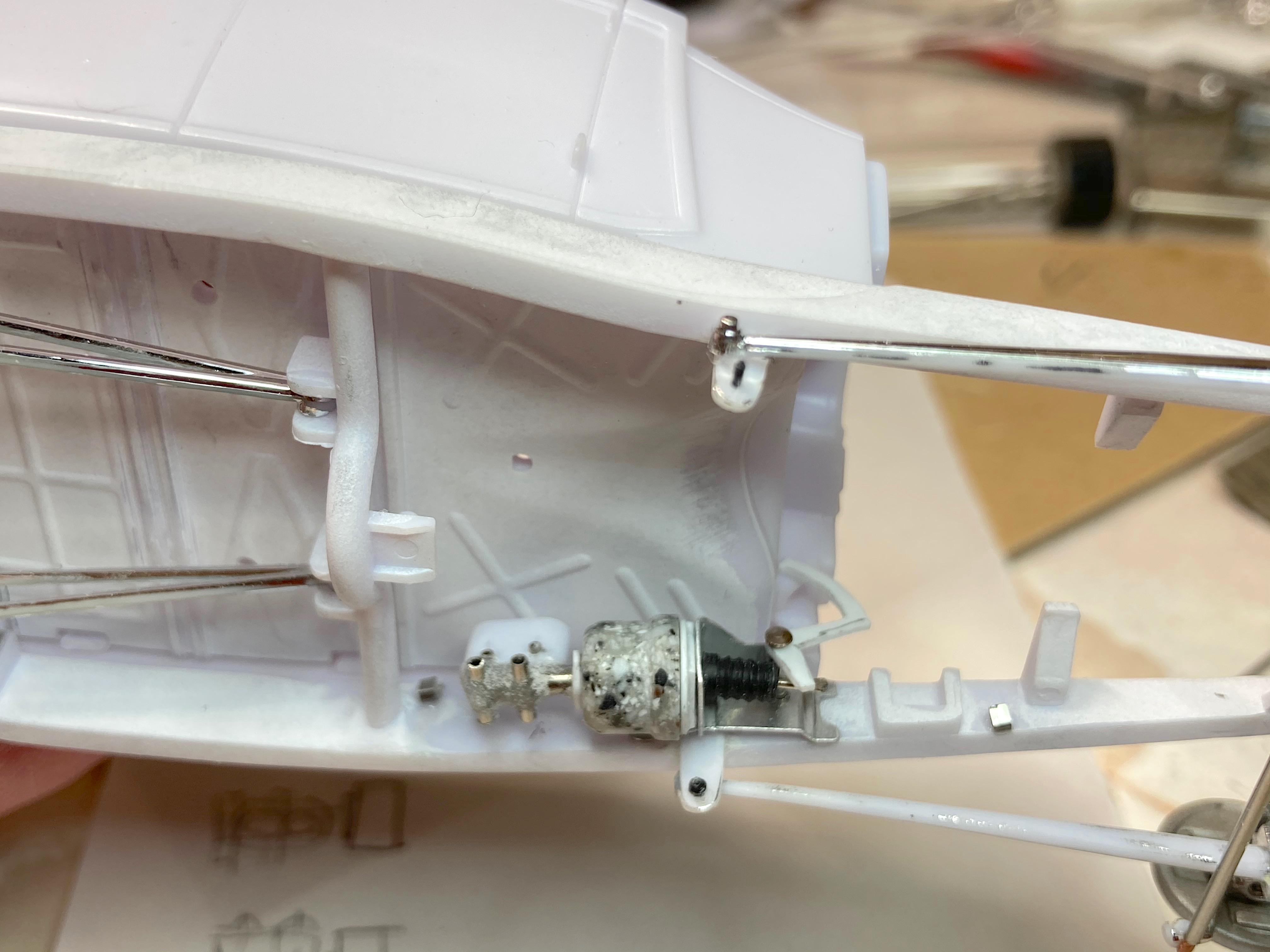

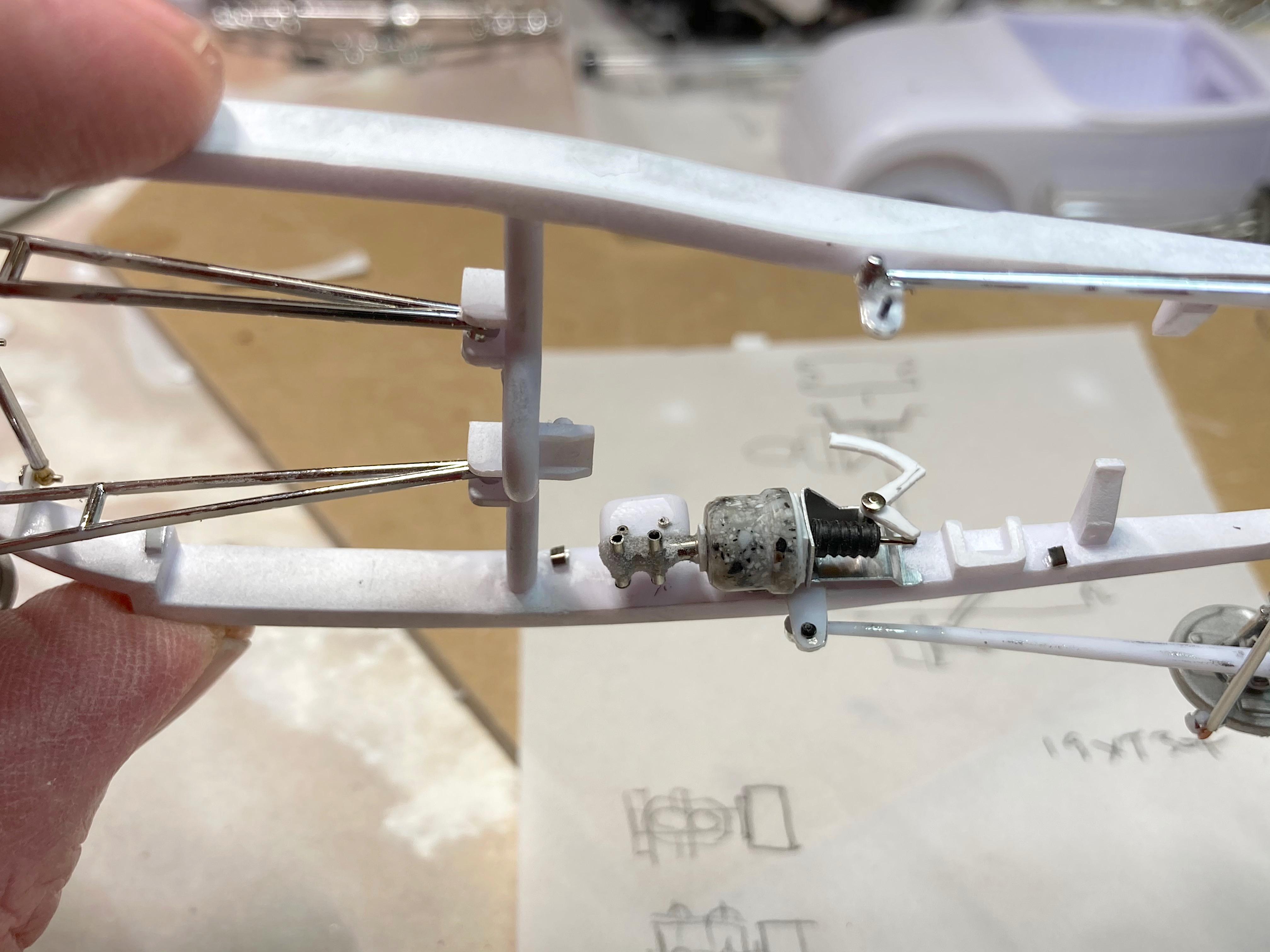

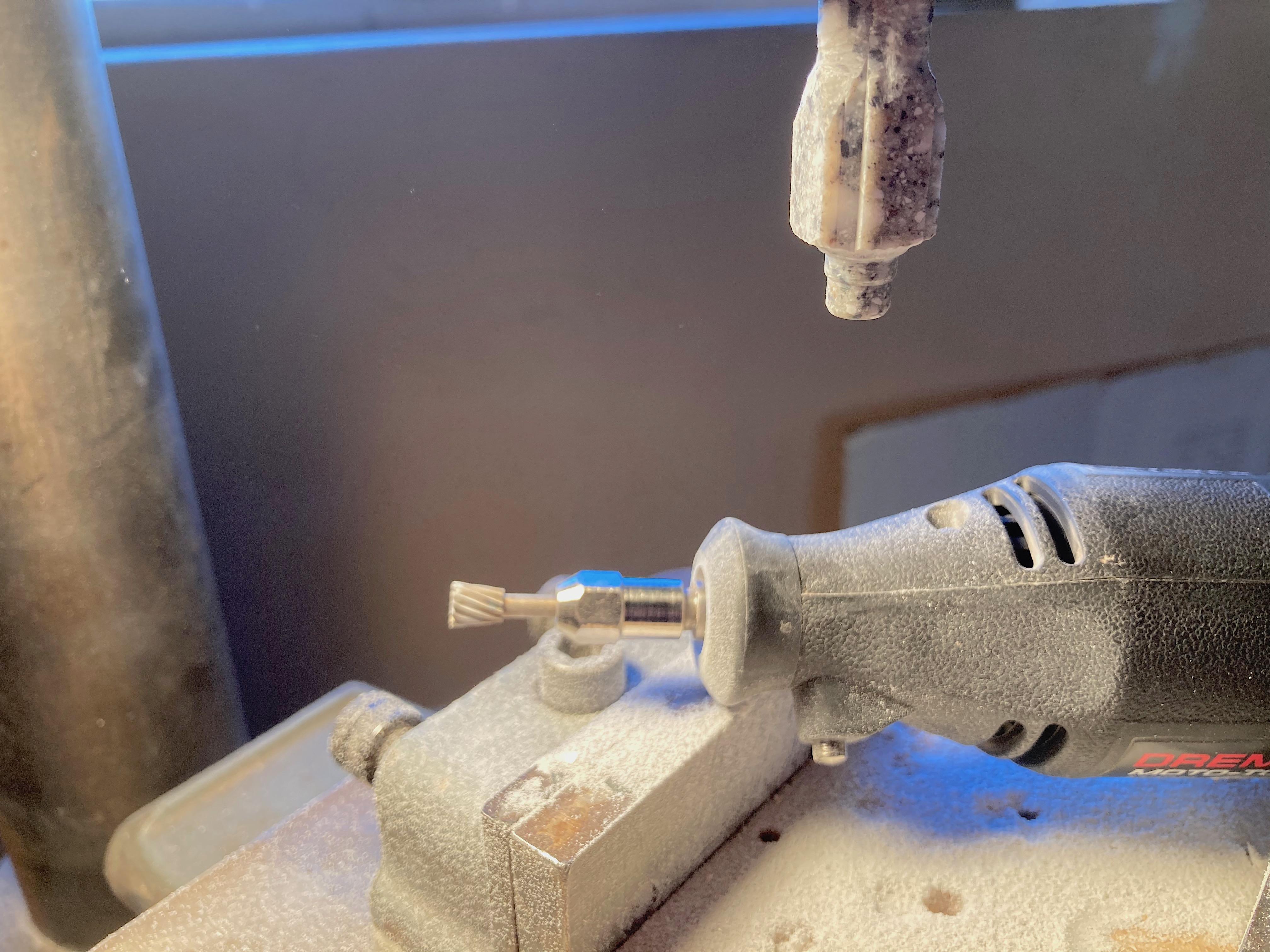

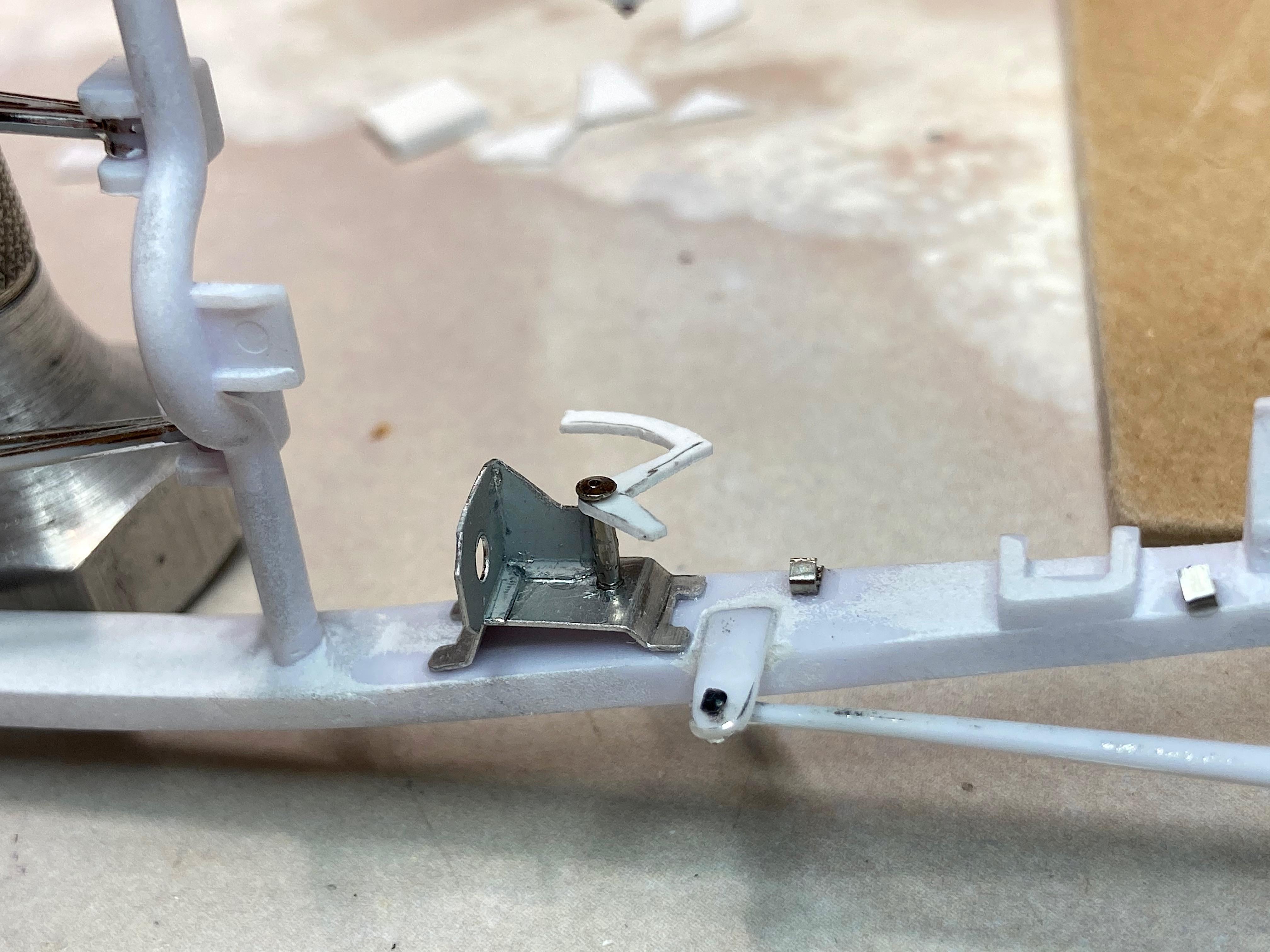

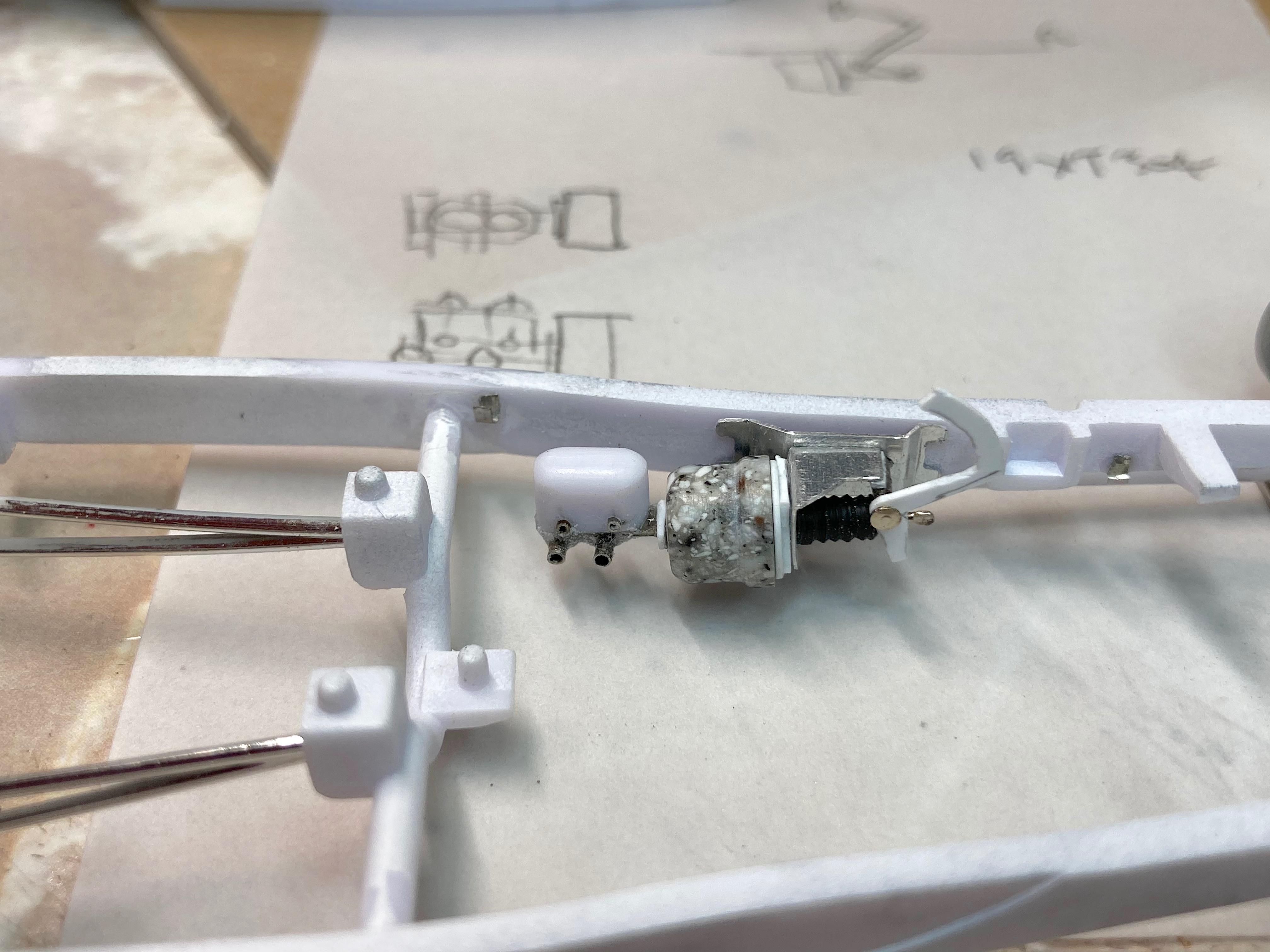

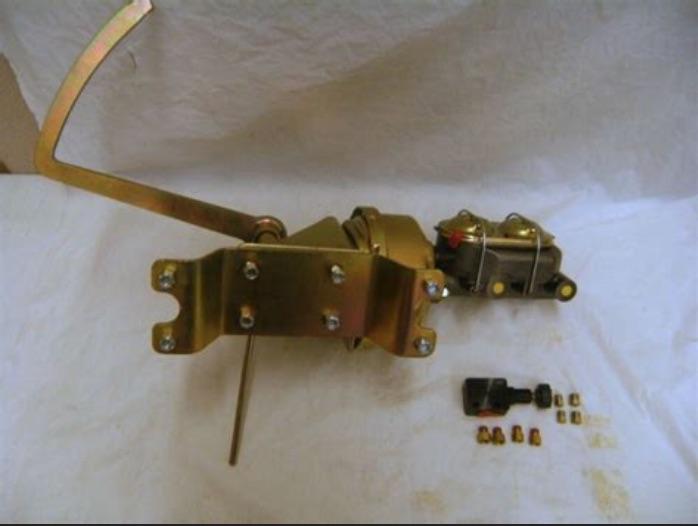

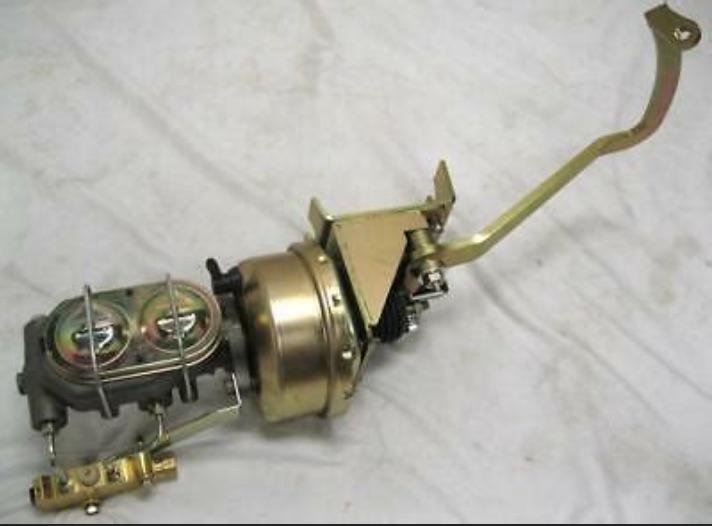

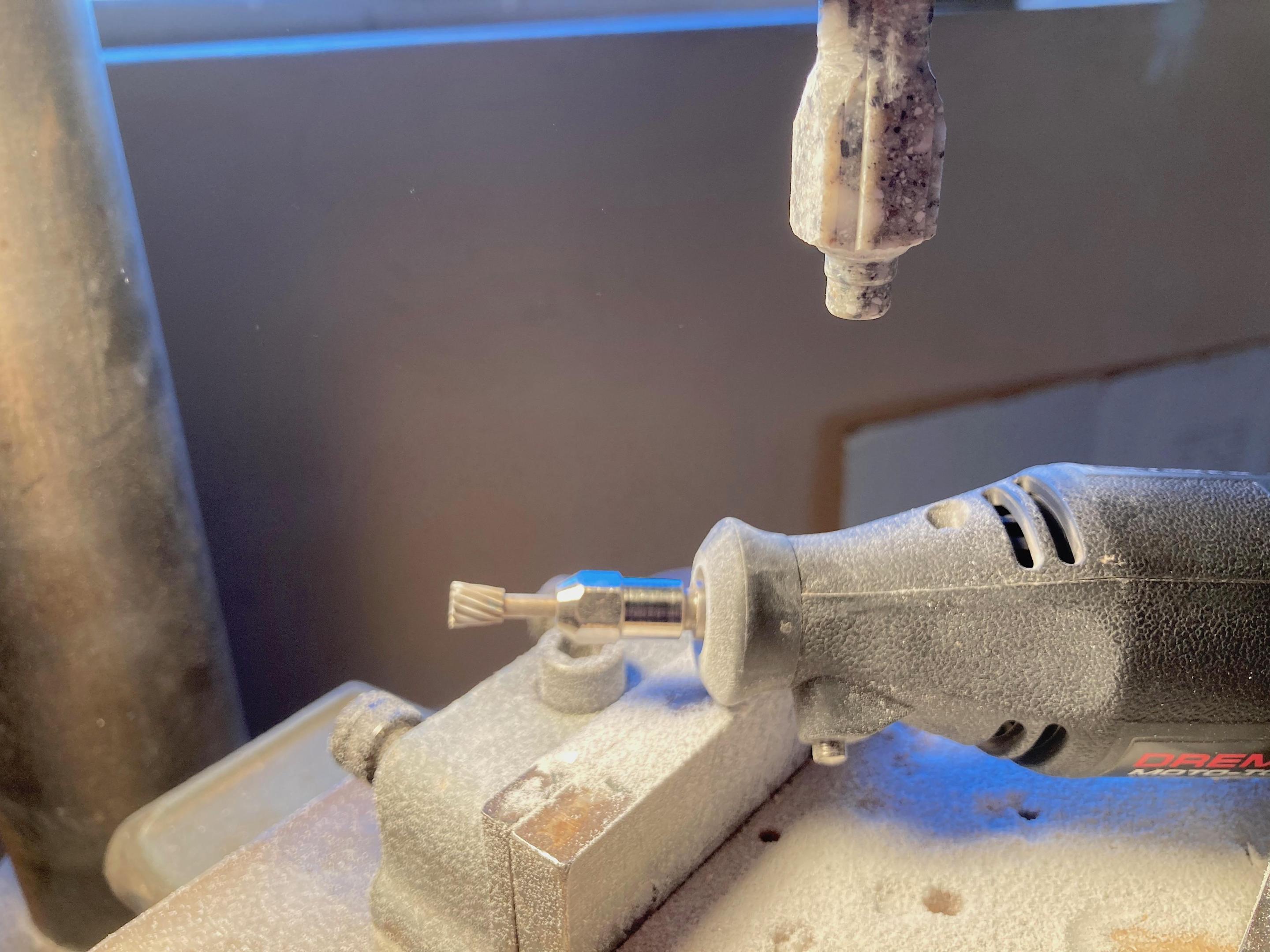

89AKurt Posted January 29, 2023 Author Posted January 29, 2023 On 1/23/2023 at 3:44 PM, bobthehobbyguy said: Nice work so far. Appreciate it. On 1/23/2023 at 8:27 PM, slusher said: fantastic work Kurt! Thank you for checking in. ? Been thinking about this, but haven't done anything all week. Didn't think I located the booster in the proper location, was thinking the pedal arm needs to go through the front of the floor under the firewall (I had a '48 Chevy pickup, that got me to thinking). Modified the bracket and glued further forward. First thing done today was turn the booster from Corian using the drill press, and a different Dremel bit which worked better than the sanding drum. Used black sprue for the bellows, chucked into the cordless drill, triangle files and steel wool shaped it, lucked out that there was a bubble in the sprue so it was easy to drill the hole while still in the chuck. Shirt pin is the shaft, smashed the end with pliers. The kit's funny shaped sprue was perfect for the brake fluid reservoir, not worried about shaping the top because you won't see it. Three different sized steel tubing was used, use the Dremel cutoff disk for cutting and finishing the ends. Superglue and baking soda holds all this together, and fills the gaps, next session I will file/sand to finish shape. I will have wire bent to hold the "cap". I am planning to run brake lines too, you can see tiny aluminum plate clamps on the frame. I did draw this out first, to get an idea of how to make it, no measurements, all by eye. I think someone who does 3D printing should offer this, since the kit totally lacks this part. 3

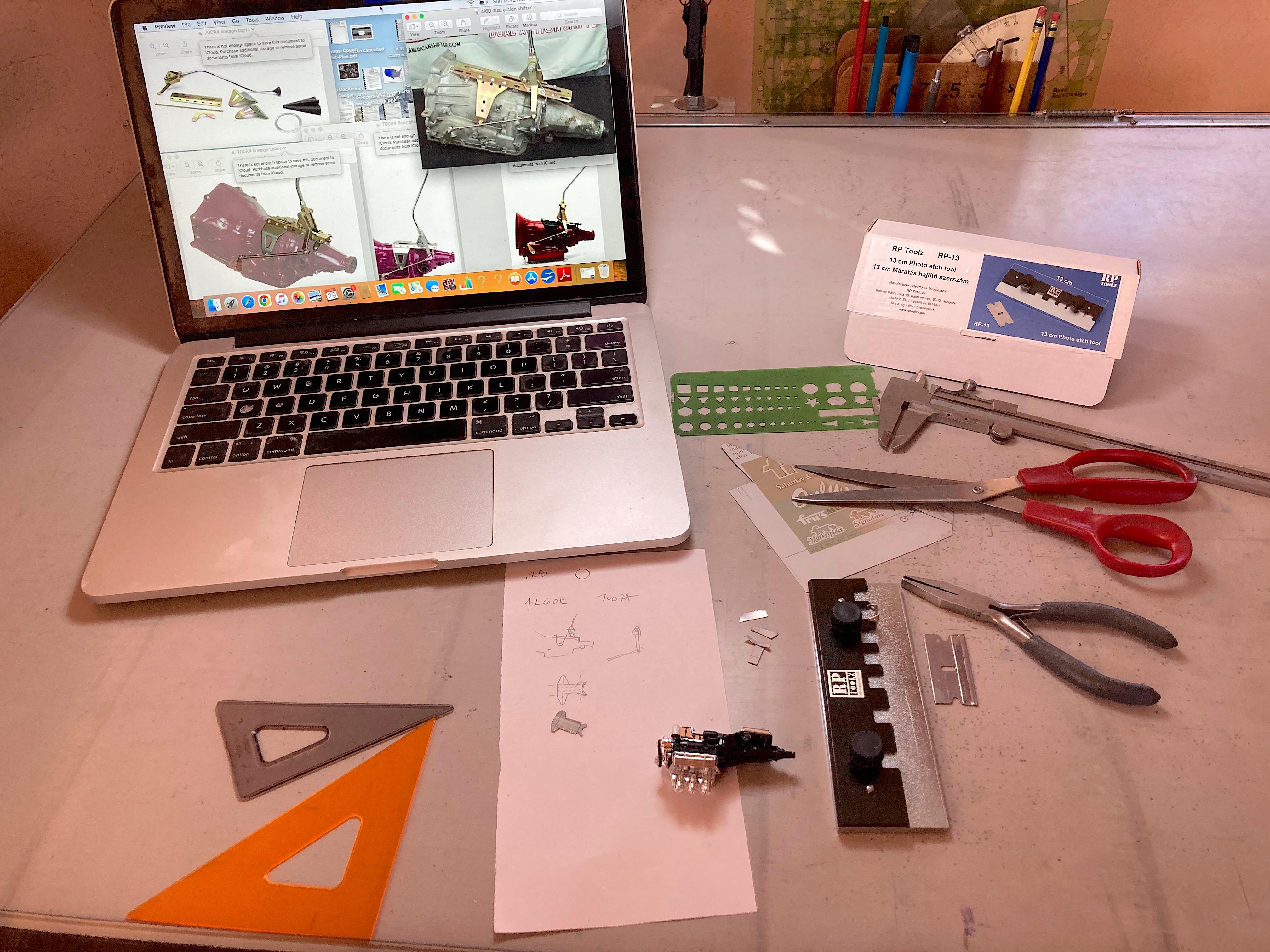

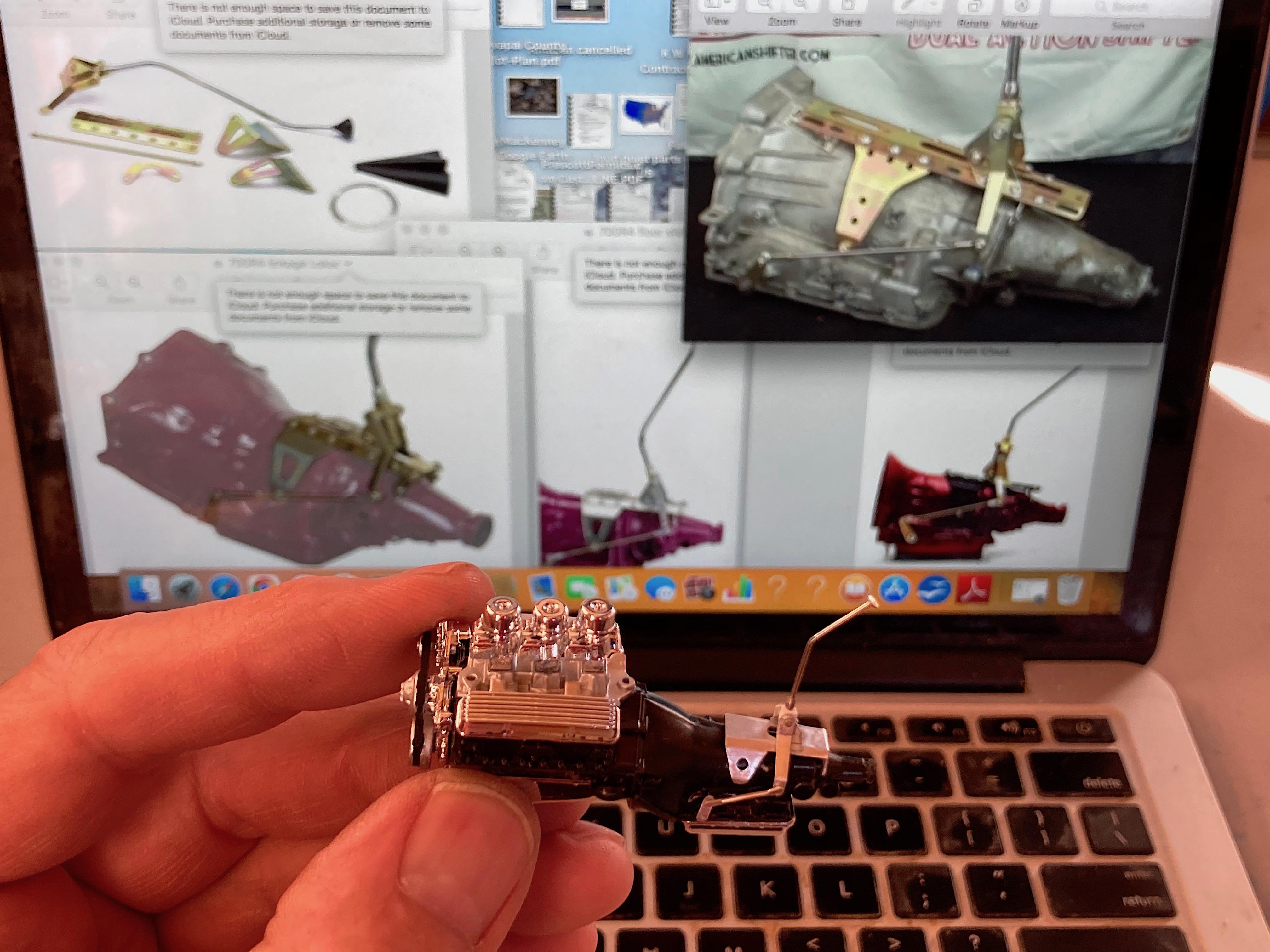

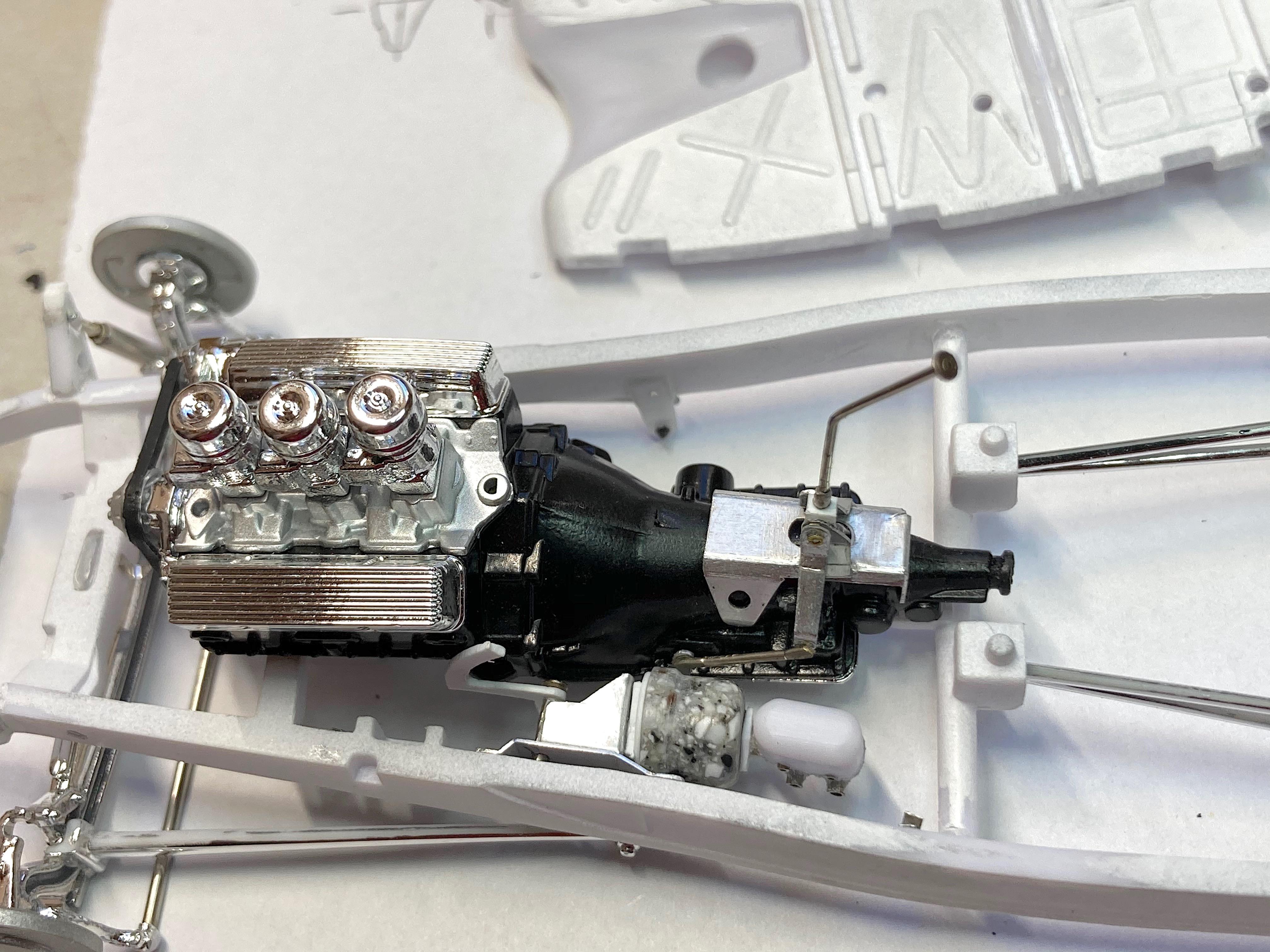

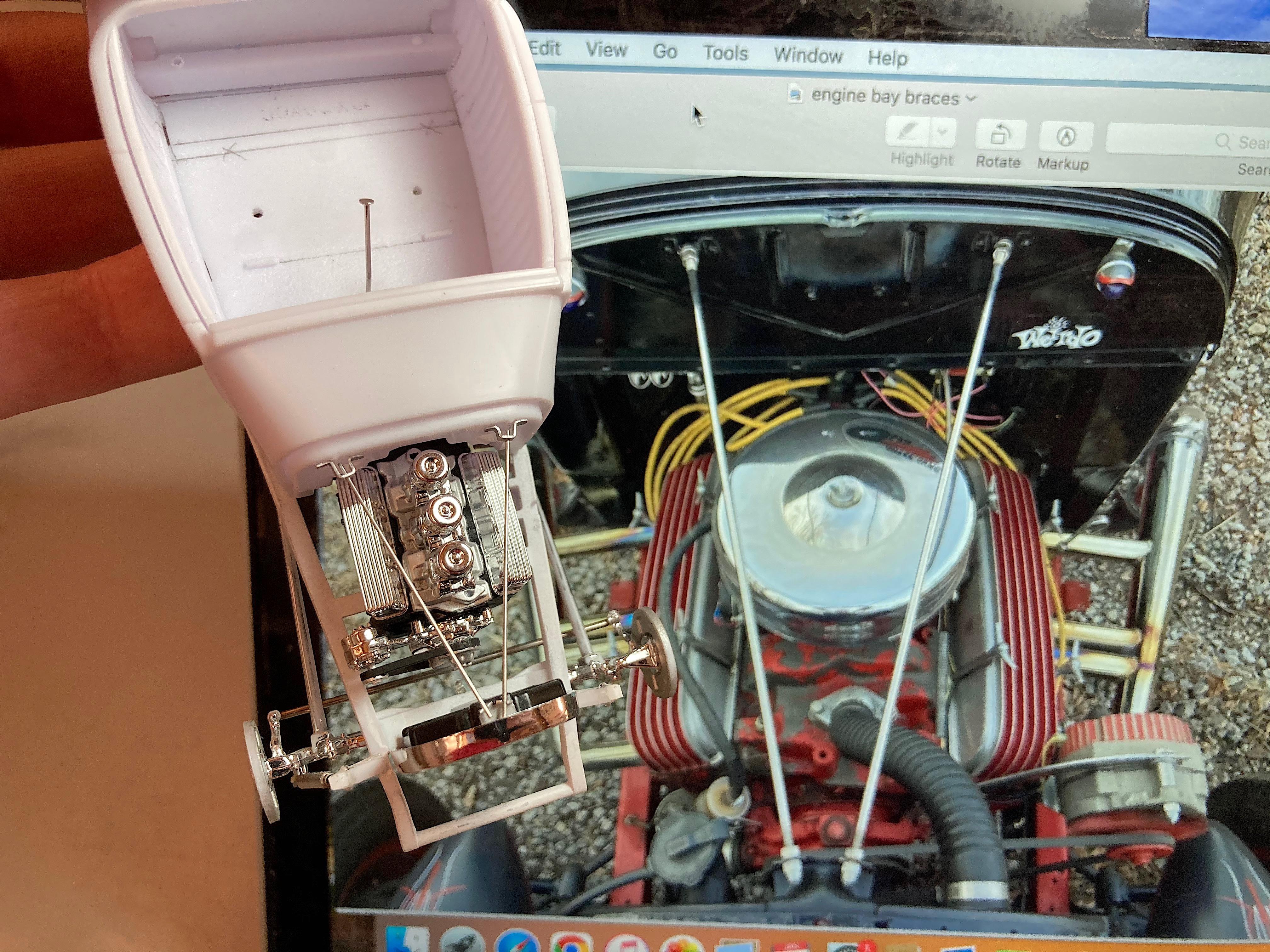

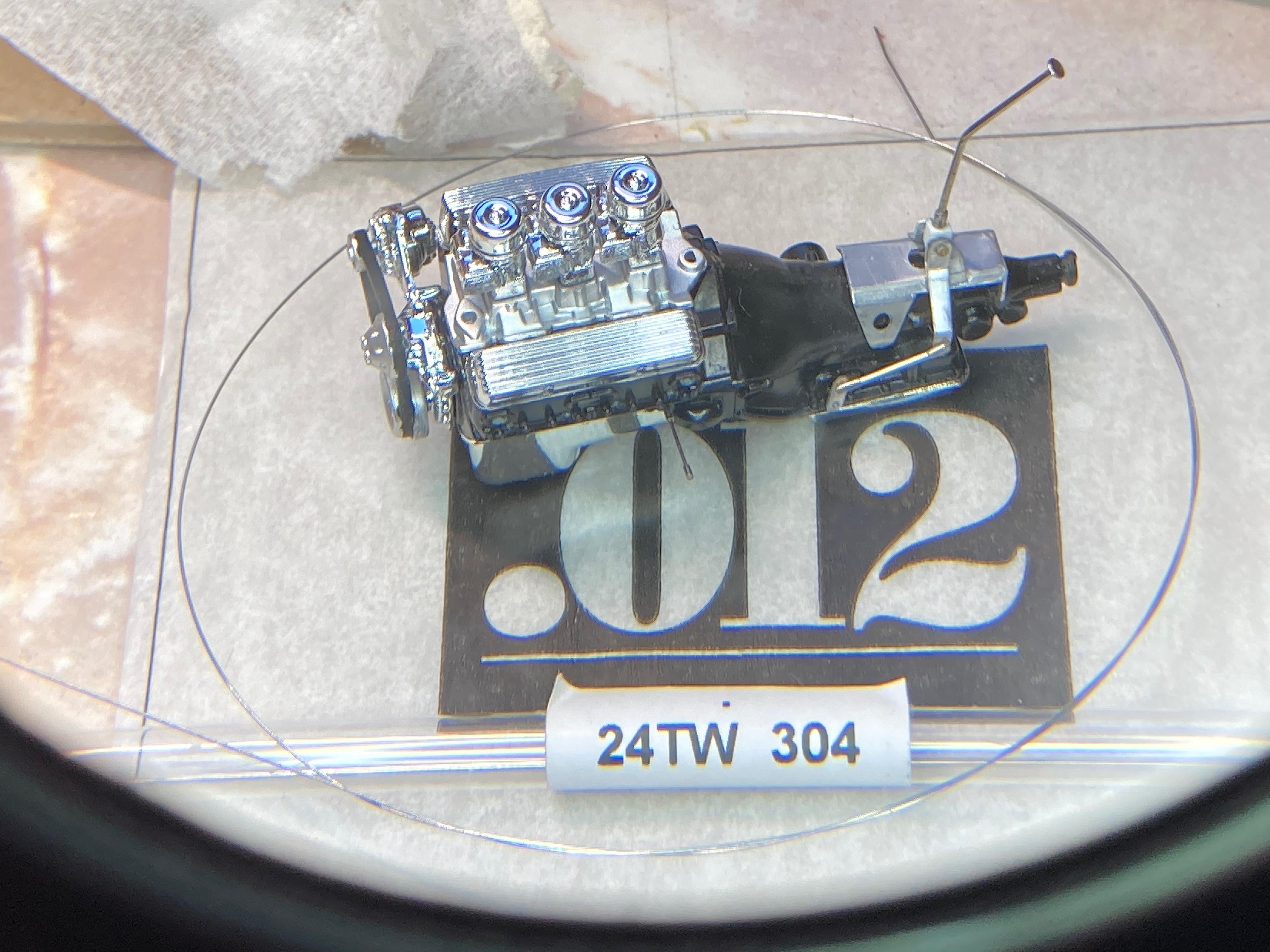

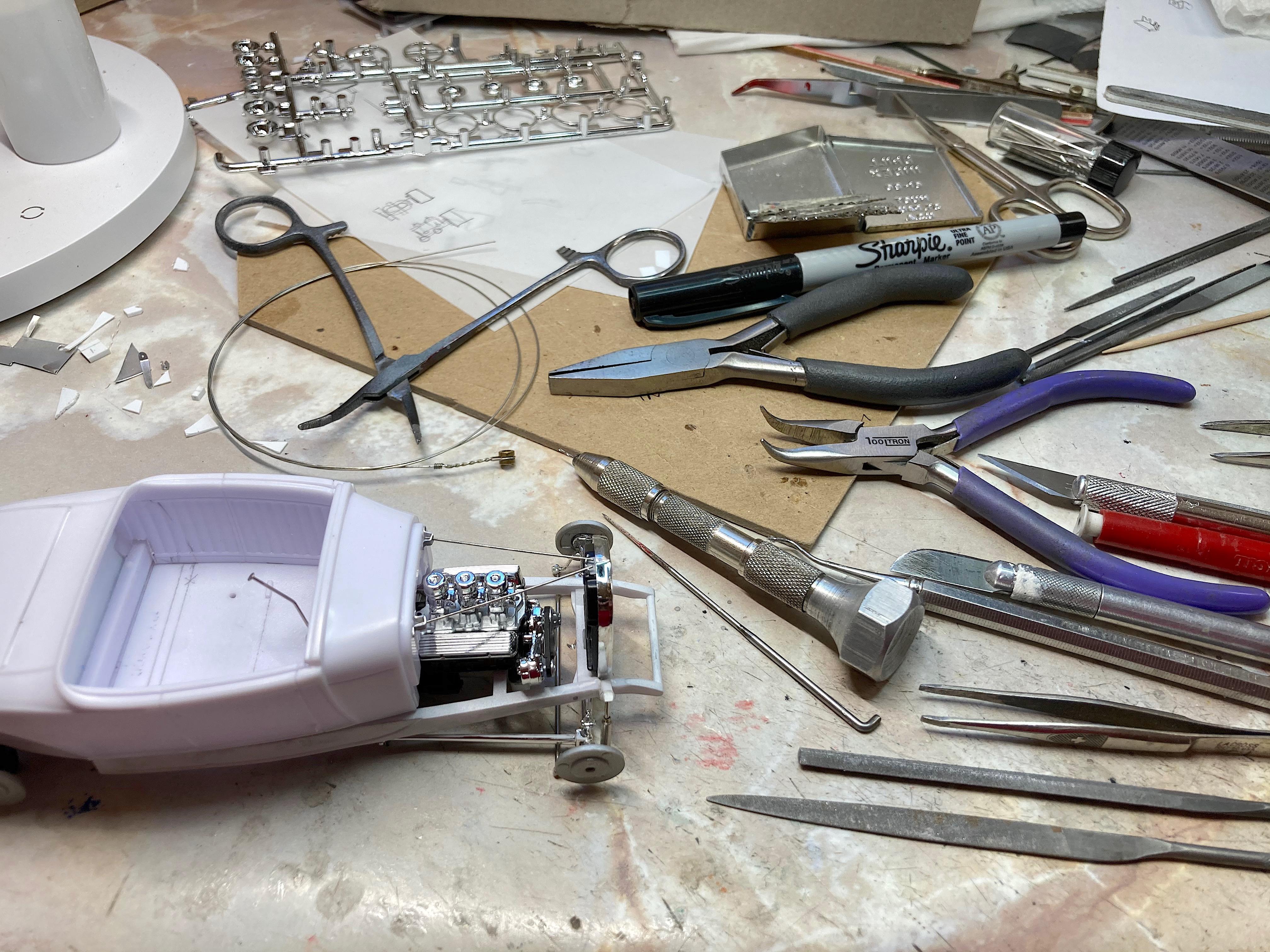

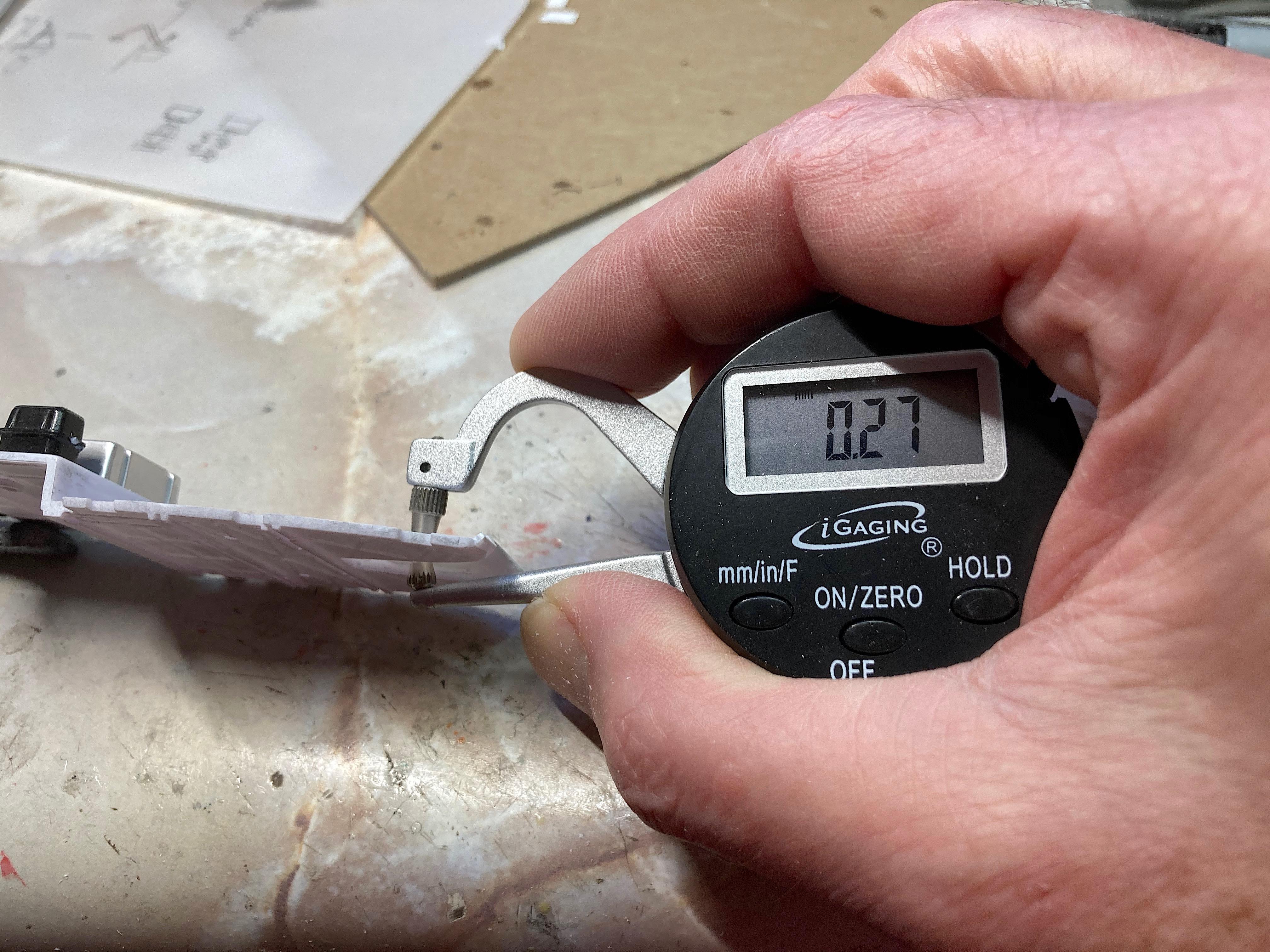

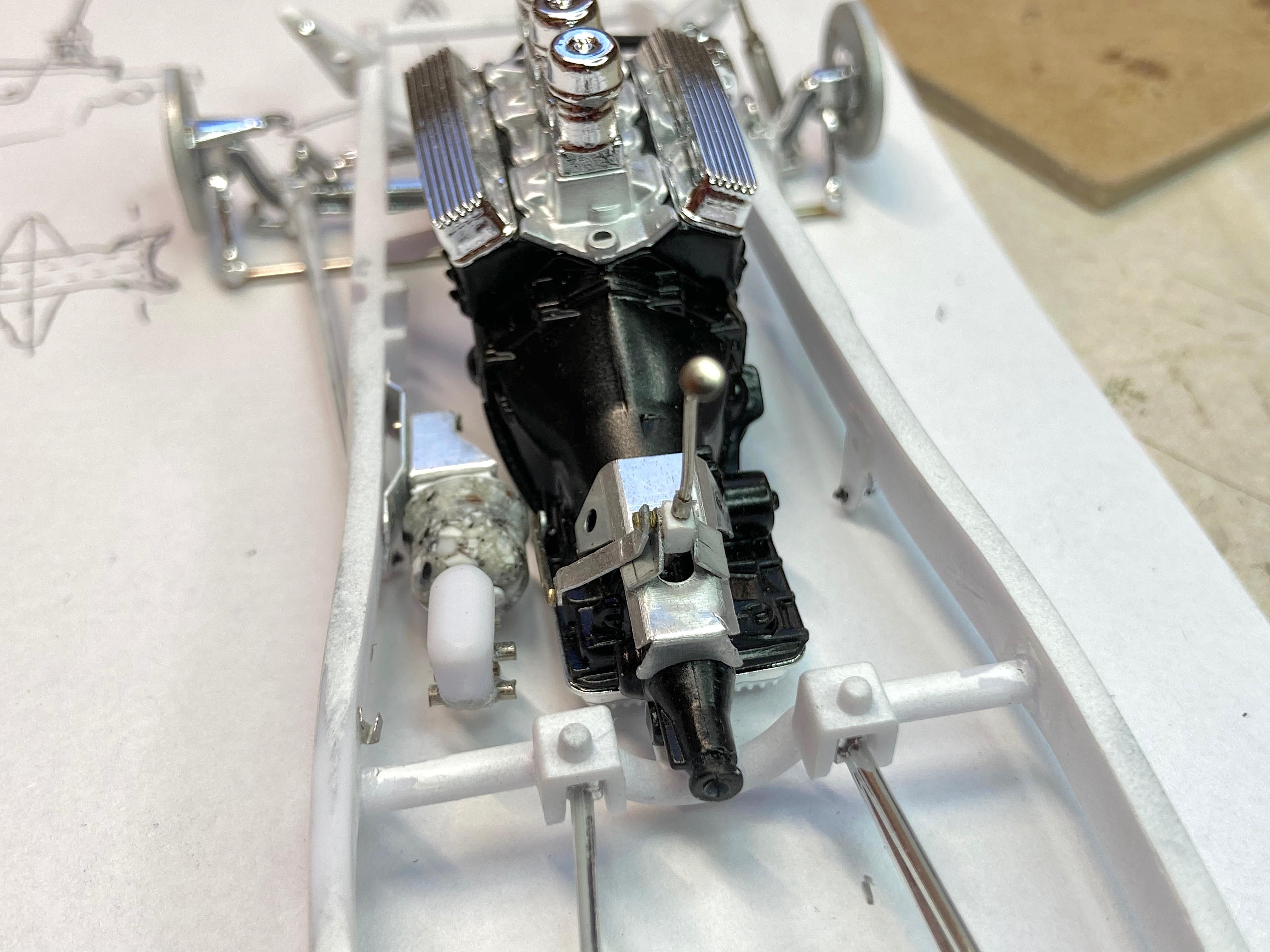

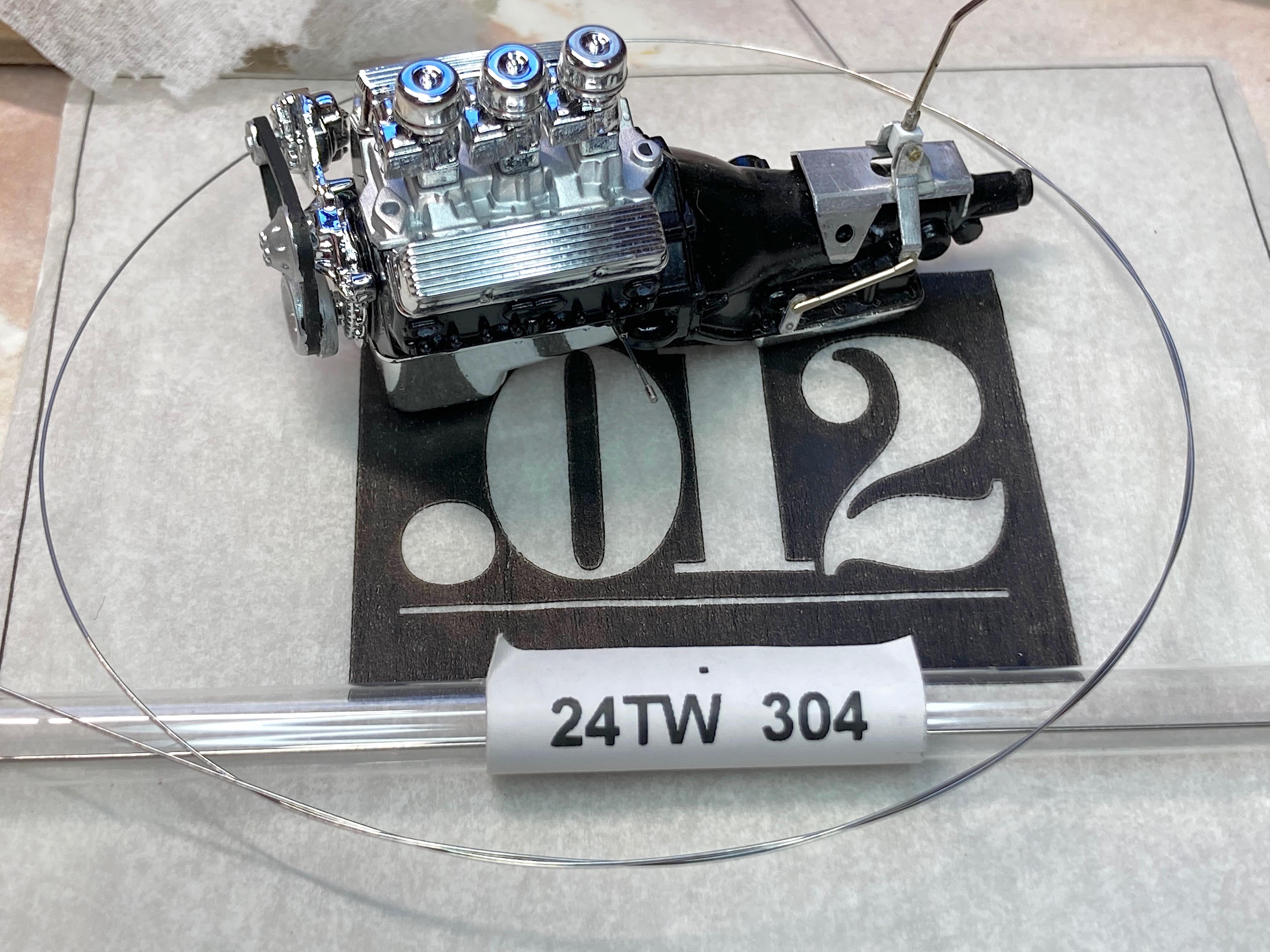

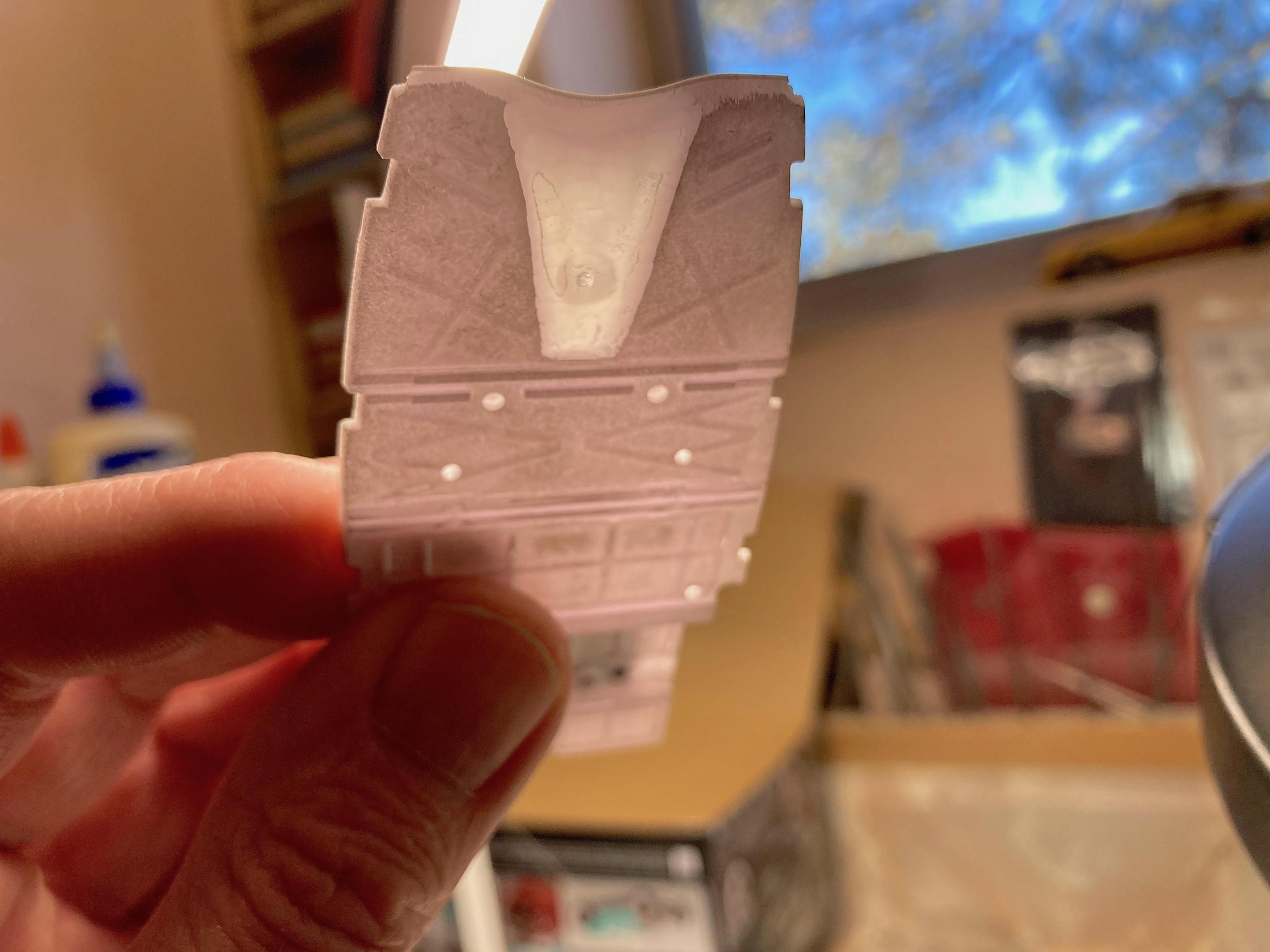

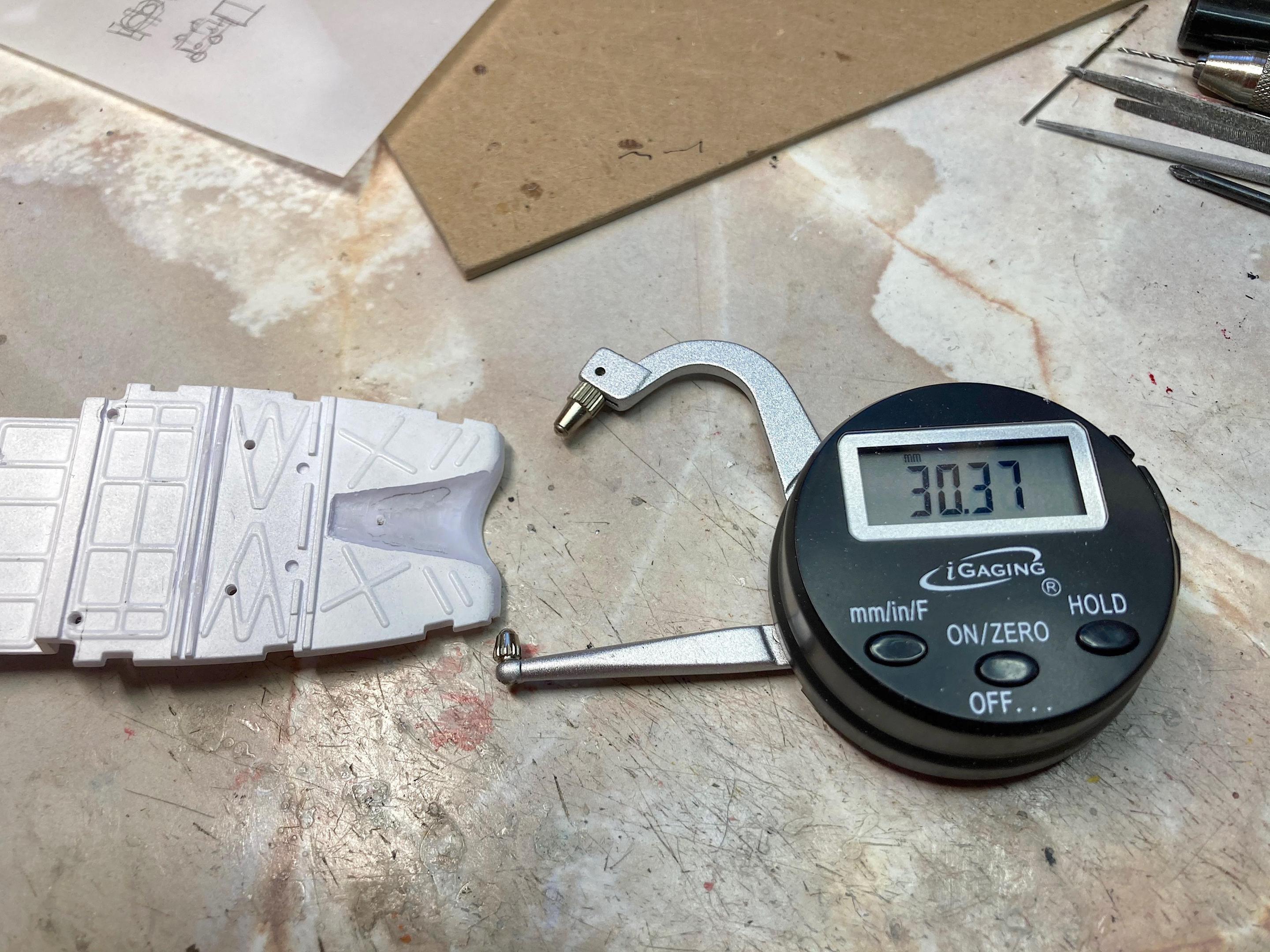

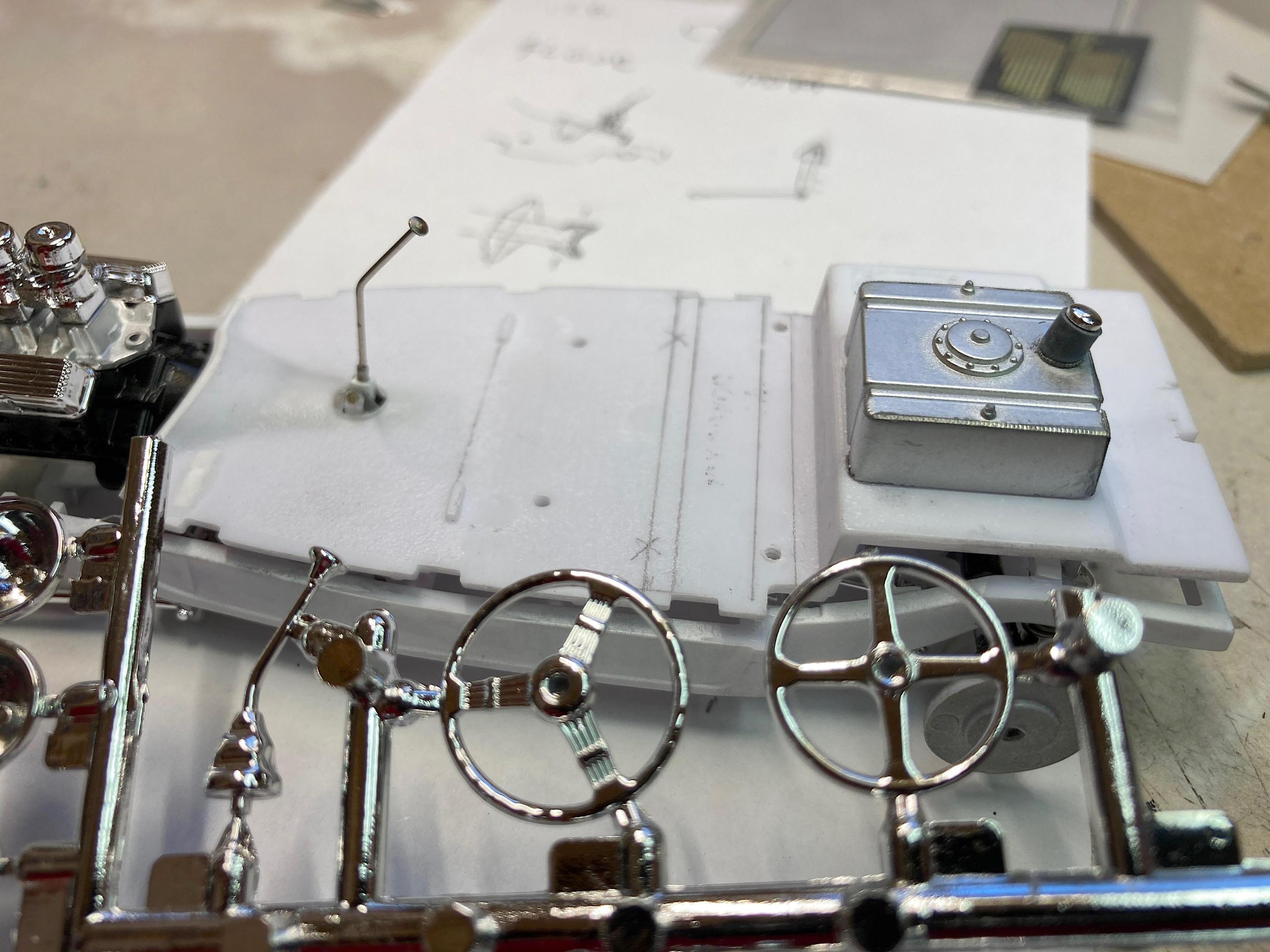

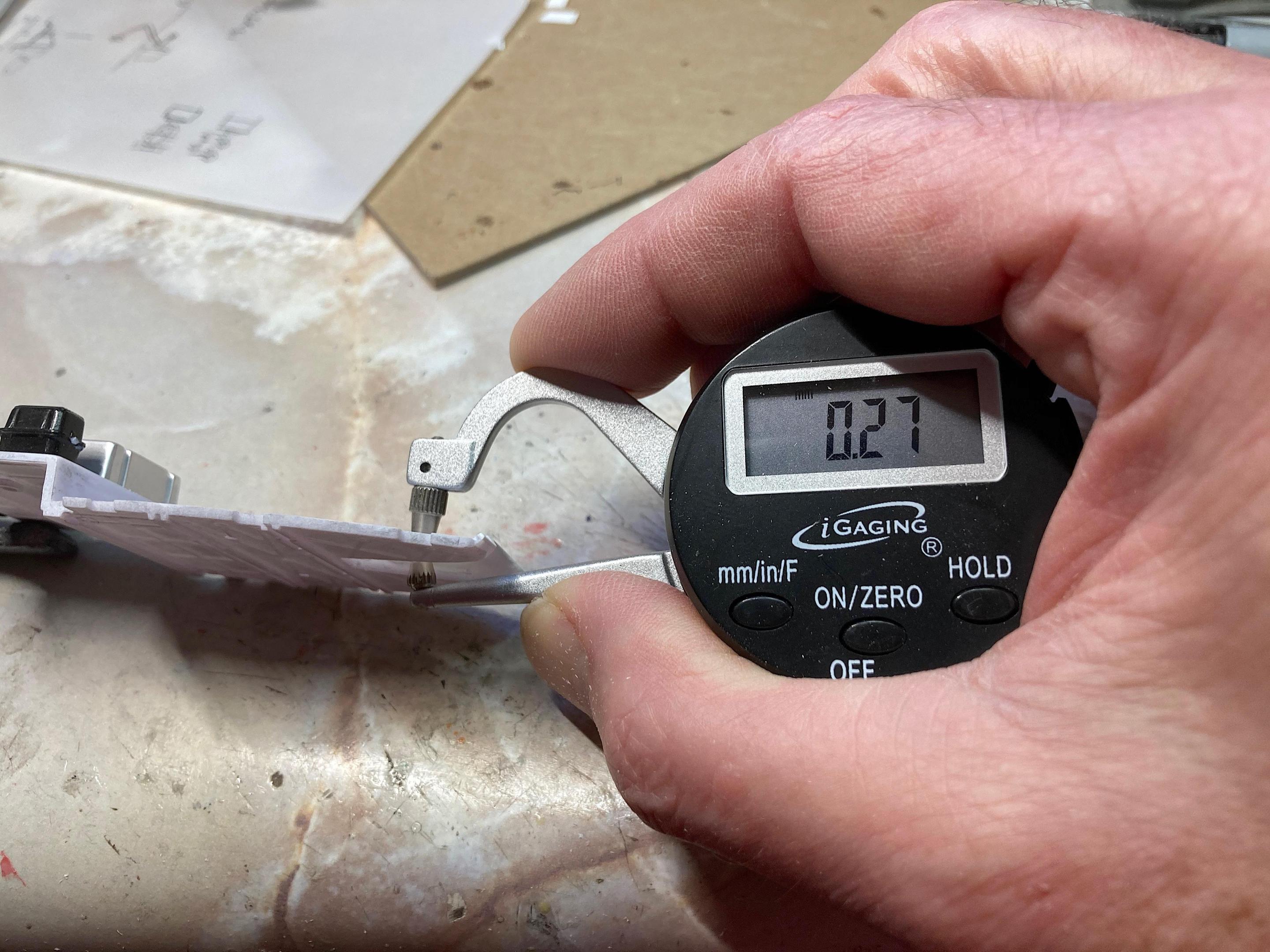

89AKurt Posted January 30, 2023 Author Posted January 30, 2023 (edited) 8 hours ago, Kit Karson said: Great project & great progress! -KK Thank you! It's not something I'm famous for doing, learning about everything, the hard way. ? Thought up a list when I was going to sleep last night, I was dreaming about what could get done today. First up, I *had to* make the transmission shift linkage, first pictures I found were for a column shift, that would not work, too bad because it's much simpler. Got to use a new tool! ? Whenever I thin plastic, had relied on light shining through, this was worth getting. The floor is 1.46" [edit: I'm thinking it's on the mm setting, when it's open that looks like 30mm not inches ?]. When I looked at the lack of clearance when the floor and engine were installed, this had to be done. Used the Dremel to get most of the way, then sanding sticks. Next was drawing the parts for the linkage assembly, combined some into one piece. One of my favorite scatch-building materials is newspaper printing plate, easy to drill, bends without breaking. I did not duplicate one brand, so it's generic. Took two tries, which is becoming normal on this project. This is a 700R4 transmission. Got to use the photo-etch bending tool, I'm getting the hang of what the notches are for. (I took a break from this, but will continue the progress for this forum) Normal people would be happy with just a shirt pin for the shift lever. ? Made the parts at the base, thinking after all this work I will not have a boot on the floor. Now that I'm looking at this picture, hope it fits under the dash. Now I see why Revell didn't include the master brake cylinder and linkage, no room for the exhaust. I did something easy for a break, made the only part that will be billet aluminum, the gas cap. This kit does not have a gas cap, because you can't see the gas tank. The aluminum rod was scavenged from a TV antenna, chucked into the cordless drill, started with a bastard file, then successive sanding sticks, emory cloth, steel wool, and finished with Blue Magic polish. Cut 95% of the way with the saw, then the X-acto blade (worst chance of losing it, good luck this time). Like I need to drive myself more crazy, *had to* try the photo-etch weld bead. Did the corners where you see them (not the back are you kidding?), even around the new filler neck. I was digging the radiator support on the reference car. Made brackets (twice again) from aluminum plate. The design does not duplicate the real car, since the firewall is not original. I'll have to make the acorn nuts later. ? Next major subassembly to do, the windshield. Even though I lucked out with one that isn't warped or broken (seen several people on this forum have that problem), I want a low cut one, was considering a Duval style, but will do a one piece that is tilted back. Am going to make headlight brackets, never liked what the kit has for mounts, makes me think of Marty Feldman. ? Edited January 30, 2023 by 89AKurt 1
iBorg Posted January 30, 2023 Posted January 30, 2023 I so appreciate this build. Amazing build with great photos to help others. Can you share your source for both the hollow steel tube and the thickness gauge. 1

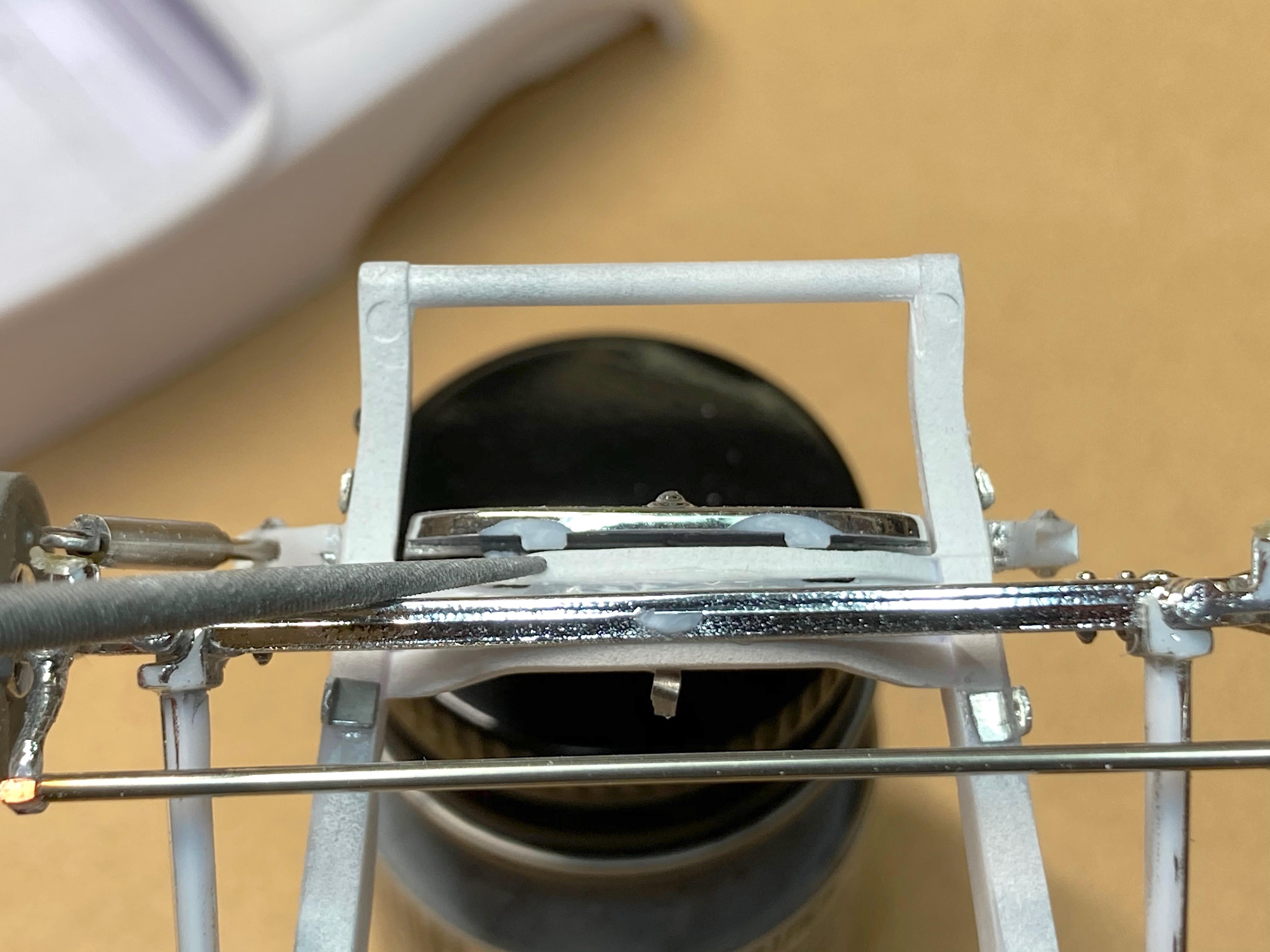

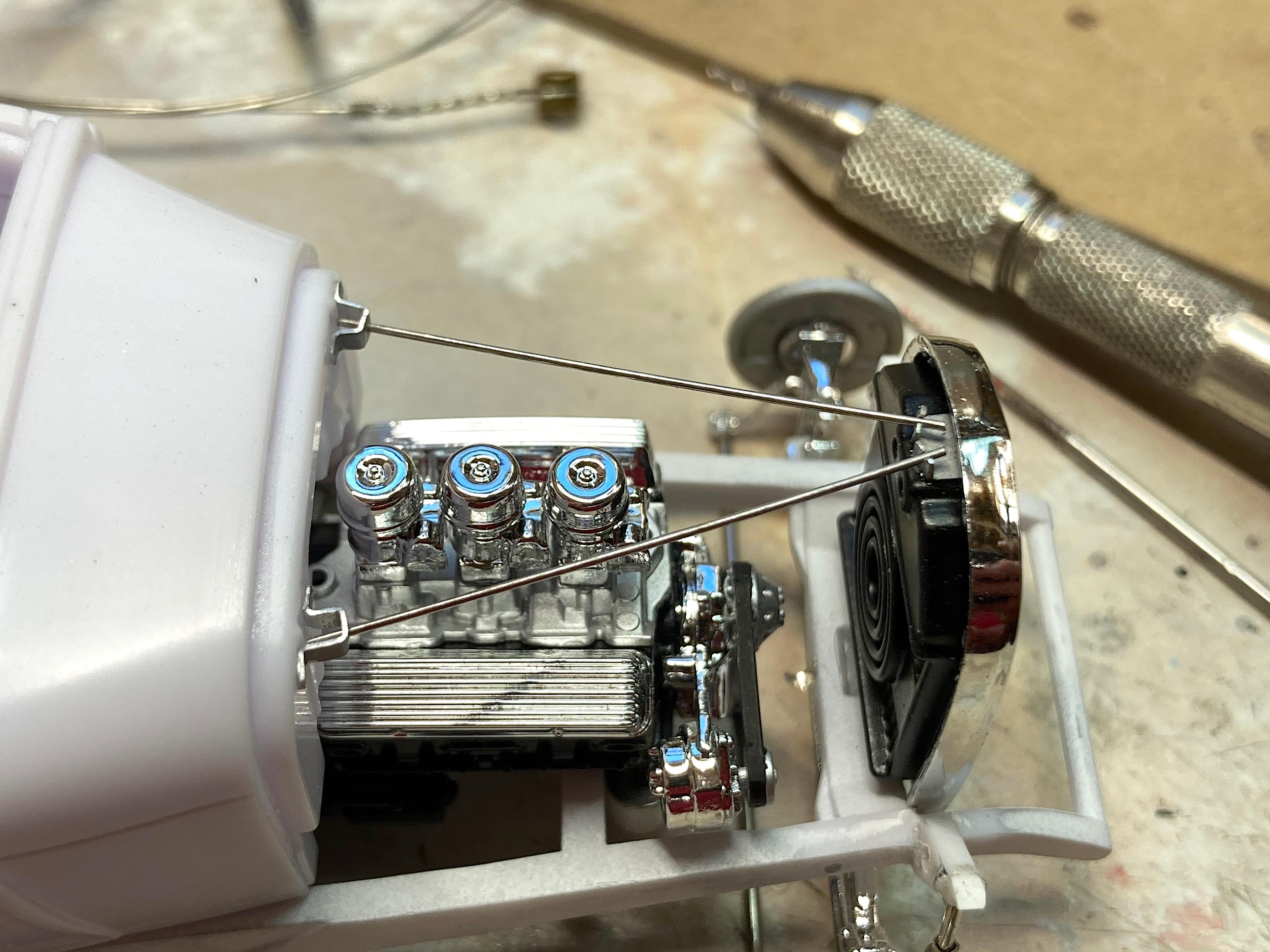

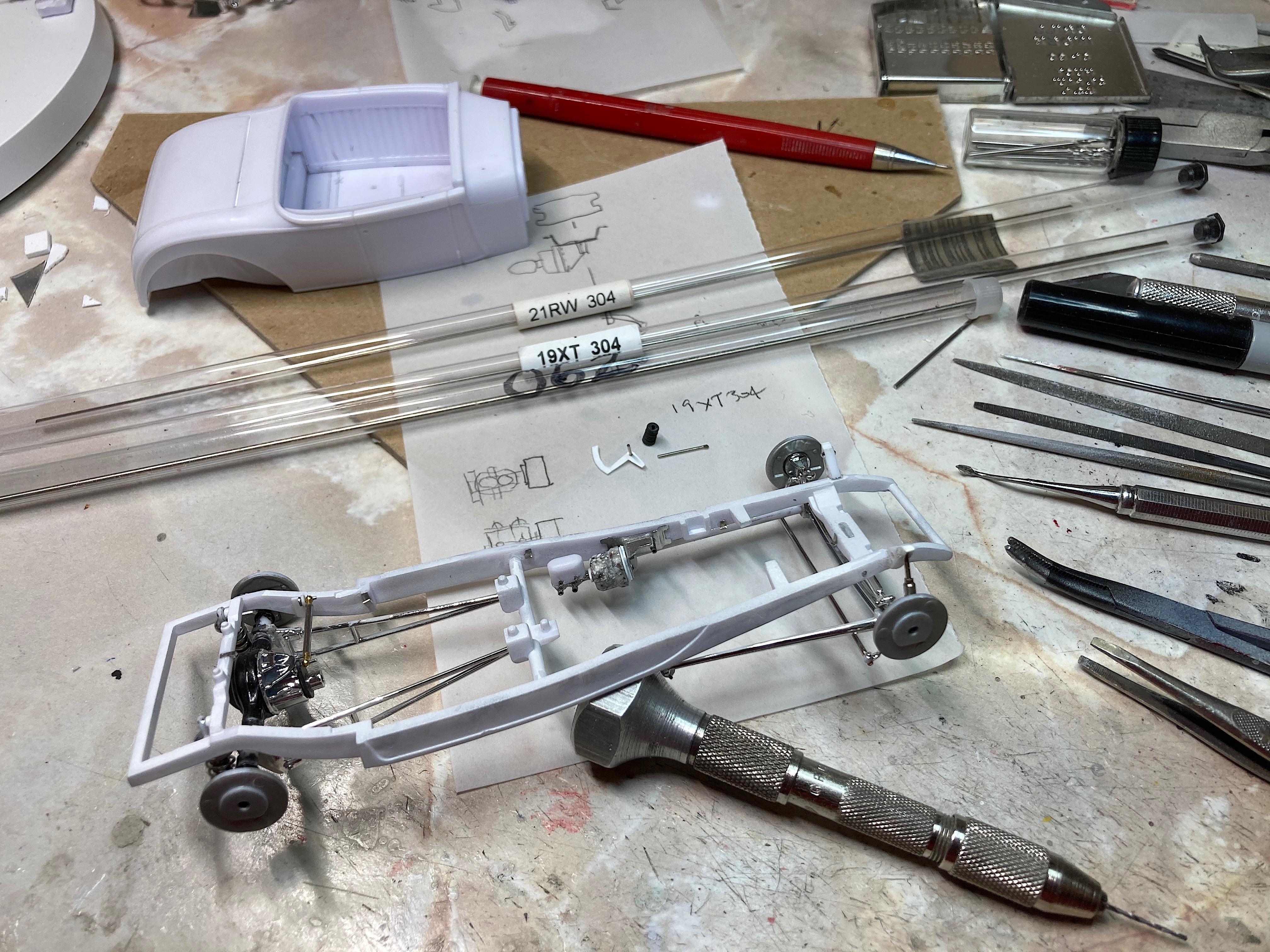

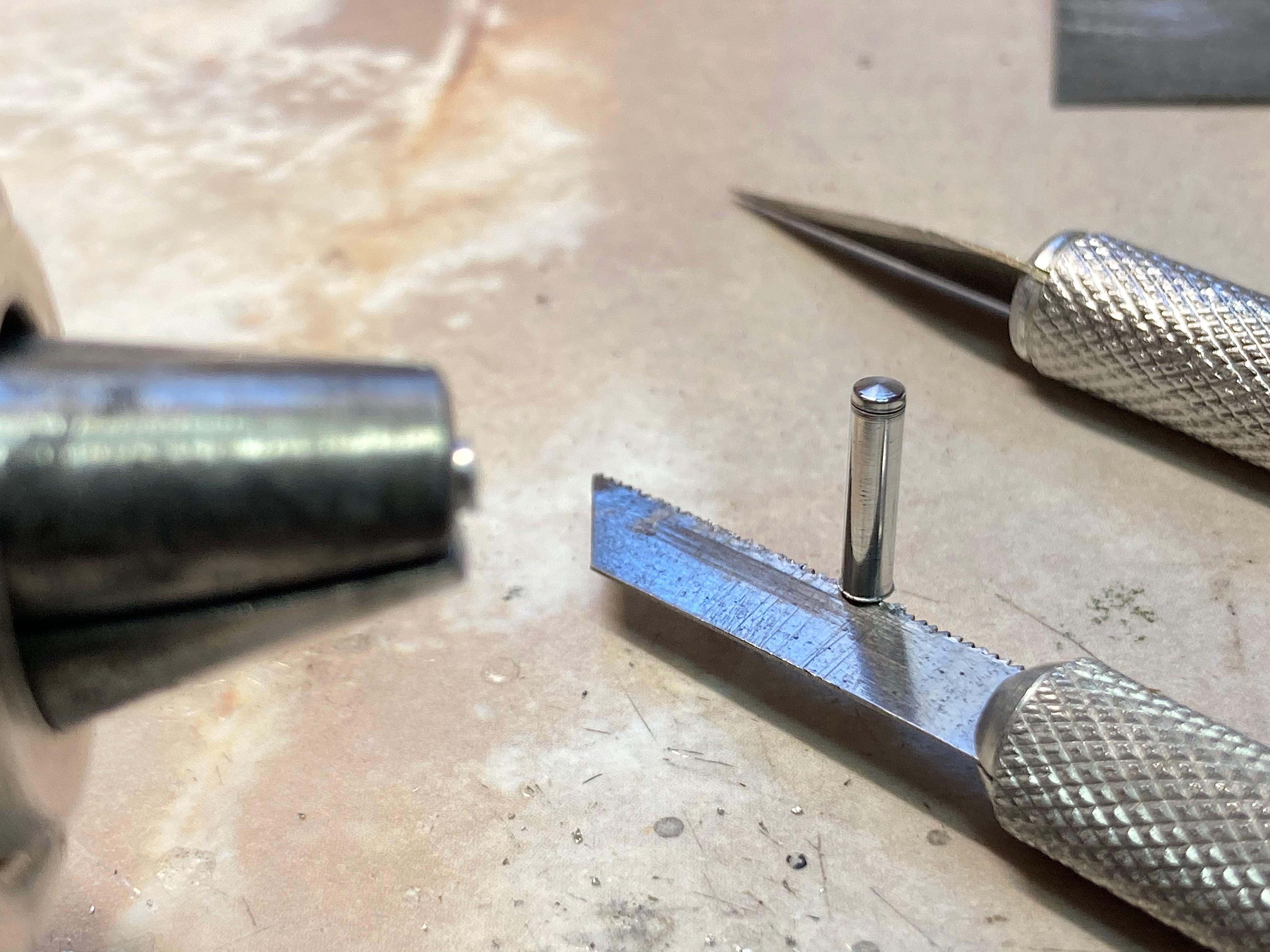

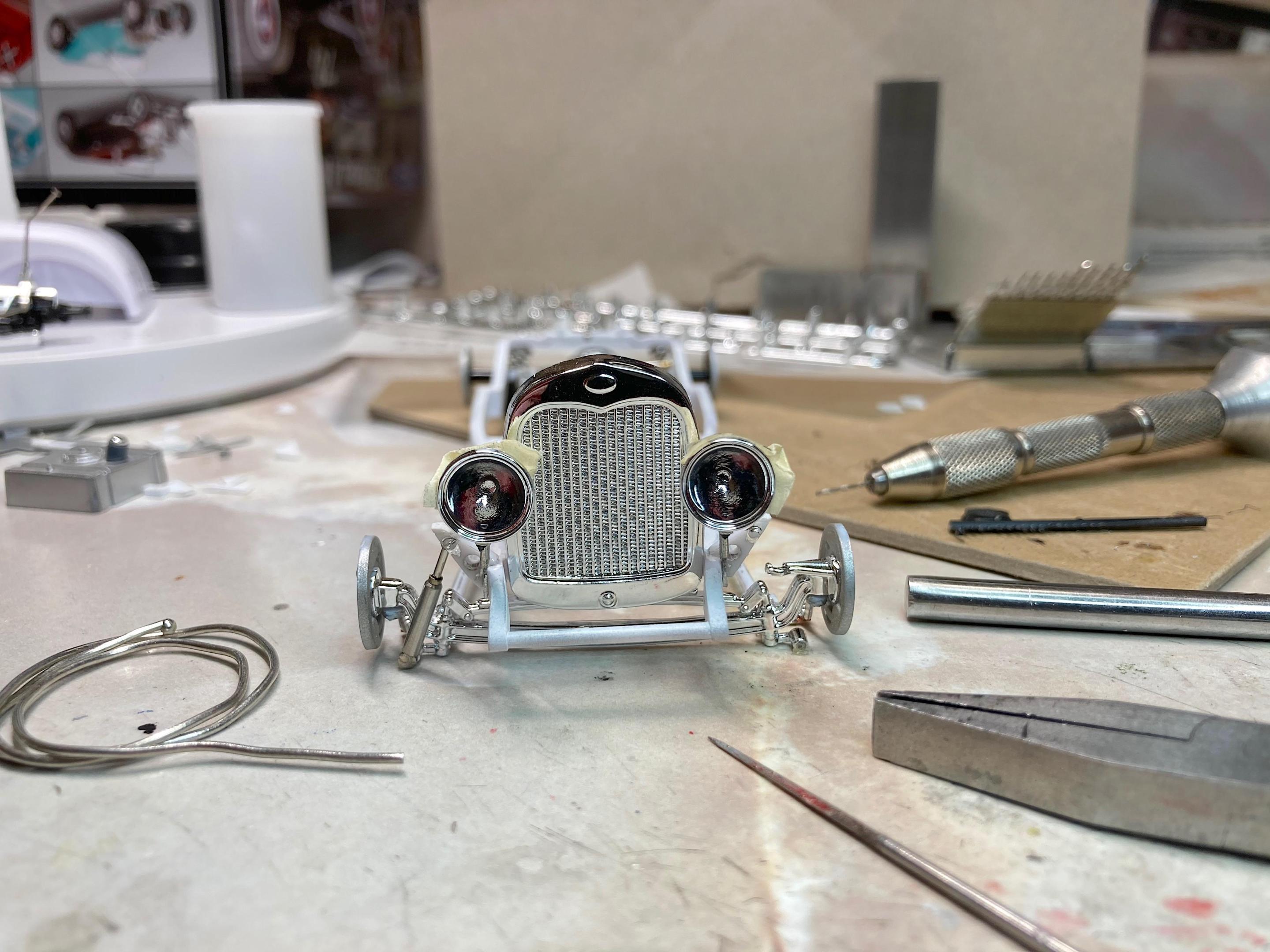

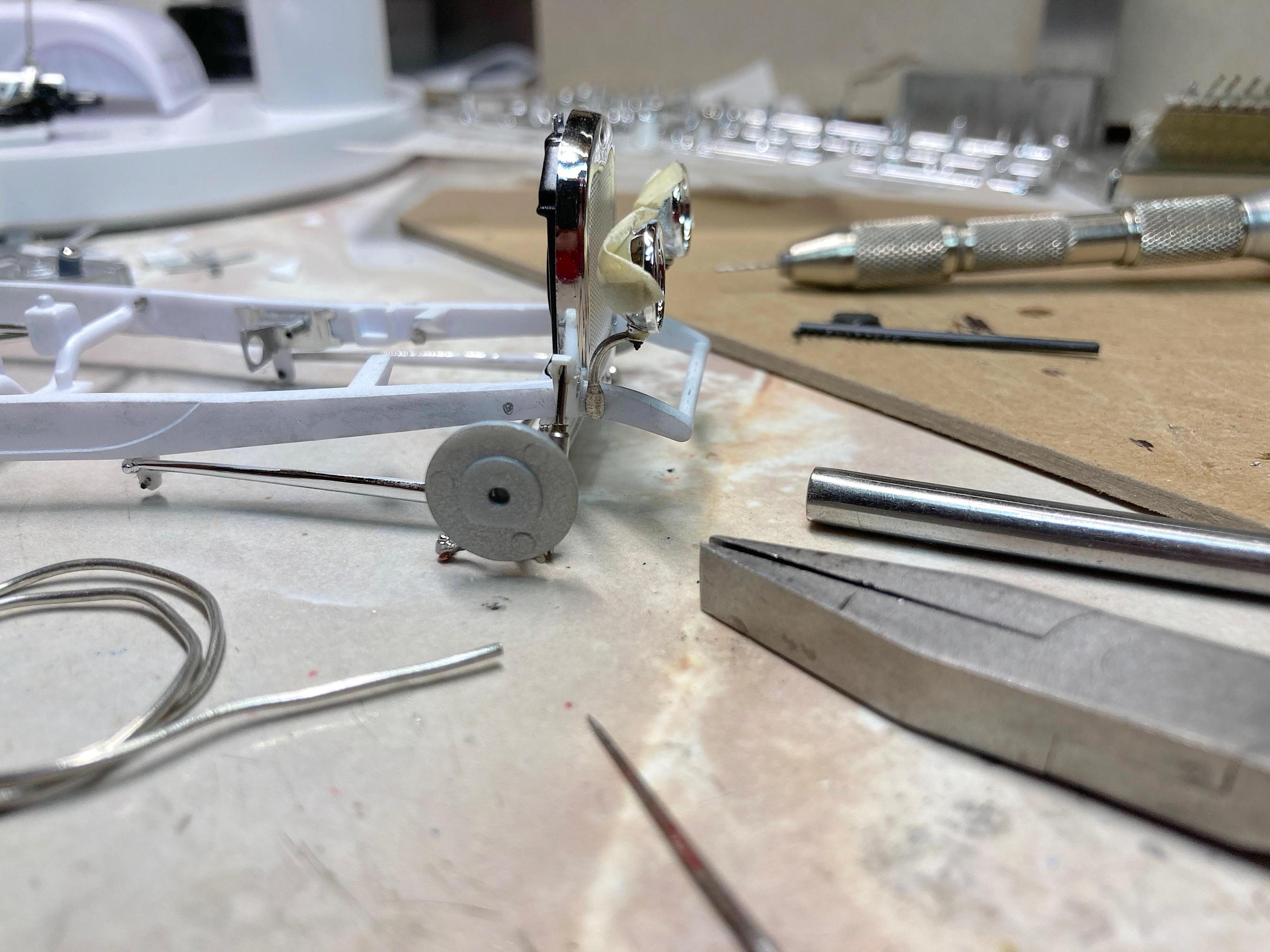

89AKurt Posted January 30, 2023 Author Posted January 30, 2023 3 hours ago, iBorg said: I so appreciate this build. Amazing build with great photos to help others. Can you share your source for both the hollow steel tube and the thickness gauge. Well thank you! My iPhone takes better pictures than the Nikon SLR monster.McMaster is the source for the thin wall tubing. I'm almost out of one of the sizes, so someday I'll order two sticks. MicroMark is where I got the gauge, that's like being a kid at a candy store. All I got done was the headlights. Used solder, because it's easy to bend, smash with pliers, and drill. The risk is breaking. Went with the middle sized headlights. Started cleaning up various parts with needle nose files and sanding sticks. It's very annoying how the sprue is at the very top, where the ring and bucket are different sizes. And there are bumps near that spot on one of them. I'm debating whether to buy a Molotov pen, or what.
Straightliner59 Posted January 30, 2023 Posted January 30, 2023 Super-nice work, Kurt! It looks great! 1
espo Posted January 30, 2023 Posted January 30, 2023 As always, an amazing level of detail and use of some non-traditional materials. 1
bobthehobbyguy Posted January 30, 2023 Posted January 30, 2023 Love the great step by step. I learn so much from threads like this. 1
Bullybeef Posted January 30, 2023 Posted January 30, 2023 Kurt you continue to deliver the goods on this build! 1

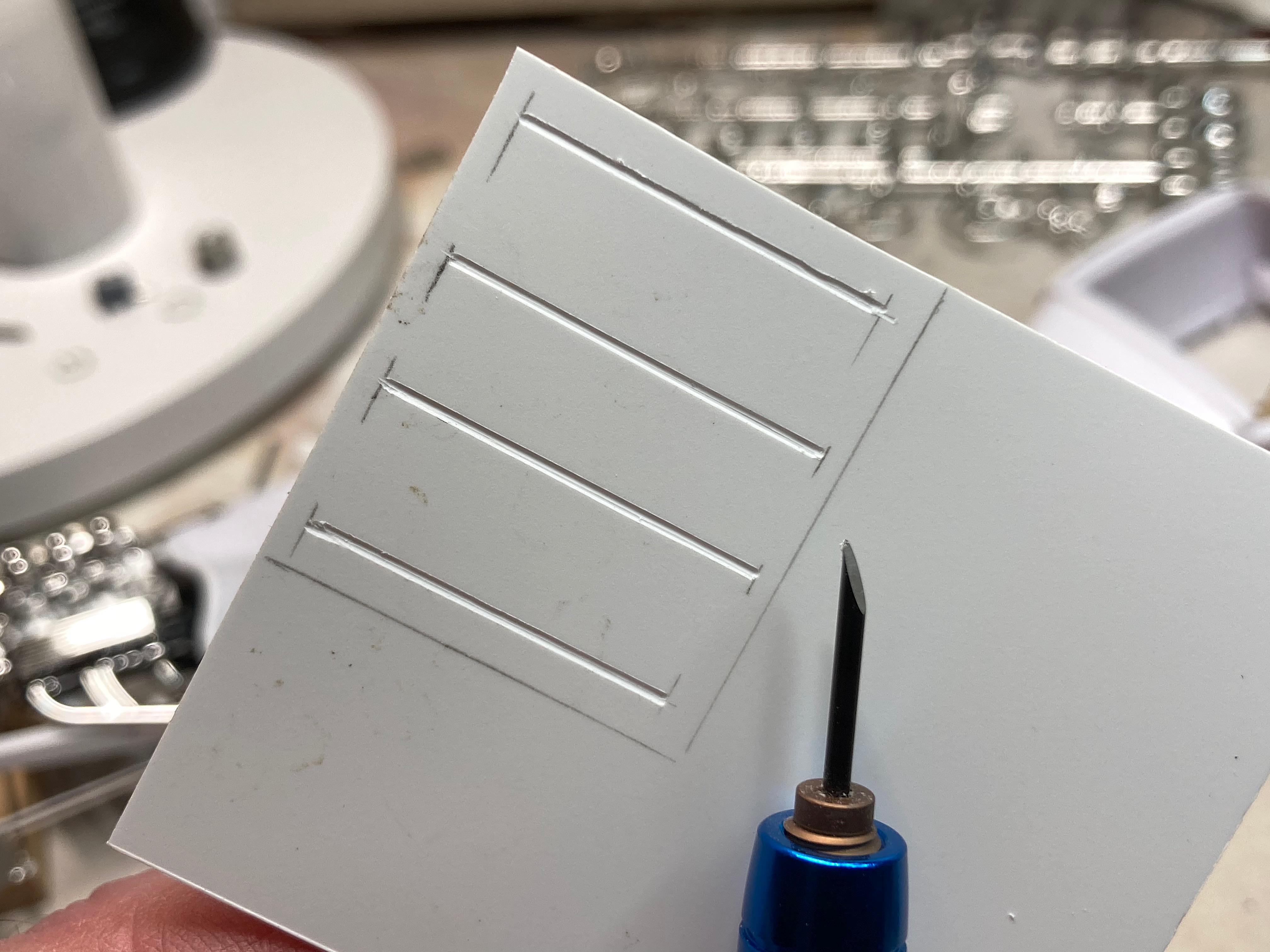

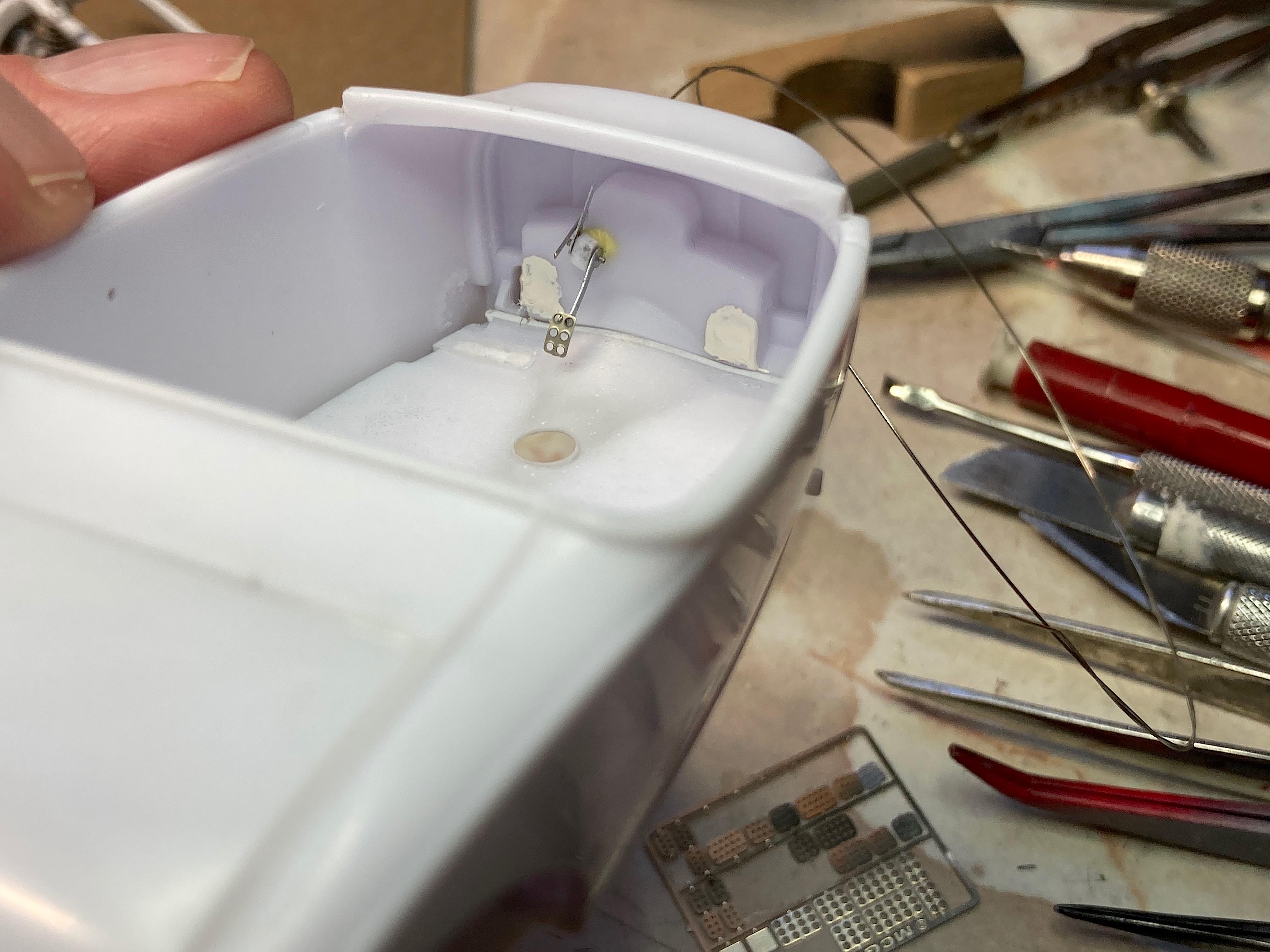

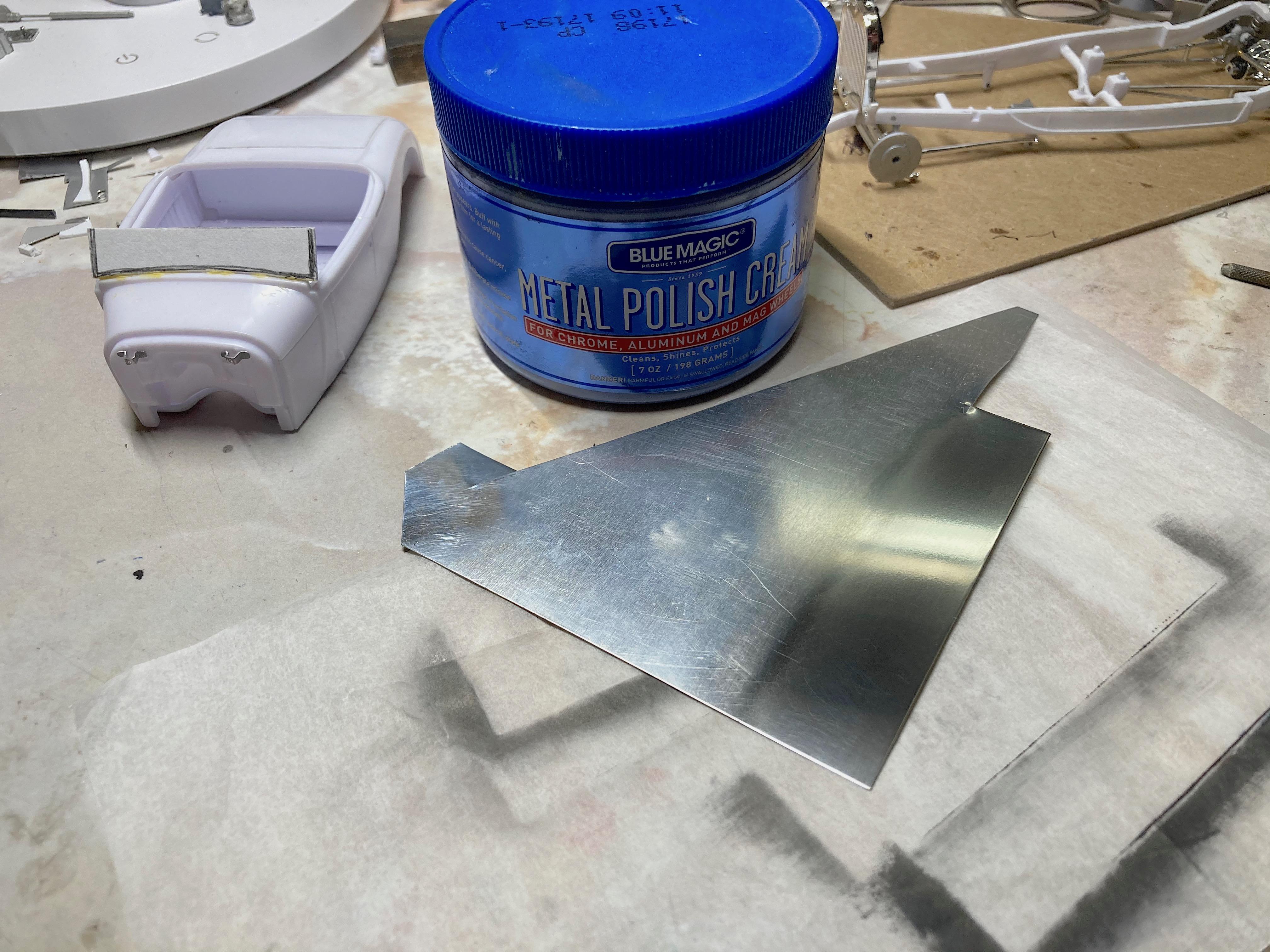

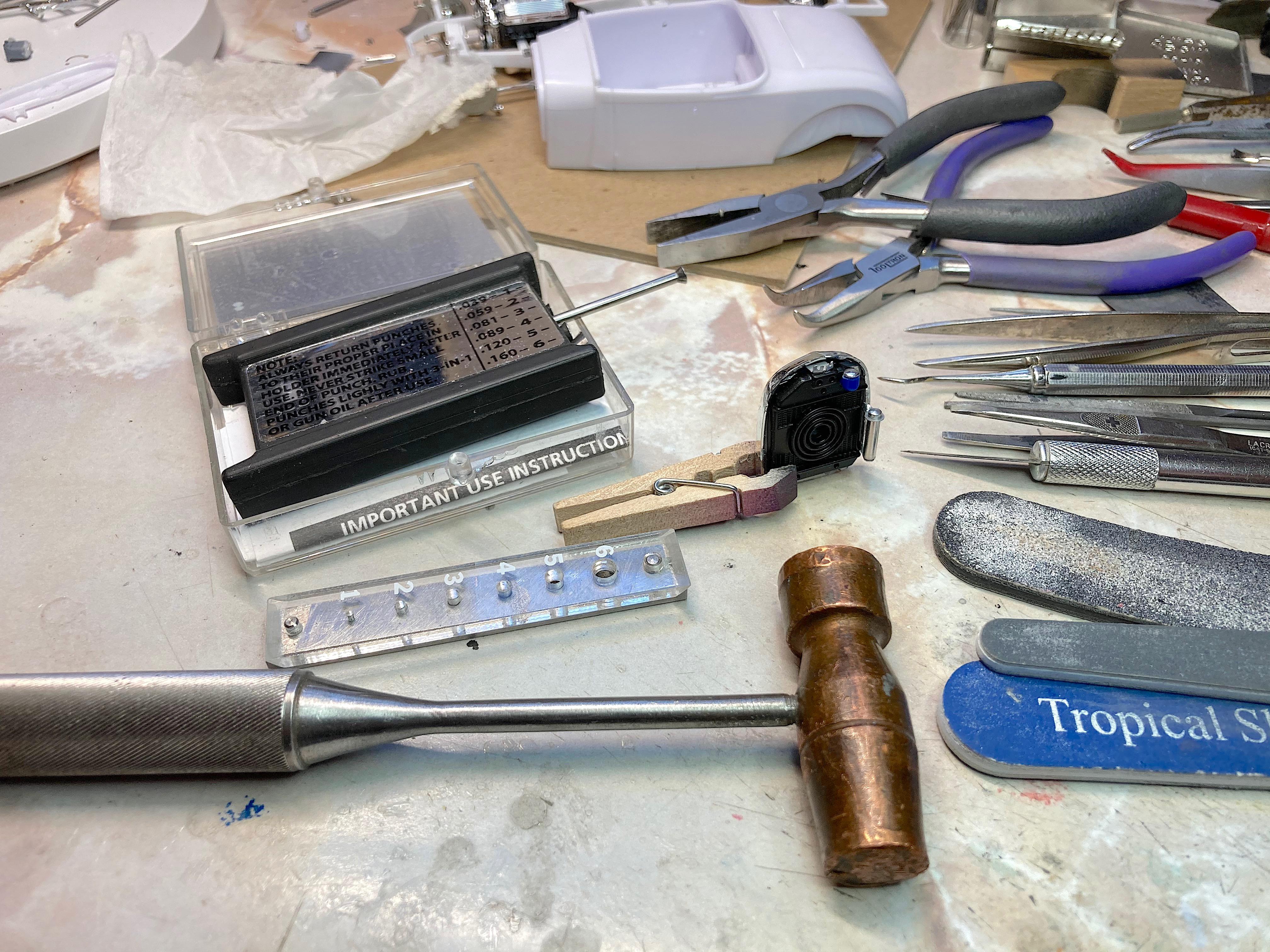

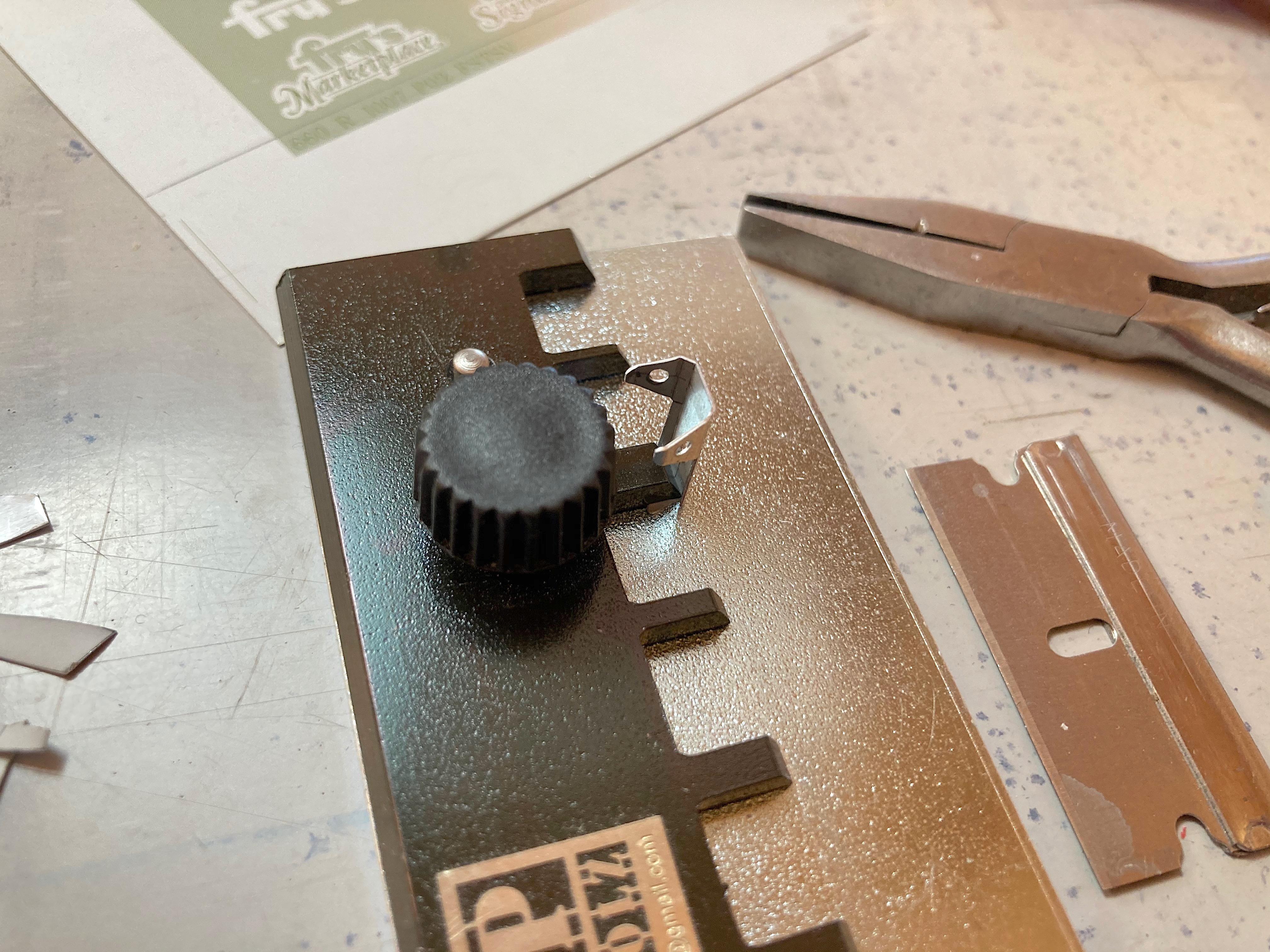

89AKurt Posted February 1, 2023 Author Posted February 1, 2023 Thanks for the comments and support! If anything, it helps me find this old topic. Made the inner trunk panel, it's really simple, and got to use another tool I acquired recently. When more progress is made in the trunk area, will see it in place. Windshield is next, had to do mockups of easy flat, or split V design. I'm also thinking about doing a side pipe exhaust, not going underneath. Picked easy, have plenty of other time intensive things to do. First was polishing the aluminum plate, wet-sanded using the same emory cloth "sandpaper" for paint polishing. One thing I've learned, cut pieces bigger than the finished size, makes it easier for bending. Started with the photo-etch bender, on the back side, pushing down on the thick cardboard at first, then used a pine stick. So I had a 90º angle, used the thicker steel ruler to bend more using the wood stick. Then I used the thinner ruler, and hammered it down to get more of a U shape. It's impossible to get two 90º angles so close together, so this is a fake it until I make it moment. Did all this on the cardboard to reduce scratching the polished surface. The steel with the beveled edge is another recent tool, used to open up when the channel got smashed down too much. Used the Dremel with cutoff disk, ground down with it running perpendicular to the frame. Then used sanding sticks starting with very rough to super fine. Could not take a picture of how I was holding with 4 fingers, critical to think how to avoid bending and ruining it. Already forgot the lesson I told you about above, should have done the vertical pieces before cutting apart, DUH! Left the end wider, need to figure out if I should bend for fitting to the body, too often I design on the fly when I scratch build, because it's difficult to envision much less draw out, so I wing it. I also didn't measure anything during this whole step, all by eye. I have a dumb question, there appears to be tabs where the file is pointing to, shouldn't the grill meet flush with the frame here? You can see I added brake line brackets, for the change from steel to hose brake line. I better fill those ejection pin marks, first time i noticed them! 1

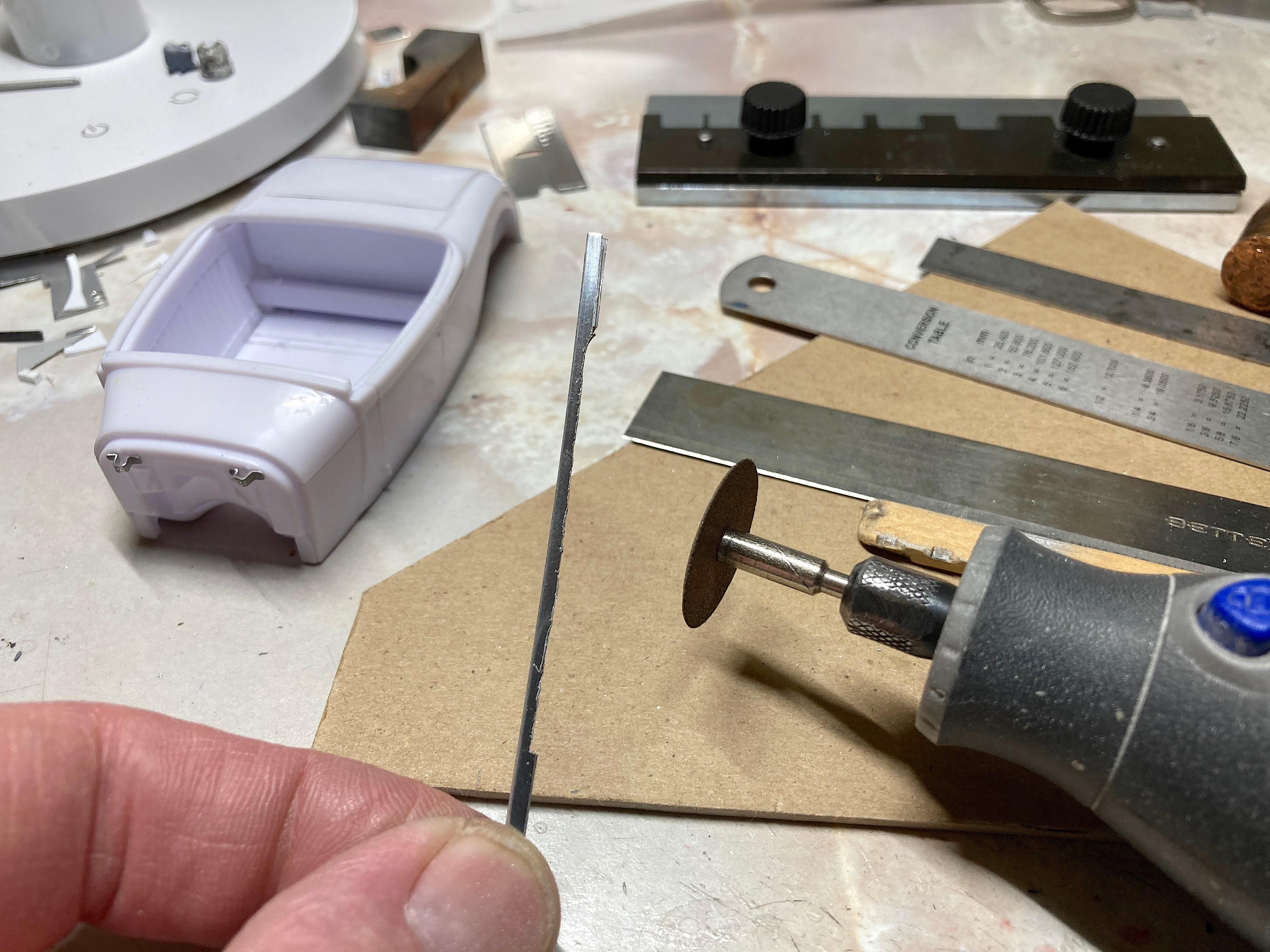

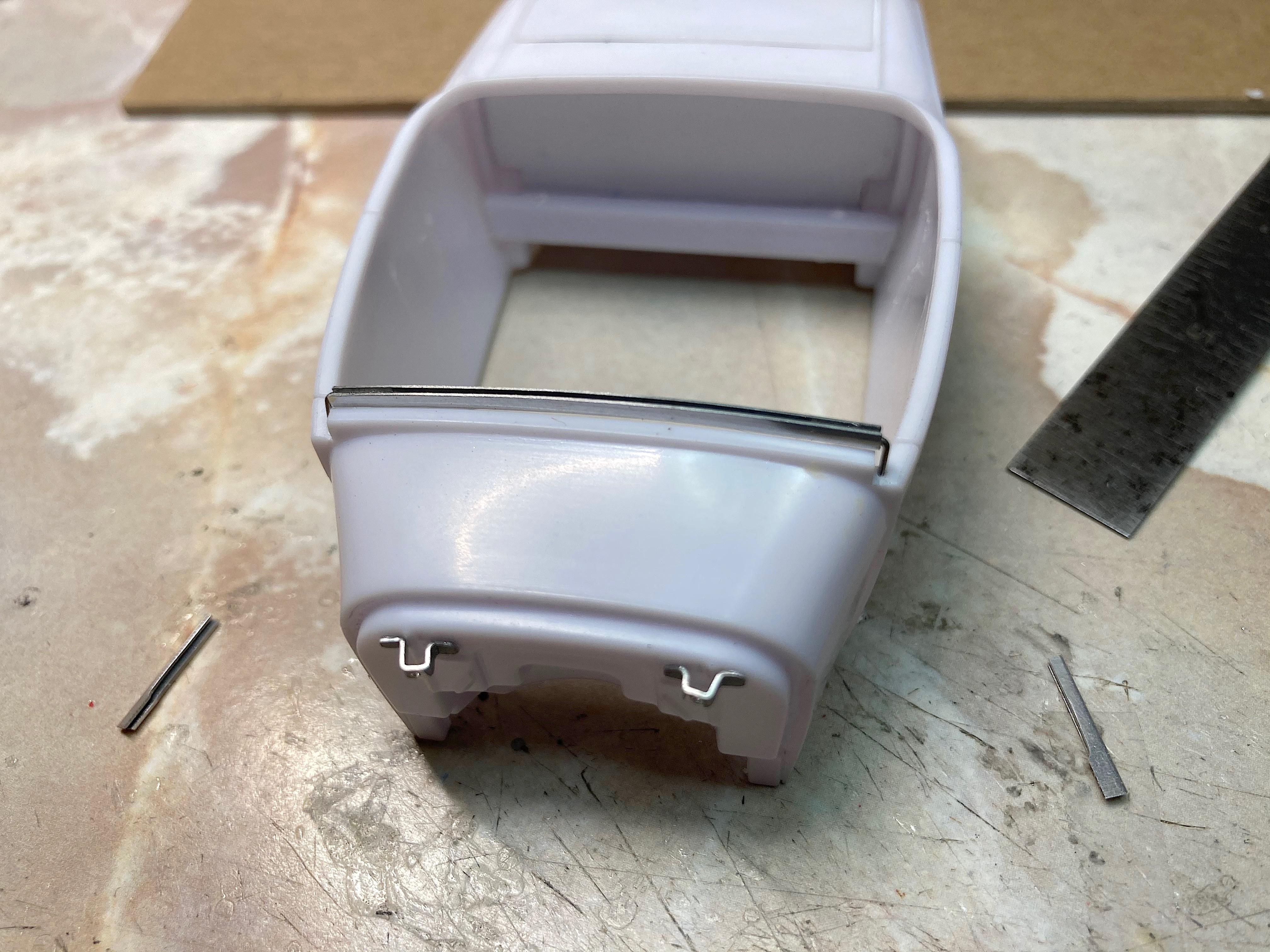

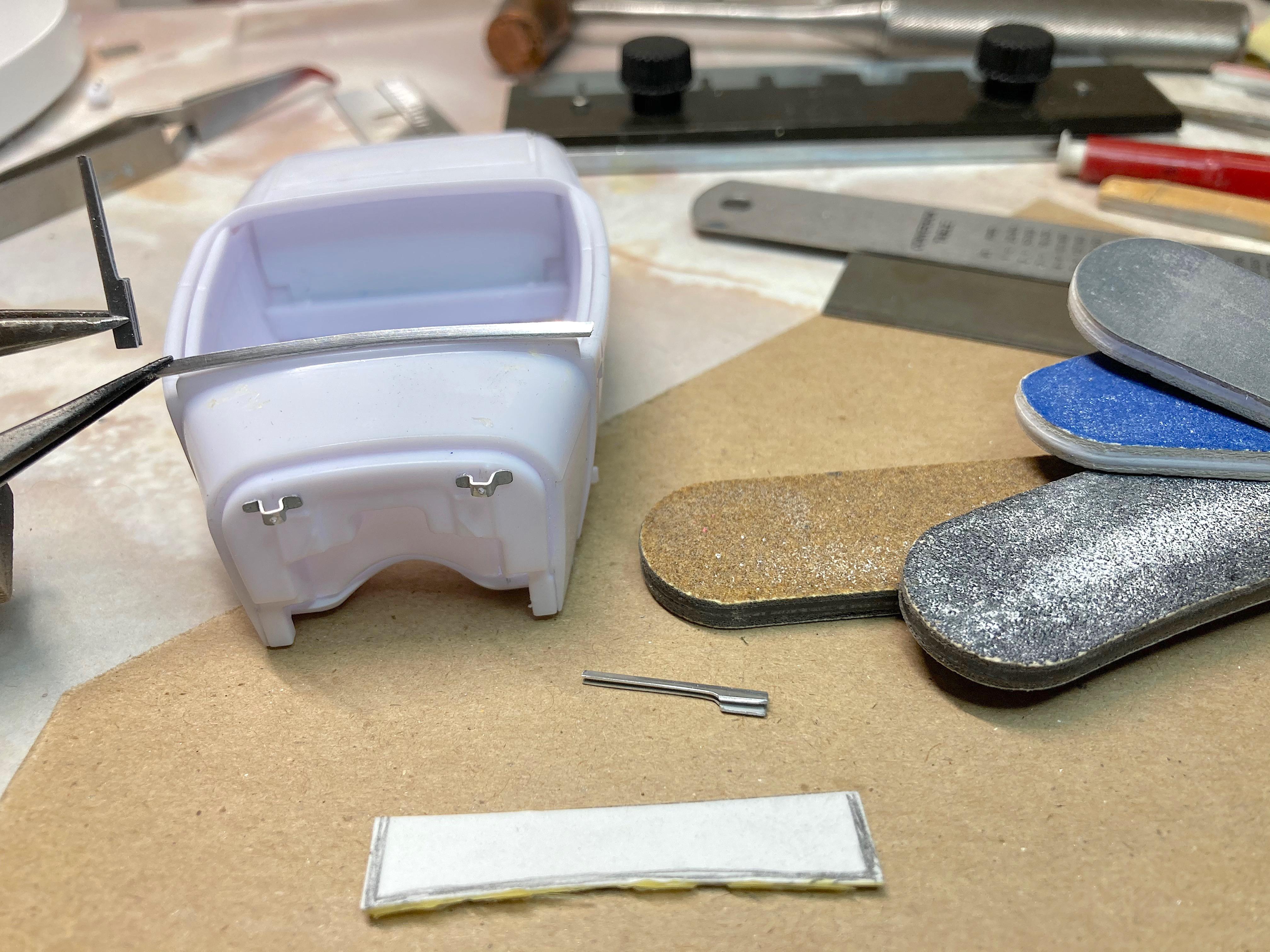

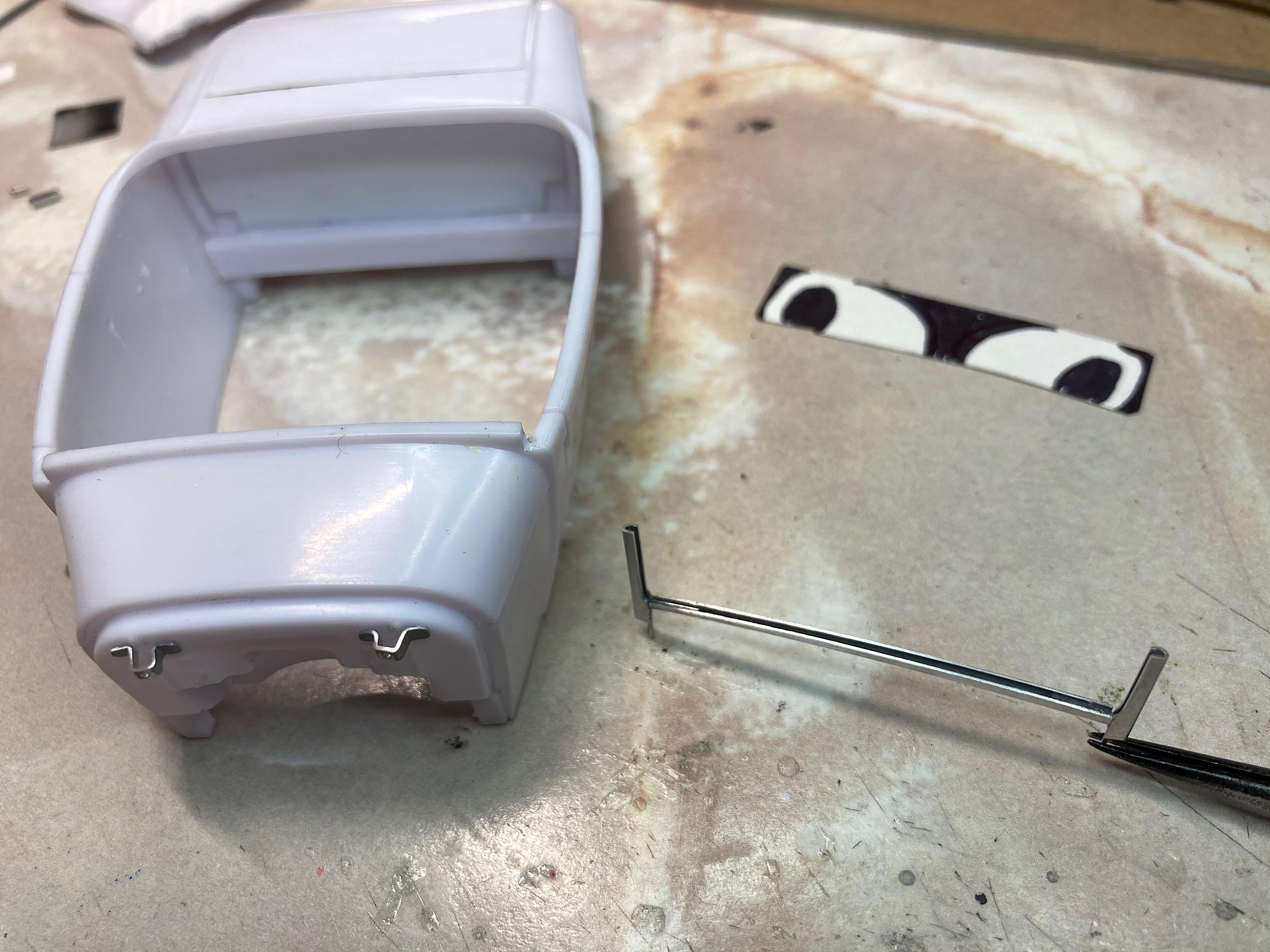

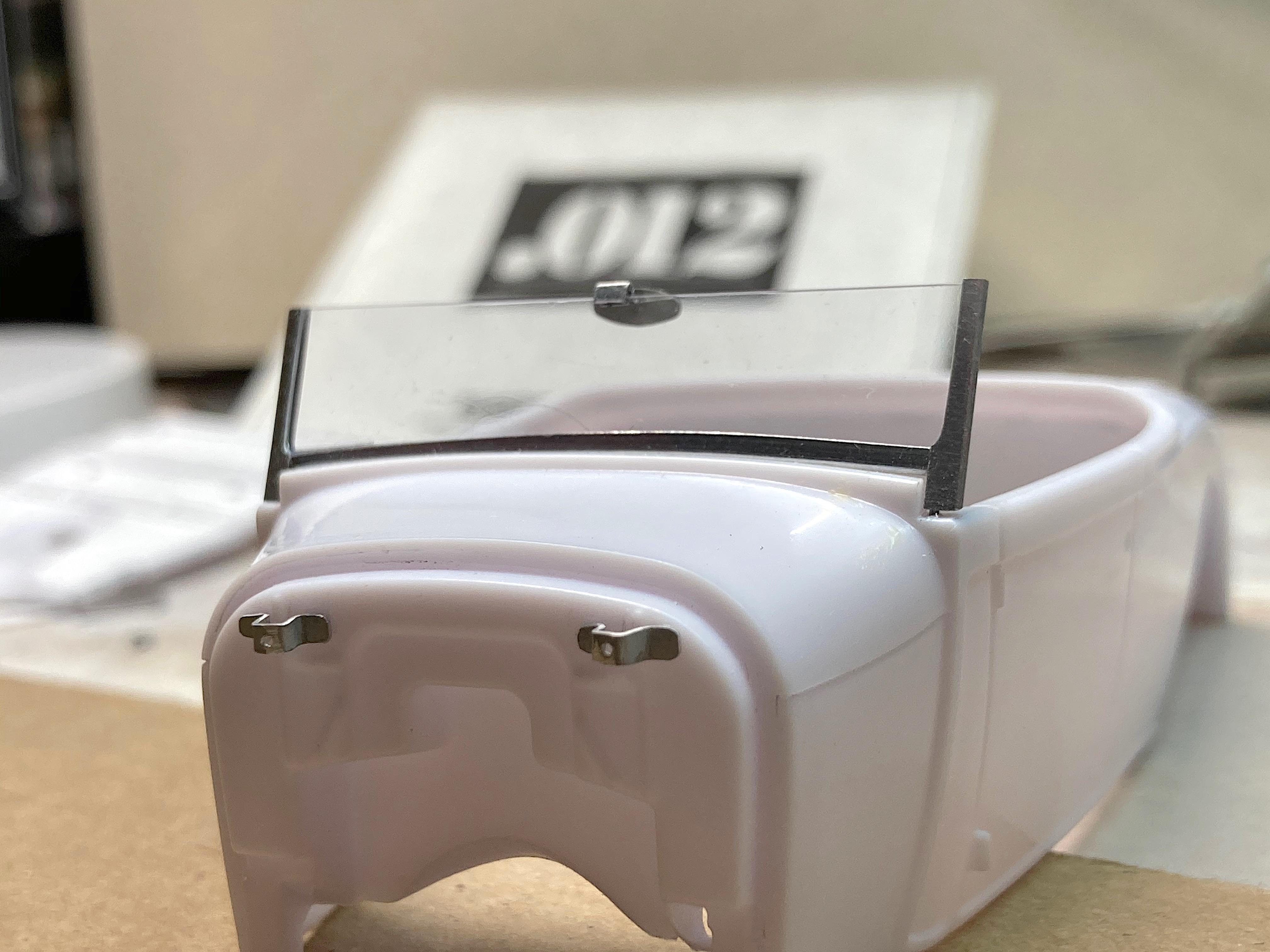

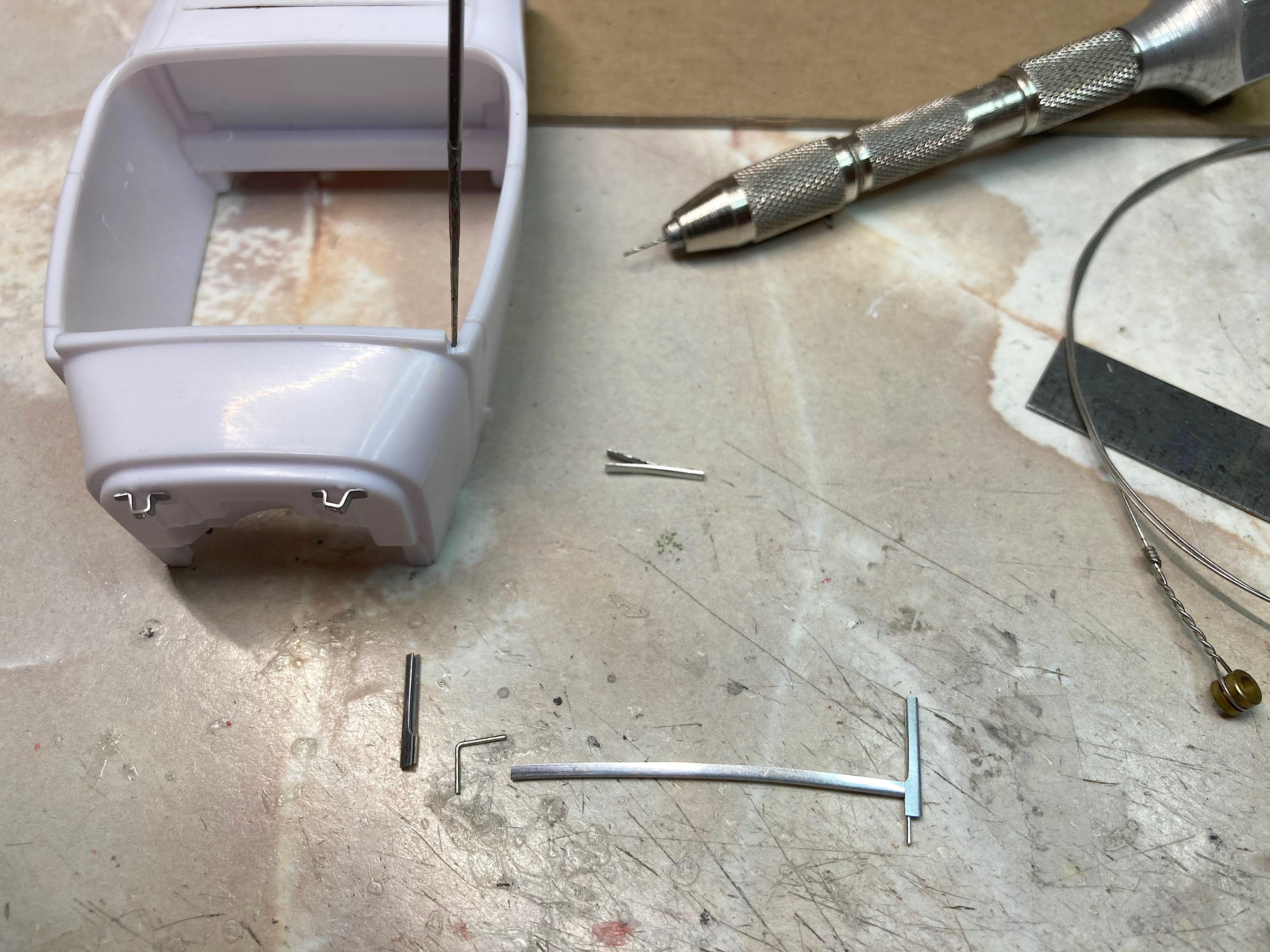

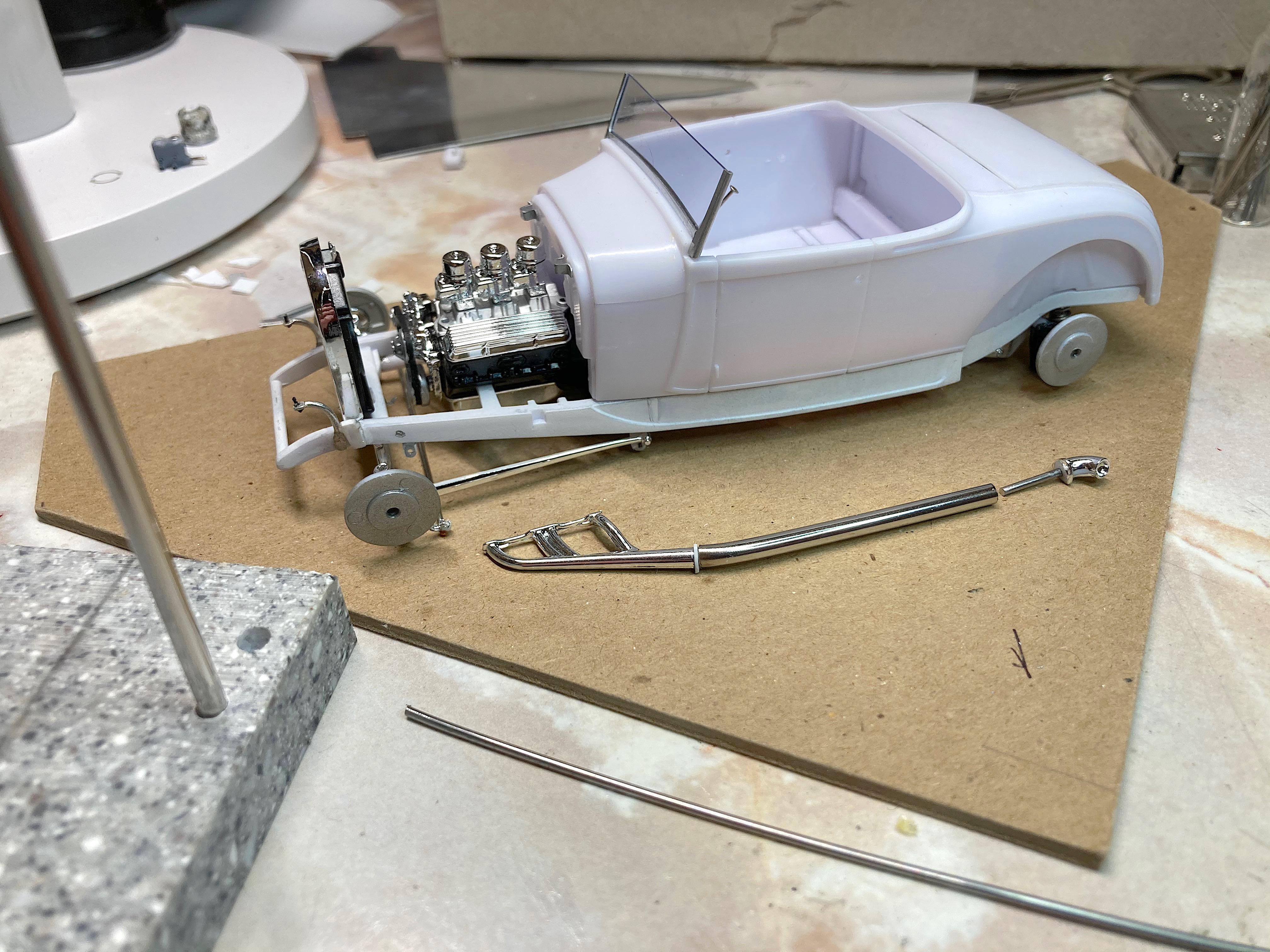

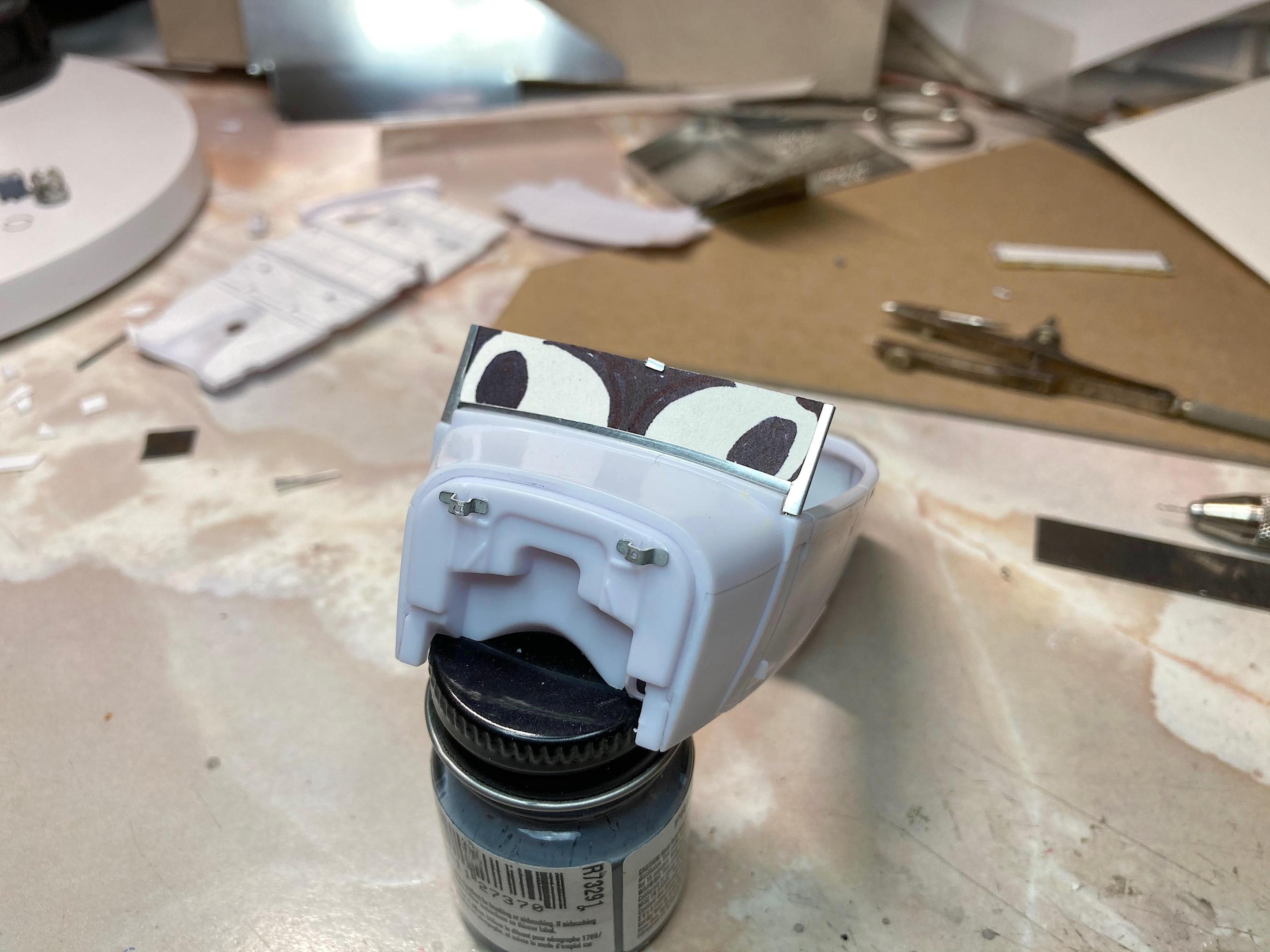

89AKurt Posted February 2, 2023 Author Posted February 2, 2023 Got the windshield frame done. Had to make only one vertical post twice, so things are improving! No more bending of the aluminum frame, bent wire that connects at the corners, and is held into the body. Stuck the wires into the body, then glued into the bottom part. Just enough glue for the vertical posts, which needed to be tweaked because I didn't get the holes drilled at exactly the same rake yada yada. Then I carefully removed from the body, and added more glue into the gap of the vertical posts, making sure I didn't get any glue on the outside. Made a paper pattern for the "glass", marked the outside because I know it's not exactly the same on each side. ? This was fun, I'm sort of nuts about using this aluminum plate for anything I can think of. I'm going to make a mirror, use a tiny offcut to stick on top of the glass. 5
alan barton Posted February 3, 2023 Posted February 3, 2023 On 2/1/2023 at 2:13 PM, 89AKurt said: Thanks for the comments and support! If anything, it helps me find this old topic. Made the inner trunk panel, it's really simple, and got to use another tool I acquired recently. When more progress is made in the trunk area, will see it in place. Windshield is next, had to do mockups of easy flat, or split V design. I'm also thinking about doing a side pipe exhaust, not going underneath. Picked easy, have plenty of other time intensive things to do. First was polishing the aluminum plate, wet-sanded using the same emory cloth "sandpaper" for paint polishing. One thing I've learned, cut pieces bigger than the finished size, makes it easier for bending. Started with the photo-etch bender, on the back side, pushing down on the thick cardboard at first, then used a pine stick. So I had a 90º angle, used the thicker steel ruler to bend more using the wood stick. Then I used the thinner ruler, and hammered it down to get more of a U shape. It's impossible to get two 90º angles so close together, so this is a fake it until I make it moment. Did all this on the cardboard to reduce scratching the polished surface. The steel with the beveled edge is another recent tool, used to open up when the channel got smashed down too much. Used the Dremel with cutoff disk, ground down with it running perpendicular to the frame. Then used sanding sticks starting with very rough to super fine. Could not take a picture of how I was holding with 4 fingers, critical to think how to avoid bending and ruining it. Already forgot the lesson I told you about above, should have done the vertical pieces before cutting apart, DUH! Left the end wider, need to figure out if I should bend for fitting to the body, too often I design on the fly when I scratch build, because it's difficult to envision much less draw out, so I wing it. I also didn't measure anything during this whole step, all by eye. I have a dumb question, there appears to be tabs where the file is pointing to, shouldn't the grill meet flush with the frame here? You can see I added brake line brackets, for the change from steel to hose brake line. I better fill those ejection pin marks, first time i noticed them! Hi Kurt, first let me congratulate you on a stunning build so far. As the owner and builder of a real Model A roadster I can tell you that the problems you encounter in scale are the same as you encounter in real life - ie, my exhaust is tucked up under the splash apron because there was no room past the powerbooster - master cylinder or battery box! And I thought I was the only one that thought Revell's headlight location looked like Mr Magoo - Marty Feldman is more accurate! Now on the grille situation, not only should the tabs not be there, you can really help this grille by filing the back of it way down to let it sit as close to the crossmember as possible. I did it on my two models so far and it makes a difference - although with your radiator already in place you may not get the full advantage. Will be following this to completion, that's for sure! Cheers Alan 3
89AKurt Posted February 3, 2023 Author Posted February 3, 2023 13 hours ago, SpikeSchumacher said: Wow Kurt! This is inspiring ?? 20 minutes ago, slusher said: impressive Kurt! Thank you! 57 minutes ago, alan barton said: Hi Kurt, first let me congratulate you on a stunning build so far. As the owner and builder of a real Model A roadster I can tell you that the problems you encounter in scale are the same as you encounter in real life - ie, my exhaust is tucked up under the splash apron because there was no room past the powerbooster - master cylinder or battery box! And I thought I was the only one that thought Revell's headlight location looked like Mr Magoo - Marty Feldman is more accurate! Now on the grille situation, not only should the tabs not be there, you can really help this grille by filing the back of it way down to let it sit as close to the crossmember as possible. I did it on my two models so far and it makes a difference - although with your radiator already in place you may not get the full advantage. Will be following this to completion, that's for sure! Cheers Alan Hello down under! ? I'm always amazed how popular American cars are there. The grill is barely glued on, most of the time parts are tacked on because they need to get painted, or test fitting is being done. Thanks for confirming that. Windshield "glass" is in, fit is so snug that it doesn't need to be glued in, which is the ideal situation. Also made the mirror, getting the bracket cut sure was a trick. I hope later pictures will show it better. Started on the exhaust pipes. Using thick wall stainless steel tubing because it doesn't collapse when bending. Drilled a hole in the Corian slab, then bent the tubing enough (I hope). Made a plastic flange to the same shape as the curved tip. I would like to drill for wires into the manifold, to hold into the block. Will also make hangers, think two are needed. 2
Calb56 Posted February 3, 2023 Posted February 3, 2023 Impressive metal work and scratchbuilding. Especially with the window frame. Jealous of both your skill and obvious patience. 1

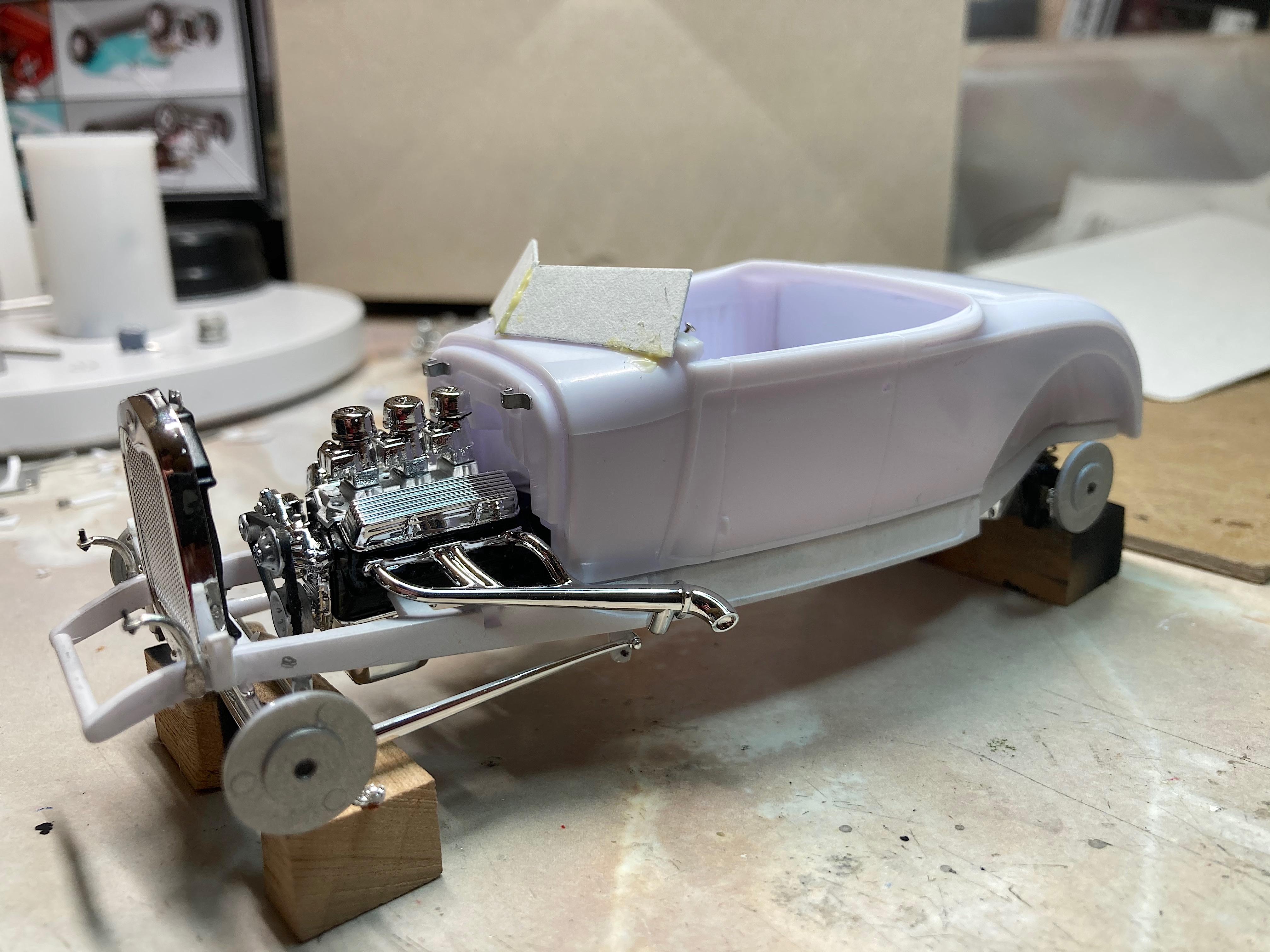

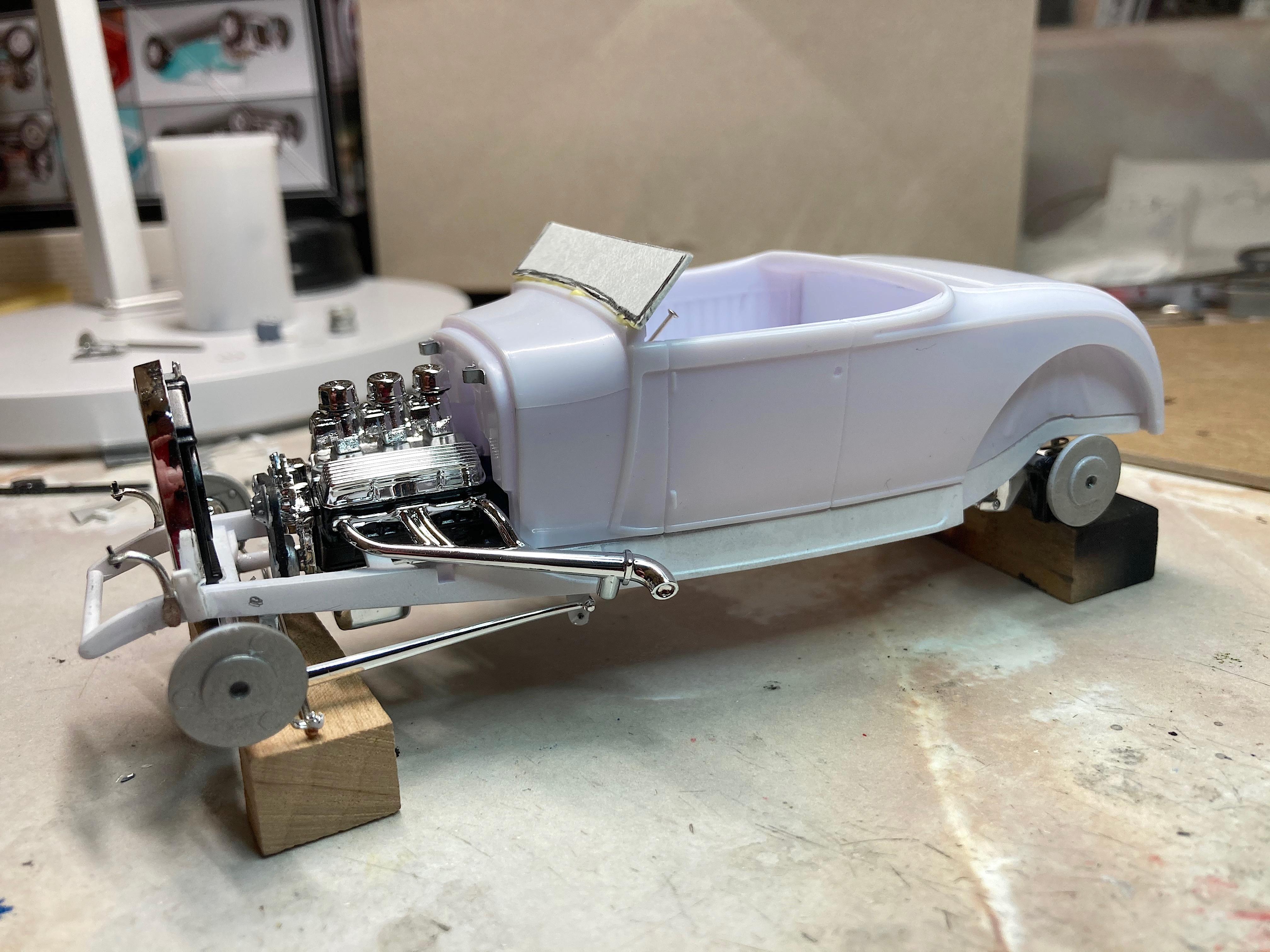

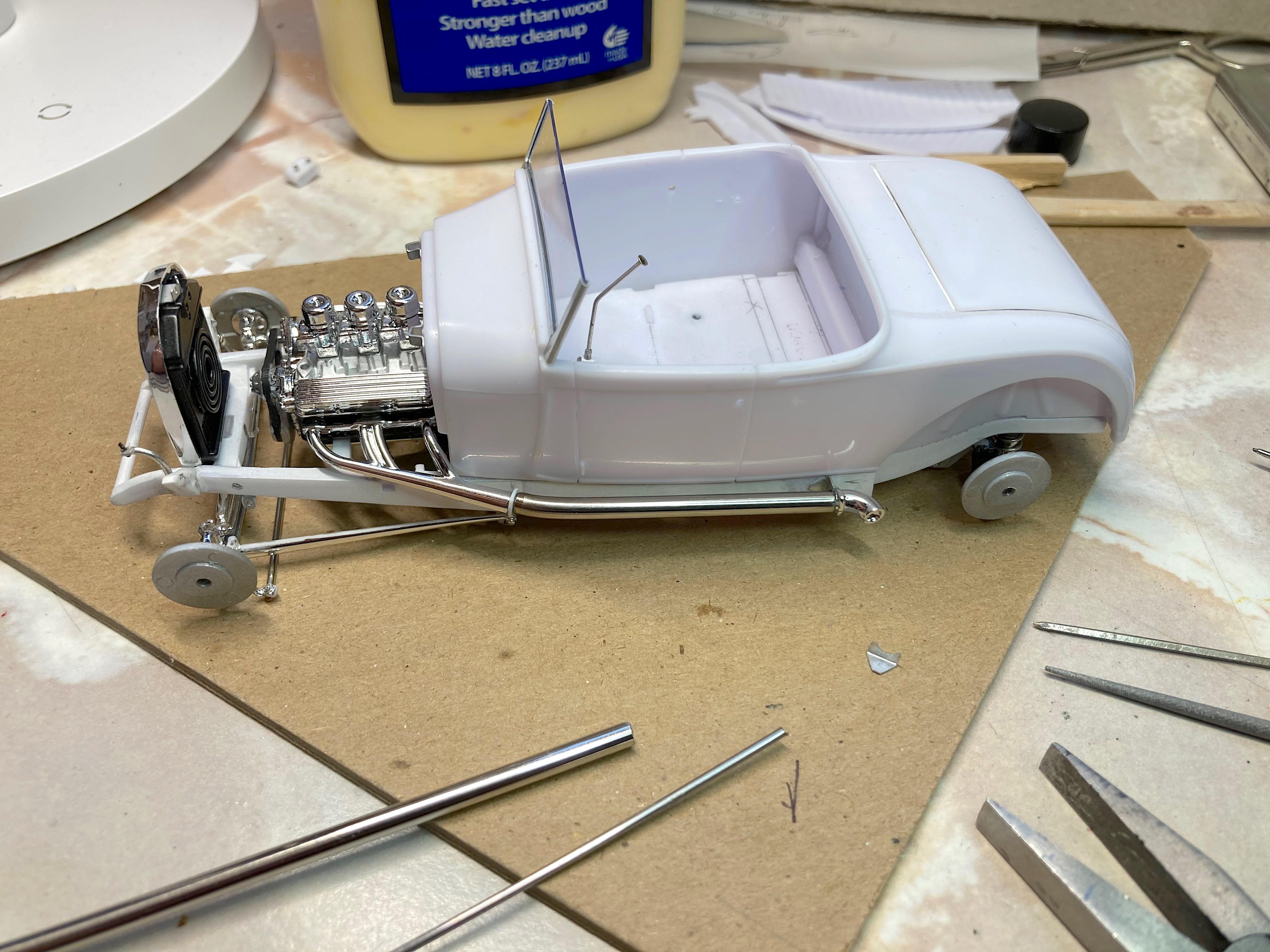

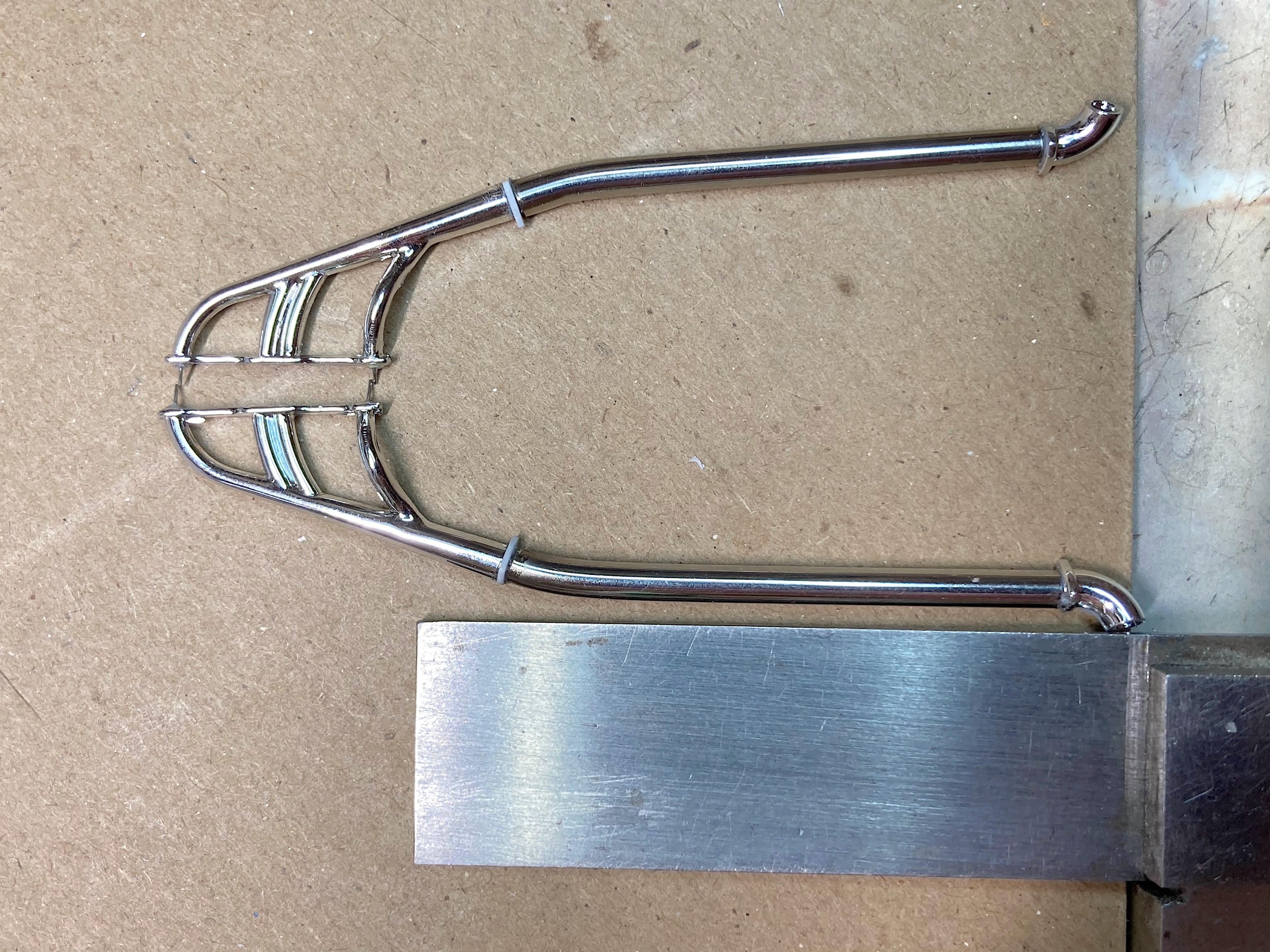

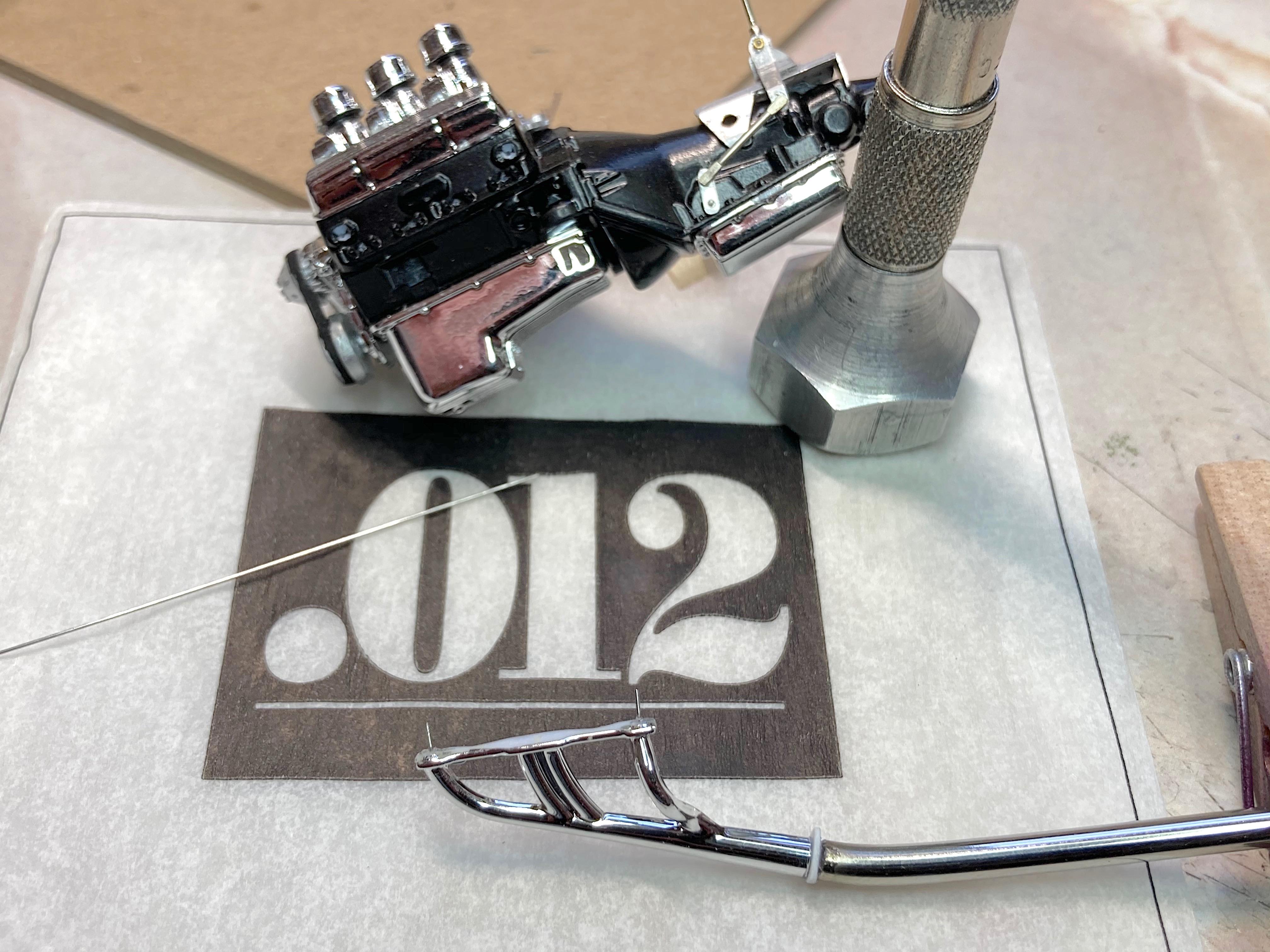

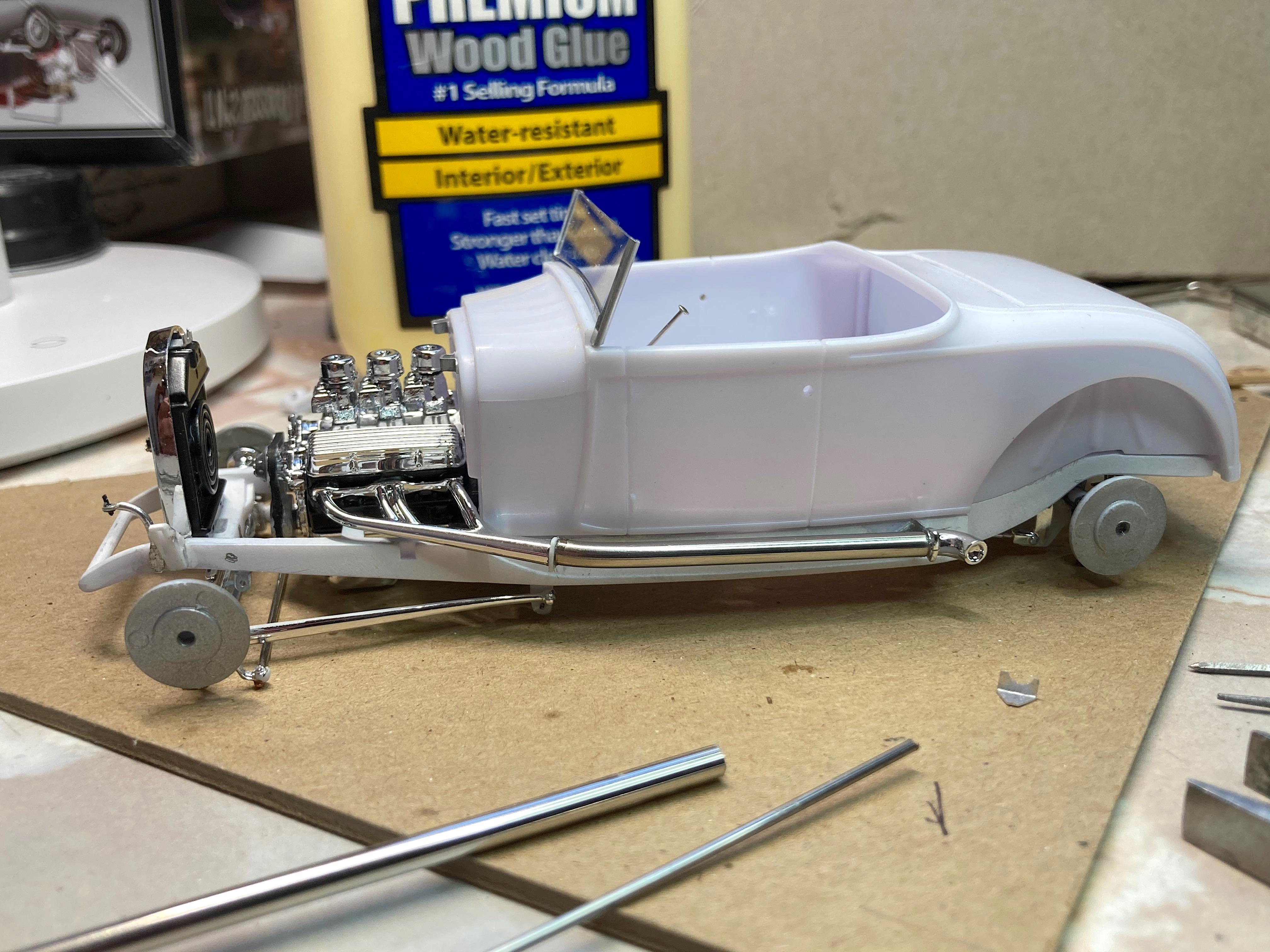

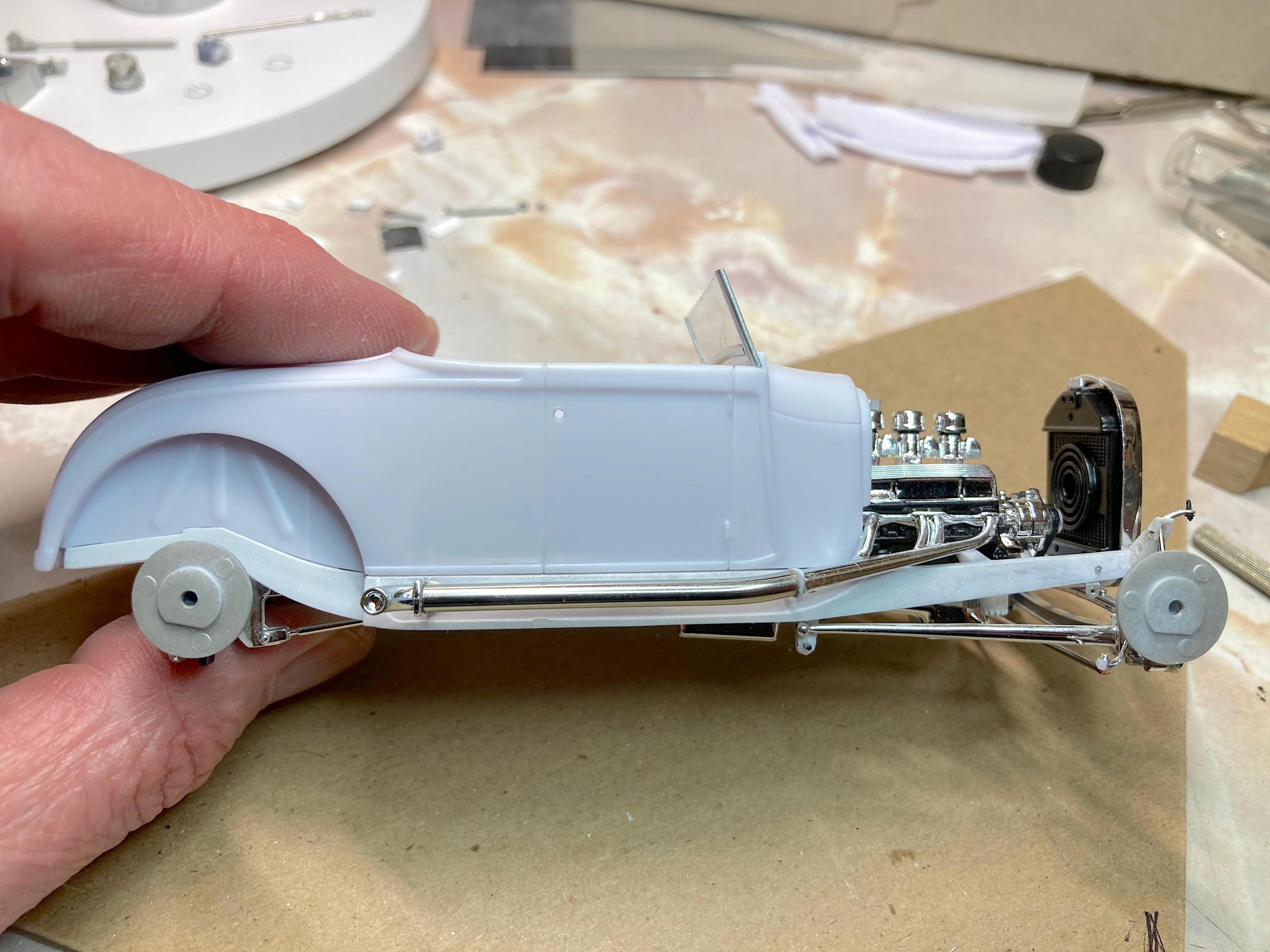

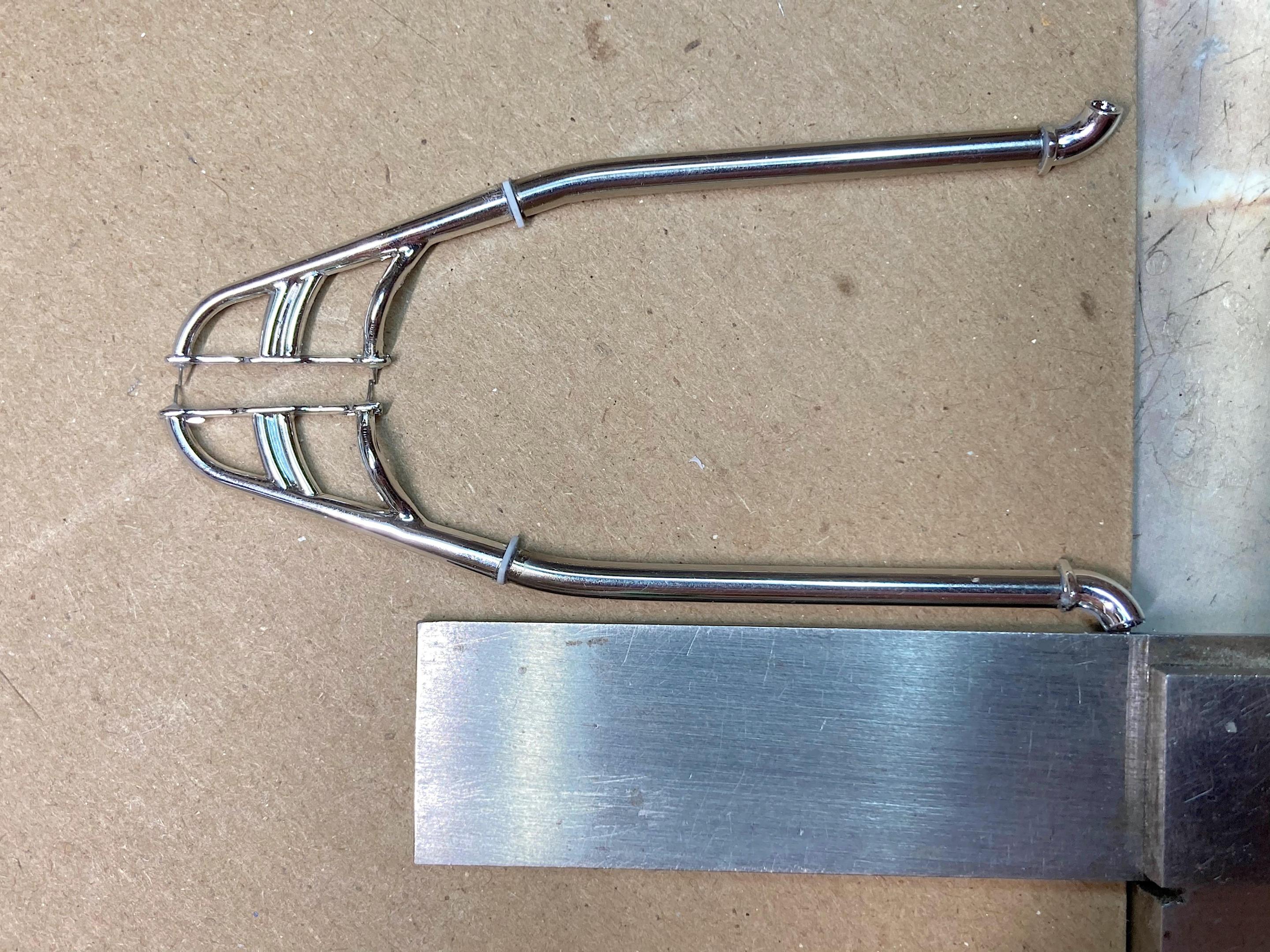

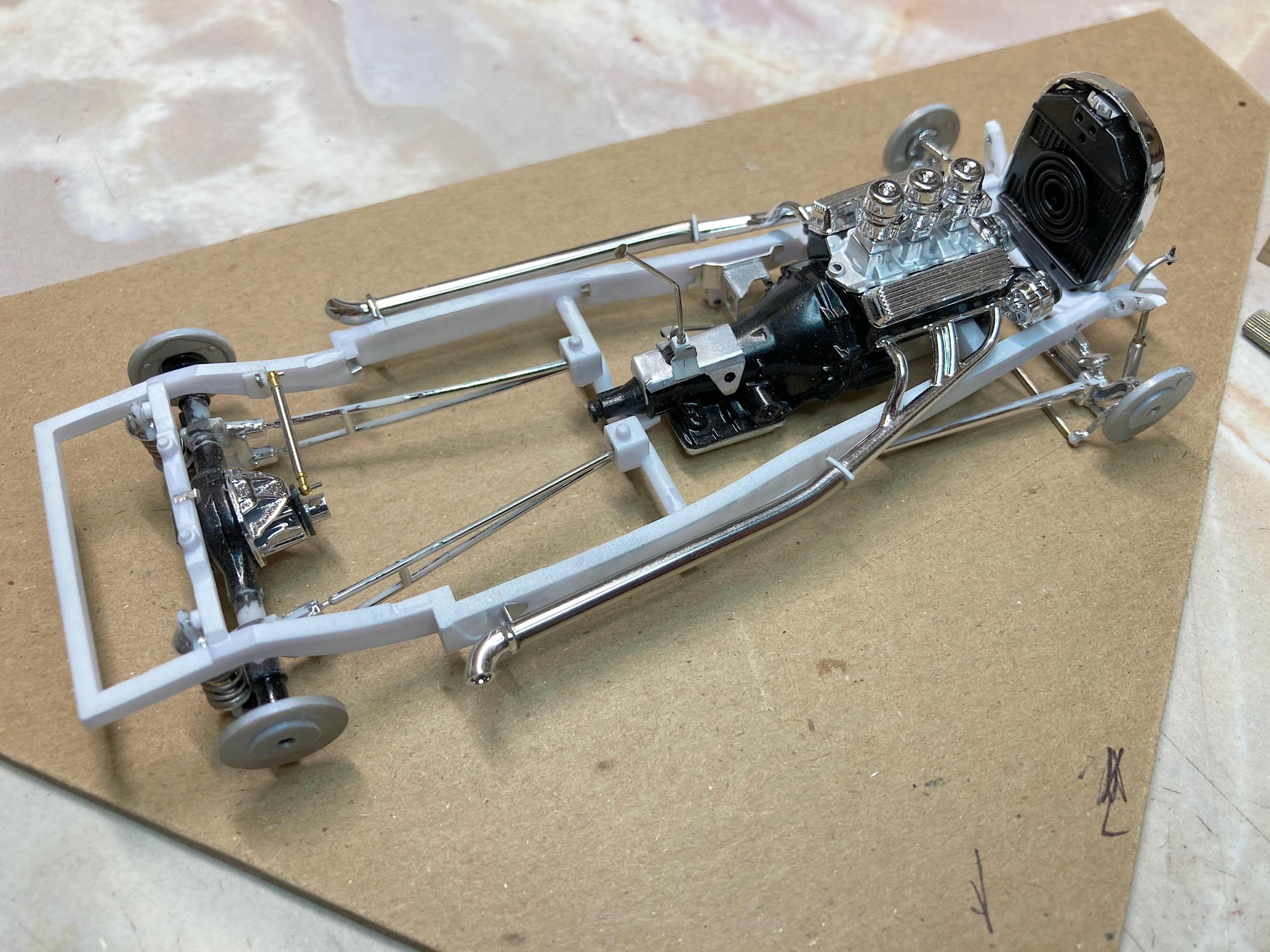

89AKurt Posted February 4, 2023 Author Posted February 4, 2023 16 hours ago, Calb56 said: Impressive metal work and scratchbuilding. Especially with the window frame. Jealous of both your skill and obvious patience. Thank you! ? I am of other guys on this forum, and beyond. Side pipes just look better, in my opinion. Made just one mount for each side, from aluminum plate. As with everything that has pairs, making the first one is easy. Even if I didn't do the side pipes, would have added wires, ensures the manifold won't break off. Drilled the spark plugs holes. Matched the length of pipe for the passenger side. But it looked longer when put in place, and was driving me nuts. Figured out that the valve head on the engine is further back on that side. Thinking I should paint over the chrome with Alclad stainless steel, have to clean up the mold lines, and an ejection pin mark. I like how this side turned out better, looks like the door would miss it. Something the kit is missing, how do you fill the radiator? Sprue from my Subaru project for the neck, turned an aluminum cap, so now I have two billet aluminum parts. ? 1
SpikeSchumacher Posted February 4, 2023 Posted February 4, 2023 Wow Kurt, this is coming along really nicely! 1

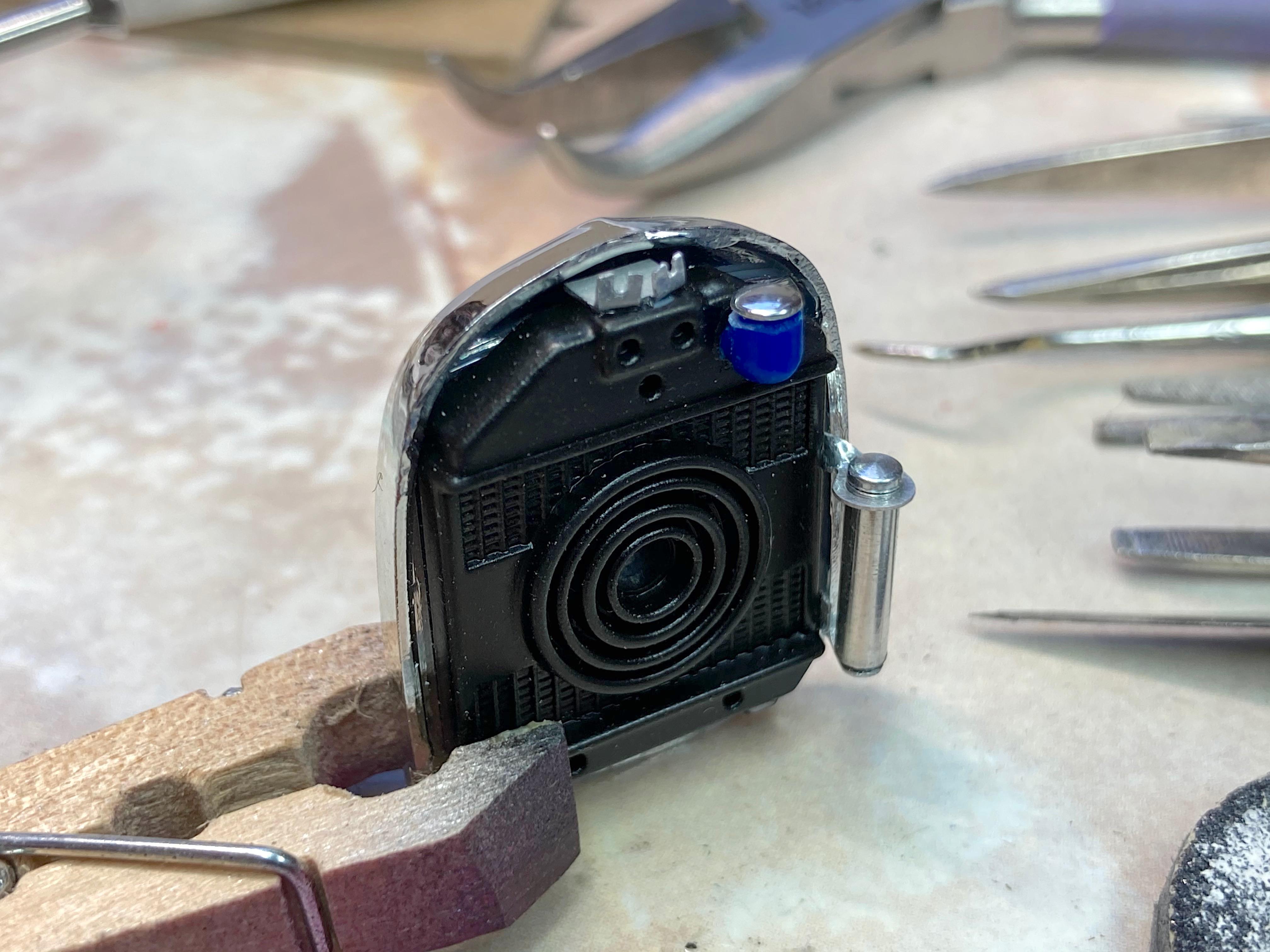

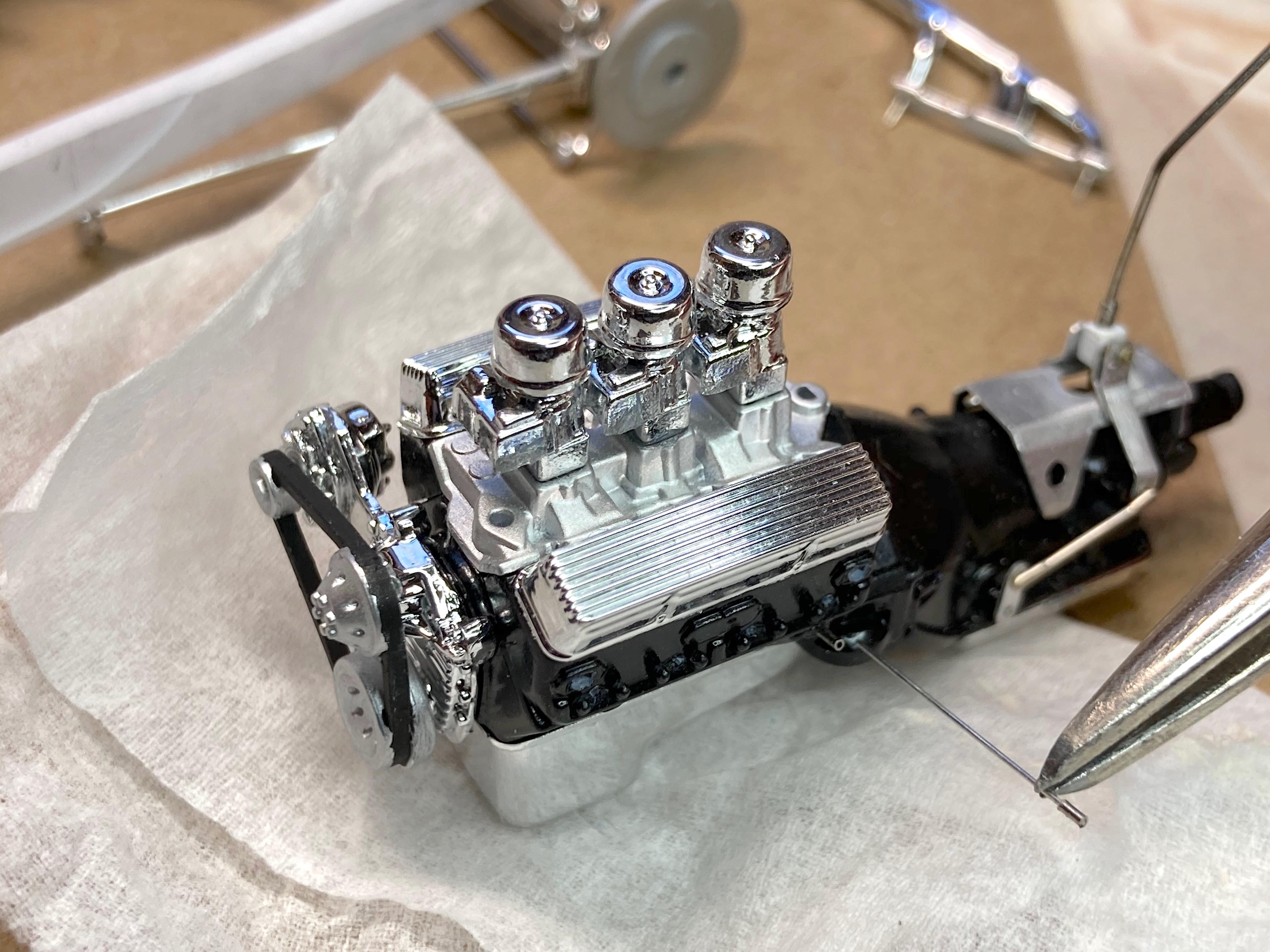

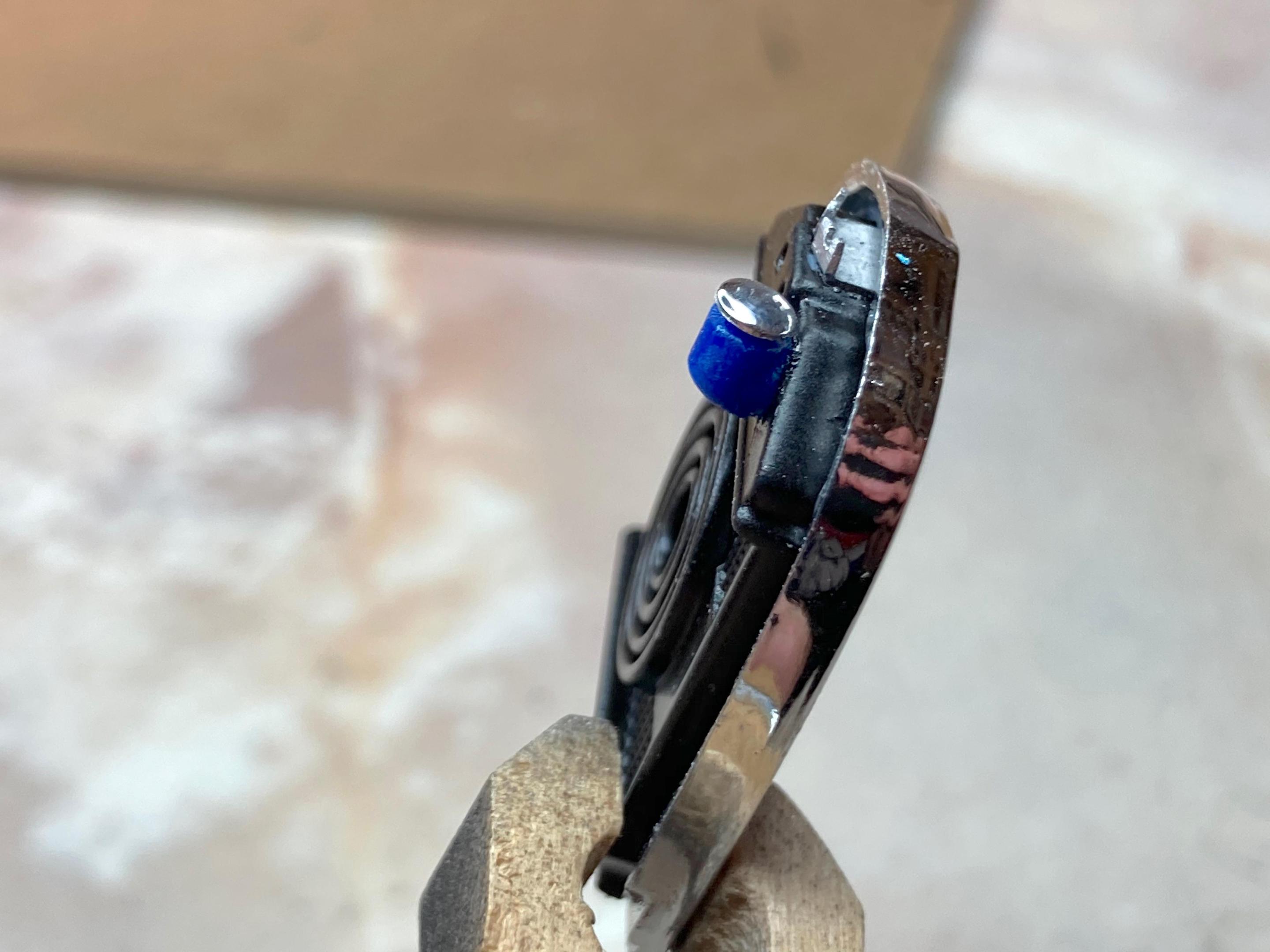

89AKurt Posted February 4, 2023 Author Posted February 4, 2023 1 hour ago, SpikeSchumacher said: Wow Kurt, this is coming along really nicely! Thank you! Glad I have some mojo back. Thought an oil dipstick would be nice. Looked under the hood of my '68 Chevy pickup, at the 307 (I didn't know there was such a size Small Block until I looked up the serial number), to see where it goes. The kit engine has a ledge exactly where it goes. The kit's pedals part is super lame, so I made the gas pedal. Using photo-etch pedals. Will have linkage coming through the firewall, not looking forward to doing the carb linkages. Since I was looking at pictures for the radiator, *had to* make a puke tube. This time it's K&S aluminum rod, a little smaller than the TV rod. Made the mount from aluminum plate, punched a hole first, then shaped the top part. Yes I'm a nut. ? 2

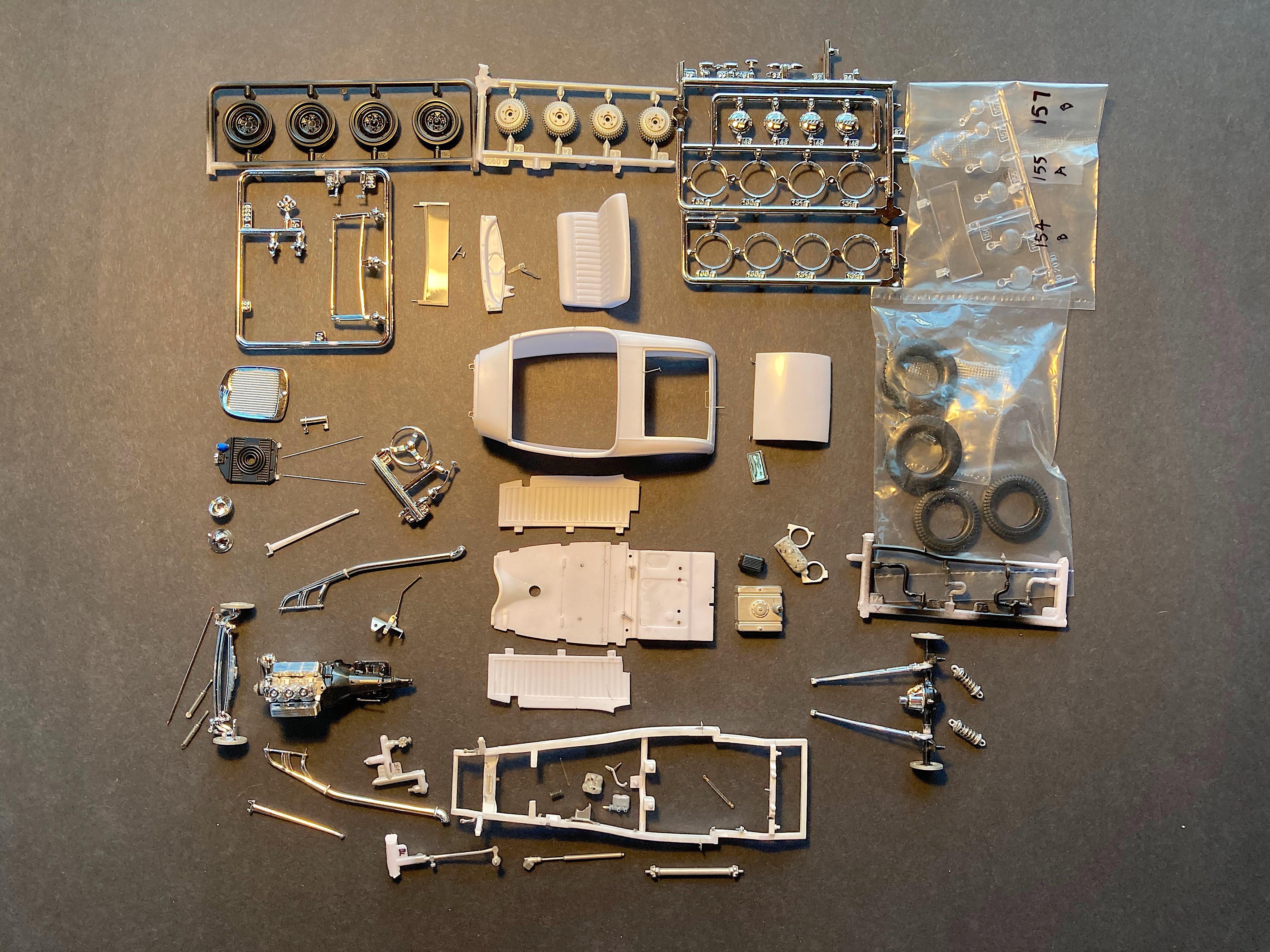

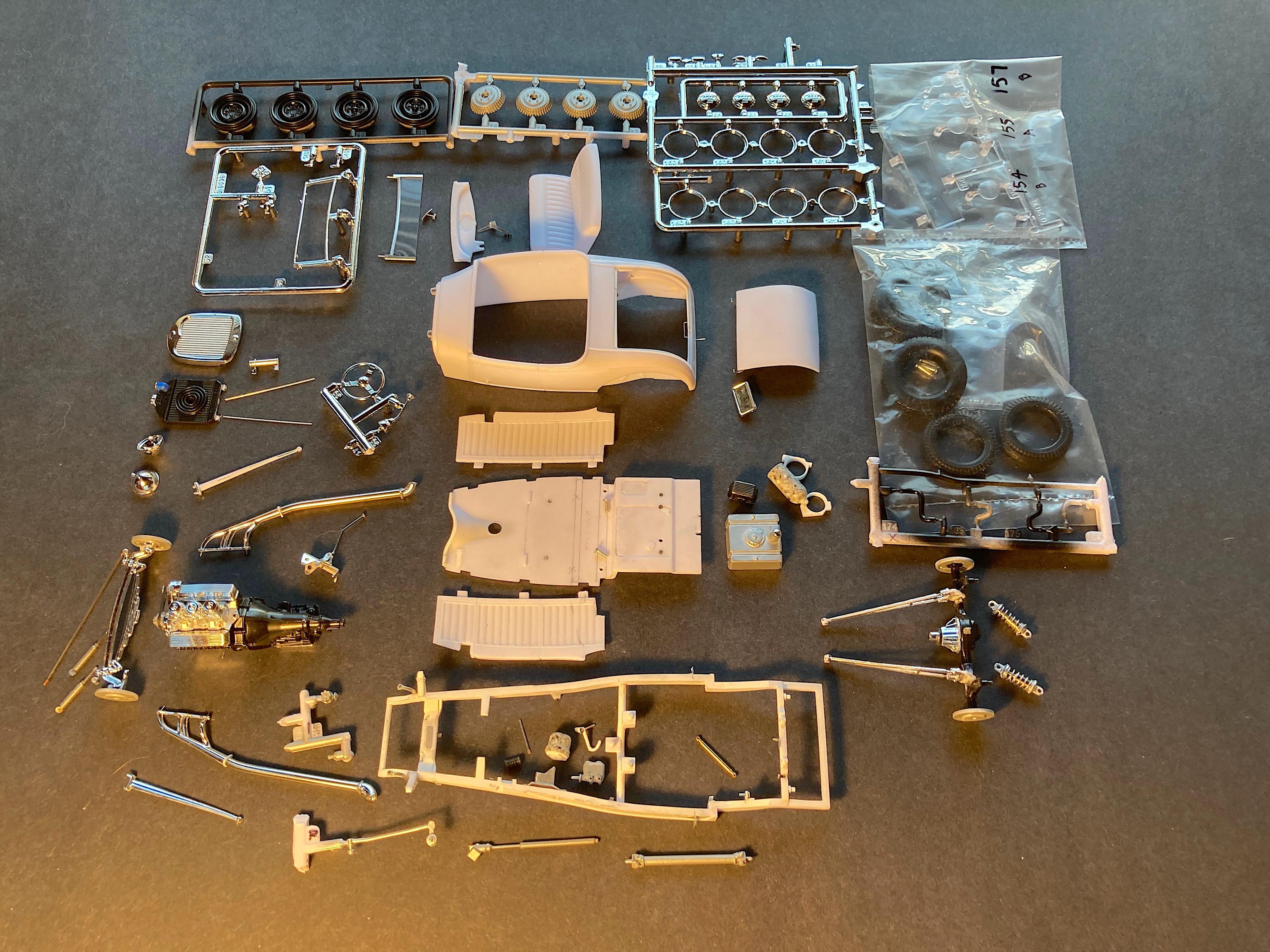

89AKurt Posted February 5, 2023 Author Posted February 5, 2023 To the point of wanting to paint! Have numerous tiny things to fabricate still, such as the nitrous valve, and brake line stuff, but those can be brush painted. I like to lay out all the parts before painting, to show what is stock kit parts, and what is scratch-built. Upper right, some chrome pieces won't be used, obviously the windshield frame isn't. There will become photo-etch goodies used, not shown. Wish I didn't glue the the chrome differential and brake backing plates onto the axle, oh well. Still undecided what color the body and frame will be. 1
