"Simple" Revell 30 Model A Coupe. finished 4/11/2022


Mr. Metallic

Recommended Posts

Where the rubber meets the road-

As most of you know there are three main items that impact the overall presence of a project sitting on the table in our segment of this hobby. Stance, wheels/tire combo and paint color. Since I already handled stance, lets move on to wheels/tires. Some may say that I'm doing this out of order because you need to know your wheels and tires before you can set your stance. That is true to a certain extent, except in this case I knew exactly what tires I was going to use, so I was able to set the stance accordingly. If you happen to follow my project as a template for your own hot rod and don't use the same wheels/tires you may end up having to adjust your stance a little, but that is just another part of building hot rods, both in scale and 1:1.

The tires in the venerable Monogram 41 Lincoln kit make great traditional hot rod rear tires because they are just a bit taller than the standard sized tire offerings we get in most other kits, so this allows you to achieve a "rubber rake" by using standard size tires up front. There are other similarly tall tires out there, especially if you look at the classic car kits by MPC, AMT and Johan.(20's to 30's Cadillacs/Lincolns/Chryslers and Mercedes just to name a few). You may think to yourself, that Lincoln kit hasn't been around in a long time, where will I find one? Well they were reissued quite a few times over the last 50 years, and thankfully these wheels and tires were the same in all releases. And you can almost always find on old glue bomb or builtup at swap meets or eBay to steal the wheels/tires and engine from. Just get creative.

Now, the tricky part about using the wheels from the Lincoln kit is they don't have any hub/lug nut detail. The center is meant to be covered by the beautiful Lincoln scripted hubcap, but that won't work for most hot rods. Therefor, you have to get a little creative. Over the years a few different methods have been shared to do this same process, most notably by the dynamic duo @Rockin' Rodney Rat and @Kit Karson, and another method by @Dennis Lacy  but here's my take on it.

This is what you start with, the Lincoln kit tire, wheel (molded in black) and the wheel from a Revell 40 Ford coupe. For those wondering, the front wheel and tire will be pulled directly from the Revell 40 Standard coupe, unmodified.
1645459224673

Start by grinding away all the material in that stepped down area that the red arrows are pointing toward. Take care to not intrude into that upper portion because that will form your wheel "hoop". Next take your 40 Ford wheel and using a fine tip marker mark (avoid a Sharpie or other permanent ink pen) and draw a line on the inside and outside of that wheel lip as pictured. This wheel lip would normally be the outer edge on a standard size wheel, but since we're going bigger you need a flat surface to attach the Lincoln wheel "hoop" to. Once marked, carefully remove the lip until it is flush with the outer edge. If you do your sanding correctly the line you drew on the outside will disappear, but the inner line will remain. In the pic below you can see the parts after they have been modified. Be sure to remove the little air nozzle (bottom the hoop in the pic) from the Lincoln wheel as the Ford wheel already has one molded in.
IMG 0458

Now you should be ready to make your wheel. Check fitment of the two pieces together one more time to be sure you're happy, and then go ahead and glue them together, being sure to keep the Ford wheel centered in the Lincoln hoop. And now you can see that your work has paid off on the left, and the parts that got you there on the right. Scrub the wheels with soap and water before paint to remove your ink marks on the Ford wheel.
1645459231668

And lets modify the Lincoln wheel backs to work with the Revell Model A Buick brakes. On the left is the unmodified part. In the center is the piece highlighted where you will remove the center up to, and on the right is the finished piece.

1645447023614

Edited by Mr. Metallic
  • Like 2
Link to comment
Share on other sites

7 hours ago, Mr. Metallic said:

I definitely need to research that car more because it appears there's more going on than first meets the eye.

There is definitely a lot more than meets the eye. From the custom sunk in grille, trough the trick radiator shroud hiding the front spring attachment to the very trick suspension, both front and rear.

  • Like 1
Link to comment
Share on other sites

On 2/15/2022 at 3:03 PM, mrm said:

That car has been in numerous publications and finding pictures of it on the net should be really easy. For anyone interested, the unique wheels on it are available from shapeways. I ordered a set as my very first experimental order of 3d parts from them and they are absolutely outstanding. Don’t remember the designer, but he also offers the tires for them.

Michael, good to know on the wheels. I have them in my cart on Shapeways. I was really surprised to see the exact set of wheels for that car on there along with the tires! I also found the Arden V8 intake and SCOT blower as well on Shapeways.  Did you also buy the tire set for the rims?

  • Like 1
Link to comment
Share on other sites

Does any kit have the chrome rear shown in the first picture?  Can you drill out the "A" model front axle?  I can not see some of the picture. This is going to be the best how to...  thanks herbert



  • Like 1
Link to comment
Share on other sites

Armed and dangerous. (sorry, couldn't help myself)

Now that we have the front and rear axles sorted out we need arms to locate them to the frame. Revell gives you two different sets of arms for the front axle, one for the channeled version, and one for the body-on-frame version. Select the set for the body-on-frame version and put the other set aside.

To locate the front axle I'm using the kit supplied arms, slightly modified. The arm pictured at the top has had the head of the pivot bolt sanded off and is ready to have a hole for a pin drilled through it (marked in red). This area can get delicate, so take your time and make sure you keep the drill bit straight. After the hole is drilled all the way though you can carefully sever the mounting bracket from the arm. I use a photoetch saw blade for this because it is thinner than your standard razor saw. After the bracket is removed glue your pin in the hole on the arm. Once you're done with those mods you'll be left with the arm and bracket as pictured on the bottom here. You are now ready to glue the bracket into it's corresponding notch in the frame and the front suspension mods are essentially complete.
Capture

Since the spring now occupies the former mounting points for the suspension arms, we need to drill a couple holes, just outboard of the spring to receive the pins in the arms. Those holes are highlighted here in red.

1645447197514

On to the rear! First off, that's not blood in the pic. We are going to use that second set of arms meant for the channeled version front axle and repurpose them for the rear. Here on the top arm in the picture I have removed one of the tiny tabs that are meant to locate the arm when you use it on the front axle, but because the rear axle is larger that tab gets in the way. In the second pic you can see I also went ahead and removed that plastic pin and replaced it with a metal one, and drilled a corresponding hole for it in the axle. The hole will be just inboard of that step on the outside of the axle where the brake backing plate will eventually rest. Go ahead and cut off the molded in "wishbone" arms from the axle at this time.
Capture

Here are the arms, I went ahead and performed the same pin procedure I did on the front arms, but instead of severing the bracket I removed it completely.
1644841086606

It's now time to mark and drill your pivot points. Place your spring/axle assembly in the crossmember on the frame. Take your arms and touch the pivot pin with a bit of ink, insert the pin on the other end into the axle, and then press the pivot pin against the frame, keeping the arm level with the axle and parallel to the bottom of the frame. The ink mark that is left tells you where to drill your hole to accept the pin. Drill your hole, and then mock up everything together like this.
IMG 0510

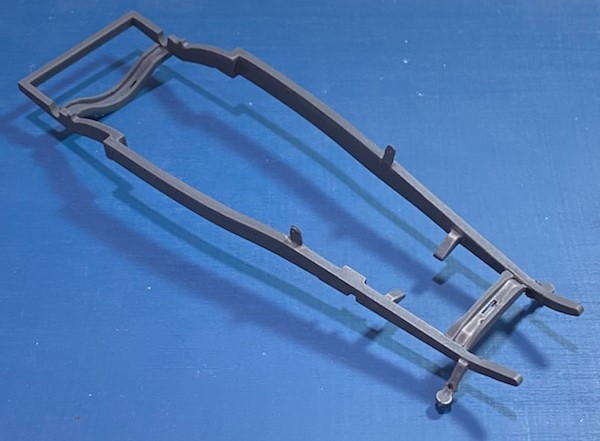

And here is the frame after the front arm brackets have been molded in and the rest of the frame smoothed out. Note the deletion of the notches for the kit supplied rear suspension arms.
IMG 0512

Now your suspensions are done. Normally I perform a mock up to check that I am happy with the stance and that everything fits together properly, but I forgot to snap a pic. I'll come back and add it in here later.

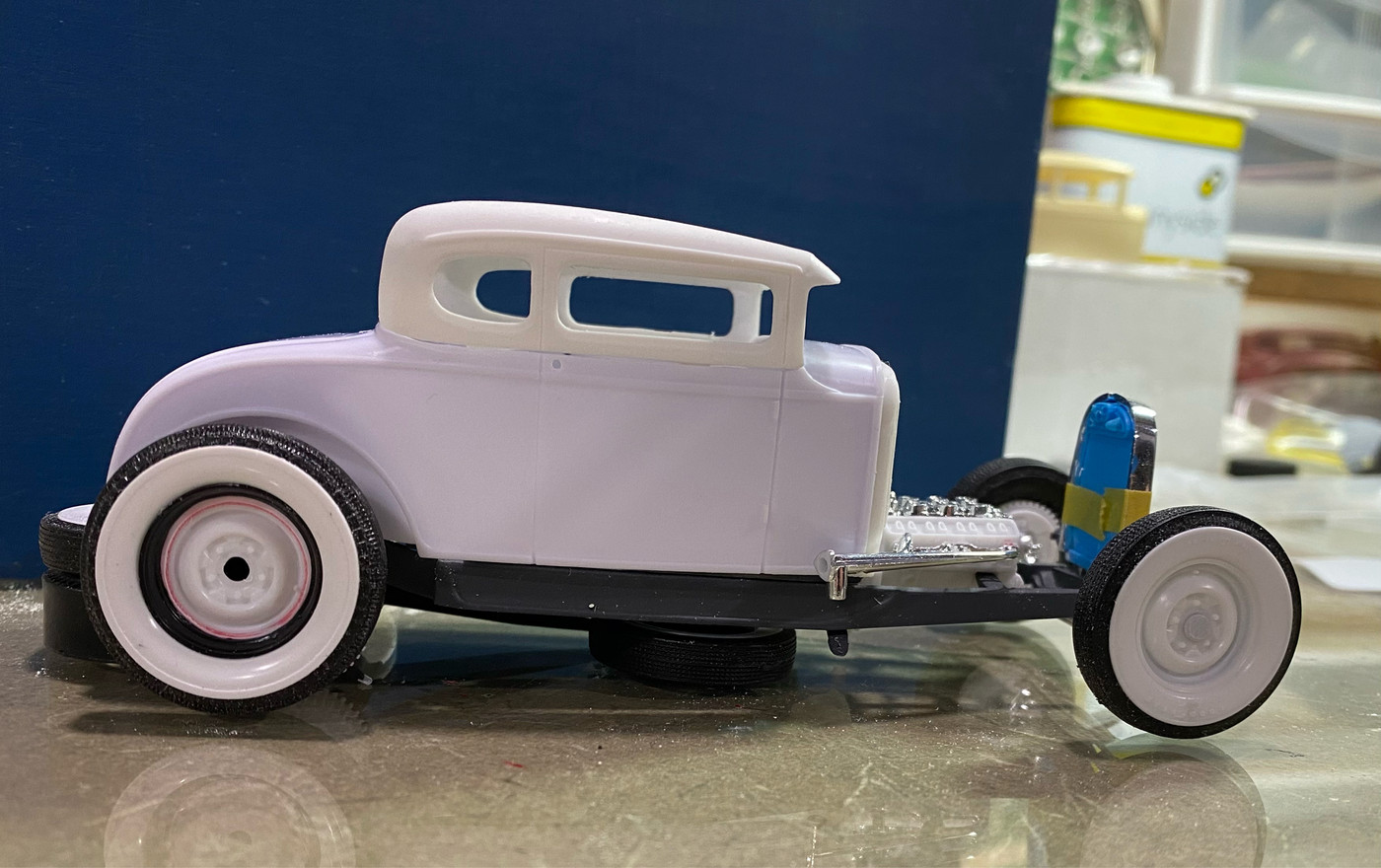

EDIT- MOCKUP TIME (body is shifted back on frame, rushed photo opportunity)

1645447233236

Edited by Mr. Metallic
  • Like 1
Link to comment
Share on other sites

On 2/17/2022 at 3:05 PM, herbertb said:

Does any kit have the chrome rear shown in the first picture?  Can you drill out the "A" model front axle?  I can not see some of the picture. This is going to be the best how to...  thanks herbert



Looks like a chromed early Ford rear end. There are quite a few of those out there, but there is one in full chrome dress in the old Revell 29 Ford pickup, 30 Sedan and 30 Woody station wagon kits.

1644840941068

You should be able to drill out the front axle without a problem. The Revell front axle is kind of thick, so I'm not sure what it will look like if drilled. But I might try it.

Edited by Mr. Metallic
  • Like 1
Link to comment
Share on other sites

On 2/16/2022 at 4:08 PM, Dave72 said:

Michael, good to know on the wheels. I have them in my cart on Shapeways. I was really surprised to see the exact set of wheels for that car on there along with the tires! I also found the Arden V8 intake and SCOT blower as well on Shapeways.  Did you also buy the tire set for the rims?

Can you tell me which Shapeways store you found those wheels in please?

I will say that I've seen a few of the 3d printed SCOT and Ardun parts around and they are nice, but the Replicas and miniatures Co of Md resin parts are still the best IMHO.

FH 90 DD 16

  • Like 2
Link to comment
Share on other sites

On 2/14/2022 at 1:09 PM, Kit Karson said:

HOTRODS R US

Pictures are worth a thousand words!!  So, here's a couple of "K"!!!!

13631622_10154371481953035_5491032934363859968_n.jpg.47feff9b1baeeec91c87d965c6e58dbe.jpg

14063906_10154497162288035_8825937483340978753_n.jpg.6cbc65eea7a9a539ff808de7a1c70464.jpg

'nough said?!. -KK



That car, to me, is the definition of " hot rod". When I hit the lottery big, I 'll have one.



  • Like 2
Link to comment
Share on other sites

8 hours ago, Mr. Metallic said:

Can you tell me which Shapeways store you found those wheels in please?

I will say that I've seen a few of the 3d printed SCOT and Ardun parts around and they are nice, but the Replicas and miniatures Co of Md resin parts are still the best IMHO.

FH 90 DD 16

The rims and tires are from “3D Model Specialists”   Yes, very nice stuff from R&M. The blower from 3D on Shapeways as well comes with the Ardun head intake suited for their Arden head V8 or, I believe, will work with the one in the Revell 50 Ford F1

Edited by Dave72
  • Like 1
Link to comment
Share on other sites

Ok, before I do another step in the build, here's the moment you've all been waiting for, the mock-up...

1645447228714

yes, the body is shifted back slightly on the frame. This was a result of me being in a hurry 🙄 The rear axle is also shifted back 🤬 After working on this for a week I was just excited to see it up on 4 wheels finally

1645447233236

Edited by Mr. Metallic
  • Like 1
Link to comment
Share on other sites

Interior-

Not a ton of modifications happening here because Revell did a solid job with their interior straight out of the kit, just a few subtle things to help the overall appearance. There is always one thing that jumps out to me when I see these Revell Model A's built if it's not addressed. It's the notches in the sides of the interior where the side panels key into the floor. Those notches are highly visible from underneath. I started the process of addressing this earlier in the build buy making the floor pan sit flush on the frame. This helps hide those notches quite a bit, and you can stop there if you like, but I'm going a step further and just eliminating them altogether. First, select the size of plastic strip you will use to fill the gaps. It helps to select a size slightly larger than the notches themselves. Here is what you need, the floor, and 6 filler pieces.
1645456140090

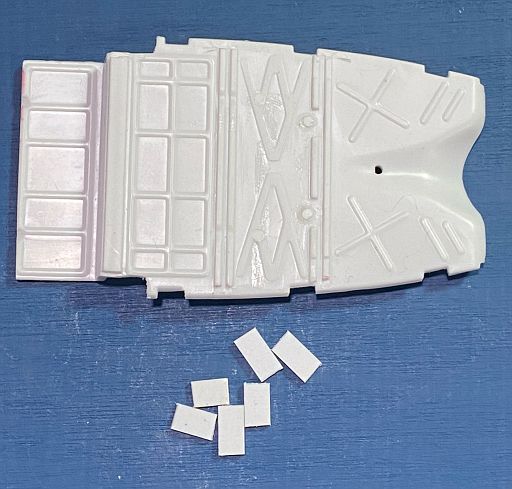

Enlarge the notches lightly to accept the strips. Cut the strips a little long to give you something to hold on to and allow for precise trimming later. Glue your fillers into the notches and let the glue cure. I also took this opportunity to fill the round holes for the crossmember. You may also note that I cut off the tail end of the floor pan to accommodate the new spring crossmember. This will be covered in a later installment.
1645102778069

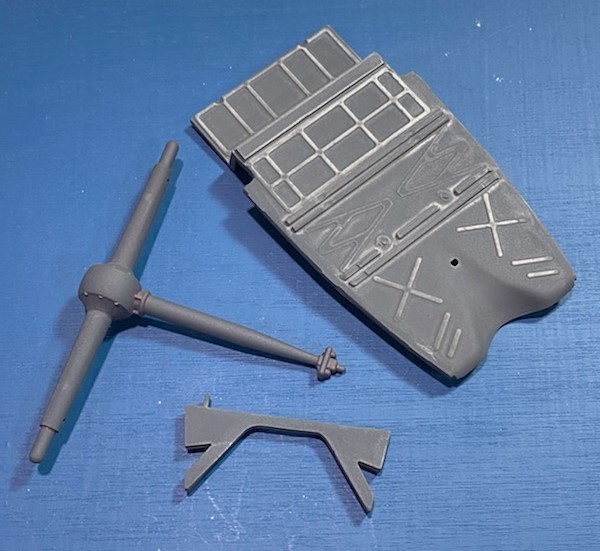

Trim the filler pieces flush with the floor, and then treat the areas with a little filler to blend them in. Then you're ready to prime. The extra holes in the rear axle have also been filled, and the mods to the K-member from a Revell 32 Ford kit have been completed.
IMG 0514

Now we can address the side panels. Revell made the interesting choice to mold the rear inner fenderwells in conjunction with the interior side panels. They are meant to be a part of the body, so lets make things easier on ourselves and just remove them and attach them to the body. Draw a straight line from the upper rear corner of the pleated interior down to just in front of the fenderwell. Sever the fenderwell insert and glue it to the body. We are going to fill this notch that ends up below the rear windows (arrows), so square up that opening to accept the styrene strip of your choice. You will want to pick a strip that will be flush or taller than the rest of the top of the panel so you can sand it flush. Also clip off the the tabs at the bottom marked with red X's.
IMG 0542

Here is why we are filling that notch below the back windows. It was probably made to allow space for the clear piece to fit there, but I'll be replacing these windows with acetate, so I don't need the room and this will look better. If you're going to use the kit glass here, omit this mod.
IMG 0541

The top panel in the pic has been hit with a little filler to the notch, and now has been fully modified and is ready for primer/paint. This is the extent I'll be going with modifications to the interior on this project, but the canvas Revell has provided is great for personalization, including seat swaps and adding detail.

1645447045395

Edited by Mr. Metallic
  • Like 2
Link to comment
Share on other sites

I dig all the ways you're deleting some of the toy-like features and making the model look more like a 1:1, namely the floor tab removal and door panel modifications.

Mockup looks tuff!!

  • Like 2
Link to comment
Share on other sites

5 hours ago, Johnny99 said:

Great build and excellent tuturials!

Is it a resin top you're using?

Thank you.

Yes, the further chopped top is resin from Altered States.

Edited by Mr. Metallic
  • Like 1
Link to comment
Share on other sites

Body, louvers and a grille-

It's time to pay some attention to the body. Revell's kit features a mildly chopped body. If you noticed in the mock ups I've decided to go a bit lower, using the further chopped roof from Altered States. I actually did the master for this chopped top 5-6 years ago when the first version of this kit came out. I also mastered an un-chopped body for it. Sadly, the owner of Altered States has been having health issues and has stopped casting. However, the changes I'm making to this top also apply to the top from the kit.

The roof insert Revell decided to put in the kit is kind of a rare bird, not often seen on 1:1 Model A's, whether stock or hot rodded. The roof insert on the stock 1:1 30 Coupe bodies extends forward of what Revell created, all the way to the visor. Modifying the kit roof just requires a little time and some plastic. Lets give it a shot.
Capture

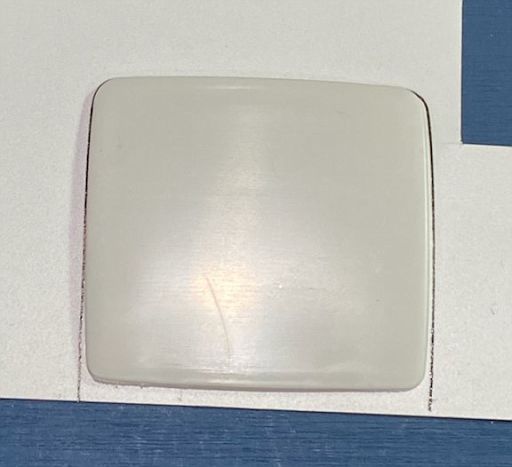

First, take the kit supplied roof insert and lay it on top of a piece of sheet plastic. I used .020 Evergreen sheet. Use the straight factory edge of the plastic sheet to your advantage to create the squared off front edge of the stock roof insert by setting the kit insert back about 3mm from the edge. The distance is not critical, but leave it a little longer to allow you some excess to trim for exact fit. Trace the kit insert onto the sheet, but as you trace down the sides instead of following the curve around the front keep extending that line forward to the edge of the sheet (as seen here)
IMG 0511

Cut out the new top, keeping in mind that the piece you traced will be slightly larger than the original. You can compensate for that by cutting just inside the line, or cutting the line itself and then finessing the size with sanding sticks. Make the piece so it fits the existing hole in the roof, except for the front edge which we still need to cut out of the body. Once you are happy with the fit of your new part lay it on top of the roof to use as a template for modifying the opening in the roof. Trace around the front of your new piece.
1645446969688

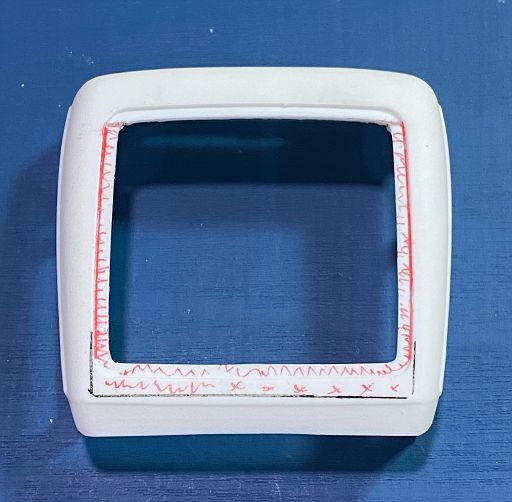

Then remove your roof insert and you'll see what material you need to remove. Remember, cut inside the line and then finesse with sanding sticks. While you're doing that go ahead and remove all the areas marked with red, which includes the lip detail around the inside since we will have to replace it. Leave the rear part of the lip for now to keep your insert from constantly falling through the hole as you do your multiple sand/fit/repeat trial fittings. If you are going to permanently attach your insert you don't need to remove the inner lip.
1645447003917

Once you are happy with the new opening you have created give the new insert one last fit before you remove that rear lip. You can bend and tweak the contour of your insert to match the profile of the roof. Once you are happy with the fit you can add a bead detail around your roof insert with plastic strip, I used .020 x .020, one long piece for the sides/back. When you cut the piece for back/sides make sure you leave it long to allow for trimming at the front edge. Start applying the strip a little at a time along the rear edge and be sure to keep the strip straight and follow the edge of the insert. Work carefully around the corners and down the sides. A trick is to pre-bend the corner areas a bit by pulling the strip between your fingers with light pressure to introduce a curve to the strip. Once all the glue has dried, trim the ends of the strip flush with the front end, and then use a new piece across the front
1645447017784

To give the insert a place to rest take strips of .030 x .100 strip and attach it to the underside of the roof to create a new lip. If you like you can omit the lip at the front edge because there is not a lot of space on the underside if the roof near the visor.

1645618016573

Once that is done set your new insert in the roof and admire the results.
1645447216261

Here's an technique I've been wanting to try for awhile, now seems like the perfect time. Archer makes some pretty cool detailing items for the model railroad part of the hobby, and this item in particular can be adapted to 1/25 scale. It is rows of resin louvers, applied to a very this clear decal, which makes applying them quite simple. I cut out 5 rows of louvers, soaked the paper for 10 second, let the glue loosen from the paper backer, and then carefully guided the decal onto the trunk.
1645447027207

The clear decal is VERY thin so that the edge disappears under a coat of paint, but it also makes it prone to tearing, so use a light touch. The directions suggest using decal setting solution, but I would recommend that only as a last resort. Placing the decal and then hitting it with a little heat from a hair dryer (set on low) will really snuggle up that decal to the body. If you have any wrinkles you need to smooth out very carefully apply a small amount of setting solution with a small brush. But honestly most applications shouldn't require the setting solution. I used setting solution per the instructions and I really feel it made the decal tear more easily, and gave me some tense moments where three of the louvers separated from the rest. It took a few minutes with a toothpick gently maneuvering them back into place.
1645447033772

And finally, the grille. The grille that Revell supplied looks good and can be used with just a little detail painting. However, it comes with molded in electric fan detail, which just won't stand for a traditional hot rod. I'll use this as an opportunity to upgrade. I'm using the piece from the Monogram Blue Bandito, the tooling for which has seen multiple revisions since it started as the Blue Beetle in the early 60's. You can use the rad/shell from any Model A kit you choose. To securely attach it to the frame I used my standard pin and hole method, drilling two small holes into the bottom of the radiator, and then inserting pins.
1645447206307

To get the top of the radiator at the right level in comparison to the top of the cowl so it has a nice profile from the side I had to add a .080 x .080 plastic strip to the top of the front crossmember. Glue it in place, and I made the choice to add a little filler to make it all look like one piece. Drill matching holes in the top of the new strip to allow the radiator to pin on top of it.
1645447202176

Edited by Mr. Metallic
  • Like 1
Link to comment
Share on other sites

Get your motor running...

Lets turn our attention to the engine. As much as it may pain some (especially Mr. Tim Boyd) I'm keeping the Chevy small block (SBC) in this one, for the sake of simplicity. Remember, that's how this whole project started, right? However, I'm going to do my best to backdate the SBC with traditional speed equipment. Let's get started.

The headers that come in the kit are really nicely molded, with an open end which is quite a feat executed by Revell using the sliding mold technology. I just don't care for the shape of the bent tube exit. This is just my personal preference, so feel free to skip this step. First I trimmed the end off, sanded the flange flat, and then drilled a pilot hole in the center of the flange with a #70 drill bit. Then I progressed up though several sizes of drill bits, until the diameter of the hole is just slightly smaller than the diameter of the exhaust tube on the other side of the flange, taking care not to dill though the other side.

Next we're going to pin the exhaust headers to the block to ease installation during final assembly. By now you know the drill, pun intended. Drill a hole through the flange that butts against the engine block into one of the exhaust pipes, Which ones you choose is up to you, but if you make your choices different on the left and right headers it will help you from accidently installing the wrong header on the wrong side of the engine. Drill gently and straight because those tubes are small. You don't have to go very deep, maybe 1mm, just enough to anchor the pin. Glue your pin in place, let glue dry, and then use the pin and ink method to mark your new hole location on the block.
IMG 0516

This method leaves no doubt that your header is in the right place and has a solid mount.
IMG 0517

Rather than the nicely done supercharged or 3 carb setups that come in the Revell kit I'm going to use the classic 6 carb intake that comes in the long running Revell Tweedy Pie kit (or any of it's variants issued over the last 50+ years). If you choose this setup you can use the carbs that Revell includes which are fine, but I had already stolen those carbs for a different project from my parts kit, so I chose to gather up 6 carbs from the Nailhead equipped versions of the modern Revell Model a kits. Trim the molded in mounting pins off the carbs and replace with metal pins. You can also take a moment and drill a hole in the side of the carb for eventual installation of a fuel line. Be sure to clean up the mold lines on the carbs too. At the top of the pic you can see the scoops I've chosen to use as well. these are 3D printed Cal Custom scoops from Maple Leaf Modelworks shop on Shapeways, which I also drilled a hole in the bottom to set atop the carbs during final assembly. This little scoops are beautiful, and feature an open mouth for added detail. @Spex84Once painted inside and chromed outside they're really going to pop.
1645627404682

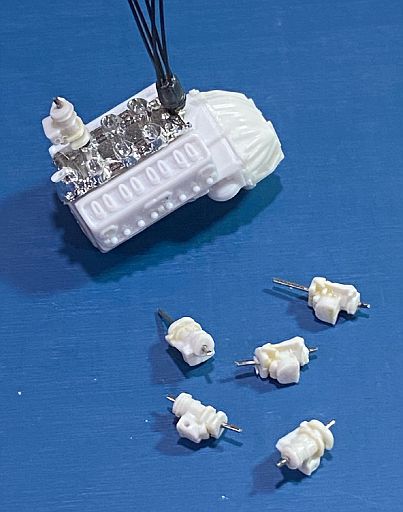

The Tweedy Pie intake drops right on the SBC block. I took the time to nip off the tall mounting point for the coolant hose at the front of the intake and drill it to accept a pin. I'll be using the beautifully done pre-wired distributor from Morgan Automotive Details on this build. Enlarge the hole for the kit supplied distributor to accept the MAD dizzy, and then place the intake on the block. Once you get the intake where you want it continue drilling that hole into the top of the block, that way you use the base of the distributor as the locating pin for the intake to the block. You can also drill holes into the center of all 6 of the inlet ports for the carbs on the top of the intake. Again, align the intake on the block and continue drilling those holes through the intake ports into the top of the block. Now it's ready to accept all 6 of your carbs.
1645618038645

Finally it's time for a mockup. The only other mods I'll be making are using the stock style oil pan from the Tweedy Pie to replace the billet style kit supplied oil pan, and swapping the kit alternator for the short generator from the Tweedy Pie as well. It needs to be a short generator in order to use the kit supplied fan belt and water pump with molded in bracket for the generator, or else it will hit the front of the cylinder head. I also chopped off the automatic transmission to replace it with a manual transmission designed specifically for this block from Replicas and Miniatures of Md. A real hot rod has to have four pedals, right?

Now, lets take a look at where we've landed with our alterations.
1645618046045

Edited by Mr. Metallic
  • Like 1
Link to comment
Share on other sites

On 2/18/2022 at 7:01 AM, Mr. Metallic said:

Can you tell me which Shapeways store you found those wheels in please?

I will say that I've seen a few of the 3d printed SCOT and Ardun parts around and they are nice, but the Replicas and miniatures Co of Md resin parts are still the best IMHO.

FH 90 DD 16

Agreed


  • Like 1
Link to comment
Share on other sites

On 2/16/2022 at 1:36 PM, Mr. Metallic said:

Where the rubber meets the road-

As most of you know there are three main items that impact the overall presence of a project sitting on the table in our segment of this hobby. Stance, wheels/tire combo and paint color. Since I already handled stance, lets move on to wheels/tires. Some may say that I'm doing this out of order because you need to know your wheels and tires before you can set your stance. That is true to a certain extent, except in this case I knew exactly what tires I was going to use, so I was able to set the stance accordingly. If you happen to follow my project as a template for your own hot rod and don't use the same wheels/tires you may end up having to adjust your stance a little, but that is just another part of building hot rods, both in scale and 1:1.

The tires in the venerable Monogram 41 Lincoln kit make great traditional hot rod rear tires because they are just a bit taller than the standard sized tire offerings we get in most other kits, so this allows you to achieve a "rubber rake" by using standard size tires up front. There are other similarly tall tires out there, especially if you look at the classic car kits by MPC, AMT and Johan.(20's to 30's Cadillacs/Lincolns/Chryslers and Mercedes just to name a few). You may think to yourself, that Lincoln kit hasn't been around in a long time, where will I find one? Well they were reissued quite a few times over the last 50 years, and thankfully these wheels and tires were the same in all releases. And you can almost always find on old glue bomb or builtup at swap meets or eBay to steal the wheels/tires and engine from. Just get creative.

Now, the tricky part about using the wheels from the Lincoln kit is they don't have any hub/lug nut detail. The center is meant to be covered by the beautiful Lincoln scripted hubcap, but that won't work for most hot rods. Therefor, you have to get a little creative. Over the years a few different methods have been shared to do this same process, most notably by the dynamic duo @Rockin' Rodney Rat and @Kit Karson, and another method by @Dennis Lacy  but here's my take on it.

This is what you start with, the Lincoln kit tire, wheel (molded in black) and the wheel from a Revell 40 Ford coupe. For those wondering, the front wheel and tire will be pulled directly from the Revell 40 Standard coupe, unmodified.
1645459224673

Start by grinding away all the material in that stepped down area that the red arrows are pointing toward. Take care to not intrude into that upper portion because that will form your wheel "hoop". Next take your 40 Ford wheel and using a fine tip marker mark (avoid a Sharpie or other permanent ink pen) and draw a line on the inside and outside of that wheel lip as pictured. This wheel lip would normally be the outer edge on a standard size wheel, but since we're going bigger you need a flat surface to attach the Lincoln wheel "hoop" to. Once marked, carefully remove the lip until it is flush with the outer edge. If you do your sanding correctly the line you drew on the outside will disappear, but the inner line will remain. In the pic below you can see the parts after they have been modified. Be sure to remove the little air nozzle (bottom the hoop in the pic) from the Lincoln wheel as the Ford wheel already has one molded in.
IMG 0458

Now you should be ready to make your wheel. Check fitment of the two pieces together one more time to be sure you're happy, and then go ahead and glue them together, being sure to keep the Ford wheel centered in the Lincoln hoop. And now you can see that your work has paid off on the left, and the parts that got you there on the right. Scrub the wheels with soap and water before paint to remove your ink marks on the Ford wheel.
1645459231668

And lets modify the Lincoln wheel backs to work with the Revell Model A Buick brakes. On the left is the unmodified part. In the center is the piece highlighted where you will remove the center up to, and on the right is the finished piece.

1645447023614

I’ve just successfully used this method to create 4 wheels and can highly recommend it to others. Thanks for the tutorial.D532DC3A-365F-42D0-BF5A-920E2B314D70.thumb.jpeg.e8e7784dd8afd9e89b306a264f35f41e.jpeg



  • Like 3
Link to comment
Share on other sites

14 hours ago, crossfire 2004 said:

I’ve just successfully used this method to create 4 wheels and can highly recommend it to others. Thanks for the tutorial.



YESSSS!!!! This is exactly why I've tried to be as descriptive as possible in this WIP. I've been helped along the way by so many builders over the years that I wanted to try to do help someone else. Seeing someone actually use what I described is very rewarding. glad it worked out for you, they look great!

BTW, didn't know they ever offered the 41 Lincoln in blue. i may have to seek out that version if I ever decide to build a box stock Lincoln. They are a beautiful car

Edited by Mr. Metallic
  • Like 2
Link to comment
Share on other sites

Tying up loose ends

Just a few items remaining to be addressed before we're ready to move on to paint. First, a change to the rear suspension. This change is completely optional and comes down to personal preference. The first pair of suspension arms I made for the rear would work, but I wasn't sold on how they looked. Mounting so far out on the end of the axle, and attaching to the outside of the frame is fine, but not the most aesthetically pleasing. Especially since their mounting point interrupts one of the signature design elements of the 32 Ford frame, the graceful sweep stamped in the side. In the effort to keep the build in the realm of "simple" I decided to modify another item included in the kit to make it more traditional in appearance, the rear suspension arms for the later era engineered coil-sprung suspension.

In the top of the pic is the kit supplied part. Depending on which rear axle you chose you may need to enlarge the U shaped area on the bracket as I did here to fit my axle choice. Then go ahead and remove the upper bar and modify the bracket further to reduce it's size until you are happy with the shape. Finally, insert a pin through the former location of the forward mounting bolt and ink mark the point on the frame where you will drill the receiver hole.
1645447064698

Now you can see the new arms in their final location. A little more cleanup needs to happen to the arms, but you can see the cleaner and more prototypical arm setup.
1645447191533

Now lets make a couple simple shocks to finish up the rear. If you can find something in your parts box or kit stash that fits, by all means use those. But this design of shock allows you to customize the fit for whatever ride height you have ended up with because the length of the piston can be adjusted. The size of the parts is up to you, just as long as the finished items match each other. I cut a couple pieces of tubing for the shock casing, and then a couple lengths of styrene rod that would fit inside the case piece. Take a short length of the same tubing and drill a hole in the side very near the end, the same size as the rod you're using for the piston. Glue a short length of the rod into the hole, and then cut the tubing off. Proceed to then cut 2 more approximately 1mm pieces of tubing and then attach them to the top of the casing pieces.
1646058569717

After all your cutting and gluing is done insert your new piston into the end of the case and you have your adjustable shock. Pin the shock to the axle at your desired spot. Just a tip, you can make the shocks out of aluminum or brass instead of plastic if you choose.
1646058578875

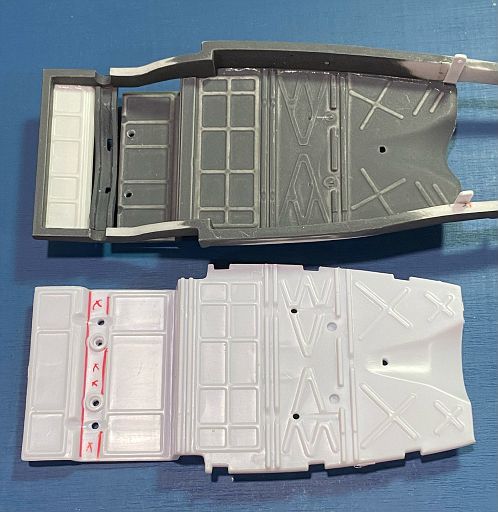

Lets move on to the floor pan and frame. Now that's you're done with all the frame mods we can permanently attach the floor pan to the frame. In the pic you can see the finished frame on top. This is achieved by removing the section marked in red on the white floor pan. The one in the pic doesn't have any of the mods we completed earlier in the build. Glue the two parts of the floor pan to the frame.
1646058563352

With that done, lets take care of the final component of the build, the exhaust. In theory you could just run with the side pipes, but that hot rod is just asking to get pulled over and give a citation for excessive noise. You can use the main exhaust pipe/muffler, but we need to move it more towards the center to avoid the suspension arm and snake through the tight space between the axle/spring (it's not as tight as it looks)
1646061175658

Remove the plastic mounting pins on the exhaust and replace with metal pins (before and after in the bottom of the pic). Because we moved the exhaust inboard of the kit intended location we are going to have to fabricate our own pipe to join the header to the muffler. Using the kit supplied pipe as a pattern bend a new piece out of solid core plumbers solder, making the upper part longer to meet the muffler. A roll of solder can be purchased for about 10 dollars and will provide several cars worth of full exhausts. Use a pair of plyers to bend the solder to the desired shape and then trim the ends to fit. You may find it helpful to file the end that meets the header to a point so it slides into the hole in the bottom of the header piece (far right in pic)
1646058553766

And here you can see the complete exhaust layout. I am planning to use the kit supplied metal tips for the end.
1646058558955


And now, fabrication is complete and you can move on to prepping everything for paint.

  • Like 1
Link to comment
Share on other sites

  • Mr. Metallic changed the title to "Simple" Revell 30 Model A Coupe. update 2/28/2022

Not one of my favorite threads... this IS my FAVORITE THREAD!  To be watching over your shoulder and seeing the krispness and attention to detail down to the most minute/nth degree!  Even to the eventual unseen parts that none of us will ever see again after it's up on it's rubber side!  I know how much fun it is being a teacher... but being a student here, under the tutelage of Professor Stansfield, feels more like a privilege!  -KK

  • Like 3
Link to comment
Share on other sites

14 minutes ago, Kit Karson said:

Not one of my favorite threads... this IS my FAVORITE THREAD!  To be watching over your shoulder and seeing the krispness and attention to detail down to the most minute/nth degree!  Even to the eventual unseen parts that none of us will ever see again after it's up on it's rubber side!  I know how much fun it is being a teacher... but being a student here, under the tutelage of Professor Stansfield, feels more like a privilege!  -KK

Very high praise from someone who has been my teacher many times in the past. Thank you very much sir!

  • Like 1
Link to comment
Share on other sites

  • Mr. Metallic changed the title to "Simple" Revell 30 Model A Coupe. finished 4/11/2022
